I Introduction

According to the world urbanization prospects released by the United Nations, by 2030, more than 60% of the world’s population will live in urban areas and this percentage will jump to 70% by 2050 [2]. Given this growth, mobility demands will push the ground transportation system to its limits, leading to a long commute for the public and significant economic costs for the society. In order to meet future mobility needs, the novel concept of Urban air mobility (UAM) was proposed [3]. UAM will introduce vertical takeoff and landing (VTOL) aircraft to integrate the third dimension, i.e., airspace above cities, into the urban transportation system. Recent technology advances on distributed electric propulsion, electrical energy storage, lightweight airframe structures, and electric VTOL are rapidly making UAM a reality [3].

I-a UAM System Overview

As shown in Fig. 1, a UAM system is composed of VTOL aircraft, aerodromes, corridors, and ground base stations (GBSs). In particular, aerodromes are designed to support the arrival and departure operation of the aircraft. Moreover, the corridors linking different aerodromes constitute the airspace designated for UAM operations. Different from complex routing strategies currently used for helicopter applications, the idea of corridors can dramatically reduce the complexity of operations [3]. Also, due to common mobility patterns shared by the public, corridors are usually concentrated around centralized points (CPs), such as residential, shopping, and business areas. In addition, GBSs in UAM will function as service providers that constantly communicate with the aircraft and deliver necessary information (e.g., weather and terrain), approve the flight plan submitted by the aircraft, and monitor the aircraft movements.

Each UAM operation has two major phases: planning and en-route

. In the planning phase, once an aircraft receives a travel request between two aerodromes from an individual customer, it will determine the flight plan (e.g., the route selection of corridors, estimated travel time, and the aerodromes) which is subsequently submitted to a GBS via an air-to-ground link. Then, the GBS will evaluate the submitted plan against pre-determined constraints, such as the availability of corridors and aerodromes as well as possible conflicts with on-going operation of other aircraft. If the flight plan meets these pre-determined constraints, then the GBS will approve the flight plan and share it with other GBSs via backhaul links. The aircraft will later operate in an en-route phase to pick up customers, navigate along the selected corridors, and arrive at the destination aerodrome within an anticipated travel time. Note that, during the en-route phase, the aircraft must constantly communicate with the GBSs to convey any off-nominal events (e.g., deviation from the selected corridors) due to high winds and navigation degradation, as well as to accordingly update its flight plan.

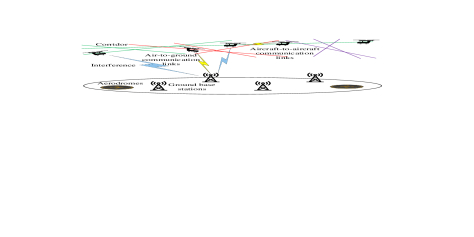

Fig. 1: Illustration of the UAM system which is composed of VTOL aircraft, aerodromes, corridors, and GBSs. To secure a safe operation, the UAM aircraft will constantly communicate with the GBS to submit the flight plan and convey off-nominal events.

I-B Motivation and Related Works

Since UAM operation is still at its infancy, most of the related research focus on market studies [4], public acceptance [5], and operational constraints [6]. There are few works studying the technical aspects of UAM operation. For example, a learning-based collision avoidance is proposed in [7] to allow multiple aircraft operating independently and keeping a safe distance among each other. In [8], the arrival process of aircraft is optimized to minimize the energy consumption while meeting the expected travel time. Moreover, the air traffic management is studied in [9] and [10] to navigate the UAM aircraft through obstacles in a congested urban area. In addition, the authors in [11] propose a battery model to quantify the effect of battery aging on the performance of electric flight in UAM. It is clear that, despite of the important role of communication networks in UAM operation, there is a lack of a rigorous, holistic analysis of the wireless connectivity of aircraft-to-GBS communication network in UAM.

Beyond analyzing the connectivity needs of aircraft, another challenge in the UAM operation will be dealing with turbulence, i.e., air flow velocity changes around the aircraft [12]. Different from commercial jet aircraft, UAM aircraft are more likely to be affected by turbulence due to the following two facts. First, UAM aircraft can only operate at the troposphere [3] where the aerodynamics are constantly changing because of varying terrains, altitudes, and temperatures, in contrast to the commercial jets which usually cruise in the stable stratosphere. Second, compared to commercial jets, the lighter weight and smaller size of UAM aircraft will increase their susceptibility to turbulence, imposing a huge safety risk for passengers. However, if the air flow velocity can be predicted over time, UAM aircraft can take proper actions (i.e., yaw, pitch, and roll) to adjust their rotations and movements so as to minimize the impact of turbulence on the overall operation, avoiding the deviation from corridors and securing the safety. Hence, an accurate turbulence prediction will be a key enabler for the UAM operation.

To perform turbulence prediction, there is an increased interest in studying physical informed neural networks where the physical knowledge is integrated into the neural network design. For example, the authors in [13] and [14] use neural networks to build a mapping between the input data (e.g., temperature and pressure) and turbulence predictions in the Euclidean space. In contrast, the Fourier neural network (FNN), proposed in [15], considers data in the Fourier space. The motivation behind the use of FNN is that fluid dynamics (e.g., turbulence flow) are usually composed of components at different frequencies where the general direction is controlled by components at low frequency and the little eddies in the fluid flow are consisted of high-frequency components. By considering the input and output in the Fourier space, FNN can achieve a better accuracy than other learning based turbulence prediction models [15]. However, when using the learning methods proposed in [13, 14, 15] for turbulence prediction, the local data can be insufficient to train the learning model due to the limited on-chip memory available on board UAM aircraft. As a result, when the UAM aircraft operate in a new environment or encounters less frequently occurred events (e.g., poor weather), the turbulence models in [13, 14, 15] can fail to adapt to such changes, jeopardizing the operation safety. Therefore, an effective turbulence predictor design will directly depend on collaboratively and jointly training the prediction model among multiple UAM aircraft. To this end, one can use federated learning (FL) [16] to build a cooperative learning framework in which a centralized unit, such as the GBS, aggregates the knowledge learned by a group of UAM aircraft.

However, it will be challenging to use conventional FL frameworks [17, 18, 19, 20, 21, 22, 23, 24, 25] for UAM aircraft turbulence prediction. On the one hand, synchronous FL algorithms, such as those in [17, 18, 19, 20, 21], are not suitable for UAM aircraft turbulence prediction due to the following two reasons. First, for synchronous FL frameworks, like FedAvg [17] and FedProx [18], UAM aircraft will suffer from the straggler effect where some local aircraft take much longer time than others to send their learned knowledge to the GBS, thereby increasing the convergence time and jeopardizing the aircraft’s ability to quickly predict the turbulence. Second, for synchronous FL schemes, like scalable FL [19], FedPAQ [20], and DFP [21], not all UAM aircraft can participate in the FL training and some important local model updates can be discarded, leading to a poor real-time turbulence prediction performance. On the other hand, since the staleness associated with the local trained model parameters is not properly considered, the prior work on asynchronous FL (AFL) [22, 23, 24, 25] is not suitable for handling the UAM turbulence prediction task. For instance, these prior works either ignore staleness (e.g., [22] and [23]) or consider impractical assumptions, like bounded staleness [24] and [25], in their designed frameworks. However, because of the varying wireless channel conditions and mobility of aircraft, the staleness associated with the local model update will be unbounded and also vary from one UAM aircraft to another. If not being properly considered in the AFL framework design, such a unbounded and randomly distributed staleness can impede the convergence to the optimal turbulence prediction model used by UAM aircraft [26].

I-C Contributions and Outcomes

The main contributions of this paper is a wireless-enabled AFL framework in which UAM aircraft use the communication network to collaboratively train a federated FNN and perform efficient turbulence prediction. In particular, to characterize how aircraft leverage wireless connectivity for AFL, we propose a stochastic geometry based spatial model for GBSs, corridors, and aircraft in UAM system. Moreover, we perform the wireless connectivity analysis for aircraft-to-GBS communication network in UAM. Based on the wireless connectivity study, we propose a wireless-enabled AFL framework in which UAM aircraft use the wireless network to collaboratively optimize the FNN-based turbulence prediction model. To mitigate the impact of staleness on convergence, we study a staleness-aware AFL framework and analyze the convergence. The novelty of this work lies in the following key contributions:

  • We perform a novel, rigorous performance analysis of aircraft-to-GBS communication networks in UAM. In particular, by leveraging Poisson point process (PPP), Poisson cluster process (PCP), and Poisson line process (PLP) from stochastic geometry, we model the spatial distribution of GBSs, corridors, and aircraft in UAM. Assuming that any given aircraft will communicate with the closest GBS, we further derive the Laplace transform of the interference experienced by a GBS and the communication distance distribution between the GBS and its associated aircraft. Using these results, we obtain the signal-to-interference ratio (SIR)-based connectivity probability for the aircraft-to-GBS communication network in UAM.

  • We propose a wireless-enabled collaborative learning framework consisting of FNN and AFL to optimize the turbulence prediction model for UAM aircraft. In particular, the local UAM aircraft will train an FNN model using their own data and, then, transmit the trained FNN parameters to the GBS via the UAM wireless network. Next, the GBS will aggregate the received parameters and generate a new global model in an asynchronous fashion. Based on the wireless connectivity study, we derive the staleness distribution of local FNN updates received at the GBS and the number of UAM aircraft that participate in AFL.

  • To mitigate the impact of staleness on the overall convergence, we propose a staleness-aware global aggregation scheme for performing AFL. In particular, unlike conventional FL frameworks [17, 18, 19, 20, 21, 22, 23, 24, 25], the proposed staleness-aware global aggregation scheme explicitly considers the unbounded and randomly distributed staleness of locally trained FNN parameters. We then analyze the convergence rate of the proposed AFL framework and highlight the importance of considering the staleness in the global aggregation.

Simulation results validate our theoretical analysis for the wireless connectivity study. Moreover, the results show that our AFL framework can achieve a faster convergence than the conventional synchronous FL counterparts and AFL framework without considering the staleness of local FNN parameters. In addition, the results show the wireless connectivity and FNN model convergence for different UAM parameter settings, offering useful system design insight for deploying UAM. To the best of our knowledge, this is the first work that analyzes the connectivity performance of a UAM communication network and develops a staleness-aware AFL framework to optimize the turbulence prediction model for UAM aircraft.

The rest of the work is organized as follows. Section II presents the system model for UAM. Section III provides a theoretical analysis of the aircraft’s wireless connectivity. Section IV introduces the staleness-aware AFL framework and analyzes the convergence. Section V provides simulation results, and conclusions are drawn in Section VI.

Ii System model

Consider a group of UAM aircraft, as shown in Fig. 1. During flight, each aircraft will share a flight plan with other aircraft via aircraft-to-aircraft communications so as to maintain a safe distance and avoid collisions. Meanwhile, each aircraft constantly communicates with a GBS to report its location and possible off-nominal events, as well as transmit the turbulence prediction model updates.

Ii-a Spatial Models for UAM

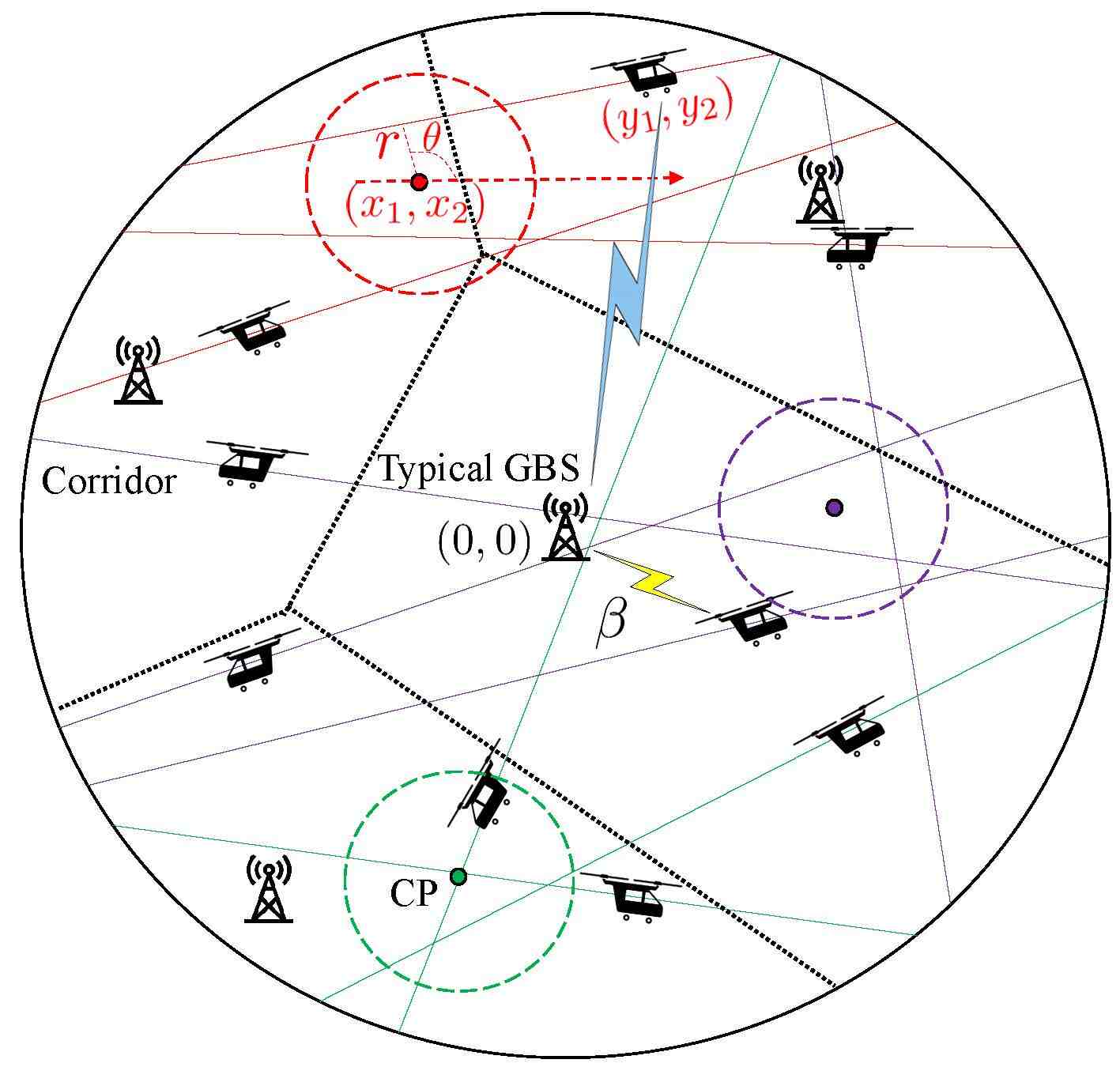

Fig. 2: The top view of how corridors, aircraft, centralized points, and GBSs are distributed in UAM.

To characterize relative locations of different components in UAM, we must study the spatial modeling of aircraft and GBSs. As shown in Fig. 2, we model the distribution of GBSs as a two-dimensional PPP with density . For the distribution of aircraft, we first model the spatial distribution of CPs and corridors. In particular, to capture the fact that CPs can spread across space, we model their distribution as a two-dimensional PPP with density . Around CP , we model the distribution of corridors as a PLP with density where all corridors share the same height . Since there will be a limited number of corridors around each CP, we assume that the maximum number of corridors for each CP is

. In this case, the number of corridors follows a truncated Poisson distribution within the range

.

Similar to [27], the relative location of a corridor around a CP is determined by two factors: the distance between the CP and the corridor and the angle between the positive -axis and the line perpendicular to the corridor, as shown in Fig. 2. However, instead of using a randomly distributed in that would not capture the realistic spatial location of centralized corridors, inspired by PCP [28], we model the distance using the following two approaches. The first approach is aligned with the Thomas cluster process whereby we model the distance

as a truncated Gaussian distribution as follows:

In the second approach, we model the distance

as a uniform random variable within

with being the maximum distance from the CP, i.e., As such, we can guarantee that all corridors around the same CP will pass through a circular disc area with radius , similar to the definition of the Matern cluster process. With these two approaches, we can characterize the fact that the corridors are closely distributed around their CPs instead of being spread over the whole space as considered in [27]. Based on the real deployment and travel demands from the public, we can use either one of these two approaches to model the distance . Next, on a randomly selected corridor , we assume that the distribution of transmitting aircraft follows a one-dimensional PPP with density .

Ii-B Aircraft-to-GBS Communication Model

Similar to prior works [29, 30, 31], we assume that each aircraft will be served by the closest GBS. Due to the stationarity of the two-dimensional PPP, we arbitrarily select a GBS as the typical GBS and assume that it is located at the origin with zero height. Thus, we can calculate the received signal power at the typical GBS from its associated aircraft as

(1)

where is the transmit power used by all aircraft, and is the distance between the vertical projection of the associated GBS at the plane with height and the associated aircraft. is the path loss exponent, and is the air-to-ground wireless channel gain. We model the communication channels as independent Nakagami channels with an integer to characterize a wide range of fading environment.

While receiving the transmission from the associated aircraft, the typical GBS will experience interference from two sources. The first one relates to aircraft who communicate with other GBSs rather than the typical GBS. The second interference source is aircraft who share the flight plan with surrounding aircraft. Taking into account the distribution of the transmitter aircraft in UAM, we can calculate the interference at the typical GBS as follows

(2)

where, as shown in Fig. 2, is the location of CP relative to the vertical projection of the typical GBS at the plane of height , and denotes the relative location of an interfering aircraft compared to its CP.

Ii-C Learning Model

To accurately predict turbulence, the UAM aircraft will use a combination of FNN and asynchronous FL. In particular, the aircraft will use the architecture of FNN [15] to train their local data, as shown in Fig. 3

. The input and output for the FNN will be, respectively, the turbulence flow history data and prediction. Different from conventional machine learning methods that build an approximated function between the inputs and outputs defined in the Euclidean space, the FNN consists of Fourier layers whereby the data in the Fourier space is explicitly considered. The reason for considering data in the Fourier space is due to the fact that the turbulence flow can be decomposed into components at different frequencies. As shown in Fig.

3, by filtering out the components at high frequencies in the Fourier layers, the FNN can reduce the impact of high-frequency noise existing in the data collected at the aircraft, and, thereby, increase the turbulence prediction accuracy.

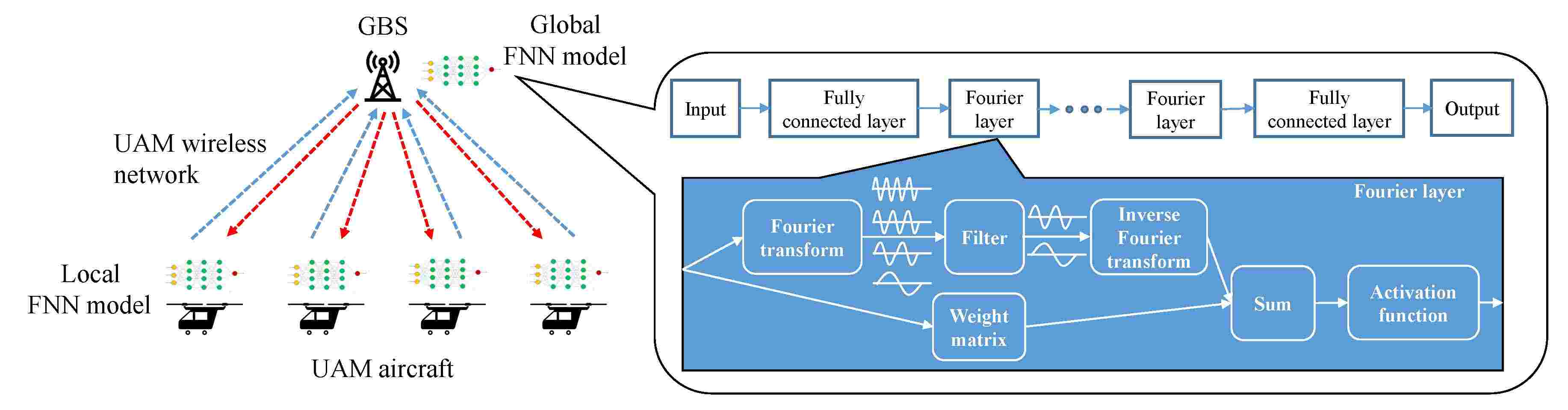

Fig. 3: UAM aircraft use a combination of FNN and AFL to optimize the turbulence prediction.

In AFL, the GBS will act as the parameter server and the set of associated aircraft will collaboratively learn the FNN-based turbulence prediction model. In particular, the GBS will first generate an initial global FNN parameters for the FNN model and broadcast it to all associated aircraft. Then, the aircraft will use the received FNN parameters to train its local data and transmit the updated FNN parameters back to the associated GBS in the uplink. Next, whenever receiving the local FNN parameter updates from any arbitrary aircraft, the GBS will update the global FNN parameters and share the updated parameters with the corresponding aircraft. This AFL process is repeated over uplink-downlink channels between the GBS and the associated aircraft, and the global and local FNN parameters will be sequentially updated. As communication rounds proceed, the model will converge to the optimal turbulence prediction model which is the solution to the following optimization problem:

(3)
(4)

where is the size of the training data across all aircraft with being the size of training data at aircraft .

is the loss function of aircraft

when using the FNN model parameter to train local data , and is the total loss at aircraft .

Clearly, in the local FNN training phase, some aircraft use the most updated global model while others can only train stale versions of global model over their data. Given the higher computing power and larger communication bandwidth of a GBS, the local FNN parameters can be updated immediately once the GBS receives the trained model updates from the corresponding aircraft. In this case, the staleness associated to local FNN parameters can thereby defined as the time elapsed since the generation of the local model parameter update that is most recently received at the GBS. If the aircraft complete the local model training and model parameter transmission with less time, their trained FNN parameters will be associated with less staleness. Hence, staleness can be calculated as the time spent on the FNN model training and FNN parameters transmission. For the FNN model training, the computing delay can be derived as , where is size of training data, refers to the number of computing cycles needed per bit, and is the frequency of CPU clock of UAM aircraft. When calculating the transmission delay, for tractability, we assume that the noise is negligible compared to the interference. Therefore, given the received signal and interference calculated in (1) and (2), the transmission delay will be as , where is the size of the data packet containing the FNN parameters and is the communication bandwidth. Hence, the staleness associated to the locally trained FNN parameters will be given by .

When designing the AFL framework to optimize the turbulence prediction model for UAM aircraft, we need to address a number of challenges. First, to characterize the convergence of the AFL framework, we must determine the number of UAM aircraft that participate in AFL and the staleness distribution of local FNN updates. To this end, one can use tools from stochastic geometry to analyze the performance of a UAM communication network. However, existing stochastic geometry approaches, such as those in [29, 30, 31], cannot be directly applied to our model. This is because, different from conventional networks (e.g., cellular systems) that can be simply modeled by a single point process, the spatial distribution of UAM aircraft is characterized by a combination of PPP, PCP, and PLP. Meanwhile, due to the fading channels in the UAM wireless network and the mobility of UAM aircraft, the staleness of locally trained FNN parameters will be unbounded and randomly distributed. If the AFL framework is not designed properly, such varying staleness can have a detrimental effect on the overall convergence. Hence, the second challenge will be determining and mitigating the impact of such unbounded and randomly distributed staleness on the overall FNN model convergence. In this way, UAM aircraft can quickly and accurately make the turbulence prediction and take proper actions to secure the operation safety.

In Section III, we take into account the complex distribution of UAM aircraft and analyze the connectivity performance as well as derive the staleness distribution of local FNN parameters and the number of aircraft participating in the AFL. Then, we propose a staleness-aware AFL framework and analyze its convergence in Section IV.

Iii Performance Analysis of UAM Aircraft-to-GBS Communication Network

First, we characterize the distance distribution of the typical GBS and its associated aircraft. Then, we calculate the Laplace transform of the interference experienced by the typical GBS. Next, we derive the SIR-based connectivity probability for the aircraft when operating in the UAM corridors. Based on these results, we derive the distribution of staleness of local FNN parameters and the number of aircraft that participate in the AFL.

Iii-a Distance Distribution between the Typical GBS and its Associated Aircraft

Since each aircraft communicates with its closest GBS, we can derive the statistical distribution of the distance between the vertical projection of the typical GBS and its associated aircraft in the following lemma that follows from [31].

Lemma 1.

For a group of GBSs whose distribution follows a two-dimensional PPP with density

, the probability density function (PDF) of the distance

between the vertical projection of the typical GBS and its associated aircraft is .

With Lemma 1, we can find the statistical distribution of the distance between the typical GBS and its associated aircraft at height and further use (1) to determine the received signal power at the typical GBS.

Iii-B Laplace Transform of Interference at the Typical GBS

In order to capture the interference experienced by the typical GBS, we need to model the distance between the typical GBS and the interfering aircraft. To this end, we start with the relative location of the interfering aircraft around its CP. As shown in Fig. 4, we list four possible relative locations between CP and corridors.

Fig. 4: Four possible relative locations between CP and corridors where the black solid point, red solid point, and solid line, respectively, show the aircraft, CP, and corridor.

Assume that the projected point of CP on the corridor is and the distance between and the aircraft is . Hence, we can obtain the four alternatives for the location of aircraft on the corridor as

Meanwhile, the location of the CP can be given by:

Given the locations of the aircraft and CP for , we have , and . Therefore, the distance between the vertical projection point of the typical GBS and the interfering aircraft is . Hence, we can determine the Laplace transform of the interference experienced by the typical GBS in the following lemma.

Lemma 2.

When UAM aircraft operating within the corridors are distributed according to the one-dimensional PPP, the Laplace transform of the interference experienced by the typical GBS is

(5)

where with , and with

(6)
Proof:.

See Appendix -A. ∎

By choosing the proper function in Lemma 2

, we can calculate the Laplace transform of the interference when the distance between the corridor and its CP follows a truncated Gaussian distribution or a uniform distribution. Next, we use the Laplace transform of the interference obtained in Lemma

2 to determine the connectivity performance of UAM air-to-ground communications and the staleness distribution of locally trained FNN parameters.

Iii-C Connectivity Probability and Staleness Distribution

The connectivity probability is defined as the probability with which the SIR received by the typical GBS exceeds a target threshold required for a successful communication. Based on the Laplace transform of the interference obtained in Lemma 2, we can derive the mathematical expression for the connectivity probability in the following theorem.

Theorem 1.

When an arbitrarily selected aircraft communicates with its associated GBS in UAM, the connectivity probability can be calculated as

(7)

where .

Proof:.

See Appendix -B. ∎

From Theorem 1, we can theoretically analyze the connectivity performance of aircraft-to-GBS communication networks in UAM. The results in Theorem 1 also pave the way for optimizing the UAM design to achieve a reliable wireless connectivity and ensure an efficient and safe UAM operation. Based on the Theorem 1, we can derive the mathematical distribution of staleness associated to the FNN parameters, as shown in the following corollary.

Corollary 1.

When an arbitrarily selected UAM aircraft participates in the AFL, the staleness of FNN parameters received at the GBS will follow a cumulative distribution function (CDF) as follows:

(8)
Proof:.

We replace in Theorem 1 with and the remaining proof is similar to Theorem 1. ∎

From Corollary 1, we can observe how different UAM parameters, such as the densities of corridors, aircraft, CPs, and GBSs, and wireless parameters, like the Nakagami fading parameter, affect the staleness distribution of the local FNN model updates received at the GBS. To determine the convergence performance of AFL, we still need to derive the number of UAM aircraft that collaboratively learn the FNN-based turbulence prediction model.

Iii-D Expected Number of Aircraft Participating in AFL

To determine the expected number of UAM aircraft participating in AFL, we consider a circular area with a radius and, in the following lemma, we derive the intermediate results, i.e., the expected length of corridor existing in the circular area.

Lemma 3.

For a circular area with radius , the expected length of an arbitrarily selected corridor in UAM is

(9)
Proof:.

See Appendix -C. ∎

Given the expected length of corridor calculated in Lemma 3, we can determine the density of PPP distributed aircraft on each corridor and further obtain the expected number of aircraft associated to the GBS and participating in the AFL in the following theorem.

Theorem 2.

When UAM aircraft operate in a circular area with radius , the expected number of aircraft participating in the AFL framework will be given by:

(10)

where is the floor function.

Proof:.

See Appendix -D. ∎

From Theorem 2, we can determine the number of aircraft participating in AFL to collaboratively learn the turbulence prediction model. Next, based on the results in Corollary 1 and Theorem 2, we propose a staleness-aware AFL framework for UAM aircraft turbulence prediction and study its convergence.

Iv Staleness-aware AFL for UAM Aircraft Turbulence Prediction Optimization

To mitigate the impact of stale local FNN parameters on the overall convergence, we consider a staleness-aware global aggregation scheme for AFL where the GBS will aggregate the local trained parameters and update the global FNN model as follows

(11)

In (11), is the learning rate at communication round , and captures the staleness of FNN parameters received at the GBS from aircraft at communication round . is a monotonically decreasing function of the staleness so as to minimize the impact of stale FNN parameters on the learning performance. It is clear that the convergence of the turbulence prediction model depends on the expression of the monotonically decreasing function and the number of UAM aircraft participating in AFL. In the following subsection, we will determine the convergence conditions and analyze the convergence rate of AFL framework with the staleness-aware global aggregation scheme in (11).

Iv-a Convergence Study of the Proposed AFL

Unlike the convergence study done in [24] where the staleness of local model updates is bounded, we will explicitly consider the randomly distributed and unbounded staleness derived in Corollary 1 and its impact on the overall AFL convergence. To this end, we make the following assumptions:

  • The gradient function is uniformly Lipschitz continuous, i.e., for some positive parameter , .

  • The variance of the local gradient descent at an arbitrarily selected aircraft

    with respect to the counterpart for the whole training data across all aircraft is upper bounded, i.e., , where is the upper bound.

  • The variance of the global gradient descent at communication round with respect to the local gradient descent of the stale local FNN parameters at aircraft is upper bounded by a staleness-dependent value, i.e., , where is a monotonically increasing function in terms of staleness with and .

The first two assumptions are commonly used in the current literature, like [32]. In particular, the first assumption can be easily satisfied by some popular loss functions used for the turbulence prediction, such as the mean squared error [13, 14, 15]. The second assumption can be justified by the fact that the turbulence variations are bounded in real scenarios. For the third assumption, it originates from the basic convergence pattern in which the expected loss decreases as the number of communication rounds between the GBS and UAM aircraft increases. Using these three assumptions, we can derive the convergence rate of the proposed AFL to determine the expected loss reduced between two consecutive communication rounds in the following theorem.

Theorem 3.

When the staleness-aware AFL framework is used to improve the turbulence prediction model for UAM aircraft, the convergence rate can be given by:

(12)

as long as the following condition is satisfied:

(13)

where the mean is and the variance is with derived in Corollary 1.

Proof:.

See Appendix -E. ∎

Using Theorem 3, we can determine the convergence rate and convergence conditions when we use the proposed, staleness-aware AFL scheme to optimize the UAM aircraft turbulence prediction model. In particular, the convergence rate depends on the statistical properties (i.e., mean and variance) of randomly distributed staleness linked to local FNN parameters. Also, there are two convergence conditions: there must be at least UAM aircraft associated with the typical GBS; the monotonically decreasing function must be chosen in a way that . In the following corollary, we also calculate the convergence rate when using the conventional aggregation, i.e., , so as to showcase the benefits of the staleness-aware global aggregation scheme in AFL.

Corollary 2.

If the GBS does not consider the staleness associated to the received local FNN parameters in the global aggregation process, then, the convergence rate for AFL will be

(14)
Proof:.

We can replace in Theorem 3 to obtain the convergence rate. ∎

When , AFL with the staleness-aware global aggregation can achieve a faster convergence rate than the conventional AFL by comparing the results in Theorem 3 and Corollary 2. Based on Theorem 3, we further determine how fast the model converges to the optimal model in (3) when using the proposed AFL framework in the following corollary.

Corollary 3.

If the loss function is differentiable and strongly convex with positive parameter and the learning rate is fixed, i.e., , the results in Theorem 3 can be simplified to

(15)

where is the solution to the optimization problem in (3).

Proof:.

See Appendix -F. ∎

The result in Corollary 3 shows that, as communication round increases, there will be a gap, , between and . Clearly, this gap depends on the distribution of staleness associated to the local FNN parameters and the number of UAM aircraft participating in AFL. For instance, a larger will lead to a smaller gap between and . Hence, to minimize the gap derived in Corollary 3 and improve the convergence performance, we can optimize the UAM parameter setting (e.g., select a proper density of corridors) and the wireless network design (e.g., transmit power).

Parameters Values
Height  feet ( m) [3]
CP density  (km)
GBS density  (km)
Corridor density  corridor/km
Aircraft density  aircraft/km
Maximum number of corridors
Transmit power  dBm
SIR threshold  dB
Bandwidth  Mhz
Model parameter size  kb
Path loss exponent
Nakagami fading parameter
Variance of truncated Gaussian distribution
Distance limitation for the uniform distribution  km
Training data size  bits
Number of computing cycles needed per bit
Frequency of CPU clock  cycles/s
TABLE I: Simulation parameters.

V Simulation results

For our simulations, we model the UAM system as a circular area with a radius of  km. Simulation parameters are summarized in Table I. We first validate the theoretical analysis in Theorem 1 for the two discussed cases where the distance follows a truncated Gaussian distribution and a uniform distribution. Then, we study how the densities of GBSs, CPs, corridors, and aircraft affect the wireless connectivity performance and provide insights into the system design guidelines for UAM. Next, we analyze the convergence of staleness-aware AFL framework in comparison to multiple baselines and highlight the merits of considering staleness in the AFL framework.

(a) Truncated Gaussian distribution for the distance
between the CP and corridors.
(b) Uniform distribution for the distance between the CP and corridors.
Fig. 7: Connectivity probability of the UAM wireless network versus the SIR threshold.

V-a Validation of Theoretical Analysis

Fig. 7 shows the connectivity probability of the air-to-ground communication network versus the SIR threshold when the distance follows a truncated Gaussian distribution and a uniform distribution. As observed from Fig. 7, the simulation results for both distributions match the analytical results with a small deviation. The small deviation stems from the use of the approximated tail probability of the Gamma function in Theorem 1. Fig. 7 also shows that, when the SIR threshold increases, the connectivity performance of the UAM’s wireless network will degrade. This is because, with a higher target SIR threshold, fewer air-to-ground communication links will meet the connectivity requirement for a successful transmission.

V-B Connectivity Performance of UAM under Different Parameter Settings

Fig. 9 shows the connectivity probability of the UAM wireless network versus the corridor density under different values for the cluster density when the distance follows a truncated Gaussian distribution. From Fig. 9, we observe that the connectivity probability decreases when increases. This is due to the fact that, with more corridors distributed around the CPs, the number of interfering aircraft will also increase, leading to a higher interference at the typical GBS and a degradation of the wireless connectivity performance. Moreover, Fig. 9 shows that a higher density of CPs will also degrade the UAM wireless connectivity performance. This is because a higher density of CPs will lead to more corridors and more interfering aircraft.

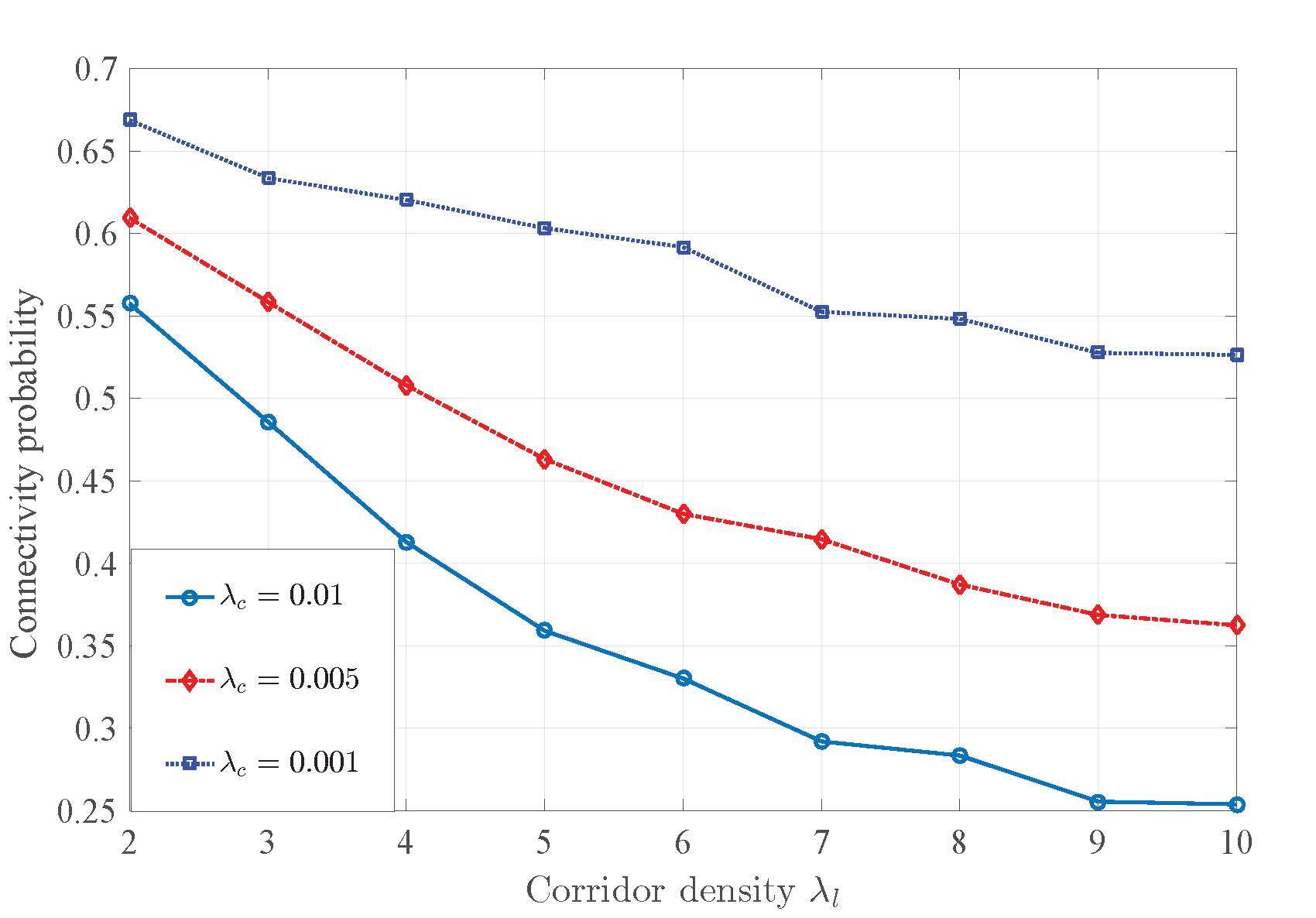

Fig. 8: Connectivity probability versus the corridor density under different cluster densities.

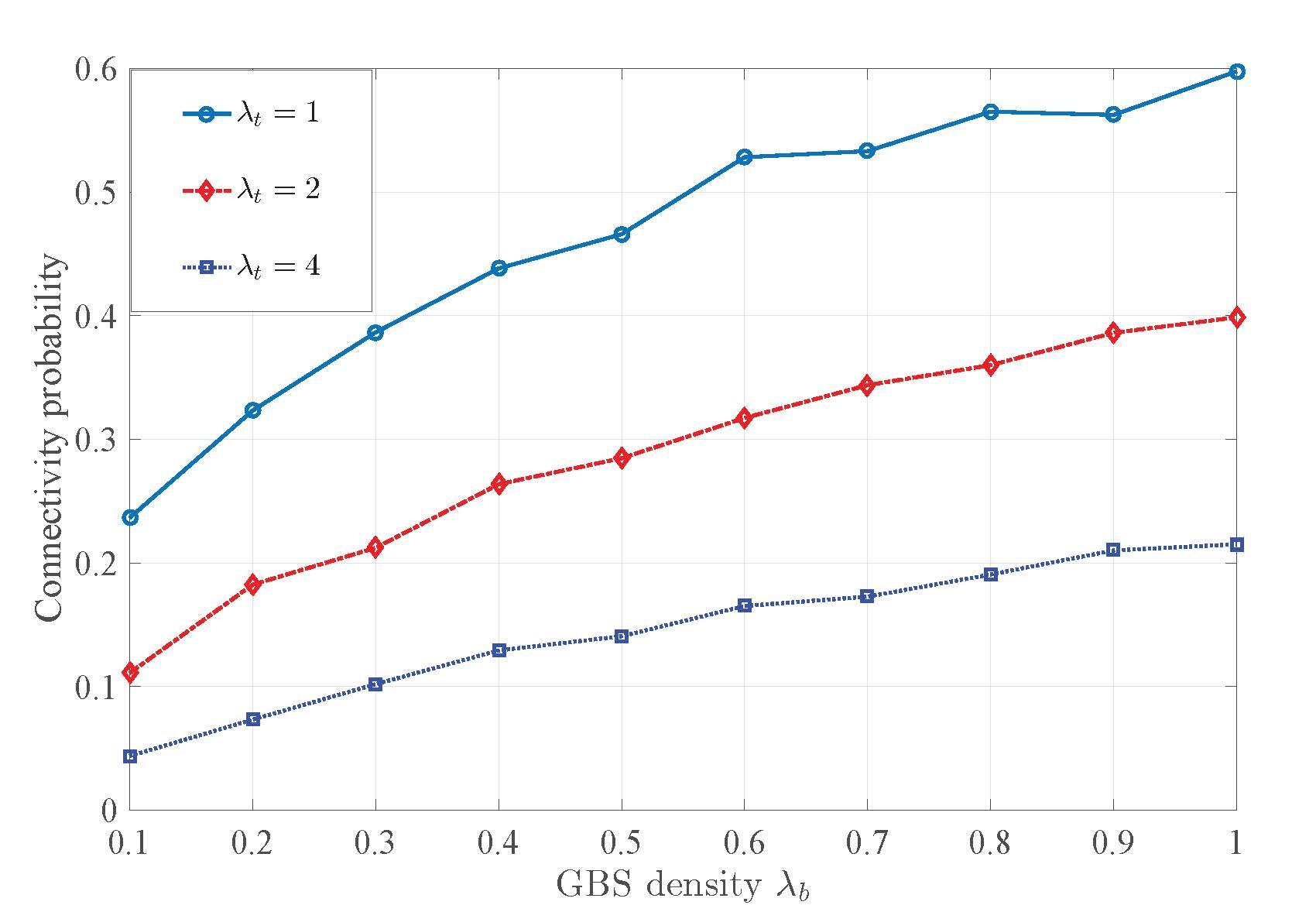

Fig. 9: Connectivity probability versus the GBS density under different aircraft densities.

Fig. 9 shows the connectivity probability of the UAM wireless network versus the GBS density under different aircraft density on each corridor and for the case when the distance follows a truncated Gaussian distribution. As shown in Fig. 9, the connectivity probability increases when the GBS density increases. This is because, with more GBSs, the communication distance between a given GBS and its associated UAM aircraft will be reduced, leading to a higher received signal power and SIR. Moreover, Fig. 9 shows that the presence of more aircraft on corridors will negatively impact the connectivity probability performance. This can be explained that a higher will lead to a larger number of interfering aircraft. Note that the simulation results of the uniformly distributed distance are similar to the counterparts when the distance follows a truncated Gaussian distribution, and they are omitted due to space limitations.

Based on the simulation results in Figs. 9 and 9, when the densities of aircraft, corridors, and CPs increase, the UAM wireless connectivity performance will degrade. To avoid this performance degradation, one can deploy more GBSs at the expense of site acquisition constraints and costs, particularly in urban environments. Therefore, realizing efficient UAM systems depends on a careful selection of design parameters to improve the wireless connectivity performance while reducing the overall deployment cost.

V-C Convergence of AFL for Turbulence Prediction

In our simulation, when building the AFL framework, we generate the local training turbulence data for UAM aircraft by first randomly generating the velocity field and, then, following the Burgers’ equation [33] and [34]:

(16)

where is the velocity of the turbulence flow at the location and time , and

is the kinematic viscosity coefficient. Note that, here, we use Burgers’ equation as an example to generate the local training data, our proposed AFL framework can be used to deal with the training data generated by other partial differential equations (PDEs), like Navier-Stokes equation. In terms of the turbulence prediction model, we consider an FNN model with two Fourier layers. We randomly select a GBS and its associated aircraft to collaboratively learn the FNN model within the proposed AFL framework.

(a) First synchronous FL baseline.
(b) Second synchronous FL baseline.
(c) Proposed AFL framework.
Fig. 13: Training performance of two synchronous FL baselines and our proposed AFL framework.

Fig. 13 shows the convergence of synchronous FL baselines and our proposed AFL framework. In particular, we select two popular synchronous FL baselines. In the first baseline, i.e., FedAvg [17], the GBS will generate a new global FNN model when all local aircraft finish the local model training and the model parameter transmission. In the second baseline, i.e., scalable FL [19], a new global FNN model will be generated at the GBS once it receives the locally trained parameters from half of its associated aircraft. As shown from Fig. 13, our proposed AFL framework can achieve a faster convergence compared to two synchronous counterparts. In particular, our proposed AFL framework can converge within  s, whereas the first and second baselines need to spend,  s and  s, to achieve convergence. In other words, our proposed AFL framework can improve the convergence rate by and compared to these two baselines. The reason is that, compared with the first baseline, our proposed framework will not suffer from the straggler effect where the aircraft who finish the local training and transmission fast have to wait for the slower ones. Also, our proposed AFL framework guarantees that the local model update from any aircraft will be considered in the global aggregation in contrast to the second baseline where some important local model updates can be discarded due to the long communication time.

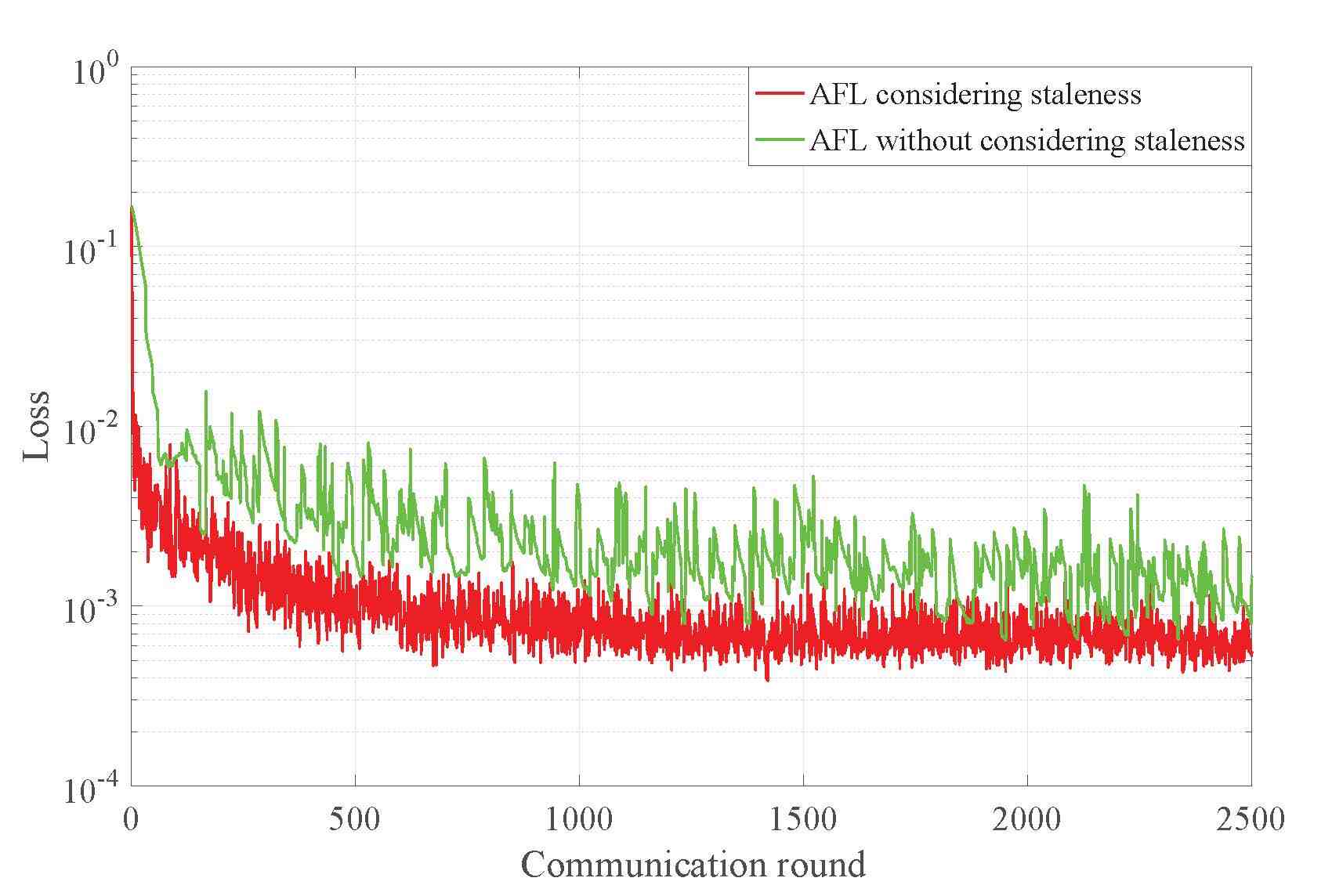

Fig. 14: Comparison between two AFL schemes with and without considering staleness.

In Fig. 14, we compare our proposed staleness-aware AFL framework with an AFL framework that aggregates the local model updates without considering staleness. In particular, for the AFL framework, we choose in (11) based on the results derived in Corollary 2. In the AFL framework without considering the staleness, . As observed from Fig. 14, the AFL framework considering the impact of staleness converges faster than the framework without considering the staleness of local model updates. In particular, to achieve a loss of , our proposed AFL framework needs around communication rounds, whereas the AFL framework without considering the staleness of local updates needs more than communication rounds. The reason is that, during the global aggregation in (11), the local model update can be generated by using the stale version of global model instead of the freshly generated one at UAM aircraft. Hence, directly aggregating such outdated local FNN parameters will inevitably slow down the convergence of the FNN-based turbulence prediction model. However, in our proposed AFL framework, we introduce the monotonically decreasing function to mitigate the impact of the outdated local parameters on the global aggregation and facilitate the overall convergence.

(a) GBS density , corridor
density .
(b) GBS density , corridor
density .
(c) GBS density , corridor
density .
Fig. 18: Convergence of the proposed AFL under different UAM system settings. These results show that, a high density of GBSs will speed up the convergence, while dense UAM corridors lead to a low convergence rate.

Fig. 18 shows the convergence of the proposed AFL framework under different UAM parameter settings. As shown in Fig. 18 LABEL:sub@10-1 and LABEL:sub@10-2, when the density of GBS increases, the convergence rate of the AFL framework also speeds up (i.e., the convergence time switches from  s to  s). The reason is that, a large density of GBSs can lead to a better SIR at the receiving GBSs and more frequent uplink-downlink learning model transmission between GBS and UAM aircraft. Hence, for a given time period, the total number of communication rounds will increase and the convergence rate will increase. Also, with a better SIR, the trained FNN parameters can be quickly transmitted to the GBSs, reducing staleness and improving the convergence. Moreover, from Fig. 18 LABEL:sub@10-2 and LABEL:sub@10-3, we can observe that as the density of corridors increases, the convergence rate becomes slower (i.e., the convergence time switches from  s to  s). This is due to the fact that more corridors will lead to more interfering aircraft in the wireless network and the air-to-ground communication link will experience a low SIR. Hence, the frequency of FNN parameters transmission between the GBS and UAM aircraft will be low and the staleness of local FNN parameters will also increase, reducing the convergence rate.

Vi Conclusions

In this paper, we have characterized the connectivity performance of the aircraft-to-GBS communication network in UAM. In particular, we have used PCP and PLP to capture the relative location of corridors around their CPs where their relative distance between them is modeled by two distributions: truncated Gaussian distribution and uniform distribution. Next, we have characterized the distribution of aircraft on each corridor and GBSs by using, respectively, one-dimensional and two-dimensional PPP. Using this system setup, we have derived new theoretical results for the SIR-based connectivity probability when the aircraft communicates to its closest GBS and the staleness distribution associated to local FNN parameters. Based on the wireless connectivity study, we have proposed a wireless-enabled AFL framework to collaboratively learn the FNN-based turbulence prediction model among UAM aircraft. In particular, a staleness-aware AFL has been introduced to mitigate the impact of staleness associated to local FNN parameters on the overall convergence. We have also performed a rigorous convergence study to determine the convergence rate and showcase the merits of considering staleness in the AFL framework design. Simulation results corroborate our connectivity analysis for UAM and show how different system settings affect the overall connectivity performance. Moreover, the results show that the proposed AFL framework outperforms the conventional synchronous FL counterparts and AFL framework without considering the staleness. In addition, the results highlight the necessity of optimizing the UAM parameter setting and wireless network design to improve the turbulence prediction model convergence and UAM aircraft wireless connectivity.

-a Proof of Lemma 2

The Laplace transform of interference at the typical GBS can be derived as follows

(17)

where (a) follows the Gamma distribution of Nakagami fading channel gains, (b) and (d) are based on the probability generating functional (PGFL) of a PPP

[27]. In (c), we use the fact that the number of corridors is Poisson distributed conditioned on total being less than . By converting from Cartesian to polar coordinates with and in (-A), we can the final results in (5).

-B Proof of Theorem 1

The connectivity probability can be calculated as follows

(18)

where (a) is based on the approximated tail probability of a Gamma function [35], (b) follows the Binomial theorem and the assumption that is an integer, and (c) follows the definition of Laplace transform of interference and the fact that the distance between the aircraft and GBS is a random variable.

-C Proof of Lemma 3

Consider the CP for the arbitrarily selected corridor is and the relative location of corridor to the CP is determined by the distance and the angle between the positive -axis and the line passing through the CP and being perpendicular to the corridor. In this case, we can derive that any point on the corridor will meet the following equality constraint:

(19)

where The distance between the corridor and the center of the circular area can be calculated as [36]

(20)

Hence, the length of corridor can be expressed as

(21)

where

(22)

where in (a), we use the relationship between and , and in (b), we simplify the results by using the basic trigonometry properties, e.g., . After substituting (-C) into (21), the length of the corridor intercepting the circular area with radius can be calculated. Based on the distribution of and , we can obtain the expected length as shown in (9).

-D Proof of Theorem 2

The expected number of aircraft associated to each GBS is

(23)

where and , respectively, represent the total number of CPs and GBSs. In (a), we use the basic Poisson distribution property and the fact that the density of two-dimensional PPP distributed of CPs and GBSs will be the unit density times the area of the circular space.

-E Proof of Theorem 3

To prove Theorem 3, we first obtain the upper bound of :
