Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny

07/19/2020 ∙ by Cezar-Constantin Andrici, et al. ∙ Alexandru Ioan Cuza University 0

We build a SAT solver implementing the DPLL algorithm in the verification-enabled programming language Dafny. The resulting solver is fully verified (soundness, completeness and termination are computer checked). We benchmark our Dafny solver and we show that it is just as efficient as an equivalent DPLL solver implemented in C# and roughly two times less efficient than an equivalent solver written in C++. We conclude that auto-active verification is a promising approach to increasing trust in SAT solvers, as it combines a good trade-off between execution speed and degree of trustworthiness of the final product.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Modern high-performance SAT solvers quickly solve large satisfiability instances that occur in practice. If the instance is satisfiable, then the SAT solver can provide a witness in the form of a satisfying truth assignment, which can be checked independently.

If the instance is unsatisfiable, the situation is less clear. Brummayer and others [BLB10] have shown using fuzz testing that in 2010 many state-of-the-art SAT solvers contained bugs, including soundness bugs. Since 2016, in order to mitigate this issue, the annual SAT competition requires solvers competing in the main track to output UNSAT certificates [BHJ17]; these certificates are independently checked in order to ensure soundness.

These certificates could be exponentially large and the SAT solver might not even be able to output them due to various resource constraints. The implementation of the SAT solver should then be trusted not to contain bugs. However, typical high-performance SAT solvers contain data structures and algorithms complex enough to allow for subtle programming errors.

To handle these potential issues, we propose a verified SAT solver using the Dafny system [LEI13]. Dafny is a high-level imperative language with support for object oriented features. It features methods with preconditions, postconditions and invariants, which are checked at compilation time by relying on the Z3 SMT solver [dB08]. If a postcondition cannot be established (either due to a timeout or due to the fact that it does not hold), compilation fails. Therefore, we can place a high degree of trust in a program verified using the Dafny system.

A modern high-performance SAT solver implements a backtracking search for a satisfying assignment. The search space is pruned by using several algorithmic tricks:

unit propagation;

fast data structures (e.g., to identify unit clauses);

variable ordering heuristics;

back-jumping;

conflict analysis;

clause learning;

restart strategy. In addition, careful engineering of the implementation is required for high performance.

The first three items are usually referred to as the DPLL algorithm [DP60, DLL62], and all items together are the core of the state-of-the-art CDCL algorithm [MS99, BS97]. We have implemented and verified in Dafny the first three items, constituting the DPLL algorithm, and we leave the other items for future work. We implement the MOMS variable ordering heuristic [HV95]. We note that our Dafny solver is computer checked for soundness, completeness and termination. We assume that the input is already in CNF form. The parser, which reads a file in the well-known DIMACS format, is also written in Dafny and hence verified against, e.g., out of bounds errors. However, there is no specification for the parser.

Our work is part of the larger trend towards producing more trustworthy software artifacts, ranging among certified compilers [LER09], system software [HP10, HHL+14, BFK16, ZBP+17], or logic [BFL+18]. The main conceptual difference to previous work on verified or certified SAT solvers is that we propose to check directly the imperative algorithm using deductive verification, instead of, e.g., verifying functional code and relying on a refinement mechanism to extract imperative code, which could hurt performance.

Structure. In Section 2, we briefly go over the DPLL algorithm, as presented in the literature. In Section 3, we present our verified implementation in Dafny of the algorithm. We start by presenting the main data structures and their invariants (Section 3.1). We continue with the operations supported by the data structures in Section 3.2. Finally, in Section 3.3, we present the implementation of the core DPLL algorithm, together with the verified guarantees that it provides. In Section 4, we benchmark the performance of our solver. In Section 5, we discuss related work. We conclude in Section 6. We also discuss the main challenge in verifying our implementation of DPLL, along with some methodological tricks that we have used to make the verification effort tractable.

Contributions. We present the first (to our knowledge) assertional proof of the DPLL algorithm. The implementation is competitive in running time with an equivalent C++ solver.

Comparison with the workshop version. This paper is a revised extended version of our previous work [AC19] published in EPTCS. We feature an improved presentation, additional explanations and a benchmark of the performance of our solver. In addition, the solver improvements over the workshop version are:

  1. The new implementation features machine integers, which improve performance approximately 10 times in our tests. Going to machine integers from unbounded integers requires proving upper bounds on indices throughout the code.

  2. The new implementation features mutable data structures for identifying unit clauses. Our previous approach used Dafny sequences (seq), which are immutable and cause a performance drawback because they are updated frequently. The new mutable data structures make the solver significantly faster, but they are more difficult to reason about and verify.

  3. We implement and verify the MOMS variable ordering heuristic.

  4. We also improve the methodology of our verification approach and in particular we significantly reduce verification time. By carefully specifying invariants and separating concerns in the implementation, the verification time is now approximately 13 minutes for the entire project.

    In contrast, in our previous implementation, one method (setLiteral) took approximately 10 minutes to verify on its own (the entire project used to take about 2 hours to verify in its entirety).

  5. We benchmark our Dafny implementation against similar DPLL implementations written in C# and C++ and we show it is competitive in terms of performance.

2. The Davis-Putnam-Logemann-Loveland Algorithm

The DPLL procedure is an optimization of backtracking search. The main improvement is called unit propagation. A unit clause has the property that its literals are all false in the current assignment, except one, which has no value yet. If this literal would be set to false, the clause would not be satisfied; therefore, the literal must necessarily be true for the entire formula to be true. This process of identifying unit clauses and setting the unknown literal to true is called unit propagation.

We consider a formula with 7 variables and 5 clauses:

The formula is satisfiable, as witnessed by the truth assignment (true, false, false, true, true, false, true).

Algorithm 2 describes the DPLL procedure [GKS+08] that we implement and verify, presented slightly differently in order to match our implementation more closely:

Function  DPLL-recursive(, tau)

       input :  A CNF formula and an partial assignment tau output :  SAT/UNSAT, depending on where there exists an assignment extending tau that satisfies while  unit clause  do
             the unset literal from the unit clause
      if F contains the empty clause then return UNSAT;
       if F has no clauses left then
             Output tau
return SAT
       some unset literal if  then return SAT;
       return
We describe how the algorithm works on this example: first, the algorithm chooses the literal and sets it to true (arbitrarily; if true would not work out, then the algorithm would backtrack here and try false). At the next step, it finds that the second clause is unit and sets to true, which makes the third clause unit, so is set to true. After unit propagation, the next clause not yet satisfied is the fourth one, and the first unset literal is . At the branching step, is assigned to true. Furthermore, only one clause is not satisfied yet, and the next decision is to choose and set it to true, which makes the formula satisfied, even if and are not set yet. Next, we recall some well-known terminology in SAT solvers. Choosing and assigning an unset literal to true or false is called a branching step or a decision. Every time the algorithm makes a decision, the decision level is incremented by one and some more literals are assigned to true or false by unit propagation. The trace of assignments is split into layers, one layer per decision. Multiple literals can be set at the same decision level (the decision literal, and the literals assigned by unit propagation). Every time the algorithm backtracks it must revert an entire layer of assignments. A possible assignments trace corresponding to Example 2 is shown in Figure 1.

1)

2)

3)

4)

5)

, ,

Example assignments trace:

Example formula:
Figure 1. Assignments trace representation for Example 2 divided into layers. The first layer corresponds to setting the decision variable to true, followed by unit propagation, which sets and . This trace occurs just before the algorithm stops with an answer of SAT, after setting the decision variables and to true.

3. A Verified Implementation of the DPLL Algorithm

In this section, we present the main ingredients of our verified solver. The full source code, along with instruction on how to compile it and reproduce our benchmarks, can be found at

https://github.com/andricicezar/sat-solver-dafny-v2.

3.1. Data Structures

We first discuss the data structures for representing the formula, for quickly identifying unit clauses and for recalling the current truth assignment.

3.1.1. Representing the CNF formula

The main class in our Dafny development is Formula, which extends DataStructures (Figure 2). This class is instantiated with the number of propositional variables (variablesCount) and with the clauses of the formula to be checked for satisfiability. Propositional variables are represented by values between and , positive literals are represented by values between and variablesCount, and negative integers between and variablesCount represent negative literals. Variables and literals are represented by values of type Int32.t, which we define to model machine integers and which is extracted to int.

    var variablesCount : Int32.t;
    var clauses : seq< seq<Int32.t> >;
    var decisionLevel : Int32.t;
    var traceVariable : array<Int32.t>;
    var traceValue : array<bool>;
    var traceDLStart : array<Int32.t>;
    var traceDLEnd : array<Int32.t>;
    ghost var assignmentsTrace : set<(Int32.t, bool)>;
    var truthAssignment : array<Int32.t>;
    var trueLiteralsCount : array<Int32.t>;
    var falseLiteralsCount : array<Int32.t>;
    var positiveLiteralsToClauses : array< seq<Int32.t> >;
    var negativeLiteralsToClauses : array< seq<Int32.t> >;
}
Figure 2. The most important fields in our data structures (file solver/data_structures.dfy).

Clauses are sequences of literals and the entire formula is represented by a sequence of clauses (var clauses : seq< seq<Int32.t> >). Using sequences for clause (sequences are immutable in Dafny) has no significant performance impact, since they are set at the beginning once and never changed.

3.1.2. Representing the current assignment and the assignments trace

The member variable decisionLevel recalls the current decision level, which has an initial value of . The assignments trace is represented at computation time by using the arrays traceVariable, traceValue, traceDLStart and traceDLEnd and at verification time also by the ghost construct assignmentsTrace (see Figure 2).

The arrays traceVariable and traceValue have the same actual length. They recall, in order, all variables that have been set so far, together with their value. The arrays traceDLStart and traceDLEnd recall at what index in traceVariable and traceValue each decision layer starts and ends, respectively.

The ghost construct assignmentsTrace recalls the same information as a set of (variable, value) pairs. This set is used for the convenience of specifying some of the methods and it only lives at verification time; it is erased before running time and therefore it entails no performance penalty.

Note that traceVariable, traceValue, traceDLStart and traceDLEnd are arrays, and they are extracted to C# as such. Therefore, lookups and updates in these arrays take constant time. The link between the ghost construct assignmentsTrace and its imperative counterparts (traceVariable, traceValue, traceDLStart and traceDLEnd) is computer checked as the following class invariant:

(decisionLevel ¿= 0 ==¿ ( (forall i :: 0 ¡= i ¡ traceDLEnd[decisionLevel] ==¿ (traceVariable[i], traceValue[i]) in assignmentsTrace) && (forall x :: x in assignmentsTrace ==¿ ( exists i :: 0 ¡= i ¡ traceDLEnd[decisionLevel] && (traceVariable[i], traceValue[i]) == x))))

The array truthAssignment is indexed from to and it recalls the current truth assignment. The value is if the propositional variable is unset, if is false, and if is true. At the beginning, it is initialized to at all indices. The following class invariant describing the expected link between the assignments trace and the current truth assignment is computer checked:

truthAssignment.Length == variablesCount && (forall i :: 0 ¡= i ¡ variablesCount ==¿ -1 ¡= truthAssignment[i] ¡= 1) && (forall i :: 0 ¡= i ¡ variablesCount && truthAssignment[i] != -1 ==¿ (i, truthAssignment[i]) in assignmentsTrace) && (forall i :: 0 ¡= i ¡ variablesCount && truthAssignment[i] == -1 ==¿ (i, false) !in assignmentsTrace && (i, true) !in assignmentsTrace)

Note that the invariant makes use of the ghost construct assignmentsTrace for brevity.

3.1.3. Quickly identifying unit clauses

The array trueLiteralsCount (falseLiteralsCount) is used to recall how many literals in each clause are currently true (resp. false). They are indexed from to . The value denotes the number of literals set to true in and the number of false literals in . These are used to quickly identify which clauses are satisfied, which clauses are unit or which clauses are false. For example, to check whether is satisfied, we simply evaluate . The following class invariant involving these arrays is computer checked:

—trueLiteralsCount— == —clauses— && forall i :: 0 ¡= i ¡ —clauses— ==¿ 0 ¡= trueLiteralsCount[i] == countTrueLiterals(truthAssignment, clauses[i]) and analougously for falseLiteralsCount. Note that countTrueLiterals is a function (not a method, hence it is used for specification only) that actually computes the number of true literals by walking through all literals in the respective clause.

In order to quickly update trueLiteralsCount and falseLiteralsCount when a new literal is (un)set, we use positiveLiteralsToClauses and negativeLiteralsToClauses. These are arrays indexed from to . The first array contains the indices of the clauses in which a given variable occurs. The second array contains the indices of the clauses in which the negation of the given variable occurs. They provably satisfy the following invariant:

—positiveLiteralsToClauses— == variablesCount && ( forall variable :: 0 ¡= variable ¡ —positiveLiteralsToClauses— ==¿ ghost var s := positiveLiteralsToClauses[variable]; … (forall clauseIndex :: clauseIndex in s ==¿ variable+1 in clauses[clauseIndex]) && (forall clauseIndex :: 0 ¡= clauseIndex ¡ —clauses— && clauseIndex !in s ==¿ variable+1 !in clauses[clauseIndex])) (analogously for negativeLiteralsToClauses).

To represent class invariants, Dafny encourages a methodology of defining a class predicate valid. In our development, valid consists of the conjunction of the above invariants, plus several other lower-level predicates that we omit for brevity. The predicate valid is used as a precondition and postcondition for all class methods, and therefore plays the role of a class invariant. This way, it is guaranteed that the data structures are consistent.

3.2. Verified Operations over the Data Structures

From the initial (valid) state, we allow one of these four actions:

  1. increase the decision level,

  2. set a variable,

  3. set a literal and perform unit propagation, and

  4. revert the assignments done on the last decision level.

Each of the actions is implemented as a method and we show that these four methods preserve the data structure invariants above.

3.2.1. The Method increaseDecisionLevel

This method increments the decision level by one and creates a new layer. The method guarantees that the new state is valid, and nothing else changes. Its signature and its specification are: method increaseDecisionLevel() requires validVariablesCount(); requires validAssignmentTrace(); requires decisionLevel ¡ variablesCount - 1; requires decisionLevel ¿= 0 ==¿ traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel];

modifies ‘decisionLevel, traceDLStart, traceDLEnd;

ensures decisionLevel == old(decisionLevel) + 1; ensures validAssignmentTrace(); ensures traceDLStart[decisionLevel] == traceDLEnd[decisionLevel]; ensures getDecisionLevel(decisionLevel) == ; ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i);

The predicates validVariablesCount and validAssignmentTrace are used as conjuncts in the class invariant. The function getDecisionLevel returns all assignments at a given decision level as a set.

3.2.2. The Method setVariable

This method takes a variable that is not yet set and it updates is value. Because the trace of assignments and truthAssignment are changed, trueLiteralsCount and falseLiteralsCount have to be updated. We use the arrays positiveLiteralsToClauses and negativeLiteralsToClauses to efficiently update them, and prove that the clauses that are not mentioned in these arrays are not impacted. The signature of setVariable and its specification are: method setVariable(variable : Int32.t, value : bool) requires valid(); requires validVariable(variable); requires truthAssignment[variable] == -1; requires 0 ¡= decisionLevel;

modifies truthAssignment, traceVariable, traceValue, traceDLEnd, ‘assignmentsTrace, trueLiteralsCount, falseLiteralsCount;

ensures valid(); ensures traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel]; ensures traceVariable[traceDLEnd[decisionLevel]-1] == variable; ensures traceValue[traceDLEnd[decisionLevel]-1] == value;

// post conditions that ensure that only a position of the arrays // has been updated. ensures value == false ==¿ old(truthAssignment[..])[variable := 0] == truthAssignment[..]; ensures value == true ==¿ old(truthAssignment[..])[variable := 1] == truthAssignment[..]; ensures forall i :: 0 ¡= i ¡ variablesCount && i != decisionLevel ==¿ traceDLEnd[i] == old(traceDLEnd[i]); ensures forall i :: 0 ¡= i ¡ variablesCount && i != old(traceDLEnd[decisionLevel]) ==¿ traceVariable[i] == old(traceVariable[i]) && traceValue[i] == old(traceValue[i]); ensures forall x :: 0 ¡= x ¡ old(traceDLEnd[decisionLevel]) ==¿ traceVariable[x] == old(traceVariable[x]);

ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i);

ensures assignmentsTrace == old(assignmentsTrace) + (variable, value) ;

ensures countUnsetVariables(truthAssignment[..]) + 1 == old(countUnsetVariables(truthAssignment[..]));

3.2.3. The Method setLiteral

This method uses setVariable as a primitive, so the preconditions and postconditions are similar. The main difference is that after it makes the first update, it also performs unit propagation, possibly recursively. This means that it calls setLiteral again with new values. So, at the end of a call, truthAssignment might change at several positions. To prove termination, we use as a variant the number of unset variables, which provably decreases at every recursive step. Its signature and its specification are: method setLiteral(literal : Int32.t, value : bool) requires valid(); requires validLiteral(literal); requires getLiteralValue(truthAssignment[..], literal) == -1; requires 0 ¡= decisionLevel;

modifies truthAssignment, trueLiteralsCount, falseLiteralsCount, traceDLEnd, traceValue, traceVariable, ‘assignmentsTrace;

ensures valid(); ensures traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel]; ensures forall x :: 0 ¡= x ¡ old(traceDLEnd[decisionLevel]) ==¿ traceVariable[x] == old(traceVariable[x]); ensures assignmentsTrace == old(assignmentsTrace) + getDecisionLevel(decisionLevel); ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i); ensures countUnsetVariables(truthAssignment[..]) ¡ old(countUnsetVariables(truthAssignment[..])); ensures ( ghost var (variable, val) := convertLVtoVI(literal, value); isSatisfiableExtend(old(truthAssignment[..])[variable as int := val]) ¡==¿ isSatisfiableExtend(truthAssignment[..]) );

decreases countUnsetVariables(truthAssignment[..]), 0;

In the code above, the function returns the value of the literal in the truth assignment tau. Note that the variable truthAssignment is an array, while truthAssignment[..] converts the array to a sequence. The sequence (immutable) is used to represent truth assignments at specification level.

3.2.4. The Method revertLastDecisionLevel

This method reverts the assignments from in the last layer by changing the value of the respective literals to . The proof of this method requires several helper proofs that confirm that the data structures are updated correctly. To quickly update trueLiteralsCount and falseLiteralsCount, we again use the two arrays positiveLiteralsToClauses and negativeLiteralsToClauses. As part of postcondition, we prove that the literals not on the last decision level remain unchanged: method revertLastDecisionLevel() requires valid(); requires 0 ¡= decisionLevel;

modifies ‘assignmentsTrace, ‘decisionLevel, truthAssignment, trueLiteralsCount, falseLiteralsCount, traceDLEnd;

ensures decisionLevel == old(decisionLevel) - 1; ensures assignmentsTrace == old(assignmentsTrace) - old(getDecisionLevel(decisionLevel)); ensures valid(); ensures forall i :: 0 ¡= i ¡= decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i); ensures decisionLevel ¿ -1 ==¿ traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel];

3.3. Proof of Functional Correctness for the Main Algorithm

The entry point called to solve the SAT instance is solve:

method solve() returns (result : SAT_UNSAT) requires formula.valid(); requires formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

modifies formula.truthAssignment, formula.traceVariable, formula.traceValue, formula.traceDLStart, formula.traceDLEnd, formula‘decisionLevel, formula‘assignmentsTrace, formula.trueLiteralsCount, formula.falseLiteralsCount;

ensures formula.valid(); ensures old(formula.decisionLevel) == formula.decisionLevel; ensures old(formula.assignmentsTrace) == formula.assignmentsTrace; ensures forall i :: 0 ¡= i ¡= formula.decisionLevel ==¿ old(formula.getDecisionLevel(i)) == formula.getDecisionLevel(i); ensures formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

ensures result.SAT? ==¿ formula.validValuesTruthAssignment(result.tau); ensures formula.countUnsetVariables(formula.truthAssignment[..]) == formula.countUnsetVariables(old(formula.truthAssignment[..]));

ensures result.SAT? ==¿ formula.isSatisfiableExtend(formula.truthAssignment[..]); ensures result.UNSAT? ==¿ !formula.isSatisfiableExtend(formula.truthAssignment[..]);

decreases formula.countUnsetVariables(formula.truthAssignment[..]), 1;

It implements the DPLL-procedure given in Algorithm 2 using recursion. However, for efficiency, the data structures are kept in the instance of a class instead of being passed as arguments. The most important postconditions stating the functional correctness are: if it returns SAT then the current truthAssignment can be extended to satisfy the formula, and if returns UNSAT it means that no truth assignment extending the current truthAssignment satisfies it. We use the predicate , which tests whether there exists a complete assignment that extends the partial truth assignment tau and that satisfies the formula.

We also show as a postcondition that solve ends in the same state as where it starts. This means that we chose to undo the changes even if we find a solution. Otherwise, the preconditions and postconditions for solve would need to change accordingly and become more verbose and less elegant. For simplicity, we chose to revert to the initial state every time.

A flowchart that shows graphically the main flow of the solve method, together with the most important statements that hold after each line, is presented in Figure 3.

solve()

does the formula have an empty clause?

No

Yes

UNSAT

is formula empty?

No

Yes

SAT

is r SAT?

No

Yes

SAT

return

1)

2) (1⃝

3) 2⃝

4) 3⃝

calls solve recursively

4⃝

4⃝

calls solve recursively
Figure 3. Flowchart of method solve. For simplicity, when the initial state is reached, we use the notation .

Once a literal is chosen, the updates to the data structures are delegated to the step method. This removes some duplication in the code, but it also makes the verification take less time. The preconditions and postconditions of step are the same as in solve, but taking into account that step additionally takes as arguments a literal and a desired value for this literal. The method step calls setLiteral to set the literal and perform unit propagation, and then calls solve recursively:

method step(literal : Int32.t, value : bool) returns (result : SAT_UNSAT) requires formula.valid(); requires formula.decisionLevel ¡ formula.variablesCount - 1; requires formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel]; requires !formula.hasEmptyClause(); requires !formula.isEmpty(); requires formula.validLiteral(literal); requires formula.getLiteralValue(formula.truthAssignment[..], literal) == -1;

modifies formula.truthAssignment, formula.traceVariable, formula.traceValue, formula.traceDLStart, formula.traceDLEnd, formula‘decisionLevel, formula‘assignmentsTrace, formula.trueLiteralsCount, formula.falseLiteralsCount;

ensures formula.valid(); ensures old(formula.decisionLevel) == formula.decisionLevel; ensures old(formula.assignmentsTrace) == formula.assignmentsTrace; ensures forall i :: 0 ¡= i ¡= formula.decisionLevel ==¿ old(formula.getDecisionLevel(i)) == formula.getDecisionLevel(i); ensures formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

ensures result.SAT? ==¿ formula.validValuesTruthAssignment(result.tau); ensures result.SAT? ==¿ ( var (variable, val) := formula.convertLVtoVI(literal, value); formula.isSatisfiableExtend(formula.truthAssignment[..][variable := val]));

ensures result.UNSAT? ==¿ ( var (variable, val) := formula.convertLVtoVI(literal, value); !formula.isSatisfiableExtend(formula.truthAssignment[..][variable := val]));

ensures formula.countUnsetVariables(formula.truthAssignment[..]) == formula.countUnsetVariables(old(formula.truthAssignment[..]));

decreases formula.countUnsetVariables(formula.truthAssignment[..]), 0;

4. Benchmarks

Dafny code can be extracted to C#, and then compiled and executed as regular C# code. In this section, we present the results obtained by benchmarking the C# code extracted from our verified solver (we refer to this code as the Dafny solver) to see how it performs against other solvers.

Benchmark used. For benchmarking, we use some of the tests in SATLIB - Benchmark Problems111https://www.cs.ubc.ca/~hoos/SATLIB/benchm.html. We select the sets uf100, uuf100 up to uf200, uuf200. These sets of SAT problems all contain instances in 3-CNF, with uf denoting satisfiable instances and uuf denoting unsatisfiable instances. The numbers in the names (e.g., 100, 200) denote the number of propositional variables. The number of clauses in each set is chosen such that the problems sit at the satisfiability threshold [CA96]. We choose these sets of SAT instances because they are small enough for DPLL to solve in reasonable time, but big enough so that the search dominates the execution time (and not, e.g., reading the input).

Benchmarking methodology. We run the tests using the benchmarking framework BenchExec [BLW19], a solution that reliably measures and limits resource usage of the benchmarked tool222https://github.com/sosy-lab/benchexec. We used BenchExec to limit resource usage to set the following for each run: time limit to 5000s, memory limit to 1024 MB, CPU core limit to 1. We used a Intel Core i7-9700K CPU @ 3.60GHz machine (cores: 4, threads: 8, frequency: 4900 MHz, Turbo Boost: enabled; RAM: 8290 MB, Operating System Linux-5.3.0-40-generic-x86_64-with-Ubuntu-18.04-bionic, Dafny 2.3.0.10506, Mono JIT compiler 6.8.0.105, G++ 7.5.0).

Benchmark 1. We first check whether the extracted code has any added overhead compared to a implementation written directly in C#. For this purpose, we write in C# a solver implementing the same algorithm and data structures as the Dafny solver.

We find that there is a negligible overhead coming from the method we use to read files in Dafny, and not from the extraction process itself. In our results, the reading and parsing of the input file in Dafny takes at least twice as long as in C#. On small inputs, the C# solver therefore outperforms the Dafny solver. On larger inputs, the performance is the same.

Benchmark 2. The language C# is not popular in SAT solving, with C++ being the language of choice because of performance. Therefore, we implement the same DPLL algorithm directly in C++. We benchmark our verified Dafny solver against the C++ implementation. The results show that the (unverified) C++ solver is approximately twice as fast on large tests as our verified Dafny solver.

Benchmark 3. To put the performance of our verified Dafny solver into context, we also benchmark against the solver MiniSat 333http://minisat.se/ (with the default settings). As MiniSat implements the full CDCL algorithm, which can be exponentially faster than DPLL, it outperforms our solver significantly. However, the correctness guarantee offered by our verified solver is higher than the unverified C code of MiniSat.

In Table 1

, we summarize the running times of all solvers on the respective sets of tests. We report the average running time, the standard deviation and the sum over all running times for SAT instances in each particular set of tests.

Dafny SAT Solver C# DPLL Solver C++ DPLL Solver MiniSat v2.2.0
avg sd sum avg sd sum avg sd sum avg sd sum
uf100 0.07 0.02 72.72 0.05 0.02 55.75 0.02 0.01 21.73 0.00 0.00 2.70
uuf100 0.13 0.03 130.58 0.11 0.03 111.65 0.04 0.01 49.94 0.00 0.00 4.03
uf150 1.29 1.30 129.24 1.22 1.26 122.22 0.63 0.66 63.54 0.00 0.00 0.84
uuf150 3.48 1.56 348.44 3.34 1.51 334.52 1.76 0.79 176.18 0.01 0.00 1.87
uf175 6.90 6.90 690.60 6.88 6.87 688.59 3.50 3.50 350.75 0.02 0.02 2.58
uuf175 21.66 10.60 2166.94 21.80 10.67 2180.41 10.77 5.25 1077.03 0.05 0.02 5.13
uf200 43.22 39.99 4322.50 47.07 43.69 4707.89 21.92 20.35 2192.21 0.06 0.05 6.48
uuf200 110.64 48.33 10953.40 120.07 52.64 11887.17 55.98 22.55 5542.17 0.18 0.08 17.82
Table 1. The CPU time required to solve each set of instances by each SAT Solver in seconds. The first three solvers are implemented by us.

Figures 4 and 5 present the running times (log scale) of all four solvers mentioned above on all SAT instances in the uf200 and uuf200 sets, respectively. The running times are sorted by the time it takes for the Dafny solver to finish.

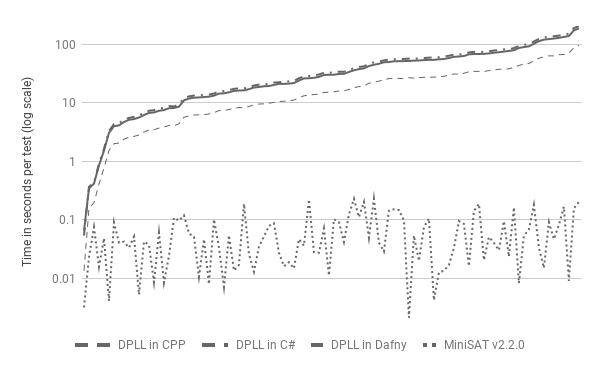

Figure 4. CPU time on each instance in the set uf200 (all instances are satisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.

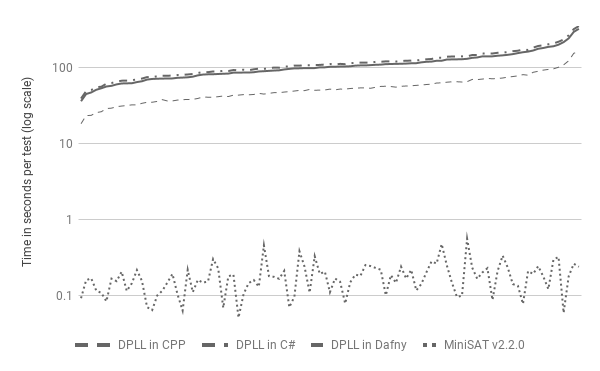

Figure 5. CPU time on each instance in the set uuf200 (all instances are unsatisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.

We conclude that our verified Dafny solver is competitive with an equivalent implementation in C++ (it is only two times slower), but the correctness guarantee offered by our verified solver makes it significantly more trustworthy.

5. Related Work

The SAT solver versat [OSO+12] was implemented and verified in the Guru programming language using dependent types. As our solver, it also implements efficient data structures. However, it relies on a translation to C where data structures are implemented imperatively by using reference counting and a statically enforced read/write discipline. Unlike our approach, the solver is only verified to be sound: if it produces an UNSAT answer, then the input formula truly is unsatisfiable. However, termination and completeness (if the solver produces SAT, then the formula truly is satisfiable) are not verified. Another small difference is the verification guarantee: versat is verified to output UNSAT only if a resolution proof of the empty clause exists, while in our approach we use a semantic criterion: our solver always terminates and produces UNSAT only if there is no satisfying model of the input formula. Of course, in the case of propositional logic these criteria are equivalent and therefore this difference is mostly a matter of implementation. Unlike our solver, some checks are not proved statically and must be checked dynamically, so they could be a source of incompleteness. An advantage of versat over our approach is that is implements more optimizations, like conflict analysis and clause learning, which enable it to be more competitive in terms of running time. Blanchette and others [BFL+18] present a certified SAT solving framework verified in the Isabelle/HOL proof assistant. The proof effort is part of the Isabelle Formalization of Logic project. The framework is based on refinement: at the highest level sit several calculi like CDCL and DPLL, which are formally proved. Depending on the strategy, the calculi are also shown to be terminating. The calculi are shown to be refined by a functional program. Finally, at the lowest level is an imperative implementation in Standard ML, which is shown to be a refinement of the functional implementation. Emphasis is also placed on meta-theoretical consideration. The final solver can still two orders of magnitude slower than a state-of-the-art C solver and therefore additional optimizations [FLE19] are desirable. In contrast, in our own work we do not investigate any meta-theoretical properties of the DPLL/CDCL frameworks; we simply concentrate on obtaining a verified SAT solver. We investigate to what extent directly proving the imperative algorithm is possible in an auto-active manner. A key challenge is that the verification of Dafny code may take a lot of time in certain cases and we have to optimize our code for verification time as well. Another SAT solver verified in Isabelle/HOL, is by Marić [MAR09]. In contrast to previous formalization, the verification methodology is not based on refinement. Instead, the Hoare triples associated to the solver pseudo-code are verified in Isabelle/HOL. In subsequent work [MJ11], Marić and Janičić prove in Isabelle the functional correctness of a SAT solver represented as an abstract transition system. Another formalization of a SAT solver (extended with linear arithmetic) is by Lescuyer [LES11], who verifies a DPLL-based decision procedure for propositional logic in Coq and exposes it as a reflexive tactic. Finally, a decision procedure based on DPLL is also verified by Shankar and Vaucher [SV11] in the PVS system. For the proof, they rely on subtyping and dependent types. Berger et al. have used the Minlog proof assistant to extract a certified SAT solver [BLF+15]. For these last approaches, performance considerations seem to be secondary.

6. Conclusion and Further Work

We have developed a formally verified implementation of the DPLL algorithm in the Dafny programming language. Our implementation is competitive in terms of execution time, but it is also trustworthy: all specifications are computer checked by the Dafny system. Other approaches to SAT solvers that rely on type checkers [BFL+18] are arguably even more trustworthy, since they are verified by a software system satisfying the de Bruijn criterion. However, we believe that our approach can strike a good balance between efficiency and trustworthiness of the final product.

Our implementation incorporates data structures to quickly identify unit clauses and perform unit propagation. The formalization consists of around 3088 lines of Dafny code, including the parser. The code was written by the first author in approximately one year and a half of part time work. The author also learned Dafny during that time. The ratio between lines of proof and lines of code is approximately 4/1. Table 2 contains a summary of our verified solver in numbers.

Lines of code 3088 (without whitespace) Preconditions 420
Classes 4 (and 1 trait) Postconditions 181
Methods 33 Invariants 173
Verification time approx. 13 minutes (entire project) Variants 44
most expensive: SATSolver.solve   (approx. 175s) Predicates Functions 37 20
more than 60s:   6 methods/lemmas between 10s and 60s:   2 methods/lemmas Ghost variables Lemmas Assertions 24 42 169
Ratio specification/code 2488 lines of specification/proofs to 600 lines of code reads annotations modifies annotations 41 26
Table 2. Various statistics for our verified DPLL solver.

In addition to coming up with the right invariants, the main challenge in the development of the verified solver is the large amount of time required by the Dafny system to discharge the verification conditions. In order to minimize this verification time, we develop and use the following development/verification methodology:

  1. Avoid nested loops in methods. Nested loops usually require duplicating invariants, which decreases elegance and increases verification time.

    An example of applying this tip is the revertLastDecisionLevel method (in the file solver/formula.dfy), whose purpose is to backtrack to the previous decision level. The code of the method is currently very simple: it calls removeLastVariable repeatedly in a while loop. However, because it is so simple, it is tempting to inline removeLastVariable – this would lead to a significant increase in verification time.

  2. In the same spirit, avoid multiple quantifications in specifications.

    We have found it useful, whenever having a specification of the form forall x :: forall y :: P(x, y), to try to extract the subformula forall y :: P(x, y) as a separate predicate of x. This helps in two distinct ways: it forces the programmer to name the subformula, thereby clearing their thought process and making their intention more clear, and it enables the Z3 pattern-based quantifier instantiation to perform better [MOS09].

  3. Use very small methods. We find that it is better to extract as a method even code that is only a few lines of code long. In a usual programming language, such methods would be inlined (by the programmer). In our development, it is not unusual for such methods (with very few lines of code) to require many more helper annotations (invariants, helper assertions, etc.) and take significant time to verify.

  4. Use minimal modifies clauses in methods and reads clauses in functions. In particular, we make extensive use of the less well-known backtick operator in Dafny.

  5. During development, use Dafny to verify only the lemma/method currently being worked on. Run Dafny on the entire project at the end. To force Dafny to check only one method, we use the -proc command line switch.

  6. Finally, we have found that using the rather nice Z3 axiom profiler [BMS19] to optimize verification time does not scale well to projects the size of our solver.

Our project shows that it is possible to obtain a fully verified SAT solver written in assertional style, solver that is competitive in terms of running time with similar solvers written in non-verifiable languages. However, our experience with the verified implementation of the solver is that it currently takes significant effort and expertise to achieve this. We consider that three directions of action for the development of Dafny (and other similar auto-active verification tools) would be beneficial in order to improve this situation:

  1. Improve verification time of individual methods/lemmas,

  2. Make failures of verification obligations to check more explainable, and

  3. Devise a method better than asserts to guide the verifier manually.

As future work, we would like to verify an implementation of the full CDCL algorithm, thereby obtaining a verified solver that is competitive against state-of-the-art SAT solvers. In order to upgrade to a competitive CDCL solver, we need to modify the algorithm to implement a back-jumping and clause learning strategy, but also implement the two watched literals data structure [GKS+08], which becomes more important for performance when the number of clauses grows.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

3. A Verified Implementation of the DPLL Algorithm

In this section, we present the main ingredients of our verified solver. The full source code, along with instruction on how to compile it and reproduce our benchmarks, can be found at

https://github.com/andricicezar/sat-solver-dafny-v2.

3.1. Data Structures

We first discuss the data structures for representing the formula, for quickly identifying unit clauses and for recalling the current truth assignment.

3.1.1. Representing the CNF formula

The main class in our Dafny development is Formula, which extends DataStructures (Figure 2). This class is instantiated with the number of propositional variables (variablesCount) and with the clauses of the formula to be checked for satisfiability. Propositional variables are represented by values between and , positive literals are represented by values between and variablesCount, and negative integers between and variablesCount represent negative literals. Variables and literals are represented by values of type Int32.t, which we define to model machine integers and which is extracted to int.

    var variablesCount : Int32.t;
    var clauses : seq< seq<Int32.t> >;
    var decisionLevel : Int32.t;
    var traceVariable : array<Int32.t>;
    var traceValue : array<bool>;
    var traceDLStart : array<Int32.t>;
    var traceDLEnd : array<Int32.t>;
    ghost var assignmentsTrace : set<(Int32.t, bool)>;
    var truthAssignment : array<Int32.t>;
    var trueLiteralsCount : array<Int32.t>;
    var falseLiteralsCount : array<Int32.t>;
    var positiveLiteralsToClauses : array< seq<Int32.t> >;
    var negativeLiteralsToClauses : array< seq<Int32.t> >;
}
Figure 2. The most important fields in our data structures (file solver/data_structures.dfy).

Clauses are sequences of literals and the entire formula is represented by a sequence of clauses (var clauses : seq< seq<Int32.t> >). Using sequences for clause (sequences are immutable in Dafny) has no significant performance impact, since they are set at the beginning once and never changed.

3.1.2. Representing the current assignment and the assignments trace

The member variable decisionLevel recalls the current decision level, which has an initial value of . The assignments trace is represented at computation time by using the arrays traceVariable, traceValue, traceDLStart and traceDLEnd and at verification time also by the ghost construct assignmentsTrace (see Figure 2).

The arrays traceVariable and traceValue have the same actual length. They recall, in order, all variables that have been set so far, together with their value. The arrays traceDLStart and traceDLEnd recall at what index in traceVariable and traceValue each decision layer starts and ends, respectively.

The ghost construct assignmentsTrace recalls the same information as a set of (variable, value) pairs. This set is used for the convenience of specifying some of the methods and it only lives at verification time; it is erased before running time and therefore it entails no performance penalty.

Note that traceVariable, traceValue, traceDLStart and traceDLEnd are arrays, and they are extracted to C# as such. Therefore, lookups and updates in these arrays take constant time. The link between the ghost construct assignmentsTrace and its imperative counterparts (traceVariable, traceValue, traceDLStart and traceDLEnd) is computer checked as the following class invariant:

(decisionLevel ¿= 0 ==¿ ( (forall i :: 0 ¡= i ¡ traceDLEnd[decisionLevel] ==¿ (traceVariable[i], traceValue[i]) in assignmentsTrace) && (forall x :: x in assignmentsTrace ==¿ ( exists i :: 0 ¡= i ¡ traceDLEnd[decisionLevel] && (traceVariable[i], traceValue[i]) == x))))

The array truthAssignment is indexed from to and it recalls the current truth assignment. The value is if the propositional variable is unset, if is false, and if is true. At the beginning, it is initialized to at all indices. The following class invariant describing the expected link between the assignments trace and the current truth assignment is computer checked:

truthAssignment.Length == variablesCount && (forall i :: 0 ¡= i ¡ variablesCount ==¿ -1 ¡= truthAssignment[i] ¡= 1) && (forall i :: 0 ¡= i ¡ variablesCount && truthAssignment[i] != -1 ==¿ (i, truthAssignment[i]) in assignmentsTrace) && (forall i :: 0 ¡= i ¡ variablesCount && truthAssignment[i] == -1 ==¿ (i, false) !in assignmentsTrace && (i, true) !in assignmentsTrace)

Note that the invariant makes use of the ghost construct assignmentsTrace for brevity.

3.1.3. Quickly identifying unit clauses

The array trueLiteralsCount (falseLiteralsCount) is used to recall how many literals in each clause are currently true (resp. false). They are indexed from to . The value denotes the number of literals set to true in and the number of false literals in . These are used to quickly identify which clauses are satisfied, which clauses are unit or which clauses are false. For example, to check whether is satisfied, we simply evaluate . The following class invariant involving these arrays is computer checked:

—trueLiteralsCount— == —clauses— && forall i :: 0 ¡= i ¡ —clauses— ==¿ 0 ¡= trueLiteralsCount[i] == countTrueLiterals(truthAssignment, clauses[i]) and analougously for falseLiteralsCount. Note that countTrueLiterals is a function (not a method, hence it is used for specification only) that actually computes the number of true literals by walking through all literals in the respective clause.

In order to quickly update trueLiteralsCount and falseLiteralsCount when a new literal is (un)set, we use positiveLiteralsToClauses and negativeLiteralsToClauses. These are arrays indexed from to . The first array contains the indices of the clauses in which a given variable occurs. The second array contains the indices of the clauses in which the negation of the given variable occurs. They provably satisfy the following invariant:

—positiveLiteralsToClauses— == variablesCount && ( forall variable :: 0 ¡= variable ¡ —positiveLiteralsToClauses— ==¿ ghost var s := positiveLiteralsToClauses[variable]; … (forall clauseIndex :: clauseIndex in s ==¿ variable+1 in clauses[clauseIndex]) && (forall clauseIndex :: 0 ¡= clauseIndex ¡ —clauses— && clauseIndex !in s ==¿ variable+1 !in clauses[clauseIndex])) (analogously for negativeLiteralsToClauses).

To represent class invariants, Dafny encourages a methodology of defining a class predicate valid. In our development, valid consists of the conjunction of the above invariants, plus several other lower-level predicates that we omit for brevity. The predicate valid is used as a precondition and postcondition for all class methods, and therefore plays the role of a class invariant. This way, it is guaranteed that the data structures are consistent.

3.2. Verified Operations over the Data Structures

From the initial (valid) state, we allow one of these four actions:

  1. increase the decision level,

  2. set a variable,

  3. set a literal and perform unit propagation, and

  4. revert the assignments done on the last decision level.

Each of the actions is implemented as a method and we show that these four methods preserve the data structure invariants above.

3.2.1. The Method increaseDecisionLevel

This method increments the decision level by one and creates a new layer. The method guarantees that the new state is valid, and nothing else changes. Its signature and its specification are: method increaseDecisionLevel() requires validVariablesCount(); requires validAssignmentTrace(); requires decisionLevel ¡ variablesCount - 1; requires decisionLevel ¿= 0 ==¿ traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel];

modifies ‘decisionLevel, traceDLStart, traceDLEnd;

ensures decisionLevel == old(decisionLevel) + 1; ensures validAssignmentTrace(); ensures traceDLStart[decisionLevel] == traceDLEnd[decisionLevel]; ensures getDecisionLevel(decisionLevel) == ; ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i);

The predicates validVariablesCount and validAssignmentTrace are used as conjuncts in the class invariant. The function getDecisionLevel returns all assignments at a given decision level as a set.

3.2.2. The Method setVariable

This method takes a variable that is not yet set and it updates is value. Because the trace of assignments and truthAssignment are changed, trueLiteralsCount and falseLiteralsCount have to be updated. We use the arrays positiveLiteralsToClauses and negativeLiteralsToClauses to efficiently update them, and prove that the clauses that are not mentioned in these arrays are not impacted. The signature of setVariable and its specification are: method setVariable(variable : Int32.t, value : bool) requires valid(); requires validVariable(variable); requires truthAssignment[variable] == -1; requires 0 ¡= decisionLevel;

modifies truthAssignment, traceVariable, traceValue, traceDLEnd, ‘assignmentsTrace, trueLiteralsCount, falseLiteralsCount;

ensures valid(); ensures traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel]; ensures traceVariable[traceDLEnd[decisionLevel]-1] == variable; ensures traceValue[traceDLEnd[decisionLevel]-1] == value;

// post conditions that ensure that only a position of the arrays // has been updated. ensures value == false ==¿ old(truthAssignment[..])[variable := 0] == truthAssignment[..]; ensures value == true ==¿ old(truthAssignment[..])[variable := 1] == truthAssignment[..]; ensures forall i :: 0 ¡= i ¡ variablesCount && i != decisionLevel ==¿ traceDLEnd[i] == old(traceDLEnd[i]); ensures forall i :: 0 ¡= i ¡ variablesCount && i != old(traceDLEnd[decisionLevel]) ==¿ traceVariable[i] == old(traceVariable[i]) && traceValue[i] == old(traceValue[i]); ensures forall x :: 0 ¡= x ¡ old(traceDLEnd[decisionLevel]) ==¿ traceVariable[x] == old(traceVariable[x]);

ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i);

ensures assignmentsTrace == old(assignmentsTrace) + (variable, value) ;

ensures countUnsetVariables(truthAssignment[..]) + 1 == old(countUnsetVariables(truthAssignment[..]));

3.2.3. The Method setLiteral

This method uses setVariable as a primitive, so the preconditions and postconditions are similar. The main difference is that after it makes the first update, it also performs unit propagation, possibly recursively. This means that it calls setLiteral again with new values. So, at the end of a call, truthAssignment might change at several positions. To prove termination, we use as a variant the number of unset variables, which provably decreases at every recursive step. Its signature and its specification are: method setLiteral(literal : Int32.t, value : bool) requires valid(); requires validLiteral(literal); requires getLiteralValue(truthAssignment[..], literal) == -1; requires 0 ¡= decisionLevel;

modifies truthAssignment, trueLiteralsCount, falseLiteralsCount, traceDLEnd, traceValue, traceVariable, ‘assignmentsTrace;

ensures valid(); ensures traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel]; ensures forall x :: 0 ¡= x ¡ old(traceDLEnd[decisionLevel]) ==¿ traceVariable[x] == old(traceVariable[x]); ensures assignmentsTrace == old(assignmentsTrace) + getDecisionLevel(decisionLevel); ensures forall i :: 0 ¡= i ¡ decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i); ensures countUnsetVariables(truthAssignment[..]) ¡ old(countUnsetVariables(truthAssignment[..])); ensures ( ghost var (variable, val) := convertLVtoVI(literal, value); isSatisfiableExtend(old(truthAssignment[..])[variable as int := val]) ¡==¿ isSatisfiableExtend(truthAssignment[..]) );

decreases countUnsetVariables(truthAssignment[..]), 0;

In the code above, the function returns the value of the literal in the truth assignment tau. Note that the variable truthAssignment is an array, while truthAssignment[..] converts the array to a sequence. The sequence (immutable) is used to represent truth assignments at specification level.

3.2.4. The Method revertLastDecisionLevel

This method reverts the assignments from in the last layer by changing the value of the respective literals to . The proof of this method requires several helper proofs that confirm that the data structures are updated correctly. To quickly update trueLiteralsCount and falseLiteralsCount, we again use the two arrays positiveLiteralsToClauses and negativeLiteralsToClauses. As part of postcondition, we prove that the literals not on the last decision level remain unchanged: method revertLastDecisionLevel() requires valid(); requires 0 ¡= decisionLevel;

modifies ‘assignmentsTrace, ‘decisionLevel, truthAssignment, trueLiteralsCount, falseLiteralsCount, traceDLEnd;

ensures decisionLevel == old(decisionLevel) - 1; ensures assignmentsTrace == old(assignmentsTrace) - old(getDecisionLevel(decisionLevel)); ensures valid(); ensures forall i :: 0 ¡= i ¡= decisionLevel ==¿ old(getDecisionLevel(i)) == getDecisionLevel(i); ensures decisionLevel ¿ -1 ==¿ traceDLStart[decisionLevel] ¡ traceDLEnd[decisionLevel];

3.3. Proof of Functional Correctness for the Main Algorithm

The entry point called to solve the SAT instance is solve:

method solve() returns (result : SAT_UNSAT) requires formula.valid(); requires formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

modifies formula.truthAssignment, formula.traceVariable, formula.traceValue, formula.traceDLStart, formula.traceDLEnd, formula‘decisionLevel, formula‘assignmentsTrace, formula.trueLiteralsCount, formula.falseLiteralsCount;

ensures formula.valid(); ensures old(formula.decisionLevel) == formula.decisionLevel; ensures old(formula.assignmentsTrace) == formula.assignmentsTrace; ensures forall i :: 0 ¡= i ¡= formula.decisionLevel ==¿ old(formula.getDecisionLevel(i)) == formula.getDecisionLevel(i); ensures formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

ensures result.SAT? ==¿ formula.validValuesTruthAssignment(result.tau); ensures formula.countUnsetVariables(formula.truthAssignment[..]) == formula.countUnsetVariables(old(formula.truthAssignment[..]));

ensures result.SAT? ==¿ formula.isSatisfiableExtend(formula.truthAssignment[..]); ensures result.UNSAT? ==¿ !formula.isSatisfiableExtend(formula.truthAssignment[..]);

decreases formula.countUnsetVariables(formula.truthAssignment[..]), 1;

It implements the DPLL-procedure given in Algorithm 2 using recursion. However, for efficiency, the data structures are kept in the instance of a class instead of being passed as arguments. The most important postconditions stating the functional correctness are: if it returns SAT then the current truthAssignment can be extended to satisfy the formula, and if returns UNSAT it means that no truth assignment extending the current truthAssignment satisfies it. We use the predicate , which tests whether there exists a complete assignment that extends the partial truth assignment tau and that satisfies the formula.

We also show as a postcondition that solve ends in the same state as where it starts. This means that we chose to undo the changes even if we find a solution. Otherwise, the preconditions and postconditions for solve would need to change accordingly and become more verbose and less elegant. For simplicity, we chose to revert to the initial state every time.

A flowchart that shows graphically the main flow of the solve method, together with the most important statements that hold after each line, is presented in Figure 3.

solve()

does the formula have an empty clause?

No

Yes

UNSAT

is formula empty?

No

Yes

SAT

is r SAT?

No

Yes

SAT

return

1)

2) (1⃝

3) 2⃝

4) 3⃝

calls solve recursively

4⃝

4⃝

calls solve recursively
Figure 3. Flowchart of method solve. For simplicity, when the initial state is reached, we use the notation .

Once a literal is chosen, the updates to the data structures are delegated to the step method. This removes some duplication in the code, but it also makes the verification take less time. The preconditions and postconditions of step are the same as in solve, but taking into account that step additionally takes as arguments a literal and a desired value for this literal. The method step calls setLiteral to set the literal and perform unit propagation, and then calls solve recursively:

method step(literal : Int32.t, value : bool) returns (result : SAT_UNSAT) requires formula.valid(); requires formula.decisionLevel ¡ formula.variablesCount - 1; requires formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel]; requires !formula.hasEmptyClause(); requires !formula.isEmpty(); requires formula.validLiteral(literal); requires formula.getLiteralValue(formula.truthAssignment[..], literal) == -1;

modifies formula.truthAssignment, formula.traceVariable, formula.traceValue, formula.traceDLStart, formula.traceDLEnd, formula‘decisionLevel, formula‘assignmentsTrace, formula.trueLiteralsCount, formula.falseLiteralsCount;

ensures formula.valid(); ensures old(formula.decisionLevel) == formula.decisionLevel; ensures old(formula.assignmentsTrace) == formula.assignmentsTrace; ensures forall i :: 0 ¡= i ¡= formula.decisionLevel ==¿ old(formula.getDecisionLevel(i)) == formula.getDecisionLevel(i); ensures formula.decisionLevel ¿ -1 ==¿ formula.traceDLStart[formula.decisionLevel] ¡ formula.traceDLEnd[formula.decisionLevel];

ensures result.SAT? ==¿ formula.validValuesTruthAssignment(result.tau); ensures result.SAT? ==¿ ( var (variable, val) := formula.convertLVtoVI(literal, value); formula.isSatisfiableExtend(formula.truthAssignment[..][variable := val]));

ensures result.UNSAT? ==¿ ( var (variable, val) := formula.convertLVtoVI(literal, value); !formula.isSatisfiableExtend(formula.truthAssignment[..][variable := val]));

ensures formula.countUnsetVariables(formula.truthAssignment[..]) == formula.countUnsetVariables(old(formula.truthAssignment[..]));

decreases formula.countUnsetVariables(formula.truthAssignment[..]), 0;

4. Benchmarks

Dafny code can be extracted to C#, and then compiled and executed as regular C# code. In this section, we present the results obtained by benchmarking the C# code extracted from our verified solver (we refer to this code as the Dafny solver) to see how it performs against other solvers.

Benchmark used. For benchmarking, we use some of the tests in SATLIB - Benchmark Problems111https://www.cs.ubc.ca/~hoos/SATLIB/benchm.html. We select the sets uf100, uuf100 up to uf200, uuf200. These sets of SAT problems all contain instances in 3-CNF, with uf denoting satisfiable instances and uuf denoting unsatisfiable instances. The numbers in the names (e.g., 100, 200) denote the number of propositional variables. The number of clauses in each set is chosen such that the problems sit at the satisfiability threshold [CA96]. We choose these sets of SAT instances because they are small enough for DPLL to solve in reasonable time, but big enough so that the search dominates the execution time (and not, e.g., reading the input).

Benchmarking methodology. We run the tests using the benchmarking framework BenchExec [BLW19], a solution that reliably measures and limits resource usage of the benchmarked tool222https://github.com/sosy-lab/benchexec. We used BenchExec to limit resource usage to set the following for each run: time limit to 5000s, memory limit to 1024 MB, CPU core limit to 1. We used a Intel Core i7-9700K CPU @ 3.60GHz machine (cores: 4, threads: 8, frequency: 4900 MHz, Turbo Boost: enabled; RAM: 8290 MB, Operating System Linux-5.3.0-40-generic-x86_64-with-Ubuntu-18.04-bionic, Dafny 2.3.0.10506, Mono JIT compiler 6.8.0.105, G++ 7.5.0).

Benchmark 1. We first check whether the extracted code has any added overhead compared to a implementation written directly in C#. For this purpose, we write in C# a solver implementing the same algorithm and data structures as the Dafny solver.

We find that there is a negligible overhead coming from the method we use to read files in Dafny, and not from the extraction process itself. In our results, the reading and parsing of the input file in Dafny takes at least twice as long as in C#. On small inputs, the C# solver therefore outperforms the Dafny solver. On larger inputs, the performance is the same.

Benchmark 2. The language C# is not popular in SAT solving, with C++ being the language of choice because of performance. Therefore, we implement the same DPLL algorithm directly in C++. We benchmark our verified Dafny solver against the C++ implementation. The results show that the (unverified) C++ solver is approximately twice as fast on large tests as our verified Dafny solver.

Benchmark 3. To put the performance of our verified Dafny solver into context, we also benchmark against the solver MiniSat 333http://minisat.se/ (with the default settings). As MiniSat implements the full CDCL algorithm, which can be exponentially faster than DPLL, it outperforms our solver significantly. However, the correctness guarantee offered by our verified solver is higher than the unverified C code of MiniSat.

In Table 1

, we summarize the running times of all solvers on the respective sets of tests. We report the average running time, the standard deviation and the sum over all running times for SAT instances in each particular set of tests.

Dafny SAT Solver C# DPLL Solver C++ DPLL Solver MiniSat v2.2.0
avg sd sum avg sd sum avg sd sum avg sd sum
uf100 0.07 0.02 72.72 0.05 0.02 55.75 0.02 0.01 21.73 0.00 0.00 2.70
uuf100 0.13 0.03 130.58 0.11 0.03 111.65 0.04 0.01 49.94 0.00 0.00 4.03
uf150 1.29 1.30 129.24 1.22 1.26 122.22 0.63 0.66 63.54 0.00 0.00 0.84
uuf150 3.48 1.56 348.44 3.34 1.51 334.52 1.76 0.79 176.18 0.01 0.00 1.87
uf175 6.90 6.90 690.60 6.88 6.87 688.59 3.50 3.50 350.75 0.02 0.02 2.58
uuf175 21.66 10.60 2166.94 21.80 10.67 2180.41 10.77 5.25 1077.03 0.05 0.02 5.13
uf200 43.22 39.99 4322.50 47.07 43.69 4707.89 21.92 20.35 2192.21 0.06 0.05 6.48
uuf200 110.64 48.33 10953.40 120.07 52.64 11887.17 55.98 22.55 5542.17 0.18 0.08 17.82
Table 1. The CPU time required to solve each set of instances by each SAT Solver in seconds. The first three solvers are implemented by us.

Figures 4 and 5 present the running times (log scale) of all four solvers mentioned above on all SAT instances in the uf200 and uuf200 sets, respectively. The running times are sorted by the time it takes for the Dafny solver to finish.

Figure 4. CPU time on each instance in the set uf200 (all instances are satisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.
Figure 5. CPU time on each instance in the set uuf200 (all instances are unsatisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.

We conclude that our verified Dafny solver is competitive with an equivalent implementation in C++ (it is only two times slower), but the correctness guarantee offered by our verified solver makes it significantly more trustworthy.

5. Related Work

The SAT solver versat [OSO+12] was implemented and verified in the Guru programming language using dependent types. As our solver, it also implements efficient data structures. However, it relies on a translation to C where data structures are implemented imperatively by using reference counting and a statically enforced read/write discipline. Unlike our approach, the solver is only verified to be sound: if it produces an UNSAT answer, then the input formula truly is unsatisfiable. However, termination and completeness (if the solver produces SAT, then the formula truly is satisfiable) are not verified. Another small difference is the verification guarantee: versat is verified to output UNSAT only if a resolution proof of the empty clause exists, while in our approach we use a semantic criterion: our solver always terminates and produces UNSAT only if there is no satisfying model of the input formula. Of course, in the case of propositional logic these criteria are equivalent and therefore this difference is mostly a matter of implementation. Unlike our solver, some checks are not proved statically and must be checked dynamically, so they could be a source of incompleteness. An advantage of versat over our approach is that is implements more optimizations, like conflict analysis and clause learning, which enable it to be more competitive in terms of running time. Blanchette and others [BFL+18] present a certified SAT solving framework verified in the Isabelle/HOL proof assistant. The proof effort is part of the Isabelle Formalization of Logic project. The framework is based on refinement: at the highest level sit several calculi like CDCL and DPLL, which are formally proved. Depending on the strategy, the calculi are also shown to be terminating. The calculi are shown to be refined by a functional program. Finally, at the lowest level is an imperative implementation in Standard ML, which is shown to be a refinement of the functional implementation. Emphasis is also placed on meta-theoretical consideration. The final solver can still two orders of magnitude slower than a state-of-the-art C solver and therefore additional optimizations [FLE19] are desirable. In contrast, in our own work we do not investigate any meta-theoretical properties of the DPLL/CDCL frameworks; we simply concentrate on obtaining a verified SAT solver. We investigate to what extent directly proving the imperative algorithm is possible in an auto-active manner. A key challenge is that the verification of Dafny code may take a lot of time in certain cases and we have to optimize our code for verification time as well. Another SAT solver verified in Isabelle/HOL, is by Marić [MAR09]. In contrast to previous formalization, the verification methodology is not based on refinement. Instead, the Hoare triples associated to the solver pseudo-code are verified in Isabelle/HOL. In subsequent work [MJ11], Marić and Janičić prove in Isabelle the functional correctness of a SAT solver represented as an abstract transition system. Another formalization of a SAT solver (extended with linear arithmetic) is by Lescuyer [LES11], who verifies a DPLL-based decision procedure for propositional logic in Coq and exposes it as a reflexive tactic. Finally, a decision procedure based on DPLL is also verified by Shankar and Vaucher [SV11] in the PVS system. For the proof, they rely on subtyping and dependent types. Berger et al. have used the Minlog proof assistant to extract a certified SAT solver [BLF+15]. For these last approaches, performance considerations seem to be secondary.

6. Conclusion and Further Work

We have developed a formally verified implementation of the DPLL algorithm in the Dafny programming language. Our implementation is competitive in terms of execution time, but it is also trustworthy: all specifications are computer checked by the Dafny system. Other approaches to SAT solvers that rely on type checkers [BFL+18] are arguably even more trustworthy, since they are verified by a software system satisfying the de Bruijn criterion. However, we believe that our approach can strike a good balance between efficiency and trustworthiness of the final product.

Our implementation incorporates data structures to quickly identify unit clauses and perform unit propagation. The formalization consists of around 3088 lines of Dafny code, including the parser. The code was written by the first author in approximately one year and a half of part time work. The author also learned Dafny during that time. The ratio between lines of proof and lines of code is approximately 4/1. Table 2 contains a summary of our verified solver in numbers.

Lines of code 3088 (without whitespace) Preconditions 420
Classes 4 (and 1 trait) Postconditions 181
Methods 33 Invariants 173
Verification time approx. 13 minutes (entire project) Variants 44
most expensive: SATSolver.solve   (approx. 175s) Predicates Functions 37 20
more than 60s:   6 methods/lemmas between 10s and 60s:   2 methods/lemmas Ghost variables Lemmas Assertions 24 42 169
Ratio specification/code 2488 lines of specification/proofs to 600 lines of code reads annotations modifies annotations 41 26
Table 2. Various statistics for our verified DPLL solver.

In addition to coming up with the right invariants, the main challenge in the development of the verified solver is the large amount of time required by the Dafny system to discharge the verification conditions. In order to minimize this verification time, we develop and use the following development/verification methodology:

  1. Avoid nested loops in methods. Nested loops usually require duplicating invariants, which decreases elegance and increases verification time.

    An example of applying this tip is the revertLastDecisionLevel method (in the file solver/formula.dfy), whose purpose is to backtrack to the previous decision level. The code of the method is currently very simple: it calls removeLastVariable repeatedly in a while loop. However, because it is so simple, it is tempting to inline removeLastVariable – this would lead to a significant increase in verification time.

  2. In the same spirit, avoid multiple quantifications in specifications.

    We have found it useful, whenever having a specification of the form forall x :: forall y :: P(x, y), to try to extract the subformula forall y :: P(x, y) as a separate predicate of x. This helps in two distinct ways: it forces the programmer to name the subformula, thereby clearing their thought process and making their intention more clear, and it enables the Z3 pattern-based quantifier instantiation to perform better [MOS09].

  3. Use very small methods. We find that it is better to extract as a method even code that is only a few lines of code long. In a usual programming language, such methods would be inlined (by the programmer). In our development, it is not unusual for such methods (with very few lines of code) to require many more helper annotations (invariants, helper assertions, etc.) and take significant time to verify.

  4. Use minimal modifies clauses in methods and reads clauses in functions. In particular, we make extensive use of the less well-known backtick operator in Dafny.

  5. During development, use Dafny to verify only the lemma/method currently being worked on. Run Dafny on the entire project at the end. To force Dafny to check only one method, we use the -proc command line switch.

  6. Finally, we have found that using the rather nice Z3 axiom profiler [BMS19] to optimize verification time does not scale well to projects the size of our solver.

Our project shows that it is possible to obtain a fully verified SAT solver written in assertional style, solver that is competitive in terms of running time with similar solvers written in non-verifiable languages. However, our experience with the verified implementation of the solver is that it currently takes significant effort and expertise to achieve this. We consider that three directions of action for the development of Dafny (and other similar auto-active verification tools) would be beneficial in order to improve this situation:

  1. Improve verification time of individual methods/lemmas,

  2. Make failures of verification obligations to check more explainable, and

  3. Devise a method better than asserts to guide the verifier manually.

As future work, we would like to verify an implementation of the full CDCL algorithm, thereby obtaining a verified solver that is competitive against state-of-the-art SAT solvers. In order to upgrade to a competitive CDCL solver, we need to modify the algorithm to implement a back-jumping and clause learning strategy, but also implement the two watched literals data structure [GKS+08], which becomes more important for performance when the number of clauses grows.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

4. Benchmarks

Dafny code can be extracted to C#, and then compiled and executed as regular C# code. In this section, we present the results obtained by benchmarking the C# code extracted from our verified solver (we refer to this code as the Dafny solver) to see how it performs against other solvers.

Benchmark used. For benchmarking, we use some of the tests in SATLIB - Benchmark Problems111https://www.cs.ubc.ca/~hoos/SATLIB/benchm.html. We select the sets uf100, uuf100 up to uf200, uuf200. These sets of SAT problems all contain instances in 3-CNF, with uf denoting satisfiable instances and uuf denoting unsatisfiable instances. The numbers in the names (e.g., 100, 200) denote the number of propositional variables. The number of clauses in each set is chosen such that the problems sit at the satisfiability threshold [CA96]. We choose these sets of SAT instances because they are small enough for DPLL to solve in reasonable time, but big enough so that the search dominates the execution time (and not, e.g., reading the input).

Benchmarking methodology. We run the tests using the benchmarking framework BenchExec [BLW19], a solution that reliably measures and limits resource usage of the benchmarked tool222https://github.com/sosy-lab/benchexec. We used BenchExec to limit resource usage to set the following for each run: time limit to 5000s, memory limit to 1024 MB, CPU core limit to 1. We used a Intel Core i7-9700K CPU @ 3.60GHz machine (cores: 4, threads: 8, frequency: 4900 MHz, Turbo Boost: enabled; RAM: 8290 MB, Operating System Linux-5.3.0-40-generic-x86_64-with-Ubuntu-18.04-bionic, Dafny 2.3.0.10506, Mono JIT compiler 6.8.0.105, G++ 7.5.0).

Benchmark 1. We first check whether the extracted code has any added overhead compared to a implementation written directly in C#. For this purpose, we write in C# a solver implementing the same algorithm and data structures as the Dafny solver.

We find that there is a negligible overhead coming from the method we use to read files in Dafny, and not from the extraction process itself. In our results, the reading and parsing of the input file in Dafny takes at least twice as long as in C#. On small inputs, the C# solver therefore outperforms the Dafny solver. On larger inputs, the performance is the same.

Benchmark 2. The language C# is not popular in SAT solving, with C++ being the language of choice because of performance. Therefore, we implement the same DPLL algorithm directly in C++. We benchmark our verified Dafny solver against the C++ implementation. The results show that the (unverified) C++ solver is approximately twice as fast on large tests as our verified Dafny solver.

Benchmark 3. To put the performance of our verified Dafny solver into context, we also benchmark against the solver MiniSat 333http://minisat.se/ (with the default settings). As MiniSat implements the full CDCL algorithm, which can be exponentially faster than DPLL, it outperforms our solver significantly. However, the correctness guarantee offered by our verified solver is higher than the unverified C code of MiniSat.

In Table 1

, we summarize the running times of all solvers on the respective sets of tests. We report the average running time, the standard deviation and the sum over all running times for SAT instances in each particular set of tests.

Dafny SAT Solver C# DPLL Solver C++ DPLL Solver MiniSat v2.2.0
avg sd sum avg sd sum avg sd sum avg sd sum
uf100 0.07 0.02 72.72 0.05 0.02 55.75 0.02 0.01 21.73 0.00 0.00 2.70
uuf100 0.13 0.03 130.58 0.11 0.03 111.65 0.04 0.01 49.94 0.00 0.00 4.03
uf150 1.29 1.30 129.24 1.22 1.26 122.22 0.63 0.66 63.54 0.00 0.00 0.84
uuf150 3.48 1.56 348.44 3.34 1.51 334.52 1.76 0.79 176.18 0.01 0.00 1.87
uf175 6.90 6.90 690.60 6.88 6.87 688.59 3.50 3.50 350.75 0.02 0.02 2.58
uuf175 21.66 10.60 2166.94 21.80 10.67 2180.41 10.77 5.25 1077.03 0.05 0.02 5.13
uf200 43.22 39.99 4322.50 47.07 43.69 4707.89 21.92 20.35 2192.21 0.06 0.05 6.48
uuf200 110.64 48.33 10953.40 120.07 52.64 11887.17 55.98 22.55 5542.17 0.18 0.08 17.82
Table 1. The CPU time required to solve each set of instances by each SAT Solver in seconds. The first three solvers are implemented by us.

Figures 4 and 5 present the running times (log scale) of all four solvers mentioned above on all SAT instances in the uf200 and uuf200 sets, respectively. The running times are sorted by the time it takes for the Dafny solver to finish.

Figure 4. CPU time on each instance in the set uf200 (all instances are satisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.
Figure 5. CPU time on each instance in the set uuf200 (all instances are unsatisfiable in this set). The Dafny solver and the C# solver are essentially indistinguishable. The C++ solver is approximately twice as fast. MiniSAT is much faster, since it implements the full CDCL algorithm.

We conclude that our verified Dafny solver is competitive with an equivalent implementation in C++ (it is only two times slower), but the correctness guarantee offered by our verified solver makes it significantly more trustworthy.

5. Related Work

The SAT solver versat [OSO+12] was implemented and verified in the Guru programming language using dependent types. As our solver, it also implements efficient data structures. However, it relies on a translation to C where data structures are implemented imperatively by using reference counting and a statically enforced read/write discipline. Unlike our approach, the solver is only verified to be sound: if it produces an UNSAT answer, then the input formula truly is unsatisfiable. However, termination and completeness (if the solver produces SAT, then the formula truly is satisfiable) are not verified. Another small difference is the verification guarantee: versat is verified to output UNSAT only if a resolution proof of the empty clause exists, while in our approach we use a semantic criterion: our solver always terminates and produces UNSAT only if there is no satisfying model of the input formula. Of course, in the case of propositional logic these criteria are equivalent and therefore this difference is mostly a matter of implementation. Unlike our solver, some checks are not proved statically and must be checked dynamically, so they could be a source of incompleteness. An advantage of versat over our approach is that is implements more optimizations, like conflict analysis and clause learning, which enable it to be more competitive in terms of running time. Blanchette and others [BFL+18] present a certified SAT solving framework verified in the Isabelle/HOL proof assistant. The proof effort is part of the Isabelle Formalization of Logic project. The framework is based on refinement: at the highest level sit several calculi like CDCL and DPLL, which are formally proved. Depending on the strategy, the calculi are also shown to be terminating. The calculi are shown to be refined by a functional program. Finally, at the lowest level is an imperative implementation in Standard ML, which is shown to be a refinement of the functional implementation. Emphasis is also placed on meta-theoretical consideration. The final solver can still two orders of magnitude slower than a state-of-the-art C solver and therefore additional optimizations [FLE19] are desirable. In contrast, in our own work we do not investigate any meta-theoretical properties of the DPLL/CDCL frameworks; we simply concentrate on obtaining a verified SAT solver. We investigate to what extent directly proving the imperative algorithm is possible in an auto-active manner. A key challenge is that the verification of Dafny code may take a lot of time in certain cases and we have to optimize our code for verification time as well. Another SAT solver verified in Isabelle/HOL, is by Marić [MAR09]. In contrast to previous formalization, the verification methodology is not based on refinement. Instead, the Hoare triples associated to the solver pseudo-code are verified in Isabelle/HOL. In subsequent work [MJ11], Marić and Janičić prove in Isabelle the functional correctness of a SAT solver represented as an abstract transition system. Another formalization of a SAT solver (extended with linear arithmetic) is by Lescuyer [LES11], who verifies a DPLL-based decision procedure for propositional logic in Coq and exposes it as a reflexive tactic. Finally, a decision procedure based on DPLL is also verified by Shankar and Vaucher [SV11] in the PVS system. For the proof, they rely on subtyping and dependent types. Berger et al. have used the Minlog proof assistant to extract a certified SAT solver [BLF+15]. For these last approaches, performance considerations seem to be secondary.

6. Conclusion and Further Work

We have developed a formally verified implementation of the DPLL algorithm in the Dafny programming language. Our implementation is competitive in terms of execution time, but it is also trustworthy: all specifications are computer checked by the Dafny system. Other approaches to SAT solvers that rely on type checkers [BFL+18] are arguably even more trustworthy, since they are verified by a software system satisfying the de Bruijn criterion. However, we believe that our approach can strike a good balance between efficiency and trustworthiness of the final product.

Our implementation incorporates data structures to quickly identify unit clauses and perform unit propagation. The formalization consists of around 3088 lines of Dafny code, including the parser. The code was written by the first author in approximately one year and a half of part time work. The author also learned Dafny during that time. The ratio between lines of proof and lines of code is approximately 4/1. Table 2 contains a summary of our verified solver in numbers.

Lines of code 3088 (without whitespace) Preconditions 420
Classes 4 (and 1 trait) Postconditions 181
Methods 33 Invariants 173
Verification time approx. 13 minutes (entire project) Variants 44
most expensive: SATSolver.solve   (approx. 175s) Predicates Functions 37 20
more than 60s:   6 methods/lemmas between 10s and 60s:   2 methods/lemmas Ghost variables Lemmas Assertions 24 42 169
Ratio specification/code 2488 lines of specification/proofs to 600 lines of code reads annotations modifies annotations 41 26
Table 2. Various statistics for our verified DPLL solver.

In addition to coming up with the right invariants, the main challenge in the development of the verified solver is the large amount of time required by the Dafny system to discharge the verification conditions. In order to minimize this verification time, we develop and use the following development/verification methodology:

  1. Avoid nested loops in methods. Nested loops usually require duplicating invariants, which decreases elegance and increases verification time.

    An example of applying this tip is the revertLastDecisionLevel method (in the file solver/formula.dfy), whose purpose is to backtrack to the previous decision level. The code of the method is currently very simple: it calls removeLastVariable repeatedly in a while loop. However, because it is so simple, it is tempting to inline removeLastVariable – this would lead to a significant increase in verification time.

  2. In the same spirit, avoid multiple quantifications in specifications.

    We have found it useful, whenever having a specification of the form forall x :: forall y :: P(x, y), to try to extract the subformula forall y :: P(x, y) as a separate predicate of x. This helps in two distinct ways: it forces the programmer to name the subformula, thereby clearing their thought process and making their intention more clear, and it enables the Z3 pattern-based quantifier instantiation to perform better [MOS09].

  3. Use very small methods. We find that it is better to extract as a method even code that is only a few lines of code long. In a usual programming language, such methods would be inlined (by the programmer). In our development, it is not unusual for such methods (with very few lines of code) to require many more helper annotations (invariants, helper assertions, etc.) and take significant time to verify.

  4. Use minimal modifies clauses in methods and reads clauses in functions. In particular, we make extensive use of the less well-known backtick operator in Dafny.

  5. During development, use Dafny to verify only the lemma/method currently being worked on. Run Dafny on the entire project at the end. To force Dafny to check only one method, we use the -proc command line switch.

  6. Finally, we have found that using the rather nice Z3 axiom profiler [BMS19] to optimize verification time does not scale well to projects the size of our solver.

Our project shows that it is possible to obtain a fully verified SAT solver written in assertional style, solver that is competitive in terms of running time with similar solvers written in non-verifiable languages. However, our experience with the verified implementation of the solver is that it currently takes significant effort and expertise to achieve this. We consider that three directions of action for the development of Dafny (and other similar auto-active verification tools) would be beneficial in order to improve this situation:

  1. Improve verification time of individual methods/lemmas,

  2. Make failures of verification obligations to check more explainable, and

  3. Devise a method better than asserts to guide the verifier manually.

As future work, we would like to verify an implementation of the full CDCL algorithm, thereby obtaining a verified solver that is competitive against state-of-the-art SAT solvers. In order to upgrade to a competitive CDCL solver, we need to modify the algorithm to implement a back-jumping and clause learning strategy, but also implement the two watched literals data structure [GKS+08], which becomes more important for performance when the number of clauses grows.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

5. Related Work

The SAT solver versat [OSO+12] was implemented and verified in the Guru programming language using dependent types. As our solver, it also implements efficient data structures. However, it relies on a translation to C where data structures are implemented imperatively by using reference counting and a statically enforced read/write discipline. Unlike our approach, the solver is only verified to be sound: if it produces an UNSAT answer, then the input formula truly is unsatisfiable. However, termination and completeness (if the solver produces SAT, then the formula truly is satisfiable) are not verified. Another small difference is the verification guarantee: versat is verified to output UNSAT only if a resolution proof of the empty clause exists, while in our approach we use a semantic criterion: our solver always terminates and produces UNSAT only if there is no satisfying model of the input formula. Of course, in the case of propositional logic these criteria are equivalent and therefore this difference is mostly a matter of implementation. Unlike our solver, some checks are not proved statically and must be checked dynamically, so they could be a source of incompleteness. An advantage of versat over our approach is that is implements more optimizations, like conflict analysis and clause learning, which enable it to be more competitive in terms of running time. Blanchette and others [BFL+18] present a certified SAT solving framework verified in the Isabelle/HOL proof assistant. The proof effort is part of the Isabelle Formalization of Logic project. The framework is based on refinement: at the highest level sit several calculi like CDCL and DPLL, which are formally proved. Depending on the strategy, the calculi are also shown to be terminating. The calculi are shown to be refined by a functional program. Finally, at the lowest level is an imperative implementation in Standard ML, which is shown to be a refinement of the functional implementation. Emphasis is also placed on meta-theoretical consideration. The final solver can still two orders of magnitude slower than a state-of-the-art C solver and therefore additional optimizations [FLE19] are desirable. In contrast, in our own work we do not investigate any meta-theoretical properties of the DPLL/CDCL frameworks; we simply concentrate on obtaining a verified SAT solver. We investigate to what extent directly proving the imperative algorithm is possible in an auto-active manner. A key challenge is that the verification of Dafny code may take a lot of time in certain cases and we have to optimize our code for verification time as well. Another SAT solver verified in Isabelle/HOL, is by Marić [MAR09]. In contrast to previous formalization, the verification methodology is not based on refinement. Instead, the Hoare triples associated to the solver pseudo-code are verified in Isabelle/HOL. In subsequent work [MJ11], Marić and Janičić prove in Isabelle the functional correctness of a SAT solver represented as an abstract transition system. Another formalization of a SAT solver (extended with linear arithmetic) is by Lescuyer [LES11], who verifies a DPLL-based decision procedure for propositional logic in Coq and exposes it as a reflexive tactic. Finally, a decision procedure based on DPLL is also verified by Shankar and Vaucher [SV11] in the PVS system. For the proof, they rely on subtyping and dependent types. Berger et al. have used the Minlog proof assistant to extract a certified SAT solver [BLF+15]. For these last approaches, performance considerations seem to be secondary.

6. Conclusion and Further Work

We have developed a formally verified implementation of the DPLL algorithm in the Dafny programming language. Our implementation is competitive in terms of execution time, but it is also trustworthy: all specifications are computer checked by the Dafny system. Other approaches to SAT solvers that rely on type checkers [BFL+18] are arguably even more trustworthy, since they are verified by a software system satisfying the de Bruijn criterion. However, we believe that our approach can strike a good balance between efficiency and trustworthiness of the final product.

Our implementation incorporates data structures to quickly identify unit clauses and perform unit propagation. The formalization consists of around 3088 lines of Dafny code, including the parser. The code was written by the first author in approximately one year and a half of part time work. The author also learned Dafny during that time. The ratio between lines of proof and lines of code is approximately 4/1. Table 2 contains a summary of our verified solver in numbers.

Lines of code 3088 (without whitespace) Preconditions 420
Classes 4 (and 1 trait) Postconditions 181
Methods 33 Invariants 173
Verification time approx. 13 minutes (entire project) Variants 44
most expensive: SATSolver.solve   (approx. 175s) Predicates Functions 37 20
more than 60s:   6 methods/lemmas between 10s and 60s:   2 methods/lemmas Ghost variables Lemmas Assertions 24 42 169
Ratio specification/code 2488 lines of specification/proofs to 600 lines of code reads annotations modifies annotations 41 26
Table 2. Various statistics for our verified DPLL solver.

In addition to coming up with the right invariants, the main challenge in the development of the verified solver is the large amount of time required by the Dafny system to discharge the verification conditions. In order to minimize this verification time, we develop and use the following development/verification methodology:

  1. Avoid nested loops in methods. Nested loops usually require duplicating invariants, which decreases elegance and increases verification time.

    An example of applying this tip is the revertLastDecisionLevel method (in the file solver/formula.dfy), whose purpose is to backtrack to the previous decision level. The code of the method is currently very simple: it calls removeLastVariable repeatedly in a while loop. However, because it is so simple, it is tempting to inline removeLastVariable – this would lead to a significant increase in verification time.

  2. In the same spirit, avoid multiple quantifications in specifications.

    We have found it useful, whenever having a specification of the form forall x :: forall y :: P(x, y), to try to extract the subformula forall y :: P(x, y) as a separate predicate of x. This helps in two distinct ways: it forces the programmer to name the subformula, thereby clearing their thought process and making their intention more clear, and it enables the Z3 pattern-based quantifier instantiation to perform better [MOS09].

  3. Use very small methods. We find that it is better to extract as a method even code that is only a few lines of code long. In a usual programming language, such methods would be inlined (by the programmer). In our development, it is not unusual for such methods (with very few lines of code) to require many more helper annotations (invariants, helper assertions, etc.) and take significant time to verify.

  4. Use minimal modifies clauses in methods and reads clauses in functions. In particular, we make extensive use of the less well-known backtick operator in Dafny.

  5. During development, use Dafny to verify only the lemma/method currently being worked on. Run Dafny on the entire project at the end. To force Dafny to check only one method, we use the -proc command line switch.

  6. Finally, we have found that using the rather nice Z3 axiom profiler [BMS19] to optimize verification time does not scale well to projects the size of our solver.

Our project shows that it is possible to obtain a fully verified SAT solver written in assertional style, solver that is competitive in terms of running time with similar solvers written in non-verifiable languages. However, our experience with the verified implementation of the solver is that it currently takes significant effort and expertise to achieve this. We consider that three directions of action for the development of Dafny (and other similar auto-active verification tools) would be beneficial in order to improve this situation:

  1. Improve verification time of individual methods/lemmas,

  2. Make failures of verification obligations to check more explainable, and

  3. Devise a method better than asserts to guide the verifier manually.

As future work, we would like to verify an implementation of the full CDCL algorithm, thereby obtaining a verified solver that is competitive against state-of-the-art SAT solvers. In order to upgrade to a competitive CDCL solver, we need to modify the algorithm to implement a back-jumping and clause learning strategy, but also implement the two watched literals data structure [GKS+08], which becomes more important for performance when the number of clauses grows.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

6. Conclusion and Further Work

We have developed a formally verified implementation of the DPLL algorithm in the Dafny programming language. Our implementation is competitive in terms of execution time, but it is also trustworthy: all specifications are computer checked by the Dafny system. Other approaches to SAT solvers that rely on type checkers [BFL+18] are arguably even more trustworthy, since they are verified by a software system satisfying the de Bruijn criterion. However, we believe that our approach can strike a good balance between efficiency and trustworthiness of the final product.

Our implementation incorporates data structures to quickly identify unit clauses and perform unit propagation. The formalization consists of around 3088 lines of Dafny code, including the parser. The code was written by the first author in approximately one year and a half of part time work. The author also learned Dafny during that time. The ratio between lines of proof and lines of code is approximately 4/1. Table 2 contains a summary of our verified solver in numbers.

Lines of code 3088 (without whitespace) Preconditions 420
Classes 4 (and 1 trait) Postconditions 181
Methods 33 Invariants 173
Verification time approx. 13 minutes (entire project) Variants 44
most expensive: SATSolver.solve   (approx. 175s) Predicates Functions 37 20
more than 60s:   6 methods/lemmas between 10s and 60s:   2 methods/lemmas Ghost variables Lemmas Assertions 24 42 169
Ratio specification/code 2488 lines of specification/proofs to 600 lines of code reads annotations modifies annotations 41 26
Table 2. Various statistics for our verified DPLL solver.

In addition to coming up with the right invariants, the main challenge in the development of the verified solver is the large amount of time required by the Dafny system to discharge the verification conditions. In order to minimize this verification time, we develop and use the following development/verification methodology:

  1. Avoid nested loops in methods. Nested loops usually require duplicating invariants, which decreases elegance and increases verification time.

    An example of applying this tip is the revertLastDecisionLevel method (in the file solver/formula.dfy), whose purpose is to backtrack to the previous decision level. The code of the method is currently very simple: it calls removeLastVariable repeatedly in a while loop. However, because it is so simple, it is tempting to inline removeLastVariable – this would lead to a significant increase in verification time.

  2. In the same spirit, avoid multiple quantifications in specifications.

    We have found it useful, whenever having a specification of the form forall x :: forall y :: P(x, y), to try to extract the subformula forall y :: P(x, y) as a separate predicate of x. This helps in two distinct ways: it forces the programmer to name the subformula, thereby clearing their thought process and making their intention more clear, and it enables the Z3 pattern-based quantifier instantiation to perform better [MOS09].

  3. Use very small methods. We find that it is better to extract as a method even code that is only a few lines of code long. In a usual programming language, such methods would be inlined (by the programmer). In our development, it is not unusual for such methods (with very few lines of code) to require many more helper annotations (invariants, helper assertions, etc.) and take significant time to verify.

  4. Use minimal modifies clauses in methods and reads clauses in functions. In particular, we make extensive use of the less well-known backtick operator in Dafny.

  5. During development, use Dafny to verify only the lemma/method currently being worked on. Run Dafny on the entire project at the end. To force Dafny to check only one method, we use the -proc command line switch.

  6. Finally, we have found that using the rather nice Z3 axiom profiler [BMS19] to optimize verification time does not scale well to projects the size of our solver.

Our project shows that it is possible to obtain a fully verified SAT solver written in assertional style, solver that is competitive in terms of running time with similar solvers written in non-verifiable languages. However, our experience with the verified implementation of the solver is that it currently takes significant effort and expertise to achieve this. We consider that three directions of action for the development of Dafny (and other similar auto-active verification tools) would be beneficial in order to improve this situation:

  1. Improve verification time of individual methods/lemmas,

  2. Make failures of verification obligations to check more explainable, and

  3. Devise a method better than asserts to guide the verifier manually.

As future work, we would like to verify an implementation of the full CDCL algorithm, thereby obtaining a verified solver that is competitive against state-of-the-art SAT solvers. In order to upgrade to a competitive CDCL solver, we need to modify the algorithm to implement a back-jumping and clause learning strategy, but also implement the two watched literals data structure [GKS+08], which becomes more important for performance when the number of clauses grows.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

Acknowledgments

This work was supported by a grant of the Alexandru Ioan Cuza University of Iaşi, within the Research Grants program UAIC Grant, code GI-UAIC-2018-07.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.

References

  • [AC19] C. Andrici and Ş. Ciobâcă (2019) Verifying the DPLL algorithm in Dafny. In Proceedings Third Symposium on Working Formal Methods, Timişoara, Romania, 3-5 September 2019, M. Marin and A. Crăciun (Eds.), Electronic Proceedings in Theoretical Computer Science, Vol. 303, pp. 3–15. External Links: Link, Document Cited by: §1, Who Verifies the Verifiers? A Computer-Checked Implementation of the DPLL Algorithm in Dafny*.
  • [BHJ17] T. Balyo, M. J. H. Heule, and M. Järvisalo (2017) SAT competition 2016: recent developments. In

    Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, February 4-9, 2017, San Francisco, California, USA.

    ,
    pp. 5061–5063. External Links: Link Cited by: §1.
  • [BS97] R. J. Bayardo Jr. and R. Schrag (1997) Using CSP look-back techniques to solve real-world SAT instances. In Proceedings of the Fourteenth National Conference on Artificial Intelligence and Ninth Innovative Applications of Artificial Intelligence Conference, AAAI 97, IAAI 97, July 27-31, 1997, Providence, Rhode Island, USA, B. Kuipers and B. L. Webber (Eds.), pp. 203–208. External Links: Link Cited by: §1.
  • [BMS19] N. Becker, P. Müller, and A. J. Summers (2019) The axiom profiler: understanding and debugging SMT quantifier instantiations. In Tools and Algorithms for the Construction and Analysis of Systems - 25th International Conference, TACAS 2019, Held as Part of the European Joint Conferences on Theory and Practice of Software, ETAPS 2019, Prague, Czech Republic, April 6-11, 2019, Proceedings, Part I, T. Vojnar and L. Zhang (Eds.), Lecture Notes in Computer Science, Vol. 11427, pp. 99–116. External Links: Link, Document Cited by: item 6.
  • [BLF+15] U. Berger, A. Lawrence, F. N. Forsberg, and M. Seisenberger (2015) Extracting verified decision procedures: DPLL and resolution. Log. Methods Comput. Sci. 11 (1). External Links: Link, Document Cited by: §5.
  • [BLW19] D. Beyer, S. Löwe, and P. Wendler (2019) Reliable benchmarking: requirements and solutions. STTT 21 (1), pp. 1–29. External Links: Link, Document Cited by: §4.
  • [BFK16] K. Bhargavan, C. Fournet, and M. Kohlweiss (2016) miTLS: verifying protocol implementations against real-world attacks. IEEE Secur. Priv. 14 (6), pp. 18–25. External Links: Link, Document Cited by: §1.
  • [BFL+18] J. C. Blanchette, M. Fleury, P. Lammich, and C. Weidenbach (2018) A verified SAT solver framework with learn, forget, restart, and incrementality.

    J. Autom. Reasoning

    61 (1-4), pp. 333–365.
    External Links: Link, Document Cited by: §1, §5, §6.
  • [BLB10] R. Brummayer, F. Lonsing, and A. Biere (2010) Automated testing and debugging of SAT and QBF solvers. In Theory and Applications of Satisfiability Testing - SAT 2010, 13th International Conference, SAT 2010, Edinburgh, UK, July 11-14, 2010. Proceedings, pp. 44–57. External Links: Link, Document Cited by: §1.
  • [CA96] J. M. Crawford and L. D. Auton (1996) Experimental results on the crossover point in random 3-SAT. Artif. Intell. 81 (1-2), pp. 31–57. External Links: Link, Document Cited by: §4.
  • [DLL62] M. Davis, G. Logemann, and D. W. Loveland (1962) A machine program for theorem-proving. Commun. ACM 5 (7), pp. 394–397. External Links: Link, Document Cited by: §1.
  • [DP60] M. Davis and H. Putnam (1960) A computing procedure for quantification theory. J. ACM 7 (3), pp. 201–215. External Links: Link, Document Cited by: §1.
  • [dB08] L. M. de Moura and N. Bjørner (2008) Z3: an efficient SMT solver. In Tools and Algorithms for the Construction and Analysis of Systems, 14th International Conference, TACAS 2008, Held as Part of the Joint European Conferences on Theory and Practice of Software, ETAPS 2008, Budapest, Hungary, March 29-April 6, 2008. Proceedings, C. R. Ramakrishnan and J. Rehof (Eds.), Lecture Notes in Computer Science, Vol. 4963, pp. 337–340. External Links: Link, Document Cited by: §1.
  • [FLE19] M. Fleury (2019) Optimizing a verified SAT solver. In NASA Formal Methods - 11th International Symposium, NFM 2019, Houston, TX, USA, May 7-9, 2019, Proceedings, pp. 148–165. External Links: Link, Document Cited by: §5.
  • [GKS+08] C. P. Gomes, H. A. Kautz, A. Sabharwal, and B. Selman (2008) Satisfiability solvers. In Handbook of Knowledge Representation, pp. 89–134. External Links: Link, Document Cited by: §2, §6.
  • [HHL+14] C. Hawblitzel, J. Howell, J. R. Lorch, A. Narayan, B. Parno, D. Zhang, and B. Zill (2014) Ironclad apps: end-to-end security via automated full-system verification. In 11th USENIX Symposium on Operating Systems Design and Implementation, OSDI ’14, Broomfield, CO, USA, October 6-8, 2014., pp. 165–181. External Links: Link Cited by: §1.
  • [HP10] C. Hawblitzel and E. Petrank (2010) Automated verification of practical garbage collectors. Log. Methods Comput. Sci. 6 (3). External Links: Link Cited by: §1.
  • [HV95] J. N. Hooker and V. Vinay (1995) Branching rules for satisfiability. J. Autom. Reasoning 15 (3), pp. 359–383. External Links: Link, Document Cited by: §1.
  • [LEI13] K. R. M. Leino (2013) Developing verified programs with Dafny. In 35th International Conference on Software Engineering, ICSE ’13, San Francisco, CA, USA, May 18-26, 2013, pp. 1488–1490. External Links: Link, Document Cited by: §1.
  • [LER09] X. Leroy (2009) A formally verified compiler back-end. J. Autom. Reasoning 43 (4), pp. 363–446. External Links: Link, Document Cited by: §1.
  • [LES11] S. Lescuyer (2011-01) Formalizing and implementing a reflexive tactic for automated deduction in Coq. Theses, Université Paris Sud - Paris XI. External Links: Link Cited by: §5.
  • [MJ11] F. Marić and P. Janičić (2011) Formalization of abstract state transition systems for SAT. Log. Methods Comput. Sci. 7 (3). External Links: Link, Document Cited by: §5.
  • [MAR09] F. Marić (2009) Formalization and implementation of modern SAT solvers. J. Autom. Reasoning 43 (1), pp. 81–119. External Links: Link, Document Cited by: §5.
  • [MS99] J. P. Marques Silva and K. A. Sakallah (1999) GRASP: A search algorithm for propositional satisfiability. IEEE Trans. Computers 48 (5), pp. 506–521. External Links: Link, Document Cited by: §1.
  • [MOS09] M. Moskal (2009) Programming with triggers. In Proceedings of the 7th International Workshop on Satisfiability Modulo Theories, SMT ’09, New York, NY, USA, pp. 2029. External Links: ISBN 9781605584843, Link, Document Cited by: item 2.
  • [OSO+12] D. Oe, A. Stump, C. Oliver, and K. Clancy (2012) Versat: A verified modern SAT solver. In Verification, Model Checking, and Abstract Interpretation - 13th International Conference, VMCAI 2012, Philadelphia, PA, USA, January 22-24, 2012. Proceedings, pp. 363–378. External Links: Link, Document Cited by: §5.
  • [SV11] N. Shankar and M. Vaucher (2011) The mechanical verification of a DPLL-based satisfiability solver. Electr. Notes Theor. Comput. Sci. 269, pp. 3–17. External Links: Link, Document Cited by: §5.
  • [ZBP+17] J. K. Zinzindohoué, K. Bhargavan, J. Protzenko, and B. Beurdouche (2017) HACL*: A verified modern cryptographic library. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, CCS 2017, Dallas, TX, USA, October 30 - November 03, 2017, B. M. Thuraisingham, D. Evans, T. Malkin, and D. Xu (Eds.), pp. 1789–1806. External Links: Link, Document Cited by: §1.
