1 Introduction

Reading text in natural scenes, referred to as scene text recognition (STR), has been an important task in a wide range of industrial applications. The maturity of Optical Character Recognition (OCR) systems has led to its successful application on cleaned documents, but most traditional OCR methods have failed to be as effective on STR tasks due to the diverse text appearances that occur in the real world and the imperfect conditions in which these scenes are captured.

To address these challenges, prior works [23, 24, 15, 17, 26, 28, 4, 16, 5, 2, 3, 18]

have proposed multi-stage pipelines, where each stage is a deep neural network addressing a specific challenge. For example, Shi


have suggested using a recurrent neural network to address the varying number of characters in a given input, and a connectionist temporal classification loss

[6] to identify the number of characters. Shi  [24] have proposed a transformation module that normalizes the input into a straight text image to reduce the representational burden for downstream modules to handle curved texts.

However, it is hard to assess whether and how a newly proposed module improves upon the current art, as some papers have come up with different evaluation and testing environments, making it difficult to compare reported numbers at face value (Table 1). We observed that 1) the training datasets and 2) the evaluation datasets deviate amongst various methods, as well. For example, different works use a different subset of the IC13 dataset as part of their evaluation set, which may cause a performance disparity of more than 15%. This kind of discrepancy hinders the fair comparison of performance between different models.

width=0.975 Model Year Train data IIIT SVT IC03 IC13 IC15 SP CT Time params 3000 647 860 867 857 1015 1811 2077 645 288 ms/image Reported results CRNN [23] 2015 MJ 78.2 80.8 89.4 86.7 160 8.3 RARE [24] 2016 MJ 81.9 81.9 90.1 88.6 71.8 59.2 2 R2AM [15] 2016 MJ 78.4 80.7 88.7 90.0 2.2 STAR-Net [17] 2016 MJ+PRI 83.3 83.6 89.9 89.1 73.5 GRCNN [26] 2017 MJ 80.8 81.5 91.2 ATR [28] 2017 PRI+C 75.8 69.3 FAN [4] 2017 MJ+ST+C 87.4 85.9 94.2 93.3 70.6 Char-Net [16] 2018 MJ 83.6 84.4 91.5 90.8 60.0 73.5 AON [5] 2018 MJ+ST 87.0 82.8 91.5 68.2 73.0 76.8 EP [2] 2018 MJ+ST 88.3 87.5 94.6 94.4 73.9 Rosetta [3] 2018 PRI SSFL [18] 2018 MJ 89.4 87.1 94.7 94.0 73.9 62.5 Our experiment CRNN [23] 2015 MJ+ST 82.9 81.6 93.1 92.6 91.1 89.2 69.4 64.2 70.0 65.5 4.4 8.3 RARE [24] 2016 MJ+ST 86.2 85.8 93.9 93.7 92.6 91.1 74.5 68.9 76.2 70.4 23.6 10.8 R2AM [15] 2016 MJ+ST 83.4 82.4 92.2 92.0 90.2 88.1 68.9 63.6 72.1 64.9 24.1 2.9 STAR-Net [17] 2016 MJ+ST 87.0 86.9 94.4 94.0 92.8 91.5 76.1 70.3 77.5 71.7 10.9 48.7 GRCNN [26] 2017 MJ+ST 84.2 83.7 93.5 93.0 90.9 88.8 71.4 65.8 73.6 68.1 10.7 4.6 Rosetta [3] 2018 MJ+ST 84.3 84.7 93.4 92.9 90.9 89.0 71.2 66.0 73.8 69.2 4.7 44.3 Our best model MJ+ST 87.9 87.5 94.9 94.4 93.6 92.3 77.6 71.8 79.2 74.0 27.6 49.6

Table 1: Performance of existing STR models with their inconsistent training and evaluation settings. This inconsistency hinders the fair comparison among those methods. We present the results reported by the original papers and also show our re-implemented results under unified and consistent setting. At the last row, we also show the best model we have found, which shows competitive performance to state-of-the-art methods. MJ, ST, C, and, PRI denote MJSynth [11], SynthText [8], Character-labeled [4, 28], and private data [3], respectively. Top accuracy for each benchmark is shown in bold.

Our paper addresses these types of issues with the following main contributions. First, we analyze all training and evaluation datasets commonly used in STR papers. Our analysis reveals the inconsistency of using the STR datasets and its causes. For instances, we found 7 missing examples in IC03 dataset and 158 missing examples in IC13 dataset as well. We investigate several previous works on the STR datasets and show that the inconsistency causes incomparable results as shown in Table 1

. Second, we introduce a unifying framework for STR that provides a common perspective for existing methods. Specifically, we divide the STR model into four different consecutive stages of operations: transformation (Trans.), feature extraction (Feat.), sequence modeling (Seq.), and prediction (Pred.). The framework provides not only existing methods but their possible variants toward an extensive analysis of module-wise contribution. Finally, we study the module-wise contributions in terms of accuracy, speed, and memory demand, under a unified experimental setting. With this study, we assess the contribution of individual modules more rigorously and propose previously overlooked module combinations that improves over the state of the art. Furthermore, we analyzed failure cases on the benchmark dataset to identify remaining challenges in STR.

2 Dataset Matters in STR

In this section, we examine the different training and evaluation datasets used by prior works, and then their discrepancies are addressed. Through this analysis, we highlight how each of the works differs in constructing and using their datasets, and investigate the bias caused by the inconsistency when comparing performance between different works (Table 1). The performance gaps due to dataset inconsistencies are measured through experiments and discussed in §4.

2.1 Synthetic datasets for training

When training a STR model, labeling scene text images is costly, and thus it is difficult to obtain enough labeled data for. Alternatively using real data, most STR models have used synthetic datasets for training. We first introduce two most popular synthetic datasets used in recent STR papers:

  • MJSynth (MJ) [11] is a synthetic dataset designed for STR, containing 8.9 M word box images. The word box generation process is as follows: 1) font rendering, 2) border and shadow rendering, 3) background coloring, 4) composition of font, border, and background, 5) applying projective distortions, 6) blending with real-world images, and 7) adding noise. Figure 0(a) shows some examples of MJSynth,

  • SynthText (ST) [8] is another synthetically generated dataset and was originally designed for scene text detection. An example of how the words are rendered onto scene images is shown in Figure 0(b). Even though SynthText was designed for scene text detection task, it has been also used for STR by cropping word boxes. SynthText has 5.5 M training data once the word boxes are cropped and filtered for non-alphanumeric characters.

Note that prior works have used diverse combinations of MJ, ST, and or other sources (Table 1). These inconsistencies call into question whether the improvements are due to the contribution of the proposed module or to that of a better or larger training data. Our experiment in §4.2 describes the influence of the training datasets to the final performance on the benchmarks. We further suggest that future STR researches clearly indicate the training datasets used and compare models using the same training set.

(a) MJSynth word boxes
(b) SynthText scene image
Figure 1: Samples of MJSynth and SynthText used as training data.

2.2 Real-world datasets for evaluation

Seven real-world STR datasets have been widely used for evaluating a trained STR model. For some benchmark dataset, different subsets of the dataset may have been used in each prior work for evaluation (Table 1). These difference in subsets result in inconsistent comparison.

We introduce the datasets by categorizing them into regular and irreguglar datsets. The benchmark datasets are given the distinction of being “regular” or “irregular” datasets [24, 28, 5], according to the difficulty and geometric layout of the texts. First, regular datasets contain text images with horizontally laid out characters that have even spacings between them. These represent relatively easy cases for STR:

  • IIIT5K-Words (IIIT) [20] is the dataset crawled from Google image searches, with query words that are likely to return text images, such as “billboards”, “signboard”, “house numbers”, “house name plates”, and “movie posters”. IIIT consists of 2,000 images for training and 3,000 images for evaluation,

  • Street View Text (SVT) [27] contains outdoor street images collected from Google Street View. Some of these images are noisy, blurry, or of low-resolution. SVT consists of 257 images for training and 647 images for evaluation,

  • ICDAR2003 (IC03) [19] was created for the ICDAR 2003 Robust Reading competition for reading camera-captured scene texts. It contains 1,156 images for training and 1,110 images for evaluation. Ignoring all words that are either too short (less than 3 characters) or ones that contain non-alphanumeric characters reduces 1,110 images to 867. However, researchers have used two different versions of the dataset for evaluation: versions with 860 and 867 images. The 860-image dataset is missing 7 word boxes compared to the 867 dataset. The omitted word boxes can be found in the supplementary materials,

  • ICDAR2013 (IC13) [14] inherits most of IC03’s images and was also created for the ICDAR 2013 Robust Reading competition. It contains 848 images for training and 1,095 images for evaluation, where pruning words with non-alphanumeric characters results in 1,015 images. Again, researchers have used two different versions for evaluation: 857 and 1,015 images. The 857-image set is a subset of the 1,015 set where words shorter than 3 characters are pruned.

Second, irregular datasets typically contain harder corner cases for STR, such as curved and arbitrarily rotated or distorted texts [24, 28, 5]:

(a) Regular
(b) Irregular
Figure 2: Examples of regular (IIIT5k, SVT, IC03, IC13) and irregular (IC15, SVTP, CUTE) real-world datasets.
Figure 3: Visualization of an example flow of scene text recognition. We decompose a model into four stages.
  • ICDAR2015 (IC15) [13] was created for the ICDAR 2015 Robust Reading competitions and contains 4,468 images for training and 2,077 images for evaluation. The images are captured by Google Glasses while under the natural movements of the wearer. Thus, many are noisy, blurry, and rotated, and some are also of low resolution. Again, researchers have used two different versions for evaluation: 1,811 and 2,077 images. Previous papers [4, 2] have only used 1,811 images, discarding non-alphanumeric character images and some extremely rotated, perspective-shifted, and curved images for evaluation. Some of the discarded word boxes can be found in the supplementary materials,

  • SVT Perspective (SP) [21] is collected from Google Street View and contains 645 images for evaluation. Many of the images contain perspective projections due to the prevalence of non-frontal viewpoints,

  • CUTE80 (CT) [22] is collected from natural scenes and contains 288 cropped images for evaluation. Many of these are curved text images.

Notice that, Table 1 provides us a critical issue that prior works evaluated their models on different benchmark datasets. Specifically, the evaluation has been conducted on different versions of benchmarks in IC03, IC13 and IC15. In IC03, 7 examples can cause a performance gap by 0.8% that is a huge gap when comparing those of prior performances. In the case of IC13 and IC15, the gap of the example numbers is even bigger than those of IC03.

3 STR Framework Analysis

The goal of the section is introducing the scene text recognition (STR) framework consisting of four stages, derived from commonalities among independently proposed STR models. After that, we describe the module options in each stage.

Due to the resemblence of STR to computer vision tasks (object detection) and sequence prediction tasks, STR has benefited from high-performance convolutional neural networks (CNNs) and recurrent neural networks (RNNs). The first combined application of CNN and RNN for STR, Convolutional-Recurrent Neural Network (CRNN)

[23], extracts CNN features from the input text image, and re-configures them with an RNN for robust sequence prediction. After CRNN, multiple variants [24, 15, 17, 16, 26, 4, 3] have been proposed to improve performance. For rectifying arbitrary text geometries, as an example, transformation modules have been proposed to normalize text images [24, 17, 16]. For treating complex text images with high intrinsic dimensionality and latent factors (font style and cluttered background), improved CNN feature extractors have been incorporated [15, 26, 4]. Also, as people have become more concerned with inference time, some methods have even omitted the RNN stage [3]. For improving character sequence prediction, attention based decoders have been proposed [15, 24].

The four stages derived from existing STR models are as follows:

  1. Transformation (Trans.)

    normalizes the input text image using the Spatial Transformer Network (STN

    [12]) to ease downstream stages.

  2. Feature extraction (Feat.) maps the input image to a representation that focuses on the attributes relevant for character recognition, while suppressing irrelevant features such as font, color, size, and background.

  3. Sequence modeling (Seq.) captures the contextual information within a sequence of characters for the next stage to predict each character more robustly, rather than doing it independently.

  4. Prediction (Pred.)estimates the output character sequence from the identified features of an image.

We provide Figure 3 for an overview and all the architectures we used in this paper are found in the supplementary materials.

3.1 Transformation stage

The module of this stage transforms the input image into the normalized image . Text images in natural scenes come in diverse shapes, as shown by curved and tilted texts. If such input images are fed unaltered, the subsequent feature extraction stage needs to learn an invariant representation with respect to such geometry. To reduce this burden, thin-plate spline (TPS) transformation, a variant of the spatial transformation network (STN) [12], has been applied with its flexibility to diverse aspect ratios of text lines [24, 17]

. TPS employs a smooth spline interpolation between a set of

fiducial points. More precisely, TPS finds multiple fiducial points (green ’+’ marks in Figure 3) at the upper and bottom enveloping points, and normalizes the character region to a predefined rectangle. Our framework allows for the selection or de-selection of TPS.

3.2 Feature extraction stage

In this stage, a CNN abstract an input image (i.e., or ) and outputs a visual feature map ( is the number of columns in the feature map). Each column in the resulting feature map by a feature extractor has a corresponding distinguishable receptive field along the horizontal line of the input image. These features are used to estimate the character on each receptive field.

We study three architectures of VGG [25], RCNN [15], and ResNet [10], previously used as feature extractors for STR. VGG in its original form consists of multiple convolutional layers followed by a few fully connected layers [25]. RCNN is a variant of CNN that can be applied recursively to adjust its receptive fields depending on the character shapes [15, 26]. ResNet is a CNN with residual connections that eases the training of relatively deeper CNNs.

3.3 Sequence modeling stage

The extracted features from Feat. stage are reshaped to be a sequence of features . That is, each column in a feature map is used as a frame of the sequence. However, this sequence may suffer the lack of contextual information. Therefore, some previous works use Bidirectional LSTM (BiLSTM) to make a better sequence after the feature extraction stage [23, 24, 4]. On the other hand, Rosetta [3] removed the BiLSTM to reduce computational complexity and memory consumption. Our framework allows for the selection or de-selection of BiLSTM.

3.4 Prediction stage

In this stage, from the input , a module predict a sequence of characters, (i.e., ). By summing up previous works, we have two options for prediction: (1) Connectionist temporal classification (CTC) [6] and (2) attention-based sequence prediction (Attn) [24, 4]. CTC allows for the prediction of a non-fixed number of a sequence even though a fixed number of the features are given. The key methods for CTC are to predict a character at each column () and to modify the full character sequence into a non-fixed stream of characters by deleting repeated characters and blanks [6, 23]. On the other hand, Attn automatically captures the information flow within the input sequence to predict the output sequence [1]. It enables an STR model to learn a character-level language model representing output class dependencies.

width=1 # Trans. Feat. Seq. Pred. Acc. Time params % ms T1 None VGG None CTC 69.5 1.3 5.6 T2 None ResNet None CTC 80.0 4.7 46.0 T3 None ResNet BiLSTM CTC 81.9 7.8 48.7 T4 TPS ResNet BiLSTM CTC 82.9 10.9 49.6 T5 TPS ResNet BiLSTM Attn 84.0 27.6 49.6

(a) Accuracy versus time trade-off curve and its frontier combinations

width=1 # Trans. Feat. Seq. Pred. Acc. Time params % ms P1 None RCNN None CTC 75.4 7.7 1.9 P2 None RCNN None Attn 78.5 24.1 2.9 P3 TPS RCNN None Attn 80.6 26.4 4.6 P4 TPS RCNN BiLSTM Attn 82.3 30.1 7.2 P5 TPS ResNet BiLSTM Attn 84.0 27.6 49.6

(b) Accuracy versus memory trade-off curve and its frontier combinations
Figure 4: Two types of trade-offs exhibited by STR module combinations. Stars indicate previously proposed models and circular dots represent new module combinations evaluated by our framework. Red solid curves indicate the trade-off frontiers found among the combinations. Tables under each plot describe module combinations and their performance on the trade-off frontiers. Modules in bold denote those that have been changed from the combination directly before it; those modules improve performance over the previous combination while minimizing the added time or memory cost.

4 Experiment and Analysis

This section contains the evaluation and analysis of all possible STR module combinations (2322 24 in total) from the four-stage framework in §3, all evaluated under the common training and evaluation dataset constructed from the datasets listed in §2.

4.1 Implementation detail

As we described in §2, training and evaluation datasets influences the measured performances of STR models significantly. To conduct a fair comparison, we have fixed the choice of training, validation, and evaluation datasets.

STR training and model selection We use an union of MJSynth 8.9 M and SynthText 5.5 M (14.4 M in total) as our training data. We adopt the AdaDelta [29] optimizer, whose decay rate is set to . The training batch size is

, and the number of iterations is 300 K. Gradient clipping is used at magnitude 5. All parameters are initialized with He’s method

[9]. We use the union of the training sets IC13, IC15, IIIT, and SVT as the validation data, and validated the model after every 2000 training stpdf to select the model with the highest accuracy on this set. Notice that, the validation set does not contain the IC03 train data because some of them were duplicated in the evaluation dataset of IC13. The total number of duplicated scene images is 34, and they contain 215 word boxes. Duplicated examples can be found in the supplementary materials.

Evaluation metrics In this paper, we provide a thorough analysis on STR combinations in terms of accuracy, time, and memory aspects altogether. For accuracy, we measure the success rate of word predictions per image on the 9 real-world evaluation datasets involving all subsets of the benchmarks, as well as a unified evaluation dataset (8,539 images in total); 3,000 from IIIT, 647 from SVT, 867 from IC03, 1015 from IC13, 2,077 from IC15, 645 from SP, and 288 from CT. We only evaluate on alphabets and digits. For each STR combination, we have run five trials with different initialization random seeds and have averaged their accuracies. For speed assessment, we measure the per-image average clock time (in millisecond) for recognizing the given texts under the same compute environment, detailed below. For memory assessment, we count the number of trainable floating point parameters in the entire STR pipeline.

Environment:  For a fair speed comparison, all of our evaluations are performed on the same environment: an Intel Xeon(R) E5-2630 v4 2.20GHz CPU, an NVIDIA TESLA P40 GPU, and 252GB of RAM.

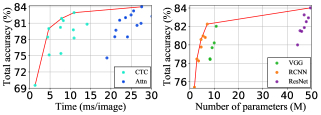

Figure 5: Color-coded version of Figure 4, according to the prediction (left) and feature extraction (right) modules. They are identified as the most significant factors for speed and memory, respectively.

4.2 Analysis on training datasets

We investigate the influence of using different groups of the training datasets to the performance on the benchmarks. As we mentioned in §2.1, prior works used different sets of the training datasets and left uncertainties as to the contributions of their models to improvements. To unpack this issue, we examined the accuracy of our best model from §4.3 with different settings of the training dataset. We obtained 80.0% total accuracy by using only MJSynth, 75.6% by using only SynthText, and 84.1% by using both. The combination of MJSynth and SynthText improved accuracy by more than 4.1%, over the individual usages of MJSynth and SynthText. A lesson from this study is that the performance results using different training datasets are incomparable, and such comparisons fail to prove the contribution of the model, which is why we trained all models with the same training dataset, unless mentioned otherwise.

Interestingly, training on 20% of MJSynth (1.8M) and 20% of SynthText (1.1M) together (total 2.9M the half of SynthText) provides 81.3% accuracy – better performance than the individual usages of MJSynth or SynthText. MJSynth and SynthText have different properties because they were generated with different options, such as distortion and blur. This result showed that the diversity of training data can be more important than the number of training examples, and that the effects of using different training datasets is more complex than simply concluding more is better.

4.3 Analysis of trade-offs for module combinations

Here, we focus on the accuracy-speed and accuracy-memory trade-offs shown in different combinations of modules. We provide the full table of results in the supplementary materials. See Figure 4 for the trade-off plots of all 24 combinations, including the six previously proposed STR models (Stars in Figure 4). In terms of the accuracy-time trade-off, Rosetta and STAR-net are on the frontier and the other four prior models are inside of the frontier. In terms of the accuracy-memory trade-off, R2AM is on the frontier and the other five of previously proposed models are inside of the frontier. Module combinations along the trade-off frontiers are labeled in ascending ascending order of accuracy (T1 to T5 for accuracy-time and P1 to P5 for accuracy-memory).

Analysis of combinations along the trade-off frontiers.

As shown in Table 3(a), T1 takes the minimum time by not including any transformation or sequential module. Moving from T1 to T5, the following modules are introduced in order (indicated as bold): ResNet, BiLSTM, TPS, and Attn. Note that from T1 to T5, a single module changes at a time. Our framework provides a smooth shift of methods that gives the least performance trade-off depending on the application scenario. They sequentially increase the complexity of the overall STR model, resulting in increased performance at the cost of computational efficiency. ResNet, BiLSTM, and TPS introduce relatively moderate overall slow down (1.3ms10.9ms), while greatly boosting accuracy (69.5%82.9%). The final change, Attn, on the other hand, only improves the accuracy by 1.1% at a huge cost in efficiency (27.6 ms).

As for the accuracy-memory trade-offs shown in Table 3(b), P1 is the model with the least amount of memory consumption, and from P1 to P5 the trade-off between memory and accuracy takes place. As in the accuracy-speed trade-off, we observe a single module shift at each step up to P5, where the changed modules are: Attn, TPS, BiLSTM, and ResNet. They sequentially increase the accuracy at the cost of memory. Compared to VGG used in T1, we observe that RCNN in P1-P4 is lighter and gives a good accuracy-memory trade-off. RCNN requires a small number of unique CNN layers that are repeatedly applied. We observe that transformation, sequential, and prediction modules are not significantly contributing to the memory consumption (1.9M7.2M parameters). While being lightweight overall, these modules provide accuracy improvements (75.4%82.3%). The final change, ResNet, on the other hand, increases the accuracy by 1.7% at the cost of increased memory consumption from 7.2M to 49.6M floating point parameters. Thus, a practitioner concerned about memory consumption can be assured to choose specialized transformation, sequential, and prediction modules relatively freely, but should refrain from the use of heavy feature extractors like ResNets.

The most important modules for speed and memory.

We have identified the module-wise impact on speed and memory by color-coding the scatter plots in Figure 4 according to module choices. The full set of color-coded plots is in the supplementary materials. Here, we show the scatter plots with the most speed- and memory-critical modules, namely the prediction and feature extraction modules, respectively, in Figure 5.

There are clear clusters of combinations according to the prediction and feature modules. In the accuracy-speed trade-off, we identify CTC and Attn clusters (the addition of Attn significantly slows the overall STR model). On the other hand, for accuracy-memory trade-off, we observe that the feature extractor contributes towards memory most significantly. It is important to recognize that the most significant modules for each criteria differ, therefore, practitioners under different applications scenarios and constraints should look into different module combinations for the best trade-offs depending on their needs.

(a) Difficult fonts.
(b) Vertical texts.
(c) Special characters.
(d) Occlusion.
(e) Low resolution.
(f) Label noise.
Figure 6: Samples of failure cases on all combinations of our framework.

4.4 Module analysis

width=0.475 Stage Module Accuracy Time params Regular (%) Irregular (%) ms/image
None 85.6 65.7 N/A N/A
TPS 86.7(+1.1) 69.1(+3.4) 3.6 1.7 Feat. VGG 84.5 63.9 1.0 5.6 RCNN 86.2(+1.7) 67.3(+3.4) 6.9 1.8 ResNet 88.3(+3.8) 71.0(+7.1) 4.1 44.3 Seq. None 85.1 65.2 N/A N/A BiLSTM 87.6(+2.5) 69.7(+4.5) 3.1 2.7 Pred. CTC 85.5 66.1 0.1 0.0 Attn 87.2(+1.7) 68.7(+2.6) 17.1 0.9

Table 2: Study of modules at the four stages with respect to total accuracy, inference time, and the number of parameters. The accuracies are acquired by taking the mean of the results of the combinations including that module. The inference time and the number of parameters are measured individually.

Here, we investigate the module-wise performances in terms of accuracy, speed, and memory demand. For this analysis, the marginalized accuracy of each module is calculated by averaging out the combination including the module in Table 2. Upgrading a module at each stage requires additional resources, time or memory, but provides performance improvements. The table shows that the performance improvement in irregular datasets is about two times that of regular benchmarks over all stages. when comparing accuracy improvement versus time usage, a sequence of ResNet, BiLSTM, TPS, and Attn is the most efficient upgrade order of the modules from a base combination of None-VGG-None-CTC. This order is the same order of combinations for the accuracy-time frontiers (T1T5). On the other hand, an accuracy-memory perspective finds RCNN, Attn, TPS, BiLSTM and ResNet as the most efficient upgrading order for the modules, like the order of the accuracy-memory frontiers (P1P5). Interestingly, the efficient order of modules for time is reverse from those for memory. The different properties of modules provide different choices in practical applications. In addition, the module ranks in the two perspectives are the same as the order of the frontier module changes, and this shows that each module contributes to the performances similarly under all combinations.

Figure 7: Challenging examples for the STR combinations without a specific module. All STR combinations without the notated modules failed to recognize text in the examples, but upgrading the module solved the problem.

Qualitative analysis Each module contributes to identify text by solving targeted difficulties of STR tasks, as described in §3. Figure 7 shows samples that are only correctly recognized when certain modules are upgraded (e.g. from VGG to ResNet backbone). Each row shows a module upgrade at each stage of our framework. Presented samples are failed before the upgrade, but becomes recognizable afterward. TPS transformation normalizes curved and perspective texts into a standardized view. Predicted results show dramatic improvements especially for “POLICE” in a circled brand logo and “AIRWAYS” in a perspective view of a storefront sign. Advanced feature extractor, ResNet, results in better representation power, improving on cases with heavy background clutter “YMCA”, “CITYARTS”) and unseen fonts (“NEUMOS”). BiLSTM leads to better context modelling by adjusting the receptive field; it can ignore unrelatedly cropped characters (“I” at the end of “EXIT”, “C” at the end of “G20”). Attention including implicit character-level language modeling finds missing or occluded character, such as “a” in “Hard”, “t” in “to”, and “S” in “HOUSE”. These examples provide glimpses to the contribution points of the modules in real-world applications.

4.5 Failure case analysis

We investigate failure cases of all 24 combinations. As our framework derived from commonalities among proposed STR models, and our best model showed competitive performance with previously proposed STR models, the presented failure cases constitute a common challenge for the field as a whole. We hope our analysis inspires future works in STR to consider addressing those challenges.

Among 8,539 examples in the benchmark datasets (§2), 644 images (7.5%) are not correctly recognized by any of the 24 models considered. We found six common failure cases as shown in Figure 6. The followings are discussion about the challenges of the cases and suggestion future research directions.

Calligraphic fonts: font styles for brands, such as “Coca Cola”, or shop names on streets, such as “Cafe”, are still in remaining challenges. Such diverse expression of characters requires a novel feature extractor providing generalized visual features. Another possible approach is regularization because the model might be over-fitting to the font styles in a training dataset.
Vertical texts: most of current STR models assumes horizontal text images, and thus structurally could not deal with vertical texts. Some STR models [28, 5] exploit vertical information also, however, vertical texts are not clearly covered yet. Further research would be needed to cover vertical texts.
Special characters: since current benchmarks do not evaluate special characters, existing works exclude them during training. This results in failure prediction, misleading the model to treat them as alphanumeric characters. We suggest training with special characters. This has resulted in a boost from 87.9% to 90.3% accuracy on IIIT.
Heavy occlusions: current methods do not extensively exploit contextual information to overcome occlusion. Future researches may consider superior language models to maximally utilize context.
Low resolution:

existing models do not explicitly handle low resolution cases; image pyramids or super-resolution modules may improve performance.

Label noise: We found some noisy (incorrect) labels in the failure examples. We examined all examples in the benchmark to identify the ratio of the noisy labels. All benchmark datasets contain noisy labels and the ratio of mislabeling without considering special character was 1.3%, mislabeling with considering special character was 6.1%, and mislabeling with considering case-sensitivity was 24.1%. We will open-source all the noisy and cleansed labels for future researches.

We will make all failure cases available hoping that they will inspire further researches on corner cases of the STR problem 222

5 Conclusion

While there has been great advances on novel scene text recognition (STR) models, they have been compared on inconsistent benchmarks, leading to difficulties in determining whether and how a proposed module improves the STR baseline model. This work analyzes the contribution of the existing STR models that was hindered under inconsistent experiment settings before. To achieve this goal, we have introduced a common framework among key STR methods, as well as consistent datasets: seven benchmark evaluation datasets and two training datasets (MJ and ST). We have provided a fair comparison among the key STR methods compared, and have analyzed which modules brings about the greatest accuracy, speed, and size gains. We have also provided extensive analyses on module-wise contributions to typical challenges in STR as well as the remaining failure cases.


  • [1] D. Bahdanau, K. Cho, and Y. Bengio. Neural machine translation by jointly learning to align and translate. In ICLR, 2015.
  • [2] F. Bai, Z. Cheng, Y. Niu, S. Pu, and S. Zhou.

    Edit probability for scene text recognition.

    In CVPR, 2018.
  • [3] F. Borisyuk, A. Gordo, and V. Sivakumar. Rosetta: Large scale system for text detection and recognition in images. In KDD, pages 71–79, 2018.
  • [4] Z. Cheng, F. Bai, Y. Xu, G. Zheng, S. Pu, and S. Zhou. Focusing attention: Towards accurate text recognition in natural images. In ICCV, pages 5086–5094, 2017.
  • [5] Z. Cheng, Y. Xu, F. Bai, Y. Niu, S. Pu, and S. Zhou. Aon: Towards arbitrarily-oriented text recognition. In CVPR, pages 5571–5579, 2018.
  • [6] A. Graves, S. Fernández, F. Gomez, and J. Schmidhuber. Connectionist temporal classification: labelling unsegmented sequence data with recurrent neural networks. In ICML, pages 369–376, 2006.
  • [7] A. Graves, M. Liwicki, S. Fernández, R. Bertolami, H. Bunke, and J. Schmidhuber. A novel connectionist system for unconstrained handwriting recognition. In TPAMI, volume 31, pages 855–868. IEEE Computer Society, 2009.
  • [8] A. Gupta, A. Vedaldi, and A. Zisserman. Synthetic data for text localisation in natural images. In CVPR, 2016.
  • [9] K. He, X. Zhang, S. Ren, and J. Sun.

    Delving deep into rectifiers: Surpassing human-level performance on imagenet classification.

    In ICCV, pages 1026–1034, 2015.
  • [10] K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In CVPR, pages 770–778, 2016.
  • [11] M. Jaderberg, K. Simonyan, A. Vedaldi, and A. Zisserman. Synthetic data and artificial neural networks for natural scene text recognition. In

    Workshop on Deep Learning, NIPS

    , 2014.
  • [12] M. Jaderberg, K. Simonyan, A. Zisserman, et al. Spatial transformer networks. In NIPS, pages 2017–2025, 2015.
  • [13] D. Karatzas, L. Gomez-Bigorda, A. Nicolaou, S. Ghosh, A. Bagdanov, M. Iwamura, J. Matas, L. Neumann, V. R. Chandrasekhar, S. Lu, et al. Icdar 2015 competition on robust reading. In ICDAR, pages 1156–1160, 2015.
  • [14] D. Karatzas, F. Shafait, S. Uchida, M. Iwamura, L. G. i Bigorda, S. R. Mestre, J. Mas, D. F. Mota, J. A. Almazan, and L. P. De Las Heras. Icdar 2013 robust reading competition. In In ICDAR, pages 1484–1493, 2013.
  • [15] C.-Y. Lee and S. Osindero.

    Recursive recurrent nets with attention modeling for ocr in the wild.

    In CVPR, pages 2231–2239, 2016.
  • [16] W. Liu, C. Chen, and K.-Y. K. Wong. Char-net: A character-aware neural network for distorted scene text recognition. In AAAI, 2018.
  • [17] W. Liu, C. Chen, K.-Y. K. Wong, Z. Su, and J. Han. Star-net: A spatial attention residue network for scene text recognition. In BMVC, volume 2, 2016.
  • [18] Y. Liu, Z. Wang, H. Jin, and I. Wassell. Synthetically supervised feature learning for scene text recognition. In ECCV, 2018.
  • [19] S. M. Lucas, A. Panaretos, L. Sosa, A. Tang, S. Wong, and R. Young. Icdar 2003 robust reading competitions. In ICDAR, pages 682–687, 2003.
  • [20] A. Mishra, K. Alahari, and C. Jawahar. Scene text recognition using higher order language priors. In BMVC, 2012.
  • [21] T. Q. Phan, P. Shivakumara, S. Tian, and C. L. Tan. Recognizing text with perspective distortion in natural scenes. In ICCV, pages 569–576, 2013.
  • [22] A. Risnumawan, P. Shivakumara, C. S. Chan, and C. L. Tan. A robust arbitrary text detection system for natural scene images. In ESWA, volume 41, pages 8027–8048. Elsevier, 2014.
  • [23] B. Shi, X. Bai, and C. Yao. An end-to-end trainable neural network for image-based sequence recognition and its application to scene text recognition. In TPAMI, volume 39, pages 2298–2304. IEEE, 2017.
  • [24] B. Shi, X. Wang, P. Lyu, C. Yao, and X. Bai. Robust scene text recognition with automatic rectification. In CVPR, pages 4168–4176, 2016.
  • [25] K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. In ICLR, 2015.
  • [26] J. Wang and X. Hu. Gated recurrent convolution neural network for ocr. In NIPS, pages 334–343, 2017.
  • [27] K. Wang, B. Babenko, and S. Belongie. End-to-end scene text recognition. In ICCV, pages 1457–1464, 2011.
  • [28] X. Yang, D. He, Z. Zhou, D. Kifer, and C. L. Giles. Learning to read irregular text with attention mechanisms. In IJCAI, 2017.
  • [29] M. D. Zeiler. Adadelta: an adaptive learning rate method. In arXiv:1212.5701, 2012.

Appendix A Contents

Appendix B : Dataset Matters in STR - examples

  • We illustrate examples of the problematic datasets described in §2 and §4.1.

Appendix C : STR Framework - verification

  • We verify our STR module implementations for our framework by reproducing four existing STR models, namely CRNN [23], RARE [24], GRCNN [26], and FAN (w/o Focus Net) [4].

Appendix D : STR Framework - architectural details

  • We describe the architectural details of all modules in our framework described in §3.

Appendix E : STR Framework - full experimental results

  • We provide the comprehensive results of our experiments described in §4, and discuss them in detail.

Appendix B Dataset Matters in STR - examples

IC03 - 7 missing words boxes in 860 evaluation dataset. The original IC03 evaluation dataset has 1,110 images, but prior works have conducted additional filtering, as described in §2. All papers have ignored all words that are either too short (less than 3 characters) or ones that contain non-alphanumeric characters. Although all papers have supposedly applied the same data filtering method and should have reduced the evaluation set from 1,110 images to 867 images, the reported example numbers are different: either the expected 867 images or a further reduced 860 images. We identified the missing examples as shown in Figure 8.

IC15 - Filtered examples in evaluation dataset. The IC15 dataset originally contains 2,077 examples for its evaluation set, however prior works [4, 2] have filtered it down to 1,811 examples and have not given unambiguous specifications between them for deciding on which example to discard. To resolve this ambiguity, we have contacted one of the authors, who shared the specific dataset used for the evaluation. This information will be made available with the source code on Github. A few sample images that have been filtered out of the IC15 evaluation dataset is shown in Figure 9.

IC03 and IC13 - Duplicated images between IC03 training dataset and IC13 evaluation dataset. Figure 10 shows two images from the subset given by the intersection between the IC03 training dataset and the IC13 evaluation dataset. In our investigation, a total of 34 duplicated scene images have been found, amounting to 215 duplicate word boxes, in total. Therefore, when one assesses the performance of a model on the IC13 evaluation data, he/she should be mindful of these overlapping data.

Figure 8: 7 missing examples of IC03-860 evaluation dataset. The examples represented by the red-colored word boxes of the two real scene images are included in IC03-867, but not in IC03-860.
Figure 9: Images that were filtered out of the IC15 evaluation dataset.
Figure 10: Duplicated scene images. These are example images that have been found in both the IC03 training dataset and the IC13 evaluation dataset.

width=0.975 Model Train Data IIIT SVT IC03 IC13 IC15 SP CT 3000 647 860 867 857 1015 1811 2077 645 288 CRNN [23] reported in paper MJ 78.2 80.8 89.4 86.7 CRNN our implementation MJ 81.2 81.8 91.1 87.6 RARE [24] reported in paper MJ 81.9 81.9 90.1 88.6 71.8 59.2 RARE our implementation MJ 83.1 84.0 92.2 91.3 74.3 64.2 GRCNN [26] reported in paper MJ 80.8 81.5 91.2 GRCNN our implementation MJ 82.0 81.1 90.3 FAN (w/o Focus Net)[4] reported in paper MJ+ST 83.7 82.2 91.5 89.4 63.3 FAN (w/o Focus Net) our implementation MJ+ST 86.4 86.2 94.3 90.6 73.3

Table 3: Sanity checking our experimental platform by reproducing the existing four STR models: CRNN [23], RARE [24], GRCNN [26] and FAN (w/o Focus Net [4]).

Appendix C STR Framework - verification

To show the correctness of our implemented module for our framework, we reproduce the performances of existing models that can be re-built by our framework. Specifically, we compare the results of our implementation of CRNN, RARE, GRCNN, and FAN (w/o Focus Net) [23, 24, 26, 4] from those of publicly reported by the authors. We implemented each module as described in their original papers, and also we followed the training and evaluation pipelines of their original papers to train the individual models. Table 3 shows the results. Our implementation has overall similar performance with reported result in their paper, which verify the sanity of our implementations and experiments.

Appendix D STR Framework - architectural details

In this appendix, we describe each module of our framework in terms of its concept and architectural specifications. We first introduce common notations used in this appendix and then explain the modules of each stage; Trans., Feat., Seq., and Pred.


For a simple expression for a neural network architecture, we denote ‘c’, ‘k’, ‘s’ and ‘p’ for the number of the output channel, the size of kernel, the stride, and the padding size respectively. BN, Pool, and FC denote the batch normalization layer, the max pooling layer, and the fully connected layer, respectively. In the case of convolution operation with the stride of 1 and the padding size of 1, ‘s’ and ‘p’ are omitted for convenience.

d.1 Transformation stage

The module of this stage transforms the input image into the normalized image . We explained the concept of TPS [24, 17] in §3.1, but here we deliver its mathematical background and the implementation details.

TPS transformation: TPS generates a normalized image that shows a focused region of an input image. To build this pipeline, TPS consists of a sequence of processes; finding a text boundary, linking the location of the pixels in the boundary to those of the normalized image, and generating a normalized image by using the values of pixels and the linking information. Such processes are called as localization network, grid generator, and image sampler, respectively. Conceptually, TPS employs a smooth spline interpolation between a set of fiducial points that represented a focused boundary of text in an image. Here, indicates the constant number of fiducial points.

The localization network explicitly calculates -coordinates of fiducial points on an input image, . The coordinates are denoted by , whose -th column contains the coordinates of the -th fiducial point. represents pre-defined top and bottom locations on the normalized image, .

The grid generator provides a mapping function from the identified regions by the localization network to the normalized image. The mapping function can be parameterized by a matrix , which is computed by


where is a matrix determined only by , thus also a constant:


where the element of -th row and -th column of is , is the euclidean distance between and . The pixels of grid on the normalized image is denoted by , where is the x,y-coordinates of the -th pixel, is the number of pixels. For every pixel on , we find the corresponding point on , by applying the transformation:


where is the euclidean distance between pixel and the -th base fiducial point . By iterating Eq. 3 over all points in , we generate a grid on the input image .

Finally, the image sampler produces the normalized image by interpolating the pixels in the input images which are determined by the grid generator.

TPS-Implementation: TPS requires the localization network calculating fiducial points of an input image. We designed the localization network by following most of the components of prior work [24], and added batch normalization layers and adaptive average pooling to stabilize the training of the network. Table 4 shows the details of our architecture. In our implementation, the localization network has 4 convolution layers, each followed by a batch normalization layer and 2 x 2 max-pooling layer. The filter size, padding size, and stride are 3, 1, 1 respectively, for all convolutional layers. Following the last convolutional layer is an adaptive average pooling layer (APool in Table 4

). After that, two fully connected layers are following: 512 to 256 and 256 to 2F. Final output is 2F dimensional vector which corresponds to the value of

-coordinates of

fiducial points on input image. Activation functions for all layers are the ReLU.

width=0.40 Layers Configurations Output Input grayscale image Conv1 c: k: BN1 - Pool1 k: s: Conv2 c: k: BN2 - Pool2 k: s: Conv3 c: k: BN3 - Pool3 k: s: Conv4 c: k: BN4 - APool FC1 FC2

Table 4: Architecture of the localization network in TPS. The localization network extracts the location of the text line, that is, the - and -coordinates of the fiducial points within the input image.

width=0.40 Layers Configurations Output Input grayscale image Conv1 c: k: Pool1 k: s: Conv2 c: k: Pool2 k: s: Conv3 c: k: Conv4 c: k: Pool3 k: s: Conv5 c: k: BN1 - Conv6 c: k: BN2 - Pool4 k: s: Conv7 c: k: s: p:

Table 5: Architecture of VGG.

width=0.40 Layers Configurations Output Input grayscale image Conv1 c: k: Pool1 k: s: GRCL1 Pool2 k: s: GRCL2 Pool3 k: s: p: GRCL3 Pool4 k: s: p: Conv2 c: k: s: p:

Table 6: Architecture of RCNN.

width=0.40 Layers Configurations Output Input grayscale image Conv1 c: k: Conv2 c: k: Pool1 k: s: Block1 Conv3 c: k: Pool2 k: s: Block2 Conv4 c: k: Pool3 k: s: p: Block3 Conv5 c: k: Block4 Conv6 c: k: s: p: Conv7 c: k: s: p:

Table 7: Architecture of ResNet.

d.2 Feature extraction stage

In this stage, a CNN abstract an input image (i.e., or ) and outputs a feature map ( is the number of columns in the feature map).

VGG: we implemented VGG [25] which is used in CRNN [23] and RARE [24]. We summarized the architecture in Table 5. The output of VGG is 512 channels 24 columns.

Recurrently applied CNN (RCNN): As a RCNN module, we implemented a Gated RCNN (GRCNN) [26] which is a variant of RCNN that can be applied recursively with a gating mechanism. The architectural details of the module are shown in Table 6. The output of RCNN is 512 channels 26 columns.

Residual Network (ResNet): As a ResNet [10] module, we implemented the same network which is used in FAN [4]. It has 29 trainable layers in total. The details of the network is shown in Table 7. The output of ResNet is 512 channels 26 columns.

d.3 Sequence modeling stage

Some previous works used Bidirectional LSTM (BiLSTM) to make a contextual sequence after the Feat. stage [23].

BiLSTM: We implemented 2-layers BiLSTM [7] which is used in CRNN [23]. In the followings, we explain a BiLSTM layer used in our framework: A BiLSTM layer identifies two hidden states, and , calculated through time sequence and its reverse. Following [23], we additionally applied a FC layer between BiLSTM layers to determine one hidden state, , by using the two identified hidden states, and . The dimensions of all hidden states including the FC layer was set as .

None indicates not to use any Seq. modules upon the output of the Feat. modules, that is, .

d.4 Prediction stage

A prediction module produces the final prediction output from the input , (i.e., ), which is a sequence of characters. We implemented two modules: Connectionist Temporal Classification (CTC) [6] based and Attention mechanism (Attn) based Pred. module. In our experiments, we make the character label set which include 36 alphanumeric characters. For the CTC, additional blank token is added to the label set due to the characteristics of the CTC. For the Attn, additional end of sentence (EOS) token is added to the label set due to the characteristics of the Attn. That is, the number of character set is 37.

Connectionist Temporal Classification (CTC): CTC takes a sequence , where is the sequence length, and outputs the probability of , which is defined as


where is the probability of generating character at each time step . After that, the mapping function which maps to by removing repeated characters and blanks. For instance, maps “aaa--b-b-c-ccc-c--” onto “abbccc”, where ’-’ is blank token. The conditional probability is defined as the sum of probabilities of all that are mapped by onto , which is


At testing phase, the predicted label sequence is calculated by taking the highest probability character at each time step , and map the onto :


Attention mechanism (Attn): We implemented one layer LSTM attention decoder [1] which is used in FAN, AON, and EP [4, 5, 2]. The details are as follows: at -step, the decoder predicts an output as


where and are trainable parameters. is the decoder LSTM hidden state at time as


and is a context vector, which is computed as the weighted sum of from the former stage as


where is called attention weight and computed by




and , , and are trainable parameters. The dimension of LSTM hidden state was set as .

d.5 Objective function

Denote the training dataset by , where is the training image and is the word label. The training conducted by minimizing the objective function that negative log-likelihood of the conditional probability of word label.


This function calculates a cost from an image and its word label, and the modules in the framework are trained end-to-end manner.

width=0.975 # Trans. Feat. Seq. Pred. IIIT SVT IC03 IC13 IC15 SP CT Acc. Time params 3000 647 860 867 857 1015 1811 2077 645 288 Total ms 1 None VGG None CTC 76.2 73.8 86.7 86.0 84.8 81.9 56.6 52.4 56.6 49.9 69.5 1.3 5.6 2 Attn 80.1 78.4 91.0 90.5 88.5 86.3 63.0 58.3 66.0 56.1 74.6 19.0 6.6 31 BiLSTM CTC 82.9 81.6 93.1 92.6 91.1 89.2 69.4 64.2 70.0 65.5 78.4 4.4 8.3 4 Attn 84.3 83.8 93.7 93.1 91.9 90.0 70.8 65.4 71.9 66.8 79.7 21.2 9.2 5 RCNN None CTC 80.9 78.5 90.5 89.8 88.4 85.9 65.1 60.5 65.8 60.3 75.4 7.7 1.9 62 Attn 83.4 82.4 92.2 92.0 90.2 88.1 68.9 63.6 72.1 64.9 78.5 24.1 2.9 73 BiLSTM CTC 84.2 83.7 93.5 93.0 90.9 88.8 71.4 65.8 73.6 68.1 79.8 10.7 4.6 8 Attn 85.7 84.8 93.9 93.4 91.6 89.6 72.7 67.1 75.0 69.2 81.0 27.4 5.5 94 ResNet None CTC 84.3 84.7 93.4 92.9 90.9 89.0 71.2 66.0 73.8 69.2 80.0 4.7 44.3 10 Attn 86.1 85.7 94.0 93.6 91.9 90.1 73.5 68.0 74.5 72.2 81.5 22.2 45.3 11 BiLSTM CTC 86.2 86.0 94.4 94.1 92.6 90.8 73.6 68.0 76.0 72.2 81.9 7.8 47.0 12 Attn 86.6 86.2 94.1 93.7 92.8 91.0 75.6 69.9 76.4 72.6 82.5 25.0 47.9 13 TPS VGG None CTC 80.0 78.0 90.1 89.7 88.7 87.5 65.1 60.6 65.5 57.0 75.1 4.8 7.3 14 Attn 82.9 82.3 92.0 91.7 90.5 89.2 69.4 64.2 73.0 62.2 78.5 21.0 8.3 15 BiLSTM CTC 84.6 83.8 93.3 92.9 91.2 89.4 72.4 66.8 74.0 66.8 80.2 7.6 10.0 165 Attn 86.2 85.8 93.9 93.7 92.6 91.1 74.5 68.9 76.2 70.4 82.0 23.6 10.8 17 RCNN None CTC 82.8 81.7 92.0 91.6 89.5 88.4 69.8 64.6 71.3 61.2 78.3 10.9 3.6 18 Attn 85.1 84.0 93.1 93.1 91.5 90.2 72.4 66.8 75.6 64.9 80.6 26.4 4.6 19 BiLSTM CTC 85.1 84.3 93.5 93.1 91.4 89.6 73.4 67.7 74.4 69.1 80.8 14.1 6.3 20 Attn 86.3 85.7 94.0 94.0 92.8 91.1 75.0 69.2 77.7 70.1 82.3 30.1 7.2 21 ResNet None CTC 85.0 85.7 94.0 93.6 92.5 90.8 74.6 68.8 75.2 71.0 81.5 8.3 46.0 22 Attn 87.1 87.1 94.3 93.9 93.2 91.8 76.5 70.6 78.9 73.2 83.3 25.6 47.0 236 BiLSTM CTC 87.0 86.9 94.4 94.0 92.8 91.5 76.1 70.3 77.5 71.7 82.9 10.9 48.7 247 Attn 87.9 87.5 94.9 94.4 93.6 92.3 77.6 71.8 79.2 74.0 84.0 27.6 49.6

  • CRNN. R2AM. GRCNN. Rosetta. RARE. STAR-Net. our best model.

Table 8: The full experimental results for all 24 STR combinations. Top accuracy for each benchmark is shown in bold. For each STR combination, we have run five trials with different initialization random seeds and have averaged their accuracies.

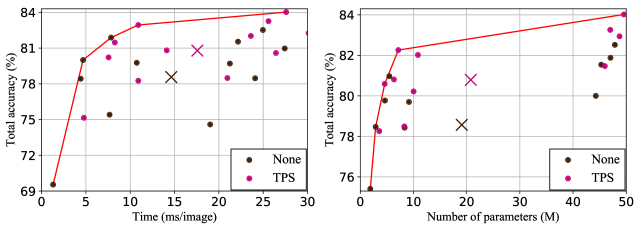

Figure 11: Color-coded version of Figure 4 in §4.3, according to the transformation stage. Each circle represents the performance for each different combination of STR modules, while the each cross represents the average performance among STR combinations without TPS (black) or with TPS (magenta). Choosing to add TPS or not does not seem to give a noticeable advantage in performance when looking at the performances of each STR combination. However, the average accuracy does increase when using TPS compared to when it is unused, at the cost of longer inference times and a slight increase in the number of parameters.

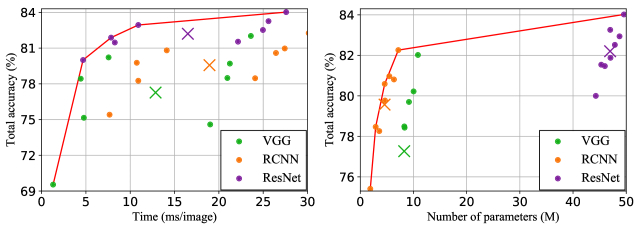

Figure 12: Color-coded version of Figure 4 in §4.3, according to the feature extraction stage. Each circle represents the performance for each different combination of STR modules, while the each cross represents the average performance among STR combinations using VGG (green), RCNN (orange), or ResNet (violet). VGG gives the lowest accuracy on average for the lowest amount of inference time required, while RCNN achieves higher accuracy over VGG by taking the longest time for inferencing and the lowest memory usage out of the three. ResNet, exhibits the highest accuracy at the cost of using significantly more memory than the other modules. In summary, if the system to be implemented is constrained by memory, RCNN offers the best trade-off, and if the system requires high accuracy, ResNet should be used. The time difference between the three modules are so small in practice that it should be considered only in the most extreme of circumstances.

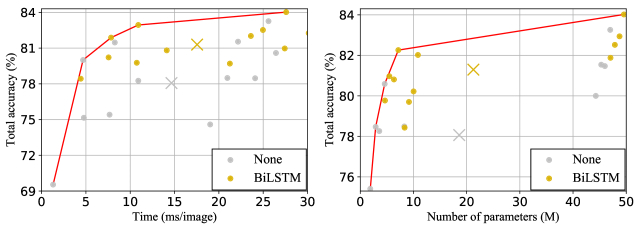

Figure 13: Color-coded version of Figure 4 in §4.3, according to the sequence modeling stage. Each circle represents the performance for each different combination of STR modules, while the each cross represents the average performance among STR combinations without BiLSTM (gray) or with BiLSTM (gold). Using BiLSTM seems to have a similar effect to using TPS, and vice versa, except BiLSTM gives a larger accuracy boost on average with similar inference time or parameter size concessions compared to TPS.

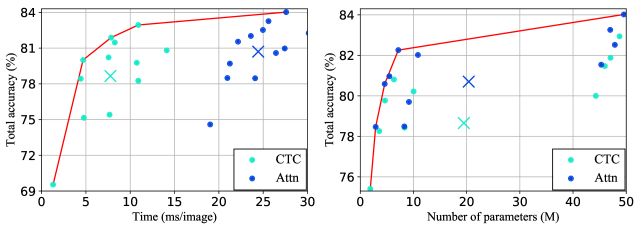

Figure 14: Color-coded version of Figure 4 in §4.3, according to prediction stage. Each circle represents the performance for each different combination of STR modules, while the each cross represents the average performance among STR combinations with CTC (cyan) or with Attn (blue). The choice between CTC and Attn gives the largest and clearest inference time increase for each percentage of accuracy gained. The same cannot be said about the increase in the number of parameters with respect to accuracy increase, as Attn gains about 2 percentage points with minimal memory usage increase.

Appendix E STR Framework - full experimental results

We report the full results of our experiments in Table 8. In addition, Figure 1114 show two types of trade-off plots of 24 combinations in respect of accuracy versus time and accuracy versus memory. In Figure 1114, all the combination are color-coded in terms of each module, which helps to grasp the effectiveness of each modules.
