1 Introduction

Business Process Management (BPM) is a central element of today organizations due to its potential for increase productivity and saving costs. To this aim, BPM research reports on techniques and tools to support the design, enactment and optimization of business processes Aalst2013BPMsurvey . Despite over the years the main focus of BPM has been the support of processes in highly controlled domains (e.g., financial and accounting domains), nowadays BPM research is expanding towards new challenging domains (e.g., healthcare Reichert-healthcare-processes_2007 , smart manufacturing Seiger2014 , emergency management Humayoun2009 ; deLeoni2011 , etc.), characterized by ever-changing requirements, unpredictable environments and increasing amounts of data that influence the execution of process instances ReichertBook2012 . Under such dynamic conditions, BPM is in need of techniques that go beyond hard-coded solutions that put all the burden on IT professionals, which often lack the needed knowledge to model all possible contingencies at the outset, or this knowledge can become obsolete as process instances are executed and evolve, by making useless their initial effort. Therefore, there are compelling reasons to introduce intelligent techniques that act autonomously to provide the reactivity and flexibility necessary for process management JODS2015 ; Hull2016 .

On the other hand, the challenge of building computational entities and physical devices (e.g., robots, software agents, etc.) capable of autonomous behaviour under dynamic conditions is at the center of the Artificial Intelligence (AI) research from its origins. At the the core of this challenge lies the action selection problem, often referred as the problem of selecting the action to do next. Traditional hard-coded solutions require to consider every option available at every instant in time based on the current context and pre-scripted plans to compute just one next action. Consequently, they are usually biased and tend to constrain their search in some way. For AI researchers, the question of action selection is: what is the best way to constrain this search? To answer this question, the AI community has tackled the action selection problem through two different approaches GeffnerBonet:BOOK13-PLANNING , one based on learning and the other based on modeling.

In the learning-based approach, the controller that prescribes the action to do next is learned from the experience. Learning methods, if properly trained on representative datasets, have the greatest promise and potential, as they are able to discover and eventually interpret meaningful patterns for a given task in order to help make more efficient decisions. For example, learning techniques were recently applied in BPM (see Maggi2014 ) for predicting future states or properties of ongoing executions of a business process. However, a learned solution is usually a “black box”, i.e., there is not a clear understanding of how and why it has been chosen. Consequently, the ability to explain why a learned solution has failed and fix a reported quality bug may become a complex task.

Conversely, in the model-based approach the controller in charge of action selection is derived automatically from a model that expresses the dynamics of the domain of interest, the actions and goal conditions. The key point is that all models are conceived to be general, i.e., they are not bound to specific domains or problems. The price for generality is computational: The problem of solving a model is computationally intractable in the worst case, even for the simplest models GeffnerBonet:BOOK13-PLANNING .

While we acknowledge that both the learning and model-based approaches to action selection exhibit different merits and limitations, in this paper we focus on a specific model-based approach called Automated Planning. Automated planning is the branch of AI that concerns the automated synthesis of autonomous behaviours (in the form of strategies or action sequences) for specific classes of mathematical models represented in compact form. In recent years, the automated planning community has developed a plethora of planning systems (also known as planners

) that embed very effective (i.e., scale up to large problems) domain-independent heuristics, which has been employed to solve collections of challenging problems from several Computer Science domains.

In this paper, we discuss how automated planning techniques can be leveraged for solving real-world problems in BPM that were previously tackled with hard-coded solutions by enabling new levels of automation and support for business processing and we show some concrete examples of their successful application to the different stages of the BPM life cycle. Specifically, while in Section 2 we introduce some preliminary notions on automated planning necessary to understand the rest of the paper, in Section 3 we show how instances of some well-known problems from the BPM literature (such as process modeling, process adaptation and conformance checking) can be represented as planning problems for which planners can find a correct solution in a finite amount of time. Finally, in Section 4 we conclude the paper by providing a critical discussion about the general applicability of planning techniques in BPM and tracing future work.

2 Automated Planning

Automated planning addresses the problem of generating autonomous behaviours (i.e., plans) from a model that describes how actions work in a domain of interest, what is the initial state of the world and the goal to be achieved. To this aim, automated planning operates on explicit representations of states and actions.

The Planning Domain Definition Language (PDDL) McDermott:98-PDDL is a de-facto standard to formulate a compact representation of a planning problem , where is the description of the initial state of the world, is the desired goal state, and is the planning domain. A planning domain is built from a set of propositions describing the state of the world in which planning takes place (a state is characterized by the set of propositions that are true) and a set of actions that can be executed in the domain. An action schema is of the form , where is the list of input parameters for , defines the preconditions under which can be executed, specifies the effects of on the state of the world and is the cost of executing . Both preconditions and effects are stated in terms of the propositions in , which can be represented through boolean predicates. PDDL includes also the ability of defining domain objects and of typing the parameters that appear in actions and predicates. In a state, only actions whose preconditions are fulfilled can be executed. The values of propositions in can change as result of the execution of actions, which, in turn, lead to a new state. A planner that takes in input a planning problem is able to automatically produce a plan , i.e., a controller that specifies which actions are required to transform the initial state into a state satisfying the goal .

Example 1

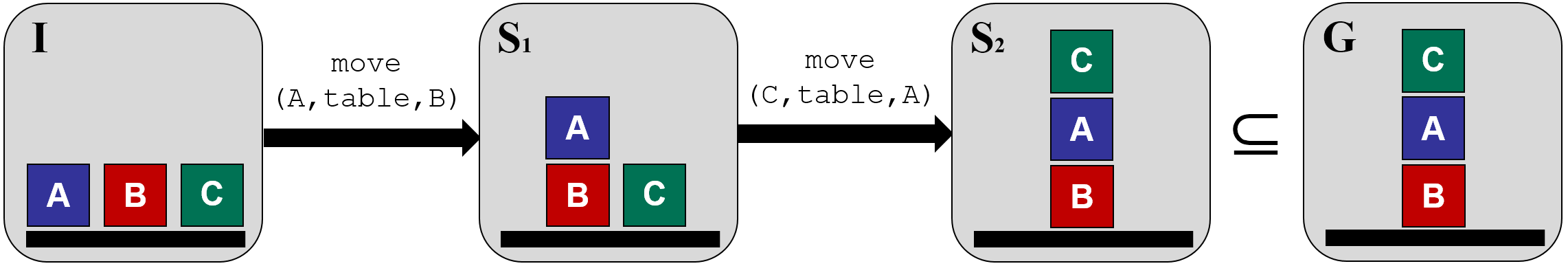

Let us consider a well-known domain in AI: the Blocks World. In Fig. 1 it is shown an instance of this domain where blocks A, B and C are initial arranged on the table. The goal is to re-arrange the blocks so that C is on A and A is on B.

Figure 1: A plan that solves a simple planning problem from the Blocks World domain.

The problem can be easily expressed as a planning problem in PDDL. The variables are the block locations: Blocks can be on the table or on top of another block. Two predicates can be used to express (respectively) that a block is clear (i.e., with no block on top) or has another block on top of it. A single planning action move is required to represent the movement of a clear block on top of another block or on the table. Fig.1 shows a possible solution to the problem, which consists of first moving A from the table on top of B (state ), and then on moving C from the table on top of A (state ). Since is a state satisfying the goal , the solution found is a valid plan. Furthermore, if we assume that the cost of any move action is equal to 1 (i.e., the cost of the plan corresponds to its length), then the plan found is optimal, as it contains the minimum number of planning actions to solve the problem. ∎

There exist several forms of planning models in the AI literature, which result from the application of some orthogonal dimensions Geffner13

: uncertainty in the initial state (fully or partially known) and in the actions dynamics (deterministic or not), the type of feedback (full, partial or no state feedback) and whether uncertainty is represented by sets of states or probability distributions. The simplest form of planning where actions are deterministic, the initial state is known and plans are action sequences computed in advance is called

Classical Planning. For classical planning, according to GeffnerBonet:BOOK13-PLANNING , the general problem of coming up with a plan is NP-hard, since the number of problem states is exponential in the number of problem variables. For example, in a arbitrary Blocks World problem with blocks, the number of states is exponential in , since the states include all the possible towers of blocks plus additional combinations of lower towers.

Despite its complexity, the field of classical planning has experienced spectacular advances (in terms of scalability) in the last 20 years, leading to a variety of concrete planners that are able to feasibly compute plans with thousands of actions over huge search spaces for real-world problems containing hundreds of propositions. Such progresses have been possible because state-of-the-art classical planners employ powerful heuristic functions that are automatically derived by the specific problem and allow to intelligently drive the search towards the goal. In addition, since the classical approach of solving planning problems can be too restrictive for environments in which information completeness can not be guaranteed, it is often possible to solve non-classical planning problems using classical planners by means of well-defined transformations Geffner14 . A tutorial introduction to planning algorithms and heuristics can be found in GeffnerBonet:BOOK13-PLANNING .

3 Automated Planning for BPM

The planning paradigm (in particular in its classical setting) provides a valuable set of theoretical and practical tools to tackle several challenges addressed by the BPM community and its use may lead to several advantages:

  • Planning models are general, in the sense that a planner can be fed with the description of any planning problem in PDDL (as defined in Section 2) without knowing what the actions and domain stand for, and for any such description it can synthesize a plan achieving the goal. This means that planners can potentially solve any BPM problem that can be converted into a planning problem in PDDL.

  • Planning models are human-comprehensible, as the PDDL language allows to describe the planning domain and problem of interest in a high-level terminology, which is readily accessible and understandable by IT professionals.

  • The standardized representation of a planning model in PDDL allows to exploit a large repertoire of planners and searching algorithms with very limited effort.

  • Planning models, if encoded with the classical approach, constitute implicit representations of finite state controllers, and can be thus queried by standard verification techniques, such as Model Checking.

  • BPM environments can invoke planners as external services. Therefore, no expertise of the internal working of the planners is required to build a plan.

A number of research works exist on the use of planning techniques in the context of BPM, covering the various stages of the process life cycle. For the design-time phase, existing literature has focused on exploiting planning to automatically generate candidate process models that are able of achieving some business goals starting from a complete or an incomplete description of the process domain. Some research works also exist that use planning to deal with problems for the run-time phase, e.g., to adapt running processes to cope with anomalous situations. Finally, for the diagnosis phase, the literature reports some works that use planning to perform conformance checking.

In the following sections we discuss in the detail how the use of planning has contributed to tackle the above research challenges from BPM literature.

3.1 Planning for the Automated Generation of Process Models

Process modeling is the first and most important step in the BPM life cycle, which intends to provide a high-level specification of a business process that is independent from implementation and serves as a basis for process automation and verification. Traditional process models are usually well-structured, i.e., they reflect highly repeatable and predictable routine work with low flexibility requirements. All possible options and decisions that can be made during process enactment are statically pre-defined at design-time and embedded in the control-flow of the process.

Challenge. Current BPM technology is generally based on rigid process models making its application difficult in dynamic and possibly evolving domains, where pre-specifying the entire process model is not always possible. This problem can be mitigated through specific approaches to process variability variabilityACMComp2013 , which allow to customize a base process model by implementing specific variants of the process itself. However, this activity is time-consuming and error-prone when more flexible processes are to be modeled, due to their context-dependent nature that make difficult the specification of all the potential tasks interactions and process variants in advance. The presence of mechanisms that facilitate the design phase of flexible processes by allowing the automated generation of their underlying models is highly desirable JODS2015 .

Application of Planning. The work Schuschel2004 presents the basic idea behind the use of planning techniques for the automated generation of a process model. Process activities can be represented as planning actions together with their preconditions and effects stating what contextual data may constrain the process execution or may be affected after an activity completion. The planning domain is therefore enriched with a set of propositions that characterize the contextual data describing the process domain. Given an initial description of the process domain, the target is to automatically obtain a plan (i.e., a process model and its control-flow) that consists of process activities contextually selected and ordered in a way to satisfy some business goals.

In the research literature, there are four main approaches that use planning on the basis of the general schema outlined above. In Moreno2007 , the authors exploit a planner for modeling processes in SHAMASH, a knowledge-based system for the design of business processes. The planner, which is fed with a semantic representation of the process knowledge, produces a parallel plan of activities that is translated into SHAMASH and presented graphically to the user. The obtained plan proposes the scheduling of parallel activities that may handle time and resource constraints. Notice that the emphasis here is on supporting processes for which one has complete knowledge.

The work Ferreira2006 is based on learning activities as planning operators and feeding them to a planner that generates the process model. An interesting result concerns the possibility of producing process models even though the activities may not be accurately described. In such cases, the authors use a best-effort planner that is always able to create a plan, even though the plan may be incorrect. By refining the preconditions and effects of planning actions, the planner will be able to produce several candidate plans, and after a finite number of refinements, the best candidate plan (i.e., the one with the lowest number of unsatisfied preconditions) is translated into a process model.

In the SEMPA approach HennebergerHLB08 , process actions are semantically described by specifying their input/output parameters with respect to an ontology implemented in OWL. Starting from such a knowledge, planning is used to derive an action state graph (ASG) consisting of those actions whose execution leads to a given goal from a pre-specified initial state. Then, a process model represented as an UML activity diagram is extracted from the ASG by identifying the required control flow for the process. Interestingly, the planning algorithm implemented in SEMPA provides the ability to build the ASG in presence of initial state uncertainty and with different conflicting goals.

The works BPMDS2013 ; IJSOCA2017 refer to a technique based on partial-order planning algorithms and declarative specifications of process activities in PDDL for synthesizing a library of process templates to be enacted in contextual scenarios. The resulting templates guarantee that concurrent activities of a process template are effectively independent one from another (i.e., they cannot affect the same data) and are reusable in a variety of partially specified contextual environments. A key characteristic of this approach is the role of contextual data acting as a driver for process templates generation.

3.2 Planning for Process Adaptation

Process Adaptation is the ability of a process to react to exceptional circumstances (that may or may not be foreseen) and to adapt/modify its structure accordingly ReichertBook2012 . Exceptions can be either anticipated or unanticipated. An anticipated exception can be planned at design-time and incorporated into the process model, i.e., a (human) process designer can provide an exception handler which is invoked during run-time to cope with the exception. Conversely, unanticipated exceptions generally refer to situations, unplanned at design-time, that may emerge at run-time and can be detected by monitoring discrepancies between the real-world processes and their computerized representation.

Challenge. In many dynamic application domains (e.g., emergency management, smart manufacturing, etc.), the number of possible anticipated exceptions is often too large, and traditional manual implementation of exception handlers at design-time is not feasible for process designers, who have to anticipate all potential problems and ways to overcome them in advance. Furthermore, anticipated exceptions cover only partially relevant situations, as in such scenarios many unanticipated exceptional circumstances may arise during process execution. The management of processes in dynamic domains requires that BPM environments provide real-time monitoring and automated adaptation features during process execution, in order to achieve the overall objectives of the processes still preserving their structure by minimising any human intervention JODS2015 .

Application of Planning. The first work dealing with this research challenge is Jarvis@AAAIwrk1999 . It discusses how planning can be interleaved with process execution to suggest compensation procedures or the re-execution of activities if some anticipated failure arises. The work Weske@ADBIS2004 presents an approach for enabling automated process instance change in case of activity failures occurring at run-time that lead to a process goal violation. The approach relies on a partial-order planner for the generation of a new complete process model that complies with the process goal. The generated model is substituted at run-time to the original process that included the failed task.

The above works use planning to tackle anticipated exceptions or to completely redefine the process model when some activity failure arises. However, in dynamic domains, it would be desirable to adapt a running process by modifying only those parts of the process that need to be changed/adapted and keeps other parts stable, by avoiding to revolutionize the work list of activities assigned to the process participants JODS2015 .

In this direction, the SmartPM approach and system KR2014 ; ACMTIST2016 provides a planning-based mechanism that requires no predefined handler to build on-the-fly the recovery procedure required to adapt a running process instance. Specifically, adaptation in SmartPM can be seen as reducing the gap between the expected reality, i.e., the (idealized) model of reality that reflects the intended outcome of the task execution, and the physical reality, i.e., the real world with the actual values of conditions and outcomes. A recovery procedure is needed during process execution if the two realities are different from each other. A misalignment of the two realities often stems from errors in the tasks outcomes (e.g., incorrect data values) or is the result of exogenous events coming from the environment. If the gap between the expected and physical realities is such that the process instance cannot progress, the SmartPM system invokes an external planner to build a recovery procedure as a plan, which can thereby resolve exceptions that were not designed into the original process. Notice that a similar framework to tackle process adaptation through planning is also adopted in the research works BPMDS2011 ; CollCom2011 ; CoopIS2012 .

In SmartPM, the problem of automatically synthesize a recovery procedure is encoded as a classical planning problem in PDDL. The planning domain consists of propositions that characterize the contextual data describing the process domain. Planning actions are built from a repository of process activities annotated with preconditions and effects expressed over the process domain. Then, the initial state reflects the physical reality at the time of the failure, while the goal state corresponds to the expected reality. A classical planner fed with such inputs searches for a plan that may turn the physical reality into the expected reality by adapting the faulty process instance.

A similar adaptation strategy is applied in Bucchiarone@SOCA2011 , which proposes a goal-driven approach for service-based applications to adapt business processes to run-time context changes. Process models include service annotations describing how services contribute to the intended goal. Contextual properties are modeled as state transition systems capturing possible values and possible evolutions in the case of precondition violations or external events. Process and context changes that prevent goal achievement are managed through an adaptation mechanism based on service composition via planning.

Finally, the work vanBeest2014 proposes a runtime mechanism that uses dependency scopes for identifying critical parts of the processes whose correct execution depends on some shared variables and intervention processes for solving potential inconsistencies between data. Intervention processes are automatically synthesised through a planner based on CSP techniques. While closely related to SmartPM, this work requires specification of a (domain-dependent) adaptation policy, based on volatile variables and when changes to them become relevant.

3.3 Planning for Conformance Checking

Within the discipline of process mining, conformance checking is the problem of verifying whether the observed behavior stored in an event log is compliant with the process model that encodes how the process is allowed to be executed to ensure that norms and regulations are not violated. The notion of alignment process-mining-book provides a robust approach to conformance checking, which makes it possible to exactly pinpoint the deviations causing nonconformity with a high degree of detail. An alignment between a recorded process execution (log trace) and a process model is a pairwise matching between activities recorded in the log (events) and activities allowed by the model (process activities).

Challenge. In general, a large number of possible alignments exist between a process model and a log trace, since there may exist manifold explanations why a trace is not conforming. It is clear that one is interested in finding the most probable explanation, i.e., one of the alignments with the least expensive deviations (i.e., optimal alignments), according to some function assigning costs to deviations. The existing techniques to compute optimal alignments against procedural Adriansyah2013 and declarative Leoni2012 process models provide ad-hoc implementations of the A* algorithm. The fact is that when process models and event logs are of considerable size the existing approaches do not scale efficiently due to their ad-hoc nature and they are unable to accomplish the alignment task. In the era of Big Data, scalable approaches to process mining are desperately necessary, as also advocated by the IEEE Task Force in Process Mining process-mining-book .

Application of planning. In case of procedural models represented as Petri Nets, the work ESWA2017 proposes an approach and a tool to encode the original algorithm for trace alignment Adriansyah2013 as a planning problem in PDDL. Specifically, starting from a Petri net and an event log to be aligned, for each log trace it is built (i) a planning domain , which encodes the propositions needed to capture the structure of and to monitor the evolution of its marking, and three classes of planning actions that represent “alignment” moves: synchronous moves (associated with no cost), model moves and log moves; and (ii) a planning problem , which includes a number of constants required to properly ground all the domain propositions in ; in this case, constants will correspond to the place and transition instances involved in . Then, the initial state of is defined to capture the exact structure of the specific log trace of interest and the initial marking of , and the goal condition is encoded to represent the fact that is in the final marking and has been completely analyzed. At this point, for any trace of the event log, an external planner is invoked to synthesize a plan to reach the final goal from the initial state, i.e., a sequence of alignment moves (each of which is a planning action) that establish an optimal alignment between and .

Relatively close is the work DiFrancescomarino15 where authors use planners to recover the missing recording of events in log traces. The concept of missing event recordings is very similar to model moves in ESWA2017 . However, in DiFrancescomarino15 it is assumed that all executions are compliant with the model and, hence, every event that is present in the incomplete log trace is assumed to be correct. In other words, they do not foresee log moves.

In case of declarative process models, where relationships among process activities are implicitly defined through logical constraints expressed in the well-known LTL-f (Linear Temporal Logic on finite traces) formalism, the work AAAI2017 leverages on planning techniques to search for optimal alignments. A planning domain is encoded to capture the structure of the finite state automata (augmented with special transitions for adding/removing activities to/from a log trace) corresponding to the individual LTL-f constraints that compose the declarative model. The same can be done for the specific trace to be aligned, which is represented as a simple automaton that consists of a sequence of states. In addition, the definition of specific domain propositions allows to monitor the evolution of any automaton. At this point, the initial state of the planning problem is encoded to capture the exact structure of the trace automaton and of every constraint automaton. This includes the specification of all the existing transitions that connect two different states of the automata. The current state and the accepting states of any trace/constraint automaton are identified as well. Then, the goal condition is defined as the conjunction of the accepting states of the trace automaton and of all the accepting states of the constraint automata. At this point, a planner is invoked with such inputs to synthesize a plan that establishes an optimal alignment between the declarative model and the log trace of interest

Notably, both the works ESWA2017 and AAAI2017 report on results of experiments conducted with several planners fed with combinations of real-life and synthetic event logs and processes. The results show that, when process models and event-log traces are of considerable size, their planning-based approach outperforms the existing approaches based on ad-hoc implementations of the A* algorithm Adriansyah2013 ; Leoni2012 even by several orders of magnitude, and they are always able to properly complete the alignment task (while the existing approaches run often out of memory).

4 Discussion and Conclusion

We are at the beginning of a profound transformation of BPM due to the recent advances in AI research Hull2016 . In this context, we have shown how Automated Planning can offer a mature paradigm to introduce autonomous behaviour in BPM for tackling complex challenges in a theoretically grounded and domain-independent way. If BPM problems are converted into planning problems, one can seamlessly update to the recent versions of the best performing automated planners, with evident advantages in term of versatility and customization. In addition, planning systems employ search algorithms driven by intelligent heuristics that allow to scale up efficiently to large problems.

On the other hand, although Planning (in particular in its classical setting) embeds properties desirable for BPM, it imposes some restrictions for addressing more expressive problems, including preferences and non deterministic task effects. Furthermore, planning models require that actions are completely specified in term of I/O data elements, preconditions, and effects, and that the execution context can be captured as part of the planning domain. These aspects can frame the scope of applicability of the planning paradigm to BPM.

It is worth to mention that Automated Planning contributed to tackle challenges also from other Computer Science fields, such as Web Service Composition Marconi@ICWS2005 ; Marconi@WWW2005 and Ubiquitous Computing Georgievski@2016

. As a future work, we aim at developing a rigorous methodology to acquire relevant literature on the use of planning for BPM and derive an common evaluation framework to systematically review and classify the existing methods.

References

  • (1) van der Aalst, W.M.P.: Business Process Management: A Comprehensive Survey. ISRN Software Engineering (2013)
  • (2) Lenz, R., Reichert, M.: IT support for healthcare processes - premises, challenges, perspectives.

    Data & Knowledge Engineering

    61(1) (2007)
  • (3) Seiger, R., Keller, C., Niebling, F., Schlegel, T.: Modelling complex and flexible processes for smart cyber-physical environments. Journal of Computational Science (2014)
  • (4) Humayoun, S.R., Catarci, T., de Leoni, M., Marrella, A., Mecella, M., Bortenschlager, M., Steinmann, R.: The WORKPAD User Interface and Methodology: Developing Smart and Effective Mobile Applications for Emergency Operators. In: UAHCI’09, Springer (2009)
  • (5) de Leoni, M., Marrella, A., Russo, A.: Process-Aware Information Systems for Emergency Management. In: ServiceWave 2010 Workshops: EMSOA 2010, Springer (2011)
  • (6) Reichert, M., Weber, B.: Enabling Flexibility in Process-Aware Information Systems - Challenges, Methods, Technologies. Springer (2012)
  • (7) Di Ciccio, C., Marrella, A., Russo, A.: Knowledge-Intensive Processes: Characteristics, Requirements and Analysis of Contemporary Approaches. J. Data Semantics 4(1) (2015)
  • (8) Hull, R., Motahari Nezhad, H.R.: Rethinking BPM in a Cognitive World: Transforming How We Learn and Perform Business Processes. In: BPM’16, Springer (2016)
  • (9) Geffner, H., Bonet, B.: A Concise Introduction to Models and Methods for Automated Planning. Morgan & Claypool Publishers (2013)
  • (10) Maggi, F.M., Di Francescomarino, C., Dumas, M., Ghidini, C.: Predictive Monitoring of Business Processes. In: CAiSE’14, Springer International Publishing (2014)
  • (11) McDermott, D., et al.: PDDL—The Planning Domain Definition Language.

    Technical Report DCS TR-1165, Yale Center for Computational Vision and Control (1998)

  • (12) Geffner, H.: Computational models of planning. Wiley Int. Reviews: Cog. Sc. 4(4) (2013)
  • (13) Geffner, H.: Non-classical Planning with a Classical Planner: The Power of Transformations. In: 14th European Conf. on Logics in AI (JELIA). (2014)
  • (14) La Rosa, M., van der Aalst, W.M., Dumas, M., Milani, F.P.: Business Process Variability Modeling: A Survey. ACM Computing Surveys (2013)
  • (15) Schuschel, H., Weske, M.: Triggering Replanning in an Integrated Workflow Planning and Enactment System. In: ADBIS’04. (2004)
  • (16) R-Moreno, M.D., Borrajo, D., Cesta, A., Oddi, A.: Integrating Planning and Scheduling in Workflow Domains. Exp. Syst. with App.: An Int. J. 33(2) (2007)
  • (17) Ferreira, H., Ferreira, D.: An Integrated Life Cycle for Workflow Management Based on Learning and Planning. Int. J. Coop. Inf. Systems 15 (2006)
  • (18) Henneberger, M., Heinrich, B., Lautenbacher, F., Bauer, B.: Semantic-Based Planning of Process Models. In: Multikonferenz Wirtschaftsinformatik. (2008)
  • (19) Marrella, A., Lesperance, Y.: Synthesizing a Library of Process Templates through Partial-Order Planning Algorithms. In: BPMDS’13, Springer (2013)
  • (20) Marrella, A., Lesperance, Y.: A planning approach to the automated synthesis of template-based process models. Service Oriented Computing and Applications (2013)
  • (21) Jarvis, P., et al.: Exploiting AI Technologies to Realise Adaptive Workflow Systems. In: Proceedings of the AAAI Workshop on Agent-Based Systems in the Business Context. (1999)
  • (22) Gajewski, M., Meyer, H., Momotko, M., Schuschel, H., Weske, M.: Dynamic Failure Recovery of Generated Workflows. In: DEXA’05, IEEE Computer Society Press (2005)
  • (23) Marrella, A., Mecella, M., Sardina, S.: SmartPM: An Adaptive Process Management System through Situation Calculus, IndiGolog, and Classical Planning. In: KR, AAAI Press (2014)
  • (24) Marrella, A., Mecella, M., Sardina, S.: Intelligent Process Adaptation in the SmartPM System. ACM Trans. Intell. Syst. Technol. 8(2) (2016)
  • (25) Marrella, A., Mecella, M.: Continuous Planning for Solving Business Process Adaptivity. In: BPMDS’11, Springer (2011)
  • (26) Marrella, A., Mecella, M., Russo, A.: Featuring Automatic Adaptivity through Workflow Enactment and Planning. In: CollaborateCom’11, IEEE (2011)
  • (27) Marrella, A., Russo, A., Mecella, M.: Planlets: Automatically Recovering Dynamic Processes in YAWL. In: CoopIS 2012, Springer (2012)
  • (28) Bucchiarone, A., Pistore, M., Raik, H., Kazhamiakin, R.: Adaptation of service-based business processes by context-aware replanning. In: SOCA’11, IEEE (2011)
  • (29) van Beest, N.R., Kaldeli, E., Bulanov, P., Wortmann, J.C., Lazovik, A.: Automated runtime repair of business processes. Information Systems 39 (2014)
  • (30) van der Aalst, W.M.P.:

    Process Mining: Data Science in Action.

    Springer (2016)
  • (31) Adriansyah, A., van Dongen, B.F., Zannone, N.: Controlling Break-the-Glass Through Alignment. In: SOCIALCOM’13, IEEE Computer Society (2013)
  • (32) de Leoni, M., Maggi, F.M., van der Aalst, W.M.P.: Aligning Event Logs and Declarative Process Models for Conformance Checking. In: BPM’12, Springer (2012)
  • (33) de Leoni, M., Marrella, A.: Aligning Real Process Executions and Prescriptive Process Models through Automated Planning. Expert Systems with Applications 82 (2017)
  • (34) Di Francescomarino, C., Ghidini, C., Tessaris, S., Sandoval, I.V.: Completing Workflow Traces Using Action Languages. In: CAiSE’15, Springer (2015)
  • (35) De Giacomo, G., Maggi, F.M., Marrella, A., Patrizi, F.: On the Disruptive Effectiveness of Automated Planning for LTLf-Based Trace Alignment. In: AAAI’17, AAAI Press (2017)
  • (36) Pistore, M., Traverso, P., Bertoli, P., Marconi, A.: Automated Synthesis of Composite BPEL4WS Web Services. In: ICWS’05, IEEE Computer Society (2005)
  • (37) Pistore, M., Traverso, P., Bertoli, P., Marconi, A.: Automated synthesis of executable web service compositions from BPEL4WS processes. In: WWW’05. WWW 2005, ACM (2005)
  • (38) Georgievski, I., Aiello, M.: Automated Planning for Ubiquitous Computing. ACM Comput. Surv. 49(4) (2016)
