Weisfeiler-Lehman Embedding for Molecular Graph Neural Networks

06/12/2020 ∙ by Katsuhiko Ishiguro, et al. ∙ IEEE Preferred Infrastructure 0

A graph neural network (GNN) is a good choice for predicting the chemical properties of molecules. Compared with other deep networks, however, the current performance of a GNN is limited owing to the "curse of depth." Inspired by long-established feature engineering in the field of chemistry, we expanded an atom representation using Weisfeiler-Lehman (WL) embedding, which is designed to capture local atomic patterns dominating the chemical properties of a molecule. In terms of representability, we show WL embedding can replace the first two layers of ReLU GNN – a normal embedding and a hidden GNN layer – with a smaller weight norm. We then demonstrate that WL embedding consistently improves the empirical performance over multiple GNN architectures and several molecular graph datasets.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

When finding new drugs or materials, supervised learning problems with structured data are frequently encountered. One of the most straightforward task settings is to predict the chemical properties (e.g., the toxicity) of a

molecular graph, which describes how atoms such as hydrogen and oxygen are connected through chemical bonds (Wu et al., 2018). Despite a tremendous number of different molecules, their properties often solely depend on local atomic patterns. For example, specific local patterns called functional groups in organic molecules are strong evidence for determining such chemical properties (Smith, 2020). Traditionally, this type of local information is incorporated as handcrafted features (Wiener, 1947; Todeschini and Consonni, 2009).

During the past few years, numerous studies have shown the benefit of applying a graph neural network (GNN) for molecular tasks (Duvenaud et al., 2015; Gilmer et al., 2017; Coley et al., 2019; Yang et al., 2019; Jin et al., 2018; De Cao and Kipf, 2018; Bradshaw et al., 2019)

. Currently, GNNs seem to be on track to achieve what convolutional neural networks (CNNs) accomplished for image tasks, nearly eliminating the need for handcrafted image features (e.g.,

(Krizhevsky et al., 2012)). However, recent theoretical and empirical results suggest a different outcome. Although the depth is an essential factor in representation learning (Bengio et al., 2013), a GNN incurs a “curse of depth”, i.e., the performance degrades when we stack too many layers (Li et al., 2018; Xu et al., 2019; NT and Maehara, 2019; Oono and Suzuki, 2020). How this problem can be overcome with a limited number of layers remains an important issue.

In this study, we revisit the idea of designing molecule features for a GNN. As a key contribution, we propose Weisfeiler-Lehman (WL) embedding, a simple, architecture-free embedding method that explicitly leverages the local atomic patterns. In contrast to a standard atomic embedding, which assigns a continuous vector to each single atom, WL embedding constructs an embedding vector by considering

neighboring atoms, from which we aim to extract subgraph information such as functional groups (Fig. 1). Although WL embedding may generate too many embedding vectors and cause the overfitting problem, we can mitigate the problem by combining the normal embedding. In terms of representability, we show WL embedding is equivalent to the normal embedding with a single hidden ReLU layer while reducing the model complexity characterized by the weight norm, which is a key factor for better trainability. We also demonstrate that WL embedding improves the prediction performance regardless of the molecular datasets or GNN architectures applied.

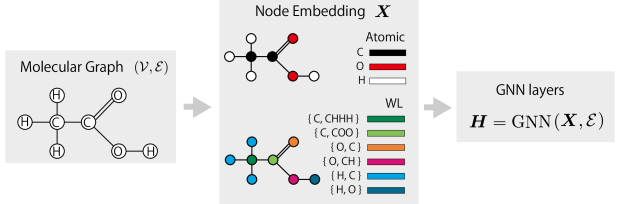

Figure 1: Overview of proposed WL embedding. Left: A molecular graph. Each node is labeled by atoms such as carbon (C) and oxygen (O). Middle Upper: Atomic embedding constructs an embedding vector for each single atom. Middle Lower: WL embedding constructs an embedding vectors for each combination of an atom and its neighboring atoms. Right: The node embedding is fed into a GNN with graph edges . Note that hydrogen (H) atoms are not counted as nodes in practice but here we explicitly use them for illustrative purposes.
Notation

Let be the space of nonnegative integer. Let be an undirected -labeled multigraph where is the set of nodes (i.e., atoms) and is the multiset of edges (i.e., chemical bonds111Bonds can have multiple types (single, double, ), but bond types are not used in the embedding. After embedding, GNNs may employ the bond type information (Schlichtkrull et al., 2017; Busbridge et al., 2019).) between nodes . Each node is associated with a discrete label . We denote by the neighboring nodes of , where multiple edges are regarded as single edges. The empty set is denoted by .

2 Related Work

GNNs and Curse of Depth

After the seminal study of graph convolutional networks (GCNs) by (Kipf and Welling, 2017), various GNN architectures have been proposed. For example, Gilmer et al. (2017) proposed a family of GNNs called message passing neural networks (MPNNs) and showed that MPNNs achieve the state-of-the-art performance for multiple molecular benchmark problems. Some researchers have proposed the use of GNNs specifically tailored for specific applications of molecular graphs (Bradshaw et al., 2019; Jin et al., 2019). For general applications, a gated graph neural network (GGNN) (Li et al., 2016) is a strong GRU-based GNN. The relational graph attention network (RelGAT) (Busbridge et al., 2019) is a representative of a non-local neural network (Wang et al., 2018), which uses multiple attention mechanisms for a set of edge types.

Along with their major successes, the limitations of GNNs have been gradually revealed. Li et al. (2018) reported an over-smoothing issue, that is, as the number of layers increases, the node representations become indistinguishable from each other. Although several studies (Li et al., 2018; Xu et al., 2019; Li et al., 2019; Zhao and Akoglu, 2020) have addressed this issue, no fundamental solution has yet been found, and particularly for molecular graphs, there are no practical deep architectures containing hundreds of layers, similar to ResNet (He et al., 2016).

WL Algorithm in Machine Learning

WL algorithm (Weisfeiler and Lehman, 1968)

is a well-adopted heuristics to identify (non-)isomorphism between graphs. The essence of the algorithm is to expand a label of each node by concatenating labels of neighboring nodes and to compare these labels between graphs (see Supplementary material for the actual procedure). The WL graph kernels

(Shervashidze and Borgwardt, 2009; Shervashidze et al., 2011) adopted the idea of the WL label expansions directly as kernel features. Togninalli et al. (2018) applied the same idea to compute node representations for the graph kernels. Our study is on the same line, while we focus on GNNs instead of the graph kernels. We also extended the idea so that we can concurrently use the original labels to mitigate the sparsity problem; see the next section.

In the context of GNNs, several researchers have incorporated the idea of the WL algorithm in building new layer architectures. For example, Jin et al. (2017) and Lei et al. (2017) proposed MPNNs whose layer update rules are inspired through the mimicking of the WL kernel. Xu et al. (2019) and Morris et al. (2019) revealed that the WL algorithm has the upper bound capability of an MPNN, in terms of isomorphism testing. Based on the analysis, Xu et al. (2019) proposed Graph Isomorphism Networks (GIN) where the function in each layer is modeled by MLP. Morris et al. (2019) proposed another GNN architecture that can emulate the -dimensional WL algorithm for further capability. In contrast to these studies addressing middle-layer architectures, we incorporated the label expansion operation into the node embedding layer, the cornerstone of GNNs. WL embedding is thus combined with any of the above architectures.

Molecular Fingerprint

Encoding graph-theoretical or chemical information of molecules into a symbolic representation, known as a molecular fingerprint, has been a central problem in computational chemistry, at least dating back to the 1940s (Wiener, 1947). Fingerprints have a wide range of applications, such as a molecular similarity search or an analysis of quantitative structure-property relationships.

Owing to the long history of fingerprint in the area of computational chemistry, many methods have been proposed (c.f., Todeschini and Consonni, 2009). Among them, extended connectivity fingerprint (ECFP) (Rogers and Hahn, 2010) is one of the most popular fingerprint approaches. It is used to extract topological information of molecular graphs by enumerating and hashing the subgraphs of a graph within a specified radius. To achieve this, it aggregates the neighboring node information and expands the labels, similar to the WL algorithm. In this sense, WL embedding shares a similar design concept with ECFP. However, to the best of our knowledge, few attempts have been made to combine extended node labels to a GNN. In addition, some variants of our method create node embeddings for the center and neighboring nodes separately, whereas ECFP does not. We later show that this modification improves the empirical predictive performance for many different tasks.

3 WL Embedding

Node embedding is the first step of GNNs, which encodes a node into a continuous node feature vector . Node embedding is implemented with embedding vectors and a hash function as

(1)

Usually, we assign the embedding vector by the node label , i.e., , which we call atomic embedding.

To incorporate the neighbouring information, we use an extended label that is a tuple of a node label and its neighbouring labels 222A multiset is a generalization of a set that can contain overlapping elements. as a hash key. Namely, inspired by WL algorithm, we extend the hash function as where is an injective map from the extended label to an integer . Now we introduce WL embedding as

(2)

Fig. 1 illustrates how WL embedding works. In contrast to atomic embedding, WL embedding makes every embedded vector of carbon and oxygen atoms distinguishable because its neighborhoods are all different. This allows GNNs to treat frequent atoms that appeared in molecules in a more detailed way.

3.1 Extensions

Although the naive form of WL embedding (2) increases the representability of atoms, it may cause a sparsity problem. Namely, it may produce many extended labels that are rarely used, and learning the embedding vectors involving less-frequent atoms such as sulfur becomes more challenging with limited data.

In this paper, we propose the extensions of the naive WL idea that allows more robust and memory-efficient node embedding for molecular graph analysis. Our solution is to separate the atomic and neighbouring information into two embedding vectors and . Here, represents the atomic information, and, for example, every carbon node can share their knowledge through it. In contrast, reflects the neighboring information, which can maintain the high representability. To implement this idea, we consider two approaches.

C-WL Embedding

The first approach is to combine the two embedding vectors by concatenation. We define the concatenated WL (C-WL) embedding as follows:

(3)
(4)
(5)

where is a trainable weight matrix for linearly mixing and .

G-WL Embedding

Another approach is to employ a weighted interpolation between

and , where the mixing weight is computed through a gate function. We formalize the above idea as the Gated-sum WL (G-WL) embedding defined by

(6)
(7)
(8)
(9)

where denotes the Hadamard product,

is the element-wise sigmoid function, and

, are trainable parameters of gate functions .

The advantages of G-WL against naive WL are essentially the same as those of C-WL. As one difference, G-WL adopts an adaptive gate function for mixing and , whereas C-WL employs a fixed weight matrix to concatenate them. Adaptive gates allow the embedding module to tune the interpolated node embedding according to the combination of and . By contrast, parameters of the gate function require more complications of the training.

3.2 Combining with GNNs

After obtaining the node embedding , we feed them into multiple GNN layers such as MPNN layers. For example, an -layered MPNN iteratively updates the node latent vectors for each layer , where

(10)

Here, UPD(ate) and AGG(regate) are some appropriate functions (Gilmer et al., 2017). In addition, is initialized using the node embedding . The final updates of the latent vectors are denoted as . To predict a discrete or continuous target variable , we aggregate with an appropriate readout function and make prediction as .333Several authors proposed readout functions that additionally use graph topology (e.g., Ying et al. (2018)). For simplicity, we do not consider such functions. We train GNN layers, the readout function, and the embedding vectors.

3.3 Iterative Label Expansion

As with the WL algorithm, we can further extend the labels by looking up more than one-hop neighbors (e.g., neighborhoods of neighborhoods). Iterating the extensions increases the representation power because expanded labels can exploit long-distant nodes. By contrast, because the possible expanded label patterns combinatorially increase, too many extensions make the embeddings extremely sparse. In Supplemental material, we empirically investigated this trade-off using real datasets. Iterating label expansion twice improves the performance of C-WL and G-WL compared to the single iteration case, when a dataset has a large sample size. On the other hand, more iterations deteriorate the performance of the naive WL for all datasets.

4 Analysis

The process of WL embedding, generating node representations by gathering neighboring information, looks very similar to what the single iteration of GNN update rule (10) does. So how are they different? How does it make a difference in the outcome?

To answer this question, first we investigate the representability of WL embedding. Let be a finite set of graphs with node labels and

be a GNN with a linear classifier

and sum readout layer where is the representation of node created either by a GNN or WL embedding. Since the dimensionality of the input (representation) space roughly determines the capacity of a linear classifier (e.g., VC dimension; see book Mohri et al. (2018)), we check the best-possible dimensionality of a vector space spanned by .

Definition 1.

Let be the set of GNN parameters including embedding vectors. We define the maximum dimensionality of a readout output for a graph set by .

Suppose we employ the naive WL embedding vector (2) as the node representation . Since is completely determined by its label and neighbouring labels , we can enumerate their patterns. Given a graph , let be the multiplicities of neighbouring labels where counts the number of connected nodes labeled as . Let be the number of nodes labeled as with neighbourhood pattern . The readout is then written as

(11)

(we interchangeably used the multiplicities as the multiset .) We see that

is in the linear space spanned by the embedding vectors, and its degree of freedom is maximized when all the embedding vectors are linearly independent. WL embedding immediately achieves this because by definition it can assign a unique vector for each pair

. When any node in connects with at most nodes of the same label (i.e., for ), the number of the combinations of the pairs is bounded above by , which determines the maximum dimensionality.

Proposition 2.

Let be the set of graphs with node labels and label-specific maximum degree . The maximu dimensionality of WL embedding (11) is bounded as . The upper bound is achieved if the embedding dimension satisfies .

Next, suppose the node representation is given by a single GNN layer defined as

(12)

where

is an activation function,

are label-specific weight matrices, and is the atomic embedding vector of node . GNNs defined by (12) can be seen as a restricted class of multiset-broadcasting GNNs Sato et al. (2019), including GraphSAGE Hamilton et al. (2017), GCN Kipf and Welling (2017), and GIN Xu et al. (2019). Using the same notation of (11), the readout output is written as

(13)

where , , and for . Here, is a point of the -dimensional lattice (grid) spanned by the basis . To maximize the dimensionality of , the activation function needs to map every grid point of

to a linearly independent vector. Following the strategy of

Yun et al. (2018), we show the construction of such mapping with the rectifier activation. The proof is deferred to Supplementary material.

Theorem 3.

The maximum dimensionality of GNN (13) is bounded as . With the rectifier activation , the upper bound is achieved if the embedding dimension and the layer width satisfy and the norm of the parameters satisfies for .



Figure 2: Left: Learning curves in a synthetic experiment (the subgraph detection task in Section 5). The atomic embedding is followed by a single layer of ReLU GCN with different layer width. WL embeddings are directly fed into the readout layer (no GCN layer). Right: 2D grids where and

with hyperplanes (lines) that contain the center points while keeping away from the other points.

Although Theorem 3 shows that WL embedding and the single ReLU layer have the same representation power, the condition of the parameter scale implies the realization is not efficient. The scale of the parameters444The scale increases with the number of labels and the label-specific degree because of the following reason. To assign an independent vector to each grid point, we need a layer unit that activates only by a specific point. We can create such a unit if there exists a hyperplane that only contains the point. Although we can always find such hyperplanes, their gradient is inevitably increased as the number of points increases to avoid hitting the other grid points, as shown in Figure 2 (right). is significantly larger than in a normal setting555For example, is a popular choice as the initial scale for ReLU layers (e.g. He et al. (2015)).

. Attaining such a large-scale solution is challenging for stochastic gradient descent and its variants because their implicit bias favors small-norm solutions

Zhang et al. (2016); Soudry et al. (2017). Indeed, we empirically verified this. Figure 2 (left) shows that the atomic embedding with a single-layer GCN could not achieve the zero training error, showing the hardness of training (see the next section for the detailed setting).

5 Experiment: Synthetic Graphs

To examine whether WL embedding behaves as we intended, we prepare two toy tasks: label counting and subgraph detection. The label counting task is to predict the number of specific node labels, which is solvable without graph structure. The subgraph detection task is to classify whether a graph has specific subgraphs, which requires neighboring information.

We prepare datasets consisting of two types of artificial graphs: positive graphs and negative graphs. For the positive graphs, we first generate a -node regular graph of degree

and remove edges independently and randomly with probability

. Then we attach one of three target subgraphs, all of which have nodes, by adding an edge to each node pair of two graphs independently randomly with probability . We adopt the generated graph if and only if it is connected, the degrees of all nodes are smaller than or equal to , and it contains exactly one of the target subgraphs. For the negative graphs, we generate a -node regular graph of degree and remove edges independently randomly with probability . We adopt the generated graph if and only if it is connected and does not include any of the target subgraphs. For both procedures, we associate one of five labels with each node of the graph independently uniformly randomly.

For each task, we generate three datasets. Each dataset has positive graphs and

negative graphs. For each pair of datasets and tasks, we conduct five runs with random initialization. All hyperparameters are manually fixed and shared in all trials. We adopt

-layer nonlinear GCNs with atomic and WL embeddings for .

Figure 3 clearly shows that, while both embeddings behave mostly identically at the label counting task (Left), WL embeddings significantly outperform atomic embedding at the subgraph detection task (Right). This indicates that local structural information is actually important for node embedding, even with nonlinear activation. The results also capture the “curse of depth”. At both tasks, the performance gradually declines after two layers. Nevertheless, WL embeddings always improve the performance at the detection tasks, implying that WL embeddings somehow dispel the curse for neighborhood-sensitive tasks.

Figure 3:

Experiments with artificial graph datasets. Averages and standard deviations of 15 trials are presented. Left: MAEs (smaller is better) of the counting tasks over the number of layers. Right: ROC-AUCs (larger is better) of the detection task over the number of layers.

6 Experiment: Molecular Benchmarks

In this section, we report our main empirical results on benchmark datasets. We compare the performances of the prediction among the aforementioned embedding techniques, combined with multiple GNN architectures. Details can be found in the supplementary material.

6.1 Datasets and Tasks

We use eight datasets in MoleculeNet (Wu et al., 2018): three for regression and five for classification. In all datasets, we used the train/validation/test data splits of a “scaffold” type, which is considered to be difficult for test predictions (Ruddigkeit et al., 2012; Ramakrishnan et al., 2014). For the graph regression tasks, we use the QM9 and the QM8 datasets from the field of quantum chemistry, and the Lipophilicity (LIPO) dataset from the field of physical chemistry. The task is to predict the associated numerical value(s) from the molecular graphs. We evaluate the performance of the models using the mean absolute errors (MAEs) over properties and molecules. For the graph classification tasks, we use the Tox21, the ToxCast and the Clintox datasets from the field of physiology, and the HIV and the MUV datasets from the field of biophysics. The task is to predict the binary label(s) from the molecular graphs. We evaluate the performance of the models using the ROC-AUC values over targets and molecules.

6.2 Setting

We tested the embedding approaches on five popular GNN models: GCN, GGNN, RelGAT, GIN, and Neural FingerPrint (NFP) (Duvenaud et al., 2015), which is a GNN-based learnable molecular fingerprint. For each GNN, we implemented the readout function described in the original paper. We employed the softmax cross-entropy loss for classification tasks and the squared loss for regression tasks. For each dataset-model pair, we optimized the following hyperparameters by using Optuna (Akiba et al., 2019) based on the validation score: the number of GNN layers , the dimension of latent hidden vectors and embedding vectors , and the of the Adam optimizer (Kingma and Ba, 2015). The other architecture-specific hyperparameters such as the MLP architecture of GIN layers were fixed throughout the study. All the experiments were repeatedly conducted with 10 different random seeds.

6.3 Main Results

Tables 1 and 2 show the generalization performance (i.e., test scores) over (datasets) (GNNs) cases. Overall, at least one of the WL embedding approaches consistently improves the generalization performance in all the cases except the Tox21-NFP pair. In particular, C-WL embedding performs better than the atomic embedding in 37 out of 40 cases. G-WL embedding and the naive WL embedding also perform better than the atomic embedding in many cases but are less stable compared to the C-WL. In addition, C-WL achieves the best test scores among four embeddings in 20 cases. These results indicate the importance of incorporating neighboring node labels into the node embedding for GNNs.

Dataset Embedding GCN RelGAT GGNN GIN NFP
LIPO Atomic 0.7077 0.6298 0.6670 0.7034 0.7067
Naive WL   +0.0744   +0.0462   -0.0716   +0.0641   +0.0582
C-WL   +0.0553   +0.0487   +0.0707   +0.0179   +0.0713
G-WL   +0.0688   +0.0453   +0.0255   +0.0192   +0.0582
QM9 Atomic 23.7247 11.8440 4.6252 6.0166 5.3825
Naive WL   +12.9973   +6.0987   +0.6665   +0.2998   +0.0226
C-WL   +13.2291   +6.1149   +0.4436   -0.2615   +0.1322
G-WL   +11.6967 N. A.   +0.4553   -0.8769   +0.1061
QM8 Atomic 0.0310 0.0234 0.0209 0.0322 0.0365
Naive WL   +0.0006   +0.0030   -0.0029   +0.0005   +0.0032
C-WL   +0.0004   +0.0020   +0.0009   0.0000   +0.0025
G-WL   +0.0018   +0.0029   +0.0004   +0.0006   +0.0027
Table 1: Ten-run averages of mean absolute errors (MAEs) of the regression benchmarks. For the atomic embedding, we present the test MAEs. For WL embeddings, we present the error reduction from the atomic embedding (i.e., positive values indicate the performance improvements). We highlight the results where the performance was improved in bold and the best results of each dataset in italics. For the QM9 dataset, we couldn’t obtain the result of RelGAT + G-WL due to the large data size and intensive memory usage. The full table with standard deviations can be found in Supplemental material.
Dataset Embedding GCN RelGAT GGNN GIN NFP
Tox21 Atomic 0.7082 0.7432 0.7136 0.7237 0.7618
Naive WL   +0.0606   -0.0499   +0.0142   -0.0251   -0.0425
C-WL   +0.0417   +0.0177   +0.0548   +0.0160   -0.0193
G-WL   +0.0625   -0.0013   +0.0442   +0.0347   -0.0312
HIV Atomic 0.7507 0.7037 0.7044 0.7108 0.6533
Naive WL   -0.0221   -0.0098   +0.0142   -0.0064   +0.0988
C-WL   +0.0038   +0.0206   +0.0139   +0.0134   +0.0593
G-WL   -0.0127   +0.0080   +0.0087   -0.0070   +0.0984
ToxCast Atomic 0.7745 0.7820 0.7720 0.7691 0.7585
Naive WL   +0.0182   -0.0358   -0.0222   +0.0043   -0.0005
C-WL   +0.0086   +0.0193   +0.0034   +0.0103   +0.0123
G-WL   +0.0043   -0.0017   +0.0155   +0.0053   -0.0284
clintox Atomic 0.9387 0.9287 0.9338 0.9305 0.9214
Naive WL   -0.0017   +0.0071   +0.0091   -0.0050   +0.0122
C-WL   +0.0158   +0.0072   +0.0100   +0.0026   +0.0195
G-WL   -0.0034   -0.0082   +0.0173   -0.0014   +0.0144
muv Atomic 0.6350 0.6164 0.6586 0.5716 0.6839
Naive WL   +0.0778   +0.0560   +0.0738   +0.0786   +0.0523
C-WL   +0.0503   +0.0513   +0.0931   +0.0055   +0.0288
G-WL   +0.0456   +0.0223   +0.0326   +0.0287   +0.0278
Table 2: Ten-run averages of ROC-AUCs for the classification benchmarks. The table format is the same as Table 1, excepting that AUC gains from the atomic embedding are presented for WL embeddings.

7 Conclusion

In this study, we considered the design of molecular features for GNNs. Based on the history of chemical studies, we proposed the use of WL embedding, a simple embedding method leveraging local atomic patterns. We also proposed its variants, C-WL and G-WL embeddings, which alleviate the sparsity problem that might arise in the naive WL embedding. We showed that the representation power of WL embedding is equivalent to that of atomic embedding + ReLU GNN layer while reducing the parameter scale. The efficacy of the WL embeddings, especially C-WL embedding, was presented in intensive experimental validations against multiple GNN architectures and multiple benchmark molecular graph datasets with different chemical properties.
