# Weighted Sum-Rate Maximization in Multi-Carrier NOMA with Cellular Power Constraint

Non-orthogonal multiple access (NOMA) has received significant attention for future wireless networks. NOMA outperforms orthogonal schemes, such as OFDMA, in terms of spectral efficiency and massive connectivity. The joint subcarrier and power allocation problem in NOMA is NP-hard to solve in general, due to complex impacts of signal superposition on each user's achievable data rates, as well as combinatorial constraints on the number of multiplexed users per sub-carrier to mitigate error propagation. In this family of problems, weighted sum-rate (WSR) is an important objective function as it can achieve different tradeoffs between sum-rate performance and user fairness. We propose a novel approach to solve the WSR maximization problem in multi-carrier NOMA with cellular power constraint. The problem is divided into two polynomial time solvable sub-problems. First, the multi-carrier power control (given a fixed subcarrier allocation) is non-convex. By taking advantage of its separability property, we design an optimal and low complexity algorithm (MCPC) based on projected gradient descent. Secondly, the single-carrier user selection is a non-convex mixed-integer problem that we solve using dynamic programming (SCUS). This work also aims to give an understanding on how each sub-problem's particular structure can facilitate the algorithm design. In that respect, the above MCPC and SCUS are basic building blocks that can be applied in a wide range of resource allocation problems. Furthermore, we propose an efficient heuristic to solve the general WSR maximization problem by combining MCPC and SCUS. Numerical results show that it achieves near-optimal sum-rate with user fairness, as well as significant performance improvement over OMA.

## Authors

• 3 publications
• 6 publications
• 4 publications
• ### Joint Subcarrier and Power Allocation in NOMA: Optimal and Approximate Algorithms

Non-orthogonal multiple access (NOMA) is a promising technology to incre...
10/01/2019 ∙ by Lou Salaün, et al. ∙ 0

• ### Optimal Joint Subcarrier and Power Allocation in NOMA is Strongly NP-Hard

Non-orthogonal multiple access (NOMA) is a promising radio access techno...
10/03/2019 ∙ by Lou Salaün, et al. ∙ 0

• ### Resource Allocation in Virtualized CoMP-NOMA HetNets: Multi-Connectivity for Joint Transmission

In this work, we design a generalized joint transmission coordinated mul...
07/20/2020 ∙ by Sepehr Rezvani, et al. ∙ 0

• ### Joint user and power scheduling in downlink NOMA over fading channels

Non-orthogonal multiple access (NOMA) has been considered one of the mos...
04/14/2020 ∙ by Do-Yup Kim, et al. ∙ 0

• ### Resource Allocation for Non-Orthogonal Multiple Access (NOMA) Enabled LPWA Networks

In this paper, we investigate the resource allocation for uplink non-ort...
08/25/2019 ∙ by Kaihan Li, et al. ∙ 0

• ### Computation over Wide-Band MAC: Improved Achievable Rate through Sub-Function Allocation

Future networks are expected to connect an enormous number of nodes wire...
06/22/2018 ∙ by Fangzhou Wu, et al. ∙ 0

• ### Fairness and Sum-Rate Maximization via Joint Channel and Power Allocation in Uplink SCMA Networks

In this work, we consider a sparse code multiple access uplink network, ...
05/29/2018 ∙ by Joao V. C. Evangelista, et al. ∙ 0

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

In multi-carrier multiple access systems, the total frequency bandwidth is divided into subcarriers and assigned to users to optimize the spectrum utilization. Orthogonal multiple access (OMA), such as orthogonal frequency-division multiple access (OFDMA) adopted in 3GPP-Long Term Evolution 4G standards [1], only serves one user per subcarrier in order to avoid intra-cell interference and have low-complexity signal decoding at the receiver side. OMA is known to be suboptimal in terms of spectral efficiency [2].

The principle of multi-carrier non-orthogonal multiple access (MC-NOMA) is to multiplex several users on the same subcarrier by performing signals superposition at the transmitter side. Successive interference cancellation (SIC) is applied at the receiver side to mitigate interference between superposed signals. MC-NOMA is a promising multiple access technology for 5G mobile networks as it achieves better spectral efficiency and higher data rates than OMA schemes [3, 4, 5].

Careful optimization of the transmit powers is required to control the intra-carrier interference of superposed signals and maximize the achievable data rates. Besides, due to error propagation and decoding complexity concerns in practice [6], subcarrier allocation for each transmission also needs to be optimized. As a consequence, joint subcarrier and power allocation problems in NOMA have received much attention. In this class of problems, weighted sum-rate (WSR) maximization is especially important as it can achieve different tradeoffs between sum-rate performance and user fairness [7]. One may also consider to use the weights to perform fair resource allocation in a stable scheduling [8, 9].

Two types of power constraints are considered in the literature. On the one hand, cellular power constraint is mostly used in downlink transmissions to represent the total transmit power budget available at the base station (BS). On the other hand, individual power constraint sets a power limit independently for each user. The latter is clearly more appropriate for uplink scenarios [10, 11], nevertheless it can also be applied to the downlink [12, 13].

It is known that WSR maximization in OFDMA systems is polynomial time solvable if we consider cellular power constraint [14] but strongly NP-hard with individual power constraints [15]. It has also been proven that MC-NOMA with individual power constraints is strongly NP-hard [12, 16]. Several algorithms are developed to perform subcarrier and/or power allocation in this setting. Fractional transmit power control (FTPC) is a simple heuristic that allocates a fraction of the total power budget to each user based on their channel condition [17]. In [10] and [11], heuristic user pairing strategies and iterative resource allocation algorithms are studied for uplink transmissions. A time efficient iterative waterfilling heuristic is introduced in [18] to solve the problem with equal weights. Reference [12] derives an upper bound on the optimal WSR and proposes a near-optimal scheme using dynamic programming and Lagrangian duality techniques. This scheme serves as benchmark due to its high computational complexity, which may not be suitable for practical systems with low latency requirements.

To the best of our knowledge, it is not known if MC-NOMA with cellular power constraint is polynomial time solvable or NP-hard. Only a few papers have developed optimization schemes for this problem, which are either heuristics with no theoretical performance guarantee or algorithms with impractical computational complexity. For example, a greedy user selection and heuristic power allocation scheme based on difference-of-convex programming is proposed in [19]. The authors of [20] employ monotonic optimization to develop an optimal resource allocation policy, which serves as benchmark due to its exponential complexity. The algorithm of [12] can also be applied to cellular power constraint scenarios, but it has very high complexity as well.

Motivated by this observation, we investigate the WSR maximization problem in a downlink multi-carrier NOMA system with cellular power constraint. Our contributions are as follows:

1. [leftmargin=*]

2. We propose a novel framework in which the original problem is divided into two polynomial time solvable sub-problems:

• The multi-carrier power control (given a fixed subcarrier allocation) sub-problem is non-convex. By taking advantage of its separability property, we design an optimal and low complexity algorithm (MCPC) based on projected gradient descent.

• The single-carrier user selection sub-problem is a non-convex mixed-integer problem that we solve using dynamic programming (SCUS).

This work also aims to give an understanding on how each sub-problem’s particular structure can facilitate the algorithm design. In that respect, the above MCPC and SCUS are basic building blocks that can be applied in a wide range of resource allocation problems. Our analysis of the separability property in MCPC and the combinatorial constraints in SCUS provide mathematical tools which can be used to study other similar resource allocation optimization problems.

3. Papers [19, 20] restrict the number of multiplexed users per subcarrier, denoted by , to be equal to 2. However, our result can be applied for an arbitrary number of superposed signals on each subcarrier, i.e., . The value of can be set depending on error propagation and decoding complexity concerns in practice.

4. We propose an efficient heuristic to solve the general WSR maximization problem by combining MCPC and SCUS. Numerical results show that it achieves near-optimal sum-rate and user fairness, as well as significant improvement in performance over OMA.

The paper is organized as follows. In Section II, we present the system model and notations. Section III formulates the WSR problem. We introduce our algorithms in Section IV and analyze their optimality and complexity. We show in Section V some numerical results, highlighting our solution’s sum-rate and fairness performance, as well as their computational complexity. Finally, we conclude in Section VI.

## Ii System Model and Notations

We define in this section the system model and notations used throughout the paper. We consider a downlink multi-carrier NOMA system composed of one base station (BS) serving users. We denote the index set of users by , and the set of subcarriers by . The total system bandwidth is divided into subcarriers of bandwidth , for each . We assume orthogonal frequency division, so that adjacent subcarriers do not interfere each other. Moreover, each subcarrier experiences frequency-flat block fading on its bandwidth .

Let denotes the transmit power from the BS to user on subcarrier . User is said to be active on subcarrier if , and inactive otherwise. In addition, let be the channel gain between the BS and user on subcarrier , and be the received noise power. For simplicity of notations, we define the normalized noise power as . We denote by

the vector of all transmit powers, and

the vector of transmit powers on subcarrier .

In power domain NOMA, several users are multiplexed on the same subcarrier using superposition coding. A common approach adopted in the literature is to limit the number of superposed signals on each subcarrier to be no more than . The value of is meant to characterize practical limitations of SIC due to decoding complexity and error propagation [6]. We represent the set of active users on subcarrier by . The aforementioned constraint can then be formulated as , where denotes the cardinality of a finite set. Each subcarrier is modeled as a multi-user Gaussian broadcast channel [6] and SIC is applied at the receiver side to mitigate intra-band interference.

The SIC decoding order on subcarrier is usually defined as a permutation function over the active users on , i.e., . However, for ease of reading, we choose to represent it by a permutation over all users , i.e., . These two definitions are equivalent in our model since the Shannon capacity (2) does not depend on the inactive users , for which . For , returns the -th decoded user’s index. Conversely, user ’s decoding order is given by .

In this work, we consider the optimal decoding order studied in [6, Section 6.2]. It consists of decoding users’ signals from the highest to the lowest normalized noise power:

 ~ηnπn(1)≥~ηnπn(2)≥⋯≥~ηnπn(K). (1)

User first decodes the signals of users to and subtracts them from the superposed signal before decoding its own signal. Interference from users for is treated as noise. The maximum achievable data rate of user on subcarrier is given by Shannon capacity:

 Rnk(pn) ≜Wnlog2⎛⎜⎝1+gnkpnk∑Kj=π−1n(k)+1gnkpnπn(j)+ηnk⎞⎟⎠ (a)=Wnlog2⎛⎜⎝1+pnk∑Kj=π−1n(k)+1pnπn(j)+~ηnk⎞⎟⎠, (2)

where equality is obtained after normalizing by . We assume perfect SIC, therefore interference from users for is completely removed in (2).

## Iii Problem Formulation

Let be a sequence of positive weights. The main focus of this work is to solve the following joint subcarrier and power allocation optimization problem:

 maximizep (P) subject to C1: ∑k∈K∑n∈Npnk≤Pmax, C2: ∑k∈Kpnk≤Pnmax, n∈N, C3: pnk≥0, k∈K, n∈N, C4: |Un|≤M, n∈N.

The objective of  is to maximize the system’s WSR. As discussed in Section I, this objective function has received much attention since its weights can be chosen to achieve different tradeoffs between sum-rate performance and fairness [7]. The weights can also be tuned to perform fair resource allocation in a stable scheduling [8, 9]. Note that represents the cellular power constraint, i.e., a total power budget at the BS. In , we set a power limit of for each subcarrier . This is a common assumption in multi-carrier systems, e.g., [14, 15]. Constraint ensures that the allocated powers remain non-negative. Due to decoding complexity and error propagation in SIC [6], we restrict the number of multiplexed users per subcarrier to in .

Let us consider the following change of variables:

 ∀n∈N,xni≜{∑Kj=ipnπn(j),if i∈{1,…,K},0,if i=K+1. (3)

We define and .

###### Lemma 1 (Equivalent problem P′).

Problem  is equivalent to problem  formulated below:

 maximizex f(x)=∑n∈NK∑i=1fni(xni), (P′) subject to C1′: ∑n∈Nxn1≤Pmax, C2′: xn1≤Pnmax, n∈N, C3′: xni≥xni+1, i∈{1,…,K}, n∈N, C3′′: xnK+1=0, n∈N, C4′: |U′n|≤M, n∈N,

where for any and , we have:

 fni(xni)≜⎧⎪ ⎪ ⎪ ⎪⎨⎪ ⎪ ⎪ ⎪⎩Wnlog2((xn1+~ηnπn(1))wπn(1)),if i=1,Wnlog2((xni+~ηnπn(i))wπn(i)(xni+~ηnπn(i−1))wπn(i−1)),if i>1,

and where .

###### Proof:

See Appendix -A. ∎

The advantage of this formulation  is that it exhibits a separable objective function in both dimensions and . In other words, it can be written as a sum of functions , each only depending on one variable . In the following section, we take advantage of this separability property to design efficient algorithms to solve . The solution of  can then be obtained by solving .

## Iv Algorithm Design

Decomposing the joint subcarrier and power allocation problem  into smaller sub-problems allows us to develop efficient algorithms by taking advantage of each sub-problem’s particular structure. The technical details are given below.

### Iv-a Single-Carrier User Selection

In this subsection, we restrict the optimization search space to a single subcarrier. Given and a power budget , the single-carrier user selection sub-problem  consists in finding a power allocation on satisfying the multiplexing and SIC constraint .

 maximizexn K∑i=1fni(xni), (P′SCUS(n)) subject to C2′,C3′,C3′′,C4′.

Let us introduce auxiliary functions that will help us in our algorithm design. For , and , assume that the consecutive variables are all equal to a certain value . We define as:

 fnj,i(x) ≜i∑l=jfnl(x) =⎧⎪ ⎪ ⎪ ⎪⎨⎪ ⎪ ⎪ ⎪⎩Wnlog2((x+~ηnπn(i))wπn(i)),if j=1,Wnlog2((x+~ηnπn(i))wπn(i)(x+~ηnπn(j−1))wπn(j−1)),if j>1.

This simplification of notation is relevant for the analysis of SCUS (Algorithm 2) and also the coming MCPC (Algorithm 4). Indeed, if users are not active (i.e., ), then , therefore can be replaced by and are redundant with . If constraint is satisfied, up to users are active on each subcarrier. Thus, evaluating and optimizing the objective function of  only requires operations.

We study the properties of in Lemma 2. Note that , therefore Lemma 2 also holds for functions . Fig. 1 shows an example of .

###### Lemma 2 (Properties of fnj,i).

Let , , and , we have:

• If or , then is strictly increasing and concave on .

• Otherwise when and , is strongly unimodal. It increases on and decreases on , where

 c1=wπn(j−1)~ηπn(i)−wπn(i)~ηπn(j−1)wπn(i)−wπn(j−1).

Besides, is concave on and convex on , where

 c2=√wπn(j−1)~ηπn(i)−√wπn(i)~ηπn(j−1)√wπn(i)−√wπn(j−1)≥c1.
###### Proof:

The idea consists in studying the first and second derivatives of . Details are omitted due to space limitation. ∎

We present in Algorithm 1 the pseudocode MaxF which computes the maximum of on following the result of Lemma 2. MaxF only requires a constant number of basic operations, therefore its complexity is . For ease of reading, we summarize some system parameters of a given instance of , for all , as follows:

 In=(w,K,Wn,(gnk)k∈K,(ηnk)k∈K).

We propose to solve  using Algorithm 2 (SCUS) based on dynamic programming (DP). This approach consists in computing recursively the elements of three arrays , , . Let and , we define as the optimal value of  with no more than users multiplexed on subcarrier in constraint , and with the additional constraints and as follows:

 V[m,j,i] ≜ maxxn K∑i=1fni(xni), (P′SCUS[m,j,i]) subject to C2′,C3′,C3′′, C4′: |U′n|≤m, C5′: xnj=⋯=xni, C6′: xnl=0,l>i.

It is interesting to note that is the optimal value of , since constraints and become trivially true for . Let be the optimal solution achieving . We define , which is also equal to due to constraint .

The idea of SCUS is to recursively compute the elements of for and through the following recurrence relation:

 V[m,j,i]=max{v0,v1,v2}, (4)
 v0 =V[m,j−1,j−1], v1 =⎧⎪⎨⎪⎩V[m−1,j−1,j−1]+fnj,i(x∗)−fnj,i(0),0, if 0

where , and , , correspond to allocations where user and are each either active or inactive. A detailed analysis is given in Appendix -B.

During SCUS’s iterations, the array keeps track of which previous element of (i.e., or or ) have been used to compute the current value function . More precisely, contains one of the following indices , or . This allows us to retrieve the entire optimal vector at the end of the algorithm (at lines 32-38) by backtracking from index to .

When , no user can be active on this subcarrier due to constraint . Therefore, , , can be initialized to zero at lines 1 to 6. For simplicity, we also extend , and on the index and and initialize them to zero in lines 7 to 11.

###### Theorem 3 (Optimality and complexity of algorithm Scus).

Given a subcarrier , a power budget and , algorithm SCUS computes the optimal single-carrier power control and user selection of . Its worst case computational complexity is .

###### Proof:

See Appendix -B. ∎

### Iv-B Multi-Carrier Power Control

The following multi-carrier power control sub-problem  consists in maximizing the WSR taking as input a fixed subcarrier allocation , for all , so that constraint can be ignored. Since inactive users on each subcarrier have no contribution on the data rates, i.e., and , we remove them in the definition of  for the study of this sub-problem. Without loss of generality, we then transform  to  and index the remaining active users on each subcarrier by . We formulate  as a two-stage optimization problem. The first-stage is:

 maximize¯P ∑n∈NFn(¯Pn) (P′MCPC) subject to ¯Pn∈F,

where , for , are intermediate variables representing each subcarrier’s power budget. denotes the power budget vector. The feasible set

 F≜{¯P:∑n∈N¯Pn≤Pmax and 0≤¯Pn≤Pnmax,n∈N} (5)

is chosen to satisfy and . is the optimal value of the second-stage:

 Fn(¯Pn) = maxxnin |U′n|∑i=1fnin(xnin) (P′SCPC) subject to xn1n≤¯Pn, xn1n≥xn(i+1)n, i∈{1,…,|U′n|}, xn(|U′n|+1)n=0.

The first-stage  consists in optimizing the allocated power budget among subcarriers . While the second-stage  performs power allocation on each subcarrier , with a given allocation and power budget . Fig. 2 gives an overview of the nested optimization that we design to solve .

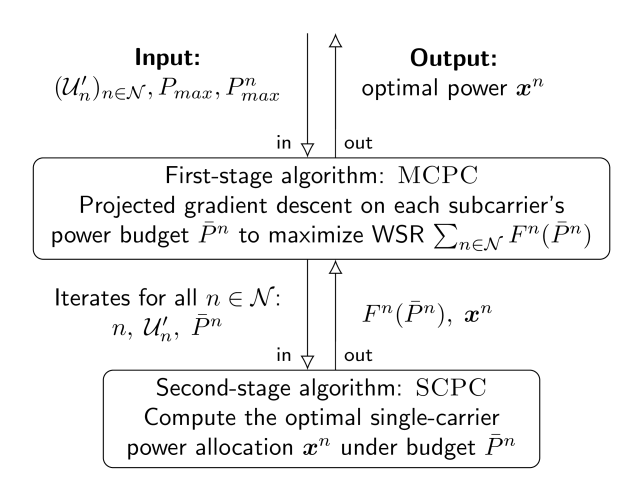

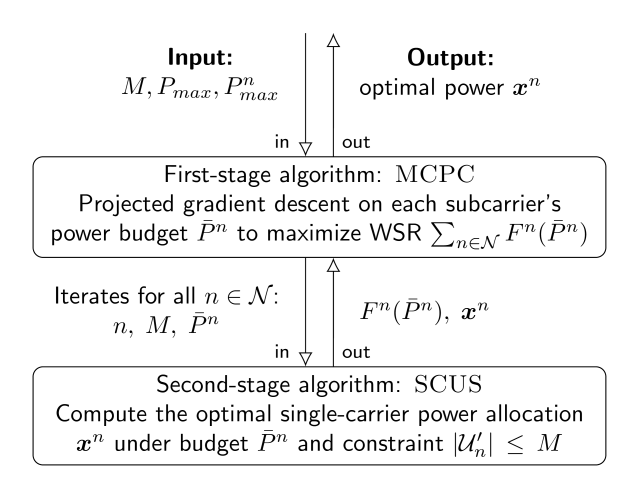

We solve the second-stage  using Algorithm 3 (SCPC). The idea is to iterate over variables for to , and compute their optimal value at line 3. If the current allocation satisfies constraint , then gets value . Otherwise, the algorithm backtracks at line 6 and finds the highest index such that . Then, variables are set equal to at line 10. The optimality and complexity of this algorithm are presented in Theorem 4.

###### Theorem 4 (Optimality and complexity of algorithm Scpc).

Given subcarrier and a power budget , algorithm SCPC computes the optimal single-carrier power control. Its worst case computational complexity is .

###### Proof:

See Appendix -C. ∎

###### Lemma 5 (Convexity of P′MCPC).

is a convex set and is concave with respect to .

###### Proof:

See Appendix -D. ∎

According to Lemma 5, is concave on the convex feasible set . Hence, the optimal multi-carrier power allocation  can be computed efficiently using projected gradient descent [21]. This MCPC scheme is described in Algorithm 4, in which the second-stage optimal value , defined in , is determined using SCPC as described in the auxiliary function in lines 12 to 13. The search direction at line 4 can be found either using numerical methods or an exact gradient formula (in the Proof of Lemma 5). Note that the step size at line 5 can be tuned by backtracking line search or exact line search [21]. We adopt the latter to perform simulations. The projection of on the simplex at line 6 can be computed efficiently [22], the details of its implementation are omitted here.

###### Theorem 6 (Optimality and complexity of algorithm Mcpc).

Given a subcarrier allocation such that , for all , algorithm MCPC converges to the optimal solution of  in iterations, where is the error tolerance. Each iteration requires basic operations.

###### Proof:

It follows from Lemma 5 and classical convex programming results [21] that projected gradient descent converges to the optimal multi-carrier power control (MCPC) in iterations. Each iteration requires to compute SCPC(), for . Thus, we derive from Theorem 4 and that each iteration’s worst case complexity is . ∎

### Iv-C Multi-Carrier Joint Subcarrier and Power Allocation

We design an efficient heuristic joint subcarrier and power allocation scheme, namely JSPA, which combines MCPC and SCUS. We present its principle in Fig. 3. JSPA is similar to the two-stage MCPC depicted in Fig. 2. With the difference that subcarrier allocation is no longer provided as input, and has to be optimized in the second-stage. To this end, we replace the second-stage SCPC by the optimal single-carrier user selection algorithm SCUS studied in Section IV-A. Although SCUS is optimal, the returned is no longer concave. As a consequence, JSPA is not guaranteed to converge to a global maximum. Each iteration of JSPA requires to compute SCUS(), for . Thus, we derive from Theorem 3 that each iteration’s worst case complexity is . Nevertheless, we show by numerical results in the next section that it achieves near-optimal weighted sum-rate performance with low complexity.

## V Numerical Results

We evaluate the WSR, user fairness performance and computational complexity of JSPA through numerical simulations. We compare our proposed scheme with the near-optimal high complexity benchmark scheme LDDP introduced in [12], as well as FTPC with greedy subcarrier allocation, which is also considered in [12] and [17, 18, 19]. We consider a cell of diameter meters, with one BS located at its center and users distributed uniformly at random in the cell. The number of users varies from to , and the number of subcarriers is . Each point in the following figures are average value obtained over random instances. The simulation parameters and channel model are summarized in Table I.

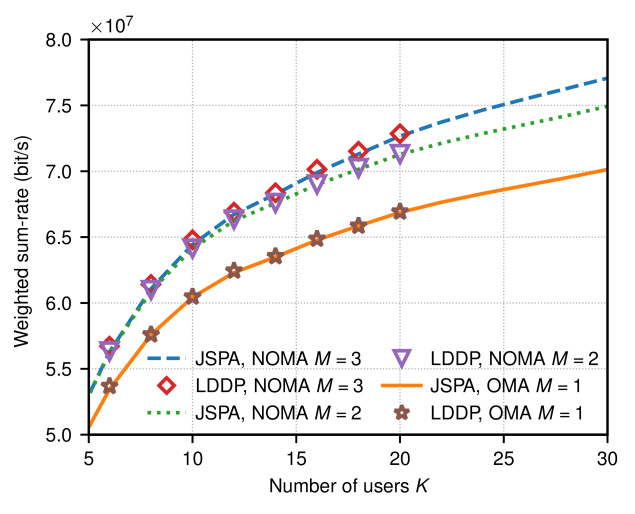

Fig. 4 and 5 illustrate the WSR and complexity of JSPA and LDDP for different systems, i.e., OMA with , NOMA with and . In these two figures, weights are generated uniformly at random in . Algorithm LDDP requires to discretize the total power budget into power levels. Here, we choose . Due to the high computational complexity of LDDP, we only simulate it for to .

In Fig. 4, the performance loss of JSPA compared to LDDP is less than for any number of users . This indicates that JSPA also achieves near-optimal WSR, close to that of LDDP. In addition, we see that the performance gain of NOMA systems compared to OMA is for and for .

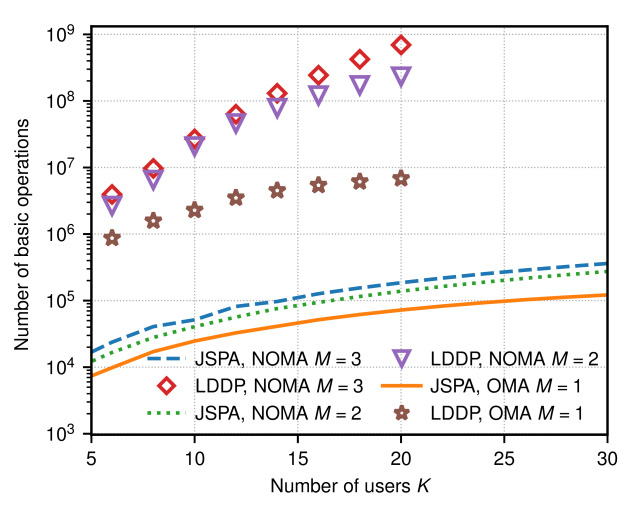

In Fig. 5, we count the number of basic operations (additions, multiplications, comparisons) performed by each scheme, which reflects their computational complexity. As expected from Theorem 4, the complexity of JSPA increases linearly with (there is a constant difference between the curves of JSPA with , and in the semi-log plot). In addition, each LDDP’s iteration has complexity  [12]. Reference [13] shows that the number of power levels should be to achieve near-optimal WSR. Thus, JSPA has lower asymptotic complexity than LDDP. For example with , LDDP requires power levels, and JSPA is asymptotically faster by a factor . In our simulations, JSPA runs within seconds on a common computer111with the following specifications: Python 3, Windows 7, 64bits, AMD A10-5750M APU with Radeon HD Graphics, and 8 GB of RAM. for , whereas LDDP requires 1600 times more operations for and .

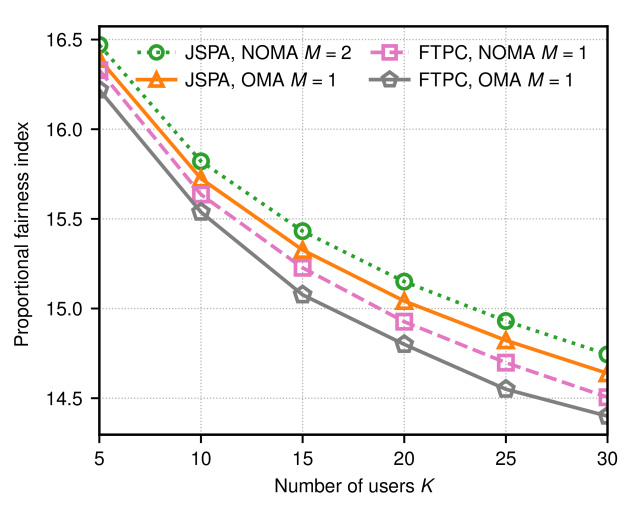

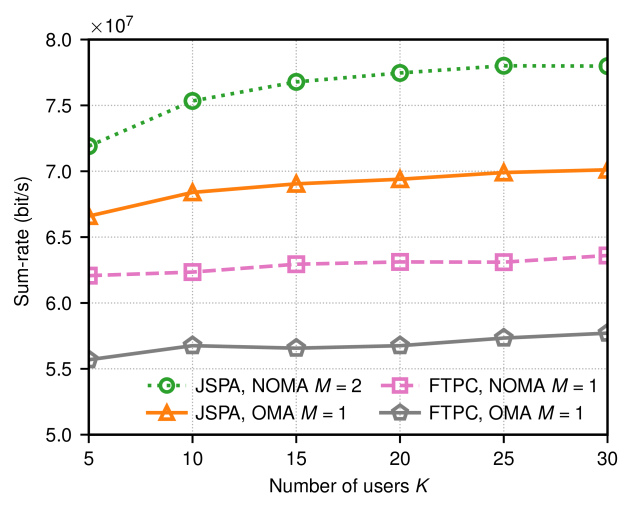

In Fig. 6 and 7, we implement a proportional fair scheduler on one frame, which is composed of time slots. The objective of this setup is to evaluate the fairness performance of our scheme when the weights are chosen according to a proportional fair scheduling. The channel state information is collected at the beginning of the frame. Let be user ’s data rate at time slot , and be user ’s average data rate prior to . In the proportional fair scheduling [23], is updated as follows:
