1 Introduction

Artificial neural network (ANN), usually called “neural network” (NN), is an information processing paradigm inspired by biological nervous systems. The mathematical model of ANN is constructed by lots of “neurons” which often work together, usually in the form of hierarchy, to solve learning problems. Each neuron has a threshold function which can be continuous or discrete. ANN often has several layers, the former layer’s outputs are weighted and used as the inputs of the next layer. The function of the latter layer maps the inputs to its outputs which will be weighted again and used as the inputs of the next layer. Therefore, when the threshold functions are selected, all the efforts are to find the weights.

ANN has wide applications, and it also has its shortcomings. Almost all the learning problems, such as classification, progression and multitask learning [1] can be solved by ANN. Relative researches have show that ANN can solve not only linear problems, but also nonlinear problems. Moreover, it has been proven that ANN with three layers can fit any non-linear problems [2]. When an neuron of the neural network fails, others can function without any problem by their parallel characteristics. Although ANN has lots of advantages, it has some defects. Many kinds of ANNs are prone to step into local minimum problems, which means a single ANN is not a stable learner. Ensemble techniques sometimes can overcome this kind of problem by combining several ANNs [3, 4, 5]. In addition, the settings of ANN’s parameters, such as the number of hidden neurons and the learning rate, are strongly depended on the characters of the data set. Therefore, there is none fixed rule to set them. Usually, expert knowledge plays an important role in setting those parameters for concrete issues.

The improvements for neural network can be mainly divided into two aspects: changing ANN’s architecture and normalizing the original data. Changing the architecture of neural network sometimes means constructing new types of ANNs. Researches on ANN may start from the single-layer neural network. Single-layer network has simple input-output relations, thus sheds light on the research of multi-layer network [6]

. Based on different theories and thoughts, different types of ANNs have been put forward, such as feedforward neural network, radial basis function (RBF) network, hopfield network and so on. They are based on different mathematical models which are suitable to solve different learning problems.

Normalizing the data is another manner to improve the accuracy of ANN. In many neural network applications, raw data (not preprocessed or not normalized) is used. However, raw data suffer lots of problems including high dimensional and time-consuming problems. By normalizing the data, ANN can get better effects and save much time for training. Using correlation coefficients as weights for input variables can significantly boost ANN [7]. Song and Kasabov also presented their preprocessing data method WDN-RBF for radial basic function typed neural networks [8]. Furlanello and Giuliani have normalized raw data by combining local and global space transformations [9].

This paper focuses on the data normalization approach for ANN. A new data normalization method WDNE (Weighted Data Normalization based on Eigenvalues) which weights the data by eigenvalues is proposed. WDNE is different from existing data normalization methods. It leverages the fact that the features which have different potentials in learning problems should play different roles. The data set is weighed by the eigenvalues, which means some features are enhanced while others are weakened. WDNE firstly uses principle component analysis (PCA) to rebuild the data set to ensure the features are uncorrelated. Then all the features are weighted by their corresponding eigenvalues.

The rest of the paper is organized as follows. Section 2 describes our proposed normalization process and gives the corresponding analysis. Section 3 reports experimental results. At last, conclusions are drawn in Section 4.

2 WDNE and Analysis

WDNE is based on PCA. It can be regarded as a method that induces the weights in ANN to change, and it can also be regarded as an approach which preprocesses the data before applied.

2.1 Pca

PCA is mathematically defined as an orthogonal linear transformation that transforms a number of possibly correlated variables into a smaller number of uncorrelated variables called principal components. PCA can be used to reduce the high dimensionality of dimensional data and improve the predictive performance of some machine learning methods

[10]

. High dimensional data often cause computational problems and run the risk of overfitting. Furthermore, many redundant or highly correlated features may probably cause a degradation of prediction accuracy. By simply discarding some features which have little information, PCA can eliminate the problem of high dimensionality.

The process of PCA aims to transform a problem from its natural space into another space, in which all the mapped features have irrelevant relationships. Suppose that is the data set which contains examples, and that the problem has dimensions, which means every example has random variables. For example, a example can be expressed as . When the data set is available, covariance matrix can be calculated in the form of , where means figuring out the mathematical expectation, and is the mean of the examples. is usually figured out by the way of . By mathematical calculating, the eigenvalues

and the eigenvectors

of the covariance matric can be obtained. Subsequently, the initial example is mapped to a new space in the form of . In the new space, every feature of the example is uncorrelated. Unless stated otherwise, the th principle component will be taken to mean the principle components with the th largest eigenvalue [11]. By selectively choosing some principle components, the high dimensional space is transformed into a fitting subspace.

2.2 Weighted Data Normalization Based on Eigenvalues

The basic idea of the proposed method is that the more useful a component is the more important role it should play. The data are weighted by the eigenvalue vector

. Every component of the input which is processed by PCA has a corresponding eigenvalue .

has lots of potential contents, one of which is that it indicates the variance of the component. The one which has the bigger eigenvalue can clearly provide more information, and PCA mainly depends this point for dimensionality reduction. However, if the data set is just processed by PCA, all the selected components still have equal roles in the training process. Actually, the component providing more information should play more decisive role in solving learning problems. Therefore, all the components can be weighted by their corresponding eigenvalues.

WDNE can be divided into two steps. Initially, it processes the data by PCA. Then, the processed data are weighted by the eigenvalues which are figured out in the first step. To avoid computational problems, the eigenvalues are normalized before weighting the data. The eigenvalues are normalized in the form of , where is the biggest eigenvalue. Subsequently, each feature is weighted by the corresponding eigenvalue in the form of . If the original data set has high dimensionality, it can be reduced by discarding some features which provide little information.

2.3 Analysis

WDNE reinforces the principle components with large eigenvalues and weakens the others. If the PCA-processed data are directly used, all the components will play an equal role in the training process. However, if the data are weighted by WDNE, the principle components will play more important roles than the sub-principle components. It can be apparently analyzed from the data processing. The principle component multiplies a relative large constant, which means the distance between elements will be enlarged. When applied into learning problems, the principle components will play a more important role in deciding the final hypotheses. Similarly, the components which provide little information are weakened, because they can not provide good decisions. From this point of view, the PCA, in which the selected components are weighted by one while the unselected components are weighted by zero, can be seen as a special situation of WDNE.

WDNE can also be regarded as a method which enhances the effects of ANN by weighting some of the inputs. Initially, the output of the input layer is mapped to the function of the hidden layer. If there is no WDNE, the output of the hidden layer is . When WDNE is used, the output of the hidden layer will be , where is a diagonal matrix with the eigenvalues as its values. WDNE apparently does not change the architecture of ANN, instead, it improves the performance by weighting the inputs. The process can be explicitly described in Fig. 1.

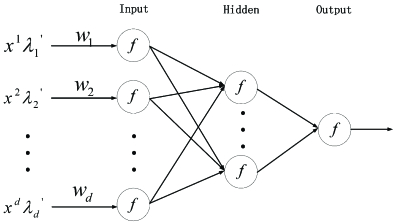

Figure 1: WDNE.

WDNE is probably sensible to noise. Suppose some noisy features are contained into the learning problem. The noisy features would be transformed into a new space after PCA processing. If many of the noisy ingredients are redistributed into the last several features, the noisy effect is obviously reduced. However, if many of the noisy ingredients are transformed into the first few features which correspond to the biggest eigenvalues, the noisy effect will be enhanced, and the performance of the recognition will be degraded. Consequently, caution should be taken before WDNE is applied to the problem which may contain noises.

3 Experiments

Back propagation neural network is applied in the implemented experiments. All of the data sets come from the UCI repository111http://archive.ics.uci.edu/ml/. The ANN has three layers, and the number of hidden neurons is set as

(1)

where and denote the number of input and output neurons of the networks respectively, and is a constant ranging from one to ten. In order to effectively boost WDNE, five ANNs are used in every experiment, and the final hypothesis is the voted result by the five committees.

Active learning algorithm and ten-fold cross validation (CV) are lunched on the three experiments. Active learning aims to reduce the number of labeled data for learning by selecting the most informative examples [12]. The active learning algorithm used in this paper is for classification. Initially, only a few labeled examples are prepared at hand. At every round of iteration examples are selected from candidates which are the most valuable ones in the unlabeled examples pool. In order to more objectively reflects the result, ten-fold CV is applied. The data set is divided in to ten parts. One part is used as validation set, another part is used as test data, and the others are used for training. The final result is the average of the ten results.

3.1 Comparative Methods

In order to clearly evaluate the advantage of WDNE, three other representations of data are implemented, and they are original data (raw data), PCA processed data and negatively weighted data. The descriptions of them are listed as follows:

  • Original data: This data set is the original (raw) data set.

  • PCA processed data: This data set is just processed by PCA.

  • Positively weighted data: This data set is processed by WDNE. In other words, this data set is firstly processed by PCA, then all the components is weighted by the corresponding eigenvalues.

  • Negatively weighted data: This data set is firstly processed by PCA, then each component is weighted by the reversed eigenvalue .

All the compared data are trained by the back-propagation network under the same setting of parameters.

3.2 Heart Classification

This is a two-class classification problem and the data set contains 150 positive examples and 120 negative examples. The initial dimension space consists of 13 features. The labeled data used for active learning algorithm initially contains six positive examples and six negative examples. The size of the pool is 100. At every round of iteration, four unlabeled examples are randomly selected from 16 candidates which are regarded as the most valuable ones. The final results can be seen from Fig. 2 (a).

(a) Heart classification
(b) Spam classification
(c) Waveform classification
Figure 2: Classification performances.

In Fig. 2 (a), the effect of the original data is almost equal to that of the data which are just processed by PCA. Negatively weighted data set has the worst performance, while positively weighted data set is clearly the best representation.

3.3 Spam Classification

This data set is composed of 4501 examples which contains 1813 spams. The problem have totally 57 features without dimension reduction. Initially, the active learning algorithm runs on 15 labeled examples which consists six positive ones and nine negative ones. Before sampling, 32 unlabeled example which are seemed as the most informative ones are chosen from the pool whose size is 240. Subsequently, 10 examples are chosen from the 32 candidates at random.

Fig. 2 (b) shows that WDNE is significantly superior to the other three kinds of representations. As the results of last experiment, the data set of negative weighted has the worst performance. Although there is difference between the performances of original data and PCA processed data, they almost have the same effect on the whole.

3.4 Waveform Classification

This data set is also a binary classification which contains 1653 positive examples and 1655 negative examples. There are 40 features. It is worth noting that 19 of the 40 features are noises. Six positive examples and six negative examples are labeled at first. At each round of iteration, the algorithm firstly chooses 32 most informative examples from a pool whose size is 200. Subsequently, eight examples are randomly selected from the 32 candidates.

Fig. 2 (c) shows the results. It is apparent to tell that the WDNE performs the best and the negatively weighted data set plays the worst. In this experiment, it is obviously that PCA processed data are not as good as the original data. There may be several possible causes of this phenomenon. (1) It is caused by the noises. (2) The original representation of the data set is more suitable to solve the learning problem in this experiment.

4 Conclusions

In this paper, a new data normalization approach WDNE which can be used to improve the performances of neural networks is proposed. WDNE does not optimize the architecture of the ANN. However, it boosts the performance of ANN by preprocessing the data. PCA plays an important role in this method. The components are weighted by the corresponding eigenvalues of the covariance matrix. In order to verify the proposed method, three other representations of data are implemented in the experiments. All the utilized data sets come from the UCI repository. The empirical results clearly show that WDNE is an effective method for optimizing the performance of ANN.

Researches on WDNE requires further investigation. In this paper WDNE is used for ANN, it may be applied to combine with other approaches, such as distance metric learning (DML) [13]

, support vector machines (SVM)

[14]

, etc. Moreover, WDNE may be regraded as a way for feature selection.

Acknowledgments

This work is supported in part by the National Natural Science Foundation of China under Project , and by Shanghai Educational Development Foundation under Project .

References

  • [1] Jin, F., Sun, S.: Neural Network Multitask Learning for Traffic Flow Forecasting. In: Proceedings of the International Joint Conference on Neural Networks, 1898-1902 (2008)
  • [2] Duda, R.O., Hart, P.E., Stork, D.G.: Pattern Classification, second edition. John Wiley and Sons, New York (2001)
  • [3] Breiman, L.:Bagging Predictors, Machine Learning, 24 (2), 123-140 (1996)
  • [4]

    Freund, Y., Schapire R.E.: A Short Introduction to Boosting. Journal of Japanese Society for Artificial Intelligence, 14(5), 771-780 (1999)

  • [5]

    Sun, S.: Ensemble Learning Methods for Classifying EEG Signals. The 7th International Workshop on Multiple Classifier Systems, Lecture Notes in Computer Science, 4472, 113-120 (2007)

  • [6]

    Bishop, C.M.: Neural Networks for Pattern Recognition. Oxford University Press, Oxford (1995)

  • [7] Anderson, H., Black, T.: Multivariate Data Analysis, Prentice-Hall, London (1998)
  • [8] Song, Q., Kasabov, N.: WDN-RBF: Weighted Data Normalization for Radial Basic Function Type Neural Networks. In: Proceedings of IEEE International Joint Conference on Neural Networks, 2095-2098 (2004)
  • [9]

    Furlanello, C., Giuliani, D.:Combining Local PCA and Radial Basis Function Networks for Speaker Normalization. In: Proceedings of IEEE Workshop on Neural Networks for Signal Processing, 233-242 (1995)

  • [10] Howley, T., Madden, M.G., O’Connell, M., Ryder, A.G.: The Effect of Principle Domponent Analysis on Machine Learning Accuracy with High Dimensional Spectral Data, In: Proceedings the 25th SGAI International Conference on Innovative Techniques and Applications of Artificial Intelligence, 209-222 (2005)
  • [11]

    Jolliffe, I.T.: Principal Component Analysis, second edition. Spriger, New York (2002)

  • [12] Tong, S.: Active Learning: Theory and Applications. PhD thesis, Stanford University, Stanford (2001)
  • [13] Yang. L.: Distance Metric Learning: A Comprehensive Survey. Michigan State University, Michigan (2006)
  • [14] Cristianini, N., Taylor, J.S.: An Introduction to Support Vector Machines and Other Kernel-Based Learning Methods. Cambridge University Press, Cambridge (2000)
