Weakly-Supervised Mesh-Convolutional Hand Reconstruction in the Wild

04/04/2020 ∙ by Dominik Kulon, et al. ∙ Imperial College London 8

We introduce a simple and effective network architecture for monocular 3D hand pose estimation consisting of an image encoder followed by a mesh convolutional decoder that is trained through a direct 3D hand mesh reconstruction loss. We train our network by gathering a large-scale dataset of hand action in YouTube videos and use it as a source of weak supervision. Our weakly-supervised mesh convolutions-based system largely outperforms state-of-the-art methods, even halving the errors on the in the wild benchmark. The dataset and additional resources are available at https://arielai.com/mesh_hands.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 8

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Monocular 3D hand reconstruction can facilitate a broad array of applications in human-computer interaction, augmented reality, virtual telepresence, or sign language recognition. Still, the current state-of-the-art methods do not always generalize to samples captured in a non-laboratory environment. Our work is aimed at operating in the wild, and is therefore trained primarily on a large-scale dataset of hand action images gathered from YouTube videos; at the same time our system largely outperforms the current state-of-the-art as evaluated on public benchmarks.

Even though our method can deliver a dense hand mesh, we outperform systems that try to solve a more narrow task of estimating coordinates of a sparse set of keypoints usually corresponding to hand joints and fingertips. The standard approach is to regress heatmaps of 2D landmarks and find a matching 3D pose [62, 40, 37]. More recent works, that also focus on full-blown mesh reconstruction, rely on fitting deformable models to estimated landmarks, effectively exploiting a prior distribution in 3D shape space to perform 3D reconstruction [5, 60, 2, 20]. Such models are either parameterized by angles of rotation and weights of a linear deformation function [44] or latent features learned from data [17, 27]. We follow the latter approaches, which have proven to be the most promising, but we substantially improve their accuracy and robustness.

Our first key contribution is a weakly-supervised training method for 3D mesh reconstruction. We introduce a fast and accurate method for dataset generation from unlabeled images, that relies on fitting a hand model to 2D keypoint detections while respecting a prior on rotation angles. Our data generation algorithm processes a sequence of YouTube videos, generating a curated dataset of images with 3D hand meshes. We have selected a filtered subset of 50,000 training annotations comprising hundreds of subjects performing a wide variety of tasks.

Beyond the data-driven advancements, we also obtain a substantial improvement by using a spatial mesh convolution method that is based on neighbourhood ordering. We train our end-to-end system from scratch by using an objective function that merely enforces the reconstruction of a hand mesh that is aligned with the image.

Our system attains 50% lower hand pose estimation error compared to the currently best model on the in-the-wild scenario, which is our main focus. It also outperforms previous methods on hand pose estimation in controlled environments, without tuning or overfitting on a particular dataset.

To summarise, our contributions are as follows:

  • We introduce an automated approach to generate training data from unannotated images for 3D hand reconstruction and pose estimation. The proposed method is scalable and does not require large computational resources.

  • We release the dataset of 50,000 meshes aligned with frames selected from over a hundred YouTube videos.

  • We propose a simple loss function for mesh reconstruction that allows training neural networks with no intermediate supervision.

  • We demonstrate that spatial mesh convolutions outperform spectral methods and SMPL-based [33, 44] models for hand reconstruction.

  • We largely outperform the current state-of-the-art on pose estimation and mesh reconstruction tasks, while using a simple and single-shot encoder-decoder architecture.

2 Background

We focus our attention on the hand pose estimation task using only RGB images as input. This is significantly more challenging than hand pose estimation when a depth sensor is also available [58, 47, 16, 38, 54]. Hand mesh recovery is a more general task as it aims at reconstructing a relatively dense point cloud and estimates both the pose and subject-specific shape of the target object. We categorize a method as belonging to the latter category if it allows generation of different subject-specific shapes.

Hand Pose Estimation

Multiview bootstrapping [45] is an iterative improvement technique where the initial annotations of a hand from multiple views, obtained by executing a 2D keypoint detector, are triangulated in 3D and reprojected for training in the next iteration if they meet the quality criteria. This system is part of the OpenPose framework [53] that we use for weak supervision.

Numerous approaches have been proposed to regress a 3D pose from estimated 2D keypoints [62, 40, 32, 9]. Dibra et al. [13]

incorporate depth regularization to supervise 3D pose estimation represented by angles of rotation. In contrast, variational approaches learn a shared latent space by an alternated training between variational autoencoders

[46], disentanglement of the latent representation [57], or the alignment of latent spaces [56]. This allows for sampling outputs in any of the learned modalities. Gao et al. [14] address the problem of estimating the pose of hands interacting with objects in a variational framework. Generative networks can also be used to transfer synthetic images into a space of real-world images [37] by modifying a cycle adversarial loss [61] to include a geometric consistency term that ensures pose-preservation during an image translation. Tekin et al. [49] estimate hand and object poses with a single-shot network.

Recently, Cai et al. [10] proposed to build a spatio-temporal graph and use graph convolutions in the spectral domain to estimate a 3D pose.

Hand Mesh Recovery

MANO [44]

is a hand model parameterized by angles of rotations specified for each joint in the kinematic tree and blend weights of a linear function that models the shape of the person. Different articulations are obtained by applying linear blend skinning which interpolates rotations matrices assigned to the joints to transform a vertex according to the angles. Additionally, pose-dependent corrective offsets are learned to address the loss of volume caused by the skinning method. Recently, numerous works have been proposed to find a 3D pose by regressing MANO and camera parameters.

Boukhayma et al. [5] regress these parameters from an image and heatmaps obtained from OpenPose. The method is evaluated on images in the wild but the error is relatively high as we show in the Evaluation section. The works by Zhang et al. [60] and Baek et al. [2] introduce methods that iteratively regress model parameters from the heatmaps. Hasson et al. [20] predict MANO parameters and reconstruct objects the hands interact with.

Ge et al. [17] use graph convolutions in the spectral domain to recover a hand mesh. The system includes a heatmap regression module and, in case of real-world images, is supervised with 2D keypoints, depth maps, and meshes approximated with a pretrained model from ground truth heat maps. Kulon et al. [27]

reconstruct a hand from an image by regressing a latent vector of a pretrained mesh generator and estimating a camera projection.

In this paper, we introduce an architecturally simpler approach that significantly outperforms prior works by computing loss on meshes with points localized in the image coordinate system and leveraging spatial mesh convolutions.

Body Mesh Recovery

Approaches based on regressing MANO parameters described in the previous subsection originate from works on body mesh recovery [3, 28, 22, 48, 42, 50, 41, 39, 21, 55, 25]. Our work is similar to Kolotouros et al [26], who encode an image and concatenate its features with coordinates of a template mesh in a canonical pose. The resulting graph is passed through a sequence of spectral graph convolutions to recover the body model corresponding to the image. In contrary, we decode a mesh directly from the image encoding and apply spatial convolutions with pooling layers.

Geometric Deep Learning

Our interest lies in applying deep learning to learn invariant shape features in a triangular mesh

[7]. To this end, spectral approaches [8, 12, 23, 29]

express convolutions in the frequency domain. Spatial convolutions define local charting

[34, 4, 36] that seems more suitable for learning on manifolds or designing meaningful pooling functions. Alternatively, convolution operators can be defined with an attention mechanism to weight the neighbour selection [52, 51].

In terms of applications similar to our method, Ranjan et al. [43] use fast spectral convolutions [12] to find a low-dimensional non-linear representation of the human face in an unsupervised manner. Kulon et al. [27] show that autoencoders can be used to learn a latent representation of 3D hands. Recently, a spiral operator [30] has been incorporated into a convolutional framework to train a deformable model of the human body [6] or solve mesh correspondence and classification tasks [18]. In this paper, we apply spiral filters to generate hands directly from an image encoding.

3 YouTube Hands-in-the-Wild Dataset

Despite the wealth of possible applications, there are no datasets for monocular 3D hand reconstruction from RGB images in-the-wild. The only existing collection of images of hands captured in a non-laboratory environment [45] contains less than 3000 samples with a manual annotation of 2D points.

In order to train a neural network for the 3D reconstruction of hands across different domains, we have built a system for fast and automated dataset generation from YouTube videos, providing us with a diverse set of challenging hand images. Instead of annotating them manually, we use a weakly-supervised approach that first detects keypoints using OpenPose, and then lifts them into 3D shapes by iteratively fitting a 3D deformable model. While the accuracy of the trained model could be bounded by the performance of OpenPose, we show that it results in a state-of-the-art 3D hand reconstruction and pose estimation system when evaluated on external datasets with manual annotations.

3.1 3D Shape Representation

Our approach relies on fitting the MANO model in tandem with a prior on angles of rotation. MANO predicts vertices on the hand surface and joints through a differentiable function that maps shape and pose parameters into an instance of the model represented by a mesh:

(1)

where depends on the training procedure and is a set of learned model parameters that we omit in a further discussion. Moreover, we have camera parameters for scaling the model and to translate it. Global orientation is modeled by the first row of .

Rather than model the joint angles as free variables, which can lead to impossible estimates during optimization, we constrain them to lie in the convex hull of some pre-computed cluster centers. For joint we use Euler-angle clusters

obtained via k-means

[19] and express any angle as follows:

(2)

While constraining the final angle estimate to take plausible values, at the same time this expression allows us to optimize over unconstrained variables . We represent all constrained angles in terms of a parameter matrix , while allowing global orientation to be unrestricted.

This simple approach requires only a small dataset of angles, unlike VAE priors; restricts pose space to plausible poses, unlike PCA priors that are characterized by unrealistic interpolation; and allows fitting unseen poses. However, it does not model pairwise dependencies, which we leave to future work.

3.2 Parametric Model Fitting

Our supervision comes in the form of 2D landmarks extracted by OpenPose. We define a fitting procedure that tries to find a matching 3D pose from the MANO mesh through a sparse matrix that regresses from model vertices to joint and fingertip positions, delivering the hand pose :

(3)

We fit the model to 2D annotations by minimizing the following objective:

(4)

consisting of a 2D reprojection term , a bone length preservation cost , and a regularization term .

In particular, the joint error term minimizes the distance between 2D joints

(5)

where are 2D detector predictions and is the intrinsic camera projection to 2D, initialized as in the approach of Pavlakos et al. [41]. is an experimentally chosen mask that amplifies the influence of fingertips by and wrist by and reduces influence of the metacarpophalangeal (MCP) joints (base of each finger) that are often inaccurately annotated by .

The bone loss ensures that the length of each edge in the hand skeleton tree is preserved, i.e.

(6)

where .

The regularization term

penalizes deviations from the mean pose to ensure realistic deformations. The hyperparameters

and were chosen experimentally.

Optimization

We use the Adam optimizer with different learning rates for camera, pose, and shape parameters (, , respectively) and small learning rate decay (multiplicative factor of ) after each 500 iterations. We start with 1,500 iterations optimizing over camera parameters and global orientation where the joints set is reduced to a wrist and MCP joints excluding thumb. Afterwards, we perform 2,500 iterations over all parameters. We fit 4,000 samples per batch on GeForce RTX 2080 Ti which takes on average 10 min.

3.3 Automated Data Collection

The data collection system iterates a list of YouTube links, downloads a video, extracts frames, runs OpenPose, fits MANO to each frame, and selects a small subset of filtered samples. The depth of the projected mesh is proportional to the ratio of standard deviations between

coordinates of the projected mesh and its world position.

Filtering of plausible samples is performed by thresholding total OpenPose confidence score, per-joint confidence score, and the mean squared error between projected MANO joints and OpenPose predictions normalized by the distance from the camera.

To create our YouTube dataset, we process 102 videos for the training set and randomly select at most 500 samples per video that meet the threshold conditions. Most of the samples cover sign language conversations performed by people of wide variety of nationality and ethnicity. Some videos include, for example, a hundred people signing a common phrase to a webcam all over the world. The validation and test sets cover 7 videos with an empty intersection of subjects with the training set. We selected test videos to be diverse and challenging including conversations captured outdoor, dance poses, American, Australian, and Taiwanese sign languages (Figure 6, left half). Additionally, we run our system on the COCO dataset [31] and extract 7,048 hand images for training. The combined training set contains 54,173 samples and validation and test sets count 1,525 images each.

4 Hand Reconstruction Network

We propose a simple encoder-decoder system, as demonstrated in (Figure 1), that directly reconstructs the mesh in image coordinates. We use a spatial convolutional mesh decoder , which we experimentally have shown to be superior with respect to alternative decoding strategies. In the following subsections we explain the spatial operator of choice and the upsampling method which constitute the building blocks of our decoder.

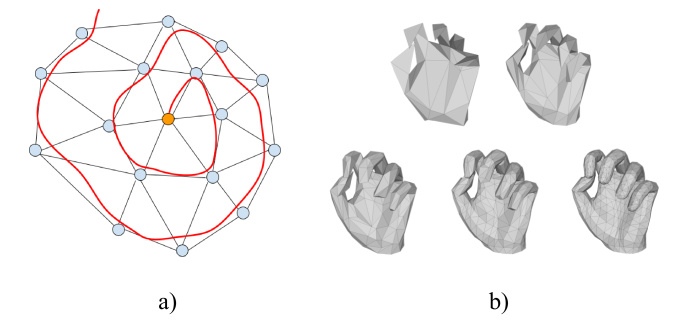

Figure 2: a) Spiral selection of neighbours for a center vertex in clockwise order (taken from [6]). b) The hierarchy of topologies used in our decoder.

4.1 Spiral Operator

In our decoder we use the spiral patch operator for constructing spatial neighborhoods. Lim et al. [30] define a spiral selection of neighbours for a center vertex by imposing the order on elements of the -disk obtained in the following way:

(7)

where is the set of all vertices adjacent to any vertex in the set . The spiral patch operator [6] is then the ordered sequence

(8)

As orientation, we follow the clockwise direction from each vertex and randomly initialize the first neighbour of . An example spatial configuration is demonstrated in Figure 2. The spiral convolution of features with the kernel can then be defined by

(9)

where the spiral length is fixed for each vertex in the same layer of a neural network.

4.2 Sampling

We create a hierarchy of meshes with the number of vertices reduced by the factor of 2 at each stage of the decoder. We contract vertex pairs based on quadric error metrics [15] that allow the coarse vertices to be a subset of the denser mesh. We project each collapsed node into the closest triangle in the downsampled mesh [43] and use the barycentric coordinates of the projected vertex to define interpolation weights for the upsampling matrix.

More specifically, we project a vertex discarded during contraction into the closest triangle of the downsampled mesh obtaining . We compute its barycentric coordinates such that and . The upsampling matrix , for which and hold, is formed by setting , , , and for .

The resulting topology hierarchy obtained using the sampling strategy is shown in Figure 4. The number of vertices at each layer .

4.3 Architecture

Given an image crop centered around the hand, we embed it into a latent vector with 64 parameters. The decoder, , takes the embedding as input and produces a mesh . We use a standard ResNet-50 network as the encoder, . The architecture of the spiral decoder is detailed in Figure 3

. If the spiral sequence is shorter than required due to erroneous triangulation or mesh border, we pad it with a node initially centered at 0. We only consider

for

. We choose leaky ReLU for the activation function based on experimental evaluation.

Figure 3: Architecture of the spiral decoder. : A spiral convolution with filters and a spiral length ; : upsampling by a factor ; : a fully connected layer with output dimension; : vector reshaping into a matrix.

4.4 Training

The loss function consists of the L1 vertex reconstruction term and edge length preservation component

(10)

for ground truth meshes and set of edges . Hyperparameters are set to and . There is no explicit pose estimation loss because we found it to have no effect. The joint coordinates are obtained during evaluation from a mesh as in Equation 3.

The network is trained with the Adam optimizer with learning rate

for 150 epochs. Learning rate decay with factor

occurs after 90-th and 120-th epoch. The images are normalized with the mean and standard deviation computed from the ImageNet training set and output meshes are normalized based on statistics computed from the subset of our training data. We augment the data with random image crops and transformations. The data augmentation is necessary for generalization to real world examples where the input images cannot be cropped based on the ground truth annotations. We train the network for 2 days on a single GeForce RTX 2080 Ti with a batch size 32 and crop size of

.

5 Evaluation

Mesh reconstruction methods have started gaining popularity only recently and therefore there are no well-established benchmarks for hand recovery. To show the robustness of our method, we evaluate it on popular hand pose estimation datasets. Moreover, we show the hand reconstruction performance on the FreiHAND dataset and conduct a self-comparison study of different mesh decoders on our YouTube dataset. Lastly, we show that both major contributions, neural network architecture and data annotation system, result in the state-of-the-art performance in the absence of one or other.

5.1 Datasets

The MPII+NZSL (MPII) dataset [45] contains in the wild images collected by manually annotating two publicly available datasets with 2D landmarks: the MPII Human Pose dataset [1] showing every-day human activities and a set of images from the New Zealand Sign Language Exercises [35]. It includes blurry, low-resolution, occluded, and interacting with objects hand images what makes the dataset particularly challenging. Training and test sets count 1,912 and 846 samples.

The Rendered Hand Pose Dataset (RHD) consists of 41,258 training and 2,728 testing samples of rendered characters [62]. It has been commonly used for RGB-based hand pose estimation due to its large size and challenging viewpoints.

FreiHAND is a recently released dataset with 130,240 training images [11]. It is the only dataset that contains 3D mesh annotations with backgrounds artificially blended in place of the green screen. The test set consisting of 3,960 samples was collected without the green screen in a controlled outdoor and office environment. It contains difficult poses with object interactions and varying lighting. The test set annotations are not available and evaluation is performed by anonymously submitting predictions to the online competition.

Monocular Total Capture (MTC) is a recent human motion dataset containing body, hands, and face annotations of 40 subjects [55]. The dataset was collected in a laboratory environment posing a risk of domain overfitting; however, due to its diverse and mostly accurate annotations it can be used to learn a robust prior on 3D hand shapes. We select a subset of 30,000 images for training filtered to reduce similar and mean poses.

Stereo Hand Pose Tracking Benchmark (STB) contains 15,000 training images of a single subject performing random poses and counting gestures with 5 different backgrounds and a test set of 3,000 images with the same background [59]. The dataset has been solved in recent publications [17] with a high error tolerance due to inaccurate ground truth annotations.

Finally, our YouTube dataset is described in Section 3.3.

For each of the datasets, beside FreiHAND that provides vertex annotations, we fit the MANO model following the optimization approach described in Section 3.2. In case of 3D annotations, we only change the intrinsic camera to the identity function in Equation 5 and then we project the output mesh based on dataset camera parameters. The depth is reconstructed as before.

5.2 Metrics

To evaluate hand pose estimation and mesh reconstruction performance, we measure the average euclidean distance (Pose/Mesh Error), the percentage of correct points (2D/3D PCK) for different thresholds, and the Area Under Curve (AUC) for PCK. For 3D benchmarks, we measure the error after rigid alignment. Before computing a 2D error, we orthographically project the estimated 3D pose. For self-comparison study, we report the mean absolute error (MAE) in addition to Mesh Error.


Ours
Boukh. et al.
RGB+2D [5]
Boukh. et al.
RGB [5]
Boukh. et al.
2D Fit [5]
Boukh. et al.
RGB [5]
Z&B [62]
Pose Error [px] 9.27 18.95 22.36 20.65 23.04 59.4
Figure 4: 2D PCK and average 2D joint distance (px) to ground-truth for MPII.


Ours Yang et al.[56] Spurr et al. [46] Y&Y [57] Z&B [62]
Pose Error [mm] 10.92 13.14 19.73 19.95 30.42
Figure 5: 3D PCK and average 3D joint distance (mm) to ground-truth for RHD.

5.3 Hand Pose Estimation

Figure 5.2 shows evaluation results on the MPII dataset. Our system significantly outperforms other approaches, halving the Pose Error of the leading MANO-based method and improving AUC by 0.21 points.

Figure 5.2 shows 3D pose estimation results on RHD. This is a very popular benchmark on which we also outcompete existing methods by a significant margin.

The proposed system also achieves a superior performance on the FreiHAND dataset as proved in Table 1. Notably, most of the competing methods in this benchmark rely on MANO parameters regression.

Ours MANO Fit [11] MANO CNN [11] Boukh. et al. [5] Hasson et al. [20] Mean Shape [11]
Pose Error [mm] 0.84 1.37 1.1 3.5 1.33 1.71
Mesh Error [mm] 0.86 1.37 1.09 1.32 1.33 1.64
Pose AUC 0.834 0.73 0.783 0.351 0.737 0.662
Mesh AUC 0.83 0.729 0.783 0.738 0.736 0.674
F@5 [mm] 0.614 0.439 0.516 0.427 0.429 0.336
F@15 [mm] 0.966 0.892 0.934 0.894 0.907 0.837
Table 1: 3D pose estimation and mesh reconstruction performance on FreiHAND. For the first two rows lower is better, for the other rows higher is better.

5.4 Mesh Reconstruction

We evaluate the quality of mesh reconstructions on the FreiHAND dataset (Table 1

). In addition to the standard metrics, we report the F-score at a given threshold

(

) which is the harmonic mean of precision and recall

[24].

Qualitative results on the in the wild datasets can be found in Figure 6.

5.5 Self-Comparison

Table 2 and Table 3 show the pose estimation and mesh reconstruction error on different types of mesh decoders. To perform broad hyperparameter search that ensures fair comparison of the baseline methods, we use a reduced training dataset, corresponding to row 6 in Table 5, to speed-up optimization.

Spiral refers to the proposed approach, Spectral follows the CoMA decoder [43] implemented as in Kulon et al. [27] but with no camera estimation branch. Spiral GMM is the spiral implementation of [27] which incorporates decoder pretraining that is fixed afterwards and a camera estimation branch. Spiral GMM, tuned is a fine-tuned version obtained by resuming training of all parameters of the Spiral GMM. Finally, MANO is similar to Boukhayma et al. [5] but with the loss function on mesh vertices instead of joints. We observe that our edge length preservation loss term stabilizes MANO shape parameters regression that in prior works was addressed by imposing a large L2 penalty [5] to mitigate divergence.

We find that a spatial method outperforms a spectral approach. Moreover, end-to-end training with loss on meshes in the image coordinate system is better than pretraining in the canonical frame and estimating camera parameters.

Decoder Type RHD [mm] MPII [px] YouTube [mm]
MANO 12.086 11.448 14.958
Spectral 11.638 9.858 13.612
Spiral GMM 11.138 10.074 11.999
Spiral GMM, tune 11.121 10.117 11.799
Spiral 11.052 9.434 10.698
Table 2: Pose Error. Performance with different decoders trained on a reduced dataset.
Decoder Type MAE [mm]
Mesh
Error [mm]
MANO 13.023 27.485
Spectral 9.058 19.317
Spiral GMM 8.462 18.206
Spiral GMM, tune 8.380 18.057
Spiral 7.827 17.096
Table 3: Mesh reconstruction with different decoders on the YouTube dataset trained on a reduced dataset.

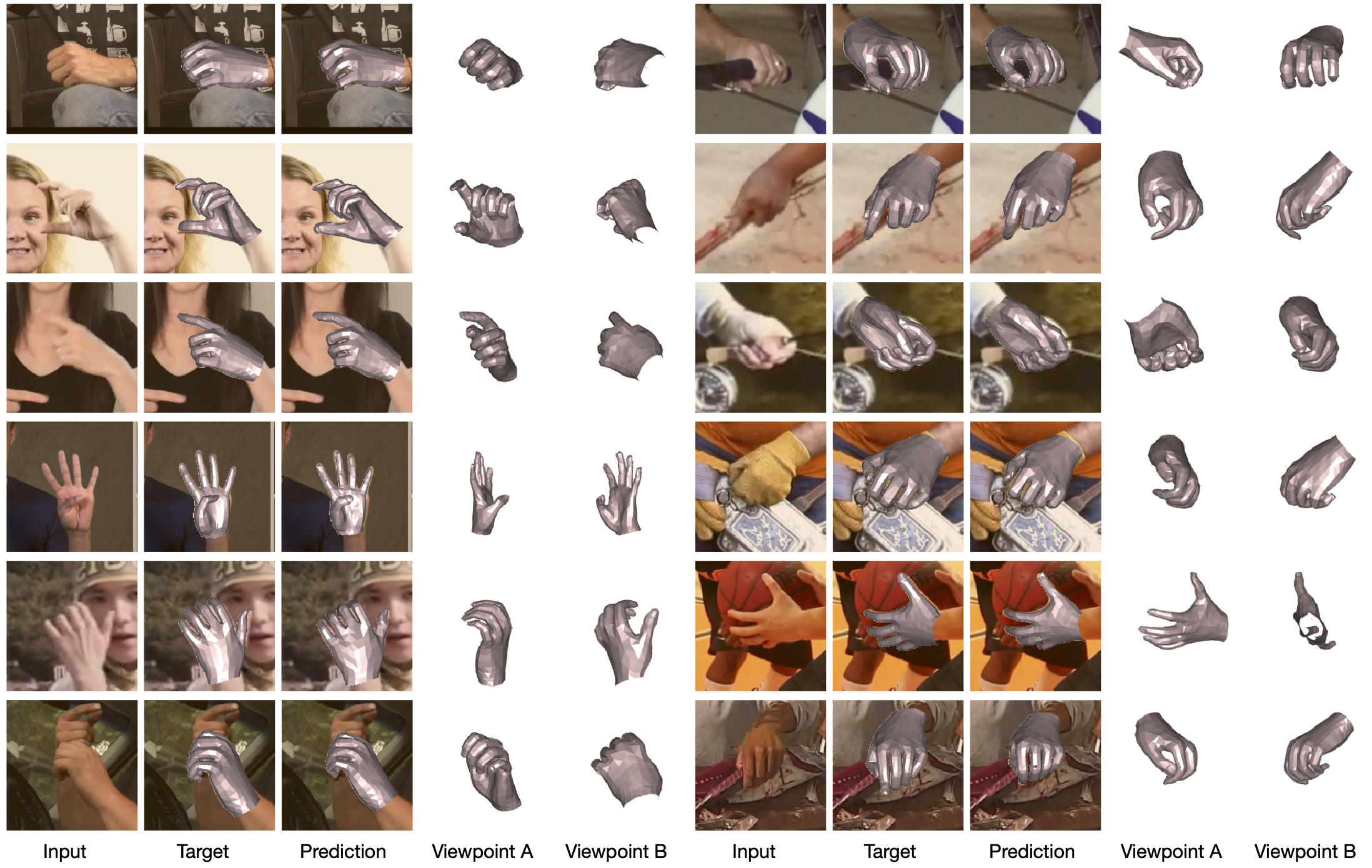

Figure 6: Qualitative mesh reconstruction results shown on YouTube (left half) and MPII (right half).

5.6 Comparison With Iterative Fitting

Model MPII [px] MPII Filtered [px]
Iterative Fitting 10.295 5.111
Network 9.265 5.555
Table 4: Comparison of the network performance with iterative fitting on the MPII test set in terms of Pose Error.

Our system is supervised with meshes iteratively aligned with keypoint predictions. Naturally the question arises whether the network performance is bounded by the performance of iterative fitting. We compare both approaches on the only existing manually annotated in the wild dataset. Additionally, we select 390 out of 846 samples that were filtered according to sanity checks described in Section 3.3.

Based on Table 4 we observe that our system performs slightly worse to iterative fitting on a filtered dataset. This is expected as these are samples on which the keypoint estimator has very high confidence. Importantly, the network performs much better when the whole dataset is considered.

The network is also characterized by the strikingly faster inference time. Specifically, the reported timing (Section 3.2) for iterative fitting of 4000 samples / 10 minutes is with a batch size of 4000. A single sample takes 110 seconds (GPU) or 70 seconds (CPU) for fitting to 2D annotations, exluding keypoint predictions. By contrast, our network inference time is 60 FPS (GeForce RTX 2080 Ti).

ID MPII RHD MTC FreiHAND YouTube
RHD
[mm]
MPII
[px]
YouTube
[mm]
1 X 15.398 14.930 35.032
2 X 13.258 16.558 23.409
3 X 12.448 10.572 11.052
4 X X 11.205 11.547 18.539
5 X X X 11.202 10.965 16.214
6 X X X X 11.052 9.434 10.698
7 X X X X 10.926 9.672 12.637
8 X X X X X 10.922 9.292 10.536
Table 5: Pose Error. Performance on different combinations of datasets.

5.7 Dataset and Method Ablation

In Table 5, we evaluate the system trained on different combinations of datasets. By comparing rows 1-3, we observe that training a mesh reconstruction system on our dataset leads to better results than training on other outdoor datasets. Rows 5-8, show that the best results are obtained when our dataset is included during training, even when adding it to the union of all other datasets. We also observe state-of-the-art performance on RHD and MPII without recent datasets such as YouTube, FreiHAND, MTC proving the efficiency of the proposed neural network (Row 4). Similarly, Table 2 shows that the MANO-based method trained with the novel dataset and mesh loss obtains better performance than prior MANO-based implementations indicating the importance of the contributed data collection system.

6 Conclusion

We have shown that a simple encoder-decoder architecture can obtain superior performance on mesh reconstruction and pose estimation tasks given an appropriately defined objective function. Furthermore, we have proposed an approach for automated data collection that allows adapting the system to non-laboratory domains and additionally improves results on common benchmarks. We believe that these findings justify looking further into mesh generative models for human modeling, as well as other weakly- and self-supervised methods that alleviate the need of acquiring 3D ground truth for humans in unconstrained environments.

Acknowledgments

M.B. was partially supported by the ERC Consolidator Grant No. 724228 (LEMAN). S.Z. was partially funded by the EPSRC Fellowship DEFORM (EP/S010203/1) and an Amazon AWS Machine Learning Research Award. D.K. was funded by a PhD scholarship.

References

  • [1] M. Andriluka, L. Pishchulin, P. Gehler, and B. Schiele. 2d human pose estimation: New benchmark and state of the art analysis. In

    2014 IEEE Conference on Computer Vision and Pattern Recognition

    , pages 3686–3693, June 2014.
  • [2] Seungryul Baek, Kwang In Kim, and Tae-Kyun Kim. Pushing the envelope for rgb-based dense 3d hand pose estimation via neural rendering. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2019.
  • [3] Federica Bogo, Angjoo Kanazawa, Christoph Lassner, Peter Gehler, Javier Romero, and Michael J. Black. Keep it SMPL: Automatic estimation of 3D human pose and shape from a single image. In Computer Vision – ECCV 2016, Lecture Notes in Computer Science. Springer International Publishing, Oct. 2016.
  • [4] Davide Boscaini, Jonathan Masci, Emanuele Rodolà, and Michael Bronstein.

    Learning shape correspondence with anisotropic convolutional neural networks.

    In Advances in Neural Information Processing Systems, pages 3189–3197, 2016.
  • [5] Adnane Boukhayma, Rodrigo de Bem, and Philip HS Torr. 3d hand shape and pose from images in the wild. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 10843–10852, 2019.
  • [6] Giorgos Bouritsas, Sergiy Bokhnyak, Stylianos Ploumpis, Michael Bronstein, and Stefanos Zafeiriou. Neural 3d morphable models: Spiral convolutional networks for 3d shape representation learning and generation. In The IEEE International Conference on Computer Vision (ICCV), 2019.
  • [7] Michael M Bronstein, Joan Bruna, Yann LeCun, Arthur Szlam, and Pierre Vandergheynst. Geometric deep learning: going beyond euclidean data. IEEE Signal Processing Magazine, 34(4):18–42, 2017.
  • [8] Joan Bruna, Wojciech Zaremba, Arthur Szlam, and Yann LeCun. Spectral networks and locally connected networks on graphs. In 2nd International Conference on Learning Representations, ICLR 2014, Banff, AB, Canada, April 14-16, 2014, Conference Track Proceedings, 2014.
  • [9] Yujun Cai, Liuhao Ge, Jianfei Cai, and Junsong Yuan. Weakly-supervised 3d hand pose estimation from monocular rgb images. In ECCV, 2018.
  • [10] Yujun Cai, Liuhao Ge, Jun Liu, Jianfei Cai, Tat-Jen Cham, Junsong Yuan, and Nadia Magnenat Thalmann. Exploiting spatial-temporal relationships for 3d pose estimation via graph convolutional networks. In The IEEE International Conference on Computer Vision (ICCV), October 2019.
  • [11] Jimei Yang Bryan Russell Max Argus Christian Zimmermann, Duygu Ceylan and Thomas Brox. Freihand: A dataset for markerless capture of hand pose and shape from single rgb images. In IEEE International Conference on Computer Vision (ICCV), 2019.
  • [12] Michaël Defferrard, Xavier Bresson, and Pierre Vandergheynst. Convolutional neural networks on graphs with fast localized spectral filtering. In Advances in neural information processing systems, pages 3844–3852, 2016.
  • [13] Endri Dibra, Silvan Melchior, Ali Balkis, Thomas Wolf, Cengiz Oztireli, and Markus Gross. Monocular rgb hand pose inference from unsupervised refinable nets. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR) Workshops, June 2018.
  • [14] Yafei Gao, Yida Wang, Pietro Falco, Nassir Navab, and Federico Tombari. Variational object-aware 3d hand pose from a single rgb image. IEEE Robotics and Automation Letters, PP:1–1, 07 2019.
  • [15] Michael Garland and Paul S Heckbert. Surface simplification using quadric error metrics. In Proceedings of the 24th annual conference on Computer graphics and interactive techniques, pages 209–216. ACM Press/Addison-Wesley Publishing Co., 1997.
  • [16] Liuhao Ge, Hui Liang, Junsong Yuan, and Daniel Thalmann. Robust 3d hand pose estimation in single depth images: from single-view cnn to multi-view cnns. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 3593–3601, 2016.
  • [17] Liuhao Ge, Zhou Ren, Yuncheng Li, Zehao Xue, Yingying Wang, Jianfei Cai, and Junsong Yuan. 3d hand shape and pose estimation from a single rgb image. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 10833–10842, 2019.
  • [18] Shunwang Gong, Lei Chen, Michael Bronstein, and Stefanos Zafeiriou. Spiralnet++: A fast and highly efficient mesh convolution operator. In Proceedings of the IEEE International Conference on Computer Vision Workshops, 2019.
  • [19] Riza Alp Guler and Iasonas Kokkinos. Holopose: Holistic 3d human reconstruction in-the-wild. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2019.
  • [20] Yana Hasson, Gül Varol, Dimitrios Tzionas, Igor Kalevatykh, Michael J. Black, Ivan Laptev, and Cordelia Schmid. Learning joint reconstruction of hands and manipulated objects. In CVPR, 2019.
  • [21] Hanbyul Joo, Tomas Simon, and Yaser Sheikh. Total capture: A 3d deformation model for tracking faces, hands, and bodies. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 8320–8329, 2018.
  • [22] Angjoo Kanazawa, Michael J Black, David W Jacobs, and Jitendra Malik. End-to-end recovery of human shape and pose. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 7122–7131, 2018.
  • [23] Thomas N. Kipf and Max Welling. Semi-supervised classification with graph convolutional networks. In International Conference on Learning Representations (ICLR), 2017.
  • [24] Arno Knapitsch, Jaesik Park, Qian-Yi Zhou, and Vladlen Koltun. Tanks and temples: Benchmarking large-scale scene reconstruction. ACM Trans. Graph., 36(4):78:1–78:13, July 2017.
  • [25] Nikos Kolotouros, Georgios Pavlakos, Michael J. Black, and Kostas Daniilidis. Learning to reconstruct 3D human pose and shape via model-fitting in the loop. In International Conference on Computer Vision, Oct. 2019.
  • [26] Nikos Kolotouros, Georgios Pavlakos, and Kostas Daniilidis. Convolutional mesh regression for single-image human shape reconstruction. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2019.
  • [27] Dominik Kulon, Haoyang Wang, Riza Alp Güler, Michael M. Bronstein, and Stefanos Zafeiriou. Single image 3d hand reconstruction with mesh convolutions. In Proceedings of the British Machine Vision Conference (BMVC), 2019.
  • [28] Christoph Lassner, Javier Romero, Martin Kiefel, Federica Bogo, Michael J Black, and Peter V Gehler. Unite the people: Closing the loop between 3d and 2d human representations. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 6050–6059, 2017.
  • [29] Ron Levie, Federico Monti, Xavier Bresson, and Michael M Bronstein. Cayleynets: Graph convolutional neural networks with complex rational spectral filters. IEEE Transactions on Signal Processing, 67(1):97–109, 2018.
  • [30] Isaak Lim, Alexander Dielen, Marcel Campen, and Leif Kobbelt. A simple approach to intrinsic correspondence learning on unstructured 3d meshes. In Proceedings of the European Conference on Computer Vision (ECCV), pages 0–0, 2018.
  • [31] Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C Lawrence Zitnick. Microsoft coco: Common objects in context. In European conference on computer vision, pages 740–755. Springer, 2014.
  • [32] J. Liu, H. Ding, A. Shahroudy, L. Duan, X. Jiang, G. Wang, and A. Kot Chichung. Feature boosting network for 3d pose estimation. IEEE Transactions on Pattern Analysis and Machine Intelligence, pages 1–1, 2019.
  • [33] Matthew Loper, Naureen Mahmood, Javier Romero, Gerard Pons-Moll, and Michael J. Black. SMPL: A skinned multi-person linear model. ACM Trans. Graphics (Proc. SIGGRAPH Asia), 34(6):248:1–248:16, Oct. 2015.
  • [34] Jonathan Masci, Davide Boscaini, Michael Bronstein, and Pierre Vandergheynst. Geodesic convolutional neural networks on riemannian manifolds. In Proceedings of the IEEE international conference on computer vision workshops, pages 37–45, 2015.
  • [35] R. McKee, D. McKee, D. Alexander, and E. Paillat. Nz sign language exercises. Deaf Studies Department of Victoria University of Wellington.
  • [36] Federico Monti, Davide Boscaini, Jonathan Masci, Emanuele Rodola, Jan Svoboda, and Michael M Bronstein. Geometric deep learning on graphs and manifolds using mixture model cnns. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 5115–5124, 2017.
  • [37] Franziska Mueller, Florian Bernard, Oleksandr Sotnychenko, Dushyant Mehta, Srinath Sridhar, Dan Casas, and Christian Theobalt. Ganerated hands for real-time 3d hand tracking from monocular rgb. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 49–59, 2018.
  • [38] Markus Oberweger and Vincent Lepetit. Deepprior++: Improving fast and accurate 3d hand pose estimation. In Proceedings of the IEEE International Conference on Computer Vision, pages 585–594, 2017.
  • [39] Mohamed Omran, Christoph Lassner, Gerard Pons-Moll, Peter Gehler, and Bernt Schiele. Neural body fitting: Unifying deep learning and model based human pose and shape estimation. In 2018 International Conference on 3D Vision (3DV), pages 484–494. IEEE, 2018.
  • [40] Paschalis Panteleris, Iason Oikonomidis, and Antonis Argyros. Using a single rgb frame for real time 3d hand pose estimation in the wild. In 2018 IEEE Winter Conference on Applications of Computer Vision (WACV), pages 436–445. IEEE, 2018.
  • [41] Georgios Pavlakos, Vasileios Choutas, Nima Ghorbani, Timo Bolkart, Ahmed A. A. Osman, Dimitrios Tzionas, and Michael J. Black. Expressive body capture: 3d hands, face, and body from a single image. In Proceedings IEEE Conf. on Computer Vision and Pattern Recognition (CVPR), 2019.
  • [42] Georgios Pavlakos, Luyang Zhu, Xiaowei Zhou, and Kostas Daniilidis. Learning to estimate 3d human pose and shape from a single color image. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 459–468, 2018.
  • [43] Anurag Ranjan, Timo Bolkart, Soubhik Sanyal, and Michael J Black. Generating 3d faces using convolutional mesh autoencoders. In Proceedings of the European Conference on Computer Vision (ECCV), pages 704–720, 2018.
  • [44] Javier Romero, Dimitrios Tzionas, and Michael J. Black. Embodied hands: Modeling and capturing hands and bodies together. ACM Transactions on Graphics, (Proc. SIGGRAPH Asia), 36(6):245:1–245:17, Nov. 2017. (*) Two first authors contributed equally.
  • [45] Tomas Simon, Hanbyul Joo, Iain Matthews, and Yaser Sheikh. Hand keypoint detection in single images using multiview bootstrapping. In Proceedings of the IEEE conference on Computer Vision and Pattern Recognition, pages 1145–1153, 2017.
  • [46] Adrian Spurr, Jie Song, Seonwook Park, and Otmar Hilliges. Cross-modal deep variational hand pose estimation. In CVPR, 2018.
  • [47] James S Supancic, Grégory Rogez, Yi Yang, Jamie Shotton, and Deva Ramanan. Depth-based hand pose estimation: data, methods, and challenges. In Proceedings of the IEEE international conference on computer vision, pages 1868–1876, 2015.
  • [48] Vince Tan, Ignas Budvytis, and Roberto Cipolla. Indirect deep structured learning for 3d human body shape and pose prediction. BMVC, 2017.
  • [49] Bugra Tekin, Federica Bogo, and Marc Pollefeys. H+ o: Unified egocentric recognition of 3d hand-object poses and interactions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 4511–4520, 2019.
  • [50] Gul Varol, Duygu Ceylan, Bryan Russell, Jimei Yang, Ersin Yumer, Ivan Laptev, and Cordelia Schmid. Bodynet: Volumetric inference of 3d human body shapes. In Proceedings of the European Conference on Computer Vision (ECCV), pages 20–36, 2018.
  • [51] Petar Veličković, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Liò, and Yoshua Bengio. Graph attention networks. International Conference on Learning Representations, 2018.
  • [52] Nitika Verma, Edmond Boyer, and Jakob Verbeek. Feastnet: Feature-steered graph convolutions for 3d shape analysis. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 2598–2606, 2018.
  • [53] Shih-En Wei, Varun Ramakrishna, Takeo Kanade, and Yaser Sheikh. Convolutional pose machines. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 4724–4732, 2016.
  • [54] Aaron Wetzler, Ron Slossberg, and Ron Kimmel. Rule of thumb: Deep derotation for improved fingertip detection. In Proceedings of the British Machine Vision Conference (BMVC), 2015.
  • [55] Donglai Xiang, Hanbyul Joo, and Yaser Sheikh. Monocular total capture: Posing face, body, and hands in the wild. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 10965–10974, 2019.
  • [56] Linlin Yang, Shile Li, Dongheui Lee, and Angela Yao. Aligning latent spaces for 3d hand pose estimation. In The IEEE International Conference on Computer Vision (ICCV), October 2019.
  • [57] Linlin Yang and Angela Yao. Disentangling latent hands for image synthesis and pose estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 9877–9886, 2019.
  • [58] Shanxin Yuan, Guillermo Garcia-Hernando, Björn Stenger, Gyeongsik Moon, Ju Yong Chang, Kyoung Mu Lee, Pavlo Molchanov, Jan Kautz, Sina Honari, Liuhao Ge, Junsong Yuan, Xinghao Chen, Guijin Wang, Fan Yang, Kai Akiyama, Yang Wu, Qingfu Wan, Meysam Madadi, Sergio Escalera, Shile Li, Dongheui Lee, Iason Oikonomidis, Antonis A. Argyros, and Tae-Kyun Kim. Depth-based 3d hand pose estimation: From current achievements to future goals. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 2636–2645, 2018.
  • [59] J. Zhang, J. Jiao, M. Chen, L. Qu, X. Xu, and Q. Yang. A hand pose tracking benchmark from stereo matching. In 2017 IEEE International Conference on Image Processing (ICIP), pages 982–986, Sep. 2017.
  • [60] Xiong Zhang, Qiang Li, Hong Mo, Wenbo Zhang, and Wen Zheng. End-to-end hand mesh recovery from a monocular rgb image. In Proceedings of the IEEE International Conference on Computer Vision, pages 2354–2364, 2019.
  • [61] Jun-Yan Zhu, Taesung Park, Phillip Isola, and Alexei A Efros.

    Unpaired image-to-image translation using cycle-consistent adversarial networks.

    In Proceedings of the IEEE international conference on computer vision, pages 2223–2232, 2017.
  • [62] Christian Zimmermann and Thomas Brox. Learning to estimate 3d hand pose from single rgb images. In IEEE International Conference on Computer Vision (ICCV), 2017.
