3 Recurrent Convolutional Encoder-Decoder Network

In this section we describe our model formulation. Given an image of 3D object, our goal is to synthesize its rotated views. Inspired by recent success of convolutional networks (CNNs) in mapping images to high-level abstract representations [17] and synthesizing images from graphics codes [8], we base our model on deep convolutional encoder-decoder networks. One example network structure is shown in Figure 1. The encoder network used

convolution-relu layers with stride 2 and 2-pixel padding so that the dimension is halved at each convolution layer, followed by two fully-connected layers. In the bottleneck layer, we define a group of units to represent the pose (

pose units) where the desired transformations can be applied. The other group of units represent what does not change during transformations, named as identity units. The decoder network is symmetric to the encoder. To increase dimensionality we use fixed upsampling as in [8]

. We found that fixed stride-2 convolution and upsampling worked better than max-pooling and unpooling with switches, because when applying transformations the encoder pooling switches would not in general match the switches produced by the target image. The desired transformations are reflected by the action units. We used a 1-of-3 encoding, in which

encoded a clockwise rotation, encoded a no-op, and

encoded a counter-clockwise rotation. The triangle indicates a tensor product taking as input the pose units and action units, and producing the transformed pose units. Equivalently, the action unit selects the matrix that transforms the input pose units to the output pose units.

Figure 1: Deep convolutional encoder-decoder network for learning 3d rotation

The action units introduce a small linear increment to the pose units, which essentially model the local transformations in the nonlinear pose manifold. However, in order to achieve longer rotation trajectories, if we simply accumulate the linear increments from the action units (e.g., [2 0 0] for two-step clockwise rotation, the pose units will fall off the manifold resulting in bad predictions. To overcome this problem, we generalize the model to a recurrent neural network, which have been shown to capture long-term dependencies for a wide variety of sequence modeling problems. In essence, we use recurrent pose units to model the step-by-step pose manifold traversals. The identity units are shared across all time steps since we assume that all training sequences preserve the identity while only changing the pose. Figure

2 shows the unrolled version of our RNN model.

Figure 2: Unrolled recurrent convolutional network for learning to rotate 3d objects. The convolutional encoder and decoder have been abstracted out, represented here as vertical rectangles.

We only perform encoding at the first time step, and all transformations are carried out in the latent space; i.e., the model predictions at time step are not fed into the next time step input. The training objective is based on pixel-wise prediction over all time steps for training sequences:


where is the sequence of actions, produces the identity features invariant to all the time steps, produces the transformed pose features at time step , is the image decoder producing an image given the output of and , is the -th image, is the -th training image target at step .

3.1 Curriculum Training

We trained the network parameters using backpropagation through time and the ADAM optimization method

[3]. To effectively train our recurrent network, we found it beneficial to use curriculum learning [4], in which we gradually increase the difficulty of training by increasing the trajectory length. This appears to be useful for sequence prediction with recurrent networks in other domains as well [22, 29]. In Section 4, we show that increasing the training sequence length improves both the model’s image prediction performance as well as the pose-invariant recognition performance of identity features.

Also, longer training sequences force the identity units to better disentangle themselves from the pose. If the same identity units need to be used to predict both a -rotated and a

-rotated image during training, these units cannot pick up pose-related information. In this way, our model can learn disentangled features (i.e., identity units can do invariant identity recognition but are not informative of pose, and vice versa) without explicitly regularizing to achieve this effect. We did not find it necessary to use gradient clipping.

4 Experiments

We carry out experiments to achieve the following objectives. First, we examine the ability of our model to synthesize high-quality images of both face and complex 3D objects (chairs) in a wide range of rotational angles. Second, we evaluate the discriminative performance of disentangled identity units through cross-view object recognition. Third, we demonstrate the ability to generate and rotate novel object classes by interpolating identity units of query objects.

4.1 Datasets


The Multi-PIE [12] dataset consists of 754,204 face images from 337 people. The images are captured from 15 viewpoints under 20 illumination conditions in different sessions. To evaluate our model for rotating faces, we select a subset of Multi-PIE that covers 7 viewpoints evenly from to under neutral illumination. Each face image is aligned through manually annotated landmarks on eyes, nose and mouth corners, and then cropped to pixels. We use the images of first 200 people for training and the remaining 137 people for testing.


This dataset contains 1393 chair CAD models made publicly available by Aubry et al. [2]. Each chair model is rendered from 31 azimuth angles (with steps of or ) and 2 elevation angles ( and ) at a fixed distance to the virtual camera. We use a subset of 809 chair models in our experiments, which are selected out of 1393 by Dosovitskiy et al. [8] in order to remove near-duplicate models (e.g., models differing only in color) or low-quality models. We crop the rendered images to have a small border and resize them to a common size of pixels. We also prepare their binary masks by subtracting the white background. We use the images of the first 500 models as the training set and the remaining 309 models as the test set.

4.2 Network Architectures and Training Details


The encoder network for the Multi-PIE dataset used two convolution-relu layers with stride 2 and 2-pixel padding, followed by one fully-connected layer: . The number of identity and pose units are and , respectively. The decoder network is symmetric to the encoder. The curriculum training procedure starts with the single-step rotation model which we call RNN1.

We prepare the training samples by pairing face images of the same person captured in the same session with adjacent camera viewpoints. For example, at is mapped to at with action ; at is mapped to at with action ; and at is mapped to at with action . For face images with ending viewpoints and , only one-way rotation is feasible. We train the network using the ADAM optimizer with fixed learning rate for epochs.111

We carry out experiments using Caffe

[14] on Nvidia K40c and Titan X GPUs.

Since there are 7 viewpoints per person per session, we schedule the curriculum training with , and stages, which we call RNN2, RNN4 and RNN6, respectively. To sample training sequences with fixed length, we allow both clockwise and counter-clockwise rotations. For example, when , one input image at is mapped to with corresponding angles and action inputs . In each stage, we initialize the network parameters with the previous stage and fine-tune the network with fixed learning rate for additional epochs.


The encoder network for chairs used three convolution-relu layers with stride 2 and 2-pixel padding, followed by two fully-connected layers: . The decoder network is symmetric, except that after the fully-connected layers it branches into image and mask prediction layers. The mask prediction indicates whether a pixel belongs to foreground or background. We adopted this idea from the generative CNN [8] and found it beneficial to training efficiency and image synthesis quality. A tradeoff parameter is applied to the mask prediction loss. We train the single-step network parameters with fixed learning rate for epochs. We schedule the curriculum training with , , and , which we call RNN2, RNN4, RNN8 and RNN16. Note that the curriculum training stops at because we reached the limit of GPU memory. Since the images of each chair model are rendered from 31 viewpoints evenly sampled between and , we can easily prepare training sequences of clockwise or counter-clockwise -step rotations around the circle. Similarly, the network parameters of the current stage are initialized with those of previous stage and fine-tuned with the learning rate for epochs.

Figure 3: 3D view synthesis on Multi-PIE. For each panel, the first row shows the ground truth from to , the second and third rows show the re-renderings of 6-step clockwise rotation from an input image of (red box) and of 6-step counter-clockwise rotation from an input image of (red box), respectively.
3D model
Figure 4: Comparing face pose normalization results with 3D morphable model [30].

4.3 3D View Synthesis of Novel Objects

We first examine the re-rendering quality of our RNN models for novel object instances that were not seen during training. On the Multi-PIE dataset, given one input image from the test set with possible views between to , the encoder produces identity units and pose units and then the decoder renders images progressively with fixed identity units and action-driven recurrent pose units up to -steps. Examples are shown in Figure 3 of the longest rotations, i.e., clockwise from to and counter-clockwise from to with RNN6. High-quality renderings are generated with smooth transformations between adjacent views. The characteristics of faces, such as gender, expression, eyes, nose and glasses are also preserved during rotation. We also compare our RNN model with a state-of-the-art 3D morphable model for face pose normalization [30] in Figure 4. It can be observed that our RNN model produces stable renderings while 3D morphable model is sensitive to facial landmark localization. One of the advantages of 3D morphable model is that it preserves facial textures well.

On the chair dataset, we use RNN16 to synthesize 16 rotated views of novel chairs in the test set. Given a chair image of a certain view, we define two action sequences; one for progressive clockwise rotation and another for counter-clockwise rotation. It is a more challenging task compared to rotating faces due to the complex 3D shapes of chairs and the large rotation angles (more than

after 16-step rotations). Since no previous methods tackle the exact same chair re-rendering problem, we use a k-nearest-neighbor (KNN) method for baseline comparisons. The KNN baseline is implemented as follows. We first extract the CNN features “fc7” from VGG-16 net

[25] for all the chair images. For each test chair image, we find its K-nearest neighbors in the training set by comparing their “fc7” features. The retrieved top-K images are expected to be similar to the query in terms of both style and pose [1]. Given a desired rotation angle, we synthesize rotated views of the test image by averaging the corresponding rotated views of the retrieved top-K images in the training set at the pixel level. We tune the K value in [1,3,5,7], namely KNN1, KNN3, KNN5 and KNN7 to achieve the best performance. Two examples are shown in Figure 5. In our RNN model, the 3D shapes are well preserved with clear boundaries for all the 16 rotated views from different input, and the appearance changes smoothly between adjacent views with a consistent style.

Input t=1 t=2 t=3 t=4 t=5 t=6 t=7 t=8 t=9 t=10 t=11 t=12 t=13 t=14 t=15 t=16
Figure 5: 3D view synthesis of 16-step rotations on Chairs. In each panel, we compare synthesis results of the RNN16 model (top) and of the KNN5 baseline (bottom). The first two panels belong to the same chair of different starting views while the last two panels are from another chair of two starting views. Input images are marked with red boxes.

Note that conceptually the learned network parameters during different stages of curriculum training can be used to process an arbitrary number of rotation steps. The RNN1 model (the first row in Figure 7) works well in the first rotation step, but it produces degenerate results from the second step. The RNN2 (the second row), trained with two-step rotations, generates reasonable results in the third step. Progressively, the RNN4 and RNN8 seem to generalize well on chairs with longer predictions ( for RNN4 and for RNN8). We measure the quantitative performance of KNN and our RNN by the mean squared error (MSE) in (1) in Figure 7. As a result, the best KNN with 5 retrievals (KNN5) obtains 310 MSE, which is comparable to our RNN4 model, but our RNN16 model significantly outperforms KNN5 (179 MSE) with a 42% relative improvement.

RNN1 RNN2 RNN4 RNN8 RNN16 GT Model t=1 t=2 t=3 t=4 t=6 t=8 t=12 t=16
Figure 6: Comparing chair synthesis results from RNN at different curriculum stages.

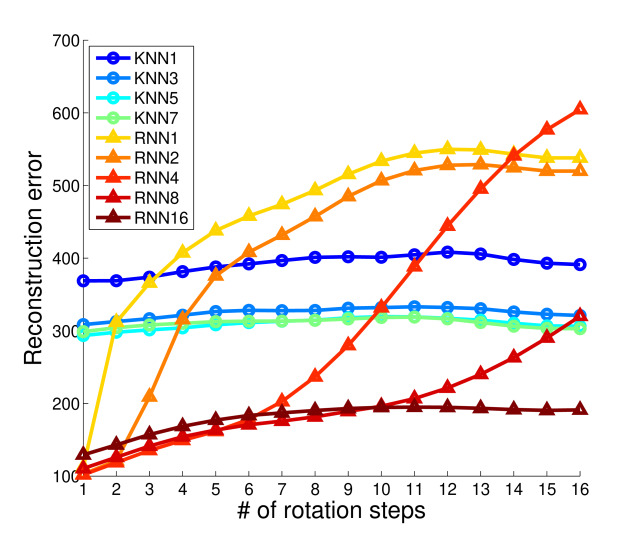

Figure 7: Comparing reconstruction mean squared errors (MSE) on chairs with RNNs and KNNs.

4.4 Cross-View Object Recognition

In this experiment, we examine and compare the discriminative performance of disentangled representations through cross-view object recognition.


We create 7 gallery/probe splits from the test set. In each split, the face images of the same view, e.g., are collected as gallery and the rest of other views as probes. We extract 512-d features from the identity units of RNNs for all the test images so that the probes are matched to the gallery by their cosine distance. It is considered as a success if the matched gallery image has the same identity with one probe. We also categorize the probes in each split by measuring their angle offsets from the gallery. In particular, the angle offsets range from to

. The recognition difficulties increase with angle offsets. To demonstrate the discriminative performance of our learned representations, we also implement a convolutional network classifier. The CNN architecture is set up by connecting our encoder and identity units with a 200-way softmax output layer, and its parameters are learned on the training set with ground truth class labels. The 512-d features extracted from the layer before the softmax layer are used to perform cross-view object recognition as above. Figure


(left) compares the average success rates of RNNs and CNN with their standard deviations over 7 splits for each angle offset. The success rates of RNN1 drop more than

from angle offset to . The success rates keep improving in general with curriculum training of RNNs, and the best results are achieved with RNN6. As expected, the performance gap for RNN6 between to reduces to

. This phenomenon demonstrates that our RNN model gradually learns pose/viewpoint-invariant representations for 3D face recognition. Without using any class labels, our RNN model achieves competitive results against the CNN.


The experimental setup is similar to Multi-PIE. There are in total 31 azimuth views per chair instance. For each view, we create its gallery/probe split so that we have 31 splits. We extract 512-d features from identity units of RNN1, RNN2, RNN4, RNN8 and RNN16. The probes for each split are sorted by their angle offsets from the gallery images. Note that this experiment is particularly challenging because chair matching is a fine-grained recognition task and chair appearances change significantly with 3D rotations. We also compare our model against CNN, but instead of training CNN from scratch we use the pre-trained VGG-16 net [25] to extract the 4096-d “fc7” features for chair matching. The success rates are shown in Figure 8 (right). The performance drops quickly when the angle offset is greater than , but the RNN16 significantly improves the overall success rates especially for large angle offsets. We notice that the standard deviations are large around the angle offsets to . This is because some views contain more information about the chair 3D shapes than the other views so that we see performance variations. Interestingly, the performance of VGG-16 net surpasses our RNN model when the angle offset is greater than . We hypothesize that this phenomenon results from the symmetric structures of most of the chairs. The VGG-16 net was trained with mirroring data augmentation to achieve certain symmetric invariance while our RNN model does not explore this structure.

To further demonstrate the disentangling property of our RNN model, we use the pose units extracted from the input images to repeat the above cross-view recognition experiments. The mean success rates are shown in Table 1. It turns out that the better the identity units perform the worse the pose units perform. When the identity units achieve near-perfect recognition on Multi-PIE, the pose units only obtain a mean success rate , which is close to the random guess for 200 classes.

Figure 8: Comparing cross-view recognition success rates for faces (left) and chairs (right).
Models RNN: identity RNN: pose CNN
Table 1: Comparing mean cross-view recognition success rates () with identity and pose units.

4.5 Class Interpolation and View Synthesis

In this experiment, we demonstrate the ability of our RNN model to generate novel chairs by interpolating between two existing ones. Given two chair images of the same view from different instances, the encoder network is used to compute their identity units and pose units , respectively. The interpolation is computed by and , where . The interpolated and are then fed into the recurrent decoder network to render its rotated views. Example interpolations between four chair instances are shown in Figure 9. The Interpolated chairs present smooth stylistic transformations between any pair of input classes (each row in Figure 9), and their unique stylistic characteristics are also well preserved among its rotated views (each column in Figure 9).

0.0 0.2 0.4 0.6 0.8 1.0 0.2 0.4 0.6 0.8 1.0 0.2 0.4 0.6 0.8 1.0
Figure 9: Chair style interpolation and view synthesis. Given four chair images of the same view (first row) from test set, each row presents renderings of style manifold traversal with a fixed view while each column presents the renderings of pose manifold traversal with a fixed interpolated identity.

5 Conclusion

In this paper, we develop a recurrent convolutional encoder-decoder network and demonstrate its effectiveness for synthesizing 3D views of unseen object instances. On the Multi-PIE dataset and a database of 3D chair CAD models, the model predicts accurate renderings across trajectories of repeated rotations. The proposed curriculum training by gradually increasing trajectory length of training sequences yields both better image appearance and more discriminative features for pose-invariant recognition. We also show that a trained model could interpolate across the identity manifold of chairs at fixed pose, and traverse the pose manifold while fixing the identity. This generative disentangling of chair identity and pose emerged from our recurrent rotation prediction objective, even though we do not explicitly regularize the hidden units to be disentangled. Our future work includes introducing more actions into the proposed model other than rotation, handling objects embedded in complex scenes, and handling one-to-many mappings for which a transformation yields a multi-modal distribution over future states in the trajectory.
