1 Introduction

This report summarizes the weak scaling performance of the diffusion-synthetic acceleration (DSA) of transport sweeps in PDT (a massively parallel deterministic transport solver developed at Texas A&M University). The goal is to assess the cost of the DSA based on the symmetric interior-penalty discontinuous Galerkin discretization and solved by the AMG-preconditioned conjugate gradient method provided by the HYPRE/BoomerAMG library (which we will refer to shortly as HYPRE in the following), relative to the transport sweeps.

The following section gives an overview of the problem that has been solved and the methods used. Section 3 presents the results obtained when using the automatic parallel partitioning of PDT suited for transport sweeps. This section is divided into two main subsections, which serve as a comparison of the HYPRE performance with parameter setup deemed as “reasonable defaults” in PDT, against the empirically obtained parameters based on other runs and several recent papers on AMG parallelization. Section 4 presents the results for the volumetric partitioning, which is expected to perform better for the diffusion solves.

2 Problem Description and Solution Methodology

We solved a 1-group transport problem in a homogeneous cube of side length 16 cm, bounded from all sides by vacuum, with unit isotropic source and scattering ratio . The piecewise linear discontinuous finite element approximation was used to discretize both the transport and the diffusion operators in space. The problem was solved in two workload regimes:

  • 512 cells per core degrees of freedom per core

  • 4096 cells per core degrees of freedom per core

where for the DSA problem, while for the transport problem is the number of angles in an angle set that aggregates a portion of the total number of directions used to discretize the angular domain. To this end, the product Gauss-Legendre-Chebyshev quadrature was used, with the following three resolutions:

  • 4 polar, 4 azimuthal angles total angles aggregated into 8 angle sets ()

  • 8 polar, 8 azimuthal angles total angles aggregated into 8 angle sets ()

  • 16 polar, 16 azimuthal angles total angles aggregated into 16 angle sets ()

The motivation behind increasing the number of angles was to find the value for which the DSA time would become sufficiently negligible with respect to the total solve time.

As the purpose of the calculations was to measure performance rather than obtain converged results, a fixed number of 10 source iterations (all-direction sweeps), as well as 10 PCG iterations per source iterations have been performed. We however kept track of the final residual for both transport and PCG to make sure we were always getting the solution of more or less the same level of accuracy (see Sec. 3.2 where we needed to switch to residual based convergence for PCG for this reason).

The weak scaling runs were performed on the VULCAN machine for core counts ranging from 1 to 128k, using Hypre 2.10.0.

3 Hybrid KBA-volumetric partitioning

The first set of results was obtained when using the automatic parallel partitioning provided by PDT (including the automatic aggregation of cells to cell-sets and angles to angle-sets). This setting has been shown to perform well for the transport sweeps, but here we will see that it is not so well suited for the preconditioned diffusion solves. Table 1 shows the partitioning for the used core counts.

#cores
1 1 1 1
8 2 2 2
64 1 8 8
512 2 16 16
1024 16 32 2
2048 2 32 32
4096 1 64 64
8192 64 64 2
16384 2 64 128
32768 2 128 128
65536 128 256 2
131072 2 256 256
Table 1: Automatic parallel partitioning by PDT (hybrid-KBA).

3.1 PDT-default HYPRE parameters

Table 2 summarizes the default settings of HYPRE parameters that PDT uses for 3D diffusion problems. They are mostly based on the recommended values from HYPRE manual.

Figures 1 through 4 show the total solve time decomposed by its main components:

  • PCG Setup contains the construction of the AMG preconditioner and the setup of the HYPRE PCG solver (essentially calls to HYPRE_BoomerAMGSetup and HYPRE_ParCSRPCGSetup, respectively). The DSA matrix does not change between source iterations in a 1-group problem, which allows us to reuse the preconditioner; hence, PCG setup occurs only in the first iteration

  • PCG Solve measures the time spent by calling HYPRE_ParCSRPCGSolve.

  • Other DSA

    contains all the remaining time spent in the DSA preconditioning phase, including the matrix/vector assembly and updates of the scalar flux.

  • Sweep Setup contains the preparation steps for the sweep, most importantly the construction of the sweep task graphs.

  • Sweep is the actual sweep for the whole problem domain (execution of the sweep task graphs).

  • Other Solve contain the remaining operations performed in the solve phase (construction of the source, computation of residuals, convergence checking, etc.).

All times were measured using internal PDT timing routines based on gettimeofday() and are accumulated over all iterations. Note that all the time components add to the total solve time, which is different from the overall time reported in the raw tables in the Appendix (this latter time includes also the grid construction and problem setup, which is the same for both the transport and the diffusion parts and hence was omitted from the charts below).

Figures 1 through 4 confirm good weak scalability of PDT sweeps, but reveal bad scalability of the diffusion solver (both the preconditioner and solve phase), especially with lower work loads. Poor scalability of AMG with Galerkin coarsening has been recently addressed in several papers (e.g., [1, 2, 4, 3]) so as an attempt to improve our DSA performance, we used the knowledge from these papers to experiment with the AMG parameters a bit. Although these experiments were performed earlier using a different test case (a multigroup graphite block problem), we used the final set of parameters that yielded best results for that problem here as well. We call this set “optimized”. Next section shows the results obtained with these parameters for the present problem.

Parameter Value Brief description (see [5] for more details)
coarsening 10 HMIS-coarsening
relaxation 6 hybrid symmetric Gauss-Seidel
interpolation 6 extended+i interpolation
strength thr 0.25 AMG strength threshold
num sweeps 1 number of sweeps
pmax elmts 4 maximal number of elements per row for the interpolation
agg levels 1 number of levels of aggressive coarsening
agg interp 4 interpolation used on levels of aggressive coarsening
(4 = multipass)
agg pmax el 0 maximal number of elements per row for the interpolation used for aggressive coarsening (0 = unlimited)
agg p12 max el 0 maximal number of elements per row for the matrices P1 and P2 which are used to build 2-stage interpolation
(0 = unlimited)
amg nongalerk [] list of non-Galerkin drop-tolerances at each level for sparsifying coarse grid operators and thus reducing communication
(empty = standard Galerkin coarsening at all levels)
Table 2: Default HYPRE parameters in PDT.

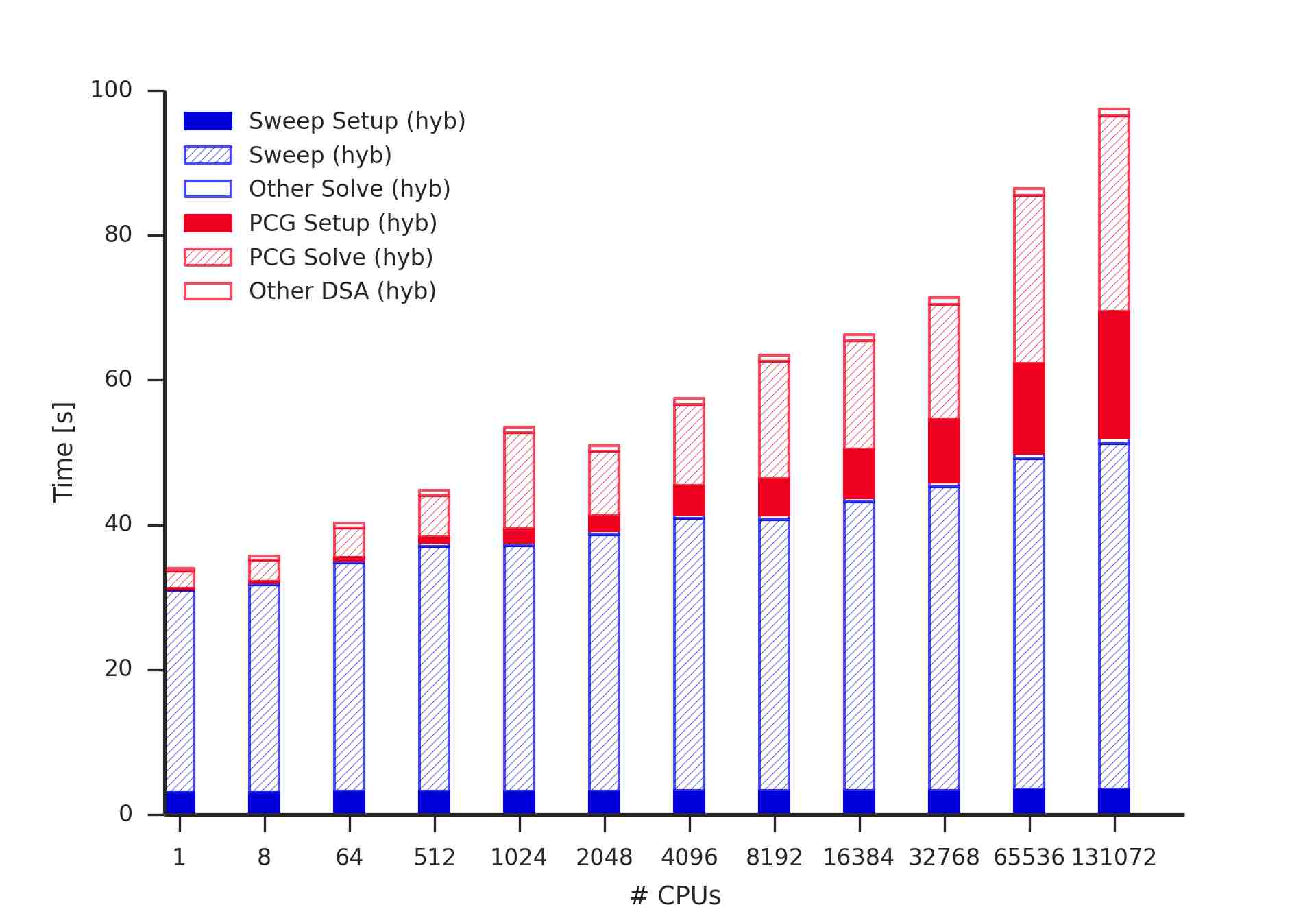

Figure 1: Solve times, 512 cells/core, 512 directions

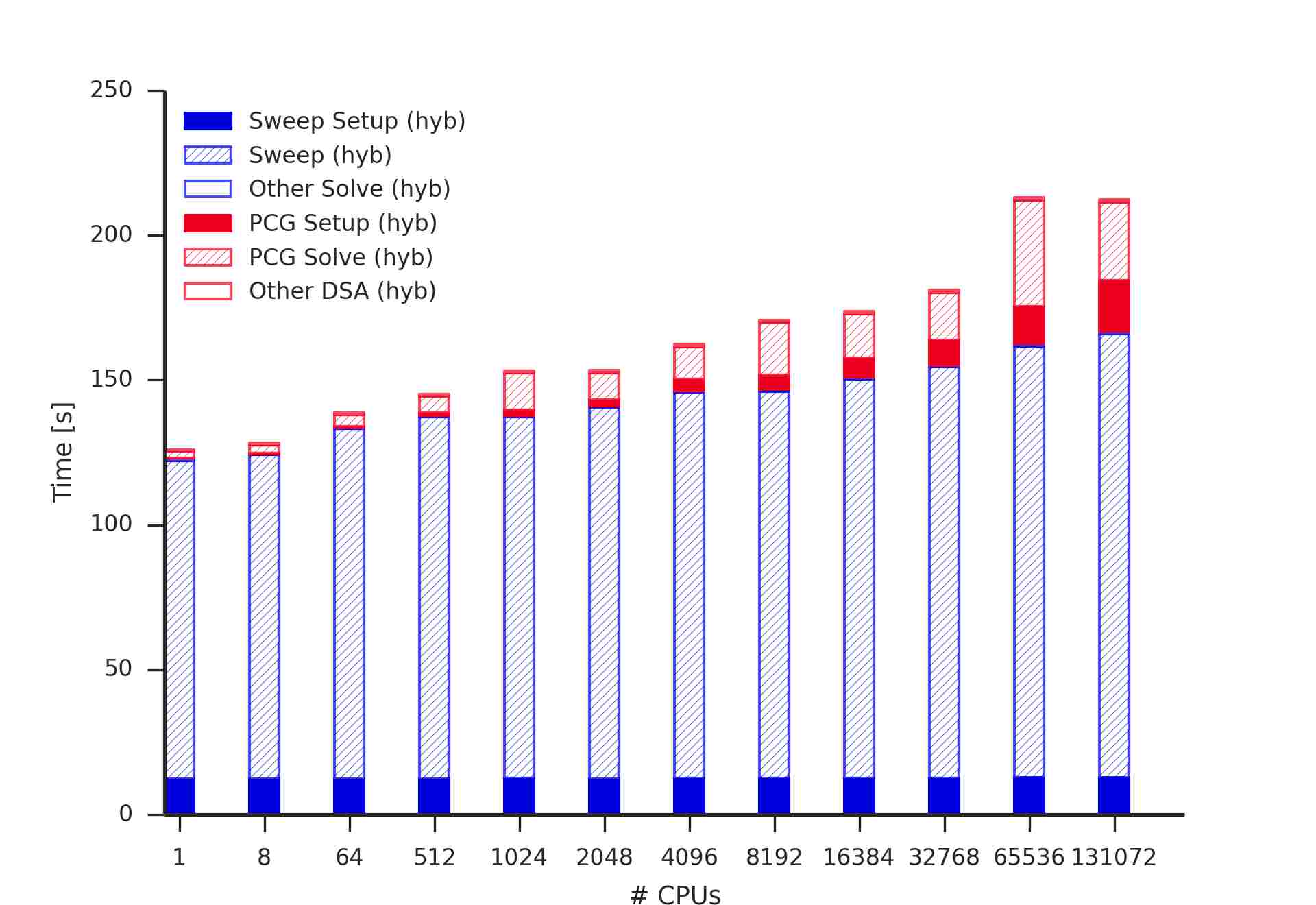

Figure 2: Solve times, 512 cells/core, 2048 directions

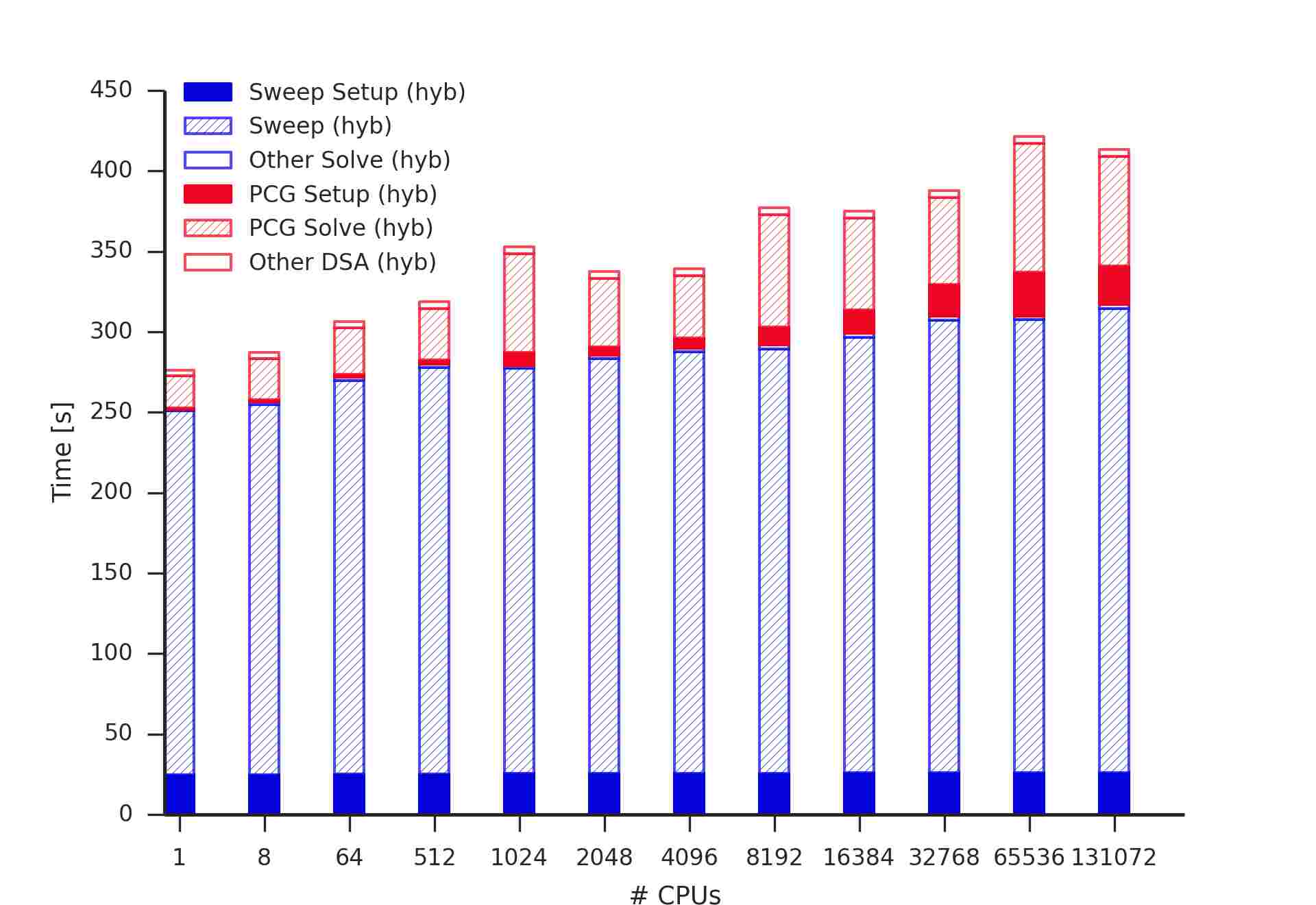

Figure 3: Solve times, 4096 cells/core, 512 directions

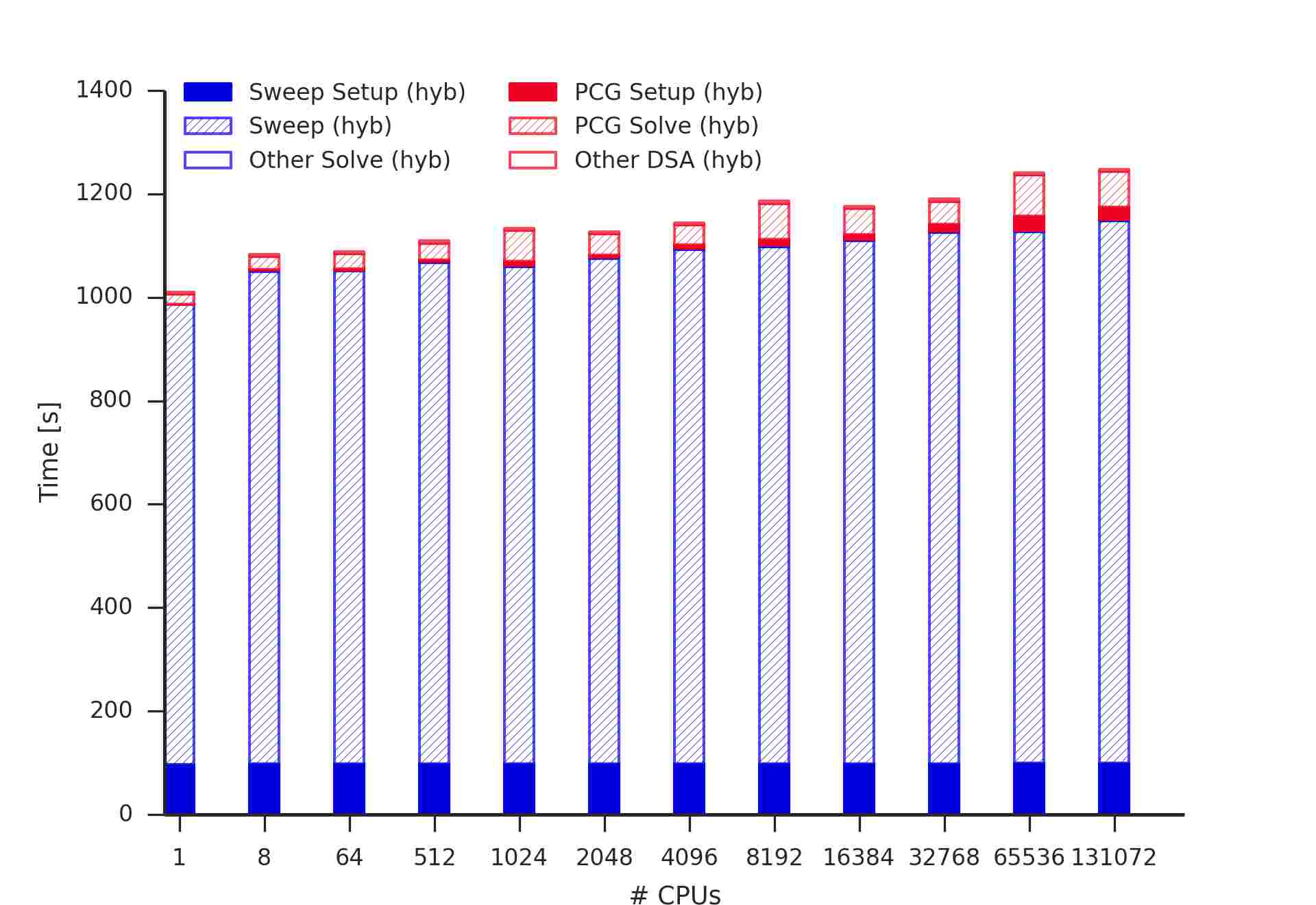

Figure 4: Solve times, 4096 cells/core, 2048 directions

3.2 “Optimized” HYPRE parameters

Parameter Value Brief description (see [5] for more details)
coarsening 10 HMIS-coarsening
relaxation 6 hybrid symmetric Gauss-Seidel
interpolation 6 extended+i interpolation
strength thr 0.8 AMG strength threshold
num sweeps 1 number of sweeps
pmax elmts 4 maximal number of elements per row for the interpolation
agg levels 10 number of levels of aggressive coarsening
agg interp 4 interpolation used on levels of aggressive coarsening
(4 = multipass)
agg pmax el 4 maximal number of elements per row for the interpolation used for aggressive coarsening (0 = unlimited)
agg p12 max el 0 maximal number of elements per row for the matrices P1 and P2 which are used to build 2-stage interpolation
(0 = unlimited)
amg nongalerk [0.0 0.1] list of non-Galerkin drop-tolerances at each level for sparsifying coarse grid operators and thus reducing communication (0.0 at the finest level, 0.1 on all others)
Table 3: “Optimized” HYPRE parameters (changes from the defaults in bold).

Figures 5 and 6 compare the HYPRE times with the PDT-default settings and the optimized settings. While they show significant improvement for the AMG setup time as well as for the PCG solve time (at higher core counts), we must keep in mind that the price for the lower cost of AMG setup is that the preconditioner is not as effective. The red and blue curves in Figures 7 and 8 show the transport and PCG residuals attained after the total of 10 source iterations and 100 PCG iterations (10 PCG iterations per source iteration). With increasing core counts (and decreasing cell sizes), the PCG residuals generally grow, and especially fast with the optimized settings. Nevertheless, this comparison with fixed number of PCG iterations indicates that there is a relatively big potential of reducing both the setup cost and solve cost (essentially the cost of matrix-vector multiplication) by playing with the parameters that HYPRE exposes to the user.

In the case of 4096 cells per core and 128k cores, the decrease of the effectivity of the preconditioner for the diffusion solves started to have a detrimental effect on the convergence of the transport solution itself (see the blue line with square markers in Fig. 8). Hence, in order to obtain fair practical comparison, we switched the convergence criterion for the DSA from fixed number of PCG iterations to a prescribed PCG residual of . The green lines in figures 7 and 8 indicate that using this convergence criterion, the DSA with the cheaper AMG preconditioner setup is (for this particular problem) sufficient for attaining the same transport residual as DSA with the more expensive AMG obtained with the default PDT settings. However, the number of PCG iterations required to attain the prescribed PCG residual value naturally increases at higher core counts.

Figures 9 and 10 illustrate the implications of this growth of PCG iterations – while for 512 cells per core, the optimized settings still lead to slightly better DSA times at higher core counts111Some of the 65k-core runs resulted in spikes in PCG solve times (per iteration) that we currently cannot explain. See also the raw data tables in the Appendix., with 4096 cells per core, the increased number of PCG iterations clearly offsets any gains achieved in the AMG setup phase. This is likely a consequence of the way we obtained the “optimized” parameter set – for the original multi-group problem, we started with the scheme where the AMG setup for the within-group DSA was performed for every group, thus the emphasis on minimizing the AMG setup times. There is most likely a different parameter set that would favor the PCG solve time (or strike better balance between both), better suited for one-group problems (or problems where the DSA for different groups can be performed using the same setup). However, we have not yet attempted to find such a set.

All these results are finally reflected in the fractions of DSA to the total solve time for the three sets of angular discretizations and the default and the optimized HYPRE settings (with PCG residual convergence criterion). These are plotted in figures 11 and 12 for 512 cells per core and 4096 cells per core, respectively.

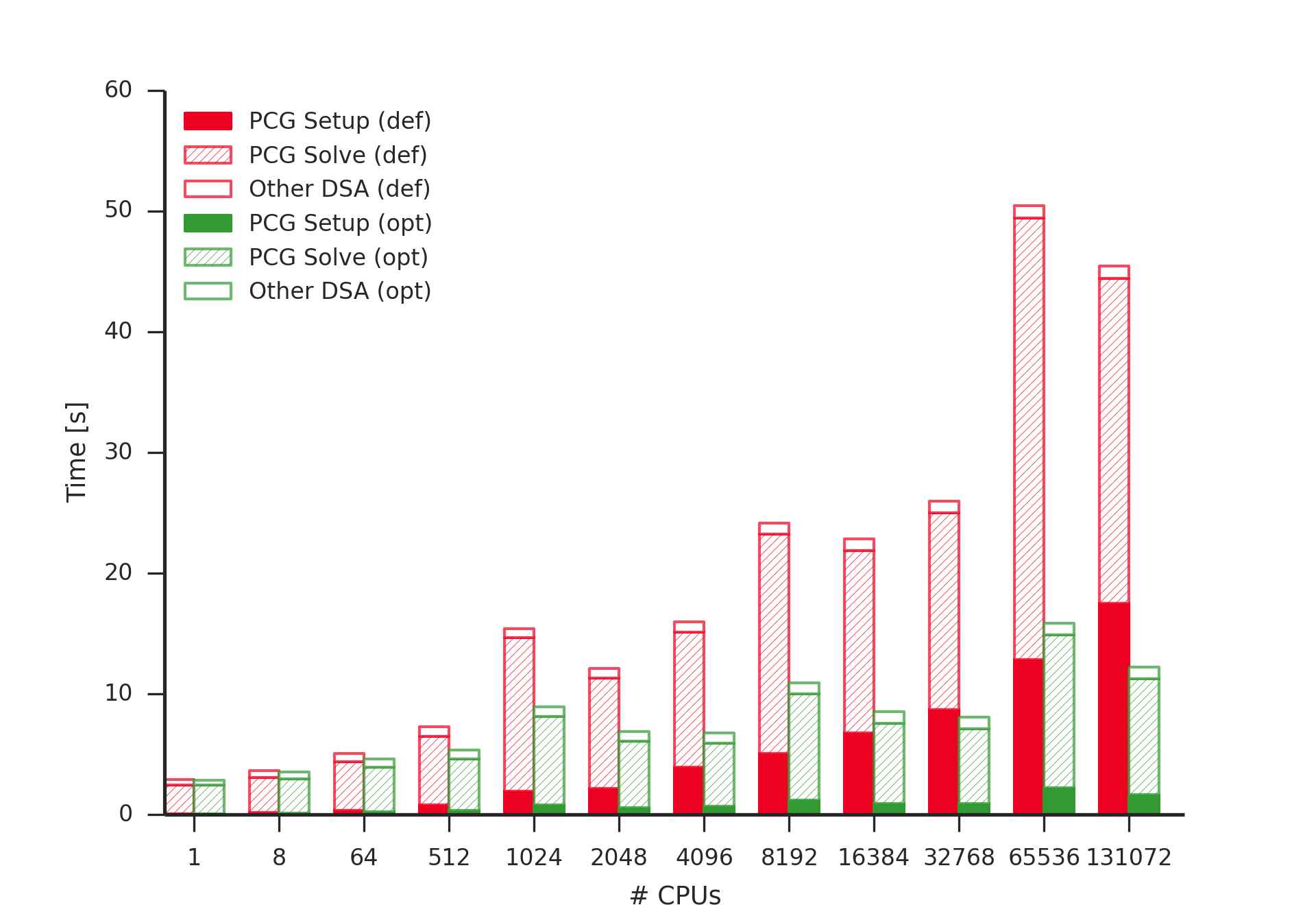

Figure 5: HYPRE times, 512 cells/core, 2048 directions, PCG max_it = 10.

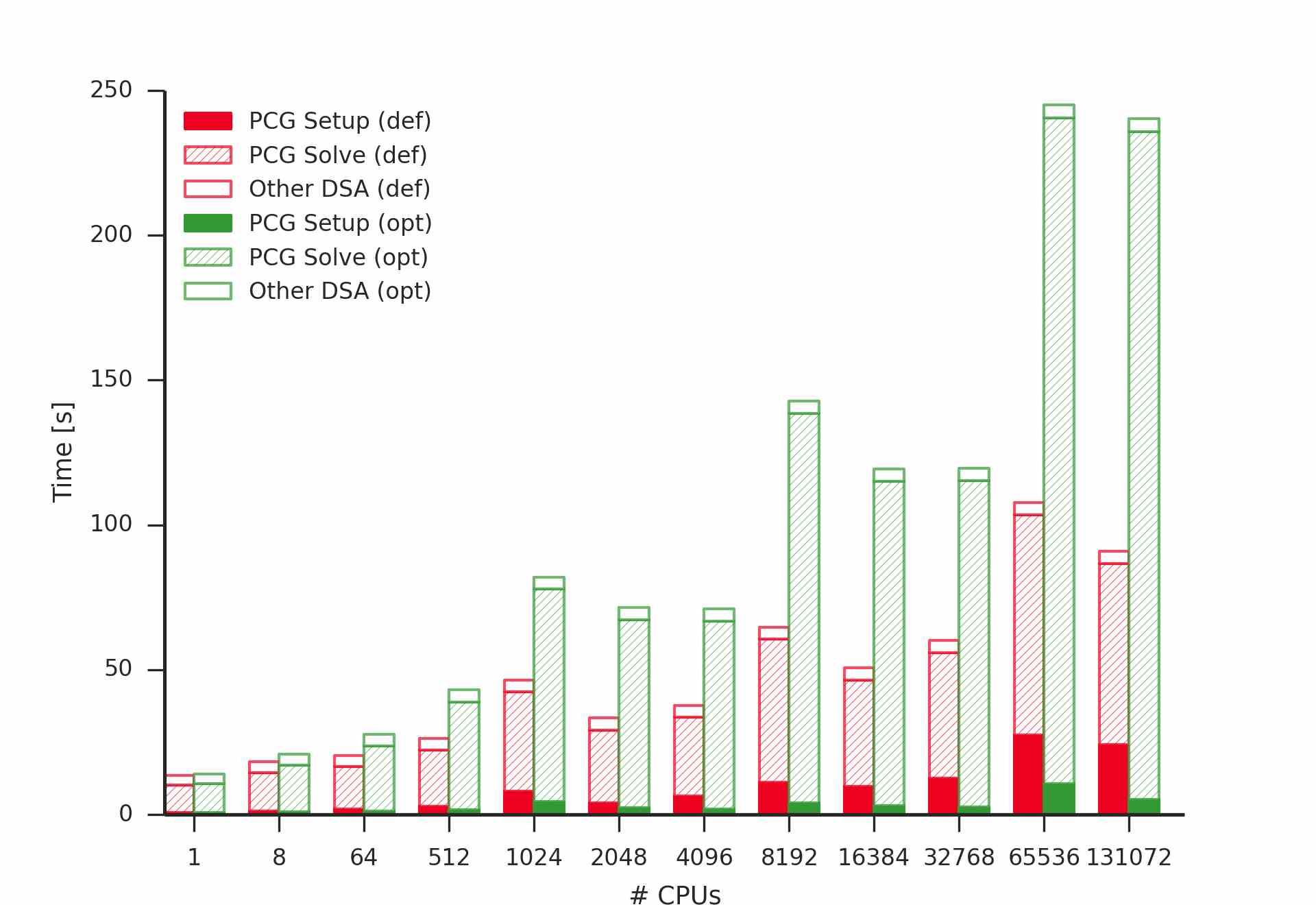

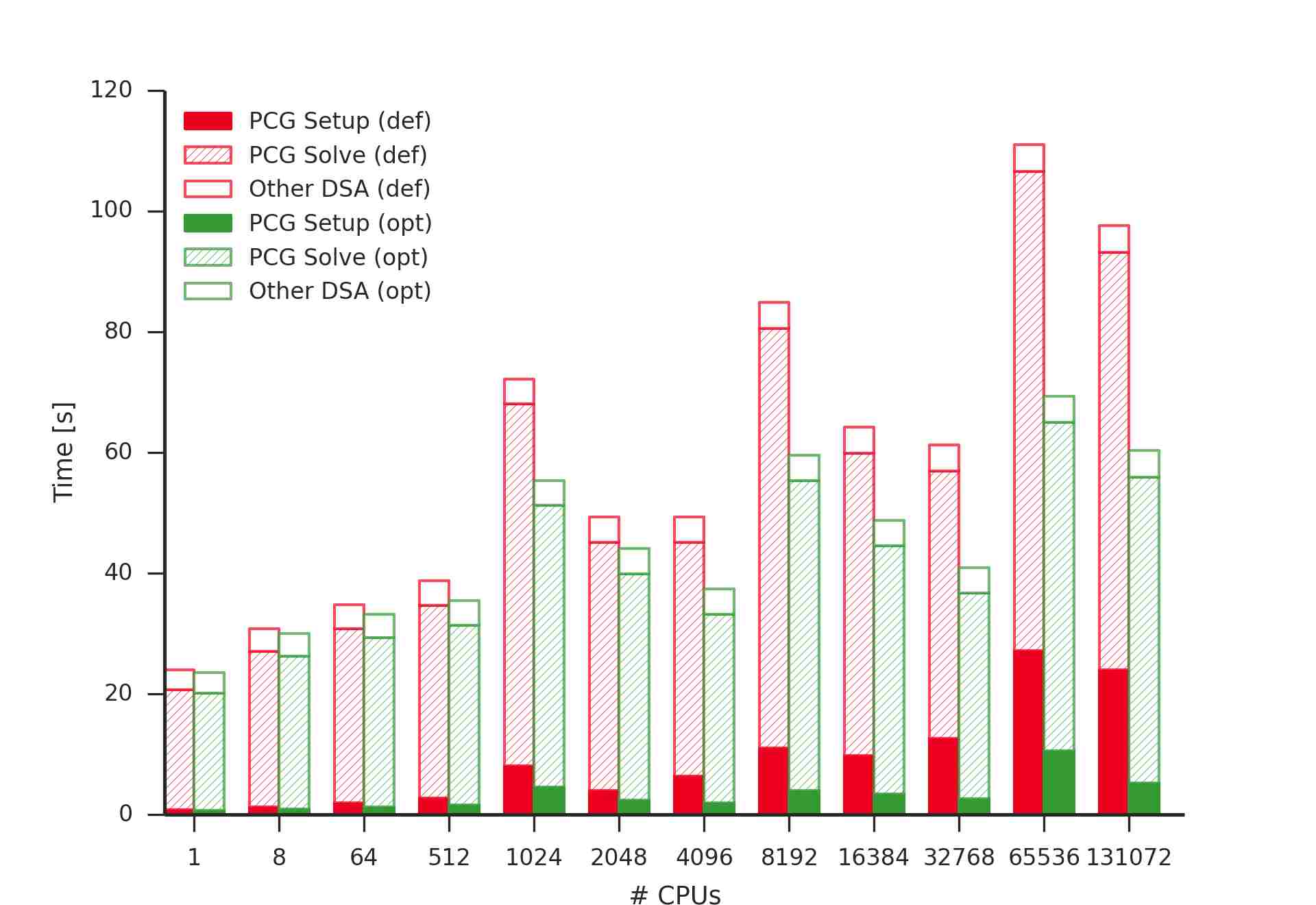

Figure 6: HYPRE times, 4096 cells/core, 2048 directions, PCG max_it = 10.

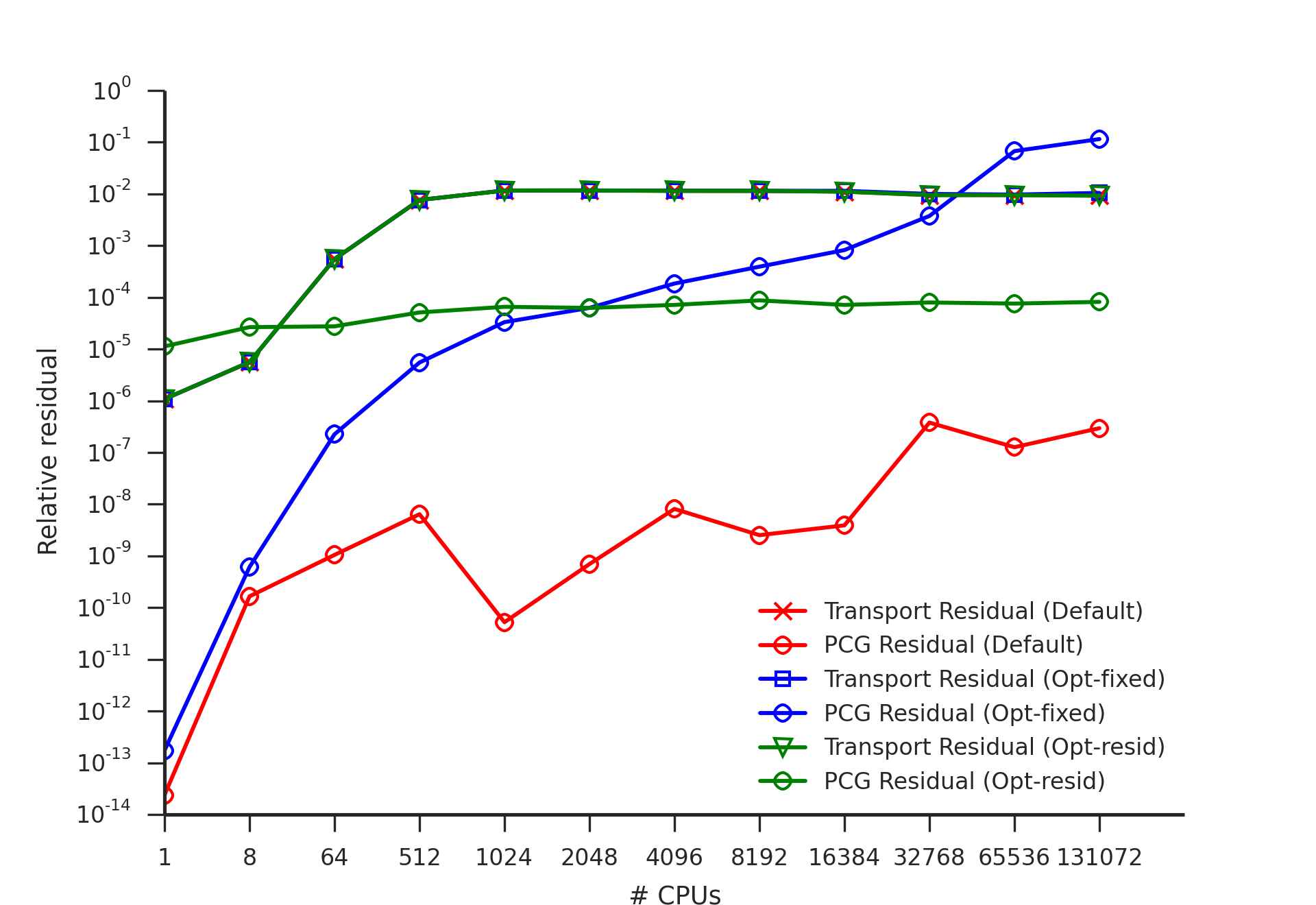

Figure 7: Final residuals, 512 cells/core, 2048 directions.

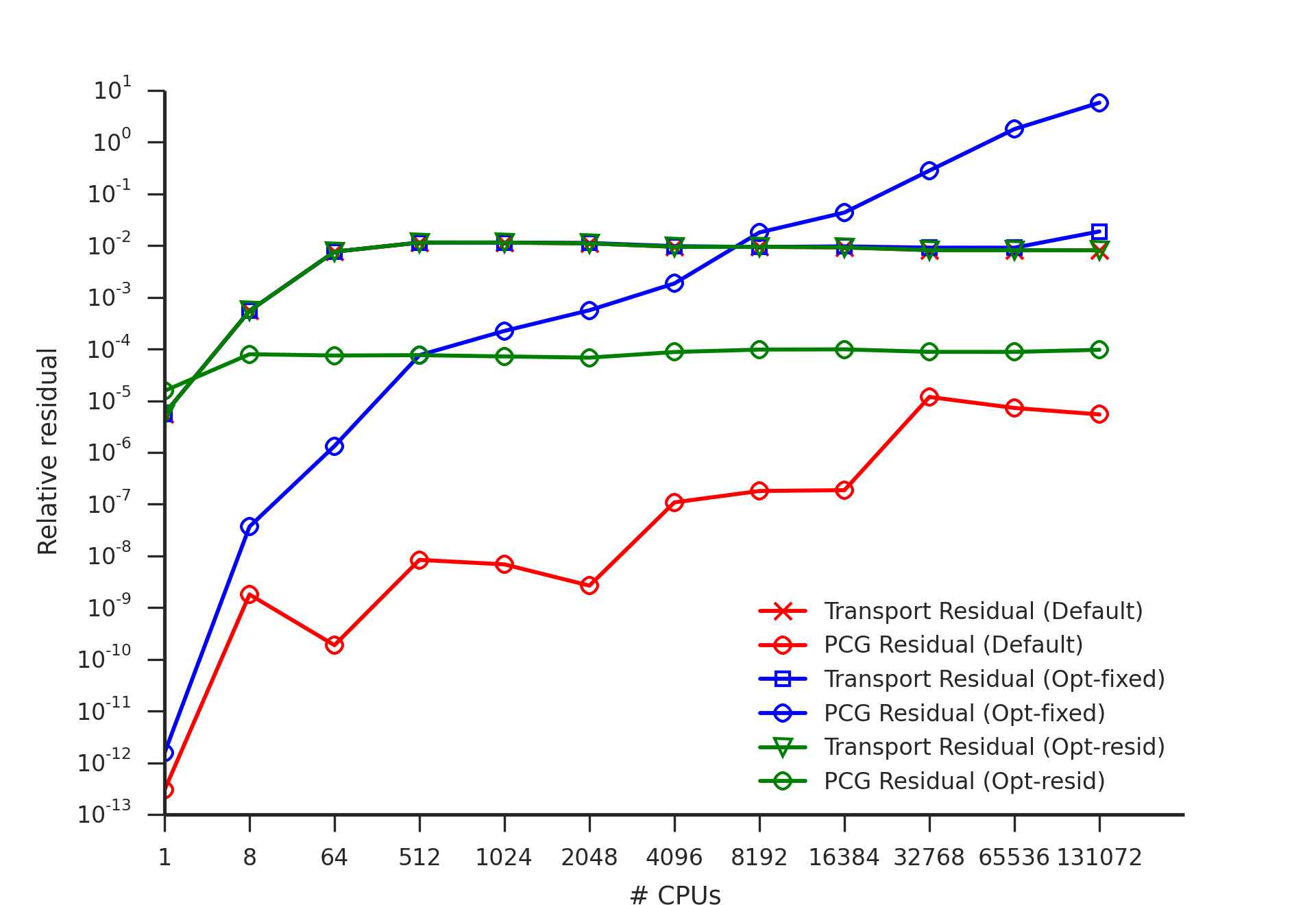

Figure 8: Final residuals, 4096 cells/core, 2048 directions.
Figure 9:

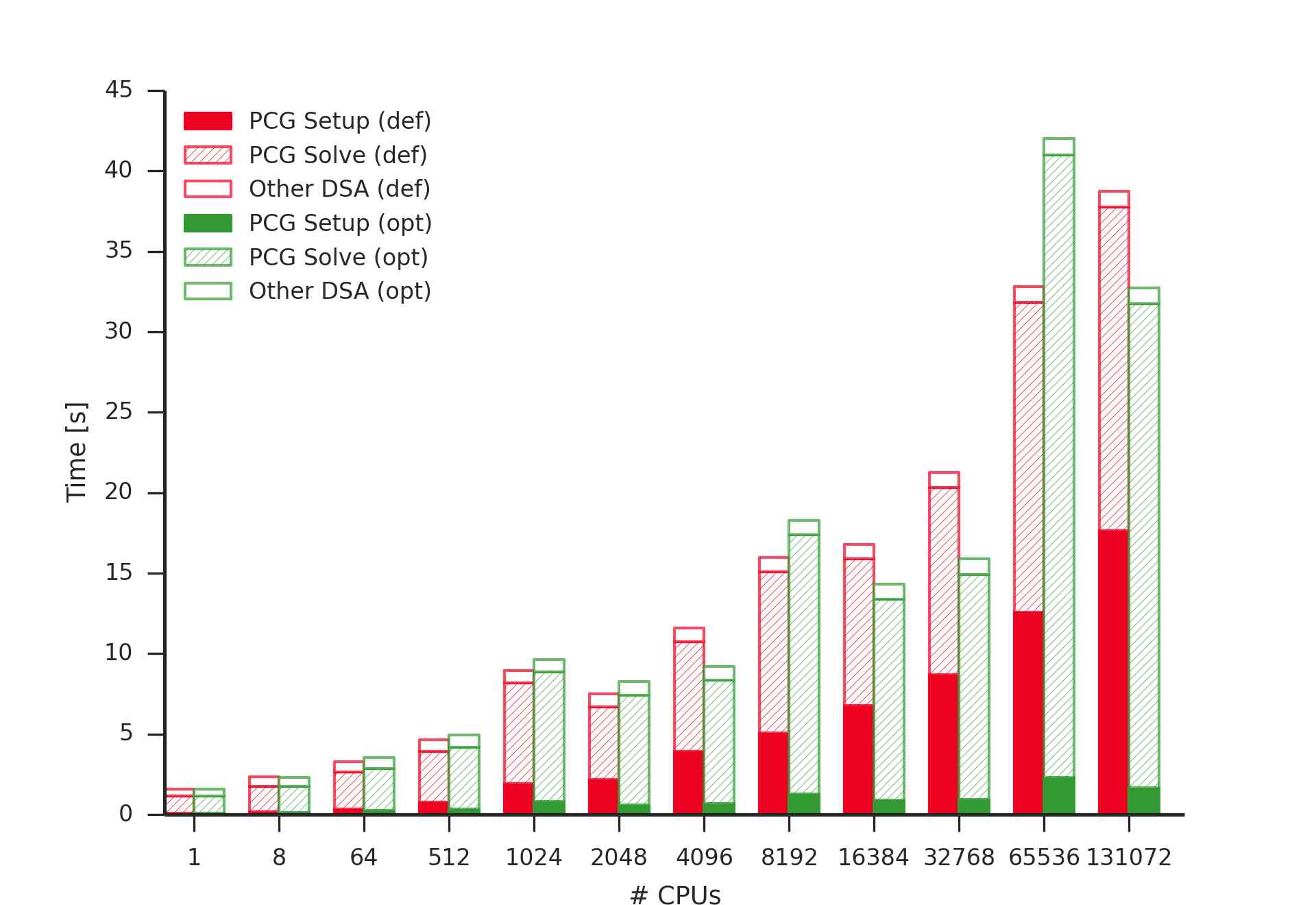

HYPRE times, 512 cells/core, 2048 directions,
PCG res_thr = 10.
Figure 10:
HYPRE times, 4096 cells/core, 2048 directions,
PCG res_thr = 10.

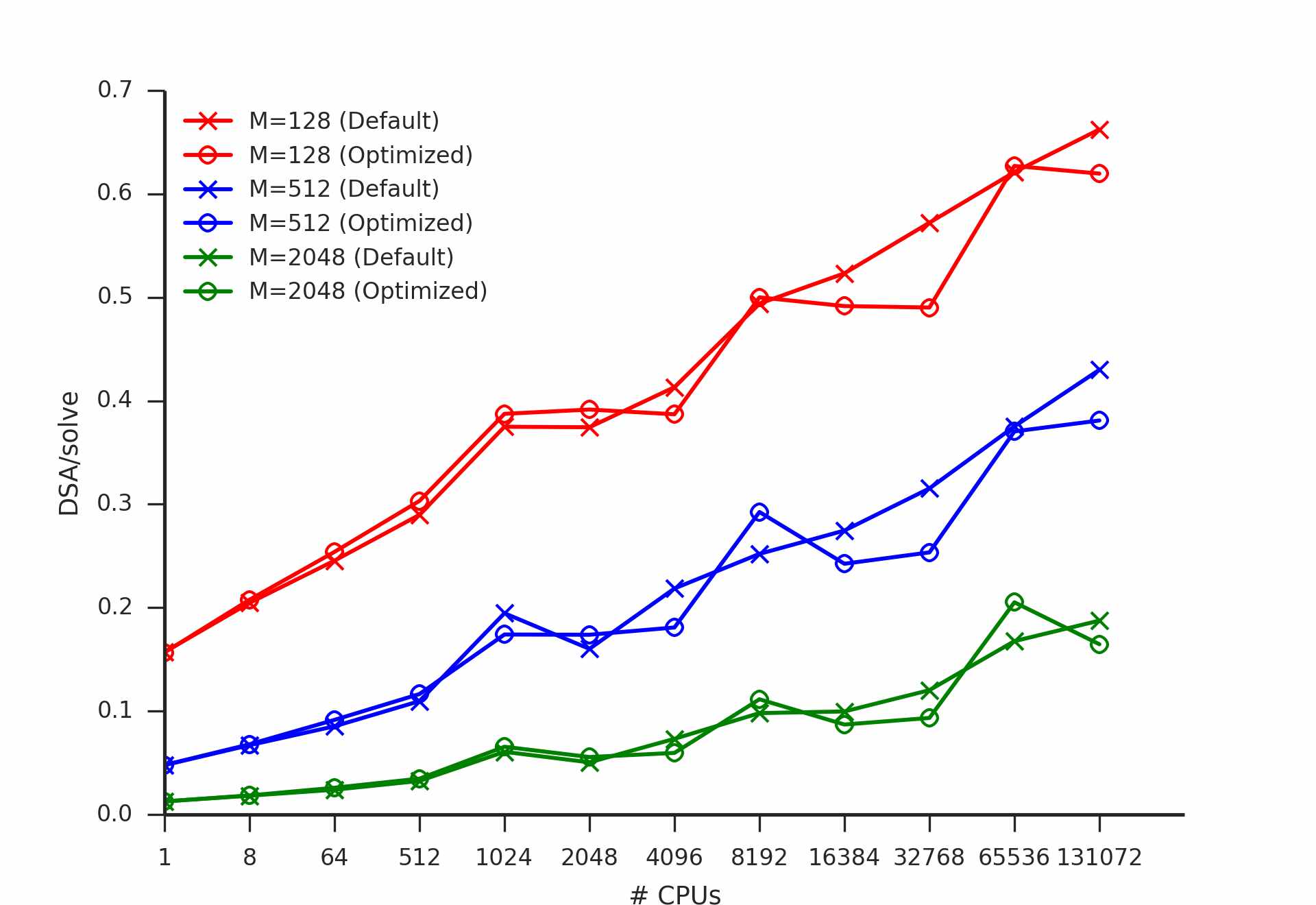

Figure 11: DSA/solve fractions, 512 cells/core, PCG res_thr = 10

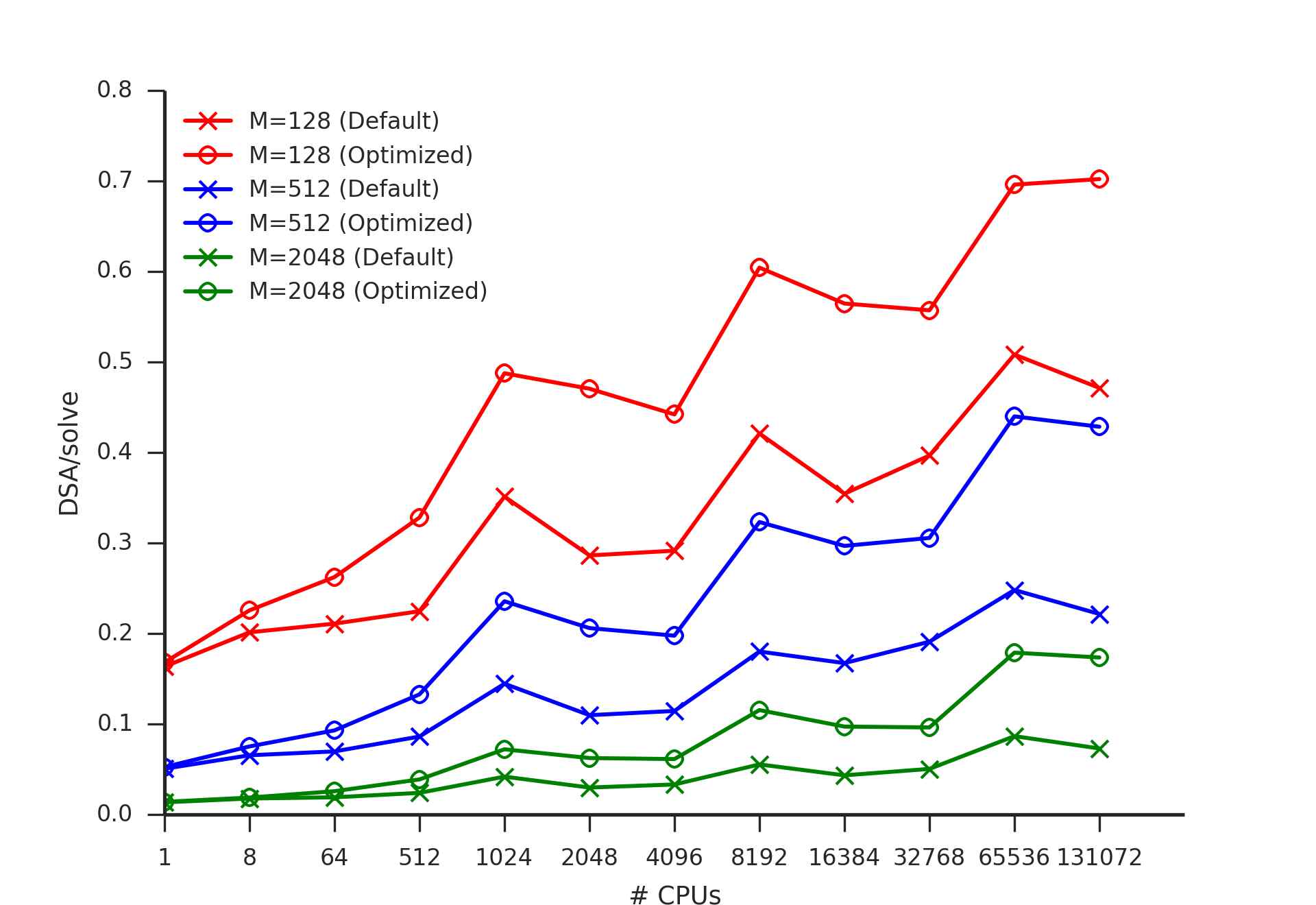

Figure 12: DSA/solve fractions, 4096 cells/core, PCG res_thr = 10

4 Volumetric partitioning

We solved the problem on 1, 8, 64, 512, 4096 and 32768 cores using the volumetric partitioning, creating a configuration that should be more favorable for the diffusion solver. We only tested the case with 2048 directions and empirically found the best angle aggregation for that configuration to be 8 angles per angle-set.

As expected, the DSA performed significantly better in this configuration, but the transport sweep times suffered and essentially swamped any gains from the faster DSA times (see Fig. 13 and 14). For the optimized settings, we only show graphs of just the DSA times, better showing the effect of changing parallel partitioning on HYPRE performance (Fig. 15 and 16). The DSA/total solve time ratios are compared in figures 17 and 18.

Figure 13:
Hybrid-KBA vs. volumetric – 512 cells/core, 2048 directions, default HYPRE parameters,
PCG max_it = 10. Left: all solve times, right: HYPRE-only times.
Figure 14:
Hybrid-KBA vs. volumetric – 4096 cells/core, 2048 directions, default HYPRE parameters,
PCG max_it = 10. Left: all solve times, right: HYPRE-only times.

.

Figure 15:
Hybrid-KBA vs. volumetric – 512 cells/core, 2048 directions,
Optimized HYPRE parameters with PCG res_thr = .

.

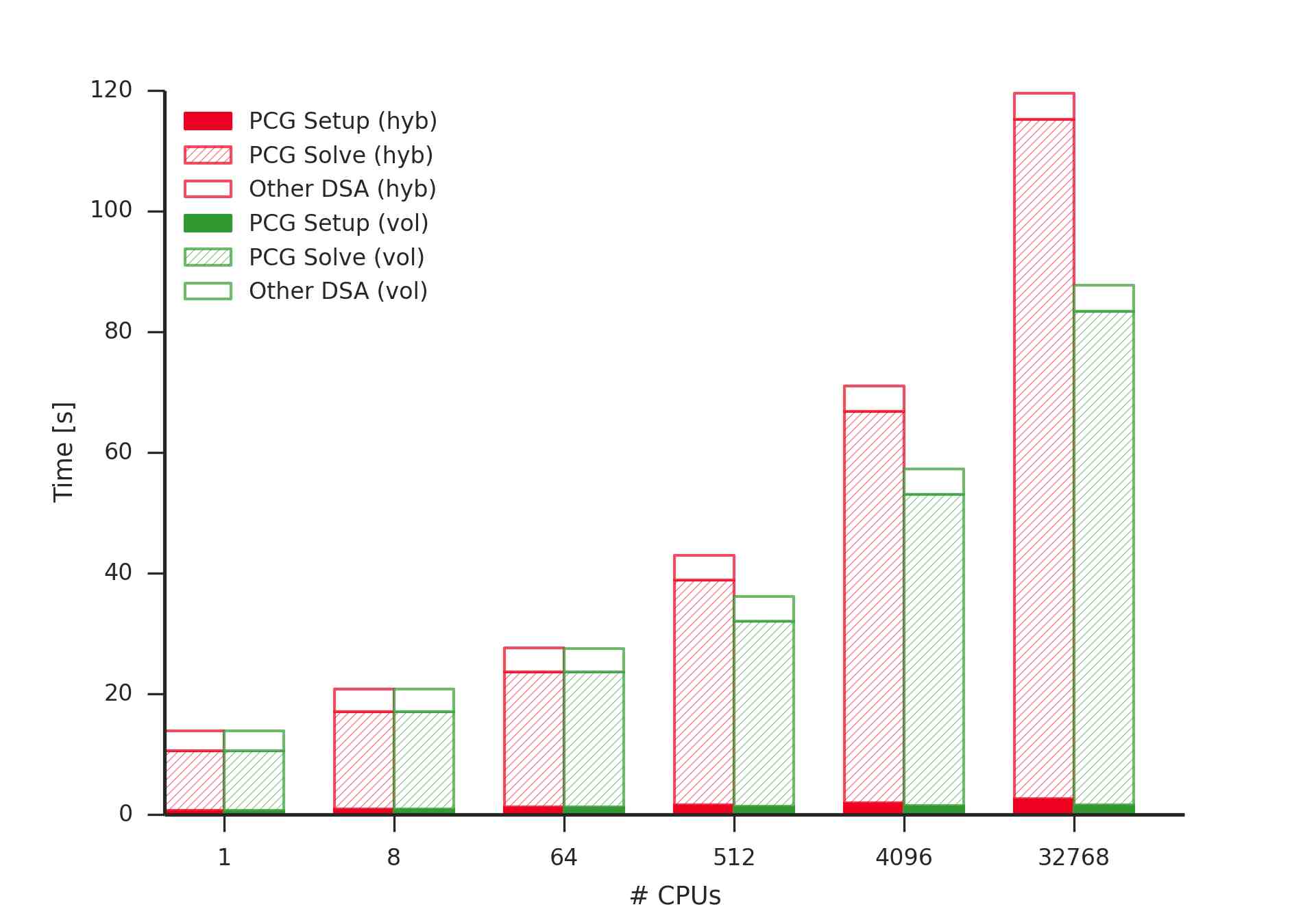

Figure 16:
Hybrid-KBA vs. volumetric – 4096 cells/core, 2048 directions,
Optimized HYPRE parameters with PCG res_thr = .

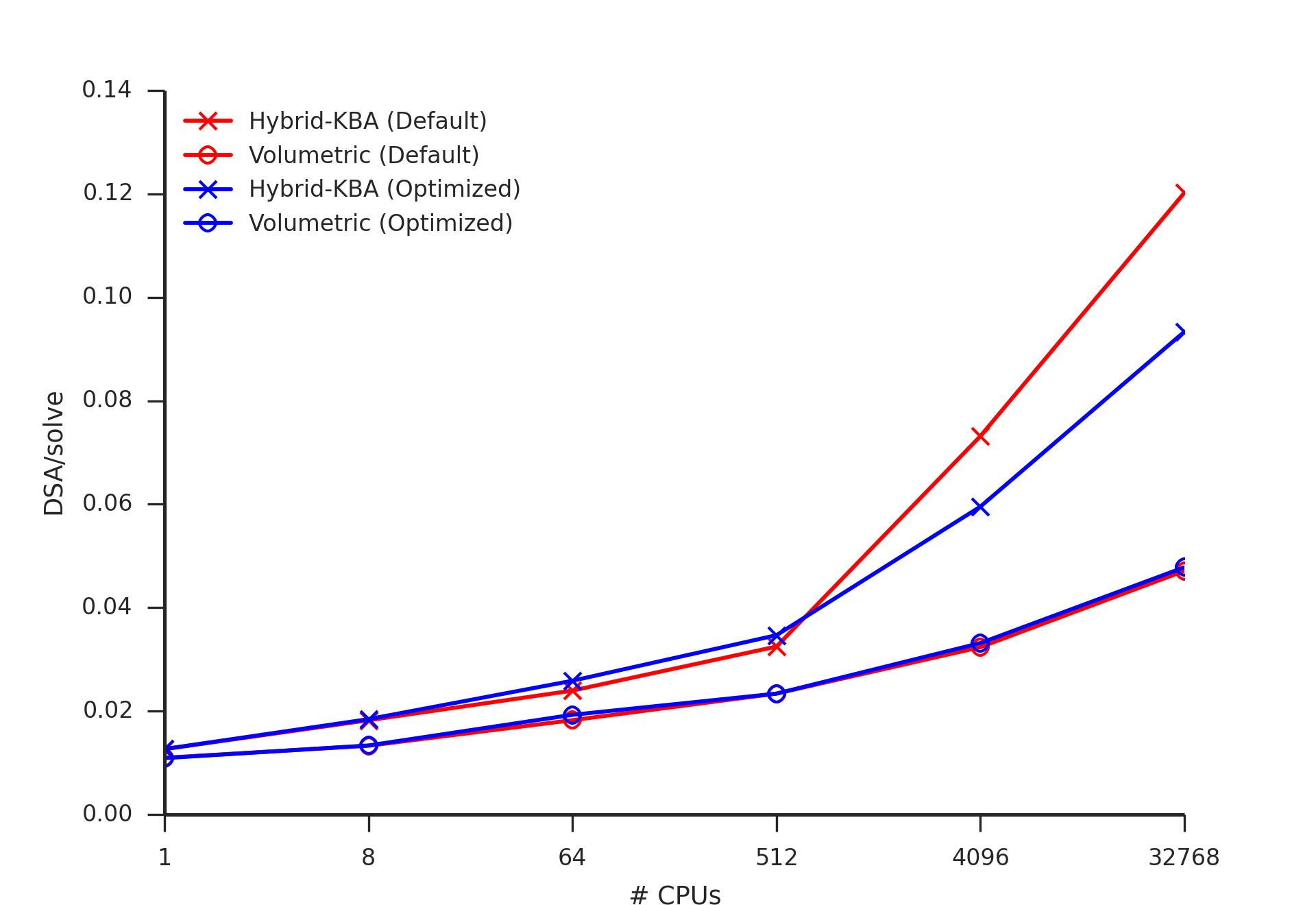

Figure 17:
Hybrid-KBA vs. volumetric
DSA/solve fractions, 512 cells/core, resid_thr = .

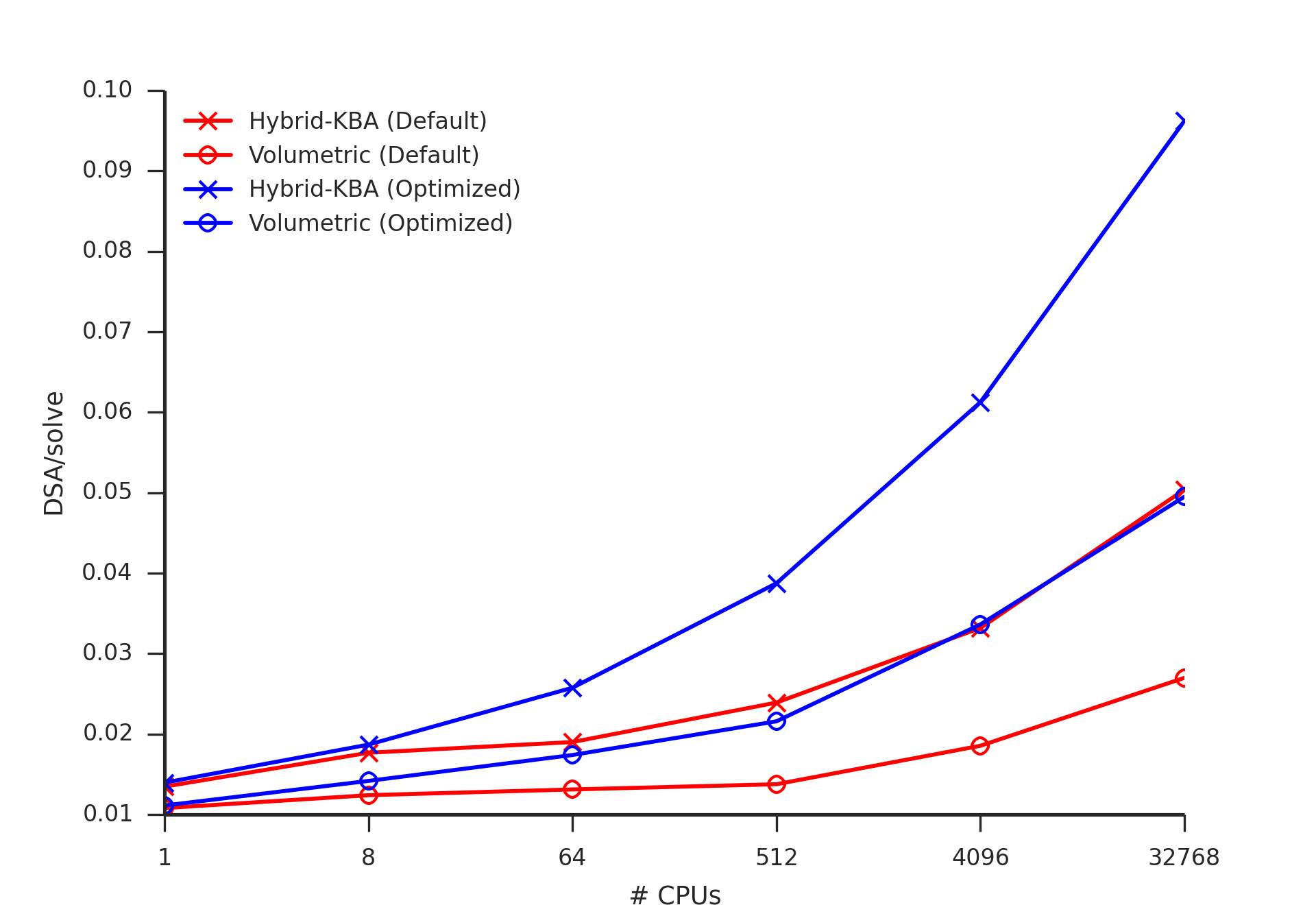

Figure 18:
Hybrid-KBA vs. volumetric
DSA/solve fractions, 4096 cells/core, resid_thr = .

5 Acknowledgements

This material is based upon work supported by the Department of Energy, National Nuclear Security Administration, under Award Number(s) DE-NA0002376. Established by Congress in 2000, NNSA is a semi-autonomous agency within the U.S. Department of Energy responsible for enhancing national security through the military application of nuclear science. NNSA maintains and enhances the safety, security, reliability and performance of the U.S. nuclear weapons stockpile without nuclear testing; works to reduce global danger from weapons of mass destruction; provides the U.S. Navy with safe and effective nuclear propulsion; and responds to nuclear and radiological emergencies in the U.S. and abroad.

References

Appendix A Raw Data

This appendix contains the raw data tables with the times, numbers of iterations and residuals from the performed runs. The times are reported in milliseconds. Other notes (see also the end of Sec. 3.1):

  • Overall = Sweep Setup + Sweep + WG DSA + unreported problem setup times

  • WG DSA = PCG Setup + PCG Solve + unreported other DSA times (mat/vec assembly, etc.)

  • Resid – the transport residual attained after 10 source iterations

  • PCG Resid – residual of the PCG solver attained after the total of PCG it iterations

#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default (max_it)

1 12500.0 802.0 7450.0 2860.0 82.3 2370.0 100 1.04903e-06 2.36344e-14 0.253097
8 14360.0 830.9 7823.0 3636.0 175.4 2902.0 100 5.34904e-06 1.66507e-10 0.288801
64 17530.0 826.8 9006.0 5275.0 320.1 4293.0 100 0.000510479 7.96546e-09 0.340323
512 20670.0 865.8 9943.0 7157.0 782.0 5615.0 100 0.00739123 6.53788e-09 0.387913
1024 26170.0 897.0 10440.0 11810.0 1767.0 9274.0 100 0.0111011 5.32665e-11 0.499155
2048 27280.0 903.1 10960.0 11950.0 2150.0 8980.0 100 0.0112932 7.13979e-10 0.491163
4096 29220.0 884.2 11620.0 12460.0 2842.0 8764.0 100 0.011109 1.69716e-08 0.488053
8192 37670.0 959.9 12260.0 19810.0 4889.0 14040.0 100 0.0111101 2.56958e-09 0.588882
16384 41550.0 965.8 13550.0 22340.0 6741.0 14700.0 100 0.010726 3.94823e-09 0.596369
32768 45850.0 958.0 14270.0 25440.0 8642.0 15860.0 100 0.00914706 3.92257e-07 0.615981
65536 57760.0 966.9 15770.0 35300.0 12520.0 21850.0 100 0.00914748 7.32815e-08 0.670084
131072 70480.0 1115.0 17490.0 44440.0 17430.0 26050.0 100 0.00891176 3.02956e-07 0.697098

Default (resid)

1 11500.0 809.0 7430.0 1570.0 82.2 1080.0 40 1.04922e-06 1.08824e-05 0.157
8 13660.0 837.8 7873.0 2320.0 176.5 1585.0 50 5.34917e-06 2.29012e-05 0.204586
64 16160.0 827.2 9032.0 3333.0 336.4 2339.0 50 0.000510497 8.25435e-05 0.245434
512 18300.0 857.1 9970.0 4613.0 787.4 3081.0 50 0.00739124 4.73157e-05 0.289761
1024 22680.0 889.8 10430.0 7097.0 1762.0 4577.0 44 0.0111011 1.59773e-05 0.374908
2048 22620.0 900.3 10940.0 7395.0 2123.0 4469.0 45 0.0112932 3.67704e-05 0.37443
4096 26020.0 881.4 11630.0 9201.0 2849.0 5518.0 58 0.011109 2.28592e-05 0.413157
8192 33460.0 956.0 12250.0 13470.0 4898.0 7704.0 50 0.0111101 7.01449e-05 0.493949
16384 35710.0 955.4 13520.0 16550.0 6752.0 8899.0 56 0.0107261 3.093e-05 0.523237
32768 41420.0 958.8 14220.0 21160.0 8697.0 11550.0 69 0.00914707 4.92867e-05 0.572201
65536 51370.0 951.4 15710.0 28410.0 12500.0 14980.0 65 0.00914745 9.52665e-05 0.621119
131072 64530.0 1115.0 17470.0 37840.0 17500.0 19390.0 71 0.00891174 8.73188e-05 0.662349

Optimized (resid)

1 11200.0 817.0 7390.0 1560.0 69.4 1090.0 41 1.04903e-06 1.13045e-05 0.156627
8 13010.0 839.2 7770.0 2338.0 137.5 1645.0 54 5.34948e-06 2.61807e-05 0.207638
64 15790.0 827.3 9036.0 3491.0 241.9 2589.0 66 0.00051053 3.84888e-05 0.253891
512 18460.0 859.8 9957.0 4921.0 357.6 3808.0 90 0.00739134 5.16197e-05 0.303204
1024 21710.0 893.2 10440.0 7492.0 577.9 6166.0 112 0.0111013 6.69757e-05 0.387384
2048 23020.0 892.6 10920.0 7948.0 586.4 6545.0 124 0.0112932 6.39623e-05 0.391527
4096 24260.0 881.3 11620.0 8250.0 537.6 6865.0 147 0.0111092 9.9524e-05 0.386961
8192 31500.0 949.0 12210.0 13790.0 916.2 12000.0 186 0.0111102 8.64342e-05 0.5
16384 34380.0 961.0 13510.0 14590.0 916.0 12760.0 207 0.0107261 7.33212e-05 0.491577
32768 35450.0 967.1 14200.0 15200.0 896.2 13380.0 241 0.00914717 8.24186e-05 0.490164
65536 51550.0 959.4 15640.0 29070.0 1519.0 26610.0 307 0.00914752 8.36885e-05 0.627049
131072 57420.0 1124.0 17380.0 31330.0 1605.0 28750.0 334 0.00891182 8.39437e-05 0.61966
Table 4: 512 cells/core, 128 directions, hybrid-KBA
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default (max_it)

1 35500.0 3130.0 27800.0 2860.0 82.3 2370.0 100 1.07371e-06 2.37575e-14 0.0841176
8 37820.0 3164.0 28600.0 3637.0 176.7 2904.0 100 5.54237e-06 1.65335e-10 0.101877
64 42600.0 3201.0 31580.0 5052.0 324.3 4058.0 100 0.00054167 1.04996e-09 0.125578
512 47260.0 3196.0 33860.0 7165.0 780.8 5619.0 100 0.00758877 6.43563e-09 0.16004
1024 56310.0 3263.0 33830.0 15910.0 1907.0 13230.0 100 0.0115247 5.24375e-11 0.297272
2048 53770.0 3243.0 35400.0 11820.0 2118.0 8880.0 100 0.011589 6.99219e-10 0.231856
4096 61500.0 3296.0 37650.0 15980.0 3929.0 11200.0 100 0.0113932 8.14588e-09 0.278058
8192 67630.0 3323.0 37430.0 22070.0 5080.0 16120.0 100 0.0113943 2.53077e-09 0.347997
16384 70770.0 3315.0 39820.0 22560.0 6730.0 14900.0 100 0.0109988 3.9089e-09 0.340169
32768 76030.0 3317.0 41990.0 25450.0 8682.0 15820.0 100 0.00943057 3.81094e-07 0.356443
65536 92270.0 3470.0 45680.0 36600.0 12470.0 23180.0 100 0.00943101 1.27278e-07 0.423317
131072 104100.0 3468.0 47800.0 45410.0 17470.0 26980.0 100 0.00917903 2.96668e-07 0.465935

Default (resid)

1 34400.0 3140.0 28000.0 1570.0 82.4 1080.0 40 1.0739e-06 1.08638e-05 0.0477204
8 36570.0 3161.0 28760.0 2315.0 174.2 1585.0 50 5.54251e-06 2.29668e-05 0.0670237
64 40920.0 3167.0 31760.0 3294.0 325.5 2302.0 52 0.000541706 1.70803e-05 0.0852926
512 44730.0 3193.0 34040.0 4643.0 789.9 3100.0 50 0.00758879 4.65253e-05 0.109608
1024 49580.0 3249.0 34010.0 9127.0 1901.0 6458.0 44 0.0115248 1.57449e-05 0.194606
2048 49730.0 3226.0 35410.0 7469.0 2138.0 4513.0 45 0.0115889 3.60819e-05 0.160142
4096 57610.0 3269.0 37740.0 11630.0 3950.0 6829.0 57 0.0113933 4.12366e-05 0.218527
8192 62210.0 3296.0 37570.0 13970.0 4961.0 8129.0 50 0.0113943 6.9492e-05 0.251984
16384 64790.0 3292.0 39970.0 16610.0 6758.0 8926.0 56 0.0109988 3.03171e-05 0.274545
32768 71970.0 3289.0 42100.0 21200.0 8683.0 11580.0 69 0.00943058 4.81038e-05 0.315289
65536 85290.0 3457.0 45400.0 29770.0 12440.0 16380.0 68 0.00943097 3.34576e-05 0.375268
131072 98640.0 3466.0 47990.0 39410.0 17660.0 20790.0 71 0.00917902 8.55293e-05 0.430005

Optimized (resid)

1 34100.0 3150.0 27800.0 1560.0 69.3 1090.0 41 1.07371e-06 1.12791e-05 0.0478528
8 36100.0 3153.0 28330.0 2315.0 136.7 1619.0 53 5.54271e-06 2.63684e-05 0.0678687
64 40890.0 3164.0 31510.0 3532.0 237.5 2624.0 68 0.000541674 2.75909e-05 0.0914789
512 44630.0 3193.0 33630.0 4918.0 360.1 3799.0 90 0.00758889 5.11703e-05 0.116457
1024 48230.0 3250.0 33920.0 7937.0 626.0 6557.0 112 0.011525 6.58878e-05 0.174019
2048 50040.0 3226.0 35110.0 8180.0 595.4 6757.0 124 0.011589 6.27538e-05 0.173784
4096 53710.0 3268.0 37460.0 9119.0 662.4 7589.0 151 0.0113937 7.17866e-05 0.180825
8192 62380.0 3289.0 37290.0 17040.0 1155.0 15000.0 186 0.0113944 8.70697e-05 0.292482
16384 61740.0 3296.0 39610.0 13940.0 859.3 12150.0 207 0.0109989 7.1832e-05 0.242435
32768 65950.0 3296.0 41830.0 15540.0 907.3 13690.0 241 0.00943068 8.01564e-05 0.253425
65536 84330.0 3469.0 45140.0 29020.0 1879.0 26190.0 315 0.00943104 7.57143e-05 0.370389
131072 90480.0 3474.0 47450.0 31820.0 1608.0 29240.0 334 0.0091791 8.21673e-05 0.380941
Table 5: 512 cells/core, 512 directions, hybrid-KBA
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default

1 128000.0 12200.0 110000.0 2870.0 82.2 2370.0 100 1.07974e-06 2.37906e-14 0.0227778
8 131300.0 12250.0 112000.0 3649.0 174.4 2906.0 100 5.58992e-06 1.65124e-10 0.0284633
64 142100.0 12320.0 121000.0 5062.0 323.6 4066.0 100 0.000549206 1.04522e-09 0.0364697
512 148600.0 12380.0 125000.0 7252.0 785.0 5710.0 100 0.00763565 6.41056e-09 0.0499793
1024 156900.0 12460.0 124800.0 15410.0 1914.0 12720.0 100 0.0116384 5.22424e-11 0.100587
2048 157000.0 12400.0 128200.0 12120.0 2133.0 9160.0 100 0.0116591 6.95476e-10 0.0790607
4096 167300.0 12500.0 133300.0 15960.0 3938.0 11170.0 100 0.0114607 8.10848e-09 0.0983364
8192 176000.0 12510.0 133500.0 24120.0 5053.0 18180.0 100 0.0114618 2.52214e-09 0.141218
16384 179200.0 12520.0 137800.0 22830.0 6751.0 15150.0 100 0.0110636 3.90361e-09 0.131358
32768 186700.0 12500.0 142000.0 25940.0 8690.0 16300.0 100 0.00949775 3.78613e-07 0.143236
65536 219800.0 12740.0 149000.0 50430.0 12860.0 36600.0 100 0.00949819 1.26525e-07 0.236761
131072 219700.0 12710.0 153300.0 45430.0 17480.0 26950.0 100 0.00924395 2.95089e-07 0.21399

Optimized

1 128000.0 12200.0 111000.0 2830.0 69.3 2350.0 100 1.07974e-06 1.73123e-13 0.0224603
8 130800.0 12250.0 111700.0 3533.0 137.1 2826.0 100 5.58992e-06 6.0878e-10 0.0276448
64 141300.0 12310.0 120700.0 4586.0 236.8 3680.0 100 0.0005492 2.24944e-07 0.0332319
512 146900.0 12380.0 125300.0 5338.0 358.7 4220.0 100 0.00763821 5.4886e-06 0.0372245
1024 150600.0 12420.0 125100.0 8901.0 791.5 7340.0 100 0.0116623 3.31873e-05 0.0605922
2048 151800.0 12400.0 128000.0 6897.0 591.4 5474.0 100 0.0117057 6.25597e-05 0.0466329
4096 157100.0 12490.0 133000.0 6765.0 658.2 5238.0 100 0.011534 0.000184994 0.0442736
8192 162500.0 12490.0 133400.0 10910.0 1179.0 8835.0 100 0.011464 0.000392088 0.0693139
16384 165100.0 12520.0 137700.0 8512.0 931.4 6644.0 100 0.0114799 0.00082181 0.0534003
32768 168900.0 12500.0 142100.0 8048.0 918.3 6180.0 100 0.00999497 0.00374776 0.0492534
65536 185100.0 12730.0 149000.0 15870.0 2216.0 12680.0 100 0.00971854 0.0673185 0.0889574
131072 186900.0 12710.0 153600.0 12240.0 1653.0 9583.0 100 0.0104379 0.114973 0.0682655
Table 6: 512 cells/core, 2048 directions, hybrid-KBA, PCG max_it = 10
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default

1 128000.0 12200.0 111000.0 1580.0 82.2 1080.0 40 1.07993e-06 1.0859e-05 0.01264
8 130700.0 12250.0 112800.0 2327.0 174.2 1584.0 50 5.59006e-06 2.2993e-05 0.0182224
64 140900.0 12310.0 121600.0 3297.0 325.2 2303.0 52 0.000549243 1.70031e-05 0.0239608
512 146900.0 12360.0 126000.0 4660.0 787.1 3121.0 50 0.00763566 4.63282e-05 0.0324739
1024 151200.0 12410.0 125600.0 8940.0 1914.0 6259.0 44 0.0116384 1.56899e-05 0.0606102
2048 153000.0 12390.0 128500.0 7513.0 2161.0 4538.0 45 0.0116591 3.58998e-05 0.0504228
4096 163600.0 12480.0 133700.0 11590.0 3939.0 6795.0 57 0.0114608 4.10403e-05 0.0731692
8192 168000.0 12480.0 133800.0 15970.0 5087.0 9995.0 50 0.0114618 6.93691e-05 0.0980356
16384 173800.0 12500.0 138600.0 16800.0 6755.0 9127.0 56 0.0110636 3.01657e-05 0.0996441
32768 182600.0 12490.0 142500.0 21280.0 8680.0 11650.0 69 0.00949776 4.78138e-05 0.120226
65536 202900.0 12710.0 149400.0 32820.0 12550.0 19300.0 68 0.00949815 3.32758e-05 0.16762
131072 214700.0 12690.0 154400.0 38730.0 17660.0 20080.0 71 0.00924394 8.50846e-05 0.187464

Optimized

1 126000.0 12200.0 110000.0 1570.0 69.4 1090.0 41 1.07974e-06 1.12727e-05 0.0126613
8 128800.0 12240.0 111000.0 2321.0 137.2 1620.0 53 5.59029e-06 2.65561e-05 0.0184353
64 139700.0 12290.0 120100.0 3528.0 236.4 2622.0 68 0.000549211 2.75039e-05 0.0258651
512 145800.0 12370.0 124700.0 4940.0 356.0 3824.0 90 0.00763576 5.10912e-05 0.0346667
1024 150600.0 12410.0 124500.0 9629.0 798.3 8069.0 112 0.0116387 6.56522e-05 0.0655034
2048 152500.0 12400.0 127300.0 8250.0 615.5 6804.0 124 0.0116592 6.24734e-05 0.0555556
4096 158900.0 12490.0 132400.0 9205.0 663.6 7668.0 151 0.0114612 7.1473e-05 0.0595408
8192 169100.0 12490.0 132600.0 18270.0 1280.0 16100.0 186 0.0114619 8.73392e-05 0.111402
16384 169800.0 12520.0 137000.0 14310.0 882.1 12490.0 207 0.0110637 7.14696e-05 0.0869909
32768 175900.0 12500.0 141100.0 15890.0 921.8 14010.0 241 0.00949786 7.95755e-05 0.0933608
65536 211700.0 12730.0 149100.0 42000.0 2312.0 38690.0 315 0.00949822 7.58443e-05 0.205178
131072 207000.0 12710.0 152700.0 32740.0 1649.0 30090.0 334 0.00924402 8.17431e-05 0.164605
Table 7: 512 cells/core, 2048 directions, hybrid-KBA, PCG resid_thr =
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default (max_it

1 101000.0 6150.0 60900.0 24100.0 801.0 19900.0 100 5.34904e-06 2.89473e-13 0.259978
8 128300.0 6232.0 63370.0 30850.0 1224.0 25870.0 100 0.000510479 1.85541e-09 0.301859
64 122300.0 6287.0 67930.0 34360.0 1626.0 28790.0 100 0.00739123 4.01045e-09 0.310669
512 129300.0 6332.0 71000.0 37060.0 2277.0 30730.0 100 0.011109 1.13482e-08 0.318385
1024 162900.0 6430.0 71580.0 69620.0 5650.0 59920.0 100 0.0111101 6.29845e-09 0.464753
2048 145200.0 6439.0 72920.0 49830.0 4001.0 41660.0 100 0.010726 2.74078e-09 0.379513
4096 142800.0 6380.0 75220.0 44390.0 4842.0 35340.0 100 0.00914706 1.50376e-07 0.346256
8192 185600.0 6593.0 77800.0 82620.0 10870.0 67490.0 100 0.00914749 1.85122e-07 0.487721
16384 168100.0 6728.0 79370.0 62630.0 9681.0 48660.0 100 0.00891176 1.92608e-07 0.414768
32768 171100.0 6691.0 81990.0 60820.0 12430.0 44070.0 100 0.00787385 1.21658e-05 0.400659
65536 232100.0 6977.0 88940.0 108800.0 26800.0 77620.0 100 0.00787421 7.42293e-06 0.524843
131072 229200.0 7062.0 91710.0 96550.0 23810.0 68290.0 100 0.00780639 5.61631e-06 0.488119

Default (resid)

1 91400.0 6270.0 61400.0 13500.0 795.0 9390.0 42 5.3501e-06 1.52647e-05 0.163438
8 116300.0 6338.0 63540.0 18050.0 1204.0 13160.0 46 0.000510495 3.21374e-05 0.201316
64 108400.0 6344.0 68240.0 20430.0 1633.0 14940.0 47 0.00739118 2.28238e-05 0.210901
512 115000.0 6333.0 71040.0 23000.0 2276.0 16770.0 50 0.011109 8.81729e-05 0.224609
1024 144600.0 6485.0 71920.0 43590.0 6391.0 33220.0 51 0.0111101 6.8356e-05 0.351249
2048 128000.0 6427.0 73260.0 32780.0 3956.0 24750.0 56 0.0107261 2.35431e-05 0.286288
4096 134000.0 6387.0 75400.0 34540.0 4889.0 25550.0 69 0.00914706 4.49515e-05 0.291477
8192 168300.0 6581.0 77830.0 63020.0 10880.0 47970.0 68 0.00914745 4.11459e-05 0.420975
16384 158300.0 6719.0 80100.0 48920.0 9717.0 35000.0 69 0.00891175 6.30107e-05 0.354493
32768 171100.0 6678.0 82210.0 59970.0 12600.0 43140.0 97 0.00787385 3.75653e-05 0.396627
65536 226900.0 6961.0 89050.0 101800.0 26770.0 70750.0 90 0.00787413 6.1537e-05 0.508238
131072 228300.0 7066.0 92190.0 90640.0 23880.0 62360.0 90 0.0078064 6.67985e-05 0.471347

Optimized (resid)

1 91400.0 6380.0 60900.0 13900.0 632.0 9900.0 46 5.34946e-06 1.55027e-05 0.168077
8 117900.0 6375.0 63080.0 20740.0 900.4 16150.0 60 0.000510771 8.10579e-05 0.225557
64 114900.0 6344.0 68130.0 27180.0 1171.0 22140.0 77 0.00739133 7.39023e-05 0.262355
512 131000.0 6336.0 71210.0 38890.0 1363.0 33530.0 118 0.0111093 7.51212e-05 0.328186
1024 169500.0 6510.0 71480.0 76250.0 2532.0 69750.0 159 0.0111104 8.98174e-05 0.487532
2048 167300.0 6435.0 72860.0 72360.0 2449.0 65800.0 181 0.010726 7.04623e-05 0.470481
4096 164200.0 6396.0 75000.0 66270.0 1722.0 60410.0 210 0.00914711 8.95374e-05 0.442095
8192 235200.0 6604.0 77640.0 132400.0 3563.0 124700.0 275 0.00914754 7.18688e-05 0.60429
16384 220700.0 6741.0 79550.0 114900.0 2975.0 107700.0 301 0.00891179 7.28596e-05 0.564619
32768 224600.0 6711.0 81620.0 114100.0 2341.0 107500.0 354 0.00787387 9.08799e-05 0.557129
65536 349200.0 7035.0 88520.0 224600.0 9851.0 210400.0 454 0.00787413 8.95597e-05 0.696002
131072 373800.0 7083.0 91230.0 237600.0 4946.0 228300.0 496 0.00780644 9.98562e-05 0.702128
Table 8: 4096 cells/core, 128 directions, hybrid-KBA
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default (max_it)

1 287000.0 24800.0 226000.0 24000.0 795.0 19900.0 100 5.54237e-06 2.9486e-13 0.0869565
8 315300.0 24900.0 229800.0 30810.0 1223.0 25860.0 100 0.00054167 1.81016e-09 0.10724
64 319800.0 25070.0 244800.0 34650.0 1872.0 28860.0 100 0.00758877 1.88624e-10 0.113087
512 333600.0 25240.0 252600.0 38680.0 2700.0 31940.0 100 0.0113932 8.43999e-09 0.121406
1024 368200.0 25410.0 251800.0 73460.0 8119.0 61270.0 100 0.0113943 6.89169e-09 0.208279
2048 353700.0 25460.0 257800.0 52060.0 5076.0 42830.0 100 0.0109988 5.61461e-09 0.154298
4096 355700.0 25440.0 262400.0 49340.0 6347.0 38800.0 100 0.00943057 1.0959e-07 0.145417
8192 395400.0 25440.0 264000.0 85280.0 11050.0 70010.0 100 0.00943101 1.81165e-07 0.226147
16384 394700.0 25800.0 271000.0 76090.0 14320.0 57440.0 100 0.00917904 3.42193e-07 0.202799
32768 410000.0 25850.0 281500.0 77970.0 19520.0 54060.0 100 0.00812518 6.63397e-06 0.201109
65536 448400.0 25880.0 281600.0 111600.0 27160.0 80130.0 100 0.00812554 7.29787e-06 0.264706
131072 446800.0 25930.0 288600.0 96440.0 23750.0 68250.0 100 0.00804959 5.4844e-06 0.233285

Default (resid)

1 277000.0 24900.0 227000.0 13500.0 795.0 9390.0 42 5.54345e-06 1.52623e-05 0.0505618
8 304200.0 25080.0 231200.0 18070.0 1224.0 13160.0 46 0.000541686 3.19823e-05 0.0654473
64 306500.0 25010.0 245300.0 20400.0 1782.0 14730.0 46 0.00758876 2.6439e-05 0.0697198
512 321700.0 25170.0 253100.0 26430.0 2766.0 19640.0 57 0.0113934 3.92945e-05 0.0861193
1024 345300.0 25220.0 252600.0 47290.0 8180.0 35070.0 53 0.0113944 8.64778e-05 0.144485
2048 339400.0 25310.0 259700.0 35420.0 5097.0 26180.0 57 0.0109988 3.03615e-05 0.109761
4096 345600.0 25320.0 264100.0 37690.0 6370.0 27160.0 67 0.00943057 3.59235e-05 0.11442
8192 375000.0 25500.0 264900.0 64290.0 11070.0 49020.0 68 0.00943097 4.01691e-05 0.180084
16384 382600.0 25680.0 272600.0 60430.0 14320.0 41800.0 70 0.00917904 8.14918e-05 0.167303
32768 407500.0 25680.0 282200.0 73250.0 19550.0 49330.0 90 0.00812517 6.29388e-05 0.190904
65536 442100.0 25770.0 282500.0 102600.0 27130.0 71190.0 90 0.00812545 6.02556e-05 0.248066
131072 446300.0 25880.0 289800.0 90540.0 23880.0 62240.0 90 0.0080496 6.53035e-05 0.221586

Optimized (resid)

1 275000.0 24900.0 224000.0 13900.0 632.0 9900.0 46 5.54284e-06 1.55307e-05 0.0524528
8 304100.0 24870.0 228900.0 20780.0 901.9 16180.0 60 0.00054197 7.97816e-05 0.0752081
64 310500.0 24900.0 242600.0 27620.0 1214.0 22490.0 78 0.00758879 7.53747e-05 0.0929653
512 335800.0 25080.0 251100.0 42590.0 1522.0 37010.0 128 0.0113934 7.65995e-05 0.13272
1024 380000.0 25340.0 251200.0 85910.0 4621.0 77260.0 167 0.0113945 7.20037e-05 0.235628
2048 373500.0 25240.0 256500.0 73660.0 2727.0 66780.0 184 0.0109988 8.42845e-05 0.205984
4096 375600.0 25300.0 260600.0 70980.0 1955.0 64850.0 222 0.00943066 8.82642e-05 0.197606
8192 447500.0 25330.0 262900.0 138800.0 3890.0 130700.0 273 0.00943109 9.82894e-05 0.323166
16384 442800.0 25660.0 269600.0 125600.0 3477.0 117800.0 314 0.00917908 7.3526e-05 0.296786
32768 466500.0 25690.0 279700.0 135500.0 3160.0 128000.0 379 0.0081252 8.80789e-05 0.305593
65536 581100.0 25780.0 281100.0 243100.0 10440.0 228300.0 454 0.00812545 8.83663e-05 0.43992
131072 588900.0 25890.0 286800.0 236300.0 4975.0 226900.0 492 0.00804962 9.74965e-05 0.428468
Table 9: 4096 cells/core, 512 directions, hybrid-KBA
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default

1 1.03e+06 97300.0 890000.0 24000.0 796.0 19900.0 100 5.58992e-06 2.96587e-13 0.0237624
8 1.118e+06 97490.0 953000.0 30820.0 1228.0 25870.0 100 0.000549206 1.79778e-09 0.028458
64 1.108e+06 97700.0 953400.0 34730.0 1878.0 28900.0 100 0.00763565 1.87927e-10 0.031921
512 1.131e+06 98210.0 969600.0 38720.0 2707.0 31930.0 100 0.0114607 8.39906e-09 0.0349143
1024 1.157e+06 98100.0 961300.0 72130.0 8118.0 59940.0 100 0.0114618 6.85756e-09 0.0636067
2048 1.15e+06 98110.0 977500.0 49290.0 3946.0 41210.0 100 0.0110636 2.66825e-09 0.0437356
4096 1.168e+06 98420.0 993900.0 49310.0 6375.0 38720.0 100 0.00949775 1.0866e-07 0.0431031
8192 1.212e+06 98380.0 999900.0 84850.0 11020.0 69590.0 100 0.00949819 1.80201e-07 0.071543
16384 1.203e+06 98760.0 1.011e+06 64160.0 9772.0 50110.0 100 0.00924395 1.86879e-07 0.0545578
32768 1.218e+06 98690.0 1.027e+06 61290.0 12630.0 44340.0 100 0.00818814 1.18581e-05 0.0515042
65536 1.275e+06 99420.0 1.028e+06 111000.0 27160.0 79410.0 100 0.00818851 7.26453e-06 0.089444
131072 1.289e+06 99150.0 1.049e+06 97590.0 23980.0 69150.0 100 0.00810869 5.44987e-06 0.0781971

Optimized

1 1.03e+06 97300.0 890000.0 23500.0 633.0 19500.0 100 5.58992e-06 1.54629e-12 0.0232673
8 1.077e+06 97430.0 912600.0 30030.0 898.2 25400.0 100 0.000549208 3.68151e-08 0.0288196
64 1.107e+06 97520.0 953600.0 33230.0 1223.0 28060.0 100 0.00763603 1.33312e-06 0.0305985
512 1.128e+06 98200.0 969400.0 35420.0 1543.0 29790.0 100 0.0114842 7.62847e-05 0.0320543
1024 1.136e+06 98060.0 957100.0 55370.0 4498.0 46800.0 100 0.0114628 0.000224632 0.0497484
2048 1.147e+06 98110.0 979000.0 44080.0 2410.0 37520.0 100 0.0112596 0.000563262 0.039252
4096 1.158e+06 98480.0 995200.0 37390.0 1984.0 31170.0 100 0.00976431 0.00185806 0.0330009
8192 1.186e+06 98510.0 999500.0 59600.0 3978.0 51370.0 100 0.00941109 0.0180021 0.0513793
16384 1.189e+06 98760.0 1.012e+06 48790.0 3397.0 41100.0 100 0.0096765 0.0436702 0.041988
32768 1.199e+06 98690.0 1.028e+06 40960.0 2596.0 34060.0 100 0.00913887 0.282704 0.0350085
65536 1.234e+06 99420.0 1.029e+06 69350.0 10530.0 54420.0 100 0.00911621 1.79503 0.0577917
131072 1.252e+06 99160.0 1.048e+06 60350.0 5246.0 50630.0 100 0.0188287 5.81354 0.049876
Table 10: 4096 cells/core, 2048 directions, hybrid-KBA, PCG max_it = 10
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Default

1 1.02e+06 97300.0 893000.0 13600.0 796.0 9390.0 42 5.59101e-06 1.52682e-05 0.0134653
8 1.06e+06 97440.0 907300.0 18120.0 1227.0 13180.0 46 0.000549223 3.19653e-05 0.017678
64 1.095e+06 97410.0 955000.0 20430.0 1781.0 14720.0 46 0.00763564 2.63186e-05 0.0190047
512 1.124e+06 98120.0 975400.0 26350.0 2741.0 19560.0 57 0.0114609 3.91109e-05 0.0239111
1024 1.134e+06 98060.0 964300.0 46460.0 8122.0 34290.0 53 0.0114618 8.61561e-05 0.0418182
2048 1.141e+06 98000.0 983900.0 33280.0 4014.0 25130.0 56 0.0110636 2.29174e-05 0.0297941
4096 1.162e+06 98400.0 999100.0 37740.0 6383.0 27160.0 67 0.00949776 3.56838e-05 0.0331926
8192 1.195e+06 98300.0 1.003e+06 64700.0 11090.0 49410.0 68 0.00949815 3.99183e-05 0.0553464
16384 1.196e+06 98670.0 1.018e+06 50600.0 9819.0 36520.0 69 0.00924394 6.1145e-05 0.0432849
32768 1.224e+06 98600.0 1.033e+06 60200.0 12630.0 43280.0 97 0.00818815 3.6656e-05 0.0503766
65536 1.28e+06 99320.0 1.034e+06 107700.0 27370.0 76020.0 90 0.00818842 5.99059e-05 0.0865756
131072 1.292e+06 99140.0 1.054e+06 90970.0 24090.0 62440.0 90 0.0081087 6.49262e-05 0.0729511

Optimized

1 1.01e+06 97300.0 883000.0 13900.0 633.0 9910.0 46 5.59041e-06 1.55471e-05 0.0139558
8 1.147e+06 97400.0 991700.0 20780.0 899.8 16160.0 60 0.000549509 7.94732e-05 0.0186871
64 1.093e+06 97490.0 945300.0 27610.0 1221.0 22460.0 78 0.00763566 7.50685e-05 0.0257556
512 1.131e+06 98190.0 965400.0 42970.0 1550.0 37340.0 128 0.0114608 7.62723e-05 0.0387466
1024 1.16e+06 98090.0 954600.0 81910.0 4405.0 73460.0 166 0.0114619 7.20312e-05 0.0720405
2048 1.169e+06 98060.0 974000.0 71490.0 2388.0 64960.0 181 0.0110636 6.82923e-05 0.0623822
4096 1.184e+06 98450.0 988600.0 71060.0 1957.0 64880.0 222 0.00949784 8.76406e-05 0.0612586
8192 1.264e+06 98410.0 994400.0 142800.0 4130.0 134400.0 273 0.00949827 9.77687e-05 0.115347
16384 1.254e+06 98720.0 1.007e+06 119300.0 3190.0 111800.0 296 0.00924396 9.87909e-05 0.0971498
32768 1.273e+06 98640.0 1.022e+06 119600.0 2634.0 112600.0 354 0.00818816 8.82394e-05 0.0962188
65536 1.406e+06 99230.0 1.023e+06 245000.0 10610.0 230000.0 454 0.00818843 8.80992e-05 0.178832
131072 1.43e+06 99130.0 1.042e+06 240300.0 5198.0 230600.0 492 0.00810872 9.6962e-05 0.173502
Table 11: 4096 cells/core, 2048 directions, hybrid-KBA, PCG resid_thr = 10
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Def. (max_it)

1 148000.0 12900.0 129000.0 2880.0 82.7 2380.0 100 1.07974e-06 2.37906e-14 0.0198621
8 179900.0 13020.0 159600.0 3655.0 176.1 2911.0 100 5.58992e-06 1.65124e-10 0.0206965
64 188600.0 12880.0 166200.0 5295.0 344.6 4271.0 100 0.000549206 7.4149e-09 0.0286526
512 195700.0 12930.0 171300.0 7017.0 767.9 5485.0 100 0.00763565 4.17207e-09 0.036585
4096 206100.0 12970.0 178700.0 9478.0 1687.0 6944.0 100 0.0114607 1.76634e-08 0.0469673
32768 228500.0 12990.0 196300.0 13220.0 3093.0 9186.0 100 0.00949775 1.05777e-07 0.0592294

Def. (resid)

1 147000.0 12900.0 129000.0 1580.0 82.7 1080.0 40 1.07993e-06 1.0859e-05 0.0109722
8 179700.0 13120.0 160500.0 2344.0 180.6 1593.0 50 5.59006e-06 2.2993e-05 0.0132955
64 188400.0 12870.0 167600.0 3361.0 345.9 2337.0 50 0.000549215 8.56364e-05 0.0182465
512 193700.0 12910.0 171900.0 4437.0 773.9 2893.0 48 0.00763563 4.0598e-05 0.0233772
4096 204000.0 12980.0 179500.0 6460.0 1695.0 3913.0 52 0.0114607 7.42235e-05 0.0323647
32768 226800.0 12980.0 197400.0 10440.0 3093.0 6403.0 67 0.00949774 2.78747e-05 0.0471119

Opt. (resid)

1 147000.0 12900.0 129000.0 1570.0 69.9 1090.0 41 1.07974e-06 1.12727e-05 0.0109028
8 178700.0 12990.0 159700.0 2340.0 140.9 1624.0 53 5.59029e-06 2.65561e-05 0.0133485
64 188000.0 12890.0 167400.0 3553.0 267.0 2607.0 65 0.000549322 3.53054e-05 0.0192784
512 193900.0 12920.0 172100.0 4441.0 342.6 3332.0 79 0.00763571 7.73984e-05 0.0233737
4096 204800.0 13000.0 179400.0 6621.0 434.8 5337.0 124 0.0114608 8.91349e-05 0.0331547
32768 227000.0 12960.0 197400.0 10600.0 548.7 9107.0 205 0.00949778 6.96932e-05 0.0478124
Table 12: 512 cells/core, 2048 directions, volumetric
#cores Overall Sweep Setup Sweep WG DSA PCG Setup PCG Solve PCG it Resid PCG Resid DSA/Solve

Def. (max_it)

1 1.3e+06 102000.0 1.14e+06 24000.0 794.0 19900.0 100 5.58992e-06 2.96587e-13 0.0188976
8 1.494e+06 102200.0 1.335e+06 30850.0 1224.0 25900.0 100 0.000549206 1.79778e-09 0.0210007
64 1.613e+06 101500.0 1.45e+06 34500.0 1676.0 28890.0 100 0.00763565 3.41888e-09 0.0217254
512 1.699e+06 101600.0 1.533e+06 36570.0 2244.0 30280.0 100 0.0114607 9.63288e-09 0.0218589
4096 1.714e+06 101800.0 1.541e+06 41130.0 3741.0 33240.0 100 0.00949775 9.10618e-08 0.0243806
32768 1.761e+06 102100.0 1.582e+06 47020.0 6508.0 36240.0 100 0.00818819 1.83731e-05 0.0271321

Def. (resid)

1 1.29e+06 102000.0 1.14e+06 13500.0 794.0 9380.0 42 5.59101e-06 1.52682e-05 0.0108
8 1.486e+06 102200.0 1.34e+06 18130.0 1223.0 13180.0 46 0.000549223 3.19653e-05 0.0124008
64 1.599e+06 101600.0 1.449e+06 20630.0 1689.0 15000.0 47 0.00763563 2.13795e-05 0.0131151
512 1.684e+06 101600.0 1.531e+06 22820.0 2237.0 16540.0 50 0.0114607 7.83489e-05 0.0137636
4096 1.704e+06 101900.0 1.542e+06 31100.0 3697.0 23260.0 67 0.00949776 2.88819e-05 0.018545
32768 1.758e+06 102100.0 1.579e+06 46690.0 6535.0 35880.0 99 0.00818815 5.74289e-05 0.0269884

Opt. (resid)

1 1.29e+06 102000.0 1.14e+06 13900.0 631.0 9920.0 46 5.59041e-06 1.55471e-05 0.01112
8 1.493e+06 101900.0 1.344e+06 20810.0 906.7 16180.0 60 0.000549509 7.94732e-05 0.0141757
64 1.608e+06 101600.0 1.451e+06 27520.0 1218.0 22380.0 78 0.00763569 7.35927e-05 0.0173957
512 1.698e+06 101700.0 1.532e+06 36090.0 1390.0 30650.0 109 0.0114613 9.74719e-05 0.0215849
4096 1.73e+06 101800.0 1.54e+06 57240.0 1531.0 51560.0 188 0.0094979 9.97187e-05 0.033631
32768 1.8e+06 102200.0 1.58e+06 87720.0 1635.0 81810.0 302 0.00818817 7.90693e-05 0.0495034
Table 13: 4096 cells/core, 2048 directions, volumetric
