VSCAN: An Enhanced Video Summarization using Density-based Spatial Clustering

05/01/2014 ∙ by Karim M. Mohamed, et al. ∙ 0

In this paper, we present VSCAN, a novel approach for generating static video summaries. This approach is based on a modified DBSCAN clustering algorithm to summarize the video content utilizing both color and texture features of the video frames. The paper also introduces an enhanced evaluation method that depends on color and texture features. Video Summaries generated by VSCAN are compared with summaries generated by other approaches found in the literature and those created by users. Experimental results indicate that the video summaries generated by VSCAN have a higher quality than those generated by other approaches.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The revolution in digital video has been driven by the rapid development of computer infrastructure in various areas such as improved processing power, enhanced and cheaper capacity of storage devices, and faster networks. This revolution has brought many new applications and as a consequence research into new technologies that aim at improving the effectiveness and efficiency of video acquisition, archiving, cataloguing and indexing as well as increasing the usability of stored videos. This leads to the requirement of efficient management of video data such as video summarization.

A video summary is defined as a sequence of still pictures that represent the content of a video in such a way that the respective target group is rapidly provided with concise information about the content, while the essential message of the original video is preserved [1].

Over the past years, various approaches and techniques have been proposed towards the summarization of video content. However there are many drawbacks for these approaches. First, most of video summarization approaches that achieved a relatively high quality are based only on a single visual descriptor such as the color of the video frames; while other descriptors like texture is not considered. Second, clustering algorithms used in current video summarization techniques could not detect noise frames automatically; instead some of these techniques have to detect noise frames using separate methods which require additional computation. Third, the current video summarization approaches depend on special input parameters that may not be suitable for all cases. For example, many approaches utilizes k-means partitioning-based clustering algorithm that requires the number of clusters as an input; while the number of clusters is not related to the perceptual content of the automatic video summary. To overcome this problem, additional stage is required to filter key frames which increases the complexity of the video summarization process and makes using the clustering algorithm inefficient. Finally, current evaluation methods depend only on color features for comparing different summaries and do not consider other features like texture; which gives a less perceptual assessment of the quality of video summaries.

In this paper, we present VSCAN, an enhanced approach for generating static video summaries that operates on the whole video clip. It relies on clustering color and texture features extracted from the video frames using a modified DBSCAN

[2] algorithm to summarize the video content which overcomes the drawbacks of the other approaches. Also, we introduce an enhanced evaluation method that depends on color and texture features. VSCAN approach is evaluated using the enhanced evaluation method and the experimental results show that VSCAN produces video summaries with higher quality than those generated by other approaches.

The rest of this paper is organized as follows. Section 2 introduces some related work. Section 3 presents VSCAN approach and shows how to apply it to summarize a video sequence. Section 4 illustrates the evaluation method and reports the results of our experiments. Finally, we offer our conclusions and directions for future work in Section 5.

2 Related Work

A comprehensive review of video summarization approaches can be found in [3]. Some of the main approaches and techniques related to static video summarization which can be found in the literature are briefly discussed next.

In [4]

, an approach based on clustering the video frames using the Delaunay Triangulation (DT) is developed. The first step in this apporach is pre-sampling the frames of the input video. Then, the video frames are represented by a color histogram in the HSV color space and the Principal Component Analysis (PCA) is applied on the color feature matrix to reduce its dimensionality. After that, the Delaunay diagram is built and clusters are formed by separating edges in the Delaunay diagram. Finally, for each cluster, the frame that is closest to its center is selected as the key frame.

In [5]

, an approach called STIMO (STIll and MOving Video Storyboard) is introduced. This approach is designed to produce on-the-fly video storyboards and it is composed of three phases. In the first phase, the video frames are pre-sampled and then feature vectors are extracted from the selected video frames by computing a color histogram in the HSV color space. In the second phase, a clustering method based on the Furthest-Point-First (FPF) algorithm is applied. To estimate the number of clusters, the pairwise distance of consecutive frames is computed using Generalized Jaccard Distance (GJD). Finally, a post-processing step is performed for removing noise video frames.

In [6], an approach called VSUMM (Video SUMMarization) is presented. In the first step, the video frames are pre-sampled by selecting one frame per second. In the second step, the color features of video frames are extracted from Hue component only in the HSV color space. In the third step, the meaningless frames are eliminated. In the fourth step, the frames are clustered using k-means algorithm where the number of clusters is estimated by computing the pairwise Euclidean distances between video frames and a key frame is extracted from each cluster. Finally, another extra step occurs in which the key frames are compared among themselves through color histogram to eliminate those similar key frames in the produced summaries.

3 VSCAN Approach

Figure1 shows the steps of VSCAN approach to produce static video summaries. First, the original video is pre-sampled (step 1). Second, color features are extracted using color histogram in HSV color space (step 2). Third, texture features are extracted using a two-dimensional Haar wavelet transform in HSV color space (step 3). In step 4, video frames are clustered by a modified DBSCAN clustering algorithm. Then, in step 5, the key frames are selected. Finally, the extracted key frames are arranged in the original order of appearance in the video to facilitate the visual understanding of the result. These steps are explained in more details in the following subsections.

3.1 Video Frames Pre-sampling

The first step towards video summarization is pre-sampling the original video which aims to reduce the number of frames to be processed. Choosing a proper sampling rate is very important. A low sampling rate leads to poor video summaries; while a large sampling rate shortens the video summarization time. In VSCAN approach, the sampling rate used is selected to be one frame per second. So, for a video sample of duration one minute, and a frame rate of 30 fps (i.e., 1800 frames); the number of extracted frames is 60 frames.

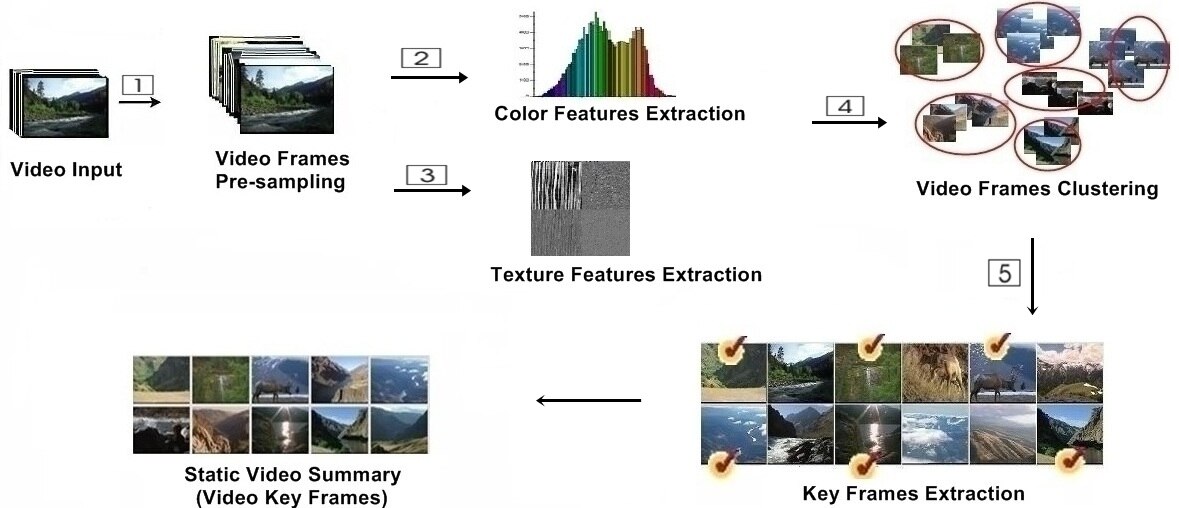

Figure 1: VSCAN Approach
