1 Introduction

Modern deep neural networks have achieved unprecedented success in known contexts for which they are trained, yet they often struggle to handle the unknowns. In particular, neural networks have been shown to produce high posterior probability for out-of-distribution (OOD) test inputs

(nguyen2015deep), which arise from unknown categories and should not be predicted by the model. Taking self-driving car as an example, an object detection model trained to recognize in-distribution objects (e.g., cars, stop signs) can produce a high-confidence prediction for an unseen object of a moose; see Figure 1(a). Such a failure case raises concerns in model reliability, and worse, may lead to catastrophe when deployed in safety-critical applications.

The vulnerability to OOD inputs arises due to the lack explicit knowledge of unknowns during training time. In particular, neural networks are typically optimized only on the in-distribution (ID) data. The resulting decision boundary, despite being useful on ID tasks such as classification, can be ill-fated for OOD detection. We illustrate this in Figure 1

. The ID data (gray) consists of three class-conditional Gaussians, on which a three-way softmax classifier is trained. The resulting classifier is overconfident for regions far away from the ID data (see the red shade in Figure

1(b)), causing trouble for OOD detection. Ideally, a model should learn a more compact decision boundary that produces low uncertainty for the ID data, with high OOD uncertainty elsewhere (e.g., Figure 1(c)). However, achieving this goal is non-trivial due to the lack of supervision signal of unknowns. This motivates the question: Can we synthesize virtual outliers for effective model regularization?

In this paper, we propose a novel unknown-aware learning framework dubbed VOS (Virtual Outlier Synthesis), which optimizes the dual objectives of both ID task and OOD detection performance. In a nutshell, VOS consists of three components tackling challenges of outlier synthesis and effective model regularization with synthesized outliers. To synthesize the outliers, we estimate the class-conditional distribution in the feature space, and sample outliers from the low-likelihood region of ID classes (Section 3.1). Key to our method, we show that sampling in the feature space is more tractable than synthesizing images in the high-dimensional pixel space (lee2018training). Alongside, we propose a novel unknown-aware training objective, which contrastively shapes the uncertainty surface between the ID data and synthesized outliers (Section 3.2). During training, VOS simultaneously performs the ID task (e.g., classification or object detection) as well as the OOD uncertainty regularization. During inference time, the uncertainty estimation branch produces a larger probabilistic score for ID data and vice versa, which enables effective OOD detection (Section 3.3).

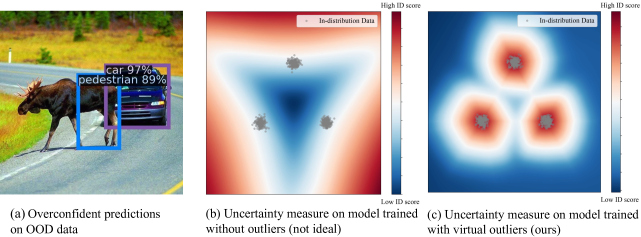

Figure 1: (a) A Faster-RCNN (ren2015faster) model trained on BDD-100k dataset (DBLP:conf/cvpr/YuCWXCLMD20) produces overconfident predictions for OOD object (e.g., moose). (b)-(c) The uncertainty measurement with and without virtual outlier training. The in-distribution data

is sampled from a Gaussian mixture model). Regularizing the model with virtual outliers (c) better captures the OOD uncertainty than without (b).

VOS offers several compelling advantages compared to existing solutions. (1) VOS is a general learning framework that is effective for both object detection and image classification tasks, whereas previous methods were primarily driven by image classification. Image-level detection can be limiting as an image could be OOD in certain regions while being in-distribution elsewhere. Our work bridges a critical research gap since OOD detection for object detection is timely yet underexplored in literature. (2) VOS enables adaptive outlier synthesis, which can be flexibly and conveniently used for any ID data without manual data collection or cleaning. In contrast, previous methods using outlier exposure (hendrycks2018deep) require an auxiliary image dataset that is sufficiently diverse, which can be arguably prohibitive to obtain. Moreover, one needs to perform careful data cleaning to ensure the auxiliary outlier dataset does not overlap with ID data. (3) VOS synthesizes outliers that can estimate a compact decision boundary between ID and OOD data. In contrast, existing solutions use outliers that are either too trivial to regularize the OOD estimator, or too hard to be separated from ID data, resulting in sub-optimal performance. Our key contributions and results are summarized as follows:

  • We propose a new framework VOS

    addressing a pressing issue—unknown-aware deep learning that optimizes for both ID and OOD performance.

    VOS establishes state-of-the-art results on a challenging object detection task. Compared to the best method, VOS reduces the FPR95 by up to 7.87% while preserving the accuracy on the ID task.

  • We conduct extensive ablations and reveal important insights by contrasting different outlier synthesis approaches. We show that VOS is more advantageous than generating outliers directly in the high-dimensional pixel space (e.g., using GAN (lee2018training)) or using noise as outliers.

  • We comprehensively evaluate our method on common OOD detection benchmarks, along with a more challenging yet underexplored task in the context of object detection. Our effort facilitates future research to evaluate OOD detection in a real-world setting.

2 Problem Setup

We start by formulating the problem of OOD detection in the setting of object detection. Our framework can be easily generalized to image classification when the bounding box is the entire image (see Section 4.2). Most previous formulations of OOD detection treat entire images as anomalies, which can lead to ambiguity shown in Figure 1. In particular, natural images are composed of numerous objects and components. Knowing which regions of an image are anomalous could allow for safer handling of unfamiliar objects. This setting is more realistic in practice, yet also more challenging as it requires reasoning OOD uncertainty at the fine-grained object level.

Specifically, we denote the input and label space by and , respectively. Let be the input image, be the bounding box coordinates associated with object instances in the image, and be the semantic label for -way classification. An object detection model is trained on in-distribution data

drawn from an unknown joint distribution

. We use neural networks with parameters to model the bounding box regression and the classification .

The OOD detection can be formulated as a binary classification problem, which distinguishes between the in- vs. out-of-distribution objects. Let

denote the marginal probability distribution on

. Given a test input , as well as an object instance predicted by the object detector, the goal is to predict . We use to indicate a detected object being in-distribution, and being out-of-distribution, with semantics outside the support of .

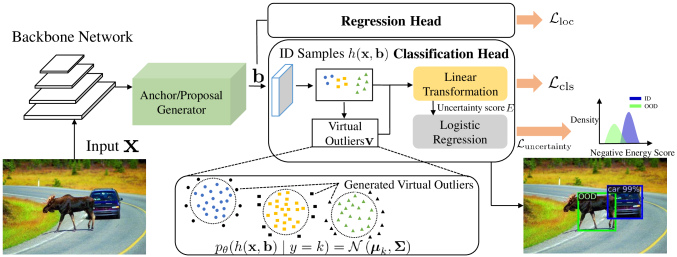

Figure 2: The framework of VOS. We model the feature representation of ID objects as class-conditional Gaussians, and sample virtual outliers from the low-likelihood region. The virtual outliers, along with the ID objects, are used to produce the uncertainty loss for regularization. The uncertainty estimation branch () is jointly trained with the object detection loss ().

3 Method

Our novel unknown-aware learning framework is illustrated in Figure 2. Our framework encompasses three novel components and addresses the following questions: (1) how to synthesize the virtual outliers (Section 3.1), (2) how to leverage the synthesized outliers for effective model regularization (Section 3.2), and (3) how to perform OOD detection during inference time (Section 3.3)?

3.1 VOS: Virtual Outlier Synthesis

Our framework VOS generates virtual outliers for model regularization, without relying on external data. While a straightforward idea is to train generative models such as GANs (goodfellow2014generative; lee2018training), synthesizing images in the high-dimensional pixel space can be difficult to optimize. Instead, our key idea is to synthesize virtual outliers in the feature space, which is more tractable given lower dimensionality. Moreover, our method is based on a discriminatively trained classifier in the object detector, which circumvents the difficult optimization process in training generative models.

Specifically, we assume the feature representation of object instances forms a class-conditional multivariate Gaussian distribution (see Figure

3):

where is the Gaussian mean of class , is the tied covariance matrix, and is the latent representation of an object instance . To extract the latent representation, we use the penultimate layer of the neural network. The dimensionality is significantly smaller than the input dimension .

Figure 3:

UMAP visualization of feature embeddings of PASCAL-VOC (on a subset of 10 classes).

To estimate the parameters of the class-conditional Gaussian, we compute empirical class mean and covariance of training samples :

(1)
(2)

where is the number of objects in class , and is the total number of objects. We use online estimation for efficient training, where we maintain a class-conditional queue with object instances from each class. In each iteration, we enqueue the embeddings of objects to their corresponding class-conditional queues, and dequeue the same number of object embeddings.

Sampling from the feature representation space. We propose sampling the virtual outliers from the feature representation space, using the multivariate distributions estimated above. Ideally, these virtual outliers should help estimate a more compact decision boundary between ID and OOD data. To achieve this, we propose sampling the virtual outliers from the -likelihood region of the estimated class-conditional distribution:

(3)

where denotes the sampled virtual outliers for class , which are in the sublevel set based on the likelihood. is sufficiently small so that the sampled outliers are near class boundary.

Classification outputs for virtual outliers. For a given sampled virtual outlier

, the output of the classification branch can be derived through a linear transformation:

(4)

where is the weight of the last fully connected layer. We proceed with describing how to regularize the output of virtual outliers for improved OOD detection.

3.2 Unknown-aware Training Objective

We now introduce a new training objective for unknown-aware learning, leveraging the virtual outliers in Section 3.1. The key idea is to perform visual recognition task while regularizing the model to produce a low OOD score for ID data, and a high OOD score for the synthesized outlier.

Uncertainty regularization for classification.

For simplicity, we first describe the regularization in the multi-class classification setting. The regularization loss should ideally optimize for the separability between the ID vs. OOD data under some function that captures the data density. However, directly estimating can be computationally intractable as it requires sampling from the entire space . We note that the log partition function is proportional to with some unknown factor, which can be seen from the following:

where denotes the

-th element of logit output corresponding to the label

. The negative log partition function is also known as the free energy, which was shown to be an effective uncertainty measurement for OOD detection (liu2020energy).

Our idea is to explicitly perform a level-set estimation based on the energy function (threshold at 0), where the ID data has negative energy values and the synthesized outlier has positive energy:

This is a simpler objective than estimating density. Since the loss is intractable, we replace it with the binary sigmoid loss, a smooth approximation of the loss, yielding the following:

(5)

Here

is a learnable parameter modulating the slope of the sigmoid function. The learning process shapes the uncertainty surface, which predicts high probability for ID data and low probability for virtual outliers

.  liu2020energy

employed energy for model uncertainty regularization, however, the loss function is based on the squared hinge loss and requires tuning two margin hyperparameters. In contrast, our uncertainty regularization loss is completely

hyperparameter-free and is much easier to use in practice. Moreover, VOS produces probabilistic score for OOD detection, whereas liu2020energy relies on non-probabilistic energy score.

Object-level energy score.

In case of object detection, we can replace the image-level energy with object-level energy score. For ID object , the energy is defined as:

(6)

where is the logit output for class in the classification branch. The energy score for the virtual outlier can be defined in a similar way as above. In particular, we will show in Section 4 that a learnable is more flexible than a constant , given the inherent class imbalance in object detection datasets. Additional analysis on is in Appendix H.

Overall training objective.

In the case of object detection, the overall training objective combines the standard object detection loss, along with a regularization loss in terms of uncertainty:

(7)

where is the weight of the uncertainty regularization. and are losses for classification and bounding box regression, respectively. This can be simplified to classification task without . We provide ablation studies in Section 4.1 demonstrating the superiority of our loss function.

3.3 Inference-time OOD Detection

During inference, we use the output of the logistic regression uncertainty branch for OOD detection. In particular, given a test input

, the object detector produces a bounding box prediction . The OOD uncertainty score for the predicted object is given by:

(8)

For OOD detection, one can exercise the thresholding mechanism to distinguish between ID and OOD objects:

(9)

The threshold is typically chosen so that a high fraction of ID data (e.g., 95%) is correctly classified. Our framework VOS is summarized in Algorithm 1.

Input: ID data , randomly initialized detector with parameter , queue size for Gaussian density estimation, weight for uncertainty regularization , and .
Output: Object detector with parameter , and OOD detector .
while train do
       Update the ID queue with the training objects .;
       Estimate the multivariate distributions based on ID training objects using Equation 1 and 2.;
       Sample virtual outliers using Equation 3. Calculate the regularization loss using Equation 5, update the parameters based on Equation 7.
end while
while eval do
       Calculate the OOD uncertainty score using Equation 8.;
       Perform thresholding comparison using Equation 9.
end while
Algorithm 1 VOS: Virtual Outlier Synthesis for OOD detection

4 Experimental Results

In this section, we present empirical evidence to validate the effectiveness of VOS on several real-world tasks, including both object detection (Section 4.1) and image classification (Section 4.2).

4.1 Evaluation on Object Detection

In-distribution Method FPR95 AUROC mAP (ID)

OOD: MS-COCO / OpenImages

PASCAL-VOC MSP (hendrycks2016baseline) 70.99 / 73.13 83.45 / 81.91 48.7
ODIN (liang2018enhancing) 59.82 / 63.14 82.20 / 82.59 48.7
Mahalanobis (lee2018simple) 67.73 / 65.41 81.45 / 81.48 48.7
Gram matrices (DBLP:conf/icml/SastryO20) 62.75 / 67.42 79.88 / 77.62 48.7
Energy score (liu2020energy) 56.89 / 58.69 83.69 / 82.98 48.7
Generalized ODIN (hsu2020generalized) 59.57 / 70.28 83.12 / 79.23 48.1
CSI (tack2020csi) 59.91 / 57.41 81.83 / 82.95 48.1
GAN-synthesis (lee2018training) 60.93 / 59.97 83.67 / 82.67 48.5
VOS-ResNet50 (ours) 49.022.3 / 52.112.5 88.660.9 / 85.360.4 48.60.1
VOS-RegX4.0 (ours) 49.161.4 / 53.111.3 89.030.1 / 85.560.7 51.30.0
Berkeley DeepDrive-100k MSP (hendrycks2016baseline) 80.94 / 79.04 75.87 / 77.38 31.2
ODIN (liang2018enhancing) 62.85 / 58.92 74.44 / 76.61 31.2
Mahalanobis (lee2018simple) 55.74 / 47.69 85.71 / 88.05 31.2
Gram matrices (DBLP:conf/icml/SastryO20) 60.93 / 77.55 74.93 / 59.38 31.2
Energy score (liu2020energy) 60.06 / 54.97 77.48 / 79.60 31.2
Generalized ODIN (hsu2020generalized) 57.27 / 50.17 85.22 / 87.18 31.8
CSI (tack2020csi) 47.10 / 37.06 84.09 / 87.99 30.6
GAN-synthesis (lee2018training) 57.03 / 50.61 78.82 / 81.25 31.4
VOS-ResNet50 (ours) 46.081.0 / 36.822.0 86.930.5 / 88.950.8 31.30.0
VOS-RegX4.0 (ours) 36.350.4 / 26.602.0 89.350.8 / 92.110.7 32.50.0
Table 1: Main results. Comparison with competitive out-of-distribution detection methods. All baseline methods are based on a model trained on ID data only using ResNet-50 as the backbone, without using any real outlier data. indicates larger values are better and indicates smaller values are better. All values are percentages. Bold

numbers are superior results. We report standard deviations estimated across 3 runs. RegX4.0 denotes the backbone of RegNetX-4.0GF

(DBLP:conf/cvpr/RadosavovicKGHD20) for the object detector.

Experimental details. We use PASCAL VOC111PASCAL-VOC consists of the following ID labels: Person, Car, Bicycle, Boat, Bus, Motorbike, Train, Airplane, Chair, Bottle, Dining Table, Potted Plant, TV, Sofa, Bird, Cat, Cow, Dog,  Horse, Sheep. (DBLP:journals/ijcv/EveringhamGWWZ10) and Berkeley DeepDrive (BDD-100k222BDD-100k consists of ID labels: Pedestrian, Rider, Car, Truck, Bus, Train, Motorcycle, Bicycle, Traffic light, Traffic sign.(DBLP:conf/cvpr/YuCWXCLMD20) datasets as the ID training data. For both tasks, we evaluate on two OOD datasets that contain subset of images from: MS-COCO (lin2014microsoft) and OpenImages (validation set) (kuznetsova2020open)

. We manually examine the OOD images to ensure they do not contain ID category. We have open-sourced our benchmark data that allows the community to easily evaluate future methods on object-level OOD detection.

We use the Detectron2 library (Detectron2018) and train on two backbone architectures: ResNet-50 (he2016identity) and RegNetX-4.0GF (DBLP:conf/cvpr/RadosavovicKGHD20). For each in-distribution class, we use 1,000 samples to estimate the class-conditional Gaussians. Since the threshold can be infinitesimally small, we instead choose based on the -th smallest likelihood in a pool of 10,000 samples (per-class), generated from the class-conditional Gaussian distribution. A larger corresponds to a larger threshold . As shown in Table 6, a smaller yields good performance. We set for all our experiments. Extensive details on the datasets are described in Appendix A, along with a comprehensive sensitivity analysis of each hyperparameter (including the queue size , coefficient , and threshold ) in Appendix C.

Metrics.

For evaluating the OOD detection performance, we report: (1) the false positive rate (FPR95) of OOD samples when the true positive rate of ID samples is at 95%; (2) the area under the receiver operating characteristic curve (AUROC). For evaluating the object detection performance on the ID task, we report the common metric of mAP.

VOS outperforms existing approaches. In Table 1, we compare VOS with competitive OOD detection methods in literature. For a fair comparison, all the methods only use ID data without using auxiliary outlier dataset. Our proposed method, VOS, outperforms competitive baselines, including Maximum Softmax Probability (hendrycks2016baseline), ODIN (liang2018enhancing), Mahalanobis distance (lee2018simple), Generalized ODIN (hsu2020generalized), energy score (liu2020energy), CSI (tack2020csi) and Gram matrices (DBLP:conf/icml/SastryO20). These approaches rely on a classification model trained primarily for the ID classification task, and can be naturally extended to the object detection model due to the existence of a classification head. The comparison precisely highlights the benefits of incorporating synthesized outliers for model regularization.

Closest to our work is the GAN-based approach for synthesizing outliers (lee2018training). Compare to GAN-synthesis, VOS improves the OOD detection performance (FPR95) by 10.95% on BDD-100k and 11.91% on Pascal VOC (COCO as OOD). Moreover, we show in Table 1 that VOS achieves stronger OOD detection performance while preserving a high accuracy on the original in-distribution task (measured by mAP). This is in contrast with CSI, which displays degradation, with mAP decreased by 0.7% on BDD-100k. Details of reproducing baselines are in Appendix E.

Ablation on outlier synthesis approaches. We compare VOS with different synthesis approaches in Table 2. Specifically, we consider three types of synthesis approach: (i) synthesizing outliers in the pixel space, (ii) using noise as outliers, and (iii) using negative proposals from RPN as outliers. For type I, we consider GAN-based (lee2018training) and mixup (DBLP:conf/iclr/ZhangCDL18)

methods. The outputs of the classification branch for outliers are forced to be closer to a uniform distribution. For mixup, we consider two different beta distributions

and

, and interpolate ID objects in the pixel space. For Type II, we use noise perturbation to create virtual outliers. We consider adding fixed Gaussian noise to the ID features, adding trainable noise to the ID features where the noise is trained to push the outliers away from ID features, and using fixed Gaussian noise as outliers. Lastly, for type III, we directly use the negative proposals in the ROI head as the outliers for Equation

5, similar to DBLP:journals/corr/abs-2103-02603. We consider three variants: randomly sampling negative proposals ( is the number of positive proposals), sampling negative proposals with a larger probability, and using all the negative proposals. All methods are trained under the same setup, with PASCAL-VOC as in-distribution data and ResNet-50 as the backbone. The loss function is the same as Equation 7 for all variants, with the only difference being the synthesis method.

Method AUROC mAP
Image synthesis GAN (lee2018training) 83.67 48.5
Mixup (DBLP:conf/iclr/ZhangCDL18) (mixing ratio ) 61.23 44.3
Mixup (DBLP:conf/iclr/ZhangCDL18) (mixing ratio ) 63.99 46.9
Noise as outliers Additive Gaussian noise to ID features 68.02 48.7
Trainable noise added to the ID features 66.67 48.6
Gaussian noise 85.98 48.5
Negative proposals All negative proposals 63.45 48.1
Random negative proposals 66.03 48.5
Proposals with large background prob (DBLP:journals/corr/abs-2103-02603) 77.26 48.5
VOS (ours) 88.66 48.6
Table 2: Ablation on outlier synthesis approaches (on backbone of ResNet-50, COCO is the OOD data).

The results are summarized in Table 2, where VOS outperforms alternative synthesis approaches both in the feature space (, ) or the pixel space (). Generating outliers in the pixel space () is either unstable (GAN) or harmful for the object detection performance (mixup). Introducing noise (), especially using Gaussian noise as outliers is promising. However, Gaussian noise outliers are relatively simple, and may not effectively regularize the decision boundary between ID and OOD as VOS does. Exploiting the negative proposals () is not effective, because they are distributionally close to the ID data.

Ablation on the uncertainty loss. We perform ablation on several variants of VOS, trained with different uncertainty loss . Particularly, we consider: (1) using the squared hinge loss for regularization as in liu2020energy, (2) using constant weight for energy score in Equation 6, and (3) classifying the virtual outliers as an additional class in the classification branch. The performance comparison is summarized in Table 3. Compared to the hinge loss, our proposed logistic loss reduces the FPR95 by 8.21% on BDD-100k. While the squared hinge loss in  liu2020energy requires tuning the hyperparameters, our uncertainty loss is completely hyperparameter free. In addition, we find that a learnable for energy score is more desirable than a constant , given the inherent class imbalance in object detection datasets. Finally, classifying the virtual outliers as an additional class increases the difficulty of object classification, which does not outperform either. This ablation demonstrates the superiority of the uncertainty loss employed by VOS. Additional ablations on the effect of weight is shown in Appendix Section G.

VOS is effective on alternative architecture. Lastly, we demonstrate that VOS is effective on alternative neural network architectures. In particular, using RegNet (DBLP:conf/cvpr/RadosavovicKGHD20) as backbone yields both better ID accuracy and OOD detection performance. We also explore using intermediate layers for outlier synthesis, where we show using VOS on the penultimate layer is the most effective. This is expected since the feature representations are the most discriminative at deeper layers. We provide details in Appendix F.

Method FPR95 AUROC object detection mAP (ID)
PASCAL-VOC VOS w/ hinge loss 49.75 87.90 46.5
VOS w/ constant 51.59 88.64 48.9
VOS w/ class 65.25 85.26 47.0
VOS (ours) 49.02 88.66 48.6
Berkeley DeepDrive-100k VOS w/ hinge loss 54.29 83.47 29.5
VOS w/ constant 49.25 85.35 30.9
VOS w/ class 52.98 85.91 30.1
VOS (ours) 46.08 86.93 31.3
Table 3: Ablation study. Comparison with different regularization loss functions (on backbone of ResNet-50, COCO is the OOD data).

Comparison with training on real outlier data. We also compare with Outlier Exposure (hendrycks2018deep) (OE). OE serves as a strong baseline since it relies on the real outlier data. We train the object detector on PASCAL-VOC using the same architecture ResNet-50, and use the OE objective for the classification branch. The real outliers for OE training are sampled from the OpenImages dataset (kuznetsova2020open). We perform careful deduplication to ensure there is no overlap between the outlier training data and PASCAL-VOC. Our method achieves OOD detection performance on COCO (AUROC: 88.66%) that favorably matches OE (AUROC: 90.18%), and does not require external data.

4.2 Evaluation on Image Classification

Method FPR95 AUROC
WideResNet / DenseNet
MSP 51.05 / 48.73 90.90 / 92.46
ODIN 35.71 / 24.57 91.09 / 93.71
Mahalanobis 37.08 / 36.26 93.27 / 87.12
Gram Matrices 27.33 / 23.13 93.00 / 89.83
Energy 33.01 / 27.44 91.88 / 94.51
Generalized ODIN 39.94 / 26.97 92.44 / 93.76
CSI 35.66 / 47.83 92.45 / 85.31
GAN-synthesis 37.30 / 83.71 89.60 / 54.14
VOS (ours) 24.87 / 22.47 94.06 / 95.33
Table 4: OOD detection results of VOS and comparison with competitive baselines on two architectures: WideResNet-40 and DenseNet-101.

Going beyond object detection, we show that VOS

is also suitable and effective on common image classification benchmark. We use CIFAR-10

(cifar) as the ID training data, with standard train/val splits. We train on WideResNet-40 (zagoruyko2016wide) and DenseNet-101 (huang2017densely), where we substitute the object detection loss in Equation 7 with the cross-entropy loss. We evaluate on six OOD datasets: Textures (DBLP:conf/cvpr/CimpoiMKMV14), SVHN (netzer2011reading), Places365 (DBLP:journals/pami/ZhouLKO018), LSUN-C (DBLP:journals/corr/YuZSSX15), LSUN-Resize (DBLP:journals/corr/YuZSSX15), and iSUN (DBLP:journals/corr/XuEZFKX15). The comparisons are shown in Table 4, with results averaged over six test datasets. VOS demonstrates competitive OOD detection results on both architectures without sacrificing the ID test classification accuracy (94.84% on pre-trained WideResNet vs. 94.68% using VOS).

4.3 Qualitative Analysis

In Figure 4, we visualize the prediction on several OOD images, using object detection models trained without virtual outliers (top) and with VOS (bottom), respectively. The in-distribution data is BDD-100k. VOS performs better in identifying OOD objects (in green) than a vanilla object detector, and reduces false positives among detected objects. Moreover, the confidence score of the false-positive objects of VOS is lower than that of the vanilla model (see the truck in the 3rd column). Additional visualizations are in Appendix D and I.

Figure 4: Visualization of detected objects on the OOD images (from MS-COCO) by a vanilla Faster-RCNN (top) and VOS (bottom). The in-distribution is BDD-100k dataset. Blue: Objects detected and classified as one of the ID classes. Green: OOD objects detected by VOS, which reduce false positives among detected objects.

5 Related work

OOD detection for classification can be broadly categorized into post hoc and regularization-based approaches. For post hoc methods, the softmax confidence score is a common baseline (hendrycks2016baseline), which can be arbitrarily high for OOD inputs (hein2019relu). Several improvements have been proposed, such as ODIN (liang2018enhancing), Mahalanobis distance (lee2018simple), energy score (liu2020energy), Gram matrices based score (DBLP:conf/icml/SastryO20), and GradNorm score (huang2021importance). Very recently, sun2021react showed that a simple activation rectification strategy termed ReAct can significantly improve test-time OOD detection. Theoretical understandings on different post-hoc detection methods are provided in (morteza2022provable). Different from lee2018simple, VOS performs dynamic estimation of class-conditional Gaussian during training, which shapes the uncertainty surface over time using our proposed loss.

Another line of approaches explore model regularization using natural outlier images (hendrycks2018deep; mohseni2020self; DBLP:journals/corr/abs-2106-03917) or images synthesized by GANs (lee2018training). However, real outlier data is often infeasible to obtain. Instead, VOS automatically synthesizes virtual outliers which allows greater flexibility and generality. tack2020csi

applied self-supervised learning for OOD detection, which we compare in Section

4. DBLP:journals/ijcv/BlumSNSC21; DBLP:journals/corr/abs-2107-11264 proposed to detect outliers for semantic segmentation task. DBLP:journals/corr/abs-2107-11264; DBLP:conf/visapp/GrcicBS21 trained a generative model and synthesize outliers in the pixel space, which cannot be applied to object detection where a scene consists of both known and unknown objects. The regularization is based on entropy maximization, which is different from VOS.

OOD detection for object detection is currently underexplored. DBLP:journals/corr/abs-2103-02603 used energy score (liu2020energy) to identify the OOD data and then labeled them for incremental object detection. In contrast, VOS focuses on OOD detection and adopts a new unknown-aware training objective with a new test-time detection score. Our learning framework is generally applicable to both object detectors and classification models. Moreover, DBLP:journals/corr/abs-2103-02603 used the negative proposals as unknown samples for model regularization, which is suboptimal as we show in Table 2DBLP:journals/corr/abs-2101-05036; DBLP:journals/corr/abs-2107-04517 focused on uncertainty estimation for the localization regression, rather than OOD detection for classification problems. Several works (DBLP:conf/wacv/DhamijaGVB20; DBLP:conf/icra/MillerDMS19; DBLP:conf/icra/MillerNDS18; DBLP:conf/wacv/0003DSZMCCAS20; DBLP:journals/corr/abs-2108-03614) used approximate Bayesian methods, such as MC-Dropout (gal2016dropout) for OOD detection. They require multiple inference passes to generate the uncertainty score, which are computationally expensive on larger datasets and models.

Open-world object detection includes out-of-domain generalization (DBLP:journals/corr/abs-2108-06753; DBLP:journals/corr/abs-2104-08381), zero-shot object detection (DBLP:journals/corr/abs-2104-13921; DBLP:journals/ijcv/RahmanKP20) and incremental object detection (DBLP:journals/corr/abs-2002-05347; DBLP:conf/cvpr/Perez-RuaZHX20). Most of them either developed measures to mitigate catastraphic forgetting (DBLP:journals/corr/abs-2003-08798) or used auxiliary information (DBLP:journals/ijcv/RahmanKP20), such as class attributes to perform object detection on unseen data, which is different from our focus of OOD detection.

6 Conclusion

In this paper, we propose VOS, a novel unknown-aware training framework for OOD detection. Different from methods that require real outlier data, VOS adaptively synthesizes outliers during training by sampling virtual outliers from the low-likelihood region of the class-conditional distributions. The synthesized outliers meaningfully improve the decision boundary between the ID data and OOD data, resulting in superior OOD detection performance while preserving the performance of the ID task. VOS is effective and suitable for both object detection and classification tasks. We hope our work will inspire future research on unknown-aware deep learning in real-world settings.

Reproducibility Statement

The authors of the paper recognize the importance and value of reproducible research. We summarize our efforts below to facilitate reproducible results:

  1. Datasets. We use publicly available datasets, which are described in detail in Section 4.1, Section 4.2, and Appendix A.

  2. Baselines. The description and hyperparameters of the OOD detection baselines are explained in Appendix E.

  3. Model training. Our model training on object detection is based on the publicly available Detectron2 codebase: https://github.com/facebookresearch/detectron2. Hyperparamters are specified in Section 4.1, with a thorough ablation study provided in Appendix C.

  4. Methodology. Our method is fully documented in Section 3, with the pseudo algorithm detailed in Algorithm 1.

  5. Open Source. The codebase and the dataset will be released for reproducible research. Code is available at https://github.com/deeplearning-wisc/vos.

Ethics statement

Our project aims to improve the reliability and safety of modern machine learning models. Our study can lead to direct benefits and societal impacts, particularly for safety-critical applications such as autonomous driving. Our study does not involve any human subjects or violation of legal compliance. We do not anticipate any potentially harmful consequences to our work. Through our study and releasing our code, we hope to raise stronger research and societal awareness towards the problem of out-of-distribution detection in real-world settings.

Acknowledgement

Research is supported by Wisconsin Alumni Research Foundation (WARF), Facebook Research Award, and funding from Google Research.

References

Appendix A Experimental details

We summarize the OOD detection evaluation task in Table 5. The OOD test dataset is selected from MS-COCO and OpenImages dataset, which contains disjoint labels from the respective ID dataset. The PASCAL model is trained for a total of 18,000 iterations, and the BDD-100k model is trained for 90,000 iterations. We add the uncertainty regularizer (Equation 5) starting from 2/3 of the training. The weight is set to . See detailed ablations on the hyperparameters in Appendix C.

Task 1 Task 2
ID train dataset VOC train BDD train
ID val dataset VOC val BDD val
OOD dataset COCO and OpenImages val COCO and OpenImages val
ID train images 16,551 69,853
ID val images 4,952 10,000
OOD images for COCO 930 1,880
OOD images for OpenImages 1,761 1,761
Table 5: OOD detection evaluation tasks.

Appendix B Software and hardware

We run all experiments with Python 3.8.5 and PyTorch 1.7.0, using NVIDIA GeForce RTX 2080Ti GPUs.

Appendix C Effect of hyperparameters

Below we perform sensitivity analysis for each important hyperparameter111Note that our sensitivity analysis uses the speckle noised PASCAL VOC validation dataset as OOD data, which is different from the actual OOD test datasets in use.. We use ResNet-50 as the backbone, trained on in-distribution dataset PASCAL-VOC.

Effect of . Since the threshold can be infinitesimally small, we instead choose based on the -th smallest likelihood in a pool of 10,000 samples (per-class), generated from the class-conditional Gaussian distribution. A larger corresponds to a larger threshold . As shown in Table 6, a smaller yields good performance. We set for all our experiments.

mAP FPR95 AUROC AUPR
1 48.7 54.69 83.41 92.56
2 48.2 57.96 82.31 88.52
3 48.3 62.39 82.20 88.05
4 48.8 69.72 80.86 89.54
5 48.7 57.57 78.66 88.20
6 48.7 74.03 78.06 91.17
8 48.8 60.12 79.53 92.53
10 47.2 76.25 74.33 90.42
Table 6: Ablation study on the number of selected outliers (per class).

Effect of queue size . We investigate the effect of ID queue size in Table 7, where we vary . Overall, a larger is more beneficial since the estimation of Gaussian distribution parameters can be more precise. In our experiments, we set the queue size to for PASCAL and for BDD-100k. The queue size is smaller for BDD because some classes have a limited number of object boxes.

mAP FPR95 AUROC AUPR
50 48.6 68.42 77.04 92.30
100 48.9 59.77 79.96 89.18
200 48.8 57.80 80.20 89.92
400 48.9 66.85 77.68 89.83
600 48.5 57.32 81.99 91.07
800 48.7 51.43 82.26 91.80
1000 48.7 54.69 83.41 92.56
Table 7: Ablation study on the ID queue size .

Effect of . As shown in Table 8, a mild value of generally works well. As expected, a large value (e.g., ) will over-regularize the model and harm the performance.

mAP FPR95 AUROC AUPR
0.01 48.8 59.20 82.64 90.08
0.05 48.9 57.21 83.27 91.00
0.1 48.7 54.69 83.41 92.56
0.15 48.5 59.32 77.47 89.06
0.5 36.4 99.33 57.46 85.25
Table 8: Ablation study on regularization weight .

Effect of starting iteration for the regularizer. Importantly, we show that uncertainty regularization should be added in the middle of the training. If it is added too early, the feature space is not sufficiently discriminative for Gaussian distribution estimation. See Table 9 for the effect of starting iteration . We use for the PASCAL-VOC model, which is trained for a total of 18,000 iterations.

mAP FPR95 AUROC AUPR
2000 48.5 60.01 78.55 87.62
4000 48.4 61.47 79.85 89.41
6000 48.5 59.62 79.97 89.74
8000 48.7 56.85 80.64 90.71
10000 48.6 49.55 83.22 92.49
12000 48.7 54.69 83.41 92.56
14000 49.0 55.39 81.37 93.00
16000 48.9 59.36 82.70 92.62
Table 9: Ablation study on the starting iteration . Model is trained for a total of 18,000 iterations.

Appendix D Additional visualization results

We provide additional visualization of the detected objects on different OOD datasets with models trained on different in-distribution datasets. The results are shown in Figures 5-8.

Figure 5: Additional visualization of detected objects on the OOD images (from MS-COCO) by VOS. The in-distribution is Pascal VOC dataset. Green: OOD objects detected by VOS, which reduce false positives among detected objects.
Figure 6: Additional visualization of detected objects on the OOD images (from OpenImages) by VOS. The in-distribution is Pascal VOC dataset. Blue: Objects detected and classified as one of the ID classes. Green: OOD objects detected by VOS, which reduce false positives among detected objects.
Figure 7: Additional visualization of detected objects on the OOD images (from MS-COCO) by VOS. The in-distribution is BDD-100k dataset. Green: OOD objects detected by VOS, which reduce false positives among detected objects.
Figure 8: Additional visualization of detected objects on the OOD images (from OpenImages) by VOS. The in-distribution is BDD-100k dataset. Blue: Objects detected and classified as one of the ID classes. Green: OOD objects detected by VOS, which reduce false positives among detected objects.

Appendix E Baselines

To evaluate the baselines, we follow the original methods in MSP (hendrycks2016baseline), ODIN (liang2018enhancing), Generalized ODIN (hsu2020generalized), Mahalanobis distance (lee2018simple), CSI (tack2020csi), energy score (liu2020energy) and gram matrices (DBLP:conf/icml/SastryO20) and apply them accordingly on the classification branch of the object detectors. For ODIN, the temperature is set to be following the original work. For both ODIN and Mahalanobis distance lee2018simple, the noise magnitude is set to because the region-based object detector is not end-to-end differentiable given the existence of region cropping and ROIAlign. For GAN (lee2018training), we follow the original paper and use a GAN to generate OOD images. The prediction of the OOD images/objects is regularized to be close to a uniform distribution, through a KL divergence loss with a weight of 0.1. We set the shape of the generated images to be 100100 and resize them to have the same shape as the real images. We optimize the generator and discriminator using Adam (DBLP:journals/corr/KingmaB14), with a learning rate of 0.001. For CSI (tack2020csi), we use the rotations (0, 90, 180, 270) as the self-supervision task. We set the temperature in the contrastive loss to 0.5. We use the features right before the classification branch (with the dimension to be 1024) to perform contrastive learning. The weights of the losses that are used for classifying shifted instances and instance discrimination are both set to 0.1 to prevent training collapse. For Generalized ODIN hsu2020generalized, we replace and train the classification head of the object detector by the most effective Deconf-C head shown in the original paper.

Appendix F Virtual outlier synthesis using earlier layer

In this section, we investigate the effect of using VOS on an earlier layer within the network. Our main results in Table 1 are based on the penultimate layer of the network. Here, we additionally evaluate the performance using the layer before the penultimate layer, with a feature dimension of . The results are summarized in Table 10. As observed, synthesizing virtual outliers in the penultimate layer achieves better OOD detection performance than the earlier layer, since the feature representations are more discriminative at deeper layers.

Models FPR95 AUROC mAP
PASCAL VOC
VOS-final 49.02 88.66 48.6
VOS-earlier 50.24 88.24 48.6
BDD-100k
VOS-final 46.08 86.93 31.3
VOS-earlier 49.66 86.08 30.6
Table 10: Performance comparison of employing VOS on different layers. COCO is the OOD data.

Appendix G The effect of the learnable weight in the unknown-aware regularization loss

In this section, we perform ablation experiments to observe the effect of the learnable weight in the loss function of Equation 5. Specifically, we compare VOS w/o the learnable weight in the logistic regression classifier. The results are summarized in Table 11. Pascal VOC is used as the in-distribution dataset and AUROC is reported for comparison.

Method MS-COCO OpenImages mAP
VOS-ResNet w/ 88.66 85.36 48.6
VOS-ResNet w/o 86.13 82.45 47.1
VOS-RegNet w/ 89.03 85.56 51.3
VOS-RegNet w/o 88.91 83.94 50.4
Table 11: The effect of the learnable weight in the unknown-aware regularization loss.

The results show that the performance of VOS decreases if the learnable weight in the logistic regression classifier is removed. The learnable weight modulates the slope of the logistic function, which allows learning a sharper binary decision boundary for optimal ID-OOD classification.

Appendix H Visualization of the learnable weight coefficient in generalized energy score

To observe whether the learnable weight coefficient in Equation 6 captures dataset-specific statistics during uncertainty regularization, we visualize w.r.t each in-distribution class and the number of training objects of that class in Figure 9. We use the BDD-100k dataset (DBLP:conf/cvpr/YuCWXCLMD20) as the in-distribution dataset and the RegNetX-4.0GF (DBLP:conf/cvpr/RadosavovicKGHD20)

as the backbone network. As can be observed, the learned weight coefficient displays a consistent trend with the number of training objects per class, which indicates the advantage of using learnable weights rather than constant weight vector with all 1s.

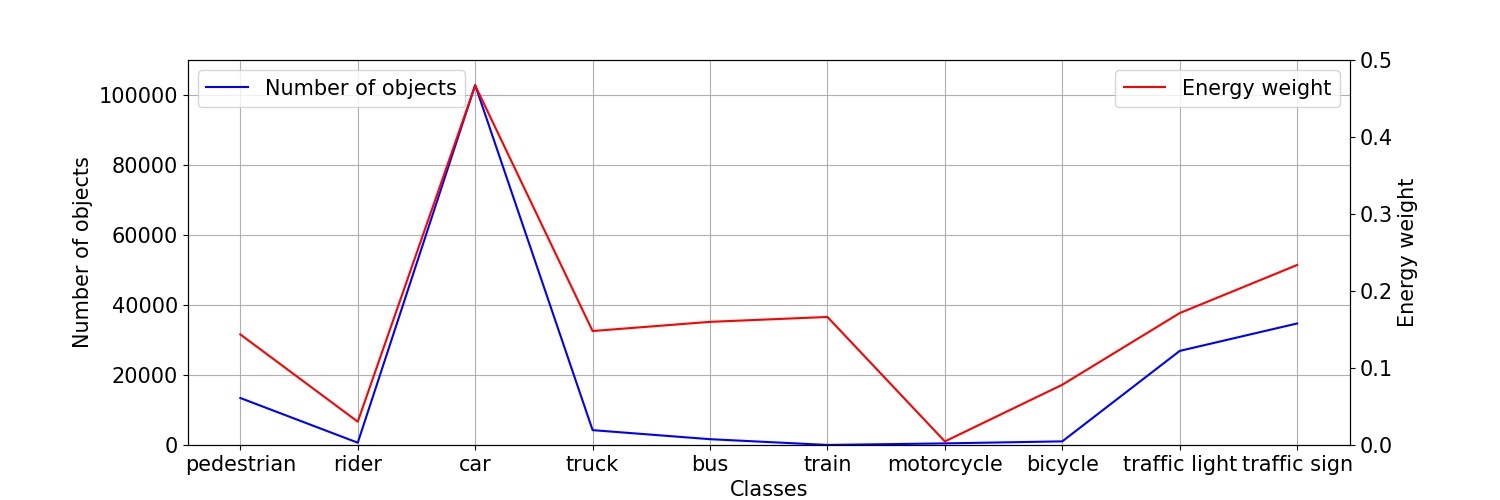

Figure 9: Visualization of learnable weight coefficient in the generalized energy score and the number of training objects per in-distribution class. The value of the weight coefficient is averaged over three different runs.

Appendix I Visualization of the virtual outliers

In this section, we visualize the synthesized virtual outliers by VOS using UMAP in Figure 10. The in-distribution dataset is the Pascal VOC dataset with the backbone of ResNet-50. Note that we cannot visualize virtual outliers in the pixel space since they are synthesized in low-dimensional feature space.

Figure 10: UMAP visualization of the synthesized virtual outliers. The blue points denote the object features from the in-distribution class of Person. The green points denote the synthesized virtual outliers from the low-density space w.r.t the features from that class.

From Figure 10, the virtual outliers reside in the near-boundary region of the in-distribution feature cluster, which helps the model to learn a compact decision boundary between ID and OOD objects.

Appendix J Discussion on the detected, rejected and ignored OOD objects during inference

The focus of VOS is to mitigate the undesirable cases when an OOD object is detected and classified as in-distribution with high confidence. In other words, our goal is to ensure that “if the box is detected, it should be faithfully an in-distribution object rather than OOD”. Although generating the bounding box for OOD data is not the focus of this paper, we do notice that VOS can improve the number of boxes detected for OOD data (+25% on BDD trained model compared to the vanilla Faster-RCNN).

The number of OOD objects ignored by RPN can largely depend on the confidence score threshold and the NMS threshold. Hence, we found it more meaningful to compare relatively with the vanilla Faster-RCNN under the same default thresholds. Using BDD100K as the in-distribution dataset and the ResNet as the backbone, VOS can improve the number of detected OOD boxes by 25% (compared to vanilla object detector). VOS also improves the number of rejected OOD samples by 63%.
