Visualizing Topographic Independent Component Analysis with Movies

01/24/2019
by   Zhimin Chen, et al.
0

Independent component analysis (ICA) has often been used as a tool to model natural image statistics by separating multivariate signals in the image into components that are assumed to be independent. However, these estimated components oftentimes have higher order dependencies, such as co-activation of components, that are not accounted for in the model. Topographic independent component analysis(TICA), a modification of ICA, takes into account higher order dependencies and orders components topographically as a function of dependence. Here, we aim to visualize the time course of TICA basis activations to movie stimuli. We find that the activity of TICA bases are often clustered and move continuously, potentially resembling activity of topographically organized cells in the visual cortex.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

07/01/2020

Independent Component Analysis for Compositional Data

Compositional data represent a specific family of multivariate data, whe...
06/18/2015

Simultaneous Estimation of Non-Gaussian Components and their Correlation Structure

The statistical dependencies which independent component analysis (ICA) ...
01/13/2020

WICA: nonlinear weighted ICA

Independent Component Analysis (ICA) aims to find a coordinate system in...
05/17/2018

Independent Component Analysis via Energy-based and Kernel-based Mutual Dependence Measures

We apply both distance-based (Jin and Matteson, 2017) and kernel-based (...
12/12/2012

Tree-dependent Component Analysis

We present a generalization of independent component analysis (ICA), whe...
01/24/2019

Overcomplete Independent Component Analysis via SDP

We present a novel algorithm for overcomplete independent components ana...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

1.1 Motivation

Computational models of the early visual system have greatly informed our understanding of visual cortex organization. These models have linked known properties of the early visual system (e.g. motion selectivity, line orientation, contrast sensitivity) to the statistical properties of natural images (Barlow 1972; Field, 1994). One such computational model, known as independent component analysis (ICA), has been a tour de force in modelling natural image statistics. Similar to sparse coding (Olshausen and Field, 1997), ICA decomposes a multivariate signal into independent components that are localized in space and frequency. Implicit to ICA is the assumption of independence between components. However, as this assumption is oftentimes violated, a modification of the basic ICA model has been developed, which serves to model the shared dependencies between components. The spatially ordered topography of TICA-derived basis vectors has heralded this method as a biologically plausible model of early visual system properties.

1.2 Definition of ICA

Independent component analysis (ICA) (Jutten and Herault, 1991) is a generative model that decomposes a multivariate signal into independent signals. ICA can be represented by the linear model


where represents the observed data. denotes the mixing matrix or basis matrix function, and describes the independent components of the data. is unknown, and is a latent variable, which means that it cannot be directly observed. Thus, both and need to be estimated from the data . In order to do this, several assumptions need to be made about and . First, the basic matrix function, , is assumed to be square, full ranked, and typically sparse. Second, the signal sources (independent components), , are assumed to be independent of each other, or in other words, maximally non-gaussian. Using these assumptions, a learning rule can be derived that uses gradient descent on the negative log likelihood to estimate . After convergence to a solution for , can be computed by multiplying the observed data with the inverse of .

1.3 Definition of TICA

Topographic Independent Component Analysis (TICA) (Hyvärinen, Hoyer, and Inki, 2001) is a modification of ICA that does not assume independence between the components . Instead, TICA considers the higher order dependencies between components by modelling the correlations of energies, or simultaneous activations of components. The advantage of this approach is that components can be organized topographically such that basis vectors that are spatially contiguous share higher dependencies while bases that are further apart share fewer dependencies (i.e. they are more independent). In ICA, the ordering of the bases is random; thus there is no topographic representation of components. TICA therefore provides a more intuitive way to visualize higher order dependencies of natural image statistics.

TICA assumes that variance controls the activation of components. Thus, we can rewrite a component’s variance as



where


Here, we define as a neighborhood function that describes the distance in topography between the i-th and j-th components as a function of neighborhood width, . If components and are within the same topographic neighborhood, then . If the distance is otherwise larger than the width of the neighborhood, . The variance can be used to obtain using the equations



where

is a random variable with the same distribution as

. These equations can then be used to derive the learning rule estimating , to determine topographic dependencies. The derivation of TICA’s learning rule has been described in detail in Hyvärinen, Holyer, and Inki’s 2001 paper (equations 21-27).

1.4 Our Contribution

Bases that have been trained on natural images hint at the emergent complex topography of neurons in the early visual system. Interestingly, while static images of natural scenes have dominated the TICA literature, movie clips have not yet been explored as a useful alternative. From a computational standpoint, movies are also likely to be useful as they allow for real-time visualization of the time course co-activations of neighboring basis vectors as objects move across the screen. In light of this gap, we have implemented the first systematic investigation of TICA on simple and complex movies and we demonstrate the potential for this approach to better inform our understanding of the properties of the early visual system.

2 Methods

2.1 Obtaining training data from natural images

The training data were obtained in line with the methods reported by Hyvärinen, Hoyer, and Inki (2001). Gray-scaled natural scenes depicting animals, trees, natural scenes were obtained from PhotoCD 111http://www.cis.hut.fi/projects/ica/data/images/

(size: 256 x 512 or 512 x 256 pixels). Each image was normalized with zero mean and unit variance. The training data were derived from 100x100 pixel image patches at random locations from the normalized images. Each image was converted into a vector of length 10,000 and the mean gray-scale value was subtracted from each image vector. Principal component analysis (PCA) was then used to reduce the dimension of the data vector while simultaneously pre-whitening. Specifically, we retained the first 200 principal components (PCs) explaining the largest amount of variance and then normalized the variance of these principal components:



The whitening matrix is computed as , where and

are defined by the eigenvalue decomposition of

. The same whitening matrix obtained here is used to whiten the test data, and the inverse of this whitening matrix is used to recover the basis vectors and the reconstructed images. The number of PCs determine the number of basis vectors (200) in the learned topographical map.

2.2 Estimating the TICA model

This work is based on a publically available implementation of TICA by Hoyer and Hyvärinen222https://research.ics.aalto.fi/ica/imageica/. A 2-D torus lattice with a neighborhood size of 3 x 3 square of 9 units defined the topographical map (Kohonen, 1995) of width 20 and height 10 (to encompass 200 PCs). To update the weight vectors, we used the same gradient learning rule and adaptive step size (see equations 27 and 28) as described by Hyvärinen, Hoyer, and Inki (2001). The starting step size was 0.1 and the constant parameter was 0.005. After learning the , the original mixing matrix was computed by inverting the whitening process as


where the inverse of A contains bases in the original space but not the whitened space.

2.3 Obtaining test data from movies

For the test data, movie clips were taken from Hollywood movies (e.g. "Birdman"333https://www.youtube.com/watch?v=cX3VbKEooWQ) filmed with the long-take technique. This approach ensured that there were no abrupt scene transitions by maximizing continuity across frames. The cinematic black bars on the top and the bottom of the movie frames were removed and the frame images were gray-scaled and re-sized to a length of 500 pixels. The testing data were obtained by taking 100x100 pixel image patches at the same location across frames in the same movie clip. These images were then processed using the same pipeline adopted for the training data (see section 2.1). The dimensions of the movie test data were reduced by multiplying the frame data with the whitening matrix obtained from the training data.

2.4 Visualizing basis activation and reconstructed images

In order to place the activation values in whitened space, the inverse of was multiplied with the whitened movie test data . Then, the inverse of the whitening matrix was multiplied with the whitened activation matrix to recover the activation in the original space.


Basis energy was obtained by calculating the square of activation () and the reconstructed images were derived from the basis vectors by multipling the mixing matrix with the activation as

In our visualization videos, we slowed down the speed of the movie clips by 3x for better visualization.

3 Results

3.1 Validation of the activation with a single basis

To confirm that we obtained the basis activations correctly, we used the image of a single basis from the matrix as the test data and visualized its activation (see Figure 1A). A video of the visualization in real-time is publically available 444https://www.youtube.com/watch?v=ORCWe2ZVVuc. We found that each corresponding basis vector had a high activation while all other vectors displayed close to zero activation. This result confirmed that our visualization of basis activation was correct, as well as demonstrating that the basis vectors were uncorrelated with each other.

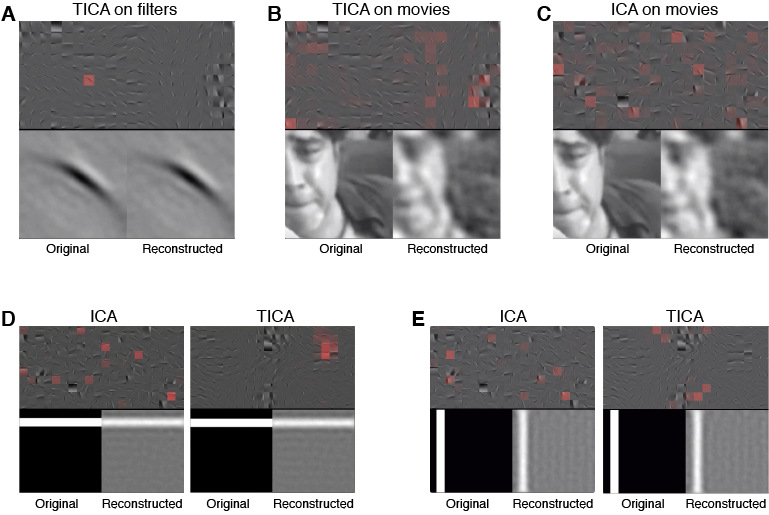

Figure 1: A) TICA basis energy for a single filter. B) TICA basis energy for a 100 x 100 image patch from the movie "Birdman". c) ICA basis energy for the same image patch as in B. D) Basis energy comparison between ICA and TICA on a simple horizontal bar stimulus. E) Comparison between ICA and TICA for a simple vertical bar stimulus.

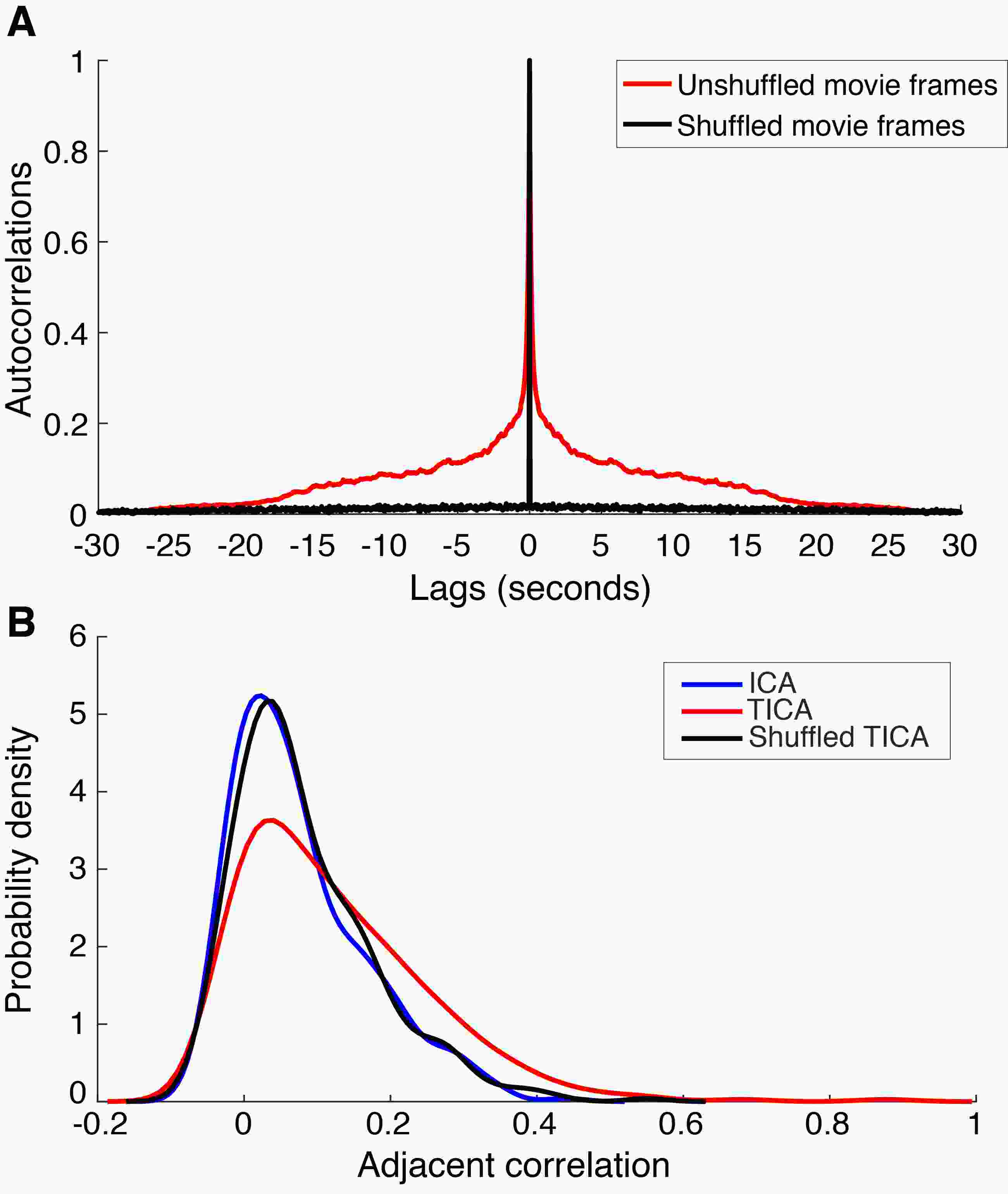

Figure 2: A) Autocorrelation for basis energy. B) Adjacent correlation for basis energy.
