1 Introduction

In recent years, advances in the design and optimization of deep neural network architectures have led to tremendous progress across many areas of computer vision (CV) and natural language processing (NLP). This progress, in turn, has enabled a variety of multi-modal applications spanning both domains, including image captioning

showtell ; showAtt ; muncaption , language grounding refres ; refres2 , image generation from captions imgen1 ; imgen2 , and visual question answering (VQA) on images DPPNet ; stackAtt ; askAtt ; compQA ; snuAtt ; NMN ; hierATT ; multiBilin ; hyunwooVQA ; VQA ; VQA2 ; BBVQA ; Askneurons and videos marioQA ; VideoQA ; MovieQA .

The VQA task, in particular, has received broad attention because its formulation requires a universal understanding of image content. Most state-of-the-art methods snuAtt ; stackAtt ; hierATT address this inherently challenging problem through an attention mechanism showAtt that allows to visually ground linguistic expressions; they identify the region of visual interest referred to by the question and predict the answer based on the visual information in that region.

More recently, Visual Dialog visdial has been introduced as a generalization of the VQA task. Unlike VQA, where every question is asked independently, a visual dialog system needs to answer a sequence of questions about an input image. The sequential and inter-dependent property of questions in a dialog presents additional challenges. Consider the simple image and partial dialog in Figure 1. Some questions (e.g., #1: ‘How many 9’s are there in the image?’) contain the full information needed to attend to the regions within the image and answer the question accurately. Other questions (e.g., #6: ‘What is the number of the blue digit?’) are ambiguous on their own and require knowledge obtained from the prior questions (1, 2, 3, and 5 in particular) in order to resolve attention to the specific region the expression (‘the blue digit’) is referring to. This process of visual reference resolution111We coin this term by borrowing nomenclature, partially, from NLP, where coreference resolution attempts to solve the corresponding problem in language; the visual in visual reference resolution implies that we want to do both resolve and visually ground the reference used in the question. is the key component required to localize attention accurately in the presence of ambiguous expressions and thus plays a crucial role in extending VQA approaches to the visual dialog task.

We perform visual reference resolution relying on a novel attention mechanism that employs an associative memory to obtain a visual reference for an ambiguous expression. The proposed model utilizes two types of intermediate attentions: tentative and retrieved ones. The tentative attention is calculated solely based on the current question (and, optionally, the dialog history), and is capable of focusing on an appropriate region when the question is unambiguous. The retrieved attention, used for visual reference resolution, is the most relevant previous attention available in the associative memory. The final attention for the current question is obtained by combining the two attention maps conditioned on the question; this is similar to neural module networks NMN ; compQA , which dynamically combine discrete attention modules, based on a question, to produce the final attention. For this task, our model adopts a dynamic parameter layer DPPNet that allows us to work with continuous space of dynamic parametrizations, as opposed to the discrete set of parametrizations in NMN ; compQA .


We make the following contributions. (1) We introduce a novel attention process that, in addition to direct attention, resolves visual references by modeling the sequential dependency of the current question on previous attentions through an associative attention memory; (2) We perform a comprehensive analysis of the capacity of our model for the visual reference resolution task using a synthetic visual dialog dataset (MNIST dialog) and obtain superior performance compared to all baseline models. (3) We test the proposed model in a visual dialog benchmark (VisDial visdial ) and show state-of-the-art performance with significantly fewer parameters.

# Question Answer
1 How many 9’s are there in the image? four
2 How many brown digits are there among them? one
3 What is the background color of the digit at the left of it? white
4 What is the style of the digit? flat
5 What is the color of the digit at the left of it? blue
6 What is the number of the blue digit? 4
7 Are there other blue digits? two
Figure 1: Example from MNIST Dialog. Each pair consists of an image (left) and a set of sequential questions with answers (right).

2 Related Work

Visual Dialog

Visual dialogs were recently proposed in visdial and guesswhat

, focusing on different aspects of a dialog. While the conversations in the former contain free-form questions about arbitrary objects, the dialogs in the latter aim at object discovery through a series of yes/no questions. Reinforcement learning (RL) techniques were built upon those works in

visdialRL and guesswhatRL . Das et al. visdialRL train two agents by playing image guessing games and show that they establish their own communication protocol and style of speech. In guesswhatRL , RL is directly used to improve the performance of agents in terms of the task completion rate of goal-oriented dialogs. However, the importance of previous references has not yet been explored in the visual dialog task.

Attention for Visual Reference Resolution

While visual dialog is a recent task, VQA has been studied extensively and attention models have been known to be beneficial for answering independent questions

askAtt ; stackAtt ; snuAtt ; compQA ; NMN ; hierATT ; multiBilin . However, none of those methods incorporate visual reference resolution, which is neither necessary nor possible in VQA but essential in visual dialog. Beyond VQA, attention models are used to find visual groundings of linguistic expressions in a variety of other multi-modal tasks, such as image captioning muncaption ; showAtt , VQA in videos marioQA , and visual attributes prediction PAN . Common to most of these works, an attention is obtained from a single embedding of all linguistic inputs. Instead, we propose a model that embeds each question in a dialog separately and calculates the current question’s attention by resolving its sequential dependencies through an attention memory and a dynamic attention combination process. We calculate an attention through a dynamic composition process taking advantage of a question’s semantic structure, which is similar to compQA and NMN . However, the proposed method still differs in that our attention process is designed to deal with ambiguous expressions in dialogs by dynamically analyzing the dependencies of questions at each time step. In contrast, compQA and NMN obtain the attention for a question based on its compositional semantics that is completely given at the time of the network structure prediction.

Memory for Question Answering

Another line of closely related works is the use of a memory component to question answering models. Memory networks with end-to-end training are first introduced in memn2n , extending the original memory network memNet . The memories in these works are used to store some factoids in a given story and the supporting facts for answering questions are selectively retrieved through memory addressing. A memory network with an episodic memory was proposed in dmnorg and applied to VQA by storing the features at different locations of the memory dmnvqa . While these memories use the contents themselves for addressing, keymem proposes associative memories that have a key-value pair at each entry and use the keys for addressing the value to be retrieved. Finally, the memory component is also utilized for visual dialog in visdial to actively select the previous question in the history. Memories in these previous memory networks store given factoids to retrieve a supporting fact. In contrast, our attention memory stores previous attentions, which represent grounded references for previous questions, to resolve the current reference based on the sequential dependency of the referring expressions. Moreover, we adopt an associative memory to use the semantics of QA pairs for addressing.

Figure 2: Architecture of the proposed network. The gray box represents the proposed attention process. Refer to Section 3 for the detailed description about individual modules (a)-(f).

3 Visual Dialog Model with Attention Memory-based Reference Resolution

Visual dialog is the task of building an agent capable of answering a sequence of questions presented in the form of a dialog. Formally, we need to predict an answer , where is a set of discrete answers or a set of natural language phrases/sentences, at time given input image , current question , and dialog history .

We utilize the encoder-decoder architecture recently introduced in visdial , which is illustrated in Figure 2. Specifically, we represent a triplet with

by applying three different encoders, based on recurrent (RNN with long-short term memory units), hierarchical recurrent (HRNN)

222The questions and the answers of a history are independently embedded using LSTMs and then fused by a fc layer with concatenation to form QA encodings. The fused QA embedding at each time step is finally fed to another LSTM and the final output is used for the history encoding. and convolutional (CNN) neural networks, followed by attention and fusion units (Figure 2 (a)-(f)). Our model then decodes the answer from the encoded representation (Figure 2 (g)). Note that, to obtain the encoded representation , the CNN image feature map computed from undergoes a soft spatial attention process guided by the combination of and as follows:


where fc (Figure 2 (d)) denotes a fully connected layer, is the attention map conditioned on a fused encoding of and , is the location index in the feature map, and is the size of the spatial grid of the feature map. This attention mechanism is the critical component that allows the decoder to focus on relevant regions of the input image; it is also the main focus of this paper.

We make the observation that, for certain questions, attention can be resolved directly from . This is called tentative attention and denoted by . This works well for questions like #1 in Figure 1, which are free from dialog referencing. For other questions like #6, resolving reference linguistically would be difficult (e.g., linguistic resolution may look like: ‘What number of the digit to the left to the left of the brown 9’). That said, #6 is straightforward to answer if the attention utilized to answer #5 is retrieved. This process of visual reference resolution gives rise to attention retrieval from the memory. The final attention is computed using dynamic parameter layer, where the parameters are conditioned on . To summarize, an attention is composed of three steps in the proposed model: tentative attention, relevant attention retrieval, and dynamic attention fusion as illustrated in Figure 2(a). We describe the details of each step below.

(a) Dynamic combination of attentions
(b) Attention retrieval from memory
Figure 3: Attention process for visual dialog task. (a) The tentative and relevant attentions are first obtained independently and then dynamically combined depending on the question embedding. (b) Two boxes represent memory containing attentions and corresponding keys. Question embedding is projected by

and compared with keys using inner products, denoted by crossed circles, to generate address vector

. The address vector is then used as weights for computing a weighted average of all memory entries, denoted by within circle, to retrieve memory entry .

3.1 Tentative Attention

We calculate the tentative attention by computing similarity, in the joint embedding space, of the encoding of the question and history, , and each feature vector, , in the image feature grid :


where and are projection matrices for the question and history encoding and the image feature vector, respectively, and is an attention score for a feature at the spatial location .

3.2 Relevant Attention Retrieval from Attention Memory

As a reminder, in addition to the tentative attention, our model obtains the most relevant previous attention using an attention memory for visual reference resolution.

Associative Attention Memory

The proposed model is equipped with an associative memory, called an attention memory, to store previous attentions. The attention memory stores all the previous attention maps with their corresponding keys for associative addressing. Note that is NULL attention and set to all zeros. The NULL attention can be used when no previous attention reference is required for the current reference resolution.

The most relevant previous attention is retrieved based on the key comparison as illustrated in Figure 2(b). Formally, the proposed model addresses the memory given the embedding of the current question and history using


where projects the question and history encoding onto the semantic space of the memory keys. The relevant attention and key are then retrieved from the attention memory using the computed addressing vector by


This relevant attention retrieval allows the proposed model to resolve the visual reference by indirectly resolving coreferences coref1 ; coref2 ; coref3 through the memory addressing process.

Incorporating Sequential Dialog Structure

While the associative addressing is effective in retrieving the most relative attention based on the question semantics, we can improve the performance by incorporating sequential structure of the questions in a dialog. Considering that more recent attentions are more likely to be referred again, we add an extra term to Eq. (5) that allows preference for sequential addressing, i.e., where is a learnable parameter weighting the relative time distance from the current time step.

3.3 Dynamic Attention Combination

After obtaining both attentions, the proposed model combines them. The two attention maps and are first stacked and fed to a convolution layer to locally combine the attentions. After generating the locally combined attention features, it is flattened and fed to a fully connected (fc) layer with softmax generating the final attention map. However, a fc layer with fixed weights would always result in the same type of combination although the merging process should, as we argued previously, depend on the question. Therefore, we adopt the dynamic parameter layer introduced in DPPNet to adapt the weights of the fc layer conditioned on the question at test time. Formally, the final attention map for time is obtained by


where are the dynamically determined weights and is the flattened output of the convolution obtained from the stacked attention maps. As in DPPNet , we use a hashing technique to predict the dynamic parameters without explosive increase of network size.

3.4 Additional Components and Implementation

In addition to the attended image feature, we find other information useful for answering the question. Therefore, for the final encoding at time step , we fuse the attended image feature embedding with the context embedding , the attention map and the retrieved key from the memory, by a fc layer after concatenation (Figure 2f).

Finally, when we described the associative memory in Section 3, we did not specify the memory key generation procedure. In particular, after answering the current question, we append the computed attention map to the memory. When storing the current attention into memory, the proposed model generates a key by fusing the context embedding with the current answer embedding through a fc layer (Figure 2h). Note that an answer embedding is obtained using LSTM.


Since all the modules of the proposed network are fully differentiable, the entire network can be trained end-to-end by standard gradient-based learning algorithms.

4 Experiments

We conduct two sets of experiments to verify the proposed model. To highlight the model’s ability to resolve visual references, we first perform experiment with a synthetic dataset that is explicitly designed to contain ambiguous expressions and strong inter-dependency among questions in the visual dialog. We then show that the model also works well in the real VisDial visdial benchmark.

4.1 MNIST Dialog Dataset

Experimental Setting

We create a synthetic dataset, called MNIST Dialog333The dataset is available at, which is designed for the analysis of models in the task of visual reference resolution with ambiguous expressions. Each image in MNIST Dialog contains a grid of MNIST digits and each MNIST digit in the grid has four randomly sampled attributes, i.e., , , and , as illustrated in Figure 1. Given the generated image from MNIST Dialog, we automatically generate questions and answers about a subset of the digits in the grid that focus on visual reference resolution. There are two types of questions: (i) counting questions and (ii) attribute questions that refer to a single target digit. During question generation, the target digits for a question is selected based on a subset of the previous targets referred to by ambiguous expressions, as shown in Figure 1. For ease of evaluation, we generate a single word answer rather than a sentence for each question and there are a total of 38 possible answers ( chance performance). We generated 30K / 10K / 10K images for training / validation / testing, respectively, and three ten-question dialogs for each image.

The dimensionality of the word embedding and the hidden state in the LSTMs are set to 32 and 64, respectively. All LSTMs are single-layered. Since answers are single words, the answer embedding RNN is replaced with a word embedding layer in both the history embedding module and the memory key generation module. The image feature extraction module is formed by stacking four

convolutional layers with a subsequent pooling layer. The first two convolutional layers have 32 channels, while there are 64 channels in the last two. Finally, we use 512 weight candidates to hash the dynamic parameters of the attention combination process. The entire network is trained end-to-end by minimizing the cross entropy of the predicted answer distribution at every step of the dialogs.

We compare our model (AMEM) with three different groups of baselines. The simple baselines show the results of using statistical priors, where answers are obtained using image (I) or question (Q) only. We also implement the late fusion model (LF), the hierarchical recurrent encoder with attention (HREA) and the memory network encoder (MN) introduced in visdial . Additionally, an attention-based model (ATT), which directly uses tentative attention, without memory access, is implemented as a strong baseline. For some models, two variants are implemented: one using history embeddings and the other one not. These variations give us insights on the effect of using history contexts and are distinguished by +H. Finally, another two versions of the proposed model, orthogonal to the previous ones, are implemented with and without the sequential preference in memory addressing (see above), which is denoted by +SEQ.

Basemodel +H +SEQ Accuracy
I 20.18
Q 36.58
LF visdial 45.06
HRE visdial 49.10
MN visdial 48.51
ATT 62.62
AMEM 87.53
Figure 4: Results on MNIST Dialog. Answer prediction accuracy [%] of all models for all questions (left) and accuracy curves of four models at different dialog steps (right). +H and +SEQ represent the use of history embeddings in models and addressing with sequential preference, respectively.

Figure 4 shows the results on MNIST Dialog. The answer prediction accuracy over all questions of dialogs is presented in the table on the left. It is noticeable that the models using attention mechanisms (AMEM and ATT) significantly outperform the previous baseline models (LF, HRE and MN) introduced in visdial , while these baselines still perform better than the simple baseline models. This signifies the importance of attention in answering questions, consistent with previous works NMN ; compQA ; askAtt ; stackAtt ; snuAtt . Extending ATT to incorporate history embeddings during attention map estimation increases the accuracy by about 17%, resulting in a strong baseline model.

However, even the simplest version of the proposed model, which does not use history embeddings or addressing with sequential preference, already outperforms the strong baseline by a large margin. Note that this model still has indirect access to the history through the attention memory, although it does not have direct access to the encodings of past question/answer pairs when computing the attention. This signifies that the use of the attention memory is more helpful in resolving the current reference (and computing attention), compared to a method that uses more traditional tentative attention informed by the history encoding. Moreover, the proposed model with history embeddings further increases the accuracy by 1.7%. The proposed model reaches >96% accuracy when the sequential structure of dialogs is taken into account by the sequential preference in memory addressing.

We also present the accuracies of the answers at each dialog step for four models that use attentions in Figure 4 (right). Notably, the accuracy of ATT drops very fast as the dialog progresses and reference resolution is needed. Adding history embeddings to the tentative attention calculation somewhat reduces the degradation. The use of the attention memory gives a very significant improvement, particularly at later steps in the dialog when complex reference resolution is needed.

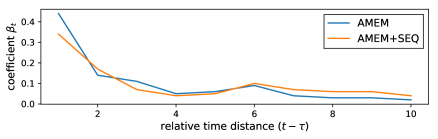

Figure 5: Memory addressing coefficients with and without sequential preference. Both models put large weights on recent elements (smaller relative time difference) to deal with the sequential structure of dialogs.

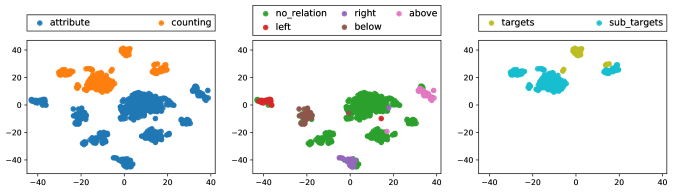

Figure 6: Characteristics of dynamically predicted weights for attention combination. Dynamic weights are computed from 1,500 random samples at dialog step 3 and plotted by t-SNE. Each figure presents clusters formed by different semantics of questions. (left) Clusters generated by different question types. (middle) Subclusters formed by types of spatial relationships in attribute questions. (right) Subclusters formed by ways of specifying targets in counting questions; cluster sub_targets contains questions whose current target digits are included in the targets of the previous question.
Parameter Analysis

When we observed the learned parameter for the sequential preference, it is consistently negative in all experiments; it means that all models prefer recent elements. A closer look at the addressing coefficients with and without the sequential preference reveals that both variants have a clear preferences for recent elements, as depicted in Figure 5. It is interesting that the case without the bias term shows a stronger preference for recent information, but its final accuracy is lower than the version with the bias term. It seems that without bias puts too much weight on recent elements, resulting in worse performance. Based on this observation, we learn and jointly to find better coefficients than alone.

The dynamically predicted weights form clusters with respect to the semantics of the input questions as illustrated in Figure 6, where 1,500 random samples at step 3 of dialogs are visualized using t-SNE. In Figure 6 (left), the two question types (attribute and counting) create distinct clusters. Each of these, in turn, contains multiple sub-clusters formed by other semantics, as presented in Figure 6 (middle) and (right). In the cluster of attribute questions, sub-clusters are mainly made by types of spatial relationship used to specify the target digit (e.g., #3 in Figure 1), whereas sub-clusters in counting questions are based on whether the target digits of the question are selected from the targets of the previous question or not (e.g., #1 vs. #2 in Figure 1).

Figure 7 illustrates qualitative results. Based on the history of attentions stored in the attention memory, the proposed model retrieves the previous reference as presented in the second column. The final attention for the current question is then calculated by manipulating the retrieved attention based on the current question. For example, the current question in Figure 7 refers to the right digit of the previous reference, and the model identifies the target reference successfully (column 3) as the previous reference (column 2) is given accurately by the retrieved attention. To investigate consistency with respect to attention manipulation, we move the region of the retrieved attention manually (column 4) and observe the final attention map calculated from the modified attention (column 5). It is clear that our reference resolution procedure works consistently even with the manipulated attention and responds to the question accordingly. This shows a level of semantic interpretability of our model. See more qualitative results in Section A of our supplementary material.

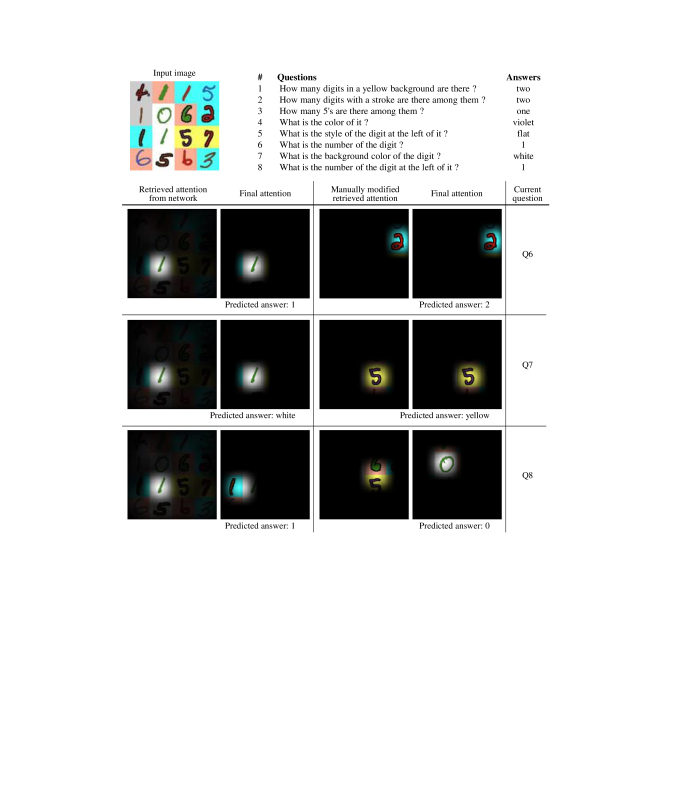

Figure 7: Qualitative analysis on MNIST Dialog. Given an input image and a series of questions with their visual grounding history, we present the memory retrieved and final attentions for the current question in the second and third columns, respectively. The proposed network correctly attends to target reference and predicts correct answer. The last two columns present the manually modified attention and the final attention obtained from the modified attention, respectively. Experiment shows consistency of transformation between attentions and semantic interpretability of our model.

4.2 Visual Dialog (VisDial) Dataset

Experimental Setting

In the VisDial visdial dataset444We use recently released VisDial v0.9 with the benchmark splits visdial ., the dialogs are collected from MS-COCO mscoco images and their captions. Each dialog is composed of an image, a caption, and a sequence of ten QA pairs. Unlike in MNIST Dialog, answers to questions in VisDial are in free form text. Since each dialog always starts with an initial caption annotated in MS-COCO, the initial history is always constructed using the caption. The dataset provides 100 answer candidates for each question and accuracy of a question is measured by the rank of the matching ground-truth answer. Note that this dataset is less focused on visual reference resolution and contains fewer ambiguous expressions compared to MNIST Dialog. We estimate the portion of questions containing ambiguous expressions to be 94% and 52% in MNIST Dial and VisDial, respectively555We consider pronouns and definite noun phrases as ambiguous expressions and count them using a POS tagger in NLTK (

While we compare our model with various encoders introduced in visdial , we fix the decoder to a discriminative decoder that directly ranks the answer candidates through their embeddings. Our baselines include three visual dialog models, i.e., late fusion model (LF), hierarchical recurrent encoder (HRE) and memory network encoder (MN), and two attention based VQA models (SAN and HieCoAtt) with the same decoder. The three visual dialog baselines are trained with different valid combinations of inputs, which are denoted by Q, I and H in the model names.

We perform the same ablation study of our model with the one for MNIST Dialog dataset. The conv5 layer in VGG-16 VGG16

trained on ImageNet

ImageNet is used to extract the image feature map. Similar to visdial , all word embedding layers share their weights and an LSTM is used for embedding the current question. For the models with history embedding, we use additional LSTMs for the questions, the answers, and the captions in the history. Based on our empirical observation, we share the parameters of the question and caption LSTMs while having a separate set of weights for the answer LSTM. Every LSTM embedding sentences is two-layered, but the history LSTM of HRNN has a single layer. We employ 64 dimensional word embedding vectors and 128 dimensional hidden state for every LSTM. Note that the the dimensionality of our word embeddings and hidden state representations in LSTMs are significantly lower than the baselines (300 and 512 respectively). We train the network using Adam Adam with the initial learning rate of 0.001 and weight decaying factor 0.0001. Note that we do not update the feature extraction network based on VGG-16.

Model +H ATT # of params MRR R@1 R@5 R@10 MR
Answer prior visdial n/a 0.3735 23.55 48.52 53.23 26.50
LF-Q visdial 08.3 M (3.6x) 0.5508 41.24 70.45 79.83 7.08
LF-QH visdial 12.4 M (5.4x) 0.5578 41.75 71.45 80.94 6.74
LF-QI visdial 10.4 M (4.6x) 0.5759 43.33 74.27 83.68 5.87
LF-QIH visdial 14.5 M (6.3x) 0.5807 43.82 74.68 84.07 5.78


plus1fil minus1fil

HRE-QH visdial 15.0 M (6.5x) 0.5695 42.70 73.25 82.97 6.11
HRE-QIH visdial 16.8 M (7.3x) 0.5846 44.67 74.50 84.22 5.72
HREA-QIH visdial 16.8 M (7.3x) 0.5868 44.82 74.81 84.36 5.66


plus1fil minus1fil

MN-QH visdial 12.4 M (5.4x) 0.5849 44.03 75.26 84.49 5.68
MN-QIH visdial 14.7 M (6.4x) 0.5965 45.55 76.22 85.37 5.46
SAN-QI stackAtt n/a 0.5764 43.44 74.26 83.72 5.88
HieCoAtt-QI hierATT n/a 0.5788 43.51 74.49 83.96 5.84
AMEM-QI 1.7 M (0.7x) 0.6196 48.24 78.33 87.11 4.92
AMEM-QIH 2.3 M (1.0x) 0.6192 48.05 78.39 87.12 4.88
AMEM+SEQ-QI 1.7 M (0.7x) 0.6227 48.53 78.66 87.43 4.86
AMEM+SEQ-QIH 2.3 M (1.0x) 0.6210 48.40 78.39 87.12 4.92
Table 1: Experimental results on VisDial. We show the number of parameters, mean reciprocal rank (MRR), recall@ and mean rank (MR). +H and ATT indicate use of history embeddings in prediction and attention mechanism, respectively.

Table 1 presents mean reciprocal rank (MRR), mean rank (MR), and recall@

of the models. Note that lower is better for MRs but higher is better for all other evaluation metrics. All variants of the proposed model outperform the baselines in all metrics, achieving the state-of-the-art performance. As observed in the experiments on MNIST Dialog, the models with sequential preference (+SEQ) show better performances compared to the ones without it. However, we do not see additional benefits from using a history embedding on VisDial, in contrast to MNIST Dialog. The proposed algorithm also has advantage over existing methods in terms of the number of parameters. Our full model only requires approximately 15% of parameters compared to the best baseline model without counting the parameters in the common feature extraction module based on VGG-16. In VisDial, the attention based VQA techniques with (near) state-of-the-art performances are not as good as the baseline models of

visdial because they treat each question independently. The proposed model improves the performance on VisDial by facilitating the visual reference resolution process. Qualitative results for VisDial dataset are presented in Section B of the supplementary material.

5 Conclusion

We proposed a novel algorithm for answering questions in visual dialog. Our algorithm resolves visual references in dialog questions based on a new attention mechanism with an attention memory, where the model indirectly resolves coreferences of expressions through the attention retrieval process. We employ the dynamic parameter prediction technique to adaptively combine the tentative and retrieved attentions based on the question. We tested on both synthetic and real datasets and illustrated improvements.


This work was supported in part by the IITP grant funded by the Korea government (MSIT) [2017-0-01778, Development of Explainable Human-level Deep Machine Learning Inference Framework; 2017-0-01780, The Technology Development for Event Recognition/Relational Reasoning and Learning Knowledge based System for Video Understanding].


  • (1) Vinyals, O., Toshev, A., Bengio, S., Erhan, D.: Show and tell: A neural image caption generator. In CVPR. (2015)
  • (2) Xu, K., Ba, J., Kiros, R., Courville, A., Salakhutdinov, R., Zemel, R., Bengio, Y.: Show, attend and tell: Neural image caption generation with visual attention. In ICML. (2015)
  • (3) Mun, J., Cho, M., Han, B.: Text-guided attention model for image captioning. AAAI (2016)
  • (4) Huang, D.A., Lim, J.J., Fei-Fei, L., Niebles, J.C.: Unsupervised visual-linguistic reference resolution in instructional videos. In CVPR. (2017)
  • (5) Rohrbach, A., Rohrbach, M., Hu, R., Darrell, T., Schiele, B.: Grounding of textual phrases in images by reconstruction. In ECCV. (2016)
  • (6) Mansimov, E., Parisotto, E., Ba, J., Salakhutdinov, R.: Generating images from captions with attention. In ICLR. (2016)
  • (7) Reed, S., Akata, Z., Yan, X., Logeswaran, L., Schiele, B., Lee, H.: Generative adversarial text to image synthesis. In ICML. (2016)
  • (8) Noh, H., Seo, P.H., Han, B.:

    Image question answering using convolutional neural network with dynamic parameter prediction.

    In CVPR. (2016)
  • (9) Yang, Z., He, X., Gao, J., Deng, L., Smola, A.: Stacked attention networks for image question answering. In CVPR. (2016)
  • (10) Xu, H., Saenko, K.: Ask, attend and answer: Exploring question-guided spatial attention for visual question answering. In ECCV. (2016)
  • (11) Andreas, J., Rohrbach, M., Darrell, T., Klein, D.: Deep compositional question answering with neural module networks. In CVPR. (2016)
  • (12) Kim, J.H., On, K.W., Lim, W., Kim, J., Ha, J.W., Zhang, B.T.: Hadamard Product for Low-rank Bilinear Pooling. In ICLR. (2017)
  • (13) Andreas, J., Rohrbach, M., Darrell, T., Klein, D.: Neural module networks. In CVPR. (2016)
  • (14) Lu, J., Yang, J., Batra, D., Parikh, D.: Hierarchical question-image co-attention for visual question answering. In NIPS. (2016)
  • (15) Fukui, A., Park, D.H., Yang, D., Rohrbach, A., Darrell, T., Rohrbach, M.: Multimodal compact bilinear pooling for visual question answering and visual grounding. In EMNLP. (2016)
  • (16) Noh, H., Han, B.: Training recurrent answering units with joint loss minimization for vqa. arXiv preprint arXiv:1606.03647 (2016)
  • (17) Antol, S., Agrawal, A., Lu, J., Mitchell, M., Batra, D., Zitnick, C.L., Parikh, D.: VQA: Visual Question Answering. In ICCV. (2015)
  • (18) Goyal, Y., Khot, T., Summers-Stay, D., Batra, D., Parikh, D.: Making the V in VQA matter: Elevating the role of image understanding in Visual Question Answering. In CVPR. (2017)
  • (19) Zhang, P., Goyal, Y., Summers-Stay, D., Batra, D., Parikh, D.: Yin and Yang: Balancing and answering binary visual questions. In CVPR. (2016)
  • (20) Malinowski, M., Rohrbach, M., Fritz, M.:

    Ask your neurons: A neural-based approach to answering questions about images.

    In ICCV. (2015)
  • (21) Mun, J., Seo, P.H., Jung, I., Han, B.: MarioQA: Answering questions by watching gameplay videos. arXiv preprint arXiv:1612.01669 (2016)
  • (22) Zhu, L., Xu, Z., Yang, Y., Hauptmann, A.G.: Uncovering temporal context for video question and answering. arXiv preprint arXiv:1511.04670 (2015)
  • (23) Tapaswi, M., Zhu, Y., Stiefelhagen, R., Torralba, A., Urtasun, R., Fidler, S.: Movieqa: Understanding stories in movies through question-answering. In CVPR. (2016)
  • (24) Das, A., Kottur, S., Gupta, K., Singh, A., Yadav, D., Moura, J.M., Parikh, D., Batra, D.: Visual Dialog. In CVPR. (2017)
  • (25) de Vries, H., Strub, F., Chandar, S., Pietquin, O., Larochelle, H., Courville, A.: Guesswhat?! visual object discovery through multi-modal dialogue. In CVPR. (2017)
  • (26) Das, A., Kottur, S., Moura, J.M., Lee, S., Batra, D.: Learning cooperative visual dialog agents with deep reinforcement learning. arXiv preprint arXiv:1703.06585 (2017)
  • (27) Strub, F., de Vries, H., Mary, J., Piot, B., Courville, A., Pietquin, O.: End-to-end optimization of goal-driven and visually grounded dialogue systems. arXiv preprint arXiv:1703.05423 (2017)
  • (28) Seo, P.H., Lin, Z., Cohen, S., Shen, X., Han, B.: Progressive attention networks for visual attribute prediction. arXiv preprint arXiv:1606.02393 (2016)
  • (29) Sukhbaatar, S., Weston, J., Fergus, R., et al.: End-to-end memory networks. In NIPS. (2015)
  • (30) Weston, J., Chopra, S., Bordes, A.: Memory networks. In ICLR. (2015)
  • (31) Kumar, A., Irsoy, O., Ondruska, P., Iyyer, M., Bradbury, J., Gulrajani, I., Zhong, V., Paulus, R., Socher, R.: Ask me anything: Dynamic memory networks for natural language processing. In ICML. (2016)
  • (32) Xiong, C., Merity, S., Socher, R.: Dynamic memory networks for visual and textual question answering. In ICML. (2016)
  • (33) Miller, A., Fisch, A., Dodge, J., Karimi, A.H., Bordes, A., Weston, J.: Key-value memory networks for directly reading documents. In EMNLP. (2016)
  • (34) Clark, K., Manning, C.D.: Deep reinforcement learning for mention-ranking coreference models. In EMNLP. (2016)
  • (35) Clark, K., Manning, C.D.:

    Improving coreference resolution by learning entity-level distributed representations.

    In ACL. (2016)
  • (36) Clark, K., Manning, C.D.: Entity-centric coreference resolution with model stacking. In ACL. (2015)
  • (37) Lin, T.Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ramanan, D., Dollár, P., Zitnick, C.L.: Microsoft coco: Common objects in context. In ECCV. (2014)
  • (38) Simonyan, K., Zisserman, A.: Very deep convolutional networks for large-scale image recognition. ICLR (2015)
  • (39) Deng, J., Dong, W., Socher, R., Li, L.J., Li, K., Fei-Fei, L.: Imagenet: A large-scale hierarchical image database. In CVPR. (2009)
  • (40) Kingma, D., Ba, J.: Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980 (2014)

Appendix A More Qualitative Results on MNIST Dialog

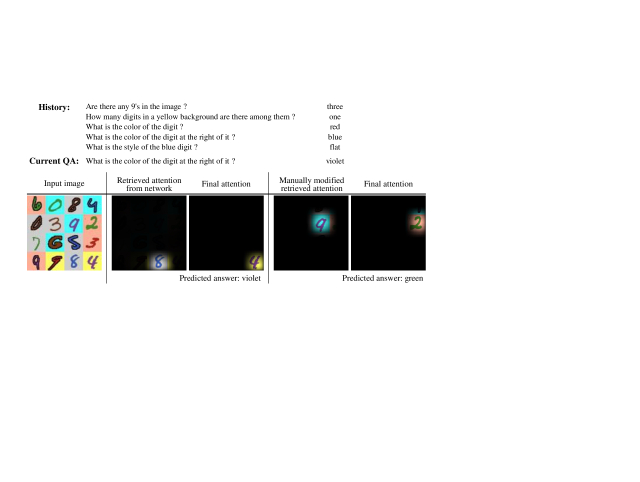

Figure 8:

Qualitative results of proposed model. Given input image and dialog at top row, retrieved attention (column 1), final attention (column 2) and predicted answers are presented for last three questions. Retrieved attentions focus on reference of ambiguous expressions and final attentions focus on region of target object based on relationship in question. Additionally, we manually modify retrieved attention by assigning high probability to randomly chosen single location (column 3) and show final attention obtained with modified retrieved attention (column 4). With modified retrieved attentions, final attentions also change accordingly. Note that misaligned retrieved attentions are corrected in final attention as depicted in Q8.

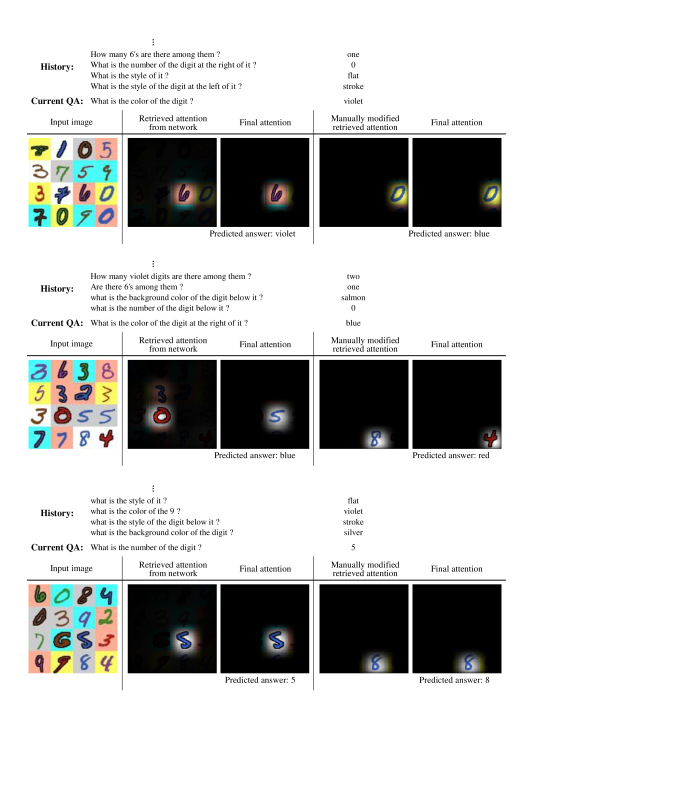

Figure 9: More Qualitative results of proposed model. Given dialog history, current QA pair (top) and input image (column 1), retrieved attention (column 2), final attention (column 3) and predicted answers are presented in each figure. Manually modified retrieved attention and its corresponding final attention are presented in column 4 and column 5 demonstrating use of retrieved attention.

Appendix B Qualitative Results on Visual Dialog (VisDial)

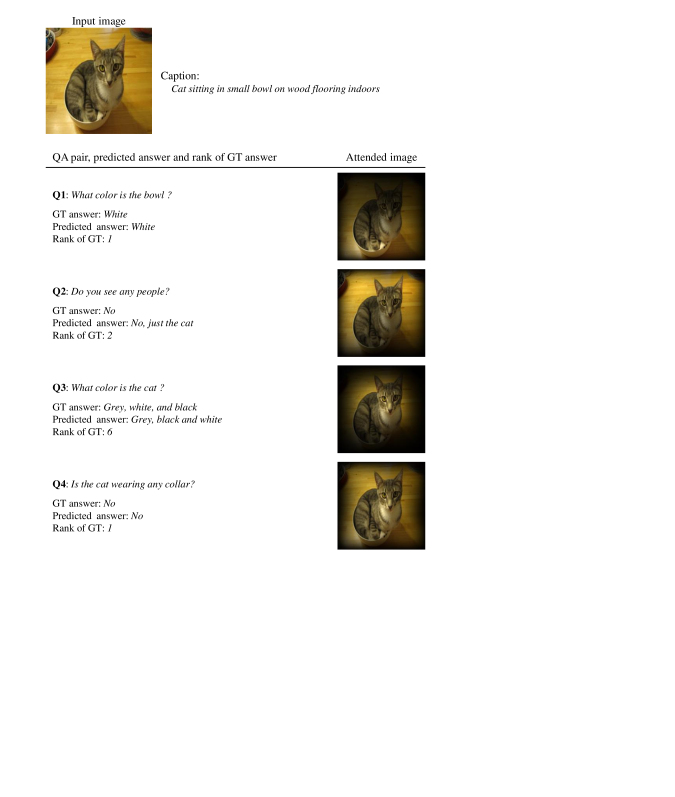

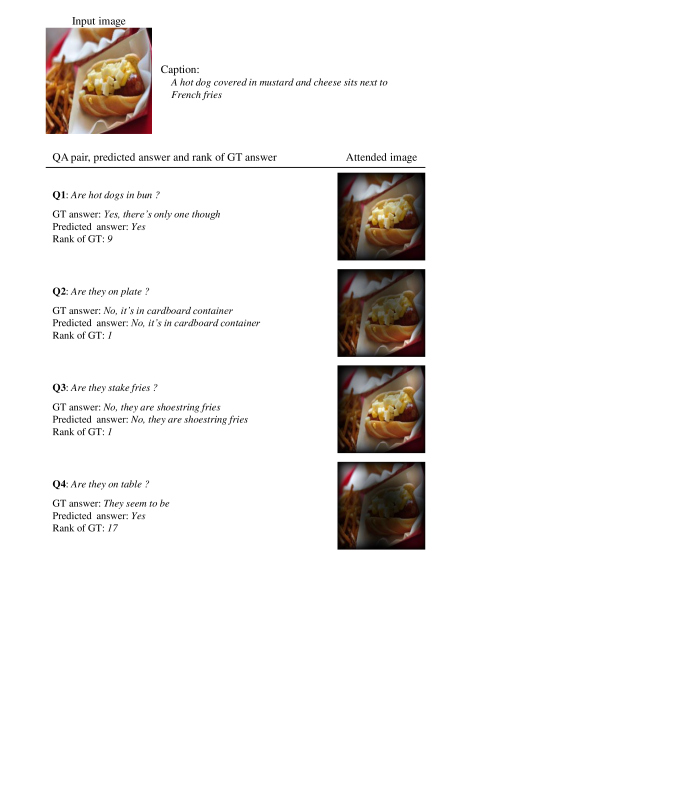

Figure 10: Qualitative results of dialog in VisDial. Given the image and the caption at the top, a sequence of questions are presented in each row with the attention from the proposed model, the GT answer, the predicted answer of the model and the rank of the GT answer. The attention map is concentrated on the reference of question while it is distributed over the entire image when the reference of the question is not present in the image as in Q2 and Q4.
Figure 11: Qualitative results of another dialog in VisDial.

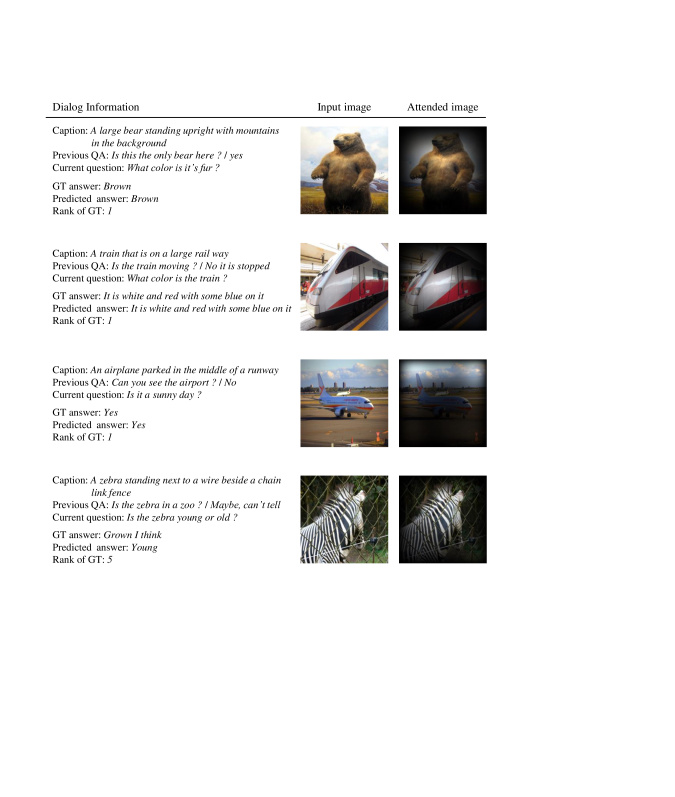

Figure 12: More qualitative results of questions in different dialogs.
