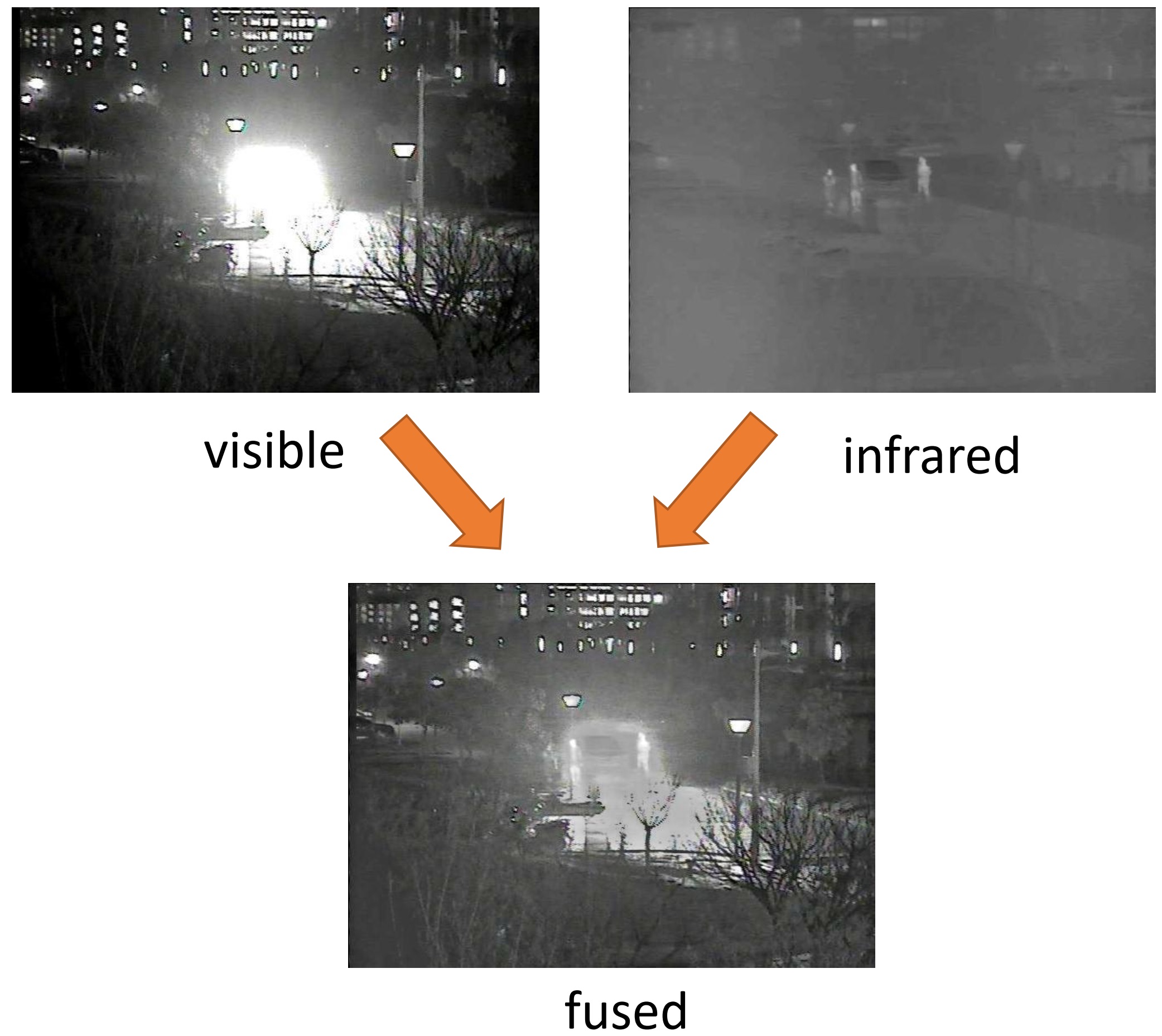

Image fusion means to combine information from different images to a single image, which is more informative and can be better processed by the following process. Figure 1 shows an example where in the fused image the target and more details about the scene can be seen. Many image fusion algorithms have been proposed, which can be generally divided into pixel-level, feature-level and decision-level fusion approaches based on the level of fusion. Also, image fusion can either be performed in the spatial domain or transform domain. Based on application areas, image fusion technology can be grouped into several types, namely medical image fusion [11, 39], multi-focus image fusion [36, 23, 41], remote sensing image fusion , multi-exposure image fusion [30, 32], visible and infrared image fusion . Among these types, the visible and infrared image fusion is one of the most frequently used ones. This is because that the visible and infrared image fusion can be applied in many applications, for instance object tracking [42, 43, 15], object detection , and biometric recognition [13, 1].
|Name||Image/Video pairs||Image type||Resolution||Year||Results||Code library|
|OSU Color-Thermal Database||6 video pairs||RGB, Infrared||320 240||2005||No||No|
|TNO||63 image pairs||multispectral||Various||2014||No||No|
|VLIRVDIF||24 video pairs||RGB, Infrared||720480||2019||No||No|
|VIFB||21 image pairs||RGB, Infrared||Various||2020||Yes||Yes|
However, current research on visible and infrared image fusion is suffering from several problems, which hinder the development of this field severely. First, there is no a well-recognized visible and infrared image fusion dataset which can be used to compare performance under the same standard. Therefore, it is quite common that different images are utilized in experiments in the literature, which makes it difficult to compare the performance of different algorithms. Second, although the source codes of many image fusion algorithms have been made publicly available, for example the FusionGAN  and DenseFuse , the input and output formats of most algorithms are different and thus it is inconvenient for large scale performance evaluation. Third, it is crucial to evaluate the performance of state-of-the-art fusion algorithms to demonstrate their strength and weakness and to help identify future research directions in this field for designing more robust algorithms. However, many evaluation metrics have been proposed to evaluate the fused images, but none of them is better than all other metrics. As a result, researchers normally choose several metrics which support their methods in the literature. This further makes it difficult to objectively compare performances.
To solve these issues, in this work we build a visible and infrared image fusion benchmark (VIFB) that includes 21 pairs of visible and infrared images, 20 publicly available fusion algorithms and 13 evaluation metrics to facilitate the evaluation task.
The main contributions of this paper lie in the following aspects:
Dataset. We created a dataset containing 21 pairs of visible and infrared images. These image pairs cover a wide range of environments and conditions, such as indoor, outdoor, low illumination, and over-exposure. Therefore, the dataset is able to test the generalization ability of fusion algorithms.
Code library. We collected 20 recent image fusion algorithms and integrated them into a cold library, which can be easily utilized to run algorithms and compare performance. Most of these algorithms are published in recent 5 years. An interface is designed to integrate any image fusion algorithms written in Matlab into VIFB easily.
Comprehensive performance evaluation. We implemented 13 evaluation metrics in VIFB to comprehensively compare fusion performance. We have run the collected 20 algorithms on the proposed dataset, and performed comprehensive comparison of those algorithms. All the results are made available for the interested readers to use.
|MSVD ||2011||Defense Science Journal||Multi-scale|
|GFF ||2013||IEEE Transactions on Image Processing||Multi-scale|
|MST_SR ||2015||Information Fusion||Hybrid|
|RP_SR ||2015||Information Fusion||Hybrid|
|NSCT_SR ||2015||Information Fusion||Hybrid|
|CBF ||2015||Signal, image and video processing||Multi-scale|
|ADF ||2016||IEEE Sensors Journal||Multi-scale|
|GFCE ||2016||Applied Optics||Multi-scale|
|Hybrid_MSD ||2016||Information Fusion||Hybrid|
|TIF ||2016||Infrared Physics & Technology||Saliency-based|
|GTF ||2016||Information Fusion||Other|
|FPDE ||2017||International Conference on Information Fusion||Subspace-based|
|IFEVIP ||2017||Infrared Physics & Technology||Other|
|VSMWLS ||2017||Infrared Physics & Technology||Saliency-based|
International Conference on Pattern Recognition
|CNN ||2018||International Journal of Wavelets, Multiresolution and Information Processing||DL-based|
|MGFF ||2019||Circuits, Systems, and Signal Processing||Multi-scale|
|ResNet ||2019||Infrared Physics & Technology||DL-based|
|AG||Average gradient||+||RW||Relatively wrap||-|
|CE||Cross entropy||-||RMSE||Root mean squared error||-|
|EI||Edge intensity||+||Edge based similarity measurement||+|
|FD||Figure definition||+||SF||Spatial frequency||+|
|MI||Mutual information||+||SSIM||Structural similarity index measure||+|
2 Related Work
In this section, we briefly review recent visible and infrared image fusion algorithms. In addition, we summarize existing visible and infrared image datasets.
2.1 Visible-infrared fusion methods
In recent years, a lot of visible and infrared image fusion methods have been proposed. Before deep learning is introduced to the image fusion community, main image fusion methods can be generally grouped into several categories, namely multi-scale transform-, sparse representation-, subspace-, and saliency-based methods, hybrid models, and other methods according to their corresponding theories.
. Deep learning can help to solve several important problems in image fusion. First, deep learning can provide better features compared to handcrafted ones. Second, deep learning can learn adaptive weights in image fusion, which is crucial in many fusion rules. Regarding methods, convolutional neural network (CNN)[10, 23, 41, 39, 32], generative adversarial networks (GAN) , Siamese networks 16] have been explored to conduct image fusion. Apart from image fusion methods, the image quality assessment, which is critical in image fusion performance evaluation, has also benefited from deep learning
. It is foreseeable that in the future, image fusion technology will develop in the direction of machine learning, and an increasing number of research results will appear.
2.2 Existing dataset
Although the research on image fusion has begun for many years, there is still no a well-recognized and common used dataset in the community of visible and infrared image fusion. This differs from the visual tracking where several well-known benchmarks have been proposed and widely utilized, such as OTB [37, 38] and VOT . Therefore, it is common that different image pairs are utilized in visible and infrared image fusion literature, which makes the objective comparison difficult.
At the moment, there are several existing visible and infrared image fusion dataset, including OSU Color-Thermal Database111http://vcipl-okstate.org/pbvs/bench/, TNO Image fusion dataset222https://figshare.com/articles/TN_Image_Fusion_Dataset/1008029, and VLIRVDIF 333http://www02.smt.ufrj.br/ fusion/. The main information about these dataset are summarized in Table 1. Actually, apart from OSU, the number of image pairs in TNO and VLIRVDIF is not small. However, the lack of code library, evaluation metrics as well as results on these dataset make it difficult to gauge the state-of-the-art based on them.
3 Visible and Infrared Image Fusion Benchmark

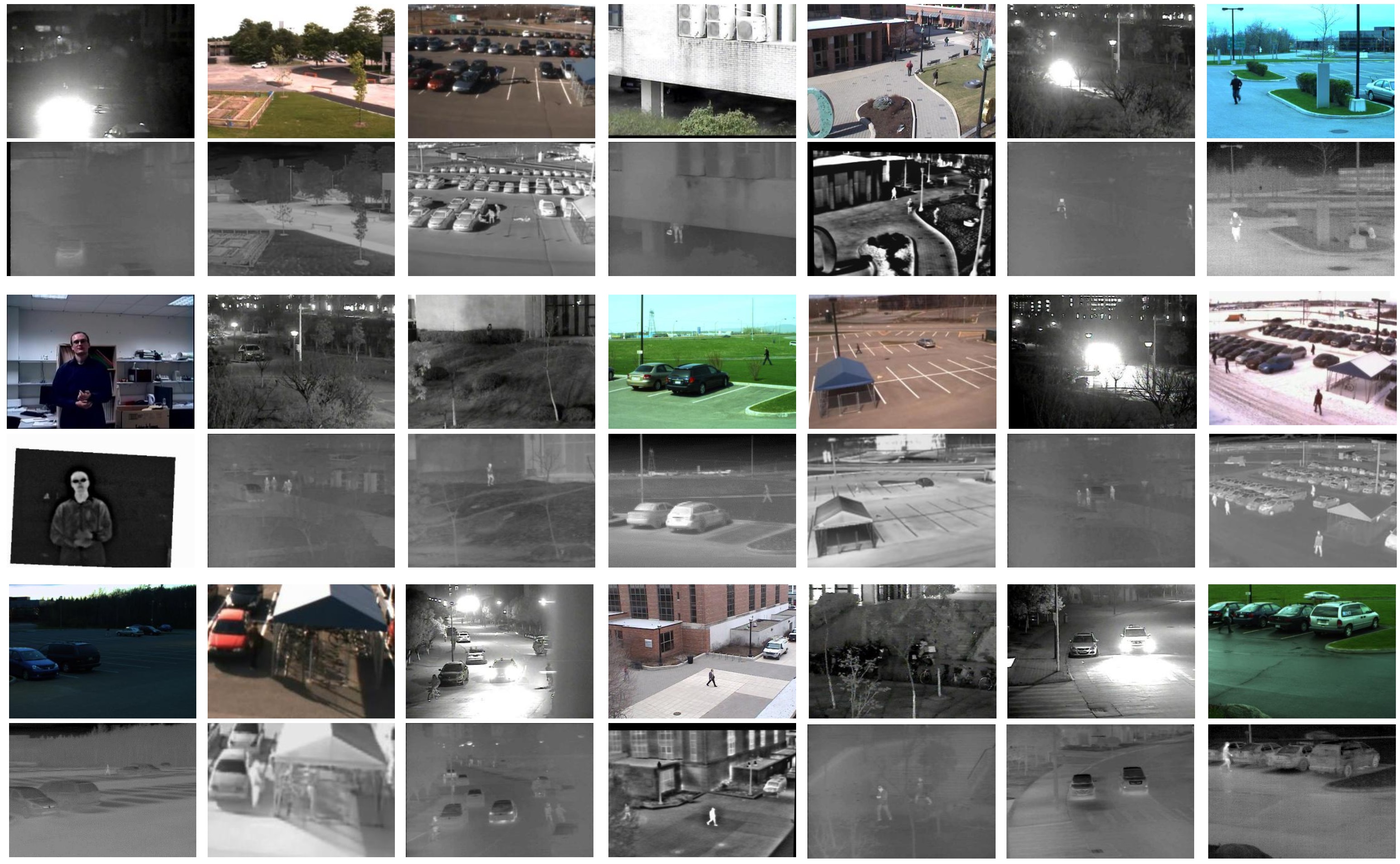

The dataset in VIFB, which is a test set, includes 21 pairs of visible and infrared images. These images cover a wide range of environments and working conditions, such as indoor, outdoor, low illumination, and over-exposure. Each pair of visible and infrared image has been strictly registered to make sure that the image fusion can be successfully performed. There are various image resolution in the dataset, such as 320240, 630460, 512184, and 452332. Some examples of images in the dataset are given in Fig. 2. The images are collected by the authors from the Internet444https://www.ino.ca/en/solutions/video-analytics-dataset/ and fusion tracking dataset .
3.2 Baseline algorithms
In recent years, a lot of algorithms have been proposed to perform visible and infrared image fusion. However, only a part of papers provide the source code. Besides, these codes have different input and output interfaces, and they may require different running environment. These factors hinder the usage of these codes to produce results and compare performances.
In VIFB benchmark, we integrate 20 recently published visible-infrared image fusion algorithms including MSVD , GFF , MST_SR , RP_SR , NSCT_SR , CBF , ADF , GFCE , HMSD_GF , Hybrid-MSD , TIF , GTF , FPDE , IFEVIP , VSM_WLS , DLF , LatLRR , CNN , MGFF , ResNet . Table 2 lists more details about these algorithms. At the moment, all these image fusion algorithms integrated in VIFB are written in Matlab. Note that some algorithms can only fused gray-scale images while some methods can fusion colorful images.
These algorithms cover almost every kind of visible-infrared fusion algorithms, and most algorithms are proposed in the last five years, which can represent the development of the field of visible-infrared fusion algorithms to some extent. We will continue to add more algorithms to VIFB in future.
To integrate algorithms into VIFB and for the convenience of users, we designed an interface to integrate fusion algorithms written in Matlab into VIFB. By using this interface, any visible-infrared fusion algorithm written in Matlab can be added into the benchmark easily. However, it should be mentioned that, for those methods whose source codes are not in Matlab, we also design an interface to integrate the fusion results to VIFB in order to compare their results with other algorithms.
3.3 Evaluation metrics
Numerous evaluation metrics for visible-infrared image fusion have been proposed, such as mutual information, spatial frequency, cross entropy. However, none of them is better than all other metrics. Therefore, in the literature, authors normally chose and present several evaluation metrics which support their methods. However, it may not be able to compare performance comprehensively in this way. In VIFB, we implement 13 evaluation metrics. It is convenient to compute all these metrics for each method in VIFB, thus making it easy to compare performances. All evaluation metrics that have been implemented in VIFB are listed in Table 3. Here we only introduce several metrics. More introduction to other metrics will be put in the supplementary material.
Mutual information (MI).
MI  is used to measure the amount of information that is transferred from source images to the fused image. It is defined as:
where and denote the information transferred from visible and infrared images to the fused image, respectively. The subscript denotes the fused image. Specifically, is defined as follows:
where is for visible image and is for infrared image, and are the marginal histograms of source image and fused image , respectively. is the joint histogram of source image and fused image . A large MI value means a good fusion performance since considerable information is transferred to the fused image.
Root mean squared error (RMSE).
RMSE is defined as:
where denotes the dissimilarity between the visible and fused images, is the dissimilarity between the infrared and fused images. is defined as:
where is for visible image and is for infrared image, and are the width and height of the images, respectively. If the fused image has a small amount of error and distortion, then there will be a small RMSE value.
Spatial frequency (SF).
SF  can measure the gradient distribution of an image thus revealing the detail and texture of an image. It is defined as:
where and . A large SF value indicates rich edges and textures, thus indicating good fusion performance.
More information about evaluation metrics can be founded in .
This section presents experimental results on the VIFB dataset. Section 4.1 and Section 4.2 presents qualitative and quantitative performance comparison, respectively. Section 4.3 compares the runtime of each algorithm. All experiments are performed using a desktop equipped with an NVIDIA GTX 1080Ti GPU and i7-8700K CPU. Default parameters reported by the corresponding authors of each algorithm are employed. Note that due to the page limits, we just present a part of results here. More fusion results will be provided in the supplementary materials.
4.1 Qualitative performance comparison

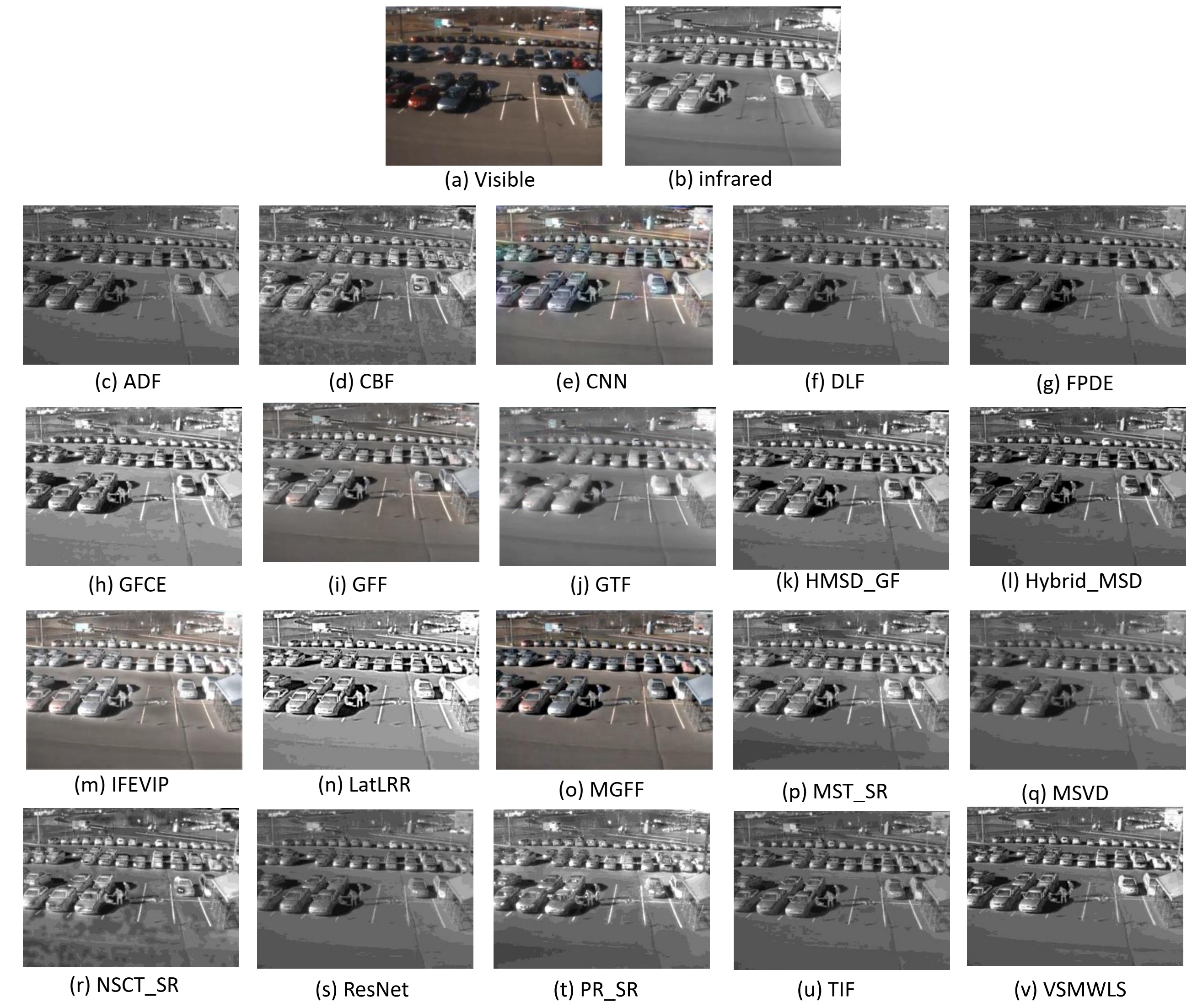

Qualitative evaluation methods are important in fusion quality assessment and they assess the quality of fused images on the basis of the human visual system. Figure 3 presents the qualitative performance comparison of 20 fusion methods on the fight image pair. In this image pair, several people are in the shadow of a car thus can not be seen clearly in the visible image while can be seen in infrared image. As can be seen, in almost all fused images these people can be seen. However, the fused images which are obtained by some algorithms have more artifacts information. These include ADF, CBF, DLF, FPDE, GFCE, HMSD_GF, Hybrid_MSD, IFEVIP, MST_SR, MSVD, NSCT_SR, ResNet, PR_SR, TIF and VSMWLS. Besides, the fused images produced by GTF, ResNet, and PR_SR do not preserve much detail information contained in the visible image. Figure 3 indicates that the fused images obtained by GFF and MGFF are more natural for human sensitivity and preserve more details.

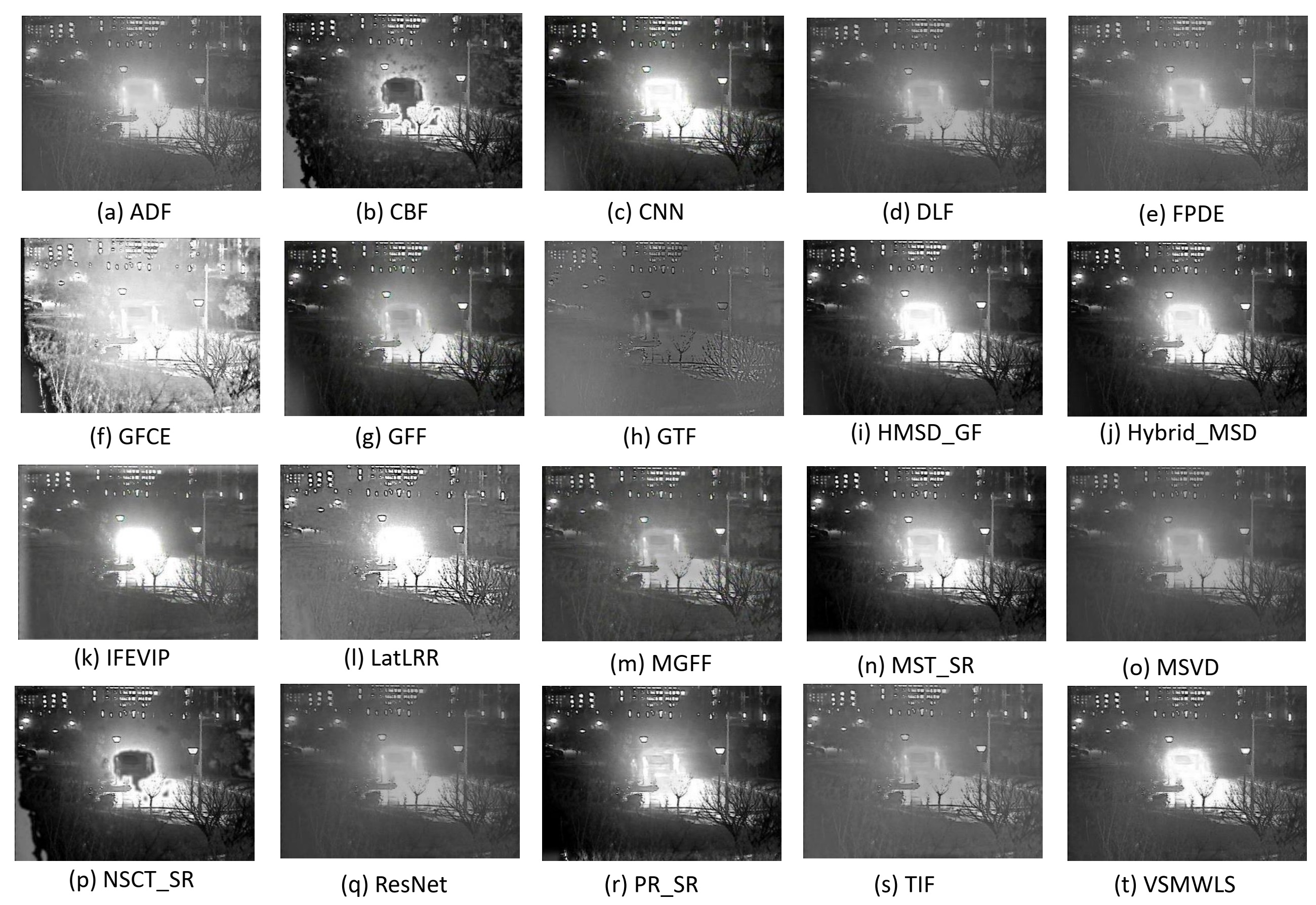

Figure 4 shows the qualitative comparison of 20 methods on manlight image pair. It can be seen that in many fused images, the people around the car are still invisible or not clear, such as those produced by ADF, CNN, GFCE, HMSD_GF, Hybrid_MSD, and IFEVIP. Some other fused images have more artifacts which are not presented in original images, such as those obtained by CBF, GFCE, and NSCT_SR. The results indicate that DLF, FPDE, MGFF, and MST_SR give better subjective fusion performance for the manlight case.
4.2 Quantitative performance comparison
Table 4 presents the average value of 13 evaluation metrics for all methods on 21 image pairs. As can be seen, the LatLRR method obtains the best overall performance by having 4 best values and 3 second best values. The NSCT_SR, GFCE and IFEVIP also show relatively good overall performance. However, this table indicates clearly that there is no a dominant fusion method that can beat other methods in all or most evaluation metrics. Besides, all three deep learning-based methods, namely DLF, CNN and ResNet, do not show very competitive overall performance. This is different from the field of tracking and detection which is almost dominated by deep learning-based approaches.

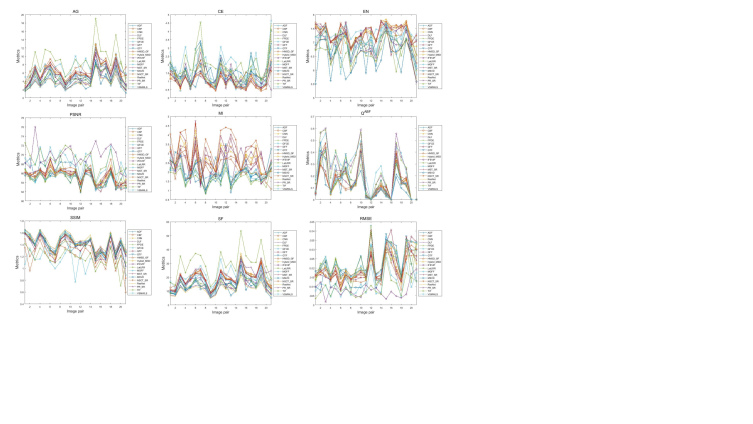

To further show the quantitative comparison of fusion performances of different methods, nine metric results of all 20 methods on 21 image pairs are presented in Figure 5.
4.3 Runtime comparison
The runtime of all algorithms integrated in VIFB is listed in Table 5. As can be seen, the runtime of image fusion methods vary significantly from one to another. This is also true even for methods in the same category. For instance, both TIF and LatLRR are saliency-based methods, but the runtime of LatLRR is more than 2000 times that of TIF. Besides, multi-scale methods are generally fast and deep learning-based algorithms are slower than others even with the help of GPU. The fastest deep learning-based method, i.e. ResNet, takes 2.89 seconds to fuse one image pair. It should be mentioned that all three deep learning-based algorithms in VIFB do not update the model online, but use pretrained model instead.
One important application area of visible and infrared image fusion is the RGB-infrared fusion tracking [42, 43], where the tracking speed is vital for practical applications. As pointed out in , if an image fusion algorithm is very time-consuming, like LatLRR  and NSCT_SR , then it will not be feasible to develop a real-time fusion tracker based on this image fusion algorithm. Actually, most image fusion algorithms listed in Table 5 are computationally expensive in terms of tracking.
5 Concluding Remarks
In this paper, we present a visible and infrared image fusion benchmark (VIFB), which includes a dataset of 21 image pairs, a code library consists of 20 algorithms, 13 evaluation metrics and all results. To the best of our knowledge, this is the first visible and infrared image fusion benchmark to date. This benchmark facilitates better understanding of the state-of-the-art image fusion approaches, and can provide a platform for gauging new methods.
We carry out large scale experiments based on VIFB to evaluate the performance of all integrated fusion algorithms. We have several observations on the status of visible and infrared image fusion based on our experimental results. First, unlike some other fields in computer vision where deep learning is almost the dominant method, such as object tracking and detection, different kinds of methods are still being frequently utilized in visible and infrared image fusion. Second, although there are an increasing number of deep learning-based image fusion methods, their performances do not show superiority over non-learning algorithms at the moment. However, due to its strong representation ability and the end-to-end property, we believe that the deep learning-based image fusion approach will be an important research direction in future. Third, the computational efficiency of visible and infrared image fusion algorithms still need to be improved in order to be applied in real-time applications, such as tracking and detection.
We will continue to extend the dataset and code library of VIFB to contain more image pairs and fusion algorithms. We will also implement more evaluation metrics in VIFB. We hope that VIFB can serve as a good starting point for researchers who are interested in visible and infrared image fusion.
