1 Introduction

The objective of VSP is to faithfully model the human’s gaze eye-fixation when watching a dynamic scene. As a branch of object saliency detection, VSP contributes to the cognitive research of human vision attention through understanding and analyzing dynamic video frames. VSP has been widely used to assist various computer vision applications, such as autonomous driving

Deng et al. (2016), object detection and recognition Aguilar et al. (2017); Flores et al. (2019), video segmentation Wang et al. (2017); Hu et al. (2018), visual tracking Zhang et al. (2019), video captioning Gao et al. (2017), human-robot interaction Schillaci et al. (2013) and video summarization Marat et al. (2007), to name a few.

In recent years, benefiting from the breakthrough of deep learning (DL), a variety of DL-based VSP methods

Huang et al. (2015); Liu et al. (2015); Pan et al. (2016); Kruthiventi et al. (2017); Wang and Shen (2017) have been proposed to predict eye-fixation allocation in each frame. Those DL-based techniques take advantage of a large amount of labeled eye-tracking data to learn an effective semantic feature representation in an end-to-end manner that can accurately predict the salient object locations, greatly outperforming the traditional methods Itti et al. (2003); Zhang et al. (2009); Ren et al. (2013); Yan et al. (2018) with hand-crafted features. Different from the static image saliency detection that only needs to consider spatial cues in one image, VSP should also take into account the temporal cues to handle challenging motion scenarios across frames. The human eye’s fixation mechanism is affected by subjective consciousness, which shifts the target of attention as the scene changes caused by camera motion, light change, scene scaling and fast target movement, etc. Complex motions from background and inconsistent foreground patterns together result in the difficulty of VSP. Hence, how to learn an effective spatiotemporal feature representation that can well guide attention orientation shift prediction under various scene transitions plays a key role in VSP.

Existing approaches for VSP Bak et al. (2017); Jiang et al. (2017); Lai et al. (2019, 2019)

often explicitly estimate optical-flow field between the reference frame and its adjacent frames to capture short-term temporal information and then simply fuse the temporal and spatial information to complement their characteristics. STSConvNet

Bak et al. (2017) extracts temporal information using optical flow between consecutive video frames and investigates different ways to integrate spatial and temporal cues within a deep two-stream spatiotemporal network architecture for VSP. OM-CNN Jiang et al. (2017) leverages a CNN-based optical-flow estimation method to measure the motion intensity in all frames to solve dynamic consistence restriction. STRA-Net Lai et al. (2019)

makes use of two parallel DNN streams to extract the spatial and temporal cues with optical flows as input. Besides, the aforementioned methods further leverage LSTM or Gated Recurrent Unit (GRU) to capature the long-term temporal information across frames to learn effective spatiotemporal feature representations for VSP. OM-CNN

Jiang et al. (2017) designs a 2C-LSTM architecture to learn temporal correlation of high-dimensional features for VSP. ACLNet Wang et al. (2018) presents an attentive CNN-LSTM mechanism to predict human gaze, and encodes static attention to learn a dynamic salient representation by using frame-wise image saliency maps. SalEMA Linardos et al. (2019) extends an image saliency structure to VSP by integrating a ConvLSTM module and wrapping a convolutional layer with a temporal exponential moving average. STRA-Net Lai et al. (2019) develops a spatiotemporal residual attentive network that leverages convolutional GRUs to model the attention transitions across video frames. Despite demonstrated success of widely applying LSTM or GRU to VSP, all the aforementioned methods only leverage forward sequence modeling that only captures the forward-frame information, while omitting the useful backward-frame cues that are also helpful to enhance the spatiotemporal feature representations. To address this issue, we design the Bi-ConvLSTM that makes full use of the forward and backward frame cues to learn a robust feature representation.

However, directly using LSTM or GRU to learn spatiotemporal representations from the simply fused short-term spatiotemporal cues cannot work well when the attention target appearances across frames suffer from severe distortions due to large and complex motions. An effective approach to address this issue is to employ multi-frame alignment technique to enhance feature representation, which has been widely applied in video super-resolution

Jo et al. (2018); Tian et al. (2018); Wang et al. (2019) for motion compensation. However, we have not found any work that applies feature alignment technique to VSP. To this end, we design a novel spatiotemporal alignment network to implement feature alignment between the reference frame and its adjacent frame via Dconv Zhu et al. (2019). The aligned features are then fed into the Bi-ConvLSTM to learn a robust spatiotemporal feature representation for VSP.

In summary, our main contributions are summarized into threefold:

  • A Muti-scale Deformable convolutional Alignment Network (MDAN) is designed to align the features across frames with the help of Dconv Zhu et al. (2019). To the best of our knowledge, this is the first work to apply Dconv to VSP.

  • A novel Bi-ConvLSTM is introduced to effectively model the long-term attention shift across video frames, which makes full use of the long-term temporal context information in the forward and backward time directions.

  • Extensive evaluations on four VSP benchmarks including DHF1K Wang et al. (2018), HollyWood2 Mathe and Sminchisescu (2014), UCF-sports Mathe and Sminchisescu (2014) and DIEM Mital et al. (2011) demonstrate the proposed method achieves competing performance against state-of-the-art methods.

2 Related Work

2.1 Computational Models for VSP

Existing VSP methods could be roughly grouped into two categories including static models Vig et al. (2014); Kruthiventi et al. (2017); Pan et al. (2016); Huang et al. (2015); Liu et al. (2016); Wang and Shen (2017) and dynamic ones Pan et al. (2017); Wang et al. (2018); Min and Corso (2019); Lai et al. (2019). With the help of large-scale eye-tracking labeled datasets for training, numerous DL-based static saliency models for VSP Vig et al. (2014); Kruthiventi et al. (2017); Pan et al. (2016); Huang et al. (2015); Liu et al. (2016); Wang and Shen (2017) have been proposed and achieved remarkable performance boosting compared to the traditional approaches. eDN Vig et al. (2014)

follows an entirely automatic data-driven approach to perform a large-scale search for an optimal ensemble of deep CNN features, and then trains an SVM classifier to predict the saliency maps. DeepFix

Kruthiventi et al. (2017), DeepNet Pan et al. (2016) and SALICON Huang et al. (2015) leverage large-scale eye-tracking data to fine-tune the classical image classification networks to generate the corresponding eye-fixation maps. Mr-CNN Liu et al. (2016) employs a multi-resolution CNN guided by both bottom-up visual saliency and top-down visual cues to predict visual saliency. DVA Wang and Shen (2017) is based on a skip-layer network structure, which estimates eye-fixation from multiple convolutional layers with various reception fields.

Another research branch of VSP focuses on simulating eye fixation behavior in dynamic scenes Pan et al. (2017); Wang et al. (2018); Min and Corso (2019); Lai et al. (2019). The traditional dynamic approaches Itti et al. (2003); Zhang et al. (2009); Ren et al. (2013) leverage hand-crafted spatiotemporal features to model visual saliency, which cannot capture rich semantic information from the attention targets that is essential for accurate VSP. To address this issue, numerous DL-based dynamic saliency models Pan et al. (2017); Wang et al. (2018); Min and Corso (2019); Lai et al. (2019) have been developed with promising performance. SalGan Pan et al. (2017)

proposes a data-driven metric based VSP method that is trained with an adversarial loss function, yielding saliency maps that resemble the ground-truth. ACLNet

Wang et al. (2018) releases a benchmark dataset for predicting human eye movements during dynamic scene free viewing and proposes a CNN-LSTM network with an attention mechanism for VSP. SalEMA Linardos et al. (2019) introduces a conceptually simple exponential moving average of an internal convolutional state to modify existing network architectures for VSP. TASED-Net Min and Corso (2019) designs a 3D fully-convolutional network structure and decodes the encoded features spatially while aggregating all the temporal information for VSP. STRA-Net Lai et al. (2019) develops a residual attentive learning network architecture, which enhances the spatiotemporal features by a composite attention mechanism for VSP.

2.2 Deformable Convolutional Networks

The deformable convolutional network (DCN) proposed by Dai et al. (2017) aims to enhance the capability of regular convolutions by learning additional offsets from its local neighborhood, and allows the network to adaptively capture more contextual information in a larger receptive field. DCNv2 Zhu et al. (2019) reformulates Dconv and introduces a modulation mechanism that expands the scope of deformation modeling through a more comprehensive integration of deformable convolution within the network. The superior performance of Dconv has been demonstrated in some other computer vision tasks including video super-resolution Tian et al. (2018); Wang et al. (2019), object detection Yang et al. (2019), image classification Zhu et al. (2018) and crowd understanding Liu et al. (2019). TDAN and EDVR Tian et al. (2018); Wang et al. (2019) use Dconv to align features between the reference frame and its corresponding supporting frames for motion compensation in video restoration task. RepPoints Yang et al. (2019)

leverages Dconv to develop a flexible object representation for accurate geometric localization as well as semantic feature extraction. DHCNet

Zhu et al. (2018) achieves better classification performance for hyperspectral image classification by applying the regular convolutions on the Dconv feature maps. ADCrowdNet Liu et al. (2019) designs an attention-injective Dconv to address the accuracy degradation issue in highly-congested noisy scenes for crowd understanding task.

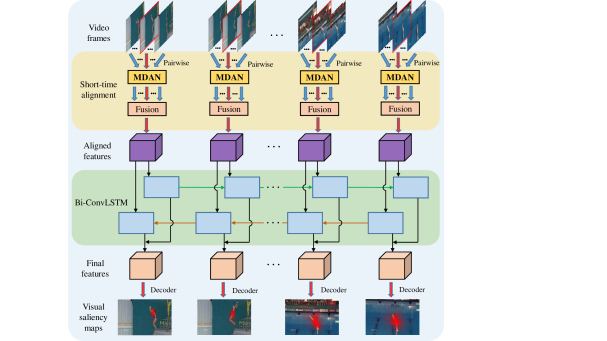

Figure 1: Overview of the proposed VSP framework. Firstly, a sequence of video frames are fed into the MDAN to align the reference and its neighboring frames, yielding the aligned features that can well capture short-term spatiotemporal information. Then, the aligned features are sent to the Bi-ConvLSTM, generating the features that encodes long-term spatiotemporal information. Finally, the output features are decoded to generate the predicted saliency map.

3 Proposed Approach

3.1 Architecture Overview

Figure 1 shows an overview of the proposed model for VSP. Given consecutive frames in a video sequence, our aim is to learn a deep CNN that outputs a set of corresponding visual saliency maps :

(1)

where denotes the whole network parameters to be optimized. consists of three sub-networks: the MDAN , the Bi-ConvLSTM and the decoder . Specifically, the design of is inspired by the renowned DCN Dai et al. (2017); Zhu et al. (2019). We align each neighboring frame to the reference one at feature level by progressively aligning and aggregating the multi-level features from top to down. By fusing the spatiotemporal cues across frames at different semantic levels, enables to well handle diverse motions across frames that can severely affect accurately predicting attention shifts in VSP. Given a sequential of frames with the reference frame at the center, aligns the left-and the right-side neighboring frames to the reference frame , respectively and then fuses them to generate the enhanced reference frame features :

(2)

where denotes the corresponding network parameters of MDAN to be optimized.

Although the features in (2) are strengthen by the features of the neighbouring frames, their representative capability will be severely affected when the attention targets suffer from severe distortions caused by long-term occlusions or large motions. To address this issue, we further design the Bi-ConvLSTM to maintain long-term visual attention stability, generating the enhanced spatiotemporal representation as:

(3)

where and denotes the forwardly and backwardly estimated hidden states for frame , respectively.

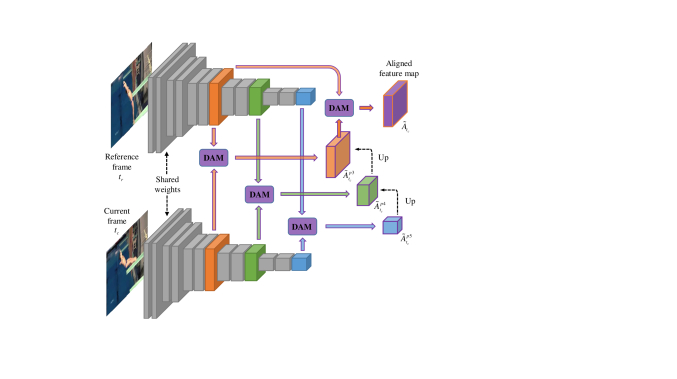

Figure 2: Architecture of MDAN.

Finally, the spatiotemporal representations in (3) are fused to using (11) and fed into the decoder network that is composed of a few convolutional layers and a bilinear upsamping layer, yielding the finally predicted saliency map of frame :

(4)

where is the parameters of the decoder sub-network to be learned.

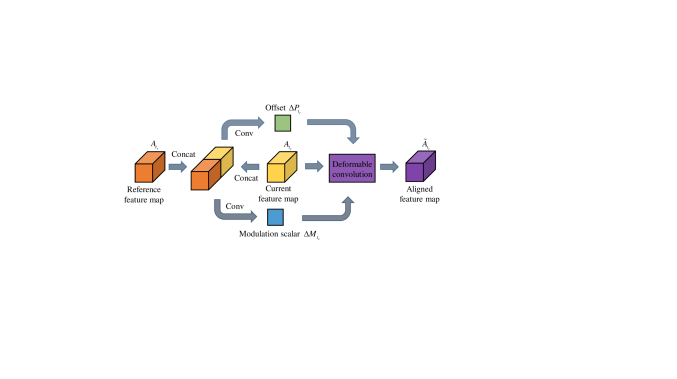

Figure 3: Architecture of DAM.

3.2 Multi-scale Deformable Convolutional Alignment Network (MDAN)

Figure 2 illustrates the architecture of MDAN, which progressively makes feature alignment in a coarse-to-fine manner through a set of deformable convolutional alignment modules (DAMs). MDAN can well capture large and complex motion information by adaptively sampling at multiple feature levels in a coarse-to-fine fashion, and does not need to explicitly estimate the motion fields as optical flow Bak et al. (2017); Jiang et al. (2017); Lai et al. (2019, 2019), thereby greatly reducing computational cost.

Figure 3 shows the architecture of DAM that is based on Dconv Zhu et al. (2019). In Zhu et al. (2019), the Dconv that maps the input feature A to the output features maps is defined as

(5)

where denotes the number of sampling locations in a convolutional kernel. For instance, if , defines a convolutional kernel of dilation 1. and denote the learnable offset and modulation scalar at the -th location, respectively. and denote the weight and pre-specified offset of the -th position, respectively

We employ the Dconv (5) for feature alignment. Given the feature maps and at the reference frame and the current frame , respectively, we concatenate the features as input, and learn the offset and modulation scalar by

(6)

where and . and are two networks consisting a few convolution layers with parameters and , respectively. Afterwards, we replace A in (5) by , generating the corresponding aligned feature maps :

(7)

where and in (6).

After introducing the DAM, we give the details of how to design the MDAN. As shown in Figure 2, given the reference frame and the current frame as input, we utilize a Siamese network architecture with the VGG16 Simonyan and Zisserman (2014) backbone network to extract their features. Specifically, we first select three different-level feature maps and of frames and , respectively, which correspond to their pool3, pool4 and pool5 layers in VGG16, respectively. Then, we progressively align the features of frame to those of frame in a coarse-to-fine manner. First, we feed the pairs , into the formula of DAM (7), outputting the corresponding multi-level aligned features , . Then, we fuse the multi-level aligned features progressively from top to bottom, yielding the enhanced aligned features as

(8)

Afterwards, we put (8) and into (7), yielding the output of MDAN for frame . Finally, we concatenate all the aligned features and fuse them through a convolution layer to yield the enhanced spatiotemporal features for frame

(9)

where denotes the weight parameters of the convolutional layer.

3.3 Bidirectional ConvLSTM (Bi-ConvLSTM)

The aforementioned MDAN aligns the features between the reference frame and its left-and right-side neighbouring frames that can be viewed as a short-time bidirectional spatial alignment process. However, video sequence may have large scene transformation and attention shift due to long-term occlusions or large motions, resulting in difficulty by only using short-term information from adjacent frames. We further strengthen the fused features (9) generated by MDAN through encoding long-term information across more frames, and leverage Bi-ConvLSTM to fully capture long-term spatiotemporal context information in bi-directions. In Xingjian et al. (2015), the ConvLSTM is formulated as:

(10)

where is the convolution operator, is the Hadamard product,

denotes the Sigmoid function, and

denotes the hyperbolic tangent function. For different learnable parameters , we do convolutions with input feature maps and hidden state , respectively, and then sum them and feed into the Sigmoid function to obtain an input gate , an output gate and a forget gate . The memory cell

plays the role of an accumulator of the state information by updating the ratio of memory and forgetting between the current and the previous moments, respectively. Finally, the hidden state

is generated by pixel-wise multiplying the output gate by the memory cell

rescaled by a tanh activation function.

The ConvLSTM can capture long-term information from the past frames well, but does not consider the rich information from the future frames that is helpful to further boost the performance of VSP. To this end, we design Bi-ConvLSTM that captures both forward and backward long-range context information, yielding the final spatiotemporal feature representation for VSP:

(11)

where and denote the hidden states from forward and backward ConvLSTM units. Afterwards, the output features are sent to the decoder network (4) to generate the predicted saliency map .

3.4 Loss Function

We leverage the loss function similar to that proposed by Huang et al. (2015); Lai et al. (2019)

, which combines four loss terms related to saliency evaluation metrics. The loss function is formulated as:

(12)

where denotes the predicted attention map, is the ground-truth binary fixation map, and indicates the continuous ground-truth attention map.

originates from normalized scanpath saliency (NSS), which is introduced to the visual saliency field as a simple correspondence measure between saliency maps and ground-truth Peters et al. (2005). computes the average normalized saliency at fixated locations:

(13)

where and

denote the mean and the standard deviation, respectively,

is the number of positive pixels belonging to .

is derived from the similarity (SIM) metric, which measures the similarity between two distributions and computes the sum of the minimum values at each pixel:

(14)

where and are normalized to .

measures the correlation or dependence of two variables by linear correlation coefficient (CC):

(15)

where means the covariance and is the standard deviation.

is from Kullback-Leibler (KL) divergence metric, which measures the difference between two probability distributions:

(16)

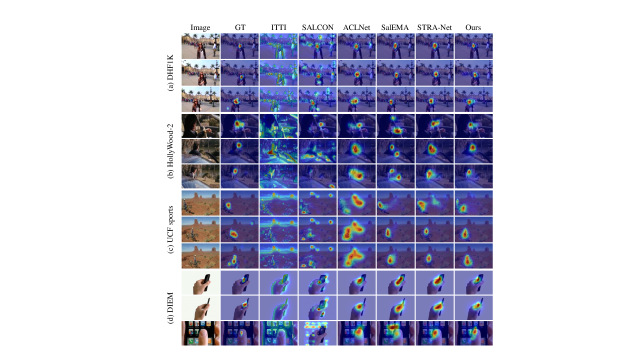

Figure 4: Qualitative comparisons with other methods including ITTI Itti et al. (1998), SALICON Huang et al. (2015), ACLNet Wang et al. (2018), SalEMA Linardos et al. (2019), STRA-Net Lai et al. (2019) on (a) DHF1K, (b) HollyWood-2, (c) UCF sports, (d) DIEM. We show one example video with three frames for demonstration purpose on each dataset.

4 Experiments

4.1 Implementation Details

We adopt the frequently-used VGG16 Simonyan and Zisserman (2014)

pre-trained on ImageNet

Krizhevsky et al. (2012) as the backbone network to extract three feature maps with different resolutions. All the other parameters are trained from scratch except for the backbone network. The neighbor size of the reference frame is set to . Each video training batch contains consecutive frames from the same video with batch size . We randomly select the video and its starting frame for each training sample. All the training frames are scaled to

pixels, and the surrounding pixels of the image are padded with

if its size does not match to pixels. The ground-truth binary fixation mask and its continuous attention map are scaled to pixels. We use the Adam optimizer Kingma and Ba (2014) to learn the whole network parameters in an end-to-end manner without any post processing. The learning rate is set to and the model converges at about

steps. The proposed model is implemented in PyTorch and one Nvidia RTX 2080Ti GPU is used for acceleration. The whole training process takes about

hours.

MethodsDataset DHF1K HollyWood-2 UCF sports
AUC-J SIM s-AUC CC NSS AUC-J SIM s-AUC CC NSS AUC-J SIM s-AUC CC NSS

Static Models

ITTI Itti et al. (1998) 0.774 0.162 0.553 0.233 1.207 0.788 0.221 0.607 0.257 1.076 0.847 0.251 0.725 0.356 1.640
GBVS Harel et al. (2007) 0.828 0.186 0.554 0.283 1.474 0.837 0.257 0.633 0.308 1.336 0.859 0.274 0.697 0.396 1.818
SALICON Huang et al. (2015) 0.857 0.232 0.590 0.327 1.901 0.856 0.321 0.711 0.425 2.013 0.848 0.304 0.738 0.375 1.838
Shallow-Net Pan et al. (2016) 0.833 0.182 0.529 0.295 1.509 0.851 0.276 0.694 0.423 1.680 0.846 0.276 0.691 0.382 1.789
Deep-Net Pan et al. (2016) 0.855 0.201 0.592 0.331 1.775 0.884 0.300 0.736 0.451 2.066 0.861 0.282 0.719 0.414 1.903
DVA Wang and Shen (2017) 0.860 0.262 0.595 0.358 2.013 0.886 0.372 0.727 0.482 2.459 0.872 0.339 0.725 0.439 2.311

Dynamic Models

PQFT Guo and Zhang (2009) 0.699 0.139 0.562 0.137 0.749 0.723 0.201 0.621 0.153 0.755 0.825 0.250 0.722 0.338 1.780
Seo et al. Seo and Milanfar (2009) 0.635 0.142 0.499 0.070 0.334 0.652 0.155 0.530 0.076 0.346 0.831 0.308 0.666 0.336 1.690
Rudoy et al. Rudoy et al. (2013) 0.769 0.214 0.501 0.285 1.498 0.783 0.315 0.536 0.302 1.570 0.763 0.271 0.637 0.344 1.619
Hou et al. Hou and Zhang (2009) 0.726 0.167 0.545 0.150 0.847 0.731 0.202 0.580 0.146 0.684 0.819 0.276 0.674 0.292 1.399
Fang et al. Fang et al. (2014) 0.819 0.198 0.537 0.273 1.539 0.859 0.272 0.659 0.358 1.667 0.845 0.307 0.674 0.395 1.787
OBDL Hossein Khatoonabadi et al. (2015) 0.638 0.171 0.500 0.117 0.495 0.640 0.170 0.541 0.106 0.462 0.759 0.193 0.634 0.234 1.382
AWS-D Leboran et al. (2016) 0.703 0.157 0.513 0.174 0.940 0.694 0.175 0.637 0.146 0.742 0.823 0.228 0.750 0.306 1.631
OM-CNN Jiang et al. (2018) 0.856 0.256 0.583 0.344 1.911 0.887 0.356 0.693 0.446 2.313 0.870 0.321 0.691 0.405 2.089
Two-stream Bak et al. (2017) 0.834 0.197 0.581 0.325 1.632 0.863 0.276 0.710 0.382 1.748 0.832 0.264 0.685 0.343 1.753
ACLNet Wang et al. (2018) 0.890 0.315 0.601 0.434 2.354 0.913 0.542 0.757 0.623 3.086 0.905 0.496 0.767 0.603 3.200
SalEMA Linardos et al. (2019) 0.890 0.465 0.667 0.449 2.573 0.919 0.487 0.708 0.613 3.186 0.906 0.431 0.740 0.544 2.638
TASED-Net Min and Corso (2019) 0.895 0.361 0.712 0.470 2.667 0.918 0.507 0.768 0.646 3.302 0.899 0.469 0.752 0.582 2.920
STRA-Net Lai et al. (2019) 0.895 0.355 0.663 0.458 2.558 0.923 0.536 0.774 0.662 3.478 0.914 0.535 0.790 0.645 3.472

Ours

Training setting (i) 0.896 0.390 0.679 0.479 2.758 0.915 0.504 0.786 0.613 3.461 0.896 0.455 0.760 0.558 2.985
Training setting (ii) 0.888 0.309 0.670 0.438 2.479 0.934 0.529 0.806 0.672 3.936 0.913 0.418 0.753 0.566 3.039
Training setting (iii) 0.851 0.260 0.664 0.327 1.876 0.893 0.402 0.752 0.481 2.627 0.921 0.497 0.799 0.612 3.676
Training setting (iv) 0.900 0.353 0.680 0.476 2.685 0.928 0.537 0.800 0.661 3.804 0.917 0.494 0.785 0.599 3.406
Table 1: Quantitative results on DHF1K, HollyWood-2 and UCF sports dataset. The best-performing scores are marked in bold, and the second-best performing scores are underlined. represents the DL-based model.

4.2 Evaluation Datasets

We conduct extensive evaluations on four widely-used eye-tracking benchmark datasets.

DHF1K Wang et al. (2019): It consists of high-quality elaborately-selected video sequences that are annotated by observers using an eye tracker device. The videos therein have diverse contents, varied motion patterns, various objects, large scale and high quality. The videos are divided into a training set of videos and a validation set of videos that are publicly available, but the fixation labels of the remaining videos are not released, which are used to validate the generalization capability of the model fairly.

HollyWood-2 Mathe and Sminchisescu (2014): It contains videos selected from the HollyWood-2 action recognition dataset Marszałek et al. (2009) that is collected from a set of HollyWood movies. action classes are included such as hugging, kissing, running, etc. The whole data consists of a training set of sequences and a test set of sequences. It is one of the largest and most challenging available dataset for VSP.

UCF Sports Mathe and Sminchisescu (2014): It includes videos from the UCF sports action datasets Rodriguez et al. (2008), which covers sports action classes such as swinging, lifting, skateboarding, etc. The dataset consists of videos for training and videos for testing.

DIEM Mital et al. (2011): It has videos that are collected from participants which are widely used for studying human-eye fixation attention. Following Hossein Khatoonabadi et al. (2015); Lai et al. (2019), we select the same videos as the testing set.

For fair comparison, we leverage the standard training strategy in Wang et al. (2018), which consists of training settings with the training sets of (i) DHF1K, (ii) HollyWood-2, (iii) UCF sports, (iv) DHF1K + HollyWood-2 + UCF sports. Meanwhile, we use the testing sets of DHF1K, HollyWood-2 and UCF sports to evaluate the performance. Furthermore, to further assess the generalization capability of our model, we evaluate it on the testing set of DIEM which has no training set available.

Methods AUC-J SIM s-AUC CC NSS

Static Models

ITTI Itti et al. (1998) 0.791 0.132 0.653 0.196 1.103
GBVS Harel et al. (2007) 0.813 0.156 0.633 0.214 1.198
SALICON Huang et al. (2015) 0.793 0.171 0.674 0.270 1.650
Shallow-Net Pan et al. (2016) 0.838 0.188 0.620 0.297 1.646
Deep-Net Pan et al. (2016) 0.849 0.164 0.697 0.291 1.650
DVA Wang and Shen (2017) 0.868 0.237 0.721 0.386 2.347

Dynamic Models

PQFT Guo and Zhang (2009) 0.724 0.126 0.649 0.144 0.856
Seo et al. Seo and Milanfar (2009) 0.723 0.130 0.568 0.116 0.665
Rudoy et al. Rudoy et al. (2013) 0.775 0.150 0.618 0.260 1.390
Hou et al. Hou and Zhang (2009) 0.735 0.142 0.589 0.128 0.735
Fang et al. Fang et al. (2014) 0.823 0.167 0.636 0.251 1.423
OBDL Hossein Khatoonabadi et al. (2015) 0.762 0.165 0.694 0.221 1.289
AWS-D Leboran et al. (2016) 0.774 0.150 0.695 0.216 1.252
OM-CNN Jiang et al. (2018) 0.857 0.238 0.693 0.371 2.235
Two-stream Bak et al. (2017) 0.859 0.256 0.682 0.366 2.171
ACLNet Wang et al. (2018) 0.881 0.277 0.693 0.396 2.368
STRA-Net Lai et al. (2019) 0.870 0.306 0.678 0.408 2.452

Ours

Training setting (i) 0.880 0.391 0.718 0.472 2.346
Training setting (ii) 0.870 0.355 0.698 0.468 2.359
Training setting (iii) 0.831 0.296 0.676 0.351 1.828
Training setting (iv) 0.889 0.396 0.711 0.490 2.346
Table 2: Quantitative results on DIEM dataset (without training). The best-performing scores are marked in bold. The second best-performing scores are underlined. represents the DL-based model.

4.3 Comparison Results

As Wang et al. (2018); Linardos et al. (2019); Min and Corso (2019); Lai et al. (2019), we use the widely-used evaluation metrics Bylinskii et al. (2018) to evaluate the comparative methods, including Normalized Scanpath Saliency (NSS), Similarity (SIM), shuffled AUC (s-AUC), linear Correlation Coefficient (CC) and AUC-J.

We compare the proposed approach with saliency models, including static models (ITTI Itti et al. (1998), GBVS Harel et al. (2007), SALICON Huang et al. (2015), Shallow-Net Pan et al. (2016), Deep-Net Pan et al. (2016), DVA Wang and Shen (2017)) and dynamic models (PQFT Guo and Zhang (2009), Seo et al. Seo and Milanfar (2009), Rudoy et al. Rudoy et al. (2013), Hou et al. Hou and Zhang (2009), Fang et al. Fang et al. (2014), OBDL Hossein Khatoonabadi et al. (2015), AWS-D Leboran et al. (2016), OM-CNN Jiang et al. (2018), Two-stream Bak et al. (2017), ACLNet Wang et al. (2018), SalEMA Linardos et al. (2019), TASED-Net Min and Corso (2019), STRA-Net Lai et al. (2019)). Among them, SALICON Huang et al. (2015), Shallow-Net Pan et al. (2016), Deep-Net Pan et al. (2016), DVA Wang and Shen (2017), OM-CNN Jiang et al. (2018), Two-stream Bak et al. (2017), ACLNet Wang et al. (2018) and STRA-Net Lai et al. (2019) are the DL-based models while the others are the traditional models.

Results on DHF1K

We test our model on the testing set of DHF1K, which contains videos without publicly released ground-truth annotations of human eye-tracking maps available. A public server is used to report the results on the test set. It is a fair and large test set for verifying the generalization capability of our model. Table 1 lists the results of our model in terms of AUC-J, SIM, s-AUC, CC and NSS. Among them, our model achieves the best CC and NSS scores and the second-best SIM and AUC-J scores with training setting (i). Meanwhile, for training setting (iv), our model achieves the best AUC-J score and the second-best s-AUC, CC and NSS scores. Besides, the results of our model with all the settings are much better than the statistic models. For the settings (ii) and (iii), our model achieves competing performance among the dynamic models, following the top-performing methods including ACLNet, SalEMA, TASED-Net and STRA-Net.

Figure 4 (a) shows the qualitative comparison results, where the visual attention maps generated by our model well approach to the ground-truth, which more focus on the saliency targets and are not disturbed by the transitions of the backgrounds.

Results on HollyWood-2

As listed by Table 1, the performance of our approach is superior to the other methods, especially in training setting (ii), our model achieves the best scores in terms of s-AUC, CC and NSS. The dataset mainly focuses on task-driven viewing mode whose contents are limited to human actions and movie scenes. Therefore, training with the same distribution of the training setting yields much better results. Figure 4 (b) shows a man opening the door from the car and going out, where our predicted saliency maps can more accurately track the salient objects than the saliency maps generated by the other methods.

Results on UCF sports

Compared to all the other models, the proposed method achieves the best or second-best performance in terms of all metrics under training setting (iii). For the other training settings, our method achieves comparative results compared to the top-performing methods such as ACLNet, SalEMA, TASED-Net and STRA-Net. Figure 4 (c) shows the scene where a man rides a horse in the desert. The salient targets we focus on at different times will change, and our predicted visual maps enable to precisely move the attention shift from horse to man compared to the other methods.

Results on DIEM

For evaluating the generalization capability of our model, we do not use any data of DIEM to train our model. Following Hossein Khatoonabadi et al. (2015); Lai et al. (2019), we evaluate our model on the testing set of DIEM, containing the first frames of each video. Table 1 lists the quantitative results, which achieves competitive results compared to the other methods, especially under training settings (i) and (iv) where the proposed method achieves the best or second-best performance in terms of almost all metrics.

UCF sports Dataset AUC-J SIM s-AUC CC NSS
Ours 0.921 0.497 0.799 0.612 3.676
w/o. Bi-ConvLSTM 0.903 0.470 0.788 0.571 3.467
w/o. forward ConvLSTM 0.907 0.467 0.778 0.590 3.293
w/o. backward ConvLSTM 0.894 0.457 0.789 0.536 3.393
replace DConv to Conv in MDAN 0.905 0.452 0.775 0.549 3.265
w/o. in MDAN 0.894 0.442 0.781 0.565 3.483
w/o. and in MDAN 0.895 0.425 0.776 0.548 3.168
w/o. in MDAN 0.900 0.451 0.783 0.543 3.236
w/o. and in MDAN 0.874 0.423 0.780 0.516 3.357
Table 3: Results of ablative experiments of the proposed model on the UCF sports testing set. The best scores are marked in bold. The symbol ’w/o.’ denotes removing a specific module.

4.4 Ablative Study

To further show our main contributions, we compare different variants of our model including those without Bi-ConvLSTM and replacing all Dconv in MDAN to regular convolution. Table 3 lists the results of ablative experiments on the UCF sports testing set under training setting (iii). We can observe that without Bi-ConvLSTM, the scores of all the metrics decline to some degree such as the AUC-J score drops from to and the CC score reduces by from to , verifying the effectiveness of Bi-ConvLSTM. Moreover, replacing Dconv to regular convolution in MDAN causes the performance degradation. For example, the SIM score drops from to and the NSS score decreases from to , demonstrating the effectiveness of using DConv for feature alignment across frames. Finally, to make further efforts to verify the effectiveness of other modules, we conduct some ablative experiments including: removing forward ConvLSTM, backward ConvLSTM, , , in MDAN, respectively. The extra results are also listed in the bottom row of Table 3, which confidently validate that each component in Bi-ConvLSTM and MDAN has a positive effect to boost the performance of the proposed approach.

5 Conclusions

In this paper, we have presented an effective enhanced spatiotemporal alignment network for VSP, mainly including two novel module designs: the MDAN and the Bi-ConvLSTM. The MDAN makes multi-resolution feature alignment between the reference and its neighboring frames in a coarse-to-fine manner, which is good at handling various motions. Afterwards, the output features of MDAN are further enhanced by the Bi-ConvLSTM that fully captures the long-time temporal information in both forward and backward timing directions. Extensive experiments on four VSP benchmark datasets have clearly demonstrated superiority of the proposed method to state-of-the-art methods in terms of five metrics.

References

  • Deng et al. (2016) T. Deng, K. Yang, Y. Li, H. Yan, Where does the driver look? top-down-based saliency detection in a traffic driving environment, IEEE Transactions on Intelligent Transportation Systems 17 (2016) 2051–2062.
  • Aguilar et al. (2017) W. G. Aguilar, M. A. Luna, J. F. Moya, V. Abad, H. Ruiz, H. Parra, C. Angulo, Pedestrian detection for uavs using cascade classifiers and saliency maps,

    in: International Work-Conference on Artificial Neural Networks, Springer, 2017, pp. 563–574.

  • Flores et al. (2019) C. F. Flores, A. Gonzalez-Garcia, J. van de Weijer, B. Raducanu, Saliency for fine-grained object recognition in domains with scarce training data, Pattern Recognition 94 (2019) 62–73.
  • Wang et al. (2017) W. Wang, J. Shen, R. Yang, F. Porikli, Saliency-aware video object segmentation, IEEE Transactions on Pattern Analysis and Machine Intelligence 40 (2017) 20–33.
  • Hu et al. (2018) Y.-T. Hu, J.-B. Huang, A. G. Schwing, Unsupervised video object segmentation using motion saliency-guided spatio-temporal propagation, in: European Conference on Computer Vision, 2018, pp. 786–802.
  • Zhang et al. (2019) P. Zhang, W. Liu, D. Wang, Y. Lei, H. Wang, C. Shen, H. Lu, Non-rigid object tracking via deep multi-scale spatial-temporal discriminative saliency maps, Pattern Recognition (2019) 107130.
  • Gao et al. (2017) L. Gao, Z. Guo, H. Zhang, X. Xu, H. T. Shen, Video captioning with attention-based lstm and semantic consistency, IEEE Transactions on Multimedia 19 (2017) 2045–2055.
  • Schillaci et al. (2013) G. Schillaci, S. Bodiroža, V. V. Hafner, Evaluating the effect of saliency detection and attention manipulation in human-robot interaction, International Journal of Social Robotics 5 (2013) 139–152.
  • Marat et al. (2007) S. Marat, M. Guironnet, D. Pellerin,

    Video summarization using a visual attention model,

    in: European Signal Processing Conference, IEEE, 2007, pp. 1784–1788.
  • Huang et al. (2015) X. Huang, C. Shen, X. Boix, Q. Zhao, Salicon: Reducing the semantic gap in saliency prediction by adapting deep neural networks, in: International Conference on Computer Vision, 2015, pp. 262–270.
  • Liu et al. (2015) N. Liu, J. Han, D. Zhang, S. Wen, T. Liu,

    Predicting eye fixations using convolutional neural networks,

    in: Computer Vision and Pattern Recognition, 2015, pp. 362–370.
  • Pan et al. (2016) J. Pan, E. Sayrol, X. Giro-i Nieto, K. McGuinness, N. E. O’Connor, Shallow and deep convolutional networks for saliency prediction, in: Computer Vision and Pattern Recognition, 2016, pp. 598–606.
  • Kruthiventi et al. (2017) S. S. Kruthiventi, K. Ayush, R. V. Babu, Deepfix: A fully convolutional neural network for predicting human eye fixations, IEEE Transactions on Image Processing 26 (2017) 4446–4456.
  • Wang and Shen (2017) W. Wang, J. Shen, Deep visual attention prediction, IEEE Transactions on Image Processing 27 (2017) 2368–2378.
  • Itti et al. (2003) L. Itti, N. Dhavale, F. Pighin, Realistic avatar eye and head animation using a neurobiological model of visual attention,

    in: Applications and Science of Neural Networks, Fuzzy Systems, and Evolutionary Computation VI, volume 5200, International Society for Optics and Photonics, 2003, pp. 64–78.

  • Zhang et al. (2009) L. Zhang, M. H. Tong, G. W. Cottrell, Sunday: Saliency using natural statistics for dynamic analysis of scenes, in: Annual Cognitive Science Conference, AAAI Press Cambridge, MA, 2009, pp. 2944–2949.
  • Ren et al. (2013) Z. Ren, S. Gao, L.-T. Chia, D. Rajan, Regularized feature reconstruction for spatio-temporal saliency detection, IEEE Transactions on Image Processing 22 (2013) 3120–3132.
  • Yan et al. (2018) Y. Yan, J. Ren, G. Sun, H. Zhao, J. Han, X. Li, S. Marshall, J. Zhan, Unsupervised image saliency detection with gestalt-laws guided optimization and visual attention based refinement, Pattern Recognition 79 (2018) 65–78.
  • Bak et al. (2017) C. Bak, A. Kocak, E. Erdem, A. Erdem, Spatio-temporal saliency networks for dynamic saliency prediction, IEEE Transactions on Multimedia 20 (2017) 1688–1698.
  • Jiang et al. (2017) L. Jiang, M. Xu, Z. Wang, Predicting video saliency with object-to-motion cnn and two-layer convolutional lstm, arXiv preprint arXiv:1709.06316 (2017).
  • Lai et al. (2019) Q. Lai, W. Wang, H. Sun, J. Shen, Video saliency prediction using spatiotemporal residual attentive networks, IEEE Transactions on Image Processing 29 (2019) 1113–1126.
  • Wang et al. (2018) W. Wang, J. Shen, F. Guo, M.-M. Cheng, A. Borji, Revisiting video saliency: A large-scale benchmark and a new model, in: Computer Vision and Pattern Recognition, 2018, pp. 4894–4903.
  • Linardos et al. (2019) P. Linardos, E. Mohedano, J. J. Nieto, N. E. O’Connor, X. Giro-i Nieto, K. McGuinness, Simple vs complex temporal recurrences for video saliency prediction, arXiv preprint arXiv:1907.01869 (2019).
  • Jo et al. (2018) Y. Jo, S. Wug Oh, J. Kang, S. Joo Kim, Deep video super-resolution network using dynamic upsampling filters without explicit motion compensation, in: Computer Vision and Pattern Recognition, 2018, pp. 3224–3232.
  • Tian et al. (2018) Y. Tian, Y. Zhang, Y. Fu, C. Xu, Tdan: Temporally deformable alignment network for video super-resolution, arXiv preprint arXiv:1812.02898 (2018).
  • Wang et al. (2019) X. Wang, K. C. Chan, K. Yu, C. Dong, C. Change Loy, Edvr: Video restoration with enhanced deformable convolutional networks, in: Computer Vision and Pattern Recognition Workshops, 2019, pp. 0–0.
  • Zhu et al. (2019) X. Zhu, H. Hu, S. Lin, J. Dai, Deformable convnets v2: More deformable, better results, in: Computer Vision and Pattern Recognition, 2019, pp. 9308–9316.
  • Mathe and Sminchisescu (2014) S. Mathe, C. Sminchisescu, Actions in the eye: Dynamic gaze datasets and learnt saliency models for visual recognition, IEEE Transactions on Pattern Analysis and Machine Intelligence 37 (2014) 1408–1424.
  • Mital et al. (2011) P. K. Mital, T. J. Smith, R. L. Hill, J. M. Henderson, Clustering of gaze during dynamic scene viewing is predicted by motion, Cognitive Computation 3 (2011) 5–24.
  • Vig et al. (2014) E. Vig, M. Dorr, D. Cox, Large-scale optimization of hierarchical features for saliency prediction in natural images, in: Computer Vision and Pattern Recognition, 2014, pp. 2798–2805.
  • Liu et al. (2016) N. Liu, J. Han, T. Liu, X. Li, Learning to predict eye fixations via multiresolution convolutional neural networks, IEEE Transactions on Neural Networks and Learning Systems 29 (2016) 392–404.
  • Pan et al. (2017) J. Pan, C. C. Ferrer, K. McGuinness, N. E. O’Connor, J. Torres, E. Sayrol, X. Giro-i Nieto, Salgan: Visual saliency prediction with generative adversarial networks, arXiv preprint arXiv:1701.01081 (2017).
  • Min and Corso (2019) K. Min, J. J. Corso, Tased-net: Temporally-aggregating spatial encoder-decoder network for video saliency detection, in: International Conference on Computer Vision, 2019, pp. 2394–2403.
  • Dai et al. (2017) J. Dai, H. Qi, Y. Xiong, Y. Li, G. Zhang, H. Hu, Y. Wei, Deformable convolutional networks, in: International Conference on Computer Vision, 2017, pp. 764–773.
  • Yang et al. (2019) Z. Yang, S. Liu, H. Hu, L. Wang, S. Lin, Reppoints: Point set representation for object detection, in: International Conference on Computer Vision, 2019.
  • Zhu et al. (2018) J. Zhu, L. Fang, P. Ghamisi, Deformable convolutional neural networks for hyperspectral image classification, IEEE Geoscience and Remote Sensing Letters 15 (2018) 1254–1258.
  • Liu et al. (2019) N. Liu, Y. Long, C. Zou, Q. Niu, L. Pan, H. Wu, Adcrowdnet: An attention-injective deformable convolutional network for crowd understanding, in: Computer Vision and Pattern Recognition, 2019, pp. 3225–3234.
  • Simonyan and Zisserman (2014) K. Simonyan, A. Zisserman, Very deep convolutional networks for large-scale image recognition, arXiv preprint arXiv:1409.1556 (2014).
  • Xingjian et al. (2015) S. Xingjian, Z. Chen, H. Wang, D.-Y. Yeung, W.-K. Wong, W.-c. Woo,

    Convolutional lstm network: A machine learning approach for precipitation nowcasting,

    in: Advances in Neural Information Processing Systems, 2015, pp. 802–810.
  • Peters et al. (2005) R. J. Peters, A. Iyer, L. Itti, C. Koch, Components of bottom-up gaze allocation in natural images, Vision Research 45 (2005) 2397–2416.
  • Itti et al. (1998) L. Itti, C. Koch, E. Niebur, A model of saliency-based visual attention for rapid scene analysis, IEEE Transactions on Pattern Analysis and Machine Intelligence (1998) 1254–1259.
  • Krizhevsky et al. (2012) A. Krizhevsky, I. Sutskever, G. E. Hinton, Imagenet classification with deep convolutional neural networks, in: Advances in Neural Information Processing Systems, 2012, pp. 1097–1105.
  • Kingma and Ba (2014) D. P. Kingma, J. Ba, Adam: A method for stochastic optimization, arXiv preprint arXiv:1412.6980 (2014).
  • Harel et al. (2007) J. Harel, C. Koch, P. Perona, Graph-based visual saliency, in: Advances in Neural Information Processing Systems, 2007, pp. 545–552.
  • Guo and Zhang (2009) C. Guo, L. Zhang, A novel multiresolution spatiotemporal saliency detection model and its applications in image and video compression, IEEE Transactions on Image Processing 19 (2009) 185–198.
  • Seo and Milanfar (2009) H. J. Seo, P. Milanfar, Static and space-time visual saliency detection by self-resemblance, Journal of vision 9 (2009) 15–15.
  • Rudoy et al. (2013) D. Rudoy, D. B. Goldman, E. Shechtman, L. Zelnik-Manor, Learning video saliency from human gaze using candidate selection, in: Computer Vision and Pattern Recognition, 2013, pp. 1147–1154.
  • Hou and Zhang (2009) X. Hou, L. Zhang, Dynamic visual attention: Searching for coding length increments, in: Advances in Neural Information Processing Systems, 2009, pp. 681–688.
  • Fang et al. (2014) Y. Fang, Z. Wang, W. Lin, Z. Fang, Video saliency incorporating spatiotemporal cues and uncertainty weighting, IEEE Transactions on Image Processing 23 (2014) 3910–3921.
  • Hossein Khatoonabadi et al. (2015) S. Hossein Khatoonabadi, N. Vasconcelos, I. V. Bajic, Y. Shan, How many bits does it take for a stimulus to be salient?, in: Computer Vision and Pattern Recognition, 2015, pp. 5501–5510.
  • Leboran et al. (2016) V. Leboran, A. Garcia-Diaz, X. R. Fdez-Vidal, X. M. Pardo, Dynamic whitening saliency, IEEE Transactions on Pattern Analysis and Machine Intelligence 39 (2016) 893–907.
  • Jiang et al. (2018) L. Jiang, M. Xu, T. Liu, M. Qiao, Z. Wang, Deepvs: A deep learning based video saliency prediction approach, in: European Conference on Computer Vision, 2018, pp. 602–617.
  • Wang et al. (2019) W. Wang, J. Shen, J. Xie, M.-M. Cheng, H. Ling, A. Borji, Revisiting video saliency prediction in the deep learning era, IEEE Transactions on Pattern Analysis and Machine Intelligence (2019).
  • Marszałek et al. (2009) M. Marszałek, I. Laptev, C. Schmid, Actions in context, in: Computer Vision and Pattern Recognition, IEEE Computer Society, 2009, pp. 2929–2936.
  • Rodriguez et al. (2008) M. D. Rodriguez, J. Ahmed, M. Shah, Action mach a spatio-temporal maximum average correlation height filter for action recognition., in: Computer Vision and Pattern Recognition, volume 1, 2008, p. 6.
  • Bylinskii et al. (2018) Z. Bylinskii, T. Judd, A. Oliva, A. Torralba, F. Durand, What do different evaluation metrics tell us about saliency models?, IEEE Transactions on Pattern Analysis and Machine Intelligence 41 (2018) 740–757.
