1 Introduction

Most real problems take place on arbitrary geometries and one has to account for the boundary complexity to reproduce, at the numerical level, the interactions between the interior problem and the boundary conditions. Boundary layer and turbulence are among others, examples of phenomena that are mostly driven by the boundary condition and attention would be drawn on the numerical schemes to provide the correct behaviour of the numerical approximation. Very high order methods (we mean strictly higher than the second-order of approximation) turned out to be an excellent tool in capturing the local geometry details and improving its accuracy. The counterpart is that additional efforts have to be made to treat a domain with curved boundaries. Indeed, popular schemes are usually restricted to, at most, the second-order case when boundary conditions are not exactly localised on the nodes of the grid and the edge of cells.

Several techniques have been recently developed in the unstructured mesh context to preserve the optimal order. We refer to [1, 2, 3] for a recent review. In the present study, we are focusing on the specific case of the finite difference method on Cartesian grids. It is a very popular discretisation technique due to the low data storage, free underlying structures, and draws some advantages due to the simplicity of the numerical schemes [4]. Since the beginning of the seventies, and after the pioneer paper of Peskin [5], finite difference method with the boundary embedded in a Cartesian grid provides superior advantages over the conventional boundary-conformal approach since the computational mesh remains unchanged with respect to the boundary.

Historically, Immersed Boundary (IB) methods were classified into two categories: continuous force and discrete force approach (see

[6, 7] for a detailed overview). Nowadays, such a classification turns to be obsolete and the discrete force approach falls into a general framework that consists in transferring information located on the boundary into information supported by some nodes of the grid. Introduced in the original work of Mohd-Yosuf [8] and extended by the so-called ghost cell method [9], several authors have contributed to improve the accuracy and stability of the technique [10, 11, 12]. Roughly speaking, a set of cells tagged ghost cells are identified around the computational domain. For each ghost cell of centroid , the orthogonal projection point on the physical boundary

is determined together with the normal vector

. We define the image point in the physical domain by symmetry and a value is assigned using linear, bi-linear or quadratic reconstructions involving neighbouring points [13, 14]. Then a simple extrapolation of the BI and values transfers the Dirichlet or Neumann condition into a equivalent Dirichlet condition at the ghost cell centroid . Extension using several points on the semi-line have been proposed to provide a second-order approximation [15, 16, 17] with the Neumann condition and fourth/fifth order reconstruction along the normal have been recently proposed [18, 19].

All the previous methods deal with a two-steps strategy. First, several approximations are computed with nodes interpolation at interior points located along the normal line. Second, an extrapolation (ghost point) or an interpolation (boundary point) using the boundary condition is computed at the ghost cell centroid. An alternative approach consists in performing both the nodes and boundary interpolation in one step by computing the best polynomial function in the least squares sense. The introduction of boundary condition with a polynomial representation dates back to the papers of

Tiwar and Kuhnert (2001) [20, 21] in the pointset method context while the same idea was independently proposed by Ollivier-Gooch and Van Altena (2002) [22] for the finite volume method. A similar technique was proposed for Cartesian grids in [23, 24, 25]. In ever, the boundary condition is taken into account in a weak sense, i.e. with a weighted least squares method, hence the resulting polynomial function does not exactly satisfy the condition, but up to the reconstruction order.

We propose a different strategy to include the boundary condition located on the physical domain while preserving the optimal (very) high-order. The overall picture of the problem is, on the one hand, that the boundary data is not situated on the nodes and one has to transfer the information from the physical domain onto the computational domain. Secondly, the boundary condition treatment presents a high level of independence regarded to the interior problem. The main idea consists in elaborating a mathematical object (a polynomial function for instance) that catches all the information about the location and the boundary condition we shall insert in the numerical scheme. For example, in the finite volume context, the boundary information is converted into flux on the interface edges [1, 2]. We tag the method ”Reconstruction Off-site Data” (ROD) to highlight the transfer of information located on the physical boundary and not on the grid (Off-site Data) into a polynomial (Reconstruction). We generalise the concept with a tidy separation between the boundary treatment and the numerical scheme and adapt the technique to the Cartesian grid context using the ghost cell method.

Noticeable differences between our method and the other authors will be mentioned. A strict inclusion of the boundary condition is obtained by imposing the polynomial reconstruction to exactly satisfy the boundary condition. Moreover, the routine treats the Dirichlet and Neumann conditions as a particular case of the Robin condition without any specificity. This provides a universal framework to deal with all kind of conditions. We also stress that our method does not require the ghost cell centroid projection onto the physical boundary and it just needs a list of points that belong to the frontier. At last, the method is of arbitrary order for arbitrary geometries, depending on the polynomial degree involved in the reconstruction on the local regularity of the border. As a final note, we highlight that we restrict the study to the simple convection diffusion problem on purpose for the sake of simplicity in order to focus on the main objective of the present work: the treatment of boundary condition on arbitrary geometries.

The organisation of the paper is the following. We present in section 2 the equations and the numerical methods that we consider in this paper. The details of the Reconstruction Off-site Data procedure is explained in section 3 while section 4 is dedicated to a new ADI strategy to solve the interior problem. Section 5 is dedicated to the coupling between the interior and boundary problem and propose a study on an accelerated fix-point solver. Some numerical results that are obtained with this methodology are presented in section 6 to check the accuracy and computational effort.

2 Convection diffusion on curved boundary domain

We introduce the basic ingredients to deal with the discretisation of the equations and the boundary. In particular, we define the solver operator that deals with the discrete convection diffusion equation, deriving form the standard finite difference method, and the boundary operator, involving a very simple discrete approximation of the boundary.

2.1 Domain discretisation

Let be an open bounded set. We consider the linear scalar convection diffusion problem for the present study: find a function on such that

(1)

with , , equipped with the boundary condition

(2)

with a given function on the boundary , , are real numbers and is the outward normal vector on .

We denote by the rectangle that contains the sub-domain with Lipschitz, smooth piece-wise, boundary . For , , two given integer numbers, we set , the mesh sizes. We adopt the following notations with and :

Moreover, , , stand for the four nodes of cell while is the centroid. Dropping the indices , , the simpler notation and is used when the cell is clearly identified. The mesh gathers the cells of domain and we define the grid associated to domain by

where stands for the numerical domain. Cells are tagged active cells since they correspond to the computational domain (see figure 1).

To define the ghost cells, we introduce the rook distance between two cells with

and the distance between a cell and domain with

The first layer of ghost cells is then characterised by cells with a distance to is equal to , namely

Straightforward extensions is made for the second layer and third layer of ghost cells.

Finally, for a given cell and , we define the -stencil , as the list of the -closest cells of to . Notice that a stencil is only constituted of cells from the computational domain.

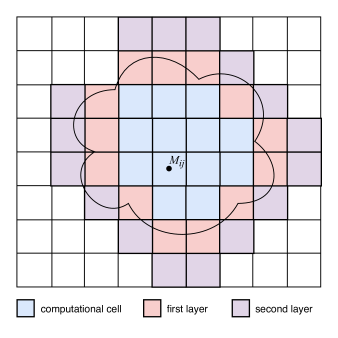

Figure 1: Example of a numerical domain and two layers of ghost cells

2.2 Boundary discretisation

To handle the boundary at the discrete level, we consider a set of points , we denote the collar as (see figure 2). We only assume that , where by convention and is the characteristic length of the collar. We shall take to guarantee the same accuracy than the numerical schemes. In addition to listing the positions, the collar also provides the outward normal vector of the physical boundary at points .

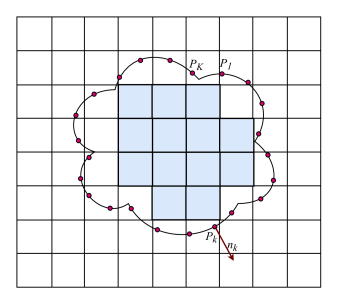

Figure 2: Example of a collar on the physical boundary
Remark 1

There are several methods to compute the collar point in function of the boundary characterisation depending on the description of the boundary: Jordan parametric curve, level set function, polar coordinate curve. We refer to [3] for a detail presentation. Nevertheless, we do not require any analytical description of the boundary to perform the method except a list of points and normal vectors. In particular, orthogonal projection of the ghost cell centroid is not required.

2.3 Reconstruction and solver operators

Before presenting the technical aspects, we give a general view of the method by defining the main operators. Let be a function defining on the domain . We denote by the approximations of for and the ghost cell values for , that we gather in matrix , the other entries still undetermined. Adopting a new one-index numbering , matrix gives rise to two vectors: corresponds to the values on the active cells i.e. the cells that belong to , while gathers the values on ghost cells of the different layers. The method we propose is based on two operators coupling the active cells and the ghost cells.

The linear reconstruction operator (ROD operator)

(3)

that provides the ghost cell values, given the active cell values and the boundary condition. We define the linear solver operator

(4)

that provide the approximation on the active cells, given the values on the ghost cells and the right-hand side function. The numerical solution of the convection diffusion problem (1)-(2) satisfies both the conditions

and suggest an iterative method to reach the fix-point solution. Another approach consists in introducing the global residual operator

such that the numerical solution is given by . The second approach provides a matrix-free linear operator that could be handle by an iterative method of type GMRES or BiGCStab.

3 The Reconstruction of Off-site Data method (ROD)

We detail the polynomial reconstruction operator (3) to provide a high accurate approximations of the solution in the ghost cell for smooth curved boundaries. We recall that the frontier is only characterised by a simple list of points and normal vectors. The major difference with the reconstruction proposed in [22] is the specific treatment of the boundary condition. Indeed, we combine a least squares method over a stencil of active cells but imposing the polynomial to satisfy the general Robin condition on two collar points. In other words, we apply the least squares procedure to a convex subset of polynomials that strictly respect the boundary condition.

3.1 The constraint optimisation problem

We assume that the entries of contain an approximation of . Let be a ghost cell. We adopt the multi-index notation and for any points , we define the polynomials centred at the centroid as

The lexicographic order given by , , , , , defines a one-to-one function where is the rank in the lexicographic order (for instance ). Polynomial of degree is constituted of monomial functions we rewrite under the compact form where vector collects the polynomial coefficients , while collects the monomial functions. Finally, we define the energy functional

that represents the quadratic error between the polynomial representation centred at and the approximations over the stencil constituted of active cells.

We denote by the closest point of the collar, i.e.

where we drop the indices for the sake of simplicity. Then there exist two collar points , on both sides of and we choose one of the two points, denoted that satisfies the cone condition (see Figure 3)

Figure 3: The cone condition select the two point of the collar where the boundary condition will be prescribed in the ROD reconstruction

The Reconstruction of Off-site Data method consists in seeking the coefficients of the polynomial such that

under the restriction

3.2 Calculation of the ROD polynomial

To determine the solution, we define the Lagrangian functional

with .

Due to the locality of the minimisation problem, we introduce the index and , corresponds to cell and centroid

with the local index respectively. Tensor

of size transforms the global indices into the local index by setting if is the local index of cell , zero elsewhere. Consequently, vector gathers the components of the approximation with the local indexation.

We introducing the matrix of coefficients , , with

Hence, the energy function reads

while the gradient reads

In the same way, the boundary condition reads for and ,

with vector given by the coefficients at

, .

Gathering the two vectors in the matrix , and let . The saddle point satisfies the following linear system

Notice that all the small matrices , are computed in a pre-processing stage together with matrix that we use in the determination of the coefficients.

3.3 Validation of the ROD reconstruction

Given a ghost cell of centroid , given the boundary condition on the two collar points, we deduce the polynomial representative and then compute the value at point . We perform all the reconstructions to set the values for the different layers of ghost-cells. Since the polynomial coefficients linearly depends on the values in the active cells, we deduce that the vector is an linear function of vector given by relation (3).

To check the accuracy of Reconstruction Off-site Data procedure and assess the order method, we consider the function and set the exact values in the active cells with , . On the other hand, to fulfil the boundary condition at the collar points , we manufacture the values such that . The reconstruction procedure will then provide the values for the first, second and third layer of ghost cells we gather in vector .

Remark 2

To reduce the computational cost, we only evaluate the reconstructions for the ghost cells of the first layer and use the same polynomial to compute the extrapolations for the second and third layer.

Errors are estimated with the

norms for the first layer with

Table 1 presents the errors and convergence order for the reconstruction of the Dirichlet condition (first column), the reconstruction of the Neumann reconstruction (second column) and the reconstruction for the Neumann condition (third column). Notice that we lost one order of magnitude with the reconstruction and Neumann condition but we manage to recover the optimal order using the reconstruction.

Dirichlet Neumann Neumann
I error order error order error order
80 4.15e-03 7.98e-02 7.49e-04
160 1.17e-03 1.83 4.42e-02 0.85 9.70e-05 2.95
320 3.26e-04 1.84 2.13e-02 1.05 1.22e-05 2.99
Table 1: ROD reconstruction convergence values for 3 combinations of boundary conditions and reconstruction polynomials: BC Dirichlet with , BC Neumann with and BC Neumann with .

Similarly, we report in Table 2 the error and convergence order for the reconstruction both for Dirichlet and Neumann boundary condition, and the reconstruction for the Neumann case. We observe that the Neumann condition does not suffer of the lack of accuracy as in the case and already reach the optimal order.

Dirichlet Neumann Neumann
I error order error order error order
80 4.41e-05 4.32e-05 2.32e-06
160 3.51e-06 3.65 2.97e-06 3.86 1.39e-07 4.06
320 2.20e-07 4.00 1.85e-07 4.00 3.28e-09 5.41
Table 2: ROD reconstruction convergence values for 3 combinations of boundary conditions and reconstruction polynomials: BC Dirichlet with , BC Neumann with and BC Neumann with .

We present in Table 3 the errors and convergence order for the reconstruction both with the Dirichlet and Neumann condition. An additional benchmark is given for the reconstruction with the Neumann condition. Indeed, for we reach the double precision capacity to handle the large condition number of the matrices involved in the polynomial coefficients’ calculation. The right panel provides the errors for and show that we recover the the optimal order.

Dirichlet Neumann Neumann
I error order error order error order
80 6.57e-07 1.97e-07 3.91e-08
160 1.28e-08 5.68 3.72e-09 5.73 3.35e-09 3.54
320 5.13e-10 4.64 7.32e-11 5.67 2.61e-09 0.36
I Neumann
error order
60 1.89e-07
80 3.91e-08 5.48
100 9.94e-09 6.14
Table 3: ROD reconstruction convergence values for 3 combinations of boundary conditions and reconstruction polynomials: BC Dirichlet with , BC Neumann with and BC Neumann with (left panel),ROD reconstruction convergence values for BC Neumann with using grids of smaller sizes (right panel).

4 The solver operator

Given vector , we seek vector deriving from a traditional finite difference scheme with Dirichlet condition at the ghost cells. It provides the linear solver operator (4) by solving a linear system characterised by a very specific sparse matrix. Several algorithms are considered to take advantage of the structured mesh, namely parallel solvers that we shall evaluate in terms of efficiency and robustness.

4.1 High-order finite difference schemes

We adopt the standard finite difference schemes that we reproduce hereafter for the sake of consistency. We always consider centred schemes even for large cell Péclet number assuming that the solutions we are dealing with do not produce numerical instabilities. Of course, upwind scheme would be necessary in case of oscillations but this issue is out of the scope of the present paper.

The second-order scheme is achieved with the 3-points approximations

The fourth-order scheme derives from the 5-points approximations

We shall also consider the sixth-order scheme given by the 7-points approximations

We use the same discretisation for the direction. Notice that only the computational cells have to be evaluated since the values of the ghost cells were already evaluated in order to provide the necessary information to carry out the calculations. By solving the linear system, given the ghost cells vector and the right-hand side term, we obtain the linear operator .

4.2 Linear solvers and dimensional splitting

Even enjoying a high degree of parallelisation, the Jacobi method converges too slowly when dealing with high conditioning number matrix and does not represent a satisfactory solution. The SOR technique converge faster but presents strong restrictions for a fully parallelisation if one aims at using a large number of cores. For example, Red-Black ordering only uses two cores and the block strategies creates strong overheads [26].

Methods based on the residual computation such as the GMRES methods are strongly parallelisable by nature but memory access represents a limitation that strongly reduces its computational efficiency. Indeed, the Krylov based method involves the orthogonalisation procedure leading to the construction of full vectors and matrices together with a increasing computational cost. The biCGStab method is an interesting alternative since no additional storage is required but the computational cost is still significant (we require twice the evaluation of the residual) and the conditioning number is higher.

We here propose a more efficient method, fully paralellisable by construction, where data are consecutive in memory so what it takes advantage of the processor’s cache hierarchy. We revisit the Alternate Direction Implicit method (ADI) proposed in the 60s by splitting the 2D system into a large number of 1D independent linear problem where the data is contiguous in memory, to leverage the cache access. Moreover, such a method does not require any additional storage or calculation (for instance the orthogonalisation). To this end, let consider the operators

We aim at seeking the solution solution of the steady-state convection diffusion problem with Dirichlet boundary condition. We slightly modify the equation we rewrite as a fix point problem by setting

where is the identity operator and a parameter. At the discrete level, we denote by and the numerical discretisation matrices associated to operator and respectively while vector is the solution of the linear problem

with the discrete version of function and

the identity matrix. The ADI method is based on the construction of the following sequence

of approximations given by

where stands for an intermediate stage. At each stage , we solve independent tri(penta, hepta)diagonal linear system (-sweep) and independent tri(penta, hepta)diagonal linear system (-sweep). The loop stops when the residual norm reach a prescribed tolerance.

Remark 3

Higher order ADI would be considered to improve the iteration procedure. For example, the fourth-order ADI method proposed in [27] could be rewritten in the steady-state context.

4.2.1 Comparison with classical solvers

We compare in tables 4 and 5 the ADI method with the GMRES and biCGStab for the second and fourth order finite difference method method. We consider the academic problem with the exact solution and the corresponding Dirichlet boundary condition. We solve the linear system until it reaches a residual lower than .

We report the error and convergence order together with the number of iterations, i.e. the number of calls to the residual computation using a points grid. We obtain exactly the same errors and convergence order as expected. The number of iterations for the biCGStab is twice since we call two times the residual for each stages. The ADI method provides the lowest number of iterations and exhibit an excellent convergence. We do not present the computational times since they highly depend on the implementation of each method, the memory access, the cache memory, and the CPU Instructions Per Clock (IPC).

GMRES biCGStab ADI
err ord itr err ord itr err ord itr
10 1.01e-03 50 1.01e-03 104 1.01e-03 38
20 2.82e-04 1.84 113 2.82e-04 1.84 232 2.82e-04 1.84 78
40 7.47e-05 1.92 220 7.47e-05 1.92 460 7.47e-05 1.92 155
80 1.93e-05 1.96 430 1.93e-05 1.96 876 1.93e-05 1.96 312
120 8.65e-06 1.97 622 8.65e-06 1.97 1280 8.65e-06 1.97 467
160 4.89e-06 1.98 788 4.89e-06 1.98 1696 4.89e-06 1.98 627
Table 4: Error, convergence order and number of iteration comparison between the solvers GMRES, biCGStab and ADI using a second order scheme for the Laplace equation.
GMRES biCGStab ADI
err ord itr err ord itr err ord itr
10 9.32e-05 36 9.32e-05 80 9.32e-05 33
20 9.46e-06 3.30 121 9.48e-06 3.30 232 9.48e-06 3.30 76
40 7.36e-07 3.69 267 7.36e-07 3.69 480 7.36e-07 3.69 161
80 5.11e-08 3.85 519 5.09e-08 3.85 964 5.09e-08 3.85 333
120 1.02e-08 3.96 808 1.04e-08 3.92 1484 1.04e-08 3.92 503
160 3.35e-09 3.92 1088 3.35e-09 3.94 1970 3.35e-09 3.94 665
Table 5: Error, convergence order and number of iteration comparison between the solvers GMRES, biCGStab and ADI using a fourth order scheme for the Laplace equation.

4.2.2 Parallelism and computational efficiency

The computational efficiency is deeply related to the built-in parallelism ability of the numerical method and its scalability. The main interest of the ADI solver is to split a 2D problem on a grid into independent 1D problems on a -points grid for the -sweep (and the symmetric for the -sweep). To this end, an OpenMP version of the code has been implemented in order to take advantage of the multi-threading capabilities of modern processors. Simulations have been carried out on a dual processor Intel Xeon E5-2650 v2 with 16 cores @2.6GHz and 64 GB of memory.

Table 6 presents the time spent and respective speed-up from 1 to 16 cores and different points grids for the centred second order scheme. We report a very good scaling when deploying up to 16 cores with a speed-up close to 9. We also note that the computational cost increases as while the grid size increases as , hence the running time is proportional to the power of the number of unknowns.

Time (s) Speedup
I / #cores 1 2 4 8 16 1 2 4 8 16
256 1.42 0.74 0.44 0.27 0.2 1.00 1.92 3.23 5.26 7.10
512 12.38 6.94 4.22 2.26 1.43 1.00 1.78 2.93 5.48 8.66
1024 113.83 64.41 37.35 20.89 12.43 1.00 1.77 3.05 5.45 9.16
Table 6: ADI parallel implementation time and speedup results using up to 16 threads considering a 2nd order scheme.

Tables 7 and 8 concern the fourth-order and the sixth-order scheme respectively. We remark that the speed-up is slightly better (close to 12 for 16 cores and the 6th-order scheme). We also notice that the running time is of the same order that for the 16 cores case, in line with the observation of the 2nd-order scheme. In particular for the 16 cores and grid case, the computational time is 12.43 for the 2nd-order, 30.76 for the 4th-order (two times), and only 38.76 (three times) for the 6th-order.

Time (s) Speedup
I / #cores 1 2 4 8 16 1 2 4 8 16
256 3.58 2.12 1.09 0.60 0.43 1.00 1.69 3.28 5.97 8.33
512 38.81 19.74 12.02 6.34 3.73 1.00 1.97 3.23 6.12 10.40
1024 344.87 193.34 104.14 55.83 30.76 1.00 1.78 3.31 6.18 11.21
Table 7: ADI parallel implementation time and speedup results using up to 16 threads considering a 4th order scheme.
Time (s) Speedup
I / #cores 1 2 4 8 16 1 2 4 8 16
256 5.77 2.65 1.58 0.86 0.58 1.00 2.18 3.65 6.71 9.95
512 47.34 26.51 13.66 7.67 4.51 1.00 1.79 3.47 6.17 10.50
1024 464.76 247.99 122.47 68.71 38.76 1.00 1.87 3.79 6.76 11.99
Table 8: ADI parallel implementation time and speedup results using up to 16 threads considering a 6th order scheme.

5 The fix-point solver

The numerical solution of the convection diffusion problem (1)-(2) is provided by a sequence of general term given by the relation

The sequence is built until we reach a satisfactory approximation of the fix-point solution . Since R and S are linear operators, the composition is also linear and reads

(5)

where is a full matrix of size the number of ghost cells. Moreover, let denote . Then, one has .

Since is not explicit, we use a matrix free procedure to provide an approximation of the fix point solution of the problem

. It is of common knowledge that fix point method converges very slowly when matrix has some eigenvalues very close to one. We developed a new accelerator method to improve the solver’s convergence rate.

5.1 A preliminary analysis

We consider in this section the very particular case where it exists an initial condition such that with , i.e. vectors and are co-linear. Then the following proposition holds

Proposition 4

For any , one has

Moreover, the exact solution is simply given by

[Proof.] Relation is obtained by applying times the operator. On the other hand, we write

(6)

We then deduce that sequence converges and relation (5) gives

We conclude that the limit is the fix point . Passing to the limit in relation (6), provides relation .∎ The preliminary study indicates that the co-linearity property between two successive iterations is a key to compute a better approximation of the solution, avoiding all the intermediate stages and saving a lot of computational effort. Of course, in general case, we do not have such an ideal situation but when co-linearity is almost achieved, we shall take advantage of the property as presented in the next section.

5.2 Fix point accelerators

We drop the subscript GC for the sake of simplicity and define the two following quantities:

where and stand for the Euclidean norm and inner product between vectors and . From the definitions, we have the following result.

Proposition 5

Let be the initial condition. Then the following decomposition holds

with . Moreover, one has

Finally, the fix point solution satisfies the relation

(7)

[Proof.] From the definitions of and , we have

Hence defining vector , the orthogonality property holds by construction.

We prove the second relation by induction. We compute

To prove the last relation, we write

Multiplying the relation with gives

Assuming that matrix in non-singular, we obtain

Hence by dividing with the quantity , we deduce the relation (7).∎ Relation (7) states that the fix point solution is decomposed into a principal with and a complementary orthogonal part. Note that the accelerator parameter turns to be very large when are close to one (co-linearity). We propose several improvements of the fix point method based on that remark.

5.2.1 First acceleration algorithm

Assume that at stage we know the approximation .

  1. We compute two successive steps noting

    and the increments

  2. We compute the indicators

  3. The new approximation is then given by truncation of the second term in relation (7).

    (8)

5.2.2 Second acceleration algorithm

To improve the performance, we design a second algorithm by using the orthogonality property

where we set for the sake of notation. We then have the following proposition

Proposition 6

Let the initial condition. The following decomposition holds

(9)

[Proof.] Inserting relation

into relation (7) provides
