1 Introduction

Deep learning and its use in a wide range of applications, from image classification to video processing to speech recognition and natural language processing, have given rise to paradigms such as

Convolutional-Neural-Networks (CNNs) [17] and Long-Short-Term-Memory (LSTM) [14]. These paradigms typically use data represented in the Euclidean space and can efficiently extract latent information from Euclidean data such as images, videos, audios and texts [25].

While deep learning has achieved significant success in tasks with Euclidean data, there is an increasing number of applications that use data generated from non-Euclidean domains and are represented as graphs with complex relationships and inter-dependency between objects, for which most existing deep learning algorithms may fall short. For instance, in E-commerce, a graph-based learning system exploits the interactions between users and products [3, 26] to make highly accurate recommendations. In chemistry, molecules are modeled as graphs for bioactivity identification in drug research [10]. In a citation network, papers can be categorized into different groups while linked to each other via citations [24, 16]. In each of these cases, the graph has various numbers of unordered nodes and each node has a different number of neighbors, leading to massive data dependencies among nodes.

The irregularity in graph data imposes significant challenges on existing machine learning algorithms and makes critical feature extraction operations, such as convolutions, not directly applicable. As a result, Graph Neural Networks have been proposed, in various forms, to extend deep learning approaches to graph data

[11, 21, 23, 20, 7, 25]. Among these, the Graph Convolutional Network (GCN), an approach that marries some ideas of CNNs to the distinct needs of graph data processing, has demonstrated significant potential [4, 8, 16].

With the development of GCNs, their acceleration becomes an urgent issue. GCNs have been mainly adopted in two contexts: (1) big data and data mining, where social media and E-commerce companies use GCNs to identify user preference and where police officers use GCNs to learn about the social relationships of a criminal suspect; and (2) embedded devices, where GCNs are used in real-time motion capture and 3D modeling in animation and sports game development. Both contexts need high-performance GCN inference. For big data mining, it requires high throughput, especially on events like “Black Friday”, when millions of people shop on Amazon at the same time. To advertise the correct products to every customer, a very large graph needs to be continuously evaluated. For real-time motion capture and modeling, extremely short-latency inference is required. Although most of the existing GCNs have two or three layers, the current trend shows that GCNs are becoming deeper (as is what happened with CNNs). A GCN network with 152 layers has been proposed recently, and its efficiency has been demonstrated in the task of cloud semantic segmentation [19]. Strict timing requirement makes the acceleration of GCNs a critical area of research.

There has so far been relatively little work in GCN acceleration. The major kernel of GCN inference is Sparse-Dense-Matrix-Multiplication (SPMM). In the past few years, many efficient accelerators have been proposed for sparse CNN [12, 28, 15]

, as summarized in Section 6. These accelerators benefit from the following three features of sparse CNNs: (i) the non-zeros among CNN input and output channels are roughly balanced, leading to an easier workload distribution among parallel PEs; (ii) the sparsity of CNNs is relatively low, so typically the matrices can still be processed using a dense format; (iii) the sparse matrices or tensors in CNNs are relatively small in size. However, for this new GCN problem, these three assumptions are not held any more. Particularly, (a) the distribution of non-zeros can be extremely unbalanced and clustered (see the two examples in Figure

1) in sparse matrices for describing graphs (e.g., a graph adjacency matrix), given that real-world graphs often follow the power-law distribution. This leads to great challenges in workload distribution balancing, particularly on hardware; (b) the sparse matrices in GCN can be significantly sparser than in CNNs, so the hardware design need to efficiently handle sparse data formats (e.g., CSR, CSC, COO, etc.), which is much more difficult than processing it in software; (c) the imbalance issue is significantly exacerbated given the huge size of real-world graphs. For example, the Reddit graph (233K nodes and 12M links) is significantly larger than the typical images for sparse CNNs. Consequently, providing architectural support for efficient GCN acceleration with balanced workload distribution among large number of PEs becomes a very challenging task.

Figure 1: Adjacency matrix mon-zero distribution imbalance of the CORA and Pubmed dataset
Figure 2: Local and remote non-zero imbalance in a sparse matrix. We only show remote imbalance among rows since column remote imbalance can be easily handled by task queuing technology [12].

In this work, we propose UWB-GCN, an architecture for accelerating GCN inference through two dynamic strategies for workload balancing: local sharing and remote switching. We first propose a baseline architecture design and then present our online workload rebalancing techniques, which monitor and adjust the workload distribution by dynamically reconfiguring the task distribution network. The ideal configuration is reused for later iterations, forming a hardware performance auto-tuning paradigm. We implement UWB-GCN in Verilog-HDL and evaluate it on a Xilinx VCU-118 FPGA. Compared with the baseline design, UWB-GCN enhances PE utilization rate, on average, from 63.4% to 92.6%, leading to 2.7 speedups. This paper thus makes the following contributions:

  • We propose UWB-SPMM, an SPMM engine, for hardware based sparse-dense-matrix-multiplication, on matrices with drastically imbalanced non-zero distribution. Particularly, we propose a novel hardware-based performance auto-tuning paradigm for workload rebalancing.

  • We propose UWB-GCN, a GCN accelerator based on the UWB-SPMM engine that can significantly accelerate GCN inference with negligible overhead. Evaluation results show that UWB-GCN can provide, on average, 246.7, 78.9, 2.7 speedups compared with CPU, GPU, and the baseline design without workload rebalancing.

2 Background

In this section we briefly introduce GCNs, showing their differences from traditional network models like CNNs and the challenges on hardware design arising from these differences.

2.1 Graph Convolutional Network

In this paper, we focus on spectral-based graph convolutional networks [25, 16] since it is one of the most fundamental and widely used GCN structures with numeric variants [13, 8, 16]. Please refer to Section 6 for the history and alternative types of GCNs. Eq. 1 shows the layer-wise forward propagation of a multi-layer spectral GCN:

(1)

is the graph adjacency matrix with each row delineating the connection of a vertex with other vertices. is the matrix of input features in layer-; each column of represents a feature while each row denotes a node. is the weight matrix of layer-.

denotes the non-linear activation function, e.g.,

ReLU [17]. In general, needs to be normalized via where

is the identity matrix, and

. The reason is that without normalization, multiplying the feature vector

by will change its scale – those nodes with more neighbors tend to have larger values under feature extraction. Note that during both training and inference of GCN, remains constant. Since can be computed from offline, in the remainder of this paper, we use to denote the normalized . In general, is multiplied only once per layer. However, when multi-hop neighboring information is to be collected, can be multiplied twice or more (i.e., , , etc.).

Eq. 1 is essentially derived from graph signal processing theory: convolutions on a graph can be converted to a multiplication of signal (i.e., a scalar for each node) and a filter

in the frequency domain via the Fourier transform:

(2)

where denotes the Hadamard product.

is collection of eigenvectors for the normalized graph Laplacian

. The diagonal matrix

comprises the corresponding eigenvalues. If a frequency domain filter

is defined, then Eq. 2 can be simplified [4] as:

(3)

Eq. 3 can be further simplified by defining the filter as the Chebyshev polynomials of the diagonal matrix [8, 16] to obtain Eq. 1.

Figure 3 illustrates the structure and compute flow for a layer of a GCN. By multiplying and , we are integrating information from connected neighboring nodes. By multiplying with , and going through the non-linear activation function , we obtain the input features for the next layer. After multiple layers, the GCN is able to extract very high-level abstracted features for various learning purposes.

Figure 3: The structure of a single layer in GCN.

2.2 GCN Matrices Profiling

To leverage the specific characteristics of the matrices for performance improvement, we profile the sparsity and dimensions of , , and for a 2-layer GCN using 5 publicly available datasets that have been widely evaluated for GCNs[16]. The profiling results are listed in Table 1. As can be seen, is quite sparse (sparsity). For the most of datasets, the distribution of input features for the first layer is also very sparse (sparsity), as these are raw features obtained directly from the graph. becomes much denser (sparsity). s are, in general, dense matrices.

The dimensions of the matrices in GCNs depend on the dataset and can range from thousands to millions or even more. Therefore, can be extremely large and have be saved in a sparse data format. Different from CNNs, where the number of features per layer are roughly similar or increasing, in GCNs the number of features often reduces drastically by layer. There are typically thousands of features in the first layer, but only a few dozen in the second.

These observations here are essentially general and widely applicable to other datasets for GCNs. being large and sparse is due to the scale and fundamental properties (e.g., power-law) of real-world graphs. For CNNs, the size of feature-maps decreases with layers for higher abstraction, while the channels increases for stronger abstracting capability. In GCNs, however, the structure of the graph (i.e., ) keeps constant for each layer, while the number of feature channels decreases for the aggregation and abstraction of features. This overwhelming information aggregation explains why sparsity of drops significantly with layers.

CORA CITESEER PUBMED NELL REDDIT
Dense A 0.18% 0.11% 0.028% 0.0073% 0.043%
W 100% 100% 100% 100% 100%
X1 1.27% 0.85% 10.0% 0.011% 51.6%
X2 78.0% 89.1% 77.6% 86.4% 60.0%
Dim Node 2708 3327 19717 65755 232965
F1 1433 3703 500 61278 602
F2 16 16 16 64 64
F3 7 6 3 186 41
Table 1: Sparsity and dimensions of matrices in a 2-layer GCN for the 5 most widely evaluated GCN graph datasets. F1, F2, F3 refer to input features of layer-1,2,3. Dim is short for dimension. Dense is short for density.

3 GCN Baseline Architecture

We propose a baseline architecture design for GCN. Although we call it baseline, it is the first architectural design specially for GCN, to the best of our knowledge. The baseline design shares some similarity with existing sparse CNN accelerator designs, but in addition needs to support ultra high sparsity and large dimensions for the input matrices. In the next section, we show how to achieve near optimal workload balancing on top of the baseline design.

3.1 Matrix Computation Order

To compute , there are two alternative computation orders: and . The choice dictates the volume of non-zero multiplications. Based on our profiling observations, is ultra sparse and large, is general sparse and usually large in columns, and is small and dense. Since multiplying and leads to a very large dense matrix, then multiplying another dense matrix brings significant computation workload and delay. Alternatively, for , both are sparse-dense matrix multiplications111Sparse-matrix-dense-matrix multiplication is known as SPMM; Sparse-matrix-sparse-matrix multiplication is known as SPGEMM.; the scale of computation is thus drastically smaller. Table 2 lists the amount of computation for four datasets following the two approaches. Since the difference is obviously huge, in our design we first perform and then left multiply with .

Layer Order CORA CITESEER PUBMED NELL REDDIT
Layer1 62.3M 197.5M 163.2M 257G 16.3G
999.7K 1.87M 17.5M 47M 6.1G
Layer2 468.2K 493.0K 2.3M 800M 764.3M
329.3K 357.6K 1.06M 735M 530.3M
ALL 62.8M 198.0M 165.5M 258G 17.1G
1.33M 2.23M 18.6M 782M 6.6G
Table 2: Operations required under different execution orders

3.2 Baseline SPMM

Take as an example, if is in size , is in size , is in size , we can reformulate as:

(4)

where is the th column of . is an element of at row- and column-. In other words, by broadcasting the th element from column- of , to the entire column- of , we can obtain a partial resulting column of . Essentially, is processed in a streaming fashion: each element finishes all computation it involves at once, and then aborts completely. In this way, we reuse the entire sparse matrix for each column of ( times in total). Such a design brings additional advantages when and are stored in Compressed-Sparse-Column (CSC) format (see Figure 4). Further benefit with this design is that it provides opportunity to pipeline multiple SPMM operations, as will be discussed later. Since a complete resulting element of requires an entire corresponding row of , to avoid expensive parallel reduction in hardware, we partition and along the rows and assign them to the PEs. Figure 5 depicts the procedure of calculating . The columns of and elements of in the same color are to be multiplied, and stored as partial results in with the same color.

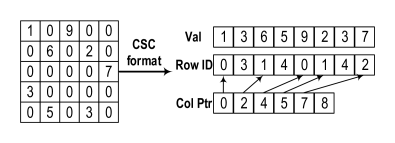

Figure 4: Compressed-Sparse-Column sparse matrix format.

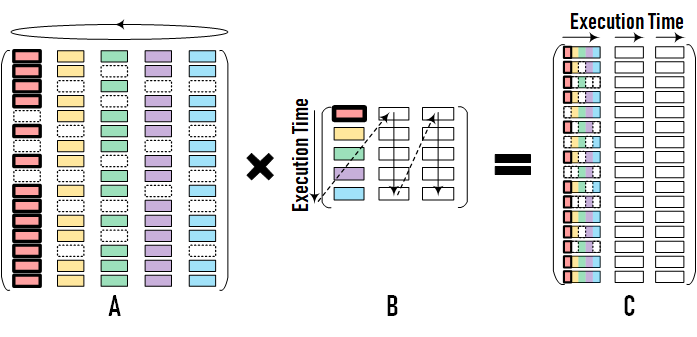

Figure 5: SPMM computation approach.

Workload Mapping: In the baseline design, with the assumption that non-zeros of a sparse matrix are evenly distributed among the rows, we adopt a direct and static mapping from matrix rows to PEs. For example, in Figure 6, each two rows of are mapped to a separated PE; each PE processes three non-zeros of eventually.

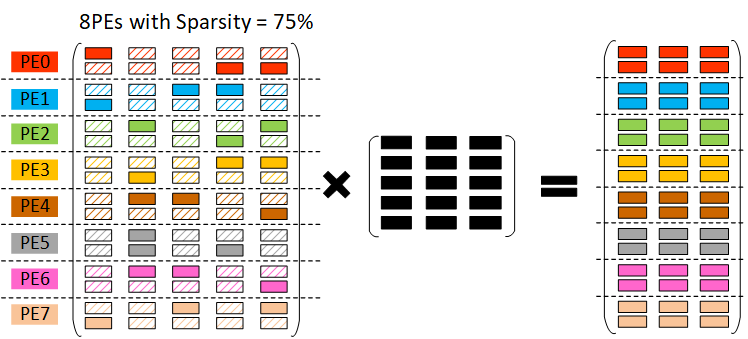

Figure 6: Partitioning the sparse matrix rows among 8 PEs.

3.3 Baseline Architecture Design

The objective here is an efficient architecture design for sparse-matrix-dense-matrix multiplication (SPMM): , given can be extremely sparse (e.g., sparsity) or generally sparse (e.g., sparsity). Figure 7 illustrates our baseline design, comprising the modules of sparse-matrix-memory (SPMMeM), dense-column-memory (DCM), task-distributor & Queue (TDQ), PE-array, and an accumulation-buffers-array (ACC). SPMMeM buffers the input sparse matrix . DCM buffers the input dense matrix . TDQ is for task distribution to the PEs. PE-array is for concurrent multiplication. Finally, ACC buffers the partial results of the resulting matrix for accumulation.

Depending on the sparsity and storage format of , we have two alternative designs for TDQ.

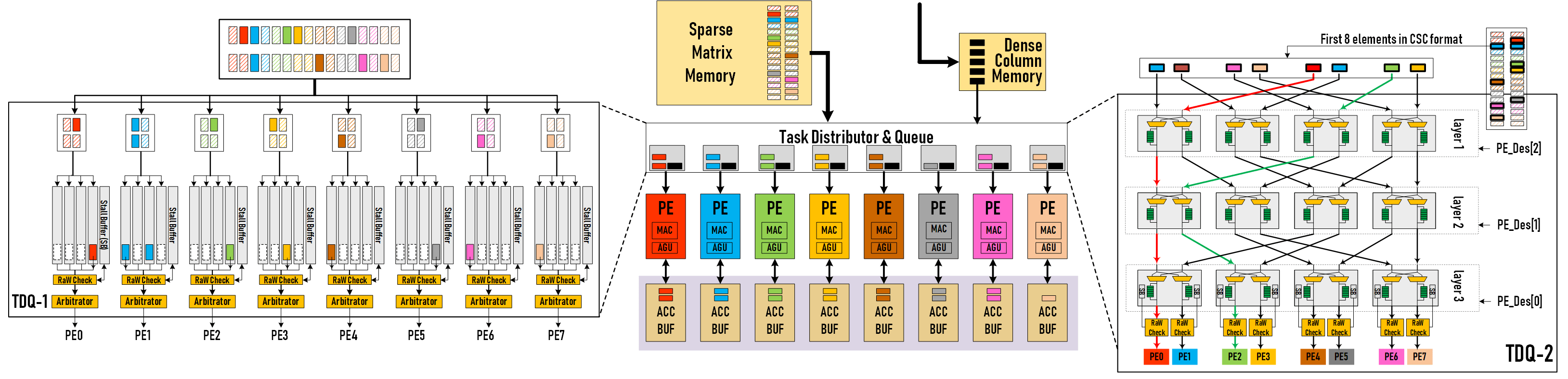

Figure 7: Architecture design for the baseline SPMM engine.

TDQ-1 (left of Figure 7) is used when is general sparse and stored in dense format. We perform the direct row partition as discussed, and map to the input buffer of a PE (see Figure 6). Each cycle, data are forwarded to a PE given evenly-distributed non-zeros. As one PE may account for more than a single row of , we allocate multiple task queues (TQs) per PE. As shown in Figure 6-(B), in each cycle a PE can receive up to 4 non-zero elements. We have four queues to buffer these non-zeros from different rows of . Each cycle, an arbitrator selects a non-empty queue, pops an element, checks for Read-after-Write (RaW) hazard (discussed later), and forwards it to the PE for processing.

TDQ-2 (right of Figure 7) is used when is ultra-sparse and stored in CSC sparse format. Since in CSC the non-zeros are continuously stored in a dense array, if we can directly process the dense array, we gain from avoiding all the zeros. However, we suffer from the overhead of navigating to the correct PE as the indices are no longer continuous and essentially stored in another index array. We use a multi-stage Omega-network for routing the non-zero data stream to the correct PE according to their row indices from the index array. Each router in the Omega-network has a local buffer in case the buffer of the next stage is saturated. Our design attempts to balance the data forwarding rate and the processing capability of the PEs. This is achieved when non-zero elements are distributed evenly among rows. Compared with a global crossbar network, the Omega-network design incurs much less area and hardware complexity; this is especially the case when we have a large number of PEs. Meanwhile, TDQ also accepts streaming data from a particular column of dense matrix in DCM.

PEs fetch present partial results of from ACC, perform the new multiplication task, add to the partial results, and save back to ACC. Each PE is coupled with a bank of ACC to store the rows of it accounts for. A PE features two units: a multiply-accumulate-unit (MAC), and an address-generation-unit (AGU) for result address generation and forwarding. Since is roughly a dense matrix and stored in dense format, the rows of are statically partitioned among ACC buffers. Synchronization is only needed when an entire column of the resulting matrix is completely calculated. Consequently, the imbalanced distribution of non-zeros across columns does not bring any performance issues.

An important issue here is the Read-after-Write (RaW) hazard. Since the computations are all floating-point, the pipelined MAC unit usually takes several cycles to process, but can still accept new tasks while processing. If the new task tries to accumulate to the same partial result of (i.e., from the same row of ), it actually fetches a stale partial result from ACC, and a RaW hazard occurs. To avoid this hazard, we implement a stall buffer of size , where is the delay of the MAC units. We track the row indices currently being processed by the MAC and check whether the current element is targeting the same row in the RaW-check-unit (see Figure 7). If so, we buffer that job and delay for a few cycles until the hazard is resolved. This is similar to the role of the scoreboard for register RaW hazards in processor design.

Overall, for each layer of GCN, we first execute SPMM on . Since is general sparse and stored in dense format, we use TDQ-1. The result of is dense. We then compute . Again, this is SPMM. However, as is ultra-sparse, and stored in CSC format, we use TDQ-2. The result is relatively dense. But after the activation function ReLU, a large portion of entries become zero, and we again have a general sparse matrix for the input feature matrix of the next layer.

To further improve the performance, we exploit the parallelism between the two consecutive SPMMs (i.e., and ). This is based on the observation that when a column of has finished computing, and is constant and ready, we can already start the multiplication of with that column, without the need to wait for the entire ; This is shown in Figure 8. This design brings two major benefits: (i) We gain extra parallelism and reduce the overall delay through coarse-grained pipelining and (ii) Instead of looking for large off-chip storage to cache the resulting matrix, we only need to buffer a single column of on-chip. Such a pattern can be reused within a GCN layer if left-multiplied by other sparse matrices, e.g., some GCNs collect information from 2-hop neighbors, so the layer formulation becomes ; the three multiplications can be pipelined.

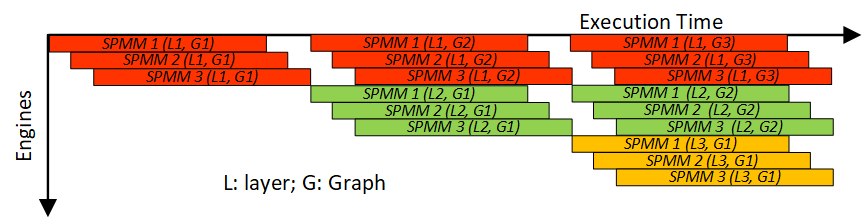

Figure 8: Exploiting extra parallelism across consecutive SPMM computation through pipelining.

3.4 Workload Balance Problem

The baseline architecture works well when non-zeros are evenly distributed among the rows of . However, when this assumption does not hold, which is very likely for power-law graphs, then the performance of the baseline architecture degrades significantly due to PE workload imbalance.

Figure 9-(A) and (B) illustrate two types of workload imbalance: local imbalance and remote imbalance, and also the histogram when mapping to the baseline architecture with 8 PEs. Note that both types lead to significant performance degradation: the delay increases from the expected 2 cycles to 5 and 7 cycles, respectively.

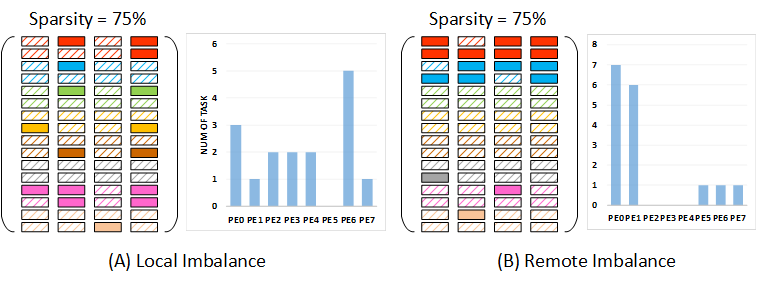

Figure 9: Local and remote workload imbalance among 8 PEs with 75% sparsity.

This imbalance issue is unique for GCNs and has not been faced or resolved by existing works of sparse-CNNs [12, 2, 28, 15]. The reason is that non-zeros in those sparse matrices are more or less evenly distributed. However, when dealing with huge and ultra sparse matrices such as the adjacency matrix of a social-network graph following a power-law distribution, the condition is totally different. Efficiently handling of this unique workload balance problem from this new GCN application is the major research problem for this work. Typically, when dealing with sparse data structures such as sparse matrices/tensors, trees and graphs, etc., to achieve workload balance, the software approach is to first profile the structure through, for example, symbolic analysis, in a preprocessing stage, and then use the sampled information to guide the partition strategy later for real processing. In this work, we show how to dynamically adjust hardware configuration for continuous workload rebalancing. Our design can be applied to a variety of specialized accelerators for processing sparse data structures.

4 UWB-GCN Architecture Design

We treat the two types of imbalance problem (shown in Figure 9 ) separately. For local imbalance, we propose dynamic local sharing; for remote imbalance, we propose dynamic remote switching. Both of them are dynamic techniques that measure and adjust for a better task distribution configuration each time a column of the dense input matrix is processed. After several columns, the optimal configuration best matching the non-zero structure of the sparse input matrix is obtained. This configuration is then reused for the processing of the remaining columns of the dense matrix.

Their difference is the granularity. Figure 10 describes our design flow. We use heat-map to represent the utilization of different PEs (from blue to red ). Initially, we employ equal partitioning for the baseline design. Some of the PEs (e.g., PE2, PE7 and PE8) are over-utilized while some (PE1, PE4 and PE6) are under-utilized. The ultimate purpose of the design is to balance the colors (i.e., utilization) by adjusting or exchanging the workloads of PEs (i.e., area in Figure 10). We first employ local balancing (right arrow) by averaging out some of the overloaded work to neighbors, improving the situation. However, the offloaded work needs to be returned for aggregation after processing. Due to chip area and design complexity restrictions, we may exchange workload between direct neighbors (234), 2-hop neighbors (12345), or even 3-hop neighbors (012345), but not all of them. In case non-zeros are clustered in a region across several PEs, local strategy may not work.

To allow an overloaded PE to exchange data with a remote under-loaded PE, we propose remote PE switching (down-arrow in Figure 10). By interchanging workloads between remote over-utilized and under-utilized PEs, followed by another round of local sharing (lower right-arrow), we can significantly improve load balancing. Note, this is what happens in the processing of one column of the dense matrix . Our accelerator can remember this plan and incrementally adjust it when processing the next column, for the same sparse matrix is reused every time. After several rounds, the configuration best matching the sparse structure of is obtained, and we use it for the remaining rounds. In the following, we discuss how to realize this strategy in hardware.

Figure 10: Neighbor PE workload sharing and remote PE workload switching.

4.1 Dynamic Local Sharing

We need to estimate the PE utilization difference before adjusting the workload. This is achieved by comparing the number of pending tasks in its task queue (TQ) with the neighboring PEs. Figure

11 illustrates our design on how to realize 1-hop local sharing for TDQ-1 and TDQ-2 respectively.

TDQ-1: Before a new task is pushed into a PE’s TQ, it compares the number of pending tasks (by checking a waiting task counter) with the TQs of neighboring PEs. The task is then forwarded to the TQ with fewer pending tasks. If forwarded to a neighbor, the result needs to be returned to the ACC buffer of its original PE for accumulation after the multiplication, as shown in Figure 11-(B). The valid return address is calculated in the AGU unit of a PE.

TDQ-2: For an Omega network, it is the final layer of the multi-stage network accounting for forwarding between neighboring PEs. For example, in Figure 11-(C), two PEs share the same final-layer switch. Let us call them a group here. In Figure 12, a group has four PEs sharing the same final-layer switch. Therefore, we focus on the TQs of the final layer. After figuring out the pending task condition, we know the proper destination PE id. We adjust the address tag of the task before it is pushed into the TQs of the final layer. To enable PEs on the group border (e.g., the leftmost or rightmost PEs) to communicate with their out-of-the-group neighbors, we add extra links in the final layer, as shown in Figure 11-(D). Note, Figure 11-(D) just shows the condition of sharing among 1-hop neighbors. By considering more hop neighbors, we obtain a more balanced design at the cost of higher hardware complexity and area. This is a design trade-off. We discuss it in more detail in the evaluation.

Figure 11: Architecture design for local workload sharing.

4.2 Dynamic Remote Switching

For remote switching, we also adopt the multi-round auto-tuning approach. The idea is to find the most over-utilized PE and the most under-utilized PE per round (i.e., for a column of ), and switch a part or all of their workloads. The the percentage to be switched depends on their utilization gap. The architecture design is shown in Figure 12.

First, we discuss how to identify the most over-utilized (hotspot) PE and the most under-utilized (coldspot) PE. This is achieved by the PE Status Monitor (PESM). As previously mentioned, each TQ of a PE has a counter to track the number of pending tasks, which can trigger an "empty" signal when reaching zero. All the counters are connected to a multi-stage MUX-tree for integration, and a single signal is the output. Right after the jobs of the current round are dispatched, we start to monitor . When triggers, we know some PEs become idle. By voting at each level, the Mux-tree is able to identify the PE group with the highest number of "empty" signals triggered, i.e., the coldspot. When all PEs have triggered the empty signal, we record the present , which is the last PE to abort, i.e., the hotspot.

Figure 12: UWB-SPMM overall architecture design with local workload sharing and remote workload switching. Modules in red boxes are used for remote workload switching.

Having identified a hotspot and coldspot PE-tuple with id for the current round , to avoid thrashing, we only exchange a portion of the workload between them. The number of jobs (i.e., rows of ) to be switched in the -th round (i.e., a column of ) is calculated via:

(5)

where is the largest workload gap (i.e., the workload difference between hot-spot and cold-spot PEs) for the -th round, is the initial workload under equal partition. In the current design, we track each tuple for two rounds. In other words, in the PE Status Monitor in Figure 12, we have two slots for tracking the current PE-tuple, and the PE-tuple from the previous round. We ensure there is no conflict here. Each PE-tuple being tracked is updated per round according to Eq 5. In this way, the workload switching ratio for each tracked PE-tuple is adjusted for two or several rounds and high-likely to converge. The number of rounds we can track depends on the size of the tracking window in the PESM, and is a design tradeoff between area and performance. Calculating Eq 5 is conducted in the Utilization Gap Tracker in Figure 12. To reduce the hardware cost of division and multiplication in calculating , we also design a hardware-efficient approximation approach for computing Eq 5, which will not be discussed in detail here due to space limitation.

Knowing how many rows are to be switched between remote PEs, we use a Shuffling Lookup Table (SLT) to determine which rows are to be interchanged between the PE-tuple. The IDs of these rows are forwarded to the Remote Balancing Control Register (RBCR). In the next round, the destination PE of these rows are updated in the Shuffling Switches (SS).

5 Evaluation

We evaluate the baseline and UWB-GCN designs, and compare them with the same GCN networks on other platforms such as CPU and GPU.

5.1 Evaluation Configuration

To evaluate UWB-GCN, we implement the RTL of the baseline architecture and UWB-GCN in Verilog-HDL. We measure the PE utilization, performance, energy efficiency, and hardware resources consumption on a Xilinx Virtex UltraScale+ VCU118 FPGA board. Note, we only use FPGA as an evaluation platform to demonstrate the performance and efficiency of UWB-GCN. Our design is a general architecture design that does not leverage any FPGA-specific features or units.

We allocate a counter to each PE for tracking the number of idle cycles for utilization measurement. The number of operation-cycles (i.e., execution delay) are measured by a cycle-accurate hardware counter. The counter triggers when the first data is forwarded to UWB-GCN and stops when the last output feature is received. The hardware consumption and operation frequency are reported by the Vivado Design Suite-2019.1 after synthesis and implementation. The board-level power consumption is measured by a power meter. To perform cross-platform comparison, we implement the reference GCN networks in PyTorch and run them on a high-end server CPU Intel Xeon E5-2698-V4 and a NVIDIA Tesla P100 GPU

. PyTorch calls

cuSPARSE library in the SPMM computation.

The datasets for evaluation are Cora, Citeseer, Pubmed, Nell and Reddit, which are the five most widely used public available datasets in GCN research. Their characteristics are listed in Table 1.

5.2 UWB-GCN Evaluation

Figure 13: Number of non-zeros per row in the adjacency matrices of Citeseer, Nell and Reddit.

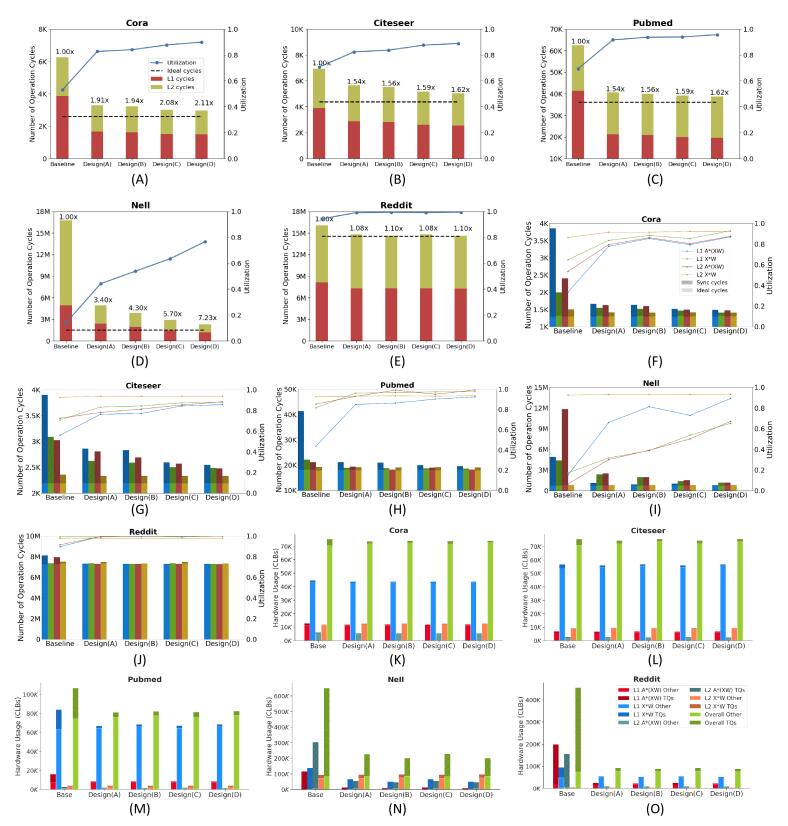

Figure 14: A-E: Overall performance and PE utilization of the proposed five designs; F-J: Per-SPMM performance and PE utilization of the proposed five designs; K-O: Hardware resources consumption normalized to the number of CLBs of the five designs. The legends are shown in (A), (F) and (O).
Figure 15: Utilization, performance and hardware resources consumption with different number of PEs.

The efficiency of our design is evaluated by comparing the performance, hardware resources consumption, PE utilization of the baseline design (i.e., Base) with the 4 different design choices of UWB-GCNs: (i) 1-hop local sharing (i.e., Design(A)), (ii) 2-hop local sharing (i.e., Design(B)), (iii) 1-hop local sharing + remote switching (i.e., Design(C)), (iv) 2-hop local sharing + remote switching (i.e., Design(D)). The only exception is for Nell, where we use 2-hop and 3-hop local sharing; we explain the reason later.

Figure 13 illustrates the non-zero element distribution in the adjacency matrices of Citeseer, Nell and Reddit. The distributions of adjacent matrices of Cora and Pubmed have already been shown in Figure 1. As can be seen, the distribution of non-zeros in the graph adjacency matrices are extremely unbalanced, confirming the importance of workload rebalancing.

Figure 14-(A-E) compare the overall GCN inference delay and average utilization of PEs for the five designs over the five datasets, respectively. The lines show overall PE utilization. The bars show the break down of the delay cycles according to the GCN layers. We also mark the latency lower bound when assuming full PE utilization. For Cora, Citeseer and Pubmed, using 1-hop and 2-hop local sharing can improve PE utilization from 53%, 71% and 69%, to 83%, 83% and 93%, respectively, leading to , and performance improvement. Enabling remote switching can further promote PE utilization to 90%, 89% and 96%, respectively, bringing performance gain by , and . After analysis, we found the remaining 4-10% utilization gap is due to PE under-utilization in the auto-tuning phase, e.g., in the first iteration. For Nell, as shown in Figure 13, the non-zeros are quite clustered. In this case, one or two PEs are extremely over-utilized in the baseline design, leading to only 13% overall utilization. In this case, even 2-hop local sharing is still insufficient to rebalance the workload. Therefore, for the Nell dataset only, we use 2-hop and 3-hop local sharing (rather than 1-hop and 2-hop) in our evaluation. Experiment results show that 2-hop and 3-hop local sharing can enhance PE utilization from 13% to 44% and 53%, bringing 3.4, 4.3 performance improvement. With remote switching enabled, the utilization further increases to 63% and 77%, leading to 5.7 and 7.2 performance gain. For Reddit, through local sharing, the utilization has already achieved 99% (from 92% in the baseline).

Figure 14(F-J) further break down the cycles of SPMM for the five designs over the five datasets, respectively. The shading area of the bars represent the "Sync" cycles due to workload imbalance (i.e., the waiting cycles at the barrier); the non-shading area represent the "Ideal" cycles assuming perfect workload balance. The bars in different color represent the cycles of the four SPMM operations (i.e., of Layer-1, of Layer-1, of Layer-2, and of Layer-2) in the two-layer GCNs [16, 25]. The curves show corresponding PE utilization.

Comparing among the datasets, for Cora, Citeseer and Pubmed, the imbalance mainly occurs in the SPMM operation of the input layer, which are significantly mitigated by the rebalancing techniques of UWB-GCN. For Nell, the imbalance mainly occurs in the SPMM of the hidden layer, which is also diminished by UWB-GCN’s rebalancing techniques. Raddit by itself is already very balanced. Comparing among the SPMM operations, the utilization improves significantly for of Layer-1, of Layer-1, and of Layer-2. For of Layer-2, although is sparse after filtered by the ReLU activation function of Layer-1, its sparsity is much lower compared to in Layer-1, so the utilization is also high for the baseline (except Cora).

Figure 14(K-O) compare the overall hardware resources consumption of the five designs over the five datasets. The hardware resources cost is normalized to the number of Configurable Logic Blocks (CLBs) used in the design, which is the basic components of FPGA. In an ASIC design, this can be normalized to the number of transistors. The red area represents the CLB consumption for the TQs of the TDQ modules. The idea here is that, if the task distribution is more unbalanced, the TQs require more slots of the buffering queue. Therefore, by introducing the rebalancing techniques of UWB-GCN, the area cost of TQs should be reduced. This is especially the case for Pubmed, Nell and Reddit. The green area represents other hardware modules excluding the TQs. For this part, it keeps almost unchanged across the five datasets, which means the area overhead from the rebalancing logic of UWB-GCN is very small – only 2.7%, 4.3% and 1.9% of the whole baseline-design area for 1-hop local-sharing, 2-hop local sharing, and remote switching designs, respectively (for Nell, it is 2-hop and 3-hop). Combining the two parts, the UWB-GCN design can essentially reduce hardware resources consumption when comparing to the baseline design, largely due to dramatically reduced per-PE TQ size under more balanced workload (e.g., For Nell, the TQ depth for A(XW) of Layer-1 is 65128 in the baseline, which reduces to 2675 in Design(D)).

Network Cora Citeseer Pubmed Nell Reddit
Intel-Xeon E5-2698V4 Freq(MHz) 2.2-3.6 GHz
Latency (ms) 3.90 4.33 34.15 1.61E3 1.08E4
Energy (Graph Inference/kJ) 1.90E3 1.71E3 216.9 4.61 0.69
GPU NVIDIA Tesla-P100 Freq(MHz) 1328-1481 MHz
Latency (ms) 1.78 2.09 7.71 130.65 2.43E3
Energy (Graph Inference/kJ) 1.87E3 1.59E3 432.3 25.51 1.37
EIE-like: VCU118 FPGA Freq(MHz) 285 MHz
Latency (ms) 0.022 0.024 0.22 59.1 56.3
Energy (Graph Inference/kJ) 1.19E6 1.11E6 1.20E5 438.2 452.1
Baseline: VCU118 FPGA Freq(MHz) 275 MHz
Latency (ms) 0.023 0.025 0.23 61.0 58.9
Energy (Graph Inference/kJ) 1.21E6 1.09E6 1.16E5 433.3 447.0
UWB-GCN: VCU118 FPGA Freq(MHz) 275 MHz
Latency (ms) 0.011 0.018 0.14 8.4 53.2
Energy (Graph Inference/kJ) 2.38E6 1.43E6 1.86E5 3.06E3 497.3
Table 3: Cross-platform evaluations of UWB-GCNs. The CPU and GPU designs are implemented in Pytorch. The EIE-like design is a homemade reference design according to the EIE architecture [12] on the same VCU118 FPGA.

5.3 Scalability of UWB-GCN

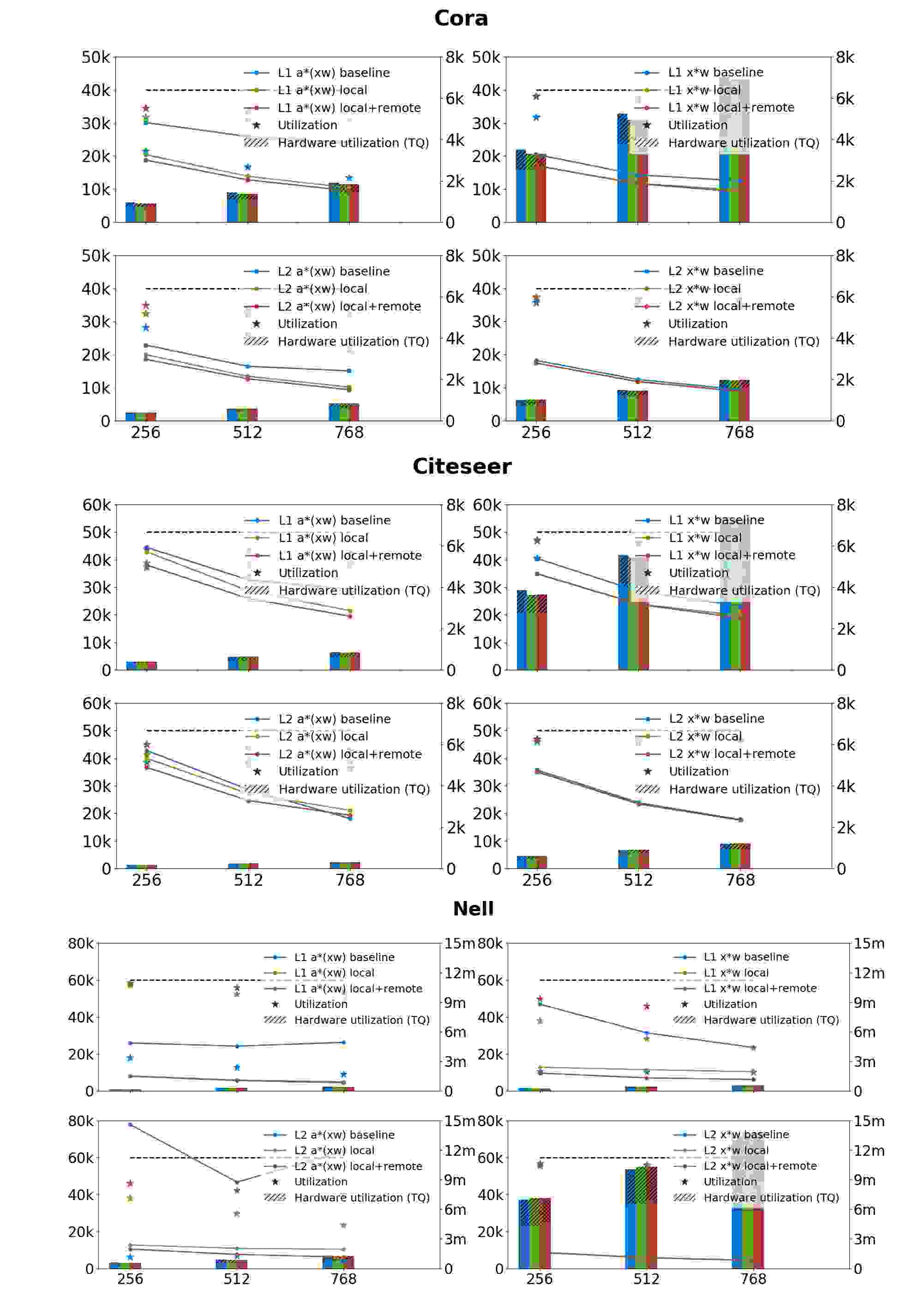

We evaluate the scalability of UWB-GCN by increasing the number of PEs from 512 to 768 to 1024 for the baseline, local sharing, local sharing plus remote switching. For Cora, Citeseer, Pubmed and Reddit, we adopt 1-hop local sharing; for Nell, we adopt 3-hop local sharing. We show the performance, PE utilization and hardware consumption for the four SPMM operations of the five datasets, respectively, in Figure 15. The bars represent the hardware consumption (normalized to the number of CLBs). The lines represent the performance. The stars represent PE utilization. The dotted lines mark the full utilization (100%) upper bound.

For the baseline design, the PE utilization drops with more PEs due to increased unbalancing degree, since more PEs for partitioning means less rows per PE, highlighting the unbalance degree among PEs. In other words, PEs have less opportunities to absorb inter-row imbalance due to less number of rows to averaging out the imbalance. In contrast, GCNs with both local sharing and remote switching show relatively stable and high PE utilization. The PE utilizations with only local sharing scales better than the baseline, but worse than with both local sharing and remote switching. Overall, by introducing the rebalancing techniques, the performance of UWB-GCN scales almost in linear with the number of PEs, much better than the baseline design.

5.4 Cross-platform Comparison

Table 3 presents the cross-platform evaluation of our UWB-GCN design. We compare the inference latency (milliseconds), energy efficiency (normalized to Graph Inference/kJ) and operation frequency (MHz) of UWB-GCNs with implementations of GCNs in a high-end Intel CPU, a Pascal architecture based NVIDIA Tesla-P100 GPU, the baseline design without workload balancing, and the reproduced EIE reference implementation [12] (but tweaked for GCN processing). For UWB-GCN, we use the design choice-(d) for the comparison here. We use 1024 PEs in the UWB-GCN design here. As we can see, despite running at a relatively low frequency, our design achieves , , and speedups on average, over the high-end CPU, GPU, the baseline design without workload balancing, and the reference EIE design, respectively, across the five GCN graph datasets. Our design also achieves , , and better energy efficiency, respectively.

6 Related Work

The objects of early studies integrating graph and neural networks are known as graph neural networks or GNNs, which were first proposed by Gori et al. [11], and developed further by Micheli [21] and Scarselli et al. [23]. In GNNs, the representation of a target node is inferred by iteratively propagating neighbor information through recurrent neural architectures until they reach a stable fixed point [25]. The whole process is very computation intensive [7].

More recently, inspired by the huge success of convolutional neural networks (CNN) in extracting local features from images or videos, graph convolutional networks (GCNs) have emerged as an alternative approach in addressing graph data. In 2013, Bruna et al. [4] proposed a design for graph convolutional networks based on spectral graph theory; this was followed by a number of variants [13, 8, 16]. Since thenm other types of GCNs have been proposed, including spatial-based GCNs [9, 7], graph attention networks [1], and graph generative networks [27].

To the best of our knowledge, this is the first accelerator design focusing on GCNs. There have been many efforts on accelerating sparse CNNs [15, 28, 2, 12, 22, 18]. We briefly summarize these studies and explain why these solutions fall short when applied to GCNs. Kung et al. condense the sparse parameter matrix through column grouping [18]. In case of conflict, only the most significant parameters are kept, others are discarded. Essentially, some accuracy is traded-off for performance. Kim et al. [15] mitigate the workload imbalance problem of sparse CNNs by using information from design-time profiling. Han et al. [12] propose EIE, an SPMV accelerator that forwards non-zeros to PEs in column-major order; this is similar to our baseline design with TDQ-1. However, they only focus on SPMV and do not address the workload imbalance issue among the rows of the sparse matrix. Zhang et al. [28] rely on different indexing methods to identify and select non-zeros. However, these techniques do not function well when the matrix becomes ultra-sparse, as in GCNs. Albericio et al. [2] extend the DaDianNao design [6] by enabling skipping of zeros. However, they also focus on sparse-CNNs and do not address the workload imbalance issue. The reason these studies do not touch on the workload imbalance issue is partially because, compared with GCNs that process graphs, the impact of workload imbalance for sparse-CNNs is much less significant. Chen et al. [5] propose Eyeriss. Rather than skipping zeros, Eyeriss saves energy by power-gating computations with zeros involved. Finally, Zhuo and Prasanna [29] present an SPMV design for FPGAs. They use the CSR format, which can be applied to various sparse matrices. However, this design still suffers from irregular sparse structures and the workload imbalance problem.

7 Conclusion

In this paper, we propose an architecture design called Ultra-Workload-Balanced-GCN to accelerate graph convolutional network inference. To tackle the major performance issues from workload imbalance, we propose dynamic local workload sharing and remote workload switching techniques. They rely on hardware flexibility to realize performance auto-tuning with area and delay overhead. This is the first accelerator design for GCNs that relies on hardware auto-tuning to achieve workload rebalancing for sparse matrix computations. We conduct RTL design and experiments on a Xilinx VCU-118 FPGA, which show that our design can achieve , , and speedups on average over the high-end CPU, GPU, and the baseline design without workload rebalancing, across the five widely used GCN graph datasets.

8 Acknowledgement

This research was supported by the DMC-CFA project under PNNL’s Laboratory Directed Research and Development Program. This research was supported by the U.S. DOE Office of Science, Office of Advanced Scientific Computing Research, under award 66150: "CENATE - Center for Advanced Architecture Evaluation". This research was supported by the High Performance Data Analytics (HPDA) program at PNNL.
