Deep learning image classifiers are complex and nonlinear mathematical functions that extract features from images and learn to classify them based on those features. Yet, this mathematical process is not well understood, a major reason why interpretation, adversarial robustness, and generalization of them are all open research problems. By bringing computational methods from the image processing literature, in tandem with spectral methods from the numerical analysis literature, here, we develop computational methods to study the contents of image-classification datasets with the aim to understand the fine level patterns and features of images with respect to classification.
Deep learning functions are formed during training, by the contents of their training sets. Understanding the learning process and generalization, for some data types, may start with direct analysis of the data itself (Bahri et al., 2020). However, studying the contents of image-classification datasets is not straightforward (Strang, 2019), because of the typical difficulties in working with visual signals.
In practice and in research, learning of images is left to the models. From the adversarial point of view, image-classification models are vulnerable and this vulnerability seems inevitable (Shafahi et al., 2019)
and even at odds with achieving good accuracy(Tsipras et al., 2019; Ilyas et al., 2019). From the generalization point of view, models are highly over-parameterized and they can fit the contents of their training sets, even when training images are labeled randomly and even if the contents of images get replaced with random noise (Zhang et al., 2017). Recent studies have pursued this dilemma by making the distinction between the concepts of learning vs memorization (Belkin et al., 2018, 2019).
This lack of understanding about the models can partly be explained by our lack of knowledge about fine-grained details of image-classification datasets. Recently, a new line of research has focused on the contents of these datasets, studied the procedures used to gather and label the images, and raised questions about the learning, statistical bias and possible over-fitting of deep classifiers (Recht et al., 2019; Yadav and Bottou, 2019; Recht et al., 2018; Engstrom et al., 2020). Still, there is a need for specialized computational procedures to analyze these datasets and explain what can make one image associated with one class and not with other classes. What is the essence of each image when it comes to classification?
From the optimization perspective, there are infinite number of global minimizers for training loss of image classification models, many of which would perform very badly on testing data (Arora et al., 2019; Neyshabur et al., 2019). Studies that focus on training, aim to find the minimizer that performs well on the testing set. But, the way to confirm that one has chosen a good minimizer of training loss is to measure its accuracy on a testing or validation set, and there is not an independent procedure to investigate whether there are specific associations between patterns and classes. Clearly, we would not expect a randomly labeled training set to have such association and that is why when one achieves zero training loss on such data, we consider it memorization and not learning.
Of course, a human can look at randomly labeled images and confirm the randomness of labels. But, can we devise computational procedures to evaluate that, without using a testing set? We would like such computational procedure to provide us with information such as:
.4cm1 1. There are no specific patterns in a dataset, if content of images are random noise.
2. There are patterns in a dataset but not associated with classes, if images are randomly labeled.
3. There are patterns in a dataset and each class is associated with certain patterns, if images are legitimately labeled and there are patterns in the dataset exclusive to individual classes.
We develop a method to analyze image-classification datasets and provide the information above. Our approach can be considered a pattern recognition method which can analyze the datasets and provide insights about their learnability. We show that each image can be written as the summation of a finite number of rank-1 patterns in the wavelet space; and the main distinguishable patterns in each image can be reconstructed using a relatively small number of those patterns, providing a low-rank approximation to each image
. We extract the patterns by tensor decomposition of datasets in the wavelet space and then transform the patterns back to the pixel space. We see that when datasets are randomly labeled, some patterns may emerge but they cannot be associated with specific classes.
2 Using wavelets to extract features from images
Wavelets are a class of functions and one of the most capable tools to systematically process images and extract features and patterns from them. The difficulty of working with images and many signals arises from the spatial complexity of patterns and structures in them. What makes an image to represent a dog, and not an automobile, cannot be explained by one or even a few pixels, rather, it may be explained by the specific patterns that appear in various regions of an image, and how these different regions are arranged.
Connection of wavelets with deep learning.
In recent years, we have seen the outstanding performance of deep learning models as an image processing tool that can analyze images and learn to classify them. The features learned by these models are sometimes referred to as deep features(Noh et al., 2017; Romero et al., 2015; Chen et al., 2016; Effland et al., 2019). Some studies use deep nets to learn specific features in images, e.g., facial attributes (Hand, 2018; Thom and Hand, 2020). However, the process of complex nonlinear feature extraction by the models is not well understood. This is the gap we want to bridge: to bring tools from the image processing literature and use them in tandem with spectral methods to analyze the contents of image classification datasets.
We note that wavelets have a similar computational nature as the deep learning models. Wavelets decompose an image by convolving a wavelet basis with the image. Deep learning models also rely on convolutional layers that convolve images with stencils/filters. So, our approach of transforming images with wavelets, and then studying their patterns coincides with the approach used by the classification models. Recently, Yousefzadeh (2020) proposed a method that clusters images based on their wavelet coefficients in order to analyze the similarities in image classification datasets, and showed that wavelets identify similar images, the same way that a pre-trained ResNet model does (Birodkar et al., 2019). Also, Bruna et al. (2016) have used wavelets to initialize the filters of convolutional neural nets.
Properties and notation.
There are older forms of data transformation, for example, the Fourier transform which has a long history and widespread applications. In fact, wavelets were developed building on the scientific knowledge of Fourier transform in the context of image and signal processing. For example,Daubechies (1990) showed that wavelets perform better than windowed Fourier transform on visual signals, because wavelets handle the frequencies in a nonlinear way. The family of Daubechies wavelets (Daubechies, 1992) are one of the most successful types of wavelet transformation, and we use them in this paper.
The orthogonality of Daubechies wavelets is particularly useful for feature extraction, because orthogonality in this setting implies the filters are independent and each filter is measuring a specific feature in the image signals. To process images with wavelets, we use the function
which takes as input an image , a wavelet basis , and level number
. It returns a vector of real numbers, representing the wavelet coefficients obtained from convolving with , and a book keeping matrix containing the dimensions of wavelet coefficients by level. This operation is reversible, therefore, given , , and , we can return to pixel space and reconstruct the image , which we denote its operation by
For a given , will be constant for all images of the same size.111Since we use a uniform for all images in a dataset, we can consider to be constant, too, and exclude it from function arguments.
3 Using spectral decomposition to understand the patterns in image datasets
In general spectral methods are widely used in supervised and unsupervised learning, for example, for manifold learning(Belkin et al., 2006), dictionary learning (Huang and Anandkumar, 2015), and biomedical data (Alter et al., 2000, 2003; Perros et al., 2019). In deep learning, spectral methods are used for compressing the models (Arora et al., 2018; Li et al., 2020), and also for their training (Sedghi et al., 2019). These studies, however, concern the trainable parameters, not the data.
In fact, spectral methods are rarely used on the contents of image classification datasets. An early use of spectral decomposition for image classification is by Savas and Eldén (2007)
. Their method performs higher order singular value decomposition(De Lathauwer et al., 2000) on pixels of MNIST and uses the decomposition of training set to classify images in the testing set. They apply their method directly to pixels, achieving about 94% testing accuracy.222We achieve more than 97% accuracy on MNIST, in the wavelet space, only by measuring the distance of each testing image to the convex hull of digits in training set, and using the class with shortest distance as the predicted class. This clearly demonstrates the benefit of analyzing images in the wavelet space. Other examples of using tensor decomposition directly work on image pixels, too. For example, Fang et al. (2017) proposed a tensor based compression method for on-ground spectral imaging. Ali and Foroosh (2016) used tensor decomposition for character recognition. Applying tensor decomposition directly on image pixels might be able to extract some usable patterns, if images contain simple patterns like word characters. However, as we explained earlier, extracting sophisticated patterns from images requires more advanced tools, such as wavelets.
Higher Order GSVD.
Higher Order Generalized Singular Value Decomposition (HO-GSVD) is viewed under the broad category of Tucker tensor decomposition methods (Kolda and Bader, 2009). Originally developed by Van Loan (1976), it was advanced to the higher order case (Omberg et al., 2007; Ponnapalli et al., 2011), where number of (full column rank) matrices, , can be decomposed as
where, ’s, are composed of normalized left basis vectors, the singular values are positive scalars organized in diagonal elements of , and the normalized orthogonal right basis is common among all the decompositions. It is proved that the resulting decomposition extends all of the mathematical properties of the GSVD,333This extension is advantageous both in computation and interpretation of results. except for orthogonality of the columns of left basis vectors (Ponnapalli et al., 2011; Alter, 2018).
The vectors in can generally be viewed as the patterns present in all ’s. The singular values are the key to understand which pattern is specific to each class and which patterns are shared among classes. For example, if the th singular value of is significantly larger (dominant) than the th singular values for all other classes, it means that the th vector in is specific to the class . We expand further on this kind of interpretation in our numerical results. Additionally, we can use this decomposition to write each as the summation of rank-1 matrices.
Using other forms of tensor decomposition may be useful, too. In particular Canonical Polyadic Decomposition can be useful for certain aspects of our analysis, because it breaks the data into rank-1 components (patterns), and the number of components corresponds to the rank of tensor. Recently, Hong et al. (2020) presented an algorithm for generalized canonical polyadic (GCP) low-rank tensor decomposition, which we plan to explore in future research.
Choosing a subset of influential wavelet coefficients.
The HO-GSVD has stable and efficient numerical algorithms for its computation and there are well-studied theoretical properties about it. But in order to benefit from such algorithms and mathematical properties, the individual matrices for each class should have full column rank. Some datasets may naturally satisfy such property, as we see for CIFAR-10 dataset. But, this is not satisfied for some other datasets, for example MNIST and Omniglot. In order to choose a subset of most influential wavelet coefficients, satisfying the full column rank requirement, we use rank-revealing QR factorization (RR-QR) (Chan, 1987). This method orders the columns of a matrix based on their rank influence. Hence, we can easily choose a subset of most influential coefficients satisfying the full column rank. This approach of using rank-revealing QR factorization to choose a subset of wavelet coefficients is previously suggested by Yousefzadeh and O’Leary (2020).444The computational complexity of RR-QR for a matrix with rows and columns is which is inexpensive for datasets like CIFAR-10.
4 Formal procedure
The main goal, here, is to extract features and patterns from image-classification dataset, , and find the association of patterns to classes. Our algorithm first transforms the images into a wavelet space, organizes them into a tensor , analyzes the tensor and removes its redundancies and rank deficiencies, performs spectral decomposition on , analyzes the decomposition, and finally, reconstructs the patterns back in the pixel space, and provides low-rank approximation for images.
We now formalize our procedure in Algorithm 1. Line 1 counts the number of classes, . Line 2 through 7 decomposes all images using wavelet basis and organize them in a rank-3 tensor, where each represents each class, rows of each represent the images in that class and its columns represent the wavelet coefficients of images. We discuss the choice of wavelet basis for our numerical experiments in Appendix A. Note that the slices of have different number of images and HO-GSVD can decompose such tensor.
Line 8 computes the total average of all the wavelet coefficients in and defines as the number of wavelet coefficients per image. Line 9 sums the values of over the dimension of wavelet coefficients, to obtain
, and line 10 scales the wavelet coefficients for each image, so that the sum of wavelet coefficients becomes equal for all images. Lines 11 through 20 are about choosing the most influential wavelet coefficients. Such feature selection requires the total number of images in the dataset to be more than the number of wavelet coefficients per image. This is naturally satisfied in some image classification datasets, but in cases where it is not satisfied, one can reduce the resolution of images, before feeding them to Algorithm1. Further discussion is provided in Appendix C.
Line 12 performs RR-QR algorithm on all the data to sort the wavelet coefficients based on their importance (linear independency). Lines 13 through 15 loop over slices of the tensor and find the maximum number of wavelet coefficients that can be used while satisfying the conditions discussed in Section 3. computes the 2-norm condition number. Line 16, chooses as the number of coefficients that satisfy the requirements for all slices of . Line 17 keeps the most influential wavelet coefficients and discards the rest of coefficients for all images. In choosing the , Algorithm 1 uses a parameter which is an upper limit on the condition number of slices of the tensor corresponding to each class. Finally, Lines 21 and 22 perform the spectral decomposition on and analyzes the patterns in the decomposition. This process involves reconstructing the patterns in the pixel space. Based on the spectral method used, we can find the association of patterns to classes, by identifying which patterns are almost exclusively contributing to specific classes.
5 Numerical Experiments
Here, we study the patterns in CIFAR-10 (Krizhevsky, 2009). Our results on MNIST (LeCun et al., 1998) are presented in Appendix D. We first consider two classes of Cat and Dog in the CIFAR-10, because they are two of the most similar classes and make up most of the mistakes by the state of art model (Kolesnikov et al., 2019). To decompose images, we use the Daubechies-2 wavelet basis. In Appendix A, we explain the reason for this choice. The number of wavelet coefficients we use is in this example, which corresponds to using in Algorithm 1.
Singular values reveal patterns specific to each class. Each has its own set of singular values, . Comparison of singular values in and reveals which patterns (i.e., vectors in ) are influential for cats and which patterns are influential for dogs. Figure 1 shows the first 400 singular values for cats and dogs. The ratio of singular values and also the angular distance between them can be insightful in this analysis, as suggested by Bradley et al. (2019). When two singular values are equal for a particular basis, it means that the basis is equally common for them and not discriminative. But, when a singular value for one class is much larger compared to other classes, it means that the corresponding basis in is specific to that class. In Figure 1, we can see many such cases.
Reconstructing the patterns back in the pixel space. Each column in corresponds to a pattern and we can reconstruct the patterns back in the pixel space, using the same wavelet basis. Figure 1(a) shows the four most dominant bases for Dogs, in the pixel space. By dominant, we mean these bases have large singular values for the Dog class, but small singular values for Cats. Similarly, Figure 1(b) shows the patterns dominant for cats, back in the pixel space.
Understanding the contribution of each pattern to each image. Each of the patterns present in contribute to each image in the dataset with some coefficient, determined in the left basis. In fact, we can write each image as the summation of the patterns in the pixel space, using Equation 4. Figure 3 shows the coefficients of contribution for all images in this data, for the most dominant dog pattern vs the most dominant cat pattern. While a clear separation between the two classes is visible, we can also see a considerable overlap of points near the origin. This overlap corresponds to images that are not getting a noticeable contribution from these two specific patterns, and such images belong to both classes. To summarize, the most dominant dog pattern never contributes significantly to any of the cat images, it contributes significantly to some of the dog images, and it also does not contribute to many of the images in the dog class. Those dog images get their contributions from other dog patterns in .
Low rank approximation constructs image major structure, recognizable by deep neural nets. Each image is the summation of patterns, and each of those patterns has rank-1 in the wavelet space. Therefore, we can reconstruct low rank approximation of each image, using a relatively small number of those patterns. Figure 4 shows the evolution of one cat image as moves from 1 to . For example, the image at the far left of this Figure, is the result of and the image at the far right is the result of .

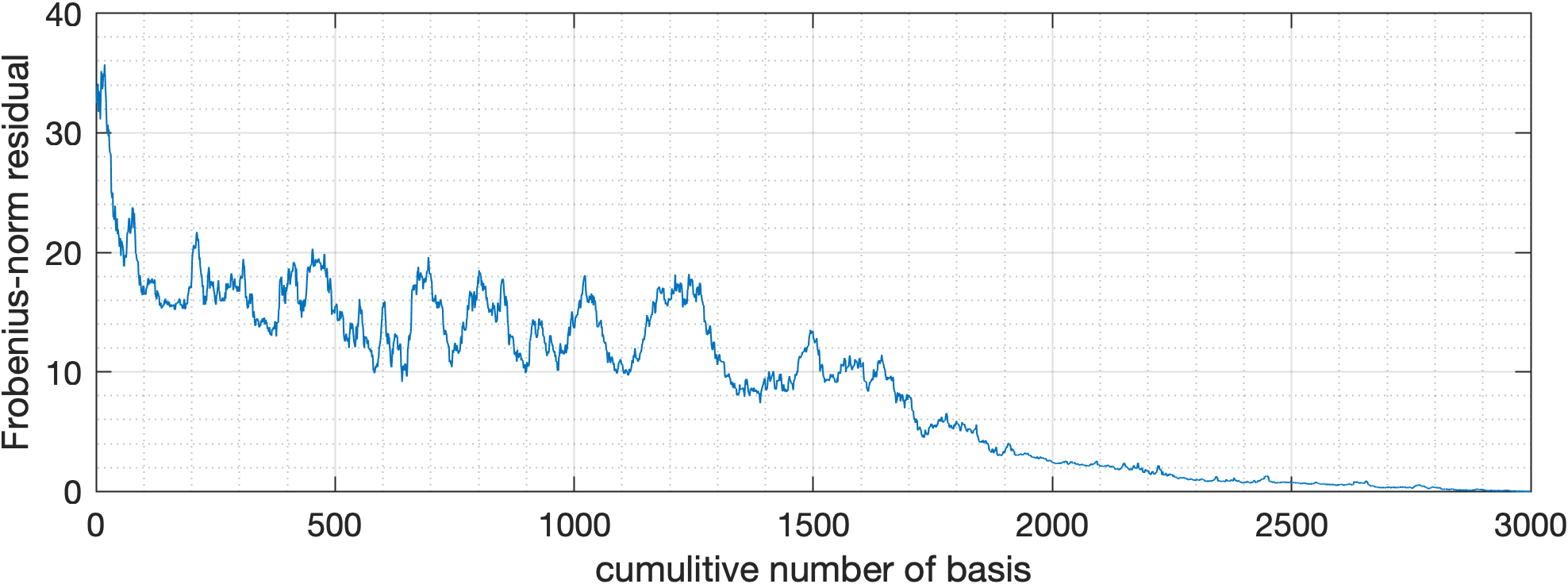

Figure 5 shows the change in the residual, where the residual is the Frobenius norm between the original image and the reconstructed image from the wavelet space, during the process of adding rank-1 images. We present similar results for more images in Appendix B.
Complexity of images interpreted via the left basis. The left basis determines how the right basis vectors of should be put together in order to obtain the image. Each row of corresponds to one image in . The rows of that have smaller norms correspond to images that are simpler, i.e., made of fewer components, e.g., Figure 5(a). The rows of with larger norm correspond to images with more components, e.g., Figure 5(b). Additionally, one can investigate the sparsity of rows of the left basis, which we leave in favor of brevity.
Distinctive Patterns Discovered for All classes of CIFAR-10. As we saw previously, one of the important aspects of our interpretation is to associate the patterns to specific classes, which is done by comparing the singular values. When we repeat this analysis for all 10 classes of this dataset, we see that patterns emerge that are associated with more than 1 class.
Figure 7 shows the log of 1,000 singular values obtained for this dataset. Clearly, classes of Truck and Automobile have the highest singular values for many of the patterns, which makes them distinguishable from the others, but not so helpful to distinguish each class from all other classes. This suggests that our approach could be useful in a hierarchical setting where classes are grouped and then analyzed further. Alternatively, one could consider using our method for pairwise comparison of classes as in Siamese networks (Bertinetto et al., 2016). We next make the labels random to see how it affects the learnability of dataset.
Labeling the images randomly to diminish learn-ability. We repeat the spectral analysis to see if patterns will be associated with classes or not, when labels are random. We know that deep learning models can achieve perfect accuracy on this training set, even when all the images are labeled randomly, and one would not be able to detect the randomness of labels just by training a model. We show that our method reveals whether there is learnable classification information present in the training set, useful in practice, and also useful for studying the concept of memorization vs learning. When we make the labels random for all images, the decomposition we obtain is very different and ambiguous. Specifically, the singular values become uniform across classes, as shown in Figure 6(b).

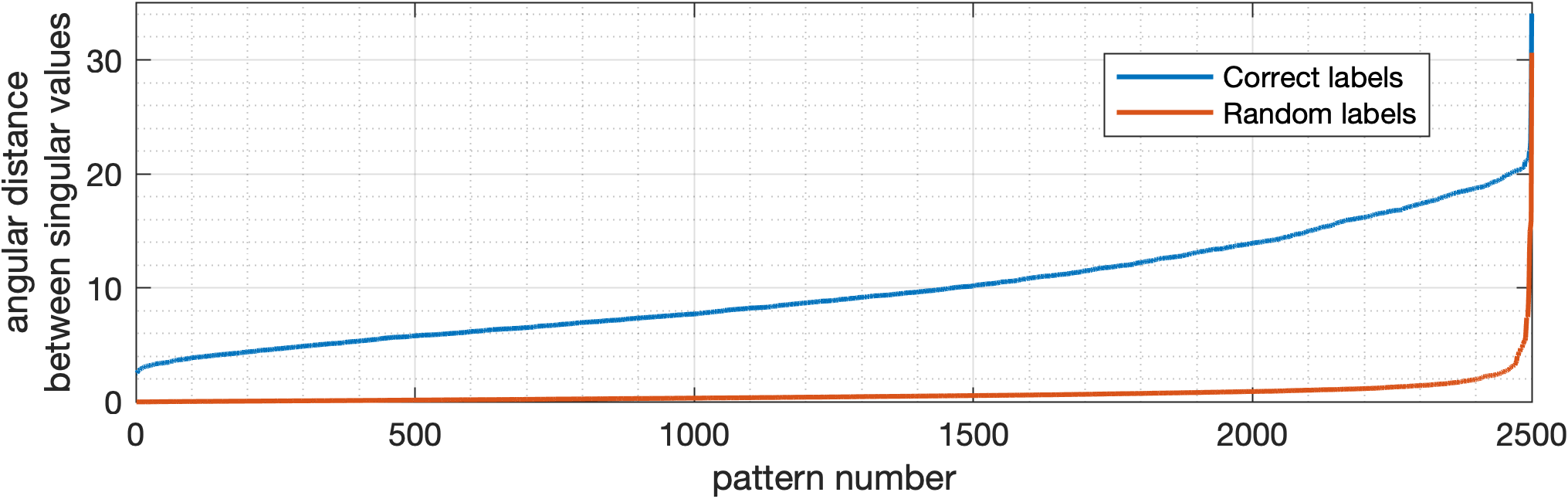

To demonstrate this effect more clearly, we measure the angular distance between the singular values of two classes of Ship and Truck, with the correct labels (Figure 6(a)) and with random labels (Figure 6(b)). As shown in Figure 8, in the correct label case, singular values are discriminitive between the two classes, i.e., for many patterns, the angular distance is noticeable (blue line). However, in the random label case, the angular distance between singular values are close to zero for almost all the patterns (red line).
If we limit the portion of randomly labeled data, for example, to 20% and keep the correct labels for the rest of images, we see that the obtained results are not very different from the results we obtained for the correctly labeled data. Repeating this with different portions of random labels shows that the disassociation between patterns and labels is directly related to the portion of random labels.
6 Conclusions and future work
Here, we showed that spectral decomposition of image classification datasets in the wavelet space can extract the patterns that distinguish each class from the others. We decomposed each image as the summation of finite number of rank-1 images in the wavelet space and showed that low rank approximation to images can capture the classification information to classify them. Our method can also be used to verify existence of learnable classification information in datasets, useful for studies on memorization vs learning of deep models, and also useful in practice for analyzing unfamiliar datasets.
Future directions of research can be to study the adversarial robustness, generalization, and functional behavior of deep classifiers with respect to rank-1 patterns extracted from datasets, and also to study the patterns in relation to deep features.
- Character recognition in natural scene images using rank-1 tensor decomposition. In IEEE International Conference on Image Processing, pp. 2891–2895. Cited by: §3.
- Singular value decomposition for genome-wide expression data processing and modeling. Proceedings of the National Academy of Sciences 97 (18), pp. 10101–10106. Cited by: §3.
- Generalized singular value decomposition for comparative analysis of genome-scale expression data sets of two different organisms. Proceedings of the National Academy of Sciences 100 (6), pp. 3351–3356. Cited by: §3.
- Advanced tensor decompositions for computational assessment and prediction from data. Google Patents. Note: US Patent App. 15/566,298 Cited by: §3.
- Shearlets as feature extractor for semantic edge detection: the model-based and data-driven realm. arXiv preprint arXiv:1911.12159. Cited by: §C.2.
- EXPLAINABLE-by-design approach for COVID-19 classification via CT-scan. medRxiv. Cited by: Appendix F.
Fine-grained analysis of optimization and generalization for overparameterized two-layer neural networks. In
International Conference on Machine Learning, pp. 322–332. Cited by: §1.
- Stronger generalization bounds for deep nets via a compression approach. In International Conference on Machine Learning, pp. 254–263. Cited by: §3.
- Statistical mechanics of deep learning. Annual Review of Condensed Matter Physics. Cited by: §1.
- To understand deep learning we need to understand kernel learning. In International Conference on Machine Learning, pp. 541–549. Cited by: §1.
- Manifold regularization: a geometric framework for learning from labeled and unlabeled examples. Journal of machine learning research 7 (Nov), pp. 2399–2434. Cited by: §3.
Does data interpolation contradict statistical optimality?. In
The 22nd International Conference on Artificial Intelligence and Statistics, pp. 1611–1619. Cited by: §1.
Fully-convolutional siamese networks for object tracking.
European conference on computer vision, pp. 850–865. Cited by: §5.
- Semantic redundancies in image-classification datasets: the 10% you don’t need. arXiv preprint arXiv:1901.11409. Cited by: §2.
- GSVD and tensor GSVD-uncovered patterns of DNA copy-number alterations predict adenocarcinomas survival in general and in response to platinum. APL Bioengineering 3 (3), pp. 036104. Cited by: §5.
- Super-resolution with deep convolutional sufficient statistics. In International Conference on Learning Representations, Cited by: §2.
- Rank revealing QR factorizations. Linear Algebra and its Applications 88, pp. 67–82. Cited by: §3.
Deep feature extraction and classification of hyperspectral images based on convolutional neural networks. IEEE Transactions on Geoscience and Remote Sensing 54 (10), pp. 6232–6251. Cited by: §2.
- The wavelet transform, time-frequency localization and signal analysis. IEEE Transactions on Information Theory 36 (5), pp. 961–1005. Cited by: §2.
- Ten lectures on wavelets. Society for Industrial and Applied Mathematics, Philadelphia. Cited by: §2.
- A multilinear singular value decomposition. SIAM journal on Matrix Analysis and Applications 21 (4), pp. 1253–1278. Cited by: §3.
- Image morphing in deep feature spaces: theory and applications. arXiv preprint arXiv:1910.12672. Cited by: §2.
- Identifying statistical bias in dataset replication. arXiv preprint arXiv:2005.09619. Cited by: §1.
- CP tensor-based compression of hyperspectral images. Journal of the Optical Society of America A 34, pp. 252–258. Cited by: §3.
- Learning explainable facial features from noisy unconstrained visual data. Ph.D. Thesis, University of Maryland, College Park. Cited by: §2.
- Generalized canonical polyadic tensor decomposition. SIAM Review 62 (1), pp. 133–163. Cited by: §3.
- Convolutional dictionary learning through tensor factorization. In Feature Extraction: Modern Questions and Challenges, pp. 116–129. Cited by: §3.
- Out-of-distribution detection using neural rendering generative models. arXiv preprint arXiv:1907.04572. Cited by: Appendix E.
- Adversarial examples are not bugs, they are features. In Advances in Neural Information Processing Systems, pp. 125–136. Cited by: §1.
- Tensor decompositions and applications. SIAM Review 51 (3), pp. 455–500. Cited by: §3.
- Large scale learning of general visual representations for transfer. arXiv preprint arXiv:1912.11370. Cited by: §5.
- Learning multiple layers of features from tiny images. Cited by: §5.
- Shearlets: multiscale analysis for multivariate data. Springer Science & Business Media. Cited by: §C.2.
- Sparse multidimensional representation using shearlets. In Wavelets XI, Vol. 5914, pp. 59140U. Cited by: §C.2.
- Image interpolation using shearlet based iterative refinement. Signal Processing: Image Communication 36, pp. 83–94. Cited by: §C.2.
- Gradient-based learning applied to document recognition. Proceedings of the IEEE 86 (11), pp. 2278–2324. Cited by: §5.
- Understanding generalization in deep learning via tensor methods. arXiv preprint arXiv:2001.05070. Cited by: §3.
- Enhancing the reliability of out-of-distribution image detection in neural networks. In International Conference on Learning Representations, Cited by: Appendix E.
- Visualizing data using t-SNE. Journal of Machine Learning Research 9, pp. 2579–2605. Cited by: Appendix E.
- Towards understanding the role of over-parametrization in generalization of neural networks. In International Conference on Learning Representations, Cited by: §1.
Large-scale image retrieval with attentive deep local features. In Proceedings of the IEEE International Conference on Computer Vision, pp. 3456–3465. Cited by: §2.
- A tensor higher-order singular value decomposition for integrative analysis of DNA microarray data from different studies. Proceedings of the National Academy of Sciences 104 (47), pp. 18371–18376. Cited by: §3.
- Face and image representation in deep CNN features. In 12th IEEE International Conference on Automatic Face & Gesture Recognition, pp. 673–680. Cited by: Appendix E.
- Temporal phenotyping of medically complex children via PARAFAC2 tensor factorization. Journal of Biomedical Informatics 93, pp. 103125. Cited by: §3.
- A higher-order generalized singular value decomposition for comparison of global mRNA expression from multiple organisms. PloS One 6 (12). Cited by: §3, §3.
- Do CIFAR-10 classifiers generalize to CIFAR-10?. arXiv preprint arXiv:1806.00451. Cited by: §1.
Do ImageNet classifiers generalize to ImageNet?. In International Conference on Machine Learning, pp. 5389–5400. Cited by: §1.
- Likelihood ratios for out-of-distribution detection. In Advances in Neural Information Processing Systems, pp. 14680–14691. Cited by: Appendix E.
- Unsupervised deep feature extraction for remote sensing image classification. IEEE Transactions on Geoscience and Remote Sensing 54 (3), pp. 1349–1362. Cited by: §2.
- Handwritten digit classification using higher order singular value decomposition. Pattern Recognition 40 (3), pp. 993–1003. Cited by: §3.
- Wavelet–shearlet edge detection and thresholding methods in 3d. In Excursions in Harmonic Analysis, Volume 3, pp. 87–104. Cited by: §C.2.
- The singular values of convolutional layers. In International Conference on Learning Representations, Cited by: §3.
- Are adversarial examples inevitable?. In International Conference on Learning Representations, Cited by: §1.
- Linear algebra and learning from data. Wellesley-Cambridge Press. Cited by: §1.
- Facial attribute recognition: a survey. In Computer Vision: A Reference Guide, pp. 1–13. Cited by: §2.
- Robustness may be at odds with accuracy. In International Conference on Learning Representations, Cited by: §1.
- Generalizing the singular value decomposition. SIAM Journal on Numerical Analysis 13 (1), pp. 76–83. Cited by: §3.
- Unsupervised image matching and object discovery as optimization. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 8287–8296. Cited by: Appendix E.
- Cold case: the lost MNIST digits. In Advances in Neural Information Processing Systems, pp. 13443–13452. Cited by: §1.
- Deep learning interpretation: flip points and homotopy methods. In Mathematical and Scientific Machine Learning Conference, Cited by: §3.
- Using wavelets to analyze similarities in image-classification datasets. arXiv preprint arXiv:2002.10257. Cited by: Appendix E, §2.
- Understanding deep learning requires rethinking generalization. In International Conference on Learning Representations, Cited by: §1.
Appendix A The choice of wavelet basis and the data extracted
a.1 CIFAR-10 dataset in the wavelet space
About the choice for wavelet basis, it seems natural to choose a 2D basis for the images typically used for classification. A 1D wavelet basis will not be as capable to extract all the information we need from images. A 3D wavelets did not show an advantage over 2D wavelets in our numerical experiments, but it might be advantageous in certain datasets.
For the CIFAR-10 dataset, we experimented with Haar and also the first 5 Daubechies wavelets in 2D. We observed that the data extracted with Daubechies-2 was slightly more informative (higher rank), compared to Haar and Daubechies-1. But, we did not find the information extracted with Daubechies-3 to 5 to be more informative. So, our experiments on this dataset are with Daubechies-2 wavelets. This wavelet basis extracts 3,468 features from each image in this dataset, but not all of these features are influential in our pattern analysis for classification. Hence, we chose 3,000 of those coefficients using RR-QR algorithm.
We note that the end result of our analysis, e.g., the patterns extracted in the tensor decomposition were not noticeably sensitive to the choice of wavelet basis.
Figure A1 shows only the first 1,500 columns for each , to show how the data generally looks like. But, note that we actually used 3,000 wavelet coefficients in our experiments.
a.2 MNIST dataset in the wavelet space
For MNIST, again we did not find the choice of wavelet basis to be noticeable in the patterns extracted. We found the Daubechies-1 to transform the images similar to higher order Daubechies wavelets. We note that the data extracted from this dataset has significant redundancies and linear dependencies compared to the data extracted from CIFAR-10. This is to be expected because the images of MNIST are very simple compared to images of CIFAR-10.
Figure A2 shows each of the ’s for the 10 classes of MNIST.
Figure A3 shows the right basis which is common among all classes.
Appendix B Additional examples for reconstructing images as summation of rank-1 images
Here, we provide an example of writing a testing image as summation of rank-1 images obtained from the training set (in the wavelet space). Hence the same common basis obtained from all classes of training set, works for efficient decomposition of testing images, as well.
Figure B1 shows the reconstruction of the 3rd testing image of the Cat class in CIFAR-10.
Figure B2 shows the reconstruction of a testing image of Cat class that is misclassified by state of art model on CIFAR-10.
Appendix C Practical notes and other extensions
c.1 Practical notes about our algorithm
Our Algorithm 1, uses the parameter to impose an upper bound on the condition numbers of the slices of data. Since we choose the wavelet coefficients using the RR-QR algorithm, imposing the upper bound on condition numbers of the slices of the data leads to discarding the possible redundancies and rank deficiencies in the data and ensures that the remaining data is not rank deficient. As a practical value based on our numerical experiments, we recommend to be chosen between to . Choosing much larger values might lead to rank deficiency.
Generally, choosing a smaller value for would lead to a smaller , which means fewer wavelet coefficients are involved in our analysis, which might lead to extracting vague patterns at the end. It is important to note that when we decompose an image with a wavelet basis, we can reconstruct it perfectly (to some computational precision), if we use all the wavelet coefficients of the decomposition. If we choose only a subset of those coefficients, the reconstructed image may have a lower quality, some patterns might become blurry and vague, and some pixel values might become completely lost. Therefore, we would not want to discard too many of the wavelet coefficients by choosing the very small.
Finally, for datasets with high resolution images, it would be most efficient to first reduce the resolution of images and then perform the analysis. Some images might have pixels in the order of millions. Seeing a high-resolution image with millions of pixels is visually nice for humans, but we would not need the fine level resolution to identify patterns that distinguish one class from the others. Additionally, decomposing extremely large tensors might be computationally intractable.
We note that shearlets are also a multi-scale framework, similar to wavelets, which can have certain advantages in capturing edges and other an-isotropic features in images [Labate et al., 2005, Kutyniok and Labate, 2012]. For example, shearlets are used to extract features from images for edge detection [Andrade-Loarca et al., 2019, Schug et al., 2015] and image interpolation [Lakshman et al., 2015]. Investigating whether shearlets can extract more useful information and patterns from the image-classification datasets can be a future direction of research.
Appendix D Our results on MNIST
We consider all 10 classes of MNIST. To decompose the images, we choose Daubechies-1 wavelet basis. More information about the data is presented in Appendix A. We also use which satisfies the full rank requirement for all classes.
Patterns in the dataset. Again, we use the Higher Order GSVD as our spectral decomposition method. Figure D1 shows the images reconstructed from the first 9 columns of the right basis, .
Singular values and association of patterns to classes. Figure 1(a) shows the first 20 singular values for all classes, and Figure 1(b) shows the second 20 singular values, i.e., singular values 21 through 40.
Interpreting the patterns. Consider the images for columns 7 and 8 of right basis, reconstructed in Figure D1. One could rationalize that they represent distinctive features for classes of 4,7, and 9, because those patterns have a vertical stroke at the bottom of image and they all have some vague content at the center. Looking at the singular values (columns 7 and 8 in Figure 1(b)), reveals that the dominant singular values are exactly those digits (4, 7, and 9).
Let’s consider the 32nd singular value which seems to be relatively similar for all classes, i.e., the column 32 in Figure 1(b). The image reconstructed from the 32nd column of right basis, , is shown in Figure D3 (left), which seems to be a general basis, not distinctive for any particular digit. Now, lets’ consider the 50th column in where its reconstruction is shown in Figure D3 (right). The dominant singular values for this class are classes 5 and 8, which seems to correspond to the distinctive patterns one would expect for digits 5 and 8.
Left basis interpretation. Now, let’s consider the left basis for digit 1. The three images with the largest norm in the left basis are shown in Figure 3(a). On the other hand, the images with the smallest norm in the left basis are shown in Figure 3(b). Clearly, the simple images that one would consider straightforward to reconstruct or classify are the ones with small norm in left basis, and vice versa.
Appendix E Analyzing the similarities using the left basis
Here, we take a more unsupervised approach to analyze the similarities of images and to identify isolated images present in a dataset.
Using HO-GSVD, we explained how the vectors in represent the orthogonal patterns extracted from the entire dataset. We also know that each image in the dataset can be reconstructed by a specific combination of patterns in , defined by the singular values and the left basis vectors. In fact, is common among all the classes in the dataset and what distinguishes each image from other images, is its corresponding vector in . The number of rows in correspond to the number of images in the class . Let’s consider the image in class . We can reconstruct this image using the coefficients in the row of to combine the vectors of .555Clearly, all of these computations will be in the wavelet space, and at the end we have to reconstruct them back in the pixel space. Mathematically, if we have two identical images in the dataset, we will get identical coefficients for them.
Overall, we can say that the HO-GSVD extracts a set of common patterns in the entire dataset, and gives us a set of coefficients in , determining how these patterns should be combined in order to obtain the images. To analyze the similarity of images, we can analyze the similarity of their coefficients, because patterns are common for all of them. In fact, patterns can be considered images in the pixel space, but coefficients are just a vector of real numbers. This way, analyzing the similarity of two images is reduced to basically comparing two vectors.

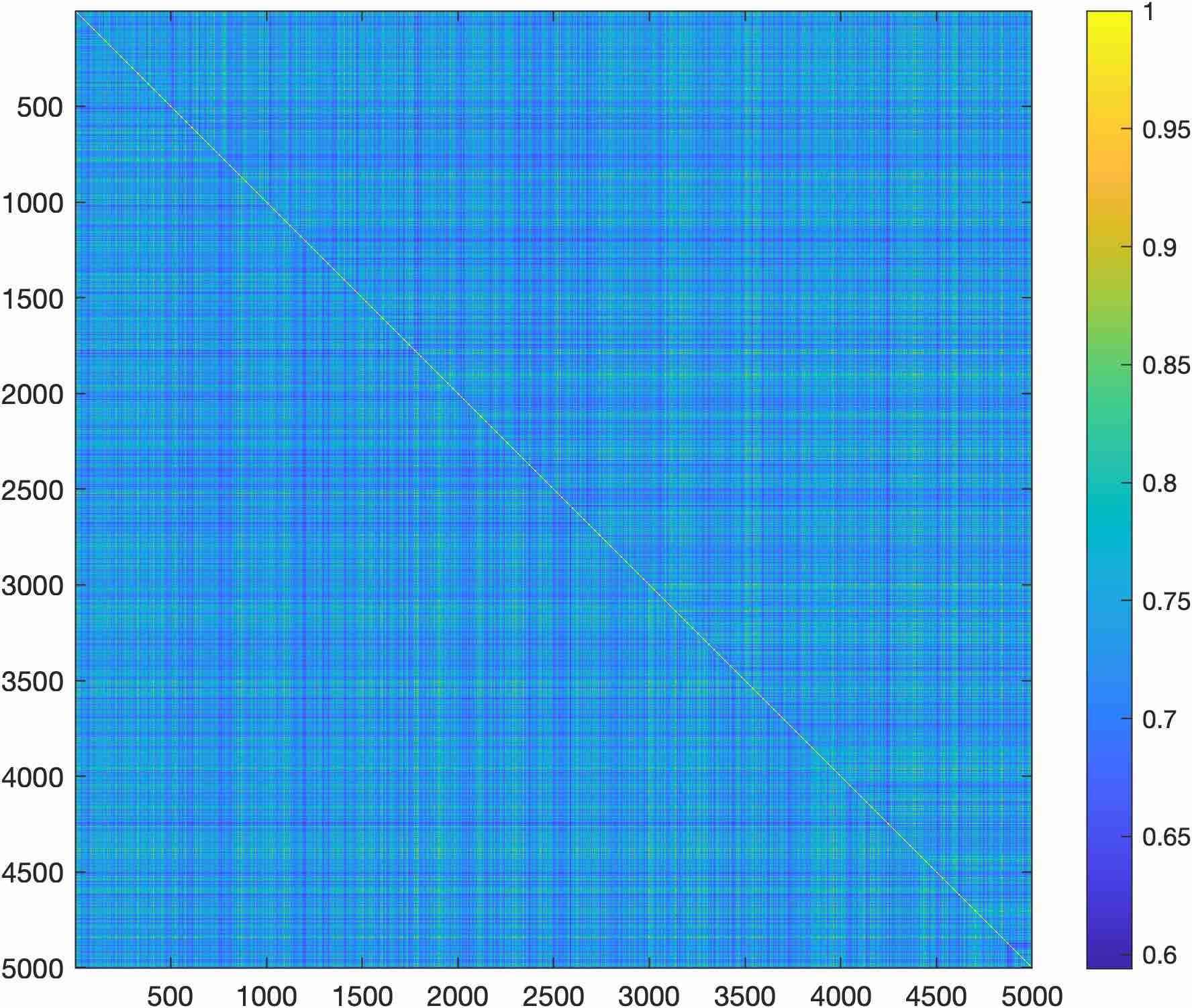

Figure E1 shows the similarity matrix of all images in the Cat class. To derive this similarity matrix, we followed these steps:
Compute the matrix which has 5,000 rows and 3,000 columns for the Cat class.
Compute the 2-norm distance between each row in this matrix to obtain a distance matrix of 5,000 rows and columns.
Convolve the distance matrix with a Gaussian kernel to obtain the similarity matrix.
Once we obtain a similarity matrix, a wide array of analysis can be performed. For example, one can perform clustering to identify communities of similar images. By analyzing the eigenvalues of a graph Laplacian built from the similarity matrix, we identified that there are not any large communities inside this dataset, as previously reported by
Once we obtain a similarity matrix, a wide array of analysis can be performed. For example, one can perform clustering to identify communities of similar images. By analyzing the eigenvalues of a graph Laplacian built from the similarity matrix, we identified that there are not any large communities inside this dataset, as previously reported byYousefzadeh . However, coarse graining (i.e., organizing the data in large number of clusters) can easily identify small groups of images (usually 2 to 5) that are very similar, and sometimes nearly identical.
Figure E2 shows dog images that are most isolated within the dog class. Clearly, we may consider them anomalies or out-of distribution images in the context of this dataset, because picture of a dog with a red bucket on its head, or picture of a dog with red flowers around the perimeter of image are not common. This relates to the broad literature on detecting out-of-distribution images and anomalies in image classification datasets, e.g., Liang et al. , Huang et al. , Ren et al. . This is another possible extension of our method.

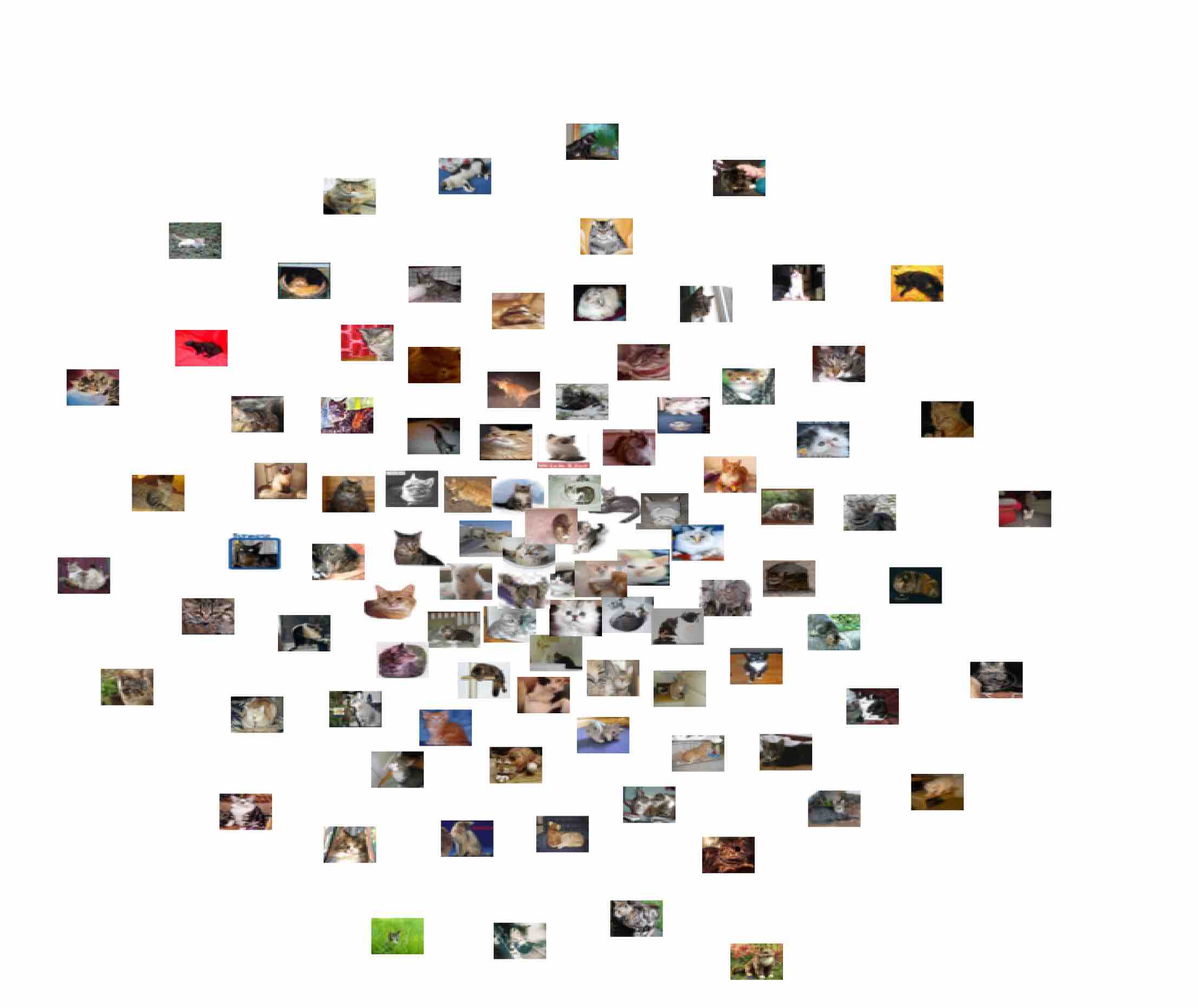

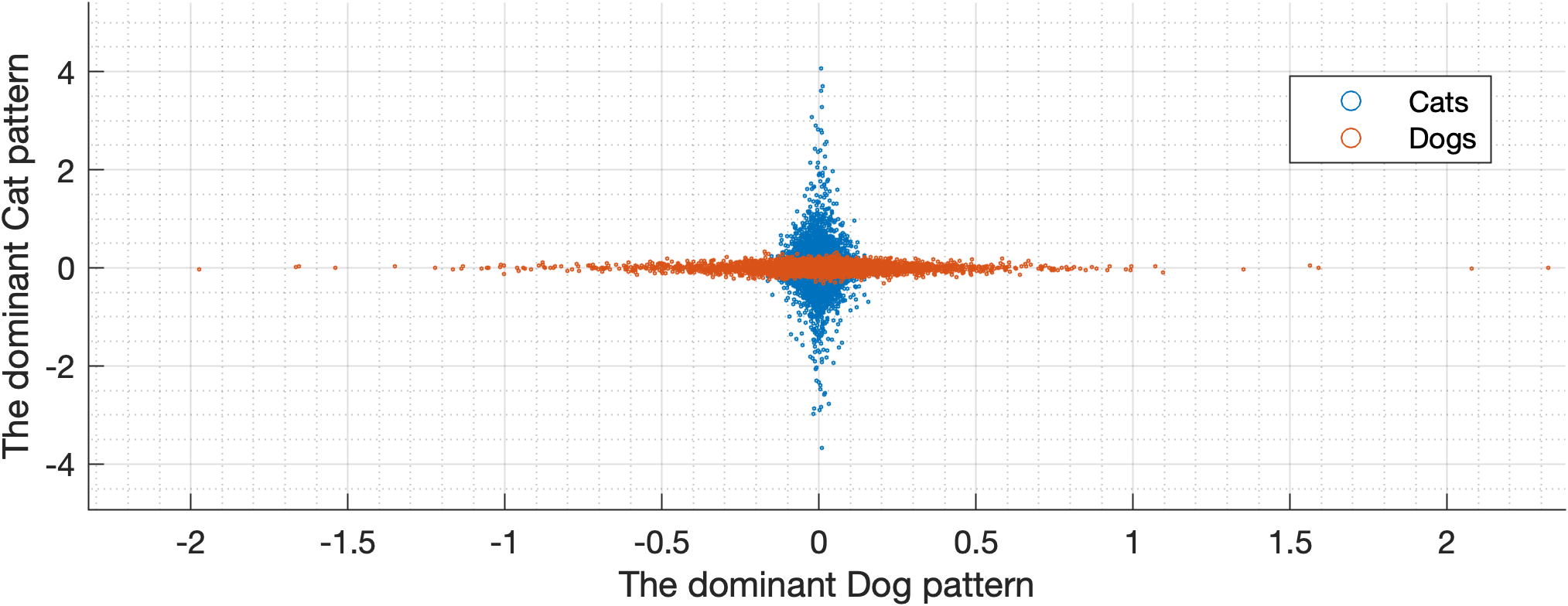

We can also use the coefficients in to visualize the dataset in form of an embedding. Figure E3 shows the embedding obtained by the t-SNE (t-Distributed Stochastic Neighbor Embedding) algorithm [Maaten and Hinton, 2008] . t-SNE is a dimensionality reduction algorithm, specifically designed for visualizing high dimensional data.
. t-SNE is a dimensionality reduction algorithm, specifically designed for visualizing high dimensional data.
This approach of visualizing a set of images in form of an embedding relates to a separate line of research in the literature. Those methods usually suffer from very high computational costs, because they rely on pairwise comparison of images in the pixel space, e.g., Vo et al. . We also note that t-SNE is used before for visualizing image datasets, for example by Parde et al. , but such approaches use a pre-trained VGG model for comparison of images. Our approach does not require a pre-trained model, however, we note that its usefulness requires further experiments and comparison with other methods.
Appendix F COVID-19 CT-Scan Images
Here, we analyze the contents of the SARS-COV-2 CT-Scan Dataset [Angelov and Almeida Soares, 2020]. This dataset contains 2,482 images of CT-Scan, 1,230 of which belong to infected patients and 1,252 belong to non-infected patients. Figure F1 shows some samples from this dataset.

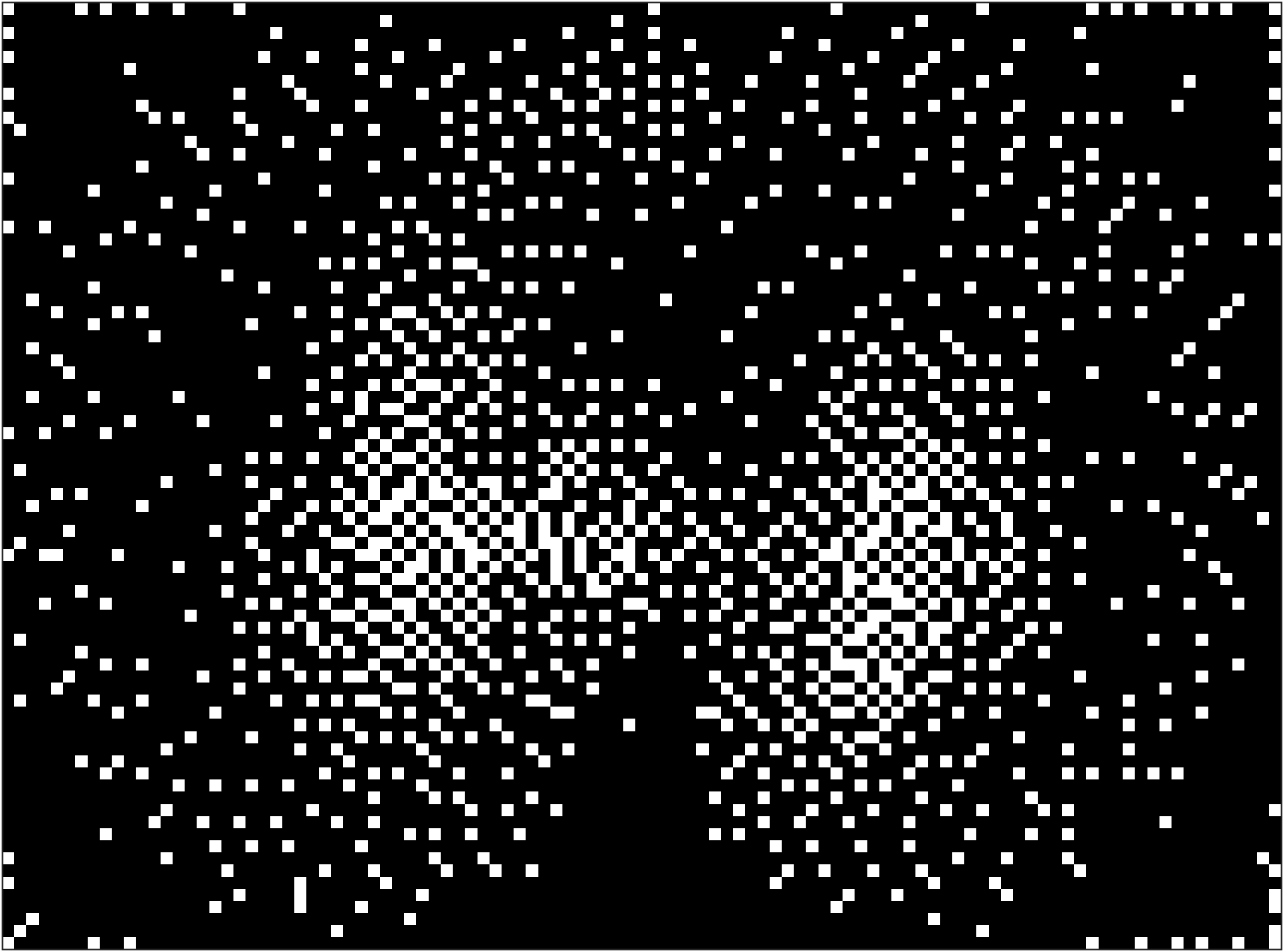

We form the data into two matrices, for COVID samples and for non-COVID samples. For wavelet transformation, we use Daubechies-3 wavelets. We use the RR-QR algorithm to choose a subset of most influential wavelet coefficients. Figure F2 highlights the pixels corresponding to those wavelet coefficients.

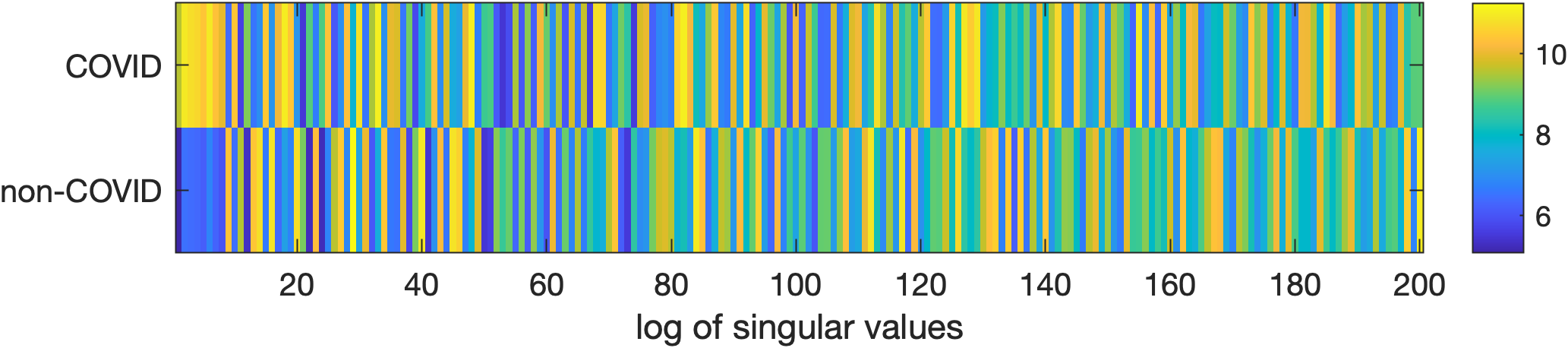

Using Higher Order GSVD, we decompose the tensor of wavelet coefficients . The resulting singular values, shown in Figure F3 show a clear separation between the Covid and non-Covid patients.
Figure F4 shows the most dominant patterns obtained for the COVID patients and Figure F5 shows the most dominant patterns obtained for non-COVID patients. Clearly patterns seem very different for non-COVID and COVID patients.
The left basis defines how the patterns should be merged together. Images with lower norm in the left basis appear to have fewer distinctive features in them, as some of them are shown in Figure F7. In other word, they are made from fewer patterns in . On the other hand, images with larger norm in the left basis have more distinctive features and many patterns contribute to them, as some of them are shown in Figure F8.
We note that evaluating the usefulness of our patterns, from the practical point of view, requires domain expertise. A radiology scientist, for example, could verify whether the patterns in Figure F4 are sensible and useful in practice.
Appendix G Demonstrating the effectiveness of wavelet transformation in our analysis
In all the results we have presented so far, we have relied on wavelet transformation of images. In this last appendix, we repeat some of our experiments without using the wavelet transformation, i.e., directly applying the Higher Order GSVD on the pixel information of images. In this experiment we use the COVID data in Appendix E.
For example, Figures G1 and G2 show the dominant patterns we obtain in for COVID and non-COVID patients. Compare these to the patterns we obtained in Figures F5 and F5, when we applied the HO-GSVD on the wavelet coefficients, instead of the pixels. Although the results obtained from the pixels seem to provide some information, they are relatively vague and scattered.
Notice that in this reconstruction only 1,200 pixels (out of 8,190) are involved, as shown in Figure G4, and the rest of pixels are the same as the original image.666Using more than 1,220 pixels would violate the requirement of full column rank. Hence, the reconstruction without using the wavelets needs to start from an image mostly similar to the original image and cannot consider many of the pixels. This seems to hollow the point of performing low rank approximation.
However, when using the 1,200 wavelet coefficients, the majority of pixels are involved in our analysis, as the stencil in Figure F2 demonstrates. Also, wavelets make the low rank approximations of images informative.
