1 Introduction

In linkage design, synthesizing rigid body linkages yield polynomial systems [29] which are parameterized by the desired tasks. For example, Alt [2] considered synthesizing four-bar linkages specifying 9 path points as pictorially represented in Figure 1(a). Once a synthesis problem is formulated, a natural first step is to estimate the number of solutions to decide if it is practical to enumerate all solutions. Due to the geometric nature of these synthesis problems, classical upper bounds on the number of solutions, e.g., see [27, Chap. 8], are often several orders of magnitude larger than the actual number of solutions. This paper, inspired by estimation methods in [3, 20], develops a method to statistically estimate the number of solutions using monodromy loops [25]. The statistical estimates are derived by viewing a monodromy loop as applying a capture-mark-recapture model on a closed population often used to estimate animal populations [22, 23].

A shortcoming of previous statistical estimates is the lack of a stopping criterion for showing that all solutions have been found. This paper overcomes this by incorporating the multihomogeneous trace test [14] for validating the completeness of a solution set.

The organization of the remainder of the paper is as follows. A short summary of related work is provided in Section 2. Section 3 describes monodromy and statistical models for estimating the number of solutions. Section 4 describes the trace trace as a stopping criterion. Section 5 considers Alt’s problem and motion generation problems for Watt I linkages pictorially represented in Figure 1(b).

(a) Four Bar
(b) Watt 1
Figure 1: Four-bar mechanism and Watt I six-bar mechanism showing initial point and task position, respectively, and one offset.

2 Related work

Since kinematic synthesis problems, such as path synthesis and motion generation [10, 18], are classical but challenging problems that yield polynomial systems [29], the following provides some related work using numerical algebraic geometry [5, 27]. A variety of homotopy methods have been used to solve a collection of synthesis problems, such as [21, 11, 28, 16]. The estimation method in [20] uses a coupon collector model based on the success ratio of finding new solutions using parameter homotopies [19]. In [3], the total number of solutions is estimated using a sequence of parameter homotopies between two parameters.

Monodromy [25] is a standard tool in numerical algebraic geometry that was first used to decompose positive-dimensional solution components. The use of monodromy loops to generate new solutions to parameterized polynomial systems has been used in a variety of applications, e.g., [9, 6, 13]. This paper adds statistical estimates based on using monodromy loops to find new solutions.

The affine trace test [26] is also a standard tool in numerical algebraic geometry that was first used as a stopping criterion for monodromy when decomposing positive-dimensional solution components. Various versions of the trace test have been described, such as [14, 7, 17]. This paper uses the multihomogeneous trace test [14] for validating the completeness of the solution set.

3 Statistical estimation using monodromy loops

Consider a synthesis problem that is described by solving a pamareterized polynomial system consisting of polynomials in the variables and parameters . The goal is to statistically estimate the number of isolated solutions for generic . Since the set of solutions to is a fixed set, sampling from the solution set corresponds with sampling from a closed population. Section 3.1 describes using monodromy loops [25] (see also [27, § 15.4]) to sample without replacement in a closed population. The statistical estimation is based on capture-mark-recapture models often used to estimate animal populations [22, 23]. Section 3.2 provides an estimate based on a single trial using a Lincoln-Petersen estimate while Section 3.3 provides a Chapman estimate, which is an unbiased Lincoln-Petersen estimate. Section 3.4 describes a Schnabel estimate based on the results from several trials.

3.1 Monodromy loops

Given a set consisting of distinct isolated solutions to , monodromy can be used to generate another subset of solutions as follows. First, one selects a random loop starting and ending at , that is, . Then, one utilizes homotopy continuation (see [5, 27] for a general overview) to track the solution paths of from start points  at to, say, end points at . The set consists of (possibly different) solutions to as illustrated in the following.

Consider with and . For the loop with , one has as shown in Figure 2.

Figure 2: Illustration of monodromy yielding a new solution

Theoretically, each solution path of remains on the same irreducible component of the solution set of in and

with probability one for a random loop. Moreover, such solution paths can be certifiably tracked, e.g., see

[12]

. When using faster heuristic path tracking methods, failures can occur. Thus, the statistical estimation models (see

[22, 23] for more details) allow for . In order to find all solutions using monodromy loops starting with only one solution, the monodromy group of the isolated solutions of must be transitive, e.g., see [15]. However, this is commonly the case for synthesis problems, including the ones in Section 5.

3.2 Lincoln-Petersen estimation

The first estimate of the total number of solutions is based on the ratio of repeated solutions from one monodromy loop. With start points and end points , is the set of repeated solutions while and are the nonrepeated solutions in and , respectively. The following is the Lincoln-Petersen estimate for the number of solutions,

, and variance:

(1)

Thus, the confidence interval is given by

(2)

3.3 Chapman estimation

Since the Lincoln-Petersen estimate is biased for small sample sizes [8], the following estimate of Chapman is unbiased:

(3)

The variance and 95% confidence interval are given in (1) and (2), respectively.

3.4 Schnabel estimation

The estimates in (1) and (3) utilize results from a single monodromy loop. The Schnabel estimate uses data from several monodromy loops. For example, the experimental results in Section 5 determine estimates based on the last three monodromy loops, a so-called rolling window of size . For estimating the number of solutions using data from loops, suppose that and are the start and end points for the monodromy loop where . The Schnabel estimate for the number of solutions and variance of the inverse are

     and      (4)

Thus, the confidence interval is given by

(5)

4 Trace test

One potential indicator that all isolated solutions have been found is that several random monodromy loops fail to yield new solutions, e.g., as used in [13]. The multihomogeneous trace test [14] can be used to validate that every random monodromy loop will not yield new solutions. This confirms all solutions have been found when the monodromy group is transitive (see Section 3.1).

The affine trace test [26] validates completeness if the centroid of the solutions moves linearly as the intersecting linear slice is moved parallelly. The key to the multihomogeneous trace test [14] is to view as a system in with a parallelly moving bilinear slice as shown in the following.

Consider validating that has two roots for . Thus, one takes a bilinear slice moving parallelly that contains the linear space at , say . For general , has 3 solutions such that satisfy and satisfies when . Figure 3 plots (black) and for (blue), (red), and (green) along with their corresponding centroids lying on the dashed line (magenta). This validates has solutions.

Figure 3: Trace test for using a bilinear slice moving parallelly.

As illustrated in Example 4, one disadvantage is that additional solutions are needed due to the bilinear slice. Table 1 compares the number of solutions to the synthesis problem and other solutions needed for validation.

5 Results

The following applies monodromy loops using the software Bertini [4] with statistically estimating the number of solutions to several synthesis problems comparing the Lincoln-Petersen and Chapman estimates using one loop with the Schnabel estimate using the last three loops, i.e., a rolling window of size . A comparison of the number of additional solutions needed to use the trace test is provided.

5.1 Four-bar mechanism

Alt’s problem [2] for four-bar linkages is to count the number of coupler curves that pass through general points in the plane (namely, 1442 [28]). Figure 4 shows the number of solutions computed and the various estimation methods as the trials using monodromy loops progressed. When there are few repeated solutions, the estimate has a large confidence interval that quickly converges to the actual number of solutions. In our experiment, by the loop in which only of the solutions are known, the statistical estimates are within 2.9% of the actual number of solutions. A trace test validation was performed in [14, § 7.2.1].

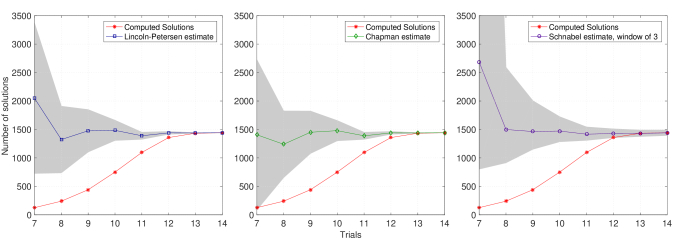

Figure 4: Estimates for solving Alt’s problem for four-bar linkages as the monodromy trials progressed using different estimates from left to right: Lincoln-Petersen, Chapman, and Schnabel using a window of size 3. The shaded area is the 95% confidence interval for each estimate.

5.2 Watt I six-bar mechanism

DOF fixed pivots # variables # solutions trace test # other solutions
6 4 5754 Yes () 7167
7 2 198,614 Yes () 115,126
8 0
Table 1: Table of results for Watt I synthesis with task positions

The last collection of experiments arise from motion generation problems for Watt I six-bar linkages (Watt IB using the convention in [24]) following the formulation in [21]. For  task positions, there are degrees of freedom (DOF) so it is natural to specify one (when ) or both (when ) ground pivots as additional constraints. Table 1 summarizes the setup of the problems and results for task positions (see labels in Figure 1(a)). The cases were validated using the trace test applied to the first task position and the listed variable. For , the number of solutions is estimated.

The case was considered in [21], [11], and [3] reporting 5735, 5743, and 5754 solutions, respectively. The trace test confirms the number of solutions is indeed 5754 with results of our monodromy loops and estimations presented in Figure 5. In particular, once monodromy loops returned over repeats, the estimations quickly converged to the number of solutions.

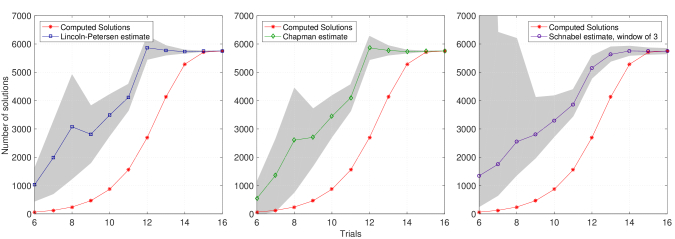

Figure 5: Estimates for Watt I synthesis with task positions and both pivots fixed as the monodromy trials progressed using different estimates from left to right: Lincoln-Petersen, Chapman, and Schnabel using a window of size 3. The shaded area is the 95% confidence interval for each estimate.

The estimations for with pivot fixed are shown in Figure 6 with the trace test validating the total number of solutions is 198,614. Once over 50% of the solutions were found, the estimate was within 1% of the actual number.

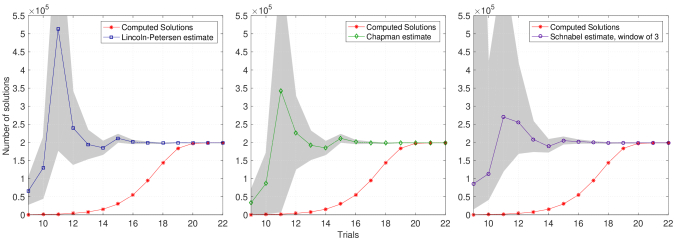

Figure 6: Estimates for Watt I synthesis with task positions and pivot fixed as the monodromy trials progressed using different estimates from left to right: Lincoln-Petersen, Chapman, and Schnabel using a window of size 3. The shaded area is the 95% confidence interval for each estimate.

An estimate in [3] for the fully constrained motion generation problem with task positions is 840,300 cognate pairs, i.e., 1,680,600 distinct mechanisms, which is within the 95% confidence intervals of our results presented in Figure 7.

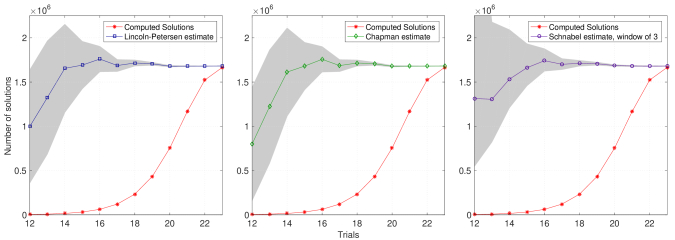

Figure 7: Estimates for Watt I synthesis with task positions as the monodromy trials progressed using different estimates from left to right: Lincoln-Petersen, Chapman, and Schnabel using a window of size 3. The shaded area is the 95% confidence interval for each estimate.
