User Information Augmented Semantic Frame Parsing using Coarse-to-Fine Neural Networks

09/18/2018 ∙ by Yilin Shen, et al. ∙ SAMSUNG 6

Semantic frame parsing is a crucial component in spoken language understanding (SLU) to build spoken dialog systems. It has two main tasks: intent detection and slot filling. Although state-of-the-art approaches showed good results, they require large annotated training data and long training time. In this paper, we aim to alleviate these drawbacks for semantic frame parsing by utilizing the ubiquitous user information. We design a novel coarse-to-fine deep neural network model to incorporate prior knowledge of user information intermediately to better and quickly train a semantic frame parser. Due to the lack of benchmark dataset with real user information, we synthesize the simplest type of user information (location and time) on ATIS benchmark data. The results show that our approach leverages such simple user information to outperform state-of-the-art approaches by 0.25 0.31 training data, the performance improvement on intent detection and slot filling reaches up to 1.35 achieve similar performance as state-of-the-art approaches by using less than 80 performance is also reduced by over 60



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

With the emergence of artificially intelligent voice-enabled personal assistants in daily life, spoken language understanding (SLU) system has attracted increasing research attentions. As the key component in a SLU system, semantic frame parsing aims to identify user’s intent and extract semantic constituents from a natural language utterance, a.k.a. intent detection and slot filling. Existing approaches includes the independent models for learning intent detection

[1, 2] and slot filling [3, 4, 5, 6, 7, 8] separately as well as joint models to learn these two tasks together [9, 10, 11, 2].

Unfortunately, the aforementioned approaches suffer from several main drawbacks. First, they require the existence of a large scale annotated corpus to train a high quality parser. Since a SLU system aims to understand all varieties of user utterances, the corpus is further required to extensively cover all varieties of utterances. However, the collection of such an annotated corpus is very expensive and needs heavy human labor. Secondly, the training of existing parser models oftentimes takes a long time to achieve a good performance. These drawbacks are magnified especially with the recent quick growth of capabilities in personal assistants [12]. To develop a new domain, we need to generate a new utterance dataset and take a long time to train a new semantic frame parsing model. Thus, it is critically desirable to design a new semantic frame parsing model to alleviate the needs of both large amount of annotated training data and long training time.

In this paper, we investigate how user information can be incorporated into semantic frame parsing to overcome the above drawbacks. We design a novel progressive attention-based recurrent neural network (Prog-BiRNN) model that first annotates the information types and then distills the related prior knowledge w.r.t. each type of information to continue learning intent detection and slot filling. Our approach is motivated by the recent success of attention-based RNN model

[2] for joint learning of intent detection and slot filling and coarse-to-fine neural networks [13] in many multi-tasking learning applications. Our model includes a main RNN structure stacked with a set of different layers and they are trained one by one in a progressive manner.

Organization: Section 2 describes the background and related work. We discuss our new problem definition in Section 3. Section 4 includes our proposed model and its training procedure details. We show the experimental results in Section 5. Section 6 concludes the whole paper.

2 Background & Related Work

2.1 Semantic Frame Parsing

Intent detection and slot filling are two main tasks to build a semantic frame parser for spoken language understanding (SLU). That is, the goal of semantic frame parsing is to understand all varieties of user utterances by correctly identifying user’s intents and slot tags. Given an input utterance as a sequence of length , intent detection identifies the intent class for and slot filling maps to the corresponding label sequence of the same length (Table 1).

Intent detection is treated as an utterance classification problem, which can be modeled using conventional classifiers such as support vector machine (SVM)

[1] and RNN based models [2]

. As a sequence labeling problem, slot filling can be solved using traditional machine learning approaches including maximum entropy Markov model

[3] and conditional random fields (CRF) [14], as well as recurrent neural network (RNN) based approaches which takes and tags each word in an utterance one by one [4, 5, 6, 7, 8]. Recent research focuses on the joint model to learn two tasks together [9, 10, 11, 2].

2.2 Joint Attention-based RNN Model

We recall the state-of-the-art approach in [2], referred to as Att-BiRNN model, which will be used as the base of our approach. Att-BiRNN is a joint RNN model to learn the two tasks together. It first uses a bidirectional RNN with a basic LSTM cell to read the input utterance as a sequence . At each time stamp , a context vector is learned to concatenate with the RNN hidden state , i.e., , to learn a slot attention for predicting the slot tag . All hidden states of slot filling attention layer are used to predict the intent label in the end. The objective function of Att-BiRNN model is as follows:


where are the trainable parameters of different components (utterance BiRNN, slot filling attention layer and intent classifier) in Att-BiRNN model.

3 Problem Definition

We propose the User Info Augmented Semantic Frame Parsing problem for the same two tasks, intent detection and slot filling, by considering the following additional inputs.

User Info Dictionary: This defines the categorical relations between user info type and slots. In other words, each key in the dictionary is a type of user info and its corresponding value is the slots belonging to this type. The generation of this dictionary is not the focus of our paper since it can be simply generated by a software developer when he generates slots during the development of a new domain in practice.

Each type of user info is associated with an external or pre-trained model to extract their semantically meaningful prior knowledge. For example, the semantics of a location is represented by its longitude and latitude such that the distance between two locations reflect their actual geographical distance.

User Info for Each Utterance: Each input sequence is associated with its corresponding user info . is represented as a set of tuples, . As an example utterance in Table 1, the first gray row shows our generated user info with type “User Location” and content “Brooklyn, NY”. Learning user info has been well studied, such as user contextual information (e.g., time, location, activity, etc.) via smartphone [15], Internet of Things [16] and user interests (e.g., favorite food, etc.) using recommendation models [17].

Remarks: One may argue that this is a simple extension of semantic frame parsing problem in which the user info can be simply encoded into an existing model as a new input or a new state. However, these naive approaches ignore the different semantic meanings between user info and language context in an utterance, as well as between different types of user info. Thus, as we later show in experiment (Section 5), these baseline approaches do not show any advantage over existing approaches without user info.

4 Proposed Approach

In this section, we describe the main idea and details of our proposed Prog-BiRNN model as well as its training procedure.

4.1 Coarse-to-Fine Attention-based RNN Model

As the name indicates, our main idea is to train the semantic frame parsing model from coarse to fine progressively with an intermediate task before achieving the final goal of intent detection and slot filling. This is motivated by the recent success of progressive neural networks [13]. Specifically, for each utterance , we first define the user info sequence using the user info dictionary. In Table 1, the last row shows the user info sequence corresponding to this example. Our approach first trains a user info tagging to derive . Then, the prior knowledge with semantic meaning for each type of user info is distilled into the model to continue training for intent detection and slot filling.

utterance () round trip flights between ny and miami
slots () B-round_trip I-round_trip O O B-fromloc O B-toloc
intent () atis_flight
user info ()
user info seq () O O O O B-loc O B-loc
Table 1: ATIS corpus sample with intent and slot annotations with additional user info and its corresponding user info sequence (in gray)

As shown in Figure 1, our proposed Prog-BiRNN model is designed based on the state-of-the-art Att-BiRNN model [2], which consists of the following four main components.

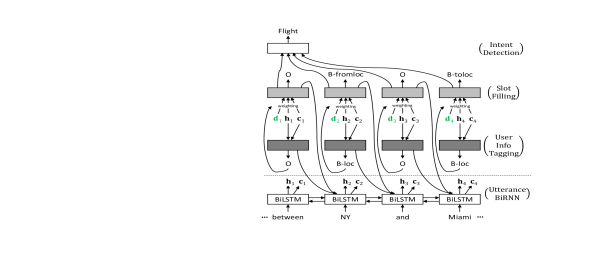

Figure 1: Coarse-to-Fine Attention based RNN Model
