1 Introduction

Figure 1: Visual results of a sample from Slowflow dataset. Baseline supervised model is trained with Adobe and YouTube datasets and proposed unsupervised model is fine-tuned with Slowflow.

With the advancement of modern technology, consumer-grade smartphones and digital cameras can now record videos at high frame rates (e.g. 240 frames-per-second). However, achieving this comes at the cost of high power consumption, larger storage requirements, and reduced video resolution. Given these limitations, regular events are not typically recorded at high frame rates. Yet, important life events happen unexpectedly and hence tend to be recorded at standard frame rates. It is thus greatly desirable to have the ability to produce arbitrarily high FPS videos from low FPS videos.

Video frame interpolation addresses this need by generating one or more intermediate frames from two consecutive frames. Increasing the number of frames in videos essentially allows one to visualize events in slow motion and appreciate content better. Often, video interpolation techniques are employed to increase the frame rate of already recorded videos, or in streaming applications to provide a high refresh rate or a smooth viewing experience.

Video interpolation is a classical vision and graphics problem [3, 20, 26] and has recently received renewed research attention [9, 15, 10, 13]

. Particularly, supervised learning with convolutional neural networks (CNNs) has been widely employed to learn video interpolation from paired input and ground truth frames, often collected from raw video data. For instance, recent CNN-based approaches such as

[6] and [15], trained with large quantities of public high FPS videos, obtain high quality interpolation results when the test videos are similar to the training ones.

However, these methods may fail if the training data differ from the target domain. For instance, the target domain might be to slow down videos of fish taken underwater, but available training data only contains regular outdoor scenes, thus leading to a content gap. Additionally, there might be more subtle domain gaps due to differences such as camera parameters, encoding codecs, and lighting, leading to the well-known co-variate shift problem [17]. It is impractical to address the issue by collecting high FPS videos covering all possible scenarios, because it is expensive to capture and store very high FPS videos, e.g., videos with more than 1000-fps at high spatial resolutions.

In this work, we propose a set of unsupervised learning techniques to alleviate the need for high FPS training videos and to shrink domain gaps in video interpolation. Specifically, we propose to learn video frame interpolation, without paired training data, by enforcing models to satisfy a cycle consistency constraint

[2] in the time. That is, for a given triplet of consecutive frames, if we generate the two intermediate frames between the two consecutive frames, and generate back their intermediate frame, the resulting frame must match the original input middle frame (shown schematically in Fig. 3). We show such simple constraint alone is effective to learn video interpolation, and achieve results that compete with supervised approaches.

In domain adaptation applications, where we have access to models pre-trained on out-of-domain datasets, but lack ground truth frames in target domains, we also propose unsupervised fine-tuning techniques that leverage such pre-trained models (See Fig. 2). We fine-tune models on target videos, with no additional data, by optimizing to jointly satisfy cycle consistency and minimize the discrepancy between generated intermediate frames and corresponding predictions from the known pre-trained model. We demonstrate our joint optimization strategy leads to significantly superior accuracy in upscaling frame rate of target videos than fine-tuning with cycle consistency alone or directly applying the pre-trained models on target videos (see Fig. 1).

Cycle consistency has been utilized for image matching [24], establishing dense 3D correspondence over object instances [22]

, or in learning unpaired image-to-image translation in conjunction with Generative Adversarial Networks (GANs)

[25]. To the best of our knowledge, this is the first attempt to use a cycle consistency constraint to learn video interpolation in a completely unsupervised way.

To summarize, the contributions of our work include:

  • [topsep=0pt,noitemsep]

  • We propose unsupervised approaches to learn video interpolation in the absence of paired training data by optimizing neural networks to satisfy cycle consistency constraints in time domain.

  • We learn to synthesize arbitrarily high frame rate videos by learning from only low frame rate raw videos.

  • We demonstrate the effectiveness of our unsupervised techniques in reducing domain gaps in video interpolation.

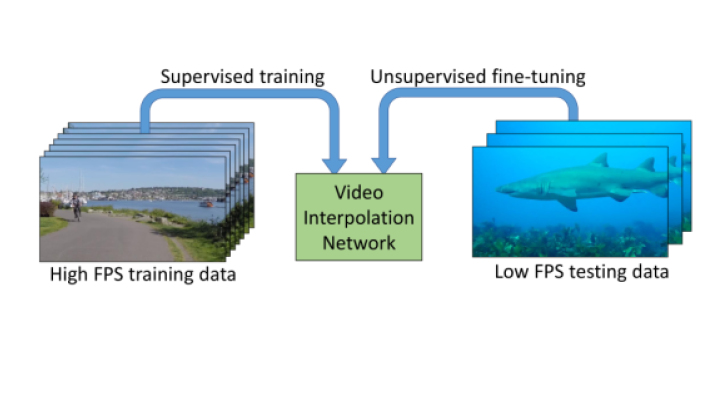

Figure 2: Video interpolation methods may fail if the training data differ from the test data. In this work, we propose an unsupervised fine-tuning technique to reduce domain gaps.

2 Related Works

Video Interpolation:

The task is to interpolate intermediate frames between a pair of input frames. A common approach uses optical flow to estimate the trajectory of pixels from one input frame to another, and then to construct the intermediate frames based on the intermediate positions of pixels along the trajectories. Classical approaches such as

[4] and [11] interpolate frames via optical flow, and further make use of forward and backward optical flow consistency to reason about occlusions.

Given the recent rise in popularity of deep learning methods, several end-to-end trainable methods have been proposed for video interpolation. Specifically, these methods can be trained to interpolate frames using just input and target frames and no additional supervision. Liu et al.

[27] and Jiang et al. [6] both indirectly learn to predict optical flow using frame interpolation. Works such as  [14, 15]

are similarly end-to-end trainable, but instead of learning optical flow vectors to warp pixels, they predict adaptive convolutional kernels to apply at each location of the two input frames. Our work is based on the Super SloMo architecture

[6], because it can predict multiple intermediate frames ([27] predicts only 1 frame).

Cycle Consistency: One of the key elements of our proposed method is the use of a cycle consistency constraint. This constraint encourages the transformations predicted by a model to be invertible, and is often used to regularize the model behavior when direct supervision is unavailable. Cycle consistency has been used in a variety of applications, including determining the quality of language translations [2], semi-supervised training for image-description generation [12], dense image correspondences [23], identifying false visual relations in structure from motion [21], and image-to-image translation [25], to name a few.

A cycle consistency constraint, in the context of video interpolation, means that we should be able to reconstruct the original input frames by interpolating between predicted intermediate frames at the appropriate time stamps. Most related to our work is [8], which uses such a constraint to regularize a fully supervised video interpolation model. Our work differs in several critical aspects. First, our method is based on the Super SloMo [6] architecture, and is thus capable of predicting intermediate frames at arbitrary timestamps, whereas  [8] is specifically trained to predict the middle timestamp. Next, and most critically, our proposed method is fully unsupervised. This means that the target intermediate frame is never used for supervision, and that it can learn to produce high frame rate interpolated sequences from any lower frame rate sequence.

3 Method

In this work, we propose to learn to interpolate arbitrarily many intermediate frames from a pair of input frames, in an unsupervised fashion, with no paired intermediate ground truth frames. Specifically, given a pair of input frames and , we generate intermediate frame , as

(1)

where is time, and is a video frame interpolation model we want to learn without supervision. We realize using deep convolutional neural networks (CNN). We chose CNNs as they are able to model highly non-linear mappings, are easy to implement, and have been proven to be robust for various vision tasks, including image classification, segmentation, and video interpolation.

Inspired by the recent success in learning unpaired image-to-image translation using Generative Adversarial Networks (GAN) [25], we propose to optimize to maintain cycle consistency in time. Let , and are a triplet of consecutive input frames. We define the time-domain cycle consistency constraint such that for generated intermediate frames at time between and between , a subsequently generated intermediate frame at time between the interpolated results must match the original middle input frame . Mathematically, a cycle reconstructed frame using is given by,

(2)

We then optimize to minimize the reconstruction error between and , as

(3)

Figure 3 schematically presents our cycle consistency based approach.

A degenerate solution to optimizing equation 3 might be to copy the input frames as the intermediate predictions (i.e. outputs). However, in practice this does not occur. In order for to learn to do copy frames in this way, it would have to learn to identify the input’s time information within a single forward operation (eq. 2), as is a input in the first pass, and is a input in the second pass. This is difficult, since the same weights of are used in both passes. We support this claim in experiments, see Section 4.4.3, where we compared our learned approach using equation 3 with the trivial case of using inputs as intermediate prediction.

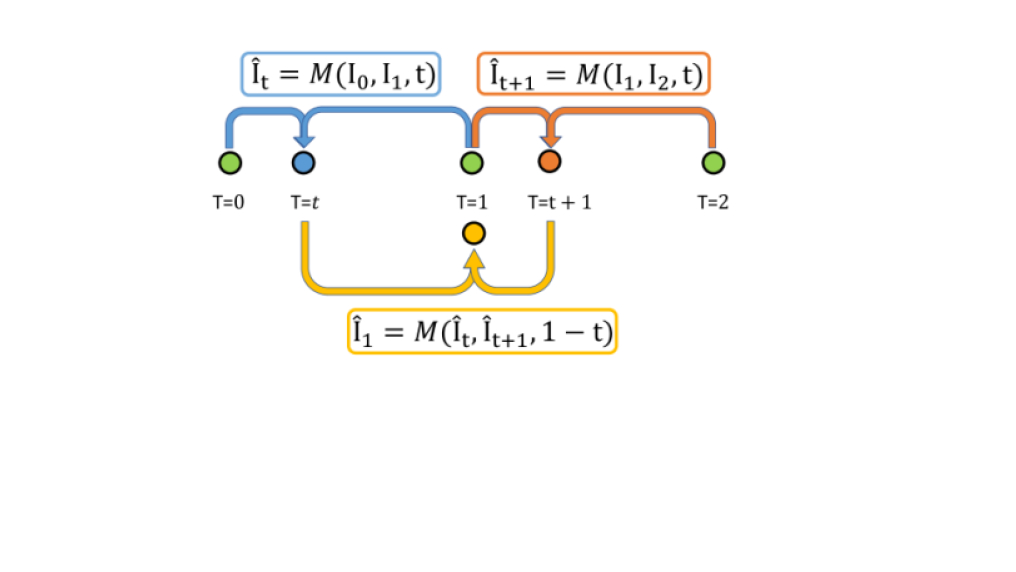

Figure 3: An overview of time-domain cycle consistency constrain. , and , shown as green circles, are a triplet of consecutive input frames. If we generate intermediate frames at time between and between , and subsequently generate back an intermediate frame at time between , the resulting frame must match the original middle input frame, .

It is true that triplets of input frames could be exploited directly. For example, the reconstruction error between and could be used without cycle consistency. However, our experiments in Section 4.4.2 suggest that such objectives, which model interpolation over a larger timestep, lead to significantly worse accuracy if used without cycle consistency.

Optimizing to the satisfy cycle consistency (CC) constraint in time, as will show in our experiments in Sections 4.2 and 4.3, is effective and is able to generate arbitrarily many intermediate frames that are realistic and temporally smooth. It also produces results that are competitive with supervised approaches, including the same model , but trained with supervision.

In this work, we also propose techniques that can make unsupervised fine-tuning processes robust. It is quite common to have access to out-of-domain training videos in abundance or access to already pre-trained interpolation models. On the other hand, target domain videos are often limited in quantity, and most critically, lack ground truth intermediate frames. We aim to optimize in target videos to jointly satisfy cycle consistency as defined in equation 3 and also learn to approximate a known pre-trained interpolation model, denoted as . Mathematically, our modified objective is given as,

(4)

where is the cycle reconstructed frame given by equation 2, and are given by equation 1, and are the parameters of that our optimization processes update.

The added objective function to approximate , help regularize to generate realistic hidden intermediate frames an by constraining them to resemble predictions of a known frame interpolation model, . As optimization progresses and learns to pick-up interpolation concepts, one can limit the contribution of the regularizing “pseudo” supervised (PS) loss and let optimizations be guided more by the cycle consistency. Such a surrogate loss term, derived from estimated intermediate frames, can make our training processes converge faster or make our optimization processes robust by exposing it to many variations of .

In this work, for the sake of simplicity, we chose to be the same as our , but pre-trained with supervision on a disjoint dataset that has ground-truth high frame rate video, and denote it as . Our final objective can be given by,

(5)

where and are weights of CC and PS losses.

As we will show in the experiments, optimizing equation 5 by relying only on the PS loss, without cycle consistency, will teach to perform at best as good as , i.e., the model used in the same PS loss. However, as we show in Section 4.4.1, by weighting cycle consistency and PS losses appropriately, we achieve frame interpolation results that are superior to those obtained by learning using either CC or PS losses alone.

Finally, we implement our using the Super SloMo video interpolation model [6]. Super SloMo is a state of the art flow-based CNN for video interpolation, capable of synthesizing an arbitrary number of high quality and temporally stable intermediate frames. Our technique is not limited to this particular interpolation model, but could be adopted with others as well.

In the subsequent subsections we provide a short summary of the Super SloMo model, our loss functions, and techniques we employed to make our unsupervised training processes stable.

3.1 Video Interpolation Model

To generate one or more intermediate frames from a pair of input frames , first the Super SloMo model estimates an approximate bi-directional optical flow from any arbitrary time to , , and from to , . Then, it generates a frame by linearly blending the input frames after they are warped by the respective estimated optical flows, as

(6)

where is an operation that bilinearly samples input frames using the optical flows, and weighs the contribution of each term. The blending weight models both global property of temporal consistency as well as local or pixel-wise occlusion or dis-occlusion reasoning. For instance, to maintain temporal consistency, must contribute more to when is close to . Similarly, contributes more to , when is close to .

To cleanly blend the two images, an important property of video frame interpolation is exploited, i.e. not all pixels at time are visible in both input frames. Equation 6 can thus be defined by decomposing to model both temporal consistency and occlusion or de-occlusions, as

(7)

where and are visibility maps, and is a normalisation factor. For a pixel , denotes visibility of at time ( means fully occluded or is invisible at ).

The remaining challenge is estimating the intermediate bi-direction optical flows and the corresponding visibility maps . For more information, we refer the reader to [6].

3.2 Training and Loss Functions

We train to generate arbitrarily many intermediate frames without using the corresponding ground-truth intermediate frames , with and being frame count and time, respectively. Specifically, as described in Section 3, we optimize to (a) minimize the errors between the cycle reconstructed frame and and (b) to minimize the errors between the intermediately predicted frames and and the corresponding estimated or pseudo ground-truth frames and .

Note that, during optimization a cycle reconstructed frame can be obtained via arbitrarily many intermediately generated frames . Thus, many reconstruction errors can be computed from a single triplets of training frames . However, we found doing so makes optimizations unstable and often unable to converge to acceptable solutions. Instead, we found establishing very few reconstruction errors per triplet to make our training stable and generate realistic intermediate frames. In our experiments, we calculate one reconstruction error per triplet, at random time .

Our training loss functions are given by,

(8)

where , defined as,

(9)

models how good the cycle reconstructed frame is, and , defined as,

(10)

models how close the hidden intermediate frames are to our pseudo intermediate frames. models a perceptual loss defined as the

norm on the high-level features of VGG-16 model, pre-trained on ImageNet, and is given as,

(11)

with representing the conv4_3 feature of the VGG-16 model.

Our third loss, is a warping loss that make optical flow predictions realistic, and is given by,

(12)

In a similar way as the Super SloMo framework, we also enforce a smoothness constraint to encourage neighbouring optical flows to have similar optical flow values, and it is given as,

(13)

where and are the forward and backward optical flows between the the intermediately predicted and frames.

Finally, we linearly combine our losses using experimentally selected weights: , , , , and , see Section 4.4.1 for details on weight selection.

FPS Frame count Clip count Resolution Train Test
UCF101 [18] 25 1,137 379 x
YouTube [6] 240 296,352 1,014 x
Battlefield-1 [16] 30 329,222 363 x
Adobe [19] 30 9,551 112 x
240 76,768 x
Slowflow [5] 30 3,470 46 x
240 414 x
Sintel [5] 24 551 13 x
1008 559 x
Table 1: Statistics of video datasets used in training or evaluation.

3.3 Implementation Details

We use Adam solver [7] for optimization with ,

, and no weight decay. We train our models for a total of 500 epochs, with a total batch size of 32 on 16 V100 GPUs, using distributed training over two nodes. Initial learning rate is set to

, and then scaled-down by 10 after 250, and again after 450 epochs.

4 Experiments

4.1 Datasets and Metrics

Table 1 summarizes datasets we used for training and evaluation. We used Adobe-240fps [19] (76.7K frames) and YouTube-240fps [6] (296.4K frames) for supervised training to establish baselines. For unsupervised training, we considered low FPS Battlefield1-30fps videos [16] (320K frames), and Adobe-30fps (9.5K frames), obtained by temporally sub-sampling Adobe-240fps videos, by keeping only every other 8th frame. We chose game frames because they contain a large range of motion that could make learning processes robust. We used UCF101 [18] datasets for evaluation.

To study our unsupervised fine-tuning techniques in bridging domain gaps, we considered two particularly distinct, high FPS and high resolution, target video datasets: Slowflow-240fps and Sintel-1008fps [5]. Slowflow is captured from real life using professional high speed cameras, whereas Sintel is a game content. We split Slowflow dataset into disjoint low FPS train (3.4K frames) and a high FPS test (414 frames) subsets, see Table 1. We create the test set by selecting nine frames in each of the 46 clips. We then create our low FPS train subset by temporally sub-sampling the remaining frames from 240-fps to 30-fps. During evaluation, our models take as input the first and ninth frame in each test clip and interpolate seven intermediate frames. We follow a similar procedure for Sintel-1008fps [5], but interpolate 41 intermediate frames, i.e., conversion of frame rate from 24- to 1008-fps.

To quantitatively evaluate interpolations we considered Peak-Signal-To-Noise (PSNR), the Structural-Similarity-Image-Metric (SSIM), and the Interpolation-Error (IE) [1], which is calculated as the root mean-squared-error between generated and ground truth frames. High PSNR and SSIM scores indicate better quality, whereas for IE score it is the opposite.

UCF101
Training data PSNR SSIM IE
Baseline Adobe-240fps 34.63 0.946 5.48
Proposed Adobe-30fps 34.47 0.946 5.50
BattleField-30fps 34.55 0.947 5.38
Table 2: Interpolation results for single intermediate frame interpolation on UCF101.

4.2 Large-Scale Unsupervised Training

In this section, we consider the scenario where we do not have any high frame rate videos to train a base model, but we have abundant low frame rate videos. We test our models on UCF101 dataset; for every triplet of frames, the first and third ones are used as input to predict the second frame.

We train two models with only the cycle-consistency constraint in a completely unsupervised way – one using the Adobe-30fps dataset and the other with the BattleField-30fps dataset. We also train a supervised baseline model with the Adobe-240fps dataset.

Results are presented in Table 2. Our unsupervised technique trained on Adobe-30fps performs competitively with results obtained with supervision on Adobe-240fps, achieving PSNR of 34.47, and 34.63 respectively. Compared to the supervised training, our unsupervised training uses 1/8th of the frame count, and performs comparably to techniques trained with supervision. This shows the effectiveness of cycle consistency constraint alone in training models, from random initialization, for video frame interpolation. We further study the impact of frame count in unsupervised training. For this study, we used the low FPS Battlefield-1 sequences. The higher the frame count of low FPS frames, the better our unsupervised model performs, when evaluated on UCF101. Using Battlefield-30fps, at frame count four times larger than Adobe-240fps, we achieve results on par with supervised techniques, achieving IE of 5.38 and 5.48, respectively.

4.3 Unsupervised Fine-tuning for Domain Transfer

One particularly common situation in video frame interpolation is that we have access to pre-trained models or access to high FPS out-of-domain videos in abundance, but lack ground truth frames in target videos, which are also commonly limited in quantity. Our unsupervised techniques allow us to fine-tune pre-trained models directly on target videos without additional data, and demonstrate significant gain in accuracy in upscaling frame rates of target videos.

First, we consider the scenario where train and test videos are collected with different camera set-ups. We assume we have access to high fps videos collected by hand-held cameras, which is the Adobe-240fps or the YouTube-240fps datasets, and consider the Slowflow dataset as our target, a particularly high resolution and high FPS video captured by high speed professional cameras in real life.

Our baseline is SuperSloMo pre-trained on Adobe-240fps or Adobe+YouTube-240fps with supervision. We apply our unsupervised techniques directly on the low FPS train split of Slowflow, and evaluate on its test split. Table 3 present results of domain transfer from Adobe-240fps Slowflow, and Adobe+YouTube Slowflow.

AdobeSlowflow
Loss PSNR SSIM IE
Baseline PairedGT 32.84 0.887 6.67
Proposed CC 32.35 0.886 6.78
CC + PS 33.05 0.890 6.62
Adobe+YouTubeSlowflow
Baseline PairedGT 33.13 0.889 6.63
Proposed CC + PS 33.20 0.891 6.56
Table 3: Multi-frame interpolation results on Slowflow for frame rate conversion from 30- to 240-FPS, and domain transfer experiments using baselines obtained by pre-training with supervision on Adobe- or Adobe+YouTube-240FPS.
Figure 4: Visual results of a sample from Slowflow dataset. Baseline supervised model is trained with Adobe dataset and proposed unsupervised model is fine-tuned with Slowflow. Improvements seen as the person’s back squeezed in supervised (middle) but preserved in unsupervised (right). On bottom row, although both techniques blur the regions surrounding the helmet, the shape of helmet is preserved in our proposed technique.
AdobeSintel
Loss PSNR SSIM IE
Baseline PairedGT 31.82 0.912 5.61
Proposed CC 30.08 0.872 7.67
CC+PS 32.53 0.918 5.21
Adobe+YouTubeSintel
Baseline PairedGT 33.23 0.928 4.74
Proposed CC+PS 33.34 0.928 4.71
Table 4: Multi-frame interpolation results on Sintel for frame rate conversion from 24 to 1008 FPS, and domain transfer experiments using baselines obtained by pre-training with supervision on Adobe- or Adobe+YouTube-240fps.

AdobeSlowflow: Our unsupervised training with cycle consistency alone performs quite closely to the baseline (Super SloMo pre-trained with supervision), achieving PSNR of 32.35 and 32.84, respectively. While a total of 76.7K Adobe-240fps frames are used in supervised pre-training, our unsupervised training is performed with only 3K frames of Slowflow, which indicates the efficiency and robustness of our proposed unsupervised training technique. Furthermore, fine-tuning the pre-trained model by jointly optimizing to satisfy cycle consistency and to minimize our proposed pseudo supervised loss (CC + PS), we outperform the pre-trained baseline by a large margin, with PSNR of 33.05 vs. 32.84. The PS loss relies on the same pre-trained baseline model, as discussed in Section 3, and regularizes our training process. If used alone, i.e without cycle consistency, it performs at best as good as the baseline pre-trained model, see Section 4.4.1 for more details.

Adobe+YouTubeSlowflow: Here, our baseline model is pre-trained on a larger dataset Adobe+YouTube, total of 372.7K frames, and achieves better accuracy than pre-training on Adobe alone, achieving PSNR 33.13 vs. 32.84, when directly applied on Slowflow test videos. Even with improved pre-trained baseline, we observe consistent benefit with our proposed unsupervised fine-tuning, improving PSNR from 33.13 to 33.20.

Another interesting observation from this study is that it takes an extra 296.K frames from YouTube-240fps to improve PSNR from 32.84 to 33.13 on Slowflow, via pre-training with supervision. We achieve a comparable improvement of PSNR from 32.84 to 33.05 by simply fine-tuning on the target low FPS frames in a completely unsupervised way. Sample interpolation results from this study can be found at Figure 1, where improvements on the bicycle tire and the shoe are highlighted, and at Figure 4, where improvements on the persons’ back and helmet regions are highlighted.

Table 4 present results of unsupervised fine-tuning for domain transfer from AdobeSintel and Adobe+YouTubeSintel for the task of upscaling frame rate from 24- to 1008-fps. Similarly to the Slowflow experiments, in Table 3, the results indicate the utility of our unsupervised techniques in shrinking domain gaps or achieving results that compete with supervised techniques.

Slowflow Sintel
PSNR SSIM IE PSNR SSIM IE
Baseline 30.79 0.84 8.57 29.14 0.84 8.96
Proposed 31.42 0.86 7.99 29.71 0.86 8.23
Table 5: Comparison of supervised training at quarter resolution (baseline) and unsupervised fine-tuning at full resolution (proposed) for frame rate upscaling from 30 to 240 FPS (Slowflow) and 24 to 1008 FPS (Sintel).

In our second domain transfer setting, we consider the scenario where target and test datasets share similarities in content and style but they are in different resolution. This is a very practical scenario given the scarcity of the high-frame high-resolution videos. Therefore, it is highly desirable to learn from low resolution videos, and be able to interpolate higher resolutions. We establish a low resolution baseline by training with supervision on 240 fps Slowflow-train dataset, after down-sampling its frames by 4 in each dimension. Our test video is Slowflow-test split at its original resolution. We repeat similar setting for Sintel. Table 5 shows results where our fine-tuning technique on the test domain improves PSNR from 30.79 to 31.42 for Slowflow, and from 29.14 to 29.71 for Sintel. Visual samples from this experiment can be found in Figure 5.

Figure 5: Visual results of a sample from Slowflow dataset. Baseline supervised model is trained with Slowflow dataset in quarter resolution and proposed unsupervised model is fine-tuned with full resolution Slowflow. The tree in the background is deformed, and also deformed in the supervised (middle), while it is predicted well in proposed (right). Bottom row, supervised shows blurriness in the grass, while it is crisper in the proposed.

4.4 Ablation Studies

We conduct ablation studies to analyze various design choices of the proposed method. In section 4.4.1, we run experiments by weighting the PS and CC losses with different ratios. In section 4.4.2, we study if the supervised training with low frame rate videos would perform similar to our proposed unsupervised method. Finally, in section 4.4.3, we compare our learning approach with the trivial case of copying one of the inputs as interpolation outputs.

4.4.1 Optimal CC and PS Weights

Figure 6 presents interpolation results in PSNR for our models trained with a range of PS weight, , values. We fix CC’s weight, to 0.8, and vary in small increments from 0 to 64. When , optimization is guided entirely by CC, it achieves PSNR of 32.35 for unsupervised Adobe+YouTubeSlowflow domain transfer. Interpolation accuracy gradually increases, and plateaus approximately after 0.8. Based on this, we select , and fix its value for all our experiments. At large values of , the optimization is mostly guided by PS loss, and as such, trained models perform very similarly to the pre-trained model that the PS loss depends on. Figure 6 shows this trend. Optimizing with optimally combined CC and PS losses on the other hand leads to results that are superior to those obtained using either loss alone.

4.4.2 Large Time-step Supervision

We study the effect of using loss terms, such as or its variations, defined over a longer time. Table 6 presents Adobe+YouTubeSlowflow fine-tuning with cycle consistency, the loss derived from two step interpolation alone or together with cycle consistency. Optimizing using losses derived from long step interpolation result in worse accuracy than optimizing with cycle consistency. When used with cycle consistency, we also did not find it to lead to notable improvement. We attribute this because the model’s capacity might be spent to solve the harder problem of interpolating large steps, and provide little benefit to the task of synthesizing intermediate frames between consecutive frames.

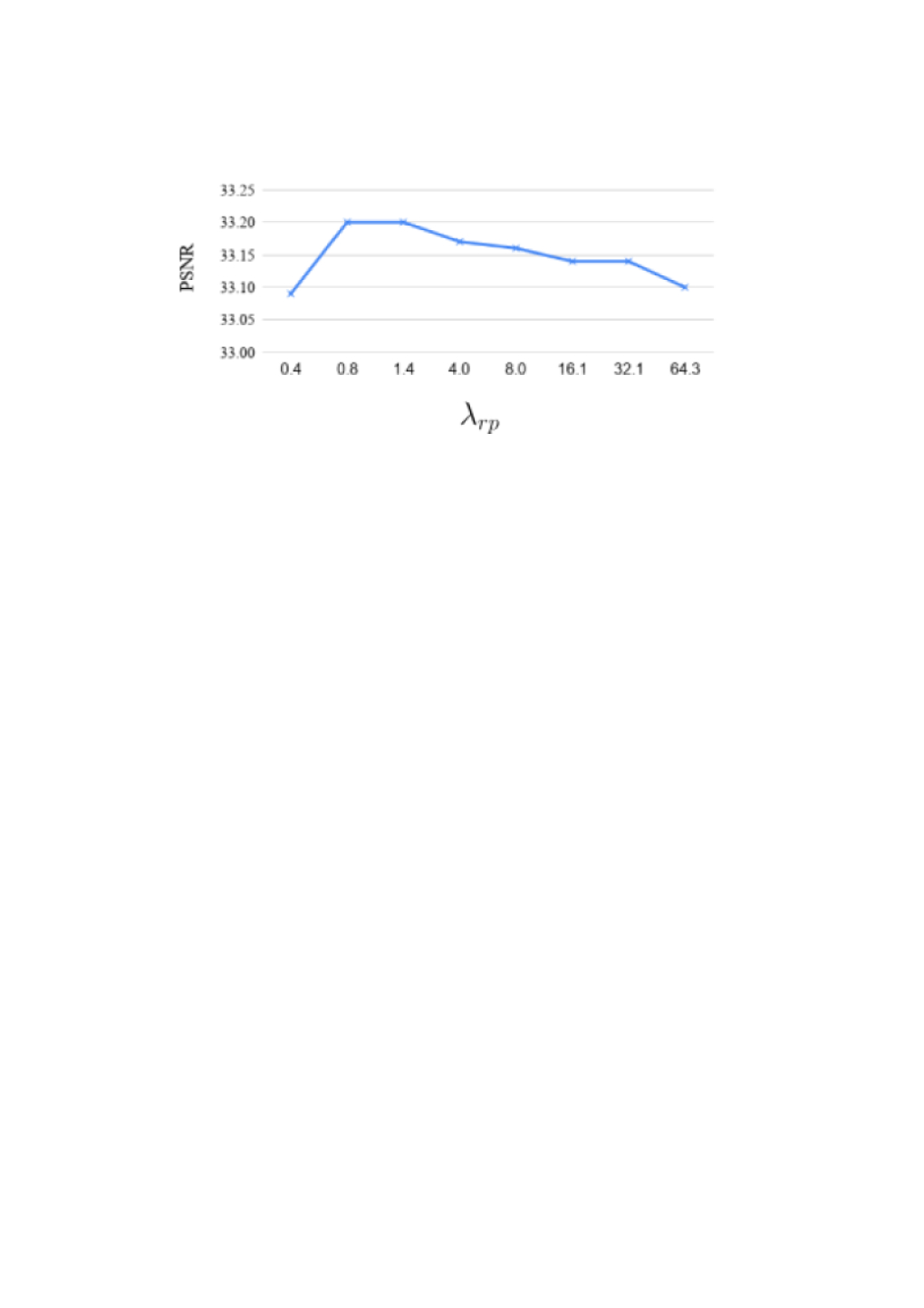

Figure 6: Interpolation accuracy in PSNR versus (PS weight) used in our proposed joint CC and PS optimization techniques, when applied for Adobe+YouTubeSlowflow unsupervised domain transfer.
Adobe+YouTubeSlowflow
Loss PSNR SSIM IE
CC 32.84 0.887 6.67
Long Step 29.03 0.824 8.98
CC + Long Step 32.24 0.884 6.81
Table 6: Comparison of cycle consistency with objectives derived from longer time step interpolation.

4.4.3 Trivial Solution of Cycle Consistency

We compare the results of cycle consistency based optimization with the trivial case of using one of the input frames as predictions. Table 7 presents results on UCF101 dataset. Compared to cycle consistency, the trivial predictions leads to significantly worse interpolation, which indicates that our optimizations as defined in equation 1 do in fact allow us to learn to synthesize intermediate frames from unpaired raw video frames.

UCF101
Training data PSNR SSIM IE
Copy Inputs N/A 31.27 0.895 8.35
Proposed Adobe-30fps 34.47 0.946 5.50
BattleField-30fps 34.55 0.947 5.38
Table 7: Comparison of results of cycle consistency training with the trivial baseline of using one of the input frames as an intermediate prediction. Evaluated on UCF101 for one intermediate frame synthesis.

5 Conclusions

We have presented unsupervised learning techniques to synthesize high frame rate videos directly from low frame rate videos by teaching models to satisfy cycle consistency in time. Models trained with our unsupervised techniques are able to synthesize arbitrarily many, high quality and temporally smooth intermediate frames that compete with supervised approaches. We further apply our techniques to reduce domain gaps in video interpolation by fine-tuning pre-trained models on target videos using a pseudo supervised loss term and demonstrate significant gain in accuracy. Our work shows the potential of learning to interpolate high frame rate videos using only low frame rate videos and opens new avenues to leverage large amounts of low frame rate videos in unsupervised training.

References

  • [1] S. Baker, D. Scharstein, J. Lewis, S. Roth, M. J. Black, and R. Szeliski. A database and evaluation methodology for optical flow.

    International Journal of Computer Vision

    , 92(1):1–31, 2011.
  • [2] R. W. Brislin. Back-translation for cross-cultural research. Journal of cross-cultural psychology, 1(3):185–216, 1970.
  • [3] E. Herbst, S. Seitz, and S. Baker. Occlusion reasoning for temporal interpolation using optical flow. Technical report, August 2009.
  • [4] E. Herbst, S. Seitz, and S. Baker. Occlusion reasoning for temporal interpolation using optical flow. Department of Computer Science and Engineering, University of Washington, Tech. Rep. UW-CSE-09-08-01, 2009.
  • [5] J. Janai, F. Guney, J. Wulff, M. J. Black, and A. Geiger. Slow flow: Exploiting high-speed cameras for accurate and diverse optical flow reference data. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    , pages 3597–3607, 2017.
  • [6] H. Jiang, D. Sun, V. Jampani, M.-H. Yang, E. Learned-Miller, and J. Kautz. Super slomo: High quality estimation of multiple intermediate frames for video interpolation. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [7] D. P. Kingma and J. Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
  • [8] Y.-L. Liu, Y.-T. Liao, Y.-Y. Lin, and Y.-Y. Chuang. Deep video frame interpolation using cyclic frame generation. In

    AAAI Conference on Artificial Intelligence (AAAI)

    , 2019.
  • [9] G. Long, L. Kneip, J. M. Alvarez, H. Li, X. Zhang, and Q. Yu. Learning image matching by simply watching video. In ECCV, 2016.
  • [10] G. Long, L. Kneip, J. M. Alvarez, H. Li, X. Zhang, and Q. Yu. Learning image matching by simply watching video. In European Conference on Computer Vision (ECCV), 2016.
  • [11] D. Mahajan, F.-C. Huang, W. Matusik, R. Ramamoorthi, and P. Belhumeur. Moving gradients: a path-based method for plausible image interpolation. In ACM Transactions on Graphics (TOG), volume 28, page 42, 2009.
  • [12] J. Mao, J. Huang, A. Toshev, O. Camburu, A. L. Yuille, and K. Murphy. Generation and comprehension of unambiguous object descriptions. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • [13] S. Niklaus and F. Liu. Context-aware synthesis for video frame interpolation. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [14] S. Niklaus, L. Mai, and F. Liu. Video frame interpolation via adaptive convolution. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • [15] S. Niklaus, L. Mai, and F. Liu. Video frame interpolation via adaptive separable convolution. In IEEE International Conference on Computer Vision (ICCV), 2017.
  • [16] F. A. Reda, G. Liu, K. J. Shih, R. Kirby, J. Barker, D. Tarjan, A. Tao, and B. Catanzaro. Sdc-net: Video prediction using spatially-displaced convolution. In Proceedings of the European Conference on Computer Vision (ECCV), pages 718–733, 2018.
  • [17] H. Shimodaira. Improving predictive inference under covariate shift by weighting the log-likelihood function. Journal of statistical planning and inference, 90(2):227–244, 2000.
  • [18] K. Soomro, A. R. Zamir, and M. Shah. A dataset of 101 human action classes from videos in the wild. Center for Research in Computer Vision, 2012.
  • [19] S. Su, M. Delbracio, J. Wang, G. Sapiro, W. Heidrich, and O. Wang. Deep video deblurring for hand-held cameras. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 1279–1288, 2017.
  • [20] R. Szeliski. Prediction error as a quality metric for motion and stereo. In ICCV, 1999.
  • [21] C. Zach, M. Klopschitz, and M. Pollefeys. Disambiguating visual relations using loop constraints. In 2010 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, pages 1426–1433. IEEE, 2010.
  • [22] T. Zhou, Y. Jae Lee, S. X. Yu, and A. A. Efros. Flowweb: Joint image set alignment by weaving consistent, pixel-wise correspondences. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 1191–1200, 2015.
  • [23] T. Zhou, P. Krahenbuhl, M. Aubry, Q. Huang, and A. A. Efros. Learning dense correspondence via 3d-guided cycle consistency. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • [24] X. Zhou, M. Zhu, and K. Daniilidis. Multi-image matching via fast alternating minimization. In Proceedings of the IEEE International Conference on Computer Vision, pages 4032–4040, 2015.
  • [25] J.-Y. Zhu, T. Park, P. Isola, and A. A. Efros. Unpaired image-to-image translation using cycle-consistent adversarial networks. In IEEE International Conference on Computer Vision (ICCV), 2017.
  • [26] C. L. Zitnick, S. B. Kang, M. Uyttendaele, S. Winder, and R. Szeliski. High-quality video view interpolation using a layered representation. In ACM Transactions on Graphics (TOG), volume 23, pages 600–608. ACM, 2004.
  • [27] X. T. Y. L. Ziwei Liu, Raymond Yeh and A. Agarwala. Video frame synthesis using deep voxel flow. In IEEE International Conference on Computer Vision (ICCV), 2017.

Appendix

A. Insensitivity to Randomness

We train our models three times to account for random weight initialisation or random data augmentation. Table 8

presents the mean and standard deviation of domain adaptation results for Adobe

Slowflow and Adobe+YouTubeSlowflow. Results indicate our models’ insensitivity to randomness, as shown by the margins of improvements in PSNR from 32.84 to 33.05 for Adobe, or from 33.13 to 33.20 for Adobe+YouTube. Table 8 also shows fine-tuning with PS loss alone leads to results that are similar to the Baseline.

B. Interpolation Result vs Intermediate Time

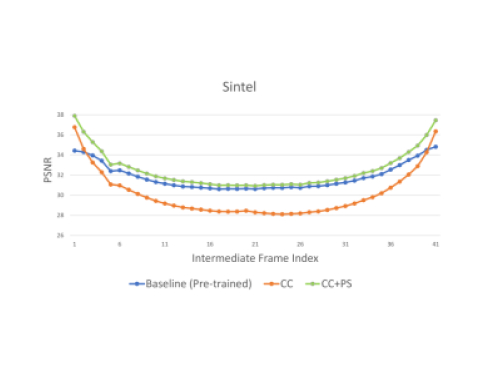

Figure 7 presents mean PSNR score at each of the 41 time-points for AdobeSintel domain adaptation using (a) Super SloMo [6] pre-trained with supervision (Baseline), (b) unsupervised fine-tuning with cycle consistency loss alone (CC), and (c) unsupervised fine-tuning with cycle consistency and pseudo supervised losses (CC+PS).

For all models, interpolation accuracy decreases as time-points move away from or . Compared to the baseline, our CC-based fine-tuning performs better at the end points (close to or ), and worse at midway points. On the other hand, our CC+PS-based unsupervised fine-tuning achieves the best of both CC and Baseline, performing better than both CC and Baseline at all time points.

AdobeSlowflow
Loss PSNR SSIM IE
Baseline PairedGT 32.84 0.887 6.67
Proposed CC 32.330.028 0.8860.000 6.780.021
PS 32.88 0.006 0.8870.000 6.740.006
CC + PS 33.050.006 0.8900.000 6.620.000
Adobe+YouTubeSlowflow
Baseline PairedGT 33.13 0.889 6.63
Proposed PS 33.140.006 0.8890.000 6.630.006
Proposed CC 32.330.028 0.8860.000 6.780.021
CC + PS 33.200.006 0.8910.001 6.570.010
Table 8: Mean and Standard deviation of PSNR, SSIM, and IE for domain adaptation of upscaling frame rate from 30- to 240-fps for Adobeor Adobe+YouTubeSlowflow. CC refers to cycle consistency, and PS pseudo supervised loss.
Figure 7: Mean PSNR score at each of the 41 time points for AdobeSintel domain adaptation using (a) Super SloMo [6] pre-trained with supervision (Baseline), (b) unsupervised fine-tuning with cycle consistency loss alone (CC), and (c) unsupervised fine-tuning with cycle consistency and pseudo supervised losses (CC+PS).
