Unsupervised Person Re-identification by Soft Multilabel Learning

03/15/2019 ∙ by Hong-Xing Yu, et al. ∙ 0

Although unsupervised person re-identification (RE-ID) has drawn increasing research attentions due to its potential to address the scalability problem of supervised RE-ID models, it is very challenging to learn discriminative information in the absence of pairwise labels across disjoint camera views. To overcome this problem, we propose a deep model for the soft multilabel learning for unsupervised RE-ID. The idea is to learn a soft multilabel (real-valued label likelihood vector) for each unlabeled person by comparing the unlabeled person with a set of known reference persons from an auxiliary domain. We propose the soft multilabel-guided hard negative mining to learn a discriminative embedding for the unlabeled target domain by exploring the similarity consistency of the visual features and the soft multilabels of unlabeled target pairs. Since most target pairs are cross-view pairs, we develop the cross-view consistent soft multilabel learning to achieve the learning goal that the soft multilabels are consistently good across different camera views. To enable effecient soft multilabel learning, we introduce the reference agent learning to represent each reference person by a reference agent in a joint embedding. We evaluate our unified deep model on Market-1501 and DukeMTMC-reID. Our model outperforms the state-of-theart unsupervised RE-ID methods by clear margins. Code is available at https://github.com/KovenYu/MAR.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

As a fundamental problem in visual surveillance, person re-identification (RE-ID) aims to match pairs of person images across non-overlapping camera views [59]

. Existing RE-ID works mostly focus on supervised learning

[17, 20, 57, 63, 1, 45, 51, 43, 38, 41, 33]. However, they need substantial pairwise labeled data across every pair of camera views, limiting the scalability to large-scale applications where only unlabeled data is available due to the prohibitive manual efforts in exhaustively labeling the pairwise RE-ID data [49]. To address the scalability problem, some recent works focus on unsupervised RE-ID, either by improving the feature representation [52, 16, 15, 56, 9, 46] or transfering the knowledge from other auxiliary labeled dataset [29, 8, 48, 7, 62]. However, the performance is still not satisfactory. The main reason is that, without the pairwise label information as learning guidence, it is very challenging to discover the identity discriminative information due to the drastic cross-view intra-person appearance variation [52] and the high inter-person appearance similarity [60].

To address the problem of lacking pairwise label guidance in unsupervised RE-ID, in this work we propose a novel soft multilabel learning to mine the potential label information in the unlabeled RE-ID data. The main idea is, for every unlabeled person image in an unlabeled RE-ID dataset, we learn a soft multilabel (i.e. a real-valued label likelihood vector instead of a single pseudo label) by comparing this unlabeled person with a set of reference persons from an existing labeled auxiliary dataset. Figure 1 illustrates this soft multilabel concept.

Figure 1: Illustration of our soft multilabel concept. We learn a soft multilabel (real-valued label vector) for each unlabeled person by comparing to a set of known auxiliary reference persons (thicker arrowline indicates higher label likelihood). Best viewed in color.

Based on this soft multilabel learning concept, we propose to mine the potential discriminative information by the soft multilabel-guided hard negative mining, i.e. we leverage the soft multilabel to distinguish the visually similar but different unlabeled persons. In essence, the soft multilabel encodes the relative comparative characteristic of the unlabeled person, and thus it represents the person from a different perspective than the absolute visual feature representation. Intuitively, a pair of images of the same person should not only be visually similar to each other (i.e. they should have similar absolute visual features), but also be equally similar to any other reference person (i.e. they should also have similar relative comparative characteristics with respect to the reference persons). If this similarity consistency

between the absolute visual representation and the relative soft multilabel representation is violated, i.e. the pair of images are visually similar but their comparative characteristics are dissimilar, it is probably a hard negative pair.

In the RE-ID context, most image pairs are cross-view pairs which consist of two person images captured by different camera views. Therefore, we propose to learn the soft multilabels that are consistently good across different camera views. We refer to this learning as the cross-view consistent soft multilabel learning. To enable the efficient soft multilabel learning which requires comparison between the unlabeled persons and the reference persons, we introduce the reference agent learning to represent each reference person by a reference agent which resides in a joint feature embedding with the unlabeled persons. Specifically, we develop a unified deep model named deep soft multilabel reference learning (MAR) which jointly formulates the soft multilabel-guided hard negative mining, the cross-view consistent soft multilabel learning and the reference agent learning.

We summarize our contributions as follows: (1). We address the unsupervised RE-ID problem by a novel soft multilabel reference learning method, in which we exploit the reference comparison information to mine the potential label information latent in the unlabeled RE-ID data. (2). We formulate a novel deep model named deep soft multilabel reference learning (MAR). MAR enables simultaneously the soft multilabel-guided hard negative mining, the cross-view consistent soft multilabel learning and the reference agent learning in a unified model.

We evaluate our model on two largest RE-ID benchmarks Market-1501 and DukeMTMC-reID. The results show that our model outperforms the state-of-the-art unsupervised RE-ID methods by significant margins.

2 Related Work

Unsupervised RE-ID. Unsupervised RE-ID refers to that the target dataset is unlabelled but the source/auxiliary dataset is not necessarily unlabelled [29, 8, 48, 7, 62], because unsupervised RE-ID is so challenging that existing methods need to either transfer source label knowledge [29, 8, 48, 7, 62] or assuming strong prior knowledge (i.e. either assuming the target RE-ID data has specific cluster structure [52, 8] or assuming the hand-crafted features could be discriminative enough [52, 16, 15, 56, 9, 46]). Recently attempts have been made on exploiting video tracklet associations for unsupervised RE-ID [5, 19]. Another line of work focusing on reducing the labelling effort is to minimize the labelling budget on the target [32] which is complementary to the unsupervised RE-ID. The most related works are the pseudo label learning based unsupervised RE-ID models [52, 8], e.g. Yu et.al. [52] proposed to learn the cross-view asymmetric distance metric based on the clustering labels. The main difference is that the soft multilabel could leverage the auxiliary reference information other than visual feature similarity, while the pseudo label only encodes the visual feature similarity of a pair of unlabeled images. Hence, the soft multilabel could mine the potential label information that cannot be discovered by directly comparing the visual features, while the pseudo label inherently could not achieve this goal.

A few unsupervised RE-ID works also proposed to use the auxiliary labeled dataset by the unsupervised domain adaptation [50, 7, 62, 48] to transfer the discriminative knowledge from the auxiliary domain (i.e. source domain). Our model is different from them in that these models do not mine the discriminative information in the unlabeled target domain, which is very important because the transferred discriminative knowledge might be less effective in the target domain due to the domain shift [28] in discriminative visual clues.

Unsupervised domain adaptation. Our work is also closely related to the unsupervised domain adaptation (UDA) [23, 39, 40, 36, 25, 42, 10, 24], which also has an auxiliary labeled dataset (the source dataset) and an unlabeled target dataset (the target dataset). Most existing UDA models work by aligning the distributions between the source and the target domains, justified theoretically by Ben-David et.al. [3]. However, they are mostly based on the assumption that the classes are the same between both domains [3, 28, 6, 27], which does not hold in the RE-ID context where the persons (classes) in the source dataset are completely different from the persons in the target dataset, rendering these UDA models inapplicable to the unsupervised RE-ID [50, 7, 62, 48].

Multilabel classification. Our soft multilabel learning is conceptually different from the multilabel classification (multilabel learning) [53]. The multilabel in the multilabel classification [53] is a groudtruth binary vector indicating whether an instance belongs to a set of classes, while our learned soft multilabel encodes the comparative similarity between an unlabeled target person and other different reference persons because the identity pool in the target dataset is totally disjoint to the identity pool in the auxiliary dataset.

The multilabel classification models aim to classify an instance to multiple

known classes, while our soft multilabel serves to describe the label likelihood (inter-person similarity) of an unknown person w.r.t. the persons in the auxiliary dataset. Hence, existing multilabel classification models are for a different purpose and thus not suitable to model our idea.

Zero-shot learning. Zero-shot learning (ZSL) aims to recognize novel testing classes specified by semantic attributes but unseen during training [18, 31, 54, 14, 55]. Our soft multilabel reference learning is related to ZSL in that every unknown target person (unseen testing class) is represented by a set of known reference persons (attributes of training classes). However, ZSL models need predefined semantic attributes to specify every unseen class, which are not available in unsupervised RE-ID. Nevertheless, the success of ZSL models validates/justifies the effectiveness of representing an unknown class (person) with a set of different classes. A recent work in supervised RE-ID also explores a similar idea by representing an unknown testing person in an ID regression space which is formed by the known training persons [47], but it requires substantial labeled training persons from the target domain to construct the ID regression space. Also note that we optimize and leverage the soft multilabel as a learning guidance rather than as a representation.

3 Deep Soft Multilabel Reference Learning

3.1 Problem formulation and Overview

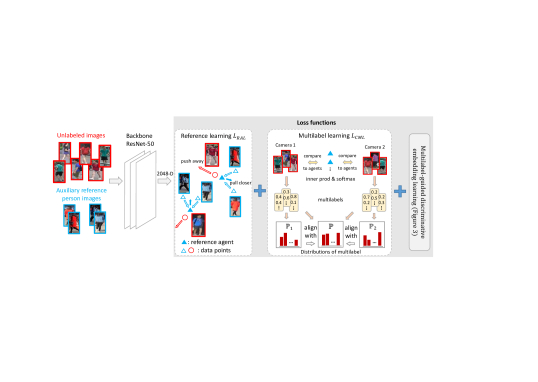

Figure 2: An illustration of our model MAR. We learn the soft multilabel by comparing each target unlabeled person image (red circle) to a set of auxiliary reference persons represented by a set of reference agents (blue triangles, learnable parameters) in the feature embedding. The soft multilabel judges whether a similar pair is positive or hard negative for discriminative embedding learning (Sec. 3.2). The soft multilabel learning and the reference learning are elaborated in Sec. 3.3 and Sec. 3.4, respectively. Best viewed in color.

We have an unlabeled target RE-ID dataset where each is an unlabeled person image collected in the target visual surveillance scenario, and an auxiliary RE-ID dataset where each is a person image with its label where is the number of the reference persons. Note that the reference population is completely non-overlapping with the unlabeled target population since it is collected from a different surveillance scenario [50, 7, 62]. Our goal is to learn a soft multilabel function such that

where all dimensions add up to 1 and each dimension represents the label likelihood w.r.t. a reference person. Simultaneously, we aim to learn a discriminative deep feature embdding

under the guidance of the soft multilabels for the RE-ID task. Specifically, we propose to leverage the soft multilabel for hard negative mining, i.e. for visually similar pairs we determine they are positive or hard negative by comparing their soft multilabels. We refer to this part as the Soft multilabel-guided hard negative mining (Sec. 3.2). In the RE-ID context, most pairs are cross-view pairs which consist of two person images captured by different camera views. Therefore, we aim to learn the soft multilabels that are consistently good across different camera views so that the soft multilabels of the cross-view images are comparable. We refer to this part as the Cross-view consistent soft multilabel learning (Sec. 3.3). To effeciently compare each unlabeled person to all the reference persons, we introduce the reference agent learning (Sec. 3.4), i.e. we learn a set of reference agents each of which represents a reference person in the shared joint feature embedding where both the unlabeled person and the agents reside (so that they are comparable). Therefore, we could learn the soft multilabel for by comparing with the reference agents , i.e. the soft multilabel function is simplified to .

We show an overall illustration of our model in Figure 2. In the following, we introduce our deep soft multilabel reference learning (MAR). We first introduce the soft multilabel-guided hard negative mining given the reference agents and the reference comparability between and . To facilitate learning the joint embedding, we enforce a unit norm constraint, i.e. , to learn a hypersphere embedding [44, 22]

. Note that in the hypersphere embedding, the cosine similarity between a pair of features

and is simplified to their inner product , and so as for the reference agents.

3.2 Soft multilabel-guided hard negative mining

Let us start by defining the soft multilabel function. Since each entry/dimension of the soft multilabel represents the label likelihood that adds up to 1, we define our soft multilabel function as

(1)

where is the -th entry of .

It has been shown extensively that mining hard negatives is more important in learning a discriminative embedding than naively learning from all visual samples [13, 37, 26, 35, 34]. We explore a soft multilabel-guided hard negative mining, which focuses on the pairs of visually similar but different persons and aims to distinguish them with the guidance of their soft multilabels. Given that the soft multilabel encodes relative comparative characteristics, we explore a representation consistency: Besides the similar absolute visual features, images of the same person should also have similar relative comparative characteristics (i.e. equally similar to any other reference person). Specifically, we make the following assumption in our model formulation:

Assumption 1.

If a pair of unlabeled person images has high feature similarity , we call the pair a similar pair. If a similar pair has highly similar comparative characteristics, it is probably a positive pair. Otherwise, it is probably a hard negative pair.

For the similarity measure of the comparative characteristics encoded in the pair of soft multilabels, we propose the soft multilabel agreement , defined by:

(2)

which is based on the well-defined L1 distance. Intuitively, the soft multilabel agreement is an analog to the voting by the reference persons: Every reference person gives his/her conservative agreement on believing the pair to be positive (the more similar/related a reference person is to the unlabeled pair, the more important is his/her word), and the soft multilabel agreement is cumulated from all the reference persons. The soft multilabel agreement is defined based on L1 distance to treat fairly the agreement of every reference person by taking the absolute value.

Now, we mine the hard negative pairs by considering both the feature similarity and soft multilabel agreement according to Assumption 1. We formulate the soft multilabel-guided hard negative mining with a mining ratio : We define the similar pairs in Assumption 1 as the pairs that have highest feature similarities among all the pairs within the unlabeled target dataset . For a similar pair , if it is also among the top pairs that have the highest soft multilabel agreements, we assign to the positive set , otherwise we assign it to the hard negative set (see Figure 3). Formally, we construct:

(3)

where is the cosine similarity (inner product) of the -th pair after sorting all pairs in an descending order according to the feature similarity (i.e. is a similarity threshold), and is the similarly defined threshold value for the soft multilabel agreement. Then we formulate the soft Multilabel-guided Discriminative embedding Learning by:

(4)

where

By minimizing , we are learning a discriminative feature embedding using the mined positive/hard negative pairs. Note that the construction of and is dynamic during model training, and we construct them within every batch with the up-to-date feature embedding during model learning (in this case, we simply replace by where is the number of unlabeled images in a mini-batch).

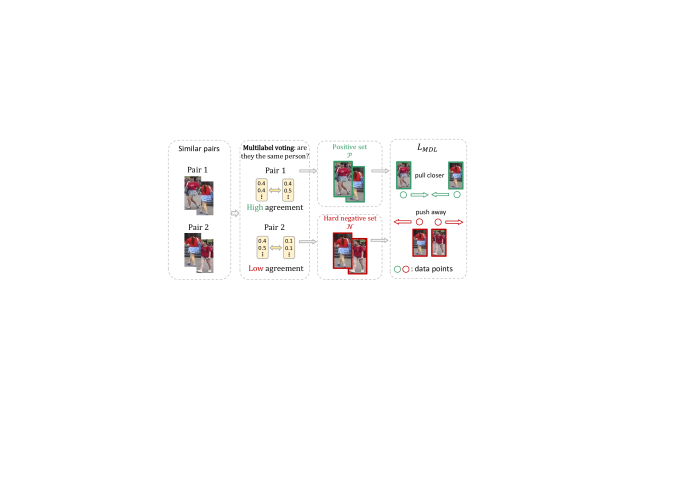

Figure 3: Illustration of the soft multilabel-guided hard negative mining. Best viewed in color.

3.3 Cross-view consistent soft multilabel learning

Given the soft multilabel-guided hard negative mining, we notice that most pairs in the RE-ID problem context are the cross-view pairs which consist of two person images captured by different camera views [52]. Therefore, the soft multilabel should be consistently good across different camera views to be cross-view comparable. From a distributional perspective, given the reference persons and the unlabeled target dataset which is collected in a given target domain, the distribution of the comparative characteristic should only depend on the distribution of the person appearance in the target domain and be independent of its camera views. For example, if the target domain is a cold open-air market where customers tend to wear dark clothes, the soft multilabels should have higher label likelihood in the entries which are corresponding to those reference persons who also wear dark, no matter in which target camera view. In other words, the distribution of the soft multilabel in every camera view should be consistent with the distribution of the target domain. Based on the above analysis, we introduce a Cross-view consistent soft Multilabel Learning loss111For conciseness we omit all the averaging divisions for the outer summations in our losses.:

(5)

where is the soft multilabel distribution in the dataset , is the soft multilabel distribution in the -th camera view in , and is the distance between two distributions. We could use any distributional distance, e.g. the KL divergence [11] and the Wasserstein distance [2]

. Since we empirically observe that the soft multilabel approximately follows a log-normal distribution, in this work we adopt the simplified 2-Wasserstein distance

[4, 12] which gives a very simple form (please refer to the supplementary material for the observations of the log-normal distribution and the derivation of the simplified 2-Wasserstein distance):

(6)

where / is the mean/std vector of the log-soft multilabels, / is the mean/std vector of the log-soft multilabels in the -th camera view. The form of in Eq. (6) is computationally cheap and easy-to-compute within a batch. We note that the camera view label is naturally available in the unsupervised RE-ID setting [52, 62], i.e. it is typically known from which camera an image is captured.

3.4 Reference agent learning

A reference agent serves to represent a unique reference person in the feature embedding like a compact ‘‘feature summarizer’’. Therefore, the reference agents should be mutually discriminated from each other while each of them should be representative of all the corresponding person images. Considering that the reference agents are compared within the soft multilabel function , we formulate the Agent Learning loss as:

(7)

where is the -th person image in the auxiliary dataset with its label .

By minimizing , we not only learn discriminatively the reference agents, but also endow the feature embedding with basic discriminative power for the soft multilabel-guided hard negative mining. Moreover, it reinforces implicitly the validity of the soft multilabel function . Specifically, in the above , the soft multilabel function learns to assign a reference person image with a soft multilabel by comparing to all agents, with the learning goal that should have minimal cross-entropy with (i.e. similar enough to) the ideal one-hot label which could produce the ideal soft multilabel agreement, i.e. if and are the same person and otherwise. However, this is minimized for the auxiliary dataset. To further improve the validity of the soft multilabel function for the unlabeled target dataset (i.e. the reference comparability between and ), we propose to learn a joint embedding as follows.

Joint embedding learning for reference comparability. A major challenge in achieving the reference comparability is the domain shift [28], which is caused by different person appearance distributions between the two independent domains. To address this challenge, we propose to mine the cross-domain hard negative pairs (i.e. the pair consisting of an unlabeled person and an auxiliary reference person ) to rectify the cross-domain distributional misalignment. Intuitively, for each reference person , we search for the unlabeled persons that are visually similar to . For a joint feature embedding where the discriminative distributions are well aligned, and

should be discriminative enough to each other despite their high visual similarity. Based on the above discussion, we propose the Reference agent-based Joint embedding learning loss

222For brevity we omit the negative auxiliary term (i.e. ) which is for a balanced learning in both domains, as our focus is to rectify the cross-domain distribution misalignment.:

(8)

where denotes the mined data associated with the -th agent , is the agent-based margin which has been theoretically justified in [44] with its recommaned value 1, and is the hinge function. The center-pulling term reinforces the representativeness of the reference agents to improve the validity that represents a reference person in the cross-domain pairs (, ).

We formulate the Reference Agent Learning by:

(9)

where balances the loss magnitudes.

3.5 Model training and testing

To summarize, the loss objective of our deep soft multilabel reference learning (MAR) is formulated by:

(10)

where and

are hyperparameters to control the relative importance of the cross-view consistent soft multilabel learning and the reference agent learning, respectively. We train our model end to end by the Stochastic Gradient Descent (SGD). For testing, we compute the cosine feature similarity of each probe(query)-gallery pair, and obtain the ranking list of the probe image against the gallery images.

4 Experiments

4.1 Datasets

Figure 4: Dataset examples.

Evaluation benchmarks. We evaluate our model in two widely used large RE-ID benchmarks Market-1501 [58] and DukeMTMC-reID [61, 30]. The Market-1501 dataset has 32,668 person images of 1,501 identities. There are in total 6 camera views. The Duke dataset has 36,411 person images of 1,404 identities. There are in total 8 camera views. We show example images in Figure 4. We follow the standard protocol [58, 61]

where the training set contains half of the identities, and the testing set contains the other half. We do not use any label of the target datasets during training. The evaluation metrics are the Rank-1/Rank-5 matching accuracy and the mean average precision (MAP)

[58].

Auxiliary dataset. Essentially the soft multilabel represents an unlabeled person by a set of reference persons, and therefore a high appearance diversity of the reference population would enhance the validity and capacity of the soft multilabel. Hence, we adopt the MSMT17 [50] RE-ID dataset as the auxiliary dataset, which has more identities (i.e. 4,101 identities) than any other RE-ID dataset and which is collected along several days instead of a single day (different weathers could lead to different dressing styles). There are in total 126,441 person images in the MSMT17 dataset. Adopting the MSMT17 as auxiliary dataset enables us to evaluate how various numbers of reference persons (including when there are only a small number of reference persons) affect our model learning in Sec. 4.6.

4.2 Implementation details

We set batch size , half of which randomly samples unlabeled images and the other half randomly samples . Since optimizing entropy-based loss with the unit norm constraint has convergence issue [44, 37], we follow the training method in [44], i.e. we first pretrain the network using only (without enforcing the unit norm constraint) to endow the basic discriminative power with the embedding and to determine the directions of the reference agents in the hypersphere embedding [44], then we enforce the constraint to start our model learning and multiply the constrained inner products by the average inner product value in the pretraining. We set which controls the relative importance of soft multilabel learning and which controls the relative importance of agent reference learning. We show an evaluation on and in Sec. 4.6. We set the mining ratio to 5‰and set . Training is on four Titan X GPUs and the total time is about 10 hours. We leave the evaluations on / and further details in the supplementary material due to space limitation.

4.3 Comparison to the state of the art

Methods Reference Market-1501
rank-1 rank-5 mAP
LOMO [20] CVPR’15 27.2 41.6 8.0
BoW [58] ICCV’15 35.8 52.4 14.8
DIC [16] BMVC’15 50.2 68.8 22.7
ISR [21] TPAMI’15 40.3 62.2 14.3
UDML [29] CVPR’16 34.5 52.6 12.4
CAMEL [52] ICCV’17 54.5 73.1 26.3
PUL [8] ToMM’18 45.5 60.7 20.5
TJ-AIDL [48] CVPR’18 58.2 74.8 26.5
PTGAN [50] CVPR’18 38.6 57.3 15.7
SPGAN [7] CVPR’18 51.5 70.1 27.1
HHL [62] ECCV’18 62.2 78.8 31.4
MAR This work 67.7 81.9 40.0
Table 1: Comparison to the state-of-the-art unsupervised results in the Market-1501 dataset. Red indicates the best and Blue the second best. Measured by %.
Methods Reference DukeMTMC-reID
rank-1 rank-5 mAP
LOMO [20] CVPR’15 12.3 21.3 4.8
BoW [58] ICCV’15 17.1 28.8 8.3
UDML [29] CVPR’16 18.5 31.4 7.3
CAMEL [52] ICCV’17 40.3 57.6 19.8
PUL [8] ToMM’18 30.0 43.4 16.4
TJ-AIDL [48] CVPR’18 44.3 59.6 23.0
PTGAN [50] CVPR’18 27.4 43.6 13.5
SPGAN [7] CVPR’18 41.1 56.6 22.3
HHL [62] ECCV’18 46.9 61.0 27.2
MAR This work 67.1 79.8 48.0
Table 2: Comparison to the state-of-the-art unsupervised results in the DukeMTMC-reID dataset. Measured by %.

We compare our model with the state-of-the-art unsupervised RE-ID models including: (1) the hand-crafted feature representation based models LOMO [20], BoW [58], DIC [16], ISR [21] and UDML [29]; (2) the pseudo label learning based models PUL [8] and CAMEL [52]; and (3) the unsupervised domain adaptation based models TJ-AIDL [48], PTGAN [50], SPGAN [7] and HHL [62]. We show the results in Table 1 and Table 2.

From Table 1 and Table 2 we observe that our model could significantly outperform the state-of-the-art methods. Specifically, our model achieves an improvement over the current state of the art (HHL in ECCV’18) by 20.2%/20.8% on Rank-1 accuracy/MAP in the DukeMTMC-reID dataset and by 5.5%/8.6% in the Market-1501 dataset. This observation validates the effectiveness of MAR.

Comparison to the hand-crafted feature representation based models. The performance gaps are most significant when comparing our model to the hand-crafted feature based models [20, 58, 16, 21, 29]

. The main reason is that these early works are mostly based on heuristic design, and thus they could not learn optimal discriminative features.

Comparison to the pseudo label learning based models. Our model significantly outperforms the pseudo label learning based unsupervised RE-ID models [52, 8]

. A key reason is that our soft multilabel reference learning could exploit the auxiliary reference information to mine the potential discriminative information that is hardly detectable when directly comparing the visual features of a pair of visually similar persons. In contrast, the pseudo label learning based models assign the pseudo label by direct comparison of the visual features (e.g. via K-means clustering

[52, 8]), rendering them blind to the potential discriminative information.

Comparison to the unsupervised domain adaptation based models. Compared to the unsupervised domain adaptation based RE-ID models [50, 7, 62, 48], our model achieves superior performances. A key reason is that these models only focus on transfering/adapting the discriminative knowledge from the source domain but ignore the discriminative label information mining in the unlabeled target domain. The discriminative knowledge in the source domain could be less effective in the target domain even after adaptation, because the discriminative clues can be drastically different. In contrast, our model mines the discriminative information in the unlabeled target data, which contributes direct effectiveness to the target RE-ID task.

4.4 Ablation study

Methods Market-1501
rank-1 rank-5 rank-10 mAP
Pretrained 46.2 64.4 71.3 24.6
Baseline 44.4 62.5 69.8 21.5
MAR w/o 60.0 75.9 81.9 34.6
MAR w/o & 53.9 71.5 77.7 28.2
MAR w/o 59.2 76.4 82.3 30.8
MAR 67.7 81.9 87.3 40.0
Methods DukeMTMC-reID
rank-1 rank-5 rank-10 mAP
Pretrained 43.1 59.2 65.7 28.8
Baseline 50.0 66.4 71.7 31.7
MAR w/o 63.2 77.2 82.5 44.9
MAR w/o & 60.1 73.0 78.4 40.4
MAR w/o 57.9 72.6 77.8 37.1
MAR 67.1 79.8 84.2 48.0
Table 3: Ablation study. Please refer to the text in Sec. 4.4.

We perform an ablation study to demonstrate (1) the effectiveness of the soft multilabel guidance and (2) the indispensability of the cross-view consistent soft multilabel learning and the reference agent learning to MAR. For (1), we adopt the pretrained model (i.e. only trained by using the auxiliary MSMT17 dataset to have basic discriminative power, as mentioned in Sec. 4.2). We also adopt a baseline model that is feature similarity-guided instead of soft multilabel-guided. Specifically, after the same pretraining procedure, we replace the soft multilabel agreement with the feature similarity, i.e. in the hard negative mining we partition the mined similar pairs into two halves by a threshold of feature similarity rather than soft multilabel agreement, and thus regard the high/low similarity half as positive set /hard negative set . For (2), we remove the or . We show the results in Table 3.

Effectiveness of the soft multilabel-guided hard negative mining. Comparing MAR to the pretrained model where the soft multilabel-guided hard negative mining is missing, we observe that MAR significantly improves the pretrained model (e.g. on Market-1501/DukeMTMC-reID, MAR improves the pretrained model by 21.5%/24.0% on Rank-1 accuracy). This is because the pretrained model is only discriminatively trained in the auxiliary dataset by a classification loss, but without further mining the discriminative information in the unlabeled target dataset. This comparison demonstrates the effectiveness of the soft multilabel-guided hard negative mining.

Effectiveness of the soft multilabel agreement guidance. Comparing MAR to the baseline model, we observe that MAR also significantly outperforms the similarity-guided hard negative mining baseline model. (e.g. on Market-1501/DukeMTMC-reID, MAR outperforms the similarity-guided hard negative mining baseline by 23.3%/17.1% on Rank-1 accuracy). Furthermore, even when the soft multilabel learning and reference agent learning losses are missing (i.e. ‘‘MAR w/o ’’ where the soft multilabel is much worse than MAR), the soft multilabel-guided model still outperforms the similarity-guided model by 14.8%/7.9% on Rank-1 accuracy on Market-1501/DukeMTMC. These demonstrate the effectiveness of the soft multilabel guidance.

Indispensability of the soft multilabel learning and the reference agent learning. When the cross-view consistent soft multilabel learning loss is absent, the performances drastically drop (e.g. drop by 7.7%/5.4% on Rank-1 accuracy/MAP in the Market-1501 dataset). This is mainly because optimizing improves the soft multilabel comparability of the cross-view pairs [52], giving more accurate judgement in the positive/hard negative pairs. Hence, the cross-view consistent soft multilabel learning is indispensable in MAR. When the reference agent learning loss is also absent, the performances further drop (e.g. drop by 13.8%/11.8% on Rank-1/MAP in the Market-1501 dataset). This is because in the absence of the reference agent learning, the soft multilabel is learned via comparing to the less valid reference agents (only pretrained). This observation validates the importance of the reference agent learning.

4.5 Visual results and insight

Figure 5: Visual results of the soft multilabel-guided hard negative mining. Each pair surrounded by the red box is the similar pair mined by our model with the lowest soft multilabel agreements, and the images on their right are the reference persons corresponding to the first/second maximal soft multilabel entries. The first row is from the Market-1501 and the second from DukeMTMC-reID. We highlight the discovered fine-grained discriminative clues in the bottom text for each pair. Please view this figure in the screen and zoom in to see the fine-grain discriminative clues.

To demonstrate how the proposed soft multilabel reference learning works, in Figure 5 we show the similar target pairs with the lowest soft multilabel agreements (i.e. the mined soft multilabel-guided hard negative pairs) mined by our trained model. We make the following observations:

(1) For an unlabeled person image , the maximal entries of the learned soft multilabel (i.e. the maximal label likelihood) are corresponding to the reference persons that are highly visually similar to , i.e. the soft multilabel represents an unlabeled person mainly by visually similar reference persons.

(2) For a pair of visually similar but unlabeled person images, the soft multilabel reference learning works by discovering potential fine-grained discriminative clues. For example, in the upper-right pair in Figure 5, the two men are dressed similarly. A potential fine-grained discriminative clue is whether they have a backpack. For the man taking a backpack, the soft multilabel reference learning assigns maximal label likelihood to two reference persons who also take backpacks, while for the other man the two reference persons do not take backpacks, either. As a result, the soft multilabel agreement is very low, giving a judgement that this is a hard negative pair. We highlight the discovered fine-grained discriminative clues in the bottom of every pair.

These observations lead us to conclude that the soft multilabel reference learning distinguishes visually similar persons by giving high label likelihood to different reference persons to produce a low soft multilabel agreement.

4.6 Further evaluations

Various numbers of reference persons. We evaluate how the number of reference persons affect our model learning. In particular, we vary the number by using only the first reference persons (except that we keep all data used in to guarantee that the basic discriminative power is not changed). We show the results in Figure 6.

From Figure 6(a) we observe that: (1) Empirically, the performances become stable when the number of reference persons are larger than 1,500, which is approximately two times of the number of the training persons in both datasets (750/700 training persons in Market-1501/DukeMTMC-reID). This indicates that MAR does not necessarily require a very large reference population but a median size, e.g. two times of the training persons. (2) When there are only a few reference persons (e.g. 100), the performances drop drastically due to the poor soft multilabel representation capacity of the small reference population. In other words, this indicates that MAR could not be well learned using a very small auxiliary dataset.

Hyperparameter evaluations. We evaluate how (which controls the relative importance of the soft multilabel learning) and (the relative importance of the reference agent learning) affect our model learning. We show the results in Figure 7. From Figure 7 we observe that our model learning is stable within a wide range for both hyperparameters (e.g. and ), although both of them should not be too large to overemphasize the soft multilabel/reference agent learning.

(a) Market-1501
(b) DukeMTMC-reID
Figure 6: Evaluation on different numbers of reference persons.
(a)
(b)
Figure 7: Evaluation on important hyperparameters. For (a) we fix and for (b) we fix .

5 Conclusion

In this work we demonstrate the effectiveness of the soft multilabel which represents an unlabeled person by the relative comparative characteristics w.r.t. a set of auxiliary persons for mining the potential label information latent in the unlabeled RE-ID data. Specifically, we propose MAR which enables simultaneously the soft multilabel-guided hard negative mining, the cross-view consistent soft multilabel learning and the reference agent learning in a unified model. In MAR, we leverage the soft multilabel for mining the latent discriminative information that cannot be discovered by direct comparison of the absolute visual features in the unlabeled RE-ID data. To enable the soft multilabel-guided hard negative mining in MAR, we simultaneously optimize the cross-view consistent soft multilabel learning and the reference agent learning. Experimental results in two benchmarks validate the effectiveness of the proposed MAR and each learning component of MAR.
