Pose-guided image generation has attracted great attentions recently, which is to change the pose of the person image to a target pose, while keeping the appearance details. This topic is of great importance in fashion and art domains for a wide range of applications from image / video editing, person re-identification to movie production.
With the development of deep learning and generative model, many researches have been devoted to pose-guided image generation [19, 21, 5, 27, 26, 1, 20]. Initially, this problem is explored under the fully supervised setting [19, 27, 26, 1]. Though promising results have been presented, their training data has to be composed with paired images (i.e., same person in the same clothing but in different poses). To tackle this data limitation and enable more flexible generation, more recent efforts have been devoted to learning the mapping with unpaired data [21, 5, 20]. However without “paired” supervision, results in  are far from satisfactory due to the lack of supervision. Disentangling image into multiple factors (e.g., background / foreground, shape / appearance) is explored in [20, 5]. But ignoring the non-rigid human-body deformation and clothing shapes leads to compromised generation quality.
Formally, the key challenges of this unsupervised task are in three folds. First, due to the non-rigid nature of human body, transforming the spatially misaligned body-parts is difficult for current convolution-based networks. Second, clothing attributes, e.g., sleeve lengths and textures, are generally difficult to preserve during generation. However, these clothing attributes are crucial for human visual perception. Third, the lack of paired training data gives little clue in establishing effective training objectives.
To address these aforementioned challenges, we propose to seek a new pathway for unsupervised person image generation. Specifically, instead of directly transforming the person image, we propose to transform the semantic parsing between poses. On one hand, translating between person image and semantic parsing (in both directions) has been extensively studied, where sophisticated models are available. On the other hand, semantic parsing transformation is a much easier problem to handle spatial deformation, since the network does not care about the appearance and textures.

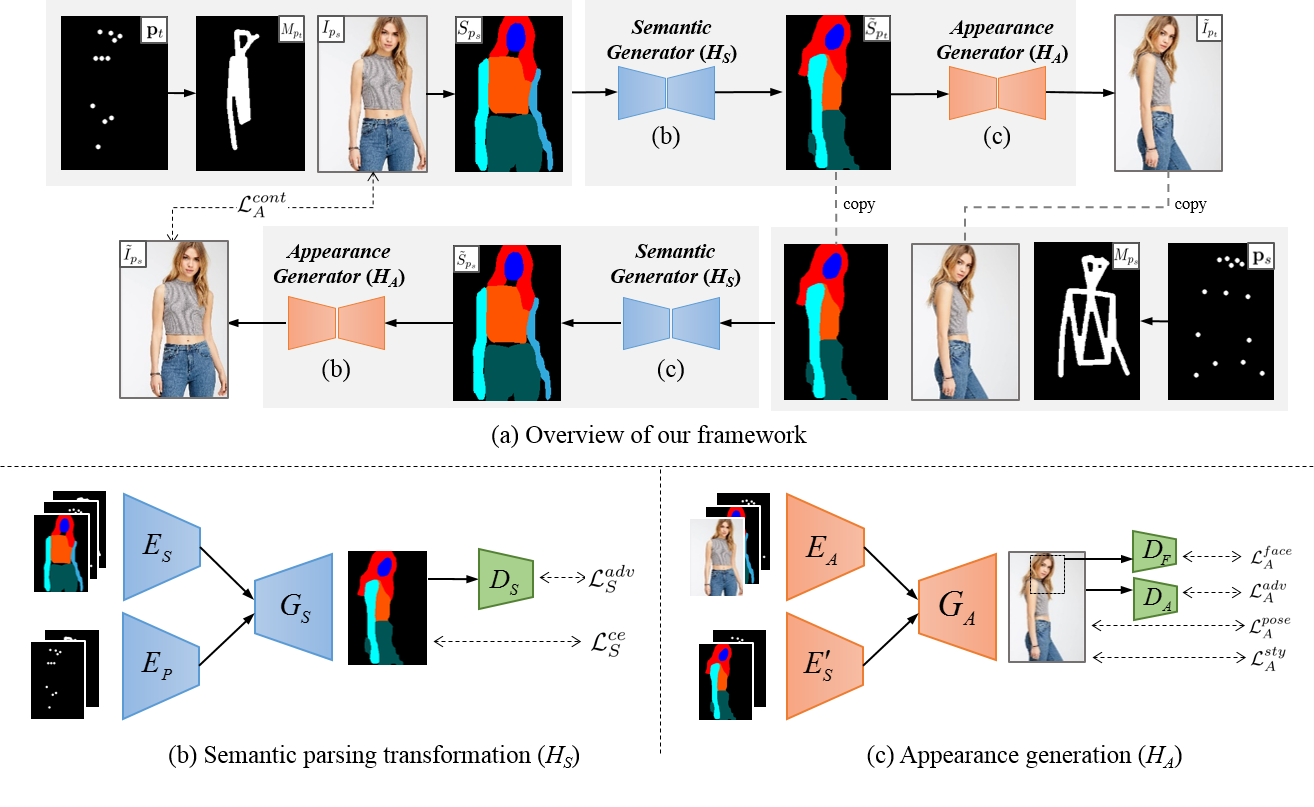

As illustrated in Fig. 2, our model for unsupervised person image generation consists of two modules: semantic parsing transformation and appearance generation. In semantic parsing transformation, a semantic generative network is employed to transform the input semantic parsing to the target parsing, according to the target pose. Then an appearance generative network is designed to synthesize textures on the transformed parsing. Without paired supervision, we create pseudo labels for semantic parsing transformation and introduce cycle consistency for training. Besides, a semantic-aware style loss is developed to help the appearance generative network learn the essential mapping between corresponding semantic areas, where clothing attributes can be well-preserved by rich semantic parsing. Furthermore, we demonstrate that the two modules can be trained in an end-to-end manner for finer semantic parsing as well as the final results.
In addition, the mapping between corresponding semantic areas inspires us to apply our appearance generative network on applications of semantic-guided image generation. Conditioning on the semantic map, we are able to achieve clothing texture transfer of two person images. In the meanwhile, we are able to control the image generation by manually modifying the semantic map.
The main contributions can be summarized as follows:
We propose to address the unsupervised person image generation problem. Consequently, the problem is decomposed into semantic parsing transformation () and appearance generation ().
We design a delicate training schema to carefully optimize and in an end-to-end manner, which generates better semantic maps and further improves the pose-guided image generation results.
Our model is superior in rendering better body shape and keeping clothing attributes. Also it is generalizable to other conditional image generation tasks, e.g., clothing texture transfer and controlled image manipulation.
2 Related Work
2.1 Image Generation
. There are mainly two branches in this research field. One lies in supervised methods and another lies in unsupervised methods. Under the supervised setting, pix2pix built a conditional GAN for image to image translation, which is essentially a domain transfer problem. Recently, more efforts [15, 29] have been devoted to generating really high-resolution photo-realistic images by progressively generating multi-scale images. For the unsupervised setting, reconstruction consistency is employed to learn cross-domain mapping [34, 32, 16]. However, these unsupervised methods are developed and applied mostly for appearance generation of the spatially aligned tasks. With unpaired training data, our work is more intractable to learn the mapping to handle spatial non-rigid deformation and appearance generation simultaneously.
2.2 Pose-Guided Person Image Generation
The early attempt on pose-guided image generation was achieved by a two-stage network PG , in which the output under the target pose is coarsely generated in the first stage, and then refined in the second stage. To better model shape and appearance, Siarohin et al.  utilized deformable skips to transform high-level features of each body part. Similarly, the work in  employs body part segmentation masks to guide the image generation. However, [19, 27, 1] are trained with paired data. To relieve the limitation, Pumarola et al.  proposed a fully unsupervised GAN, borrowing the ideas from [34, 22]. On the other hand, the works in [5, 20] solved the unsupervised problem by sampling from feature spaces according to the data distribution. These sample based methods are less faithful to the appearance of reference images, since they generate results from highly compressed features. Instead, we use semantic information to help preserve body shape and texture synthesis between corresponding semantic areas.
2.3 Semantic Parsing for Image Generation
for text-to-image translation. Both of the works illustrate that by conditioning on estimated layout, more semantically meaningful images can be generated. The scene layout is predicted from texts or scene graphs  with the supervision from groundtruth. In contrast, our model learns the prediction for semantic map in an unsupervised manner. We also show that the semantic map prediction can be further refined by end-to-end training.
3 The Proposed Method
Given a target pose and a reference image under pose , our goal is to generate an output image , which follows the clothing appearance of but under the pose . This generation can be formulated as: .
During the training process, we are under an unsupervised setting: the training set is composed with , where the corresponding ground-truth image is not available. For this challenging unpaired person image generation problem, our key idea is to introduce human semantic parsing to decompose it into two modules: semantic parsing transformation and appearance generation. Our overall framework can be viewed in Fig. 2(a). Semantic parsing transformation module aims to first generate a semantic map under the target pose, which provides crucial prior for the human body shape and clothing attributes. Guided by the predicted semantic map and the reference image, appearance generation module then synthesizes textures for the final output image.
In the following, we first introduce person representation, which is the input of our framework. We then describe each module in details from the perspective of independent training. Finally, we illustrate the joint learning of the two modules in an end-to-end manner.
3.1 Person Representation
Besides the reference image , the source pose , and the target pose , our model also involves a semantic map extracted from , pose masks for and for
. In our work, we represent poses as probability heat maps,i.e., . The semantic map is extracted with an off-the-shelf human parser . We represent
using a pixel-level one-hot encoding,i.e., , where indicates the total number of semantic labels. For the pose masks and , we adopt the same definition in , which provide prior on pose joint connection in the generation process.
3.2 Semantic Parsing Transformation ()
In this module, we aim to predict the semantic map under the target pose , according to the reference semantic map . It is achieved by the semantic generative network, which is based on U-Net . As shown in Fig. 2(b), our semantic generative network consists of a semantic map encoder , a pose encoder and a semantic map generator . takes , and as input to extract conditional sematic information, while takes and as input to encode the target pose. then predicts based on the encoded features. As , softmaxactivation function is employed at the end of to generate the semantic label for each pixel. Formally, the predicted semantic map conditioned on and is formulated as . The introduction of and as input is to help generate continuous semantic maps, especially for bending arms.
Pseudo label generation. The semantic generative network is trained to model the spatial semantic deformation under different poses. Since semantic maps do not associate with clothing textures, people in different clothing appearance may share similar semantic maps. Thus, we can search similar semantic map pairs in the training set to facilitate the training process. For a given , we search a semantic map which is under different poses but shares the same clothing type as . Then we use as the target pose for , and regard as the pseudo ground truth. We define a simple yet effective metric for the search problem. The human body is decomposed into ten rigid body subparts as in , which can be represented with a set of binary masks . is searched by solving
where is an affine transformation to align the two body parts according to four corners of corresponding binary masks, denotes the element-wise multiplication. Note that pairs sharing very similar poses are excluded.
Cross entropy loss. The semantic generative networks can be trained under supervision with paired data . We use the cross-entropy loss to constrain pixel-level accuracy of semantic parsing transformation, and we give the human body more weight than the background with the pose mask as
Adversarial loss. We also employ an adversarial loss with a discriminator to help generate semantic maps of visual style similar to the realistic ones.
where , and is associated with .
The overall losses for our semantic generative network are as follows,
3.3 Appearance Generation ()
In this module, we utilize the appearance generative network to synthesize textures for the output image , guided by the reference image and predicted semantic map from semantic parsing transformation module. The architecture of appearance generative network consists of an appearance encoder to extract the appearance of reference image , a semantic map encoder to encode the predicted semantic map , and an appearance generator . The architecture of appearance generative network is similar to the semantic generative network, except that we employ deformable skips in  to better model spatial deformations. The output image is obtained by , as in Fig. 2(c).
Without the supervision of ground truth , we train the appearance generative network using the cycle consistency as [34, 21], in which should be able to map back with the generated and . We denote the mapped-back image as , and the predicted segmentation map as in the process of mapping back.
Adversarial loss. Discriminator is first introduced to distinguish between the realistic image and generated image, which leads to adversarial loss
Pose loss. As in , we use pose loss with a pose detector to generate images faithful to the target pose
Content loss. Content loss is also employed to ensure the cycle consistency
where is the feature map of image of conv2_1 layer in VGG16 model
pretrained on ImageNet.
Style loss. It is challenging to correctly transfer the color and textures from to without any constraints, since they are spatially misaligned.  tried to tackle this issue with patch-style loss, which enforces that texture around corresponding pose joints in and are similar. We argue that patch-style loss is not powerful enough in two-folds: (1) textures around joints would change with different poses, (2) textures of main body parts are ignored. Another alternative is to utilize body part masks. However, they can not provide texture contour. Thanks to the guidance provided by semantic maps, we are able to well retain the style with a semantic-aware style loss to address the above issues. By enforcing the style consistency among , and , our semantic-aware style loss is defined as
And denotes the function for Gram matrix , denotes the downsampled binary map from , indicating pixels that belong to the -th semantic label.
Face loss. Besides, we add a discriminator for generating more natural faces,
represents the face extraction guided by pose joints on faces, which is achieved by a non-parametric spatial transform network in our experiments.
The overall losses for our appearance generative network are as follows,
3.4 End-to-End Training
Since the shape and contour of our final output is guided by the semantic map, the visual results of appearance generation rely heavily on the quality of predicted semantic map from semantic parsing transformation. However, if they are independently trained, two reasons might lead to instability for and .
Our training scheme is shown in Algorithm 1.
In this section, we evaluate our proposed framework with both qualitative and quantitative results.
4.1 Datasets and Settings
DeepFashion . We experiment with the In-shop Clothes Retrieval Benchmark of the DeepFashion dataset. It contains a large number of clothing images with various appearance and poses, the resolution of which is . Since our method does not require paired data, we randomly select images for training and images for testing.
Market-1501 . This dataset contains 32,668 images from different viewpoints. The images are in the resolution of . We adopt the same protocol for data split as in . And we select 12,000 pairs for testing as in .
Implementation details. For the person representation, the 2D poses are extracted using OpenPose , and the condition semantic maps are extracted with the state-of-the-art human parser . We integrate the semantic labels originally defined in  and set (i.e., background, face, hair, upper clothes, pants, skirt, left/right arm, left/right leg). For DeepFashion dataset, the joint learning to refine semantic map prediction is performed on the resolution of . Then we upsample the predicted semantic maps to train images in with progressive training strategies . For Market-1501, we directly train and test on . Besides, since the images in Market-1501 are in low resolution and the face regions are blurry. is not adopted on Market-1501 for efficiency. For the hyper-parameters, we set , as 700, 0.03 for DeepFashion and 1, 0.003 for Market-1501. is 1 for all experiments. We adopt ADAM optimizer  to train our network with a learning rate 0.0002 ( and ). The batch sizes for DeepFashion and Market-1501 are set to 4 and 16, respectively. For more detailed network architecture and training scheme on each dataset, please refer to our supplementary.
4.2 Comparison with State-of-the-Arts

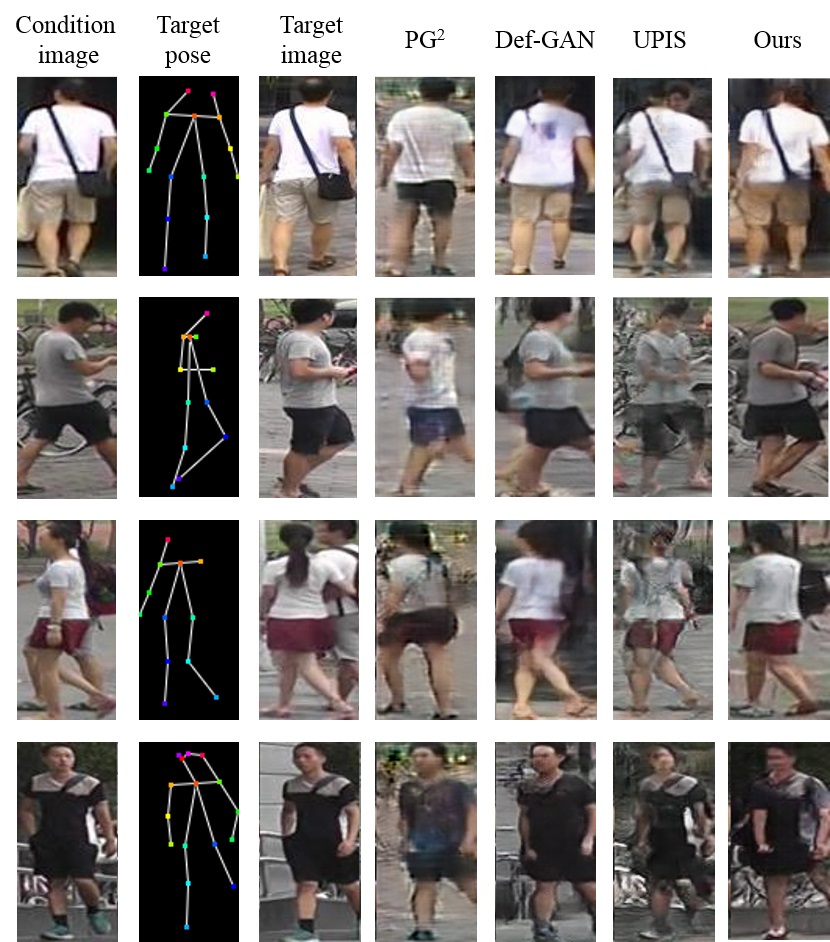

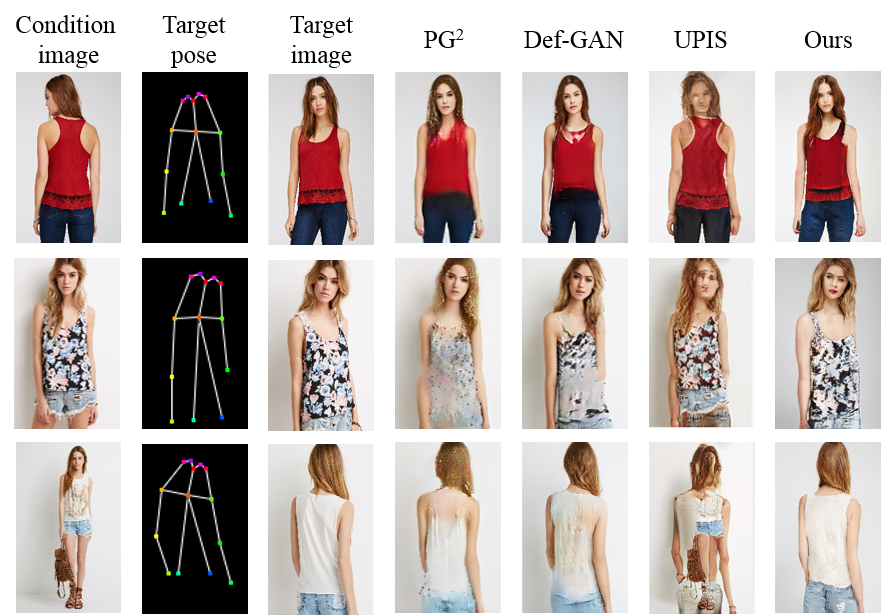

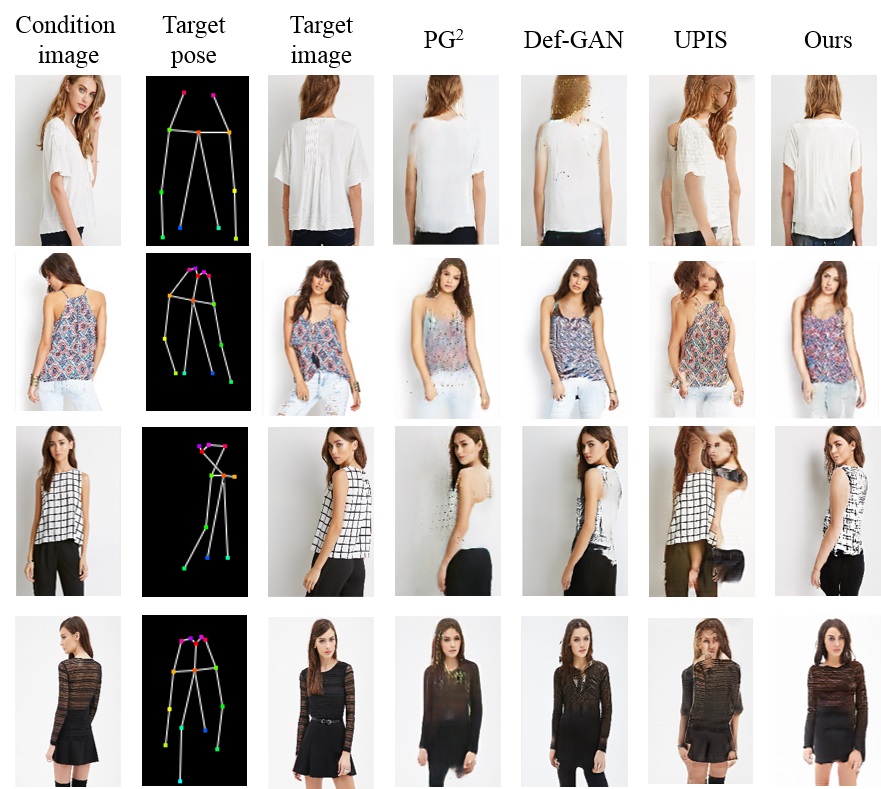

Qualitative Comparison. In Fig. 1, Fig. 4 and Fig. 5, we present the qualitative comparison with three state-of-the-art methods: PG , Def-GAN  and UPIS 111The results for PG and Def-GAN are obtained by public models released by their authors, and UPIS are based on our implementation.. PG  and Def-GAN  are supervised methods that require paired training data. UPIS  is under the unsupervised setting, which essentially employs CycleGAN . Our model generates more realistic images with higher visual quality and less artifacts. As shown in Fig. 4, our method is especially superior in keeping the clothing attributes, including textures and clothing type (the last row). Similarly in Fig. 5, our method better shapes the legs and arms. More generated results can be found in our supplementary.
Quantitative Results. In Table 1, we use the Inception Score (IS)  and Structural SIMilarity (SSIM)  for quantitative evaluation. For Market-1501 dataset, to alleviate the influence of background, mask-IS and mask-SSIM are also employed as in , which exclude the background area when computing IS and SSIM. For a fair comparison, we mark the training data requirements for each method. Overall, our proposed model achieves the best IS value on both datasets, even compared with supervised methods, which is in agreement with more realistic details and better body shape in our results. Our SSIM score is slightly lower than other methods, which can be explained by the fact that blurry images always achieve higher SSIM but being less photo-realistic, as observed in [20, 19, 13, 25]. Limited by space, please refer to our supplementary for user study.
4.3 Ablation Study
We design the following experiments with different configurations to first evaluate the introduction of semantic information for unpaired person image generation:
Baseline: our baseline model without the introduction of semantic parsing, the architecture of which is the same as appearance generative network, but without semantic map as input. To keep the style on the output image, we use mask-style loss, which replaces semantic maps with body part masks in Eq. (8).
TS-Pred: The semantic and appearance generative networks are trained independently in a two-stage manner. And we feed the predicted semantic maps into appearance generative network to get the output.
TS-GT: The networks are trained in two-stage. We regard semantic maps extracted from target images as ground truth, and feed them into appearance generative network to get the output.
E2E (Ours): jointly training the networks in an end-to-end manner.
Fig. 6 presents the intermediate semantic maps and the corresponding generated images. Table 1 further shows the quantitative comparisons. Without the guidance of semantic maps, the network is difficult to handle the shape and appearance at the same time. The introduction of semantic parsing transformation consistently outperforms our baseline. When trained in two-stage, the errors in the predicted semantic maps lead to direct image quality degradation. With end-to-end training, our model is able to refine the semantic map prediction. For example, the haircut and sleeves length in Fig. 6(a) are well preserved. For DeepFashion, the end-to-end training strategy leads to comparable results with that using GT semantic maps. For Market-1501, our model (E2E) achieves even higher IS and SSIM values than TS-GT. This is mainly because the human parser  does not work very well on low-resolution images and many errors exists in the parsing results, as the first row in Fig. 6(b).

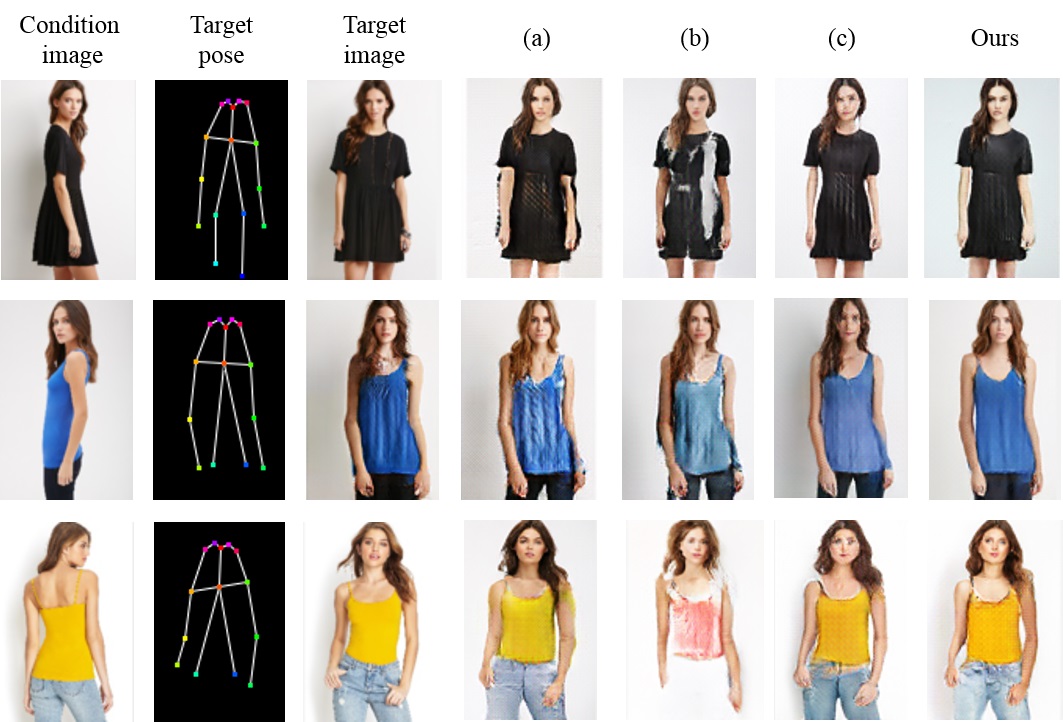

We then analyze the loss functions in the appearance generation as shown in Fig.7. We mainly explore the proposed style loss and face adversarial loss, since other losses are indispensable to ensure the cycle consistency. We adopt TS-GT model here to avoid the influence of semantic map prediction. In (a) and (b), we replace the semantic-aware style loss with mask-style loss and patch-style loss, respectively. Without semantic guidance, both of them lead to dizzy contour. Besides, the adversarial loss for faces effectively helps generate natural faces and improve the visual quality of output images.

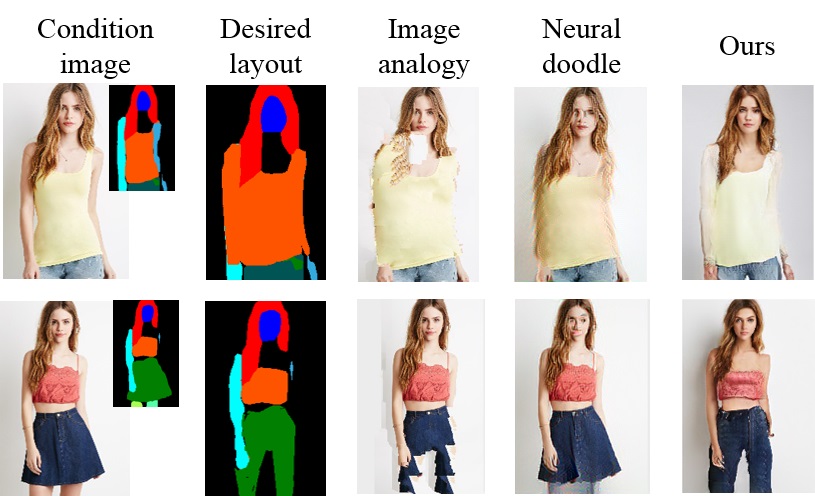

Since the appearance generative network essentially learns the texture generation guided by semantic map, it can also be applied on other conditional image generation tasks. Here we show two interesting applications to demonstrate the versatility of our model.

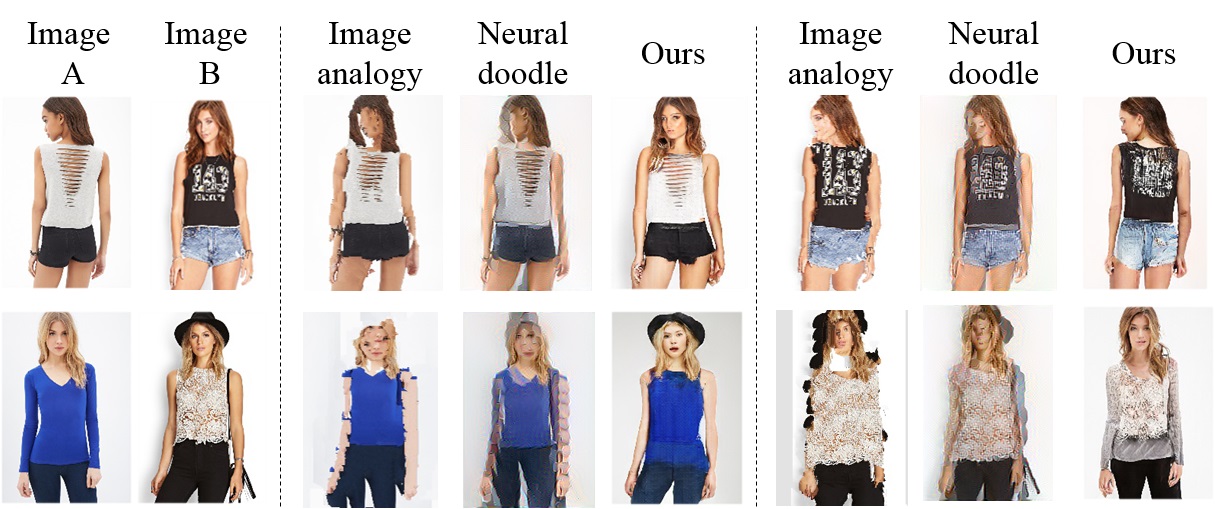

Clothing Texture Transfer. Given the condition and target images and their semantic parsing results, our appearance generative network is able to achieve clothing texture transfer. The bidirectional transfer results can be viewed in Fig. 8. Compared with image analogy  and neural doodle , not only textures are well preserved and transferred accordingly, but also photo-realistic faces are generated automatically.
4.5 Discussions for Failure Cases

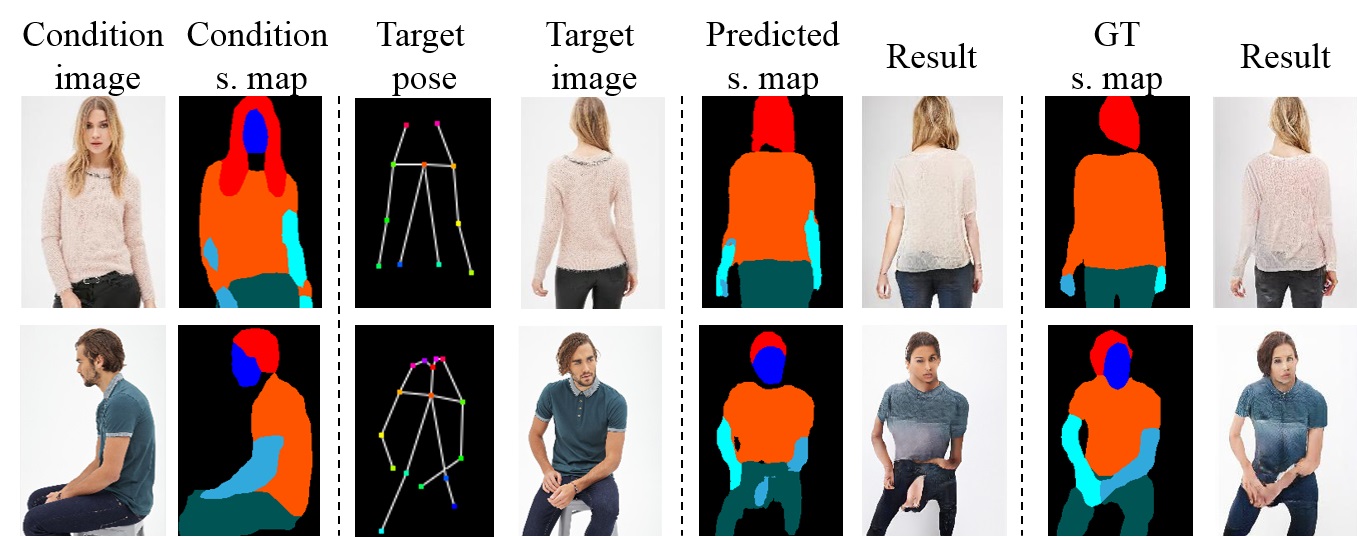

Though our model generates appealing results, we show the examples of failure cases in Fig. 10. The example in the first row is mainly caused by the error in condition semantic map extracted by the human parser. The semantic generative network is not able to predict the correct semantic map where the arms should be parsed as sleeves. The transformation in the second example is very complicated due to the rare pose, and the generated semantic map is less satisfactory, which leads to unnatural generated images. However, with groundtruth semantic maps, our model still achieves pleasant results. Thus, such failure cases can be probably solved with user interaction.
In this paper, we propose a framework for unsupervised person image generation. To deal with the complexity of learning a direct mapping under different poses, we decompose the hard task into semantic parsing transformation and appearance generation. We first explicitly predict the semantic map of the desired pose with semantic generative network. Then the appearance generative network synthesizes semantic-aware textures. It is found that end-to-end training the model enables a better semantic map prediction and further final results. We also showed that our model can be applied on clothing texture transfer and controlled image manipulation. However, our model fails when errors exist in the condition semantic map. It would be an interesting future work to train the human parser and person image generation model jointly.
Acknowledgements. This work was supported by National Natural Science Foundation of China under contract No. 61602463 and No. 61772043, Beijing Natural Science Foundation under contract No. L182002 and No. 4192025.
-  Guha Balakrishnan, Amy Zhao, Adrian V Dalca, Fredo Durand, and John Guttag. Synthesizing images of humans in unseen poses. In , 2018.
-  Zhe Cao, Tomas Simon, Shih-En Wei, and Yaser Sheikh. Realtime multi-person 2d pose estimation using part affinity fields. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2017.
-  Alex J. Champandard. Semantic style transfer and turning two-bit doodles into fine artworks. arXiv preprint arXiv:1603.01768, 2016.
-  Yunjey Choi, Minje Choi, Munyoung Kim, Jung-Woo Ha, Sunghun Kim, and Jaegul Choo. Stargan: Unified generative adversarial networks for multi-domain image-to-image translation. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Patrick Esser, Ekaterina Sutter, and Björn Ommer. A variational u-net for conditional appearance and shape generation. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
Leon A Gatys, Alexander S Ecker, and Matthias Bethge.
Image style transfer using convolutional neural networks.In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2016.
-  Ke Gong, Xiaodan Liang, Dongyu Zhang, Xiaohui Shen, and Liang Lin. Look into person: Self-supervised structure-sensitive learning and a new benchmark for human parsing. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2017.
-  Ian Goodfellow, Jean Pouget-Abadie, Mehdi Mirza, Bing Xu, David Warde-Farley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative adversarial nets. In Proc. Advances in Neural Information Processing Systems, 2014.
-  Aaron Hertzmann. Image analogies. Proc Siggraph, 2001.
-  Seunghoon Hong, Dingdong Yang, Jongwook Choi, and Honglak Lee. Inferring semantic layout for hierarchical text-to-image synthesis. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
Phillip Isola, Jun-Yan Zhu, Tinghui Zhou, and Alexei A Efros.
Image-to-image translation with conditional adversarial networks.In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2017.
-  Max Jaderberg, Karen Simonyan, Andrew Zisserman, et al. Spatial transformer networks. In Proc. Advances in Neural Information Processing Systems, 2015.
Justin Johnson, Alexandre Alahi, and Li Fei-Fei.
Perceptual losses for real-time style transfer and super-resolution.In Proc. European Conference on Computer Vision, 2016.
-  Justin Johnson, Agrim Gupta, and Li Fei-Fei. Image generation from scene graphs. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Tero Karras, Timo Aila, Samuli Laine, and Jaakko Lehtinen. Progressive growing of gans for improved quality, stability, and variation. arXiv preprint arXiv:1710.10196, 2017.
-  Taeksoo Kim, Moonsu Cha, Hyunsoo Kim, Jung Kwon Lee, and Jiwon Kim. Learning to discover cross-domain relations with generative adversarial networks. arXiv preprint arXiv:1703.05192, 2017.
-  Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
-  Ziwei Liu, Ping Luo, Shi Qiu, Xiaogang Wang, and Xiaoou Tang. Deepfashion: Powering robust clothes recognition and retrieval with rich annotations. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2016.
-  Liqian Ma, Xu Jia, Qianru Sun, Bernt Schiele, Tinne Tuytelaars, and Luc Van Gool. Pose guided person image generation. In Proc. Advances in Neural Information Processing Systems, 2017.
-  Liqian Ma, Qianru Sun, Stamatios Georgoulis, Luc Van Gool, Bernt Schiele, and Mario Fritz. Disentangled person image generation. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Albert Pumarola, Antonio Agudo, Alberto Sanfeliu, and Francesc Moreno-Noguer. Unsupervised person image synthesis in arbitrary poses. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Scott E Reed, Zeynep Akata, Santosh Mohan, Samuel Tenka, Bernt Schiele, and Honglak Lee. Learning what and where to draw. In Proc. Advances in Neural Information Processing Systems, 2016.
-  Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional networks for biomedical image segmentation. In Proc. Int’l Conference on Medical Image Computing and Computer-Assisted Intervention, 2015.
-  Tim Salimans, Ian Goodfellow, Wojciech Zaremba, Vicki Cheung, Alec Radford, and Xi Chen. Improved techniques for training gans. In Proc. Advances in Neural Information Processing Systems, 2016.
-  Wenzhe Shi, Jose Caballero, Ferenc Huszar, Johannes Totz, Andrew P. Aitken, Rob Bishop, Daniel Rueckert, and Zehan Wang. Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2016.
-  Chenyang Si, Wei Wang, Liang Wang, and Tieniu Tan. Multistage adversarial losses for pose-based human image synthesis. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Aliaksandr Siarohin, Enver Sangineto, Stéphane Lathuilière, and Nicu Sebe. Deformable gans for pose-based human image generation. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. 2015.
-  Ting-Chun Wang, Ming-Yu Liu, Jun-Yan Zhu, Andrew Tao, Jan Kautz, and Bryan Catanzaro. High-resolution image synthesis and semantic manipulation with conditional gans. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Zhou Wang, Alan C Bovik, Hamid R Sheikh, and Eero P Simoncelli. Image quality assessment: from error visibility to structural similarity. IEEE Transactions on Image Processing, 13(4):600–612, 2004.
-  Wenqi Xian, Patsorn Sangkloy, Jingwan Lu, Chen Fang, Fisher Yu, and James Hays. Texturegan: Controlling deep image synthesis with texture patches. In Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2018.
-  Zili Yi, Hao (Richard) Zhang, Ping Tan, and Minglun Gong. Dualgan: Unsupervised dual learning for image-to-image translation. In Proc. IEEE Int’l Conference on Computer Vision, 2017.
-  Liang Zheng, Liyue Shen, Lu Tian, Shengjin Wang, Jingdong Wang, and Qi Tian. Scalable person re-identification: A benchmark. In Proc. IEEE Int’l Conference on Computer Vision, 2015.
-  Jun-Yan Zhu, Taesung Park, Phillip Isola, and Alexei A Efros. Unpaired image-to-image translation using cycle-consistent adversarial networks. In Proc. IEEE Int’l Conference on Computer Vision, 2017.
-  Shizhan Zhu, Sanja Fidler, Raquel Urtasun, Dahua Lin, and Chen Change Loy. Be your own prada: Fashion synthesis with structural coherence. In Proc. IEEE Int’l Conference on Computer Vision, 2017.
