Unsupervised Learning of View-invariant Action Representations

09/06/2018 ∙ by Junnan Li, et al. ∙ University of Minnesota National University of Singapore 0

The recent success in human action recognition with deep learning methods mostly adopt the supervised learning paradigm, which requires significant amount of manually labeled data to achieve good performance. However, label collection is an expensive and time-consuming process. In this work, we propose an unsupervised learning framework, which exploits unlabeled data to learn video representations. Different from previous works in video representation learning, our unsupervised learning task is to predict 3D motion in multiple target views using video representation from a source view. By learning to extrapolate cross-view motions, the representation can capture view-invariant motion dynamics which is discriminative for the action. In addition, we propose a view-adversarial training method to enhance learning of view-invariant features. We demonstrate the effectiveness of the learned representations for action recognition on multiple datasets.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Recognizing human action in videos is a long-standing research problem in computer vision. Over the past years, Convolutional Neural Networks (CNNs) and Recurrent Neural Networks (RNNs) have emerged as the state-of-the-art learning framework for action recognition

Carreira_CVPR_2017 ; Donahue_CVPR_2015 ; Ng_CVPR_2015 ; Simonyan_NIPS_2014 . However, the success of existing supervised learning methods is primarily driven by significant amount of manually labeled data, which is expensive and time-consuming to collect.

To tackle this problem, a stream of unsupervised methods have recently been proposed Fernando_CVPR_2017 ; Lee_2017_ICCV ; Luo_2017_CVPR ; Misra_ECCV_2016 ; Srivastava_ICML_2015 , which leverage free

unlabeled data for representation learning. The key idea is to design a surrogate task that exploits the inherent structure of raw videos, and formulate a loss function to train the network. Some works design the surrogate task as constructing future frames

Srivastava_ICML_2015 or future motion Luo_2017_CVPR , while others use the temporal order of video frames to learn representations in a self-supervised manner Fernando_CVPR_2017 ; Lee_2017_ICCV ; Misra_ECCV_2016 . Although they show promising results, the learned representations are often view-specific, which makes them less robust to view changes.

Generally, human action can be observed from multiple views, where the same action appears quite different. Therefore, it is important to learn discriminative view-invariant features, especially for action recognition from unknown or unseen views. Humans have the ability to visualize what an action looks like from different views, because human brains can build view-invariant action representations immediately Isik_JON_2017 . We hypothesize that enabling a deep network with the ability to extrapolate action across different views can encourage it to learn view-invariant representations. In this work, we propose an unsupervised learning framework, where the task is to construct the 3D motions for multiple target views using the video representation from a source view. We argue that in order for the network to infer cross-view motion dynamics, the learned representations should reside in a view-invariant discriminative space for action recognition.

View-invariant representation learning for cross-view action recognition has been widely studied Kong_2017_TIP ; Li_CVPR_2012 ; Rahmani_CVPR_2016 ; Rahmani_PAMI_2018 ; Wang_CVPR_2014 ; Zhang_CVPR_2013 . However, most of the existing methods require access to 3D human pose information during training, while others compromise discriminative power to achieve view invariance. We focus on inferring motions rather than tracking body keypoints over space and time. Our method learns a recurrent encoder which extracts motion dynamics insensitive to viewpoint changes. We represent motion as 3D flow calculated using RGB-D data only.

The contributions of our work are as follows:

  • [leftmargin=4ex]

  • We propose an unsupervised framework to effectively learn view-invariant video representation that can predict motion sequences for multiple views. The learned representation is extracted from a CNN+RNN based encoder, and decoded into multiple sequences of 3D flows by CNN decoders. The framework is trained by jointly minimizing several losses.

  • We propose a view-adversarial training to encourage view-invariant feature learning. Videos from different views are mapped to a shared subspace where a view classifier cannot discriminate them. The shared representation is enforced to contain meaningful motion information by the use of flow decoders.

  • We demonstrate the effectiveness of our learned representation on cross-subject and cross-view action recognition tasks. We experiment with various input modalities including RGB, depth and flow. Our method outperforms state-of-the-art unsupervised methods across multiple datasets.

2 Related Work

2.1 Unsupervised Representation Learning

While deep networks have shown dominant performance in various computer vision tasks, the fully supervised training paradigm requires vast amount of human-labeled data. The inherent limitation highlights the importance of unsupervised learning, which leverages unlabeled data to learn feature representations. Over the past years, unsupervised learning methods have been extensively studied for deep learning methods, such as Deep Boltzmann Machines

Salakhutdinov_AISTATS_2009 and auto-encoders Bengio_NIPS_2006 ; Bengio_ICML_2014 ; Le_2013_ICASSP ; Vincent_ICML_2008 . Unsupervised representation learning has proven to be useful for several supervised tasks, such as pedestrian detection, object detection and image classification Doersch_ICCV_2015 ; Gidaris_2018_ICLR ; Noroozi_ICCV_2017 ; Sermanet_CVPR_2013 ; Wang_ICCV_2017 .

In the video domain, there are two lines of recent works on unsupervised representation learning. The first line of works exploit the temporal structure of videos to learn visual representation with sequence verification or sequence sorting task Fernando_CVPR_2017 ; Lee_2017_ICCV ; Misra_ECCV_2016 . The second line of works are based on frame reconstruction. Ranzato et alRanzato_2014_arxiv proposed a RNN model to predict missing frames or future frames from an input video sequence. Srivastava et alSrivastava_ICML_2015 extended this framework with LSTM encoder-decoder model to reconstruct input sequence and predict future sequence. While the above representation learning mostly capture semantic features, Luo et alLuo_2017_CVPR proposed an unsupervised learning framework that predicts future 3D motions from a pair of consecutive frames. Their learned representations show promising results for supervised action recognition. However, previous works often learn view-specific representations which are sensitive to viewpoint changes.

2.2 Action Recognition

RGB Action Recognition. Action recognition from RGB videos is a long-standing problem. A detailed survey can be found in Cheng_2015_arxiv . Recent approaches have shown great progress in this field, which can be generally divided into two categories. The first category focuses on designing handcrafted features for video representation, where the most successful example is improved dense trajectory features Wang_ICCV_2013

combined with Fisher vector encoding

Oneata_ICCV_2013 . The second category uses deep networks to jointly learn feature representation and classifier. Simonyan and Zisserman Simonyan_NIPS_2014 proposed two-stream CNNs, which extracts spatial and motion representation from video frames and optical flows. RNN based architectures have also been proposed to model the temporal information Donahue_CVPR_2015 ; Ng_CVPR_2015

. However, deep networks training requires large amount of human-labeled data. CNNs pre-trained with ImageNet are commonly adopted as backbone

Carreira_CVPR_2017 ; Donahue_CVPR_2015 ; Ng_CVPR_2015 ; Simonyan_NIPS_2014 , to facilitate training and avoid overfitting.

RGB-D Action Recognition. Since the first work on action recognition using depth maps Li_CVPR_2010 , researchers have proposed methods for action recognition that extract features from multi-modal data, including depth, RGB, and skeleton Du_CVPR_2015 ; Haque_ECCV_2016 ; Hu_PAMI_2017 ; Liu_ECCV_2016 ; Liu_CVPR_2017 ; Lu_CVPR_2014 ; Oreifej_CVPR_2013 ; Rahmani_CVPR_2016 ; Rahmani_PAMI_2018 ; Shahroudy_PAMI_2017 ; Wang_CVPR_2012 ; Wang_CVPR_2014 . Recently, Wang et alWang_CVPR_2017 used 3D scene flow Jaimez_ICRA_2015 calculated with RGB-D data as input for action recognition. State-of-the-art methods for RGB-D action recognition report human level performance on well-established datasets such as MSR-DailyActivity3D Wang_CVPR_2012 .However, Shahroudy_CVPR_2016 shows that there is a big performance gap between human and existing methods on the more challenging NTU-RGBD dataset Shahroudy_CVPR_2016 , which contains significantly more subjects, viewpoints, action classes and backgrounds.

View-invariant Feature Representation. One particularly challenging aspect of action recognition is to recognize actions from varied unknown and unseen views, referred to as cross-view action recognition in the literature. The performance of most existing methods Donahue_CVPR_2015 ; Lu_CVPR_2014 ; Ng_CVPR_2015 ; Oneata_ICCV_2013 ; Oreifej_CVPR_2013 ; Simonyan_NIPS_2014 ; Wang_ICCV_2013 drop sharply as the viewpoint changes due to the inherent view dependence of the features used by these methods. To tackle this problem, researchers have proposed methods to learn representations invariant to viewpoint changes. Some methods create spatial-temporal representations that are insensitive to view variations Binlong_CVPR_2012 ; Parameswaran_IJCV_2006 ; Wang_CVPR_2014

, while other methods find a view independent latent space in which features extracted from different views are directly comparable

Li_CVPR_2012 ; Rahmani_PAMI_2018 ; Zhang_CVPR_2013 . For example, Rahmani et alRahmani_PAMI_2018 used a deep network to project dense trajectory features from different views into a canonical view. However, most of the previous methods require access to 3D human pose information (e.g. mocap data Rahmani_PAMI_2018 , skeleton Wang_CVPR_2014 ) during training, while others are limited by their discriminative power. Moreover, existing methods other than skeleton based methods Liu_ECCV_2016 ; Liu_CVPR_2017 ; Lee_ICCV_2017 ; Rahmani_ICCV_2017 ; Zhang_ICCV_2017 have not shown effective performance on the cross-view evaluation for NTU-RGBD dataset.

3 Method

The goal of our unsupervised learning method is to learn video representations that capture view-invariant motion dynamics. We achieve this by training a model that uses the representation to predict sequences of motion for multiple views. The motions are represented as 3D dense scene flows, calculated using the primal-dual method Jaimez_ICRA_2015 with RGB-D data. The learned representation can then be used as a discriminative motion feature for action recognition. In this section, we first present the unsupervised learning framework, followed by the action recognition method.

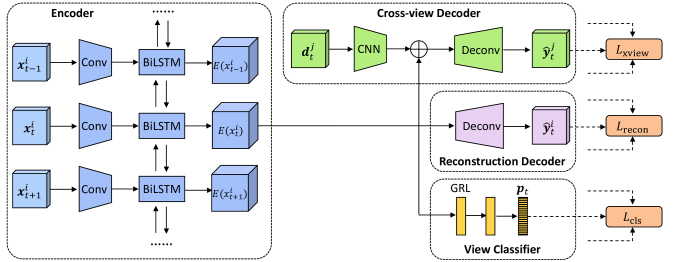

Figure 1: The proposed unsupervised representation learning framework. For a sequence of input frames, the encoder generates a sequence of feature representations. At each timestep, the representation is used by the cross-view decoder, reconstruction decoder and view classifier, where multiple loss terms are jointly minimized. The encoder can learn to generate view-invariant representations that capture motion dynamics.

3.1 Learning Framework

An overview of the learning framework is illustrated in Figure 1. It is an end-to-end deep network that consists of four components: encoder, cross-view decoder, reconstruction decoder, and view classifier, parameterized by respectively. The goal is to minimize the following loss:

(1)

where and are weights to balance the interaction of the loss terms. is the cross-view flow prediction loss, is the flow reconstruction loss, and is the view classification loss applied in an adversarial setting to enhance view invariance. Each loss term involves the encoder and one other component. Next we explain each component in detail.

Encoder. Let denote all the available views of an captured action. The encoder, parameterized by , takes as input a sequence of frames for view , denoted as , and encodes them into a sequence of low-dimensionality feature embeddings . Specifically, for each frame, we first use a downsampling CNN (denoted as “Conv”) to extract a low-dimensionality feature of size . Then, a bi-directional convolutional LSTM (denoted as “BiLSTM”) runs through the sequence of extracted Conv features. At each timestep , the BiLSTM generates two feature maps of size , one through forward pass and the other through backward pass. The two feature maps are concatenated channel-wise to form the encoding of size . In this work, we set and .

Compared with vanilla LSTMs, convolutional LSTMs Patraucean_2016_ICLR replace the fully connected transformations with spatial convolutions, which can preserve spatial information in intermediate representations. We find it to perform much better than vanilla LSTMs. Moreover, our bi-directional LSTM aggregates information from both previous frames and future frames, which helps to generate richer representations. Compared with the LSTM encoder in Luo_2017_CVPR that only encodes 2 frames, the proposed encoder can generate encodings for longer sequences, which embodies more discriminative motion dynamics for the action. In this work, we set the sequence length .

Cross-view decoder. The goal of the cross-view decoder is to predict the 3D flow for view (; ), given the encoding for view , at timestep . Inferring directly from is too difficult, because the decoder has zero information about view . Therefore, we give an additional input to the decoder that contains view-specific information. This input is the depth map for view at timestep , which serves as an anchor to inform the decoder about the spatial configuration of view . The decoder still requires view-invariant motion dynamics from in order to predict .

Specifically, we first use a CNN to extract a feature of size from . The extracted feature is concatenated with channel-wise into a feature of size

. Then we use an upsampling CNN (denoted as “Deconv”) to perform spatial upsampling. Deconv consists of four fractionally-strided convolutional layers

Springenberg_arxiv_2014

with batch normalization layer

Ioffe_ICML_2015

and ReLU activation in between. We observe that the batch normalization is critical to optimize the network.

Let denote the output of the cross-view decoder for timestep . We want to minimize the mean squared error between and for :

(2)

where is the sequence of anchor depth frames, and is the sequence of flows.

Since we want to learn a video representation that can be used to predict motions for multiple views, we deploy multiple cross-view decoders with shared parameters to all views other then . Therefore, the cross-view flow prediction loss for is:

(3)

Reconstruction decoder. The goal of the this decoder is to reconstruct the 3D flow given the encoding for the same view . Learning flow reconstruction helps the encoder to extract basic motions, and when used together with cross-view decoders, enhances learning of view-invariant motion dynamics. The architecture of the reconstruction decoder is a Deconv module similar as cross-view decoder, with the number of input channels in the first layer adapted to . Let be the output of the reconstruction decoder at timestep , the flow reconstruction loss is:

(4)

View classifier. We propose a view-adversarial training that encourages the encoder to learn video representations invariant to view changes. We draw inspiration from the domain-adversarial training Ganin_ICML_2015 ; Yaroslav_JMLR_2016 , which aims at learning features that are indiscriminate with respect to shift between domains. The proposed view-adversarial training is achieved by adding a view classifier connected to the encoder through a Gradient Reversal Layer (GRL). The view classifier tries to predict which view the encoded representation belongs to, whereas the encoder tries to confuse the view classifier by generating view-invariant representations.

More formally, the view classifier maps an encoding at timestep

to a probability distribution over possible views

. Learning with GRL is adversarial in that is optimized to increase ’s ability to discriminate encodings from different views, while GRL reverses the sign of the gradient that flows back to , which results in the encoder parameters learning representations that reduces the view classification accuracy. Essentially, we minimize the cross-entropy loss for the view classification task with respect to , while maximize it with respect to . Therefore, we define the view classification loss as the sum of the cross-entropy loss for the entire sequence:

(5)

where is the ground-truth view of the input.

The view classifier consists of two fully connected layers and a softmax layer. Since the encoding

is a convolutional feature, it is first flattened into a vector before it goes into the view classifier.

3.2 Action Recognition

We use the encoder from unsupervised learning for action recognition. Given the learned representations for a sequence of frames , we apply an action classifier to each . The action classifier is a simple fully-connected layer, which takes the flattened vector of as input, and outputs a score over possible action classes. The final score of the sequence is the average score for each timestep: .

The action classifier is trained with cross-entropy loss. During training, we consider three scenarios:

(a)  scratch: Randomly initialize the weights of encoder and train the entire model from scratch.

(b)  fine-tune: Initialize the encoder with learned weights and fine-tune it for action recognition.

(c)  fix: Keep the pre-trained encoder fixed and only train the action classifier.

At test time, we uniformly sample 10 sequences from each video with sequence length , and average the scores across the sampled sequences to get the class score of the video.

4 Experiments

4.1 Unsupervised Representation Learning

Implementation details. For Conv in encoder and depth CNN in cross-view decoder, we employ the ResNet-18 architecture He_CVPR_2016 up until the final convolution layer, and add a convolutional layer to reduce the feature size. The number of input channels in the first convolutional layer is adapted according to input modality. Note that our CNN has not been pre-trained on ImageNet. For BiLSTM, we use convolutional filters of size for convolution with input and hidden state. We initialize all weights following the method in He_ICCV_2015 . During training, we use a mini-batch of size 8. We train the model using the Adam optimizer Kingma_ICLR_2014 , with an initial learning rate of and a weight decay of . We decrease the learning rate by half every 20000 steps (mini-batches). To avoid distracting the flow prediction task, we activate the view adversarial training after 5000 steps. The weights of the loss terms are set as and , which is determined via cross-validation.

In order to effectively predict the motions, we want to describe the motion as low-dimensional signal. Hence, we apply spatial downsampling to the 3D flows by calculating the mean of each non-overlapping patch. The resulting flow maps are multiplied by 50 to keep a proper scale, which become the ground-truth .

Dataset. We use the NTU RGB+D dataset Shahroudy_CVPR_2016 for unsupervised representation learning. The dataset consists of 57K videos for 60 action classes, captured from 40 subjects in 80 camera viewpoints. The 80 viewpoints can be divided into five main views based on the horizontal angle of the camera with respect to the subject: front view, left side view, right side view, left side 45 degrees view and right side 45 degrees view. These five views form the view set used in our experiments. Each action sequence is simultaneously captured by three cameras from three of the five views at a time.

Method Cross-subject Cross-view
RGB Depth Flow RGB Depth Flow
proposed method w/o & 0.0267 0.0244 0.0201 0.0265 0.0238 0.0199
proposed method w/o 0.0259 0.0235 0.0198 0.0252 0.0223 0.0194
proposed method 0.0254 0.0229 0.0193 0.0248 0.0220 0.0193
Table 1: Cross-view flow prediction error on NTU RGB+D dataset.

(a) walking towards each other.

(b) sitting down.
Figure 2: Example of flow sequences with depth input. 3D flows are visualized as RGB images. Upper rows are ground-truth flows, and lower rows are predicted flows. Blue box denotes source view flow reconstruction, whereas red

box denotes cross-view flow prediction. The model can estimate raw motions for multiple views.

Evaluation. There are two sets of standard evaluation protocols for action recognition on NTU RGB+D dataset: cross-subject evaluation and cross-view evaluation. Following it, we conduct two unsupervised learning experiments, where in each experiment we ensure that the encoder will not be trained on any test samples in supervised learning setting. For cross-subject evaluation, we follow the same training and testing split as in Shahroudy_CVPR_2016 . For cross-view evaluation, samples of cameras 2 and 3 are used for training while those of camera 1 for testing. Since we need at least two cameras for our unsupervised task, we randomly divide the supervised training set with ratio of 8:1 for unsupervised training and test. We use the cross-view flow prediction loss

as the evaluation metric, which quantifies the performance of the model to predict motions across different views. We experiment with three input modalities: RGB, depth and 3D flow.

Results. Table 1 shows the quantitative results for the unsupervised flow prediction task. In order to demonstrate the effect of different components and loss terms, we evaluate different variants of the proposed framework. First, we only train the encoder with cross-view decoder (denoted as proposed method w/o &). Then we add the reconstruction decoder with flow reconstruction loss (denoted as proposed method w/o ). Finally we add view adversarial training with view classification loss to form the proposed method. Across all input modalities, flow reconstruction and view adversarial training both can improve the cross-view flow prediction performance. Comparing between different input modalities, flow achieves the lowest . This is expected because flow contains more view-invariant motion information.

Figure 2 shows qualitative examples of flow prediction with depth input. For each pair of rows, the upper rows are ground-truth flows, whereas the lower rows are flows predicted by the decoders. The model shows the ability to estimate raw motions for multiple views with the encoded representations.

4.2 Action Recognition on NTU RGB+D

Implementation details. We experiment with the three settings described in Section 3.2. We train the model using Adam optimizer Kingma_ICLR_2014 , with the mini-batch size as 16, learning rate as and weight decay as . We set the learning rate of the encoder to be for fine-tune. For scratch, we decay the learning rate by half every 20000 steps. For fine-tune and fix, since training converges faster, we half the learning rate every 10000 steps.

Method Cross-subject Cross-view
 RGB Depth  Flow  RGB Depth  Flow
scratch 36.6 42.3 70.2 29.2 37.7 72.6
fix 48.9 60.8 77.0 40.7 53.9 78.8
fine-tune w/o view-adversarial 53.4 66.0 80.3 46.2 60.1 81.9
fine-tune 55.5 68.1 80.9 49.3 63.9 83.4
Table 2: Action recognition accuracy (%) on NTU RGB+D dataset.
Method Modality Cross-subject Cross-view
HOG Bar_CVPRW_2013 Depth 32.24 22.27
Super Normal Vector Yang_CVPR_2014 31.82 13.61
HON4D Oreifej_CVPR_2013 30.56 7.26
Shuffle and Learn Misra_ECCV_2016 46.2 40.9
Luo et alLuo_2017_CVPR 61.4 53.2
Ours 68.1 63.9
Lie Group Vemulapalli_CVPR_2014 Skeleton 50.08 52.76
FTP Dynamic Skeletons Hu_PAMI_2017 60.23 65.22
HBRNN-L Du_CVPR_2015 59.07 63.97
2 Layer P-LSTM Shahroudy_CVPR_2016 62.93 70.27
ST-LSTM Liu_ECCV_2016 69.2 77.7
GCA-LSTM Liu_CVPR_2017 74.4 82.8
Ensemble TS-LSTM Lee_ICCV_2017 74.60 81.25
Depth+Skeleton Rahmani_ICCV_2017 75.2 83.1
VA-LSTM Zhang_ICCV_2017 79.4 87.6
Ours Flow 80.9 83.4
Table 3: Comparison with state-of-the-art methods for action recognition on NTU RGB+D dataset.

Results. Table 2 shows the classification accuracy for both cross-subject and cross-view action recognition with three input modalities. Across all modalities, supervised learning from scratch has the lowest accuracy. Using the unsupervised learned representations and training only a linear action classifier (fix) significantly increases accuracy. Fine-tuning the encoder can further improve performance. If we remove the view-adversarial training in the unsupervised framework, the accuracy would decrease, especially for cross-view recognition.

Among the three input modalities, flow input achieves the highest accuracy, which agrees with our unsupervised learning result. Flow is also the only input modality that has a higher accuracy for cross-view recognition compared with cross-subject recognition. This supports our observation that flow is more view-invariant than the other two modalities.

Comparison with state-of-the-art. In Table 3 we compare our method against state-of-the-art methods on NTU RGB+D dataset. The first group of methods use depth as input, and the second group of methods use skeleton as input. We re-implement two unsupervised learning methods Luo_2017_CVPR ; Misra_ECCV_2016 (in italic) and report their classification accuracy. We do not directly cite the results in Luo_2017_CVPR because Luo_2017_CVPR reports mAP rather than accuracy. Our re-implementation achieve similar mAP as in Luo_2017_CVPR .

Using depth input, the proposed method outperforms all previous methods. The increase in accuracy is more significant for cross-view recognition, which shows that the learned representation is invariant to viewpoint changes. Using flow input, our method achieves comparable performance to skeleton-based methods. However, skeleton is a higher level feature that is more robust to viewpoint change. Moreover, the method Zhang_ICCV_2017 with higher cross-view accuracy uses explicit coordinate system transformation to achieve view invariance.

4.3 Transfer Learning for Action Recognition

In this section, we perform transfer learning tasks, where we use the unsupervised learned representations for action recognition on two other datasets in new domains (different subjects, environments and viewpoints). We perform cross-subject evaluation on MSR-DailyActivity3D Dataset, and cross-view evaluation on Northwestern-UCLA MultiviewAction3D Dataset. We experiment with

scratch and fine-tune settings, using depth modality as input.

MSR-DailyActivity3D Dataset. This dataset contains 320 videos of 16 actions performed by 10 subjects. We follow the same experimental setting as Wang_CVPR_2012 , using videos of half of the subjects as training data, and videos of the rest half as test data.

Method Accuracy
Actionlet Ensemble Wang_PAMI_2014 (S) 85.8
HON4D Oreifej_CVPR_2013 (D) 80.0
MST-AOG Wang_CVPR_2014 (D) 53.8
SNV Yang_CVPR_2014 (D) 86.3
HOPC Rahmani_PAMI_2016 (D) 88.8
Luo et alLuo_2017_CVPR (D) 75.2
Ours (scratch) 42.5
Ours (fine-tune) 82.3
Table 5: Cross-view action recognition accuracy (%) on Northwestern-UCLA dataset.
Method Accuracy
Actionlet Ensemble Wang_PAMI_2014 (S) 69.9
Hankelets Binlong_CVPR_2012 45.2
MST-AOG Wang_CVPR_2014 (D) 53.6
HOPC Rahmani_PAMI_2016 (D) 71.9
R-NKTM Rahmani_PAMI_2018 (S) 78.1
Luo et alLuo_2017_CVPR (D) 50.7
Ours (scratch) 35.8
Ours (fine-tune) 62.5
Table 4: Cross-subject action recognition accuracy (%) on MSRDailyActivity3D dataset.

Northwestern-UCLA MultiviewAction3D Dataset. This dataset contains 1493 videos of 10 actions performed by 10 subjects, captured by 3 cameras from 3 different views. We follow Wang_CVPR_2014 and use videos from the first two views for training and videos from the third view for test.

Results. Table 5 and 5 show our results in comparison with state-of-the-art methods. On both datasets, training a deep model from scratch gives poor performance. Using the unsupervised learned representations increases the accuracy by a large margin. Our method outperforms previous unsupervised method Luo_2017_CVPR , and achieves comparable performance with skeleton-based methods (marked by S) and depth-based methods (marked by D) that use carefully hand-craft features. This demonstrates that the learned representations can generalize across domains.

5 Conclusion

In this work, we propose an unsupervised learning framework that leverages unlabeled video data from multiple views to learn view-invariant video representations that capture motion dynamics. We learn the video representations by using the representations for a source view to predict the 3D flows for multiple target views. We also propose a view-adversarial training to enhance view-invariance of the learned representations. We train our unsupervised framework on NTU RGB+D dataset, and demonstrate the effectiveness of the learned representations on both cross-subject and cross-view action recognition tasks across multiple datasets.

The proposed unsupervised learning framework can be naturally extended beyond actions. For future work, we intend to extend our framework for view-invariant representation learning in other tasks such as gesture recognition and person re-identification. In addition, we can consider generative adversarial network (GAN) Goodfellow_NIPS_2014 for multi-view data generation.

Acknowledgments

This research is supported by the National Research Foundation, Prime Minister’s Office, Singapore under its Strategic Capability Research Centres Funding Initiative.
