Unsupervised learning and data clustering for the construction of Galaxy Catalogs in the Dark Energy Survey

12/05/2018 ∙ by Asad Khan, et al. ∙ 0

Large scale astronomical surveys continue to increase their depth and scale, providing new opportunities to observe large numbers of celestial objects with ever increasing precision. At the same time, the sheer scale of ongoing and future surveys pose formidable challenges to classify astronomical objects. Pioneering efforts on this front include the citizen science approach adopted by the Sloan Digital Sky Survey (SDSS). These SDSS datasets have been used recently to train neural network models to classify galaxies in the Dark Energy Survey (DES) that overlap the footprint of both surveys. While this represents a significant step to classify unlabeled images of astrophysical objects in DES, the key issue at heart still remains, i.e., the classification of unlabelled DES galaxies that have not been observed in previous surveys. To start addressing this timely and pressing matter, we demonstrate that knowledge from deep learning algorithms trained with real-object images can be transferred to classify elliptical and spiral galaxies that overlap both SDSS and DES surveys, achieving state-of-the-art accuracy 99.6 to initiate the characterization of unlabelled DES galaxies that have not been observed in previous surveys, we demonstrate that our neural network model can also be used for unsupervised clustering, grouping together unlabeled DES galaxies into spiral and elliptical types. We showcase the application of this novel approach by classifying over ten thousand unlabelled DES galaxies into spiral and elliptical classes. We conclude by showing that unsupervised clustering can be combined with recursive training to start creating large-scale DES galaxy catalogs in preparation for the Large Synoptic Survey Telescope era.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 3

page 4

page 8

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Large scale astronomical surveys provide key insights into the large scale structure of the Universe, its geometry and evolution in cosmic time. As the depth and scale of these surveys continue to increase in years to come, they will push back the frontiers of our understanding of dark matter and dark energy Riess et al. (1998); Perlmutter et al. (1999); Tonry et al. (2003); Knop et al. (2003).

One of the best observational probes to study the expansion of the universe, and thereby of dark energy, is through the observation of distant Type Ia supernovae. By observing thousands of these celestial objects, it may be possible to map the distance-redshift curve over a wide range of redshifts with unprecedented accuracy Drell et al. (2000).

In addition to this purely electromagnetic probe, the combination of gravitational wave observations with large scale galaxy catalogs has enabled the first gravitational wave standard-siren measurement of the Hubble constant Abbott et al. (2017). This approach, envisioned by Schutz Schutz (1986), has also been explored without assuming the existence of an electromagnetic counterpart Fishbach et al. (2018). This latter approach now opens up the way to using a large number of ground-based gravitational wave observations of binary black hole mergers, which may not have an electromagnetic counterpart, to enable precision gravitational wave cosmological measurements of the Hubble constant up to redshift . Similar observations at higher redshifts may be possible in the context of supermassive black hole mergers with space-borne gravitational wave missions Holz and Hughes (2005). Since the gravitational wave observation of binary black hole mergers has now become a common occurrence The LIGO Scientific Collaboration and the Virgo Collaboration (2018), the next frontier to enable this science is the construction of galaxy catalogs at higher redshifts.

To realize this science, we need to address outstanding data science challenge regarding the sheer scale of ongoing and future surveys. For instance, the Sloan Digital Sky Survey (SDSS)

Eisenstein et al. (2011) observed hundreds of thousands of galaxies, which were classified through a remarkably successful citizens science program. Follow up analyses using deep learning to classify these celestial objects based on their morphology have also reported excellent results Domínguez Sánchez et al. (2018a).

In the context of the Dark Energy Survey (DES) Dark Energy Survey Collaboration et al. (2016), we now have a unique opportunity to innovate by creating new types of signal processing tools that are adequate to classify hundreds of millions of unlabeled galaxies. For instance, in Domínguez Sánchez et al. (2018b) the authors designed a neural network model, and trained it with SDSS galaxy images that overlap the footprint of both SDSS and DES, reporting classification accuracies .

In this article, we present novel methods to further advance the goal of creating large-scale galaxy catalogs, using DES as a driver for these studies.

  • We demonstrate that knowledge from deep learning algorithms, trained for real-world object recognition, can be transferred to classify SDSS galaxies into spiral and elliptical classes with state-of-the-art accuracies .

  • We used the aforementioned Deep Transfer Learning SDSS-seed neural network model to demonstrate that unlabelled DES galaxies, that overlap the footprint of SDSS, are correctly classified into spiral and elliptical classes with state-of-the-art accuracies

    .

  • We introduce the first application of unsupervised learning and data clustering to classify over ten thousand unlabeled DES galaxies, that have not been observed in previous surveys, into spiral and elliptical classes.

The method we introduce herein can be combined with recursive training to produce large-scale galaxy catalogs in DES, i.e., once unlabelled DES galaxies are clustered into spiral and elliptical classes, these new labelled datasets can be used to retrain the original deep learning algorithm, boosting its accuracy and robustness to classify unlabeled DES galaxies in bulk in new regions of parameter space, as we demonstrate in Section III.

To address the case of high-redshift galaxy classification, one may use data augmentation to prepare datasets that resemble galaxies at higher redshifts by contaminating them with noise anomalies. Thereafter, one can design and train a neural network that first denoises images, and upon identifying potential candidate galaxies, it clusters them according to their features George et al. (2018). This approach lays the foundations to exploit transfer learning, unsupervised clustering and recursive training to produce large-scale galaxy catalogs in the Large Synoptic Survey Telescope (LSST) LSST Dark Energy Science Collaboration (2012).

This paper is organized as follows. Section II presents the approach followed to curate the datasets and deep learning algorithms designed and trained for our analyses. In section III, we demonstrate the applicability of our methods to classify galaxies in SDSS, galaxies that overlap SDSS and DES, and finally, the applicability of our approach to correctly classify thousands of unlabelled DES galaxies through unsupervised clustering. Finally, section IV summarizes our findings and future directions of work.

Ii Methods

In this section we describe the SDSS and DES datasets used to train and test our deep learning algorithms. We also describe the design and construction of the neural network models used for unsupervised learning and data clustering used to classify unlabelled DES galaxy images.

ii.1 Data Curation for SDSS and DES

We use a subset of SDSS Data Release (DR) 7 images for which we have high confidence classifications through the Galaxy Zoo project. We then divide these images into three orthogonal datasets for training, validation and testing. The validation set is used to monitor the accuracy and loss when training and fine-tuning our deep neural network. The test set is carefully constructed so that each image lies in both the SDSS and the DES footprint. This latter dataset was obtained from the DES DR1 data release. We have labelled these image datasets High Probability (HP) Test Sets, and there are two versions, one for each survey, i.e., HP SDSS and HP DES.

Furthermore, we created a second test set consisting of almost all galaxies that lie in both SDSS and DES footprints, this time without imposing any threshold on the Galaxy Zoo classification confidence. These datasets are labelled Full Overlap (FO) Test Sets, and again there are two versions, i.e., FO SDSS and FO DES.

The properties of these datasets are summarized in Table 1

, while their probability distributions are presented in Fig.

1. A sample of the training SDSS dataset, and the HP Test set images are presented in the top and bottom panels of Fig. 2, respectively. Notice that the probability cutoffs are different to get similar numbers of spiral and elliptical SDSS galaxies for training.

Dataset Spirals Ellipticals
Training set 18,352 18,268
HP SDSS Test Set 516 550
HP DES    Test Set 516 550
FO SDSS Test Set 6,677 5,904
FO DES    Test Set 6,677 5,904
Table 1: Summary of each Dataset set.

SDSS Dataset We used the de-biased probabilities for elliptical and combined spiral classes described in Table 2 of Lintott et al. (2011) to create labels for the two classes of our training and test sets. After selecting the OBJIDs from Table 2 based on the probability thresholds of 0.985 and 0.926 for spirals and ellipticals respectively, we submit SQL queries to the SDSS Skyserver SDSS (2018) to obtain g, r and z-band images and metadata from the PhotoObj table. Thereafter, each galaxy is ‘cut-out’ from the downloaded telescope fits files for each band.

Bearing in mind that the neural network model we are using for transfer learning (ImageNet dataset Russakovsky et al. (2014) from 2014 with the Xception model Chollet (2016)) was originally trained with images of size , we have resized all the galaxy sub-images to be pixels using the scikit-image library van der Walt et al. (2014), and then stacked the three filters together to create a color image of size . Finally, these sub-images are mean subtracted and normalized to convert the pixel values to the -1 to 1 range centered around 0, following best practices of neural network training Andrej Karpathy (2018)

. These curated datasets serve as the input tensor into our deep neural network model.

We developed all these scripts, to download and preprocess data, as open source, Python software stack. To facilitate and streamline these tasks at scale, we incorporated Message Passing Interface (MPI) Gropp et al. (1999) to exploit multiple nodes on supercomputers for a fast parallel computation. In our case, the data extraction and curation was done using the Blue Waters Supercomputer Kramer et al. (2015).

DES Dataset The same steps are repeated to first select the DES DR1 metadata and images from the NCSA DESaccess web DES (2018), and then to cut-out, preprocess and stack the filters together to create a lupton RGB of size using the Astropy branch John Parejko (2018). Additionally, the Astropy package match_to_catalog_sky is used to crossmatch DES and SDSS catalogues to within 1 arcsec. Finally we pick a random sample of bright DES galaxies to quantify the clustering performance of our neural network model.

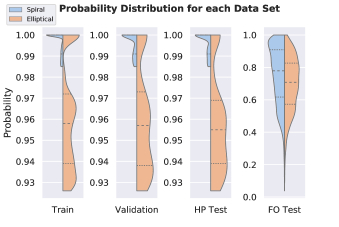

Figure 1: Violin Plots of Galaxy Zoo Probability Distributions for galaxies in each dataset.
