Unsupervised Feature Learning for Dense Correspondences across Scenes

We propose a fast, accurate matching method for estimating dense pixel correspondences across scenes. It is a challenging problem to estimate dense pixel correspondences between images depicting different scenes or instances of the same object category. While most such matching methods rely on hand-crafted features such as SIFT, we learn features from a large amount of unlabeled image patches using unsupervised learning. Pixel-layer features are obtained by encoding over the dictionary, followed by spatial pooling to obtain patch-layer features. The learned features are then seamlessly embedded into a multi-layer match- ing framework. We experimentally demonstrate that the learned features, together with our matching model, outperforms state-of-the-art methods such as the SIFT flow, coherency sensitive hashing and the recent deformable spatial pyramid matching methods both in terms of accuracy and computation efficiency. Furthermore, we evaluate the performance of a few different dictionary learning and feature encoding methods in the proposed pixel correspondences estimation framework, and analyse the impact of dictionary learning and feature encoding with respect to the final matching performance.

READ FULL TEXT VIEW PDF

page 3

page 7

page 11

page 12

page 14

10/07/2013

Online Unsupervised Feature Learning for Visual Tracking

Feature encoding with respect to an over-complete dictionary learned by ...
01/15/2013

Pooling-Invariant Image Feature Learning

Unsupervised dictionary learning has been a key component in state-of-th...
06/17/2019

Multi-Scale Convolutions for Learning Context Aware Feature Representations

Finding semantic correspondences is a challenging problem. With the brea...
06/25/2015

DeepMatching: Hierarchical Deformable Dense Matching

We introduce a novel matching algorithm, called DeepMatching, to compute...
11/24/2020

Continuous Surface Embeddings

In this work, we focus on the task of learning and representing dense co...
01/06/2019

Automated Multiscale 3D Feature Learning for Vessels Segmentation in Thorax CT Images

We address the vessel segmentation problem by building upon the multisca...
06/22/2020

ResFPN: Residual Skip Connections in Multi-Resolution Feature Pyramid Networks for Accurate Dense Pixel Matching

Dense pixel matching is required for many computer vision algorithms suc...

1 Introduction

Estimating the dense correspondence between two images across scenes is an important task, which has many applications in computer vision and computational photography. Yet, it is a challenging problem due to large variations exhibited in the matching images. Conventional dense matching methods developed for optical flow and stereo usually only work well for the cases in which the two input images contain different views of the

same object. Here we are interested in dense matching of images with different objects or scenes. This requires the matching algorithms to be highly robust to different object appearances and backgrounds, illumination changes, large displacements and viewpoint changes. For the task of matching objects in a specific category, the intra-class variability can be larger than the inter-class differences.

Recently a few methods were proposed to address these challenges, including hierarchical matching liu2011sift , fast patch matching Barnes2010TGP ; korman2011coherency , sparse-to-dense matching leordeanu2013sparsetodense and most recently spatial pyramid matching kim2013deformable . Current matching approaches typically rely on either raw image patches or hand-designed image features (e.g., SIFT features SIFT ). Raw pixels or patches often lack the robustness to cope with those challenging appearance variations. Given a particular task, in order to model complex real-world data, robust and distinctive feature descriptors that can capture relevant information are needed. Hand-crafted features like SIFT have achieved great success in many vision tasks such as image classification bo2013multipath , retrieval, and image matching. As SIFT features have passed the test of time for good performance, SIFT is considered as one of the milestone results in computer vision, which was first introduced more than a decade ago SIFT

. Despite the remarkable success in a number of applications, SIFT is criticized for drawbacks such as its large computational burden, and being incapable to well accommodate affine viewpoint transformation. Researchers have been seeking improved feature descriptors. However, manually designing features for each data set and task can be very expensive, time-consuming, and typically requires domain knowledge of the data. In recent years, researchers observed that instead of manually designing features using heuristics, learning features from a large amount of unlabeled data with some

unsupervised machine learning

approaches achieves tremendous success in various applications. For example, in visual recognition the unsupervised feature learning pipeline has now become the common approach coates2011importance ; coates2011analysis . Feature learning is attractive as it exploits the availability of data and avoids the need of feature engineering bo2013multipath . For unsupervised feature learning, its main advantage is that unlabeled domain-specific data are usually abundant and very cheap to obtain. Inspired by the success of coates2011analysis ; huang2012learning ; bo2013multipath ; kim2013deformable , we propose unsupervised feature learning for dense pixel correspondence estimation within a multi-layer matching framework. The outline of our multi-layer model is illustrated in Figure 1.

In our framework, features at the bottom layer (namely, the pixel layer) are extracted from raw image patches using unsupervised feature learning methods. We then obtain more compact representations of larger-size nodes at higher-level layers, which achieve better robustness to noise and clutter, thus better deal with severe variations in object or scene appearances. Larger spatial nodes with more compact features provide better geometric regularization when the matching objects undergo large appearance variations, while smaller spatial nodes with more detailed features obtain finer correspondence. Our matching starts from the top layer (i.e., the grid-cell layer). The matching solution of a higher layer provides reliable initial correspondences to the lower layer.

We apply several well-known unsupervised feature learning algorithms to extract pixel layer features. Then we present a detailed analysis on the impact of various parameters and configurations of our framework—the matching model as well as the unsupervised feature learning techniques. Despite the simplicity of our system, our framework outperforms all previously published matching accuracy on the Caltech-101 dataset, the LMO dataset liu2009nonparametric , and a subset of the Pascal dataset everingham2014pascal . Our results demonstrate that it is possible to achieve state-of-the-art performance by using a tailored matching framework, even with simple unsupervised feature learning techniques.

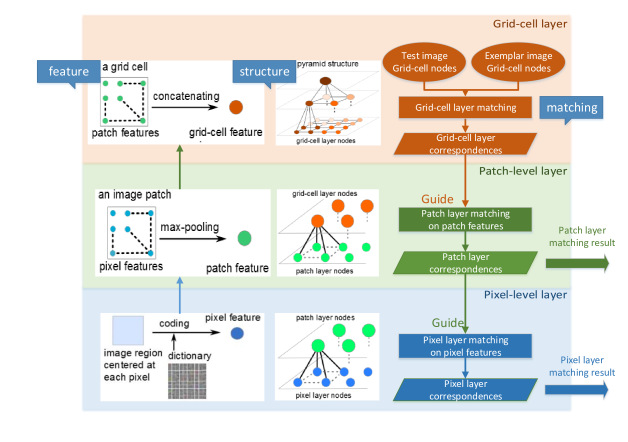

Figure 1:

Illustration of our multi-layer matching and unsupervised feature learning model. First column shows the feature extraction process of each layer. Second column shows the node structure of each layer. Third column outlines the matching pipeline. The learned features at the pixel-level layer within a patch are spatially pooled to form a patch-level feature. Here the grid-cell feature is the concatenation of patch-level features within a cell. The matching result from the grid-cell layer guides the matching at the patch-level layer; and the result at the patch-level layer guides the matching at the pixel-level layer. In our experiments, the matching accuracy obtained by the patch-level layer is already very high. Pixel-layer matching can further improve the matching accuracy.

Our main contributions are thus as follows.

  • We apply unsupervised feature learning to the problem of dense pixel correspondence estimation, rather than using hand-designed features. Experiment results show that our method outperforms recent state-of-the-art methods liu2011sift ; korman2011coherency ; kim2013deformable in terms of both accuracy and running time. Our experiments demonstrate that the learned features can well handle variations of different factors.

  • Inspired by the recent development in multi-layer networks and deep learning methods, we perform matching at several levels of the image representations (grid-cell layer, patch layer, pixel layer). Our multi-layer matching model, designed for fast and accurate matching, is suitable for the multi-layer unsupervised feature learning pipeline.

  • We use the patch-layer feature as the basic unit to estimate correspondences in the patch-layer matching such that the computation time is considerably faster (due to less time spent on feature extraction and fewer variables to optimize) while still keeping the desirable power of learned features. Matching results at the patch layer have already outperformed those state-of-the-art methods in the literature in terms of both matching accuracy and efficiency.

  • We evaluate the performance of a few dictionary learning and feature encoding methods in the proposed pixel correspondence estimation framework. Moreover, we study the effect of parameter choices on the features learned by several feature learning methods. Several important conclusions are drawn, which are different from the case of unsupervised feature learning for image classification coates2011importance .

1.1 Related work

We briefly review some relevant work in dense matching and unsupervised feature learning. Estimation of dense correspondences between images is essential for many computer vision tasks such as image registration, segmentationrubinstein2013unsupervised , stereo matching and object recognitionduchenne2011graph . It is challenging to estimate dense correspondences between images that contain different scenes.

Graph matching algorithms berg2005shapematch ; leordeanu2005spectral ; duchenne2011graph were introduced to find the dense correspondence. Typically these methods use sparse features and rely on geometric relationships between nodes. Optical flow methods have been used to estimate the motion field and dense correspondence in the literature. Recently, SIFT Flow liu2011sift adopts the computational framework of optical flow and produces dense pixel-level correspondences by matching SIFT descriptors instead of raw pixel intensities. A coarse-to-fine matching scheme is used in their method to speed up the matching procedure. Kim et al. kim2013deformable proposed a deformable spatial pyramid (DSP) model for fast dense matching. Their model regularizes matching consistency through a pyramid graph. The matching cost in DSP is defined by using multiple SIFT descriptors. PatchMatch Barnes2010TGP and more recent work of coherency sensitive hashing (CSH) korman2011coherency are much faster in finding the matching patches between two images, but abandon explicit geometric smoothness regularization for the speed, which may lead to noisy matching results due to negligence of pixels’ geometric relations. Leordeanu et al. leordeanu2013sparsetodense proposed to extend sparse matching to dense matching by introducing local constraints.

Image matching in general consists of two components: local image feature extraction and feature matching. First, one must define the image features based upon which the correspondence between a pair of images can be established. An ideal image descriptor should be robust so that it does not change from one image to another. Many methods use SIFT features as local descriptors because of their robustness to scale and illumination changes, etc. Recent work showed that, to some extent, carefully designed descriptors may improve the matching results tola2008fast ; zelnik2012sifts . In zelnik2012sifts , it is shown that SIFT features extracted at multiple scales lead to much better matches than single-scale features. All these features were manually designed. Instead, our work here is inspired by those feature learning approaches that first appeared in image classification.

In recent years, a large body of work on generic image classification/categorization has focused on learning features in an unsupervised fashion coates2011importance ; coates2011analysis . Unsupervised feature learning (or deep learning by stacking unsupervised feature learning) has emerged as a promising technique for designing task-specific features by exploiting a large amount of unlabeled data quoc2013buildinghigh

. The main purpose of unsupervised feature learning is to design low-dimensional features that capture some structure underlying the high-dimensional input data. Typical unsupervised feature learning methods include independent component analysis

NIPS2011ICA , auto-encoders AISTATS2012ZhouSL12 , sparse coding Sparse2010 ; Mairal2010JMLR , (nonnegative) matrix factorization Lee1999 ; Mairal2010JMLR , and a few clustering methods NIPS2011ADAM . In terms of large-scale sparse coding and matrix factorization based feature learning, an online optimization algorithm based on stochastic approximations was introduced in Mairal2010JMLR .

Low-level image alignment such as dense stereo matching, which shares similarity with the matching task that we concern here, often use hand-crafted local image descriptors Tuytelaars00widebaseline . Traditional local feature descriptors like SIFT was shown their values for dense wide-baseline matching, but with limited success. This is mainly because their high computational cost and sensitivity to occlusions. The SURF feature Bay:2008:SRF tries to speed up the computation of local features. In Tola10 , Tola et al. designed the DAISY feature for fast and accurate wide-baseline stereo matching. The DAISY feature attempts to solve both the computation and occlusion problems in stereo matching. Another computationally cheap local feature descriptor is a modified version of the local binary pattern (LBP) feature Heikkila:2009 . In the sparse matching experiment, Heikkilä et al. have showed that the LBP descriptor performs favorably compared to the SIFT Heikkila:2009 . Estimating the dense correspondence between images depicting different scenes, which we concern here, is a much more challenging problem compared to dense stereo matching. To our knowledge, for dense correspondence estimation across scenes, to date the SIFT feature is still the standard due to its very good performance.

Our method is closely related to the approach of kim2013deformable that applies only two layers of matching, namely, grid cell layer and pixel layer. There both layers are represented by the same type of features. They utilize sparse sampling to reduce the complexity and expense of large-node representations, which may cause loss of discriminative information. Instead of using SIFT features as the descriptor as in kim2013deformable

, we learn features from a large amount of small patches, which are randomly extracted from natural images. In our method, dense matching is performed at several levels of the image representations (grid-cell layer, patch layer, pixel layer). For each layer, we obtain suitable features to represent image nodes. Compared to the bottom layer, features in higher layer are extracted to achieve more robustness to the noise and clutter and more compactness of representation. By using the max-pooling operation, we obtain more compact representations of larger image nodes while removing irrelevant details. We demonstrate the efficiency and effectiveness of the learned features over hand-crafted features for dense matching task.

The second approach that has inspired our work is huang2012learning

. The main idea is to combine unsupervised joint alignment with unsupervised feature learning. Huang et al. used unsupervised feature learning, in particular, deep belief networks (DBNs) to obtain features that can represent an image at different resolutions based on network depth

huang2012learning . There are major differences between our work and huang2012learning although both have used unsupervised feature learning. Huang et al. considered the problem of congealing alignment of images, which is to estimate the parametric image transform. One only needs to optimize for a small number of continuous variables (typically the rotation matrix and translation). Thus the number of variables is independent of the image size huang2012learning . In Huang et al. huang2012learning , gradient descent is employed for this purpose. In contrast, we estimate the nonparametric correspondences at the pixel level. The optimization problem involved in our task is a much more challenging discrete combinatorial problem. It involves thousands of discrete variables. Thus we use belief propagation to achieve a locally optimal solution. It is unclear how the method of huang2012learning may be applied to dense correspondences.

2 Our approach

In this section, we first describe how to extract features for each level in Section 2.1. Then, we present our framework in detail in Section 2.2.

2.1 Multi-layer image representations

In this work, we follow the standard unsupervised feature learning framework in coates2011analysis ; coates2011importance , which has been successfully applied to generic image classification. A common feature learning framework performs the following steps to obtain feature representations:

  1. The dictionary learning step learns a dictionary using unsupervised learning algorithms, which are used to map input patch vectors to the new feature vectors.

  2. The feature encoding step extracts features from image patches centered at each pixel using the dictionary obtained at the first step.

  3. The pooling step spatially pools features together over local regions of the images to obtain more compact feature representations. For classification tasks, the learned features are then used to train a classifier for predicting labels. In our case, we estimate dense correspondences in a multi-layer matching framework using the learned multi-level feature representations.

Next, we briefly review the pipeline of feature learning framework. As mentioned above, there are three key components in the feature learning framework: dictionary learning, feature encoding and pooling operation.

Dictionary learning

To learn a dictionary, we first extract random patches from a collection of natural images as training data, , and then pre-process these patches as described in coates2011analysis

. Every patch is normalized by subtracting the mean and normalized by the standard deviation of its elements. This is equivalent to local brightness and contrast normalization. We also apply the whitening process as done in

coates2011analysis . Then we use an unsupervised learning algorithm to construct the dictionary . Here is the dictionary size, and each column is a codeword.

We consider the following dictionary learning methods for learning the dictionary :

(a) K-means clustering: We learn

centroids

from the sampled patches. K-means has been widely adopted in computer vision for building codebooks but less widely used in ‘deep feature learning’

coates2011analysis . This may be due to the fact that K-means is less effective when the input vectors are of high dimension.

(b) K-SVD aharon2006ksvd : The dictionary is trained by solving the following optimization problem using alternating minimization:

(1)

where are the sparse codes. is the number of non-zero elements in , which enforces the code’s sparsity. Here and are the and norm respectively. Note that to solve for , usually one seeks an approximate solution because the optimization problem is NP-hard.

(c) Random sampling (RA): patches are randomly picked from the patches to form a dictionary. Therefore no learning/optimization is performed in this case.

Later we test these three dictionary learning methods on the problem of dense matching.

Feature encoding

After obtaining the dictionary , we extract patches centered at each pixel of the pair of matching images after applying pre-processing. The patch vector is encoded to generate the feature vector at the pixel layer. We consider the following coding methods in this work:

(a) K-means triangle (KT) encoding: This can be viewed as a ‘soft’ encoding method while keeping sparsity of codes. With the basis vectors learned by the first stage, KT encodes the patch as:

where is the -th component of feature vector ; and is the mean of . By using this encoder, roughly half of the features are set to 0.

(b) Soft-assignment (SA) encoding:

(2)

Here is the smoothing factor controlling the softness of assignment.

(c) Orthogonal matching pursuit (OMP-k) encoding: Given the patch and dictionary , we use OMP-k coates2011importance to obtain the feature , which has at most non-zero elements:

(3)

where is the number of non-zero elements in . This explicitly enforces the code’s sparsity.

We mainly use K-means for dictionary learning and K-means triangle (KT) for encoding in our experiments. In the last part of Section 3.3, we evaluate the performance of different learning and encoding methods mentioned above in dense correspondence estimation.

Pooling operation

The general objective of pooling is to transform the joint feature interpretation into a new, more usable one that preserves important information while discarding irrelevant details boureau2010theoretical . Spatially pooling features over a local neighbourhood to create invariance to small transformation of the input is employed in a large number of models of visual recognition. The pooling operation is typically a sum, an average, a max or more rarely some other commutative combination rules. In this paper, we apply the max-pooling operation to obtain the patch-layer features.

The pixel feature is the code of the patch centered at pixel , which is obtained at the feature encoding step. At the patch layer,the image is partitioned using a uniform grid into non-overlapping square patches. Each patch feature is obtained by max-pooling all pixel features within that patch, which is simply the component-wise maxima over all pixel features within a patch :

(4)

where ranges over all entries in image patch . Thus each patch feature has the same dimension as pixel features. Note that the max-pooling operation is non-linear. It captures the main character of pixels in the patch while maintaining the feature length and reducing the feature number. Detailed discussions on the impact of feature learning methods are presented in Section 3.3.

Grid-cell layer representations

The grid-cell layer is built on the patch-level layer. The structure of the grid-cell layer is a spatial pyramid, as shown in Figure 2. Thus it can contain multiple levels. Each level contains a number of cells at different resolutions. The cell size starts from the whole image (the top level at Figure 2) to a certain spatial size according to the number of pyramid levels. A cell node is much larger than an image patch and may offer greater regularization when appearance matches are ambiguous. Each cell is represented by a grid-cell feature, called a cell node. Grid-cell features are formed by concatenating the patch layer features within a cell. For all the experiments in the Section 3, we use the 3-level pyramid as shown in Figure 2. At the top level of the pyramid, there is one single cell node which is the whole image. The middle level contains 4 equal-size non-overlapping cell nodes; and the bottom level has 16 cell nodes.

To demonstrate the great potential of unsupervised feature learning techniques in the dense matching task, which generally requires features to preserve visual details, we decide not to use those complex learning algorithms and models. Instead, we employ simple learning algorithms and design a tailored matching model for the learned features to estimate pixel-level correspondences. The experiments in Section 3 demonstrate that it is possible to achieve state-of-the-art performance even with simple algorithms of unsupervised feature learning.

2.2 The proposed matching framework

The multi-layer model

Our matching model consists of three layers: the grid-cell layer, patch-level layer and pixel-level layer.

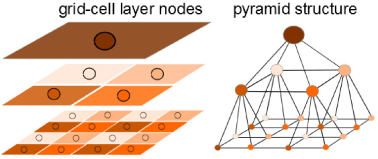

Figure 2: Illustration of the pyramid structure and node connection of the grid-cell layer. Note that the grid-cell layer can contain multiple pyramid levels (here we have 3 levels).

(a) model structure: The grid-cell layer is the top layer, which is a conventional spatial pyramid (we use a 3-level pyramid for all the experiments in this work). The cell size starts from the whole image to the predefined cell size. Grid-cell node features are formed by concatenating the patch level features within a cell. The patch-level layer lies underneath the grid-cell layer. The bottom layer is pixel-level layer.

(b) node definition: To be clear, in our model, at the grid-cell layer, each cell can be seen as a node. At the patch-level layer, each patch represents a node. At the pixel-level layer, a single pixel is a node.

(c) node linkage: In the pyramid of the grid-cell layer, each node links to the neighboring nodes within the same pyramid level as well as parent and child nodes in the adjacent pyramid levels, as shown in Figure 2. We define the node at the higher level layer as the parent of the nodes within its spatial extent at the lower layer. For the bottom two layers, namely the patch-level layer and the pixel-level layer, each node is only linked to the parent node.

Figure 1 shows our matching pipeline. Our matching process starts from the grid-cell layer matching. At this layer, the matching cost and geometric regularization are considered for the pyramid node of different spatial extents. Matching results of the grid-cell layer guide the patch-level matching. In other words, results of the grid-cell layer offer reliable initial correspondences for the patch-level matching as generally larger spatial supports provide better robustness to image variations. At the patch level layer, we estimate the correspondences between the patch nodes of image pair. Guided by the grid-cell matching results, in our framework, the patch-level matching can already achieve high matching accuracy and efficiency. In kim2013deformable ; liu2011sift the authors sub-sample pixels to reduce the computation cost, which may lead to suboptimal solutions. In contrast, we do not need to sub-sample pixels because the patch layer matching in our framework is is extremely fast, which is one of the major advantages of our method. At the pixel-level layer, the pixel matching refines the results of the patch-layer matching. Figure 3 shows the comparison of matching results from the pixel layer and the patch layer. We can see that the pixel layer matching provides finer visual results with heavier computation.

Figure 3: Patch-level matching results vs. pixel-level matching results of our method. LABEL: and LABEL: are the test image and exemplar image respectively. Images LABEL: and LABEL: are the patch-level result and the pixel-level matching result of our method, respectively. We can see that the pixel-level matching provides refined visual results.

Matching objective

For the grid-cell layer, denotes the center coordinate of patches within the cell node . Let be the translation of node from the test image to the exemplar image. By minimizing the energy function (5), we obtain the optimal translation of each node in the grid-cell layer. The objective function is defined as:

(5)

where is the data term; is the smoothness term; and is the constant weight. represents node pairs linked by graph edges between the neighboring nodes and the parent-child nodes in the spatial pyramid. In the above equation, the data term is defined as:

(6)

where is the total number of patches included in the grid-cell node . is the cell node feature of the test image centered at coordinate and is the cell node feature of the exemplar image under certain translation . measures the similarity between node and the corresponding node in the exemplar image according to translation . Here is a truncated threshold of feature distance. We set it to the mean distance of pairwise pixels between image pairs. is the norm.

Second, the smoothness term is defined as:

(7)

which penalizes the matching location discrepancies among the neighboring nodes. We use loopy belief propagation (BP) to find the optimal correspondence of each node. Although BP is not guaranteed to converge, it has been applied with much experimental success Ihler05loopybelief . In our objective function, truncated

norms are used for both the data term and the smoothness term. The smoothness term accounts for matching outliers. As in

Felzenszwalb2006Effi ; kim2013deformable , for BP, we use a generalized distance transform technique such that the computation cost of message passing between nodes is reduced.

For the patch-level layer, each patch links to the parent node in the grid-cell layer. denotes the center coordinate of each patch in the patch-level layer. The patch’s optimal translation can be obtained by:

(8)

Here and are the patch ’s optimal translation and its parent cell node’s optimal translation respectively. and denote the patch features in the test image and exemplar image, respectively. Note that the results from the grid-cell layer provide reliable initial correspondences for the patches at the patch layer.

For the pixel-level layer, each pixel links to the parent patch node. Guided by the patch layer solution, pixel layer correspondences can be estimated efficiently and accurately. denotes the pixel ’s coordinate in the pixel-level layer. The in pixel ’s optimal translation is defined as

(9)

Here and are the pixel ’s optimal translation and its parent patch node’s optimal translation respectively. and denote the pixel features in the test image and exemplar image respectively.

Discussion

Our method improves the matching accuracy and substantially reduces the computation time compared to the recent state-of-the-art method kim2013deformable . In kim2013deformable , they have used sparse descriptors sampling to reduce the computational time, which may cause loss of key characteristics in the nodes of the matching graph.

The grid-cell layer of our matching model is built upon the patch layer features which cover the whole image area without using a sparse sampling process. The pixel-layer features obtained by an unsupervised learning algorithm appear to be discriminative for resolving matching ambiguity between classes. By using a pooling operation on the pixel features, we significantly reduce the number of patch-layer features and the possible translations, while enhancing the robustness to severe image visual variations. Matching at the patch-level layer is the core of our algorithm. At the patch layer, image pixels within the same patch share the same optimal translations. Our experiment results show that the patch-layer matching results outperform the state-of-the-art methods with a much faster computation speed. The pixel-level matching further refines the matching accuracy. Thus the pixel-level matching procedure can be considered optional. If the test speed is on a budget, one does not have to perform the pixel-level matching.

As can be seen from Figure 3, the pixel-level matching output (Figure 3) retains finer details in object edges, compared to the patch-level matching result (Figure 3). Our pixel and patch feature encoding schemes allow us to reduce the computation while improving the matching results. Experiment results in the next section demonstrate the advantages of our method.

3 Experiments

We conduct experiments to evaluate the matching quality (Section 3.2) and to analyse the performance impact of several different elements in the feature learning framework (Section 3.3).

In Section 3.2, we test our method on three benchmark vision datasets: the Caltech-101 dataset, the LabelMe Outdoor (LMO) dataset liu2009nonparametric , and a subset of the Pascal dataset.

We also apply our method to semantic segmentation. We compare our method with state-of-the-art dense pixel matching methods, namely, the deformable spatial pyramid (DSP) approach (single-scale) kim2013deformable , SIFT Flow (SF) liu2011sift , and coherency sensitive hashing (CSH) korman2011coherency . Note that DSP has achieved the previously best results on dense pixel matching. For the DSP, SF and CSH methods, we use the code provided by their authors.

In Section 3.3, we present a detailed analysis of the impact of parameter settings in feature learning, including: (a) the choice of the unsupervised feature learning algorithm, (b) the impact of the dictionary size, (c) the impact of the training data size, (d) different configurations in the patch feature extraction process.

We set the parameters of the compared methods to the values that were suggested in the original papers. In all of our experiments, we use 3-level pyramid in the grid-cell layer. The parameters of our method for all experiments are fixed to , .

A universal dictionary is learned from image patches extracted from 200 Background_Google class images in the Caltech-101 dataset. Note that ‘Background_Google’ contains mainly natural images which are irrelevant to the test images in our experiments. The dictionary is learned before the matching process. Once the dictionary is learned, it is used to encode all the test images. We use K-means dictionary learning and K-means triangle (KT) encoding for our method. The dictionary size is set to 100. Clearly, the length of feature vectors at the pixel-level layer and patch-level layer are equal to the dictionary size.

Then pixel-layer features are computed at each pixel of test images. More specifically, we perform encoding on an image region around each pixel centroid using the learned dictionary to form the feature vector of that pixel. So each pixel feature is extracted from an -pixels image region centered at that pixel. Patch features are then calculated by max-pooling pixel features within each non-overlapping patch of pixels. The grid-cell layer is constructed by a 3-level pyramid as shown in Figure 2.

3.1 Evaluation metrics

Following kim2013deformable , we use the label transfer accuracy (LT-ACC) liu2009nonparametric , intersection over union (IOU) metric everingham2014pascal and the localization error (LOC-ERR) kim2013deformable to measure the quality of dense image matching.

For each image pair (a test image and an exemplar image), we find the pixel correspondences between them using a matching algorithm and transfer the annotated class labels of the exemplar image pixels to the test image pixels.

The LT-ACC criterion measures how many pixels in the test image have been correctly labelled by the matching algorithm. On the Caltech-101 dataset, each image is divided into the foreground and background pixels. The IOU metric reflects the matching quality for separating the foreground pixels from the background. As for Caltech-101, since the ground-truth pixel correspondence information is not available, we use the LOC-ERR metric to evaluate the distortion of correspondence pixel locations with respect to the object bounding box.

Mathematically, the LT-ACC metric is computed as

(10)

where for pixel in image , the ground-truth annotation is and matching output is ; for unlabeled pixels . Notation is the image lattice for image , and is the number of labeled pixels for image liu2009nonparametric . Here outputs if the condition is true; otherwise 0.

To define the LOC-ERR of corresponding pixel positions, we first designate each image’s pixel coordinates using its ground-truth object bounding box. Pixel coordinates are normalized with respect to the box’s position and size. Then, the localization error of two matched pixels is defined as: , where is the pixel coordinate of the first image and is its corresponding location in the second image kim2013deformable .

The intersection over union (IOU) segmentation measure is used to assess per-class accuracy on the intersection of the predicted segmentation and the ground truth, normalized by the union. Formally, it is defined as

(11)

IOU is now the standard metric for segmentation everingham2014pascal .

3.2 Comparison with state-of-the-art dense matching methods

In this section, we compare our method against state-of-the-art dense matching methods to examine the matching quality on object matching and scene segmentation. Detail about our method is described in Section 2.1.

Comparison with different features and matching methods

For this experiment, we evaluate the matching performance by using different features in different matching frameworks. 100 test image pairs are randomly picked from the Caltech-101 dataset. Each pair of images are chosen from the same class. The result is shown in Table 1. It shows that SIFT features in our multi-layer matching model are not able to achieve the same accuracy level as the learned features. This result shows the advantage of learned features over hand-crafted features such as SIFT.

Meanwhile, we use the learned features to replace the SIFT features in the DSP kim2013deformable ’s framework, and use the same test images. The results show that the SIFT features can obtain better matching accuracy in DSPkim2013deformable ’s framework. This result shows that the DSP method kim2013deformable is not able to take advantage of learned features, while our matching framework is tailored to the unsupervised features learning technique.

framework Ours DSPkim2013deformable SIFT Flowliu2011sift CSHkorman2011coherency
feature learned feature SIFT learned feature SIFT
matching level patch level pixel level patch level pixel level
LT-ACC 0.801 0.803 0.757 0.759 0.765 0.792 0.763 0669
IOU 0.501 0.505 0.449 0.451 0.436 0.496 0.479 0.365
LOC-ERR 0.323 0.324 0.409 0.410 0.359 0.357 0.351 1.002
Time (sec) 0.07 0.45 0.09 0.76 0.40 0.65 4.32 0.16
Table 1: Comparison of object matching performance of different methods on 100 pairs of images from the Caltech-101 dataset in terms of the matching accuracy and speed. The best results are shown in bold.

The third observation is the computation speeds of compared methods. The CPU time of our method (at the patch level) is about 8 times faster than that of DSPkim2013deformable and 50 times faster than SIFT Flow of Liu et al. liu2011sift .

For the patch-level matching, our method outperforms CSH by about 13 points in LT-ACC, yet is twice faster than CSH. Note that CSH is a noticeably fast method, which exploits hashing to quickly find matching patches between two images. Our pixel-level matching further improves the patch layer matching accuracy and provides better visual matching quality, which is hard to be measured by LT-ACC. The examples are shown in Figure 3.

By using multi-level representations, our proposed matching method enables the learned features (obtained by unsupervised learning methods) to outperform those hand-crafted features (e.g., SIFT features) in dense matching tasks. The general matching framework may not help features to achieve their best performance. A suitable matching framework improves the feature performance in the matching task. We conclude that our matching framework and the unsupervised feature learning pipeline are tightly coupled to achieve the best performance.

Intra-class image matching

Now we conduct extensive experiments on the Caltech-101 dataset. We randomly pick 20 image pairs for each class (2020 image pairs in total). Each pair of images are chosen from the same class. The ground-truth annotation for each image is available, indicating the foreground object and the background.

method Ours (patch layer) DSP SIFT Flow CSH
LT-ACC 0.772 0.761 0.741 0.590
Time (s) 0.033 0.545 2.82 0.163
Table 2: Intra-class image matching performance on the Caltech-101 dataset. The best results are in bold.
Figure 4: LABEL: shows the percentage of each method achieving the best performance in all of the 101 classes. Our method achieves the best matching accuracy in 55 classes (54% of 101 classes). LABEL: shows the histogram of each methods’ achievements over matching accuracy (LT-ACC) in all classes.

Table 2 shows the matching accuracy and CPU time of our method against those state-of-the-art methods. As can be seen, our method achieves the highest label transfer accuracy and is more than 10 times faster than the DSP in the matching process. In this experiment, there are only two labels for each test image and the intra-class variability is very large. It is hard to achieve improvement of 0.1.

We can find that the intra-class variability differs by classes. Such as in the ‘Face’ class, objects in images are similar. The highest matching accuracy for the ‘Face’ class can reach 0.952 (obtained by the SIFT Flow method). However, in the ‘Beaver’ class, images vary much more than the ‘Face’ class and are hard to match. Therefore, the best accuracy among four compared methods of the ‘Beaver’ class is lower than the ‘Face’ class, as expected. In the ‘Beaver’ class, our method outperforms other methods and obtains a matching accuracy of 0.687.

As the intra-class variability is hard to measure, we use the best matching accuracy to reflect the variability of each class. Higher matching accuracy means smaller intra-class variability. Figure 4 shows the histogram of best matching accuracy in all classes. For each bin, we group the data by matching methods.

Figure 4 shows that our method outperforms other methods in most cases. SIFT based methods achieve better results in those ‘easy’ high-accuracy classes such as ‘Face’. Our method can achieve better matching results for large intra-class variability classes. SIFT based methods can well handle the similar appearance objects matching. This conclusion is consistent with the case of sparse point matching applications. Our proposed method is more suitable to handle the matching problem of large intra-class variability than compared methods.

The pie chart in Figure 4 shows the percentage of each method achieving the best accuracy in the 101 classes. Our method achieves the best matching accuracy in 55 out of 101 classes. Our method outperforms the compared methods by a large margin.

Figure 5: Qualitative comparison. We show some example results of compared methods. The first column stacks matching image pairs. The second column shows ground-truth labels of input images. We establish the pixel correspondences for the top image of each image pair. Columns 3–6 show the warping results from the exemplar image (the bottom one in the pair) to the test image (top one) via pixel correspondences by our method, DSP, SIFT flow and CSH, respectively. Here black and white colors indicate the labels of background and target.

Figure 5 shows some qualitative results of the compared methods. The results show that our method is more robust than other methods under large object appearance variations (e.g., the second example) and cluttered backgrounds (e.g., the first and third examples).

The DSP and SIFT Flow methods are based on SIFT features which are robust to local geometric and local affine distortions. The SIFT Flow method enforces the matching smoothness between the pixel and its neighboring pixels. Due to the enforcement of pixels’ connections, the SIFT Flow matching results may exhibit large distortions.

The DSP method takes advantages of pyramid graph matching and focuses on the pixel level optimization efficiency. The results show that the DSP method can achieve better results compared with SIFT Flow, which is consistent with the results presented in kim2013deformable . Since DSP removes the neighboring-pixel connection at the pixel-level matching optimization, pixels tend to match dispersedly beyond the object boundary.

The CSH method finds the patch matches mainly on patch appearance similarity and does not rely on the image coherence assumption. Their results are visually more pleasant (the warping result is highly similar to the test image). However, object pixels in a test image can easily incorrectly match the background pixels in the exemplar image. This causes the low label-transfer accuracy.

Our method takes advantages of these three methods. Grid-cell layer matching in our method considers the matching cost and geometric regularization in the pyramid of cells with different sizes, and cell matching guides the patch-level matching. Then the pixel matching refines the results of patch-level matching. Figure 5 shows that our method not only achieves accurate deformable matching but also keeps the object’s main shape. The matching accuracy by using our patch-level matching is better than that of DSP, while being much faster. As shown above, our patch-level results already outperform state-of-the-art results. Our pixel-level matching in general provides even better matching accuracy with more costly computation.

Figure 6: Example scene matching results of compared methods. This plot is displayed in accordance with Figure 5. The only difference here is that the scenes have multiple labels. Different pixel colors encode the 33 classes contained in the LMO dataset (e.g., tree, building, car, sky).

Scene matching and segmentation

In this scene matching and segmentation experiment, we report the results on the LMO datasetliu2009nonparametric . Most of the LMO images are outdoor scenes including streets, beaches, mountains and buildings. The dataset names top 33 object categories with the most labeled pixels. Other object categories are considered as the 34th category ‘unlabeled’ liu2009nonparametric . This experiment is more complex than the experiment on the Caltech-101 dataset, which contains only two labels (foreground or background).

For each test image, we select 9 most similar exemplar images by Euclidean distances of GIST as in liu2009nonparametric ; kim2013deformable . Through the matching process, we obtain dense correspondences between the test image and the selected exemplar images. Similar to the Caltech-101 matching experiment, we transfer the pixel labels to the test image pixels from the corresponding exemplar pixels.

For the scene matching, some example results are shown in Figure 6. Again, our method is more robust to the image variations (scene appearance changes and structure changes) not only in scene warping but also in label transferring. Our labeling results appear more similar to the test image ground truth labels.

For the scene segmentation, we follow the method described in liu2009nonparametric . After the matching and warping process, each pixel in the test image may have multiple labels by matching different exemplars. To obtain the final image segmentation, we reconcile multiple labels and impose spatial smoothness under a Markov random field (MRF) model. The label likelihood is defined by the feature distance between test image pixel and its corresponding exemplar image pixel. In this experiment, we randomly pick 40 images as test images. We report the patch-level results of our method on this dataset.

method Ours DSP SIFT Flow CSH
LT-ACC 0.702 0.677 0.687 0.612
IOU 0.505 0.498 0.479 0.365
Table 3: Scene segmentation performance of different methods on the LMO dataset in matching accuracy. For our method, the dictionary is learned by using K-means and the encoding schemes is K-means triangle. The dictionary size is set to 100. The best results are boldfaced.

Table 3 shows the segmentation accuracy of our method compared with state-of-the-art methods. Our method outperforms state-of-the-art methods in the segmentation accuracy. In this experiment, we notice that SIFT Flow outperforms the DSP method in GIST neighbors, which is consistent with the results in kim2013deformable . The segmentation accuracy of DSP relies on the exemplar listkim2013deformable . Our method does not have this problem. In the multi-class pixel labelling experiment, our method outperforms the compared methods by 0.02 of matching accuracy. Our IOU score is also better. The experimental results show that our method provides higher matching accuracy. The reason is two-fold: (a) the learned features provide higher discriminability between classes, and (b) our matching model is more suitable for the learned features to carry out dense matching tasks.

Matching results on the Pascal VOC dataset

This part of experiments is carried out on the Pascal Visual Object Classes (VOC) 2012 dataset everingham2014pascal . There are 2913 images in the segmentation task, which have ground-truth annotations for each image pixel. There are 20 specified object classes in the Pascal 2012 dataset. The objects which do not belong to one of these classes are given a ‘background’ label.

In our experiment, we random choose 30 image pairs for each class (600 image pairs in total) from those images which only contain one object class. Each pair of images come from the same class. We consider the objects as ‘foreground’ and others as ‘background’. The parameter setting is the same as our experiments on the Caltech-101 dataset. We use the same dictionary to obtain our pixel features as in the other experiments.

Table 4 shows the matching accuracy and CPU time of our method as well as those compared methods. Again, we can see that our method achieves the highest label transfer accuracies and is more than 8 times faster than the DSP method. The pie chart in Figure 7 shows the percentage of each method achieving the best accuracy in 20 classes. We see that the proposed method achieves the best matching accuracy in 10 classes, which outperforms the compared methods. Figure 7 shows the histogram of best matching accuracy in all classes.

The results on the Pascal dataset are slightly different from those on the Caltech-101 dataset. As we can see from Figure 7, most of the classes in the Pascal dataset are low-accuracy classes. It means that objects in the same class vary more than those in the Caltech-101 dataset. In this experiment, our method still outperforms other methods for most cases. This confirms that our method achieves better matching results under large object appearance variations. It is further demonstrated that our proposed method is more suitable to handle the matching problem of large intra-class variability than those compared methods.

Figure 8 shows some example results of compared methods. The results show that our method is more robust than other methods under large object appearance variations (e.g., first example) and cluttered backgrounds (e.g., third and fourth examples).

method Ours (patch layer) DSP SIFT Flow CSH
LT-ACC 0.729 0.727 0.711 0.6173
Time (s) 0.18 1.64 9.38 0.42
Table 4: Intra-class image matching performance on the Pascal dataset. The best results are in bold.
Figure 7: LABEL: shows the percentage of each method achieving the best accuracy on the Pascal dataset. Our method achieves the best matching accuracy in 10 classes out of 20. LABEL: shows the histogram of each methods’ achievements in matching accuracy (LT-ACC) in all classes.
Figure 8: Qualitative comparison. We show some example results of compared methods on the Pascal dataset. The first column stacks matching image pairs. The second column are ground truth label of input images. Columns 3–6 show the warping results from the exemplar image to the test image via pixel correspondences by our method, DSP, SIFT flow and CSH, respectively.

3.3 Analysis of feature learning

In this section, we examine several factors that may affect the performance of our proposed matching algorithms. We randomly pick 20 pairs of images for each object class on the Caltech-101 dataset (thus in total 2020 pairs of images). The parameters are set as following unless otherwise specified. We use K-means dictionary learning and K-means triangle encoding for our method. The dictionary is learned from image patches extracted from 200 Background_Google class images in Caltech-101. The dictionary size is set to . The patch size for extracting pixel features is -pixels region centered at that pixel. Patch features are then calculated by max-pooling pixel features within each non-overlapping patch of pixels.

Evaluation of different dictionary learning methods and encoding schemes

Here we examine the importance of dictionary learning and feature encoding methods with respect to the final dense matching accuracy. First, we compare the K-means dictionary learning method, which has been used in our experiments in the previous section, with two other dictionary learning algorithms, namely K-SVD aharon2006ksvd and randomly sampled patches (RA) coates2011importance .

Encoder KT KT OMP-K SA
Dictionary K-SVD RA K-means K-means
LT-ACC 0.789 0.792 0.803 0.755 0.667
IOU 0.467 0.481 0.505 0.386 0.014
LOC-ERR 0.354 0.336 0.324 0.497 1.621
Table 5: Object matching performance using different dictionary learning and encoding methods on Caltech-101 in matching accuracy. Definition of the acronyms: KT (K-means triangle), OMP-K (orthogonal matching pursuit), SA (soft assignment), RA (random sampling).

As we can see from Table 5, different dictionary learning methods do not have a significant impact on the final the matching results. Even using randomly sampled patches as the dictionary can achieve encouraging matching performance. Different learning methods lead to similar matching accuracies. As concluded in coates2011importance , the main value of the dictionary is to provide basis, and how to construct the dictionary is less critical than the choice of encoding. For the application of pixel matching, we show that this conclusion holds too.

Then, we compare three encoding schemes: K-means triangle (KT) coates2011importance , OMP-k coates2011importance and soft assignment (SA) liu2011defense to evaluate the impact of different encoding schemes. We apply the OMP encoding with a sparsity level . According to the Table 5, KT encoding achieves the best matching result, which marginally outperforms other encoding methods. It shows that the encoding scheme has a larger impact on the feature performance than dictionary learning.

In our model, there are two properties that pixel features should obtain. The first is sparsity. Since we use max-pooling to form our patch features, some degree of sparsity contributes to the improvement. Lack of sparsity in pixel features may decrease the power of patch features. Based on the KT method, roughly one half of the features will be set to 0. SA results in dense features and it performs very poorly in our framework. This is very different from image classification applications liu2011defense .

The other property is smoothness. As mentioned in huang2012learning , they use the congealing method to align face images, which reduces entropy by performing local hill-climbing in the transformation parameters. The smoothness of that optimization landscape is a key factor to their successful alignment. In our method, we might have faced similar situations. To find the dense correspondence, we optimize the object function via belief propagation (BP). Without the smoothness, the algorithm can easily get stuck at a local minimum. OMP-k features are more sparse than the KT features, but OMP-k features are not sufficiently smooth to perform well in our framework.

The results in Table 5 show that KT encoding performs better than other two methods in our framework. This observation deviates from the case of generic image classification, in which many encoding methods (KT, SA, sparse coding, soft thresholding, etc.) have performed similarly liu2011defense ; coates2011importance .

Evaluation of the dictionary size

In this subsection, we evaluate the impact of the dictionary size on the performance of dense matching. As dictionary size equals to the feature dimension, larger dictionary implies more patch information for each feature, which may lead to better matching performance. At the same time, the trade-off is that a lager feature dimension requires more computation and slows down the matching procedure.

Method Ours DSP SIFT Flow CSH
Dictionary Size 64 100 144 196 289 400
LT-ACC 0.764 0.765 0.767 0.769 0.767 0.765 0.757 0.741 0.594
CPU time (s) 0.041 0.052 0.065 0.118 0.523 1.17 0.557 2.83 0.165
Table 6: Evaluation of different dictionary sizes w.r.t. the final matching accuracy. We can see that with a dictionary size of 100, our method has already outperformed DSP in accuracy and CPU time.

We evaluate six dictionary sizes (64, 100, 144, 196, 289, 400) on object matching performance, while keeping other parameters fixed. As shown in Table 6, using a dictionary of size 196 considerably outperforms the matching performance of size 64. Beyond this point, we observe slightly decreased accuracies. However, the CPU time grows tremendously from 0.04 seconds per image matching with a dictionary size of 64 to 0.12 seconds using a dictionary of size 196, as shown in Table 6. It can be seen that even using a dictionary size of 64 we can achieve high accuracy performance. This experiment result shows that using a bigger dictionary size (longer feature length) leads to slightly better matching accuracy in a wide range. Based on these observations, we have chosen the dictionary size to be 100 in our object matching and scene segmentation experiments as a balance of the accuracy and CPU time.

Also note that with this choice, our feature dimension is actually smaller than the SIFT’s dimension of 128. This fact has contributed to the faster speed of our method, compared to methods like SIFT flow.

Effect of the patch size for extracting pixel features

Figure 9: The impact of changes in model setup of feature learning process. LABEL: shows the matching accuracy using different patch sizes for extracting pixel layer features. LABEL: shows the impact of the max-pooling size for obtaining the patch layer features. LABEL: shows the performance of different patch sizes and dictionary sizes. The impact of the patch size is greater than the changes of the dictionary size. Beyond the point of patch size , the gain of increasing the patch size of the patch layer becomes less noticeable.

This experiment considers the effect of patch size for extracting pixel features (from to pixels, we evaluate 12 patch sizes). For each image pixel, we extract a certain size patch around that pixel and obtain pixel feature by using KT encoding. Larger patch regions allow us to extract more complex features as they may contain more information. On the other hand, it increases the dimensionality of the space that the algorithm must cover. The results are shown in Figure 9 and Figure 9. Overall, larger patches for extracting pixel features lead to better matching accuracy. From to pixels, the matching performance increases significantly, while beyond pixels, the accuracy improvement becomes negligible. From Figure 9, we can see that the impact of the patch size for extracting pixel features is much greater than the choice of dictionary sizes. As shown in Figure 9, the best performance of patch size is obtained by using a dictionary size of 100. Meanwhile, for patch size of , best performance point shifts to the dictionary size of 196. This suggests that one should choose a larger dictionary when larger patches are used.

Impact of the pooling size at the patch layer

We examine the impact of the pooling size for obtaining the patch layer features. As described in Section 2.1, an image is divided into non-overlapping pooling regions. Each of those pooling region/patches is represented by a patch feature, which is obtained by max-pooling all pixel features within that patch. As a result, larger-size pooling regions (patches) result in fewer pooled features.

The experiment result is shown in Figure 9. We consider four pooling sizes (, , , pixels). The best performance is achieved by the pooling size of pixels, regardless of the region size for extracting pixel layer features.

Impact of the size of training data

In all the previous experiments, the dictionary is learned form patches extracted from 200 Background_Google class images in the Caltech-101 dataset. In this experiment, we evaluate the impact of the training data size. Multiple dictionaries are learned from different numbers of patches in the Background_Google class of Caltech-101 dataset. The matching accuracy increases very slightly with more sampled patches for training, which is expected.

Figure 10: Matching accuracies with varying amount of training data and varying dictionary sizes.

4 Conclusions

We have proposed to learn features for pixel correspondence estimation in an unsupervised manner. A new multi-layer matching algorithm is designed, which naturally aligns with the unsupervised feature learning pipeline. For the first time, we show that learned features can work better than those widely-used hand-crafted features like SIFT on the problem of dense pixel correspondence estimation.

We empirically demonstrate that our proposed algorithm can robustly match different objects or scenes exhibiting large appearance differences and achieve state-of-the-art performance in terms of both matching accuracy and running time. A limitation of the proposed framework is that currently the system is not very robust to rotation and scale variations. We want to pursue this issue in future work.

We have made the code online available at https://bitbucket.org/chhshen/ufl.

Acknowledgments

This work is in part supported by ARC grant FT120100969. C. Zhang’s contribution was made when she was a visiting student at the University of Adelaide.

References

  • (1) C. Liu, J. Yuen, and A. Torralba, “SIFT flow: Dense correspondence across scenes and its applications,” IEEE Trans. Patt. Analysis & Machine Intell., vol. 33, no. 5, pp. 978–994, 2011.
  • (2) S. Korman and S. Avidan, “Coherency sensitive hashing,” in Proc. IEEE Int. Conf. Comp. Vis., 2011, pp. 1607–1614.
  • (3) J. Kim, C. Liu, F. Sha, and K. Grauman, “Deformable spatial pyramid matching for fast dense correspondences,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2013, pp. 2307–2314.
  • (4) C. Barnes, E. Shechtman, D. Goldman, and A. Finkelstein, “The generalized PatchMatch correspondence algorithm,” in Proc. Eur. Conf. Comp. Vis., 2010.
  • (5) M. Leordeanu, A. Zanfir, and C. Sminchisescu, “Locally affine sparse-to-dense matching for motion and occlusion estimation,” in Proc. IEEE Int. Conf. Comp. Vis., 2013.
  • (6) D. G. Lowe, “Object recognition from local scale-invariant features,” in Proc. IEEE Int. Conf. Comp. Vis., 1999.
  • (7) L. Bo, X. Ren, and D. Fox, “Multipath sparse coding using hierarchical matching pursuit,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2013, pp. 660–667.
  • (8) A. Coates and A. Ng, “The importance of encoding versus training with sparse coding and vector quantization,” in Proc. Int. Conf. Mach. Learn., 2011, pp. 921–928.
  • (9) A. Coates, A. Y. Ng, and H. Lee, “An analysis of single-layer networks in unsupervised feature learning,” in Int. Conf. Artificial Intell. & Stat., 2011, pp. 215–223.
  • (10) G. B. Huang, M. Mattar, H. Lee, and E. G. Learned-Miller, “Learning to align from scratch,” in Proc. Adv. Neural Inf. Process. Syst., 2012.
  • (11) C. Liu, J. Yuen, and A. Torralba, “Nonparametric scene parsing: Label transfer via dense scene alignment,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2009, pp. 1972–1979.
  • (12) M. Everingham, S. Eslami, L. Van Gool, C. Williams, J. Winn, and A. Zisserman, “The Pascal visual object classes challenge: A retrospective,” Int. J. Comp. Vis., 2014. [Online]. Available: http://dx.doi.org/10.1007/s11263-014-0733-5
  • (13) M. Rubinstein, A. Joulin, J. Kopf, and C. Liu, “Unsupervised joint object discovery and segmentation in internet images,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2013, pp. 1939–1946.
  • (14) O. Duchenne, A. Joulin, and J. Ponce, “A graph-matching kernel for object categorization,” in Proc. IEEE Int. Conf. Comp. Vis., 2011, pp. 1792–1799.
  • (15) A. C. Berg, T. Berg, and J. Malik, “Shape matching and object recognition using low distortion correspondences,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., vol. 1, 2005, pp. 26–33.
  • (16) M. Leordeanu and M. Hebert, “A spectral technique for correspondence problems using pairwise constraints,” in Proc. IEEE Int. Conf. Comp. Vis., vol. 2, 2005.
  • (17) E. Tola, V. Lepetit, and P. Fua, “A fast local descriptor for dense matching,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2008.
  • (18) L. Zelnik-Manor, “On SIFTs and their scales,” in Proc. IEEE Conf. Comp. Vis. Patt. Recogn., 2012, pp. 1522–1528.
  • (19) Q. V. Le, M. Ranzato, R. Monga, M. Devin, G. Corrado, K. Chen, J. Dean, and A. Y. Ng, “Building high-level features using large scale unsupervised learning,” in Proc. Int. Conf. Mach. Learn., 2012.
  • (20) Q. V. Le, A. Karpenko, J. Ngiam, and A. Y. Ng, “ICA with reconstruction cost for efficient overcomplete feature learning,” in Proc. Adv. Neural Inf. Process. Syst., 2011, pp. 1017–1025.
  • (21)

    G. Zhou, K. Sohn, and H. Lee, “Online incremental feature learning with denoising autoencoders,” in

    Proc. Int. Conf. Artificial Intell. & Stat., vol. 22, 2012, pp. 1453–1461.
  • (22)

    J. Wright, Y. Ma, J. Mairal, G. Sapiro, T. S. Huang, and S. Yan, “Sparse representation for computer vision and pattern recognition,”

    Proceedings of the IEEE, vol. 98, no. 6, pp. 1031–1044, 2010.
  • (23) J. Mairal, F. Bach, J. Ponce, and G. Sapiro, “Online learning for matrix factorization and sparse coding,” J. Mach. Learn. Res., vol. 11, pp. 19–60, 2010.
  • (24) D. D. Lee and H. S. Seung, “Learning the parts of objects by non-negative matrix factorization,” Nature, vol. 401, no. 6755, pp. 788–791, 1999.
  • (25) A. Coates and A. Y. Ng, “Selecting receptive fields in deep networks,” in Proc. Adv. Neural Inf. Process. Syst., 2011, pp. 2528–2536.
  • (26) T. Tuytelaars and L. Van Gool, “Wide baseline stereo matching based on local, affinely invariant regions,” in Proc. British Machine Vis. Conf., 2000, pp. 412–425.
  • (27) H. Bay, A. Ess, T. Tuytelaars, and L. Van Gool, “Speeded-up robust features (surf),” Comput. Vis. Image Underst., vol. 110, no. 3, pp. 346–359, 2008.
  • (28) E. Tola, V. Lepetit, and P. Fua, “DAISY: An efficient dense descriptor applied to wide baseline stereo,” IEEE Trans. Pattern Anal. Mach. Intell., vol. 32, no. 5, pp. 815–830, May 2010.
  • (29) M. Heikkilä, M. Pietikäinen, and C. Schmid, “Description of interest regions with local binary patterns,” Pattern Recogn., vol. 42, no. 3, pp. 425–436, 2009.
  • (30) M. Aharon, M. Elad, and A. Bruckstein, “K-SVD: An algorithm for designing overcomplete dictionaries for sparse representation,” IEEE Trans. Signal Process., vol. 54, no. 11, pp. 4311–4322, 2006.
  • (31) Y.-L. Boureau, J. Ponce, and Y. LeCun, “A theoretical analysis of feature pooling in visual recognition,” in Proc. Int. Conf. Mach. Learn., 2010, pp. 111–118.
  • (32) A. T. Ihler, J. W. F. III, and A. S. Willsky, “Loopy belief propagation: Convergence and effects of message errors,” J. Mach. Learn. Res., vol. 6, pp. 905–936, 2005.
  • (33) P. Felzenszwalb and D. Huttenlocher, “Efficient belief propagation for early vision,” Int. J. Comp. Vis., vol. 70, no. 1, pp. 41–54, 2006. [Online]. Available: http://dx.doi.org/10.1007/s11263-006-7899-4
  • (34) L. Liu, L. Wang, and X. Liu, “In defense of soft-assignment coding,” in Proc. IEEE Int. Conf. Comp. Vis., 2011, pp. 2486–2493.
