1 Introduction

Multi-person 3D human pose estimation aims to simultaneously isolate individual persons and estimate the location of their semantic body joints in a 3D space. This challenging task can aid a wide range of applications related to human behavior understanding such as surveillance [Zheng_2017_CVPR], group activity recognition [luvizon20182d], sports analytics [ibrahim2016hierarchical]

, etc. Existing multi-person pose estimation approaches can be broadly classified into two categories namely, top-down and bottom-up. In top-down approaches

[rogez2017lcr, rogez2019lcr, Dabral2019MultiPerson3H, moon2019camera], the first step is to detect persons using an off-the-shelf detector which is followed by predicting a 3D pose for each person using a single-person 3D pose estimator. Such approaches [rogez2017lcr, rogez2019lcr] are usually incapable of inferring absolute camera-centered distance of each human as they miss the global context. In contrast, the bottom-up approaches [mehta2018single] first locate the body joints, and then assign them to each individual person via a keypoint grouping operation. The bottom-up approaches yield suboptimal results as compared to top-down approaches, but have a superior run-time advantage against top-down methods [kocabas2018multiposenet, redmon2016you]. In this paper, we aim to leverage the computational advantage of bottom-up approaches while effectively eliminating the keypoint grouping operation via an efficient 3D pose representation. This results in a substantial gain in performance while maintaining an optimal computational overhead.


Figure 1: We aim to realize a shared latent space which embeds samples from varied input modalities i.e. the unpaired images and unpaired 3D poses. Auto-encoding pathway: . Distillation pathway: from to camera projection of . Inference: (red shadow).


Figure 2: We achieve a superior trade-off between speed and performance against the prior arts (Rogez[rogez2019lcr], Rogez*[rogez2017lcr], Mehta[mehta2018single], Moon[moon2019camera]). See Section 5

Almost all multi-person 3D pose estimation approaches access large-scale datasets with 3D pose annotations. However, owing to the difficulties involved in capturing 3D pose in wild outdoor environments, many of the 3D pose datasets are captured in indoor settings. This restricts diversity in the corresponding images (i.e. limited variations in background, attires and pose performed by actors) [ionescu2013human3, joo2015panoptic]. However, 2D keypoint annotations [nath2018object, kundu2018ispa] are available even for in-the-wild multi-person outdoor images. Hence, several approaches aim to design 2D-to-3D pose lifters [chen2019unsupervised_cvpr, martinez2017simple] by relying on an off-the-shelf, Image-to-2D pose estimator. Such approaches usually rely on geometric self-consistency of the projected 2D pose obtained from the lifter output, while imposing adversarial prior to assure plausible 3D pose predictions [chen2019unsupervised_cvpr, kanazawa2018end]. However, the generalizability of such approaches is limited owing to the dataset bias exhibited by the primary Image-to-2D pose estimator which is trained in a fully-supervised fashion.

Our problem setting. Consider a scenario where a pretrained Image-to-2D pose estimator is used for the goal task of 3D pose estimation. There are two challenges that must be tackled. First, a pretrained Image-to-2D estimator would exhibit a dataset bias towards the training data. Thus, the deployment of such a model in an unseen environment (e.g. dancers in unusual costumes) is not guaranteed to result in an optimal performance. This curtails the learning of the 2D-to-3D pose lifter, especially in the absence of paired images from the unseen environment. Second, along with the Image-to-2D model, one can not expect to be provided with its labeled training dataset owing to proprietary [nayak2019zero, dfkd] or even memory [lwm, lwf] constraints. Considering these two challenges, the problem boils down to performing domain adaptation [kundu2019adapt] by leveraging the pretrained Image-to-2D network (a.k.a the teacher network) in an unsupervised fashion, i.e. in the absence of any paired 2D or 3D pose annotations. Further, acknowledging the limitations of existing 2D-to-3D pose lifters, we argue that the 3D pose lifter should access the latent convolutional features instead of the final 2D pose output; owing to its greater task transferability [long2015learning].

Though it is easy to obtain unpaired multi-person images, acquiring a dataset of unpaired multi-person 3D pose is inconvenient. To this end, we synthesize multi-person 3D scenes by randomly placing the single-person 3D skeletons in a 3D grid as shown in Fig. 3B. We also formalize a systematic way to synthesize single-person 3D pose by accessing plausible ranges of parent-relative joint angle limits provided by biomechanic experts. This eradicates our dependency even on an unpaired 3D skeleton dataset. Our idea of creating artificial samples stems from the concept of domain randomization [peng2018sim, tobin2017domain] which is shown to be effective for generalizing deep models to unseen target environments. The core hypothesis is that the multi-person 3D pose distribution characterized by the artificially synthesized 3D pose scenes would subsume the unknown target distribution. Note that the proposed joint angle sampling would allow sampling of minimal implausible single-person poses as it does not adhere to the strong pose-conditioned joint angle priors formalized by Akhter et al[akhter2015pose].

We posit the learning framework as a cross-modal alignment problem (see Fig. 2). To this end, we aim to realize a shared latent space , which embeds samples from varied input modalities [chung2018unsupervised], such as unpaired multi-person image and unpaired multi-person 2D pose (i.e. camera projection on multi-person 3D pose ). Our training paradigm employs an auto-encoding loss on (via pathway), a distillation loss on (via pathway) and an additional adaptation loss (non-adversarial) to minimize the cross-modal discrepancy at the latent space . In further training iterations, we stop the limiting distillation loss and fine-tune the model on a self-supervised criteria based on the equivariance property [schmidt2012learning] of spatial-transformations on the image and its corresponding 2D pose representation. Extensive experiments of our ablations and comparisons against prior arts establish the superiority of this approach. In summary, our contributions are as follows:

  • We propose an efficient bottom-up architecture that yields fast and accurate single-shot multi-person 3D pose estimation performance with structurally infused articulation constraints to assure valid 3D pose output. In absence of paired supervision we cast the learning as a cross-modal alignment problem and propose training objectives to realize a shared latent space between two diverse data-flow pathways.

  • We enhance the model’s ability to perform even beyond the limiting teacher network as a result of the enriched latent-to-3D-pose mapping using artificially synthesized multi-person 3D scene samples.

  • Our approach not only yields state-of-the-art multi-person 3D pose estimation performance among the prior bottom-up approaches but also demonstrates a superior trade-off between speed and performance.

2 Related Work

Multi-person 2D pose estimation works can be broadly classified into top-down and bottom-up methods. Top-down methods such as [chen2018cascaded, newell2016stacked, huang2017coarse, xiao2018simple] first detect the persons in the image and then estimate their poses. On the other hand, bottom-up methods [newell2017associative, pishchulin2016deepcut, insafutdinov2016deepercut, cao2017realtime, nie2019single] predict the pose of all persons in a single-shot. Cao et al. [cao2017realtime] use a non-parametric representation Part Affinity Field (PAF) and Part Confidence Map (PCM) to learn association between 2D keypoints and persons in the image. Similarly, Kocabas et al. [kocabas2018multiposenet] proposed a bottom-up approach using pose residual network for estimating both keypoints and human detections simultaneously.

w/o paired
Rogez [rogez2017lcr]
Mehta [mehta2018single]
Rogez [rogez2019lcr]
Dabral [Dabral2019MultiPerson3H]
Moon [moon2019camera]
Table 1: Characteristic comparison against prior works. without paired supervision implies the method does not need access to annotations.

Many approaches have been proposed for solving the problem of single-person 3D human pose estimation [sun2017compositional, kundu2020self, kundu2020unsupervised, kundu2020kinematic, pavlakos2017coarse, yasin2016dual]. Vnect [mehta2017vnect] is the first realtime 3D human pose estimation work that infers the pose by parsing location-maps and joint-wise heatmaps. Martinez et al. [martinez2017simple] proposed an effective approach to directly lift the ground-truth 2D poses to 3D poses. Few methods have been proposed so far for Multi-person 3D pose estimation. In [rogez2017lcr, rogez2019lcr], Rogez et al. proposed a top-down approach based on localization, classification and regression of 3D joints. These modules are pipelined to predict the final pose of all persons in the image. Mehta et al. [mehta2018single] proposed a single-shot approach to infer 3D poses of all people in the image using PAF-PCM representation. To handle occlusions, they introduced Occlusion Robust Pose Maps (ORPM) which allows full body pose inference under occlusions. Moon et al. [moon2019camera] proposed the first top-down camera-centered 3D pose estimation. Their framework contains three modules: DetectNet localizes multiple persons in the image, RootNet estimates camera-centered depth of root joint and PoseNet estimates root relative 3D pose of the cropped person. In RootNet, they use pinhole camera projection model to estimate absolute camera-centered depth. Dabral et al. [Dabral2019MultiPerson3H] proposed a 2D to 3D lifting based approach for camera-centric predictions. Rogez et al. [rogez2017lcr, rogez2019lcr] and Moon et al. [moon2019camera] crop the detected person instances from the image and they do not leverage the global context information. All prior state-of-the-art works [rogez2017lcr, rogez2019lcr, mehta2018single, Dabral2019MultiPerson3H, moon2019camera] require paired supervision. See Table 1 for a characteristic comparison against prior works.

Cross-modal distillation. Gupta et al. [gupta2016cross] proposed a novel method for enabling cross-modal transfer of supervision for tasks such as depth estimation. They propose alignment of representations from a large labeled modality to a sparsely labeled modality. In [spurr2018cross], Spurr et al. demonstrated the effectiveness of cross-modal alignment of latent space for the task of hand pose estimation. In a related work [pilzer2019refine], Pilzer et al. proposed an unsupervised distillation based depth estimation approach via refinement of cycle-inconsistency.

3 Approaches

Our prime objective is to realize a learning framework for the task of multi-person 3D pose estimation without accessing any paired data (i.e. images with the corresponding 2D or 3D pose annotations). To achieve this, we plan to distill the knowledge from a frozen teacher network which is trained for an auxiliary task of multi-person 2D landmark estimation. Furthermore, in contrast to the general top-down approaches in fully-supervised scenarios, we propose an effective single-shot, bottom-up approach for multi-person 3D pose estimation. Such an architecture not only helps us maintain an optimal computational overhead but also lays a suitable ground for cross-modal distillation.

3.1 Architecture

Aiming to design a single-shot end-to-end trainable architecture, we draw motivation from the real-time object detectors such as YOLO [redmon2016you]

. The output layer in YOLO divides the output spatial map into a regular grid of cells. The multi-dimensional vector at each grid location broadly represents two important attributes. Firstly, a confidence value indicating the existence of an object centroid in the corresponding input image patch upon registering the grid onto the spatial image plane. Secondly, a parameterization of the object properties, such as class probabilities and attributes related to the corresponding bounding box. In similar lines, for multi-person 3D pose estimation, each grid location of the output layer represents a heatmap indicating existence of a human pelvis location (or root) followed by a

parameterization of the corresponding root-relative 3D pose. Here, the major challenge is how to parameterize root-relative human 3D pose in the efficient manner. We explicitly address it in the following subsection.

3.1.1 Parameterizing 3D pose via pose embedding.

Root relative human 3D pose follows a complex structured articulation. Moreover, defining a parameterization procedure without accounting for the structural plausibility of the 3D pose would further add up to the inherent 2D to 3D ambiguity. Acknowledging this, we aim to devise a parameterization which selectively decodes anthropomorphically plausible human poses spanning a continuous latent manifold (see Fig. 3A). One of the effective ways to realize the above objective is to train a generative network [kundu2019gan] which models the most fundamental form of human pose variations. Thus, we disentangle the root-relative pose into its rigid and non-rigid factors. The non-rigid factor, also known as the canonical pose is designed to be view-invariant. The rigid transformation is defined by the parameters as required for the corresponding rotation matrix. In further granularity, according to the concept of forward kinematics [zhou2016deep], movement of each limb is constrained by the parent-relative joint-angle limits and the scale invariant fixed relative bone lengths. Thus, the unit vectors corresponding to each joint defined at their respective parent-relative local coordinate system [akhter2015pose] is regarded as the most fundamental form of 3D human pose which is denoted by . Note that, the transformation is a fully-differentiable series of forward kinematic operations. We train a generative network [kundu2019bihmp, kundu2019unsupervised] following the learning procedure of adversarial auto-encoder (AAE [makhzani2015adversarial]) on samples of acquired from either a MoCap [cmumocap] dataset or via a proposed Artificial-pose-sampling procedure (see Fig. 3A). We consider a uniform prior distribution i.e. . This ensures that any random vector decodes (via ) an anthropomorphically plausible human pose. (See Suppl)

In the proposed Artificial-pose-sampling procedure, we use a set of joint angle limits (4 angles i.e

. the allowed range of polar and azimuthal angles in the parent relative local pose representation) provided by the biomechanic experts. The angle for each limb is independently sampled from a uniform distribution defined by the above range values (see the highlighted regions on the sphere for each body joint in Fig.

3A). Note that, the proposed joint angle sampling would allow sampling of minimal implausible single-person poses as it does not adhere to the pose-conditioned joint angle limits formalized by Akther et al[akhter2015pose]. (See Suppl)

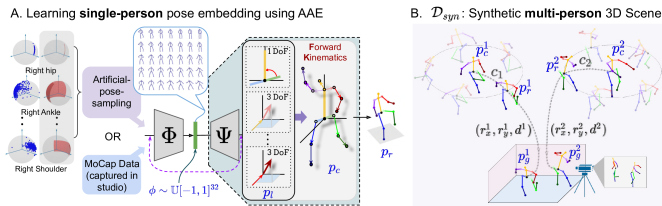

Figure 3: A. Learning continuous pose-embedding on MoCap or Artificially sampled pose dataset. B. Creating : Each canonical pose is rigidly transformed through rotation and translation operation to form random 3D scenes.

3.1.2 Neural representation of multi-person 3D pose.

The last layer output of the single-shot latent to multi-person 3D pose mapper , denoted as

, is a 3D tensor of size

(see block Fig. 4B). The number of channels constitutes of 4 distinct components. The dimensional vector for each grid location constitutes of 4 distinct components viz, a) a scalar heatmap intensity indicating existence of a skeleton pelvis denoted as , b) a 32 dimensional 3D pose embedding , c) 6 dimensional rigid transformation parameters ( and component of 3 rotation angles), and d) a scalar absolute depth associated with the skeleton pelvis. Note that, the last 3 components are interpretable only in presence of a pelvis at the corresponding grid location as denoted by the first component. Here, is obtained through a tanh nonlinearity thus constraining it to decode (via frozen AAE from Section 3.1.1) only plausible 3D human poses.

The model accesses a set of 2D pelvis key-point locations belonging to each person in the corresponding input image, denoted as . Here, denotes the total number of persons. These spatial locations are obtained either as estimated by the teacher network or from the ground-truth depending on its availability. For each selected location , the corresponding and are pooled from the relevant grid location to decode (via ) the corresponding root-relative 3D pose, . First, the canonical pose, is obtained by applying forward kinematics (denoted as FK in Fig. 4B in module ) on the decoded local vectors obtained from the pose embedding . Following this, is obtained after performing rigid transformation using , i.e. in Fig. 4B. Finally, the global 3D pose scene, , is constructed by translating the root-relative 3D poses to their respective root locations in the camera centered global coordinate system, i.e. in Fig. 4B. The 3D translation for each person is obtained using , where and are the X and Y component obtained as a transformation of the spatial root location . In Fig. 4B, the series of fixed (non-trainable) differentiable operations to obtain from the CNN output is denoted as . A weak perspective camera transformation, , of provides us the corresponding multi-person 2D key-points denoted by .

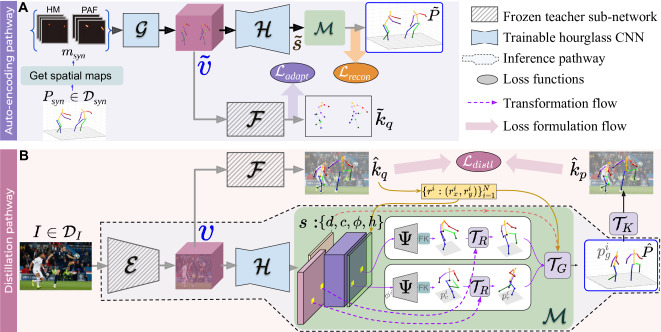

Figure 4: Proposed data-flow pathways. Distillation is performed from the teacher, to the student . Weights of and are shared across both the pathways.

Inference. During inference, is obtained from the heatmap channel predicted at the output of . We follow the non-maximum suppression algorithm inline with Cao et al[cao2017realtime] to obtain a set of spatial root locations belonging to each person. Thus, the inference pathway during testing is as follows, .

3.2 Learning cross-modal latent space

We posit the learning framework as a cross-modal alignment problem. Moreover, we aim to realize a shared latent space, which embed samples from varied modality spaces, such as multi-person image , multi-person 2D pose , and multi-person 3D pose . However, in absence of labeled samples (or paired samples) an intermediate representation of the frozen teacher network is treated as the shared latent embedding. Following this, separate mapping networks are trained to encode or decode the latent representation to various source modalities. Note that, the teacher network already includes the mapping of image to the latent space, and latent space to multi-person 2D pose, . We train two additional mapping networks, viz. a) multi-person 2D pose to latent space, and b) latent space to multi-person 3D pose, . Also note that, .

Available Datasets. We have access to two unpaired datasets viz. a) unpaired multi-person images and b) unpaired multi-person 3D pose samples . Though it is easy to get hold of unpaired multi-person images, acquiring a dataset of unpaired multi-person 3D pose is inconvenient. Acknowledging this, we propose a systematic procedure to synthesize a large-scale multi-person 3D pose dataset from a set of plausible single-person 3D poses. A multi-person 3D pose sample constitute of a certain number of persons (samples of ) with random rigid transformations () placed at different locations (i.e. ) in a 3D room. This is illustrated in Fig. 3B. Here, samples of can be obtained either from a MoCap dataset or by following Artificial-pose-sampling.

Broadly, we use two different data-flow pathways as shown in Fig. 4. Here, we discuss how these pathways support an effective cross-modal alignment.

a) Cross-modal distillation pathway for . The objective of distillation pathway is to instill the knowledge of mapping an input RGB image to the corresponding multi-person 2D pose (i.e. from the teacher network where ) into the newly introduced 3D pose estimation pipeline. Here, is obtained after performing bipartite matching inline with Cao et al[cao2017realtime]. We update the parameters of by imposing a distillation loss between and the perceptively projected 2D pose , i.e. .

b) Auto-encoding pathway for . In the auto-encoding pathway, the objective is to reconstruct back the synthesized samples of multi-person 3D poses via the shared latent space. Owing to the spatially structured latent representation, for each non-spatial we first generate the corresponding multi-person spatial heatmap (HM) and Part Affinity Map (PAF) inline with Cao et al[cao2017realtime], denoted by in Fig. 4A. Note that represents the 2D keypoint locations of which is the obtained as the camera projection of the . Following this, we obtain where . Parameters of both and are updated to minimize .

c) Cross-modal adaptation. Notice that, is the only common model updated in both pathways. Here, is computed against the noisy teacher prediction that too in the 2D pose space. In contrast, is computed against the true ground-truth 3D pose thus devoid of the inherent 2D to 3D ambiguity. As a result of this disparity, the model differentiates between the corresponding input distributions, i.e. between and , thereby learning separate strategies favouring the corresponding learning objectives. To minimize this discrepancy, we rely on the frozen teacher sub-network . We hypothesize that, the energy computed via , i.e. would be low if the associated input distribution of , i.e. aligns with the output distribution of , i.e. . Accordingly, we propose to minimize to realize an effective cross-modal alignment.

Training phase-1 We update and to minimize all the three losses discussed above, i.e. , and each with different Adam [kingma2014adam] optimizers.

3.3 Learning beyond the teacher network

We see a clear limitation in the learning paradigm discussed above. The inference performance of the final model is limited by the dataset bias infused in the teacher network. We recognize as the prime culprit which limits the ability of by not allowing it to surpass the teacher’s performance. Though one can rely on to further improve , this would degrade performance in the inference pathway as a result of increase in discrepancy between and . Considering this, we propose to freeze thereby freezing its output distribution in the second training phase.

Furthermore, in absence of the regularizing we use a self-supervised consistency loss to regularize for the unpaired image samples. For each image we form a pair where is the spatially transformed version (i.e. image-flip, random-crop, or in-place rotation) of . Here, represents the differentiable spatial transformation. Next, we propose a consistency loss based on the equivariance property [schmidt2012learning] of the corresponding multi-person 2D pose, i.e.

The above loss is computed at the root-locations extracted using the teacher network for the original image . Whereas, for we use the spatial transformation on the extracted root locations of the original image.

Training phase-2 We update the parameters of ( is kept frozen from the previous training phase) to minimize two loss terms i.e. and .

4 Experiments

In this section, we describe the experiments and results of the proposed approach on several benchmark datasets. Through quantitative and qualitative analysis, we demonstrate the practicality and performance of our method.

4.1 Implementation Details

First, we explain the implementation details of synthetic dataset creation. Next, we provide the training details for learning the neural representation.

3D skeleton dataset. Artificial-pose-sampling is performed by sampling uniformly from joint wise angle limits defined at local parent relative [akhter2015pose] spherical coordinate system (see Fig. 3A) i.e. and . For example, right-hip joint (i.e. 1-DoF) and , (See Suppl). Using these predefined limits, we construct a full 3D pose (via FK). A total of 1M poses are sampled for training . Further, 100k synthetic multi-person pose scenes are created by sampling upto 4 single-person 3D poses per scene. Note that, the dataset can also utilize 3D poses from single-person 3D dataset such as Human 3.6M [ionescu2013human3] and MPI-INF-3DHP [mehta2017monocular], when accessible.

Training. First, we train a pose decoder (see Section 3.1.1) either on artificial pose dataset () or MoCap 3D dataset (). The AAE modules are trained using a batch size of 32, with a learning rate of 1e-4 using Adam optimizers till convergence (See Suppl). The decoder is frozen for rest of the training. For training the neural representation, we choose the pretrained network of Cao et al. [cao2017realtime] as the teacher network. We consider upto stage-1 “conv5-4-CPM” layer of [cao2017realtime] as . We concatenate the predictions of both heatmap and Part Affinity Field branches to obtain an embedding space of size 28281024. We consider module as from stage-1 “conv5-5-CPM” layer upto stage-2 “Mconv7-stage2” layer of [cao2017realtime]. Using this teacher model, we train the modules by minimizing the losses , , , using separate Adam optimizers for each of the losses. We use a learning rate of 1e-4 upto 100k iterations and 1e-5 for the following 500k iterations while using a fixed batch size of 8 throughout the training. Further, we use batches of images from and in alternate iterations while training the network. The input image size for is and input PAF representation [cao2017realtime] is of shape for . All transformations ,

have been implemented using TensorFlow and are designed to be completely differentiable end-to-end. We have trained the entire pipeline on a Tesla-V100 GPU card in Nvidia-DGX station (See Suppl).

Poses ()
Poses ()
Paired multi
person 2D sup.
Composed multi
person 3D sup.
Ours: Learning without any paired supervision. Using 2D predictions from teacher
(no ) 53.3
Ours-Us 66.1

Ours: Weakly Supervised Learning Methods.

Using paired 2D supervision only
with 66.4
Ours-Ws 67.9
Ours: Supervised Learning Methods. Using both paired 2D and 3D supervision
No 71.1
Ours-Fs 75.8
Table 2: Quantitative analysis of different ablations of our approach on MuPoTS-3D. Unpaired means that there is no ground truth annotation available for an image. Paired means that there is a corresponding annotation available for an image. 3DPCK is Percentage of Correct 3D Keypoints predicted within 15cm. (higher 3DPCK is better). “sup.” stands for supervision. MuCo-3DHP [mehta2018single] is used in fifth column. Red color indicates that configuration is less preferable for low data regime. (Best viewed in color).

4.2 Ablation Studies

In order to study the effectiveness of our method, we perform extensive ablation study by varying levels of supervision, as shown in Table 2. For all the ablations, we have used MuCo-3DHP images [mehta2018single] as . Depending on the supervision setting, we either access none (for unsup. setting), a small fraction (semi sup. setting) or a complete set (full sup. setting) of 3D annotations in MuCo-3DHP dataset.

Ours-Us (Using Unpaired images only): Our baseline model (see Table 2) trained without accessing any annotated labels gives an overall 3DPCK of 53.3. We observe that gives a non-trivial boost of 4-6. This demonstrates the importance of cross-modal alignment and self-supervised consistency.

Ours-Ws (Weakly supervised): When supervised weakly by 2D ground truth (), our approach obtains a 3DPCK of 67.9. Further, the performance of our approach that uses is on par with our performance with indicating that has rich representation space, equivalent to .

Ours-Fs (Fully supervised): When we access the full training dataset of MuCo-3DHP and impose a 3D reconstruction loss by using , we obtain a 3DPCK of 75.8, which is significantly better than the prior arts.

Figure 5: Comparison of 3DPCK on MuPoTS-3D sequences. Our methods are highlighted in gray background color. Underlined values indicate that our unpaired learning (Ours-Us) approach performs better on that sequence. Ours-Fs (fully-supervised) achieves state-of-the-art in bottom up methods. Ours-Us approach performs competitively even when compared with prior fully supervised approaches.
Methods S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 Avg
Accuracy for all groundtruths
Rogez[rogez2017lcr] 67.7 49.8 53.4 59.1 67.5 22.8 43.7 49.9 31.1 78.1 50.2 51.0 51.6 49.3 56.2 66.5 65.2 62.9 66.1 59.1 53.8
Rogez[rogez2019lcr] 87.3 61.9 67.9 74.6 78.8 48.9 58.3 59.7 78.1 89.5 69.2 73.8 66.2 56.0 74.1 82.1 78.1 72.6 73.1 61.0 70.6
Dabral[Dabral2019MultiPerson3H] 85.1 67.9 73.5 76.2 74.9 52.5 65.7 63.6 56.3 77.8 76.4 70.1 65.3 51.7 69.5 87.0 82.1 80.3 78.5 70.7 71.3
Mehta[mehta2018single] 81.0 60.9 64.4 63.0 69.1 30.3 65.0 59.6 64.1 83.9 68.0 68.6 62.3 59.2 70.1 80.0 79.6 67.3 66.6 67.2 66.0
Ours-Us 76.8 61.8 61.2 63.0 68.7 20.3 67.3 65.2 59.5 83.6 62.4 66.0 52.7 54.9 57.5 73.6 70.9 70.1 70.4 60.8 63.3
Ours-Ws 79.6 62.3 54.2 55.9 69.3 36.1 69.1 67.7 58.4 80.2 75.3 68.7 53.6 56.5 59.6 77.4 76.7 69.6 69.2 64.1 65.2
Ours-Fs 85.5 84.1 66.7 70.5 77.4 68.6 74.8 77.9 69.1 80.0 78.4 75.4 61.1 60.9 71.3 81.4 85.1 73.4 74.9 63.5 74.0
Accuracy only for matched groundtruths
Rogez[rogez2017lcr] 69.1 67.3 54.6 61.7 74.5 25.2 48.4 63.3 69.0 78.1 53.8 52.2 60.5 60.9 59.1 70.5 76.0 70.0 77.1 81.4 62.4
Rogez[rogez2019lcr] 88.0 73.3 67.9 74.6 81.8 50.1 60.6 60.8 78.2 89.5 70.8 74.4 72.8 64.5 74.2 84.9 85.2 78.4 75.8 74.4 74.0
Dabral[Dabral2019MultiPerson3H] 85.8 73.6 61.1 55.7 77.9 53.3 75.1 65.5 54.2 81.3 82.2 71.0 70.1 67.7 69.9 90.5 85.7 86.3 85.0 91.4 74.2
Mehta[mehta2018single] 81.0 65.3 64.6 63.9 75.0 30.3 65.1 61.1 64.1 83.9 72.4 69.9 71.0 72.9 71.3 83.6 79.6 73.5 78.9 90.9 70.8
Ours-Us 76.8 66.6 62.1 63.9 73.5 20.3 67.3 67.8 59.5 83.6 62.4 66.0 56.0 63.5 59.5 75.2 70.9 73.0 73.1 80.8 66.1
Ours-Ws 79.6 66.0 55.5 56.4 74.8 36.1 69.1 69.6 58.4 80.2 75.3 68.7 56.7 66.4 61.6 78.9 76.7 72.8 71.7 83.0 67.9
Ours-Fs 85.5 86.5 66.7 70.5 81.2 68.6 74.8 79.5 69.1 80.0 78.4 75.4 64.0 68.6 73.7 82.9 85.1 76.4 77.4 72.8 75.8


Figure 6: Joint wise analysis of 3DPCK on MuPoTS-3D (higher is better). Underlined values indicate that our unpaired learning (Ours-Us) performs better on that joint
Methods Hd. Nck. Sho. Elb. Wri. Hip Kn. Ank. Avg
Rogez[rogez2017lcr] 49.4 67.4 57.1 51.4 41.3 84.6 56.3 36.3 53.8
Mehta[mehta2018single] 62.1 81.2 77.9 57.7 47.2 97.3 66.3 47.6 66.0
Ours-Us 52.9 79.0 72.2 57.9 45.3 89.9 66.9 45.1 63.3
Ours-Ws 59.9 82.4 78.0 60.6 42.3 91.5 67.2 45.5 65.2
Ours-Fs 63.4 85.5 84.2 70.4 56.8 95.0 78.2 59.0 74.0


Figure 7: We report Camera Centric absolute 3DPCK metric on MuPoTS-3D. B/U means Bottom-up. fps is runtime frames/second.
Methods B/U 3DPCK () fps ()
Moon* [moon2019camera] 9.6 7.3
Moon [moon2019camera] 31.5 7.3
Ours-Us 23.6 21.2
Ours-Ws 24.3 21.2
Ours-Fs 28.1 21.2

4.3 Datasets and Quantitative Evaluation

Figure 8: Comparison of Absolute MPJPE (lower is better) on Human 3.6M evaluated on S9 and S11. The table is split into three parts: single-person 3D pose estimation approaches (No. 1 to 6), multi-person 3D pose estimation top-down approaches (No. 7 to 10), multi-person 3D pose estimation bottom-up approaches (No. 11 and 12). Our approach performs better than previous bottom-up multi-person pose estimation methods.
No. Methods Dir. Dis. Eat Gre. Phon. Pose Pur. Sit SitD. Smo. Phot. Wait Walk WaD. WaP. Avg
Single-person approaches
1. Martinez [martinez2017simple] 51.8 56.2 58.1 59.0 69.5 55.2 58.1 74.0 94.6 62.3 78.4 59.1 65.1 49.5 52.4 62.9
2. Zhou [zhou2017towards] 54.8 60.7 58.2 71.4 62.0 53.8 55.6 75.2 111.6 64.1 65.5 66.0 51.4 63.2 55.3 64.9
3. Sun [sun2017compositional] 52.8 54.8 54.2 54.3 61.8 53.1 53.6 71.7 86.7 61.5 67.2 53.4 47.1 61.6 53.4 59.1
4. Dabral [dabral2018learning] 44.8 50.4 44.7 49.0 52.9 43.5 45.5 63.1 87.3 51.7 61.4 48.5 37.6 52.2 41.9 52.1
5. Hossain [rayat2018exploiting] 44.2 46.7 52.3 49.3 59.9 47.5 46.2 59.9 65.6 55.8 59.4 50.4 52.3 43.5 45.1 51.9
6. Sun [sun2018integral] 47.5 47.7 49.5 50.2 51.4 43.8 46.4 58.9 65.7 49.4 55.8 47.8 38.9 49.0 43.8 49.6
Multi-person approaches
7. Rogez [rogez2017lcr] 76.2 80.2 75.8 83.3 92.2 79.0 71.7 105.9 127.1 88.0 105.7 83.7 64.9 86.6 84.0 87.7
8. Rogez [rogez2019lcr] 55.9 60.0 64.5 56.3 67.4 71.8 55.1 55.3 84.8 90.7 67.9 57.5 47.8 63.3 54.6 63.5
9. Dabral [Dabral2019MultiPerson3H] 52.6 61.0 58.8 61.0 69.5 58.8 57.2 76.0 93.6 63.1 79.3 63.9 51.5 71.4 53.5 65.2
10. Moon[moon2019camera] 51.5 56.8 51.2 52.2 55.2 47.7 50.9 63.3 69.9 54.2 57.4 50.4 42.5 57.5 47.7 54.4
11. Mehta[mehta2018single] 58.2 67.3 61.2 65.7 75.8 62.2 64.6 82.0 93.0 68.8 84.5 65.1 57.6 72.0 63.6 69.9
12. Ours-Fs 55.8 61.4 58.4 71.9 67.6 65.2 67.7 86.7 84.3 68.3 78.9 67.9 51.8 77.9 55.2 67.9
Figure 9: 2D keypoint result comparison of our student model with teacher network on MuPoTS-3D. indicates that higher is better and indicates that lower is better.
Methods IoU () 2D-MPJPE () 2D-PCK ()
Teacher (Cao [cao2017realtime]) 60.1 38.0 66.6
(no ) 51.9 49.6 60.3
Ours-Fs 81.6 19.5 74.7
Figure 10: Complexity analysis on MuPoTS-3D. B/U stands for bottom-up approach. indicates that higher is better and indicates that lower is better.
Methods B/U 3DPCK () fps () Model size ()
Mehta [mehta2018single] 70.8 8.8 25.7M
Moon [moon2019camera] 82.5 7.3 34.3M
Ours-Fs 75.8 21.2 17.1M

MuCo-3DHP Training Set and MuPoTS-3D Test Set. Mehta et.al [mehta2018single] proposed creation of training dataset by compositing images from 3D single-person dataset MPI-INF-3DHP [mehta2017monocular]. MPI-INF-3DHP is created by marker-less motion capture for 8 subjects using 14 cameras. MuPoTS-3D [mehta2018single] is a multi-person 3D pose test dataset that contains 20 sequences capturing upto 3 persons per frame. Each of these sequences include challenging human poses and also capture real world interactions of persons. For evaluating multi-person 3D person pose, 3DPCK (Percentage of Correct Keypoints) is widely employed [rogez2017lcr, mehta2018single, moon2019camera]. In the root-relative system, a joint keypoint prediction is considered as a correct prediction if the joint is present within the range of 15cm. For evaluating absolute location of human joints in camera coordinates, [moon2019camera] proposed 3DPCK in which a prediction is considered correct when the joint is within the range of 25cm. In Table 5 we have compared the results of our method against the state-of-the-art methods. Our fully supervised approach yields state-of-the-art bottom-up performance (75.8 v/s Mehta [mehta2018single] 70.8) while being faster than the top-down approaches. In Table 7 we present joint-wise 3DPCK on MuPoTS-3D dataset. We compare against [moon2019camera] on 3DPCK metric in Table 7 as it is the only work that reported on 3DPCK.

Human 3.6M [ionescu2013human3] This dataset consists of 3.6 million video frames of single person 3D poses that have been collected in laboratory setting. In Table 8, we show results on Protocol 2: MPJPE calculation on after alignment of root. As shown in Table 8, our approach outperforms bottom-up multi-person works (Mehta [mehta2018single] 69.9 v/s Ours 67.9) and performs on par with top-down approaches (Rogez [rogez2019lcr] 63.5 and Dabral [Dabral2019MultiPerson3H] 65.2).

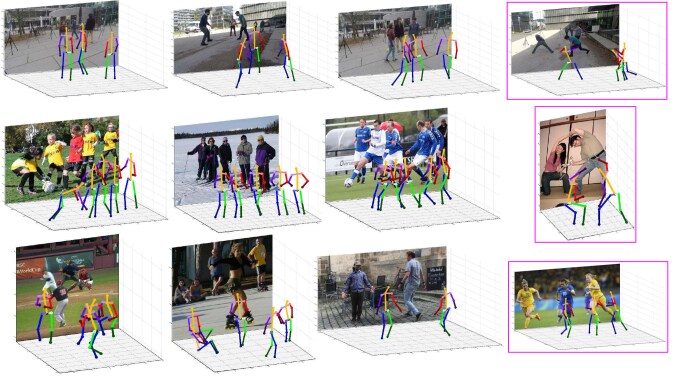

Figure 11: Qualitative results on MuPoTS-3D (1st row), MS-COCO (2nd row), and “in-the-wild” images (3rd row) of our approach. Our approach is able to effectively handle inter-person occlusion and make reliable predictions for crowded images. Pink box highlights some failure cases. 1st row: presence of self-occlusion, 2nd row: rare multi-person interaction and 3rd row: joint location ambiguity.

5 Discussion

Fast and accurate inference. In Table 10, we provide runtime complexity analysis of our model in comparison to prior works. All top-down approaches [moon2019camera, rogez2017lcr, rogez2019lcr] depend on a person detector model. Hence these methods have low fps in comparison to bottom-up approaches (See Fig. 2). We outperform the previous bottom-up approach by a large margin in terms of 3DPCK, fps and model size. We achieve a superior real-time computation capability because our approach effectively eliminates the keypoint grouping operation usually performed in bottom-up approaches [cao2017realtime, mehta2018single]. All fps numbers reported in Table 10 were obtained on a Nvidia RTX 2080 GPU. In Table 10, we also show the total number of parameters of the model used during inference time.

Is student network limited by teacher network? In Table 10 we report results of 2D pose estimation on both teacher model () and student model () by evaluating IoU, 2D-MPJPE and 2D-PCK on MuPoTS-3D dataset. We observe that a student model trained by minimizing alone performs sub-optimally in comparison to the teacher. This result is not surprising as the student model is restricted by knowledge of the teacher model. However, in our complete loss formulation (Ours-Fs) our approach outperforms the teacher on the 2D task, validating the hypothesis that our approach can learn beyond the teacher network.

Qualitative results. We show qualitative results on the MS-COCO [lin2014microsoft], MuPoTS-3D and frames taken from YouTube videos and other “in-the-wild” sources in Fig. 11. As seen in the Fig. 11, our model produces correct predictions on images with different camera viewpoints and on those images containing challenging elements such as inter-person occlusion. These qualitative results show that our model has generalized well on unseen images.

Two-stage refinement for performance-speed tradeoff. Top-down frameworks yield better performance as compared to the bottom-up approach while having substantial computational overhead [kocabas2018multiposenet]. To this end we realize a hybrid framework which would provide flexibility based on the requirement. For example, the current single-shot (or single-stage) operates in a substantial computational superiority. To further improve its performance, we propose an additional pass of each detected persons through the full pipeline (Fig. 12). Here, we train a separate for the single-person pose estimation task which is operated on the cropped image patches of single human instances obtained from the Stage-1 predictions. By training the network we obtain a 3DPCK of 76.9 (v/s Ours-Fs 75.8) with a runtime fps of 16.6 (v/s Ours-Fs 21.2 fps). (See Table 5 and Fig. 2)

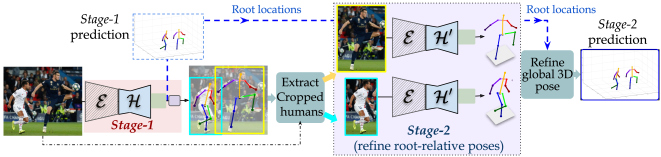

Figure 12: A hybrid framework for two-stage refinement which treats Stage-1 output as a person detector while Stage-2 performs single-person 3D pose estimation.

6 Conclusion

In this paper we have introduced an unsupervised approach for multi-person 3D pose estimation by infusing structural constraints of human pose. Our bottom-up approach has real-time computational benefits and can estimate the pose of persons in camera-centric coordinates. Our method can benefit from future improvements on 2D pose estimation works in a plug-and-play fashion. Extending such a framework for multi-person human mesh recovery and extraction of appearance related mesh texture remains to be explored in future.

Acknowledgement. This project is supported by a Indo-UK Joint Project (DST/INT/UK/P-179/2017), DST, Govt. of India and a WIRIN project.
