Unmanned Aerial Vehicle Assisted Cellular Communication

03/15/2018 ∙ by Sha Hu, et al. ∙ 0

In this paper, we consider unmanned aerial vehicles (UAVs) assisted cellular communication system, where UAVs can be used as amplify-and-forward relays. The effective channel with UAV assisted communication can be modeled as a Rayleigh product-channel, and we derive a tight lower-bound of the ergodic capacity in closed-form. With the obtained lower-bound, trade-offs between the transmit power and the equipped number of antennas of the UAVs can be analyzed. Alternatively, for a giving setting of users and the base-transceiver station (BTS), the needed transmit power and number of antennas for the UAVs can be derived in order to have a higher ergodic capacity with the UAV assisted communication than without it.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Due to a rapidly growing market, unmanned aerial vehicles (UAVs) have recently gained attentions in many applications. UAVs can be used in cellular and satellite communication systems to improve data connections between a base-transceiver station (BTS) and users that are far from the BTS or obstructed by surrounding objects such as tall buildings and mountains [5, 3, 1, 4, 2]. UAVs can improve data transmission in various ways. Firstly, due to its height in the air, a UAV can have line-of-sight (LoS) to the BTS which increases the received signal-to-noise ratio (SNR). Secondly, a UAV can use a higher transmit power with equipped large-capacity battery or with solar-charging systems [6]. Thirdly, a UAV can easily adjust its gesture in the sky to beamform the relayed data into a better direction to the BTS. Lastly, UAVs can appear anywhere when there is a need which yields flexible and low-cost network deployments.

A typical scenario of UAV-assisted cellular communication system is depicted in Fig. 1. In a simple form, UAVs can be used as amplify-and-forward (AF) relays [7] to assist users when they are at cell edges or in deep shadow fading. The UAVs can also be more advanced such as with capabilities of beamforming with gesture adjustments and digital precoding. To simplify the analysis, we model the UAV-assisted cellular communication system as a Rayleigh product model when UAVs are beyond LoS. The Rayleigh product channel arises from a general double-scattering model [8], and has been considered before in other contexts e.g., [9, 10, 11, 12, 13, 14]

. However, these works are more focused on analyzing the statistics of eigenvalues and in general have complex expressions for the ergodic capacity.

In this paper, we take a special interest in comparing the ergodic capacity between the UAV-assisted communication and the one without it. We derive a lower-bound for the ergodic capacity of the UAV-assisted model in closed-form, which is shown to be tight. The lower-bound provides insights about the trade-off between the transmit power and the number of antennas needed of the UAVs. It is also helpful to aid in the designs of UAV-assisted cellular networks, for tasks such as specifying the number of antennas and transmit power of the UAVs to achieve certain ergodic capacity, or maximizing the utility of each spent-antenna with a given transmit power.

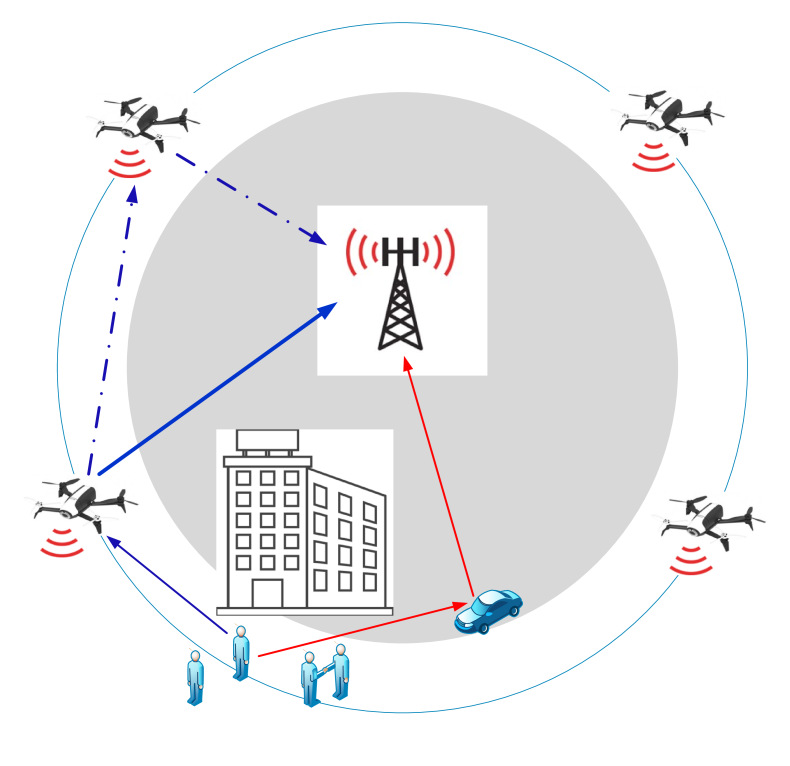

Fig. 1: UAV-assisted cellular communication when users are in deep shadow fading and at cell edge, where UAVs are used as AF relays.

Ii Capacity with UAV-Assisted Communication

Let’s consider two different approaches for users connecting to a BTS. The first one is that users, with a total number of transmit antennas, are directly communicating with the BTS, which is equipped with receive antennas. The received signal at BTS reads

(1)

where comprises the transmitted signal from one or multiple users. The Rayleigh multi-input multi-output (MIMO) channel is of size

and comprises independent and identically distributed (i.i.d.) complex-valued Gaussian elements with zero-mean and unit-variance. For simplicity, we assume that

is additive white Gaussian noise (AWGN) with an identity covariance matrix. We let denote the transmit-power111In this paper, we abuse the term “transmit power” by including distance-dependent power attenuation and large-scale fading. on each user antenna.

The capacity in this case equals

(2)

When users are in deep fading or at cell edges, they suffer from poor data connections due to a low received SNR at the BTS, which equals . Increasing transmit power has several disadvantages as it raises interference to neighboring users and also consumes more battery-power. In extreme situations such as natural hazards, the battery-life is important for users to maintain long-term connections to the rescuers. On the other hand, UAVs can be used as AF relays to improve data-transmission of the users through at least two possible means: amplify the received signal from the users with a higher transmit power; and redirect the signal into the direction of the BTS.

Assuming such a UAV-assisted cellular communication scenario, where the UAVs are equipped with a total transmit and receive antennas222The antennas can belong to a a single UAV or multiple UAVs., the received signal in this case yields a Rayleigh product channel model

(3)

where , and and are the MIMO channels from users to the UAV with size , and from the UAV to the BTS with size , respectively. Similarly to (1), we denote as the transmit power and model and as Rayleigh channels that comprise i.i.d. complex-valued Gaussian elements with zero-mean and unit-variance, and the noise is the same as in (1).

The capacity corresponding to (3) equals

(4)

where denotes the additional time-delay in UAV-assisted transmissions [9]. In a pipelined scheme can be negligible [15], and we let in the discussions.

The received SNR at the BTS in this case equals . To have a higher SNR than the case with direct transmission, it requires

(5)

Instead of the received SNR, we are also interested in comparing the ergodic capacities in these two cases. Especially when , that is, the number of antennas equipped with the UAVs is less than that of the users. In this case, the spatial multiplexing gain is reduced. This can be due to a large number of users in difficult situations at the same time, or the UAVs have low-cost designs with limit numbers of antennas. According to (5), when is small the transmit power has to increase. But as UAVs use built-in battery, the power-capacity can also be limited. Therefore, it is of interest to evaluate the ergodic capacity in relation to parameters and for the UAV-assisted systems, and understand when it is beneficial to use UAVs for assistances.

Iii A Lower-Bound on Ergodic Capacity

In this section we derive a lower-bound for the Rayleigh product channel model (3). A similar analysis can be carried out for multi-tier connections through UAVs, that is, the product channel comprises more than two components. At the begining we assume , but as it will become clear later, such an assumption is not needed for the validity of the derived lower-bound.

Iii-a The Case

For the purpose of comparison, we first find an upper-bound for the direct communication between the users and the BTS. By Jensen’s inequality, the ergodic capacity corresponding to the direct approach (2) is upper bounded as

(6)

which is tight when the number of receiver antennas is large such as with massive MIMO systems [16].

To derive a lower-bound for the UAV-assisted case, we fist note that

where and are matrices.

Using Minkowski’s inequality

the ergodic capacity , corresponding to the UAV-assisted approach (4), satisfies

Again by Jensen’s inequality, it holds that

(7)

Since

(8)

where , and are complex Wishart distributed, it is readily seen from [20, 21] that

(9)
(10)

where is the digamma function [27] and is the Euler-Mascheroni constant.

Combining (8)-(10) yields

where

Hence, from (7) the ergodic capacity for the UAV-assisted communication is lower bounded as

(11)

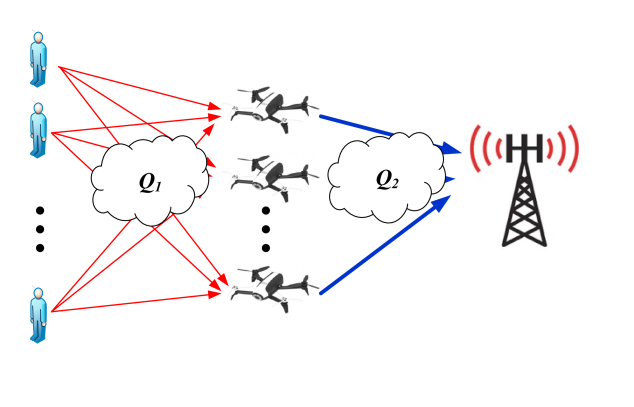

Fig. 2: The Rayleigh fading product channel with UAV-assisted communication that is specified by three parameters that are the number of antennas of users, UAVs, and BTS, respectively.

Iii-B The Case

Although is more interesting, we next also consider the case

. Denote the singular-value decomposition (SVD)

(12)

where matrices is unitary, and is diagonal with the last diagonal elements being 0s.

Then, it holds that

where denotes the submatrix of obtained by removing the last columns, and is the submatrix by removing both the last rows and columns of . The last equality in (III-B) holds since and have identical nonzero eigenvalues. As has the same distribution as , the elements in

are also i.i.d. complex Gaussian distributed, and the same is true for

. That is to say, the ergodic capacity of the new product channel obtained by switching and , i.e., the numbers of antennas of the UAV and the users in Fig. 2, is identical to the original case. Similarity, when , one can also switch the antennas numbers of the UAV and the BTS, while the ergodic capacity remains the same. These arguments lead to a below lemma.

Lemma 1.

The ergodic capacity of the Rayleigh product model (3) is invariant under permutations of the antenna parameters .

Following Lemma 1 and the analysis in Sec. III-A, we have Proposition 1 that states the lower-bound of the ergodic capacity for arbitrary setting of .

Proposition 1.

The ergodic capacity of the Rayleigh product model (3) is lower-bounded as

(14)

where

and , , and is the remaining element in .

Iii-C Transmission with Optimal linear Precoding

Next we consider the case with optimal linear precoding. That is, we assume that the UAV knows both the channel and

. This requires the UAVs to be more than just AF relays, since channel estimation is needed and the slot-delay

will increase. However, we can also assume that the UAV can adjust its gesture to gradually find an optimal beamforming direction based on, e.g., measured received signal strength, and the channel estimation is not required. Nevertheless, in this section we assume that the UAV can apply an optimal linear precoder to improve the performance.

With an optimal precoding matrix , the received signal in (3) changes to

(15)

To optimize the capacity in (15), the precoder is set to

where the unitary matrices is defined in (12), and is obtained from the SVD

(16)

The diagonal matrix (with being its th diagonal element) denotes the power allocation with a total-power constraint .

With such a precoder, the capacity in (15) equals

(17)

where and are the th diagonal elements of and , respectively. The optimal th diagonal element of can be optimized through water-filling [7]

. However, evaluating the optimal ergodic capacity needs to consider joint probability distribution functions (pdfs) of

and [16, 17]. As we are interested in deriving a lower-bound of the ergodic capacity, to simplify the analysis333Although Marchenko-Pastur law [18] can be used to simplify the eigenvalue distribution, it requires (as well as and ) to be sufficiently large, which does not hold for practical cases with a finite number of UAVs. an equal power allocation for all transmit antennas of the UAV is assumed. That is, setting and the capacity equals

(18)

Clearly, the number of nonzero eigenvalues in (18) is , and the ergodic capacity is then lower-bounded as

(19)

where the eigenvalues and has the pdf [16] shown in (20) and (21), respectively, where the coefficient is the associated Laguerre polynomial of order [19]. Inserting them back to (19), the ergodic capacity with optimal precoding is lower bounded by the following double integral,

(20)
(21)
(22)

As a special case, when it holds that , which yields a keyhole channel communication [23, 24, 25] with a single UAV.

Iii-D Discussions on the Parameter Designs for the UAV

With the derived lower-bound, in order for , it is sufficient to have (assuming )

(23)

That is,

(24)

Assuming , in which case,

the condition (24) becomes

(25)

Hence, for a given set of and , the required transmit power for the UAV exponentially decreases in the number of antennas . This makes intuitive sense according to the MIMO capacity formula [16]. Secondly, when users are in deep fading, we can assume is rather small, and it holds that

Then, the condition (25) is identical to (5). This is because is sufficiently large, which yields according to the channel hardening and favorable propagation properties [17, 26] in massive MIMO systems. Therefore, the differences between the capacities and is the same as the differences in the received SNRs for these two cases.

To design such a UAV assisted communication system, it is of interest to optimize the number of antenna for a given total transmit power constraint

(26)

Although it may not be true in practical scenarios, theoretically it is always beneficial to have more transmit antennas than to have higher transmit power per antenna under Rayleigh fading. Therefore, we consider the optimization problem to find a maximal for a given such that the capacity-increment ratio is above a certain threshold . That is, with (26) we solve

(27)

where uses the lower-bound in (11) and specifies the number of antennas of the UAVs. Such an optimization is meaningful in a case that each UAV is equipped with a single-antenna, and the objective is to maximize the utility of each UAV for assisting the users.

Iv Numerical Results

In this section, we provide simulation results to show the performance of UAV-assisted cellular communications, as well as the effectiveness of the derived lower-bound for ergodic capacity. We also elaborate on the trade-offs between the transmit power and the number of antennas used for the UAVs.

Iv-a Tightness of the Lower-Bound

In Fig. 3, we compare the ergodic capacities and for received signal models (1) and (3), respectively, and with settings and . The upper-bound for and lower-bounds for with different values of are also plotted. As can be seen, the derived lower-bound for in (11) is quite tight when is smaller than . When is larger, it is also asymptotically tight as SNR increases. Furthermore, as expected, when is small, i.e., users are in deep-fading propagation, the UAV-assisted communication even with can provide higher capacities than a direct approach.

Iv-B Power Increment for a Small

In Fig. 4, we test the same cases in Fig. 3 with and , and aim at finding the minimal such that the ergodic capacity . We use with two different approaches. The first one is based on the numerical results of the ergodic capacities and the is exact. The second approach is using the derived closed-from lower-bound in (11) and the value of is computed directly according to (24). As can be seen, these two approaches are quite close, which validates the effectiveness of derived lower-bound.

In Fig. 5, we plot the ratio of for and in relation to . An interesting observation is that when is small, the required power is even less than

in order to have the same ergodic capacity. This is because the Rayleigh product channel has more degrees of freedom in the channel elements, which justifies the use of UAVs for improving the throughput of the cellular network. As predicted by (

25), when increases, the required power is exponentially increased in , and the UAV-assisted communication becomes less power-efficient.

Iv-C Ergodic Capacity with Optimal Precoding

In Fig. 6, we compare the ergodic capacities for received signal model (3) with settings and , and a fixed total transmit power . As can be seen, the ergodic capacity with provides substantial gains compared to the case , due to higher spatial multiplexing gains. Further, with optimal precoding (based on both water-filling and equal power-allocation), the capacities are boosted in the low SNR regime. For a large or at high SNR, the gains with precoding become marginal, due to a large value of . Therefore, the derived lower-bound in (11) is still a good approximation for cases with linear precoding, as it is close to the lower-bound (with equal power-allocation) in (22) and also the optimal precoding (with water-filling).

Iv-D Trade-off Between Power and Number of Antennas

Lastly in Fig. 7, we show the capacity-increment ratio with and using the derived lower-bound in (11) (the numerical results are quite close and therefore not shown). If we set the utility threshold to , the maximal values of are 3, 4, and 4 for at -10, 0, and 10 dB, respectively. Further increasing the number of antennas (with unchanged) will have an utility less than . Another observation is that when increases, the capacity increment-ratio also increases, but the gaps also gets smaller. That also means that the solution of (27) will converge.

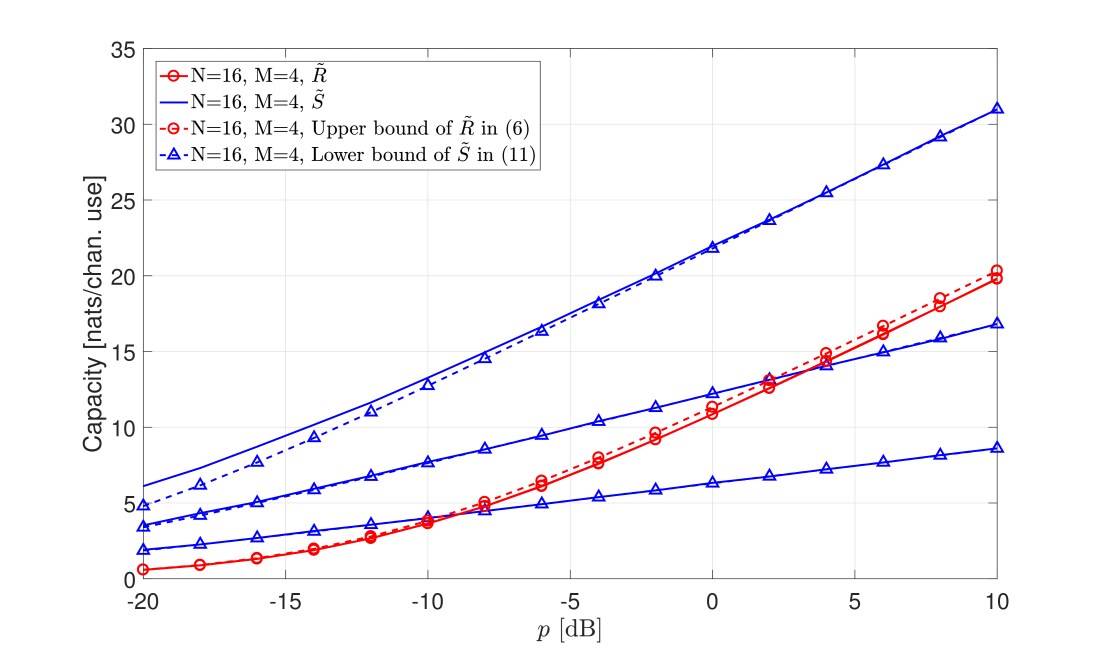

Fig. 3: The ergodic capacity and the derived bounds under and , and with . From bottom to up, equals 1, 2, and 4, respectively.

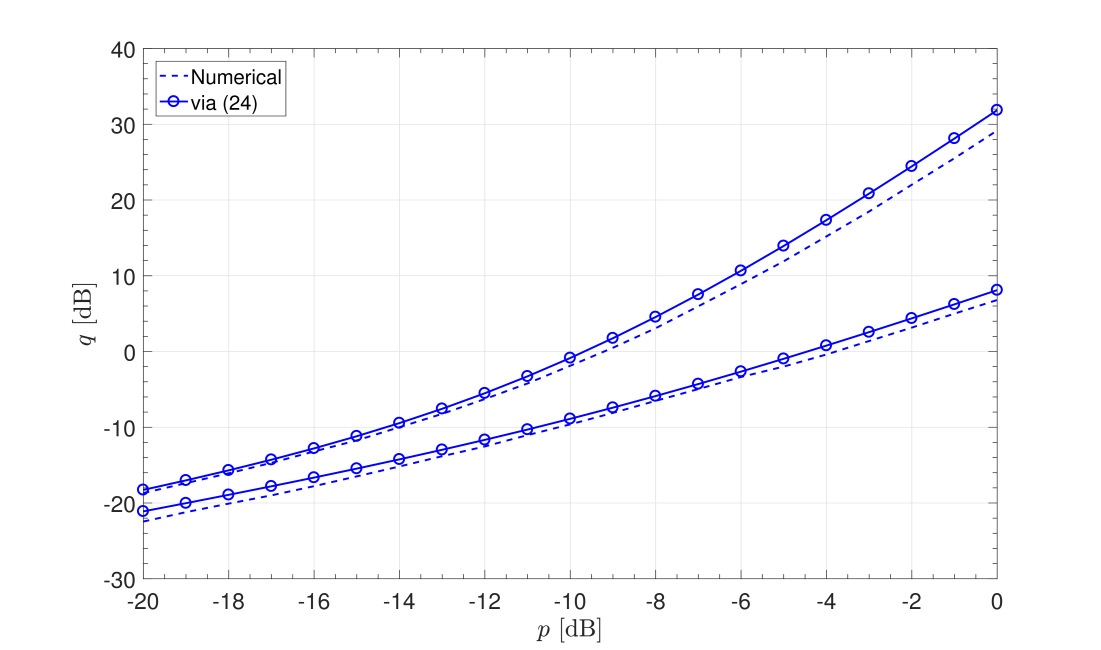

Fig. 4: Minimal such that the ergodic capacity , with and . From bottom to up, equals 2 and 1, respectively.

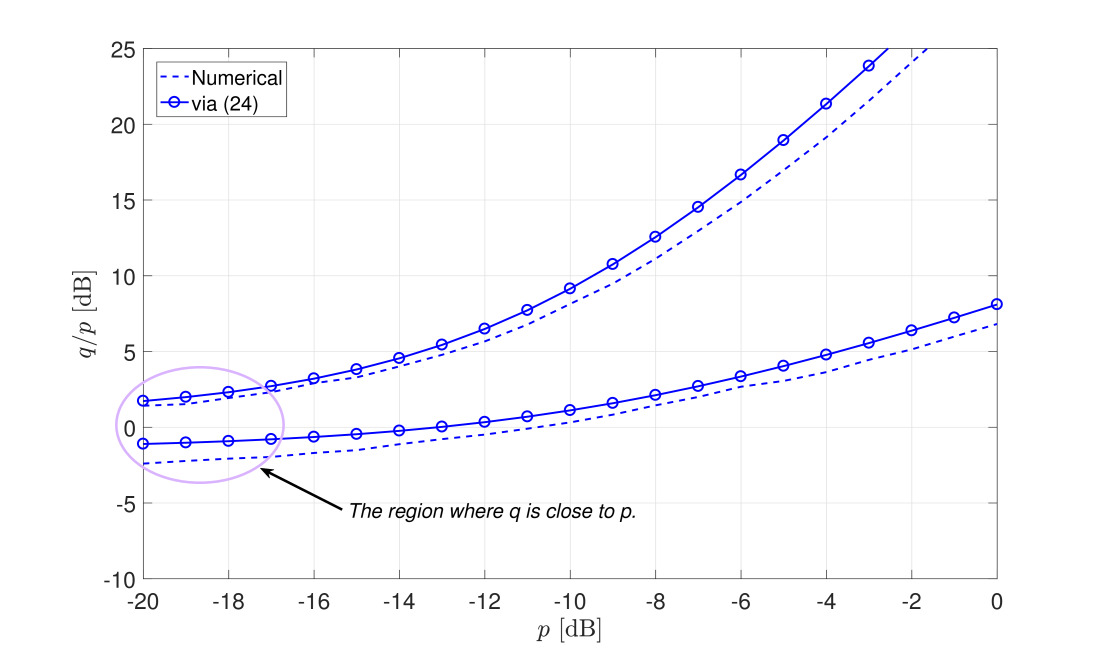

Fig. 5: The ratio of the results in Fig. 4, and from bottom to up equals 2 and 1, respectively.

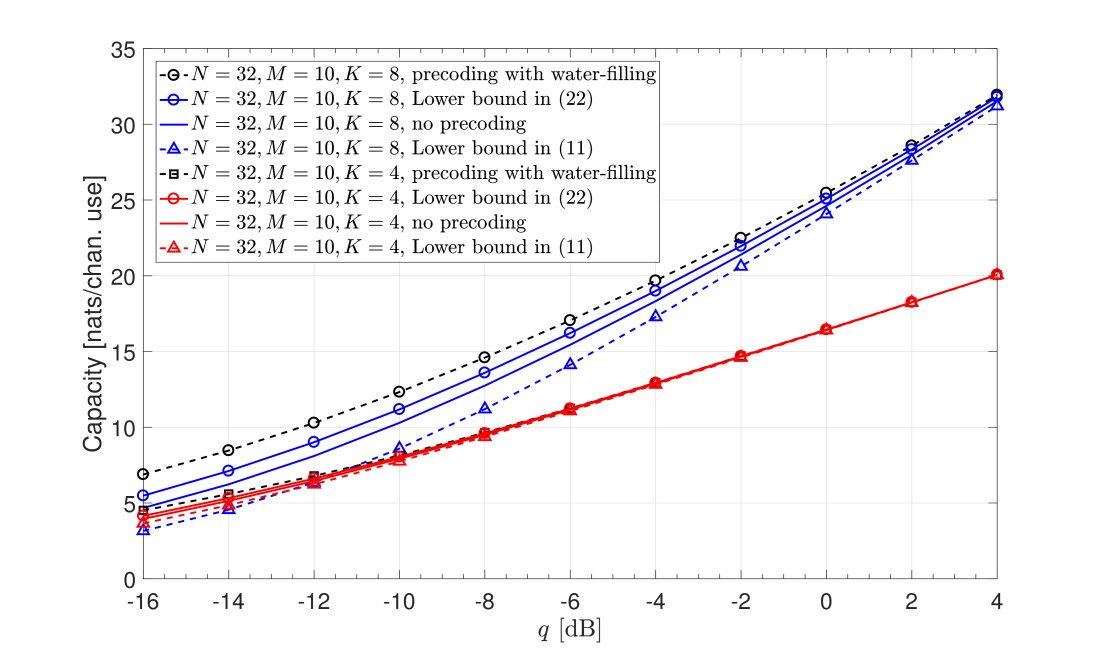

Fig. 6: Ergodic capacity for a fixed total transmit power and with optimal precoder for equals 8 and 4, respectively.

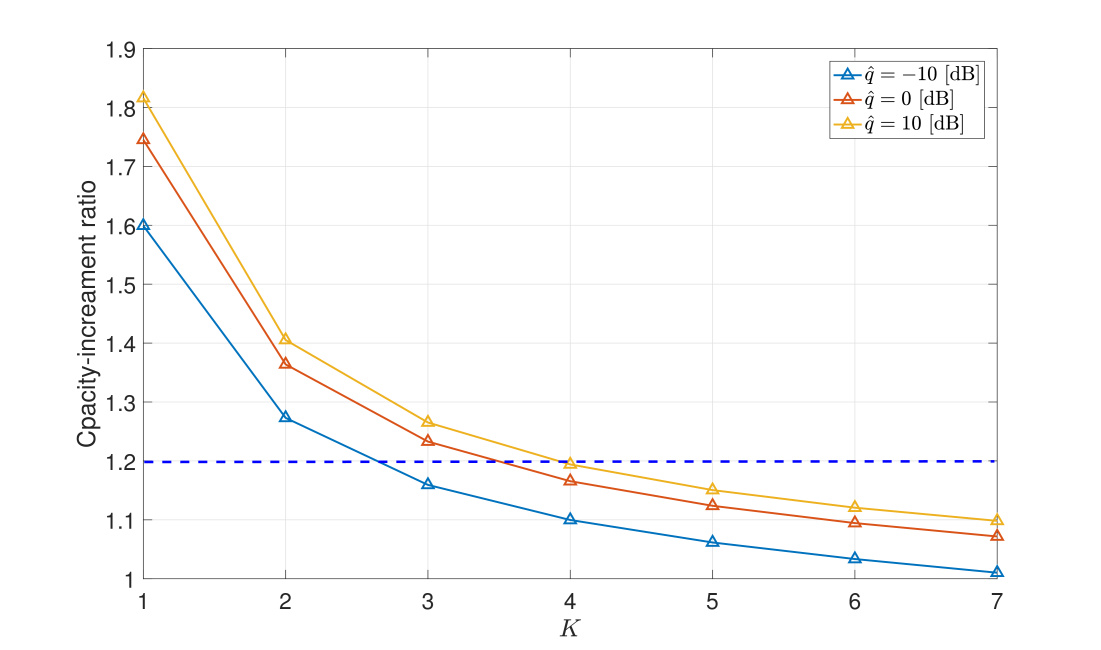

Fig. 7: The increment-ratio of ergodic capacity with and , while increases from 1 to 8.

V Summary

We have considered an unmanned aerial vehicle (UAV) assisted cellular communication system, where the UAV is used as an amplify-and-forward relay to improve the data transmissions between a base-transceiver station (BTS) and users at cell edges or in deep shadow fading. We have modeled the channel as a Rayleigh product channel in this case, and derived a tight lower-bound of the ergodic capacity in closed-from for it. With the obtained lower-bound, analytical results has been simplified, and the behaviors of the ergodic capacity can be clearly seen in terms of the transmit power and the number of antennas of the UAV.
