Consider the task of learning a semantic segmenter given sparsely labeled training images (Fig. 1): Each body part is labeled with a single seed pixel and the task is to segment out the entire person by individual body parts, even though the ground-truth segmentation is not known during training. This task is challenging, as not only a single body part could contain several visually distinctive areas (e.g., head consists of eyes, nose, mouth, beard), but two adjacent body parts could also have the same visual appearance (e.g., upper arm, lower arm, and hand have the same skin appearance). Once the segmenter is learned, it can be applied to a test image without any annotations.
|image||image tags||bounding boxes||labeled points||scribbles|
|SOTA methods||CAM + refine||box-wise CAM||CRF loss||CRF loss|
|our method||single pixel-to-segment contrastive learning loss formulation|
|our relative gain|
This task belongs to a family of weakly supervised segmentation problems, the goal of which is to assign a label to each pixel despite that only partial supervision is available during training. It addresses the practical issue of learning segmentation from minimum annotations. Such weak supervision takes many forms, e.g., image tags (Kolesnikov & Lampert, 2016; Ahn & Kwak, 2018; Huang et al., 2018; Lee et al., 2019), bounding boxes (Dai et al., 2015; Khoreva et al., 2017; Song et al., 2019), keypoints (Bearman et al., 2016), and scribbles (Lin et al., 2016; Tang et al., 2018a, b). Tags and boxes are coarse annotations that lack precise pixel localization whereas points and scribbles are sparse annotations that lack broad region coverage.
Weakly supervised semantic segmentation can be regarded as a semi-supervised pixel classification problem: Some pixels or pixel sets have labels, most don’t, and the key is how to propagate and refine annotations from coarsely and sparsely labeled pixels to unlabeled pixels.
Existing methods tackle two types of weak supervision differently: Class Activation Maps (CAM) (Zhou et al., 2016) are used to localize coarse labels, generate pseudo pixel-wise labels, and iteratively refine the segmentation model, whereas Conditional Random Fields (CRF) (Krähenbühl & Koltun, 2011) are used to propagate sparse labels to the entire image. These ideas can be incorporated as an additional unsupervised loss on the feature learned for segmentation (Tang et al., 2018b): While labeled pixels receive supervision, unlabeled pixels in different segments shall have distinctive feature representations.
We propose a Semi-supervised Pixel-wise Metric Learning (SPML) model that can handle all these weak supervision varieties with a single pixel-to-segment contrastive learning formulation (Fig. 2

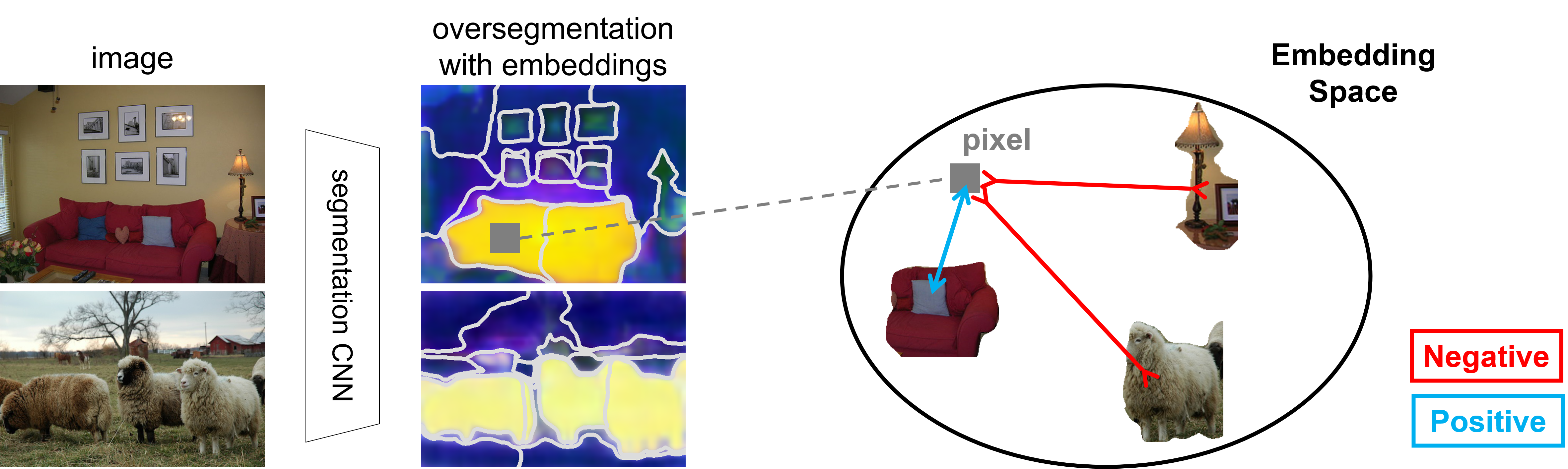

). Instead of classifying pixels, our metric learning model learns a pixel-wise feature embedding based on common grouping relationships that can be derived from any form of weak supervision.
Our key insight is to integrate unlabeled pixels into both supervised labeling and discriminative feature learning. They shall participate not only in data-driven grouping within each image, but also in discriminative feature learning within and more importantly across images. Intuitively, labeled pixels receive supervision not only for themselves, but also for their surround pixels that share visual similarity. On the other hand, unlabeled pixels are not just passively brought into discriminative learning induced by sparsely labeled pixels, they themselves are organized based on bottom-up grouping cues (such as grouping by color similarity and separation by strong contours). When they are examined across images, repeated patterns of frequent occurrences would also form a cluster that demand active discrimination from other patterns.
We capture the above insight in a single pixel-wise metric learning objective for segmentation, the goal of which is to map each pixel into a point in the feature space so that pixels in the same (different) semantic groups are close (far) in the feature space. Our model extends SegSort (Hwang et al., 2019) from its fully supervised and unsupervised segmentation settings to a universal weakly-supervised segmentation setting. With a single consistent feature learning criterion, such a model sorts pixels discriminatively within individual images and sorts segment clusters discriminatively across images, both steps minimizing the same feature discrimination loss.
2 Related Work
Semi-supervised learning. Weston et al. (2012) treats it as a joint learning problem with both labeled and unlabeled data. One way is to capture the underlying structure of unlabeled data with generative models (Kingma et al., 2014; Rasmus et al., 2015). Another way is to regularize feature learning through a consistency loss, e.g., adversarial ensembling (Miyato et al., 2018)
, imitation learning and distillation(Tarvainen & Valpola, 2017), cross-view ensembling (Clark et al., 2018). These methods are most related to transductive learning (Joachims, 2003; Zhou et al., 2004; Fergus et al., 2009; Liu et al., 2019), where labels are propagated to unlabeled data via clustering in the pre-trained feature space. Our work does transductive learning in an adaptively learned feature space.
Weakly-supervised semantic segmentation. Partial annotations include scribbles (Lin et al., 2016; Tang et al., 2018a, b; Wang et al., 2019), bounding boxes (Dai et al., 2015; Khoreva et al., 2017; Song et al., 2019), points (Bearman et al., 2016), or image tags (Papandreou et al., 2015; Kolesnikov & Lampert, 2016; Ahn & Kwak, 2018; Huang et al., 2018; Li et al., 2018; Lee et al., 2019; Shimoda & Yanai, 2019; Zhang et al., 2019; Yao & Gong, 2020; Chang et al., 2020; Araslanov & Roth, 2020; Wang et al., 2020; Fan et al., 2020; Sun et al., 2020). Xu et al. (2015) formulates all types of weak supervision as linear constraints on a SVM. Papandreou et al. (2015) bootstraps segmentation predictions via EM-optimization. Recent works (Lin et al., 2016; Kolesnikov & Lampert, 2016; Pathak et al., 2015) typically use CAM (Zhou et al., 2016) to obtain an initial dense mask and then train a model iteratively. GAIN (Li et al., 2018) utilizes image tags or bounding boxes to refine these class-specific activation maps. Sun et al. (2020) considers within-image relationships and explores the idea of co-segmentation. Fan et al. (2020)estimates the foreground and background for each category, with which the network learns to generate more precise CAMs. Regularization is enforced at either the image level (Lin et al., 2016; Kolesnikov & Lampert, 2016; Pathak et al., 2015) or the feature level (Tang et al., 2018a, b) to produce better dense masks. We incorporate this concept into adaptive feature learning and train the model only once. All types of weak annotations are dealt with in a single contrastive learning framework.
Non-parametric segmentation.2009; Tighe & Lazebnik, 2010; Liu et al., 2011)
usually use designed features with statistical or graphical models to segment images. Recently, inspired by non-parametric models for recognition(Wu et al., 2018b, a), SegSort (Hwang et al., 2019) captures pixel-to-segment relationships via a pixel-wise embedding and develops the first deep non-parametric semantic segmentation for supervised and unsupervised settings. Building upon SegSort, our work has the flexibility of a non-parametric model at capturing data relationships and modeling subclusters within a category.
3 Semi-Supervised Pixel-wise Metric Learning Method
Metric learning develops a feature representation based on data grouping and separation cues. Our method (Fig. 3) segments an image by learning a pixel-wise embedding with a contrastive loss between pixels and segments: For each pixel , we learn a latent feature such that is close to its positive segments (exemplars) and far from its negative ones in that feature space.
In the fully supervised setting, we can define pixel ’s positive and negative sets, denoted by and respectively, as pixels in the same (different) category. However, this idea is not applicable to weakly- or un-supervised settings where the label is not available on every pixel. In the labeled points setting, and would only contain a few exemplars according to the sparse pixel labels.
Our basic idea is to enlarge the sets of and to improve the feature learning efficacy. By exploring different relationships and assumptions in the image data, we are able to generate abundant positive and negative segments for any pixel at the same time, providing more supervision in the latent feature space. We propose four types of relationships between pixels and segments (Fig. 4):
Low-level image similarity: We impose a spatial smoothness prior on the pixel-wise feature to keep pixels together in visually coherent regions. The segment pixel belongs to based on low-level image cues is a positive segment to pixel ; any other segments are negative ones.
Semantic annotation: We expand the semantics from labeled points and scribbles to pseudo-labels inferred from image- or box-wise CAM. The label of a segment can be estimated by majority vote among pixels; if it is the same as pixel ’s, the segment is a positive segment to .
Semantic co-occurrence: We expand the semantics by assuming that pixels in similar semantic contexts tend to be grouped together. If a segment appears in an image that shares the same semantic classes as pixel ’s image, it is a positive segment to and otherwise a negative one.
Feature affinity: We impose a featural smoothness prior assuming that pixels and segments of the same semantics form a cluster in the feature space. We propagate the semantics within and across images from pixel to its closest segment in the feature space.
3.1 Pixel-to-Segment Contrastive Grouping Relationships
Our goal is to propagate known semantics from labeled data to unlabeled data with the aforementioned priors. and denote the sets of segment indices respectively. We detail how to augment positive / negative segment sets using both and for each type of relationships (Fig. 4).
Low-level image similarity. To propagate labels within visually coherent regions, we generate a low-level over-segmentation. Following SegSort Hwang et al. (2019), we use the HED contour detector (Xie & Tu, 2015) (pre-trained on BSDS500 dataset (Arbelaez et al., 2010)) and gPb-owt-ucm (Arbelaez et al., 2010) to generate a segmentation without semantic information. We define ’s positive and negative segments as ’s own segment and all the other segments, denoted as and respectively. We only consider segments in the same image as pixel
’s. We align the contour-based over-segmentations with segmentations generated by K-Means clustering as in SegSort.
Semantic annotation. Image tags and bounding boxes do not provide pixel-wise localization. We derive pseudo labels from image- or box-wise CAM and align them with oversegmentations induced by the pixel-wise feature. Pixel ’s positive (negative) segments are the ones with the same (different) semantic category, denoted by and respectively. We ignore all the unlabeled segments.
Semantic co-occurrence. Semantic context characterizes the co-occurrences of different objects, which can be used as a prior to group and separate pixels. We define semantic context as the union of object classes in each image. Even without the pixel-wise localization of semantic labels, we can leverage semantic context to impose global regularization on the latent feature: The feature should separate images without any overlapping object categories.
Let denote the set of segments in images with overlapping categories. For example, if pixel is labeled as sofa and another image also contains sofa, all the segments from that image are included in ; otherwise they are considered negative segments in . This semantic context relationship does not require localized annotations yet imposes regularization on pixel feature learning.
Feature affinity. Our goal is to learn a pixel-wise feature that indicates semantic segmentation. It is thus reasonable to assume that pixels and segments of the same semantics form a cluster in the feature space, and we reinforce such clusters with a featural smoothness prior: We find nearest neighbours in the feature space and propagate labels accordingly.
Specifically, we assign a semantic label to each unlabeled segment by finding its nearest labeled segment in the feature space. We denote this expanded labeled set by . For pixel , we define its positive (negative) segment set () according to whether a segment has the same label as .
Our feature affinity relationship works best when: 1) the original labeled set is large enough to cover the feature space, 2) the labeled segments are distributed uniformly in the feature space, and 3) the pixel-wise already encodes certain semantic information. We thus only apply to DensePose keypoint annotations in our experiments, where each body part in the training image is annotated by a point.

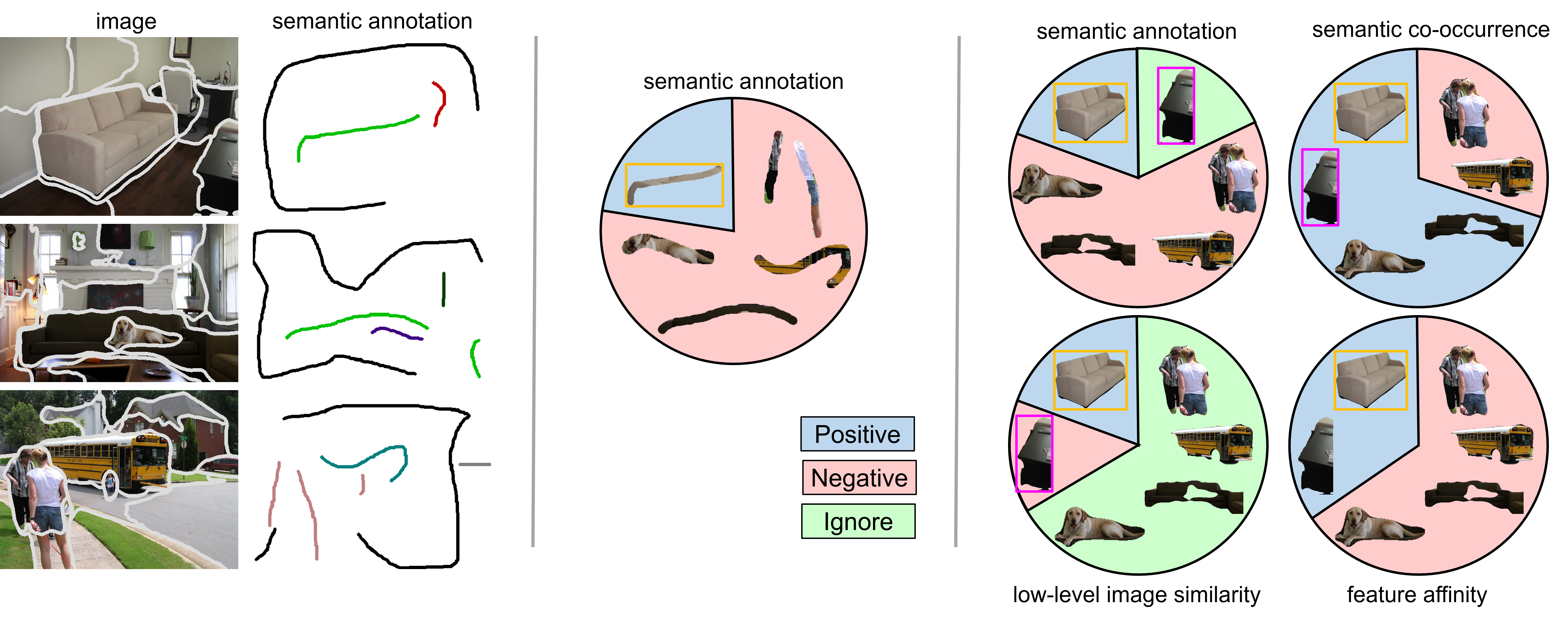

|a) training data||b) existing methods||c) our SPML|
3.2 Pixel-wise Metric Learning Loss
SegSort (Hwang et al., 2019)
is an end-to-end segmentation model that generates a pixel-wise feature map and a resulting segmentation. Assuming independent normal distributions for individual segments, SegSort seeks a maximum likelihood estimation of the feature mapping, so that the feature induced partitioning in the image and clustering across images provide maximum discrimination among segments. During inference, the segment label is predicted by K-Nearest Neighbor retrievals.
The feature induced partitioning in each image is calculated via spherical K-Means clustering (Banerjee et al., 2005). Let
denote the feature vector at pixel, which contains the mapped feature and ’s spatial coordinates. Let denote the index of the segment that pixel belongs to, the set of pixels in segment , and the segment feature calculated as the spherical cluster centroid of segment
. In the Expectation-Maximization (EM) procedure for spherical K-means, the E-step calculates the most likely segment pixelbelongs to: , and the M-Step updates the segment feature as the mean pixel-wise feature: .
Let denote the resulting segment that pixel
belongs to per spherical clustering. The posterior probability of pixelin segment can be evaluated over the set of all segments as:
where is a concentration hyper-parameter. SegSort minimizes the negative log-likelihood loss:
SegSort adopts soft neighborhood assignment (Goldberger et al., 2005) to further strengthen the grouping of same-category segments. Let () denote the index set of segments in the same (different) category as pixel except – the segment belongs to. We have:
For our weakly supervised segmentation, the total pixel-to-segment contrastive loss for pixel consists of 4 terms, one for each of the 4 pixel-to-segment attraction and repulsion relationships:
where . Fig. 5 shows how our metric learning method utilizes labeled and unlabeled pixels and segments more extensively than existing classification methods: Our pseudo-labeled sets are fuller than labeled thin scribbles and include unlabeled segments; there are 3 more relationships other than semantic annotations; our segments participate in contrastive learning with dynamic roles in different relations. By easily integrating a full range of pixel-to-segment attraction and repulsion relationships from low-level image similarity to mid-level feature affinity, and to high-level semantic co-occurrence, we go far beyond the direct supervision from semantic annotations.
4 Experiments on PASCAL VOC and DensePose
Datasets. Pascal VOC 2012 (Everingham et al., 2010) includes 20 object categories and one background class. Following Chen et al. (2017), we use the augmented training set with 10,582 images and validation set with 1,449 images. We use the scribble annotations provided by Lin et al. (2016) for training. DensePose (Alp Güler et al., 2018) is a human pose parsing dataset based on MSCOCO (Lin et al., 2014). The dataset is annotated with 14 body part classes. We extract the keypoints from the center of each part segmentation. The training set includes 26,437 images and we use minival2014 set for testing, which includes 1,508 images. See Appendix for more details.
Architecture, training and testing. For all the experiments on PASCAL VOC, we base our architecture on DeepLab (Chen et al., 2017) with ResNet101 (He et al., 2016) as the backbone network. For the experiments on DensePose, we adopt PSPNet (Zhao et al., 2017)
as the backbone network. Our models are pre-trained on ImageNet(Deng et al., 2009) dataset. See Appendix for details on our inference procedure and hyper-parameter selection for training and testing.
For each type of annotations and dataset, we formulate four types of pixel-to-segment contrastive relationships and jointly optimize them in a single pixel-wise metric learning framework (Fig. 3). Table 1
shows the data-driven selection of hyperparametersand for different task settings.
Pascal: Image tag annotations. Table 2 shows that, without using additional saliency labels, our method outperforms existing methods with saliency by , and those without saliency by .
Pascal: Bounding box annotations. Table 2 shows that, with the same DeepLab/ResNet101 backbone network, our method outperforms existing methods by .
Pascal: Scribble annotations. Table 3 shows that, our method consistently delivers the best performance among methods without or with CRF post-processing. We get () mIoU, achieving ( ) of full supervision performance in these two categories respectively.

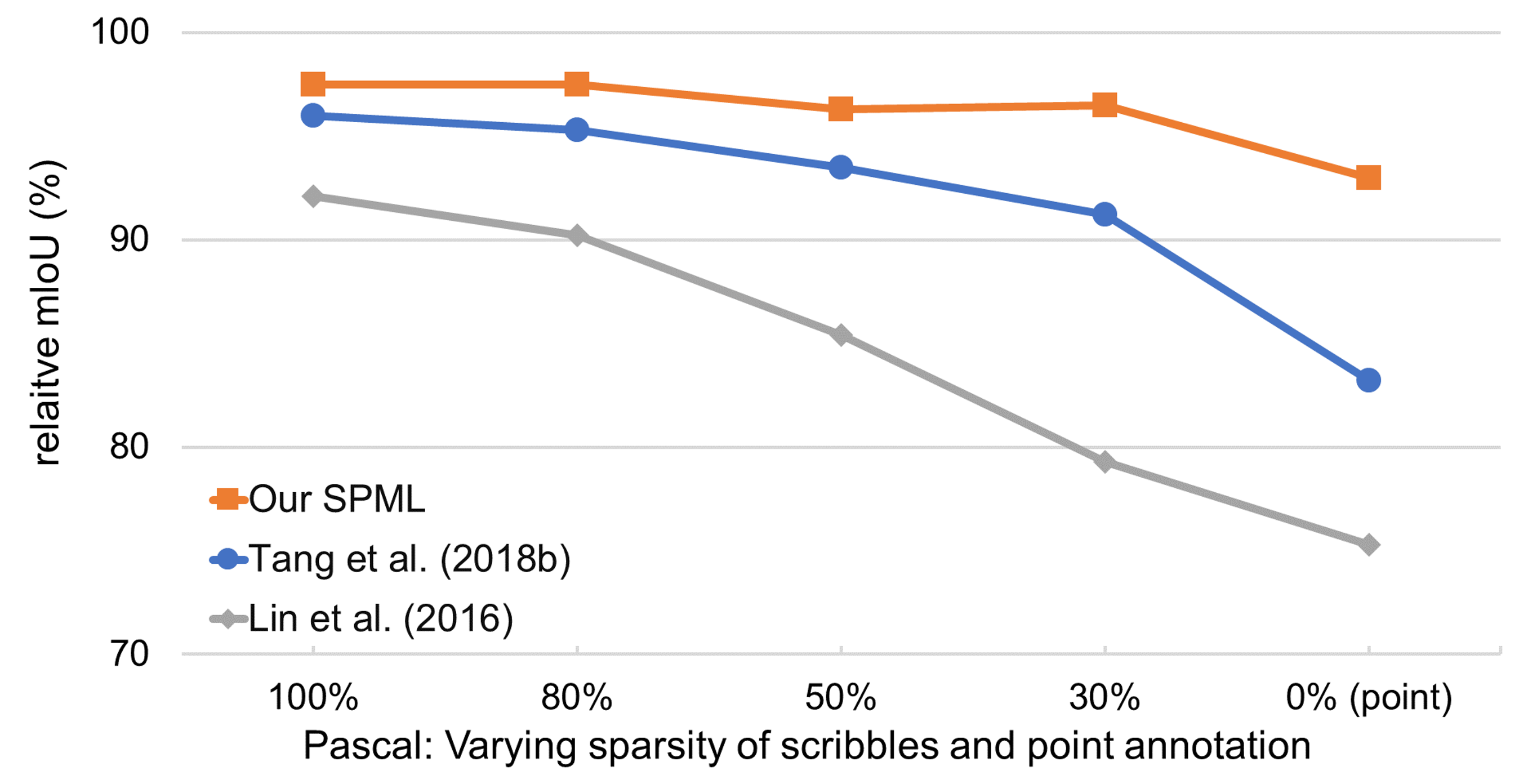

Pascal: Varying sparsity of scribble and point annotations. Exploiting metric learning with different relationships in the data frees us from the classification framework and delivers a more powerful approach that requires fewer annotations. Table 3 shows that, as we shorten the length of scribbles from to (points), we reach and of full supervision performance. Compared to the full scribble annotations, our accuracy only drops with point labels and is significantly better than the baseline.
|Tang et al. (2018b)||31.3||51.9|
DensePose: Point annotations. We train our baseline using the code released by Tang et al. (2018b). Table 4 shows that, our method without CRF post-processing outperforms the baseline by mIoU, reaching of full supervision performance with only point supervision.

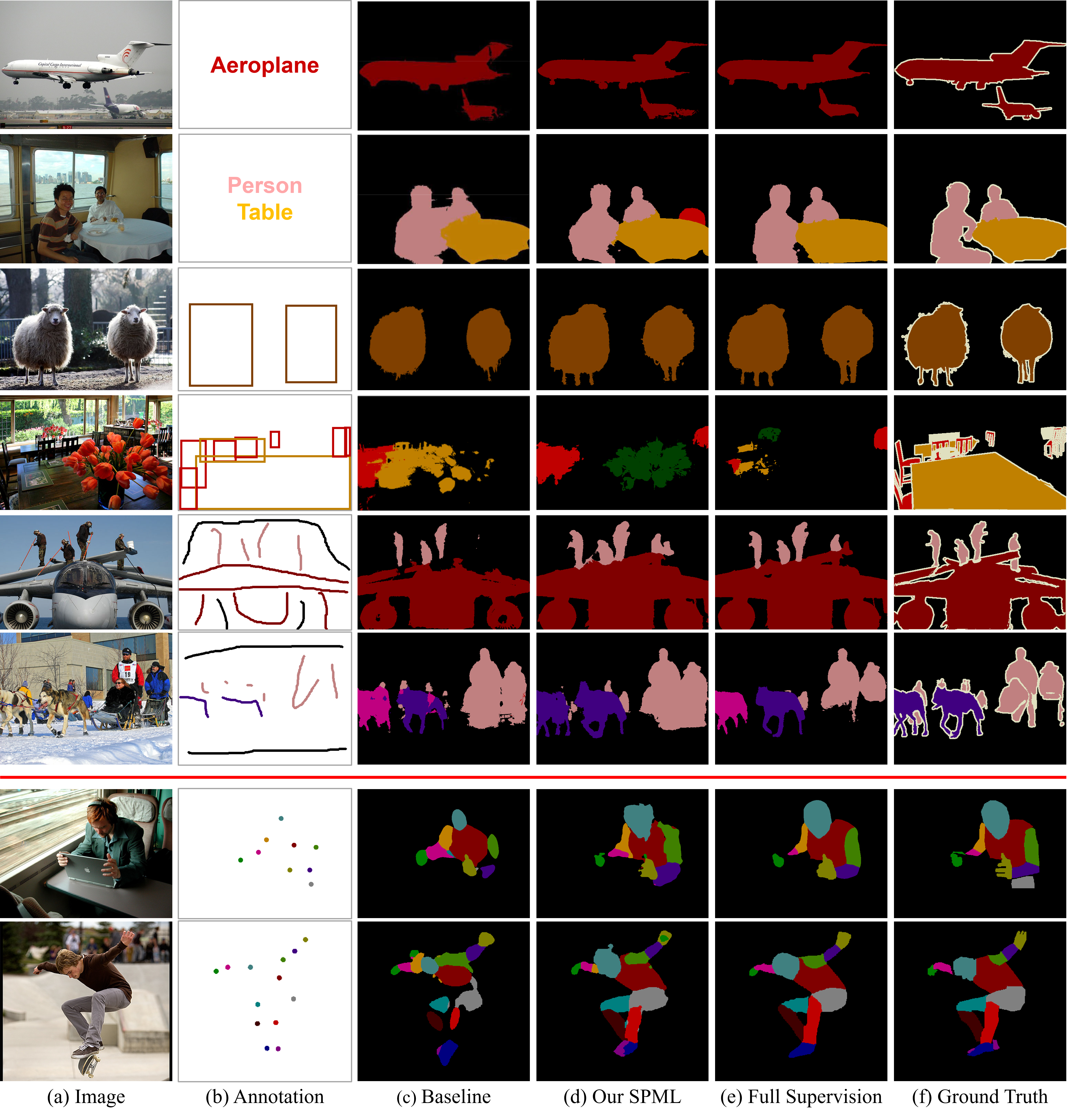

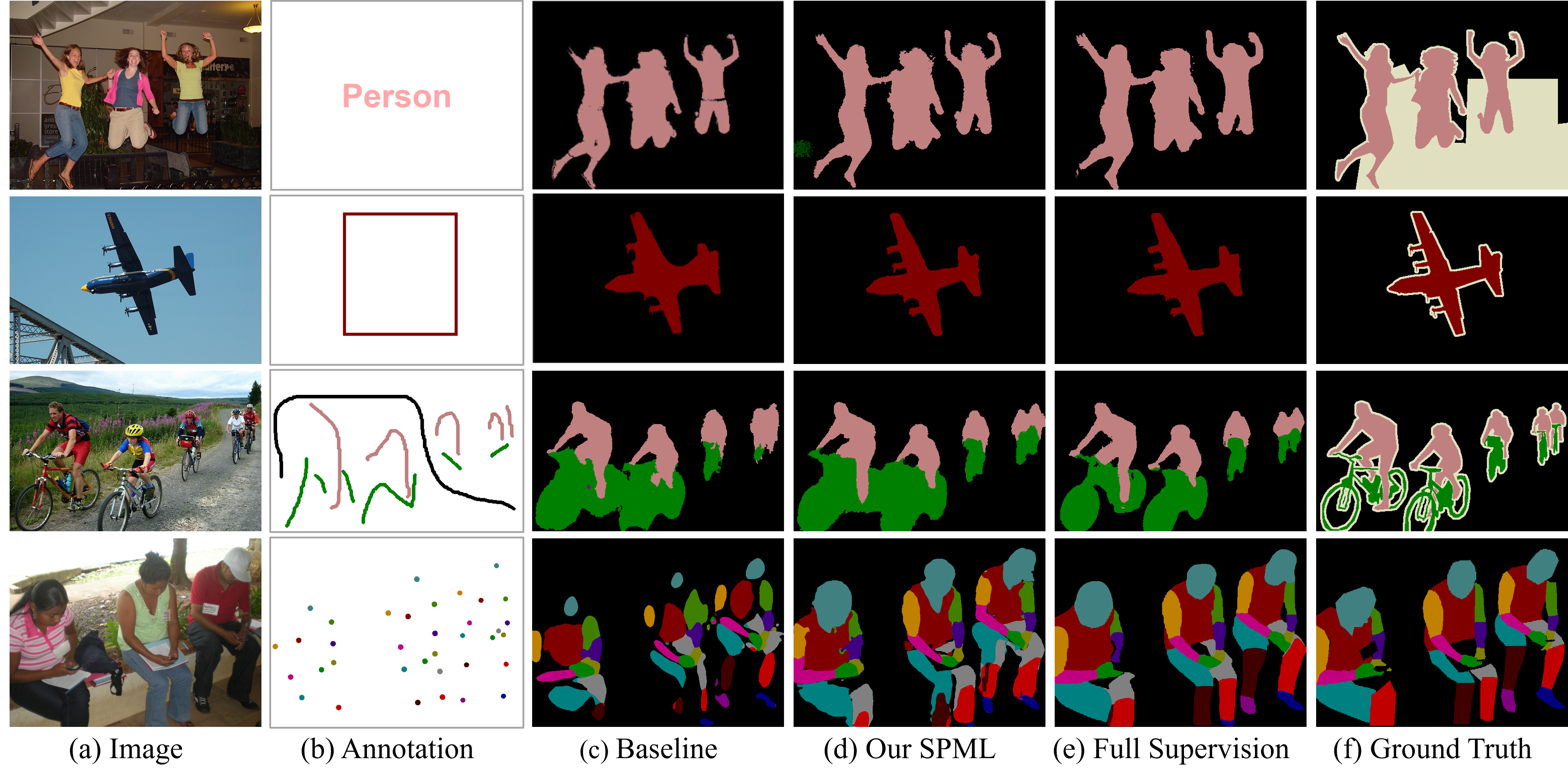

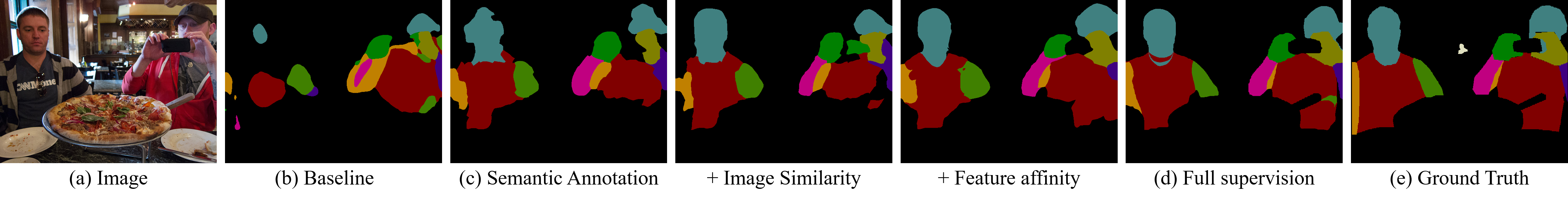

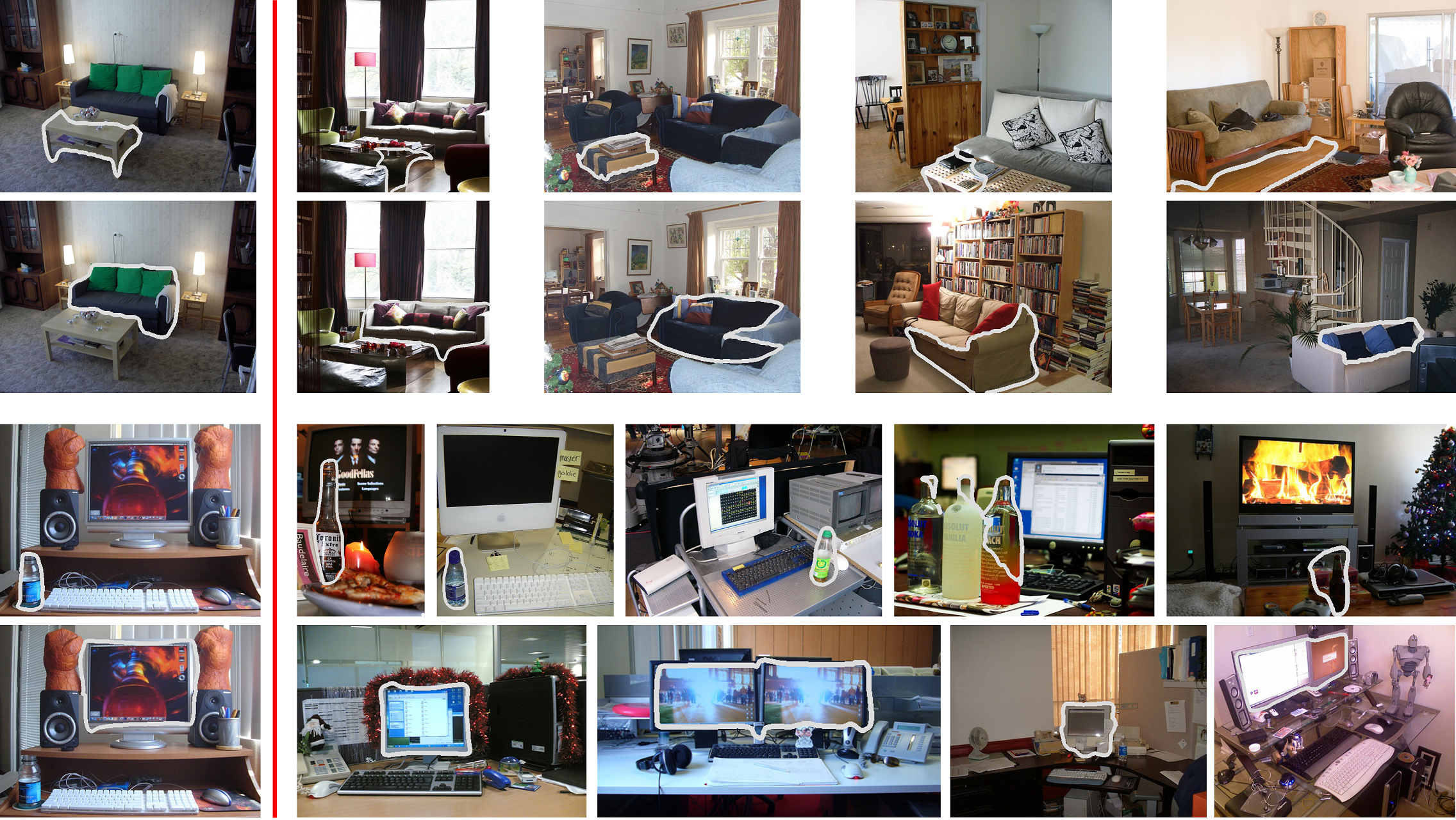

Visual quality and ablation study. Fig. 6 shows that our results are better aligned with region boundaries and visually closer to fully-supervised counterparts. Fig. 7 shows that our results improve significantly with different relationships for more regularization. See Appendix for more details and ablation studies.
Summary. We propose a novel weakly-supervised semantic segmentation method via Semi-supervised Pixel-wise Metric Learning, based on four common types of pixel-to-segment attraction and repulsion relationships. It is universally applicable to various weak supervision settings, whether the training images are coarsely annotated by image tags or bounding boxes, or sparsely annotated by keypoints or scribbles. Our results on PASCAL VOC and DensePose show consistent and substantial gains over SOTA, especially for the sparsest keypoint supervision.
Acknowledgements. This work was supported, in part, by Berkeley Deep Drive and Berkeley AI Research Commons with Facebook. This work used the Extreme Science and Engineering Discovery Environment (XSEDE), which is supported by National Science Foundation grant number ACI-1548562. Specifically, it used the Bridges system, which is supported by NSF award number ACI-1445606, at the Pittsburgh Supercomputing Center (PSC).
- Ahn & Kwak (2018) Jiwoon Ahn and Suha Kwak. Learning pixel-level semantic affinity with image-level supervision for weakly supervised semantic segmentation. In
Alp Güler et al. (2018)
Rıza Alp Güler, Natalia Neverova, and Iasonas Kokkinos.
Densepose: Dense human pose estimation in the wild.In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7297–7306, 2018.
- Araslanov & Roth (2020) Nikita Araslanov and Stefan Roth. Single-stage semantic segmentation from image labels. Proceedings of the IEEE conference on computer vision and pattern recognition, 2020.
- Arbelaez et al. (2010) Pablo Arbelaez, Michael Maire, Charless Fowlkes, and Jitendra Malik. Contour detection and hierarchical image segmentation. IEEE transactions on pattern analysis and machine intelligence, 33(5):898–916, 2010.
Banerjee et al. (2005)
Arindam Banerjee, Inderjit S Dhillon, Joydeep Ghosh, and Suvrit Sra.
Clustering on the unit hypersphere using von mises-fisher
Journal of Machine Learning Research, 2005.
- Bearman et al. (2016) Amy Bearman, Olga Russakovsky, Vittorio Ferrari, and Li Fei-Fei. What’s the point: Semantic segmentation with point supervision. In European conference on computer vision, pp. 549–565. Springer, 2016.
- Chang et al. (2020) Yu-Ting Chang, Qiaosong Wang, Wei-Chih Hung, Robinson Piramuthu, Yi-Hsuan Tsai, and Ming-Hsuan Yang. Weakly-supervised semantic segmentation via sub-category exploration. Proceedings of the IEEE conference on computer vision and pattern recognition, 2020.
- Chen et al. (2017) Liang-Chieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE transactions on pattern analysis and machine intelligence, 40(4):834–848, 2017.
- Clark et al. (2018) Kevin Clark, Thang Luong, and Quoc V Le. Cross-view training for semi-supervised learning. arXiv preprint arXiv:1809.08370, 2018.
- Dai et al. (2015) Jifeng Dai, Kaiming He, and Jian Sun. Boxsup: Exploiting bounding boxes to supervise convolutional networks for semantic segmentation. In Proceedings of the IEEE International Conference on Computer Vision, pp. 1635–1643, 2015.
- Deng et al. (2009) Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. Imagenet: A large-scale hierarchical image database. In 2009 IEEE conference on computer vision and pattern recognition, pp. 248–255. Ieee, 2009.
- Everingham et al. (2010) Mark Everingham, Luc Van Gool, Christopher KI Williams, John Winn, and Andrew Zisserman. The pascal visual object classes (voc) challenge. IJCV, 2010.
- Fan et al. (2020) Junsong Fan, Zhaoxiang Zhang, Chunfeng Song, and Tieniu Tan. Learning integral objects with intra-class discriminator for weakly-supervised semantic segmentation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2020.
Fergus et al. (2009)
Rob Fergus, Yair Weiss, and Antonio Torralba.
Semi-supervised learning in gigantic image collections.In Advances in neural information processing systems, pp. 522–530, 2009.
- Goldberger et al. (2005) Jacob Goldberger, Geoffrey E Hinton, Sam T Roweis, and Ruslan R Salakhutdinov. Neighbourhood components analysis. In NIPS, 2005.
- He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778, 2016.
- Huang et al. (2018) Zilong Huang, Xinggang Wang, Jiasi Wang, Wenyu Liu, and Jingdong Wang. Weakly-supervised semantic segmentation network with deep seeded region growing. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7014–7023, 2018.
- Hwang et al. (2019) Jyh-Jing Hwang, Stella X Yu, Jianbo Shi, Maxwell D Collins, Tien-Ju Yang, Xiao Zhang, and Liang-Chieh Chen. Segsort: Segmentation by discriminative sorting of segments. In ICCV, 2019.
- Joachims (2003) Thorsten Joachims. Transductive learning via spectral graph partitioning. In Proceedings of the 20th International Conference on Machine Learning (ICML-03), pp. 290–297, 2003.
- Khoreva et al. (2017) Anna Khoreva, Rodrigo Benenson, Jan Hosang, Matthias Hein, and Bernt Schiele. Simple does it: Weakly supervised instance and semantic segmentation. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 876–885, 2017.
- Kingma et al. (2014) Durk P Kingma, Shakir Mohamed, Danilo Jimenez Rezende, and Max Welling. Semi-supervised learning with deep generative models. In Advances in neural information processing systems, pp. 3581–3589, 2014.
- Kolesnikov & Lampert (2016) Alexander Kolesnikov and Christoph H Lampert. Seed, expand and constrain: Three principles for weakly-supervised image segmentation. In European Conference on Computer Vision, pp. 695–711. Springer, 2016.
- Krähenbühl & Koltun (2011) Philipp Krähenbühl and Vladlen Koltun. Efficient inference in fully connected crfs with gaussian edge potentials. In Advances in neural information processing systems, pp. 109–117, 2011.
- Lee et al. (2019) Jungbeom Lee, Eunji Kim, Sungmin Lee, Jangho Lee, and Sungroh Yoon. Ficklenet: Weakly and semi-supervised semantic image segmentation using stochastic inference. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 5267–5276, 2019.
- Li et al. (2018) Kunpeng Li, Ziyan Wu, Kuan-Chuan Peng, Jan Ernst, and Yun Fu. Tell me where to look: Guided attention inference network. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 9215–9223, 2018.
- Lin et al. (2016) Di Lin, Jifeng Dai, Jiaya Jia, Kaiming He, and Jian Sun. Scribblesup: Scribble-supervised convolutional networks for semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3159–3167, 2016.
Lin et al. (2014)
Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva
Ramanan, Piotr Dollár, and C Lawrence Zitnick.
Microsoft coco: Common objects in context.In European conference on computer vision, pp. 740–755. Springer, 2014.
- Liu et al. (2019) Bin Liu, Zhirong Wu, Han Hu, and Stephen Lin. Deep metric transfer for label propagation with limited annotated data. In Proceedings of the IEEE International Conference on Computer Vision Workshops, pp. 0–0, 2019.
- Liu et al. (2011) Ce Liu, Jenny Yuen, and Antonio Torralba. Nonparametric scene parsing via label transfer. PAMI, 2011.
- Miyato et al. (2018) Takeru Miyato, Shin-ichi Maeda, Masanori Koyama, and Shin Ishii. Virtual adversarial training: a regularization method for supervised and semi-supervised learning. IEEE transactions on pattern analysis and machine intelligence, 41(8):1979–1993, 2018.
- Nystrom et al. (2015) Nicholas A Nystrom, Michael J Levine, Ralph Z Roskies, and J Ray Scott. Bridges: a uniquely flexible hpc resource for new communities and data analytics. In Proceedings of the 2015 XSEDE Conference: Scientific Advancements Enabled by Enhanced Cyberinfrastructure, pp. 1–8, 2015.
- Papandreou et al. (2015) George Papandreou, Liang-Chieh Chen, Kevin P Murphy, and Alan L Yuille. Weakly-and semi-supervised learning of a deep convolutional network for semantic image segmentation. In Proceedings of the IEEE international conference on computer vision, pp. 1742–1750, 2015.
Pathak et al. (2015)
Deepak Pathak, Philipp Krahenbuhl, and Trevor Darrell.
Constrained convolutional neural networks for weakly supervised segmentation.In Proceedings of the IEEE international conference on computer vision, pp. 1796–1804, 2015.
- Rasmus et al. (2015) Antti Rasmus, Mathias Berglund, Mikko Honkala, Harri Valpola, and Tapani Raiko. Semi-supervised learning with ladder networks. In Advances in neural information processing systems, pp. 3546–3554, 2015.
- Russell et al. (2009) Bryan Russell, Alyosha Efros, Josef Sivic, Bill Freeman, and Andrew Zisserman. Segmenting scenes by matching image composites. In NIPS, 2009.
- Shimoda & Yanai (2019) Wataru Shimoda and Keiji Yanai. Self-supervised difference detection for weakly-supervised semantic segmentation. In Proceedings of the IEEE International Conference on Computer Vision, pp. 5208–5217, 2019.
- Song et al. (2019) Chunfeng Song, Yan Huang, Wanli Ouyang, and Liang Wang. Box-driven class-wise region masking and filling rate guided loss for weakly supervised semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3136–3145, 2019.
- Sun et al. (2020) Guolei Sun, Wenguan Wang, Jifeng Dai, and Luc Van Gool. Mining cross-image semantics for weakly supervised semantic segmentation. In ECCV, 2020.
- Tang et al. (2018a) Meng Tang, Abdelaziz Djelouah, Federico Perazzi, Yuri Boykov, and Christopher Schroers. Normalized cut loss for weakly-supervised cnn segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 1818–1827, 2018a.
- Tang et al. (2018b) Meng Tang, Federico Perazzi, Abdelaziz Djelouah, Ismail Ben Ayed, Christopher Schroers, and Yuri Boykov. On regularized losses for weakly-supervised cnn segmentation. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 507–522, 2018b.
- Tarvainen & Valpola (2017) Antti Tarvainen and Harri Valpola. Mean teachers are better role models: Weight-averaged consistency targets improve semi-supervised deep learning results. In Advances in neural information processing systems, pp. 1195–1204, 2017.
- Tighe & Lazebnik (2010) Joseph Tighe and Svetlana Lazebnik. Superparsing: scalable nonparametric image parsing with superpixels. In ECCV, 2010.
- Towns et al. (2014) John Towns, Timothy Cockerill, Maytal Dahan, Ian Foster, Kelly Gaither, Andrew Grimshaw, Victor Hazlewood, Scott Lathrop, Dave Lifka, Gregory D Peterson, et al. Xsede: accelerating scientific discovery. Computing in science & engineering, 16(5):62–74, 2014.
Wang et al. (2019)
Bin Wang, Guojun Qi, Sheng Tang, Tianzhu Zhang, Yunchao Wei, Linghui Li, and
Boundary perception guidance: A scribble-supervised semantic
International Joint Conference on Artificial Intelligence, 2019.
- Wang et al. (2020) Yude Wang, Jie Zhang, Meina Kan, Shiguang Shan, and Xilin Chen. Self-supervised equivariant attention mechanism for weakly supervised semantic segmentation. Proceedings of the IEEE International Conference on Computer Vision, 2020.
- Weston et al. (2012) Jason Weston, Frédéric Ratle, Hossein Mobahi, and Ronan Collobert. Deep learning via semi-supervised embedding. In Neural networks: Tricks of the trade, pp. 639–655. Springer, 2012.
- Wu et al. (2018a) Zhirong Wu, Alexei A Efros, and Stella X Yu. Improving generalization via scalable neighborhood component analysis. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 685–701, 2018a.
- Wu et al. (2018b) Zhirong Wu, Yuanjun Xiong, Stella X Yu, and Dahua Lin. Unsupervised feature learning via non-parametric instance discrimination. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3733–3742, 2018b.
- Xie & Tu (2015) Saining Xie and Zhuowen Tu. Holistically-nested edge detection. In Proceedings of the IEEE international conference on computer vision, pp. 1395–1403, 2015.
- Xu et al. (2015) Jia Xu, Alexander G Schwing, and Raquel Urtasun. Learning to segment under various forms of weak supervision. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 3781–3790, 2015.
- Yao & Gong (2020) Qi Yao and Xiaojin Gong. Saliency guided self-attention network for weakly and semi-supervised semantic segmentation. IEEE Access, 8:14413–14423, 2020.
- Zhang et al. (2019) Bingfeng Zhang, Jimin Xiao, Yunchao Wei, Mingjie Sun, and Kaizhu Huang. Reliability does matter: An end-to-end weakly supervised semantic segmentation approach. arXiv preprint arXiv:1911.08039, 2019.
- Zhao et al. (2017) Hengshuang Zhao, Jianping Shi, Xiaojuan Qi, Xiaogang Wang, and Jiaya Jia. Pyramid scene parsing network. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2881–2890, 2017.
Zhou et al. (2016)
Bolei Zhou, Aditya Khosla, Agata Lapedriza, Aude Oliva, and Antonio Torralba.
Learning deep features for discriminative localization.In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2921–2929, 2016.
- Zhou et al. (2004) Dengyong Zhou, Olivier Bousquet, Thomas N Lal, Jason Weston, and Bernhard Schölkopf. Learning with local and global consistency. In Advances in neural information processing systems, pp. 321–328, 2004.
Appendix A Appendix
We propose a single pixel-to-segment contrastive learning loss formulation for weakly supervised semantic segmentation. We explore different types of visual relationships to group and separate pixels within and across images. We demonstrate state-of-the-art performance using our proposed method with different types of annotations. Here, we include more details on the following aspects:
We present the visual results of our method in A.1.

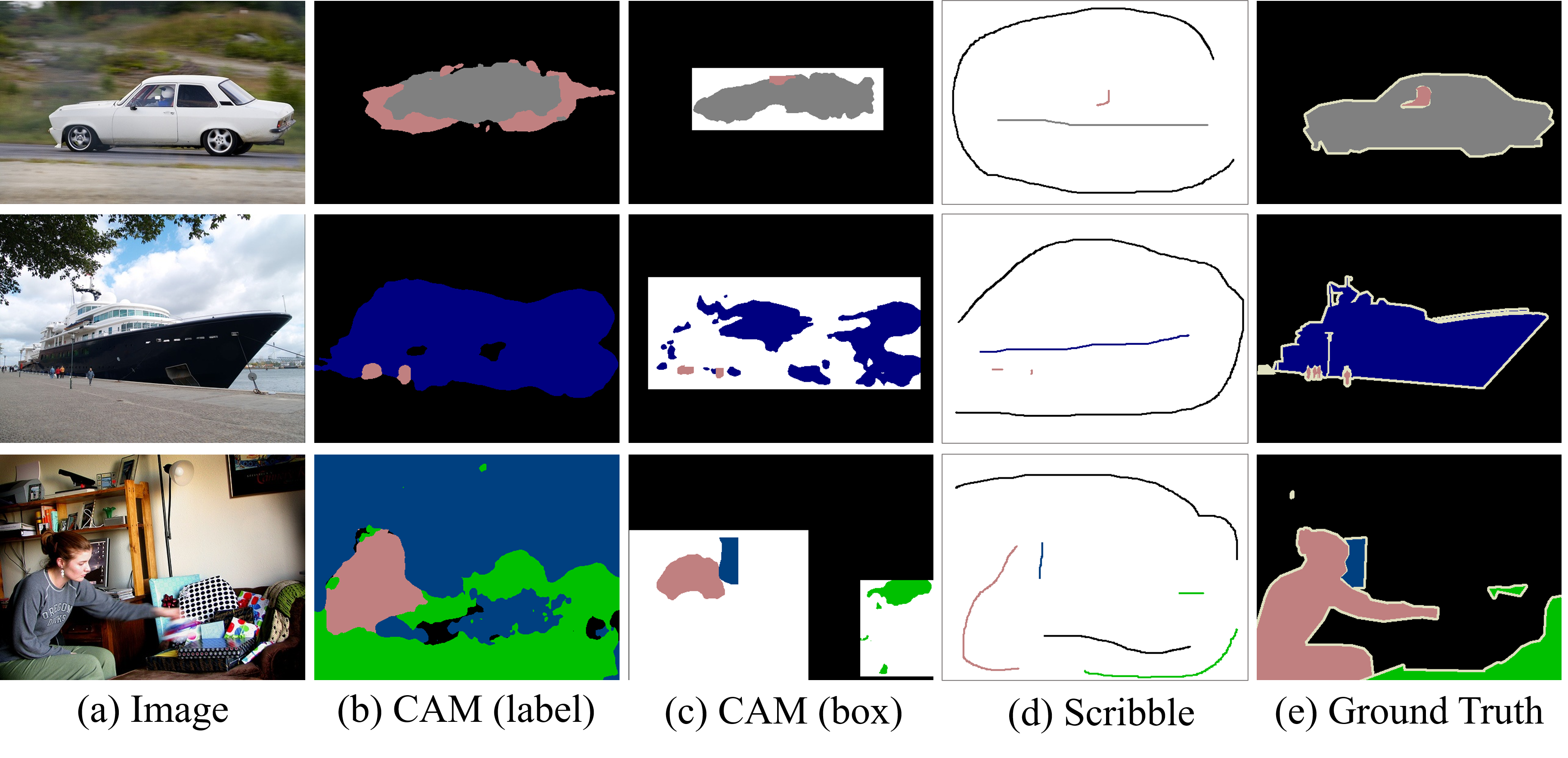

We showcase the semantic cues generated by CAM for image tag and bounding box annotations in A.2.
We illustrate the data pre-processing used for DensePose dataset in A.3.
We describe the details of our experimental settings, hyper-parameters and inference procedure in A.4.
We present the ablation study regarding hyper-parameters in A.5.
We present mIoU performance with varying sparsity of scribble annotations on Pascal dataset in A.6.
We present per-category results with Pascal and DensePose dataset in A.7.

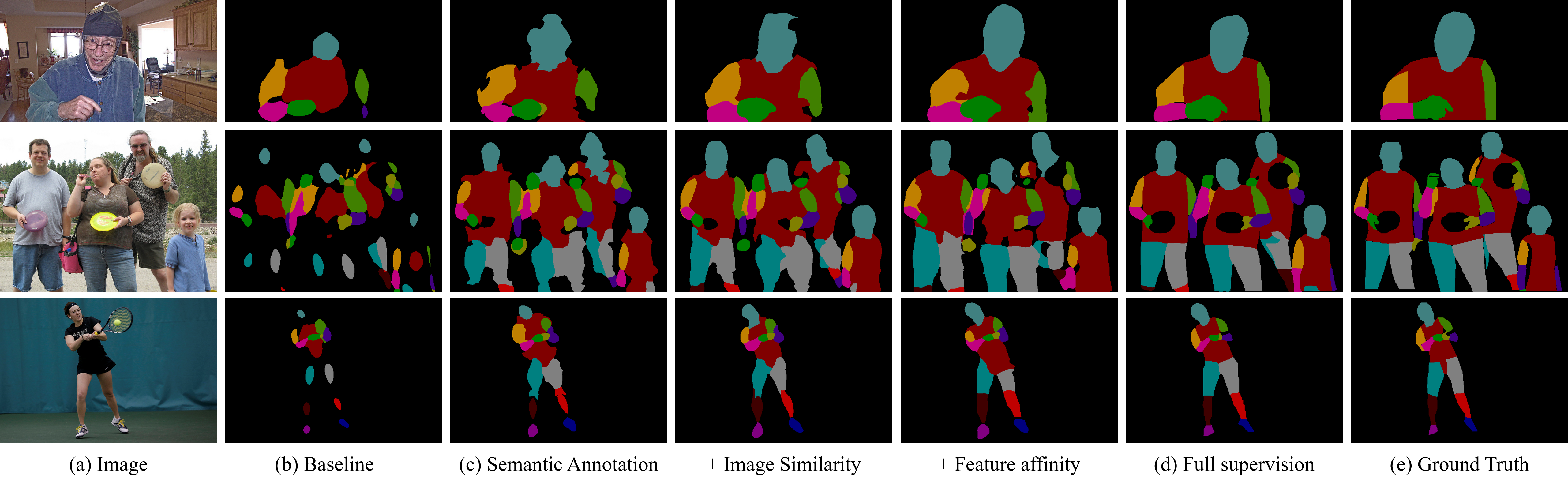

We present the visual results on VOC (with image tags, bounding boxes and scribbles) and DensePose (with keypoints) dataset in figure 8. We observe that our segmentation results are better aligned with image boundary. When visual evidence is prominent, our weakly-supervised results are even better than the fully-supervised counterpart.

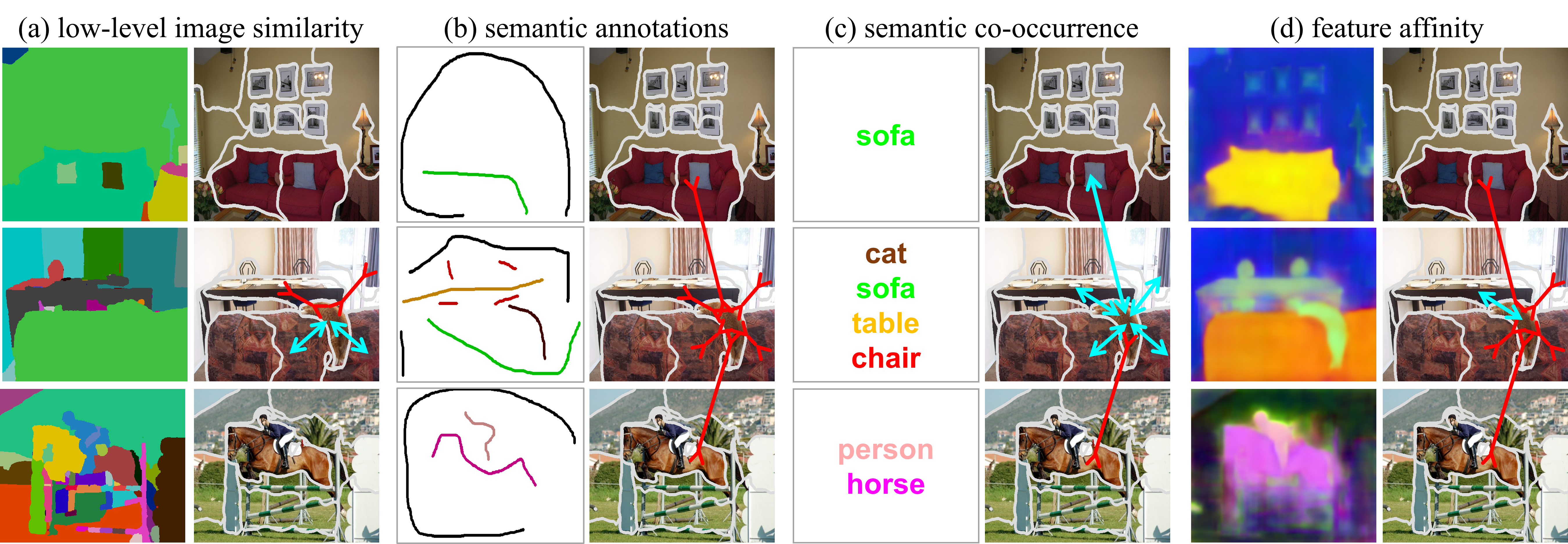

We then demonstrate the efficacy of each visual relationship in figure 9. By adding semantic annotation, low-level image similarity and feature affinity progressively, we observe consistent improvement of our results. The predicted segmentation becomes more coherent and better aligned with image boundary. We lastly showcase that our method implicitly encodes semantic contexts. In figure 10, We observe that retrieved segments appear in the similar semantic context as the query segments. For examples, given a bottle next to a desktop, our model retrieves bottles also next to a desktop; a set of sofas in a living room can be retrieved using one sofa query example; screens of a desktop can also be retrieved likewise.
a.2 Semantic Annotations
Since image tag and bounding box annotations do not provide any of precisely localized semantic information, we adopt CAM (Zhou et al., 2016) to produce localized semantic cues. Without using additional saliency labels, we use the classifier trained by Wang et al. (2020) to generate CAM. Let be the activation map of class .
For image tag annotations, we follow Ahn & Kwak (2018) to normalize of the entire image within the range between 0 and 1, where . The background confidence can then be estimated by , where is the hyper-parameter adjusting background confidence. In our experiments, we set to and confidence threshold to . The low-confidence pixels are considered as unlabeled regions.
For bounding box annotations, we simply normalize the CAM logits within each bounding box to the range between 0 and 1. We then set confidence threshold tofor selecting foreground pixels and unlabeled regions. We restrict all the regions outside bounding boxes as “background”. See figure 11 for more visual examples.
a.3 Data pre-processing for DensePose dataset

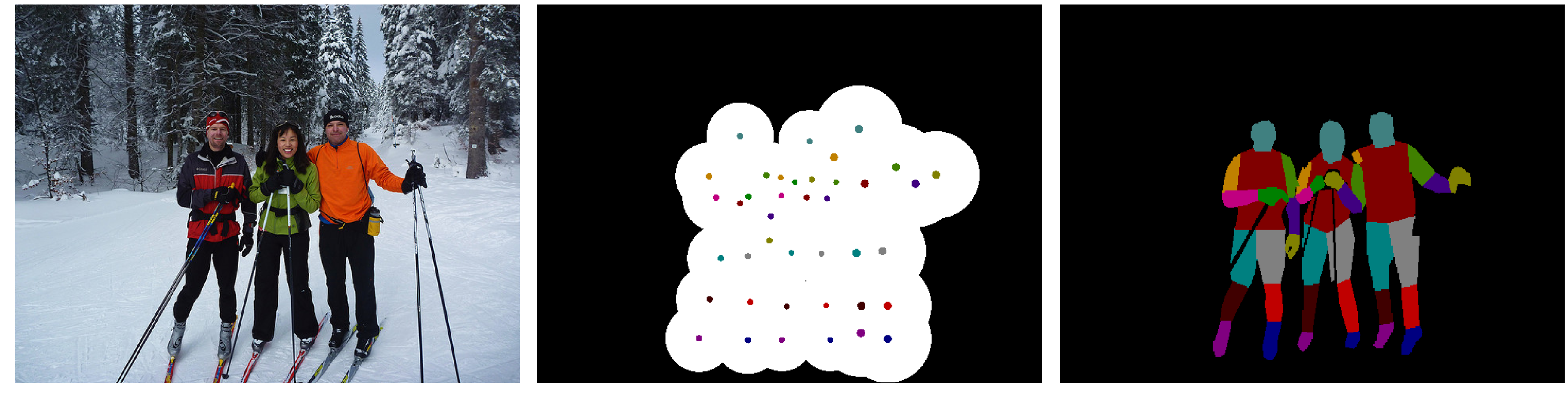

We next illustrate our pre-processing to generate training labels given keypoint annotations in DensePose dataset. As shown in figure 12, we first assume a Gaussian heat map from every keypoint. By thresholding, we derive 3 regions from every Gaussian blob: labelled, unknown and background region. In labelled region, pixels are annotated as each body part. We then propagate labels, including background class, to pixels in the unknown region. The of Gaussian heat map is estimated from instance size, and we use ground-truth information in our paper.
