Learning visuomotor policies is a central pursuit in building machines capable of performing complex skills in the variety of unstructured and dynamic environments seen in the real world (Levine et al., 2016; Pinto et al., 2016). A key challenge in learning such policies lies in acquiring representations of the visual environment and its dynamics that are suitable for control. This challenge arises both in the construction of the policy itself and in the specification of the task. Extrinsic and perfect reward signals are typically not available for real world reinforcement learning and users must manually specify tasks via hand-crafted rewards with hand-crafted representations. To automate this process, some prior methods have proposed to specify tasks by providing an image of the goal scene (Deguchi & Takahashi, 1999; Watter et al., 2015; Finn et al., 2016b). However, a reward that measures success based on matching the raw pixels of the goal image is far from ideal: such a reward is both uninformative and overconstrained, since matching all pixels is usually not required for succeeding in tasks. If we can automatically identify the right representation, we can both accelerate the policy learning process and simplify the specification of tasks via goal images. Prior work in visual representation learning for planning and control has relied predominantly on unsupervised or self-supervised objectives (Watter et al., 2015; Finn et al., 2016b), which in principle only provide an indirect connection to the utility of the representation for the underlying control problem. Effective representation learning for planning and control remains an open problem.
In this work, instead of learning from unsupervised or auxiliary objectives and expecting that useful representations should emerge, we directly optimize for plannable
representations: learning representations such that gradient-based planning is successful with respect to the goal-directed task. To that end, we propose universal planning networks (UPN), a neural network architecture that can be trained to acquire a plannable representation. By embedding a differentiable planning computation inside the policy, our method enables joint training of the planner and its underlying latent encoder and forward dynamics representations. An outer imitation learning objective ensures that the learned representations are directly optimized for successful gradient-based planning on a set of training demonstrations. However, in principle, the architecture could also be trained with other policy optimization techniques such as those from reinforcement learning. An overview is provided in Figure1(a).
We demonstrate that the representations learned by UPN not only support gradient-based trajectory optimization for successful visual imitation, but in fact acquire a meaningful encoding of state, which can be used as a metric for task-specific latent distance to a goal. We find that we can reuse this representation to specify latent distance-based rewards to reach new target states via standard model-free reinforcement learning, resulting in substantially more effective learning when using image targets. These properties are naturally induced by the agent’s reliance on the minimization of the latent distance between its predicted terminal state and goal state throughout the planning process. By learning plannable representations, the UPN learns an optimizable latent distance metric. Our findings are based on a new suite of challenging vision-based simulated robot control tasks that involve planning.
At a high-level, our approach is a goal-conditioned policy architecture that leverages a gradient-based planning computation in its action-selection process. While the architecture is agnostic to the objective function in the outer loop, we will focus on the imitation learning setting. From the perspective of representation learning, our method provides a way to learn more effective representations suitable for specifying perceptual reward functions, which can then be used, for example, with a model-free reinforcement learner. In terms of meta-learning, our architecture can be seen as learning a planning computation by learning representations that are in some sense traversible by gradient descent trajectory optimization for satisfying the outer meta-objective.
In extensive experiments, we show that (1) UPNs learn effective visual goal-directed policies more efficiently (that is, with less data) than traditional imitation learners; (2) the latent representations induced by optimizing for successful planning can be leveraged to transfer task-related semantics to other agents for more challenging tasks through goal-conditioned reward functions, which to our knowledge has previously not been demonstrated; and (3) the learned planning computation improves when allowed more updates at test-time, even in scenarios of less data, providing encouraging evidence of successful meta-learning for planning.
2 Universal Planning Networks
Model-based approaches leverage forward models to search for, or plan, sequences of actions to achieve goal states such that a planning objective is minimized. Forward modeling supports simulation of future state and hence, in principle, should allow for planning over extended horizons. In the absence of known environment dynamics, a forward model must be learned. Differentiable forward models allow for end-to-end training of model-based planners, as well as planning by back-propagating gradients with respect to input actions (Schmidhuber, 1990; Henaff et al., 2017).
Nevertheless, learned forward models may: (1) suffer from function approximation modeling error, especially in complex, high-dimensional environments, (2) capture irrelevant details under the incentive to reduce model-bias, as is often the case when learning directly from pixels, and (3) not necessarily align with the task and planning problem at hand, such that the inferred plans are sub-optimal even if the planning objective is optimized.
These issues motivate a central idea of the proposed method: instead of learning from surrogate unsupervised or auxiliary objectives, we directly optimize for what we care about, which is, representations with which gradient-based trajectory optimization leads to the desired actions. We study a model-based architecture that performs a differentiable planning computation in a latent space jointly learned with forward dynamics, trained end-to-end to encode what is necessary for solving tasks by gradient-based planning.
2.1 Learning to Plan

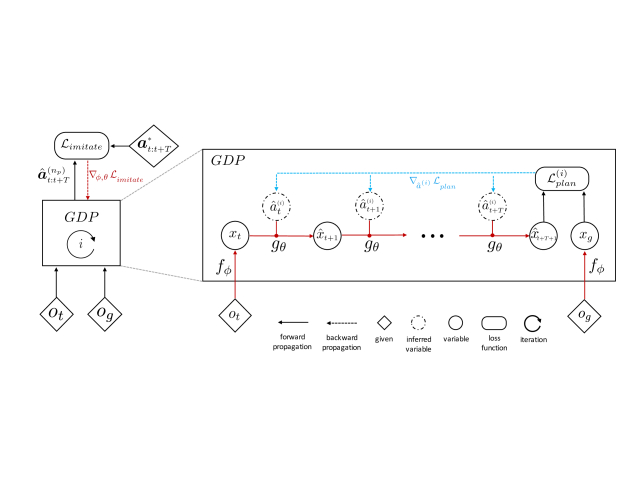

The UPN computation graph forms a goal-directed policy supported by an iterative planning algorithm. Given initial and goal observations ( and ) as input images, the model produces an optimal plan to arrive at , where denotes the predicted action at time . The computation graph consists of a pair of tied encoders that encode both and , and their features are fed into a gradient descent planner (GDP), which produces the action as output. The GDP uses a neural network encoder and forward dynamics model to simulate transitions in a learned latent space and is thus fully differentiable. An overview of the method is presented in Figure 2.
The GDP uses gradient descent to optimize for a sequence of actions to reach the encoded goal observation from an initial
. Since the model is differentiable, backpropagation through time allows for computing the gradient with respect to each planned action in order to end up closer to the desired goal state. Each iteration of the GDP thus involves unrolling the trajectory of latent state encodings using the current planned actions, and taking a step along the gradient to improve the planning objective. The cumulative planning process forms a large, differentiable computation graph, chaining together each iteration of planning.
The actual learning signal is derived from an outer loss function, which supervises the entire computation graph (including the GDP) to output the correct action sequence. The outer loss can in principle take any form, but in this work we use an imitation learning loss and supervise the entire model with demonstrations. The outer loss provides task-specific grounding to optimize for representations that support effective iterative planning for the task and environment at hand, as the gradient is back-propagated through the entire iterative planning computation graph.
Training thus involves nested objectives. One can view the learning process as first deriving a plan to achieve the goal and then updating the model parameters to make the planning procedure more effective for the outer objective. In other words, we seek to learn the planning computation through its underlying representations for latent state encoding and latent forward dynamics.
Parameters: The model is composed of a forward dynamics model and an encoder , where and are neural network parameters that are learned end-to-end:
Specifically, is a convolutional network and is a fully connected network. Further architectural details can be found in the supplementary. 111We note that one could also use an action encoder , with operating on and . A temporal encoder would allow for abstract sequences of actions (options), for an option conditioned latent forward model . We work with flat sequences of actions, leaving hierarchical extensions for future work.
Planning by Gradient Descent: The planner starts with an element-wise randomly initialized plan and aims to minimize the distance between the predicted terminal latent state and the encoded goal observation. denotes the horizon over which the agent plans, which can depend on the task and hence may be treated as a hyper-parameter, while is the number of planning updates performed. Algorithm 1 describes the iterative optimization procedure that is implemented by the GDP.
Huber Loss: In practice, for , we use a Huber Loss centered around for well-behaved inner loop gradients instead of a direct quadratic . This usage is inspired from the Deep Q Networks paper of Mnih et al. (2015) and similar metrics have also been used by Levine et al. (2016) and Sermanet et al. (2017).
Action selection at test-time: At test-time, Algorithm 1 can be used to produce a sequence of actions. A more sophisticated approach is to use Algorithm 1 to re-plan at each timestep. The agent first plans a trajectory suitable to reach from , but only executes the first action, before replanning. This allows the agent to achieve goals requiring longer planning horizons at test-time even if the GDP was trained with a shorter horizon. This amounts to using model-predictive control (MPC) over our learned planner.
2.2 Imitation as the Outer Objective
An idea central to our approach is to directly optimize the planning computation for the task at hand, through the outer objective. Though in this work we study the use of an imitation loss as the outer objective, the policy can in principle be trained through any gradient-based policy search method including policy gradients (Schulman, 2016) and value functions (Sutton & Barto, 1998).
To learn parameters and , we do not directly optimize the planning error under , but instead learn the planner insofar as it can imitate an expert agent by iteratively applying (Algorithm 2). The model is therefore trained to plan in such a way as to produce actions that match the expert demonstrations.
Note that the subroutine is an accumulated computation graph composed of several iterations of planning, each of which includes encoding observations and unrolling of latent forward dynamics through time. Learning end-to-end thus requires that we back-propagate the behavior cloning loss under the produced plan through the GDP subroutine as depicted in Figure 2. We note that the gradients obtained on the network parameters and from the outer objective are composed of first-order derivatives of these parameters. Therefore, even though the computation graph of UPN may seem long and complicated, it is not prohibitively expensive to compute or difficult to optimize.
In learning to plan via imitation, the agent jointly optimizes for latent state and dynamics representations that capture notions of state comparison useful for the imitation task and that are in some sense traversible by gradient descent trajectory optimization. This is naturally induced by the agent’s reliance on the minimization of the latent distance between its predicted terminal state and goal state throughout the planning process. Thus, in requiring plannable representations, the encoder learns an optimizable latent distance metric. This is key to the viability of using the learned latent space as a metric from which to derive reward functions for reinforcement learning.
2.3 Reinforcement Learning with a UPN Latent Space
Reward functions are difficult to manually specify for visuomotor tasks described via image targets. Rewards purely based on pixel errors are meaningless, particularly when dealing with high dimensional images. A solution to this problem is to specify rewards in terms of distance to the target image in an abstract representation. There have been attempts in the past to learn such abstract representations. Watter et al. (2015) and Finn et al. (2016b)2017)
attempt to fine-tune representations from Imagenet using auxiliary losses tailor-made for robotic manipulation. With UPN having been trained for acquiringplannable representations, it is only natural to expect that its latent space encoded by serves the role of an abstract representation where rewards can be specified for performing reinforcement learning on visuomotor tasks with image targets. More specifically, we can exploit the learned from UPN to provide reward functions of the form . In practice, we use the Huber Loss around to stay consistent with the metric the UPN was trained with. Further, we had more success normalizing the distance metric to lie in the interval by passing the negative of the distance through an exponential. The details are highlighted in the supplementary.
Figure 3 visually depicts the reinforcement learning process. While performing reinforcement learning on the new tasks, the agent gets access to its own embodiment
(joint angles and velocities) and the feature vector of the goalas its input observations. The agent optimizes for the perceptual rewards computed from UPN and does not receive any extrinsic rewards from the environment. Providing the feature vector of the goal is necessary when the evaluation success is averaged over multiple goals at test time. In case of a single fixed goal, the evaluation success is averaged over different initial configurations of the robot which can be captured in the information provided via and the goal feature vector becomes redundant. Unless specified, we evaluate using multiple goals at test-time and feed in as an additional input to the reinforcement learning agent, thereby making the policy architecture at test time universal.
3 Related Work
Our work is primarily concerned with learning representations that can support planning for tasks described through an image target. Watter et al. (2015) and Finn et al. (2016b) take an unsupervised learning approach to learning such representations, which they use for planning with respect to target images using iLQR (Tassa et al., 2012). However, reconstructing all the pixels in the scene could lead to the encoding of state variables not necessarily useful in the context of planning (Higgins et al., 2017) and discard state variables that are not visually prominent (Goodfellow et al. (2016), Chapter 15). Our approach avoids this problem by explicitly optimizing a representation for plannability through gradient descent as the only criterion. Self-supervised methods that avoid pixel reconstruction by using other intermediate forms of supervision that can be obtained automatically from the data have also been used to learn representations for visuomotor control (Sermanet et al., 2016, 2017). We again differ by optimizing directly for what we need: plannable representations, instead of intermediate objectives. While the goal in Sermanet et al. (2017) is to recover a reward function to mimic specific demonstrations, our goal is to acquire a more broadly applicable representation from demonstrations that can then be used to perform new tasks using just a single goal image.
There has been work in learning state representations usable for model-free RL when provided rewards (Lange et al., 2012; Jonschkowski & Brock, 2015; Jonschkowski et al., 2017; Higgins et al., 2017; de Bruin et al., 2018). The key difference in our work is that we focus on learning representations that can be used for defining metric-based rewards for new tasks, as opposed to just learning state representations for RL from external environment rewards.
Learning representations capable of providing distance metric based rewards naturally relates to inverse reinforcement learning (IRL) (Ng & Russell, 2000; Abbeel & Ng, 2004; Finn et al., 2016a; Ho & Ermon, 2016; Baram et al., 2017) and reward shaping (Ng et al., 1999). IRL methods attempt to learn a reward function from expert demonstrations which could then be used to optimize a traditional reinforcement learner. However, IRL from raw pixels is challenging due to the lack of sufficient constraints in the problem definition; only a couple of methods have successfully applied IRL to images, and to do so have relied on human domain knowledge (Wulfmeier et al., 2016) and pre-training (Li et al., 2017). Our work can be viewed as connecting IRL and reward shaping: learning representations amenable to gradient-based trajectory optimization is one way to extract a perceptual reward function. However, we differ significantly from conventional IRL in that our derived reward functions are effective even for new tasks.
From an architectural standpoint, we embed a differentiable planner within our computation graph. Value iteration networks of Tamar et al. (2016)
embed an approximate differentiable value iteration computation, though their architecture only supports discrete planning and is evaluated on tasks with sparse state transition probabilities. We seek a more general planning computation for more complex transition dynamics and continuous actions suitable for motor control from raw pixels.Tamar et al. (2017) attempt to learn an embedded differential MPC controller by reshaping its cost function in hindsight through a longer horizon MPC plan. We, however, are interested in tasks where cost functions are not available and cannot adopt this approach. Amos & Kolter (2017); Donti et al. (2017) also look at embedding differentiable optimization procedures (quadratic programs) within neural networks. Concurrently, a few recent efforts have been developed to embed differentiable planning procedures in computation graphs (Guez et al., 2018; Pereira et al., 2018; Farquhar et al., 2017). However, to our knowledge, our paper is the first to connect the use of differentiable planning procedures to learning reusable representations that generalize across complex visuomotor tasks.
The idea of planning by gradient descent has existed for decades (Kelley, 1960). While such work relied on known analytic forms of environment dynamics, later work (Schmidhuber, 1990) explored jointly learning approximate models of dynamics with neural networks. Henaff et al. (2017) adopt gradient-based trajectory optimization for model-based planning in discrete action spaces, but rely on representations learned from unsupervised pretraining. Oh et al. (2017) and Silver et al. (2016) have also explored forward predictions in a latent space that is learned by decoding the value function of a state. Our architecture is related in so far as distance to goal in the learned latent space can be viewed as a value function. However, we also differ significantly by not relying on extrinsic rewards and focusing on continuous control tasks.
Similar to our work, Pathak* et al. (2018) and Nair et al. (2017) train goal-conditioned policies for imitation learning, by providing an image of the goal as input to the policy. However, we show in our experiments that, unlike these methods, the representation learned via our approach can be reused for planning and reward specification.
We designed experiments to answer the following questions: (1) does embedding a gradient descent planner help learn a policy that can map from pixels to torque control when provided current and goal observations at test-time ? (2) how does our method compare to reactive and autoregressive behavior cloning agents as the amount of training data varies? (3) what are the properties of the representation learned by UPN? (4) how can the learned representations from UPN be leveraged for transfer to new and more complex tasks, compared to representations from standard imitation methods and unsupervised methods (e.g. VAE)?
Methods for comparison: We consider two alternative imitation learning approaches for comparison: (1) a reactive imitation learner (RIL), composed of a convolutional feedforward policy that takes as input the current and goal observation; (2) an auto-regressive imitation learner (AIL), composed of a recurrent decoder initially conditioned on convolutionally encoded representations of the current and goal observation, trained to output a sequence of intermediate actions. Both (1) and (2) are methods adopted from Pathak* et al. (2018). These comparisons are important for studying the effects of the inductive bias of gradient descent planning that is embedded within UPN. More specifically, comparing to (1) allows us to understand the need for such an inductive bias, while comparing to (2) is necessary to understand whether the benefits are not purely due to recurrent computations. All methods are trained on the same synthetically-generated expert demonstration datasets. We refer the reader to the supplementary for details on the architectures and dataset generation.
4.1 UPNs Learn Effective Imitation Policies
Here, we study the suitability of the UPN for learning visual imitation policies that generalize to new goal-directed tasks. We focus on two tasks: (1) navigating a 2D point robot around obstacles to desired goal locations amidst distractors (Figures 4(a) and 4(b)), wherein the color of the goal is randomized; (2) a harder task of controlling a 3-DoF planar arm to reach goals amidst scattered distractors and obstacles, as shown in Figures 4(c) and 4(d).
For these tasks, we consider two types of generalization: (1) generalizing to new goals for a fixed configuration of obstacles having trained on the same configuration; (2) generalizing to new goals in new obstacle configurations having trained across varying obstacle configurations. Figures 4(c) and 4(d) show two different obstacle configurations for the reaching task, while the differently colored locations in Figure 4 represent varying goal locations.
We employ the action selection process described in subsection 2.1 with a chosen maximum episode length. Results shown in Figure 5 compare performance over a varying number of training demonstrations. As expected, the inductive bias of embedding trajectory optimization via gradient descent in UPN supports generalization from fewer demonstrations. With more demonstrations, however, the expressive AIL is able to almost match the performance of the UPN. This is consistent with the conclusions of Tamar et al. (2016), who observed that the benefit of the value iteration inductive bias shrinks in regimes in which demonstrations are plentiful. Note that generalization across obstacle configurations in the reacher case (Figure 4(c)) is a hard task; expert performance is only 73.12%. We encourage the reader to refer to the supplementary for further details about the experiment.
4.2 Analysis of the Gradient Descent Planner
The UPN can be viewed in the context of meta-learning as learning a planning algorithm and its underlying representations. We take inspiration from Finn & Levine (2018)
, who studied a gradient-based model-agnostic meta-learning algorithm and showed that a classifier trained for few-shot image classification improves in accuracy at test-time with additional gradient updates. In our case, the inner loop is the GDP, which may not necessarily converge due to the fixed number of planning updates. Hence, it is worth studying whether additional test-time GDP updates yield more accurate plans and therefore better success rates.
Planning more helps: Figure 6 shows that with more planning steps at test-time, a UPN trained with fewer demonstrations (20000) can improve on task success rate beginning from 38.1% with 40 planning steps to 64.44% with 160 planning steps. As a reference, the average test success rate of the expert on these tasks is 73.12% while the best UPN model with 40 planning steps (trained on twice the number of demos (40000)) achieves 64.78%. Thus, with more planning steps, we see that UPN can improve to match the performance of a UPN with fewer planning steps but trained on twice the number of demonstrations. We also find that 160 steps is consistently better than using 40 steps (though the relative benefit shrinks with more demonstrations) and that the UPN is able to match expert performance (Figure 6). This finding suggests that the learned planning objective is well defined, and can likely be reused for related control problems, as we explore in Sections 4.4 and 4.5.
4.3 Latent Space Visualization

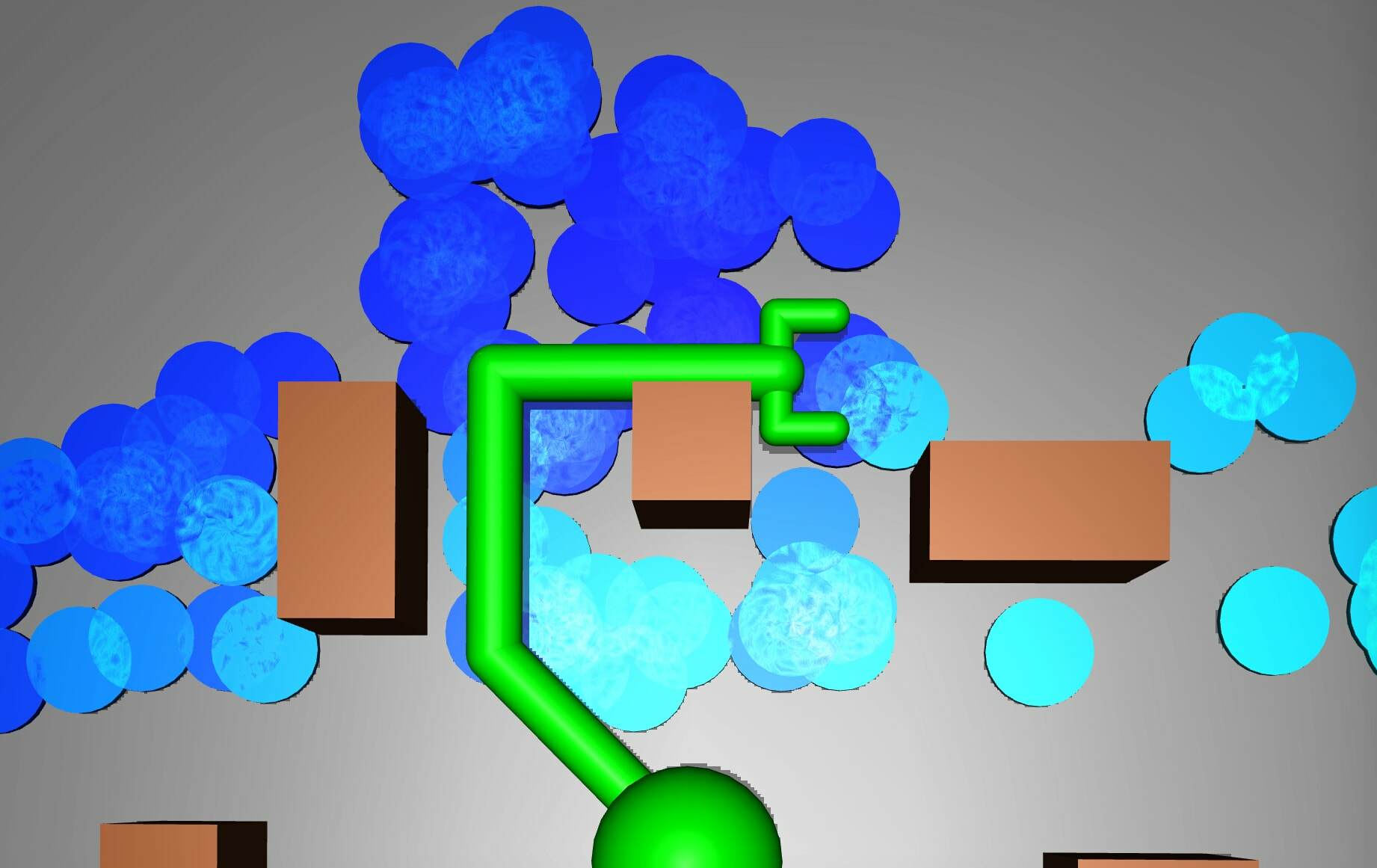

We offer a qualitative analysis for studying the acquired latent space for an instance of the reacher with obstacles task. Given the selected initial pose, we compute the distance in the learned space for 150 random final poses and illustrate these distances qualitatively on the environment arena by color mapping each end-effector position accordingly. The result is shown in Figure 7; lighter blue corresponds to larger distances in the feature space. We see that the learned distance metric is obstacle-aware and task-specific: regions below the initial position in Figure 7 are less desirable even though they are near, while farther regions above are comparatively favorable.
4.4 Transfer to Harder Scenarios
We have seen in subsections 4.1 and 4.2 that UPNs can learn effective imitation policies that can perform close to the expert level on visuomotor planning tasks. In principle, deriving reward functions from a trained UPN as explained in subsection 2.3 should allow us to extend beyond the capabilities of the expert on harder scenarios where the expert fails. We study this idea in the reaching scenario with obstacle configuration as presented in Figure 4(d). The difference between fixed and varying goals is that for varying goals, we feed in a feature vector of the goal image as an additional input to the RL policy. We use PPO (Schulman et al., 2017) for model-free policy optimization of the rewards derived from the feature space(s). Though the subsection 2.3 explains the reinforcement learning procedure in the context of using from a UPN, one could use a trained encoder
from other methods such as our supervised learning comparisons RIL, AIL. In addition to RIL and AIL, a feature space we compare to is an encoder obtained from training a variational auto-encoder (VAE)(Kingma & Welling, 2013) on the images of the demonstrations. This comparison is necessary to judge how useful the feature space of a UPN is for downstream reinforcement learning when compared to pixel reconstruction methods such as VAEs. In Table 1, we see that reinforcement learning on the feature space of RIL and AIL clearly fail, while RL on the UPN feature space is significantly better compared to that of a VAE. We also see that UPN-RL is able to outperform the expert and the imitating UPN-160.
4.5 Transfer Across Robots
Having seen the success of reinforcement learning using rewards derived from UPN representations in subsection 4.4, we pose a harder problem in this subsection: Can we leverage UPN representations trained on some source task(s) to provide rewards for target task(s) with significantly different dynamics and action spaces? We propose to do this by training and testing with different robots (morphological variations) on the same desired functionality (reaching / locomotion, around obstacles). This study will highlight the extrapolative nature of UPN representations. The idea of trajectory optimization with a learned metric is a fundamental prior that can hold across a large class of visuomotor control problems. Having trained UPN to learn such a prior, it is natural to expect the underlying representation to be amenable to providing suitable metric based rewards for similar but unseen tasks. We craft two challenging experimental scenarios to verify this hypothesis.
Reacher with new morphology: Having trained a UPN with a shared and different for a 3-link and 4-link reacher (on the obstacles task), can we leverage the learned to specify rewards for reinforcement-learning a 5-link reacher to reach different goals around the same obstacles? Figure 8(a) visually depicts this experiment. Such a transfer scenario hasn’t been studied in the past for visuomotor control. The dynamics of a 5-link reacher are more complex (compared to 3 and 4 link reachers), thereby posing a harder control problem to solve at test time. However, a good path-planning reward function learned from 3 and 4-link reachers is likely to help for a 5-link reacher due to morphological similarities. We train the UPN on both the 3 and 4 link reachers to avoid overfitting the learned metric to a specific dynamical system. As comparison methods, we train RIL and AIL (with a multi-task (head) architecture), and a VAE (jointly on images from both the tasks).
Point to Ant: Higher-level navigation to goals amidst obstacles should be common across different robots, from a 2D point robot controlled through simple forces to a robot as complex as an 8-joint quadruped ant. While the lower level actuation varies across different robots, the visual spatial planning should ideally be transferrable . We empirically confirm this via an experiment illustrated in Figure 8(b). Here, we learn representations with a UPN on demonstrations collected from a 2D point robot trained to traverse obstacles to reach varying goals. We randomize the robot’s morphological appearance across demonstrations (Figure 8(b)), inspired by Sadeghi & Levine (2016); Tobin et al. (2017). This allows the UPN to learn an encoder that is robust to the creature appearance. We then design an experiment to use this for a harder problem. First, we train a UPN with a simple 2D point robot; we then replace the point robot with a 3D-torque-controlled ant, which requires more delicate handling of the surface contacts for maneuvering the quadruped and avoiding obstacles. Once again, to our knowledge, such morphological transfer has not been demonstrated in prior work on visuomotor control.
In Figure 9 we see that for both the transfer scenarios, RL with rewards from the UPN representation is significantly more successful compared to other feature spaces (VAE, AIL, and RIL). In addition to other feature spaces, we also compare the UPN-RL setup to a naïve RL agent optimizing a spatial distance to goal in the co-ordinate space as the reward; this procedure assumes that the spatial position of the goal is known, unlike UPN, RIL, AIL, and VAE where the feature vector of the goal image is provided as input. We note that this method also performs poorly, which is expected because, unlike distances in the feature space of UPN, the spatial distance in the co-ordinate space is not obstacle-aware. Note that UPN-RL relies only on the UPN representation to provide the RL agent with knowledge of the task, thus inferring the goal from the obstacle-informative latent space. These results show that optimizing for the rewards derived from UPN correlates with task success, supporting our claim that UPNs learn generalizable and transferrable latent spaces. We show further extrapolation (6-link and 7-link reachers) in our video results. To our knowledge, there has been no prior exposition of torque controlled goal conditioned ant navigation for varying goals around obstacle(s) even when spatial positions of the goal and ant torso are known. UPN is therefore an effective way of uncovering useful metric priors that can serve as perceptual reward functions for complex tasks for which reward functions are typically hard to engineer.

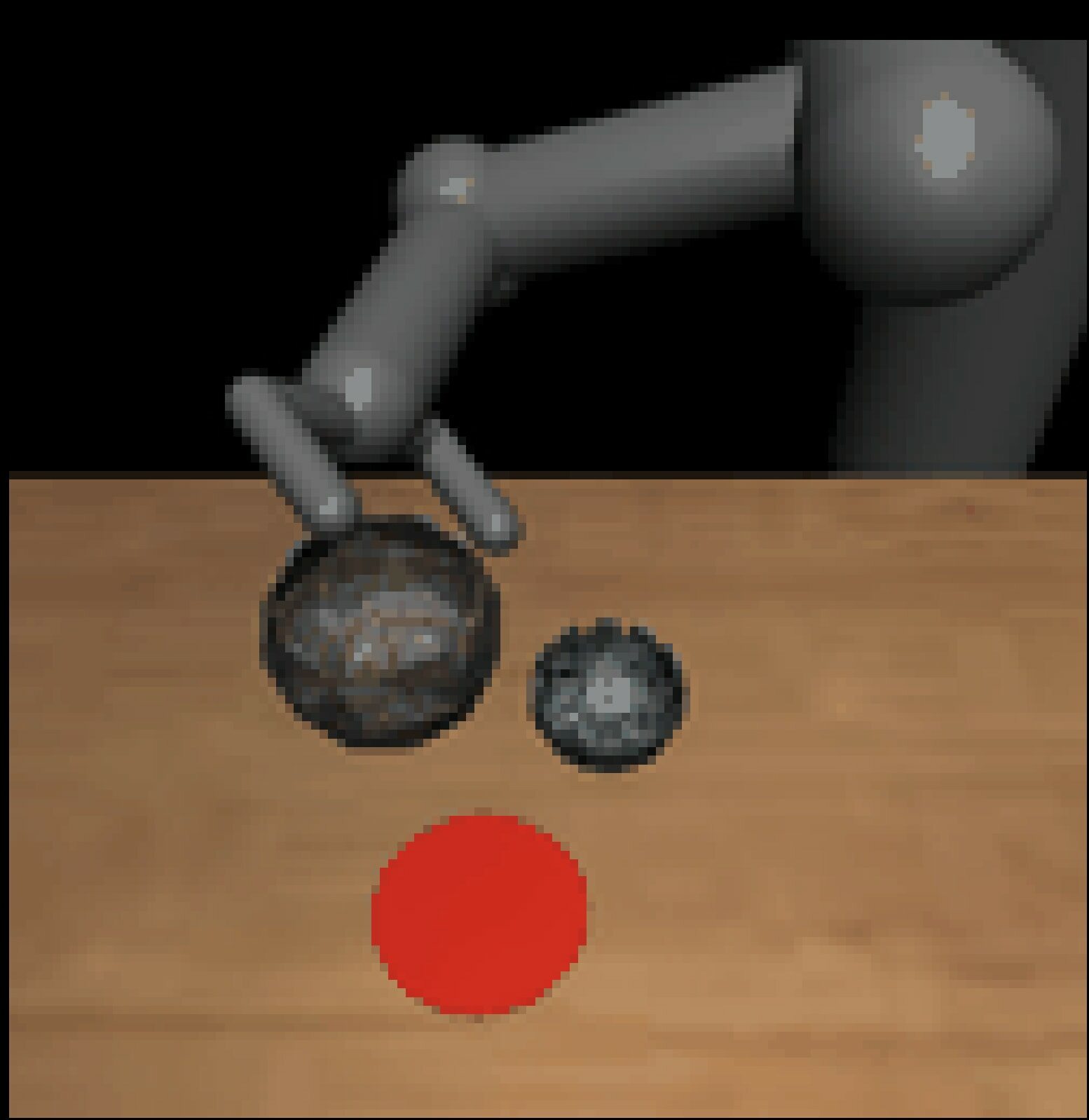

4.6 3D 7-DoF Control from an Non-orthographic View
So far, we have demonstrated results with UPN on tasks where the view point is orthographic, which may make it easier for the agent to map from pixels to relative positions. We next seek to answer the question: Can UPN still work for scenarios where the camera view of the task is non-orthographic? This is a common scenario for real robot tasks or more complex manipulation tasks in simulation (Finn et al., 2017b). To answer this, we consider the task of controlling a 3D 7-DoF arm from non-orthographic viewpoints, which presents a harder perception problem (shown in Figure 9(d)). This task is adapted from Finn et al. (2017b) where there is a distractor object in addition to a target object that needs to be displaced to a goal location. However, here, we do not focus on generalization to new objects unlike Finn et al. (2017b). Instead, we look at skill generalization. We collect a dataset of random pokes (see Agrawal et al. (2016) for a detailed description of poking in robotics and our video highlights for visual illustration of poking trajectories). Having trained a UPN representation on poking trajectories, we study whether rewards derived from it can guide learning of more complex and composite skills, such as pushing (which involves appropriately reaching for the target object and guiding it to the goal). Further, we also analyze whether the UPN representation based rewards can replace hand-engineered reward shaping for such a task.
Having established the clear success of UPN over RIL, AIL, and VAE for the RL experiments in subsections 4.4 and 4.5, we perform a different comparison here. In addition to UPN-RL, we train the agent on the pushing task assuming the object and goal positions are known using RL without image based inputs and a well shaped reward that is described here. To our surprise, we find that the transfer from poking to pushing using the UPN-RL setup works efficiently. Our method, which relies only on UPN representation rewards and the current image, approaches the performance of the shaped reward function in terms of task success (Figure 9(c)). This result suggests that the UPN latent space captures the proximity of the end-effector to the object as a pre-requisite to moving the object to desired locations and hence supports acquisition of even more complex behavior via reinforcement learning. Thus, UPN can serve as a means to acquiring a structured metric in the latent space from which reward functions for complex manipulation tasks such as pushing can emerge naturally.
4.7 Transfer from Point Robot to a Humanoid: Pushing the limits of generalization
In this subsection, we consider the following question: Can a reward function derived from a very simple creature such a 2D point robot be used to control a much more complex robot such as a humanoid, for similar behaviors such as locomotion around obstacles (ref Figure 10(a))? This is a harder problem than transferring reward functions from point robot to ant because a humanoid is a much more complex robot to control. To deal with the visual differences between a humanoid and a point robot, we assume that we have access to the 2D co-ordinate position of the center of mass of the humanoid. We re-render the humanoid as a 2D point robot whose center of mass is same as that of the humanoid, and pass this image through a UPN trained on a point robot to provide the reward function for the humanoid. Note that this assumption of knowing the global location is very minimal, since the reward function is still non-trivial, and in this case, a learned perceptual metric.
In the case of the quadruped, it wasn’t necessary to shape the rewards for balancing as long as we could terminate episodes whenever the creature falls down. However, for a humanoid, an explicit reward for staying on feet is necessary. We saw that naive termination of episodes on falling down resulted in the humanoid moving close to the side walls to balance itself and stay on feet throughout the duration of the task, rather than optimizing for the path planning reward derived from the UPN representations. To get around this issue, we adopted the strategy used in Bansal et al. (2017), whereby a decaying curriculum for staying on feet is used, and combined with the metric reward for the shortest path locomotion. Check out the video of the behavior learned by the humanoid on the project webpage: https://sites.google.com/view/upn-public.
4.8 Using UPN rewards for long horizon tasks
Finally, we answer: To what extent can the learned metrics from UPN guide a new reinforcement learning agent? One way to push the limits is to consider long horizon tasks. Typically, continuous control tasks studied in reinforcement learning are restricted to a maximum horizon of less than or equal to 1000 simulation steps. Taking inspiration from Frans et al. (2018), we study a goal conditioned navigation task wherein a quadruped has to locomote around obstacles to reach a goal that is far away (time horizon of 8000 simulation steps, refer to Figure 10(b)). In the case of Frans et al. (2018), the reward was extrinsic and sparse, and thus a hierarchical policy was required for efficient credit assignment and exploration. In our case, we show that the shaped reward from UPN on a point robot can overcome the problem of sparse rewards and effective credit assignment. This experiment indicates that UPN is able to learn efficient distance metrics in an abstract space from very simple short horizon tasks such as controlling a 2D point robot, which can be powerful enough to guide the reinforcement learning of complex policies such as controlling an ant to move around mazes over much longer horizons. Check out the video of the learned behavior on the project webpage: https://sites.google.com/view/upn-public.
We posed the problem of learning representations for performing generalizable visuomotor control. We focused on one property such a space should satisfy: providing distance metrics for reinforcement learning on tasks specified via goal images without extrinsic rewards. To this end, we introduced universal planning networks, a goal-directed policy architecture with an embedded differentiable planner, that can be trained end-to-end. Our extensive experiments demonstrated that (1) UPNs learn effective visual goal-directed policies efficiently; (2) UPN latent representations can be leveraged to transfer task-related semantics to more complex agents and more challenging tasks through goal-conditioned reward functions; and (3) the learned planner improves with more updates at test-time, providing encouraging evidence of meta-learning for planning. Our transfer learning successes demonstrate that we have learned generic representations that have notions of agency and planning. Future work should investigate different ways to train UPN representations, such as through reinforcement learning or self-supervision, borrowing ideas fromAndrychowicz et al. (2017), Sukhbaatar et al. (2017), Weber et al. (2017) and Pathak et al. (2017). Another important future direction is to study representations wherein the metrics are structured as value functions instead of rewards as a consequence of which long horizon policy optimization could be more effective and sample efficient. Further, the results from subsections 4.7 and 4.8 suggest that UPN like architectures might be practically applicable for learning complex real robotic behaviors by leveraging simulated behaviors of much simpler robots performing the same tasks.
AS thanks Aviv Tamar for insightful feedback on planning that motivated the experiments; John Schulman, Ashvin Nair and Deepak Pathak for helpful discussions and feedback; Rocky Duan for technical help; and Jonathan Ho, Jason Peng, and Kelvin Xu for reviewing previous versions of the paper. AJ thanks Alyosha Efros for support and feedback. This research was supported by an ONR PECASE N000141612723AS grant, NVIDIA and Amazon Web Services. AS and AJ were supported by a Berkeley EECS Fellowship and a Berkeley AI Research Fellowship; CF was supported by an NSF GRFP award.
- Abadi et al. (2016) Abadi, Martín, Agarwal, Ashish, Barham, Paul, Brevdo, Eugene, Chen, Zhifeng, Citro, Craig, Corrado, Greg S, Davis, Andy, Dean, Jeffrey, Devin, Matthieu, et al. Tensorflow: Large-scale machine learning on heterogeneous distributed systems. arXiv preprint arXiv:1603.04467, 2016.
- Abbeel & Ng (2004) Abbeel, Pieter and Ng, Andrew Y. Apprenticeship learning via inverse reinforcement learning. In Proceedings of the twenty-first international conference on Machine learning, pp. 1. ACM, 2004.
- Agrawal et al. (2016) Agrawal, Pulkit, Nair, Ashvin V, Abbeel, Pieter, Malik, Jitendra, and Levine, Sergey. Learning to poke by poking: Experiential learning of intuitive physics. In Advances in Neural Information Processing Systems, pp. 5074–5082, 2016.
- Amos & Kolter (2017) Amos, Brandon and Kolter, J Zico. Optnet: Differentiable optimization as a layer in neural networks. arXiv preprint arXiv:1703.00443, 2017.
- Andrychowicz et al. (2017) Andrychowicz, Marcin, Crow, Dwight, Ray, Alex, Schneider, Jonas, Fong, Rachel, Welinder, Peter, McGrew, Bob, Tobin, Josh, Abbeel, Pieter, and Zaremba, Wojciech. Hindsight experience replay. In Advances in Neural Information Processing Systems, pp. 5055–5065, 2017.
- Ba et al. (2016) Ba, Jimmy Lei, Kiros, Jamie Ryan, and Hinton, Geoffrey E. Layer normalization. arXiv preprint arXiv:1607.06450, 2016.
- Bansal et al. (2017) Bansal, Trapit, Pachocki, Jakub, Sidor, Szymon, Sutskever, Ilya, and Mordatch, Igor. Emergent complexity via multi-agent competition. arXiv preprint arXiv:1710.03748, 2017.
- Baram et al. (2017) Baram, Nir, Anschel, Oron, Caspi, Itai, and Mannor, Shie. End-to-end differentiable adversarial imitation learning. In International Conference on Machine Learning, pp. 390–399, 2017.
- Brockman et al. (2016) Brockman, Greg, Cheung, Vicki, Pettersson, Ludwig, Schneider, Jonas, Schulman, John, Tang, Jie, and Zaremba, Wojciech. Openai gym. arXiv preprint arXiv:1606.01540, 2016.
- Chen et al. (2017) Chen, Xi, Mishra, Nikhil, Rohaninejad, Mostafa, and Abbeel, Pieter. Pixelsnail: An improved autoregressive generative model. arXiv preprint arXiv:1712.09763, 2017.
- de Bruin et al. (2018) de Bruin, T., Kober, J., Tuyls, K., and Babuska, R. Integrating state representation learning into deep reinforcement learning. IEEE Robotics and Automation Letters, PP(99):1–1, 2018. doi: 10.1109/LRA.2018.2800101.
- Deguchi & Takahashi (1999) Deguchi, Koichiro and Takahashi, Isao. Image-based simultaneous control of robot and target object motions by direct-image-interpretation method. In Intelligent Robots and Systems, 1999. IROS’99. Proceedings. 1999 IEEE/RSJ International Conference on, volume 1, pp. 375–380. IEEE, 1999.
- Dhariwal et al. (2017) Dhariwal, Prafulla, Hesse, Christopher, Klimov, Oleg, Nichol, Alex, Plappert, Matthias, Radford, Alec, Schulman, John, Sidor, Szymon, and Wu, Yuhuai. Openai baselines, 2017.
- Donti et al. (2017) Donti, Priya, Kolter, J Zico, and Amos, Brandon. Task-based end-to-end model learning in stochastic optimization. In Advances in Neural Information Processing Systems, pp. 5490–5500, 2017.
- Farquhar et al. (2017) Farquhar, Gregory, Rocktäschel, Tim, Igl, Maximilian, and Whiteson, Shimon. Treeqn and atreec: Differentiable tree planning for deep reinforcement learning. arXiv preprint arXiv:1710.11417, 2017.
- Finn & Levine (2018) Finn, Chelsea and Levine, Sergey. Meta-learning and universality: Deep representations and gradient descent can approximate any learning algorithm. International Conference on Learning Representations, 2018.
- Finn et al. (2016a) Finn, Chelsea, Levine, Sergey, and Abbeel, Pieter. Guided cost learning: Deep inverse optimal control via policy optimization. In International Conference on Machine Learning, pp. 49–58, 2016a.
- Finn et al. (2016b) Finn, Chelsea, Tan, Xin Yu, Duan, Yan, Darrell, Trevor, Levine, Sergey, and Abbeel, Pieter. Deep spatial autoencoders for visuomotor learning. In Robotics and Automation (ICRA), 2016 IEEE International Conference on, pp. 512–519. IEEE, 2016b.
- Finn et al. (2017a) Finn, Chelsea, Abbeel, Pieter, and Levine, Sergey. Model-agnostic meta-learning for fast adaptation of deep networks. arXiv preprint arXiv:1703.03400, 2017a.
- Finn et al. (2017b) Finn, Chelsea, Yu, Tianhe, Zhang, Tianhao, Abbeel, Pieter, and Levine, Sergey. One-shot visual imitation learning via meta-learning. arXiv preprint arXiv:1709.04905, 2017b.
- Frans et al. (2018) Frans, Kevin, Ho, Jonathan, Chen, Xi, Abbeel, Pieter, and Schulman, John. META LEARNING SHARED HIERARCHIES. In International Conference on Learning Representations, 2018. URL https://openreview.net/forum?id=SyX0IeWAW.
- Goodfellow et al. (2016) Goodfellow, Ian, Bengio, Yoshua, and Courville, Aaron. Deep learning, volume 1. 2016.
- Guez et al. (2018) Guez, Arthur, Weber, Theophane, Antonoglou, Ioannis, Simonyan, Karen, Vinyals, Oriol, Wierstra, Daan, Munos, Remi, and Silver, David. Learning to search with MCTSnets, 2018. URL https://openreview.net/forum?id=r1TA9ZbA-.
- Henaff et al. (2017) Henaff, Mikael, Whitney, William F, and LeCun, Yann. Model-based planning in discrete action spaces. arXiv preprint arXiv:1705.07177, 2017.
- Higgins et al. (2017) Higgins, Irina, Pal, Arka, Rusu, Andrei A, Matthey, Loic, Burgess, Christopher P, Pritzel, Alexander, Botvinick, Matthew, Blundell, Charles, and Lerchner, Alexander. Darla: Improving zero-shot transfer in reinforcement learning. arXiv preprint arXiv:1707.08475, 2017.
- Ho & Ermon (2016) Ho, Jonathan and Ermon, Stefano. Generative adversarial imitation learning. In Advances in Neural Information Processing Systems, pp. 4565–4573, 2016.
- Jonschkowski & Brock (2015) Jonschkowski, Rico and Brock, Oliver. Learning state representations with robotic priors. Autonomous Robots, 39(3):407–428, 2015.
- Jonschkowski et al. (2017) Jonschkowski, Rico, Hafner, Roland, Scholz, Jonathan, and Riedmiller, Martin. Pves: Position-velocity encoders for unsupervised learning of structured state representations. arXiv preprint arXiv:1705.09805, 2017.
- Kelley (1960) Kelley, H. J. Gradient theory of optimal flight paths. ARS Journal, 30(10):947–954, 1960.
- Kingma & Welling (2013) Kingma, Diederik P and Welling, Max. Auto-encoding variational bayes. arXiv preprint arXiv:1312.6114, 2013.
- Lange et al. (2012) Lange, Sascha, Riedmiller, Martin, and Voigtlander, Arne. Autonomous reinforcement learning on raw visual input data in a real world application. In Neural Networks (IJCNN), The 2012 International Joint Conference on, pp. 1–8. IEEE, 2012.
- Levine et al. (2016) Levine, Sergey, Finn, Chelsea, Darrell, Trevor, and Abbeel, Pieter. End-to-end training of deep visuomotor policies. The Journal of Machine Learning Research, 17(1):1334–1373, 2016.
- Li et al. (2017) Li, Yunzhu, Song, Jiaming, and Ermon, Stefano. Inferring the latent structure of human decision-making from raw visual inputs. arXiv preprint arXiv:1703.08840, 2017.
- Mnih et al. (2015) Mnih, Volodymyr, Kavukcuoglu, Koray, Silver, David, Rusu, Andrei A, Veness, Joel, Bellemare, Marc G, Graves, Alex, Riedmiller, Martin, Fidjeland, Andreas K, Ostrovski, Georg, et al. Human-level control through deep reinforcement learning. Nature, 518(7540):529, 2015.
- Nair et al. (2017) Nair, Ashvin, Chen, Dian, Agrawal, Pulkit, Isola, Phillip, Abbeel, Pieter, Malik, Jitendra, and Levine, Sergey. Combining self-supervised learning and imitation for vision-based rope manipulation. arXiv preprint arXiv:1703.02018, 2017.
- Ng & Russell (2000) Ng, Andrew Y and Russell, Stuart. Algorithms for inverse reinforcement learning. In in Proc. 17th International Conf. on Machine Learning. Citeseer, 2000.
- Ng et al. (1999) Ng, Andrew Y, Harada, Daishi, and Russell, Stuart. Policy invariance under reward transformations: Theory and application to reward shaping. In ICML, volume 99, pp. 278–287, 1999.
- Oh et al. (2017) Oh, Junhyuk, Singh, Satinder, and Lee, Honglak. Value prediction network. In Advances in Neural Information Processing Systems, pp. 6120–6130, 2017.
- Pathak et al. (2017) Pathak, Deepak, Agrawal, Pulkit, Efros, Alexei A., and Darrell, Trevor. Curiosity-driven exploration by self-supervised prediction. In ICML, 2017.
- Pathak* et al. (2018) Pathak*, Deepak, Mahmoudieh*, Parsa, Luo*, Michael, Agrawal*, Pulkit, Chen, Dian, Shentu, Fred, Shelhamer, Evan, Malik, Jitendra, Efros, Alexei A., and Darrell, Trevor. Zero-shot visual imitation. In International Conference on Learning Representations, 2018. URL https://openreview.net/forum?id=BkisuzWRW.
- Pereira et al. (2018) Pereira, Marcus, Fan, David D, An, Gabriel Nakajima, and Theodorou, Evangelos. Mpc-inspired neural network policies for sequential decision making. arXiv preprint arXiv:1802.05803, 2018.
Pinto et al. (2016)
Pinto, Lerrel, Gandhi, Dhiraj, Han, Yuanfeng, Park, Yong-Lae, and Gupta,
The curious robot: Learning visual representations via physical
European Conference on Computer Vision, pp. 3–18. Springer, 2016.
- Radford et al. (2015) Radford, Alec, Metz, Luke, and Chintala, Soumith. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv preprint arXiv:1511.06434, 2015.
- Ramachandran et al. (2017) Ramachandran, Prajit, Zoph, Barret, and Le, Quoc V. Swish: a self-gated activation function. arXiv preprint arXiv:1710.05941, 2017.
- Sadeghi & Levine (2016) Sadeghi, Fereshteh and Levine, Sergey. Cad2rl: Real single-image flight without a single real image. arXiv preprint arXiv:1611.04201, 2016.
- Salimans & Kingma (2016) Salimans, Tim and Kingma, Diederik P. Weight normalization: A simple reparameterization to accelerate training of deep neural networks. In Advances in Neural Information Processing Systems, pp. 901–909, 2016.
- Schmidhuber (1990) Schmidhuber, Jürgen. An on-line algorithm for dynamic reinforcement learning and planning in reactive environments. In In Proc. IEEE/INNS International Joint Conference on Neural Networks, pp. 253–258. IEEE Press, 1990.
- Schneider et al. (2017) Schneider, Jonas, Welinder, Peter, Ray, Alex, Ho, Jonathan, and Zaremba, Wojceich. Openai mujoco-py, 2017.
- Schulman (2016) Schulman, John. Optimizing Expectations: From Deep Reinforcement Learning to Stochastic Computation Graphs. PhD thesis, EECS Department, University of California, Berkeley, Dec 2016. URL http://www2.eecs.berkeley.edu/Pubs/TechRpts/2016/EECS-2016-217.html.
- Schulman et al. (2017) Schulman, John, Wolski, Filip, Dhariwal, Prafulla, Radford, Alec, and Klimov, Oleg. Proximal policy optimization algorithms. arXiv preprint arXiv:1707.06347, 2017.
- Sermanet et al. (2016) Sermanet, Pierre, Xu, Kelvin, and Levine, Sergey. Unsupervised perceptual rewards for imitation learning. arXiv preprint arXiv:1612.06699, 2016.
- Sermanet et al. (2017) Sermanet, Pierre, Lynch, Corey, Hsu, Jasmine, and Levine, Sergey. Time-contrastive networks: Self-supervised learning from multi-view observation. arXiv preprint arXiv:1704.06888, 2017.
- Silver et al. (2016) Silver, David, van Hasselt, Hado, Hessel, Matteo, Schaul, Tom, Guez, Arthur, Harley, Tim, Dulac-Arnold, Gabriel, Reichert, David, Rabinowitz, Neil, Barreto, Andre, et al. The predictron: End-to-end learning and planning. arXiv preprint arXiv:1612.08810, 2016.
- Sukhbaatar et al. (2017) Sukhbaatar, Sainbayar, Kostrikov, Ilya, Szlam, Arthur, and Fergus, Rob. Intrinsic motivation and automatic curricula via asymmetric self-play. arXiv preprint arXiv:1703.05407, 2017.
- Sutton & Barto (1998) Sutton, Richard S. and Barto, Andrew G. Introduction to Reinforcement Learning. MIT Press, Cambridge, MA, USA, 1st edition, 1998. ISBN 0262193981.
- Tamar et al. (2016) Tamar, Aviv, Wu, Yi, Thomas, Garrett, Levine, Sergey, and Abbeel, Pieter. Value iteration networks. In Advances in Neural Information Processing Systems, pp. 2154–2162, 2016.
- Tamar et al. (2017) Tamar, Aviv, Thomas, Garrett, Zhang, Tianhao, Levine, Sergey, and Abbeel, Pieter. Learning from the hindsight plan—episodic mpc improvement. In Robotics and Automation (ICRA), 2017 IEEE International Conference on, pp. 336–343. IEEE, 2017.
- Tassa et al. (2012) Tassa, Yuval, Erez, Tom, and Todorov, Emanuel. Synthesis and stabilization of complex behaviors through online trajectory optimization. In Intelligent Robots and Systems (IROS), 2012 IEEE/RSJ International Conference on, pp. 4906–4913. IEEE, 2012.
- Tobin et al. (2017) Tobin, Josh, Fong, Rachel, Ray, Alex, Schneider, Jonas, Zaremba, Wojciech, and Abbeel, Pieter. Domain randomization for transferring deep neural networks from simulation to the real world. In Intelligent Robots and Systems (IROS), 2017 IEEE/RSJ International Conference on, pp. 23–30. IEEE, 2017.
- Todorov et al. (2012) Todorov, Emanuel, Erez, Tom, and Tassa, Yuval. Mujoco: A physics engine for model-based control. In Intelligent Robots and Systems (IROS), 2012 IEEE/RSJ International Conference on, pp. 5026–5033. IEEE, 2012.
- Watter et al. (2015) Watter, Manuel, Springenberg, Jost, Boedecker, Joschka, and Riedmiller, Martin. Embed to control: A locally linear latent dynamics model for control from raw images. In Advances in neural information processing systems, pp. 2746–2754, 2015.
- Weber et al. (2017) Weber, Théophane, Racanière, Sébastien, Reichert, David P, Buesing, Lars, Guez, Arthur, Rezende, Danilo Jimenez, Badia, Adria Puigdomènech, Vinyals, Oriol, Heess, Nicolas, Li, Yujia, et al. Imagination-augmented agents for deep reinforcement learning. arXiv preprint arXiv:1707.06203, 2017.
- Wulfmeier et al. (2016) Wulfmeier, Markus, Rao, Dushyant, and Posner, Ingmar. Incorporating human domain knowledge into large scale cost function learning. arXiv preprint arXiv:1612.04318, 2016.
Appendix A UPN Architecture details
We overview the details of the architecture to aid in reproducing the work.
Our current and goal observations are 84 84
3 RGB images. Our objective is to re-use the learned representations (encodings) of pixel inputs. Thus, we kept things simple and did not apply any standardization techniques like mean subtraction or input batch normalization / layer normalization because it’s not clear how such input transformations would transfer to new tasks. However, we scale the input pixels by.
Below, we describe the sequence of convolutional and feed-forward layers. These operations together make our encoder described in the UPN architecture. Note that we use the swish nonlinearity that was proposed by Ramachandran et al. (2017). We found swish to work better than relu for all our experiments. For more clarity, . The code snippet below returns 128-dimensional vectors for and .
a.3 Bias Transformation and Embodiment Information
In our experiments, we use torque-controlled agents. It is an ill-defined problem to map purely from pixels to motor torques without information about the joint velocities. Though it may be possible to recover the joint angles and end-effector positions from pixels, recovering the velocities requires multiple frames from the past, thereby making the problem of mapping from current image observation to motor torques a partially observed problem. To get rid of this problem, researchers in the robotic learning community have typically provided the joint angles and velocities as additional inputs that are concatenated with the encoded features of the image observation (Levine et al., 2016; Finn et al., 2017b). We follow the same technique for our paper. Note that even though providing the robot arm configuration is helpful for planning motor torques, the agent also needs to rely on learning a good perceptual representation and reward function, since the joint angles and velocities do not contain any information about the goal or task at hand.
In addition to the above, we also borrow another trick called the bias transformation (Finn et al., 2017b) to ensure stable gradients in inner optimization loop of complex computation graphs. The bias transformation units are free variables that increase the expressivity of the gradient without adding expressivity to the network, allowing for more control of the gradient. See Finn et al. (2017b) for a more detailed explanation of bias transformation and its usage in model-agnostic meta-learning (MAML) (Finn et al., 2017a).
To summarize, our inner loop planner tries to identify a sequence of actions that are optimal for reaching from . Having transformed and to and respectively, we seek that when rolled forward from , produces a latent state close to . This forward unrolling takes in additional inputs and , where provides the sensorimotor embodiment information, and denotes the bias transformation variable. We re-project to a 128-dimensional space since is still 128-dimensional. We present the code relevant to these tricks below:
a.4 Action Encoder
We encode the actions which are in turn used by the forward dynamics model in the latent space. Our action encoder is as follows:
a.5 Planning by Gradient Descent
Our planner rolls forward a dynamics model in the latent space of the encoder using the current estimate of the optimal plan. Our dynamics model prediction for one-step is best summarized as a rough skeleton code below:
a.5.1 Dynamics in Latent Space
a.5.2 Planning Updates
We present pseudo-code below for better understanding of the planning process, which uses multiple gradient descent steps on a Huber Loss, with respect to the actions.
a.5.3 Hyperparameter details
|1||Number of plan updates||40|
|2||Gradient Clip Value||25|
|3||Update Step Size(s)||0.5, 0.25|
|5||Planning Horizon (2D Point Robot)||50|
|6||Planning Horizon (3-Link Reacher)||100|
|7||Planning Horizon (3D Poking)||100|
Gradient Clipping: We use a simple gradient update to the actions (though exploring momentum based updates like Adam could be an interesting direction for future work). However, we clip the gradients using Tensorflow’s clip-by-value with limits -25 and 25. Further, the step sizes are important for getting the model to train well.
Huber Loss: This trick was, by far, the most important to getting the model to train with well behaved inner loop losses and gradients. We also tuned the delta parameter in the huber loss (delta=1 is standard). In our experiments, having a delta=0.85 turned out to be optimal. In the absence of the Huber Loss, the inner loop planning error increased over training agnostic of whether gradient clipping was used or not. It is also worth noting that Sermanet et al. (2017) use a Huber-style loss on their features to describe reward functions, though the feature space wasn’t optimized to provide such metrics at training time.
Step Size: We take an aggressive step size of 0.5 for the first update, and step sizes of 0.25 for the remaining 39 updates during training. At test-time, we preserve the same constants. Exploring other schemes (for example, geometric decaying) is left for future work.
Horizon: The planning horizon listed in Table 2 is the maximum number of time steps to roll out planning across time. Thus, we do not always roll out the dynamics across time for the specified horizon for every pair of . In practice, it is more data-efficient to extract many sub-sequences from a single trajectory by picking different where and roll out the planning with a dynamic horizon. The implementation thus resembles a dynamic RNN. Further, it is useful to incentivize sampling of shorter horizons over the longer ones early in training, drawing inspiration from curriculum learning. We describe the specific details of the curriculum in the next subsection.
a.6 Outer Loop Loss and Training
Our outer objective is the standard behavior cloning loss. The updated plan from the inner loop is optimized against the optimal plan we have from our demonstrations. We use a mean squared error loss function because our actions are continuous. This corresponds to a maximum likelihood estimate on a Gaussian distribution with the identity matrix as the covariance.
In Table 3, we describe the hyperparameters associated with the outer loop training:
|5||Number of Batch Updates||1e6|
|8||Input Pixel Scaling||1/255|
Larger Batch Size: Using a large batch size (128) was crucial. It may be possible that using larger batch sizes (example, 256 and more) with smaller Adam step sizes could be better. We leave that analysis for future work.
Validation Frequency: Every 10000 batch updates, we validate the network using a hold-out set from the training data as is typical in supervised learning experiments. We then pick the best network over the course of a million mini-batch updates. The wall clock time for this training was around 1.5 days on an NVIDIA Titan X. Better wall clock times are certainly achievable using multiple GPUs and larger batch sizes.
As pointed out in the previous section, it is important to bring in the aspect of curriculum training. The credit assignment over longer planning horizons may be easier if the model has learned on shorter horizons. However, pre-training and fine-tuning is expensive and needs more hyper-parameters. Instead, we just skew the sampling distribution to pick the shorter horizons early on during the training, and uniformly later on. For the skewed sampling, we adopt the Poisson distribution over the horizon range. The Poisson sampling was used for the first 300000 mini-batch updates. This trick had asubstantial effect on good training curves.
a.7 Things that did not work
1. Weight normalization: The motivation for using the Huber Loss was to stop the inner loop gradients, latent features, and planning error from becoming too large. However, the first trick we tried to get rid of the problem was to enforce weight normalization (Salimans & Kingma, 2016) on the features. Interestingly, Farquhar et al. (2017) also point out the same issue when trying to backpropogate through tree-based planning structures inside the computation graph. Though the weight normalization tricked turned out to work for them, we did not have success with it for our case.
2. Larger batch size training (256 and 512): We weren’t successful in scaling up the training and observing gains out of it. The performance on training with batch sizes of 256 was similar to that of 128, while 512 resulted in unstable training.
3. Batch normalization on inputs: Similar to general observations that batch normalization isn’t useful yet for imitation or reinforcement learning problems, we weren’t able to observe benefits. In fact, using batch normalization hurt the training because of correlations between observations within small periods of time.
4. Layer Normalization on convolution layers: Similar to observations in Ba et al. (2016), layer normalization in convolution layers hurt the training of UPNs. Therefore, we only use layer norm in our recurrent dynamics and other fully connected layers.
Appendix B Action-selection with Model Predictive Control (MPC)
In our imitation learning experiments, our action selection procedure uses MPC at test time. The pipeline for UPN is described in Figure 11 for better clarity. The pipeline for AIL is similar to UPN (plan but execute only the first action); while for RIL, we predict only one action and therefore execute it without any notion of MPC.
Appendix C Demo collection
We designed the 2D point robot and 3-link reacher tasks to necessitate planning. This makes collecting demonstrations for these environments tricky because off-the-shelf trajectory optimization and model-free algorithms require a well-defined cost function. Such cost functions are not straight-forward to engineer in this case due to the presence of obstacles. We adopt the hindsight experience replay (HER) technique (Andrychowicz et al., 2017), which implicitly learns to shape a cost function by optimizing for task success instead of extrinsic rewards. Navigation and reaching around obstacles naturally fall into the category of path-planning problems which have a nice continual progression of goals in the configurational space associated with the tasks. Thus, HER is suitable for solving such tasks and can provide the demonstrations that we seek. This. however, comes with a couple of issues: (1) HER may not be able to solve the tasks perfectly, especially in the case of longer horizons; (2) The policies learned using HER are not general, i.e., HER would overfit or master a policy for a specific configuration of obstacles when you work in the configurational space (instead of pixel space). To deal with the second issue, we train independent HER policies for each obstacle configuration in our training distribution. However, the learned policies may not be accurate. To deal with this issue (1), we introduce a technique that we call as hindsight rendering. Given a goal to reach, we roll out the parametric expert tasked with achieving the goal. If the rollout was successful, it is added to the list of demonstrations. Else, we re-render the same rollout, now with the goal being at the final position of the agent (or that of its end-effector). This becomes a meaningful trajectory in most cases and hence, can be added to the list of demonstrations.
Appendix D Imitation Learning Comparisons : Description and architecture details
For our comparisons, the network topology is described below:
d.1 Reactive Imitation Learner (RIL)
Here, is a conventional feed-forward architecture with a convolutional encoder and a fully connected layer , to decode the action from the latent representation. Refer to Figure 12(a).
d.2 Autoregressive Imitation Learner (AIL)
This model auto-regresses a sequence of actions conditioned on a latent representation. is the convolutional encoder which produces the initial hidden state, is a recurrent cell, and is a fully connected layer which decodes the action from the recurrent latent representation. The initial hidden state is initialized with the latent representation produced by . Refer to Figure 12(b).
d.3 Details relevant to RIL and AIL training
RIL: We retain the described in the UPN architecture for fair comparisons. Similar to how UPN uses joint angles and velocities for torque control outputs, we fuse the convolutional encoding with the joint information using 2 hidden layers of dimension 128. This is finally followed by an output later corresponding to the number of actions needed for the task.
AIL: Similar to RIL, the retention from UPN and joint encoding concatenation exist in AIL for fair comparisons. We unroll a recurrent computation over the planning horizon that corresponds to the number of time steps between and in the trajectory. The recurrent computation is a traditional vanilla RNN. We did not observe any benefits from using more sophisticated cells like GRU. However, we leave it for future work to explore temporal convolutions with the caveat that any benefit from the specific recurrent computation used in more sophisticated cells can also be adopted for improving UPN. The recurrent dynamics are of similar expressive power as that of the UPN (128 dimensions for the hidden state). Similar to UPN, we adopt the same skewed sampling of the batches to encourage curriculum learning while training AIL. The actions are decoded from the recurrent hidden states using a single fully connected layer mapping to the action dimension of the task.
The hyperparameters that further clarify the RIL and AIL training details are described in Table 4. To stay consistent, we have the same train, validation and test splits for UPN, RIL and AIL training.
|5||Number of Batch Updates||1e6|
|7||Batch Sampling (AIL)||Curriculum|
|8||Batch Sampling (RIL)||Uniform|
|9||Input Pixel Scaling||1/255|
Appendix E Imitation Learning Benchmarks Experimental Setup
We clarify two ambiguous details that were left out in the main paper:
Expert Performance: Note that the expert performance is not optimal, especially in the reacher VOVG setting. To be clear, this does not mean that the representations of UPN/RIL/AIL are learned from imperfect demonstrations. As explained in Appendix C, the demos are meaningfully correct executions because of hindsight rendering. Thus, the parametric expert is not perfect in terms of achieving the different goals used for training and evaluation. Hence, the reported average success of the expert is lower than 100%, particularly on the harder tasks like Reacher VOVG.
Notion of success: It is important we clarify the notion of what a successful trajectory (for a given goal) is. For both the point robot and the reacher (FOVG and VOVG) settings, a rollout is deemed successful if the end-effector (read as center of mass in the 2D point-robot case) is within 0.05 meters of the goal location.
Table 5 contains the task-specific hyperparameters: maximum number of time steps to roll out the plan (planning horizon), number of demonstrations, and the number of actions. Both the tasks use a success threshold of 0.05 meters.
Appendix F PPO Parameters
Table 6 contains the hyperparameters in the RL experiments that we ran for the reacher morphology transfer, 2D point robot to ant transfer (shorter horizons), and the poking to pushing transfer.
|1||Timesteps per actorbatch||4096|
|3||Number of simulation steps||1e8|
Number of epochs
|5||GAE parameter ()||0.95|
Table 7 contains the hyperparameters for the long-horizon ant navigation experiment.
|1||Timesteps per actorbatch||65536|
|3||Number of simulation steps||1e10|
|4||Number of epochs||3|
|5||GAE parameter ()||0.95|
Table 8 contains the hyperparameters for the humanoid experiment.
|1||Timesteps per actorbatch||16384|
|3||Number of simulation steps||1e9|
|4||Number of epochs||3|
|5||GAE parameter ()||0.95|
Table 9 contains specific details about the environments, such as horizon and discount factor.
Network architecture: For all the experiments, we used fully-connected neural networks with 3 hidden layers of 128 dimensions each, and tanh nonlinearities for both the policy and the value function. The policy is Gaussian with a state-independent diagonal covariance that is learned. Further, we run each experiment with 3 random seeds and average the results.
Appendix G Reinforcement Learning Benchmarks Experimental Setup
g.1 Comparison Methods
We evaluate the learned feature spaces based on whether distance metrics described on them can be used as rewards for reinforcement learning, particularly on new problems where all we have are image targets and no demonstrations or extrinsic rewards. A representation which can do this effectively is what we call a generalizable and plannable representation. Since we already compare to AIL and RIL in our imitation learning experiments, we continue to analyze the feature spaces learned by those models (AIL and RIL) for the reinforcement learning scenario as well. However, in addition to the feature spaces learned through supervised learning, we also run an experiment to train a variational auto-encoder (VAE) (Kingma & Welling, 2013) . This VAE is trained with all the images in our demonstration trajectories (similar to Higgins et al. (2017)). We learn the decoder with a mean-squared-error loss. We pull out the representation () of the VAE after sufficient training and refer to it the VAE feature space.
g.2 VAE Architecture Details
For a fair comparison, we preserve the convolutional encoder structure that was used in the UPN, RIL and AIL architectures. The gaussian posterior is 128 dimensional, and is decoded back to the pixel space by reversing the convolutional encodings through deconvolutional layers. We scale the input pixels by
and decode the outputs through a sigmoid nonlinearity on the predicted pixels to stay in therange. However, here are a three points to be made:
1. It is possible that using other nonlinearities (instead of swish) are better for training a VAE. The swish nonlinearity was discovered through architecture search on supervised learning benchmarks. It is possible that swish doesn’t apply broadly to unsupervised learning objectives and nonlinearities such as leaky-relu (Radford et al., 2015) are better.
2. The traditional VAE is not the best generative model among the class of models that parametrize the likelihood of the pixels. Experimenting with the latest techniques such as autoregressive decoders with temporal convolutions (Chen et al., 2017) is necessary and we leave it for future work.
3. More expressive architectures helpful / better in terms of the metric used to judge the representations, but they are very likely not likely to change the conclusion of the paper since there is no notion of agency or planning embedded in the latent code of pure pixel prediction objectives.
g.3 Reacher Morphology Transfer
The physical dynamics and action spaces of the 3 and 4 link reachers are different. Our objective was to acquire a common representation across the demonstrations from both these robots. To get around this problem and still acquire a shared representation, we train a UPN on these tasks with different but shared . We use 20000 demonstrations each from the 3-link and 4-link reachers. For comparing to our other feature spaces, we train them with shared encoders and branched individual output heads corresponding to each task. This is referred to as Multi-Head in the legend of the corresponding plot (Figure 9(b)) in the main paper. The VAE training does not consider actions. Thus, we train the VAE as usual, but with an aggregated dataset containing the demonstration snapshots from both the tasks. The success threshold is being within 0.05 meters of the goal.
g.4 Point Robot to Ant Transfer
We collected 40000 trajectories with 40 randomized point robot appearances. These trajectories are used to train UPN, RIL, AIL and VAE for studying the point to ant (locomotion around obstacles) transfer. The reason for this randomization was to ensure that the learned UPN representation can meaningfully interpret a creature like an ant which has extra limbs apart from the central torso (that more or less resembles a point robot when seen top down). The appearance randomization adds planar non-actuated limbs to a point robot. This biases the architectures to process the center of the robot and allows them to work for a top-down snapshot of an ant at test time. The success threshold for the ant task is being within 0.5 meters of the goal.
g.5 Learning to Push from Poking Trajectories
It is hard to concretely define the poking task. As long as the object is nudged to a sufficiently different pose, it is considered a successful poke. The question we asked is: If we collected a dataset of random but successful pokes, can the robot learn to associate meaningful patterns such as end-effector being close to the object to be able to displace it, the direction and impulse of the movement for a corresponding pose change, etc. If this were possible and were captured in a latent space, it is natural to expect that latent space to be able to provide shaped metric based rewards for a sophisticated skill such as pushing. Unlike the other kinds of transfer studied in this paper, this experiment is about extrapolation of skills on the same robot. We collected a dataset of 20000 pokes and trained the UPN on these trajectories. The success threshold is for the object to be within 0.08 meters of the goal. The goal location in the pushing experiment and the randomization is over different initial positions of the objects (target and distractor). Thus, as described in subsection 2.3 in the main paper, we don’t feed in to the RL policy at test time.
Appendix H Camera viewpoint for each task
For each task, we present below the viewpoint provided to the neural network architectures.

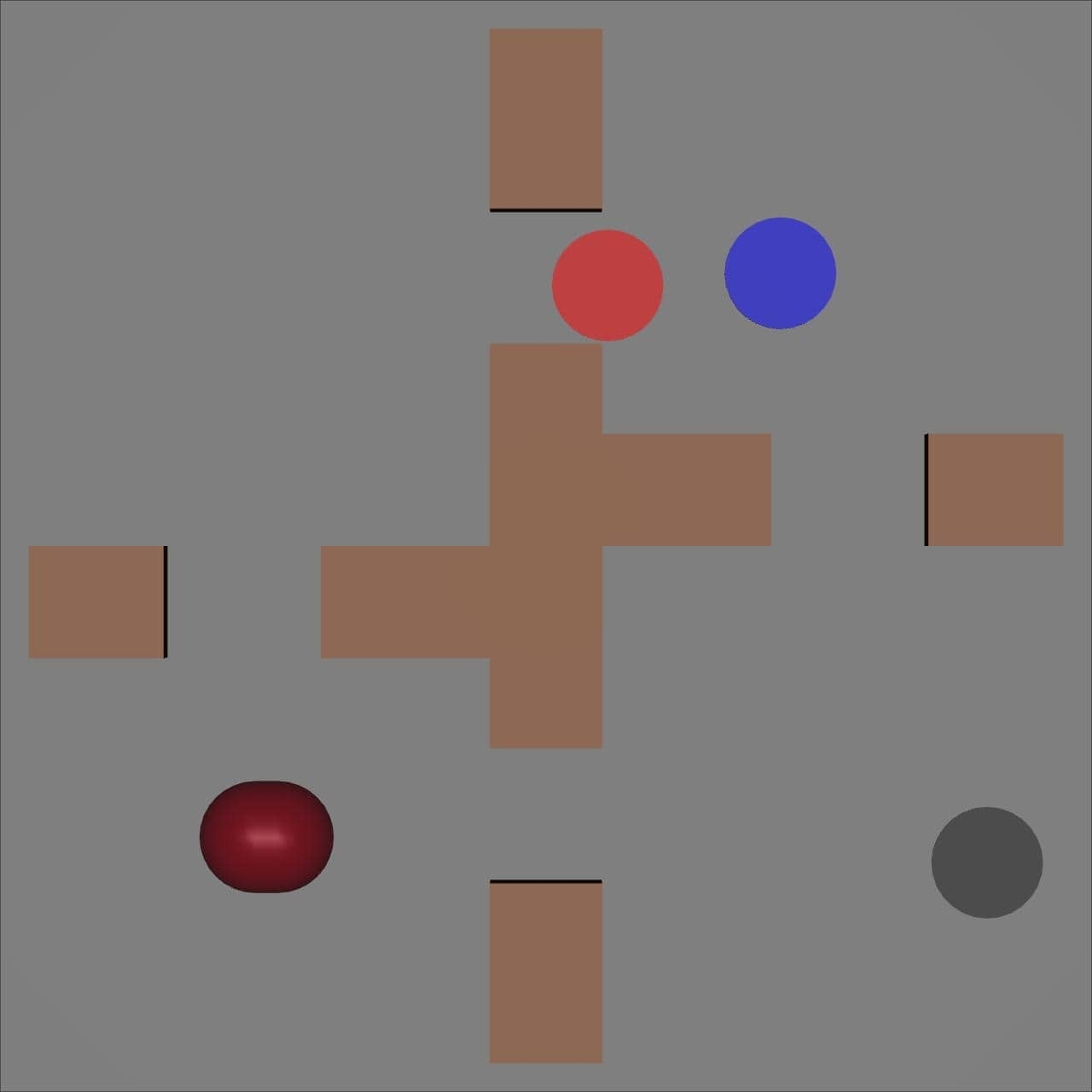

h.1 2D point robot task

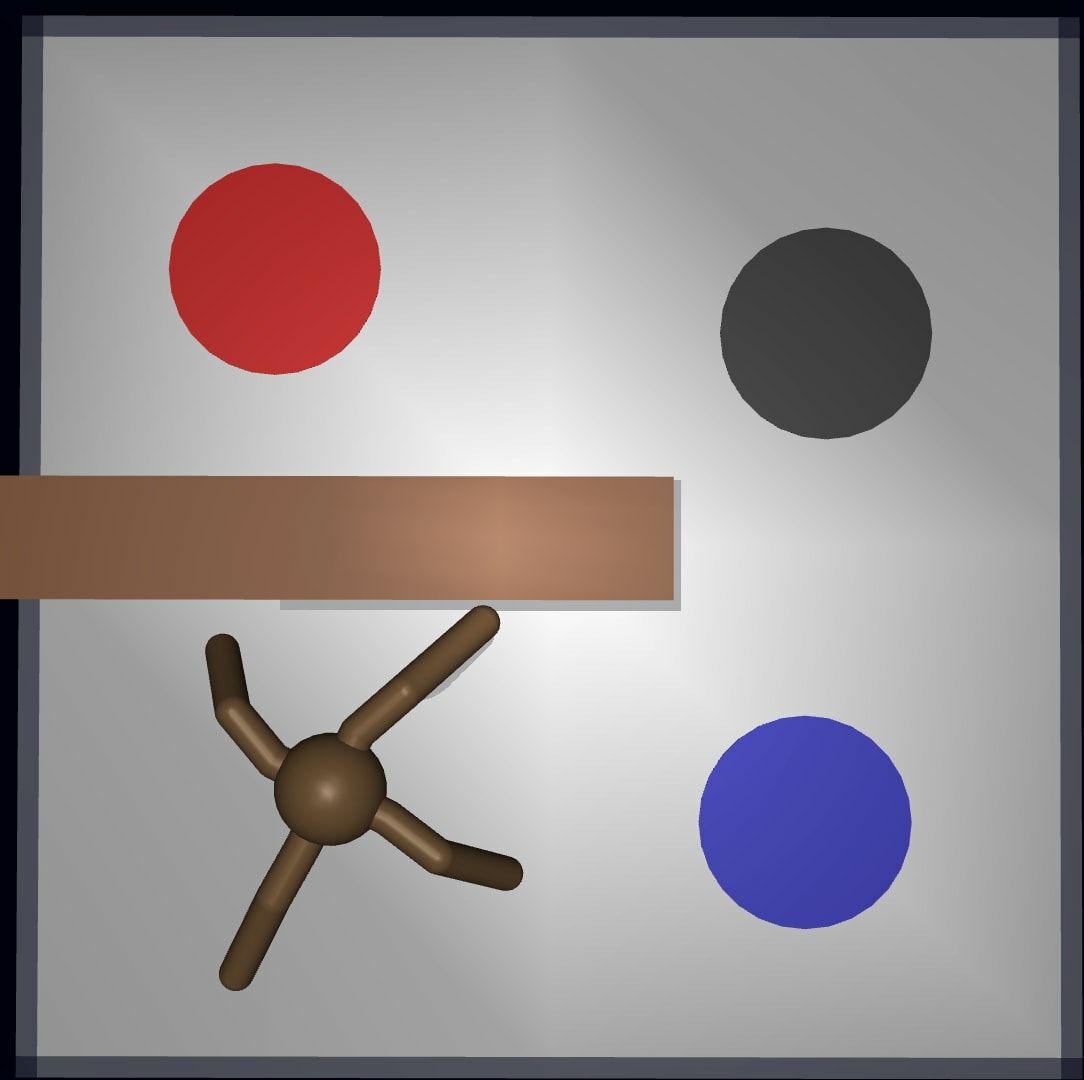

h.2 Ant around obstacles task

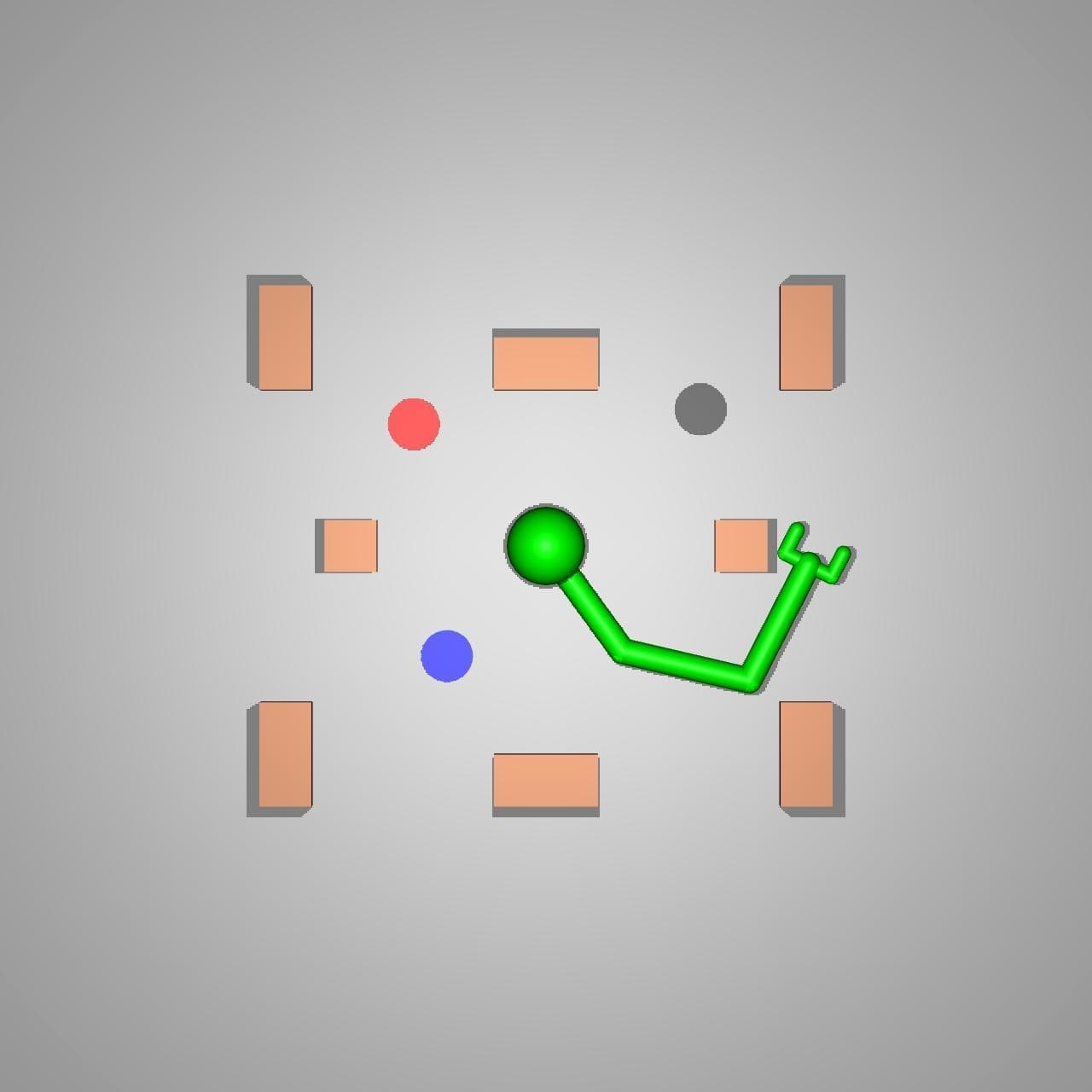

h.3 Reacher around obstacles task
Appendix I Exponential of distance metrics for rewards
As pointed out in subsection 2.3 of the main paper, we normalize our huber metrics that are derived out of the UPN representations through an exponential. This normalizes the reward functions we optimize for and in practice resulted in stable training with the PPO algorithm. We thank Xue Bin (Jason) Peng for communicating this trick to us. We adopted this transformation of the reward for all our reinforcement learning experiments. To be specific, our rewards are of the form . The specific functional forms used for the different tasks are pointed out in Table 10.
Appendix J Open Source Frameworks
All our experiments were done using TensorFlow (Abadi et al., 2016), which allows automatic differentiation through the gradient updates during the inner loop planning. We also built our implementations of the tasks and reinforcement learning methods on top of OpenAI Gym (Brockman et al., 2016) and OpenAI Baselines (Dhariwal et al., 2017). Our environments use the MuJoCo physics simulator (Todorov et al., 2012) and its python bindings (Schneider et al., 2017) developed by OpenAI. The AWS Docker setup was adapted from https://github.com/anair13/selfsupervised/blob/master/Dockerfile.
