1 Introduction

In this paper, we consider the challenge of cross-modal retrieval with focus on relating image and text modalities. The general aim is to learn a shared representational space, where related instances from multiple modalities are mapped closely together in the joint space. Given the mappings and a query element from one domain, retrieval amounts to finding the nearest (i.e, most relevant) elements in a database in the other domain.

Most cross-modal retrieval methods (e.g., [10, 23]) learn mappings of each data item (e.g., an image–caption pair) to a vector representing a point in a -dimensional space. A major issue with these point embeddings is their expressiveness in terms of the information they can capture about the inputs. For language, a clear drawback of point representations is their inability to handle polysemy, i.e., words or phrases having multiple meanings [41]. For images, uncertainty can be introduced by the image formation process (e.g., occlusion) [19]

. For image–text matching, an image can be described in many ways, and a caption can describe many different images, resulting in some degree of cross-modal ambiguity. Point embeddings lack the ability to represent the uncertainties in cross-modal associations and skew to learning an average of the cross-modal information by regressing to the mean embedding.

In this work, we forgo point mappings and instead relate inputs to a region of the shared representation space. The inputs from each modality are modeled as probability distributions (i.e., probabilistic embeddings) in a common embedding space. In particular, the inputs are mapped to Gaussian distributions, where the distribution spread in the joint embedding space captures the mapping’s uncertainty (or ambiguity). While few works have explored similar embeddings in a single modality (i.e., text

[41] or images [32]) their extension in the cross-modal setting is underexplored with only a single concurrent study [9] conducted to date.

Contributions.

We introduce a simple and general approach to learning probabilistic embeddings (instead of point embeddings) in an image–text matching model, that can explicitly handle and express the inherent uncertainty in establishing cross-modal associations. Through a comprehensive empirical study of several extant retrieval models and benchmarks, we show a consistent advantage of learning probabilistic embeddings for cross-modal retrieval over their point-based counterparts. Moreover, we show (via a controlled experiment) that a per-instance measure of uncertainty actually captures the cross-modal ambiguity, which we attribute as a key factor for the consistently high performance of the probabilistic models. We view our contribution as complementary to other innovations in the cross-modal retrieval space (e.g., embedding architectures). To avoid conflating retrieval performance increases due to the representation (i.e., point vs. probabilistic) with differences in the loss function and/or the backbone architecture, we use standard retrieval methods

[10, 23] in our evaluation and simply replace their terminal point mappings with our probabilistic ones. Empirically, our retrieval results exceed or are competitive to the adapted baseline point embedding networks, while also providing the added benefit of a diagnostic uncertainty measure. In comparison to the lone recent probabilistic method to cross-modal retrieval [9], we demonstrate consistent superior performance under all performance metrics.

2 Related work

One-to-one mappings.

For image-based retrieval, most methods are based on (handcrafted or learned) point-based representations of the imagery [25, 35, 16, 2, 17]. Similarly, standard cross-modal retrieval methods rely on (independent) one-to-one mappings that take elements from their respective domains (e.g., images or text) as a whole and map them to a shared embedding space, where similarities can be established. A popular approach to learn these mappings is based on a ranking loss (e.g., [11, 10, 38, 40]), where related elements are encouraged to be closer than unrelated ones. Alternative models aid learning of the shared embedding space through encoding intra-modality similarities with additional auxiliary losses [48] or leveraging adversarial learning [7]. As described in Sec. 1, one-to-one mappings cannot handle ambiguities (e.g., polysemy) in the inputs. We learn probabilistic embeddings that explicitly encode uncertainty through mapping each input instance to a region instead of a point in a shared representation space.

Many-to-many mappings.

To better handle the inherent ambiguities in multimodal inputs, recent methods [31, 22, 26, 23, 39, 42, 27, 43, 44, 47] first generate multiple embeddings that capture parts of the input in each domain and then use a module to selectively combine the various parts. For instance, the model of [39] takes images and sentences, and first generates a set of image regions and word embeddings. These part embeddings are then combined independently in each domain using multi-head self-attention to generate multiple diverse representations for matching. Alternatively, a plethora of recent methods integrate cross-attention operating jointly on image region and word embeddings [15, 31, 22, 26, 42, 27, 43, 47, 46], i.e., mixing information across domains. While these latter methods are the state of the art in cross-modal retrieval, they require excessive computation that renders them inapplicable for real-world deployment: for each query, cross-attention is applied to each element in the search database. Our focus is on joint embeddings computed independently in each domain to facilitate large-scale, efficient search.

Probabilistic embeddings.

Density-based or probabilistic embeddings have been previously used to capture words and their associated uncertainties in meanings [41, 29, 3, 4, 5]. Our method extends previous work [41] on Gaussian word embeddings to the multimodal joint embedding setting of images and captions. From these probabilistic embeddings, we learn a common latent space that captures nuances of meaning with respect to image–caption correspondences. Probabilistic embeddings have also been applied to images alone [32]. Concurrent work [9] extends this uni-modal (image-only) model to the same multimodal retrieval setting considered in our paper. Specifically, [9] combines ideas from a recent cross-modal architecture [39] with the hedged instance embedding approach of [32]

. We propose a simpler approach that does not require a specialized loss function to estimate the instance distributions, and show benefits of learning probabilistic embeddings

independently of the backbone architecture. As such, we integrate our approach directly with two popular cross-modal architectures and show that both benefit from probabilistic embeddings. Our extensive experimental results point to a clear advantage of our probabilistic embeddings over point-based embeddings, as well as the method of [9], across all performance metrics.

3 Learning probabilistic representations

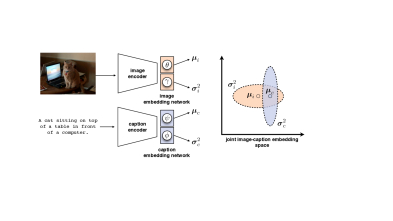

Figure 1: Representation overview. Each modality (image/caption) is mapped to a Gaussian distribution in the joint embedding space shown on the right.

In this section, we describe our approach to learning density-based representations of images and captions in a joint embedding space. Fig. 1 provides an overview of our approach.

3.1 Model

We use Gaussian distributions, , with mean and covariance , to represent each image and caption in the joint embedding space. Following [41]

, we assume either a diagonal multivariate ellipsoidal or Gaussian distribution to model our probabilistic representations, and learn mappings to the mean and variance vectors. Let

and denote the initial image and text encodings, respectively, and and represent the image and caption embedding functions, respectively, with learnable parameters and . We take the output of these functions to learn the means and use the same functions with different learnable parameters and to learn the variances of the Gaussian representations. Formally,

(1)
(2)

where the means and variances , , , , and and denote the input image and caption, respectively.

With this formulation, our probabilistic approach can be easily adapted to point-based image–text models with minor modifications. Specifically, we can use the point-based embeddings from each modality as our mean outputs, and duplicate the learnable part of the architecture to learn the variances (see Fig. 1). We can then replace the vector-based similarity metric with a probabilistic one (see Section 3.2) without requiring any changes to the loss function, to learn the image and caption embeddings in the joint space. Please refer to Section 4.2 for a more detailed discussion.

3.2 Training loss

Our multimodal representation is trained using pairs of images and corresponding captions, for , where is the total number of ground truth pairs in the dataset. A pair is designated as matching if and non-matching if . For ease of exposition, we use to refer to the embeddings of a matching pair and and to represent the embeddings of a non-matching pair. Our model is trained using a contrastive loss to learn a joint (image and caption) embedding space in which the elements of a matching pair are closer to each other compared to those of non-matching pairs. For the contrastive loss, we use the hinge-based triplet ranking loss [6] with semi-hard negative mining [36]:

(3)

where ,

is a hyperparameter for the margin, and

measures the similarity between two distributions, i.e., the image and caption embeddings. The total loss is the sum of over all positive pairs in the batch, i.e., .

There are a variety of similarity measures over distributions, , that can be considered for our loss, (3). In this work, we consider three standard similarity measures, namely, negative Kullback-Liebler (KL) divergence, negative minimum KL divergence, and negative 2-Wasserstein distance; please see the supplemental for their definitions.

3.3 Per-instance measure of uncertainty

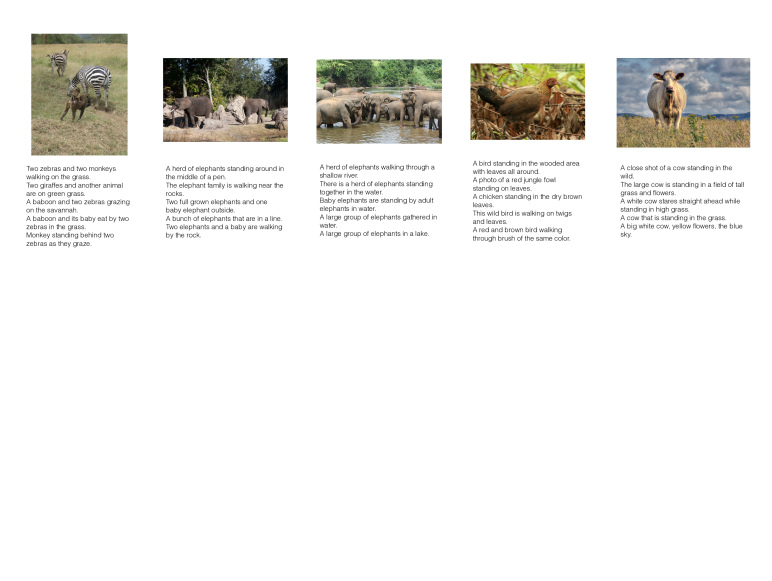

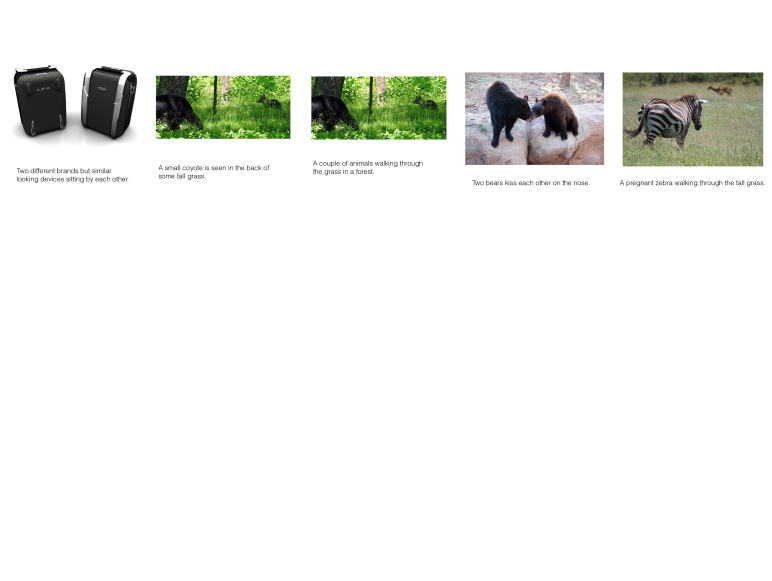

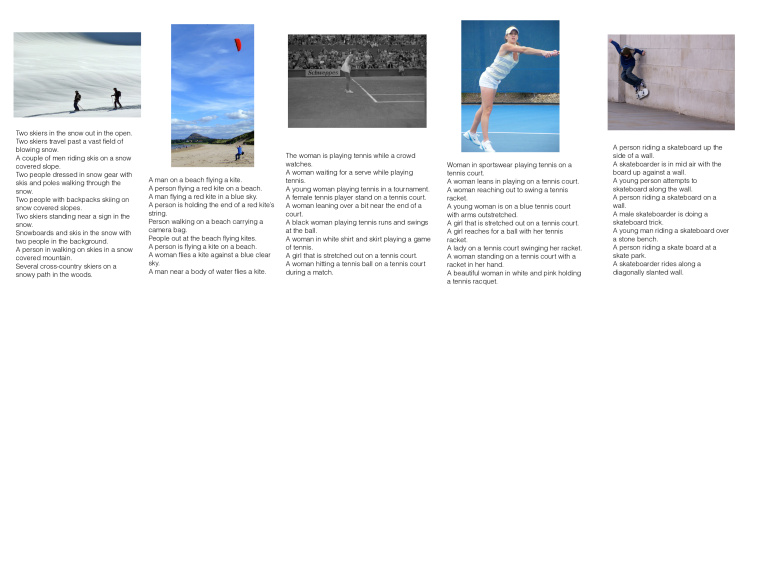

A key advantage of probabilistic representations is that they can express the uncertainty in the input. We propose an explicit measure of uncertainty for an input instance (a caption or an image), calculated as the log determinant of the covariance matrix of the learned Gaussian distribution for , i.e., . Based on this definition, the uncertainty of an instance corresponds to the overall variance of its learned distribution in the joint space. We hypothesize that this variance reflects the level of cross-modal ambiguity for an image/caption. That is, the lower the ambiguity of an instance, the lower the uncertainty of its learned representation in the joint space. We provide empirical evidence for this hypothesis (see Sec. LABEL:ss:res-uncertainty), suggesting that it is indeed through an explicit capturing of the cross-modal ambiguity that probabilistic representations are able to perform more accurate cross-modal retrieval.

4 Empirical evaluation

4.1 Datasets

We report retrieval results on the standard MS-COCO image–caption dataset

[24]. We use the splits from [18], containing training, validation, and test images, where each image is associated with five manually-provided captions. Following prior work [10, 9, 39], we augment our training data with images (and their captions) from the original validation set of MS-COCO that were left out in the split of [18]. We also report retrieval results on the smaller and noisier Flickr30K [45] dataset. Flickr30K contains images each paired with five manually-annotated captions. Following [22], we set aside image–caption pairs each for validation and test, and use the rest for training.

Prior work has noted a problem with MS-COCO for cross-modal retrieval evaluation: most pairs are considered as non-matching due to the sparseness of the annotations [13, 14, 33]. To address this issue, [33] introduced the Crisscrossed (CxC) dataset which extends MS-COCO with additional human annotations for semantic similarities on the validation and test sets. We use the CxC annotations on the test set as additional evaluation data for the models trained on MS-COCO. Following [33], we identify additional positive pairs based on the annotations, and add them to the original MS-COCO positive test pairs.

Finally, we evaluate on finer-grained retrieval using Visual Genome [21]. Visual Genome is a large, densely annotated image–caption dataset, with images containing tight bounding boxes around objects and a corresponding short caption describing the bounding box region. The dense annotations provide rich information about images, enabling us to investigate the relationship between the complexity of an image/caption and its representation uncertainty.

4.2 Implementation details

Our models are implemented in PyTorch

[34]. To show the generality of our probabilistic representation, we adapt two distinct retrieval models: VSE++ [10] and VSRN [23]. Both models learn image–caption embeddings without cross-domain attention. VSE++ is representative of a class of end-to-end models that learn a single embedding from the raw images/captions, and is widely used as a baseline for comparison in cross-modal retrieval. VSRN extracts a set of image features from regions identified by an object detector, and is among the best performing retrieval models that does not involve cross-domain attention. For both models, we use the official codebase.

As mentioned earlier, a key advantage of our probabilistic approach is that it can be adapted to any image–text model with simple modification to the original model. Specifically, we take the output of the original model as the mean. We learn the variance by duplicating the learnable part of the model and thus generate another output of the same dimension as the variance vector. Next, we describe our modifications to VSE++ and VSRN.

Image representations. For VSE++, to compute the mean, we linearly project the image features, , generated by ResNet-152 [12], yielding . For VSRN, we use a recurrent network to consolidate the contextualized regions features, , generated by bottom-up attention [1]

followed with a graph neural network. We take the final hidden state of the recurrent network as the mean vector,

. As mentioned earlier, we duplicate the learnable embedding layers of the mean network with no parameter sharing to generate the variance vectors, yielding for VSE++ and for VSRN. Unless otherwise stated, we do not fine-tune the image backbones.

Caption representations.

For our probabilistic versions of both VSE++ and VSRN, we use randomly initialized 300-dimensional embeddings to represent each word in a caption. Word embeddings are then passed through a unidirectional Gated Recurrent Unit (GRU)

[8]. The final hidden state of the GRU is taken as the caption mean embedding in the joint space, with for VSE++ and for VSRN. For the variances, we duplicate the GRU layer with no parameter sharing in both VSE++ and VSRN.

Training details. We train all our models for epochs with a learning rate of and a learning rate decay factor of at epoch . We use the Adam optimizer [20] with a mini-batch size of . For the loss function, (3), we use a margin of for VSE++ and for VSRN. To ensure numerical stability, we estimate the log variances instead of variances, and following previous work [41] we bound all variance values to the range . For modeling our uncertainties, we consider both ellipsoidal and spherical Gaussian distributions. We estimate the variances of the spherical distributions in two ways: (i) Learn an ellipsoidal distribution and take the average of the variances as the constant spherical variance (spherical-avgpool); or ii) learn a single constant (spherical-one value). Since our probabilistic models include additional parameters, we also report results for the original models with increased capacity (doubling the dimension of their representations in the joint space) to roughly match the capacity of our models.

4.3 Evaluation measures

Following prior work on cross-modal retrieval, we evaluate our models on image-to-text and text-to-image tasks, and report R(ecall)@ (with ). R@ is the percentage of queries for which the top- retrieved samples contains the correct (matching) item. We choose the best models based on the sum of the recall values (rsum) on the validation sets.

Recall measures do not penalize or reward a model based on how good of a match the rest of the top- retrieved samples are. As explored in [33] with CxC, there are many more plausible matches in a dataset like MS-COCO than the annotated ones. Thus, previous work has proposed R-Precision to complement R@ values [30, 9], calculated as the ratio of all positive items in the top- retrieved samples for a given query (where is the number of ground truth matches), averaged over test queries.

We report two versions of the R-Precision, each relying on a different source to determine ground truth matches that are not available in the original image–caption datasets. We report Plausible Match R-Precision (PMRP) on MS-COCO, where we determine the plausible ground truth matches based on the overlap of human-labeled object classes on the MS-COCO images, as in [9]. More concretely, each image and its associated captions are assigned a binary label vector indicating the appearance of a set of object classes in the image. We consider an image–caption pair as a plausible match if their corresponding binary label vector differs at most by a given number of positions, . Following  [9], we evaluate on and take their average. The drawback of PMRP is that it heavily relies on exhaustive and accurate object annotations, which is difficult to collect. In addition, the assumption that plausible matches can be determined based on the overlap in objects may not always be valid. Specifically, cases can arise where the presence of the same object classes in two images can have different meanings. We thus propose an alternative way to calculating R-Precision, termed , that relies on the additionally-collected human annotations in CxC to identify ground-truth plausible matches. Since measuring precision requires special annotations, we can only provide them on MS-COCO, and its extension, CxC. Following previous evaluations on Flickr30k, we only report recall values.

4.4 Ablation study

In the supplemental, we provide an extensive ablation study on the MS-COCO and Flickr30K validation sets over the similarity metric used in our loss, (3), and the form of the covariance (i.e., spherical vs. ellipsoidal). Results reported in the remainder of this paper are based on the best combination for each model and dataset, as explained in the next paragraph.

On the MS-COCO dataset, all models perform best with ellipsoidal covariance matrices. We get the best retrieval performance for VSE++ (no fine-tuning) and VSRN with the Wasserstein metric (with 4% difference in rsum between the best-performing and the worst-performing model for VSE++, and 1% difference for VSRN). For the fine-tuned VSE++ (VSE++ft), using the minimum KL metric yields the highest performance (with a 5% difference in rsum). On Flickr30K, the best results for all models are obtained with spherical covariance matrices. The best performance is achieved by using KL divergence for VSE++ (a 2% difference in rsum) and Wasserstein for VSRN (a 3% difference in rsum).

Model 1K (averaged over five fold) 5K (full test set)
image-to-text text-to-image image-to-text text-to-image

PMRP R1 R5 R10 PMRP R1 R5 R10 PMRP R1 R5 R10 PMRP R1 R5 R10
VSE++ 39.2 58.3 86.1 93.3 39.3 43.7 77.6 87.8 29.3 35.3 63.3 75.3 29.1 23.2 50.3 63.5
VSE++ 39.2 59.0 87.0 94.2 33.3 44.7 78.4 88.3 29.1 33.8 64.6 76.1 28.9 23.3 51.2 64.1
VSE++ ours 41.1 59.3 86.8 93.8 41.7 45.6 79.2 89.1 31.3 34.7 64.6 76.6 31.2 24.5 52.4 65.6
VSE++ft [10] 40.6 64.6 90.0 95.7 41.2 52.0 84.3 92.0 29.8 41.3 71.1 81.2 30.0 30.3 59.4 72.4
VSE++ft ours 43.0 66.4 91.2 96.5 43.8 52.5 84.6 92.7 32.3 41.4 72.4 82.9 32.3 30.0 60.4 72.7
VSRN 41.2 74.0 94.3 97.9 42.4 60.8 88.4 94.1 29.7 50.2 79.6 87.9 29.9 37.9 68.5 79.4
VSRN 39.5 70.5 93.1 97.1 40.2 58.8 88.2 94.5 27.7 45.3 76.0 86.4 28.1 35.9 66.7 78.3
VSRN ours 45.8 73.8 94.4 97.9 46.7 61.3 89.2 95.2 34.2 51.1 80.1 89.4 34.5 38.8 69.1 80.2
PCME [9] 45.1 68.8 91.6 96.7 46.0 54.6 86.3 93.8 34.1 44.2 73.8 83.6 34.4 31.9 62.1 74.5
PVSE [39] 42.8 69.2 91.6 96.6 43.6 55.2 86.5 93.7 31.8 45.2 74.3 84.5 32.0 32.4 63.0 75.0
Table 1: Retrieval results on MS-COCO. denotes results generated with the official saved models; identifies the higher capacity models trained using the official code, and ft stands for fine-tuned. Best results in each group are highlighted in bold.

5 Conclusions

In this paper, we proposed a simple yet general and effective approach for learning probabilistic representations for cross-modal retrieval models. We demonstrated the generality of our method by extending extant and distinct point-based cross-modal retrieval models. Through extensive experimentation, we showed that our probabilistic representations yield superior or competitive performance to their point-based analogs and is superior to the lone, concurrent work proposing probabilistic embeddings [9]. Further, our embeddings have the added benefit over point-based ones by providing a measure of uncertainty that we empirically validated to capture the cross-modal ambiguity in images and captions.

References

  • [1] Peter Anderson, Xiaodong He, Chris Buehler, Damien Teney, Mark Johnson, Stephen Gould, and Lei Zhang.

    Bottom-up and top-down attention for image captioning and visual question answering.

    In

    Conference on Computer Vision and Pattern Recognition

    , pages 6077–6086, 2018.
  • [2] Relja Arandjelovic, Petr Gronát, Akihiko Torii, Tomás Pajdla, and Josef Sivic. NetVLAD: CNN architecture for weakly supervised place recognition. TPAMI, 40(6):1437–1451, 2018.
  • [3] Ben Athiwaratkun and Andrew Gordon Wilson. Multimodal word distributions. In Annual Meeting of the Association for Computational Linguistics, pages 1645–1656, 2017.
  • [4] Ben Athiwaratkun and Andrew Gordon Wilson. Hierarchical density order embeddings. In International Conference on Learning Representations, 2018.
  • [5] Ben Athiwaratkun, Andrew Gordon Wilson, and Anima Anandkumar. Probabilistic FastText for multi-sense word embeddings. In Annual Meeting of the Association for Computational Linguistics, pages 1–11, 2018.
  • [6] G. Chechik, V. Sharma, U. Shalit, and S. Bengio. Large scale online learning of image similarity through ranking. Machine Learning Research, 11:1109–1135, 2010.
  • [7] Wei Chen, Yu Liu, Erwin M. Bakker, and Michael S. Lew. Integrating information theory and adversarial learning for cross-modal retrieval. Pattern Recognition, 117, 2021.
  • [8] Kyunghyun Cho, Bart van Merrienboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. Learning phrase representations using RNN encoder-decoder for statistical machine translation. In

    Empirical Methods in Natural Language Processing

    , pages 1724–1734, 2014.
  • [9] Sanghyuk Chun, Seong Joon Oh, Rafael Sampaio de Rezende, Yannis Kalantidis, and Diane Larlus. Probabilistic embeddings for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 8415–8424, 2021.
  • [10] Fartash Faghri, David J. Fleet, Jamie Ryan Kiros, and Sanja Fidler. VSE++: Improving Visual-Semantic Embeddings with Hard Negatives. In British Machine Vision Conference, 2018.
  • [11] Andrea Frome, Gregory S. Corrado, Jonathon Shlens, Samy Bengio, Jeffrey Dean, Marc’Aurelio Ranzato, and Tomás Mikolov. Devise: A deep visual-semantic embedding model. In Conference on Neural Information Processing Systems, pages 2121–2129, 2013.
  • [12] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Conference on Computer Vision and Pattern Recognition, pages 770–778, 2016.
  • [13] Micah Hodosh and Julia Hockenmaier. Focused evaluation for image description with binary forced-choice tasks. In 5th ACL Workshop on Vision and Language, 2016.
  • [14] Hexiang Hu, Ishan Misra, and Laurens van der Maaten. Evaluating text-to-image matching using binary image selection (BISON). In arXiv preprint arxiv:1901.06595, 2019.
  • [15] Yan Huang, Wei Wang, and Liang Wang. Instance-aware image and sentence matching with selective multimodal LSTM. In Conference on Computer Vision and Pattern Recognition, pages 7254–7262, 2017.
  • [16] Hervé Jégou, Matthijs Douze, Cordelia Schmid, and Patrick Pérez. Aggregating local descriptors into a compact image representation. In CVPR, pages 3304–3311, 2010.
  • [17] Hervé Jégou, Florent Perronnin, Matthijs Douze, Jorge Sánchez, Patrick Pérez, and Cordelia Schmid. Aggregating local image descriptors into compact codes. IEEE Trans. Pattern Anal. Mach. Intell., 34(9):1704–1716, 2012.
  • [18] A. Karpathy and L. Fei-Fei. Deep visual-semantic alignments for generating image descriptions. In Conference on Computer Vision and Pattern Recognition, pages 3128–3137, 2015.
  • [19] Alex Kendall and Yarin Gal.

    What uncertainties do we need in Bayesian deep learning for computer vision?

    In Conference on Neural Information Processing Systems, pages 5574–5584, 2017.
  • [20] Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In International Conference on Learning Representations, 2015.
  • [21] Ranjay Krishna, Yuke Zhu, Oliver Groth, Justin Johnson, Kenji Hata, Joshua Kravitz, Stephanie Chen, Yannis Kalantidis, Li-Jia Li, David A Shamma, Michael Bernstein, and Li Fei-Fei. Visual Genome: Connecting language and vision using crowdsourced dense image annotations. International Journal of Computer Vision, 123(1):32–73, 2016.
  • [22] Kuang-Huei Lee, Xi Chen, Gang Hua, Houdong Hu, and Xiaodong He. Stacked cross attention for image-text matching. In European Conference on Computer Vision, pages 201–216, 2018.
  • [23] Kunpeng Li, Yulun Zhang, Kai Li, Yuanyuan Li, and Yun Fu. Visual semantic reasoning for image-text matching. In International Conference on Computer Vision, pages 4653–4661, 2019.
  • [24] Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C. Lawrence Zitnick. Microsoft COCO: Common objects in context. In David Fleet, Tomas Pajdla, Bernt Schiele, and Tinne Tuytelaars, editors, European Conference on Computer Vision, pages 740–755, 2014.
  • [25] David G. Lowe. Distinctive image features from scale-invariant keypoints. IJCV, 60(2):91–110, 2004.
  • [26] Jiasen Lu, Dhruv Batra, Devi Parikh, and Stefan Lee. ViLBERT: Pretraining task-agnostic visiolinguistic representations for vision-and-language tasks. In Conference on Neural Information Processing Systems, pages 13–23, 2019.
  • [27] Jiasen Lu, Vedanuj Goswami, Marcus Rohrbach, Devi Parikh, and Stefan Lee. 12-in-1: Multi-task vision and language representation learning. In Conference on Computer Vision and Pattern Recognition, pages 10434–10443, 2020.
  • [28] Anton Mallasto and Aasa Feragen. Learning from uncertain curves: The 2-Wasserstein metric for Gaussian processes. In Conference on Neural Information Processing Systems, pages 5660–5670, 2017.
  • [29] Tanmoy Mukherjee and Timothy Hospedales. Gaussian visual-linguistic embedding for zero-shot recognition. In Empirical Methods in Natural Language Processing, pages 912–918, 2016.
  • [30] Kevin Musgrave, Serge Belongie, and Ser-Nam Lim. A metric learning reality check. In European Conference on Computer Vision, pages 681–699, 2020.
  • [31] Hyeonseob Nam, Jung-Woo Ha, and Jeonghee Kim. Dual attention networks for multimodal reasoning and matching. In Conference on Computer Vision and Pattern Recognition, pages 2156–2164, 2017.
  • [32] Seong Joon Oh, Kevin Murphy, Jiyan Pan, Joseph Roth, Florian Schroff, and Andrew Gallagher. Modeling uncertainty with hedged instance embedding. In International Conference on Learning Representations, 2019.
  • [33] Zarana Parekh, Jason Baldridge, Daniel Cer, Austin Waters, and Yinfei Yang. Crisscrossed captions: Extended intramodal and intermodal semantic similarity judgments for MS-COCO. In Conference of the European Chapter of the Association for Computational Linguistics, pages 2855–2870, 2021.
  • [34] Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer, James Bradbury, Gregory Chanan, Trevor Killeen, Zeming Lin, Natalia Gimelshein, Luca Antiga, Alban Desmaison, Andreas Köpf, Edward Yang, Zachary DeVito, Martin Raison, Alykhan Tejani, Sasank Chilamkurthy, Benoit Steiner, Lu Fang, Junjie Bai, and Soumith Chintala. PyTorch: An imperative style, high-performance deep learning library. In Conference on Neural Information Processing Systems, pages 8024–8035, 2019.
  • [35] James Philbin, Ondrej Chum, Michael Isard, Josef Sivic, and Andrew Zisserman. Object retrieval with large vocabularies and fast spatial matching. In CVPR, 2007.
  • [36] Florian Schroff, Dmitry Kalenichenko, and James Philbin.

    FaceNet: A unified embedding for face recognition and clustering.

    In Conference on Computer Vision and Pattern Recognition, pages 815–823, 2015.
  • [37] Ravi Shekhar, Sandro Pezzelle, Yauhen Klimovich, Aurelie Herbelot, Moin Nabi, Enver Sangineto, and Raffaella Bernardi. Foil it! Find one mismatch between image and language caption. In Annual Meeting of the Association for Computational Linguistics, pages 255–265, 2017.
  • [38] Haoyue Shi, Jiayuan Mao, Tete Xiao, Yuning Jiang, and Jian Sun. Learning visually-grounded semantics from contrastive adversarial samples. In Annual Meeting of the Association for Computational Linguistics, pages 3715–3727, 2018.
  • [39] Yale Song and Mohammad Soleymani. Polysemous visual-semantic embedding for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 1979–1988, 2019.
  • [40] Ivan Vendrov, Ryan Kiros, Sanja Fidler, and Raquel Urtasun. Order-embeddings of images and language. In International Conference on Learning Representations, 2016.
  • [41] Luke Vilnis and Andrew McCallum. Word representations via Gaussian embedding. In International Conference on Learning Representations, 2014.
  • [42] Zihao Wang, Xihui Liu, Hongsheng Li, Lu Sheng, Junjie Yan, Xiaogang Wang, and Jing Shao. CAMP: Cross-modal adaptive message passing for text-image retrieval. In International Conference on Computer Vision, pages 5763–5772, 2019.
  • [43] Xi Wei, Tianzhu Zhang, Yan Li, Yongdong Zhang, and Feng Wu. Multi-modality cross attention network for image and sentence matching. In Conference on Computer Vision and Pattern Recognition, pages 10938–10947, 2020.
  • [44] Hao Wu, Jiayuan Mao, Yufeng Zhang, Yuning Jiang, Lei Li, Weiwei Sun, and Wei-Ying Ma. UniVSE: Robust visual semantic embeddings via structured semantic representations. In Conference on Computer Vision and Pattern Recognition, pages 6609–6618, 2019.
  • [45] Peter Young, Alice Lai, Micah Hodosh, and Julia Hockenmaier. From image descriptions to visual denotations: New similarity metrics for semantic inference over event descriptions. Transactions of the Association for Computational Linguistics, 2:67–78, 2014.
  • [46] Bowen Zhang, Hexiang Hu, Vihan Jain, Eugene Ie, and Fei Sha. Learning to represent image and text with denotation graph. In Empirical Methods in Natural Language Processing, pages 823–839, 2020.
  • [47] Qi Zhang, Zhen Lei, Zhaoxiang Zhang, and Stan Z. Li. Context-aware attention network for image-text retrieval. In Conference on Computer Vision and Pattern Recognition, pages 3533–3542, 2020.
  • [48] Zhedong Zheng, Liang Zheng, Michael Garrett, Yi Yang, Mingliang Xu, and Yi-Dong Shen. Dual-path convolutional image-text embeddings with instance loss. ACM Transactions on Multimedia Computing, Communications, and Applications, 16(2), 2020.

6 Appendix

6.1 Similarity metrics

Below, we provide details on the similarity metrics that we use in this work:

  1. Negative Kullback-Liebler (KL) divergence. This metric is the only asymmetric similarity metric that we use. Since images contain more details than captions (i.e., a caption cannot verbalize all aspects in an image), we expect the captions to have higher uncertainties. Therefore, we take the KL divergence with respect to the caption distribution, i.e., , with the following closed form:

    (4)

    where and are the trace and determinant matrix operators, respectively. Since we assume diagonal covariance matrices, (4) can be simplified to

    (5)

    where all vector operations are element-wise, is a -dimensional vector of all ones and is a diagonal matrix, with containing the elements on its diagonal. For completeness, we also considered taking the KL divergence with respect to the image embeddings and observed a performance drop in retrieval, as expected. Please see Section 6.2 in this supplemental for more details.

  2. Negative Minimum KL divergence. We define this measure as a symmetric variant of the KL divergence:

    (6)
  3. Negative 2-Wasserstein distance

    . The Wasserstein distance is a symmetric distance metric between probability distributions. We use the second-order Wasserstein (2-Wasserstein) because it admits the following closed-form for Gaussians

    [28]:

    (7)

    where is the Euclidean norm operator. Given our assumption of diagonal covariance matrices, (7) simplifies to

    (8)

6.2 Ablations

We provide ablations on the similarity metrics and distribution shapes on the MS-COCO validation set in Table 2. We estimate the variances of the spherical distributions in two ways: (i) Learn an ellipsoidal distribution and take the average of the variances as the constant spherical variance (spherical-avgpool); or ii) learn a single constant (spherical-one value). As we can see, all models perform best with ellipsoidal distributions. For VSE++ (no fine-tuning) and VSRN, the Wasserstein metric ((8) in the main manuscript) shows the best performance in terms of sum of recalls (rsum), while for VSE++ft the best results are achieved with minimum KL.

model metric shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours KL (4) spherical-avgpool 57.2 86.5 94.0 43.9 78.1 88.9 448.6
VSE++ ours KL (4) spherical-one value 56.2 86.5 94.1 43.5 77.7 88.8 446.8
VSE++ ours KL (4) ellipsoidal 61.3 88.1 94.1 46.6 80.6 90.4 461.1
VSE++ ours minKL (6) spherical-avgpool 54.7 87.2 94.7 43.7 77.9 88.7 446.9
VSE++ ours minKL (6) spherical-one value 57.1 87.6 93.8 43.8 77.7 88.8 448.8
VSE++ ours minKL (6) ellipsoidal 60.0 87.6 95.2 46.8 80.9 91.0 446.9
VSE++ ours Wasserstein (7) spherical-avgpool 58.1 88.3 94.3 44.9 79.8 89.3 454.7
VSE++ ours Wasserstein (7) spherical-one value 59.3 87.5 94.4 45.0 79.4 90.1 455.7
VSE++ ours Wasserstein (7) ellipsoidal 61.3 88.3 95.2 47.1 81.0 91.0 463.9
VSE++ft ours KL (4) spherical-avgpool 68.8 92.4 97.3 53.7 86.4 93.7 492.3
VSE++ft ours KL (4) spherical-one value 61.7 90.1 95.7 49.3 82.9 92.3 472.0
VSE++ft ours KL (4) ellipsoidal 70.0 92.8 96.3 54.3 86.8 93.7 493.9
VSE++ft ours minKL (6) spherical-avgpool 62.4 90.5 96.1 50.0 84.4 92.6 476.0
VSE++ft ours minKL (6) spherical-one value 61.4 90.1 95.6 49.1 83.1 91.9 471.2
VSE++ft ours minKL (6) ellipsoidal 68.8 93.2 97.6 55.4 86.9 93.5 495.4
VSE++ft ours Wasserstein (7) spherical-avgpool 61.8 90.3 95.5 52.8 85.2 93.1 478.7
VSE++ft ours Wasserstein (7) spherical-one value 67.9 92.6 97.1 54.2 86.3 93.8 491.9
VSE++ft ours Wasserstein (7) ellipsoidal 67.3 93.1 97.4 54.2 86.7 93.8 492.5
VSRN ours KL (4) spherical-avgpool 76.5 95.9 98.5 62.2 90.0 96.0 519.1
VSRN ours KL (4) spherical-one value 77.5 96.7 98.7 62.0 89.9 95.7 520.5
VSRN ours KL (4) ellipsoidal 76.5 96.3 98.1 62.9 91.0 95.9 520.7
VSRN ours minKL (6) spherical-avgpool 76.0 96.0 98.3 63.5 90.9 96.4 521.1
VSRN ours minKL (6) spherical-one value 75.3 96.2 98.5 60.8 90.7 96.2 517.7
VSRN ours minKL (6) ellipsoidal 77.1 96.2 98.8 63.6 90.5 96.2 522.4
VSRN ours Wasserstein (7) spherical-avgpool 76.8 96.8 99.2 63.2 90.5 96.0 522.5
VSRN ours Wasserstein (7) spherical-one value 76.4 96.5 98.9 63.1 91.2 95.9 522.0
VSRN ours Wasserstein (7) ellipsoidal 77.3 97.1 98.7 63.7 91.2 96.0 524.0
Table 2: Retrieval ablation study on the MS-COCO validation set. ft stands for fine-tuned. Best results in terms of sum of recalls in each group are highlighted in bold. The numbers in parantheses denote the equation number of the similarity metric in the main manuscript.

Recall that we use the negative of the KL divergence as one of our similarity metrics. Table 2 contains the recall values for the negative KL divergence, when we take the caption distribution as reference, and measure the divergence of the image distributions from this reference distribution. In Table 3, we provide the results (on MS-COCO validation) for the other possibility, where we measure the KL divergence of the caption distributions from the (reference) image distributions. We can see that the sum of recalls (rsum) drops in all cases (with a maximum drop of 2.3%) when we change the order of the distributions for the KL divergence.

model shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours spherical 52.6 85.5 93.0 43.1 76.6 87.5 438.3
VSE++ ours ellipsoidal 57.5 87.6 94.0 45.6 79.6 89.9 454.3
VSRN ours spherical 75.6 95.1 98.4 62.2 89.3 95.5 516.1
VSRN ours ellipsoidal 75.5 96.7 98.8 62.4 90.7 96.3 520.4
Table 3: Retrieval results on MS-COCO validation set with the negative of KL divergence similarity between the image and caption distributions taken with respect to image representations.

6.3 High and low uncertainty images and captions

In this section, we provide examples with high and low uncertainties along with their plausible matches from the CxC dataset [33]. Figs. 2 and 3 show five randomly chosen high-uncertainty images and captions, respectively. Figs. 4 and 5 show five randomly chosen low-uncertainty images and captions, respectively.

Figure 2: High uncertainty images and their corresponding plausible matches.
Figure 3: High uncertainty captions and their corresponding plausible matches.
Figure 4: Low uncertainty images and their corresponding plausible matches.

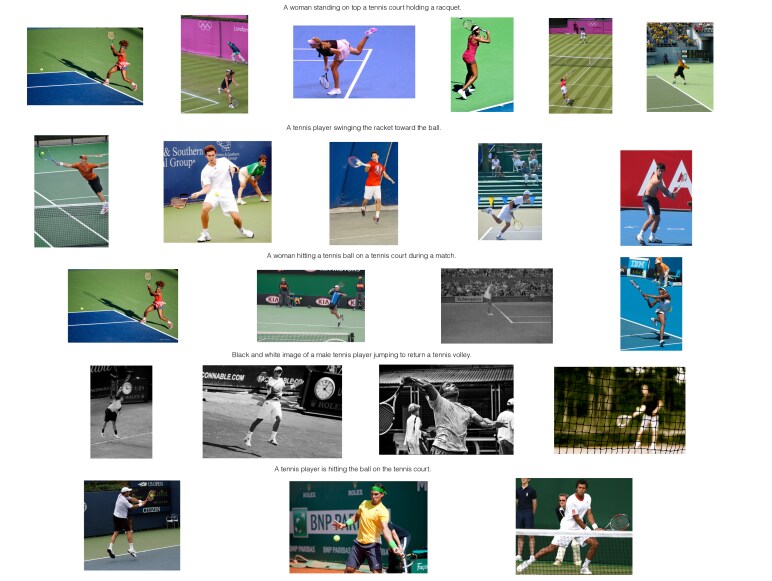

Figure 5: Low uncertainty captions and their corresponding plausible matches.

6.4 Model stability

Tables 4 and Table 5

provide stability analyses for the two original models, VSE++ and VSRN, and their probabilistic counterparts (ours), on the test portions of MS-COCO and Flickr30K datasets. Specifically, we generate results for five runs of each model and dataset, and report the mean and standard deviation of the rsum values. We can see that for VSE++, the probabilistic model shows consistent improvements over the point-based model on both datasets, with a notably larger mean (and small comparable standard deviation) for VSE++ ours compared to VSE++. For VSRN, which has a more elaborate image encoding and processing pipeline, we observe a larger variation in performance between runs. Nonetheless, based on these numbers we can still see that the probabilistic VSRN (ours) is competitive (if not better than) the point-based VSRN.

model MS-COCO Flickr30K
1K 5K
VSE++
VSE++ ours
Table 4: VSE++ rsum means standard deviations.
model MS-COCO Flickr30K
1K 5K
VSRN
VSRN ours
Table 5: VSRN rsum means standard deviations.

5 Conclusions

In this paper, we proposed a simple yet general and effective approach for learning probabilistic representations for cross-modal retrieval models. We demonstrated the generality of our method by extending extant and distinct point-based cross-modal retrieval models. Through extensive experimentation, we showed that our probabilistic representations yield superior or competitive performance to their point-based analogs and is superior to the lone, concurrent work proposing probabilistic embeddings [9]. Further, our embeddings have the added benefit over point-based ones by providing a measure of uncertainty that we empirically validated to capture the cross-modal ambiguity in images and captions.

References

  • [1] Peter Anderson, Xiaodong He, Chris Buehler, Damien Teney, Mark Johnson, Stephen Gould, and Lei Zhang.

    Bottom-up and top-down attention for image captioning and visual question answering.

    In

    Conference on Computer Vision and Pattern Recognition

    , pages 6077–6086, 2018.
  • [2] Relja Arandjelovic, Petr Gronát, Akihiko Torii, Tomás Pajdla, and Josef Sivic. NetVLAD: CNN architecture for weakly supervised place recognition. TPAMI, 40(6):1437–1451, 2018.
  • [3] Ben Athiwaratkun and Andrew Gordon Wilson. Multimodal word distributions. In Annual Meeting of the Association for Computational Linguistics, pages 1645–1656, 2017.
  • [4] Ben Athiwaratkun and Andrew Gordon Wilson. Hierarchical density order embeddings. In International Conference on Learning Representations, 2018.
  • [5] Ben Athiwaratkun, Andrew Gordon Wilson, and Anima Anandkumar. Probabilistic FastText for multi-sense word embeddings. In Annual Meeting of the Association for Computational Linguistics, pages 1–11, 2018.
  • [6] G. Chechik, V. Sharma, U. Shalit, and S. Bengio. Large scale online learning of image similarity through ranking. Machine Learning Research, 11:1109–1135, 2010.
  • [7] Wei Chen, Yu Liu, Erwin M. Bakker, and Michael S. Lew. Integrating information theory and adversarial learning for cross-modal retrieval. Pattern Recognition, 117, 2021.
  • [8] Kyunghyun Cho, Bart van Merrienboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. Learning phrase representations using RNN encoder-decoder for statistical machine translation. In

    Empirical Methods in Natural Language Processing

    , pages 1724–1734, 2014.
  • [9] Sanghyuk Chun, Seong Joon Oh, Rafael Sampaio de Rezende, Yannis Kalantidis, and Diane Larlus. Probabilistic embeddings for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 8415–8424, 2021.
  • [10] Fartash Faghri, David J. Fleet, Jamie Ryan Kiros, and Sanja Fidler. VSE++: Improving Visual-Semantic Embeddings with Hard Negatives. In British Machine Vision Conference, 2018.
  • [11] Andrea Frome, Gregory S. Corrado, Jonathon Shlens, Samy Bengio, Jeffrey Dean, Marc’Aurelio Ranzato, and Tomás Mikolov. Devise: A deep visual-semantic embedding model. In Conference on Neural Information Processing Systems, pages 2121–2129, 2013.
  • [12] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Conference on Computer Vision and Pattern Recognition, pages 770–778, 2016.
  • [13] Micah Hodosh and Julia Hockenmaier. Focused evaluation for image description with binary forced-choice tasks. In 5th ACL Workshop on Vision and Language, 2016.
  • [14] Hexiang Hu, Ishan Misra, and Laurens van der Maaten. Evaluating text-to-image matching using binary image selection (BISON). In arXiv preprint arxiv:1901.06595, 2019.
  • [15] Yan Huang, Wei Wang, and Liang Wang. Instance-aware image and sentence matching with selective multimodal LSTM. In Conference on Computer Vision and Pattern Recognition, pages 7254–7262, 2017.
  • [16] Hervé Jégou, Matthijs Douze, Cordelia Schmid, and Patrick Pérez. Aggregating local descriptors into a compact image representation. In CVPR, pages 3304–3311, 2010.
  • [17] Hervé Jégou, Florent Perronnin, Matthijs Douze, Jorge Sánchez, Patrick Pérez, and Cordelia Schmid. Aggregating local image descriptors into compact codes. IEEE Trans. Pattern Anal. Mach. Intell., 34(9):1704–1716, 2012.
  • [18] A. Karpathy and L. Fei-Fei. Deep visual-semantic alignments for generating image descriptions. In Conference on Computer Vision and Pattern Recognition, pages 3128–3137, 2015.
  • [19] Alex Kendall and Yarin Gal.

    What uncertainties do we need in Bayesian deep learning for computer vision?

    In Conference on Neural Information Processing Systems, pages 5574–5584, 2017.
  • [20] Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In International Conference on Learning Representations, 2015.
  • [21] Ranjay Krishna, Yuke Zhu, Oliver Groth, Justin Johnson, Kenji Hata, Joshua Kravitz, Stephanie Chen, Yannis Kalantidis, Li-Jia Li, David A Shamma, Michael Bernstein, and Li Fei-Fei. Visual Genome: Connecting language and vision using crowdsourced dense image annotations. International Journal of Computer Vision, 123(1):32–73, 2016.
  • [22] Kuang-Huei Lee, Xi Chen, Gang Hua, Houdong Hu, and Xiaodong He. Stacked cross attention for image-text matching. In European Conference on Computer Vision, pages 201–216, 2018.
  • [23] Kunpeng Li, Yulun Zhang, Kai Li, Yuanyuan Li, and Yun Fu. Visual semantic reasoning for image-text matching. In International Conference on Computer Vision, pages 4653–4661, 2019.
  • [24] Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C. Lawrence Zitnick. Microsoft COCO: Common objects in context. In David Fleet, Tomas Pajdla, Bernt Schiele, and Tinne Tuytelaars, editors, European Conference on Computer Vision, pages 740–755, 2014.
  • [25] David G. Lowe. Distinctive image features from scale-invariant keypoints. IJCV, 60(2):91–110, 2004.
  • [26] Jiasen Lu, Dhruv Batra, Devi Parikh, and Stefan Lee. ViLBERT: Pretraining task-agnostic visiolinguistic representations for vision-and-language tasks. In Conference on Neural Information Processing Systems, pages 13–23, 2019.
  • [27] Jiasen Lu, Vedanuj Goswami, Marcus Rohrbach, Devi Parikh, and Stefan Lee. 12-in-1: Multi-task vision and language representation learning. In Conference on Computer Vision and Pattern Recognition, pages 10434–10443, 2020.
  • [28] Anton Mallasto and Aasa Feragen. Learning from uncertain curves: The 2-Wasserstein metric for Gaussian processes. In Conference on Neural Information Processing Systems, pages 5660–5670, 2017.
  • [29] Tanmoy Mukherjee and Timothy Hospedales. Gaussian visual-linguistic embedding for zero-shot recognition. In Empirical Methods in Natural Language Processing, pages 912–918, 2016.
  • [30] Kevin Musgrave, Serge Belongie, and Ser-Nam Lim. A metric learning reality check. In European Conference on Computer Vision, pages 681–699, 2020.
  • [31] Hyeonseob Nam, Jung-Woo Ha, and Jeonghee Kim. Dual attention networks for multimodal reasoning and matching. In Conference on Computer Vision and Pattern Recognition, pages 2156–2164, 2017.
  • [32] Seong Joon Oh, Kevin Murphy, Jiyan Pan, Joseph Roth, Florian Schroff, and Andrew Gallagher. Modeling uncertainty with hedged instance embedding. In International Conference on Learning Representations, 2019.
  • [33] Zarana Parekh, Jason Baldridge, Daniel Cer, Austin Waters, and Yinfei Yang. Crisscrossed captions: Extended intramodal and intermodal semantic similarity judgments for MS-COCO. In Conference of the European Chapter of the Association for Computational Linguistics, pages 2855–2870, 2021.
  • [34] Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer, James Bradbury, Gregory Chanan, Trevor Killeen, Zeming Lin, Natalia Gimelshein, Luca Antiga, Alban Desmaison, Andreas Köpf, Edward Yang, Zachary DeVito, Martin Raison, Alykhan Tejani, Sasank Chilamkurthy, Benoit Steiner, Lu Fang, Junjie Bai, and Soumith Chintala. PyTorch: An imperative style, high-performance deep learning library. In Conference on Neural Information Processing Systems, pages 8024–8035, 2019.
  • [35] James Philbin, Ondrej Chum, Michael Isard, Josef Sivic, and Andrew Zisserman. Object retrieval with large vocabularies and fast spatial matching. In CVPR, 2007.
  • [36] Florian Schroff, Dmitry Kalenichenko, and James Philbin.

    FaceNet: A unified embedding for face recognition and clustering.

    In Conference on Computer Vision and Pattern Recognition, pages 815–823, 2015.
  • [37] Ravi Shekhar, Sandro Pezzelle, Yauhen Klimovich, Aurelie Herbelot, Moin Nabi, Enver Sangineto, and Raffaella Bernardi. Foil it! Find one mismatch between image and language caption. In Annual Meeting of the Association for Computational Linguistics, pages 255–265, 2017.
  • [38] Haoyue Shi, Jiayuan Mao, Tete Xiao, Yuning Jiang, and Jian Sun. Learning visually-grounded semantics from contrastive adversarial samples. In Annual Meeting of the Association for Computational Linguistics, pages 3715–3727, 2018.
  • [39] Yale Song and Mohammad Soleymani. Polysemous visual-semantic embedding for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 1979–1988, 2019.
  • [40] Ivan Vendrov, Ryan Kiros, Sanja Fidler, and Raquel Urtasun. Order-embeddings of images and language. In International Conference on Learning Representations, 2016.
  • [41] Luke Vilnis and Andrew McCallum. Word representations via Gaussian embedding. In International Conference on Learning Representations, 2014.
  • [42] Zihao Wang, Xihui Liu, Hongsheng Li, Lu Sheng, Junjie Yan, Xiaogang Wang, and Jing Shao. CAMP: Cross-modal adaptive message passing for text-image retrieval. In International Conference on Computer Vision, pages 5763–5772, 2019.
  • [43] Xi Wei, Tianzhu Zhang, Yan Li, Yongdong Zhang, and Feng Wu. Multi-modality cross attention network for image and sentence matching. In Conference on Computer Vision and Pattern Recognition, pages 10938–10947, 2020.
  • [44] Hao Wu, Jiayuan Mao, Yufeng Zhang, Yuning Jiang, Lei Li, Weiwei Sun, and Wei-Ying Ma. UniVSE: Robust visual semantic embeddings via structured semantic representations. In Conference on Computer Vision and Pattern Recognition, pages 6609–6618, 2019.
  • [45] Peter Young, Alice Lai, Micah Hodosh, and Julia Hockenmaier. From image descriptions to visual denotations: New similarity metrics for semantic inference over event descriptions. Transactions of the Association for Computational Linguistics, 2:67–78, 2014.
  • [46] Bowen Zhang, Hexiang Hu, Vihan Jain, Eugene Ie, and Fei Sha. Learning to represent image and text with denotation graph. In Empirical Methods in Natural Language Processing, pages 823–839, 2020.
  • [47] Qi Zhang, Zhen Lei, Zhaoxiang Zhang, and Stan Z. Li. Context-aware attention network for image-text retrieval. In Conference on Computer Vision and Pattern Recognition, pages 3533–3542, 2020.
  • [48] Zhedong Zheng, Liang Zheng, Michael Garrett, Yi Yang, Mingliang Xu, and Yi-Dong Shen. Dual-path convolutional image-text embeddings with instance loss. ACM Transactions on Multimedia Computing, Communications, and Applications, 16(2), 2020.

6 Appendix

6.1 Similarity metrics

Below, we provide details on the similarity metrics that we use in this work:

  1. Negative Kullback-Liebler (KL) divergence. This metric is the only asymmetric similarity metric that we use. Since images contain more details than captions (i.e., a caption cannot verbalize all aspects in an image), we expect the captions to have higher uncertainties. Therefore, we take the KL divergence with respect to the caption distribution, i.e., , with the following closed form:

    (4)

    where and are the trace and determinant matrix operators, respectively. Since we assume diagonal covariance matrices, (4) can be simplified to

    (5)

    where all vector operations are element-wise, is a -dimensional vector of all ones and is a diagonal matrix, with containing the elements on its diagonal. For completeness, we also considered taking the KL divergence with respect to the image embeddings and observed a performance drop in retrieval, as expected. Please see Section 6.2 in this supplemental for more details.

  2. Negative Minimum KL divergence. We define this measure as a symmetric variant of the KL divergence:

    (6)
  3. Negative 2-Wasserstein distance

    . The Wasserstein distance is a symmetric distance metric between probability distributions. We use the second-order Wasserstein (2-Wasserstein) because it admits the following closed-form for Gaussians

    [28]:

    (7)

    where is the Euclidean norm operator. Given our assumption of diagonal covariance matrices, (7) simplifies to

    (8)

6.2 Ablations

We provide ablations on the similarity metrics and distribution shapes on the MS-COCO validation set in Table 2. We estimate the variances of the spherical distributions in two ways: (i) Learn an ellipsoidal distribution and take the average of the variances as the constant spherical variance (spherical-avgpool); or ii) learn a single constant (spherical-one value). As we can see, all models perform best with ellipsoidal distributions. For VSE++ (no fine-tuning) and VSRN, the Wasserstein metric ((8) in the main manuscript) shows the best performance in terms of sum of recalls (rsum), while for VSE++ft the best results are achieved with minimum KL.

model metric shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours KL (4) spherical-avgpool 57.2 86.5 94.0 43.9 78.1 88.9 448.6
VSE++ ours KL (4) spherical-one value 56.2 86.5 94.1 43.5 77.7 88.8 446.8
VSE++ ours KL (4) ellipsoidal 61.3 88.1 94.1 46.6 80.6 90.4 461.1
VSE++ ours minKL (6) spherical-avgpool 54.7 87.2 94.7 43.7 77.9 88.7 446.9
VSE++ ours minKL (6) spherical-one value 57.1 87.6 93.8 43.8 77.7 88.8 448.8
VSE++ ours minKL (6) ellipsoidal 60.0 87.6 95.2 46.8 80.9 91.0 446.9
VSE++ ours Wasserstein (7) spherical-avgpool 58.1 88.3 94.3 44.9 79.8 89.3 454.7
VSE++ ours Wasserstein (7) spherical-one value 59.3 87.5 94.4 45.0 79.4 90.1 455.7
VSE++ ours Wasserstein (7) ellipsoidal 61.3 88.3 95.2 47.1 81.0 91.0 463.9
VSE++ft ours KL (4) spherical-avgpool 68.8 92.4 97.3 53.7 86.4 93.7 492.3
VSE++ft ours KL (4) spherical-one value 61.7 90.1 95.7 49.3 82.9 92.3 472.0
VSE++ft ours KL (4) ellipsoidal 70.0 92.8 96.3 54.3 86.8 93.7 493.9
VSE++ft ours minKL (6) spherical-avgpool 62.4 90.5 96.1 50.0 84.4 92.6 476.0
VSE++ft ours minKL (6) spherical-one value 61.4 90.1 95.6 49.1 83.1 91.9 471.2
VSE++ft ours minKL (6) ellipsoidal 68.8 93.2 97.6 55.4 86.9 93.5 495.4
VSE++ft ours Wasserstein (7) spherical-avgpool 61.8 90.3 95.5 52.8 85.2 93.1 478.7
VSE++ft ours Wasserstein (7) spherical-one value 67.9 92.6 97.1 54.2 86.3 93.8 491.9
VSE++ft ours Wasserstein (7) ellipsoidal 67.3 93.1 97.4 54.2 86.7 93.8 492.5
VSRN ours KL (4) spherical-avgpool 76.5 95.9 98.5 62.2 90.0 96.0 519.1
VSRN ours KL (4) spherical-one value 77.5 96.7 98.7 62.0 89.9 95.7 520.5
VSRN ours KL (4) ellipsoidal 76.5 96.3 98.1 62.9 91.0 95.9 520.7
VSRN ours minKL (6) spherical-avgpool 76.0 96.0 98.3 63.5 90.9 96.4 521.1
VSRN ours minKL (6) spherical-one value 75.3 96.2 98.5 60.8 90.7 96.2 517.7
VSRN ours minKL (6) ellipsoidal 77.1 96.2 98.8 63.6 90.5 96.2 522.4
VSRN ours Wasserstein (7) spherical-avgpool 76.8 96.8 99.2 63.2 90.5 96.0 522.5
VSRN ours Wasserstein (7) spherical-one value 76.4 96.5 98.9 63.1 91.2 95.9 522.0
VSRN ours Wasserstein (7) ellipsoidal 77.3 97.1 98.7 63.7 91.2 96.0 524.0
Table 2: Retrieval ablation study on the MS-COCO validation set. ft stands for fine-tuned. Best results in terms of sum of recalls in each group are highlighted in bold. The numbers in parantheses denote the equation number of the similarity metric in the main manuscript.

Recall that we use the negative of the KL divergence as one of our similarity metrics. Table 2 contains the recall values for the negative KL divergence, when we take the caption distribution as reference, and measure the divergence of the image distributions from this reference distribution. In Table 3, we provide the results (on MS-COCO validation) for the other possibility, where we measure the KL divergence of the caption distributions from the (reference) image distributions. We can see that the sum of recalls (rsum) drops in all cases (with a maximum drop of 2.3%) when we change the order of the distributions for the KL divergence.

model shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours spherical 52.6 85.5 93.0 43.1 76.6 87.5 438.3
VSE++ ours ellipsoidal 57.5 87.6 94.0 45.6 79.6 89.9 454.3
VSRN ours spherical 75.6 95.1 98.4 62.2 89.3 95.5 516.1
VSRN ours ellipsoidal 75.5 96.7 98.8 62.4 90.7 96.3 520.4
Table 3: Retrieval results on MS-COCO validation set with the negative of KL divergence similarity between the image and caption distributions taken with respect to image representations.

6.3 High and low uncertainty images and captions

In this section, we provide examples with high and low uncertainties along with their plausible matches from the CxC dataset [33]. Figs. 2 and 3 show five randomly chosen high-uncertainty images and captions, respectively. Figs. 4 and 5 show five randomly chosen low-uncertainty images and captions, respectively.

Figure 2: High uncertainty images and their corresponding plausible matches.
Figure 3: High uncertainty captions and their corresponding plausible matches.
Figure 4: Low uncertainty images and their corresponding plausible matches.
Figure 5: Low uncertainty captions and their corresponding plausible matches.

6.4 Model stability

Tables 4 and Table 5

provide stability analyses for the two original models, VSE++ and VSRN, and their probabilistic counterparts (ours), on the test portions of MS-COCO and Flickr30K datasets. Specifically, we generate results for five runs of each model and dataset, and report the mean and standard deviation of the rsum values. We can see that for VSE++, the probabilistic model shows consistent improvements over the point-based model on both datasets, with a notably larger mean (and small comparable standard deviation) for VSE++ ours compared to VSE++. For VSRN, which has a more elaborate image encoding and processing pipeline, we observe a larger variation in performance between runs. Nonetheless, based on these numbers we can still see that the probabilistic VSRN (ours) is competitive (if not better than) the point-based VSRN.

model MS-COCO Flickr30K
1K 5K
VSE++
VSE++ ours
Table 4: VSE++ rsum means standard deviations.
model MS-COCO Flickr30K
1K 5K
VSRN
VSRN ours
Table 5: VSRN rsum means standard deviations.

References

  • [1] Peter Anderson, Xiaodong He, Chris Buehler, Damien Teney, Mark Johnson, Stephen Gould, and Lei Zhang.

    Bottom-up and top-down attention for image captioning and visual question answering.

    In

    Conference on Computer Vision and Pattern Recognition

    , pages 6077–6086, 2018.
  • [2] Relja Arandjelovic, Petr Gronát, Akihiko Torii, Tomás Pajdla, and Josef Sivic. NetVLAD: CNN architecture for weakly supervised place recognition. TPAMI, 40(6):1437–1451, 2018.
  • [3] Ben Athiwaratkun and Andrew Gordon Wilson. Multimodal word distributions. In Annual Meeting of the Association for Computational Linguistics, pages 1645–1656, 2017.
  • [4] Ben Athiwaratkun and Andrew Gordon Wilson. Hierarchical density order embeddings. In International Conference on Learning Representations, 2018.
  • [5] Ben Athiwaratkun, Andrew Gordon Wilson, and Anima Anandkumar. Probabilistic FastText for multi-sense word embeddings. In Annual Meeting of the Association for Computational Linguistics, pages 1–11, 2018.
  • [6] G. Chechik, V. Sharma, U. Shalit, and S. Bengio. Large scale online learning of image similarity through ranking. Machine Learning Research, 11:1109–1135, 2010.
  • [7] Wei Chen, Yu Liu, Erwin M. Bakker, and Michael S. Lew. Integrating information theory and adversarial learning for cross-modal retrieval. Pattern Recognition, 117, 2021.
  • [8] Kyunghyun Cho, Bart van Merrienboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. Learning phrase representations using RNN encoder-decoder for statistical machine translation. In

    Empirical Methods in Natural Language Processing

    , pages 1724–1734, 2014.
  • [9] Sanghyuk Chun, Seong Joon Oh, Rafael Sampaio de Rezende, Yannis Kalantidis, and Diane Larlus. Probabilistic embeddings for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 8415–8424, 2021.
  • [10] Fartash Faghri, David J. Fleet, Jamie Ryan Kiros, and Sanja Fidler. VSE++: Improving Visual-Semantic Embeddings with Hard Negatives. In British Machine Vision Conference, 2018.
  • [11] Andrea Frome, Gregory S. Corrado, Jonathon Shlens, Samy Bengio, Jeffrey Dean, Marc’Aurelio Ranzato, and Tomás Mikolov. Devise: A deep visual-semantic embedding model. In Conference on Neural Information Processing Systems, pages 2121–2129, 2013.
  • [12] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Conference on Computer Vision and Pattern Recognition, pages 770–778, 2016.
  • [13] Micah Hodosh and Julia Hockenmaier. Focused evaluation for image description with binary forced-choice tasks. In 5th ACL Workshop on Vision and Language, 2016.
  • [14] Hexiang Hu, Ishan Misra, and Laurens van der Maaten. Evaluating text-to-image matching using binary image selection (BISON). In arXiv preprint arxiv:1901.06595, 2019.
  • [15] Yan Huang, Wei Wang, and Liang Wang. Instance-aware image and sentence matching with selective multimodal LSTM. In Conference on Computer Vision and Pattern Recognition, pages 7254–7262, 2017.
  • [16] Hervé Jégou, Matthijs Douze, Cordelia Schmid, and Patrick Pérez. Aggregating local descriptors into a compact image representation. In CVPR, pages 3304–3311, 2010.
  • [17] Hervé Jégou, Florent Perronnin, Matthijs Douze, Jorge Sánchez, Patrick Pérez, and Cordelia Schmid. Aggregating local image descriptors into compact codes. IEEE Trans. Pattern Anal. Mach. Intell., 34(9):1704–1716, 2012.
  • [18] A. Karpathy and L. Fei-Fei. Deep visual-semantic alignments for generating image descriptions. In Conference on Computer Vision and Pattern Recognition, pages 3128–3137, 2015.
  • [19] Alex Kendall and Yarin Gal.

    What uncertainties do we need in Bayesian deep learning for computer vision?

    In Conference on Neural Information Processing Systems, pages 5574–5584, 2017.
  • [20] Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In International Conference on Learning Representations, 2015.
  • [21] Ranjay Krishna, Yuke Zhu, Oliver Groth, Justin Johnson, Kenji Hata, Joshua Kravitz, Stephanie Chen, Yannis Kalantidis, Li-Jia Li, David A Shamma, Michael Bernstein, and Li Fei-Fei. Visual Genome: Connecting language and vision using crowdsourced dense image annotations. International Journal of Computer Vision, 123(1):32–73, 2016.
  • [22] Kuang-Huei Lee, Xi Chen, Gang Hua, Houdong Hu, and Xiaodong He. Stacked cross attention for image-text matching. In European Conference on Computer Vision, pages 201–216, 2018.
  • [23] Kunpeng Li, Yulun Zhang, Kai Li, Yuanyuan Li, and Yun Fu. Visual semantic reasoning for image-text matching. In International Conference on Computer Vision, pages 4653–4661, 2019.
  • [24] Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C. Lawrence Zitnick. Microsoft COCO: Common objects in context. In David Fleet, Tomas Pajdla, Bernt Schiele, and Tinne Tuytelaars, editors, European Conference on Computer Vision, pages 740–755, 2014.
  • [25] David G. Lowe. Distinctive image features from scale-invariant keypoints. IJCV, 60(2):91–110, 2004.
  • [26] Jiasen Lu, Dhruv Batra, Devi Parikh, and Stefan Lee. ViLBERT: Pretraining task-agnostic visiolinguistic representations for vision-and-language tasks. In Conference on Neural Information Processing Systems, pages 13–23, 2019.
  • [27] Jiasen Lu, Vedanuj Goswami, Marcus Rohrbach, Devi Parikh, and Stefan Lee. 12-in-1: Multi-task vision and language representation learning. In Conference on Computer Vision and Pattern Recognition, pages 10434–10443, 2020.
  • [28] Anton Mallasto and Aasa Feragen. Learning from uncertain curves: The 2-Wasserstein metric for Gaussian processes. In Conference on Neural Information Processing Systems, pages 5660–5670, 2017.
  • [29] Tanmoy Mukherjee and Timothy Hospedales. Gaussian visual-linguistic embedding for zero-shot recognition. In Empirical Methods in Natural Language Processing, pages 912–918, 2016.
  • [30] Kevin Musgrave, Serge Belongie, and Ser-Nam Lim. A metric learning reality check. In European Conference on Computer Vision, pages 681–699, 2020.
  • [31] Hyeonseob Nam, Jung-Woo Ha, and Jeonghee Kim. Dual attention networks for multimodal reasoning and matching. In Conference on Computer Vision and Pattern Recognition, pages 2156–2164, 2017.
  • [32] Seong Joon Oh, Kevin Murphy, Jiyan Pan, Joseph Roth, Florian Schroff, and Andrew Gallagher. Modeling uncertainty with hedged instance embedding. In International Conference on Learning Representations, 2019.
  • [33] Zarana Parekh, Jason Baldridge, Daniel Cer, Austin Waters, and Yinfei Yang. Crisscrossed captions: Extended intramodal and intermodal semantic similarity judgments for MS-COCO. In Conference of the European Chapter of the Association for Computational Linguistics, pages 2855–2870, 2021.
  • [34] Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer, James Bradbury, Gregory Chanan, Trevor Killeen, Zeming Lin, Natalia Gimelshein, Luca Antiga, Alban Desmaison, Andreas Köpf, Edward Yang, Zachary DeVito, Martin Raison, Alykhan Tejani, Sasank Chilamkurthy, Benoit Steiner, Lu Fang, Junjie Bai, and Soumith Chintala. PyTorch: An imperative style, high-performance deep learning library. In Conference on Neural Information Processing Systems, pages 8024–8035, 2019.
  • [35] James Philbin, Ondrej Chum, Michael Isard, Josef Sivic, and Andrew Zisserman. Object retrieval with large vocabularies and fast spatial matching. In CVPR, 2007.
  • [36] Florian Schroff, Dmitry Kalenichenko, and James Philbin.

    FaceNet: A unified embedding for face recognition and clustering.

    In Conference on Computer Vision and Pattern Recognition, pages 815–823, 2015.
  • [37] Ravi Shekhar, Sandro Pezzelle, Yauhen Klimovich, Aurelie Herbelot, Moin Nabi, Enver Sangineto, and Raffaella Bernardi. Foil it! Find one mismatch between image and language caption. In Annual Meeting of the Association for Computational Linguistics, pages 255–265, 2017.
  • [38] Haoyue Shi, Jiayuan Mao, Tete Xiao, Yuning Jiang, and Jian Sun. Learning visually-grounded semantics from contrastive adversarial samples. In Annual Meeting of the Association for Computational Linguistics, pages 3715–3727, 2018.
  • [39] Yale Song and Mohammad Soleymani. Polysemous visual-semantic embedding for cross-modal retrieval. In Conference on Computer Vision and Pattern Recognition, pages 1979–1988, 2019.
  • [40] Ivan Vendrov, Ryan Kiros, Sanja Fidler, and Raquel Urtasun. Order-embeddings of images and language. In International Conference on Learning Representations, 2016.
  • [41] Luke Vilnis and Andrew McCallum. Word representations via Gaussian embedding. In International Conference on Learning Representations, 2014.
  • [42] Zihao Wang, Xihui Liu, Hongsheng Li, Lu Sheng, Junjie Yan, Xiaogang Wang, and Jing Shao. CAMP: Cross-modal adaptive message passing for text-image retrieval. In International Conference on Computer Vision, pages 5763–5772, 2019.
  • [43] Xi Wei, Tianzhu Zhang, Yan Li, Yongdong Zhang, and Feng Wu. Multi-modality cross attention network for image and sentence matching. In Conference on Computer Vision and Pattern Recognition, pages 10938–10947, 2020.
  • [44] Hao Wu, Jiayuan Mao, Yufeng Zhang, Yuning Jiang, Lei Li, Weiwei Sun, and Wei-Ying Ma. UniVSE: Robust visual semantic embeddings via structured semantic representations. In Conference on Computer Vision and Pattern Recognition, pages 6609–6618, 2019.
  • [45] Peter Young, Alice Lai, Micah Hodosh, and Julia Hockenmaier. From image descriptions to visual denotations: New similarity metrics for semantic inference over event descriptions. Transactions of the Association for Computational Linguistics, 2:67–78, 2014.
  • [46] Bowen Zhang, Hexiang Hu, Vihan Jain, Eugene Ie, and Fei Sha. Learning to represent image and text with denotation graph. In Empirical Methods in Natural Language Processing, pages 823–839, 2020.
  • [47] Qi Zhang, Zhen Lei, Zhaoxiang Zhang, and Stan Z. Li. Context-aware attention network for image-text retrieval. In Conference on Computer Vision and Pattern Recognition, pages 3533–3542, 2020.
  • [48] Zhedong Zheng, Liang Zheng, Michael Garrett, Yi Yang, Mingliang Xu, and Yi-Dong Shen. Dual-path convolutional image-text embeddings with instance loss. ACM Transactions on Multimedia Computing, Communications, and Applications, 16(2), 2020.

6 Appendix

6.1 Similarity metrics

Below, we provide details on the similarity metrics that we use in this work:

  1. Negative Kullback-Liebler (KL) divergence. This metric is the only asymmetric similarity metric that we use. Since images contain more details than captions (i.e., a caption cannot verbalize all aspects in an image), we expect the captions to have higher uncertainties. Therefore, we take the KL divergence with respect to the caption distribution, i.e., , with the following closed form:

    (4)

    where and are the trace and determinant matrix operators, respectively. Since we assume diagonal covariance matrices, (4) can be simplified to

    (5)

    where all vector operations are element-wise, is a -dimensional vector of all ones and is a diagonal matrix, with containing the elements on its diagonal. For completeness, we also considered taking the KL divergence with respect to the image embeddings and observed a performance drop in retrieval, as expected. Please see Section 6.2 in this supplemental for more details.

  2. Negative Minimum KL divergence. We define this measure as a symmetric variant of the KL divergence:

    (6)
  3. Negative 2-Wasserstein distance

    . The Wasserstein distance is a symmetric distance metric between probability distributions. We use the second-order Wasserstein (2-Wasserstein) because it admits the following closed-form for Gaussians

    [28]:

    (7)

    where is the Euclidean norm operator. Given our assumption of diagonal covariance matrices, (7) simplifies to

    (8)

6.2 Ablations

We provide ablations on the similarity metrics and distribution shapes on the MS-COCO validation set in Table 2. We estimate the variances of the spherical distributions in two ways: (i) Learn an ellipsoidal distribution and take the average of the variances as the constant spherical variance (spherical-avgpool); or ii) learn a single constant (spherical-one value). As we can see, all models perform best with ellipsoidal distributions. For VSE++ (no fine-tuning) and VSRN, the Wasserstein metric ((8) in the main manuscript) shows the best performance in terms of sum of recalls (rsum), while for VSE++ft the best results are achieved with minimum KL.

model metric shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours KL (4) spherical-avgpool 57.2 86.5 94.0 43.9 78.1 88.9 448.6
VSE++ ours KL (4) spherical-one value 56.2 86.5 94.1 43.5 77.7 88.8 446.8
VSE++ ours KL (4) ellipsoidal 61.3 88.1 94.1 46.6 80.6 90.4 461.1
VSE++ ours minKL (6) spherical-avgpool 54.7 87.2 94.7 43.7 77.9 88.7 446.9
VSE++ ours minKL (6) spherical-one value 57.1 87.6 93.8 43.8 77.7 88.8 448.8
VSE++ ours minKL (6) ellipsoidal 60.0 87.6 95.2 46.8 80.9 91.0 446.9
VSE++ ours Wasserstein (7) spherical-avgpool 58.1 88.3 94.3 44.9 79.8 89.3 454.7
VSE++ ours Wasserstein (7) spherical-one value 59.3 87.5 94.4 45.0 79.4 90.1 455.7
VSE++ ours Wasserstein (7) ellipsoidal 61.3 88.3 95.2 47.1 81.0 91.0 463.9
VSE++ft ours KL (4) spherical-avgpool 68.8 92.4 97.3 53.7 86.4 93.7 492.3
VSE++ft ours KL (4) spherical-one value 61.7 90.1 95.7 49.3 82.9 92.3 472.0
VSE++ft ours KL (4) ellipsoidal 70.0 92.8 96.3 54.3 86.8 93.7 493.9
VSE++ft ours minKL (6) spherical-avgpool 62.4 90.5 96.1 50.0 84.4 92.6 476.0
VSE++ft ours minKL (6) spherical-one value 61.4 90.1 95.6 49.1 83.1 91.9 471.2
VSE++ft ours minKL (6) ellipsoidal 68.8 93.2 97.6 55.4 86.9 93.5 495.4
VSE++ft ours Wasserstein (7) spherical-avgpool 61.8 90.3 95.5 52.8 85.2 93.1 478.7
VSE++ft ours Wasserstein (7) spherical-one value 67.9 92.6 97.1 54.2 86.3 93.8 491.9
VSE++ft ours Wasserstein (7) ellipsoidal 67.3 93.1 97.4 54.2 86.7 93.8 492.5
VSRN ours KL (4) spherical-avgpool 76.5 95.9 98.5 62.2 90.0 96.0 519.1
VSRN ours KL (4) spherical-one value 77.5 96.7 98.7 62.0 89.9 95.7 520.5
VSRN ours KL (4) ellipsoidal 76.5 96.3 98.1 62.9 91.0 95.9 520.7
VSRN ours minKL (6) spherical-avgpool 76.0 96.0 98.3 63.5 90.9 96.4 521.1
VSRN ours minKL (6) spherical-one value 75.3 96.2 98.5 60.8 90.7 96.2 517.7
VSRN ours minKL (6) ellipsoidal 77.1 96.2 98.8 63.6 90.5 96.2 522.4
VSRN ours Wasserstein (7) spherical-avgpool 76.8 96.8 99.2 63.2 90.5 96.0 522.5
VSRN ours Wasserstein (7) spherical-one value 76.4 96.5 98.9 63.1 91.2 95.9 522.0
VSRN ours Wasserstein (7) ellipsoidal 77.3 97.1 98.7 63.7 91.2 96.0 524.0
Table 2: Retrieval ablation study on the MS-COCO validation set. ft stands for fine-tuned. Best results in terms of sum of recalls in each group are highlighted in bold. The numbers in parantheses denote the equation number of the similarity metric in the main manuscript.

Recall that we use the negative of the KL divergence as one of our similarity metrics. Table 2 contains the recall values for the negative KL divergence, when we take the caption distribution as reference, and measure the divergence of the image distributions from this reference distribution. In Table 3, we provide the results (on MS-COCO validation) for the other possibility, where we measure the KL divergence of the caption distributions from the (reference) image distributions. We can see that the sum of recalls (rsum) drops in all cases (with a maximum drop of 2.3%) when we change the order of the distributions for the KL divergence.

model shape image-to-text text-to-image rsum
R@1 R@5 R@10 R@1 R@5 R@10
VSE++ ours spherical 52.6 85.5 93.0 43.1 76.6 87.5 438.3
VSE++ ours ellipsoidal 57.5 87.6 94.0 45.6 79.6 89.9 454.3
VSRN ours spherical 75.6 95.1 98.4 62.2 89.3 95.5 516.1
VSRN ours ellipsoidal 75.5 96.7 98.8 62.4 90.7 96.3 520.4
Table 3: Retrieval results on MS-COCO validation set with the negative of KL divergence similarity between the image and caption distributions taken with respect to image representations.

6.3 High and low uncertainty images and captions

In this section, we provide examples with high and low uncertainties along with their plausible matches from the CxC dataset [33]. Figs. 2 and 3 show five randomly chosen high-uncertainty images and captions, respectively. Figs. 4 and 5 show five randomly chosen low-uncertainty images and captions, respectively.

Figure 2: High uncertainty images and their corresponding plausible matches.
Figure 3: High uncertainty captions and their corresponding plausible matches.
Figure 4: Low uncertainty images and their corresponding plausible matches.
Figure 5: Low uncertainty captions and their corresponding plausible matches.

6.4 Model stability

Tables 4 and Table 5

provide stability analyses for the two original models, VSE++ and VSRN, and their probabilistic counterparts (ours), on the test portions of MS-COCO and Flickr30K datasets. Specifically, we generate results for five runs of each model and dataset, and report the mean and standard deviation of the rsum values. We can see that for VSE++, the probabilistic model shows consistent improvements over the point-based model on both datasets, with a notably larger mean (and small comparable standard deviation) for VSE++ ours compared to VSE++. For VSRN, which has a more elaborate image encoding and processing pipeline, we observe a larger variation in performance between runs. Nonetheless, based on these numbers we can still see that the probabilistic VSRN (ours) is competitive (if not better than) the point-based VSRN.

model MS-COCO Flickr30K
1K 5K
VSE++
VSE++ ours
Table 4: VSE++ rsum means standard deviations.
model MS-COCO Flickr30K
1K 5K
VSRN
VSRN ours
Table 5: VSRN rsum means standard deviations.
