Two-dimensional Multi-fiber Spectrum Image Correction Based on Machine Learning Techniques

02/16/2020 ∙ by Jiali Xu, et al. ∙ Beijing Normal University 0

Due to limited size and imperfect of the optical components in a spectrometer, aberration has inevitably been brought into two-dimensional multi-fiber spectrum image in LAMOST, which leads to obvious spacial variation of the point spread functions (PSFs). Consequently, if spatial variant PSFs are estimated directly , the huge storage and intensive computation requirements result in deconvolutional spectral extraction method become intractable. In this paper, we proposed a novel method to solve the problem of spatial variation PSF through image aberration correction. When CCD image aberration is corrected, PSF, the convolution kernel, can be approximated by one spatial invariant PSF only. Specifically, machine learning techniques are adopted to calibrate distorted spectral image, including Total Least Squares (TLS) algorithm, intelligent sampling method, multi-layer feed-forward neural networks. The calibration experiments on the LAMOST CCD images show that the calibration effect of proposed method is effectible. At the same time, the spectrum extraction results before and after calibration are compared, results show the characteristics of the extracted one-dimensional waveform are more close to an ideal optics system, and the PSF of the corrected object spectrum image estimated by the blind deconvolution method is nearly central symmetry, which indicates that our proposed method can significantly reduce the complexity of spectrum extraction and improve extraction accuracy.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 3

page 4

page 8

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

With the construction and application of the Large Sky Area Multi-Object Fiber Spectroscopic Telescope (LAMOST), the acquisition efficiency of celestial spectra has been greatly improved(Song, 2011; Shi & Observatories, 2016). But at the same time, researchers need to make more improvements to existing spectrum analysis methods and processing flow dealing with massive data. Two-dimensional (2D) optical fiber spectrum images can be available after the celestial signals being processed by the telescope system and finally imaged on the CCD. During the imaging process, the luminous flux (energy) of each fiber at different wavelengths diffuses to adjacent areas in a defined form, forming a fiber profile with distinctive characteristics(Zhang et al., 2012). The form of diffusion can be described objectively by the point spread function (PSF), which represents the brightness distribution of the output image when the input is a point light source. One-dimensional spectra, which consists of the actual flux at different wavelengths without the effect of energy diffusion, are supposed to be extracted from 2D spectrum images to help astronomers analyze the physical and chemical properties of celestial bodies. However, the existing spectrum extraction algorithms have their advantages and disadvantages and cannot guarantee both high accuracy and high efficiency.

In commonly used spectrum extraction methods, the aperture extraction method(Boer et al., 1982) and the optimal aperture extraction methods(Horne & K., 1986; Robertson, 1986) count up the flux within a selected certain radius for each wavelength, the difference between them lies in whether to assign different weights to pixels in the spatial direction. The profile fitting method(Ballester et al., 2000; Piskunov & Valenti, 2002; Cui et al., 2009) selects a suitable function to fit the profile of the fiber spectrum in spatial direction. Until 2010, the deconvolution method was applied to spectrum extraction(Bolton & Schlegel, 2010), which is regarded as one of the most accurate and promising methods. The main idea of the deconvolution method is that spectrum extraction can be considered as a direct deconvolution operation when PSF and 2D multifiber spectrum images are known, so it is the only method based on the imaging principle different from the above-mentioned methods, and can characterize the resolution accurately to upper limits of native instruments(Yu et al., 2014; Yin et al., 2017). In the implementation of the deconvolution method, the determination of PSFs is a sustainable challenge. On the one hand, the PSF may vary from time to time and cannot be estimated for every observation night. On the other hand, due to the interference of CCD sensor performance, defocus of the imaging system, atmospheric turbulence effect and other factors, the actual obtained two-dimensional optical fiber spectrum images have noticeable distortion and the contours of PSFs at different spatial locations are diverse from each other. The spacial variant PSF is manifested in obvious bending in the flat-field images and spots of various shapes in the calibration arc images. At present, several types of analytical expressions for PSFs, such as the 2D Gaussian(Zhu et al., 2011; Yu et al., 2014) (Fig. 1 shows some examples of Gaussian type PSF. ) and 2D exponential polynomial(Zhang et al., 2012) is used to model PSFs, and the flat-field spectrum and the calibration lamp spectrum are used to determine the parameters of the function in most studies. But the PSF estimation method is not practical to integrate into the LAMOST data processing pipeline because it requires interactively selecting the PSF form and estimating the model parameters. Considering the difficulty in determining PSFs of large-scale multi-fiber spectral telescope in the actual environment, Yin et al. (2017) used the blind deconvolution extraction method to extract one-dimensional spectrum when the PSF of the imaging system was unknown, which improved the applicability of deconvolution decimation to some extent. However, most available extraction methods, including the blind deconvolution method, do not really solve the problem that the shape and range of the PSF varies with space and wavelength. In order to reduce computational complexity, each fiber uses the same PSF. Actually, many relevant studies have discussed the estimation of spatial variant PSF in the field of image restoration. Sawchuk (1972) used the spatial coordinate transformation method to reconstruct PSF images of spatial changes. The idea of this method is to find a coordinate space, and the degradation of each point of the image after transformation to this space is spatially invariant. After the restoration of this space by general algorithm, the image will be converted back to the original image space. The premise of the spatial coordinate transformation method is that the spatial variation law of the degenerate function can be expressed analytically (Sawchuk, 1973, 1974).Trussell & Hunt (1978) proposed a restoration algorithm based on image segmentation, which was further developed by Costello & Mikhael (2003). The important reason that these existing methods are not applied to optical fiber spectroscopy is that the computational complexity is too high to meet the requirements of massive large-scale spectral image processing, especially for a telescope like LAMOST, 250 optical fibers are arranged on a CCD image of pixels at the same time.

Considering that ignoring the spatially varying PSFs will have a great impact on the final spectrum result and the computational complexity of directly modeling the PSFs is extremely too high to achieve, we propose a preprocessing method by spectrum calibration to eliminate the inconsistency of PSFs at different positions. Ideally, the PSF should be symmetric with a center circle and the PSF at each point in the image should be consistent. With such processing of image calibration, the difficult task of modeling spatially varying PSFs can be avoided and we can achieve the purpose of reducing the complexity and ensuring the accuracy of the spectrum extraction. For the task of spectrum calibration, Zhu et al. (2019) proposed a normal mapping method to correct the bending of the 2D optical fiber spectrogram. Each fiber spectrum in the two-fiber spectrogram is processed separately without considering the correlation between different fibers. Due to the complexity of the spectral image imaging process, we think that artificially designing the transformation relationship is not the best solution. In contrast, the spectrum calibration method based on machine learning techniques proposed in this paper has better practicability and accuracy.

The reminder of the paper is organized as follows. Section 2 describes the background on spectrum distortion, and the proposed spectrum calibration frameowrk is described in Section 3. A discussion of our experiments and results is provided in Section 4. Our conclusion is presented in the last section.

Figure 1: Different contours of 2D Gaussian PSF model with different parameters.

2 spectrum image distortion

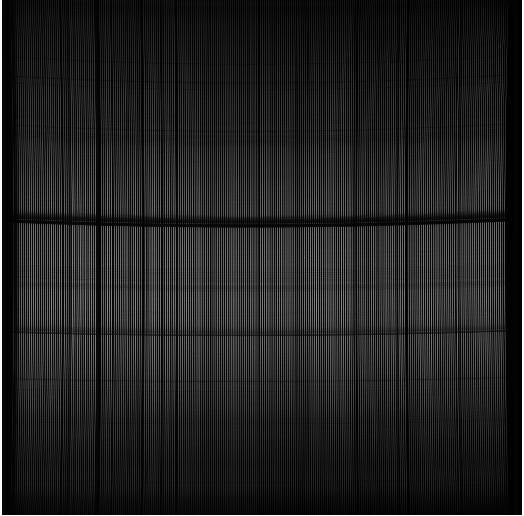

Figure 2: Original LAMOST flat-field spectrum image. Optical fibers imaging lines have different degree of distortion in this image.

Firstly, let us consider the principle of deconvolution spectrum extraction. The optical instruments, such as collimator mirror, dichroic beam splitter and diffraction grating, will disperse the detected light of astronomical objects and give rise to broadening and effects on the measured signals. The observed image is obtained by the convolution of the source image and a PSF, which can be represented generally by the following integral equation,

(1)

where represents the image intensity at the position in the observation plane, represents the light source at position , represents the PSF value, and denotes an additive noise at the position . This means that the process of spectrum extraction can be viewed as a deconvolution operation for solving , given and are known.

According to the imaging principle, the process of spectrum extraction is actually the operation of deconvolution. The deconvolution method, which is often used in image restoration, was not applied to spectrum extraction until 2010 (Bolton & Schlegel, 2010). But in their experiments, analog data instead of large-scale actual observation data is used to prove the validity of this algorithm, meanwhile, they also pointed out computing challenges posed by convolution operation on massive data was inevitable and recommended to perform parallel data processing using computer’s GPUs. In practice, another factor limiting the further application and higher accuracy of the deconvolution method is the estimation of the PSF, especially for large spectroscopic telescope like LAMOST. In order to cover a larger range of scenery, wide-angle lens is widely used in image shooting. When we get benefits from the large field of view, it is inevitable to bring the distortion into the imaging process while the proportion of distance is not coordinated. Although this kind of image distortion does not affect the resolution of the image, it will reduce the geometric precision of the object in the image, so as to bring about the error. In addition, the degree of image distortion will increase with the increasing field of view, at the mean time the image quality will become worse as well. This wide-angle distortion combined with other complex effects, such as CCD sensor performance, imaging system defocus and atmospheric turbulence, makes us have to face a challenge – spacial variant PSF. When celestial objects are imaged on two-dimensional optical fiber spectra, location, shape and scope of PSF is changing with the variation of space position, which is due to aberration in the spectrometer and asynchronous vibration of various components. However, due to the high complexity of space-variant PSF modeling and deconvolution calculation after modeling, it is almost impossible to meet the requirements of large-scale spectral data processing.

Faced with such a real teaser, we can choose another shortcut, which is to eliminate distortion by correcting the original image, so that the PSFs at different spatial positions tend to be consistent and we can avoid complex PSF modeling. In the next section, we will propose a specific spectrum calibration framework for how to eliminate this nonlinear distortion. At present, what we need to make clear is the expected corrected image. Fig.2 is a flat-field spectrum of LAMOST showing visible pillow type of distortion. The closer to the edge, the greater distortions are. Obvious distortion nearing the edges can be seen in Fig.3. In the absence of optical distortion of the spectrometer and CCD camera, PSF appears as a symmetrical round outline and keeps same at each point while all the spectra are expected to be straight, parallel to each other and neatly aligned on the CCD under ideal conditions. If we can correct these bent spectra to be straight, the accuracy of spectrum extraction will be greatly improved while the difficulty will be reduced a lot, and the system’s data analysis and processing capabilities can be greatly improved. Therefore, there is an urgent demand to calibrate the non-linear distortion of the spectrum.

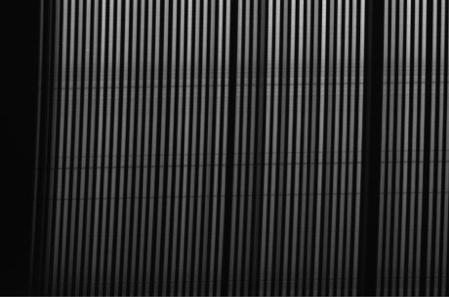

Figure 3: Part of the spectral image with obvious distortion.

3 Spectrum image correction with machine learning techniques

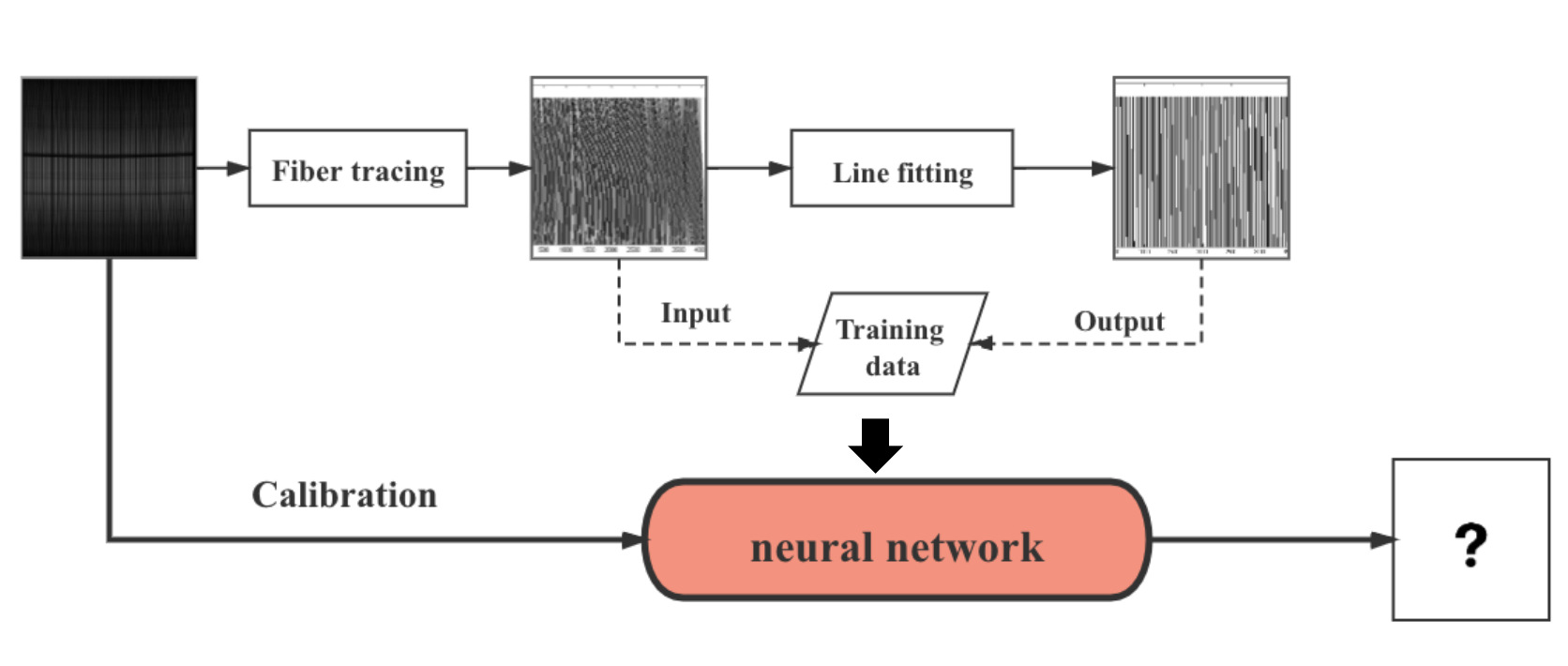

Figure 4: Spectrum image correction method based on neural network.

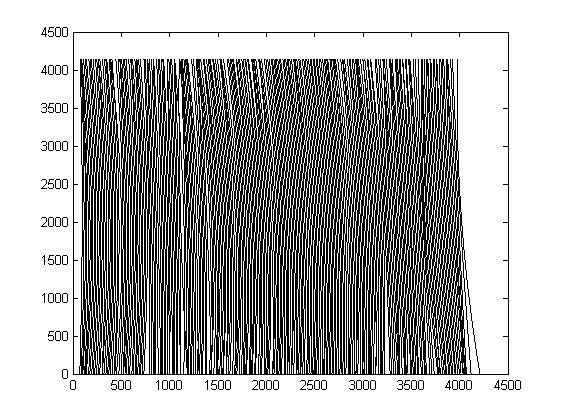

Figure 5: Fiber tracing result.

In general, establishing a corresponding mathematical model according to the reason of image distortion and correcting the image according to the inverse process of imaging is a basic idea of image correction. Building an accurate mathematical model is the key to obtaining excellent image calibration results. However, in the real LAMOST environment, the process of spectrum imaging on the CCD is disturbed by various factors, such as the comprehensive action of CCD sensor performance, imaging system defocus and atmospheric turbulence. This distortion brings a lot of error to the subsequent data processing processes like spectrum extraction and flux calibration. It is extremely difficult to describe the interference by explicitly constructing nonlinear functions artificially. As we all know, the neural network can model complex function through nonlinear mapping of activation function, the combination of multiple neurons and a large number of sample training, showing strong self-learning ability and self-adaptability.

Hornik et al. (1989) showed in their works that feed-forward neural networks are indeed capable of universal approximation in a very precise and satisfactory sense, even with as few as a single hidden layer. Inspired by this, we propose to apply the multi-layer neural network in automatically generating a complex transformation model between distorted and non-distorted images. The entire spectrum correction framework is shown in the Fig.4

. The training of the neural network is a nonlinear optimization problem, looking for a combination of parameters to minimize the objective function. The whole implementation process needs a large number of training samples for the supervised learning task. Unlike common image classification and detection tasks, we do not own ideal spectrum images without distortion, and manually labeling output samples is even more infeasible. For spectrum image correction, the construction of input and output sample pairs and the selection of proper number of samples are the primary problems that need to be solved, which is also the difficulty and innovation of our proposed method should be considered

(Li et al., 2017).

3.1 Input construction by fiber tracing

First we give a simplified description of the calibration problem. The essence of the task is to find a transformation relationship to rearrange the pixels in the image, that is, the pixels with the original coordinates of are transformed into , as shown in equation (2). The calibration of the LAMOST two-dimensional spectrum is a kind of nonlinear distortion calibration with large field of view, including radial distortion and tangential distortion (Lin et al., 2005), in which the tangential distortion can be almost ignored (Tsai, 1922). In optical imaging, a straight line through the optical center is still linear in the imaging process, and the minimum distortion in the optical axis nears the center.

(2)

Fiber tracing is one of the common pre-processing steps for spectrum extraction, which can obtain the center trace of 250 spectra from the two-dimensional spectral image. Fig.5

shows the fiber tracing result of the 250 spectra in a spectral image. Every fiber trace is a curve passing through the center of the spectral profile, generally expressed by the low order polynomial, such as Legendre Polynomials. Apparently, the tracing result can well reflect the distortion characteristics of different spectra. Different fiber trace in the spatial direction are different, and the curve bending near the edge is more obvious. Therefore, coordinates of points on the curve are fed into neural networks as input vector in our method. The input vector includes two attributes, one attribute indicates the pixel index in the wavelength orientation, and the other attribute indicates the pixel index in the spatial orientation.

3.2 Generating labels with the Total Least Square method

The neural network is essentially a nonlinear optimization problem, which is looking for a set of parameters combination to minimize the objective function according to the known constraints. To supervised train a feed forward neural network, the construction of training samples is of great importance. The spectral center curves before correction through fiber tracing has been obtained, but we only got the input of the training samples, and the output is unknown. Based on the prior knowledge that optical fiber spectra are lines parallel to each other ideally, the corrected spectral center should be a straight line. Therefore, we use the line fitting method to automatically construct the corresponding output. Constructing labels based on experience is also a common strategy for unlabeled data in machine learning. In order to get the best fitting effect, the primary problem to be solved is the choice of a straight-line fitting model. One of the most common fitting criteria is the classic Least Squares (LS) method, but the LS method assumes that all errors are derived from the dependent variables and ignores the errors of the independent variables. In our proposed methodology, we utilize the Total Least Square (TLS) method to carry out the curve fitting. Compared with the LS method, the TLS method take into account the error of both independent variables and dependent variables(de Groen, 1998)

, which can help improve the accuracy of line fitting. The fitting lines are very close to the imaging results without distortion, so we can approximately think that it is just the corrected target output.

In order to better understand the TLS method, we first introduce the traditional LS method and then explain the idea of TLS on this basis. For some discrete data points passing through the same line, they all meet the general form of a line,

(3)

where is the slope of the line, and is the intercept. and are the parameters to be estimated. Although there is no guarantee that all points are gathered in a straight line, it is expected that these points are located in the vicinity of the line as far as possible. Let and be their approximations, satisfying , .

With as the dependent variable and as the independent variable, the error equation is expressed as,

(4)

The matrix expression of the error equation is,

(5)

where , ,

, .

According to the least squares principle, the should be minimized,

(6)

It will lead to least squares solution,

(7)

The traditional least square method considers that the measurement error only exists in the dependent variable , but observational errors on both dependent and independent variables are taken into account in TLS, so the linear equation should be redefined as,

(8)

In the total least square method, both and the coefficient matrix have errors, so the error equation can be described as,

(9)

where and represent the errors of matrix and observation vector respectively.

Construct the augmented matrix

, and perform QR decomposition

,

(10)

where , .

Construct the augmented matrix

, and perform singular value decomposition,

(11)

where .

The solution of the TLS is,

(12)

The more specific solution process has been described in detail in elsewhere(de Groen, 1998; Markovsky & Huffel, 2007; Ding et al., 2010). Take one spectrum as an example, as shown in the Fig.  6, the dotted line represents the tracing curve of a spectrum, and the other solid straight line represents the result fitted by the TLS method. For convenience, we set the x-coordinate represents the wavelength and the y-coordinate represents the spatial position. It should be noted that the point after calibration corresponding to the point on the original tracing curve should be the feet on the fitted straight line.

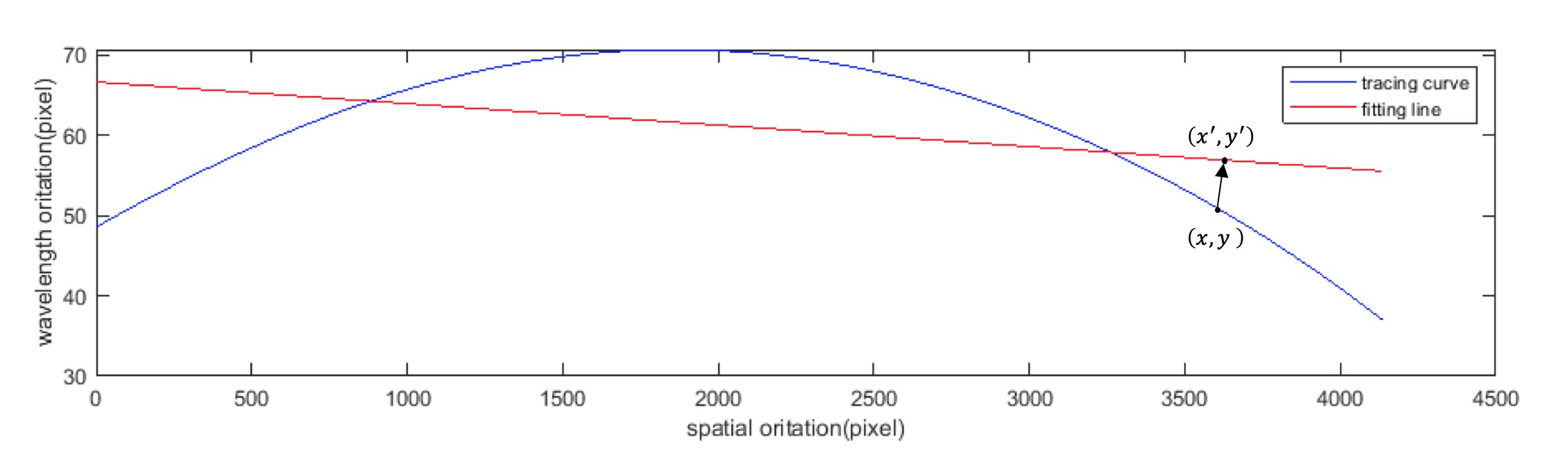

Figure 6: TLS fitting result of one spectrum line.

3.3 Non-uniform sampling

Figure 7:

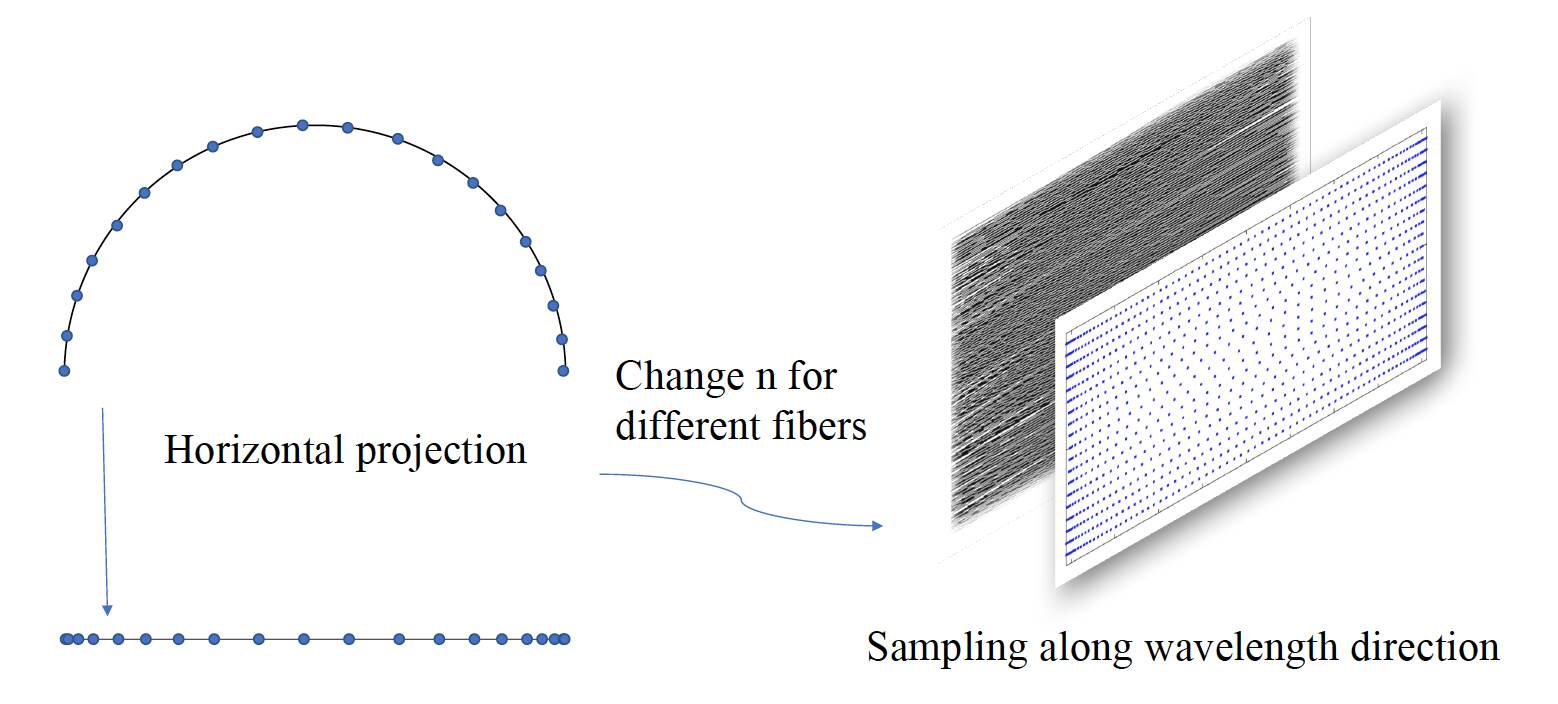

Non-uniform sampling method illustration: samples are obtained through sample is obtained by projecting uniform distributed points on the arc to the straight line.

As mentioned before, the distortion of the LAMOST two-dimensional spectral image is mainly a pincushion distortion of a wide-angle lens. This nonlinear distortion is concentrated around the image, and the distortion in the image center is not obvious. Moreover, the size of each spectral image of LAMOST is relatively large, usually , with 250 optical fibers arranged on it. After the fiber tracing, the one-dimensional vector with a size of 4096 can be extracted from each spectrum, which means that a total of

pixels will be obtained. The millions of pixels in each image do not need to be all used for training the neural network, because a large part of the data provides redundant information. For example, with no distortion or is not obvious distortion, the pixels in the middle part can be represented by a smaller number of samples. Effectively selecting key samples has a great impact on the final image calibration result. To fully extract the transformation relationship to distortion calibration while ensuring high training efficiency, we designed a non-uniform sampling method to control samples dense in the surrounding area and sparse in the middle. This intelligent sampling method can reduce the computation complexity without loss network correction accuracy. The non-uniform sampling is reflected in two aspects. On the one hand, for each spectrum, the sampling points are non-uniformly distributed along the wavelength orientation. On the other hand, the number of sampling points is different for different spectra along the spatial orientation, specifically reflected as fewer samples in the middle and more samples in the surrounding area. The specific description of the sampling method is as follows.

First, points of equal arc length are distributed on the semicircle arc, and all points are projected on the horizontal axis to obtain a one-dimensional vector. At this point, the points in the middle are sparsely distributed and become denser they get closer to the two ends. This one-dimensional vector can be expressed as,

(13)

where represents the radius of the arc. For LAMOST, can be taken as 2048.

For each trace curve, increase the value of n from the middle to both sides appropriately, calculate coordinates in the wavelength direction according to equation (13) and sample by rounding. Repeatedly select sample points on the 250 tracking curves to finalize the final training set, and each sample contains two values representing the pixel index in the spatial direction and the wavelength direction, respectively. The overall sample distribution of selected points is shown in Fig.7.

4 Experiments and Discussion

In the experiment, dataset from the National Astronomical Observatories, Chinese Academy of Sciences was used to perform spectral image correction processing111The dataset can be downloaded from the web site: http://dr3.lamost.org/.. Among the several kinds of raw two-dimensional data obtained by the LAMOST observation system, the spectral energy of the flat-field spectrum image is distributed uniformly over the entire band, and the spectral profile is relatively smooth, so it is usually used for optical fiber tracing to obtain center curves of multiple spectra. As shown in Fig.2, the resolution of the flat-field spectrum image is pixels, the abscissa represents the spatial orientation, the ordinate represents the wavelength orientation, and the magnitude of the gray value represents the flow value at that point, proportional to the number of photons detected during the exposure by each CCD pixel (Horne & K., 1986).

4.1 Implementation of spectrum image correction

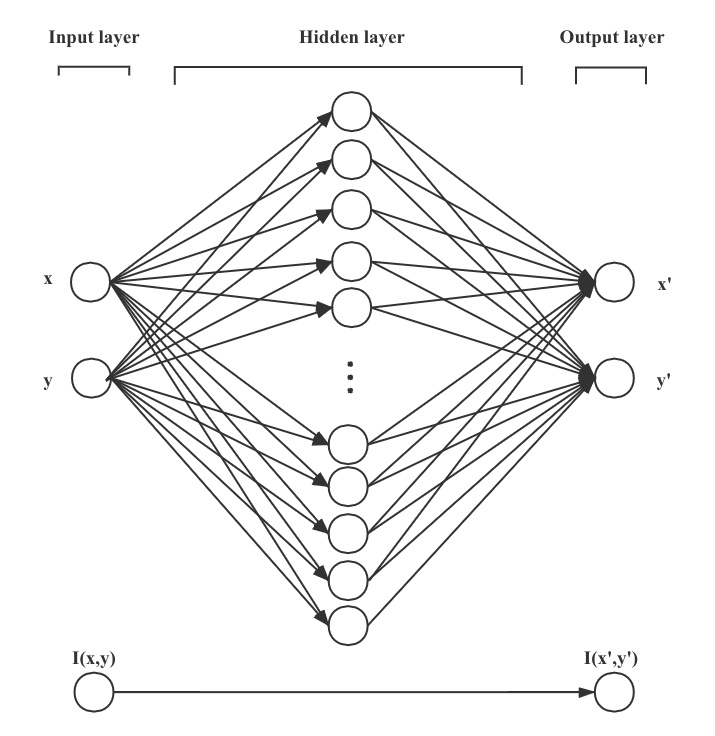

Figure 8: A sketch diagram of the single hidden layer neural network model.
Hidden layer number 1
Neurons (3,20,3)
Activation function ReLU
Loss function MSE
Batch size 600
Epoches 50
Iterations time 10000
Optimizer Adam (Kingma & Ba, 2014)
Table 1: Neural network training and parameters setting.

As described in Section 3, in the calibration of two-dimensional spectral images, we need a suitable training set to determine the parameters of the distortion calibration model. The center curves obtained by optical fiber traces can perfectly reflect the distortion of different spectra, and it is not difficult to find that they are the best materials for providing training samples. Fig.5 shows the result of fiber tracing of 250 spectra. It can be seen that the points in different wavelength positions on the same curve have large spatial differences. We selected 30,000 discrete points as input samples of the neural network according to the non-uniform sampling method introduced in Section 3.3. Each input sample can be represented as a two-dimensional vector . Then, 250 center curves in the tracing result were fitted with the TLS method, and the output samples were the feet of the original curve samples on the fitted straight line.

In the mathematical theory of artificial neural networks, the universal approximation theorem(Hornik et al., 1989) shows that a feedforward neural network can fit a function of arbitrary complexity with any accuracy as long as it has a single hidden layer and a limited number of neural units. So in this paper, we design a single-layer neural network to correct the spectrum image, the sketch diagram of the network structure is shown in Fig.8. Table 1 shows the specific parameters setting, such as detailed topology of the network, transfer function, the chosen performance function and parameters in the training process of the neural network. The fast pseudoinverse learning algorithm is also utilized to training the neural network (Guo et al., 1995; Guo & Lyu, 2001, 2004)

, and better generalization performance is obtained compared with stochastic gradient descent optimization algorithm. After training, the coordinate points in the spectral image are fed into the trained network as inputs for testing. The width of each spectrum is about 15 pixels. The coordinates of the 7 pixels on the center and both sides of the spectrum are fed into the trained network as inputs for testing, and the flux value of the corresponding point of the output coordinate is equal to the flux value of the input point, while the other pixels keep the previous flux value.

4.2 Analysis of results

(a) Before correction
(b) After correction
Figure 9: Flat-field spectrum comparison before and after correction.

4.2.1 Flat-field spectrum

(a) Before correction
(b) After correction
Figure 10: Fiber tracing comparison before and after correction.

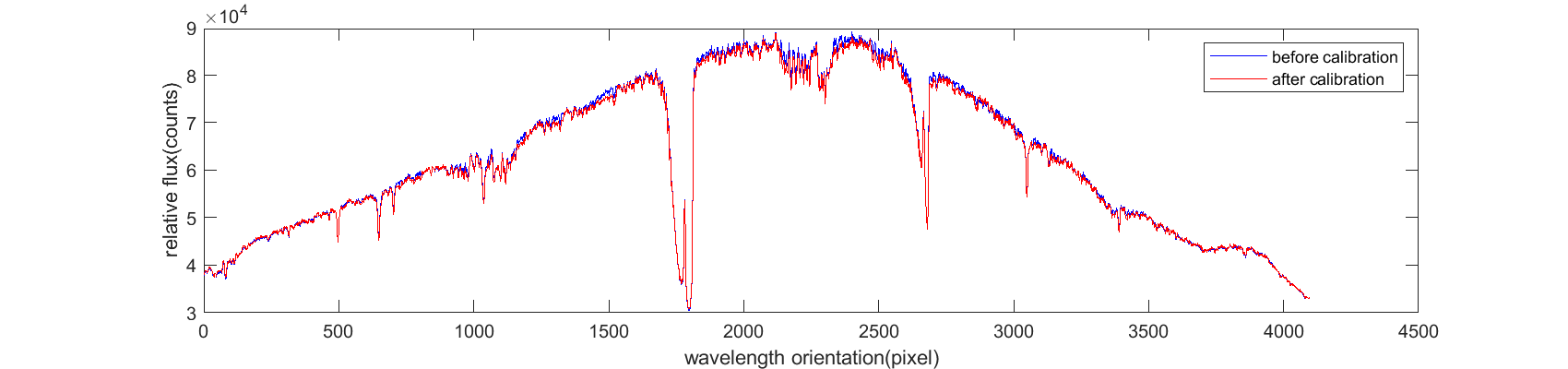

Figure 11: Flat-field spectrum extraction comparison before and after correction.
(a) Before aperture extraction
(b) After aperture extraction
(c) Before blind deconvolution extraction
(d) After blind deconvolution extraction
Figure 12: Object spectrum extraction comparison before and after calibration.
(a) Before correction
(b) After correction
Figure 13: PSF comparison before and after correction.

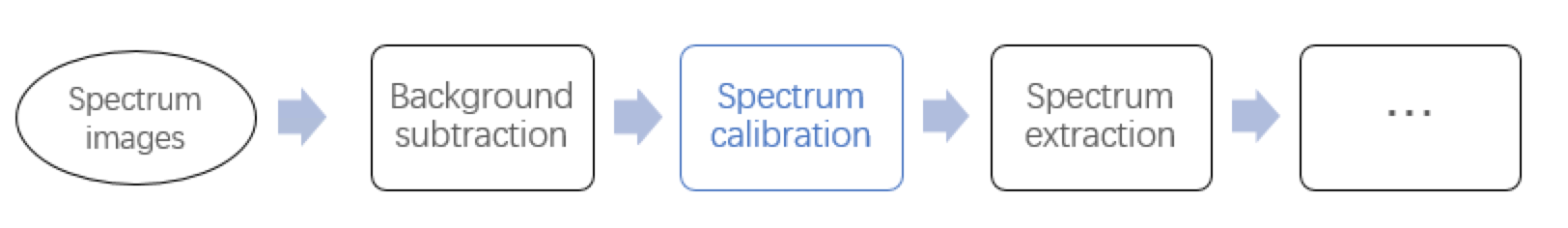

Figure 14: Data processing pipeline for spectrum image correction.
