TROVE Feature Detection for Online Pose Recovery by Binocular Cameras

I Introduction

Localization has always been pivotal for robots to autonomously navigate. Position in the Earth frame can be acquired by GPS sensors. Further fusing GPS information with measurements from other sensors, for instance: LiDAR, RGB-D cameras, ultrasonic sensors and etc., autonomous ground vehicles have already achieved robust and high-accuracy localization. However, for the limited payload and power supply some robots such as unmanned aerial vehicles (UAVs) can hardly afford to mount those powerful sensors and computers to obtain and process data. The blocking and reflecting of GPS signals from high-rises also impede accurate localization, let alone the indoor environment where GPS signal is often completely denied. Were UAVs to accurately navigate amid high-rises, complementary sensors other than GPS should be adopted. In that scenario, RGB cameras are the common option for UAVs to localize themselves because visual sensors can provide rich information at a cheap cost. The state-of-the-art visual SLAM (simultaneously-localization-and-mapping) algorithm has made significant improvement over the last decade. Methods such as LSD-SLAM [1], ORB-SLAM2 [2] and S-PTAM [3] have recently drawn much attention and shown robust and accurate results. It is needless to mention that how pivotal real-time capability is to a system with fast dynamics like a quadrotor. Compared with other commonly used feature detectors: SIFT [4], SURF [5] and FAST [6]

, the aforementioned methods are much more efficient. The feature extraction and localization time for the SLAM algorithms can be roughly regarded as the tracking phase in a whole SLAM process. For LSD-SLAM, ORB-SLAM2 and S-PTAM, the tracking time using a rectified stereo image at a resolution of

1224 \times 370

(can slightly vary by different rectification process) is 61.0, 49.5 and

55.2 m s

[4, 5, 6], respectively. The proposed method in this paper completes that phase in only

2.8 m s

for an unrectified stereo image at a resolution of

1280 \times 720

. This allows the algorithm to run online at

60 H z

in the experiment.

In this paper, a new method for attitude estimation and localization based on stereo vision is proposed. The method is dedicated to an environment where horizontal and vertical edges are common. Unlike classic PnP problems as described in [7, 8, 9], the proposed algorithm does not require any priori knowledge about the dimensions or positions of the observed object. It requires the included angle between two horizontal edges to be known and the existence of a vertex intersected by two horizontal edges and one vertical edge. This structure will be projected onto an image as three rays and one vertex. In this paper, such a feature is called a “TROVE” (Three Rays and One VErtex) feature and such a structure is called a “TROVE” structure. An environment with some priori knowledge is regarded as a semi-known environment. Some approaches have been attempted for pose estimates in such an environment, for instance [10, 11, 12, 13]. Those methods utilize preset markers or patterns, whereas the approach in this paper does not require any modifications on the environment. TROVE structures are ubiquitous in artificial constructions such as the outlines of buildings and corners of rooms and corridors. In the most common type of the structures, the horizontal edges are perpendicular to each other. The edges are usually formed by mutually orthogonal faces like ceilings, walls and facades of buildings. One of the earliest works utilizing those structures to extract ego-states can be found in [14], where it referred those edges as Manhattan Grid and the environment rich in those structures as Manhattan World. In [15, 16], the authors utilized Manhattan Grid for attitude estimation and environment mapping. Some scholars have explored the possibility of estimating ego-states from other reliable world reference, including methods of horizon detection [17] and vanishing points [18]. More variations of them can be found in a comprehensive survey in [19]. Nevertheless, localization has not been achieved in those methods.

The main contributions of this paper are:

A new feature has been proposed, which can associate its properties with the physical properties of the corresponding entity in the real world. Solution uniqueness of estimating ego-states from a feature is proved for the majority of cases, while easy-to-implement methods to discard incorrect solutions are also given.
The solution is given in a closed-form expression. Unlike common tools in projection geometry [20]
that need to solve eigenvectors of matrices or zeros of polynomials
[21] to estimate ego-states, the proposed method derives a direct closed-form expression of the estimates which greatly eases the computation burden.
It has been demonstrated in the experiment that the algorithm can run in real time at $60 H z$ for $1280 \times 720$ stereo videos. The limiting factor for the efficiency is the camera’s capability of capturing and transmitting images.
The attitude estimates have high accuracy up to $0.2 °$ . When fused with measurement from inertial measurement units (IMUs) in a straightforward way, the image estimates noticeably improve the conventional method.
The method exhibits high accuracy in localization up to $2 c m$ on average.

Edge detection in Manhattan-world scenario has been discussed by [15, 22]. Such a process is not the scope of this paper and is experimentally simplified by color segmentation.

The rest of this paper is organized as follows. Section II elaborates the definitions and the proof of the TROVE feature and its properties. Section III discusses the approach to detect edges and vertices of TROVE features, thus estimating 6-DoF ego-states. Section IV describes the experiments that evaluates the proposed method. All the findings and future work are summarized in Section V.

Ii TROVE Feature Detection

In this section, the process to extract TROVE features in an image is presented. Such a feature is projected from a common structure, referred to as a TROVE structure, on man-made buildings both indoors and outdoors. Subsection II-A elaborates on the definition and properties of a standard TROVE feature with a real-world example. How a general TROVE feature could be transformed into a standard one and the proof of its properties is given in the latter half of this subsection. The following Subsections II-B and II-C describe how a raw image is processed to extract the rays and the vertex of a TROVE feature in the experiment.

Ii-a TROVE Feature

A TROVE feature consists of three rays and one vertex which the rays all originate from. A TROVE feature is projected from a TROVE structure, which consists of three edges and one vertex. All three edges of a TROVE structure intersect at the same vertex with one being vertical and the other two being horizontal in the Earth frame. Horizontal and vertical edges are ubiquitous on man-made structures, or more generally in Manhattan World [14]. The vertices, usually corners of room, corridors or outlines of buildings, man-made objects are naturally reliable landmarks for unmanned robots to refer to in unknown 3D environment. When those robots navigate indoors, the relative position to the environment is often much more important than their absolute position in the Earth frame. Those features are usually distinctively away from each other in distance and have properties such as orientations, positions, included angles by horizontal edges and being formed by different number of internal and external surfaces. More interestingly, these properties are associated with their physical properties such as shapes, relative distances and heights to the observer. These properties potentially enable them to have unique descriptors to be identified.

A TROVE structure can be represented by a corner of an imaginary box. Fig. 1 shows an example of such a process in an image of a corridor. Fig. 1(a) is the raw image taken in a corridor. Fig. 1(b) shows the edges (solid lines) and vertices (white stars) of the TROVE features, where one vertical line and two horizontal lines intersect at a real physical vertex. If one imagines the walls, ceilings and floors of the corridor as the faces of boxes, each of the left two vertices is the intersection of three internal surfaces of a box, all visible to the camera. Each of the right two vertices is the intersection of three external surfaces of a box, two of which are visible and vertical and one of which is invisible and horizontal. In Fig. 1(c), four imaginary boxes are constructed with the edges being collinear with the rays of the corresponding TROVE features in the image.

Ii-A1 Definition

The definitions of the imaginary box are: 1) the box is a parallelepiped, i.e. a hexahedron with all faces as parallelograms; 2) of the three unparallel edges, one is vertical and the others are horizontal; 3) it has three faces visible to the camera and the intersections of them (three edges) are projected onto the image, collinear with the rays of the feature; 4) all edges are in equal unit length because dimensions are not concerned. Note that a necessary condition for a face crossing the principal point to be visible is that its outward normal vector points to the focal point.

The benefits of imagining a TROVE structure belonging an imaginary box are: 1) the positions/directions of vertices and edges remain the same; 2) the object frame can be uniquely defined by the box; 3) if more than one feature is found in an image, the model of such a hexahedron gives us a unique solution to attitude and position estimates when interpreted from a TROVE feature. Therefore, those boxes are reliable references for estimating ego-states of attitudes and positions.

Ii-A2 Standard Model

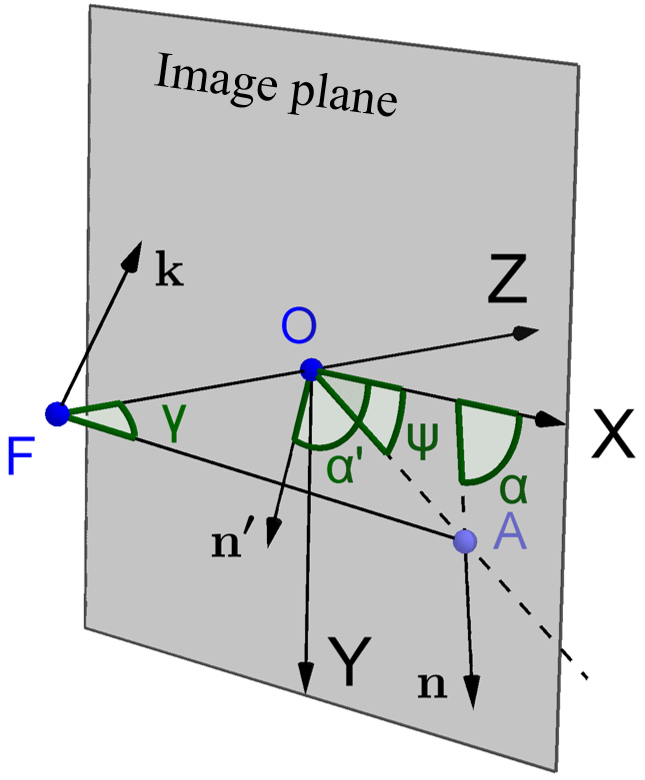

Fig. 2: A projection is rotated so that the re-projected line passes through the principal point.

In a standard model the vertex is projected onto the principal point. If the vertex is not originally on the principal point in the raw image, one can always rotate the observed object around the fixed focal point so that the new vertex can be projected onto the principal point. After such a rotation, the projection of edges has to adjust accordingly. Unless specifically mentioned, a TROVE feature is always rotated so that the vertex is projected onto the principal point. The following are the details of the transformation. Denote the intrinsic matrix of a pin-hole model camera as:

K = ⎡ ⎢ ⎣ \begin{matrix} [c] f / ρ & 0 & u_{0} & 0 0 & f / ρ & v_{0} & 0 0 & 0 & 1 & 0 \end{matrix} ⎤ ⎥ ⎦,

(1)

where $f$ is the focal length and $ρ$ is the width of a pixel assuming $f$ and $ρ$ is identical in the x- and y-direction. $u_{0}$ and $v_{0}$ are the coordinate of the principal point in the image frame. In this paper, the image frame is defined that $u_{0}$ and $v_{0}$ are both $0$ . As shown in Fig. 2, the projection of a line is represented by a unit vector $n$ starting from $A$ . $F$ is the focal point and $O$ is the principal point. If one rotates the object so that $A$ is projected onto $O$ , the direct path is to rotate around the axis $k$ by $γ$ , where $k$ is the normalized cross product of $- - \to F A \times - - \to F O$ passing through $F$ and $γ = arctan | O A | / | O F |$ . Let the position of $A$ be $(u, v)$ , then one has:

k = (\frac{v}{\sqrt{v^{2} + u^{2}}}, \frac{- u}{\sqrt{v^{2} + u^{2}}}, 0), γ = arctan (\frac{\sqrt{u^{2} + v^{2}}}{f}) .

(2)

Let $m$ (not shown in the figure) be the rotated $n$ , $n^{'}$ be the projection of $m$ in the image plane, $ψ$ be the angle that $- - \to O A$ makes with the x-axis , $α$ be the angle that $n$ makes with the x-axis, $α^{'}$ be the angle that $n^{'}$ makes with the x-axis. $α$ and $α^{'}$ are the inclination angles before and after rotation. It can easily be derived that $n = [cos α, sin α, 0], k = [sin ψ, - cos ψ, 0]$ .

The objective is to find $α^{'}$ . Rodrigues’ rotation formula yields:

	$m =$	$n cos γ + (k \times n) sin γ + k (k \cdot n) (1 - cos γ)$
	$=$	$⎡ ⎢ ⎣ \begin{matrix} [c] cos γ cos (α - ψ) cos ψ - sin ψ sin (α - ψ) cos γ cos (α - ψ) cos ψ + cos ψ sin (α - ψ) cos (α - ψ) sin γ \end{matrix} ⎤ ⎥ ⎦,$		(3)

Denote the $i^{th}$ element of a vector $v$ as $v_{i}$ . Note that: $tan α^{'} = n_{2} / n_{1} = m_{2} / m_{1}$ . By (3) and difference formulas for tangent, one has:

	$tan (α^{'} - ψ) = tan (α - ψ) / cos γ$		(4)
	$\Rightarrow α^{'} = ψ + arctan (tan (α - ψ) / cos γ),$		(5)

where $ψ = arctan (v / u)$ . Thus, the re-projected line after rotation is found.

After the vertex is rotated onto the principal point, the configuration ambiguity has to be tackled. It can be observed from Fig. 1 that the imaginary boxes are not constructed following the same rule. Whenever a TROVE feature is detected, one obtains three rays and their intersections in the image. How the box can be constructed from the detected rays is not unique. Suppose a TROVE feature is detected as shown in Fig. 3(a) that the sum of the three included angles $θ, φ and ψ$ is $2 π$ . This type of feature is referred as the standard type. From a standard type of the feature in Fig. 3(a), the two and only two feasible imaginary boxes that can be interpreted are those in Fig. 3(b) and Fig. 3(c), so that 1) their edges are collinear with the rays; 2) their edges are either all on or all not on the rays; 3) the three faces formed by the three edges are visible. If $θ + φ + ψ < 2 π$ as shown in Fig. 3(d), that TROVE feature belongs to a different type. In such a case, among the three faces that are formed by the three edges, one must be occluded as shown in Fig. 3(e). In this case, the ray that is not the side of the largest angle should be flipped so that the feature is transformed into a standard type. It is noteworthy that the two included angles of the new imaginary box with the flipped ray as their side will be the supplementary angles of the corresponding original ones. One feasible interpretation after the flipping is illustrated in Fig. 3(f). In the following discussion, all features are the standard type.

The objective frame is also uniquely defined for each imaginary box. The object frame is a right-hand Cartesian coordinate system with the origin at the box’s vertex which is the intersection of the three visible faces. As shown in Fig. 3, the y-axis is defined to be collinear with the vertical edge of the box. The x-axis is defined to be collinear with a horizontal edge of the box. The box is then in the positive y-direction and positive z-direction of the object frame. Note that the included angle by the two horizontal edges can be either acute, right or obtuse. Therefore, the z-axis is not necessarily aligned with any edge of the box. Furthermore, the box is imaginary that its edges do not necessarily overlap with any physical edges.

Ii-A3 Properties

The three rays of a TROVE feature have three included angles. Recall that the corresponding included angles in 3D space are either right between vertical and horizontal edges or a known angle between two horizontal edges, which is smaller than $π$ as a property of a hexahedron. Denote the angle between two horizontal edges as $β$ and the corresponding projected angle in the image as $θ$ . Denote the projection of two angels in the image, each made by one vertical and one horizontal edge, as $φ$ and $ψ$ respectively. In this paper, the direction of an edge means the direction that points from the vertex to the other end.

The properties can be summarized as: 1) $β > θ$ in all cases; 2) if $β \in (0, π / 2)$ , $θ \in (0, π)$ and $φ, ψ \in (π / 2, π)$ ; 3) if $β = π / 2$ , $β, φ, ψ \in (π / 2, π)$ ; 4) if $β \in (π / 2, π)$ , $θ \in (π / 2, π)$ and $φ, ψ \in (0, π)$ with at most one belongs to $(0, π / 2)$ . These properties are the premises of the uniqueness of the analytic solution in the following section. They can also be utilized to screen out incorrect detections, identify horizontal or vertical edges and estimate the orientation and relative height of the observed structure. The proof is given in the following paragraphs.

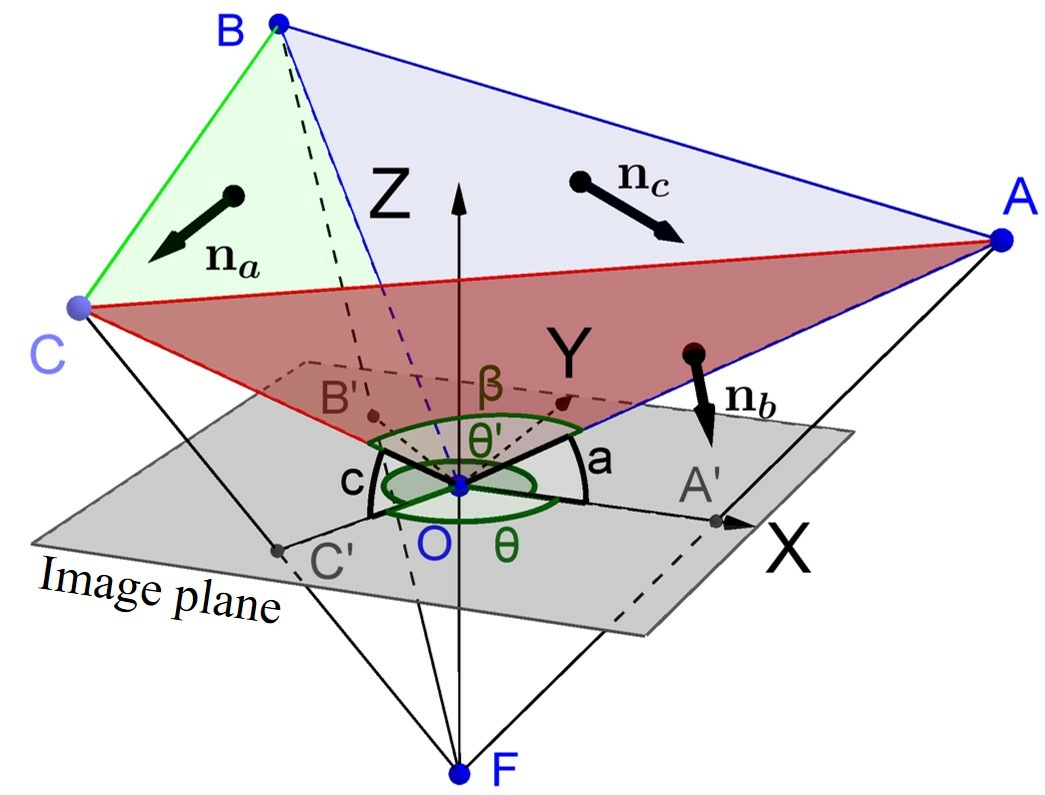

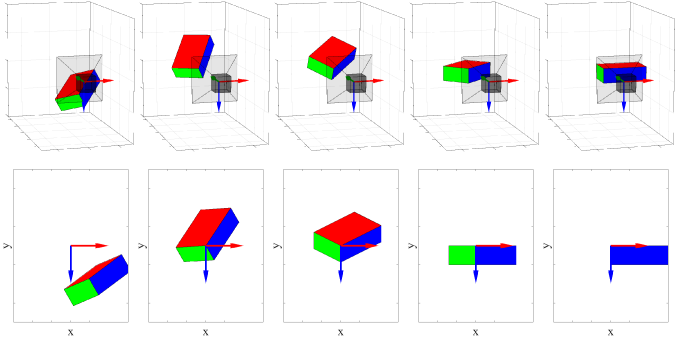

Fig. 4: A structure is projected onto the image plane as a TROVE feature.

Definitions, notations and basic properties of the model are given before the proof of the properties. Since the projected vertex is at the principal point, the vertex of a TROVE structure can be translated onto the principal point for convenience without changing the projected angle. An illustration of a translated TROVE structure and its projection is shown in Fig. 4, where three unit segments $O A$ , $O B$ and $O C$ belong to the three edges of the TROVE structure. They are projected as $O A^{'}$ , $O B^{'}$ and $O C^{'}$ , respectively. In the earth frame, $O A$ and $O C$ are horizontal while $O B$ is vertical. $- - \to O A, - - \to O B$ follows the positive x- and y-direction of the object frame and subsequently $- - \to O B$ follows the cross product $- - \to O C \times - - \to O A$ . Without loss of generality, the TROVE structure is rotated around the z-axis so that $O A^{'}$ is on the positive x-axis. $F$ is the focal point at the origin of the camera frame, while $O$ is at $(0, 0, f)$ . Denote $∠ A O A^{'}$ as $a \in (- π / 2, π / 2)$ and $∠ C O C^{'}$ as $c \in (- π / 2, π / 2)$ . Positive signs of $a, c$ mean that $- - \to O A, - - \to O C$ point to the positive direction of z-axis. Note that the projection of an edge has to be observable, therefore $| a | \neq π / 2, | c | \neq π / 2$ . Denote the angle between $O C^{'}$ and the positive x-axis in a counterclockwise direction as $θ^{'} \in (0, 2 π)$ , the angle between $O C^{'}$ and $O B^{'}$ as $φ$ , the angle between $O A^{'}$ and $O B^{'}$ as $ψ$ . $φ$ and $ψ$ are projected from the angles between the horizontal edges and the vertical edge of the TROVE structure. For clarity, $φ$ and $ψ$ are not annotated in the figure.

The position of $A$ in the camera frame can be found as $^{{C}} P_{A} = (cos a, 0, sin a + f)^{T}$ and $C$ in the camera frame as $^{{C}} P_{C} = (cos c cos θ^{'}, cos c sin θ^{'}, sin c + f)^{T}$ . The projected point $A^{'}$ and $C^{'}$ can be expressed in a homogeneous form in the image frame as $^{{I}} {˜ P}_{A^{'}} = K^{{C}} P_{A}$ and $^{{I}} {˜ P}_{C^{'}} = K^{{C}} P_{C}$ . The vectors in the camera frame pointing to the same direction as $- - \to O A, - - \to O B$ and $- - \to O C$ are denoted as $a$ , $b$ and $c$ , respectively. The corresponding projected vectors in the image frame $- - \to O A^{'}$ , $- - \to O B^{'}$ and $- - \to O C^{'}$ are denoted as $a^{'}$ , $b^{'}$ and $c^{'}$ , respectively. Since vector magnitude does not change the concerned included angles, these vectors can be chosen as unit vectors following the original direction as:

$a =$	$(cos a, 0, sin a),$	(6)
$b =$	$(sin a cos c sin θ^{'}, cos a sin c -$
	$sin a cos c cos θ^{'}, - cos a cos c sin θ^{'}),$	(7)
$c =$	$(cos c cos θ^{'}, cos c sin θ^{'}, sin c),$	(8)
$a^{'} =$	$(1, 0),$	(9)
$b^{'} =$	$(sin a cos c cos θ^{'}, cos a sin c - sin a cos c cos θ^{'}),$	(10)
$c^{'} =$	$(cos θ^{'}, sin θ^{'}) .$	(11)

By dot product, it can be calculated that:

cos β = cos a cos c cos θ^{'} + sin a sin c .

(12)

It is noteworthy that $θ + θ^{'} = 2 π$ and $cos θ^{'} = cos θ$ . By cross product of $c \times b, a \times c and b \times a$ , three vectors are obtained, which are denoted as $n_{a}, n_{b} and n_{c}$ respectively. These three vectors are normal to the three faces of the imaginary box and pointing away from the box as shown in the figure. Denote the $i^{th}$ element of a vector $v$ as $v_{i}$ . Note that all faces are visible and cross the principal point. Hence, their normal vectors’ z-components are negative:

$n_{a 3} < 0$	$\Rightarrow cos a sin c cos θ^{'} < sin a cos c,$	(13)
$n_{b 3} < 0$	$\Rightarrow cos a cos c sin θ^{'} < 0,$	(14)
$n_{c 3} < 0$	$\Rightarrow sin a cos c cos θ^{'} < cos a sin c .$	(15)

Since $b_{3} = - n_{b 3} > 0$ , the vertical edge can never point to the focal point. From (14), one can easily obtain $θ < π$ .

As the premise for further derivations, the authors first prove that $θ > β$ in all cases.

Study the case of $a c \geq 0$ . If $a_{3} < 0, c_{3} < 0$ , namely $sin a < 0, sin c < 0$ . By multiplying the two sides of (13) and (15) one has ${cos}^{2} θ^{'} > 1$ , which is a contradiction. Therefore, $a, c$ cannot both be negative, i.e. $- - \to O A, - - \to O C$ cannot both point towards the focal point. One must have $a, c \in [0, π / 2)$ . Assume $cos β \leq cos θ^{'}$ , namely $β > θ$ . Without loss of generality, suppose $c \geq a$ . By the assumption, one has:

sin a sin c \leq (1 - cos a cos c) cos θ^{'} .

(16)

When $a = 0$ , substituting $a$ into (16) and (13) yields a contradiction. Thus, $a, c \neq 0$ . Substituting (15) into (16) gives:

	$sin a sin c < (1 - cos a cos c) \frac{cos a sin c}{sin a cos c}$		(17)
	$⟹ cos a < cos c,$		(18)

which contradicts $c \geq a$ in the range of $(0, π / 2)$ . Therefore, the assumption must be false and $β < θ$ when $a c \geq 0$ .

Study the case of $a c < 0$ . In this case one and only one angle can be negative. Without loss of generality, suppose $c \in (- π / 2, 0), a \in (0, π / 2)$ . Substituting $cos β$ by (12), $cos β - cos θ^{'}$ can be rewritten as:

(cos a cos c - 1) cos θ^{'} + sin a sin c .

(19)

Since $sin c < 0$ , (13) and (15) can be transformed into:

	$\frac{sin a cos c}{cos a sin c} < cos θ^{'} < \frac{cos a sin c}{sin a cos c} < 0$		(20)
	$⟹ {cos}^{2} a {sin}^{2} c < {cos}^{2} c {sin}^{2} a .$		(21)

Note $cos a cos c - 1 < 0$ . Substituting (20) into (19) yields:

cos β - cos θ^{'} = \frac{sin a (cos a - cos c)}{cos a sin c} .

(22)

By (21), one knows that $cos a < cos c$ . Further note $sin c < 0$ . (22) must be greater than 0. Thus, $β < θ$ .

With the previous efforts, the properties of the feature with respect to the properties of the observed structure can also be derived. The properties are discussed regarding the range of $β$ in three cases.
Case 1: $β \in (0, π / 2)$

First, $a_{3} > 0, c_{3} > 0$ is proved. Assume $a_{3} c_{3} \leq 0$ , namely $sin a sin c \leq 0$ . Note that from (12) $cos β > 0 \Rightarrow cos θ^{'} > 0$ when $a c < 0$ . $n_{a 3} n_{c 3}$ gives:

$n_{a 3} n_{c 3} =$	$(cos a sin c cos θ^{'} - sin a cos c cos c) \times$
	$(sin a cos a cos c cos θ^{'} - {cos}^{2} a sin c)$	(23)
$=$	$cos a [sin a cos a sin c cos c ({cos}^{2} θ^{'} + 1)$
	$- ({sin}^{2} a {cos}^{2} c + {cos}^{2} a {sin}^{2} c) cos θ^{'}] .$	(24)

Note it is always true that $cos a > 0, cos c > 0$ . Obviously, the expression in (24) is less than 0, which contradicts the fact that $n_{a 3}, n_{c 3} > 0$ . Therefore, the assumption $a_{3} c_{3} \leq 0$ must be false. Since it was previously pointed out that $a, c$ cannot both be negative angles, $a_{3}, b_{3}, c_{3} > 0$ .

Second, for any two orthogonal vectors $p, q$ starting from the origin $O$ in 3D space, if $p_{3} q_{3} > 0$ their projected included angle must belong to $(π / 2, π)$ (the proof is omitted for brevity). Since $θ > β$ , it can be concluded that $θ \in (0, π) > β$ and $φ, ψ \in (π / 2, π)$ .
Case 2: $β = π / 2$

Similar to Case 1, it can be proved that $a_{3}, b_{3}, c_{3} > 0$ . All the projected angles included by the mutually orthogonal edges must $\in (π / 2, π)$ .
Case 3: $β \in (π / 2, π)$

Study the case where $a c \geq 0$ . For any two orthogonal vectors $p, q$ starting from the origin $O$ in 3D space, if $p_{3} q_{3} = 0$ their projected included angle must be $π / 2$ (the proof is omitted for brevity). Hence, one of $φ$ and $ψ$ will be a right angle. If $a c < 0$ , it is obvious that $cos θ^{'} < 0$ from (24) $> 0$ . If $p_{3} q_{3} < 0$ their projected included angle must belong to $(0, π / 2)$ (the proof is omitted for brevity). Hence, one and only one of $φ$ and $ψ$ will be an acute angle. In summary, one of the following statements will be true: 1) $θ > β > π / 2$ and $φ, ψ \in [π / 2, π)$ with at most one of $φ$ and $ψ$ equals to $π / 2$ ; 2) $θ > β > π / 2$ and one of $φ$ and $ψ$ belongs to $(0, π / 2)$ with the other belonging to $(π / 2, π)$ .

Ii-B Edge Detection

Three adjacent faces of a cuboid are colored in red, green and blue, respectively referred to as the top, left and right faces. Multi-thresholding is applied for color segmentation, concept of which was introduced in [23]. The standards of labeling a pixel are chromaticity, the proportion of each RGB value, and intensity, the absolute value of each primary color. The pixels at the edges are often labeled as none of the target colors, where one color transits to another. An example of recognized patches and the x-axis, y-axis, z-axis of the object frame are shown in Fig. 5.

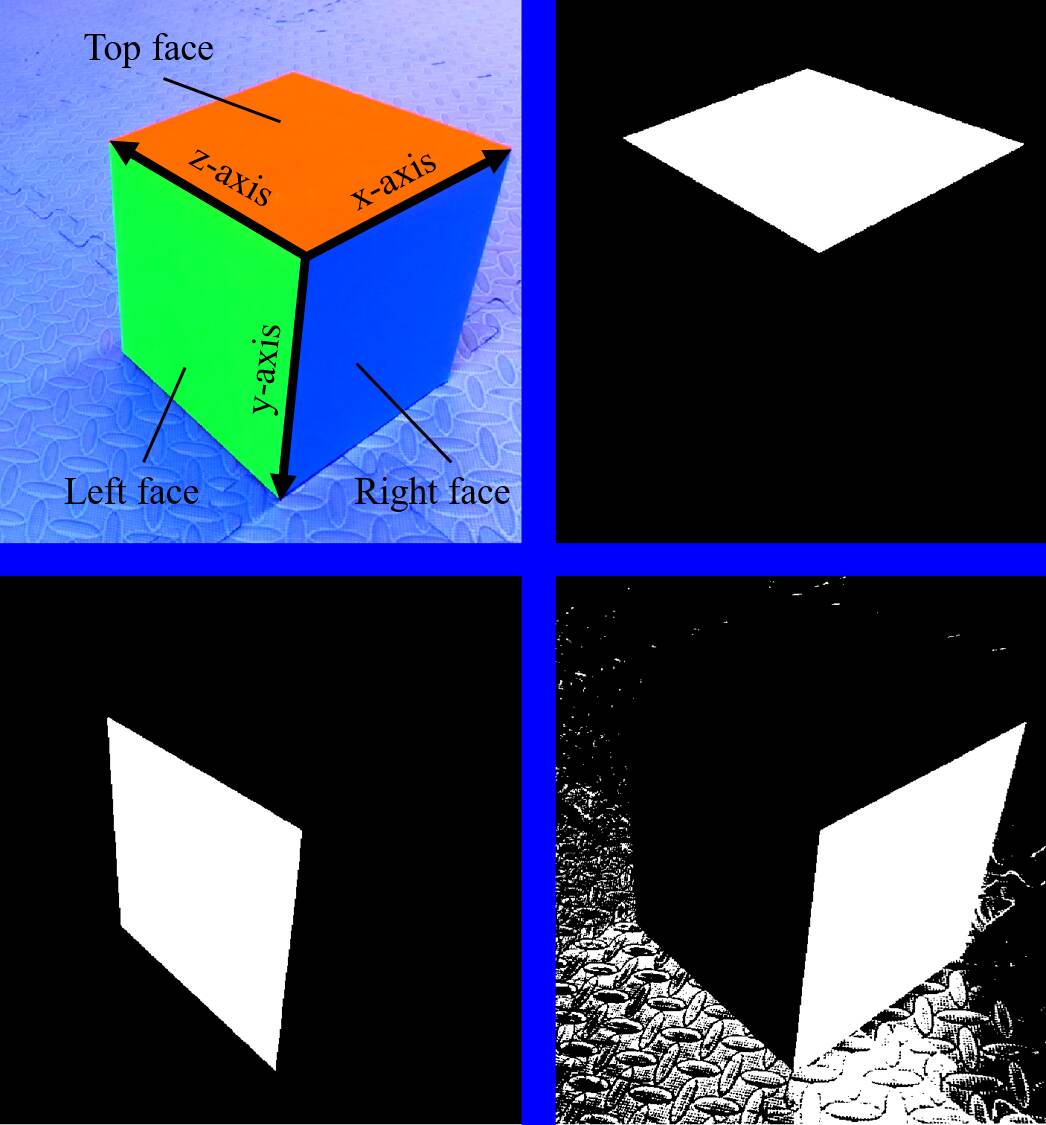

Fig. 5: Top left: the original image with notation of each face and axis of the object frame; top right: pixels labeled red; bottom left: pixels labeled green; bottom right: pixels labeled blue.

The edges are found at the pixels that neighbor more than one type of color pixels. One can find the edge by examining every pixel whether it has neighbors of two types of color pixels. Direct implementation of this logic turns out to be computationally intensive since one needs to navigate through all the pixels and examine all their neighbors. Specifically with a search area of a $3 \times 3$ window, to determine if a pixel belongs to one of the three edges all its 8 neighboring pixels have to be examined. For a $1920 \times 1080$ image, it requires about 50 million operations, let alone a $4 \times 4$ search window. Even for a $1280 \times 720$ image, it still requires about 22 million operations, which is demanding for a processing unit especially on payload-limited robots such as UAVs. The process can be optimized by shifting color patches [24]. As shown in Fig. 6, the patches are shifted towards the gap. Then the candidate points for the edge detection are found in the overlapping area.

Fig. 6: Shifted color patches to find edges [24]

However, there exists a contradiction that one needs to know the direction of a gap before the gap is even found. To solve this dilemma, one can make use of priori estimates of attitudes, either from itself or other sensors. If the camera frame’s upward direction also points upward in the Earth frame, the top face of the cuboid is on the upper side compared with the other two faces. To detect the projection of the y-axis edge, the top face is shifted downward and leftward. Overlapping area of those two shifted patches are the cluster of the candidate pixels. Similar methods apply to detect the other two edges and also the case where the camera is upside down.

Different from [24], this propose method is not realized by copying and writing pixel values into a new position but optimized by examining the pixel at the position where it is supposed to be shifted from. Pseudo code of this process, taking the case when the camera is not upside down, is illustrated in Alg. 1. It is noteworthy that the algorithm takes unrectified images and only rectifies the coordinates of the recognized edge pixels. Specifically for a pixel $A$ , if it belongs to none of the target faces or the top face the program skips to the next pixel. If $A$ belongs to the right face, one examines the pixel $B$ to the left of the current $A$ whose distance to $A$ is defined by a search width $W$ . If $B$ belongs to the left face, the middle pixel $C$ between $A$ and $B$ belongs to the y-axis. The coordinate of $C$ is rectified according to stereo parameters and then stored for line detection. Then the program continues to the next pixel. Similar methods apply to the other edges. Note that at most three operations are performed for each pixel and the overall number of operations for a $1920 \times 1080$ image has been reduced from 50 million to less than 3 million on average. Having the candidate coordinates for each edge, the authors use the Random Sample Consensus (RANSAC) method [25]

to find a line from a cluster of points. In image processing, the method of Hough Transform is also commonly adopted to detect lines through points. But this is an exhaustive method that calculates all possible lines through every point. In this scenario RANSAC is far more efficient, especially under the condition that there exist many outliers. In the experiment, RANSAC is more than 40 times faster than the Hough Transform method.

Data: Unrectified images of an observed object

Result: TROVE feature lines in the image

1 Read an image matrix

M_{I}

from the camera;

/* Label each pixel as top, left, right or none of the target surfaces. */

2 Create a label matrix

M_{L}

;

3 for All pixels $p_{i, j}$ in $M_{I}$ do

M_{L} (i, j)

= colorSegmentation(

p_{i, j}

);

/* Identify edge pixels. */

5 Define a search width

W

;

6 for All entries $l_{i, j}$ in $M_{L}$ do

7 switch the label of $l_{i, j}$ do

8 case none of the target faces do

9 Go to the next entry;

10 case top face do

11 Go to the next entry;

12 case right face do

13 if $l_{i, j - W}$ is the left face then

14 Rectify coordinate

(i, j - W / 2)

;

15 Add the coordinate to

z A x i s C o o r

;

16 else if $l_{i - W, j - W}$ is the top face then

17 Rectify coordinate

(i - W / 2, j - W / 2)

;

18 Add the coordinate to

x A x i s C o o r

;

20 case left face do

21 if $l_{i - W, j + W}$ is the top face then

22 Rectify coordinate

(i - W / 2, j + W / 2)

;

23 Add the coordinate to

y A x i s C o o r

;

/* Detect lines by RANSAC. */

27 (

x A x i s

y A x i s

z A x i s

) = RANSAC(

x A x i s C o o r

y A x i s C o o r

z A x i s C o o r

);

Algorithm 1 TROVE feature line detection

Ii-C Vertex Detection

The location of the vertex where three edges intersect should also be estimated. The necessity of vertex location information will be discussed in the following section. In practice, the three detected edges never intersect at exact one point, and thus an estimate is necessary. A line in 2D space passing through $(x, y)$ can be represented by $ρ = x cos θ + y sin θ$ , where $ρ$ is the signed normal distance from the origin to the line; $θ$ is the angle between the normal of the line and the positive $x$ -axis in a range of $[- π / 2, π / 2)$ .

In this paper, the vertex is found at the position where the sum of its squared distance to the three edges is minimized. Denote the position of a vertex as $V = [x_{o}, y_{o}]^{⊺}$ . Let a line $i$ in the Hough Space be $(ρ_{i}, θ_{i})$ . The signed distance $e_{i}$ from this line to the vertex can be represented by:

e_{i} = ρ_{i} - (x_{o} cos θ_{i} + y_{o} sin θ_{i}) .

(25)

Let $i = 1, 2, 3$ denote the projection of the three edges of a TROVE structure, respectively. Denote:

ρ = ⎡ ⎢ ⎣ \begin{matrix} [c] ρ_{1} ρ_{2} ρ_{3} \end{matrix} ⎤ ⎥ ⎦, R = ⎡ ⎢ ⎣ \begin{matrix} [c] cos θ_{1} & sin θ_{1} cos θ_{2} & sin θ_{2} cos θ_{3} & sin θ_{3} \end{matrix} ⎤ ⎥ ⎦, E = ⎡ ⎢ ⎣ \begin{matrix} [c] e_{1} e_{2} e_{3} \end{matrix} ⎤ ⎥ ⎦, V = [\begin{matrix} [c] x_{o} y_{o} \end{matrix}] .

(26)

Their distance to the vertex can be represented in a simple matrix form: $E = ρ - R V$ . The estimated position $ˆ V$ is found by:

ˆ V = arg min E^{⊺} E ⟹ ˆ V = (R R^{⊺})^{-1} R^{⊺} ρ .

(27)

Subsequently the sum of squared errors can also be obtained, which is utilized to screen out invalid vertices.

Iii Pose Estimation

The previous section has discussed the properties of a TROVE feature associated with their counterpart: a TROVE structure in 3D space and the detection methods for the projected edges and the vertex. Knowing the edges and vertex, one can estimate the attitudes and positions of the camera in the object frame. The initial orientation is defined that the x-axis and y-axis of the camera frame are aligned with those of the object frame. The attitude is defined as the rotation from the initial orientation to the current one in the object frame. By comparing the vertex in two stereo images and integrating the attitude estimate, the position of the camera can be recovered.

When a line is projected onto an image, the line must be on the plane that passes through the focal point and the projected line. Once a TROVE feature is detected, three planes that the corresponding three rays lie on are also determined. For simplicity, the three edges of the imaginary box are denoted as x-, y- and z-edge. The x- and y-edge align with the x- and y-axis of the object frame, respectively while the z-edge is not necessarily aligned with the z-axis. Denote the plane where the x-edge lies as the x-plane, that where the y-edge lies as the y-plane and that where the z-edge lies as the z-plane.

Three possible cases exist: all edges of the imaginary box point away from the focal point; only one edge of the imaginary box is perpendicular to optical axis; only one edge of the imaginary box points towards the focal point. One of such configurations is depicted in Fig. 7. The vertical edge of the imaginary box intersects the optical axis with an angle $α$ . The orientation of the imaginary box can be recovered by finding the angle $α$ . The following contents discuss the approaches to find $α$ in the three configurations.

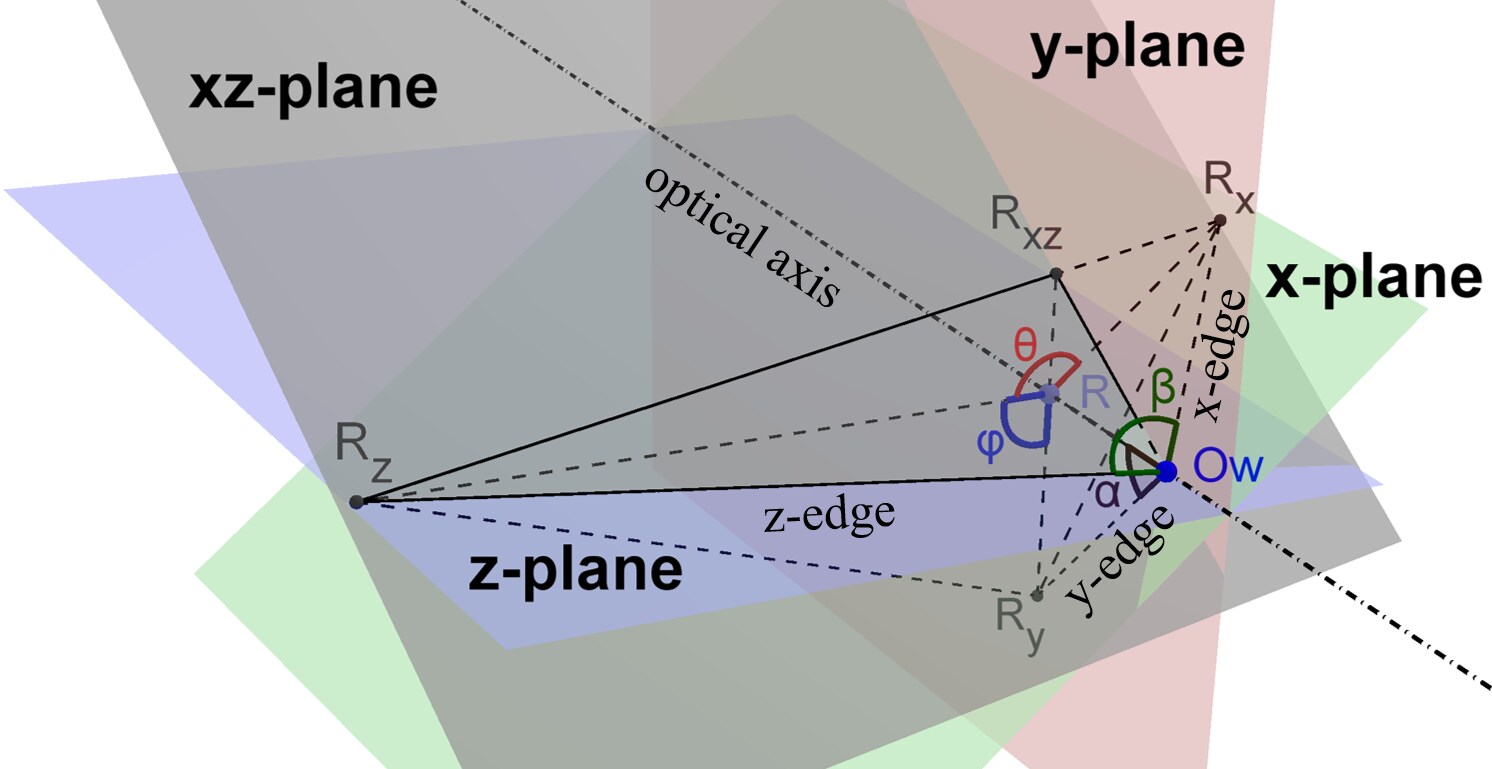

Fig. 7: The Trove structure in space when all edges point away from the focal point

Iii-a All Edges Point Away from Focal Point

When all edges point away from the focal point, $a c > 0$ . An illustration of this case is shown in Fig. 7. Let the green plane be the x-plane, the red plane be the y-plane and the blue plane be the z-plane. The long dashed line is the optical axis of the camera. Those three planes are determined by the focal point and the projections of the respective edges. Since the projection of the vertex is on the principal point, the x-, y- and z-plane have a mutual intersection which is the optical axis. The vertex of the object must also be on the optical axis. Denote the vertex of the imaginary parallelepiped in the object frame as $O_{w}$ . Suppose $O_{w} R_{y}$ is on the y-edge of the imaginary parallelepiped, where $R_{y}$ is on the y-plane. Construct xz-plane that passes through $O_{w}$ and are perpendicular to $O_{w} R_{y}$ . $O_{w} R_{y}$ has an angle of $α$ with the optical axis.

As being pointed out in the previous section that the vertical edge must point away from the focal point, $α$ is constrained in the range of $(0, π / 2)$ . Construct a perpendicular line to the optical axis from $R_{y}$ intersecting the optical axis at $R$ . The xz-plane would intersect the x- and y-plane respectively at two lines: $O_{w} R_{x}$ and $O_{w} R_{z}$ . $R_{x}$ and $R_{z}$ are chosen so that $R_{x} R$ and $R_{z} R$ are perpendicular to the optical axis, hence $R, R_{x}, R_{y}$ and $R_{z}$ are coplanar. Denote the angle $∠ R_{y} R R_{z}$ as $φ$ and $∠ R_{z} R R_{x}$ as $θ$ .

Since the x- and z-edge are perpendicular to the y-edge, they must be on the xz-plane. Further, the x-edge must be on the intersection line of x-plane and xz-plane. Therefore, $O_{w} R_{x}$ must be collinear with the x-edge. Similarly, $O_{w} R_{z}$ must be collinear with the z-edge. In such a case, $∠ R_{x} O_{w} R_{z}$ should equal to the known angle $β$ between the two horizontal edges of the object. Now the problem becomes straightforward that to find an $α$ given $∠ R_{x} O_{w} R_{z} = β$ .

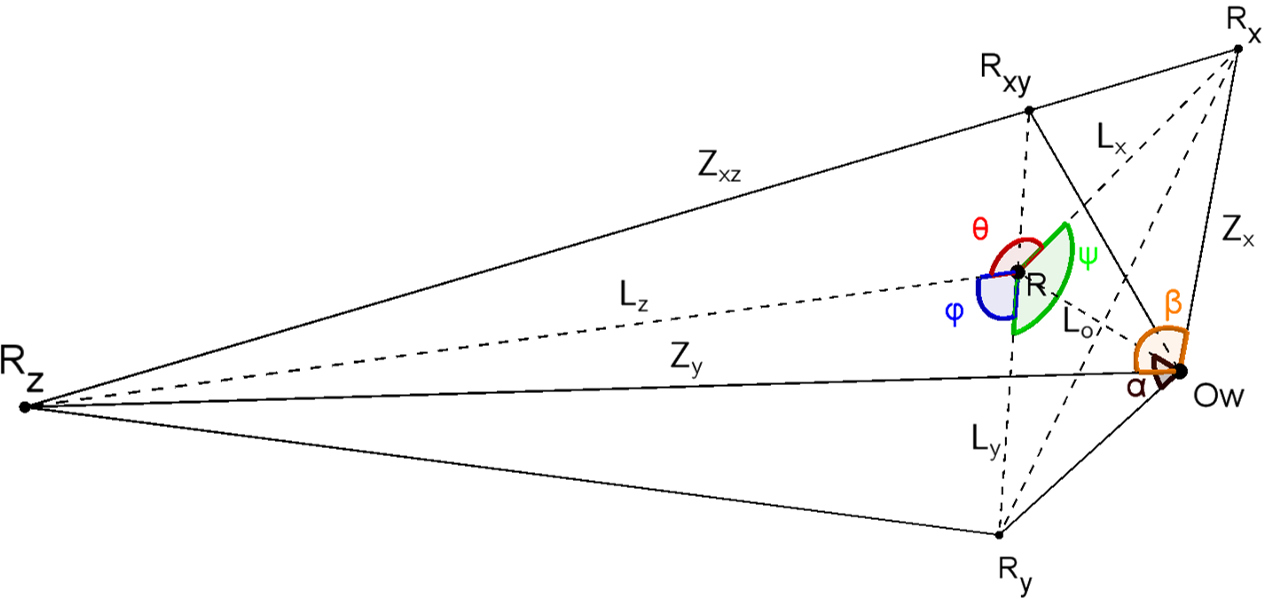

Fig. 8: A closer inspection near the vertex

A closer inspection of the space near $R$ is illustrated in Fig. 8. Note that $R_{x} R$ , $R_{y} R$ and $R_{z} R$ are perpendicular to $O_{w} R$ . The angles of $φ$ is the included angles between y-plane and z-plane, and the angle of $θ$ is the included angles between x-plane and z-plane. Since x-, y- and z-plane all intersect at the optical axis, $φ$ is actually the included angle between projected y-edge and z-edge in the image while $θ$ is the included angle between projected x-edge and z-edge. Since the slope of edge projections has been obtained from edge detection, $θ, φ$ and $ψ$ are known.

As denoted in Fig. 8, let $| R_{x} O_{w} |$ be $Z_{x}$ , $| R_{y} O_{w} |$ be $Z_{y}$ , $| R_{x} R_{y} |$ be $Z_{x y}$ , $| R_{x} R |$ be $L_{x}$ , $| R_{y} R |$ be $L_{y}$ , $| R_{z} R |$ be $L_{z}$ and $| O_{w} R |$ be $L_{o}$ . Since plane $R_{x} R_{z} O_{w}$ is perpendicular to $R_{y} O_{w}$ , one has:

| R_{x} R_{y} |^{2} = Z_{x}^{2} + | R_{y} O_{w} |^{2}, | R_{z} R_{y} |^{2} = Z_{z}^{2} + | R_{y} O_{w} |^{2} .

(28)

Note that plane $R_{x} R_{z} R_{y}$ is perpendicular to $R O_{w}$ , one has:

	$\| R_{y} O_{w} \| = L_{o} / cos α,$	$\| R_{y} R \| = L_{o} tan α,$		(29)
	$Z_{x}^{2} = L_{o}^{2} + L_{x}^{2},$	$Z_{z}^{2} = L_{o}^{2} + L_{z}^{2} .$		(30)

Applying the law of cosines for triangles to $△ R_{x} R_{y} R$ , $△ R_{z} R_{y} R$ , $△ R_{x} R_{z} O_{w}$ and $△ R_{x} R_{z} R$ gives:

$\| R_{x} R_{y} \|^{2}$	$= L_{x}^{2} + L_{y}^{2} - 2 L_{x} L_{y} cos ψ,$	(31)
$\| R_{z} R_{y} \|^{2}$	$= L_{z}^{2} + L_{y}^{2} - 2 L_{z} L_{y} cos φ,$	(32)
$Z_{x z}^{2}$	$= Z_{x}^{2} + Z_{z}^{2} - 2 Z_{x} Z_{z} cos β,$	(33)
$Z_{x z}^{2}$	$= L_{x}^{2} + L_{z}^{2} - 2 L_{x} L_{z} cos θ .$	(34)

By substituting (28), (29), and (30) into (31) and (32), it can be obtained that:

	$L_{o}^{2} + (\frac{L_{o}}{cos α})^{2} =$	$L_{o}^{2} {tan}^{2} α - 2 L_{x} L_{o} tan α cos ψ,$		(35)
	$L_{o}^{2} + (\frac{L_{o}}{cos α})^{2} =$	$L_{o}^{2} {tan}^{2} α - 2 L_{z} L_{o} tan α cos φ .$		(36)

Combining (33), (34), (35) and (36), one can derive:

(37)

By denoting $tan α$ as $x$ , $cos β$ as $n$ , $cos θ$ as $m$ , $cos φ$ as $p$ and $cos ψ$ as $q$ , (37) can be rewritten as:

\frac{m^{2} - n^{2}}{p^{2} q^{2}} \frac{1}{x^{4}} + (\frac{2 m}{p q} - \frac{n^{2}}{p^{2}} - \frac{n^{2}}{q^{2}}) \frac{1}{x^{2}} + 1 - n^{2} = 0,

(38)

the solution of which must satisfy:

n (1 + \frac{m}{x^{2} p q}) > 0 or n = 1 + \frac{m}{x^{2} p q} = 0.

(39)

Denote $(n^{2} p^{2} + n^{2} q^{2} - 2 m p q)^{2} - 4 (m^{2} - n^{2}) (1 - n^{2}) p^{2} q^{2}$ as $Δ$ . Solving (38) gives:

\frac{1}{x^{2}} = \frac{(n^{2} p^{2} + n^{2} q^{2} - 2 m p q) \pm \sqrt{Δ}}{2 (m^{2} - n^{2})} .

(40)

Note that $x = tan α, α \in (0, π / 2)$ . The solution uniqueness of $1 / x^{2}$ indicates that of $α$ .

It is obvious that the existence of a solution is guaranteed in that the image is from the projection of an existing instance. As having been proved in Section II-A3, $n = cos β > cos θ = m, p q > 0$ in this case. Since $1 / x^{2}$ is always greater than 0, only one feasible solution is available when $m^{2} - n^{2} < 0$ (so that only one solution is greater than zero). When $m^{2} - n^{2} >= 0$ , both solutions are positive and $m < 0$ . Criteria (39) is then used to examine the feasibility of the solution. Denote the two solutions as $1 / x_{1}^{2}$ and $1 / x_{2}^{2}$ . Study the product:

	$(1 + \frac{m}{x_{1}^{2} p q}) (1 + \frac{m}{x_{2}^{2} p q})$
$=$	$\frac{1}{x_{1}^{2}} \frac{1}{x_{2}^{2}} \frac{m^{2}}{p^{2} q^{2}} + \frac{m}{p q} (\frac{1}{x_{1}^{2}} + \frac{1}{x_{2}^{2}}) + 1$
$=$	$\frac{- m^{2} n^{2} - n^{2} + m n^{2} (p^{2} + q^{2}) / p q}{(m^{2} - n^{2})} .$	(41)

When $n = 0$ , $Δ = 0$ and only one solution is available. When $n \neq 0$ and $m^{2} - n^{2} >= 0$ , $m$ must be negative. Thus, product (41) must be smaller than zero and only one solution satisfies (39). Therefore, only one feasible solution is available in the case where $m^{2} - n^{2} >= 0$ .

$β$ is known as priori knowledge and $θ, φ$ are found by edge detection. In summary, $α$ is uniquely determined in a closed form as:

α = ⎧ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎩ \begin{matrix} arctan (\sqrt{\frac{2 (m^{2} - n^{2})}{(n^{2} p^{2} + n^{2} q^{2} - 2 m p q) - \sqrt{Δ}}}), & for n > 0 arctan (\sqrt{\frac{- m}{p q}}), & for n = 0 arctan (\sqrt{\frac{2 (m^{2} - n^{2})}{(n^{2} p^{2} + n^{2} q^{2} - 2 m p q) + \sqrt{Δ}}}), & for n < 0. \end{matrix}

(42)

Iii-B One Edge Perpendicular to Optical Axis

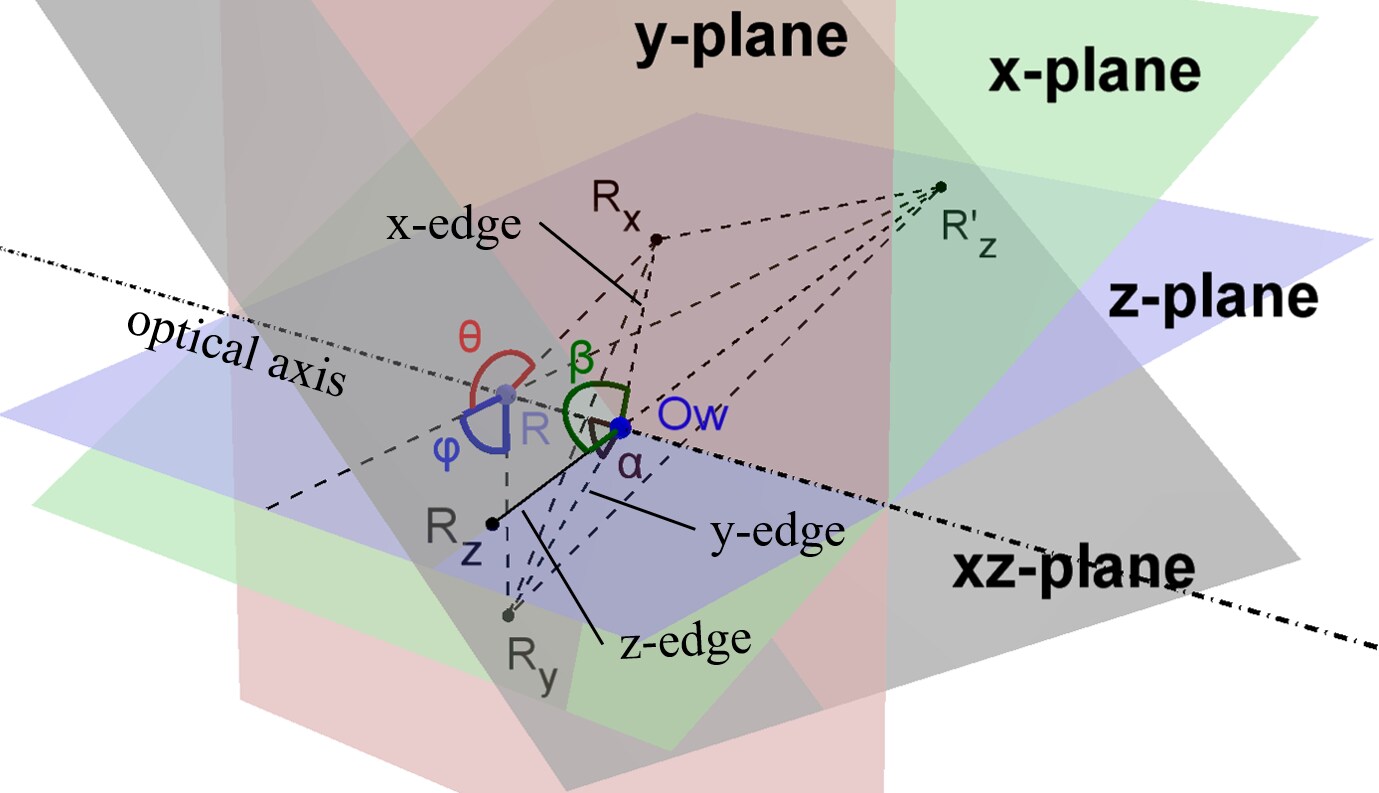

Fig. 9: The Trove structure in space with one edge perpendicular to optical axis

Without loss of generality, suppose z-edge is perpendicular to the optical axis. An illustration of this case is shown in Fig. 9. As having been mentioned in the earlier Section II-A3, the only possible range for $β$ in this case is $(π / 2, π)$ and $φ$ must be $π / 2$ . The problem becomes much simpler with a straightforward unique solution:

α = arccos (tan θ / tan β),

(43)

which is true for either the x-edge or z-edge is perpendicular to the optical axis. Because $n$ is always negative in this case, (43) gives the same result as (42).

Iii-C One Edge Points to Focal Point

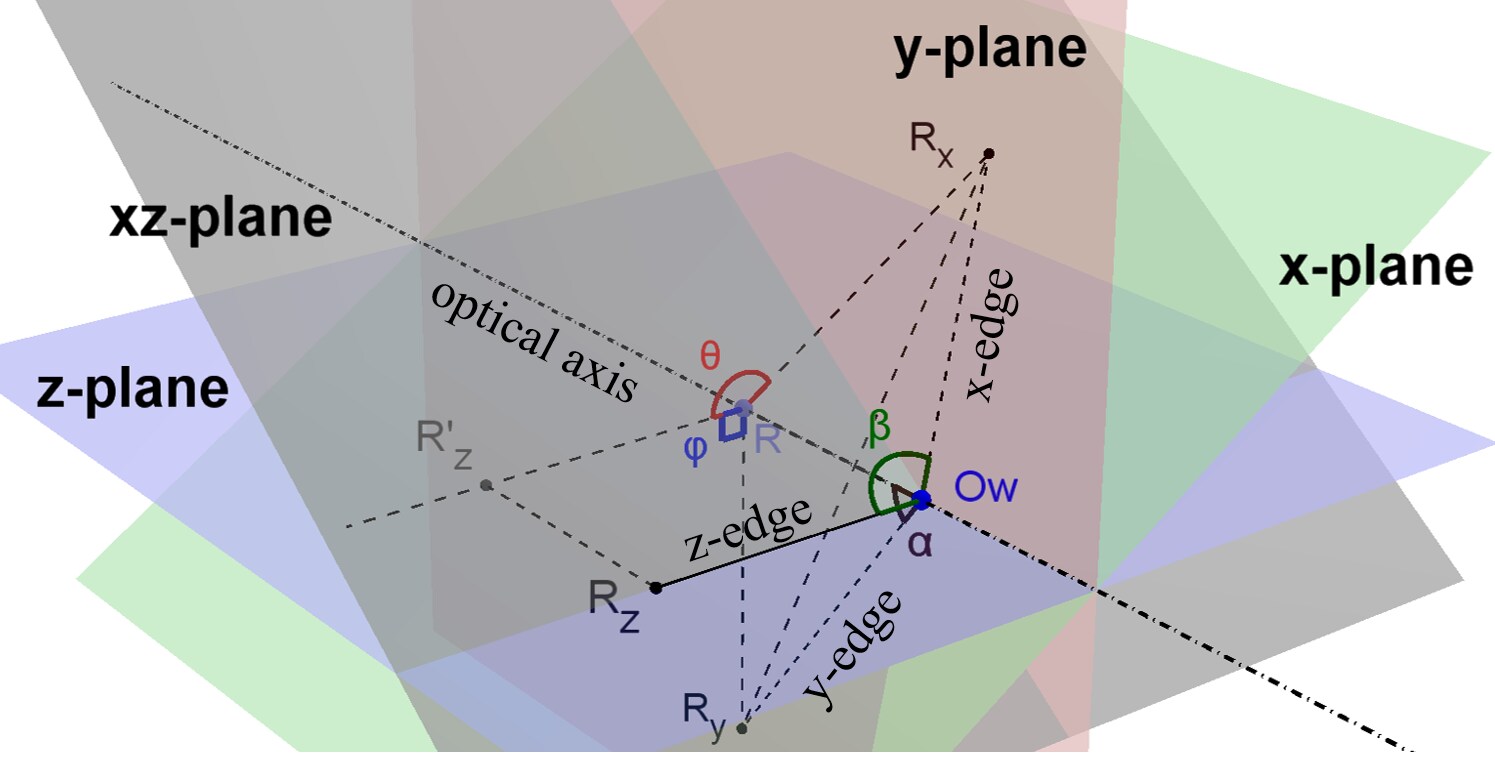

Fig. 10: The Trove structure in space when one edge points to the focal point

As having been mentioned in the earlier Section II-A3, the only possible range for $β$ in this case is $(π / 2, π)$ . It has properties that $β > θ$ and $p q < 0$ . Without loss of generality, suppose the z-edge $O_{w} R_{z}$ points towards the focal point. An illustration of this configuration is shown in Fig. 10. $O_{w} R_{z}$ is extended in the opposite direction to $R_{z}^{'}$ so that $R_{z}^{'} R ⊥ R O_{w}$ . All the other notations share the same definition as Section III-A. Following a similar method, one can obtain:

cos β = - \frac{1 + \frac{cos θ}{{tan}^{2} α cos φ cos ψ}}{\sqrt{(1 + \frac{1}{{tan}^{2} α {cos}^{2} φ}) (1 + \frac{1}{{tan}^{2} α {cos}^{2} ψ})}},

(44)

the solution of which must satisfy:

1 + \frac{m}{x^{2} p q} > 0.

(45)

This inequality is easily satisfied since $m < 0, p q < 0$ . Note that the only difference from (44) to (37) is a minus sign. In solving $α$ , the equation is exactly the same as (40). Since $n^{2}$ is always smaller than $m^{2}$ when $n < 0$ , $α$ will have two feasible solutions in a closed form as:

α_{1, 2} = arctan (\sqrt{\frac{2 (m^{2} - n^{2})}{(n^{2} p^{2} + n^{2} q^{2} - 2 m p q) \pm \sqrt{Δ}}}) .

(46)

Two roots will be different when:

Δ \neq 0 \Rightarrow {tan}^{2} β = - \frac{(tan φ + tan ψ)^{2}}{4 tan φ tan ψ} .

(47)

In summary, $α$ can be uniquely determined in a closed form in all cases except the case where $β \in (π / 2, π), cos φ cos ψ < 0$ and (47) all hold. This exceptional case will be discussed at the end of the following subsection.

Iii-D Recover Attitude from $β$

Fig. 11: Rotate an object to align the object frame with the camera frame. The top row displays the camera and the object in 3D space. The bottom row displays the projected object in the image. Each column represents a phase during rotation in a sequence from left to right.

A rotation matrix $R_{a}$ is defined in the camera frame that aligns the object frame with the camera frame. Note that $R_{a}$ is identical to the attitude of the camera in the object frame. Fig. 11 illustrates a sequence that rotates an object into alignment with the camera frame. The object is represented by a cuboid and the camera is represented by a horizontal pyramid. The top row displays the camera and the object in 3D space. The bottom row displays the projected object in the image. The origin of the camera frame is at the focal point of the camera. The red, blue and green arrows represent the x-, y- and z-axis of the camera frame, respectively. Each column represents a phase during rotation in a sequence from left to right. First column: the original positions of the object and the camera are depicted; second column: rotation, denoted as a matrix $R_{γ}$ , is applied around the focal point so that the vertex is projected onto the principal point; third column: rotation, denoted as a matrix $R_{φ}$ , is applied so that y-edge is projected vertical in the image; third column: rotation, denoted as a matrix $R_{α}$ , is applied so that y-edge is aligned with the y-axis; forth column: rotation, denoted as a matrix $R_{β}$ , is applied so that x-edge is aligned with the x-axis. Thus far, the object frame is in alignment with the camera frame. The following paragraph elaborates on finding $R_{γ}, R_{φ}, R_{α}, R_{β}$ and subsequently the attitude of the camera.

As having been previously derived in Section II-A2, the rotation axis and angle of $R_{γ}$ can be determined by (2). Rotation $R_{φ}$ is applied so that the y-edge is projected vertical in the image. The rotation axis is the z-axis of the camera frame while the rotation angle is the included angle by the projected y-edge and the y-axis of the image frame. The rotation axis of $R_{α}$ is the x-axis and the angle is $(α - π / 2)$ . By using the notations in Fig. 7, rotation $R_{β}$ is to align the x-edge with the x-axis of the camera frame after the xz-plane is rotated horizontal. Denote the rotation angle as $β^{'}$ . Obviously, $β^{'} = π / 2 - ∠ R_{x y} O_{w} R_{x}$ . It can easily be calculated that for all aforementioned three cases in Section III-A, III-B and III-C $β^{'} = arctan (- cos α / tan ψ)$ . Thus, $R_{a}$ can be expressed as:

R_{a} = R_{β} R_{α} R_{φ} R_{γ} .

(48)

There is still one more process before the actual attitude of a camera is recovered. Whenever a TROVE feature is detected, two interpretations are possible as illustrated in Fig. 3(b) and 3(c). If the attitude in Fig. 3(b) is expressed as (48), the attitude in Fig. 3(c) can be expressed as $R_{a} = R_{β} R_{α} R_{φ} R_{z, π} R_{γ}$ , where $R_{z, π}$ is the rotation around the z-axis by $π$ . Two methods can be applied to discard the incorrect interpretation.

Method 1: if an image captures more than one TROVE feature that has parallel frames to each other or the same feature is captured by two parallel cameras simultaneously (the case of a stereo camera), the result from the correct interpretation will always be consistent but the result from the incorrect one will vary. One simply accepts the consistent result as the estimation. Proof is give as follows. If two features have parallel frames, the attitude estimate should be the same. Let features 1 and 2 yield the same correct attitude estimate:

	$R_{a}$	$= R_{β 1} R_{α 1} R_{φ 1} R_{γ 1},$		(49)
	$R_{a}$	$= R_{β 2} R_{α 2} R_{φ 2} R_{γ 2},$		(50)

where the subscripts 1 and 2 represents the two features. Then the incorrect estimate can be expressed as:

	$R_{a 1}$	$= R_{a} R_{γ 1}^{⊺} R_{z, π} R_{γ 1},$		(51)
	$R_{a 2}$	$= R_{a} R_{γ 2}^{⊺} R_{z, π} R_{γ 2} .$		(52)

Suppose the incorrect estimates are equal. Equating (51) $=$ (52) yields:

R_{z, π} = R_{γ 1} R_{γ 2}^{⊺} R_{z, π} R_{γ 2} R_{γ 1}^{⊺} .

(53)

It can be proved that the only possible instances are $R_{γ 1} = R_{γ 2}$ or $R_{γ 2} R_{γ 1}^{⊺}$ is a rotation around the z-axis as $R_{z, π}$ . Recall that $R_{γ}$ is determined by the position of the vertex in the image. Different features cannot share the same vertex in one image and the vertex of a structure will be projected differently in the images by different parallel cameras. Therefore $R_{γ 1} \neq R_{γ 2}$ . $R_{γ}$ is a rotation around the axis $(x, y, 0)$ . It can also be proved that $R_{γ 2} R_{γ 1}^{⊺}$ cannot be a rotation around the z-axis unless $R_{γ 1} = R_{γ 2}$ . Hence, the assumption must be false and the incorrect estimates will always be different across different features in an image or across the same features in different images captured by parallel cameras.

Method 2: the interpretation of Fig. 3(b) is correct only if the camera has a negative pitch angle, namely the z-axis of the camera frame points downward. Similarly, the interpretation of Fig. 3(c) is correct only if the camera has a positive pitch angle. If the inclination of the camera to the horizontal surface is known, one can directly discard the incorrect interpretation. Method 2 appears to have a paradox where one needs to know the attitude to estimate the attitude. By the help of priori estimates or other sensors such as accelerometers, one can distinguish whether the camera points upward to downward. Even a rough estimate can help discard the incorrect interpretation for the interpretations have obvious discrepancies on the sign of the pitch angle.

Another rare but possible case where the solution is not unique is that $β \in (π / 2, π), cos φ cos ψ < 0$ and (47) all hold as described in Section III-C. That means the angle formed by the two horizontal edges are obtuse and one of the horizontal edge points towards the observer. When one edge points towards the observer, one face will usually be occluded. But it is still possible that the three concerning faces are visible. In this case, $α$ has two solutions unless (47) does not hold. One characteristic of this case is that one and only one of $φ$ and $ψ$ is an acute angle. One only needs to take measures when this characteristic has been observed. The two methods to discard the incorrect solutions are almost the same as the previous ones to discard incorrect interpretations. The only difference is in Method 2 that the pitch angle could be of the same sign in this case, therefore a relatively more accurate priori estimate is needed.

Iii-E Recover $β$ from Attitude

If one knows the relative attitude to the imaginary box, recovering $β$ is straightforward as it is uniquely determined by $α$ . Suppose that the relative attitude $R_{a}$ is obtained. Since $R_{γ}, R_{φ}$ can be directly estimated from the image, one can easily obtain from (48) that:

R_{β} R_{α} = R_{a} R_{γ}^{⊺} R_{φ}^{⊺} .

(54)

Expanding the rotation matrices yields:

R_{β} R_{α} = ⎡ ⎢ ⎣ \begin{matrix} [c] cos β^{'} & - sin β^{'} cos α & - sin β^{'} sin α 0 & - sin α & cos α - sin β^{'} & - cos β^{'} cos α & - cos β^{'} sin α \end{matrix} ⎤ ⎥ ⎦ .

(55)

With the value of $R_{β} R_{α}$ available, $α$ can be directly obtained.

The angles of $θ, φ$ and $ψ$ are obtained from image processing. When $φ, ψ \in (π / 2, π)$ , $β$ can be computed by (37). When one of $φ$ and $ψ$ is $π / 2$ , $β$ can be computed by (43) as $β = arccos (cos θ / cos α)$ . When one of $φ, ψ$ is less than $π / 2$ , $β$ can be computed by (44).

Iii-F Recover Position

The vertex of a TROVE structure is often a stationary point of the environment, such as the corner of a room and the apex of a building. For a robot to autonomously navigate through a certain environment, the relative position to the environment is often much more important than the absolute position in the Earth frame.

The camera is a binocular camera. By the disparity of the same vertex in two images, the relative position of the camera to a stationary point in space is obtained. The position of a vertex in each image is not detected by investigating the pixel itself or neighbouring groups like other stereo matching methods. The vertex is determined as the intersection of three detected lines, each of which is estimated by hundreds of pixels. Therefore, the accuracy can easily reach a sub-pixel level. Despite errors of installation and calibration, the result still remains in high accuracy, detail of which is given in Section IV.

Iv Experiment and Result

In this section, the experiments that evaluate the accuracy and effectiveness of the proposed method are presented. Attitude estimation is verified by comparison with the ground truth and the conventional method of the Complementary Filter. Position estimation is verified by direct comparison with the ground truth. The camera and IMUs are mounted on a board. The board is manually moved around to simulate a robot navigating in an unknown environment. Infra-red sensitive markers are also mounted on the board for the motion tracking system (OptiTrack) to capture poses which are then used the ground truth. A colored cuboid is placed horizontally on the ground as the object the robot refers to for ego-states estimation. All the data are recorded and processed online. The details of the system architecture and experiment setup are enclosed in the following subsections. Since attitudes are measured as rotation from an initial pose, having a consistent initial pose in all sensors’ frames is pivotal to evaluate the accuracy of estimates. The description of calibration process is also enclosed in the following subsection. It has been observed that without calibration the errors would be more than threefold.

Iv-a Experiment Setup

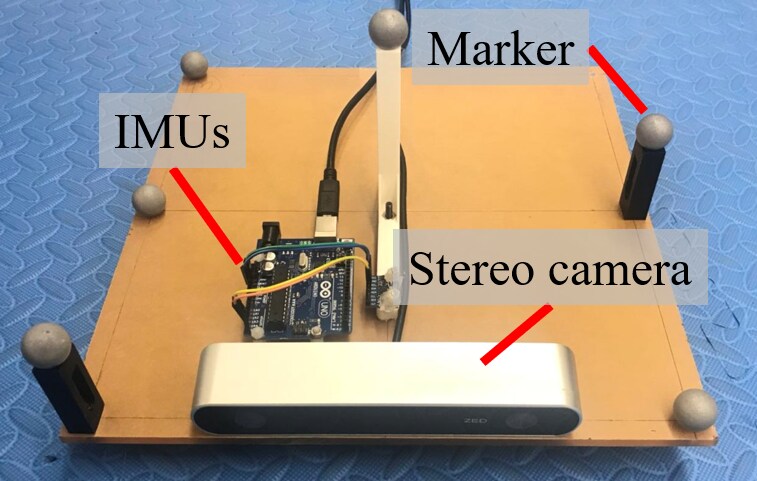

Fig. 12: A board mounted with a binocular camera and IMUs.

The saturation, white balance and sharpness of the camera have all been fixed so that the color in RGB values is consistent. The resolution of the camera is set as $1920 \times 1080$ and $1280 \times 720$ , respectively. As shown in Fig. 12, the camera together with IMUs and infrared sensitive markers are rigidly mounted onto a flat board. The top face of the board is referred as the horizontal plane of the board. The camera is a ZED Camera manufactured by Stereolab. The baseline of the stereo camera is $120 m m$ . The focal length of the lens is 1049 and 702 in pixels at a resolution of $1920 \times 1080$ and $1280 \times 720$ , respectively. The IMU sensor is MPU6050, which includes an accelerometer of a range of $\pm 2$ g and a gyroscope of a range of $\pm $ 2000 ° s^{- 1} $$ . The IMU sensor has also been calibrated to offset the misalignment of the horizontal plane between the IMU frame and the Earth frame. The infrared sensitive markers form a rigid body which is registered in the optical tracking software. The optical tracking software together with the infrared cameras are the OptiTrack system developed by NaturalPoint Inc. OptiTrack cameras can capture the markers and offers the 6-DoF states of the rigid body in real-time. The infrared cameras are mounted on the walls of the laboratory. The accuracy is within millimeters and the latency is at most $4.2 m s$ . The measurement from the OptiTrack system is used as the ground truth in this paper. In the experiment, the Earth frame actually refers to the frame that is defined in the OptiTrack system.

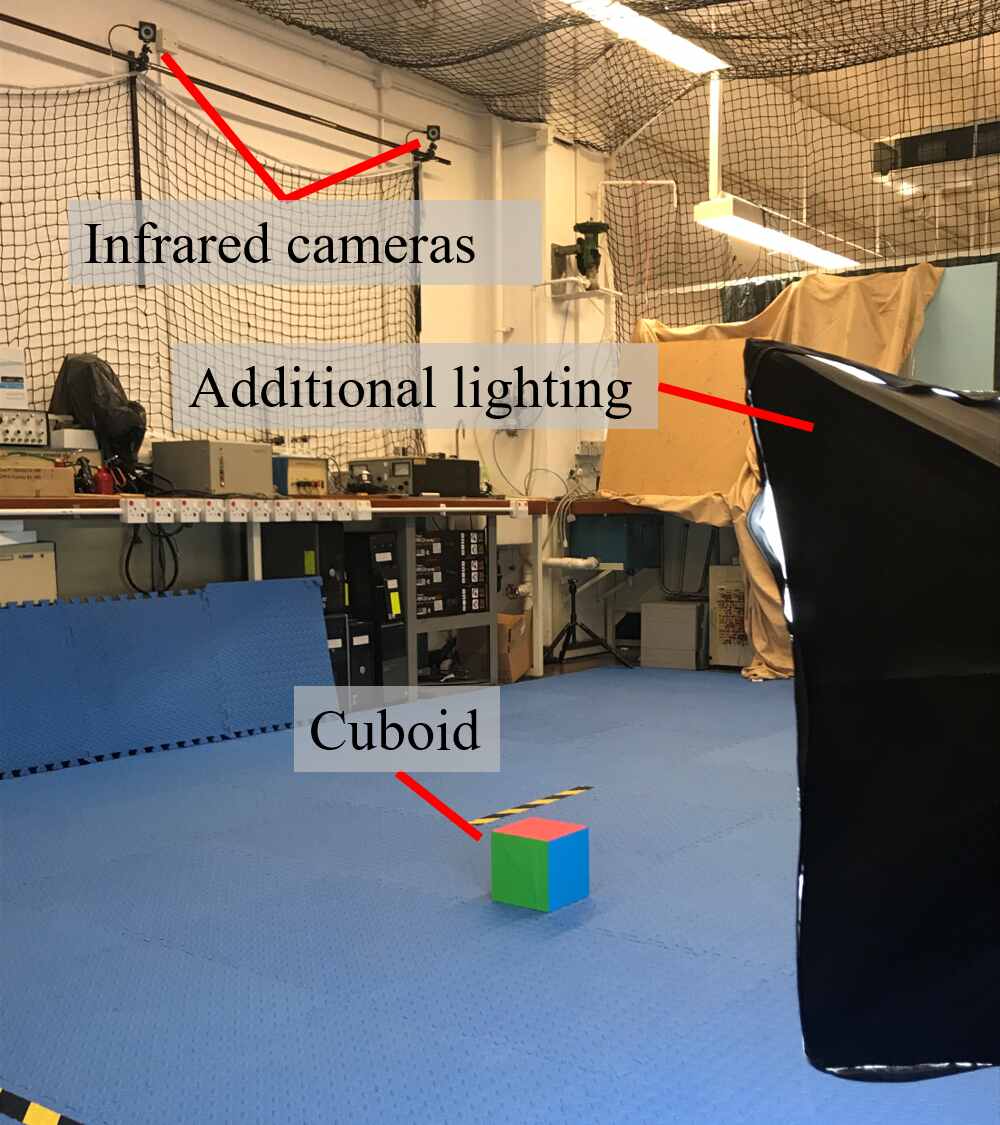

Fig. 13: This figure shows the experiment setup in the laboratory with additional lighting at side. Infrared cameras of the tracking system are mounted on the laboratory walls.

A cuboid is placed on the ground of the laboratory, as shown in Fig. 13. Three adjacent faces of the cuboid are colored in red, green and blue, respectively. In the experiment, captured pixels of the red, green and blue face are around $[255, 115, 0]$ , $[0, 250, 80]$ and $[0, 100, 215]$ in RGB values, respectively. As previously discussed, color segmentation is based on the thresholds of chromaticity and intensity. Those colors share similar characteristics so that the standards are the same for each color as $150$ out of $255$ in intensity and $51\char37$ in chromaticity. Additional lighting is applied to the side of the cuboid to compensate the insufficient luminosity in the laboratory. It is apparent that all the edges of the cuboid passing through the concerning vertex are perpendicular to each other. As having been proved in Section II-A3, the edges of the imaginary box must all point away from the focal point. With $β = π / 2$ , (42) yields:

(56)

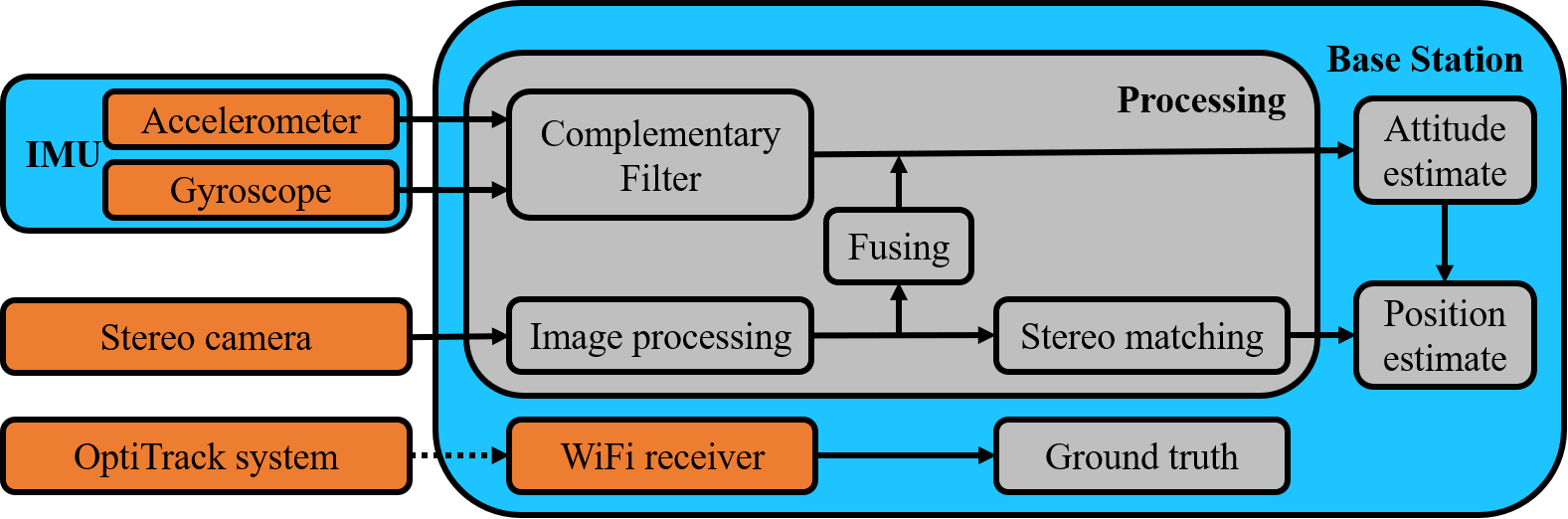

Fig. 14: A diagram of system architecture.

The data from the camera and IMUs are transmitted through a wire to a desktop computer as the base station. Then the data are processed and stored by the computer. The measurement from OptiTrack system is received through local wireless network by the same computer. Fig. 14 illustrates the system architecture. Using the USB 3.0 interface of the stereo camera, images can be captured and transmitted at

TROVE Feature Detection for Online Pose Recovery by Binocular Cameras

Authors

Leveraging Stereo-Camera Data for Real-Time Dynamic Obstacle Detection and Tracking

Real-time Keypoints Detection for Autonomous Recovery of the Unmanned Ground Vehicle

The Research of the Real-time Detection and Recognition of Targets in Streetscape Videos

Video based real-time positional tracker

BeatNet: CRNN and Particle Filtering for Online Joint Beat Downbeat and Meter Tracking

Real-time 3-D Mapping with Estimating Acoustic Materials

Lifeworld Analysis

I Introduction

Ii TROVE Feature Detection

Ii-a TROVE Feature

Ii-A1 Definition

Ii-A2 Standard Model

Ii-A3 Properties

Ii-B Edge Detection

Ii-C Vertex Detection

Iii Pose Estimation

Iii-a All Edges Point Away from Focal Point

Iii-B One Edge Perpendicular to Optical Axis

Iii-C One Edge Points to Focal Point

Iii-D Recover Attitude from $β$

Iii-E Recover $β$ from Attitude

Iii-F Recover Position

Iv Experiment and Result

Iv-a Experiment Setup

TROVE Feature Detection for Online Pose Recovery by Binocular Cameras

Authors

Related Research

Leveraging Stereo-Camera Data for Real-Time Dynamic Obstacle Detection and Tracking

Real-time Keypoints Detection for Autonomous Recovery of the Unmanned Ground Vehicle

The Research of the Real-time Detection and Recognition of Targets in Streetscape Videos

Video based real-time positional tracker

BeatNet: CRNN and Particle Filtering for Online Joint Beat Downbeat and Meter Tracking

Real-time 3-D Mapping with Estimating Acoustic Materials

Lifeworld Analysis

This week in AI

I Introduction

Ii TROVE Feature Detection

Ii-a TROVE Feature

Ii-A1 Definition

Ii-A2 Standard Model

Ii-A3 Properties

Ii-B Edge Detection

Ii-C Vertex Detection

Iii Pose Estimation

Iii-a All Edges Point Away from Focal Point

Iii-B One Edge Perpendicular to Optical Axis

Iii-C One Edge Points to Focal Point

Iii-D Recover Attitude from β

Iii-E Recover β from Attitude

Iii-F Recover Position

Iv Experiment and Result

Iv-a Experiment Setup

Iii-D Recover Attitude from $β$

Iii-E Recover $β$ from Attitude
