Transparency and Explanation in Deep Reinforcement Learning Neural Networks

by   Rahul Iyer, et al.

Autonomous AI systems will be entering human society in the near future to provide services and work alongside humans. For those systems to be accepted and trusted, the users should be able to understand the reasoning process of the system, i.e. the system should be transparent. System transparency enables humans to form coherent explanations of the system's decisions and actions. Transparency is important not only for user trust, but also for software debugging and certification. In recent years, Deep Neural Networks have made great advances in multiple application areas. However, deep neural networks are opaque. In this paper, we report on work in transparency in Deep Reinforcement Learning Networks (DRLN). Such networks have been extremely successful in accurately learning action control in image input domains, such as Atari games. In this paper, we propose a novel and general method that (a) incorporates explicit object recognition processing into deep reinforcement learning models, (b) forms the basis for the development of "object saliency maps", to provide visualization of internal states of DRLNs, thus enabling the formation of explanations and (c) can be incorporated in any existing deep reinforcement learning framework. We present computational results and human experiments to evaluate our approach.


page 4

page 5


Object-sensitive Deep Reinforcement Learning

Deep reinforcement learning has become popular over recent years, showin...

Explainable Deep Reinforcement Learning for UAV Autonomous Navigation

Modern deep reinforcement learning plays an important role to solve a wi...

Deep Reinforcement Learning Models Predict Visual Responses in the Brain: A Preliminary Result

Supervised deep convolutional neural networks (DCNNs) are currently one ...

Contrastive Explanations for Reinforcement Learning in terms of Expected Consequences

Machine Learning models become increasingly proficient in complex tasks....

DAX: Deep Argumentative eXplanation for Neural Networks

Despite the rapid growth in attention on eXplainable AI (XAI) of late, e...

Approximating a deep reinforcement learning docking agent using linear model trees

Deep reinforcement learning has led to numerous notable results in robot...

Multiagent Deep Reinforcement Learning: Challenges and Directions Towards Human-Like Approaches

This paper surveys the field of multiagent deep reinforcement learning. ...


Autonomous agents have been increasingly used in multiple applications ranging from search and rescue, civilian and military emergency response, home and work environment services, transportation and many others. As these agents become more sophisticated and independent via learning and interaction, it is critical for their human counterparts to understand their behaviors, the reasoning process behind those behaviors, and the expected outcomes to properly calibrate their trust in the systems and make appropriate decisions [de Visser et al.2014] [Lee and See2004] [Mercado et al.2016]. Indeed, past studies have shown that humans sometimes question the accuracy and effectiveness of agents’ actions due to the human’s difficulties understanding the state/status of the agent [Bitan and Meyer2007][Seppelt and Lee2007][Stanton, Young, and Walker2007] and the rationales behind the behaviors [Linegang et al.2006]. Although there are multiple definitions of agent transparency [Chen et al.2014] [Lyons and Havig2014], we use, with minor variation, the definition proposed by Chen and colleagues [Chen et al.2014]: “Agent transparency is the quality of an interface (e.g. visual, linguistic) pertaining to its abilities to afford an operator’s comprehension about an intelligent agent’s intent, performance, future plans, and reasoning process”. The goal of transparency is not to relay all of a system’s capabilities, behaviors, and decision-making rationale to the human. Ideally, agents should relay clear and efficient information as succinctly as possible to the human, thus enabling her to maintain a proper understanding of the system in its tasking environment.

Developing methods to enable autonomous agents to be transparent is very challenging, because ease of transparency seems to be inversely proportional to agent sophistication. Recently Deep Neural Networks (DNNs) have allowed agents to reach almost human performance in multiple tasks such as computer vision, natural language processing and control tasks. More specifically, recent work has found outstanding performances of deep reinforcement learning (DRL) models on Atari 2600 games, by using only raw pixels to make decisions.

[Mnih et al.2015]. However, DNNs are extremely opaque i.e., they cannot produce human understandable accounts of their reasoning processes or explanations. Therefore, there is a clear need for deep RL agents to dynamically and automatically offer explanations that users can understand and act upon.

In this paper, we propose and evaluate a method by which DRLNs automatically produce visualization of their state and behavior that is intelligible to humans. In contrast to the vast DRL literature where objects and their salience are not explicitly considered [Sutton1996] [Mnih et al.2015] [Mnih et al.2016], we develop techniques to explicitly incorporate object features and object valence, i.e. positive or negative influence in an agent’s decisions, into DRLN architectures. In particular, we propose a new Object-sensitive Deep Reinforcement Learning (O-DRL) model that can exploit object characteristics such as presence and positions of game objects in the learning phase. This new model can be incorporated with most existing deep RL frameworks such as DQN [Mnih et al.2015] and A3C [Mnih et al.2016].

Most crucially, the method also produces object saliency maps that use the valence of the objects to reason about the agent’s rewards and decisions and automatically produce object-level visual explanations why an action was taken. While a high proportion of RL applications such as Atari 2600 games contain objects with different gain or penalty (for example, enemy ships and fuel vessels are objects with different valence in the game “Riverraid”), the previous algorithms are designed under the assumption that various game objects are treated equally. therefore, those algorithms cannot take advantage of object valence and its influence on the reward function.

Our contributions are threefold: First, we propose a method to incorporate object characteristics into the learning process of deep reinforcement learning.  Second, we propose a method to produce object-level visual explanation for deep RL models. Third, we evaluate the approach both via computational and human experiments.

Related Work

Reinforcement learning is defined as learning a policy for an agent to interact with an unknown environment. The rich representation given by deep neural network improves the efficiency of reinforcement learning (RL). A variety of works thus investigate the application of deep learning on RL and propose a concept of deep reinforcement learning. Mnih et al.

[Mnih et al.2015] proposed a deep Q-network (DQN) that combines Q-learning with a flexible deep neural network. DQN can reach human-level performance on many of Atari 2600 games but suffers substantial overestimation in some games [van Hasselt, Guez, and Silver2015]. Thus, a Double DQN (DDQN) was proposed by Hasselt et al. [van Hasselt, Guez, and Silver2015] to reduce overestimation by decoupling the target max operation into action selection and action evaluation. Wang et al. proposed a dueling network architecture (DuelingDQN) [Wang, de Freitas, and Lanctot2015] that decouples the state-action values into state values and action values to yield better approximation of the state value.

There is recent work on explaining the prediction result of black-box models for computer vision. Erhan et al. [Erhan et al.2009]

visualized deep models by finding an input image which maximizes the neuron activity of interest by carrying out an optimization using gradient ascent in the image space. It was later employed by

[Le2013] to visualize the class models, captured by a deep unsupervised auto-encoder. Zeiler et al. [Zeiler and Fergus2014] proposed the Deconvolutional Network (DeconvNet) architecture, which aims to approximately reconstruct the input of each layer from its output, to find evidence of predicting a class. Recently, Simonyan et al. [Simonyan, Vedaldi, and Zisserman2013] proposed pixel saliency maps to deduce the spatial support of a particular class in a given image based on the derivative of class score with respect to the input image. Ribeiro et al. [Ribeiro, Singh, and Guestrin2016]

proposed a method to explain the prediction of any classifier by local exploration, and apply it on image and text classification. All these models work at pixel level, and cannot explain the prediction at object level.

Object recognition aims to find and identify objects in an image or video sequence, where objects may vary in size and scale when translated or rotated. The excellent performance of convolutional neural networks over the past several years has dramatically improved object recognition

[Krizhevsky, Sutskever, and Hinton2012],[Sermanet et al.2013], [Hinton et al.2012], [Szegedy et al.2015], [Song et al.2014].

Reinforcement Learning

Reinforcement learning solves the sequential decision making problems by learning from experience. Consider the standard RL setting where an agent interacts with an environment over discrete time steps. In the time step , the agent receives a state and selects an action according to its policy , where and denote the sets of all possible states and actions respectively. After the action, the agent observes a scalar reward and receives the next state .

In the Atari games, the input current state is an image. The agent chooses an action from the possible control actions (Press the up/down/left/right/A/B button). After that, the agent receives a reward (how much the score goes up or down) and the next image input.

The goal of the agent is to choose actions to maximize its rewards over time. In other words, the action selection implicitly considers the future rewards. The discounted return is defined as where is a discount factor that trades-off the importance of recent and future rewards.

For a stochastic policy , the value of an action and the value of the states are defined as follows.


The action value function (a.k.a., Q-function) can be computed recursively with dynamic programming:


Policy based methods directly model the policy [Williams1992]

, while in value-based RL methods, the action value (a.k.a., Q-value) is commonly estimated by a function approximator, such as a deep neural network

[Mnih et al.2015].

The actor-critic [Sutton and Barto1998] architecture is a combination of value-based and policy-based methods. Our object recognition method can be incorporated with any of these RL methods.

Object-sensitive Deep Reinforcement Learning

We use template matching to recognize objects in images because it is easy to implement and provides good performance. Template matching is a computer vision technique used to locate a template image in a larger image. It requires two components – source image and template image [Brunelli2009]. The source image is the one that needs to be matched to the template image. The template image is the patch image. To identify the matching area, a patch is used to slide through the source image (up to down, left to right) and calculate the current source image patch similarity to the template image. We used OpenCV [Itseez2015] to implement the template matching.

Figure 1: A neural network architecture for Object-sensitive Deep Q-network (O-DQN). A screen image is the input which is passed to the object recognizer to extract object channels. Then, the combined channels are given as input to the convolutional neural network to predict Q-values.

We used object channels to incorporate features of objects in the input images. Object channels are defined as follows: if we have detected objects in an image, we add additional channels to the original RGB channels of the original image. Each channel represents a single type of object. In each channel, we assign 1 in the corresponding position for the pixels belonging to the detected object, and 0 otherwise. In this way, we successfully encode locations and difference in the types of various objects in an image.

The network architecture is shown in Figure 1. Here, we get the screen image as input and pass it to the object recognizer to extract object channels. We also use a convolutional neural network (CNN) to extract image features in the same way as in DQN. The object channels as well as the original image are given to the network to predict Q-values for each action. This method can be adapted to different existing deep reinforcement learning algorithms, to result for example in Object-sensitive Double Q-Network, and Object-sensitive Advanced Actor-critic model.

We use the same network architecture for these DRL and O-DRL methods, shown in Figure 1

. We use four convolutional layers with 3 max pooling layers followed by 2 fully-connected layers. The first convolutional layer has 32

filters with stride 1, followed by a

max pooling layer. The second convolutional layer has 32 filters with stride 1, followed by a max pooling layer. The third convolutional layer has 64 filters with stride 1, followed by a max pooling layer. The fourth and final convolutional layer has 64 filters with stride 1. The first full-connected layer has 512 hidden units. The final layer is the output layer, which differs in different models.

We use 4 history frames to represent current state as described in [Mnih et al.2015]. For object representation, we use the last frame to extract object channels. In order to make objects distinct from one another, we use the normalized rewards corresponding to the maximum reward received in the game, instead of the clip strategy used in [Mnih et al.2015]. This is because the reward clip strategy assigns +1 for all rewards that are larger than 1 and -1 for all rewards that are smaller then -1, which makes different objects hard to distinguish.

We implemented deep-Q networks (DQN )[Mnih et al.2015], double deep-Q networks (DDQN) [van Hasselt, Guez, and Silver2015], dueling deep-Q networks (Dueling)[Wang, de Freitas, and Lanctot2015] and advanced actor-critic model (A3C)[Mnih et al.2016] as baselines. We also implemented their object-sensitive counterparts by incorporating object channels. In our experiments, all the object-sensitive DRL methods perform better than their non-object counterparts [Li, Sycara, and Iyer2017].

(a) Screenshot of the State
(b) Pixel Saliency Map
(c) Object Saliency Map
Figure 2: An example of original state, corresponding pixel saliency map and object saliency map produced by a double DQN agent in the game “Ms. Pacman.”

DQN Transparency via Object Saliency Maps

We present a method to provide transparency for Deep Neural Networks, called object saliency maps. Object saliency maps provide visualization of the decisions made by RL agents. These visualization aim to be intelligible to humans. To generate intelligible visualizations that would help with explanations of DQN agent behaviors, we need to determine which pixels the model pays attention to when making a decision [Simonyan, Vedaldi, and Zisserman2013]. For each state , the model takes an action where . We would like to rank the pixels of based on their influence on . Since the Q-values are approximated by a deep neural networks, the Q-value function is a highly non-linear function of . However, given a state , we can approximate with a linear function in the neighborhood of by computing the first-order Taylor expansion:


where is the derivative of with respect to the state image at the point (state) and form the pixel saliency map:


Another interpretation of computing pixel saliency is that the value of the derivative indicates which pixels need to be changed the least to affect the Q-value.

However, pixel-level representations are not intelligible to people. Figure 2(a) shows a screenshot from the game Ms.Pacman. Figure 2(b) is the corresponding pixel saliency map produced by an agent trained with the Double DQN(DDQN) model. The agent chooses to go right in this situation. Although we can get some intuition of which area the deep RL agent is looking at to make the decision, it is not clear what objects the agent is looking at and why it chooses to move right. On the other hand, Figure 2 makes more intelligible the objects that the DQN is paying attention to.

By visual inspection, we see that object saliency provides better transparency than pixel saliency. To understand the influence of objects on agent decisions, we need to rank the objects in a state based on their effect on . However, calculating the derivative of with respect to the objects is nontrivial. Therefore, we use a simpler method. For each object found in , we mask the object with background color to form a new state as if the object does not appear in this new state. We calculate the Q-values for both states, and the difference of the Q-values actually represents the influence of this object on .


In this way we can derive that positive actually represents a “good” object which means the the object gives positive future reward to the agent. Negative represents “bad” object since after we remove the object, the Q-value gets improved.

Figure 2(c) shows an example of the object saliency map. While the pixel saliency map only shows a vague region of the model’s attention, the object saliency map clearly shows which objects the model is paying attention to and the relative importance (via shading) of each object.

The computational cost of computing an object saliency map is proportional to the number of detected objects. If there are objects, the computational cost is forward pass calculation of the model, which is affordable since is generally not too large, and one forward pass is fast in model testing time.

Human Experiments

In order to test whether the object saliency map visualization can help humans understand the learned behavior of Pacman, we performed an initial set of experiments. The goals of the experiment were to: 1) test whether object saliency maps contain enough information to allow humans to match them with corresponding game scenarios, 2) test whether participants could use object saliency maps to generate reasonable explanations of the behavior of the Pacman and 3) test whether object saliency maps allow participants to correctly predict the Pacman’s next action. This requires a deeper causal understanding of what may influence the Pacman in his decisions.

(a) Screen-shots
(b) Object Saliency Maps
Figure 3: An example of the stimulus materials participants saw in the test 9 of the prediction task. 75% participants in the screen-shot group thought Pacman would go left to eat the cherry at the left side. 60% participants in the object saliency maps group predicted the Pacman would keep going down for the dark elements (the pellets) below.

Each experiment consists of two tasks:

Matching Task In each trial, the participants are shown twice, a 5-second video clip of Pacman gameplay generated by O-DDQN. During the video clip, Pacman decides and takes particular actions. The last decision made produces the crucial movement of the clip (eg Pacman moves right), with the clip ending just after the crucial movement. Three frames from the object saliency map are then shown to participants (see Fig.  3(b)

). The center frame is the frame where the Pacman makes the crucial decision and the other two are frames from before and after that moment. In the task, participants are asked to judge whether the saliency maps accurately represent the video they just saw. In the matching cases, the saliency maps indeed were generated from the video clip the participant saw. In the non-matching cases, the three saliency map frames were generated from a different video clip. In distractor/non-matching clips, the Pacman occupies the same area of map as in the target video, but makes different movements. This is done to avoid the case where the participants solely focus on the location of the Pacman as a matching criterion, disregarding the movements and environmental factors.

Following the match decision, if the participants’ answer is ”match”, they are asked to give an explanation for the Pacman’s movements based on the video and saliency maps. In other words, participants are asked to provide a teleological explanation explaining ‘why’ Pacman acted as she did. For example, ”Pacman moved up to eat more energy pellets while avoiding the ghost coming from below.”

The matching task consisted of 2 training trials and 20 test trials, half (10 trials) presenting matched video and saliency maps, the other half presenting non-matched pairs in a single randomly ordered sequence. Dependent variables were correctness of matches and agreement between explanations and saliency maps.

Prediction Task In each trial, the participants are shown a video clip not used in the matching task. Each clip ends at the point where the Pacman must choose a crucial move. The participants are divided equally into two experimental conditions. In the screen-shot condition, after the video clip, participants see 3 actual screen-shots from the video ending before the crucial move is taken. In the object saliency map condition, the participants see three object saliency map frames (corresponding to the screen-shot frames) after viewing the video clip (see Fig.  3). At the decision point in the third frame Pacman’s choices (up, down, left, right) may be limited by barriers indicated on the response forms. Participants are asked to predict Pacman’s movement among the feasible directions based on the three previous frames (screenshots or saliency maps), and then give an explanation for their prediction which includes their judgment as to which elements of the game influenced the Pacman’s decision (indicating these elements by circling them on a hardcopy of the screenshot or saliency map), and explain why Pacman made that decision.

Figure 4: ROC curve of the matching task, AUC = 0.81.
Figure 5:

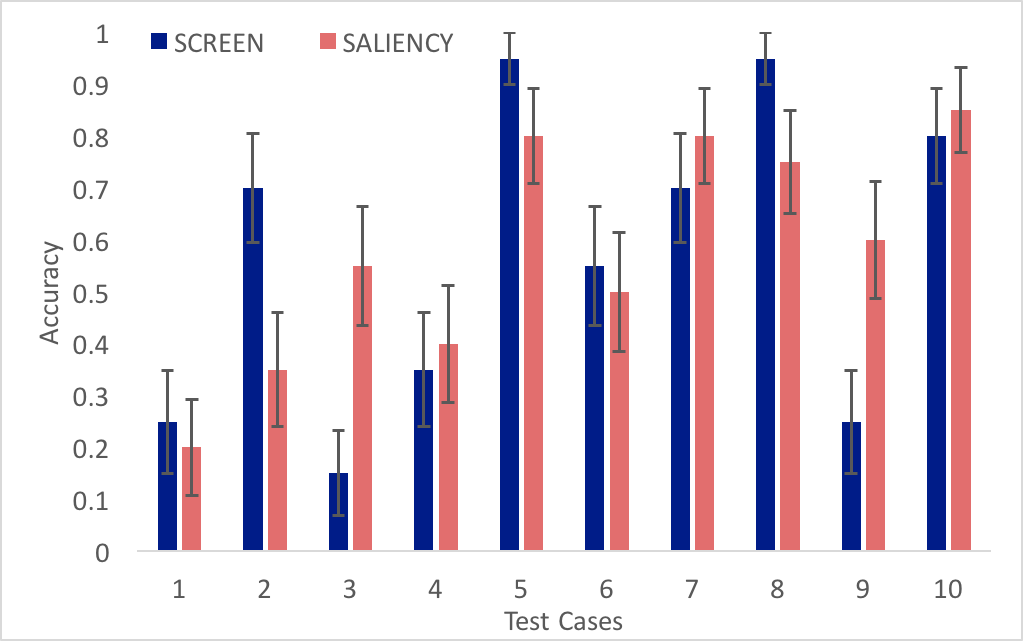

The mean accuracy of participants in each test cases of the prediction task. Error bars are one Standard Error from Means.

The prediction task consisted of 2 training trials and 10 test trials. Each participant was assigned to either the screenshot group or the saliency map group. Dependent variables include whether predictions were correct, and whether explanations were consistent with the saliency maps.

Method 40 participants were recruited from the University of Pittsburgh. The video clips and frames were presented through a projector, and participants were asked to write their answers down on answer sheets. The answer sheet included frames of each trial for participants to mark the elements they believe influenced Pacman’s decision and space to explain that decision.

Results The average matching accuracy of the participants was (). A learning effect was found with participants having higher accuracy () in the last half of the trials than the first half () (). Comparing hit and false alarm rates, participants reported more ”matches” when the video and image stimulus matched (). If the 40 participants are treated as a binary classifier and the percentage of their answers as an output score, a receiver operating characteristic (ROC) curve  [Fawcett2006] can be plotted for true positive rates versus false positive rates across a range of threshold parameters (as Fig. 5 shows). The area under the curve is 0.81 which indicates a good classification between matching and non-matching situations. In summary, human participants were able to link the object saliency maps with the game scenarios.

For the more difficult prediction task, there was no significant difference in accuracy between the object saliency map group () and the control group(). However, the main effect of trials (, ) and the interaction between trials and groups (, ) were both highly significant suggesting that characteristics of the trials had a strong influence on performance. Thus we conducted a simple effect analysis to examine differences among the 10 test scenarios (see Fig. 5). Results show that the screen-shot group has high predictive accuracy in test 2 (), while the object saliency map group has higher accuracy in tests 3 and 9 (). Those three trials can help provide a deeper insight into the mechanism of how object saliency maps could help humans understand Pacman’s learned behavior.

Discussion The result of our human experiments show that object saliency maps can be linked to corresponding game scenarios by participants, a prerequisite if they are to provide explanations of behavior. Object saliency maps and screen shots proved equally helpful to humans in predicting DRLN’s behaviors.

For the prediction task the group viewing screen shots had access to rich contextual information including obstacles in the environment and the identity of objects making the association between the frames they viewed and rules of the game explicit. The object saliency participants, by contrast, lacked clear identity of objects or environmental features but viewed the valence of objects affecting the decision (via the object shading). That these complementary representations led to equal performance suggest they are both of value and deserve closer attention. The large differences in performance found between trials, however, suggests that examining the conditions under which each provides more accurate prediction could lead to better understanding and use of object saliency maps in explanation.

Test 9 provides a good example (see Fig. 3). The Pacman goes down and faces a dilemma whether to turn left or keep going down. 60% participants who saw the object saliency maps predicted Pacman would continue going down, and objects circled and explanations focused on the dark elements or dots below. In contrast, 75% participants in the screen-shot group predicted Pacman would go left, and all except one of their explanations mentioned the cherry at the left side. In the scenarios generated by O-DDQN, the Pacman did go down for the dots. Test 9 is a typical case in which there are multiple influencing elements and it is hard for humans to predict Pacman’s behavior based on information from the game screen and their own knowledge of the rules and ideas about gameplay. However, displaying object saliency enables us to directly identify those objects affecting the program’s decision. In other situations when the Pacman may make what we judge to be suboptimal choices (e.g. the Pacman chose a wrong direction and was eaten by a ghost), an object saliency map could be crucial to helping users and system developers understand some of the rationale behind such behaviors.

In watching a program such as O-DDQN play Pacman it is tempting to interpret its actions in human terms of seeking cookies and avoiding ghosts. This in fact is what we asked participants in the screen-shot group to do. O-DDQN, however, has no knowledge of game rules and has simply learned to maximize its reward. In many cases due to the reward structure of the game its decisions may happen to match our own and we can attribute teleological causes, however, in others the strangeness of its decision making is revealed and we must turn to tools such as the saliency map for help. Such tools offer a better chance to improve the model when the agent executes unexpected or abnormal behaviors (e.g. debugging and testing of the DRLN). Alternately, the agent’s policies could be examined to identify why they may have been learned and what benefits they might confer leading to a deeper understanding of the domain and improved decision making.

Performance of the object saliency group on the prediction task may have suffered due to insufficient training and limitations inherent in group testing. We believe that a more comprehensible tutorial and longer training section might lead to better understanding of the object saliency map and improved performance in both tasks. As Fig. 5 shows, the performance pattern of participants in the prediction task depends crucially on situations. If those readily predicted from screen shots could be discriminated from those not amenable to naive explanation, saliency maps could be tested and used under more favorable conditions.

Conclusion and Future Work

In this paper, we developed techniques for integrating object recognition into Deep Reinforcement Learning models. Additionally we developed a technique for computing object-based saliencey maps. We evaluated the utility of this technique for visualization of agent decisions in the Ms Pacman game and via human experiments. One interesting future direction is how to use object saliency maps as a basis to automatically produce human intelligible explanations in natural language, such as “I chose to go right to avoid the ghost”. Another direction is to test the ability of object features in a more realistic situation. For example, how to incorporate object features to improve the performance of self-driving cars.


This research was supported by awards W911NF-13-1-0416 and FA9550-15-1-0442.
