1 Introduction

With the impressive growth of electronic devices and their diverse usage in current days, provision of sufficient power for these devices has become a challenging issue. For example, in a wireless sensor network with multiple and scattered nodes, usually it is not possible to connect all the nodes to the power grid (electricity grid), so, the nodes have to use battery. Therefore, replacement or recharging of the batteries in a specific time duration is necessary. This task is not always implemented easily. For instance, doing this for such sensors which are installed in an impassable area or mobile devices or some military equipment are always difficult and even for the implanted sensors at the human bodies is almost impossible. Consequently, for such devices, an accurate mechanism or proper circuits are embedded to recharge the battery by using the available environmental energy Surveys-Tut-1 .

Energy harvesting from nature is a wide topic, and much research has been directed in this context yet Surveys-Tut-3 . Energy harvesting method typically uses the solar and wind energy or ambient radio frequency (RF) radiation. Despite the advantages of these types of energy, their usage is not possible at all times (i.e. solar energy is not accessible at night or RF radiation depends on the radiators activity). Therefore, in a modern way and with a well managed method, the energy is generated in a place and transmitted to another place for its end-user. Normally, this type of energy is generated in the form of an electromagnetic wave and transmitted wirelessly to its consumers Wireless-Comm-Mag-1 ; MIMO-1 .

Due to nature of the wireless channel, power attenuation in wireless power transfer (WPT) are very high, and the efficiency of WPT is very low, especially over long distance. But, on the other hand, WPT administrator has full control over its power transfer, where the transmit power, waveforms, occupied time/frequency dimensions and so on, are all tunable for providing stable energy supply under different physical conditions and service requirements. Thanks to this evident advantages of WPT over conventional method, WPT obtains much interest, and even some products are manufactured based on this technology recently Surveys-Tut-1 . In addition, much research is being conducted to improve the efficiency of WPT which would lead to the vast deployment of this technique in the near future Wireless-Comm-Mag-2 ; Microwave-Mag-1 . In this regard, integration of wireless-based energy harvesting in wireless communication systems becomes a new interesting challenge recently Comm-Mag-1 . In this way, the harvested energy can help low power nodes or sensors to transfer their own data more efficiently to the destinations.

There are two major directions for implementing wireless powered communication (WPC) system which wirelessly receives the power and wirelessly transmits data: one is referred to as the simultaneous wireless information and power transfer (SWIPT) system SWIPT-Main ; SWIPT-1 ; SWIPT-2 ; SWIPT-3 ; SWIPT-4 ; SWIPT-5 ; Zahedi ; SWIPT-6 ; SWIPT-7 ; SWIPT-8 ; SWIPT-9 ; SWIPT-10 , and the other transfer power and information separately MIMO-1 ; MIMO-2 ; MIMO-3 ; MIMO-4 ; MIMO-5 ; Resource-Allocation-4 ; Resource-Allocation-5 ; Rui-Zhang-1 ; Rui-Zhang-2 ; Resource-Allocation-6 ; Main-2016-1 ; Simple-1 ; Simple-2 ; Dedicated-1 ; Dedicated-2 ; Resource-Allocation-1 ; Resource-Allocation-2 ; X-1 ; X-2 . The second scheme is more simple for practical implementation and will be studied in our paper in the following. So, here we assume a hybrid access point (HAP) which transfers power to the nodes in the downlink (DL) channel and then, after sufficient energy absorption by the nodes, wireless sensors transmit their own data in the uplink (UL) channel to the HAP 111The HAP may have some information for the nodes and can transmit them in the DL in different time slot. However, without lose of generality, information transmission from the HAP to the nodes is not our concern here.. Typically, this protocol is termed "harvest-then-transmit" in literature.

In some applications such as tactile internet, factory automation and vehicle collision avoidance, the overall packet size is small. However, these short packets require very small latency as their quality-of-service (QoS) Tactile-Internet . Under these conditions, optimization of WPC to minimize the total DL/UL time duration is more desirable. Note that, more time for harvesting energy at the DL phase leads to higher available transmit power at the UL phase. Again, higher available power at the UL phase leads to higher data rate and lower time duration at the UL phase. As the same way, less time for harvesting energy at the DL phase leads to higher time duration at the UL phase as well. Consequently, finding the optimal (minimum) values for the DL/UL time duration is our target here. Such kind of optimization for minimizing the transmission delay (TD) from the HAP to the node in the DL and from the node to the HAP in the UL is studied here within four different problems. In each optimization problems, we attempt to adjust the DL/UL time duration with or without power allocation to minimize the total delay in the Nakagami-m flat fading channel. Since Nakagami-m model approximates some popular channel models such as Rician (see Dedicated-1 ; Dedicated-2 ), we use Nakagami-m for the small scale fading model in our channel Alouini . After that, we extend the TD minimization problem to the multiuser case with one HAP and nodes Recommended . In the multiuser scenario, the HAP first transmits power to the nodes at the DL and then, the nodes transmit data to the HAP in different time one by one in a time division multiple access (TDMA) manner. Then, minimizing the TD with and without power allocation at the HAP is studied in two different problems. The main contributions of this paper is summarized as follows:

  • New optimization problems which minimize the TD instead of the throughput rate is studied here. Delay minimization is more attractive in some applications require low latency. To the best of our knowledge, this problem is not investigated in WPC widely.

  • In single user scenario, we define four optimization problems , which are distinct from the previous problems in literature and we solve them here.
    TD minimization without the optimal power allocation when the DL and UL time duration are equal.
    TD minimization with the optimal power allocation when the DL and UL time duration are equal.
    TD minimization without the optimal power allocation when the DL and UL time duration are not necessarily equal.
    TD minimization with the optimal power allocation when the DL and UL time duration are not necessarily equal. In the problem , derivation of the optimal solution for the allocated power is so complicated even numerically. Therefore, a very tight approximation is employed for finding the solution in this case.

  • In multiuser scenario, we define two optimization problems for one HAP and nodes and solve them numerically.
    TD minimization without the optimal power allocation when the sum of UL time slots are less than or equal to the DL time slot.
    TD minimization with the optimal power allocation when the sum of UL time slots are less than or equal to the DL time slot.

The rest of our paper is organized as follows. First, some related work is reviewed in Section 2 and the system model is introduced in Section 3 where a WPC system with one HAP and one WPC node is discussed. In Section 4, four optimization problems for minimization of the total delay in a WPC system are considered completely. Then, in Section 5, TD minimization of Section 4 is extended and investigated in a multiuser case. At last, the simulation results are presented in Section 6, and Section 7 concludes the paper.

For ease of reading, the abbreviations used in this article are summarized in Table 1 alphabetically. In addition, we use for the statistical expectation, for the gamma function Ryzhik and for the Lambert-W function lambertw .

Abbreviation Description
BER Bit error rate
CSI Channel state information
DL/UL Downlink/Uplink
HAP Hybrid access point
HD/FD Half-duplex/Full-duplex
MIMO Multiple-input multiple-output
PB Power beacon
PDF Probability density function
QoS Quality-of-service
RF Radio frequency
RFID Radio frequency identification
SWIPT Simultaneous wireless information and power transfer
TD Transmission delay
TDMA Time division multiple access
WPC Wireless powered Communication
WPT Wireless power transfer
Table 1: List of abbreviations.

2 Related Work

There are two major configurations for wireless power and information transfer 222A complete survey can be found in Surveys-Tut-3 ; Surveys-Tut-2 .. In the first configuration, wireless power transfer and information transmission carry out simultaneously and this method abbreviated as SWIPT. Number of studies consider SWIPT in various structure and context such as SWIPT-1 ; SWIPT-2 ; SWIPT-3 in point-to-point and broadcast channels, SWIPT-4 ; SWIPT-5 ; Zahedi in the relay based systems, Zahedi ; SWIPT-6 ; SWIPT-7 in multiple-input multiple-output (MIMO) channels, SWIPT-8 for opportunistic channels and SWIPT-9 ; SWIPT-10 in the cooperative systems. On the other hand, the second configuration focuses on separated power and information transfer specially in time domain and it is well-known as "harvest-then-transmit" in the literature. Harvest-then-transmit protocol is more simpler than the SWIPT and we formulate our problem within this protocol later.

Harvest-then-transmit protocol is studied in many research. For example MIMO-1 ; MIMO-2 ; MIMO-3 ; MIMO-4 ; MIMO-5 investigated this scheme with multiple antenna systems. In MIMO-1 , TDMA users are served by a multiple antenna HAP and sum throughput rate of the WPC network is maximized with joint energy beamforming and time allocation at the DL and UL links. In MIMO-2 , the authors assumed a large-scale MIMO system and maximized energy efficiency of information with energy beamforming in the system. The authors of MIMO-3 focused on the tradeoff of wireless energy and information transfer by adjusting the transfer duration with a total duration constraint and derived two wireless energy and information transfer tradeoff schemes by maximizing an upper bound and an approximate lower bound of the average information transmission rate, respectively. In MIMO-5 , the impact of channel state information (CSI) and antenna correlation at the multi-antenna wireless powered relay is investigated. Tow different scenarios for the availability of the CSI are assumed and the analytical expressions for the outage probability and ergodic capacity are derived. Moreover, maximizing the minimum rate among all users in the massive MIMO with an asymptotic optimal solution is obtained in Resource-Allocation-4 . Some interesting insights for the optimal design of massive MIMO WPC system are also included. As the same way, in Resource-Allocation-5 with using the stochastic geometry, the spatial throughput of wireless nodes is maximized by jointly optimizing frame partition between DL and UL phases. The impact of battery storage on the spatial throughput is also illustrated.

Resource allocation to maximize the sum throughput rate is studied completely by Ju et al. within a half-duplex (HD) Rui-Zhang-1 and full-duplex (FD) network Rui-Zhang-2 respectively. In Rui-Zhang-1 , a HAP transmits power for the users at the DL and after sufficient energy harvesting, users transmit information to the HAP in different time slots. Weighted sum throughput of the network is considered and a closed-form solution for the optimal DL time slot and UL time slots is derived. In addition, a doubly near-far problem is introduced and the authors presented a new solution to resolve the problem. However, the solution may reduce the sum throughput rate of the network. The doubly near-far problem is also discussed in MIMO-4 and some solutions by using proper beamforming technique is designed. Then Rui-Zhang-2 extended Rui-Zhang-1 with the FD HAP to improve the overall performance. The optimal and suboptimal solutions for the allocated time slots at the DL and UL is obtained under perfect and imperfect self-interference cancellation. In particular, in Resource-Allocation-6 , the performance of WPC in the presence of statistical queuing constraints with buffer overflow probability Lari is studied. Then, the optimal time allocation for energy harvesting and information decoding operations depends on these constraints is obtained.

Different from Rui-Zhang-1 and Rui-Zhang-2 , references Main-2016-1 ; Simple-1 ; Simple-2 ; Dedicated-1 ; Dedicated-2 assumed two dedicated energy and data access points. The authors of Main-2016-1 intended to maximize the achievable throughput by balancing the time duration of wireless power transfer at the DL and the information transfer at the UL while satisfying the energy causality, time duration and QoS constraints. Similar to Main-2016-1 , references Simple-1 ; Simple-2 assumed dedicated access points for the energy and data separately to maximize the achievable rate as well. In Simple-1

, the devices opportunistically access the wireless charging channel and information transmission channel and a power control strategy to minimize the energy consumption was presented. A wirless power beacon (PB) which performs channel estimation, digital beamforming and spectrum sensing is assumed in

Dedicated-1 where with a time-splitting approach, the source node first harvest energy from the PB and then, transmits information to the destination. Analytical experssions for the average throughput are derived and the optimal time split to maximize that is extracted. In addition, the impact of cochannel interference is studied. Finally, some notable points about the number of antennas and the role of cochannel interference are shown. In Dedicated-2 , the authors present the ergodic capacity of a similar system model to Dedicated-1 . The energy transfer link is subjected to Rician fading, which is a real fading environment due to relatively short range power transfer distance and the existence of a strong line of sight path.

Similar to harvest-then-transmit protocols, harvest-then-cooperate protocol can be used in a relay based communication to improve network performance Resource-Allocation-1 ; Resource-Allocation-2 ; X-1 ; X-2 ; Delay-Aware . In this protocol, the source and relay first harvest energy and then transmit source’s information to the destination cooperatively. In Resource-Allocation-1 an approximate closed-form expression for the average throughput of a WPC cooperative network over Rayleigh fading channels is derived. Again, in Resource-Allocation-2

, for the cooperative scenario, a social welfare maximization problem to maximize the weighted sum throughput of all HAP-source pairs, which is subsequently solved by a water-filling based distributed algorithm is formulated. The optimal energy beamforming vector and the time split between harvest and cooperation are investigated in

X-1 . Then, a closed-form expressions for the energy beamforming vector and the time split are extracted.

As we can see, the most previous articles have focused on optimization of the throughput rate. Nevertheless, in many cases such as tactile internet, factory automation and vehicle collision avoidance Tactile-Internet , data transmission with the low latency is more desirable. Under these conditions, optimization of the total DL/UL time duration instead of throughput rate is adopted. For this reason, transmission delay minimization in harvest-then-transmit WPC system is considered in our paper. Although our system model is similar to the previously mentioned papers (especially Rui-Zhang-1 ,Rui-Zhang-2 and Main-2016-1 ), but, the criterion and the cost function of our optimization problem are totally different.

3 System Model

We consider a point-to-point WPC system in Nakagami-m flat fading channel which include a HAP and a WPC node as shown in Fig. 1. The HAP is equipped with a power amplifier with the average power of . So, when the node has some new data to send, i.e. a frame of bits, the HAP starts transmitting power to the node for specified time duration in the DL phase. The HAP transmits its power as , where indicates the allocated power coefficient. Hence, in the ordinary way and without power allocation (problems and ) we assume . However, when the optimal power allocation is assumed (Problems and ), can vary with the constant average and . At the end of DL time duration, the harvested energy at the WPC node is equal to

(1)

where is the energy harvesting efficiency, shows the distance between the HAP and node, denotes the path-loss exponent, is the small scale DL channel coefficient and .

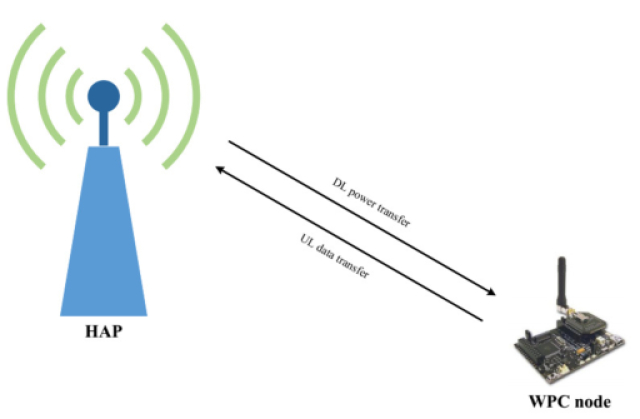

Figure 1: System model.

After the DL phase, the WPC node transmits bits to the HAP in the UL phase in the allocated time duration . The node uses the harvested energy within amount of time, so, the transmitted power from the node is given by

(2)

In the time duration , the WPC node can transmit bits such as

(3)

where is the overall bandwidth, represents the small scale UL channel coefficient and shows the noise power at the HAP respectively. For successful transmission at the UL, the channel capacity has to be greater than the available data so . Without loss of generalities, we can assume slow fading in the following where . Now, from (1)–(3), we can summarize the instantaneous transmitted rate from the node to the HAP as

(4)

where is considered as the average signal to noise ratio (SNR) at the HAP and represents the channel power gain. Since we assumed Nakagami-m flat fading channel and , we can write the probability density function (PDF) of as Alouini

(5)

where is the Nakagami-m fading parameter and shows the gamma function Ryzhik .

4 Transmission Delay Minimization

As we explained before, data transmission with the low latency is required. So, our optimization problems are exactly considered this kind of delay , which includes time duration of power transfer from the HAP to the node () and time duration of data transfer from the node to the HAP (). In four following problems, we study transmission delay (TD) minimization with different assumptions respectively.

4.1 Problem

In the first optimization problem, the HAP transmits constant power, so, the allocated power coefficient . In addition we assume . Then, the total TD is and we can write the minimization problem as

(6)
(7)

where (6) and (7) represent the cost function and the constraint of and shows the optimal solution of the DL and UL time duration.

With regard equality in (7), the optimization problem can be solved simply and is obtained as

(8)

Then, the average TD is calculated and given by

(9)

where is written in (5) previously. Note that, the integral of (9) can be calculated numerically for . For the proof, please refer to A.

4.2 Problem

In the second optimization problem when we use the optimal power allocation at the HAP, we can assume and the allocated power coefficient in (4) is . However, in order to keep the average transmitted power from the HAP less or equal than , we have to force . Now, we can write the minimization problem as

(10)
(11a)
(11b)

where (10) is the cost function and (11a), (11b) represent the constraints of .

After that, using constraint optimization method such as Lagrangian multiplier rule, the optimal solutions can be found as

(12)

and

(13)

where indicates Lambert-W function lambertw . For the details of derivation, please see B. In addition, in (12) and (13) is a constant (Lagrange multiplier) and can be obtained from

(14)

In a similar way, the average TD is given by

(15)

Note that, the integrals of (14) and (15) can be calculated numerically when (see C).

4.3 Problem

Here we assume a general case with but without the optimal power allocation at the HAP. So, in (4) and the minimization problem is formulated as

(16)
(17)

where (16) indicates the cost function and (17) represents the constraint of . Solving the constraint optimization problem, we can find

(18)
(19)

and the average TD is calculated according to

(20)

Note that, the integral of (20) is convergent for . The details of this problem solving are very similar to B which is omitted here. In addition, the convergence test of (20) for can be obtained similar to A or C.

4.4 Problem

Problem is the most general case where we assume and the optimal power allocation coefficient . So, the minimization problem is formulated as

(21)
(22a)
(22b)

where (21) is the cost function and (22a), (22b) represent the constraints of respectively. Similar to the previous cases, using the Lagrangian multiplier rule, the optimal solution is calculated numerically. Here, is obtained from

(23)

and then,

(24)
(25)

where is a constant (Lagrange multiplier) and obtained from . For the details, please see D. Since (23) is highly nonlinear, the computation of is performed iteratively. This means that, we first set and find from (23) when changes over . Then, is calculated and compared with the optimal value and then, is updated as well. After that, we find from (23) again and this process continuous until . Accordingly, we can observe that calculation of and from (23) is so complex and time consuming. Therefore, we suggest an approximation to reduce this complexity as follows.

Again, we consider (23) and replace in the argument of Lambert-W function with its average value and simplify (23) as

(26)

Now, we have a closed-form solution for given by

(27)

and accordingly

(28)

Then, and are extracted from (24) and (25) respectively and the average TD is calculated by

(29)

Note that, we can show (28) and (29) are convergent when we choose . The proof is similar to A and C which is omitted for briefing.

Finally, after extracting the optimal solution of problems to , we observe that the solution is not employable in the Rayleigh channel (Rayleigh channel is a subset of Nakagami-m when ). Therefore, some practical technique such as truncated power allocation Lari2 is recommended for the Rayleigh channel to resolve this issue. However, this issue is considered in a different paper in the future.

5 Extension to The Multiuser Scenario

In this section we attempt to extend the previous work to the multiuser case. So, here we assume one HAP and nodes. At the DL, the HAP transmits power to the nodes in time duration equals to . nodes can harvest energy during this time and they become ready to transmit their information to the HAP in the UL. Without loss of generality, we assume all nodes have  bits to transmit at the UL and transmit these information one by one in a TDMA slots. , denotes a dedicated time slot to the -th node in the UL. Similar to the single user case, represents the average SNR related to the -th node at the HAP, indicates the distance between the -th node and HAP and shows the channel power gain between the the -th node and HAP as well. The other parameters are the same as the single user case. In the multiuser case, one complete transmission in the DL and UL carry outs in time duration of . Therefore, minimization of is our concern here.

5.1 Problem

Here we assume that . By this assumption, when the number of nodes changes, the total UL time remains equal to the DL time and this is more realistic in a TDMA based system. For more simplicity, power allocation is not applied and therefore, in this problem we have . So, the total TD is and we can write the minimization problem as

(30)
(31a)
(31b)
(31c)
(31d)
(31e)

where (30) is the cost function and (31a)-(31e) represent the constraints of .

Problem can be solved using Lagrange multiplier rule. However, obtaining an optimal closed-form solution for the unknowns is not possible and we can find them numerically from nonlinear equations

(32a)
(32b)
(32c)
(32d)
(32e)

where ,,,, denote the optimal values for the DL and UL time durations. The details for derivation of (32a)-(32e) is very similar to B and D and it is not repeated again here.

5.2 Problem

In the problem , we extend and add power allocation at the HAP for more improvement. Therefore, and for keeping the average transmitted power from the HAP less or equal to , we have . Again we assume in the UL. Then, the minimization problem is written as

(33)
(34a)
(34b)
(34c)
(34d)
(34e)
(34f)

where (33) is the cost function and (34a)-(34f) show the constraints. Using Lagrange multiplier method, the optimal values are derived numerically from equations as follows:

(35a)
(35b)
(35c)
(35d)
(35e)
(35f)
(35g)
(35h)
(35i)
(35j)

where ,,,…, denote the optimal values for the DL and UL time duration and represents the optimal allocated power coefficient respectively. In addition, ,,…, represent the optimal values for Lagrange multiplier corresponding to the constraints (34a)-(34d), shows the optimal value for Lagrange multiplier corresponding to the constraint (34e) and shows the optimal value for Lagrange multiplier corresponding to the constraint (34f). The details for derivation of (35a)-(35j) are very similar to B and D and therefore it is not repeated again.

The system of equations with unknowns in (35a)-(35j) can be solved iteratively. The steps are shown in Table 1. First we initialize and we solve (35a)-(35i) for different values of change over . Then, the average is calculated as Monte-Carlo average and compared with the optimal value . If this average is almost one, (35j) is satisfied and ,,…, and show the optimal values. Otherwise, is updated with sub-gradient method Sub-Gradient in (36) and the iteration continues until (35j) is satisfied. Note that, in (36) shows the value at the -th iteration, is a positive gradient search step size and denotes .

(36)
input : , ,…,.
input :  randomly.
input :  as a very small number such as .
while  do
       for  do
             Generate over according to their distribution in (5). Solve system of nonlinear equations (35a)-(35i) numerically and find unknowns , ,…,, ,…,, and . .
       end for
      Calculate numerically as . . Update by (36).
end while
, ,…, and are valid and represent the optimal solutions.
Table 1 Iterative solution for the problem

6 Simulation Results

In this section, the obtained results from four optimization problems to and also two optimization problems to are considered and compared to illustrate the benefits of optimal time and power allocation. Here we assume KHz, and other parameters and variables will be specified if necessary. We have used MATLAB software package for the numerical results and for satisfactory results, Mont-Carlo simulation is repeated 100,000 times in each step.

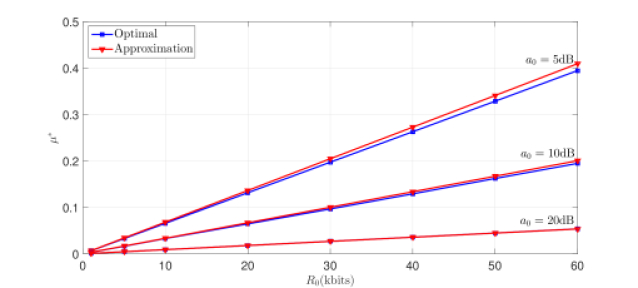

First, we examine the accuracy of proposed approximation in the forth problem in Fig. 2. We plot the achieved values for from (23) and (28) simultaneously versus and for different values of the average SNR . We can see an acceptable agreement between the optimal and approximated solutions, especially at high SNR and low values of . Henceforth, due to the simplicity of (28), in problem can be calculated by this equation.

Figure 2: The optimal and approximated values of in the problem .

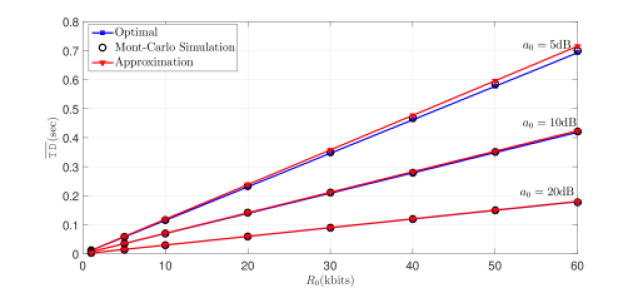

In addition, Fig. 3 shows with the optimal and approximated solutions in problem against . For a better comparison, Mont-Carlo simulation is also added in this figure which has a great fit with the optimal solution. Again, an acceptable agreement between the optimal and approximated solutions can be observed. Furthermore, as we expected, decreases by increasing the average SNR .

Figure 3: Comparison of the optimal, approximated and Mont-Carlo simulation for in the problem .

In Fig. 4 which can be considered as the main figure of this paper, the results of four optimization problems to are compared visually. In this figure, has been plotted versus whereas the average SNR takes different values (i.e. in Fig (a)a, in Fig (b)b and in Fig (c)c). As we expected, by increasing the average SNR in a given value of , decreases as well. Then, comparing the solutions of four optimization problems reveals that the lowest value of is achieved from the results of problem . As the same way, the highest value of is obtained from the results of problem . Therefore, simultaneous time and power allocation similar to the problem can reduce the total transmission delay significantly. For instance, when a WPC node has data, Fig. (a)a shows that transmission with the optimal time and power allocation according to the problem can reduce the delay by almost when compare to the problem . Consequently, applying the optimal time and power allocation is highly recommended especially for low and moderate SNRs. In addition, we can compare the solutions of and respectively. In the problem we assumed an equal time duration at the DL and UL channels along with the optimal power allocation at the HAP. But in the problem , an unequal DL and UL time duration without the optimal power allocation are assumed. We can see that the obtained results from are better than the results of . Consequently, we can conclude that the optimal power allocation has more influence on the delay rather than the optimal time allocation.

(a)
(b)
(c)
Figure 4: in different problems to .

One other important observation in Fig. 4 is that when is increased, the results of problems and and also problems and tend to each other respectively. This is clearly visible in Fig. (c)c. Therefore, we can conclude that at high SNRs, the optimal power allocation does not have a favourable effect and against, the optimal time allocation has a better impact on the results as well.

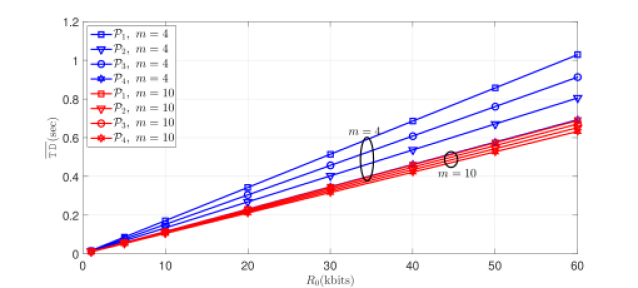

Figure 5: Comparison of for different values of .

At last, we plot for the problems to versus for and and dB in Fig. 5. The delay decreases when the fading parameter increases. As we can see, the optimal time and power allocation at high value of , does not have a considerable impact on the performance. Therefore, using the optimal solution at lower value of is more required.

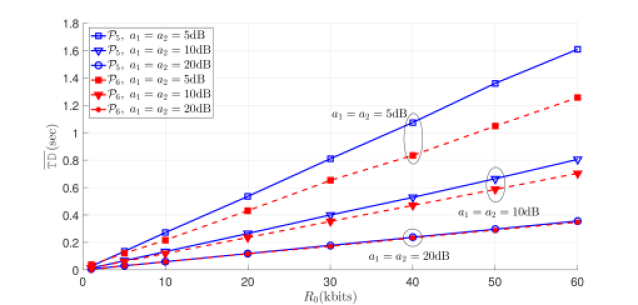

In the multiuser scenario, we assume and plot the average TD for the problems to versus in Fig. 6. Here, , and we compare the results for three average SNRs , and . Note that in the problem , we have power allocation at the HAP and the obtained results show the benefit of this power allocation in the low SNR. Therefore, in the multiuser case and very similar to the single user counterpart, the optimal power allocation at the HAP is recommended and can improve the average TD especially at the low SNR.

Figure 6: Comparison of in different SNRs in the multiuser case when .

7 Conclusion

In this paper we study transmission delay minimization in a point-to-point system with one HAP and one WPC node. For this reason, we first define four optimization problems to with different conditions. In the problems and , we assume an equal DL and UL time duration and in the problems and , we assume an unequal DL and UL time duration which can be optimally allocated to the HAP and WPC node for the power transmission and data transmission respectively. In addition, an optimal power allocation is assumed for the HAP in the problems and as well. Then, the optimal allocated time duration and transmit power are derived. We express that the optimal solutions can be used in the Nakagami-m fading channel with and hence, use of these techniques are not possible in Rayleigh fading channel. In addition, we compare the results and show that the simultaneous time and power allocation in the problem leads to the lowest transmission delay among the other methods. However, extraction of this solution has high complexity and therefore, a simple and tight approximation for the solution is presented. After that, the optimization problems are extended to the multiuser scenario and we define two different minimization problems and . In these two problems, minimization of total TD between one HAP and nodes is considered with and without the optimal power allocation at the HAP. Finally we conclude that the optimal time and power allocation can be quite effective for a WPC system in low and moderate SNRs.

Appendix A Convergence of (9)

We introduce a continuous and differentiable function over as

(A-1)

with and redefine (9) as

(A-2)

and we prove that for , and are convergent and so does .

For convergence testing of , we choose the comparison function as

(A-3)

such that

(A-4)

The limit comparison test calculus says that converges if and only if converges. We now use the direct comparison test (some times called p-test) for the convergence of , which says that is a type II improper integral and converges if and only if . Therefore, choosing leads to the convergence of as well.

Then, for testing , from the Taylor expansion of at large , we know that

(A-5)

So, for large we can write

(A-6)

is a type I improper integral which is always convergent. Therefore, is convergent too.

Finally, we can conclude that choosing leads to the convergence of and and consequently .

Appendix B Derivation of (12) and (13)

Using Lagrangian method, the cost function is written as
