Translating a Math Word Problem to an Expression Tree

11/14/2018 ∙ by Lei Wang, et al. ∙ Tencent 0

Sequence-to-sequence (SEQ2SEQ) models have been successfully applied to automatic math word problem solving. Despite its simplicity, a drawback still remains: a math word problem can be correctly solved by more than one equations. This non-deterministic transduction harms the performance of maximum likelihood estimation. In this paper, by considering the uniqueness of expression tree, we propose an equation normalization method to normalize the duplicated equations. Moreover, we analyze the performance of three popular SEQ2SEQ models on the math word problem solving. We find that each model has its own specialty in solving problems, consequently an ensemble model is then proposed to combine their advantages. Experiments on dataset Math23K show that the ensemble model with equation normalization significantly outperforms the previous state-of-the-art methods.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Developing computer systems to automatically solve math word problems (MWPs) has been an interest of NLP researchers since 1963 Feigenbaum et al. (1963); Bobrow (1964). A typical MWP is shown in Table 1

. Readers are asked to infer how many pens and pencils Jessica have in total, based on the textual problem description provided. Statistical machine learning-based methods

Kushman et al. (2014); Amnueypornsakul and Bhat (2014); Zhou et al. (2015); Mitra and Baral (2016); Roy and Roth (2018) and semantic parsing-based methods Shi et al. (2015); Koncel-Kedziorski et al. (2015); Roy and Roth (2015); Huang et al. (2017) are proposed to tackle this problem, yet they still require considerable manual efforts on feature or template designing. For more literatures about solving math word problems automatically, refer to a recent survey paper Zhang et al. (2018).

Recently, the Deep Neural Networks (DNNs) have opened a new direction towards automatic MWP solving.

Ling et al. (2017) take multiple-choice problems as input and automatically generate rationale text and the final choice. Wang et al. (2018)

then make the first attempt of applying deep reinforcement learning to arithmetic word problem solving.

Wang et al. (2017) train a deep neural solver (DNS) that needs no hand-crafted features, using the Seq2Seq model to automatically learn the problem-to-equation mapping.

Problem: Dan has 5 pens and 3 pencils, Jessica has 4 more pens and 2 less pencils than him. How many pens and pencils does Jessica have in total?
Equation: ; Solution: 10
Table 1: A math word problem

Although promising results have been reported, the model in (Wang et al., 2017) still suffers from an equation duplication problem: a MWP can be solved by multiple equations. Taking the problem in Table 1 as an example, it can be solved by various equations such as , and . This duplication problem results in a non-deterministic output space, which has a negative impact on the performance of most data-driven methods. In this paper, by considering the uniqueness of expression tree, we propose an equation normalization method to solve this problem.

Given the success of different Seq2Seq models on machine translation (such as recurrent encoder-decoder Wu et al. (2016), Convolutional Seq2Seq model Gehring et al. (2017) and Transformer Vaswani et al. (2017)), it is promising to adapt them to MWP solving. In this paper, we compare the performance of three state-of-the-art Seq2Seq models on MWP solving. We observe that different models are able to correctly solve different MWPs, therefore, as a matter of course, an ensemble model is proposed to achieve higher performance. Experiments on dataset Math23K show that by adopting the equation normalization and model ensemble techniques, the accuracy boosts from 60.7% to 68.4%.

The remaining part of this paper is organized as follows: we first introduce the Seq2Seq Framework in Section 2. Then the equation normalization process is presented in Section 3, following which three Seq2Seq models and an ensemble model are applied to MWP solving in Section 4. The experimental results are presented in Section 5. Finally we conclude this paper in Section 6.

2 Seq2Seq Framework

The process of using Seq2Seq model to solve MWPs can be divided into two stages Wang et al. (2017). In the first stage (number mapping stage), significant numbers (numbers that will be used in real calculation) in problem are mapped to a list of number tokens by their natural order in the problem text. Throughout this paper, we use the significant number identification (SNI) module proposed in Wang et al. (2017) to identify whether a number is significant. In the second stage, Seq2Seq models can be trained by taking the problem text as the source sequence and equation templates (equations after number mapping) as the target sequence.

Taking the problem in Table 1 as an example, first we can obtain a number mapping , and transform the given equation to an equation template . During training, the objective of our Seq2Seq

model is to maximize the conditional probability

, which will be decomposed to token-wise probabilities. During decoding, we use beam search to approximate the most likely equation template. After that, we replace the number tokens with actual numbers and calculate the solution with a math solver.

3 Equation Normalization

In the number mapping stage, the equations have been successfully transformed to equation templates . However, due to the equation duplication problem introduced in Section 1, this problem-equation templates formalization is a non-deterministic transduction that will have adverse effects on the performance of maximum likelihood estimation. There are two types of equation duplication: 1) order duplication such as “” and “”, 2) bracket duplication such as “” and “”.

To normalize the order-duplicated templates, we define two normalization rules:

  • Rule 1: Two duplicated equation templates with unequal length should be normalized to the shorter one. For example, two equation templates “”, “” should be normalized to the latter one.

  • Rule 2: The number tokens in equation templates should be ordered as close as possible to their order in number mapping. For example, three equation templates “”, “” and “” should be normalized to “”.

To solve the bracket duplication problem, we further normalize the equation templates to an expression tree. Every inner node in the expression tree is an operator with two children, while each leaf node is expected to be a number token. An example of expressing equation template as the unique expression tree is shown in Figure 1.

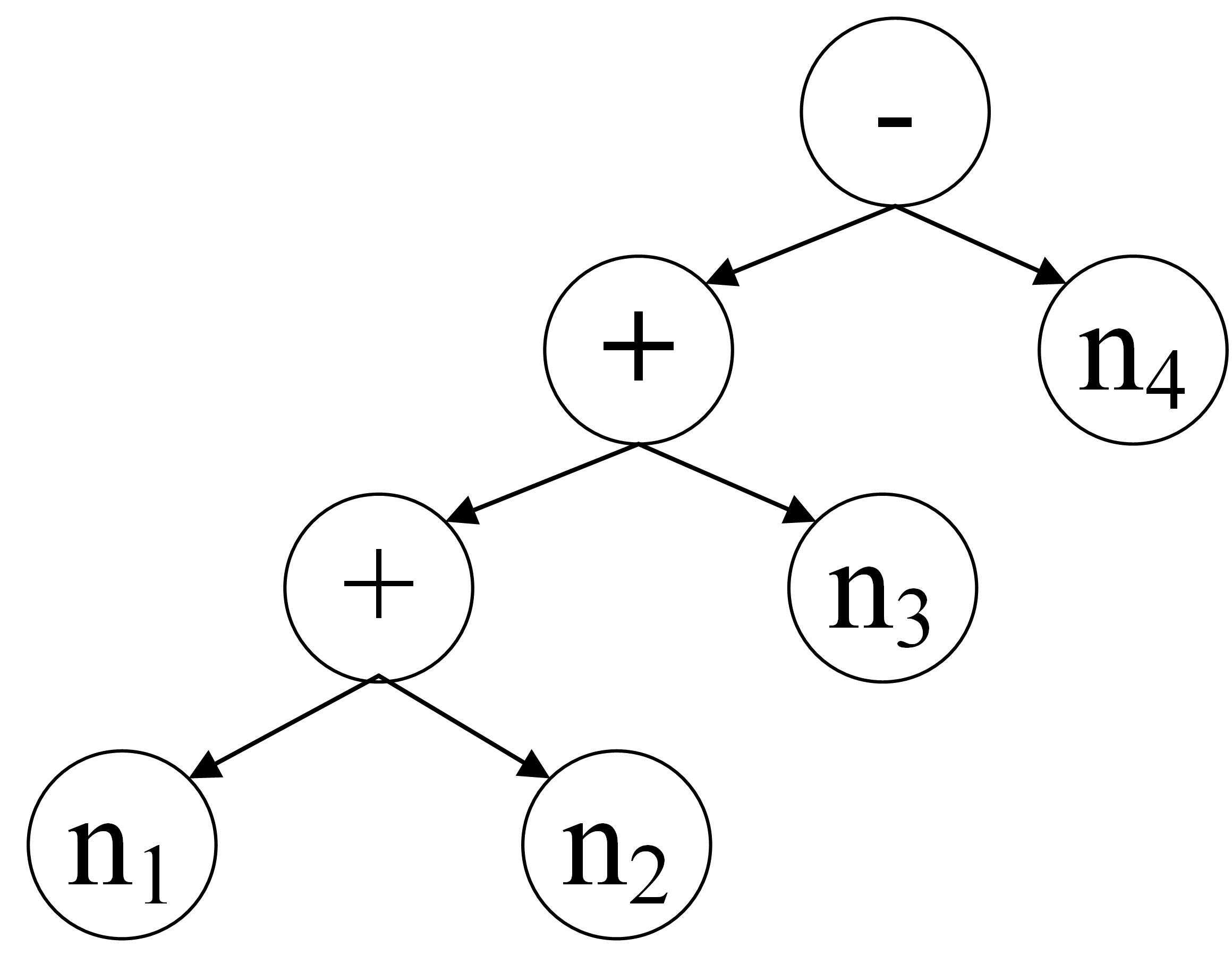

Figure 1: A Unique Expression Tree

After equation normalization, the Seq2Seq models can solve MWPs by taking problem text as source sequence and the postorder traversal of an unique expression tree as target sequence, as shown in Figure 2.

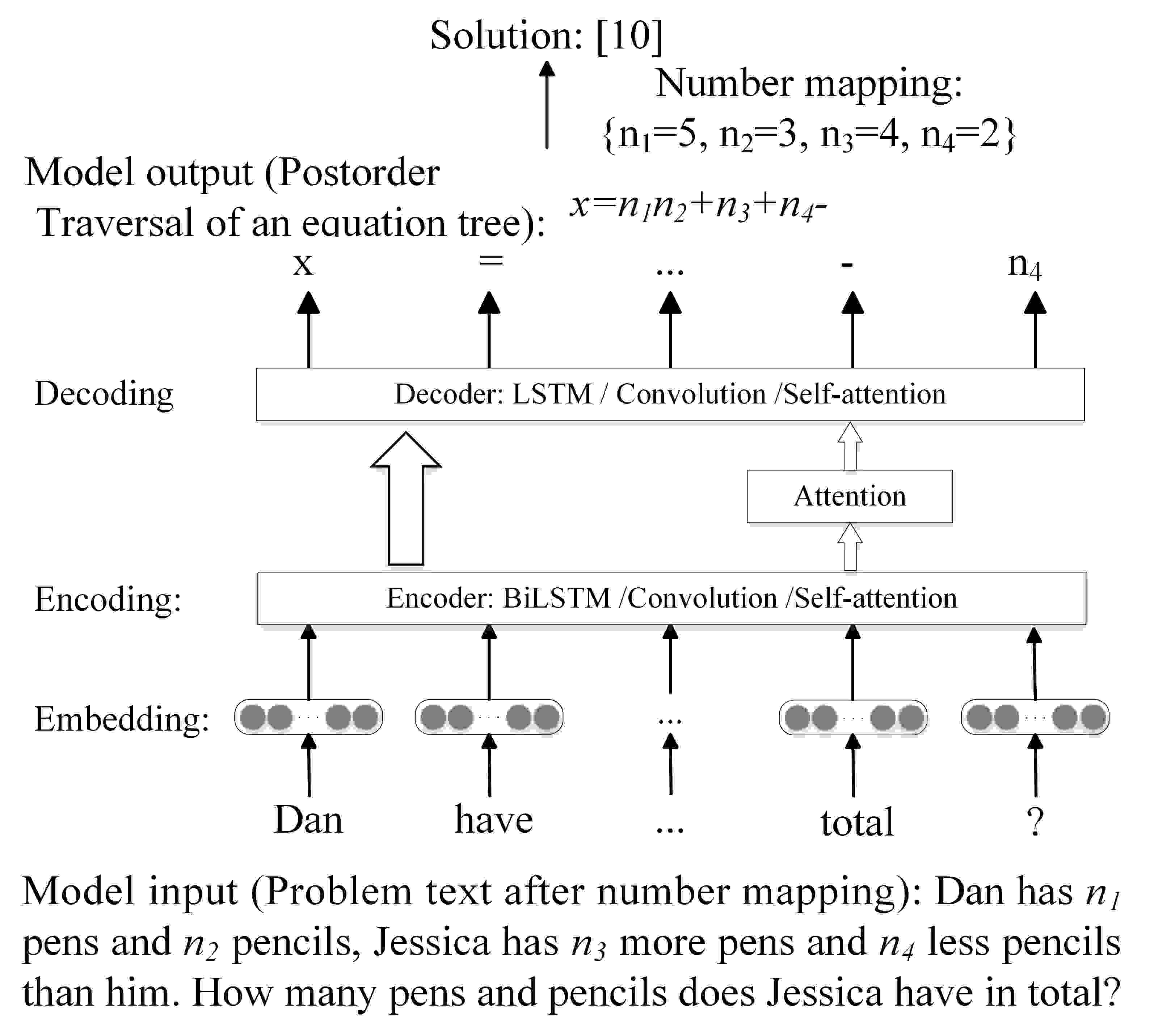

Figure 2: Framework of Seq2Seq models
