1 Introduction

Electronic health records (EHRs) have been widely adopted in some countries such as the United States and represent gold mines of information for medical research. The majority of EHR data exist in unstructured form such as patient notes (Murdoch and Detsky, 2013)

. Applying natural language processing on patient notes can improve the phenotyping of patients

(Ananthakrishnan et al., 2013; Pivovarov and Elhadad, 2015; Halpern et al., 2016), which has many downstream applications such as the understanding of diseases (Liao et al., 2015).

However, before patient notes can be shared with medical investigators, some types of information, referred to as protected health information (PHI), must be removed in order to preserve patient confidentiality. In the United States, the Health Insurance Portability and Accountability Act (HIPAA) (Office for Civil Rights, 2002) defines 18 different types of PHI, ranging from patient names and ID numbers to addresses and phone numbers. The task of removing PHI from a patient note is referred to as de-identification. The essence of de-identification is recognizing PHI in patient notes, which is a form of named-entity recognition (NER).

Existing de-identification systems are often rule-based approaches or feature-based machine learning approaches. However, these techniques require additional lead time for developing and fine-tuning the rules or features specific to each new dataset. Meanwhile, recent work using ANNs have yielded state-of-the-art performances without using any manual features

(Dernoncourt et al., 2016). Compared to the previous systems, ANNs have a competitive advantage that the model can be fine-tuned on a new dataset without the overhead of manual feature development, as long as some labels for the dataset are available.

However, it may still be inefficient to mass deploy ANN-based de-identification system in practical settings, since creating annotations for patient notes is especially difficult. This is due to the fact that only a restricted set of individuals is authorized to access original patient notes; the annotation task cannot be crowd-sourced, making it slow and expensive to obtain a large annotated corpus. Medical professionals are therefore wary to explore patient notes because of this de-identification barrier, which considerably hampers medical research.

In this paper, we analyze to what extent transfer learning may improve de-identification performances on datasets with a limited number of labels. By training an ANN model on a large dataset (MIMIC) and transferring it to smaller datasets (i2b2 2014 and i2b2 2016), we demonstrate that transfer learning allows to outperform the state-of-the-art results.

2 Related Work

Transfer learning has been studied for a long time. There is no standard definition of transfer learning in the literature (Li, 2012). We follow the definition from (Pan and Yang, 2010): transfer learning aims at performing a task on a target dataset using some knowledge learned from a source dataset. The idea has been applied to many fields such as speech recognition  (Wang and Zheng, 2015) and finance (Stamate et al., 2015).

The successes of ANNs for many applications over the last few years have escalated the interest in studying transfer learning for ANNs. In particular, much work has been done for computer vision

(Yosinski et al., 2014; Oquab et al., 2014; Zeiler and Fergus, 2014). In these studies, some of the parameters learned on the source dataset are used to initialize the corresponding parameters of the ANNs for the target dataset.

Fewer studies have been performed on transfer learning for ANN-based models in the field of natural language processing. For example, Mou et al. Mou et al. (2016)

focused on transfer learning with convolutional neural networks for sentence classification. To the best of our knowledge, no study has analyzed transfer learning for ANN-based models in the context of NER.

3 Model

The model we use for transfer learning experiments is based on a type of recurrent neural networks called long short-term memory (LSTM)

(Hochreiter and Schmidhuber, 1997), and utilizes both token embeddings and character embeddings. It comprises six major components:

  1. [itemsep=3pt,topsep=3pt,leftmargin=*]

  2. Token embedding layer maps each token to a token embedding.

  3. Character embedding layer maps each character to a character embedding.

  4. Character LSTM layer

    takes as input character embeddings and outputs a single vector that summarizes the information from the sequence of characters in the corresponding token.

  5. Token LSTM layer takes as input a sequence of token vectors, which are formed by concatenating the outputs of the token embedding layer and the character LSTM layer, and outputs a sequence of vectors.

  6. Fully connected layer takes the output of the token LSTM layer as input, and outputs vectors containing the scores of each label for the corresponding tokens.

  7. Sequence optimization layer takes the sequence of vectors from the output of the fully connected layer and outputs the most likely sequence of predicted labels, by optimizing the sum of unigram label scores as well as bigram label transition scores.

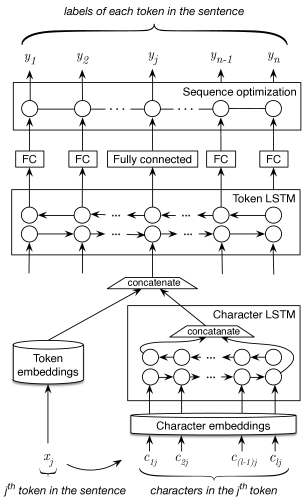

Figure 1

shows how these six components are interconnected to form the model. All layers are learned jointly using stochastic gradient descent. For regularization, dropout is applied before the token LSTM layer, and early stopping is used on the development set with a patience of 10 epochs.

Figure 1: ANN model for NER. For transfer learning experiments, we train the parameters of the model on a source dataset, and transfer all or some of the parameters to initialize the model for training on a target dataset.

4 Experiments

4.1 Datasets

We use three de-identification datasets for the transfer learning experiments: MIMIC, i2b2 2014, and i2b2 2016. The MIMIC de-identification dataset was introduced in (Dernoncourt et al., 2016), and is a subset of the MIMIC-III dataset (Johnson et al., 2016; Goldberger et al., 2000; Saeed et al., 2011). The i2b2 2014 and 2016 datasets were released as part of the 2014 i2b2/UTHealth shared task Track 1 (Stubbs et al., 2015) and the 2016 i2b2 CEGS N-GRID shared task, respectively. Table 1 presents the datasets’ sizes.

MIMIC i2b2 2014 i2b2 2016
Vocabulary size 69,525 46,803 61,503
Number of notes 1,635 1,304 1,000
Number of tokens 2,945,228 984,723 2,689,196
Number of PHI instances 60,725 28,867 41,142
Number of PHI tokens 78,633 41,355 54,420
Table 1: Overview of the MIMIC and i2b2 datasets. PHI stands for protected health information.

4.2 Transfer learning

The goal of transfer learning is to leverage the information present in a source dataset to improve the performance of an algorithm on a target dataset. In our setting, we apply transfer learning by training the parameters of the ANN model on the source dataset (MIMIC), and using the same ANN to retrain on the target dataset (i2b2 2014 or 2016) for fine-tuning. We use MIMIC as the source dataset since it is the dataset with the most labels. We perform two sets of experiments to gain insights on how effective transfer learning is and which parameters of the ANN are the most important to transfer.111

Our code is an extension of the NER library NeuroNER

(Dernoncourt et al., 2017), which we committed to NeuroNER’s repository

Experiment 1

Quantifying the impact of transfer learning for various train set sizes of the target dataset. The primary purpose of this experiment is to assess to what extent transfer learning improves the performances on the target dataset. We experiment with different train set sizes to understand how many labels are needed for the target dataset to achieve reasonable performances with and without transfer learning.

Experiment 2

Analyzing the importance of each parameter of the ANN in the transfer learning. Instead of transferring all the parameters, we experiment with transferring different combinations of parameters. The goal is to understand which components of the ANN are the most important to transfer. The lowest layers of the ANN tend to represent task-independent features, whereas the topmost layers are more task-specific. As a result, we try transferring the parameters starting from the bottommost layer up to the topmost layer, adding one layer at a time.

5 Results

Experiment 1

Figure 2 compares the F1-scores of the ANN trained only on the target dataset against the ANN trained on the source dataset followed by the target dataset. Transfer learning improves the F1-scores over training only with the target dataset, though the improvement diminishes as the number of training samples used for the target dataset increases. This implies that the representations learned from the source dataset are efficiently transferred and exploited for the target dataset.

Therefore, when transfer learning is adopted, fewer annotations are needed to achieve the same level of performance as when the source dataset is unused. For example, on the i2b2 2014 dataset, performing transfer learning and using 16% of the i2b2 train set leads to similar performance as not using transfer learning and using 34% of the i2b2 train set. Transfer learning thus allows to cut by half the number of labels needed on the target dataset in this case.

For both the i2b2 2014 and 2016 datasets, the performance gains from transfer learning are greater when the train set size of the target dataset is small. The largest improvement can be observed for i2b2 2014 when using 5% of the dataset as the train set (consisting of around 2k PHI tokens out of 50k tokens), where transfer learning increases the F1-score by around 3.1 percent point, from 90.12 to 93.21. Even when all of the train set is used, the F1-score improves when using transfer learning, albeit by just 0.17 percent point, from 97.80 to 97.97.

Figure 2: Impact of transfer learning on the F1-scores. Baseline corresponds to training the ANN model only with the target dataset, and transfer learning corresponds to training on the source dataset followed by training on the target dataset. The target train set size is the percentage of train set in the whole dataset, and 60% corresponds to the full official train set.
Figure 3: Impact of transferring the parameters up to each layer of the ANN model using various train set sizes on the target dataset: 5%, 10%, 20%, 40%, and 60% (official train set).

Experiment 2

Figure 3 shows the importance of each layer of the ANN in transfer learning. We observe that transferring a few lower layers is almost as efficient as transferring all layers. For i2b2 2014, transferring up to the token LSTM shows great improvements for each layer, but there is less improvement for each added layer beyond that. For i2b2 2016, larger improvements can be observed up to the character LSTM and less so beyond that layer.

The parameters in the lower layers therefore seems to contain most information that are relevant to the de-identification task in general, which supports the common hypothesis that higher layers of ANN architectures contain the parameters that are more specific to the task as well as the dataset used for training.

Despite the observation that transferring a few lower layers may be sufficient for efficient transfer learning, it is interesting to see that adding the topmost layers to the transfer learning does not hurt the performance. When retraining the model on the target dataset, the ANN is able to adapt to the target dataset quite well despite some the higher layers being initialized to parameters that are likely to be more specific to the source dataset.

6 Conclusion

In this work, we have studied transfer learning with ANNs for NER, specifically patient note de-identification, by transferring ANN parameters trained on a large labeled dataset to another dataset with limited human annotations. We demonstrated that transfer learning improves the performance over the state-of-the-art results on two datasets. Transfer learning may be especially beneficial for a target dataset with small number of labels.
