Introduction
For largescale tasks such as image classification, large networks with many millions of parameters are often used [Krizhevsky, Sutskever, and Hinton2012], [Simonyan and Zisserman2015], [Szegedy et al.2015]. However, these networks typically use dense computations. Would it be advantageous to use sparse computations instead? Apart from having fewer number of parameters to store ( to )^{1}^{1}1For a matrix of size with nonzero elements, sparse computations also decrease feedforward evaluation time ( to )^{2}^{2}2
For matrixvector multiplies with a dense vector of size
. Further, having a lower parameter count may help in avoiding overfitting.Regularizers are often used to discourage overfitting. These usually restrict the magnitude () of weights. However, to restrict the computational complexity of neural networks, we need a regularizer which restricts the total number of parameters of a network. A common strategy to obtain sparse parameters is to apply sparsityinducing regularizers such as the penalty on the parameter vector. However, this is often insufficient in inducing sparsity in case of large nonconvex problems like deep neural network training as shown in [Collins and Kohli2014]. The contribution of this paper is to be able to induce sparsity in a tractable way for such models.
The overall contributions of the paper are as follows.

We propose a novel regularizer that restricts the total number of parameters in the network. (Section 2)

We perform experimental analysis to understand the behaviour of our method. (Section 4)

We apply our method on LeNet5, AlexNet and VGG16 network architectures to achieve stateoftheart results on network compression. (Section 4)
Problem Formulation
To understand the motivation behind our method, let us first define our notion of computational complexity of a neural network.
Let be a set of vectors. This represents an layer dense neural network architecture where is a vector of parameter indices for the layer, i.e; . Here, each layer contains elements. Zero indicates absence of a parameter and one indicates presence. Thus, for a dense neural network, is a vector of all ones, i.e.; . For a sparse parameter vector, would consist of mostly zeros. Let us call as the index set of a neural network.
For these vectors, our notion of complexity is simply the total number of parameters in the network.
Definition 1.
The complexity of a layer neural network with index set is given by .
We now aim to solve the following optimization problem.
(1)
where denotes the weights of the neural network, and the index set.
denotes the loss function, which depends on the underlying task to be solved. Here, we learn both the weights as well as the index set of the neural network. Using the formalism of the index set, we are able to penalize the total number of network parameters. While easy to state, we note that this problem is difficult to solve, primarily because
contains elements .Gate Variables

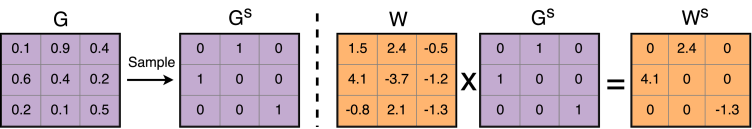

How do we incorporate the index set formalism in neural networks? Assume that the index set ( in Fig. 1) is multiplied pointwise with the weight matrix. This results in a weight matrix that is effectively sparse, if the index set has lots of zeros rather than ones. In other words, we end up learning two sets of variables to ensure that one of them  weights  becomes sparse. How do we learn such binary parameters in the first place ?
To facilitate this, we interpret index set variables (
) as draws from a bernoulli random variable. As a result, we end up learning the realvalued bernoulli parameters (
in Fig. 1), or gate variables rather than index set variables themselves. Here the sampled binary gate matrix corresponds exactly to the index set, or the matrix described above. To clarify our notation, and stand for the realvalued gate variables, while the superscript indicates binary sampled variables.When we draw from a bernoulli distribution, we have two choices  we can either perform a
unbiased draw (the usual sampling process), or we can perform a socalled maximumlikelihood (ML) draw. The ML draw involves simply thresholding the values of at . To ensure determinism, we use the ML draw or thresholding in this work.Promoting Sparsity
Given our formalism of gate variables, how do we ensure that the learnt bernoulli parameters are low  or in our case  mostly less than ? One plausible option is to use the or the regularizer on the gate variables. However, this does not ensure that there will exist values greater than . To accommodate this, we require a bimodal regularizer, i.e; a regularizer which ensures that some values are large, but most values are small.
To this end, we use a regularizer given by . This was introduced by [Murray and Ng2010] to learn binary values for parameters. However, what is important for us is that this regularizer has the bimodal property mentioned earlier, as shown in Fig. 1(a)
Our overall regularizer is simply a combination of this bimodal regularizer as well the traditional or regularizer for the individual gate variables. Our objective function is now stated as follows.
(2)
An Alternate Interpretation
Now that we have arrived at the objective function in Eqn.2, it is natural to ask the question  how do we know that it solves the original objective in Eqn.1 ? We shall now derive Eqn.2 from this perspective.
Assuming the formulation of gate variables, we can rewrite the objective in Eqn.1 as follows.
(3)
where is the sampled version of gate variables . Note that Eqn.3 is a stochastic objective function, arising from the fact that is a random variable. We can convert this to a realvalued objective by taking expectations. Note that expectation of the loss function is difficult to compute. As a result, we approximate it with a MonteCarlo average.
where . While this formulation is sufficient to solve the original problem, we impose another condition on this objective. We would like to minimize the number of MonteCarlo evaluations in the loss term. This amounts to reducing for a fixed
, or reducing the variance of the loss term. This is done by reducing the variance of
, the only random variable in the equation. To account for this, we add another penalty term corresponding to . Imposing this additional penalty and then using gives us back Eqn.2.Relation to SpikeandSlab priors
We observe that our problem formulation closely resembles spikeandslab type priors used in Bayesian statistics for variable selection
[Mitchell and Beauchamp1988]. Broadly speaking, these priors are mixtures of two distributions  one with very low variance (spike), and another with comparatively large variance (slab). By placing a large mass on the spike, we can expect to obtain parameter vectors with large sparsity.Let us consider for a moment using the following prior for weight matrices of neural networks.
(4)
Here, denotes the dirac delta distribution, and denotes the normalizing constant, and is the mixture coefficient. Also note that like [Mitchell and Beauchamp1988], we assume that for some . This is visualized in Fig. 1(b). Note that this is a multiplicative mixture of distributions, rather than additive. By taking negative logarithm of this term and ignoring constant terms, we obtain
(5)
Note that the first term in this expression corresponds exactly to the number of nonzero parameters, i.e; the term of Eqn. 1. The second term corresponds to the usual regularizer on the weights of the network (rather than gates). As a result, we conclude that Eqn. 4 is a spikeandslab prior which we implicitly end up using in this method.
Estimating gradients for gate variables
How do we estimate gradients for gate variables, given that they are binary stochastic variables, rather than realvalued and smooth? In other words, how do we backpropagate through the bernoulli sampling step? Bengio
et al. bengio2013estimating investigated this problem and empirically verified the efficacy of different possible solutions. They conclude that the simplest way of computing gradients  the straightthrough estimator works best overall. Our experiments also agree with this observation.The straightthrough
estimator simply involves backpropagating through a stochastic neuron as if it were an identity function. If the sampling step is given by
, then the gradient is used.Another issue of consideration is that of ensuring that always lies in so that it is a valid bernoulli parameter. Bengio et al.
bengio2013estimating use a sigmoid activation function to achieve this. Our experiments showed that clipping functions worked better. This can be thought of as a ‘linearized’ sigmoid. The clipping function is given by the following expression.
The overall sampling function is hence given by , and the straightthrough estimator is used to estimate gradients overall.
Comparison with LASSO
LASSO is commonly used method to attain sparsity and perform variable selection. The main difference between the above method and LASSO is that LASSO is primarily a shrinkage operator, i.e.; it shrinks all parameters until lots of them are close to zero. This is not true for the case of spikeandslab priors, which can have high sparsity and encourage large values at the same time. This is due to the richer parameterization of these priors.
Practical issues
In this section we shall discuss some practical issues pertaining to our method. Our method ironically uses twice the number of parameters as a typical neural network, as we have two sets of variables  weights and gates. As a result, model size doubles while training. However, we multiply the two to result in sparse matrices which considerably reduces model size at test time. Essentially we do not have to store both sets of parameters while testing,only a elementwise product of the two is required. Even though the model size doubles at train time, we note that speed of training / feedforward evaluation is not affected due to the fact that only elementwise operations are used.
Our method can be applied to both convolutional tensors as well as fully connected matrices. However while performing compression, we note that convolutional layers are less susceptible to compression that fully connected layers due to the small number of parameters they possess.
Related Work
There have been many recent works which perform compression of neural networks. Weightpruning techniques were popularized by LeCun et al.lecun1989optimal and Hassibi et al.hassibi1993second, who introduced Optimal Brain Damage and Optimal Brain Surgery respectively. Recently, Srinivas and Babu BMVC2015_31 proposed a neuron pruning technique, which relied on neuronal similarity. In contrast, we perform weight pruning based on learning, rather than handcrafted rules.
Previous attempts have also been made to sparsify neural networks. Han et al.han2015learning create sparse networks by alternating between weight pruning and network training. A similar strategy is followed by Collins and Kohli DBLP:journals/corr/CollinsK14. On the other hand, our method performs both weight pruning and network training simultaneously. Further, our method has considerably less number of hyperparameters to determine () compared to the other methods, which have thresholds to be set for each of the layers in a neural network.
Many methods have been proposed to train models that are deep, yet have a lower parameterisation than conventional networks. Denil et al.denil2013predicting demonstrated that most of the parameters of a model can be predicted given only a few parameters. At training time, they learn only a few parameters and predict the rest. Yang et al.yang2014deep propose an Adaptive Fastfood transform, which is an efficient reparametrization of fullyconnected layer weights. This results in a reduction of complexity for weight storage and computation. Novikov et al.novikov2015tensorizing use tensor decompositions to obtain a factorization of tensors with small number of parameters. Cheng et al.cheng2015exploration make use of circulant matrices to reparamaterize fully connected layers. Some recent works have also focussed on using approximations of weight matrices to perform compression. Gong et al.gong2014compressing use a clusteringbased product quantization approach to build an indexing scheme that reduces the space occupied by the matrix on disk. Note that to take full advantage of these methods, one needs to have fast implementations of the specific parameterization used. One the other hand, we use a sparse parameterization, fast implementations of which are available on almost every platform.
Our work is very similar to that of Architecture Learning [Srinivas and Babu2015b], which uses a similar framework to minimize the total number of neurons in a neural network. On the other hand, we minimize the total number of weights.
Layers  Initial

Params  Final
Params  Sparsity (%)
conv1  0.5K  0.04K  91
conv2  25K  1.78K  92.8
fc1  400K  15.4K  96.1
fc2  5K  0.6K  86.8
Total  431K  17.9K  95.84
Method  Params (P+I)*  Accuracy(%)  Compression Rate(%)

Baseline  431K  99.20  1x
SVD(rank10)[Denton et al.2014]  43.6K  98.47  10x
AL [Srinivas and Babu2015b]  40.9K  99.04  10.5x
AF1024 [Yang et al.2014]  38.8K  99.29  11x
Han et al.[Han et al.2015]  36K (72k)*  99.23  12x
Method1  18K (36k)*  99.19  24x
Method2  22K (44k)*  99.33  19x
Experiments
In this section we perform experiments to evaluate the effectiveness of our method. First, we perform some experiments designed to understand typical behaviour of the method. These experiments are done primarily on LeNet5 [LeCun et al.1998]
. Second, we use our method to perform network compression on two networks  LeNet5 and AlexNet. These networks are trained on MNIST and ILSVRC2012 dataset respectively. Our implementation is based on Lasagne, a Theanobased library.
Analysis of Proposed method
We shall now describe experiments to analyze the behaviour of our method. First, we shall analyze the effect of hyperparameters. Second, we study the effect of varying model sizes on the resulting sparsity.
For all analysis experiments, we consider the LeNet5 network. LeNet5 consists of two convolutional layers with 20 and 50 filters, and two fully connected layers with 500 and 10 (output layer) neurons. For analysis, we only study the effects sparsifying the third fully connected layer.
Layers  Initial

Params  Final
Params  Sparsity (%)
conv(5 layers)  2.3M  2.3M
fc6  38M  1.3M  96.5
fc7  17M  1M  94
fc8  4M  1.2M  70
Total  60.9M  5.9M  90
Layers  Initial

Params  Final
Params  Sparsity(%)
conv1_1 to conv4_3
(10 layers)  6.7M  6.7M
conv5_1  2M  2M
conv5_2  2M  235K  88.2
conv5_3  2M  235K  88.2
fc6  103M  102K  99.9
fc7  17M  167K  99.01
fc8  4M  409K  89.7
Total  138M  9.85M  92.85
Effect of hyperparameters
In Section 2.1 we described that we used maximum likelihood sampling (i.e.; thresholding) instead of unbiased sampling from a bernoulli. In these experiments, we shall study the relative effects of hyperparameters on both methods. In the sampling case, sparsity is difficult to measure as different samples may lead to slightly different sparsities. As a result, we measure expected sparsity as well the it’s variance.
Our methods primarily have the following hyperparameters: and the initialization for each gate value. As a result, if we have a network with layers, we have hyperparameters to determine.
First, we analyze the effects of and . We use different combinations of initializations for both and look at it’s effects on accuracy and sparsity. As shown in Table 5, both the thresholding as well as the sparsitybased methods are similarly sensitive to the regularization constants.
In Section 2.3, we saw that roughly controls the variance of the bernoulli variables while penalizes the mean. In Table 5, we see that the mean sparsity for the pair is high, while that for is considerably lower. Also, we note that the variance of is smaller than that of , confirming our hypothesis that controls variance.
Overall, we find that both networks are almost equally sparse, and that they yield very similar accuracies. However, the thresholdingbased method is deterministic, which is why we primarily use this method.
To further analyze effects of and , we plot sparsity values attained by our method by fixing one parameter and varying another. In Figure 2(b) we see that , or the variancecontrolling hyperparameter, mainly stabilizes the training by reducing the sparsity levels. In Figure 2(c) we see that increasing increases the sparsity level as expected.
Sparsity (%)
[T]  Avg.Sparsity (%)
[S]  Variance (%)
[S]
0  0  54.5  53.1  16.1
1  1  98.3  93.7  3.3
1  0  62.1  57.3  5.4
0  1  99.0  92.7  4.1
Method  Params (Params + Indices)  Top1 Accuracy(%)  Compression Rate

Baseline  60.9M  57.2
Neuron Pruning [Srinivas and Babu2015a]  39.6M  55.60  1.5x
SVDquarterF [Yang et al.2014]  25.6M  56.18  2.3x
Adaptive FastFood 32 [Yang et al.2014]  22.5M  57.39  2.7x
Adaptive FastFood 16 [Yang et al.2014]  16.4M  57.1  3.7x
ACDC [Moczulski et al.2015]  11.9M  56.73  5x
Collins & Kohli [Collins and Kohli2014]  8.5M (17M)  55.60  7x
Han et al.[Han et al.2015]  6.7M (13.4M)  57.2  9x
Proposed Method  5.9M (11.8M)  56.96  10.3x
Method  Params (Params + Indices)  Top1 Accuracy(%)  Compression Rate

Baseline  138M  68.97
Han et al.[Han et al.2015]  10.3M (20.6M)  68.66  13x
Proposed Method  9.8M (19.6M)  69.04  14x
We now study the effects of using different initializations for the gate parameters. We initialize all gate parameters of a layer with the same constant value. We also tried stochastic initialization for these gate parameters (Eg. from a Gaussian distribution), but we found no particular advantage in doing so. As shown in Figure
2(a), both methods seem robust to varying initializations, with the thresholding method consistently giving higher sparsities. This robustness to initialization is advantageous to our method, as we no longer need to worry about finding good initial values for them.Compression Performance
We test compression performance on three different network architectures  LeNet5, AlexNet [Krizhevsky, Sutskever, and Hinton2012] and VGG16.
For LeNet5, we simply sparsify each layer. As shown in Table 1, we are able to remove about 96% of LeNet’s parameters and only suffer a negligible loss in accuracy. Table 2 shows that we obtain stateoftheart results on LeNet5 compression. For Proposed Method  1, we used , while for Proposed Method2, we used . These choices were made using a validation set.
Note that our method converts a dense matrix to a sparse matrix, so the total number of parameters that need to be stored on disk includes the indices of the parameters. As a result, we report the parameter count along with indices. This is similar to what has been done in [Collins and Kohli2014]. However, for ASIC implementations, one need not store indices as they can be built into the circuit structure.
For AlexNet and VGG16, instead of training from scratch, we finetune the network from pretrained weights. For such pretrained weights, we found it be useful to preinitialize the gate variables so that we do not lose accuracy while starting to finetune. Specifically, we ensure that the gate variables corresponding to the top weights in the matrix are one, while the rest are zeros. We use this preinitialization instead of the constant initialization described previously.
To help pruning performance, we preinitialize fully connected gates with very large sparsity () and convolutional layers with very little sparsity. This means that of parameters are zero, and rest are one. For , the underlying gate values were and for , we used . This is to ensure good accuracy by preserving important weights while having large sparsity ratios. The resulting network ended up with a negligible amount of sparsity for convolutional layers and high sparsity for fully connected layers. For VGG16, we preinitialize the final two convolutional layers as well with sparsity.
We run finetuning on AlexNet for 30k iterations ( hours), and VGG for 40k ( hours) iterations before stopping training based on the combination of compression ratio and validation accuracy. This is in contrast with [Han et al.2015], who take about 173 hours to finetune AlexNet. The original AlexNet took 75 hours to train. All wall clock numbers are reported by training on a NVIDIA Titan X GPU. As shown in Table 6 and Table 7, we obtain favourable results when compared to the other network compression / sparsification methods.
Conclusion
We have introduced a novel method to learn neural networks with sparse connections. This can be interpreted as learning weights and performing pruning simultaneously. By introducing a learningbased approach to pruning weights, we are able to obtain the optimal level of sparsity. This enables us to achieve stateoftheart results on compression of deep neural networks.
References
 [Bengio, Léonard, and Courville2013] Bengio, Y.; Léonard, N.; and Courville, A. 2013. Estimating or propagating gradients through stochastic neurons for conditional computation. arXiv preprint arXiv:1308.3432.
 [Cheng et al.2015] Cheng, Y.; Yu, F. X.; Feris, R. S.; Kumar, S.; Choudhary, A.; and Chang, S.F. 2015. An exploration of parameter redundancy in deep networks with circulant projections. In Proceedings of the IEEE International Conference on Computer Vision, 2857–2865.
 [Collins and Kohli2014] Collins, M. D., and Kohli, P. 2014. Memory bounded deep convolutional networks. CoRR abs/1412.1442.

[Denil et al.2013]
Denil, M.; Shakibi, B.; Dinh, L.; de Freitas, N.; et al.
2013.
Predicting parameters in deep learning.
In Advances in Neural Information Processing Systems, 2148–2156.  [Denton et al.2014] Denton, E. L.; Zaremba, W.; Bruna, J.; LeCun, Y.; and Fergus, R. 2014. Exploiting linear structure within convolutional networks for efficient evaluation. In Advances in Neural Information Processing Systems, 1269–1277.
 [Gong et al.2014] Gong, Y.; Liu, L.; Yang, M.; and Bourdev, L. 2014. Compressing deep convolutional networks using vector quantization. arXiv preprint arXiv:1412.6115.
 [Han et al.2015] Han, S.; Pool, J.; Tran, J.; and Dally, W. J. 2015. Learning both weights and connections for efficient neural networks. arXiv preprint arXiv:1506.02626.
 [Hassibi, Stork, and others1993] Hassibi, B.; Stork, D. G.; et al. 1993. Second order derivatives for network pruning: Optimal brain surgeon. Advances in Neural Information Processing Systems 164–164.
 [Krizhevsky, Sutskever, and Hinton2012] Krizhevsky, A.; Sutskever, I.; and Hinton, G. E. 2012. Imagenet classification with deep convolutional neural networks. In Advances in Neural Information Processing Systems, 1097–1105.
 [LeCun et al.1989] LeCun, Y.; Denker, J. S.; Solla, S. A.; Howard, R. E.; and Jackel, L. D. 1989. Optimal brain damage. In Advances in Neural Information Processing Systems, volume 2, 598–605.
 [LeCun et al.1998] LeCun, Y.; Bottou, L.; Bengio, Y.; and Haffner, P. 1998. Gradientbased learning applied to document recognition. Proceedings of the IEEE 86(11):2278–2324.

[Mitchell and
Beauchamp1988]
Mitchell, T. J., and Beauchamp, J. J.
1988.
Bayesian variable selection in linear regression.
Journal of the American Statistical Association 83(404):1023–1032.  [Moczulski et al.2015] Moczulski, M.; Denil, M.; Appleyard, J.; and de Freitas, N. 2015. Acdc: A structured efficient linear layer. arXiv preprint arXiv:1511.05946.

[Murray and Ng2010]
Murray, W., and Ng, K.M.
2010.
An algorithm for nonlinear optimization problems with binary variables.
Computational Optimization and Applications 47(2):257–288.  [Novikov et al.2015] Novikov, A.; Podoprikhin, D.; Osokin, A.; and Vetrov, D. P. 2015. Tensorizing neural networks. In Advances in Neural Information Processing Systems, 442–450.
 [Simonyan and Zisserman2015] Simonyan, K., and Zisserman, A. 2015. Very deep convolutional networks for largescale image recognition. In International Conference on Learning Representations.
 [Srinivas and Babu2015a] Srinivas, S., and Babu, R. V. 2015a. Datafree parameter pruning for deep neural networks. In Xianghua Xie, M. W. J., and Tam, G. K. L., eds., Proceedings of the British Machine Vision Conference (BMVC), 31.1–31.12. BMVA Press.
 [Srinivas and Babu2015b] Srinivas, S., and Babu, R. V. 2015b. Learning the architecture of deep neural networks. arXiv preprint arXiv:1511.05497.

[Szegedy et al.2015]
Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.;
Vanhoucke, V.; and Rabinovich, A.
2015.
Going deeper with convolutions.
In
The IEEE Conference on Computer Vision and Pattern Recognition (CVPR)
.  [Yang et al.2014] Yang, Z.; Moczulski, M.; Denil, M.; de Freitas, N.; Smola, A.; Song, L.; and Wang, Z. 2014. Deep fried convnets. arXiv preprint arXiv:1412.7149.
