1 Introduction
The amount of computation needed to train modern deep learning networks is immense. Recently, it has been suggested to use resistive crossbar arrays to accelerate parts of the ANN training in analog space, with a potential dramatic increase in computational performance compared to digital systems
[18, 2, 3, 1, 7, 8]. While analog crossbar arrays, also termed resistive processing units (RPU) arrays [7], could speedup inference of DNNs (deep neural networks) and CNNs (convolutional neural networks)
[15, 17], the true benefit of an analog deep learning accelerator lies in the acceleration of the training process as well, since training of ANNs is generally orders of magnitude more computationally demanding than inference. However, many significant design, material, and algorithmic challenges still need to be addressed in order to enable training on RPUs with high accuracy.While forward and backward pass of the stochastic gradient descent (SGD) are relatively straightforward to implement in analog hardware, a truly inmemory weight update that matches the performance of backward and forward passes in computing a pass in constant time, is much more challenging. A fully parallized update is important, however, because if the gradients were instead be computed in the digital part of the system, it would require on the order of
computations and thus all speed advantages of the analog (i.e. computing the forward and backward in constant time), would be lost.One promising design is to use stochastic pulse sequences to incrementally update the weight elements in a parallel fashion [7]. This approach was explored for small to moderate DNNs and CNNs[7, 5, 14], as well as LSTMs [6] in simulations. It was shown that moderate amounts of analog noise and physically limited weight update sizes can be tolerated during training, in particular, if one introduces additional noise and bound management techniques, that mitigate the analog noise in the backward pass and can be computed in linear time.
It was also noticed, however, that it is critical for the SGD algorithm to employ device materials that have symmetric switching behavior [7], in other words, a single update pulse in positive or negative direction should effectively change the weight by a similar amount at least on average. To achieve this balanced update behavior requires significant efforts on the material development for RPUs or significant changes in gradient decent algorithms or network architectures.
Another problem is the limited weight ranges and limited number of states supported by the device material, which, in floating point terms, is related to the bit resolution of the weights. Although the resistance of the memristive device can be set to any analog value in principle, materials are inherently subject to noise, and hardware designs require that the weight update is pulsed, where each pulse will increase or decrease the weight value by an finite amount of on average. Thus, if the weight is bounded in the range , the number of states can be defined as . Note, however, that cycletocycle variation of the weight update is generally large and the read out process is noisy, too, so that a single read might not be able to discern neighboring states.
In this paper, we focus on the latter issues, that is the limited number of material states, restricted weight ranges, and the noise in the training process. We here ask the following questions: even if we had a device with noisy but (on average) ideally symmetric switching behavior, how many states are necessary to successfully train larger scale models on more challenging image data sets (than MNIST)? Are there simple ways to improve performance on RPU arrays with their limited weight resources?
Our contribution are: (1) Scaling up the hardware realistic pulsedupdate training on simulated RPUs to larger networks with million weights and
million images, such as AlexNet on the ImageNet data set
[13], (2) showing the importance of normalization to overcome analog noise, (3) devising a new scheme for virtually remapping the weight ranges to maximize usable resistive states and achieving proper regularization on RPUs arrays.2 RPU model and simulations

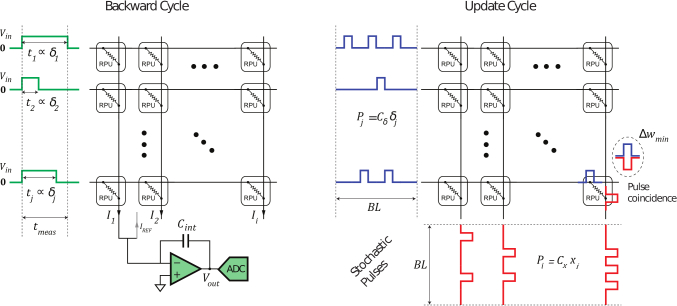

Our simulation is based on the RPU model proposed by [7] (see Fig. 1 for an illustration). We, however, adapted the previous C++simulator of [7]
to integrate with the Caffe2 machine learning framework
^{1}^{1}1https://caffe2.ai/ [12], to be able to flexible handle different network architectures and datasets. We also reimplemented the RPU simulation code to fully support GPUs acceleration to improve the runtime for larger models and convolutions for inference and training. For the ConvNets investigated below, a training simulation with fully pulsed update typically only runs 23 times slower than a native floating point training in Caffe2.We adopt the scheme of [5] and use stochastic pulse trains of maximal length 31. We ensured in our simulation that pulsed weight update is done (1) by drawing actual stochastic pulse trains for each update^{2}^{2}2We, however, used only 2 instead of the 4 positive and negative pulse train combinations during update for speed advantages. We did not notice any different behaviour by this slight simplification.
and calculating the coincidence of pulses per weight, (2) for every coincident pulse occurrence the corresponding device weight (conductance) is updated by a single step drawn from a Gaussian distribution (with standard deviation 30% of the mean
) and saturating the hard bounds if necessary, (3) the sequence order of updates (in case of a batch learning or convolutions) is preserved as if would be done in hardware.In our simulations, all analog noise, such as circuit components and peripheral noise, is referred to the output of the analog computation and modeled as Gaussian noise processes added to each analog output line. The noise values are redrawn for each analog computing step, i.e. each computed vectormatrix product. The device specification in [7] gives reasons to set the standard deviation of these cumulative noise terms to .

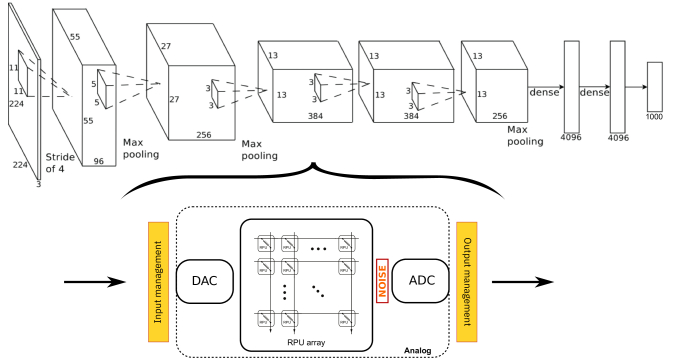

Additionally, we assume that each analog RPU array stores the weights of a layer (the kernel matrix) and performs matrix vector products in a way described in [7, 5]. The RPU array is communicating with the next layer in digital space, thus we assume analogtodigital (ADC) and digitaltoanalog (DAC) converters per RPU array (see Fig. 2). The DAC/ADC discretizes the input values into bins in the range of its bounds (which are fixed by hardware design to for DAC, and for the ADC, see our definition of the baseline RPU model [5]). The bit resolution of the converters are then . We here assume 7 bit for DAC and 9 bit for ADC if not stated otherwise (see also [6] for a discussion).
For the SGD training, we just use plain batchwise SGD without any additional momentum or weight decay, which would be difficult to efficiently implement on analog hardware architectures.
2.1 Noise, bound, and update management techniques
It has been shown previously [5] that it is essential to introduce noise management techniques on the digital side, to cope with the noisy analog computations as well as the bounded ranges of the inputs and outputs of the analog RPU.
Noise management becomes vitally important during backward pass, since the backward propagated errors are usually orders of magnitude smaller than the forward pass values and would be buried in the analog noise floor if not properly rescaled. In particular, we use the noise management introduced by [5], where the digital input vector is divided by before the DAC and rescaled again by after the ADC in digital. Additionally, we use a bound management (only in the forward pass), that iteratively multiplies by factors of 2 until the ADC bound does not saturate any of the outputs anymore. In this way, larger output values can be accommodated, with the cost of ADC resolution (which is effectively reduced by a factor of 2 for each iteration) and cost of runtime since the computation of the forward pass is essentially repeated multiple times. However, since one cycle is very fast (order of 100ns) and the geometric reduction of
does not need many iterations (at the very most the number of bits of the ADC), the additional runtime cost seems tolerable if necessary for high accuracy, which is in particular important before the softmax layer. Also, hardware solutions could cut short the integration time further, by triggering an abort when one output saturates early.
3 Results
We first investigated a small 3layer convolutional network plus one fullyconnected layer and ReLu activation
^{3}^{3}3We used the “Full” network (except from changing the sigmoid activations to ReLu) from the Caffe cifar10 examples. on the CIFAR10 data set (with weak data augmentation, e.g. mirroring and color jittering). The network has 79328 weights and uses lateral response normalization (LRN) between convolution layers. The image size is pixels. While of similar model and data size as the CNN previously investigated on the MNIST data set [5], the CIFAR10 dataset contains rescaled color images, whose classification is much more challenging than classifying the cleanly handwritten binary digits of MNIST: Using floating point (FP) and no input data augmentation, the above CNN achieves about 0.8% test error on MNIST, while only 25% test error on CIFAR10.
We first trained the network with our baseline RPU model (see [5] for definition), except with balanced weight update and 7 bit DAC and 9 bit DAC resolutions. This RPU model has 1200 weight states on average per device ( and ) and gave very acceptable performance for a smaller CNN on MNIST (compare to [5] Figure 4, “All no imbalance”). Nevertheless, here we found that performance is dramatically impaired, see Fig. 3 (left, green curve), albeit using the same bound and noise management techniques described in [5]. Even increasing the number of available states by does not reach FP performance (Fig. 3, left, red curve).
Thus, more challenging data sets and larger networks seem to again require additional algorithmic improvements for training RPUs. In the following, we introduce two simple remedies.
3.1 Normalization balances activations in the presence of noise
The reason for the poor learning ability becomes clear when estimating the signaltonoise ratio of the analog matrix product. For each analog output, we have
, where is the th row of the analog weight matrix and the analog noise term, i.e. a Gaussian process with zero mean and standard deviation . If we assume that is a “good” feature vector for input , the direction of and should approximately match, thus . Thus for a number of similarly well matching inputs, the signaltonoise ratio is roughly(1)
Although this is only an approximate calculation, it shows that weight vectors, that are well matched with the inputs, will quickly grow in norm to improve the signaltonoise ratio during initial SGD training.
Moreover, since only few rows of matches the input initially well, they will outgrow others quickly, leaving the norms of the rows of very unbalanced. Note that this is in particular problematic with the RPU noise management, since the inputs are divided by so that weakly activated inputs get buried in the output noise. If they are suppressed to such a degree that the output becomes smaller than the smallest ADC resolution, they may become essentially zero in the output.
Thus we propose here to counteract this drive to unbalance rows of
by using (channelwise) normalization of the input (zscoring). Note that this is very similar to spatial batch normalization (BN) used by default (for other reasons) in modern deep learning architectures, such as ResNet
[10]. However, since we here simply want to maintain the variance across the inputs, we do not train an additional scale or bias per channel, like typically done in BN
[11], and we place the normalization before each layer. Additionally, we zscore the inputs across the batch before a fullyconnected layer, not only convolutions. As in BN, during testing we use running mean and variances from the train runs and are fixed during testing.With this modification of the network structure, where we replace the LRN with activation zscoring, we find that the 3layer CNN even beats the original model (using LRN) considerably, when trained in software with floating point accuracy without any RPU hardware simulations or noise (with identical learning rate and without weight decay), see Fig. 3 (right, blue curve).

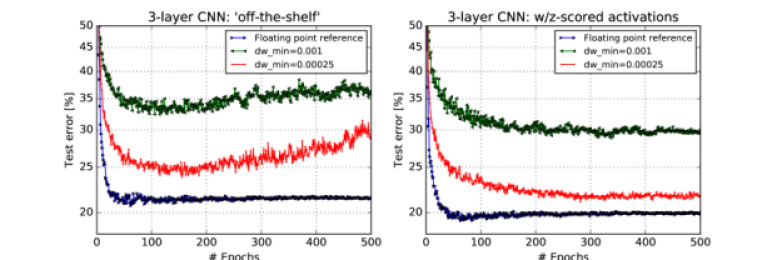

More importantly, the baseline RPU model now performs much more stable, and at least the model with more states almost reaches FP performance Fig. 3 (right, red curve). However, the baseline RPU model with more limiting number of weight states is still 10% off the FP reference (green curve).
3.2 “Virtually” remap weight ranges to maximize usable states
Our second suggestion is to “virtually” remap the weight bounds to an usable weight range per layer, which not only maximizes the available physical states, but also has the additional benefit that saturation at the weight bounds acts as n adequate weight regularization. The motivation comes from the following observation.
Between layers of a deep network, it is important to approximately maintain a 1:1 ratio of the standard deviation of the input and outputs of a layer. In particular, assume that and
behaves like a standard normal random variable. Let’s for simplicity assume that the matrix
has all identical entries . Then, it is easy to see that the output standard deviation is of the order of , i.e. . Thus, the standard deviation of the output is proportional to the square root of number of dimensions of the input. This idea, which also holds for more general , is the basis for all weight initialization techniques, such as Xavier or He initialization [4, 9]. In Caffe2’s Xavier implementation, the weight is initialized uniformly in the range . Note that the division by achieves that the output standard deviation is roughly of the order of the input standard deviation, independent of the number of column of the weight matrix.Such weight initializations were shown to be very essential in successful training of deep ANNs, as it prevents an explosion of the activations through the layers and normalizes for different weight matrix sizes [4, 9].
3.2.1 Proper weight scaling for RPUs
We propose to take advantage of the requirement of scaling the weight into a smaller range for larger weight matrices. The insight is that, even for a trained model the requirement of having the similar input and output standard deviation should still hold^{4}^{4}4at least for intermediate layers, the final layer before the softmax might be an exception. Thus individual weights should not deviate “too much” from their initialization bounds. That means after training it is still with or at most a few times larger than that. Given the limited weight resources in analog space, we thus do not need to waste weight states to code for weight values . Our approach is thus to virtual map the weight range into the original weight range . This can be achieved in the RPU array by adjusting the mapping of weight values to resistive values accordingly without changing the hardware specifications. Or it could be done in digital, by additional scaling the digital output of the RPU calculation (of forward and backward passes) by a factor of , to virtually rescale the weight range. Note that in this case the learning rate has to be divided by the same factor for that particular layer, to rescale it properly to the remapped weight range.
We use (with ) for all layers if not otherwise stated, and initialize the weights uniformly in the range . Thus we allow the weights to grow times beyond the maximal initialization value and therefore maximize the number of available states in this range. Note that we use the bound management to ensure that signals are not saturated because of the limited output range (see above).

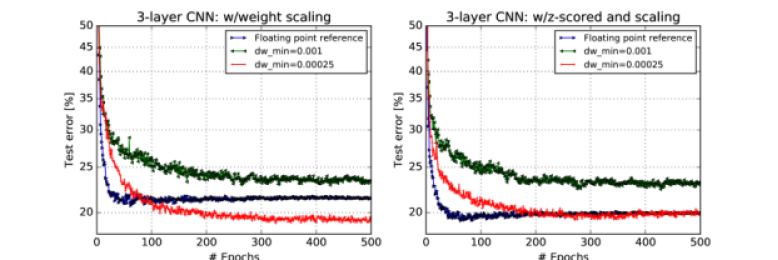

We trained the 3layer CNN again using the above scaling and normalization approaches. We find that, in particular when the number of states is more limited (e.g. 1200 for the baseline RPU model), scaling the weight bounds properly is the most effective to increase performance (see Fig. 4, left). In this network architecture, the performance increased by least 10 %points. Moreover, the RPU now is much better regularized (no late increase in test error as in Fig. 3 left), as the saturation at the limited weight range prevents individual weights to become dominating.
The weight scaling approach seems to also normalize the activation correctly, so that zscoring does not gain on top of using the weight scaling (compare Fig. 4 right).
Note that when the number of states is increased 4fold, the RPU model in fact now beats the floating point reference, despite the noise and pulsed weight update, because of better regularization properties. In conclusion, the weight scaling forces the RPU to operate on the correct weight range and maximizes the available states in this range. Thus, the requirement for the amount of states is lessened.
3.3 Larger networks and data sets
3.3.1 ResNet on CIFAR

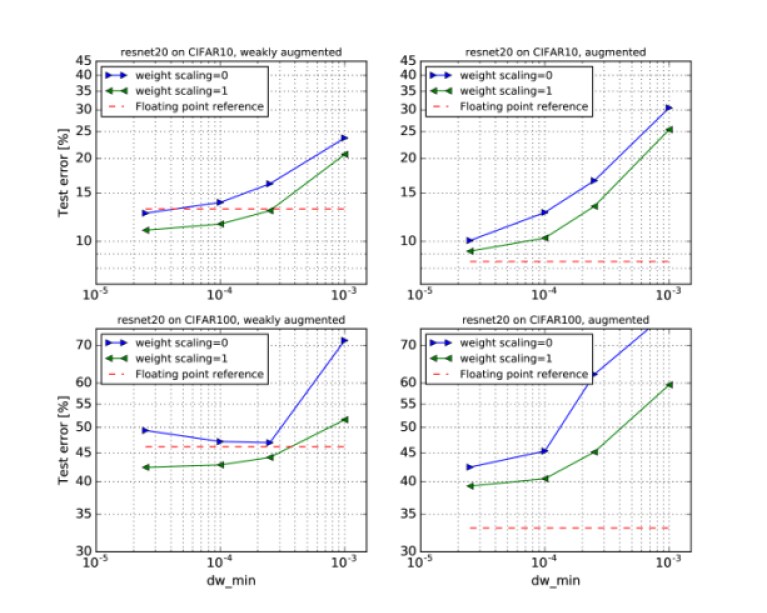

We further investigated the number of states needed for training ResNet20 (i.e. in [10] 4.2) on CIFAR10 and CIFAR100 data sets. We use the above weight scaling technique. Note that ResNet has batch normalization per default which we use here instead of the zscoring (results are slightly better for BN in case of ResNet). We applied weight scaling and varied the number of states of our baseline RPU model (by changing ) and found that (see Fig. 5) (1) weight scaling improves the performance considerably, in particular, when the number of states is smaller, (2) with weak data augmentation, pulsed update RPU generalizes better than the FP reference, (3) with strong data augmentation (30% scale jitter with random cropping, and random image shuffling per epoch) the RPU model needs at least K states to be able to come close to the FP reference, which improves dramatically with stronger data augmentation.
Our results indicates that larger networks and more challenging tasks (such as CIFAR100) demand more resources in terms of number of states. In particular, analog noise and finite number of states seem to limit the performance gain achieved by strong data augmentation, which is very effective method for improving generalizability for ANNs trained with floating point accuracy and limited dataset sizes.
3.3.2 AlexNet on Imagenet

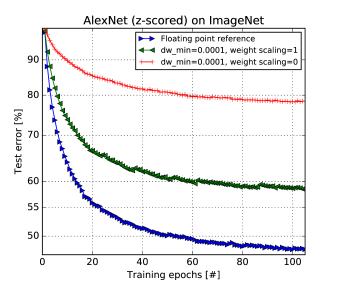

For the first time, we simulate analog network training on close to stateoftheart scale using pulsed weight update and noisy backward pass within the specification of analog RPUs. We train AlexNet [13] from scratch on the Imagenet database, a problem, that is more than 40000 times more challenging than training LeNet on MNIST (in terms of MACs per epoch), which nevertheless is still used as a typical benchmark for analog hardware evaluation [16].
We find that using AlexNet offtheshelf is not trainable with our baseline RPU model (even with floating point update but limited ADC/DAC resolution, not shown). We thus applied the above zscoring techniques between each layer and tested the effect of additionally using weight scaling on the number of device states necessary. In Fig. 6 we show that, using 12K states during pulsed update (, 10x more states than our baseline RPU model), reaches top1 test error of only slightly below 80%. On the other hand, enabling weight scaling, we find that the test error is dramatically improved, by about 20 %points, reaching test errors of slightly below 60%. That this positive effect of weight remapping is larger for AlexNet than for ResNet is understandable since the dimensions of the weight matrices (and therefore the scale term proportional to ) is much larger (up to 9216) than for ResNet on CIFAR (up to 577).
However, our results also indicate that for reaching the floating point accuracy of below 50%, 12K states are not enough. Thus, although our approach dramatically improves accuracy of analog approaches, even with symmetric updates, reaching floating point accuracy with analog hardware on larger scale networks remains a challenge and probably requires additional algorithmic improvements similar to those presented here.
4 Conclusion
Scaling up simulations of analog crossbar approaches for acceleration of ANN training is a necessary and essential prerequisite for evaluating and finding new algorithmic or hardware design solutions that minimize the accuracy gap in respect to the floating point reference. We show that simple algorithmic modifications, such as proper normalization and weight range remapping, can dramatically improve training performance on largescale ANNs with constraint weight resources (range and precision).
Our results also highlight the importance of having a digital part between layers that could accommodate not only the activation functions and pooling, but also the essential bound and noise managing techniques, and other algorithmic compensatory measures such as normalization and weight remapping as suggested here. To maintain the advantages of the crossbar architecture, these digital operations need to be computed locally close to the array’s peripheral edges.
While our algorithmic improvements yield a considerable improvement in performance of training inmemory on analog RPU arrays, the number of required states to match the FP reference for large scale networks is still beyond current materials [8]. However, possible solution pathways exist, e.g. one RPU device might be a combination of multiple physical devices (of possibly different significance), which could dramatically enlarge the number of attainable states (e.g. as in [15, 1]).
Note that the ConvNets evaluated here are generally not well suited for analog architectures because of the reuse of the kernel matrix, which slows down computation in analog systems (see [14] for a discussion). However, [14] also suggested an algorithmic modification of ConvNets to overcome this problem and better map the ConvNet architecture to analog RPU systems by replicating kernel matrices and train them in parallel. How noise and limited number of states are effected in these socalled RAPAConvNets remains to be investigated.
While we here have simulated the training process on RPU arrays, a related problem is training ANNs in a RPU hardwareaware manner, to optimize the inference performance on RPU devices. These simulation would include all components used in our simulations, except that the weight update and backward pass would be considered perfect and noisefree, which would dramatically improve the attainable accuracy, even with much less available states or more noise in the forward pass. Thus, training in analog space is a much more challenging problem than training to optimize inference on analog RPUs.
In summary, we here explored the challenges of analog hardware design constraints for training largescale networks and suggested a number of algorithmic compensatory measures to lessen the performance impacts of noise, limited number of states and limited weight ranges, even if the device switching behavior would be ideal, as assumed here. While we show a dramatic improvement, our results also suggest that more concentrated research efforts on algorithmic, material, and systemlevel are needed to be able reach stateoftheart training performance of analog ANN accelerators.
References
 [1] S. Ambrogio, P. Narayanan, H. Tsai, R. M. Shelby, I. Boybat, C. Nolfo, S. Sidler, M. Giordano, M. Bodini, N. C. Farinha, et al. Equivalentaccuracy accelerated neuralnetwork training using analogue memory. Nature, 558(7708):60, 2018.
 [2] G. W. Burr, R. M. Shelby, A. Sebastian, S. Kim, S. Kim, S. Sidler, K. Virwani, M. Ishii, P. Narayanan, A. Fumarola, et al. Neuromorphic computing using nonvolatile memory. Advances in Physics: X, 2(1):89–124, 2017.
 [3] A. Fumarola, P. Narayanan, L. L. Sanches, S. Sidler, J. Jang, K. Moon, R. M. Shelby, H. Hwang, and G. W. Burr. Accelerating machine learning with nonvolatile memory: Exploring device and circuit tradeoffs. In Rebooting Computing (ICRC), IEEE International Conference on, pages 1–8. Ieee, 2016.

[4]
X. Glorot and Y. Bengio.
Understanding the difficulty of training deep feedforward neural
networks.
In
Proceedings of the thirteenth international conference on artificial intelligence and statistics
, pages 249–256, 2010.  [5] T. Gokmen, M. Onen, and W. Haensch. Training deep convolutional neural networks with resistive crosspoint devices. Frontiers in neuroscience, 11:538, 2017.
 [6] T. Gokmen, M. Rasch, and W. Haensch. Training lstm networks with resistive crosspoint devices. Frontiers in neuroscience, 12:745, 2018.
 [7] T. Gokmen and Y. Vlasov. Acceleration of deep neural network training with resistive crosspoint devices: design considerations. Frontiers in neuroscience, 10:333, 2016.
 [8] W. Haensch, T. Gokmen, and R. Puri. The next generation of deep learning hardware: Analog computing. Proceedings of the IEEE, 107(1):108–122, 2019.

[9]
K. He, X. Zhang, S. Ren, and J. Sun.
Delving deep into rectifiers: Surpassing humanlevel performance on
imagenet classification.
In
Proceedings of the IEEE international conference on computer vision
, pages 1026–1034, 2015.
[10]
K. He, X. Zhang, S. Ren, and J. Sun.
Deep residual learning for image recognition.
In
Proceedings of the IEEE conference on computer vision and pattern recognition
, pages 770–778, 2016.  [11] S. Ioffe and C. Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. arXiv preprint arXiv:1502.03167, 2015.
 [12] Y. Jia, E. Shelhamer, J. Donahue, S. Karayev, J. Long, R. Girshick, S. Guadarrama, and T. Darrell. Caffe: Convolutional architecture for fast feature embedding. In Proceedings of the 22nd ACM international conference on Multimedia, pages 675–678. ACM, 2014.
 [13] A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In Advances in neural information processing systems, pages 1097–1105, 2012.
 [14] M. J. Rasch, T. Gokmen, M. Rigotti, and W. Haensch. Efficient convnets for analog arrays. arXiv preprint arXiv:1807.01356, 2018.
 [15] A. Shafiee, A. Nag, N. Muralimanohar, R. Balasubramonian, J. P. Strachan, M. Hu, R. S. Williams, and V. Srikumar. Isaac: A convolutional neural network accelerator with insitu analog arithmetic in crossbars. ACM SIGARCH Computer Architecture News, 44(3):14–26, 2016.
 [16] V. Sze, Y.H. Chen, T.J. Yang, and J. S. Emer. Efficient processing of deep neural networks: A tutorial and survey. Proceedings of the IEEE, 105(12):2295–2329, 2017.
 [17] C. Yakopcic, M. Z. Alom, and T. M. Taha. Extremely parallel memristor crossbar architecture for convolutional neural network implementation. In 2017 International Joint Conference on Neural Networks (IJCNN), pages 1696–1703. IEEE, 2017.
 [18] J. J. Yang, D. B. Strukov, and D. R. Stewart. Memristive devices for computing. Nature nanotechnology, 8(1):13, 2013.
