Modern large-scale image matching approaches offer opportunities to search visual information at scales unimaginable just a few years ago. It now is possible to automatically search through databases containing billions of images, not just to retrieve generically similar images (e.g. Google Image Search), but also to find and recognize specific people and places. This technology provides some incredible opportunities  and also challenges societal expectations of anonymity and privacy .
When these technologies are used for official business in the public sector, there is an increasing need to provide explanations of why machine learning algorithms give the results they do. In the case of image analysis, substantial work has been done to visualize the image regions responsible for classification results, but much less work has explored approaches for image matching.
This paper details work building tools for investigators to determine the hotel where pictures of sex trafficking victims were taken. Our system, TraffickCam, has found that carefully implemented baseline approaches can be effective at this challenging problem [5, 6, 8]. This paper shares work in progress to improve the performance of this image search and visualize what parts of the image are most important for an image match, in order to give investigators greater insight into why the system is suggesting a particular result, and therefore, perhaps, if the system should be trusted. This supports advice from a recent formal study of how human trafficking investigators interact with modern software support tools  that concludes: “When designing tools for law enforcement, it is important to choose algorithms that are human interpretable and design visualizations that help officers get an intuition for how the process works.”
Informal interactions with users of our system and careful examination of the problem domain highlights that learning approaches focused on whole image matching may have limited success in realistic conditions because limited parts of the room may be visible, or, where the database of hotel room images does have examples of similar rooms, they may share some but not all of the same design elements (carpet, lights, headboard, etc.). Therefore, we also explore initial efforts at expanding a visualization tool that highlights the specific elements of the hotel room images match.
We explore the development of search and visualization tools that allow an end-to-end solution to respect the needs of law enforcement and government end users, including the ability to explain and report on why the system is giving the results that it does. Our specific contributions include:
updating deep learning training strategies to give better, more interpretable results,
improvements to visualization of image matching that highlight important image regions and specifically what regions of images are considered to match, and
a search interface infrastructure that supports reporting results for investigations.
A limited amount of research has been published on ways to integrate machine learning (ML) to support public sector efforts to fight sex trafficking. Outside of image analysis, there is text data analysis from the advertising site Backpage  with ML to highlight online advertisements that might be related to sex trafficking, and multi-modal classification of whether online ads are offering paid sex services
. This analysis of individual ads supports work to build knowledge graphs from online escort ads to discover connections that suggest human trafficking based on network properties.
Specific work on image analysis to recognize hotels depicted in advertising images started with local image features  and progressed to deep learning features . Recently, Hotels50k, a public dataset focused on the hotel identification problem was released . In this work, we use this dataset to explore visualization that assist law enforcement in the verification and validation of the image search results.
Visualizations of deep networks for image analysis have focused almost exclusively on classification networks , highlighting the region of the image most responsible for the classification. In this paper, we build on one of the few approaches to visualizing similarity networks , which are the types of networks most commonly used for large-scale image matching.
|Correct Hotel||Correct Hotel||Incorrect Hotel|
TraffickCam System Design

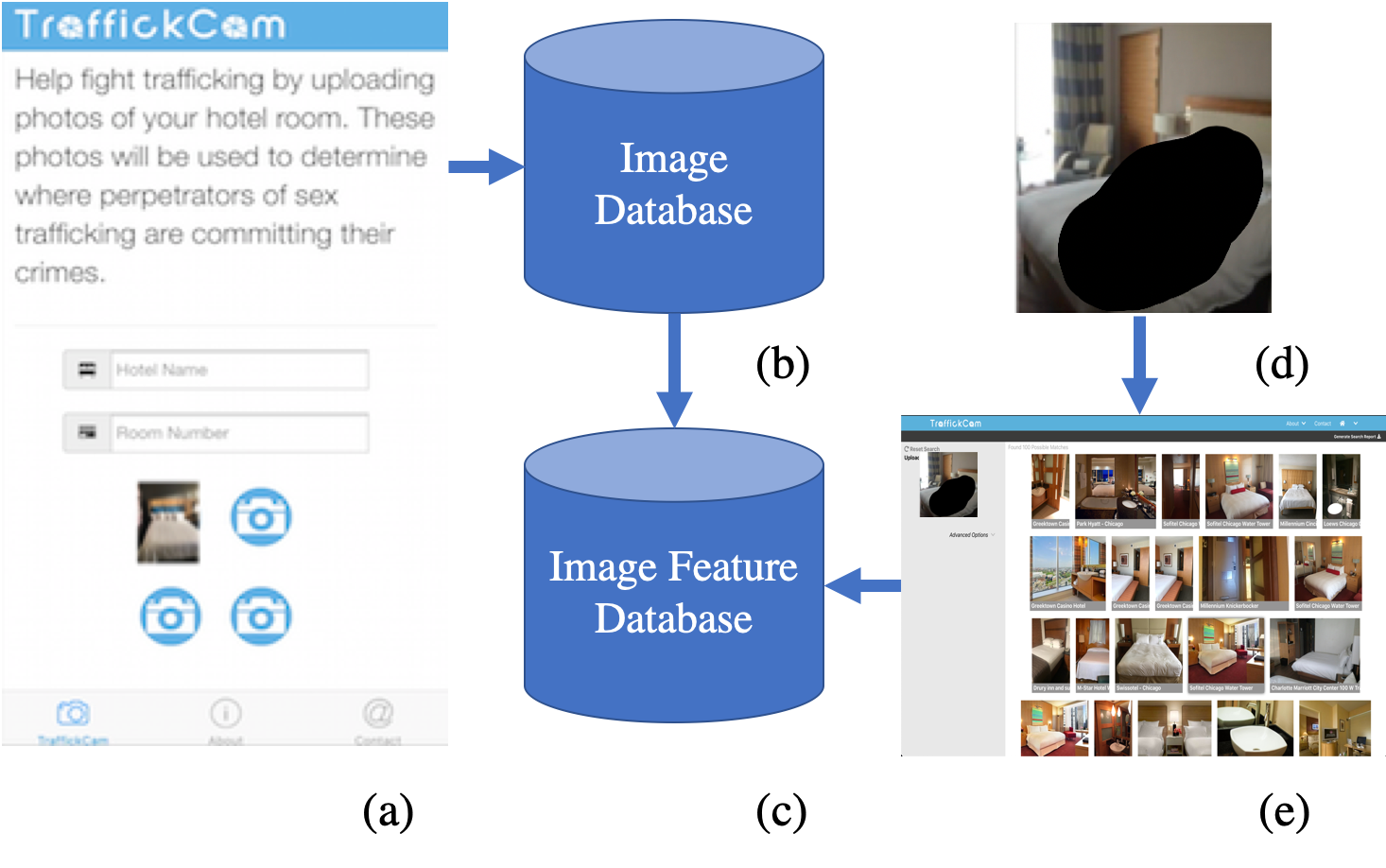

The overall system includes a mobile app for crowd-sourcing data (described in ), a search engine, a web-front end to support that search, and a report generation system. We also describe a collection of visualization tools that provide intuition about system behavior. These components are modular, which allows for flexible system design and component-wise updates that do not affect the rest of the system. In this section, we review improvements to the underlying search implementation, visualization tools and a system that help investigators generate reports about the search results.
Improved Metric Learning for Hotel Matching
State of the art approaches to large-scale image matching learn deep networks that map images to a feature space. The training optimizes the network so images from the same hotel are mapped to nearby locations in the feature space and images from different hotels are farther apart. The hotel matching problem is particularly hard, because multiple rooms from the same hotel may look very different, and even multiple images from the same room may look different (for example if one image includes the bed and the other is of the bathroom). State of the art results on the Hotels-50K dataset use Resnet-50  with careful data augmentation and pre-processing to give about 8% accuracy in finding the correct hotel as the first result returned by the system (a factor of 4000 improvement over the chance result of 1/50000) .
The loss function with which the network was trained was a ”batch-all” formulation that forces all images from a single hotel to be mapped to the same location. Because images from one hotel may look quite different, this requires the network to memorize different viewpoints of the training data and therefore does not generalize as well. Our best result have come from a refined process for training the network that focuses on ”Easy Positive” triplet loss. This forces the network to match only the most similar images from a hotel. This improves the generalization ability and gives about 16% accuracy in finding the correct hotel as the first response on training data.
Improved Visualization Tools
Resnet-50 is a common deep learning architecture that includes a collection of convolutional layers following by a Global Average Pooling (GAP) layer that converts a spatial feature layout into a single vector to describe the image. In the current Traffickcam system, this final convolutional layer isand the global pooling converts this to a single
element vector. This final vector is used to compute the similarity between images. Previous work decomposed the final similarity calculation between two -element vectors to give back resolution maps of the parts of the image that were most important for the similarity assessment.
Figure 3 shows example queries (top) and results that were shown to be similar (bottom). Visualization of which parts of an image results led them to be judged similar are shown labelled as (b), with the most important regions shown in blue. This gives a general assessment of which parts of the image are important, but does not specify specifically which components of the query image correspond to particular components of the result image.
In Figure 3, the color coded images labeled (c) are early results from a visualization approach that attempts to gain more insight about the specific relationship between images. To construct these visualizations for a pair of images that are similar, we consider the convolutional layer as 49 vectors (each of length ) describing the local features of each image. These 49 vectors from each image are concatenated to get 98 total vectors. We can then run PCA on these vectors to get principle components (each of size ) that describe patterns of how the the local image description vary within and between the images. We then display the top 3 components as an RGB color mapped back to the locations on the image pair. This visualization has the property that similarly colored locations in the visualization actually have similar representations in the feature space, and therefore correspond to each other.
On the left set of results from Figure 3, this visualization approach shows that the network is matching the curtains (because both images have curtains highlighted in red), the floor (in green), and the headboard/wall light (in purple). The center image matches the floors, the sink, but not, for example, the toilet. The third set of results, on the right, are from a pair of images with a high similarity score but from different hotels. The PCA-based visualization approach highlights the similar headboard in red, but incorrectly shows that the network is mapping the linens and pillows on the bed in the query image to the carpet in the result image (highlighted in green).
Automatic Report Generation

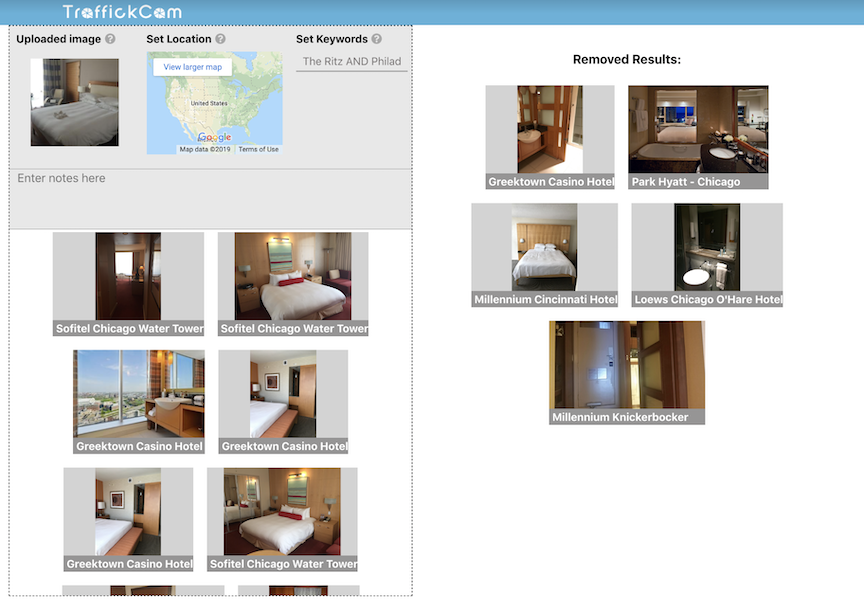

In the context of an investigative process, the result of using such a system is a report to be shared with law enforcement agents or other stakeholders who may not be knowledgeable in machine learning or image retrieval. Thus, it is important that the final report is self-contained and convincing. Traffickcam provides functionality for summarizing and curating the results of a query. Figure 4 shows the automated report generation page, which includes the top matching images, information on the most likely hotel matches, and a space for the analyst to include notes. Additionally, the analyst has the ability to add, remove, or re-arrange the matching images returned by the automated system in order to frame the results in a way that best supports the conclusions and/or conveys the appropriate level of certainty.
TraffickCam is an existing system to support sex trafficking investigations by identifying the hotel where an image was taken. It is currently in use at the National Center for Missing and Exploited Children. This report details work in progress to improve this system both in terms of system accuracy and to make it better support the public sector use cases through improved results, and increased explainability of those results.
One interesting issue is that evaluating search results in this domain is not necessarily best done by comparing results to ground truth (i.e., the evaluation metric proposed in). The primary use of the system is to suggest possible hotel matches, which are then evaluated by an investigator. If the system matches the query to the correct hotel, but shows views of that hotel where the matching features are not obvious to the investigator, they are likely to miss this match, even though the automated part of the search was effective. Finding ways to integrate visualization tools within the search results and evaluating the end-to-end system performance are important next steps.
