I Introduction

Radar sensors play an important role for vehicle environment perception due to their ability to directly measure the relative radial velocity of an object, their robustness to adverse weather conditions, and their relatively low price. In particular, radar data is widely used to track other vehicles in an ego-vehicle’s surrounding. Advances in automotive radar technology have led to increased sensor resolution and modern high-resolution radars yield multiple measurements per object. This additional data is valuable as it provides more information on the shape, extent or motion of an object and facilitates tracking other objects more precisely and in more complex maneuvers.

However, tracking vehicles based on high-resolution radar data poses some challenges. First, multiple radar measurements from a vehicle need to be correctly processed to a single estimate. This constitutes an extended object problem as the vehicle extent is—at least in the near field—not negligible in comparison to sensor resolution. Thus, many classical point-object filters, for example the standard Kalman filter, are not directly applicable. Radar data additionally exhibits some peculiarities which further complicate data processing: The measurements may not always exhibit a clear shape and their number strongly depends on the sensor-to-object constellation. Also, the Doppler measurements introduce considerable ambiguity as they only provide the radial portion of an object’s velocity and the superposition of forward motion and yaw rate causes different velocity vectors at different locations on the vehicle. Some Doppler measurements may even originate from rotating wheels and thus do not match the motion of the rigid body. In addition to data processing, the increased amount of measurements from relevant and irrelevant objects further complicates the measurement-to-object association problem which is crucial in multi-object settings.

One solution to the extended object problem is to include preprocessing routines that reduce multiple measurements to a single meta-measurement. Several of such approaches have been proposed for radar-based tracking. These include clustering measurements and extracting different reference points [1, 2] or fitting bounding boxes and L-shapes[3, 4], reflection center models [5], or velocity profiles [6, 7, 8] to the data. While preprocessing routines are oftentimes effective, computationally fast, and lead to clearly separable system architectures, they face difficulties if the data from a single time step is ambiguous and the correct meta-measurement cannot be easily extracted.

An alternative approach is to design extended object measurement models and filter algorithms which explicitly take all measurements into account. According to [9], which provides an elaborate overview of extended object tracking, the different approaches can be grouped into three modeling paradigms. The first paradigm models objects as a set of measurement sources with a specific spatial structure. An early version of this principle was presented in [10] and variations of it have been applied to radar-based vehicle tracking in [11, 12, 13, 14].

A second variant of extended object models defines spatial distributions for the location of the measurement as initially proposed in [15] and [16]

. Prominent examples are the elliptical random matrix model

[17] or free form models as the random hypersurface model [18] and Gaussian process model [19]. For radar tracking, an extension of the random matrix model [20], a polynomial object model for tracking stationary objects such as guard rails [21], and a Volcanormal density for modeling vehicles [22] were proposed.

The third paradigm is to chose a physics-based approach [9]. Although many of the aforementioned approaches (e.g. [13]) may as well be assigned to this category, it is used here to introduce [23] and [24] which use ray tracing to predict radar measurements. While [23] only considers the rear surface, the direct scattering model from [24] uses a full rectangular description of the vehicle which allows for tracking arbitrary maneuvers with varying aspect angles.

One of the major advantages of extended object measurement models is that they work on the raw data directly, thus use the entire available information, and can resolve ambiguous situations by filtering over time. Still, some approaches such as the random matrix approach rely on restrictive assumptions that are not suitable for vehicle tracking. Others require a certain amount of modeling and implementation effort such as the approaches based on ray tracing or on sets of reflection centers. Yet, all share the drawback that expert knowledge and manual adaption are necessary for including a certain sensor effect such as the spurious measurements from rotating wheels.

Apart from tracking, sensor models are also important for sensor analysis and in simulation applications. Interestingly, there has been a recent development from radar models based on expert knowledge or physical calculations (e.g. [25] and [26]) towards data driven approaches. For instance, [27]

uses deep neural networks to simulate a radar grid of power values from an object list and a grid-based description of the environment. A statistical study on radar measurements from vehicles in dependence on the aspect angle was conducted in

[28]. In [29] and [30]

, kernel density estimation methods are employed to learn a probabilistic measurement model for simulation purposes.

In this paper, the idea of leaving the modeling task to machine learning tools is transfered to tracking. A variational radar model for vehicles is learned directly from actual data. Thus, the shortcomings of existing extended object measurement models are overcome: The engineering effort is diminished and different sensor effects are captured automatically. The process involves finding a conditional density function that relates the measurements and vehicle state. This is similar to the simulation model from

[30]. Here, however, a VGM approach [31, 32, 33] is used instead of kernel density estimation methods. The VGM yields an analytical mixture density function which can be easily incorporated into a tracking framework. In contrast to kernel density estimation, it does not require storing all training data points and determines the number of required mixture components automatically.

The variational radar model is additionally incorporated into a multi-object framework to track multiple vehicles and to tackle measurement-to-object associations, clutter measurements, and the fusion of radar data from multiple sensors in a principled way. In particular, an extended object LMB filter [34] based on FISST is chosen. FISST [35, 36] is a rather recent theoretical framework which aims at providing a rigorous Bayesian formulation of the multi-object problem and mathematical tools for deriving different filter algorithms. Thus it allows for a consistent probabilistic end-to-end formulation of problem. Nonetheless, an adaption of other tracking approaches (multi-object or single object) to accommodate the variational radar model should be possible. See [9] for a more detailed overview of multi-object methods for tracking extended objects.

In the remainder of the paper, the tracking problem is first formulated in Section II. The variational radar model and the multi-object measurement likelihood are then developed in Section III and Section IV discusses the multi-object tracking approach. The application of the variational radar model to experimental data is shown in Section V and tracking results are evaluated in Section VI. Section VII concludes the paper.

Ii Problem Formulation

Ii-a Vehicle and Measurement Representation

The goal is to recursively provide state estimates for all vehicles in the FOV of the radar sensors based on the available measurements. As illustrated in Fig. 1, each vehicle’s state is described by the composed state vector where is the state space and and are the kinematic and extent portion, respectively. Morevoer, the subscript denotes the time step index. The kinematic state combines the position of the rear axle center given by and , the yaw angle , the vehicle speed , and the yaw rate . The extent portion comprises the vehicle width and length . The position of the rear axle is fixed at 77% of the vehicle length as this value has empirically shown to be suitable for many vehicle types.

To be able to identify the different objects and extract trajectories over time, each state vector is augmented with a unique label from the label space . This yields the labeled state vector . All present vehicles are combined in the multi-object state which is modeled as the RFS where the cardinality of the set is the number of vehicles.

In each measurement cycle, a radar sensor provides a set of detections from the measurement space which either originate from actual vehicles, sensor noise, or other irrelevant objects. The number of measurements may change from cycle to cycle. Each detection yields the measured range , azimuth angle , and Doppler velocity .

Ego-Vehicle
Fig. 1: Schematic illustration of the state vector, the radar measurements, and the vehicle (VC), sensor (SC), and object (OC) coordinate systems. ©2016 IEEE. Reprinted and adapted, with permission, from [37].

While the vehicle state is defined in the ego-vehicle coordinate system and the measurements are received in the sensor coordinate system using a polar representation, transformations to other coordinate system will be necessary. For instance, both learning the vehicle model and computing the likelihood functions requires a transformation of the object states to the respective sensor coordinate system. The transformation will be indicated by the subscripts SC or OC for the sensor or object coordinate system when computing physical quantities. To avoid cluttered notation, however, the transformation is omitted in the filter update equations.

Ii-B The Multi-Object Bayes Filter

The multi-object Bayes filter [36] is used to recursively compute the posterior density of the multi-object state . This density captures the uncertainty in both the number of elements in the set and their values and can hence be used to obtain estimates of the number of vehicles and their states. It is conditioned on all measurement sets from the first to the -th time step as denoted by . As in the classical Bayes filter, the estimation procedure is split into a prediction and update step. In the prediction step, the prior mutli-object density is computed using the Chapman-Kolmogorov equation

(1)

where the multi-object transition density governs the evolution of the multi-object state including object motion as well as appearance and disappearance. Information from new measurements is incorporated in the update step

(2)

using the multi-object likelihood function

which captures the measurement process and determines how likely the received measurements are for a specific multi-object state. As the computation involves set-valued random variables and their densities, the integrals in

Eqs. 2 and 1 are set integrals as defined in [36]. Note that the time subscript is dropped in the remainder of the paper to avoid cluttered notation. Prior quantities are indicated using the subscript .

Iii Variational Radar Model

Before the multi-object filter from Eqs. 2 and 1 can be formulated in detail, the variational radar model and the multi-object likelihood function, which are required during filter update, are developed in this section. First, the basic concept of VGMs is outlined. The approach is then applied to learning a model for a single vehicle. Finally, the model is incorporated into the multi-object likelihood.

Iii-a Variational Gaussian Mixtures

VGM for learning probabilistic models from data were initially presented in [31]

. The basic assumption is that the data at hand is generated by an underlying Gaussian mixture model. However, the parameters of the model are unknown and the goal is thus to estimate the parameter values given the available data. This is done in a Bayesian fashion which involves computing posterior densities over the parameter values and allows for including a-priori knowledge about the parameters through prior densities. The estimated posterior parameter densities and the underlying Gaussian mixture then form a probabilistic model of the data which can be used to make predictions on future data points. In the following, the mathematical concepts are briefly outlined. The explanations closely follow

[33] to which the reader is referred to for a more detailed and accessible description.

Mathematically, the data for learning the model, the training data, is a set of data points . Here, the letter is reused to emphasize that the training data is measured information even though it will have a different form than the presented radar measurements. The training data was created by a Gaussian mixture model with

components. Each Gaussian distribution in the mixture is defined by its mean

, its precision matrix , and is assigned a mixing coefficient which measures the contribution of the -th component to the density. For brevity, the mean vectors and precision matrices of all components are combined in the parameter sets and , respectively, and the weights in the weight vector . The latent variable is introduced to denote which component created the data point . Hence, these latent variables are 1-of-K binary vectors where one of the elements is one and the remaining elements are zero. Again, all vectors are combined in the set of latent variables . For given latent variables and parameter values, the likelihood of the training data is thus

(3)

As the values of the latent variables and the parameters are unknown, however, Eq. 3

cannot be evaluated. Instead, a joint distribution of the training data, the latent variables, and the parameters

(4)

is formulated. It factorizes into the data likelihood, the distribution of the latent variables for given mixing coefficients

(5)

and the prior distributions over the mixture model parameters , , and . These priors are modeled in conjugate forms to Eqs. 5 and 3. The prior of the mixing coefficients is a Dirichlet distribution

(6)

with parameter and normalization constant . The prior of the mean vectors and precision matrices is a Gaussian-Wishart distribution with independent elements for each component. It is given by

(7)

with parameters , , , . Together with

, these are the hyperparameters of the model which govern the shape of the prior distributions and how informative they are.

To compute the posterior densities over the latent variables and model parameters, a variational approach is used. It allows for an optimization-based approximation of the true posterior density and is based on maximizing the functional

(8)

Here, the latent variables and model parameters were combined in for brevity. The maximum of the functional occurs if the proposal distribution equals the true posterior distribution of the latent variables and model parameters [33]. Thus, the posterior distributions over parameters and latent variables are obtained by choosing a certain class of distributions for and maximizing Eq. 8 with respect to . For VGM, the factorized distribution

(9)

is chosen. An optimal solution can then be found by iteratively maximizing Eq. 8 with respect to and . The optimal solution is

(10)

where the different factors take the same form as the distributions from Eqs. 7, 6 and 5 with updated parameters , , , , and . See [33] for the full equations.

To obtain the predictive density which measures how likely a new data point is, given the model that was obtained from the training data, the optimized distributions are inserted into Eq. 4 and the latent variables as well as model parameters are marginalized by integration. This yields a mixture of Student’s t-distributions [33]

(11)

where is the precision matrix of the -th component given by

(12)

and is the dimension of .

Iii-B Learning a Variational Radar Model for Vehicles

To obtain a vehicle measurement model, the VGM approach is applied to actual radar measurements from vehicles. Even though VGM are able to generalize to a certain extent, it is important to collect data samples from all relevant areas of the training data space to enable the VGM to detect the structure and basic relationships in the data. For the presented state and measurement vectors, this would imply that data has to be collected in a ten-dimensional space. For instance, samples would be needed for vehicles of different size, at different orientations and positions with different speeds and yaw rates. Also, the complex relationship between Doppler measurements and object state as well as the representation of the measurements in polar coordinates may require many mixture components to be able to capture the nonlinearities.

To avoid these issues, the problem is hence simplified by applying dimension reduction. In particular, the measurements are transformed using the nonlinear transformation function

(13)

where and are the position of the radar detections in the object coordinate system,

(14)

and

(15)

Thus, the position of all vehicle measurements is transformed to a normalized object coordinate system that is independent of the vehicle dimensions. This results in the coordinates and . Additionally, the expected Doppler velocity is computed from the vehicle state using Eqs. 15 and 14. It is subtracted from the measured Doppler velocity and the model therefore only learns the measurement error . The object state is transformed using

(16)

and is hence reduced to a single derived quantity which is approximately the aspect angle under which the sensor sees the vehicle. Concatenating and yields the training data representation .

Note that this manually designed dimension reduction requires some expert knowledge and other techniques that automatically detect a suitable representation (e.g. [38]) could have been used instead. However, it can be interpreted as a step that incorporates well-known properties where the additional effort to learn them does not appear to be beneficial. These properties are the basic Doppler measurement principle or the insight that the relative location of measurements will be approximately similar irrespective of the vehicle size or its position in the field of view and will mostly depend on the aspect angle.

By computing the predictive density Eq. 11, the VGM model provides a joint distribution over the transformed measurements and state , where the dependency on is omitted for brevity. Then the likelihood for the relative position of the measurements and the Doppler error for a given aspect angle is obtained by computing the conditional density

(17)

where is obtained from marginalization. See [39] for the corresponding equations.

Iii-C Multi-Object Likelihood Function

So far, the presented approach allows to learn a measurement model for a single vehicle which defines where measurements are expected and how large the deviations from the expected Doppler velocity may be. For updating the multi-object state using Eq. 2, however, the formulation of the entire multi-object likelihood , which relates all measurements to all objects, is necessary.

Iii-C1 Detection-Type Likelihood

To this end, the single-object model is incorporated into the the multi-object likelihood function from [34] which is designed for detection-type measurements. It is based on several assumptions that have also been previously used in other extended object models (see e.g. [16, 40]). These assumptions are:

  1. An object is detected with the probability of detection or misdetected with the complimentary probability .

  2. If an object is detected, it gives rise to a set of measurements which follows the single object likelihood function

    . The number of received measurements is Poisson distributed with expected value

    .

  3. The measurement set is a union of object and clutter measurement sets. The object measurement sets are independently generated by each object.

  4. The number of clutter measurements is Poisson distributed with expected value and the values follow the density . Hence, they are distributed according to the Poisson RFS [36] with intensity function .

Using these assumptions, the likelihood of obtaining a set of measurements from a given multi-object state is [34]

(18)

with

(19)
(20)

Here, the short notation

(21)

is used to denote products of a real-valued function applied to all elements of a set. In a nutshell, the function evaluates the different possibilities of how the measurements could be composed and computes their likelihood. For this purpose, the two sums in Eq. 18 are used to evaluate different partitions of the measurement set and different association mappings . denotes the set of all partitions that contain mutually exclusive clusters. Each association mapping assigns the labels from the multi-object state to the clusters in a partition. The labels are retrieved using the label projection function .

A cluster in a partition may only be assigned to one track, i.e. implies while several tracks may be assigned to the index 0 which stands for a misdetection. is the space of all possible association mappings and the cluster assigned to track is identified by .

For the case , Eq. 19 computes the single object likelihood

(22)

for a specific track-to-cluster association and cancels the measurements from the overall clutter term . Reformulating the ratio

(23)

from Eq. 19 separates it into a factor which considers the number of measurements and a factor which compares how well measurements fit to the object and clutter likelihoods.

Iii-C2 Incorporating the Variational Model

The multi-object likelihood is a density over an RFS that is a subset of the measurement space . Hence, the object and clutter likelihoods are densities with as sample space. In contrast, the conditional density Eq. 17 from the variational radar model is a density over a normalized space where the scaling depends on the object state. Simply inserting Eq. 17 into Eq. 22 is thus mathematically incorrect and would prohibit a meaningful comparison between different tracks as well as clutter.

Yet, the identity

(24)

states that the ratio between the object and clutter likelihood remains identical if both likelihoods are transformed using the same transformation function. Thus, it can be used to replace the likelihood ratio from Eq. 23 with a new ratio between the conditional density from the variational radar model and the transformed clutter density. The identity follows from computing the distributions of as derived distributions from , see e.g. [41]. Note that there exists an inverse transformation function which transforms the measurements back to the original measurement space. Yet, it is not defined at the location of the sensor origin. As this pathological case is not relevant in practical scenarios, it is neglected here. Also, as the information of is fully contained in .

One way to obtain the clutter density for the transformed measurements

is to fully transform the original clutter density over the polar measurement space. Here, however, an alternative approach is chosen: It is assumed that clutter is uniformly distributed over the Cartesian sensor coordinate system. Moreover, a mixture between a uniform density and a Gaussian distribution is used for modeling the Doppler values. The Gaussian distribution is centered at the Doppler value of stationary objects and emphasizes that they are the most frequent clutter source. Using the Cartesian representation, the transformation of the density to the space of

is considerably simplified and mostly involves scaling by the factor to account for the vehicle size. The corresponding clutter density in the original measurement space which is required in Eq. 18 could be determined by transformation. Yet, this factor cancels in the update step and is not required, see Section IV-B.

Iv Multi-Object Tracking

For tracking multiple vehicles, the multi-object measurement likelihood from the previous section is used in an extended object LMB filter [34]. This filter has, for instance, also been used in [37] in conjunction with the direct scattering model. By modeling the multi-object state using LMB and GLMB distributions [42], it facilitates an analytical solution to Eqs. 2 and 1. Please refer to [34] for a detailed description including pseudo code. In this paper, the original version is slightly modified to avoid overlapping objects as initially proposed in [43]. A schematic overview of the filtering procedure is shown in Fig. 2.

UpdateTrack Initialization Independent Prediction Conversion with feasability check ApproximationMeasurementsPredictionLMBGLMBGLMBLMBLMBLMB
Fig. 2: Overview of the filtering procedure. ©2017 IEEE. Reprinted, with permission, from [44].

Iv-a Initialization and Prediction

At the end of the last filter recursion and before prediction, the distribution over the current multi-object state is represented using an LMB distribution. It consists of several independent object hypotheses which are described by the existence probability and the single object state density . The labels of all present object hypotheses define the label space . The multi-object density is thus given by

(25)

where

(26)

is the probability that all tracks in the multi-object state exist and the remaining hypotheses do not. The inclusion function ensures that only labels from existing hypotheses are used and is 1 if and only if . Moreover the distinct label indicator where

denotes the Kronecker-delta function is used to ensure that each object in a labeled set has a unique label. The cardinality distribution can be obtained by marginalizing over the states which yields a Poisson binomial distribution. The expected value this distribution which serves as cardinality estimate is the sum over the existence probabilities of all hypotheses.

In the track initialization stage, new track hypotheses are generated for measurements that have not considerably contributed to updating existing tracks and exhibit a significant Doppler velocity. The new hypotheses are labeled with new labels from label space and are assigned an initial existence probability as well as a prior state density . Afterwards, they are appended to the existing hypotheses which yields the new and augmented label space .

In the first prediction step, the existing and new tracks are predicted using the standard multi-object transition model. That is, each object survives to the next time step with a probability of persistence or disappears with complementary probability. If an object survives, its states evolve according to the single object transition density . Hence,

(27)
(28)
(29)

Here, is the predicted state, the predicted existence probability and the predicted state density of hypothesis . The new densities and existence probabilities then constitute the parameters of the prior LMB distribution from the first prediction step. For the application to vehicle tracking, consists of a CTRV [45] motion model with additive noise for the kinematic state and pseudo noise is added to the extent portion.

Subsequently, a second prediction step eliminates hypotheses with overlapping objects by conditioning the predicted multi-object density on the event of physical feasibility . This yields [43]

(30)

with

(31)

and where is obtained by inserting the existence probabilities from the first prediction step Eq. 27 into Eq. 26. The likelihood for physical feasibility is chosen to be 1 if and only if none of the objects in the label set overlap. Here, the predicted mean values of the vehicle positions and extents are used to determine possible overlaps.

Yet, the prior multi-object density from Eqs. 31 and 30 is not in LMB form and objects are not independent anymore. That is, the weight does no longer factorize over the set elements. Instead, the the multi-object prior is now a variant of the more general GLMB distribution which allows for arbitrary weights and superposition of several multi-object hypotheses [42].

Iv-B Update

Substituting the multi-object likelihood equations from Section III-C and the multi-object prior from the prediction into Eq. 2 yields the parameters of the posterior multi-object distribution (cf. [34])

(32)

with

(33)
(34)

and

(35)

Again, the distribution is in GLMB form. Yet, the update step introduces additional dependencies among objects which arise from the claim that each cluster in a measurement partition may only be assigned to one object. As observable from the sums in Eq. 32, the posterior multi-object distribution is hence composed of several hypotheses that have been updated using different partitioning and clustering possibilities.

Iv-C Approximation

To avoid a steady increase of multi-object hypotheses in the GLMB posterior over time, the posterior GLMB density is approximated by an LMB density at the end of each filter recursion. This procedure has been proposed by [46] and results in a posterior LMB density with parameters

(36)

and

(37)

From this result, state estimates for the different tracks are extracted.

Iv-D Estimating the Single Object Densities

The extended LMB filter internally holds and processes the state densities of the different object hypotheses. In particular, Eqs. 34 and 28 predict the single object state and update it with the associated measurements, respectively. To solve these equations, standard Bayesian filtering techniques can be applied. In this work, a particle filter approach is used as both the transition density and the measurement model are nonlinear. Other approaches as for instance an UKF approach are also imaginable.

To reduce the amount of required particles, a simplified approach which is based on the RBPF [47] technique is applied. Only the kinematic portion is fully represented by particles while the estimation of the extent portion is approximated by employing discrete distributions. At the beginning of the filter procedure, each particle holds a single hypothesis for the vehicle extent. During prediction, a discrete transition density is applied to each particle. It creates new extent hypotheses by varying the width and length. Thus, a discrete distribution with up to nine elements is generated. Then the likelihood is evaluated for all extent hypotheses and the resulting posterior extent distribution of each particle is again reduced to a single extent hypothesis by computing its mean. Note, however, that this step discards information about the extent estimate and that the particles hence do not capture the full extent uncertainty. Yet, the entire procedure introduces a local search for best fitting extent and allows an easy adaption of each particle’s extent estimate.

V Radar Model from Experimental Data

Now that the measurement model and multi-object filter are formulated, they are applied to experimental radar data. This section first describes the process of learning a variational radar model for vehicles. The application to vehicle tracking is then demonstrated in the following section.

V-a Experimental Set-Up and Data Set

To generate the measurement data, two vehicles were used. The ego-vehicle is equipped with four short-range radar sensors that are mounted in the corners of the front and rear bumper. The sensors have an opening angle of about 170, a range of 43 m and the sensor axes are rotated by 45 with respect to the vehicle axis. Thus, an almost complete 360 coverage of the close-up range is given. All sensors run at a frequency of 20 Hz and are not synchronized among themselves. Apart from the radar sensors, an IBEO Lux lidar, which serves as reference sensor, is mounted in the center of the front bumper. The second vehicle, a Mercedes E-Class station wagon (S212), serves as target vehicle. Both vehicles are equipped with a GeneSys ADMA which combines a precise DGPS and IMU. It provides the pose of the vehicles in a global coordinate system and the object motion. This allows to compute the ground truth position of the target vehicle in both the ego-vehicle coordinate system and the four sensor coordinate systems.

The measurement data was collected on both a closed test site as well as on public roads. It was recorded in different scenarios which include typical longitudinal and cross traffic situations as well as artificial maneuvers which were designed to achieve a good coverage of the measurement and state space. These maneuvers, for instance, include circling the stationary ego-vehicle in different distances, driving small circles in different parts of the FOV, or driving straight lines at different distances and angles.

In case of a stationary vehicle, measuring the orientation in global coordinates is challenging for the DGPS/IMU system. From eye inspection, a mismatch between the vehicle ground truth and the laser measurements was observable in some sequences. In these cases, the orientation error was manually corrected using the precise measurements from the lidar.

The data set was then generated from the recorded measurements by computing the ground truth position of the target vehicle in sensor coordinates and determining the measurements that originate from the vehicle by gating. That is, only measurements in a bounding box that exceeds the actual vehicle dimensions by 0.5 m in all directions were paired with the respective ground truth vehicle state. Subsequently, the transformation functions Eqs. 16 and 13 were applied.

The entire data set comprises 336,287 data points from approximately 123 minutes of recorded sensor data. Two views of the data set are shown in Fig. 3. In particular, a top view of the measurements in normalized coordinates is shown in Fig. (a)a and the Doppler error over the longitudinal axis in Fig. (b)b. It is observable that most measurements originate from the vehicle surface and that deviations from the expected Doppler velocity

(a) Positions of the measurements in normalized object coordinates
(b) Excerpt of the Doppler error over the length axis of the vehicle
Fig. 3: Two exemplary views of the training data. Each point corresponds to one data point.

mostly occur close to the front and rear axles.

There is an imbalance in the data set in terms of the number of measurements for different aspect angles. For example, it contains roughly three times more measurements from the rear perspective than from the front perspective. Also, there are roughly 20,000 data points in a 5 interval around the rear perspective , whereas the neighboring 5 interval around only contains 4736 data points. While the imbalance over distant aspect angles is mostly eliminated when computing the conditional density, local imbalances can introduce small biases. If only measurements from the rear surface are available for several time steps, for example, it was observed that a model that was learned from the entire data set tends to favor aspect angles around . To avoid such issues, a balanced subset of data points was used as training set. It contains 95,688 data points that were chosen such that they are distributed evenly in a histogram with 5 bins over the aspect angle.

V-B Resulting Variational Radar Model

A modified MATLAB implementation111original implementation by Mo Chen,
https://de.mathworks.com/matlabcentral/fileexchange/35362-variational-bayesian-inference-for-gaussian-mixture-model
of the VGM was used to fit the mixture model to the training data. The number of components was set to and the hyperparameter of the Dirichlet prior over the mixture weights was set to . For the Gaussian-Wishart prior, the hyperparameters were set to , , was set to the mean of all training points, and

was initialized as identity matrix. This results in a non-informative prior which does not assume a certain form of the VGM parameters.

A useful feature of the VGM approach is that it internally penalizes the model complexity. Unnecessary components, i.e. components which explain no or only very few measurements, automatically receive low weights. From the initially 70 proposed components, 20 received a mixing weight below . As these components do not contribute to the model and only increase computation time, they are removed. Thus, the number of components of the final mixture is .

As a visualization of the full, four-dimensional joint density is difficult, Fig. 4 illustrates the marginal density . The VGM has identified that most measurements originate from the vehicle surface. Also, it identified the centers of the front and rear surface as well as the four wheels and wheel houses as typical measurement sources.

Fig. 4: Marginal density
(a)
(b)
(c)
(d)
Fig. 5: Marginal density conditioned on the aspect angle . The line of sight between the sensor and the center of the rear axle is indicated by the arrow.

The conditional density shows where measurements are expected for a given aspect angle . Fig. 5 depicts examples for different values of . Figure (a)a shows the conditional density when looking at the vehicle front. The aspect angle is close to the , boundary. Since the VGM does not consider the periodic nature of the aspect angle, an abrupt change in the involved mixture components occurs when the sign of the aspect angle changes. This could be further improved by adapting the standard VGM to periodic states. As the components on both sides are similar and expand over the boundary, however, this issue has so far not been noticeable during application. A view from the right side of the vehicle is illustrated in Fig. (b)b. Clearly, measurements are expected close to the right vehicle surface (). Also, the position of the right wheels are clearly identifiable as frequent measurement sources. This effect is again visible in Fig. (c)c where the vehicle is viewed from rear right. In addition to the wheels, the vehicle corner becomes another prominent feature. When viewed from the rear, measurements tend to originate from the center of the rear surface as shown in Fig. (d)d. Additionally, relatively low weighted components on the vehicle interior come into play. A possible explanation for the components close to is that the sensor receives reflections from the rear axle or the edge of the vehicle roof.

The conditional density is depicted in Fig. 6. It shows the density of the Doppler error on the right vehicle surface over the vehicle length when looking from the right. It can be observed that the model expects larger Doppler errors for measurements in the vicinity of the wheels. This again demonstrates that the VGM is able to automatically learn certain sensor effects such as spurious measurements from rotating wheels in this case.

Fig. 6: Conditional density

Vi Tracking Using Experimental Data

In this section, preliminary results for the tracking performance of the multi-object tracking approach in combination with the variational radar model are presented. The algorithm was implemented in MATLAB and applied to different experimental scenarios that were recorded using the same ego-vehicle as in section Section V. The section starts with some practical remarks on the implementation and the tracking accuracy is subsequently assessed for single and multi-vehicle scenarios. The performance is compared to the manually designed direct scattering approach from [37]. It differs in the single object likelihood and uses a clutter density which is defined in polar coordinates. The multi-object filter core is identical.

Vi-a Practical Implementation Issues

Vi-A1 Number of Particles

Upon initialization, the number of particles for representing the birth density is 900 to cover the wide range of possible states. This number is gradually reduced by 100 in the following update steps until the number of particles reaches 300, which is the steady state value for tracked objects.

Vi-A2 Constraints on Vehicle Dimensions

The dimensions of a vehicle are restricted to maximum and minimum values. These are m and m for the width as well as m and m for the length. Additionally, the ratio between the length and width is restricted to minimum and maximum values of 1.7 and 3.5, respectively. Thus, only extent hypotheses with reasonable proportions are allowed.

Vi-A3 Process and Measurement Model Parameters

During prediction, process noise is added to the kinematic states of the vehicles. The noise is modeled as uniform distributions centered around 0 and sampled for each particle. The maximum values are defined for the interval of one second and adjusted proportionally to the time difference between consecutive prediction steps. The normalized values are 3 m/s for the position, 0.698 rad/s for the angle, 9 m/s for the velocity, and 3 rad/s

for the yaw rate. The probability of persistence is made dependent on the time between to consecutive updates and determined from an exponential distribution which models that an object persists for an average of 10 s in and 0.1 s outside the FOV. In the measurement model, the probability of detection is set to 0.8 and slowly decreased towards the boundaries of the FOV. The expected number of object and clutter measurements are set to

and .

Vi-A4 Partitioning and Association

Evaluating all possible measurement partitions and cluster-to-object associations as demanded by the multi-object likelihood function Eq. 18 is computationally intractable even for a moderate amount of measurements. Therefore, only meaningful partitions are evaluated for obtaining the posterior multi-object density Eq. 32. Partitions are generated in two ways. In a first step, DBSCAN [48] with different distance thresholds between 0.4 m and 5 m is applied. Additionally, the predicted tracks are used to generate partitions by combining all measurements that are in the vicinity of an existing track. The resulting clusters in the partitions and particularly the contained Doppler measurements are further analyzed. If the measurements do not conform to consistent rigid body motion, the clusters are split and additional partitions with the resulting subclusters are added. This allows to exclude clutter measurements as for example measurements from rotating wheels. As will be shown, this step is mainly necessary for the direct scattering tracking approach that is used for comparison. For each multi-object state hypotheses, the 10 best association variants are determined using Murty’s algorithm [49] and evaluated.

Vi-A5 Initialization and Pruning

New vehicle hypotheses are initialized as soon as there is a measurement cluster with at least two measurements that exhibit relevant Doppler velocities and have not considerably contributed to updating an existing vehicle. The goal is to avoid the creation of new hypotheses for stationary objects or from single temporary clutter measurements. New vehicle hypotheses are assigned a birth existence probability of and the birth density is formed by creating particles with different plausible states. For poses where the length is observable, length hypotheses between 2.5 m and 7 m are initialized. If the length is not observable, random values between 4 m and 5 m are created. As soon as the existence probability of a vehicle hypotheses falls below 0.01, it is pruned from the multi-object density.

Vi-A6 Ego-Motion Compensation

To avoid effects from motion of the ego-vehicle, its contribution to the Doppler velocities is removed. As vehicles are tracked in the ego-vehicle coordinate system, an additional step which transforms the vehicles from the last to the current vehicle coordinate system is also introduced.

Vi-A7 Sensor Fusion

The presented tracking approach is used in a centralized fusion architecture to fuse the data from all four radar sensors of the vehicle. That is, a new update is triggered each time new data from a sensor arrives and the information is fused into the posterior multi-object density. Measurements arrive in order of recording time and out-of-sequence problems are not considered.

Vi-B Single-Object Accuracy

The tracking accuracy for a single vehicle is evaluated on experimental data that was recorded using the same ego and target vehicle on a different day. In total, ten different scenarios were evaluated. They comprise situations with oncoming and crossing traffic or passing and turning vehicles. Due to the Monte Carlo implementation, which involves random generation and propagation of particles, estimation results are subject to random effects. To diminish these effects, all scenarios were evaluated 20 times and the results are averaged over these runs.

In the following, one scenario in which the target vehicle drives a figure eight in front of the stationary ego-vehicle and is visible to the two front sensors is examined in detail. The scenario is challenging for several reasons: The aspect angle on the target vehicle changes constantly, it deviates from classical longitudinal traffic scenarios in that it contains a turning vehicle and cross traffic where the Doppler measurements do generally not equal the vehicle speed, and it is highly dynamic with yaw rates up to 60s. Figure 7 shows the estimation results, reference values, and resulting estimation errors for all components of the state vector. An excerpt of the scenario from an exemplary run is shown in Fig. 8.

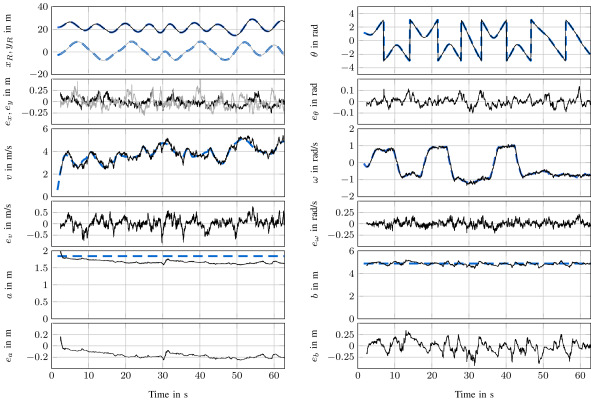

Fig. 7: Figure eight scenario: Comparison of estimates (solid) and ground truth (dashed) as well as errors averaged over 20 runs. The y-position is plotted in gray.
Fig. 8: Excerpt of the figure eight scenario: radar measurements with indicated Doppler velocity from the front left () and front right () sensor, estimated trajectory (solid) and exemplary vehicle poses (solid rectangles), reference trajectory (dashed) and reference poses (dashed rectangles).

Table I lists RMSE values for the figure eight scenario as well as combined values over all single object scenarios. For comparison, results for the direct scattering approach are also provided. The variational radar model considerably outperforms the manually designed direct scattering model for all states. Despite the complicated maneuver, it achieves especially precise estimation results for the figure eight scenario. The accuracy decreases for both approaches when averaging over all scenarios. In contrast to the figure eight scenario where the target vehicle is visible from all four sides, it is only partially visible over longer periods of time in other scenarios. This deteriorates the size estimation and leads to correlated position errors. Also, vehicles in greater distance or vehicles with straight motion trend to yield fewer measurements. Thus, accurate orientation estimation is more difficult. An exemplary case will be presented during multi-object evaluation.

States VM 8 DSM 8 VM all DSM all
in m 0.10 0.25 0.26 0.39
in m 0.13 0.20 0.28 0.46
in 2.26 4.28 8.77 10.49
in m/s 0.25 0.37 0.38 0.65
in /s 3.51 6.32 5.59 9.09
in m 0.19 0.33 0.25 0.32
in m 0.16 0.49 0.32 0.56
TABLE I: RMSE values for the figure eight scenario (8) and all single object scenarios (all) using the the variational model (VM) and the direct scattering model (DSM)

Vi-C Multi-Object Performance

The multi-object performance is assessed using nine different scenarios with three vehicles: the ego-vehicle, the E-Class target vehicle, and an additional Mercedes C-Class station wagon (S205), which is also equipped with a DGPS/IMU system. The nine scenarios comprise different situations such as oncoming traffic, cross traffic, overtaking, and occlusions. Again, the results are averaged over 20 Monte Carlo runs.

An exemplary run of one of the scenarios is shown in Fig. 9. Here, two vehicles are approaching the stationary ego-vehicle and pass it on both sides. The target vehicles are continuously tracked and cross the FOV of all four radar sensors. As mentioned before, it is observable that the tracking results are very precise in the direct vicinity of the ego-vehicle and become less precise towards FOV boundaries as measurements become more scarce and less accurate. The cardinality estimate is plotted in Fig. 10. As soon as the vehicles enter the FOV, the true cardinality rises to one and then two. It decreases once the vehicles leave the FOV. The filter is mostly able to correctly estimate the cardinality. Yet, it takes a considerable amount of time to initialize the second track. This is because the second vehicle only creates single measurements in the far range while the initialization routine expects at least a cluster of two.

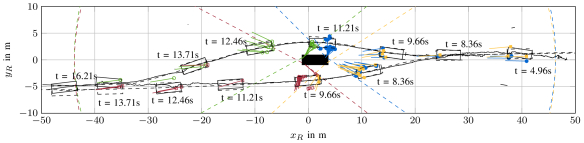

Fig. 9: Multi-object scenario with two oncoming vehicles: Estimated (solid) and ground truth (dashed) trajectories, exemplary vehicle poses (estimates: solid rectangles, ground truth: dashed rectangles), corresponding measurements with Doppler velocity (front left: , front right: , rear left: , rear right: ), and sensor FOV.
Fig. 10: Cardinality estimate (black) and ground truth (dashed) for the scenario with two oncoming vehicles

Thus, the vehicle is not set up before two measurements are created at a distance of approximately 35 m. An adaption of the initialization routine could eliminate this issue.

Figure 11 depicts two additional excerpts of the scenario. Here, the average estimate of the upper vehicle at 10.31 s and corresponding radar measurements from the front left sensor are shown for direct scattering model (Fig. (a)a) and for the variational radar model (Fig. (b)b). Additionally, the measurements from the cluster that has contributed the most to updating the vehicle are indicated. The direct scattering model favors a cluster which excludes four measurements that originate from the wheels and exhibit an especially large or small Doppler velocity. This due to the fact that measurements from rotating wheels are not considered in the model. In this case, the direct scattering model profits from the multi-object approach which allows for different partitioning hypotheses. In contrast, the variational model has learned the effect of spurious measurements of the rotating wheels and uses a cluster which contains all measurements. The additional information helps to locate the position of the vehicle axes and might thus be a cause for the improved length estimate.

(a) Direct scattering model
(b) Variational radar model
Fig. 11: Comparison of the measurement clusters that contributed the most during update: cluster measurements (), other measurements (), average vehicle estimate with center of the rear axle (rectangle and cross), reference vehicle (dashed rectangle)

A second multi-object scenario is shown in Fig. 12. Here, the ego-vehicle and the two target vehicles are driving in parallel. The ego-vehicle is first passed by the target vehicles on both sides. Then both target vehicles drive very closely in front of the ego-vehicle before they depart to the left and the right at around 30 seconds. Since the ego-vehicle is moving, the trajectories, which are estimated in vehicle coordinates, are difficult to visualize and thus not plotted. At 22.06 seconds, the benefit of using a multiple extended object tracking approach which is able to consider multiple partitions and associations becomes apparent: The target vehicles are driving so close that the measurements from both vehicles are closer as for example the measurements from the upper vehicle at 32.49 seconds. Using a clustering routine with fixed parameter set would not be effective in both situations and classical preprocessing routines would most likely merge the two close-by vehicles into a single object. By considering different hypotheses, however, the algorithm is able to find the right associations in both cases.

Fig. 12: Two vehicles driving closely: Estimated (solid rectangles) and ground truth (dashed rectangles) vehicle poses, corresponding measurements with Doppler velocity (front left: , front right: , rear left: , rear right: ), and sensor FOV.

To compare the cardinality estimate of the variational and the direct scattering approach, histograms of cardinality errors were created for all nine multi-object scenarios. To obtain the ground truth, all vehicles in the sensor FOV with a speed greater than 1 m/s were counted. The histograms are shown in Fig. 13. While the direct scattering approach estimates the correct cardinality in 69.0% of the update steps, the variational approach is correct in 77.0% of the time. The direct scattering approach overestimates the cardinality in 15.4% of the update steps, whereas the percentage is reduced to 12.0% when using the variational radar model. This suggests that the variational radar model performs better in distinguishing clutter tracks from actual vehicles. Such clutter tracks are sometimes caused by spurious measurements with a non-zero Doppler velocity and may survive for several time steps if other matching clutter measurements from stationary objects are nearby. The cardinality is underestimated in 15.6% of the update steps for the direct scattering model and 11.1% for the variational radar model. In these cases, the filter has either not yet initialized a track, has assigned too low existence probabilities to the vehicle hypotheses, or vehicle tracks are lost and for example reinitialized after several update steps. As the initialization routine is identical, the case of delayed initialization of vehicles occurs in 5.7% of the update steps for both models.

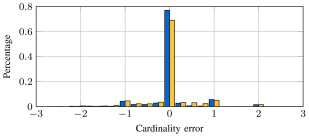

Fig. 13: Histogram of cardinality estimation errors for the multi-object scenarios: variational model () and direct scattering model ()

Vi-D Generalization

So far, the variational model was tested using the same E-Class target vehicle that generated the training data and a rather similar C-Class vehicle. To demonstrate that the model is applicable to a wider range of vehicle types, it was applied to an urban T intersection scenario. In this scenario, the ego-vehicle stands at a T intersection, while eleven different vehicles pass it. The vehicle types range from small cars over sedans and convertibles to vans. Unfortunately, no accurate ground truth is available for these vehicles. Therefore, the vehicle positions and dimensions where manually labeled using the lidar sensor of the ego-vehicle as reference. As the lidar sensor covers approximately 100 in front of the ego-vehicle, the labels are only available for this area.

Two exemplary situations are shown in Fig. 14. Figure (a)a shows one of the most challenging situations for the algorithm. Here, two sedan vehicles cross in front of the ego-vehicle and the front sedan temporarily occludes the second vehicle. While the front sedan is tracked continuously, the track of the rear sedan is lost during occlusion. In this situation, the sensors do not provide measurements from this vehicle over a period of 25 update steps. This causes the probability of existence to drop below the pruning threshold. Once the vehicle is visible again, it is reinitialized. Including an occlusion model as for example used in [50] could alleviate this issue.

(a) Occlusion situation
(b) Turning van and two other vehicles
Fig. 14: Tracking different vehicles in the T intersection scenario: Two excerpts with estimated (solid) and true (dashed) trajectories (only available in the FOV of the laser rangefinder), exemplary vehicle poses (solid rectangles) and true poses (dashed rectangles), corresponding measurements (front left: , front right: , rear left: , rear right: ), and sensor FOV.

Figure (b)b shows a constellation of three vehicles. A van takes a left turn past the ego-vehicle whereas a sedan and another vehicle are driving straight. Here, all three vehicles are continuously tracked and estimated trajectory of the turning van closely follows the labeled one.

All in all, the variational radar model did not show difficulties with a particular vehicle type even though it was trained using data from a single vehicle. The RMSE values where computed with respect to the manually created labels and averaged over the eleven vehicles and 20 Monte Carlo runs. They are 0.06 m and 0.32 m for and , 0.31 for , 0.14 m for the width and 0.53 m for the length. Also, a track estimate is available for the labeled vehicles in 95.5% of the update steps. The remaining 4.5% are due to delayed initialization of entering vehicles and the track loss during occlusion (cf. Fig. (a)a). Recall that the results are only obtained from the labels that are available in the direct vicinity in front of the vehicle. From visual inspection, an expectable degradation of performance occurs in the far field when the number as well as the accuracy of object measurements decreases and the number of measurement drop outs and clutter increases.

The indicated ability to generalize to other vehicles is not surprising as even high-resolution radar measurements are not yet at the resolution performance of other sensor types such as lidar. Hence, the rough extent of the vehicles is observable but the details that distinguish different vehicles are still concealed. Problems are expected as soon as the vehicle appearance changes drastically, e.g. with additional wheels or truck bodies with distinct reflection characteristics.

Vii Conclusion

In this paper, variational radar model for vehicles that is learned from actual radar data was presented and included in a FISST-based multi-object filter. Both modeling and multi-object filtering are formulated entirely probabilistically. FISST provides a rigorous mathematical formulation of the multi-object problem. The multi-object filter considers object dependencies, e.g. that objects should not overlap and that measurements may only originate from one object, and is able to filter over several measurement associations and partitions.

By learning a vehicle model from actual radar data, the variational radar model is a close approximation of the true measurement likelihood and avoids the need for excessive manual engineering. Also, it was shown that it is able to outperform state of the art extended object methods in both the single and multi-object performance. The capability to generalize to objects that are not contained in the training data was shown using a real-world example.

There are several possible extensions of the approach to overcome some limitations. For example, using other nonlinear estimation techniques such as a UKF for the single-object densities could simplify the approach and facilitate fast real time implementations. So far, the approach does not learn all parameters that are involved in the multi-object likelihood. Learning additional parameters such as the expected number of measurements or the clutter densities could further improve modeling accuracy. Studies on reduction of the training data, exploiting vehicle symmetries, and approximation of the resulting Student’s t-mixtures by simpler Gaussian mixtures could provide further insight in simplifications of the approach. Also, extending the concept to multi-class problems is necessary for an application to complex urban scenarios with various types of other traffic participants.

References

  • [1] J. Dickmann, N. Appenrodt, J. Klappstein, H.-L. Bloecher, M. Muntzinger, A. Sailer, M. Hahn, and C. Brenk, “Making Bertha See Even More: Radar Contribution,” IEEE Access, vol. 3, pp. 1233–1247, 2015.
  • [2] J. Elfring, R. Appeldoorn, and M. Kwakkernaat, “Multisensor Simultaneous Vehicle Tracking and Shape Estimation,” in Proceedings of the 2016 IEEE Intelligent Vehicles Symposium, 2016, pp. 630–635.
  • [3] F. Roos, D. Kellner, J. Dickmann, and C. Waldschmidt, “Reliable Orientation Estimation of Vehicles in High-Resolution Radar Images,” IEEE Transactions on Microwave Theory and Techniques, vol. 64, no. 9, pp. 2986–2993, 2016.
  • [4] J. Schlichenmaier, N. Selvaraj, M. Stolz, and C. Waldschmidt, “Template Matching for Radar-Based Orientation and Position Estimation in Automotive Scenarios,” in Proceedings of the 2017 IEEE MTT-S International Conference on Microwaves for Intelligent Mobility, 2017, pp. 95–98.
  • [5] S. Bordonaro, P. K. Willett, Y. Bar-Shalom, T. Luginbuhl, and M. Baum, “Extracting Speed, Heading, and Turn-Rate Measurements from Extended Objects using the EM Algorithm,” in 2015 IEEE Aerospace Conference, 2015.
  • [6] D. Kellner, M. Barjenbruch, K. Dietmayer, and J. Klappstein, “Instantaneous Lateral Velocity Estimation of a Vehicle using Doppler Radar,” in Proceedings of the 16th International Conference on Information Fusion, 2013, pp. 877–884.
  • [7] D. Kellner, M. Barjenbruch, J. Klappstein, J. Dickmann, and K. Dietmayer, “Instantaneous Full-Motion Estimation of Arbitrary Objects using Doppler Radar,” in Proceedings of the 2014 IEEE Intelligent Vehicles Symposium, 2014, pp. 324–329.
  • [8] ——, “Tracking of Extended Objects with High-Resolution Doppler Radar,” IEEE Transactions on Intelligent Transportation Systems, vol. 17, no. 5, pp. 1341–1353, 2016.
  • [9] K. Granström, M. Baum, and S. Reuter, “Extended Object Tracking: Introduction, Overview and Applications,” ISIF Journal of Advances in Information Fusion, vol. 12, no. 2, 2017.
  • [10] D. J. Salmond and N. J. Gordon, “Group and Extended Object Tracking,” in IEE Colloquium on Target Tracking: Algorithms and Applications, 1999, pp. 16/1–16/4.
  • [11] M. Darms, P. Rybski, C. Baker, and C. Urmson, “Obstacle Detection and Tracking for the Urban Challenge,” IEEE Transactions on Intelligent Transportation Systems, vol. 10, no. 3, pp. 475–485, 2009.
  • [12] J. Gunnarsson, L. Svensson, L. Danielsson, and F. Bengtsson, “Tracking vehicles using radar detections,” in Proceedings of the 2007 Intelligent Vehicles Symposium, 2007, pp. 296–302.
  • [13] L. Hammarstrand, L. Svensson, F. Sandblom, and J. Sörstedt, “Extended Object Tracking using a Radar Resolution Model,” IEEE Transactions on Aerospace and Electronic Systems, vol. 48, no. 3, pp. 2371–2386, 2012.
  • [14] L. Hammarstrand, M. Lundgren, and L. Svensson, “Adaptive Radar Sensor Model for Tracking Structured Extended Objects,” IEEE Transactions on Aerospace and Electronic Systems, vol. 48, no. 3, pp. 1975–1995, 2012.
  • [15] K. Gilholm and D. J. Salmond, “Spatial distribution model for tracking extended objects,” IEE Proceedings - Radar, Sonar and Navigation, vol. 152, no. 5, pp. 364–371, 2005.
  • [16] K. Gilholm, S. J. Godsill, S. Maskell, and D. J. Salmond, “Poisson models for extended target and group tracking,” in Proceedings of SPIE 5913, Signal and Data Processing of Small Targets, 2005, p. 59 130R.
  • [17] J. W. Koch, “Bayesian Approach to Extended Object and Cluster Tracking using Random Matrices,” IEEE Transactions on Aerospace and Electronic Systems, vol. 44, no. 3, 2008.
  • [18] M. Baum and U. D. Hanebeck, “Extended Object Tracking with Random Hypersurface Models,” IEEE Transactions on Aerospace and Electronic Systems, vol. 50, no. 1, pp. 149–159, 2014.
  • [19] N. Wahlström and E. Özkan, “Extended Target Tracking Using Gaussian Processes,” IEEE Transactions on Signal Processing, vol. 63, no. 16, pp. 4165–4178, 2015.
  • [20] M. Schuster, J. Reuter, and G. Wanielik, “Probabilistic Data Association for Tracking Extended Targets Under Clutter Using Random Matrices,” in Proceddings of the 2015 18th International Conference on Information Fusion, 2015, pp. 961–968.
  • [21] C. Lundquist, O. Orguner, and F. Gustafsson, “Estimating Polynomial Structures from Radar Data,” in Proceedings of the 13th Conference on Information Fusion, Edingburgh and Scotland and UK, 2010.
  • [22] P. Broßeit, B. Duraisamy, and J. Dickmann, “The Volcanormal Density for Radar-Based Extended Target Tracking,” in Proceedings of the 2016 IEEE 20th International Conference on Intelligent Transportation Systems, 2017.
  • [23] C. Adam, R. Schubert, and G. Wanielik, “Radar-Based extended Object Tracking Under Clutter using Generalized Probabilistic Data Association,” in Proceedings of the 16th International IEEE Annual Conference on Intelligent Transportation Systems, 2013, pp. 1408–1415.
  • [24] C. Knill, A. Scheel, and K. Dietmayer, “A Direct Scattering Model for Tracking Vehicles with High-Resolution Radars,” in Proceedings of the 2016 IEEE Intelligent Vehicles Symposium, 2016, pp. 298–303.
  • [25] M. Bühren and B. Yang, “Simulation of Automotive Radar Target Lists using a Novel Approach of Object Representation,” in Proceedings of the 2006 IEEE Intelligent Vehicles Symposium, 2006, pp. 314–319.
  • [26] K. Schuler, D. Becker, and W. Wiesbeck, “Extraction of Virtaul Scattering Centers of Vehicles by Ray-Tracing Simulations,” IEEE Transactions on Antennas and Propagation, vol. 56, no. 11, pp. 3543–3551, 2008.
  • [27] T. A. Wheeler, M. Holder, H. Winner, and M. J. Kochenderfer, “Deep Stochastic Radar Models,” in Proceedings of the 2017 IEEE Intelligent Vehicles Symposium, 2017, pp. 47–53.
  • [28] P. Berthold, M. Michaelis, T. Luettel, D. Meißner, and H.-J. Wünsche, “Radar Reflection Characteristics of Vehicles for Contour and Feature Estimation,” in Sensor Data Fusion: Trends, Solutions, Applications, 2017.
  • [29] N. Hirsenkorn, T. Hanke, A. Rauch, B. Dehlink, R. H. Rasshofer, and E. Biebl, “A Non-Parametric Approach for Modelling Sensor Behavior,” in 2015 16th International Radar Symposium (IRS), 2015, pp. 131–136.
  • [30] ——, “Virtual sensor models for real-time applications,” Advances in Radio Science, vol. 14, pp. 31–37, 2016.
  • [31] H. Attias, “Inferring Parameters and Structure of Latent Variable Models by Variational Bayes,” in

    Proceedings of the Fifteenth Conference on Uncertainty in Artificial Intelligence

    , 1999.
  • [32] ——, “A Variational Bayesian Framework for Graphical Models,” Advances in Neural Information Processing Systems, vol. 12, pp. 209–215, 2000.
  • [33] C. M. Bishop, Pattern recognition and machine learning, 11st ed., ser. Information science and statistics.   New York: Springer, 2013.
  • [34] M. Beard, S. Reuter, K. Granström, B.-T. Vo, B.-N. Vo, and A. Scheel, “Multiple Extended Target Tracking with Labelled Random Finite Sets,” IEEE Transactions on Signal Processing, vol. 64, no. 7, pp. 1638–1653, 2016.
  • [35] Mahler, Ronald P. S., ““Statistics 101” for Multisensor, Multitarget Data Fusion,” IEEE Transactions on Aerospace and Electronic Systems, vol. 19, no. 1, pp. 53–64, 2004.
  • [36] ——, Statistical multisource-multitarget information fusion, ser. Artech House information warfare library.   Boston: Artech House, 2007.
  • [37] A. Scheel, C. Knill, S. Reuter, and K. Dietmayer, “Multi-Sensor Multi-Object Tracking of Vehicles Using High-Resolution Radars,” in Proceedings of the 2016 IEEE Intelligent Vehicles Symposium, 2016, pp. 558–565.
  • [38] J. B. Tenenbaum, V. d. Silva, and J. C. Langford, “A Global Geometric Framework for Nonlinear Dimensionality Reduction,” Science, vol. 290, no. 5500, pp. 2319–2323, 2000.
  • [39] M. Roth, “On the Multivarite t Distribution,” 2013.
  • [40] Mahler, Ronald P. S., “PHD filters for nonstandard targets, I: Extended targets,” in Proceedings of the 12th International Conference on Information Fusion, 2009, pp. 915–921.
  • [41] D. Gamarnik and J. N. Tsitsiklis, “Fundamentals of Probability: Derived Distributions,” 2008.
  • [42]

    B.-T. Vo and B.-N. Vo, “Labeled Random Finite Sets and Multi-Object Conjugate Priors,”

    IEEE Transactions on Signal Processing, vol. 61, no. 13, pp. 3460–3474, 2013.
  • [43] A. Scheel, S. Reuter, and K. Dietmayer, “Using Separable Likelihoods for Laser-Based Vehicle Tracking with a Labeled Multi-Bernoulli Filter,” in Proceedings of the 2016 19th International Conference on Information Fusion, 2016.
  • [44] ——, “Vehicle Tracking Using Extended Object Methods: An Approach for Fusing Radar and Laser,” in Proceedings of the 2017 IEEE International Conference on Robotics and Automation, 2017, pp. 231–238.
  • [45] R. Schubert, E. Richter, and G. Wanielik, “Comparison and Evaluation of Advanced Motion Models for Vehicle Tracking,” in Proceedings of the 2008 11th International Conference on Information Fusion, 2008.
  • [46] S. Reuter, B.-T. Vo, B.-N. Vo, and K. Dietmayer, “The Labeled Multi-Bernoulli Filter,” IEEE Transactions on Signal Processing, vol. 62, no. 12, pp. 3246–3260, 2014.
  • [47]

    K. Murphy and S. Russel, “Rao-Blackwellized particle filtering for dynamic Bayesian networks,” in

    Sequential Monte Carlo methods in practice, A. Doucet, N. d. Freitas, and N. J. Gordon, Eds.   Berlin [etc.]: Springer, 2001, pp. 499–515.
  • [48] M. Ester, H.-P. Kriegel, J. Sander, and X. Xu, “A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases with Noise,” in Proceedings of the Second International Conference on Knowledge Discovery and Data Mining, 1996, pp. 226–231.
  • [49] K. G. Murty, “An Aglorithm for Ranking all the Assigments in Order of Increasing Cost,” Operations Research, vol. 16, no. 3, pp. 682–687, 1968.
  • [50] K. Granström, S. Reuter, D. Meißner, and A. Scheel, “A multiple model PHD approach to tracking of cars under an assumed rectangular shape,” in Proceedings of the 2014 17th International Conference on Information Fusion, 2014.
