Towards Visually Explaining Variational Autoencoders

Recent advances in Convolutional Neural Network (CNN) model interpretability have led to impressive progress in visualizing and understanding model predictions. In particular, gradient-based visual attention methods have driven much recent effort in using visual attention maps as a means for visual explanations. A key problem, however, is these methods are designed for classification and categorization tasks, and their extension to explaining generative models, , variational autoencoders (VAE) is not trivial. In this work, we take a step towards bridging this crucial gap, proposing the first technique to visually explain VAEs by means of gradient-based attention. We present methods to generate visual attention from the learned latent space, and also demonstrate such attention explanations serve more than just explaining VAE predictions. We show how these attention maps can be used to localize anomalies in images, demonstrating state-of-the-art performance on the MVTec-AD dataset. We also show how they can be infused into model training, helping bootstrap the VAE into learning improved latent space disentanglement, demonstrated on the Dsprites dataset.



page 1

page 5

page 7

page 8


Towards Visually Explaining Similarity Models

We consider the problem of visually explaining similarity models, i.e., ...

Controllable Level Blending between Games using Variational Autoencoders

Previous work explored blending levels from existing games to create lev...

Gradient Frequency Modulation for Visually Explaining Video Understanding Models

In many applications, it is essential to understand why a machine learni...

GAM: Explainable Visual Similarity and Classification via Gradient Activation Maps

We present Gradient Activation Maps (GAM) - a machinery for explaining p...

Reducing Visual Confusion with Discriminative Attention

Recent developments in gradient-based attention modeling have led to imp...

Learning Similarity Attention

We consider the problem of learning similarity functions. While there ha...

Explaining Deep Convolutional Neural Networks via Latent Visual-Semantic Filter Attention

Interpretability is an important property for visual models as it helps ...

Code Repositories

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Wenqian Liu and Runze Li contributed equally to this work. Email:,,,,,,,

Dramatic progress in computer vision, driven by deep learning

[23, 13, 15], has led to widespread adoption of the associated algorithms in real-world tasks, including healthcare, robotics, and autonomous driving [17, 52, 24] among others. Applications in many such safety-critical and consumer-focusing areas demand a clear understanding of the reasoning behind an algorithm’s predictions, in addition certainly to robustness and performance guarantees. Consequently, there has been substantial recent interest in devising ways to understand and explain the underlying why driving the output what.

Figure 1:

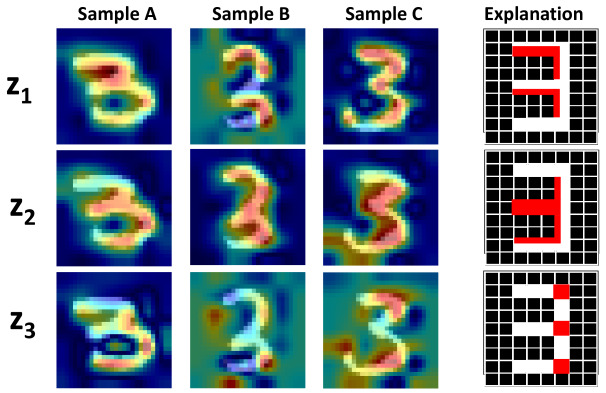

We propose to visually explain Variational Autoencoders. Each element in the latent vector can be explained separately with attention maps generated by our method. Examples in this figure show that the attention maps can visualize consistent explanations of each latent variable (

) across different samples.

Following the work of Zeiler and Fergus [41], much recent effort has been expended in developing ways to visualize feature activations in convolutional neural networks (CNNs). One line of work that has seen increasing adoption involves network attention [48, 34], typically visualized by means of attention maps that highlight feature regions considered (by the trained model) to be important for satisfying the training criterion. Given a trained CNN model, these techniques are able to generate attention maps that visualize where a certain object, e.g., a cat

, is in the image, helping explain why this image is classified as belonging to the

cat category. Some extensions [25, 37] provide ways to use the generated attention maps as part of trainable constraints that are enforced during model training, showing improved model generalizability as well as visual explainability. While Zheng et al. [46] used a classification module to show how one can generate a pair of such attention maps to explain why two images of people are similar/dissimilar, all these techniques, by design, need to perform classification to guide model explainability, limiting their use to object categorization problems.

Starting from such classification model explainability, one would naturally like to explain a wider variety of neural network models and architectures. For instance, there has been an explosion in the use of generative models following the work of Kingma and Welling [21] and Goodfellow et al. [12], and subsequent successful applications in a variety of tasks [16, 27, 38, 40]. While progress in algorithmic generative modeling has been swift [39, 18, 31], explaining such generative algorithms is still a relatively unexplored field of study. There are certainly some ongoing efforts in using the concept of visual attention in generative models [36, 2, 42], but the focus of these methods is to use attention as an auxiliary information source for the particular task of interest, and not visually explain the generative model itself.

In this work, we take a step towards bridging this crucial gap, developing new techniques to visually explain Variational Autoencoders (VAE) [22]. Note that while we use VAEs as an instantiation of generative models in our work, some of the ideas we discuss are not limited to VAEs and can certainly be extended to GANs [12]

as well. Our intuition is that the latent space of a trained VAE encapsulates key properties of the VAE and that generating explanations conditioned on the latent space will help explain the reasoning for any downstream model predictions. Given a trained VAE, we present new ways to generate visual attention maps from the latent space by means of gradient-based attention. Specifically, we given the learned Gaussian distribution, we use the reparameterization trick


to sample a latent code. We then backpropagate the activations in each dimension of the latent code to a convolutional feature layer in the model and aggregate all the resulting gradients to generate the attention maps. While these visual attention maps serve as means to explain the VAE, we can do much more than just that. A classical application of a VAE is in anomaly localization, where the intuition is that any input data that is not from the standard Gaussian distribution used to train the VAE should be anomalous in the inferred latent space. Given this inference, we can now generate attention maps helping visually explain


this particular input is anomalous. We then also go a step further, presenting ways in which to use these explanations as cues to precisely localize where the anomaly is in the image. We conduct extensive experiments on the recently proposed MVTec anomaly detection dataset and present state-of-the-art anomaly localization results with just the standard VAE without any bells and whistles.

Latent space disentanglement is another important area of study with VAEs and has seen much recent progress [14, 19, 47]. With our visual attention explanations conditioned on the learned latent space, our intuition that using these attention maps as part of trainable constraints will lead to improved latent space disentanglement. To this end, we present a new learning objective we call attention disentanglement loss and show how one can train existing VAE models with this new loss. We demonstrate its impact in learning a disentangled embedding by means of experiments on the Dsprites dataset [30].

To summarize, the key contributions of this work include:

  • We take a step towards solving the relatively unexplored problem of visually explaining generative models, presenting new methods to generate visual attention maps conditioned on the latent space of a variational autoencoder.

  • Going beyond visual explanations, we show how our visual attention maps can be put to multipurpose use.

  • We present new ways to localize anomalies in images by using our attention maps as cues, demonstrating state-of-the-art localization performance on the MVTec-AD dataset [3].

  • We present a new learning objective called the attention disentanglement loss, showing how one incorporate it into standard VAE models, and demonstrate improved disentanglement performance on the Dsprites dataset [30].

2 Related Work

CNN Visual Explanations. Much recent effort has been expended in explaining CNNs as they have come to dominate performance on most vision tasks. Some widely adopted methods that attempt to visualize intermediate CNN feature layers included the work of Zeiler and Fergus [41] and Mahendran and Vedaldi [28], where methods to understand the activity within the layers of convolutional nets were presented. Some more recent extensions of this line of work include visual-attention-based approaches [49, 11, 35, 6], most of which can be categorized into either gradient-based methods or response-based methods. Gradient-based method such as GradCAM [35] compute and visualize gradients backpropagated from the decision unit to a feature convolutional layer. On the other hand, response-based approaches [43, 49, 11] typically add additional trainable units to the original CNN architecture to compute the attention maps. In both cases, the goal is to localize attentive and informative image regions that contribute the most to the model prediction. However, these methods and their extensions [11, 25, 37], while able to explain classification/categorization models, cannot be trivially extended to explaining deep generative models such as VAEs. In this work, we present methods, using the philosophy of gradient-based network attention, to compute and visualize attention maps directly from the learned latent embedding of the VAE. Furthermore, we make the resulting attention maps end-to-end trainable and show how such a change can result in improved latent space disentanglement.

Anomaly Detection.Unsupervised learning for anomaly detection [1] still remains challenging. Most recent work in anomaly detection is based on either classification-based [32, 5]

or reconstruction-based approaches. Classification-based approaches aim to progressively learn representative one-class decision boundaries like hyperplanes

[5] or hyperspheres [32]

around the normal-class input distribution to tell outliers/anomalies apart. However, it was also shown


that these methods have difficulty dealing with high-dimensional data. Reconstruction-based models, on the other hand, assume input data that are anomalous cannot be reconstructed well by a model that is trained only with normal input data. This principle has been used by several methods based on the traditional PCA

[20], sparse representation [45], and more recently deep autoencoders [51, 50]. In this work, we take a different approach to tackling this problem. We use the attention maps generated by our proposed VAE visual explanation generation method as cues to localize anomalies. Our intuition is that representations of anomalous data should be reflected in latent embedding as being anomalous, and that generating input visual explanations from such an embedding gives us the information we need to localize the particular anomaly.

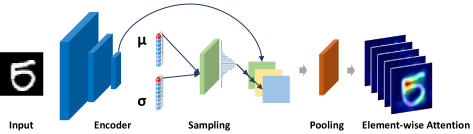

Figure 2: Element-wise Attention generation for VAE.

VAE Disentanglement. Much effort has been expended in understanding latent space disentanglement for generative models. Early work of Schmidhuber et al. [33] proposed a principle to disentangle latent representations by minimizing the predictability of one latent dimension given other dimensions. Desjardins et. al [10]

generalized an approach based on restricted Boltzmann machines to factor the latent variables. Chen et. al extended GAN

[12] framework to design the InfoGAN [8] to maximise the mutual information between a subset of latent variables and the observation. Some of the more recent unsupervised methods for disentanglement include -VAE [14] which attempted to explore independent latent factors of variation in observed data. While still a popular unsupervised framework, -VAE sacrificed reconstruction quality for obtaining better disentanglement. Chen et. al [7] extended -VAE to -TCVAE by introducing a total correlation-based objective, whereas Mathieu et al. [29] explored decomposition of the latent representation into two factors for disentanglement, and Kim et al. [19]

proposed FactorVAE that encouraged the distribution of representations to be factorial and independent across the dimensions. While these methods focus on factorizing the latent representations provided by each individual latent neuron, we take a different approach. We enforce learning a disentangled space by formulating disentanglement constraints based on our proposed visual explanations,

i.e., visual attention maps. To this end, we propose a new attention disentanglement learning objective that we quantitatively show provides superior performance when compared to existing work.

3 Technical Approach

In this section, we present our method to generate explanations for a VAE by means of gradient-based attention. We first begin with a brief review of VAEs in Sections 3.1 followed by our proposed method to generate VAE attention. We discuss our framework for localizing anomalies in images with these attention maps and conduct extensive experiments on the MVTec-AD anomaly detection dataset [3], establishing state-of-the-art anomaly localization performance. Next, we show how our generated attention visualizations can assist in learning a disentangled latent space by optimizing our new attention disentanglement loss. Here, we conduct experiments on the Dsprites [30] dataset and quantitatively demonstrate improved disentanglement performance when compared to existing approaches.

3.1 One-Class Variational Autoencoder

A vanilla VAE is essentially an autoencoder that is trained with the standard autoencoder reconstruction objective between the input and decoded/reconstructed data, as well as a variational objective term attempts to learn a standard normal latent space distribution. The variational objective is typically implemented with Kullback-Leibler distribution metric computed between the latent space distribution and the standard Gaussian. Given input data , the conditional distribution of the encoder, the standard Gaussian distribution , and the reconstructed data , the vanilla VAE optimizes:



is the Kullback-Leibler divergence and

is the reconstruction term:


where N is the total number of data samples.

3.2 Generating VAE Attention

We propose a new technique to generate VAE visual attention by means of gradient-based attention computation. Our proposed approach is substantially different from all existing techniques [35, 49, 46] compute the attention maps by backpropagating the score from a classification model, thus requires class-specific information (score). On the other hand, we are not restricted to such class-wise information, develop an attention mechanism directly using the learned space, thereby not needing an additional classification module that these existing techniques do. As illustrated in Figure 2 and discussed below, we compute a score from the latent space, which is then used to calculate gradients and obtain the attention map.

Specifically, for each element in the latent vector , we first generate an attention map by computing the gradients backpropagated to the last convolutional layer as:


where is the input feature map at the last convolutional layer of the encoder in the VAE, and and denote Global Average Pooling and ReLU operations, respectively. We then perform an average pooling operation to aggregate the attention maps generated from each latent dimension to get the overall VAE attention map as:


where is the dimensionality of the latent space.

3.3 Generating Anomaly Attention Explanations

We now move on to discuss how our gradient-based attention generation mechanism can be used to localize anomaly regions given a trained one-class VAE. Inference with such a one-class VAE with data it was trained for, i.e.

, normal data (digit “1” for instance), should ideally result in the learned latent space representing the standard normal distribution. Consequently, given a testing sample from a different class (abnormal data, digit “5” for instance), the latent representation inferred by the learned encoder should have a large difference when compared to the learned normal distribution.

Given an abnormal input image as input to a one-class VAE trained on normal images

, the encoder will infer the corresponding mean and variance

and for each latent variable to describe the abnormal data. Given that the learned latent distribution follows in latent space and any anomalies should deviate from this distribution in the latent space, we define a normal difference distribution in sampling the latent code for anomaly attention generation:


for each latent variable . Given a latent code sampled from , we use Equation 4 to compute the attention map for abnormal images. Figure 3 provides a visual summary.

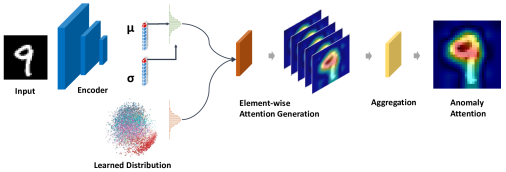

Figure 3: Attention generation with One-Class VAE.

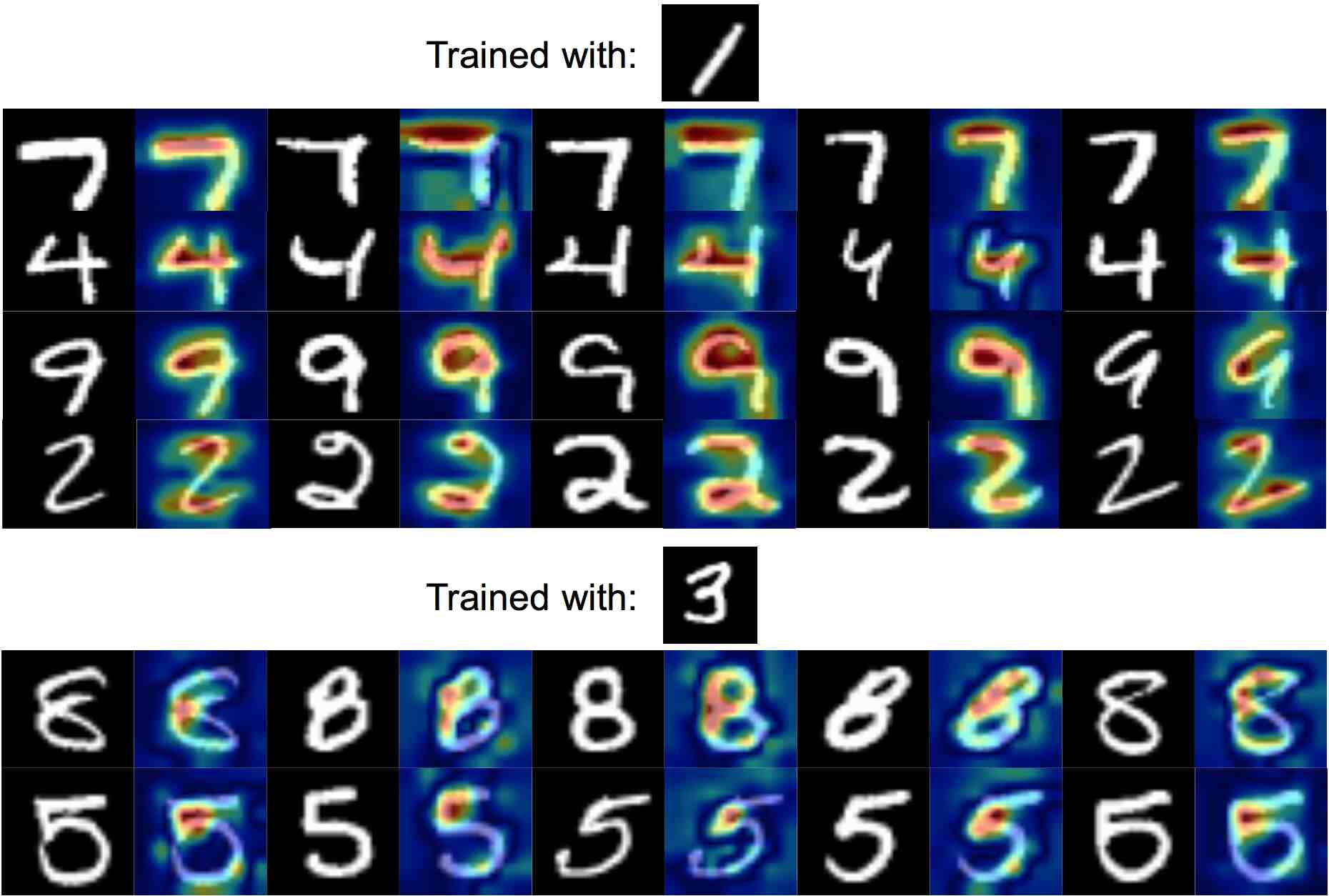

Figure 4: Anomaly localization results from the MNIST dataset.

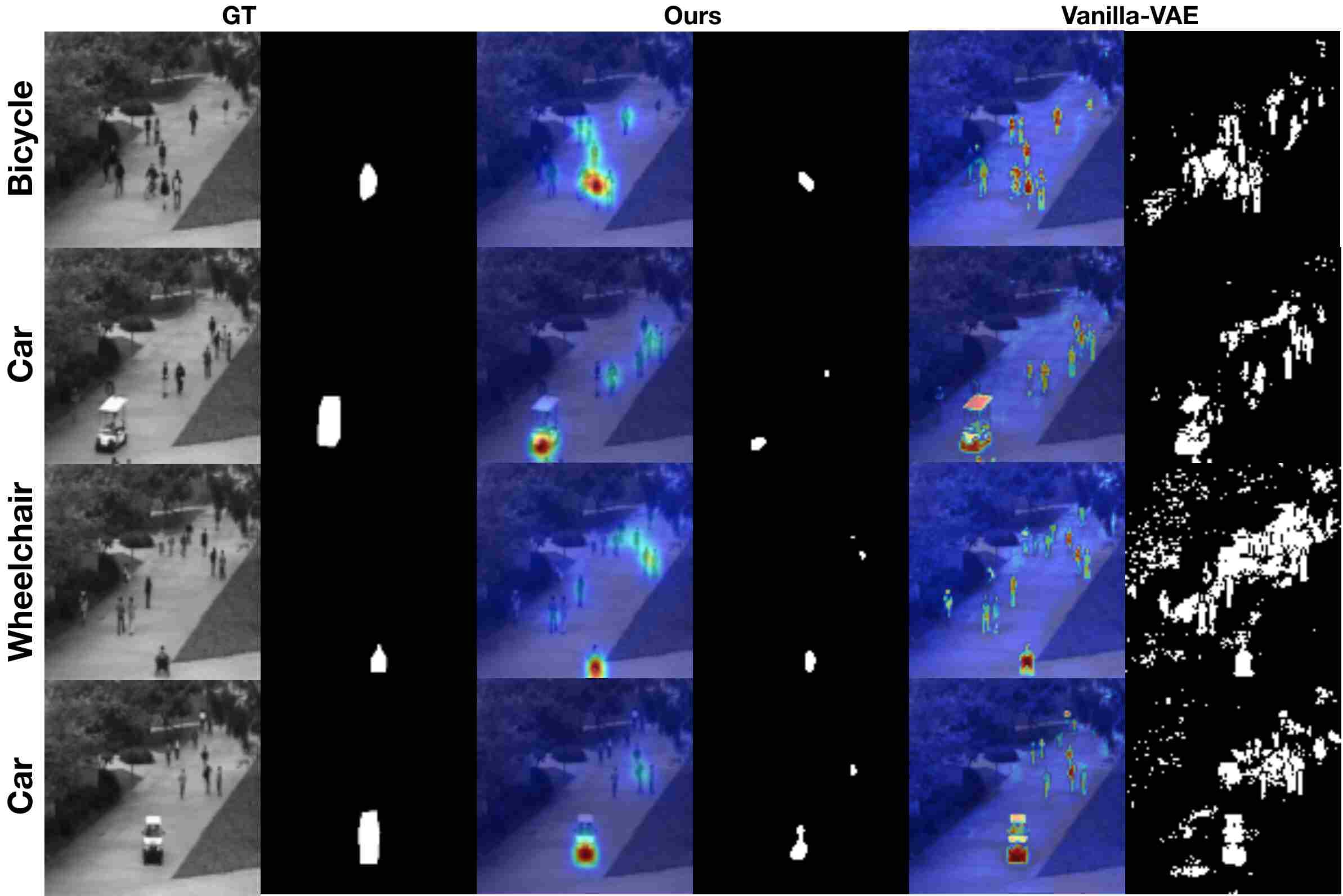

Figure 5: Qualitative results from UCSD Ped1 dataset. L-R: Original test image, ground-truth masks, our anomaly attention localization maps, and difference between input and the VAE’s reconstruction . The anomalies in these samples are moving cars, bicycle, and wheelchair.

3.3.1 Results

In this section, we evaluate our proposed method to generate visual explanations as well as perform anomaly localization with VAEs.


We adopt the commonly used the area under the receiver operating characteristic curve (ROC AUC) for all quantitative performance evaluation. We define true positive rate (Tpr) as the percentage of pixels that are correctly classified as anomalous across the whole testing class, whereas the false positive rate (Fpr) the percentage of pixels that are wrongly classified as anomalous. In addition, we also compute the best intersection-over-union (IOU) score by searching for the best threshold based on our ROC curve. Note that we first begin with qualitative (visual) evaluation on the MNIST and UCSD datasets, and then proceed to a more thorough quantitative evaluation on the MVTec-AD dataset.

MNIST. We start by qualitatively evaluating our visual attention maps on the MNIST dataset [9]. Using training images from one single digit class, we train our one-class VAE model, which will be used to test on all the digit numbers’ testing images. We reshape all the training and testing images to resolution of pixels.

In Figure 4 (top), we show results with a model trained on the digit “1” (normal class) and test on all other digits (each of which becomes an abnormal class). For each test image, we infer the latent vector using our trained encoder and use Equation 4 to generate the attention map. As can be observed in the results, the attention maps computed with the proposed method is intuitively satisfying. For instance, let us consider the attention maps generated with digit “7” as the test image. Our intuition tells us that a key difference between the “1” and the “7” is the top-horizontal bar in “7”, and our generated attention map indeed highlights this region. Similarly, the differences between an image of the digit “2” and the “1” are the horizontal base and the top-round regions in the “2”. From the generated attention maps for “2”, we notice that we are indeed able to capture these differences, highlighting the top and bottom regions in the images for “2”. We also show testing results with other digits (e.g., “4”,“9”) as well as with a model trained on digit “3” and tested on the other digits in the same figure. We note similar observations can be made from these results as well, suggesting that our proposed attention generation mechanism is indeed able to highlight anomalous regions, thereby capturing the features in the underlying latent space that cause a certain data sample to be abnormal.

UCSD Ped1 Dataset: We next test our proposed method on the UCSD Ped 1[26] pedestrian video dataset, where the videos were captured with a stationary camera to monitor a pedestrian walkway. This dataset includes 34 training sequences and 36 testing sequences, with about 5500 “normal” frames and 3400 “abnormal” frames. We resize the data to pixels for training and testing.

We first qualitatively evaluate the performance of our proposed attention generation method in localizing anomalies. As we can see from Figure 5 (where the corresponding anomaly of interest is annotated on the left, e.g., bicycle, Car etc.), our anomaly localization technique with attention maps performs substantially better than simply computing the difference between the input and its reconstruction (this result is annotated as Vanilla-VAE in the figure). We note more precise localization of the high-response regions in our generated attention maps, and these high-response regions indeed correspond to anomalies in these images.

We next conduct a simple ablation study using the pixel-level segmentation AUROC score against the baseline method of difference between input data and the reconstruction. We test our proposed attention generation mechanism with varying levels of spatial resolution by backpropagating to each of the encoder’s convolutional layers: , , and . The results are shown in Table 1 where we see our proposed mechanism gives better performance than the baseline technique.

Vanilla-VAE Ours(Conv1) Ours(Conv2) Ours(Conv3)
AUROC 0.86 0.89 0.92 0.91
Table 1: Anomaly localization results on UCSD Ped1 using pixel-level segmentation AUROC score. We compare results obtained using our anomaly attention generated with different target network layers to reconstruction-based anomaly localization using Vanilla-VAE.

MVTec-AD Dataset: We consider the recently released comprehensive anomaly detection dataset: MVTec Anomaly Detection (MVTec AD) [3] that provides multi-object, multi-defect natural images and pixel-level ground truth. This dataset contains 5354 high-resolution color images of different objects/textures, with both normal and defect (abnormal) images provided in the testing set. We resize all images to pixels for training and testing. We conduct extensive qualitative and quantitative experiments and summarize results below.

We train a VAE with ResNet18 [13] as our feature encoder and a 32-dimensional latent space. We further use random mirroring and random rotation, as done in the original work [3], to generate an augmented training set. Given a test image, we infer its latent representation and use Equation 4 to generate the anomaly attention map. Given our anomaly attention maps, we generate binary anomaly localization maps using a variety of thresholds on the pixel response values, which is encapsulated in the ROC curve. We then compute and report the area under the ROC curve (ROC AUC) and generate the best IOU number for our method based on FPR and TPR from the ROC curve.

The results are shown in Table2, where we compare our performance with the techniques evaluated in the benchmark paper of Bergmann et al. [3]. From the results, we note that with our anomaly localization approach using the proposed VAE attention, we obtain better results on most of the object categories than the competing methods. It is worth noting here that some of these methods are specifically designed for the anomaly localization task, whereas we train a standard VAE and generate our VAE attention maps for localization. Despite this simplicity, our method achieves competitive performance, demonstrating the potential of such an attention generation technique to be useful for tasks other than just model explanation.

We also show some qualitative results in Figure 6. We show results from 6 categories - three textures and three objects. For each category, we also show four types of defects provided by the dataset. We plot from the top row to the bottom the original images, ground truth segmentation masks, and our anomaly attention maps plotted upon input image. Given a variety types of defects of multiple different categories, our attention maps locate accurately upon anomalies and even more refined than the gt maps(note example Wood-Scratch, the gt map indicates a much bigger anomaly area than the actual scratch defect, yet our attention map captures perfectly the shape of the defect.)




0.87 0.59 0.54 0.72 0.78
0.69 0.38 0.34 0.20 0.1


0.94 0.90 0.58 0.59 0.73
0.88 0.83 0.04 0.02 0.02


0.78 0.75 0.64 0.87 0.95
0.71 0.67 0.34 0.74 0.24


0.59 0.51 0.50 0.93 0.80
0.04 0.23 0.08 0.14 0.23


0.73 0.73 0.62 0.91 0.77
0.36 0.29 0.14 0.47 0.14



0.93 0.86 0.86 0.78 0.87
0.15 0.22 0.05 0.07 0.27


0.82 0.86 0.78 0.79 0.90
0.01 0.05 0.01 0.13 0.18


0.94 0.88 0.84 0.84 0.74
0.09 0.11 0.04 0.00 0.11


0.97 0.95 0.87 0.72 0.98
0.00 0.41 0.02 0.00 0.44

Metal Nut

0.89 0.86 0.76 0.82 0.94
0.01 0.26 0.00 0.13 0.49


0.91 0.85 0.87 0.68 0.83
0.07 0.25 0.17 0.00 0.18


0.96 0.96 0.80 0.87 0.97
0.03 0.34 0.01 0.00 0.17


0.92 0.93 0.90 0.77 0.94
0.08 0.51 0.07 0.00 0.14


0.90 0.86 0.80 0.66 0.93
0.01 0.22 0.08 0.03 0.30


0.88 0.77 0.78 0.76 0.78
0.10 0.13 0.01 0.00 0.06
Table 2: Quantitative results for pixel level segmentation on 15 categories from MVTec-AD dataset. For each category, we report the area under ROC AUC curve on the top row, and best IOU on the bottom row. We adopt comparison scores from [3].

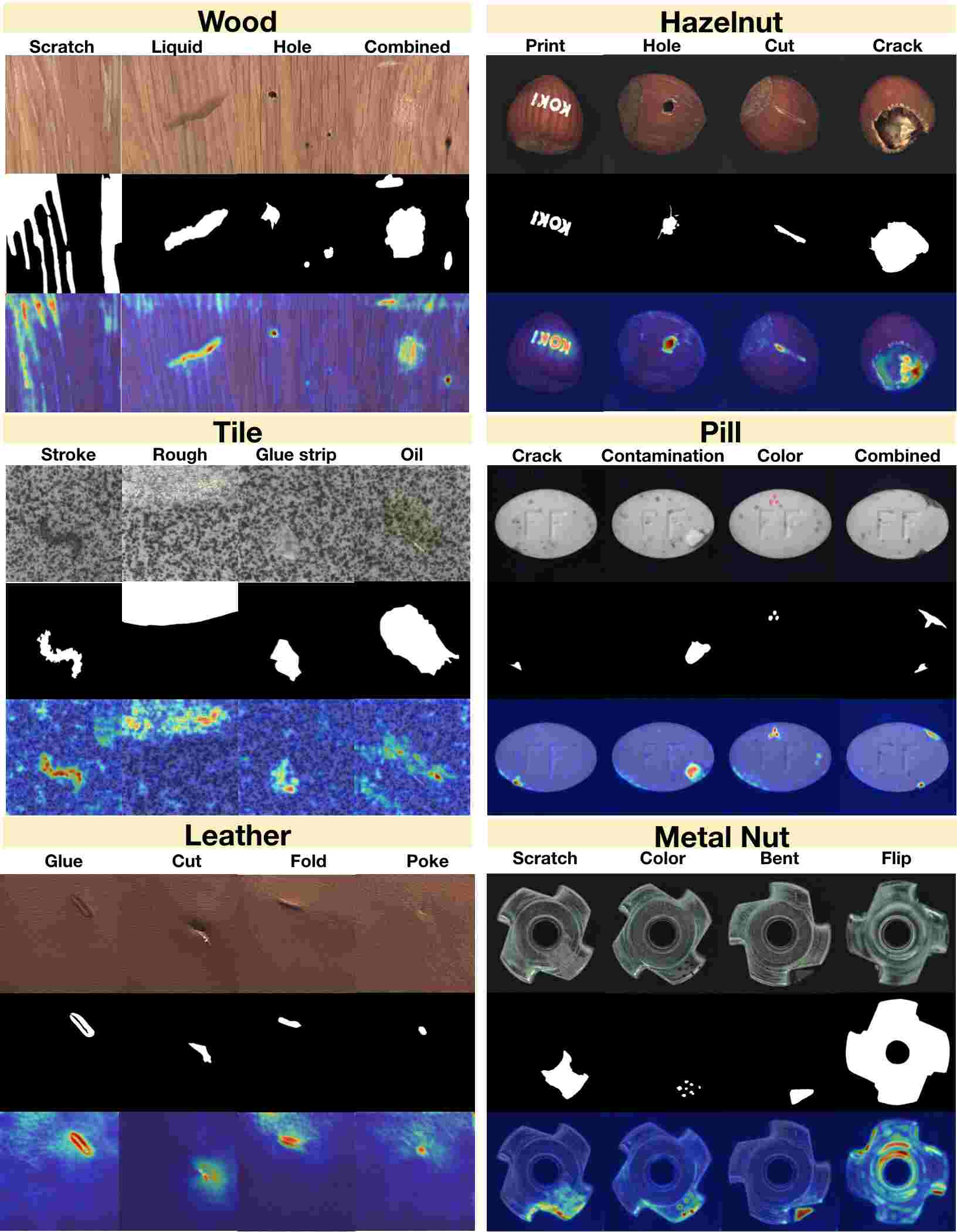

Figure 6: Qualitative results from MVTec-AD dataset. In this figure, we provide results from three texture categories and three object categories: Wood, Tile, Leather, Hazelnut, Pill, and Metal Nut. Additionally, for each of these category, we show four different type of defects. As can be seen from the figure, our anomaly attention maps accurately localize anomalies through out all the categories and defects, even more refined than ground truth defect areas.

3.4 Attention Disentanglement

In the previous section, we discussed how one can generate visual explanations, by means of gradient-based attention, as well as anomaly attention maps for VAEs. We also discussed and experimentally evaluated using these anomaly attention maps for anomaly localization on a variety of datasets. We next discuss another application of our proposed VAE attention: VAE latent space disentanglement. Existing approaches for learning disentangled representations of deep generative models focus on formulating factorised, independent latent distributions so as to learn interpretable data representations. Some examples include -VAE [14], InfoVAE [44], and FactorVAE [19]

, among others, all of which attempt to model the latent prior with factorial probability distribution. In this work, we present an alternative technique, based on our proposed VAE attention, called the attention disentanglement loss. We show how it can be integrated with existing baselines,


., FactorVAE, and demonstrate the resulting impact by means of qualitative attention maps and quantitatively performance characterization with standard disentanglement evaluation metrics.

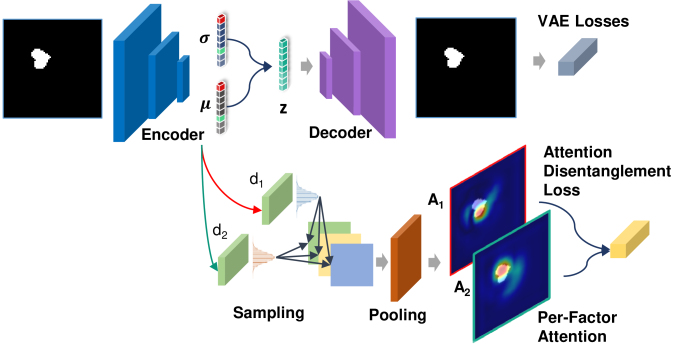

Figure 7: Training pipeline for VAE with Attention Disentanglement.

3.4.1 Training with Attention Disentanglement

As we showed earlier, our proposed VAE attention, by means of gradient-based attention, generates attention maps that can explain the underlying latent space represented by the trained VAE. We showed how attention maps intuitively represent different regions of normal and abnormal images, directly corresponding to differences in the latent space (since we generate attention from the latent code). Consequently, our intuition is that using these attention maps to further bootstrap the training process of the VAE model should help boost latent space disentanglement. To this end, our big-picture idea is to use these attention maps as trainable constraints to explicitly force the attention computed from the various dimensions in latent space to be as disentangled, or separable as possible. Our hypothesis is that if we are able to achieve this, we will be able to learn an improved disentangled latent space. To realize this objective, we propose a new loss called the attention disentanglement loss () that can be easily integrated with existing VAE-type models (see Figure 7). Note that while we use the FactorVAE [19] for demonstration in this work, the proposed attention disentanglement loss is no way limited to this model and can be used in conjunction with other models as well (e.g., -VAE [14]). The proposed takes two attention maps and (each computed from a certain dimension in the latent space) as input, and attempts to separate the high-response pixel regions in them as much as possible. This can be mathematically expressed as:


where is the scalar product operation, and and are the pixel in the attention maps and respectively. The proposed is differentiable and can be directly integrated with the standard FactorVAE training objective , giving us an overall learning objective that can be expressed as:


We now train the FactorVAE with our proposed overall learning objective of Equation 7, and evaluate the impact of by comparisons with the baseline FactorVAE trained only with . For this purpose, we use the same evaluation metric discussed in FactorVAE [19].

3.4.2 Results

Data: We use the Dsprites dataset [30] for experimental evaluation. This is a standard dataset used in the disentanglement literature, providing 737,280 binary 2D shape images.

Quantitative Results: In Table 3, we compare the disentanglement performance of our proposed method with other competing approaches: baseline FactorVAE [19] and -VAE [14]. From Table 3, we note that training with our proposed results in substantially higher disentanglement scores when compared to the baseline FactorVAE that is trained with only under the same experimental settings. Specifically, the average disentanglement score of our proposed method is around 0.93, significantly higher than the the 0.82 for baseline FactorVAE (=40). We also note our proposed method obtains a higher disentanglement score when compared to -VAE as well, which has 0.73 for =4. These results demonstrate the potential of both our proposed VAE attention as well as the associated disentanglement loss in improving the performance of existing methods in the disentanglement literature. These improved results are also reflected in the qualitative attention map results we discuss next.

Model =1 =4 =6 =16
-VAE [14] 0.69 0.73 0.7 0.68
=10 =20 =40 =100
FactorVAE [19] 0.75 0.77 0.82 0.7
AD-FactorVAE 0.91 0.93 0.93 0.84
Table 3: Average disentanglement score on Dsprites Dataset using Kim et al. [19] metrics. The higher disentanglement score means the better disentanglement performance. -VAE [14]: we reference the performance of -VAE reported in FactorVAE [19] using different values.

Qualitative Results: Figure 8 shows some attention maps generated using the baseline FactorVAE and as well FactorVAE trained with our proposed (called AD-FactorVAE) using the pipeline discussed above. The first row shows 5 input images, and the next 4 rows show results with our proposed method and the baseline FactorVAE. Row 2 shows attention maps generated with AD-FactorVAE by backpropagating from the latent dimension with the highest response, whereas row 3 shows attention maps generated by backpropagating from the latent dimension with the next highest response. Rows 4 and 5 show the corresponding attention maps with baseline FactorVAE. We can observe that our proposed method can give better attention separation when compared to the baseline FactorVAE, with high-response regions in different areas in the image.

Figure 8: Attention separations on Dsprites Dataset. Top row: the original shape images. Middle two rows: attention separations obtained from pre-trained AD-FactorVAE. Bottom two rows: attention separations obtained from pre-trained FactorVAE.

4 Summary

We presented new techniques to visually explain variational autoencoders, taking a first step towards explaining deep generative models by means of gradient-based network attention. We showed how one can use the learned latent representation to compute gradients and generate VAE attention maps, without relying on classification-kind of models existing works use. We also showed we can go beyond using the resulting attention maps for explaining VAEs by demonstrating applicability and performance on two tasks: anomaly localization and latent space disentanglement. In anomaly localization, we used the fact that an abnormal input will result in latent variables that do not conform to the standard Gaussian in gradient backpropagation and attention generation. These anomaly attention maps were then used as cues to generate pixel-level binary anomaly masks. We evaluated our method on a variety of datasets, showing competitive performance. In latent space disentanglement, we showed how we can use our VAE attention from each latent dimension in enforcing a new attention disentanglement learning objective, resulting in improved attention separability as well as disentanglement performance.
