Dialogue acts (DAs) aim to portray the meaning of utterances at the level of illocutionary force, capturing a speaker’s intention in producing that utterance . DAs have been investigated by dialogue researchers for many years  and multiple taxonomies have been proposed [3, 4, 5] (see  for a review). Recent work in task-oriented dialogue systems proposed a set of core DAs that describe interactions at the level of intentions [7, 8, 9]. With these, the system actions as output by a dialogue system policy are commonly represented as the system DAs and associated entities
. Previous work on dialogue policy learning and end-to-end training of dialogue systems rely on supervised learning approaches to estimate system actions at each turn, given the dialogue state or the previous conversation. These models can then be fine-tuned with reinforcement learning[11, 12].
In this work, we build an RNN-based DA tagger for tagging human-human task-oriented conversations with DAs from a Universal DA schema that is representative of the commonly-used acts in task-oriented dialogue systems. Our long term goal is to use these annotated human-human dialogues to train end-to-end dialogue systems to predict system actions for new dialogue-task domains. Here, we focus on automatically annotating system-side DAs on human-human dialogues. Such human-human dialogues for the new domain can be found in existing customer care center logs or collected via crowdsourcing by pairing two crowdworkers  or asking a single crowd worker to write self dialogues . Previous work on DA tagging mainly focused on human-human social interactions, such as the Switchboard corpus , with little or no attention to task-oriented dialogues.
Recently, multiple annotated task-oriented human-machine dialogue datasets have been released [16, 9], fostering research in this area. Hence, we focus on learning to tag DAs from these human-machine dialogues, and applying the learned models to human-human dialogues for task-oriented systems. However, the annotation schema varies across different corpora, even for well-defined categories, such as DAs. Towards this goal we experiment with various alignment schemes, propose a Universal schema of DAs across multiple existing corpora, align the corpora accordingly to train a Universal DA tagger (U-DAT).
We use U-DAT to tag human-human multi-domain dialogues (MultiWOZ-2.0
). In our semi-supervised learning experiments we achieve an F1 score of 57.7% on system-turns on human-human data, which requires at least 1.7K manually annotated turns. We examine the potential of domain adaptation of the U-DAT by leave-one-domain-out experiments. In presence of a new domain we compare the performance of DA tagging using unsupervised (w.r.t. target corpus), semi-supervised (self-training) and supervised approaches. For these domains, we show further improvements when unlabeled or labeled target domain data is available, providing guidelines on bootstrapping a new domain without any DA annotations.
Our work has multiple novel contributions including a new hierarchical recurrent neural network based approach for tagging DAs, a Universal DA schema for task-oriented dialogues, alignment of multiple datasets to the universal schema, using the aligned corpus for training of U-DAT for human-human dialogue annotation and showcasing alternatives when bootstrapping a new domain.
2 Related Work
The mismatch between multiple DA taxonomies has been identified by  previously, where a subset of ISO 24617-2 (the international ISO standard for DA annotation) tags  have been identified and annotations of multiple corpora were mapped to this set, focusing on social conversations. Our work has a similar goal, but focuses on DAs that are necessary for task completion in task-oriented interactions.
Since the publication of the seminal work on a machine learning approach for DA tagging , multiple learning approaches have been proposed for this task, including maximum entropy taggers , conditional random fields
, and dynamic Bayesian networks
. Recent studies investigated recurrent and convolutional neural networks with a pooling layer for short-text classification tasks, such as DA tagging. But these works don’t take into account the dialogue context. However, in a task-oriented conversation, there is a strong correlation between system and user acts. For example, a user usually informs when a system requests information. Our work represents short user utterances using recurrent neural networks, and additionally models dialogue context using a hierarchical recurrent neural network. Such dialogue-level models have also been proposed in  for dialogue act tagging of human-human social phone conversations. Previous studies mainly considered DA tagging of multi-human conversations, such as the Switchboard  corpus and meetings, such as the ICSI meeting corpus , whereas our focus lies on modeling system-side DAs. In dialogue systems, the system utterances are also generated from system actions and are hence, observable. Thus, in our context representation we include past system DAs in addition to system utterances. For user utterances as well as system-side DAs in human-human conversations, we use the predicted DAs. Domain adaptation of DA tagging with unlabeled data was also investigated by  for two human-human conversation genre, telephone speech and face-to-face meetings. However, that work did not have annotation mismatch issues across different datasets.
3 DA Tagging for Dialogue Systems
Let a dialogue with turns be denoted as a series of user and system utterances, , i.e. = and be the predefined set of DAs i.e. . Given an utterance and its conversation history, DA tagging aims to predict the set of DAs of .
We use a deep neural network based model for DA tagging. The input to the model is the utterance and the conversation context which is a function of the past utterances and their corresponding DAs i.e. . Since the utterance
can be classified into one or more DAs in, the model makes a binary-decision for every DA for candidature.
For a dialogue and every DA class , we minimize the following cross-entropy loss:
We use the following encoders to represent context:
A bi-directional LSTM to encode each utterance, , where denotes the number of tokens in and the final utterance representation for utterance is obtained by concatenating the last hidden layer of the forward LSTM, , and the first hidden layer of the backward LSTM, :
A hierarchical, uni-directional LSTM to encode the dialogue level information, :
An indicator number, , representing whether the agent is user or the system, i.e., , if , otherwise.
Encoding over past DA(s)
, where the final representation is obtained by concatenating the many-hot representations of past-DAs. A DA vector is represented as a many-hot vectorof dimension M, where we mark the true DAs as 1.
The final encoded context is given by:
is then fed into a feed forward network , along with , for each DA. The context encoders are shared for all acts.
4 Datasets and Experiments
Our aim is to train a Universal DA tagger using public datasets, but the label spaces across these datasets are not aligned. Therefore, we need a unified representation of all the acts present across the datasets. We obtain this representation by manually going through the datasets and aligning semantically similar sentences to the same DA. We chose the Google Simulated Dialogue (GSim) dataset  and the DSTC2 dataset  for our experimentation as they are both inspired by the CUED schema  for DAs. The GSim data has two parts and was collected by generating dialogue flows for movie (GSim-M) and restaurant (GSim-R) booking domains, where the individual turns from simulation in terms of DAs and associated arguments were then converted to natural language by crowd workers. DSTC2 contains human-machine interactions collected for the second dialogue state tracking challenge . To experiment with DA tagging on human-human conversational interactions, we use the MultiWOZ-2.0 , which was collected by assigning tasks (such as, booking a restaurant table and a cab to get there) and roles (such as, user and agent) to two crowd workers, paired to accomplish the task. The three datasets are summarized and compared across various metrics in Table 1. The last two rows of the table show the vocabulary size of the system turns and unique number and percentage of system turns after delexicalization, which replaces the entity values with an entity type. The percentage of unique turns is obtained by dividing the unique number of system turns with the total number of system turns. Since the GSim and MultiWOZ-2.0 dialogues were written by crowdworkers, they include lots of variation in the output system turns, whereas DSTC2 system turns were generated by the participating systems, and have much less richness for building DA taggers for system acts, but provides consistent annotations.
|# Dialogues Train||1,116||384||1,612||8,438|
|# Dialogues Dev||349||120||506||1,000|
|# Dialogues Test||775||264||1,117||1,000|
|Avg # Turns/Dialogue||5.5||5.1||7.2||6.7|
|# Sys Dialogue Acts||7||7||12||14|
|SysTurn Vocab Size||577||349||229||15,408|
Experimental Setup: Our model architecture consists of four encoders: the utterance encoder, hierarchical dialogue encoder, past DAs encoder and an agent encoder. Our utterance encoder is a bi-directional LSTM with hidden layer size of 128. The utterance representation is the final state of the biLSTM. The hierarchical dialogue encoder is an LSTM which takes the utterance representation as input and its hidden size is 256. The past DAs vector is a concatenation of the many-hot representations of past DAs wherein each DA is many-hot over a set of 20 DAs. The agent encoding is an indicator number representing the agent of the turn - 0 for the user, 1 for the system. We concatenate these representations and pass it through a feed-forward network to make a binary decision per DA. For training, we use ADAM for optimization with a learning rate of 0.001 and default parameters. Our batch size is 100 for training. We initialize our word embeddings with pretrained fastText  embeddings and fine-tune during training.
5 Universal DA Schema
5.1 Union of acts based on namespace

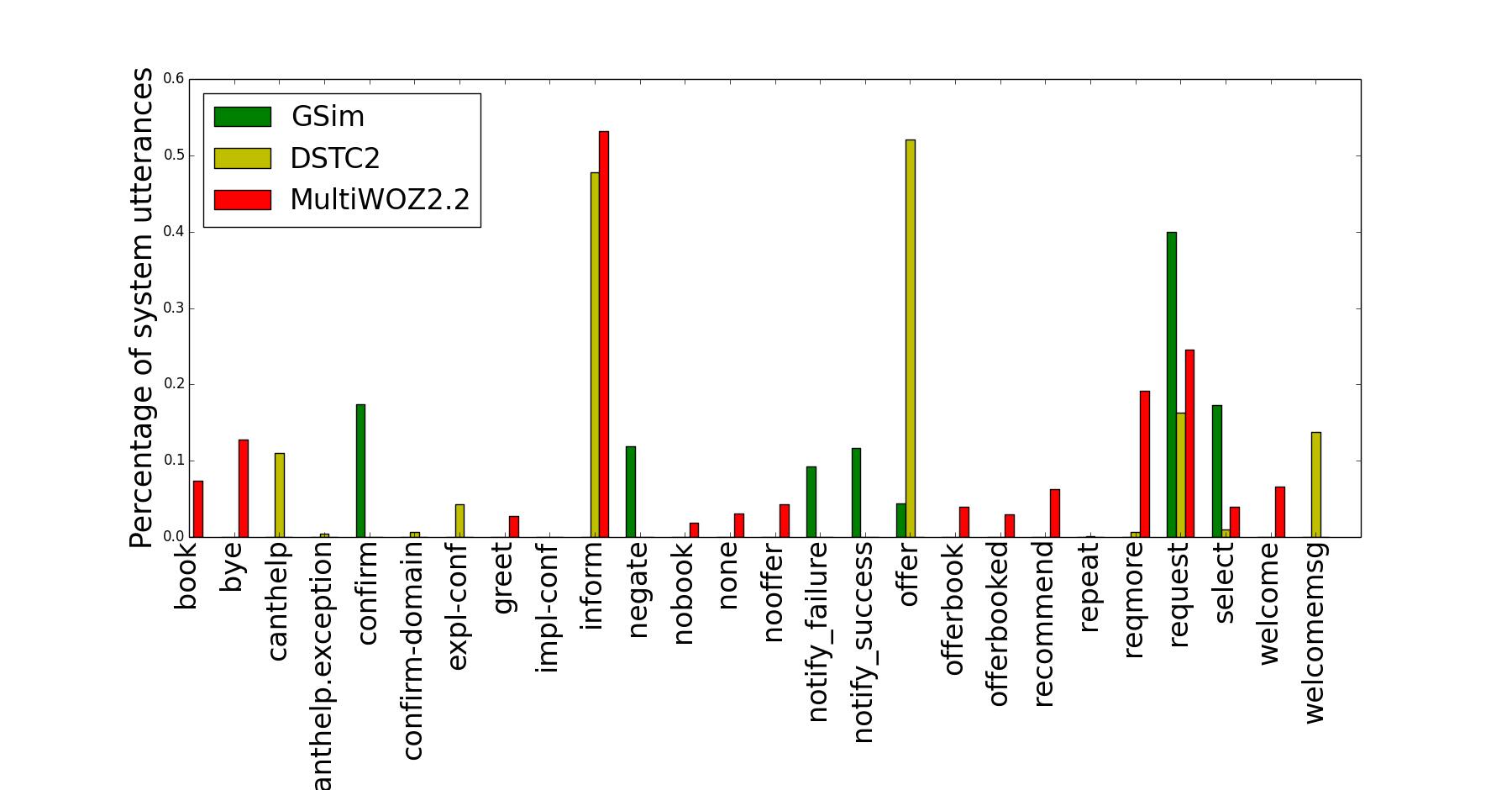

In order to align the respective acts in the datasets (GSim and DSTC2), we first took a union of all the acts based on their names to create a unified representation. Figure 1 represents the distribution of DAs used for the system side in these datasets. Since our final aim is to tag human-human conversations (MultiWOZ-2.0 ) with our unified set of acts, we have also included the distribution of acts in MultiWOZ-2.0 for completeness, after stripping off the domain-name from the acts. It can be observed from the distribution that apart from a few common acts like inform, request etc., these datasets do not share the same namespace for DAs, and even when the names are the same, there may be differences in their semantics, as the distributions of the acts are very different. For example, MultiWOZ-2.0 does not include the offer act, whereas it appears in about 7% of the system turns for GSim and 50% of the system turns for DSTC2. Similarly, GSim and MultiWOZ-2.0 both have , about 20% and 5% of the turns respectively, whereas it is observed rarely in DSTC2.
5.2 Tackling Annotation Mismatch: Manual alignments
Due to the lack of a shared namespace of acts, we manually assessed the semantics of the acts in the datasets and found some obvious alignments. Table 2 includes example alignments.
|GSim||DSTC2||MultiWOZ-2.0||Univ DA Schema|
Post-alignment, many acts in these datasets were shared between the user and system such as inform and negate. However, we observed that these acts do not share the same semantics and wording and hence the flow of the conversation varies based on which agent the turn belongs to. Thus, to curate our unified schema of acts - we made a finer distinction between user/system acts i.e. negate from the user is a user-negate whereas from system, is system-negate. Finally, we train our DA tagger with the manually-aligned DSTC2 and GSim data.
To gauge the effectiveness of manual-alignments, we trained our DA tagger on one dataset and tested it on the other to see the inter-dataset and intra-dataset confusion. The results of these experiments are listed in Table 3 as Baseline numbers. The best result for each test-set is highlighted in the table. As expected, for each test-set, we obtain the best F1 scores when we use the matching training-set. On the combined test-set, the model trained after combining all the datasets performs the best.
|Avg of inter-dataset scores (Baseline/Univ)||0.439/0.555|
|Avg of intra-dataset scores (Baseline/Univ)||0.898/0.912|
5.3 Machine-aided alignments
After manually aligning the acts across datasets, we still observed poor performance on the task. Looking at the various training and validation set DAs in the manually curated unified representation, we noticed some semantically similar acts which were confusing our tagger. Some examples are:
Mod1: offer/select- I found a show for 7.30 pm/I found shows for 5 pm and 7 pm. We merge these acts.
Mod2: user-request/sys-request- What is the phone number?/What kind of food would you like? We merge these acts.
Mod3: affirm(x=y)/affirm + inform(x=y)- affirm with slots is equivalent to separate affirm and inform DAs, for eg. ‘yes, 7pm’ can become affirm, inform(time=7pm) from affirm(time=7pm). We split them.
Mod4: reqalts/reqmore- Is there anything else?/Can i help you with anything else? We merge these acts.
We merged/split DAs like the aforementioned ones, as they can easily be restored using other information. For example, if multiple results are offered, we could convert an offer act to a select act, or depending on the agent, we can convert a request act to a user-request or a sys-request. The effect of these transformations on inter and intra-dataset F1 scores is shown in Table 4.
After performing all these transformations111Details in Appendix, Table 7, we curated a Universal DA schema of 20 acts which capture the entirety of all the acts present in these datasets. We present these in Table 5. We compare the F1 scores of DA tagging models trained using this schema with our original baseline (models trained on manually-aligned acts) in Table 3. The best-performing model is obtained by combining all the GSim and DSTC2 datasets using the Universal DA schema. We refer to this model as U-DAT.
|ack, affirm, bye, deny, inform, repeat, reqalts, request, restart, thank-you, user-confirm, sys-impl-confirm, sys-expl-confirm, sys-hi, user-hi, sys-negate, user-negate, sys-notify-failure, sys-notify-success, sys-offer|
6 DA Tagging of Human-Human Datasets
For experimenting with DA annotation of human-human (HH) dialogues, we used MultiWOZ-2.0 as our dataset. This version of the dataset only has DAs for the system turns.
To do an evaluation on MultiWOZ-2.0, we first need to map the dataset to our Universal DA schema. The distribution of acts in MultiWOZ-2.0 can be seen in Figure 1. However, during manual assessment, we found that while most of the acts in MultiWOZ-2.0 dataset aligned well with our Universal DA schema, the annotations in inform/select/recommend and general-domain space of acts were inconsistent in MultiWOZ-2.0. For example, select was often confused with inform
. Additionally, the MultiWOZ-2.0 act annotation space lacks granularity for expressing intent. Thus, to maximally align MultiWOZ-2.0 with the Universal DA schema, we use heuristics. For example, we check for presence of keywords like ‘bye’, ‘thank you’ etc. to label thebye and thank_you class of system acts222Details in Appendix, Table 8. To evaluate the effectiveness of our heuristics, we manually annotated a smaller subset (524 turns) of the MultiWOZ-2.0 test-set with DAs in our Universal DA schema, we call this as the univ-testset. We then trained 2 DA tagging models on MultiWOZ-2.0 - one with the DA labels mapped to the Universal DA schema using heuristics (say heuristics-model) and one without (say no-heuristics-model). On univ-testset, we got an F1 score of 0.609 with no-heuristics-model and 0.716 with heuristics-model, which validates the effectiveness of our heuristics.
Due to labeling inconsistency in MultiWOZ-2.0 as described above, to do an accurate evaluation on HH datasets, we use univ-testset as our test-set henceforth. For training and validation, we use the standard dataset partitions.
6.1 Adaptation to Human-Human dialogues
In addition to the U-DAT model, which is unsupervised with respect to HH data, we train 2 other models333Due to the absence of user-acts in MultiWOZ-2.0, we removed the past DA encoder from the context encoder of both the models. in semi-supervised and supervised settings.
Semi-supervised HH U-DAT: Our aim is to see the quality of DA annotations without any labeled HH dialogues. For this, we labeled the MultiWOZ-2.0 corpus with U-DAT. Then, we trained another model with the estimated DA labels. This model is semi-supervised, as it doesn’t use any manually labeled data, but uses the labels generated by U-DAT.
Supervised HH U-DAT: We trained a supervised DA tagging model with the manually annotated DA labels mapped to our Universal DA schema.

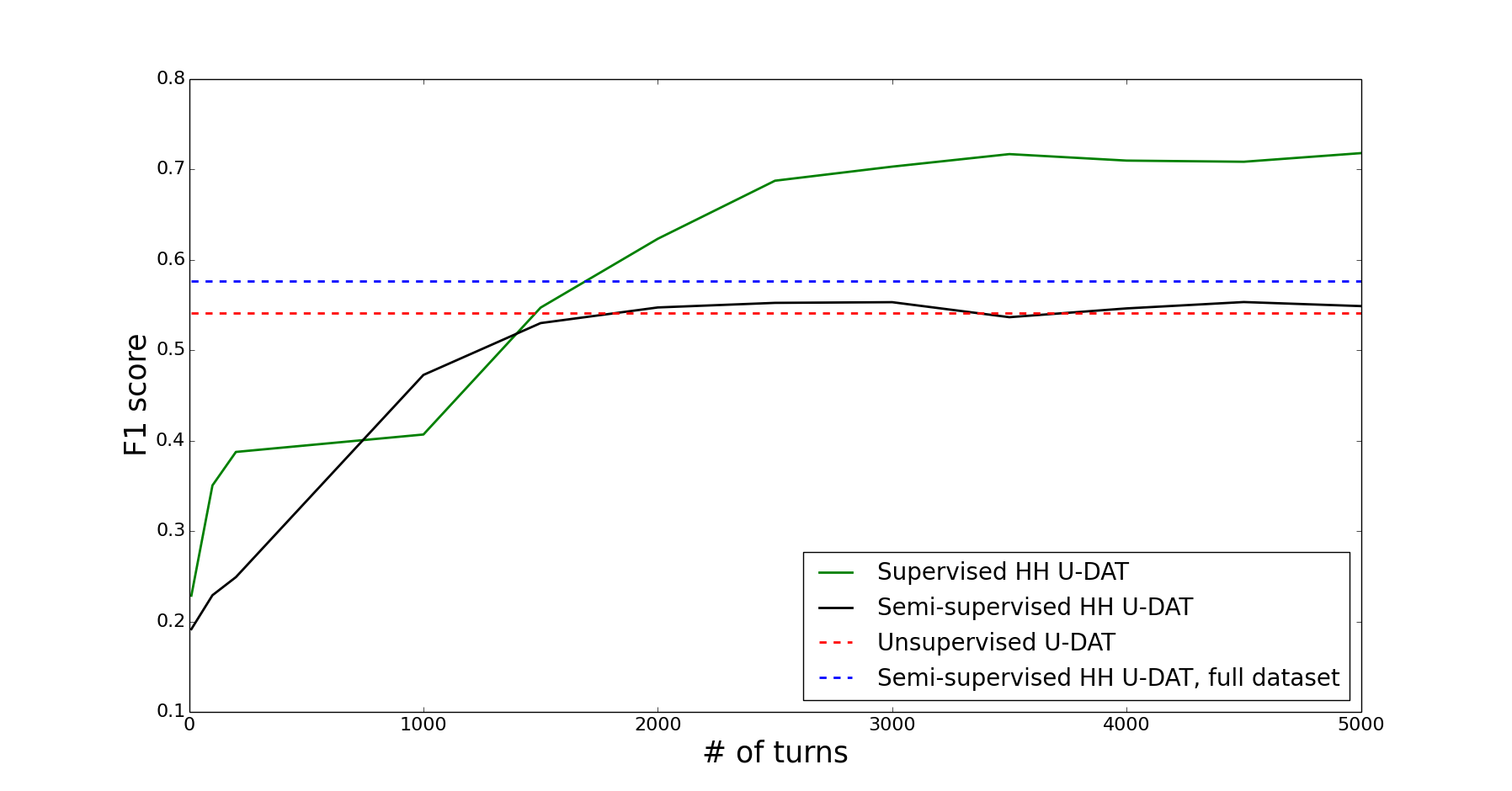

We plot learning curves by varying the amount of data used in each model in Figure 2. The black curve shows the effect of varying the amount of data on the performance of Semi-supervised HH U-DAT. The blue line is the performance of Semi-supervised HH U-DAT with all the MultiWOZ-2.0 training dialogues, a system-side F1 score of 0.577. The red line corresponds to the performance of U-DAT, a system-side F1 score of 0.541. The red and blue lines show that, if unannotated data is available from the HH conversations, we can improve the DA tagging F1 score by 3.6% absolute. As can be seen from the green curve obtained with Supervised HH U-DAT, we would need over 1700 manually annotated examples to reach the best semi-supervised learning F1 score. This provides useful guidelines on the amount of data required for accurate DA tagging.
6.2 Analysis of domain adaptation via self-training
To gauge the extent of domain adaptation by self-training (semi-supervised) over HH data, we performed leave-one-domain-out experiments. For each domain X, we train 3 models on HH data (mapped to Universal DA schema) with the following settings:
HH-UDAT, no domain data, supervised: We use 3000 turns of manually-labeled out-of-domain(OOD) data i.e. we exclude turns from domain X. Since the data is manually-labeled, this model is supervised.
HH-UDAT, w-domain data, semi-supervised: In addition to OOD data used above, we use 300 turns of data from X labeled using U-DAT. This model is semi-supervised w.r.t X.
HH-UDAT, w-domain data, supervised: In addition to OOD data, we use the manual-labels of the 300 turns of X data used above. This model is supervised w.r.t X.
The results of these experiments are listed in Table 6. The results show improvements when unlabeled (0.712 vs 0.702) or labeled (0.734 vs 0.702) target domain data is available.
We are interested in DA tagging of human-human conversations with the final goal of end-to-end training of task-oriented dialogue systems, so that we can generate system actions for a given dialogue context. In this work, we investigated multiple annotated human-machine conversation datasets, with differences in DA schema. We discussed manual and automatic approaches for aligning these different schemas, and presented results on a target corpus of human-human dialogues. We demonstrated that without manually annotating any new human-human conversations, we achieve an F1 score of 57.7%, which requires at least 1.7K turns of manually annotated human-human dialogue data. We provided learning curves to present performance improvement with different amounts of manually and automatically labeled data which provides useful guidelines on the amount of data required for accurate DA tagging. In the presence of a new domain, we compared the performance of DA tagging using unsupervised, semi-supervised and supervised approaches. For these domains, we showed further improvements when unlabeled or labeled target domain data is available. As future work, we intend to further explore domain adaptation and use these annotated human-human conversations to train end-to-end task-oriented dialogue systems.
-  J. L. Austin, How to do things with words. Oxford university press, 1975.
-  A. Stolcke, K. Ries, N. Coccaro, E. Shriberg, R. Bates, D. Jurafsky, P. Taylor, R. Martin, C. V. Ess-Dykema, and M. Meteer, “Dialogue act modeling for automatic tagging and recognition of conversational speech,” Computational linguistics, vol. 26, no. 3, pp. 339–373, 2000.
-  A. H. Anderson, M. Bader, E. G. Bard, E. Boyle, G. Doherty, S. Garrod, S. Isard, J. Kowtko, J. McAllister, J. Miller et al., “The hcrc map task corpus,” Language and speech, vol. 34, no. 4, pp. 351–366, 1991.
-  M. G. Core and J. Allen, “Coding dialogs with the damsl annotation scheme,” in AAAI fall symposium on communicative action in humans and machines, vol. 56. Boston, MA, 1997.
-  H. Bunt, “The dit++ taxonomy for functional dialogue markup,” in AAMAS 2009 Workshop, Towards a Standard Markup Language for Embodied Dialogue Acts, 2009, pp. 13–24.
-  S. Mezza, A. Cervone, G. Tortoreto, E. A. Stepanov, and G. Riccardi, “Iso-standard domain-independent dialogue act tagging for conversational agents,” arXiv preprint arXiv:1806.04327, 2018.
-  S. Young, “Cued standard dialogue acts,” Report, Cambridge University Engineering Department, 14th October, vol. 2007, 2007.
-  H. Bunt, J. Alexandersson, J. Carletta, J.-W. Choe, A. C. Fang, K. Hasida, K. Lee, V. Petukhova, A. Popescu-Belis, L. Romary et al., “Towards an iso standard for dialogue act annotation,” in Seventh conference on International Language Resources and Evaluation (LREC’10), 2010.
P. Shah, D. Hakkani-Tür, B. Liu, and G. Tur, “Bootstrapping a neural conversational agent with dialogue self-play, crowdsourcing and on-line reinforcement learning,” inProceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies (NAACL/HLT), vol. 3, 2018, pp. 41–51.
-  M. Gašić, F. Lefevre, F. Jurčíček, S. Keizer, F. Mairesse, B. Thomson, K. Yu, and S. Young, “Back-off action selection in summary space-based pomdp dialogue systems,” in IEEE Workshop on Automatic Speech Recognition & Understanding. IEEE, 2009, pp. 456–461.
-  J. D. Williams, K. Asadi, and G. Zweig, “Hybrid code networks: practical and efficient end-to-end dialog control with supervised and reinforcement learning,” in 55th Annual Meeting of the Association for Computational Linguistics (ACL), 2017.
-  B. Liu, G. Tur, D. Hakkani-Tür, P. Shah, and L. Heck, “Dialogue learning with human teaching and feedback in end-to-end trainable task-oriented dialogue systems,” in Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies (NAACL/HLT), 2018.
-  P. Budzianowski, T.-H. Wen, B.-H. Tseng, I. Casanueva, S. Ultes, . O. Ramadan, and M. Gašić, “Multiwoz-a large-scale multi-domain wizard-of-oz dataset for task-oriented dialogue modelling,” arXiv preprint arXiv:1810.00278, 2018.
-  B. Krause, M. Damonte, M. Dobre, D. Duma, J. Fainberg, F. Fancellu, E. Kahembwe, J. Cheng, and B. Webber, “Edina: Building an open domain socialbot with self-dialogues,” Alexa Prize Proceedings, 2017.
-  J. J. Godfrey, E. C. Holliman, and J. McDaniel, “Switchboard: Telephone speech corpus for research and development,” in icassp. IEEE, 1992, pp. 517–520.
-  M. Henderson, B. Thomson, and J. D. Williams, “The second dialog state tracking challenge,” in Proceedings of the 15th Annual Meeting of the Special Interest Group on Discourse and Dialogue (SIGDIAL), 2014, pp. 263–272.
-  H. Bunt, “The semantics of dialogue acts,” in Proceedings of the Ninth International Conference on Computational Semantics. Association for Computational Linguistics, 2011, pp. 1–13.
-  J. Ang, Y. Liu, and E. Shriberg, “Automatic dialog act segmentation and classification in multiparty meetings,” in Proceedings.(ICASSP’05). IEEE International Conference on Acoustics, Speech, and Signal Processing, 2005., vol. 1. IEEE, 2005, pp. I–1061.
-  M. Zimmermann, “Joint segmentation and classification of dialog acts using conditional random fields,” in Tenth Annual Conference of the International Speech Communication Association, 2009.
-  G. Ji and J. Bilmes, “Dialog act tagging using graphical models,” in Proceedings.(ICASSP’05). IEEE International Conference on Acoustics, Speech, and Signal Processing, 2005., vol. 1. IEEE, 2005, pp. I–33.
-  J. Y. Lee and F. Dernoncourt, “Sequential short-text classification with recurrent and convolutional neural networks,” arXiv preprint arXiv:1603.03827, 2016.
Y. Liu, K. Han, Z. Tan, and Y. Lei, “Using context information for dialog act
classification in dnn framework,” in
Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, 2017, pp. 2170–2178.
-  E. Shriberg, R. Dhillon, S. Bhagat, J. Ang, and H. Carvey, “The icsi meeting recorder dialog act (mrda) corpus,” in Proceedings of the 5th SIGdial Workshop on Discourse and Dialogue at HLT-NAACL 2004, 2004.
-  A. Margolis, K. Livescu, and M. Ostendorf, “Domain adaptation with unlabeled data for dialog act tagging,” in Proceedings of the 2010 Workshop on Domain Adaptation for Natural Language Processing. Association for Computational Linguistics, 2010, pp. 45–52.
-  P. Bojanowski, E. Grave, A. Joulin, and T. Mikolov, “Enriching word vectors with subword information,” Transactions of the Association for Computational Linguistics, vol. 5, pp. 135–146, 2017.
Appendix A Appendix
|GSim-R||GSim-M||DSTC2||Universal DA Schema|
|greeting(x=y)||greeting(x=y)||user-hi() + inform(x=y)|
|request_alts() + inform(x=y)||request_alts() + inform(x=y)||reqalts() + inform(x=y)||reqalts(x=y)|
|affirm(x=y)||affirm(x=y)||affirm() + inform(x=y)|
|MultiWOZ-2.0 acts||Heuristic||Universal DA Schema|
|’Restaurant-Recommend’, ’Restaurant-Select’, ’Hotel-Recommend’, ’Hotel-Select’||sys-offer|
|’Attraction-Recommend’, ’Attraction-Select’, ’Train-Select’|
|’Restaurant-Inform’,’Hotel-Inform’||ends in ’Booking-Inform(none=none)’||sys-offer|
|’Restaurant-Inform’,’Hotel-Inform’||doesn’t end in ’Booking-Inform(none=none)’||inform|
