1. Introduction

Cyber-physical systems (CPSs), in which software components and physical processes are tightly integrated, are prevalent in the automation of critical infrastructure, e.g. as the industrial control systems of power grids and water purification plants. The potentially serious consequences of such systems being compromised (Hassanzadeh et al., 2019; Leyden, 2016; ICS-CERT Alert, 2016) has motivated the development of different countermeasures for attack detection and prevention, including techniques based on anomaly detection (Cheng et al., 2017; Goh et al., 2017; Harada et al., 2017; Inoue et al., 2017; Pasqualetti et al., 2011; Aggarwal et al., 2018; Aoudi et al., 2018; He et al., 2019; Kravchik and Shabtai, 2018; Lin et al., 2018; Narayanan and Bobba, 2018; Schneider and Böttinger, 2018; Carrasco and Wu, 2019; Kim et al., 2019; Adepu et al., 2020; Das et al., 2020), fingerprinting (Ahmed et al., 2018a; Ahmed et al., 2018b; Formby et al., 2016; Gu et al., 2018; Kneib and Huth, 2018; Yang et al., 2020), and fuzzing (Chen et al., 2019, 2020; Wijaya et al., 2020).

Another popular approach is to monitor invariants of a CPS (Giraldo et al., 2018), i.e. properties that always hold under normal operating conditions, and the violation of which might suggest the presence of an attacker in the system. Invariants are typically relations over the sensor readings and actuator states of a system, a simple example being that “if the tank level is above , then pump should be ON”. Given the complexity of CPSs in general, several approaches (e.g. (Chen et al., 2016, 2018; Feng et al., 2019)) aim to derive such invariants automatically from sources of data, for instance, the time series of sensor readings and actuator states logged by a supervisory control and data acquisition system (SCADA). There is a risk, however, that viable system behaviours are missed if they are not represented in that data (e.g. rarely occurring), and addressing any design flaws identified is costly as the CPS is already built. Invariants can be derived manually by system engineers (Cárdenas et al., 2011; Adepu and Mathur, 2016b, a, 2018; Choi et al., 2018), but if done so in an ad hoc manner, may also lead to properties being missed.

In this position paper, we propose a systematic method to support the derivation of invariants before a CPS is built by analysing its functional requirements. Our goal is to further integrate security concerns in the design stage, ensuring that invariants can be traced from requirements through to implemented defence mechanisms, and to potentially save costs by identifying weak points before the design is executed. Our approach, inspired by axiomatic design (Suh, 2001)—a design science methodology for systems—iteratively analyses dependencies in the CPS to construct equations and process graphs that model the required invariant relationships between sensors and actuators. Checkers for these invariants can then be implemented using techniques such as decision trees, and when deployed with the built CPS, can monitor its data for any violations of the properties.

To evaluate the viability of our proposals, we applied our method to the design of Secure Water Treatment (SWaT) (SWa, 2020; Mathur and Tippenhauer, 2016), a scaled-down version of a real-world water purification plant. SWaT is a complex multi-stage CPS involving physical and chemical processes such as ultrafiltration, de-chlorination, and reverse osmosis. We used our method to decompose eight high-level functional requirements into 44 concrete ones, tracing dependencies down to specific sensors and actuators. We illustrate how this information can be used to construct invariants, represented either as equations or process graphs. Finally, as a preliminary study, we implemented checkers for two of the invariants by training supervised machine learning (ML) models (i.e. decision trees) on equation inputs/outputs, finding that they could detect relevant attacks in both a dataset and on the real testbed with high levels of accuracy and without false positives.

Summary of Contributions. We propose a method for systematically deriving invariants from the functional requirements of a CPS. Through a preliminary study on a real-world critical infrastructure testbed, we demonstrate the feasibility of constructing effective invariant-based checkers for CPSs that can be traced all the way back to the system’s requirements. Furthermore, our study demonstrates the potential of a cross-disciplinary approach that utilises methodologies from design science (i.e. axiomatic design) to structure and analyse the dependencies present in critical infrastructure.

This work extends the initial ideas of Palleti et al. (Palleti et al., 2018), who explored how axiomatic design could help analyse the requirements of a water distribution network. We go further by applying it to a water purification plant and deriving invariant-based checkers that can be used for its defence.

Organisation. The rest of the paper is organised as follows. Section 2 briefly describes the SWaT architecture, as well as the axiomatic design theory our method is inspired by. Next, our systematic design framework is presented in Section 3. Section 4 discusses the effectiveness of our invariant checkers in a preliminary study. Finally, Section 5 concludes this paper.

2. Background

In this section, we present an overview of the water purification plant that forms the case study of this position paper. Following this, we discuss the axiomatic design theory that our proposed approach is based on.

2.1. SWaT Testbed

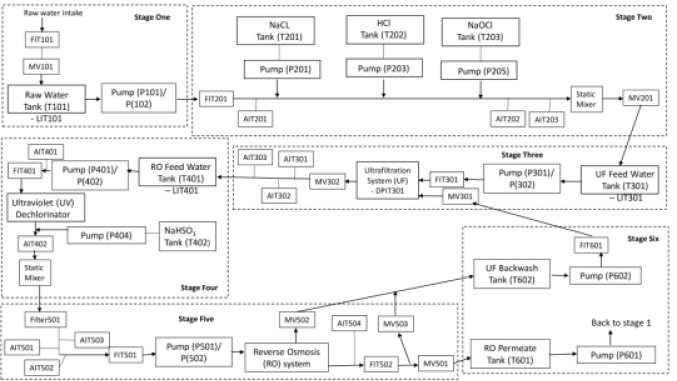

Figure 1. The sub-processes of SWaT

The Secure Water Treatment (SWaT) testbed (SWa, 2020; Mathur and Tippenhauer, 2016) is a scaled-down version of a modern water purification plant, intended for supporting research into cyber-security solutions for critical infrastructure. SWaT is able to produce up to five gallons of safe drinking water per minute across six distinct co-operating stages (Figure 1) involving chemical processes like ultrafiltration, de-chlorination, and reverse osmosis. Each stage is controlled by a Programmable Logic Controller (PLC), which communicates with sensors and actuators through a field-bus network, and with each other through a 24-port Ethernet switch. A SCADA workstation connects a human-machine interface to all of the PLCs, facilitating monitoring and control of the plant by human operators. The physical state of SWaT, as observed by the sensors, is recorded by a historian server at pre-specified intervals. A SWaT dataset is available, consisting of all the data recorded by this server over a period of several days, including a few during which the testbed was subjected to attacks (CPS, 2020; Goh et al., 2016).

An overview of the six sub-processes of SWaT is given in Figure 1. A number of the testbed’s 68 sensors and actuators are depicted, with sensors including Flow Indicator Transmitters (FITs), Analyzer Indicator Transmitters (AITs), and Level Indicator Transmitters (LITs). Actuators include Motorised Valves (MVs) for controlling the inflow of water into tanks, and Pumps (Ps) for pumping it out.

Stage One. At the bottom of raw water tank T-101, a motorised valve (MV-101) is opened to allow raw water to flow in. An electromagnetic flow transmitter (FIT-101) reads the flow rate of this water, and sends it to the PLC. Pump P-101 transfers water from T-101 to the ultrafiltration feed water tank T-301 in stage three, passing through the chemical dosing of stage two. The operation of P-101 is interlocked to the level indicator transmitter (LIT-301) in tank T-301.

Stage Two. Chemical dosing is applied in this stage. The chemical properties of the incoming raw water are measured using analyser indicator transmitters AIT-201, AIT-202, and AIT-203. This information is used by the PLC to control pumps P-201, P-202, and P-203, adjusting the dosing and thus the water’s chemical properties before it enters stage three.

Stage Three. Ultrafiltration (UF) is performed in this stage. Raw water, after being dosed with chemicals in stage two, is fed into an UF unit. The operation of P-301 is interlocked with the level indicator transmitter LIT-401 for the reverse osmosis (RO) feed water tank (T-401) in stage four. Thus, P-301 is stopped when the water level in T-401 is high, and P-301 is turned on and MV-302 opened when the water level in tank T-401 reaches the low marker. Flow meter FIT-301 measures the incoming flow rate to the UF unit. The differential pressure indicator transmitter (DPIT) continuously monitors the difference in inlet pressure and outlet pressure. If the UF membranes are clogged, the DPIT triggers an alarm and a backwash sequence begins in stage six. AIT-301, AIT-302, and AIT-303 measure and transmit (to the PLC) various chemical parameters of the water entering the UF feed water tank T-301.

Stage Four. De-chlorination is performed in this stage: any free chlorine in the water coming out of the UF unit is removed using a combination of an ultraviolet de-chlorinator and sodium bisulphate. P-401 is started when T-401 reaches the high marker, moving water through the de-chlorinator unit. The hardness analyser (AIT-401) monitors and indicates the level of hardness to avoid scaling within the RO system.

Stage Five. Reverse osmosis (RO) is applied in stage five. The RO system is designed to provide bulk reduction of inorganic impurities. The RO permeate stream is channeled to the RO permeate tank (T-601) when MV-501 is opened. Before reaching the tank, the RO permeate conductivity analyser (AIT-504) analyses water conductivity, and if above the threshold, water is diverted to a reject tank T-602 by opening valve MV-503. The rejected water is used to clean the UF membranes in the backwash process. RO permeate pump P-601 recycles water from T-601 back to T-101.

Stage Six. Finally, stage six consists of a backwash process. UF membranes need cleaning to remove solid particles. This cleaning is achieved through the backwash process, which is programmed to start every 30 minutes. It is also started when the pressure drop across the membrane goes above a pre-set threshold. The rejected RO water from tank T-602 is moved through the UF unit by starting pump P-602.

2.2. Axiomatic Design Theory

Axiomatic design is a systems design methodology, developed by Nam Pyo Suh (Suh, 2001), that uses matrix methods to systematically analyse the transformation of customer needs into functional requirements, design parameters, and process variables. The objective of the theory is to create a scientific base for the design process by building upon a suite of fundamental theories from logic and rationale thinking. Researchers have applied this theory in areas such as manufacturing (Matt, 2012; Zhu et al., 2008) and software development (Kandjani et al., 2015; Mohsen and Cekecek, 2000).

In axiomatic design, functional requirements (FRs) express what we want to achieve, i.e. the specific behaviours we want from the design. Design parameters (DPs) are elements of the physical design that are chosen to realise the FRs. Finally, process variables (PVs) are elements of the process design controlling the DPs (e.g. continuous or discrete values characterising the process). Matrix methods are used by the designer to map FRs to DPs in the physical domain. For example, suppose that the top-level of a design involved two FRs and two DPs. These can then be related using the following matrix:

The square matrix is a binary (or Boolean) matrix, indicating the coupling between FRs and DPs. After identifying the couplings at a high level (e.g. where one DP might represent all pumps), the designer would decompose the FRs and DPs further (e.g. with one DP representing exactly one of the pumps) until achieving a fine-grained set of dependencies in the design. The decomposed matrices can then be subjected to analyses to assess and mitigate the effects of coupling.

In our work (Section 3), axiomatic design is not used to design a CPS from the ground-up, but rather, its principles are applied to an existing design to support the derivation of invariants based on the dependencies it implies, and to help assess where weak points might exist (e.g. due to certain couplings). In SWaT, DPs will correspond to components such as tank level sensors and motorised valves, each of which can function within specific values of PVs. This paves the way for a simple and high-level of analysis to establish the relations between DPs that represent normal CPS behaviour. These relations are then taken as our invariants.

3. Design Framework

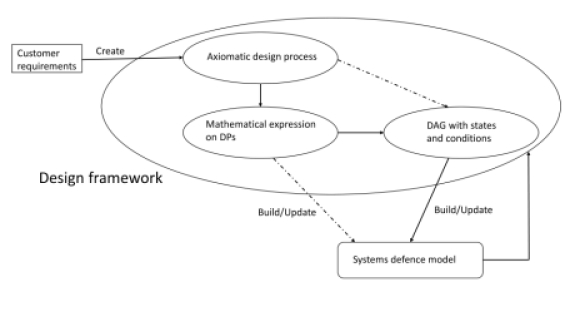

Figure 2. Overview of our proposed method

Our proposed systematic design approach consists of three parts: an axiomatic design analysis, the construction of mathematical equations over DPs, and the construction of process graphs, i.e. directed acyclic graphs (DAGs) over physical states and conditions. These equations and DAGs characterise invariant relationships between the DPs, and their input/output relations are fed into supervised ML algorithms to learn classifiers that can be used to detect attacks. Figure

2 summarises the relationship between these steps.

The workflow begins by transforming the customer’s needs (e.g. build a six-stage water treatment plant) into a list of high-level FRs (e.g. track water level of tanks) with some associated high-level DPs (e.g. sensing mechanisms) and PVs (e.g. value ranges). These are systematically and iteratively decomposed into fine-grained FRs, with particular sensors/actuators as DPs, as guided by the axiomatic design theory. At this stage, the dependencies between particular DPs are transformed into invariants, i.e. mathematical equations over the DP states (e.g.“if DP is on and DP is low then the system is anomalous”). The design engineers determine which combination of DP states are normal/anomalous, optionally using DAGs with states and conditions to guide their reasoning about paths through the system. Supervised ML algorithms are then trained on the input/output relations of these equations or paths, resulting in classifiers that detect when sensor and actuator data is violating the underlying invariants.

The classifiers, and the invariants underlying them, embody key characteristics of the design as identified by the engineer through a systematic method. We envisage that this has the potential to complement defence mechanisms based on black-box approaches (e.g. (Chen et al., 2018)), where invariant relationships are based only on observable data after the system has been implemented, and which might not reflect all invariants implied by the design. Furthermore, as our invariants are constructed at the design stage, it may be possible to involve them in early simulations of the processes, and to iteratively modify the system design before it is implemented (Figure 2) if any weak points are identified.

For the rest of this paper, we use the SWaT water purification testbed as a worked example to show how the steps of our approach are applied, and how invariant-based classifiers can be derived.

3.1. Axiomatic Design Process

No Functional Requirements (FRs) Design Parameters (DPs) Process Variables (PVs)
1 FR1: Feed water to water tanks/systems DP1: DOL/VSD Pumps Features - Switch (On/Off) and Speed
2 FR2: Track level of water in tanks DP2: Sensing mechanisms Value range
3 FR3: Track flow rate of water DP3: EMF sensors Value range
4 FR4: Monitor chemical properties of water DP4: Chemical properties sensors Value range
5 FR5: Feed chemicals to water DP5: Dosing Pumps Switch (On/Off)
6 FR6: Track water pressure DP6: Pressure sensors Value range
7 FR7: Direct flow of water DP7: Motorised valves Switch (On/Off)
8 FR8: Track level of chemicals in tanks DP8: Level switch Value range
Table 1. Top-level decomposition of SWaT
No Functional Requirements (FRs) Design Parameters (DPs) Process Variables (PVs)
1 FR1.1: Pump raw water from stage one to UF feed tank in stage three DP1.1: P-101,P-102 On/Off
2 FR1.2: Pump water from stage three to RO feed tank in stage four DP1.2: P-301,P-302 On/Off
3 FR1.3: Pump water from stage four through de-chlorination system DP1.3: P-401,P-402 On/Off
4 FR1.4: Pump (VSD) water from stage five to tanks in stage six DP1.4: P-501,P-502 On/Off
5 FR1.5: Pump water from RO permeate tank to raw water tank in stage one DP1.5: P-601 On/Off
6 FR1.6: Pump water for UF backwash system DP1.6: P-602 On/Off
7 FR1.7: Pump water for RO/UF cleaning DP1.7: P-603 On/Off
8 FR2.1: Determine water level in raw water tank of stage one DP2.1: LIT-101 0 ¡= ¡= max
9 FR2.2: Determine water level in UF feed tank of stage three DP2.2: LIT-301 0 ¡= ¡= max
10 FR2.3: Determine water level in RO feed tank of stage four DP2.3: LIT-401 0 ¡= ¡= max
11 FR2.4: Determine water level in RO permeate tank of stage six DP2.4: LS-601 Low ¡= ¡= High
12 FR2.5: Determine water level in UF backwash tank of stage six DP2.5: LS-602 Low ¡= ¡= High
13 FR2.6: Determine water level in CIP tank of stage six DP2.6: LS-603 Low ¡= ¡= High
14 FR3.1: Measure raw water flow rate in stage one DP3.1: FIT-101 Low ¡= ¡= High
15 FR3.2: Measure water flow rate in stage two DP3.2: FIT-201 Low ¡= ¡= High
16 FR3.3: Measure water flow rate in stage three DP3.3: FIT-301 Low ¡= ¡= High
17 FR3.4: Measure water flow rate in stage four DP3.4: FIT-401 Low ¡= ¡= High
18 FR3.5: Measure water flow rate in stage five DP3.5: FIT-501,FIT-502,FIT-503,FIT-504 Low ¡= ¡= High
19 FR3.6: Measure water flow rate in stage six DP3.6: FIT-601 Low ¡= ¡= High
20 FR4.1: Calculate chemical properties of water DP4.1: AIT-201,AIT-202,AIT-203,AIT-301,AIT-302,AIT-303 Low ¡= ¡= High
AIT-401,AIT-402,AIT-501,AIT-502,AIT-503,AIT-504
21 FR5.1: Pump chemicals to water DP5.1: P-201,P-202,P-203,P-204,P-205,P-206,P-207,P-208, On/Off
P-403,P-404
22 FR6.1: Measure UF filter differential pressure DP6.1: DPIT-301 0 ¡= ¡= max
23 FR6.2: Measure RO membrane inlet pressure DP6.2: PIT-501 0 ¡= ¡= max
24 FR6.3: Measure RO membrane pressure DP6.3: PIT-502 0 ¡= ¡= max
25 FR6.4: Measure RO reject pressure DP6.4: PIT-503 0 ¡= ¡= max
26 FR7.1: Control water flow direction DP7.1: MV-101,MV-201,MV-301,MV-302,MV-303,MV-304, On/Off
MV-501,MV-502,MV-503,MV-504
27 FR8.1: Determine NaCl level in NaCl tank of stage two DP8.1: LS-201 Low ¡= ¡= max
28 FR8.2: Determine HCl level in HCl tank of stage two DP8.2: LS-202 Low ¡= ¡= max
29 FR8.3: Determine NaOCl level in NaOCl tank of stage two DP8.3: LS-203 Low ¡= ¡= max
30 FR8.4: Determine NaHSO3 level in NaHSO3 tank of stage four DP8.4: LS-401 Low ¡= ¡= max
Table 2. Second-level decomposition of FRs and DPs
(1)
(2)
(3)
No Functional Requirements (FRs) Design Parameters (DPs)
1 FR1.1: Pump raw water from stage one to UF feed tank in stage three DP1.1: P-101, P-102
DP1.1.1: P-101 Other DPs: DP2.1(LIT-101), DP2.2(LIT-301), DP7.1(MV-201)
DP1.1.2: P-102 Other DPs: DP2.1(LIT-101), DP2.2(LIT-301), DP7.1(MV-201)
2 FR1.2: Pump water from stage three to RO feed tank in stage four DP1.2: P-301, P-302
DP1.2.1: P-301 Other DPs: DP2.2(LIT-301), DP2.3(LIT-401), DP7.1(MV-302)
DP1.2.2: P-302 Other DPs: DP2.2(LIT-301), DP2.3(LIT-401), DP7.1(MV-302)
3 FR1.3: Pump water from stage four through de-chlorination system DP1.3: P-401, P-402
DP1.3.1: P-401 Other DPs: DP1.4(P-501,P-502), DP2.3(LIT-401)
DP1.3.2: P-402 Other DPs: DP1.4(P-501,P-502), DP2.3(LIT-401)
4 FR1.4: Pump (VSD) water from stage five to tanks in stage six DP1.4: P-501, P-502
DP1.4.1: P-501 Other DPs: DP1.3(P-401,P-402), DP7.1(MV-501)
DP1.4.2: P-502 Other DPs: DP1.3(P-401,P-402), DP7.1(MV-501)
5 FR1.5: Pump water from RO permeate tank to raw water tank in stage one DP1.5: P-601 Other DPs: DP2.1(LIT-101), DP2.4(LS-601)
6 FR1.6: Pump water for UF backwash system DP1.6: P-602 Other DPs: DP2.5(LS-602), DP7.1(MV-301)
7 FR1.7: Pump water for RO/UF cleaning DP1.7: P-603 Other DPs: DP2.6(LS-603)
8 FR2.1: Determine water level in raw water tank of stage one DP2.1: LIT-101 Other DPs: DP1.1(P-101,P-102), DP1.5(P-601), DP2.4(LS-601), DP7.1(MV-101)
9 FR2.2: Determine water level in UF feed tank of stage three DP2.2: LIT-301 Other DPs: DP1.1(P-101,P-102), DP1.2(P-301,P-302), DP7.1(MV-201)
10 FR2.3: Determine water level in RO feed tank of stage four DP2.3: LIT-401 Other DPs: DP1.2(P-301,P-302), DP1.3(P-401,P-402), DP7.1(MV-302)
11 FR2.4: Determine water level in RO permeate tank of stage six DP2.4: LS-601 Other DPs: DP1.5(P-601), DP2.1(LIT-101)
12 FR2.5: Determine water level in UF backwash tank of stage six DP2.5: LS-602 Other DPs: DP1.6(P-602), DP7.1(MV-301)
13 FR2.6: Determine water level in CIP tank of stage six DP2.6: LS-603 Other DPs: DP1.7(P-603), DP7.1(MV-301)
14 FR3.1: Measure raw water flow rate in stage one DP3.1: FIT-101 Other DPs: DP2.1(LIT-101), DP7.1(MV-101)
15 FR3.2: Measure water flow rate in stage two DP3.2: FIT-201 Other DPs: DP1.1(P-101,P-102), DP2.2(LIT-301), DP7.1(MV-201)
16 FR3.3: Measure water flow rate in stage three DP3.3: FIT-301 Other DPs: DP1.2(P-301,P-302), DP2.3(LIT-401), DP7.1(MV-302)
17 FR3.4: Measure water flow rate in stage four DP3.4: FIT-401 Other DPs: DP1.3(P-401,P-402), DP2.3(LIT-401)
18 FR3.5: Measure water flow rate in stage five DP3.5: FIT-501,FIT-502,FIT-503,FIT-504
DP3.5.1: FIT-501 Other DPs: DP1.3(P-401,P-402)
DP3.5.2: FIT-502 Other DPs: DP1.4(P-501,P-502)
DP3.5.3: FIT-503 Other DPs: DP1.4(P-501,P-502)
DP3.5.4: FIT-504 Other DPs: DP1.3(P-401,P-402)
19 FR3.6: Measure water flow rate in stage six DP3.6: FIT-601 Other DPs: DP1.6(P-602), DP2.5(LS-602), DP7.1(MV-301)
20 FR4.1: Calculate chemical properties of water DP4.1: AIT-201,AIT-202,AIT-203,AIT-301,AIT-302,AIT-303,
AIT-401,AIT-402,AIT-501,AIT-502,AIT-503,AIT-504
DP4.1.1: AIT-201 Other DPs: DP1.1.1(P-101), DP1.1.2(P-102)
DP4.1.2: AIT-202 Other DPs: DP1.1.1(P-101), DP1.1.2(P-102)
DP4.1.3: AIT-203 Other DPs: DP1.1.1(P-101), DP1.1.2(P-102)
DP4.1.4: AIT-301 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302)
DP4.1.5: AIT-302 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302)
DP4.1.6: AIT-303 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302)
DP4.1.7: AIT-401 Other DPs: DP1.3.1(P-401), DP1.3.2(P-402)
DP4.1.8: AIT-402 Other DPs: DP1.3.1(P-401), DP1.3.2(P-402)
DP4.1.9: AIT-501 Other DPs: DP1.3.1(P-401), DP1.3.2(P-402)
DP4.1.10: AIT-502 Other DPs: DP1.3.1(P-401), DP1.3.2(P-402)
DP4.1.11: AIT-503 Other DPs: DP1.3.1(P-401), DP1.3.2(P-402)
DP4.1.11: AIT-504 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
21 FR5.1: Pump chemicals to water DP5.1: P-201,P-202,P-203,P-204,P-205,P-206,P-207,P-208,P-403,P-404
DP5.1.1: P-201 Other DPs: DP4.1.1(AIT-201), DP7.1.2(MV-201)
DP5.1.2: P-202 Other DPs: DP4.1.1(AIT-201), DP7.1.2(MV-201)
DP5.1.3: P-203 Other DPs: DP4.1.2(AIT-202), DP7.1.2(MV-201)
DP5.1.4: P-204 Other DPs: DP4.1.2(AIT-202), DP7.1.2(MV-201)
DP5.1.5: P-205 Other DPs: DP4.1.3(AIT-203), DP7.1.2(MV-201)
DP5.1.6: P-206 Other DPs: DP4.1.3(AIT-203), DP7.1.2(MV-201)
DP5.1.7: P-207 Other DPs: DP4.1.5(AIT-302)
DP5.1.8: P-208 Other DPs: DP4.1.5(AIT-302)
DP5.1.9: P-403 Other DPs: DP4.1.8(AIT-402)
DP5.1.10: P-404 Other DPs: DP4.1.8(AIT-402)
22 FR6.1: Measure UF filter differential pressure DP6.1: DPIT-301 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302), DP7.1(MV-302)
23 FR6.2: Measure RO membrane inlet pressure DP6.2: PIT-501 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
24 FR6.3: Measure RO membrane pressure DP6.3: PIT-502 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502), DP7.1.7(MV-501),
DP7.1.9(MV-503)
25 FR6.4: Measure RO reject pressure DP6.4: PIT-503 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502), DP7.1.8(MV-502),
DP7.1.10(MV-504)
Table 3. Linking second-level decomposition of FRs to dependent DPs
No Functional Requirements (FRs) Design Parameters (DPs)
26 FR7.1: Control water flow direction DP7.1: MV-101,MV-201,MV-301,MV-302,MV-303,MV-304,MV-501,MV-502,MV-503,MV-504
DP7.1.1: MV-101 Other DPs: DP2.1(LIT-101)
DP7.1.2: MV-201 Other DPs: DP1.1.1(P-101), DP1.1.2(P-102), DP2.2(LIT-301)
DP7.1.3: MV-301 Other DPs: DP1.6(P-602), DP2.5(LS-602), DP2.6(LS-603)
DP7.1.4: MV-302 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302), DP2.3(LIT-401)
DP7.1.5: MV-303 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302)
DP7.1.6: MV-304 Other DPs: DP1.2.1(P-301), DP1.2.2(P-302)
DP7.1.7: MV-501 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
DP7.1.8: MV-502 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
DP7.1.9: MV-503 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
DP7.1.10: MV-504 Other DPs: DP1.4.1(P-501), DP1.4.2(P-502)
27 FR8.1: Determine NaCl level in NaCl tank of stage two DP8.1: LS-201 Other DPs: DP5.1.1(P-201), DP5.1.2(P-202)
28 FR8.2: Determine HCl level in HCl tank of stage two DP8.2: LS-202 Other DPs: DP5.1.3(P-203), DP5.1.4(P-204)
29 FR8.3: Determine NaOCl level in NaOCl tank of stage two DP8.3: LS-203 Other DPs: DP5.1.5(P-205), DP5.1.6(P-206), DP5.1.7(P-207), DP5.1.8(P-208)
30 FR8.4: Determine NaHSO3 level in NaHSO3 tank of stage four DP8.4: LS-401 Other DPs: DP5.1.9(P-403), DP5.1.10(P-404)
Table 4. Linking second-level decomposition of FRs to dependent DPs (continued)

Based on the requirements of SWaT, a top-level decomposition and design are given in Table 1. By the axiomatic design principles, this first level should be a functionally uncoupled design guaranteeing that each DP satisfies exactly one FR. This is reflected by the matrix of Equation (1), a diagonal matrix in which each FR is related only to its given DP from Table 1.

Next, the engineer analyses the DPs against the FRs and updates the corresponding Boolean value of the matrix if there is an information state coupling between them. This type of coupling differs from the physical coupling used in the conventional axiomatic design theory because it considers state information. Inserting this information state coupling into Equation (1) results in Equation (2), where (or on the diagonal) indicates some dependencies, and a zero () denotes the absence of them. Note that these dependencies are represented symmetrically: for example, if DP7 is (information state) coupled with FR2, then FR7 is coupled with DP2.

Equation (2) shows that DP7 is depended on by FR1, FR2, and FR7: for example, a motorised valve (DP7) is opened to feed water into a tank when the level is low (FR2) and the pump is on (FR1), i.e. the state of some valve depends on the state of some tank and pump. Note however that Equation (2) presents design information that is very high-level and broadly defined. For instance, FR3—“track flow rate of water”—relates to multiple different locations and flow sensors in SWaT. Another example is FR1—“feed water to water tanks/systems”—when in reality there are multiple water pumps in six different stages of SWaT. In order to derive meaningful invariants that relate concrete components of the CPS, our method requires that the top-level design of Equation (2) is iteratively decomposed until there is only a point-to-point mapping between each FR and DP. For illustration purposes, such a mapping is shown in the third-level decomposition of Table 6 at the end of the paper.

For simplicity, rather than use a point-to-point mapping, we decompose the eight FRs of Equation (2) into the 30 FRs of the second-level decomposition in Table 2. This is much more concrete than the top-level decomposition as it factors in particular sensors and actuators from different stages, but groups some of them together for convenience (e.g. P-101 and P-102 are the same DP, as the latter pump is simply a backup for the former). Next, Equation (3) is constructed by mapping down the information-state coupling from Equation (2) and adjusting according to the FRs of Table 2. At this second level, we use the notational format FR. and DP. with denoting the number from the top-level design and the number from the second-level.

Finally, Tables 3 and  4 present the dependent DPs for each second-level FR from Table 2, using the information-state coupling as identified by the CPS designer in Equation (3). These sets of dependencies identified in the design can then be used to construct invariants (see Sections 3.2 and 3.3).

Applying axiomatic design here has given the advantage of being able to follow a systematic approach, which guides the analysis of dependencies from a simple top-level design down to one that considers particular sensors and actuators. Furthermore, it allows (in the following) for design-justified invariants to be derived for a complex system like SWaT without the need for any complex mathematical modelling, such as other methods that use Petri-nets (Liu et al., 2017)

or Bayesian networks

(Hadjsaid et al., 2009) to analyse dependencies.

3.2. Mathematical Expressions over DPs

State Expression (Input) Assessment (Output)
!MV-101 and !LIT-101 Anomaly
!MV-101 and LIT-101 No anomaly
MV-101 and !LIT-101 No anomaly
MV-101 and LIT-101 Anomaly
Table 5. Mathematical state expressions and assessments

With the sets of dependencies between DPs in Tables 3 and  4, we can then construct mathematical state expressions that characterise the invariant relationships between them. Consider, for example, row 26 of Table 4: here, DP7.1.1 expresses that motorised valve MV-101 has a dependency on LIT-101 (and vice versa).

Given these two components, we then construct mathematical equations to characterise their invariant relationship, i.e. the combinations of states they will always be in during normal operation. These consist of the states that the DPs are in (‘inputs’) and assignments of anomalous or non-anomalous (‘output’). In the case of LIT-101, we use the low/high thresholds to determine two discrete states of interest, then relate them against the possible discrete values of MV-101 (open or closed). These equations are given in Table 5, where MV-101 (resp. !MV-101) denotes that the valve is open (resp. closed), and LIT-101 (resp. !LIT-101) denotes that the tank level is high (resp. low). The table also reflects the judgement of an engineer as to which of these four combinations reflect anomalous configurations. For example, if the valve is open and the tank level is high, this is anomalous as it could cause the tank to overflow.

At this stage of our work, when constructing equations, we assume that all DPs have one of two states, and thus the total number of equations to analyse will be where is the number of components involved. For large numbers of , the number of equations may grow too large to manually complete, hence our use of decision trees and other supervised ML algorithms in Section 4 to generalise from the inputs/outputs that we do have.

3.3. DAGs with States and Conditions

We also use the directed acyclic graph (DAG) concept of graph theory (Bondy and Murty, 2008) for sketching process graphs to assist the engineer in analysing the relationship between states of DPs. In particular, we use nodes to represent the states of DPs and edges to represent the conditions that cause the states of DPs to change.

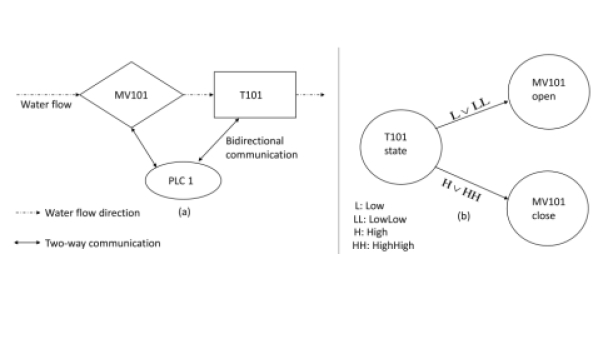

Figure 3. (a) Subsystem in stage one of SWaT; (b) A process graph in stage one of SWaT for normal cases

Figure 3(a) shows a subsystem in stage one of SWaT and the interconnection of some dependent devices identified from the axiomatic design analysis (row 26 of Table 4), along with the physical tank (T-101) and PLC that controls the components. Figures 3(b) and 4 then visualise how the state of one DP (MV-101) changes according to the other (LIT-101), for both the normal and the (inverted) anomalous cases. In both graphs, we consider the cases when the tank level is below one of its low thresholds (Low or LowLow), or above one of its high thresholds (High or HighHigh). MV-101 can be either open or closed, and the graphs reflect the states it should switch to according to different level thresholds of the tank. The idea is that the designer traverses through the different paths in the normal case of Figures 3(b), and then concludes that all other possible paths are abnormal cases, thus deriving Figure 4. For example, if the tank level is low (L or LL), then the correct behaviour is for the valve to open and allow water to flow in; remaining closed (risking an underflow scenario) is thus anomalous.

These paths in Figures 3(b) and 4 provide direct and indirect information for deciding the outcome of an attack, and the identified anomaly cases should be investigated further to prevent successful attacks. This information is useful because it gives the designer the possibility to employ different types of defence mechanisms at certain locations based on cost and impact analysis. The graphs provide visual representations of paths which may be easier to communicate and analyse in comparison to mathematical expressions. A deeper analysis of Figures 3(b) and 4 by the designer may lead to the discovery of a successful concrete attack such as spoofing of data. For example: if LIT-101 for T-101 is spoofed to be at H instead of L, then P-101 starts pumping water out of T-101. In a short time, T-101 is going to be emptied. A prolonged period of pumping water from an empty tank can damage the pumps. A solution to prevent such an attack is to use data encryption for network communication between devices. As this weakness is determined at the design phase of the system, the cost of protecting against such an attack is likely to be less than if the attack had been discovered after the implementation of hardware and software.

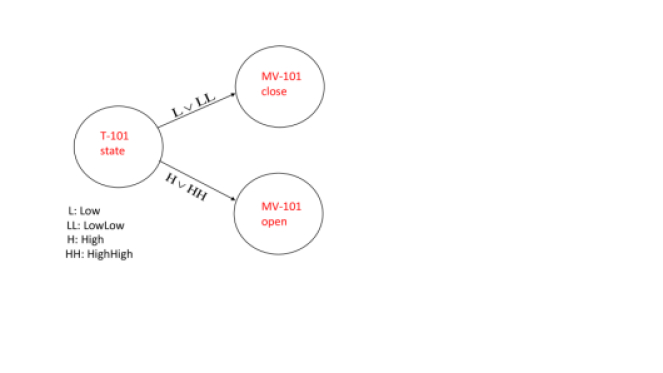

Figure 4. A process graph depicting anomalous cases

4. Preliminary Evaluation

In this section, we present a preliminary study in which we assess how effective our invariants are for implementing attack detection mechanisms in SWaT. First, we derive two invariants from our design framework: one concerning sensors and actuators in stage one only, and another concerning sensors and actuators across three stages (1–3). Next, we train supervised machine learning algorithms (e.g. decision trees, naïve Bayes) on the inputs/outputs of the equations and process graphs associated with the invariants. The training results in classifiers that can judge actual sensor/actuator data as ‘normal’ or ‘anomalous’ with respect to the invariant relationships they were trained on. Finally, we deploy these classifiers on both the SWaT dataset (CPS, 2020) as well as the actual testbed to assess how effective they are at detecting some relevant attacks.

Experiment and Results. The first invariant (#1) we derived concerns the relationship between MV-101 and LIT-101. This dependency was identified from our design analysis, in particular, from DP7.1.1, row 26 of Table 4. The completed mathematical equations and their corresponding process graphs are given in Table 5, Figure 3(b), and Figure 4

. As this dependency involved only two components, it was feasible to completely classify all Boolean combinations of their discretised values as normal or anomalous. This might not be the case for larger sets of dependencies, which is why supervised learning algorithms may be required in general.

The second invariant (#2) concerns the relationship between LIT-301, MV-201, P-101, and P-102. These dependencies were also identified from our design analysis, in particular, from DP7.1.2, row 26 of Table 4. Mathematical equations and process graphs were constructed for these components in an analogous way to the first invariant.

We trained both supervised decision tree and naïve Bayes learning algorithms on the inputs/outputs of the mathematical equations and process graphs of these invariants. We applied the classifiers to the SWaT dataset (CPS, 2020) and found that no false positives were reported, i.e. at no point did ‘normal’ data in the labelled dataset get misclassified as ‘anomalous’. Likewise, when implemented for the actual testbed, we found that the classifiers did not report any false positives throughout our experiments. We investigated the effectiveness of the classifiers against relevant attacks in both the SWaT dataset as well as on the testbed itself. We found that our decision tree classifiers achieved accuracy in the prediction of normal/anomalous labels throughout these attacks, and that our naïve Bayes classifiers achieved and accuracy for the two invariants respectively. The two attack tests we considered for the SWaT testbed (of potentially many more) are discussed below.

While we are motivated by the results, we are actively working on building a larger set of invariants/classifiers to be sure that the results do generalise, and are keen to compare the effectiveness of our invariants against those derived using other approaches, e.g. those that used only data and not the system design at all.

Attack Test #1. The following attack scenario was successfully detected using the SWaT testbed.

Components to attack: Motorised valve MV-101, and level indicator transmitter LIT-101 (both in stage one).

Objective: Damage or reduce the reliability of MV-101.

Launch state: At time , the water level of LIT-101 is above 800mm.

Attack: At time , an attacker begins manually turning MV-101 on and off several times.

Results: Successfully detected. The attack violated the classifier of invariant #1 for MV-101, LIT-101.

SWaT’s defences could be strengthened against this attack by overriding attempts to manually turn on MV-101 if the water level reported by LIT-101 is above its high (H) or critically high (HH) thresholds. This would block the attack, although would rely on the assumption that the value of LIT-101 is correct can be trusted (additional invariants and classifiers concerning LIT-101 could help to mitigate this threat).

Attack Test #2. This second attack test case was also successfully executed and detected using the SWaT testbed.

Components to attack: Pumps P-101, P-102, and motorised valve MV-201.

Objective: Damage or reduce the reliability of P-101, P-102, and MV-201.

Launch state: At time , the water level reported by LIT-301 is above 1000mm.

Attack: At time , an attacker manually turns on MV-201. Next, the attacker manually starts pump P-102. Finally, the attacker manually starts pump P-101.

Results: Successfully detected. The attack violated the classifier of invariant #2 for LIT-301, MV-201, P-101, P-102.

SWaT’s defences could be strengthened by overriding attempts to turn on MV-201 if the water level reported by LIT-301 is above its high (H) or critically high (HH) thresholds. This would prevent the attack from happening, but again, would require additional mechanisms or improvements to the design to ensure that the value of LIT-301 can be trusted.

5. Conclusion

In this position paper, we proposed a method for systematically deriving invariants from the functional requirements of a CPS, in order to: (1) integrate security concerns at the design stage; (2) ensure that invariants can be traced from requirements through to implemented defence mechanisms; (3) identify all invariants implicit in the design, not just those represented in datasets; and (4) potentially save costs by identifying weak points before the CPS is built. Inspired by the axiomatic design methodology for systems, our method iteratively analyses dependencies in a given CPS to construct equations and process graphs that represent invariant relations between sensor readings and actuator states. We demonstrated the potential use of this approach in a preliminary study on the SWaT water treatment testbed, implementing checkers for two invariants using decision trees, and finding that they detected relevant attacks without false positives.

Our method provides a step-by-step approach from requirements to the implementation of invariant checkers, and does not require any complex mathematical modelling or dataset-based training. This may help to ensure that detected attacks or system malfunctions can be explained, not just in terms of the equations or process graph that they violated, but also in terms of the functional requirements that they were derived from, providing systems engineers with a rich amount of context.

In ongoing work, we plan extend our preliminary study for SWaT by implementing more invariant-based checkers from our requirements analysis, and evaluating them against a wider array of attacks. We also plan to compare the effectiveness of our invariants against those derived by other approaches (both automated and manual ones) in order to better understand the added security benefits of analysing the CPS design directly. Finally, we plan to assess the generalisability of our approach by applying it to other industrial control systems (e.g. the WADI water distribution plant), and potentially to CPSs from other domains, such as building management or healthcare systems.

Acknowledgements.
We are grateful to the anonymous referees of CPSS’20 for their helpful and encouraging comments. This research / project is supported by the National Research Foundation, Singapore, under its National Satellite of Excellence Programme “Design Science and Technology for Secure Critical Infrastructure” (Award Number: NSoE_DeST-SCI2019-0004). Any opinions, findings and conclusions or recommendations expressed in this material are those of the author(s) and do not reflect the views of National Research Foundation, Singapore.

References

  • (1)
  • CPS (2020) 2020. iTrust Labs: Datasets. https://itrust.sutd.edu.sg/itrust-labs_datasets/. Accessed: July 2020.
  • SWa (2020) 2020. Secure Water Treatment (SWaT). https://itrust.sutd.edu.sg/itrust-labs-home/itrust-labs_swat/. Accessed: July 2020.
  • Adepu et al. (2020) Sridhar Adepu, Ferdinand Brasser, Luis Garcia, Michael Rodler, Lucas Davi, Ahmad-Reza Sadeghi, and Saman A. Zonouz. 2020. Control Behavior Integrity for Distributed Cyber-Physical Systems. In Proc. ACM/IEEE International Conference on Cyber-Physical Systems (ICCPS 2020). IEEE, 30–40.
  • Adepu and Mathur (2016a) Sridhar Adepu and Aditya Mathur. 2016a. Distributed Detection of Single-Stage Multipoint Cyber Attacks in a Water Treatment Plant. In Proc. ACM Asia Conference on Computer and Communications Security (AsiaCCS 2016). ACM, 449–460.
  • Adepu and Mathur (2016b) Sridhar Adepu and Aditya Mathur. 2016b. Using Process Invariants to Detect Cyber Attacks on a Water Treatment System. In Proc. International Conference on ICT Systems Security and Privacy Protection (SEC 2016) (IFIP AICT), Vol. 471. Springer, 91–104.
  • Adepu and Mathur (2018) Sridhar Adepu and Aditya Mathur. 2018. Distributed Attack Detection in a Water Treatment Plant: Method and Case Study. IEEE Transactions on Dependable and Secure Computing (2018).
  • Aggarwal et al. (2018) Ekta Aggarwal, Mehdi Karimibiuki, Karthik Pattabiraman, and André Ivanov. 2018. CORGIDS: A Correlation-based Generic Intrusion Detection System. In Proc. Workshop on Cyber-Physical Systems Security and PrivaCy (CPS-SPC 2018). ACM, 24–35.
  • Ahmed et al. (2018a) Chuadhry Mujeeb Ahmed, Martín Ochoa, Jianying Zhou, Aditya P. Mathur, Rizwan Qadeer, Carlos Murguia, and Justin Ruths. 2018a. NoisePrint: Attack Detection Using Sensor and Process Noise Fingerprint in Cyber Physical Systems. In Proc. Asia Conference on Computer and Communications Security (AsiaCCS 2018). ACM, 483–497.
  • Ahmed et al. (2018b) Chuadhry Mujeeb Ahmed, Jianying Zhou, and Aditya P. Mathur. 2018b. Noise Matters: Using Sensor and Process Noise Fingerprint to Detect Stealthy Cyber Attacks and Authenticate sensors in CPS. In Proc. Annual Computer Security Applications Conference (ACSAC 2018). ACM, 566–581.
  • Aoudi et al. (2018) Wissam Aoudi, Mikel Iturbe, and Magnus Almgren. 2018. Truth Will Out: Departure-Based Process-Level Detection of Stealthy Attacks on Control Systems. In Proc. ACM SIGSAC Conference on Computer and Communications Security (CCS 2018). ACM, 817–831.
  • Bondy and Murty (2008) J. Adrian Bondy and Uppaluri S. R. Murty. 2008. Graph Theory. Springer.
  • Cárdenas et al. (2011) Alvaro A. Cárdenas, Saurabh Amin, Zong-Syun Lin, Yu-Lun Huang, Chi-Yen Huang, and Shankar Sastry. 2011. Attacks against process control systems: risk assessment, detection, and response. In Proc. ACM Asia Conference on Computer and Communications Security (AsiaCCS 2011). ACM, 355–366.
  • Carrasco and Wu (2019) Mayra Alexandra Macas Carrasco and Chunming Wu. 2019. An Unsupervised Framework for Anomaly Detection in a Water Treatment System. In Proc. IEEE International Conference On Machine Learning And Applications (ICMLA 2019). IEEE, 1298–1305.
  • Chen et al. (2016) Yuqi Chen, Christopher M. Poskitt, and Jun Sun. 2016. Towards Learning and Verifying Invariants of Cyber-Physical Systems by Code Mutation. In Proc. International Symposium on Formal Methods (FM 2016) (LNCS), Vol. 9995. Springer, 155–163.
  • Chen et al. (2018) Yuqi Chen, Christopher M. Poskitt, and Jun Sun. 2018. Learning from Mutants: Using Code Mutation to Learn and Monitor Invariants of a Cyber-Physical System. In Proc. IEEE Symposium on Security and Privacy (S&P 2018). IEEE Computer Society, 648–660.
  • Chen et al. (2019) Yuqi Chen, Christopher M. Poskitt, Jun Sun, Sridhar Adepu, and Fan Zhang. 2019. Learning-Guided Network Fuzzing for Testing Cyber-Physical System Defences. In Proc. IEEE/ACM International Conference on Automated Software Engineering (ASE 2019). IEEE Computer Society, 962–973.
  • Chen et al. (2020) Yuqi Chen, Bohan Xuan, Christopher M. Poskitt, Jun Sun, and Fan Zhang. 2020. Active Fuzzing for Testing and Securing Cyber-Physical Systems. In Proc. ACM SIGSOFT International Symposium on Software Testing and Analysis (ISSTA 2020). ACM.
  • Cheng et al. (2017) Long Cheng, Ke Tian, and Danfeng (Daphne) Yao. 2017. Orpheus: Enforcing Cyber-Physical Execution Semantics to Defend Against Data-Oriented Attacks. In Proc. Annual Computer Security Applications Conference (ACSAC 2017). ACM, 315–326.
  • Choi et al. (2018) Hongjun Choi, Wen-Chuan Lee, Yousra Aafer, Fan Fei, Zhan Tu, Xiangyu Zhang, Dongyan Xu, and Xinyan Xinyan. 2018. Detecting Attacks Against Robotic Vehicles: A Control Invariant Approach. In Proc. ACM SIGSAC Conference on Computer and Communications Security (CCS 2018). ACM, 801–816.
  • Das et al. (2020) Tanmoy Kanti Das, Sridhar Adepu, and Jianying Zhou. 2020. Anomaly detection in Industrial Control Systems using Logical Analysis of Data. Computers & Security 96 (2020).
  • Feng et al. (2019) Cheng Feng, Venkata Reddy Palleti, Aditya Mathur, and Deeph Chana. 2019. A Systematic Framework to Generate Invariants for Anomaly Detection in Industrial Control Systems. In Proc. Annual Network and Distributed System Security Symposium (NDSS 2019). The Internet Society.
  • Formby et al. (2016) David Formby, Preethi Srinivasan, Andrew M. Leonard, Jonathan D. Rogers, and Raheem A. Beyah. 2016. Who’s in Control of Your Control System? Device Fingerprinting for Cyber-Physical Systems. In Proc. Annual Network and Distributed System Security Symposium (NDSS 2016). The Internet Society.
  • Giraldo et al. (2018) Jairo Giraldo, David I. Urbina, Alvaro Cardenas, Junia Valente, Mustafa Amir Faisal, Justin Ruths, Nils Ole Tippenhauer, Henrik Sandberg, and Richard Candell. 2018. A Survey of Physics-Based Attack Detection in Cyber-Physical Systems. Comput. Surveys 51, 4 (2018), 76:1–76:36.
  • Goh et al. (2016) Jonathan Goh, Sridhar Adepu, Khurum Nazir Junejo, and Aditya Mathur. 2016. A Dataset to Support Research in the Design of Secure Water Treatment Systems. In Proc. International Conference on Critical Information Infrastructures Security (CRITIS 2016).
  • Goh et al. (2017) Jonathan Goh, Sridhar Adepu, Marcus Tan, and Zi Shan Lee. 2017.

    Anomaly detection in cyber physical systems using recurrent neural networks. In

    Proc. International Symposium on High Assurance Systems Engineering (HASE 2017). IEEE, 140–145.
  • Gu et al. (2018) Qinchen Gu, David Formby, Shouling Ji, Hasan Cam, and Raheem A. Beyah. 2018. Fingerprinting for Cyber-Physical System Security: Device Physics Matters Too. IEEE Security & Privacy 16, 5 (2018), 49–59.
  • Hadjsaid et al. (2009) Nouredine Hadjsaid, Carolina Tranchita, Benoît Rozel, Maria Viziteu, and Raphael Caire. 2009. Modeling cyber and physical interdependencies - Application in ICT and power grids. In Proc. IEEE/PES Power Systems Conference and Exposition (PSCE 2009). IEEE.
  • Harada et al. (2017) Yoshiyuki Harada, Yoriyuki Yamagata, Osamu Mizuno, and Eun-Hye Choi. 2017. Log-Based Anomaly Detection of CPS Using a Statistical Method. In Proc. International Workshop on Empirical Software Engineering in Practice (IWESEP 2017). IEEE, 1–6.
  • Hassanzadeh et al. (2019) Amin Hassanzadeh, Amin Rasekh, Stefano Galelli, Mohsen Aghashahi, Riccardo Taormina, Avi Ostfeld, and M. Katherine Banks. 2019. A Review of Cybersecurity Incidents in the Water Sector. Journal of Environmental Engineering (09 2019).
  • He et al. (2019) Zecheng He, Aswin Raghavan, Guangyuan Hu, Sek M. Chai, and Ruby B. Lee. 2019.

    Power-Grid Controller Anomaly Detection with Enhanced Temporal Deep Learning. In

    Proc. IEEE International Conference On Trust, Security And Privacy In Computing And Communications (TrustCom 2019). IEEE, 160–167.
  • ICS-CERT Alert (2016) ICS-CERT Alert. 2016. Cyber-Attack Against Ukrainian Critical Infrastructure. https://ics-cert.us-cert.gov/alerts/IR-ALERT-H-16-056-01. document number: IR-ALERT-H-16-056-01.
  • Inoue et al. (2017) Jun Inoue, Yoriyuki Yamagata, Yuqi Chen, Christopher M. Poskitt, and Jun Sun. 2017. Anomaly Detection for a Water Treatment System Using Unsupervised Machine Learning. In Proc. IEEE International Conference on Data Mining Workshops (ICDMW 2017): Data Mining for Cyberphysical and Industrial Systems (DMCIS 2017). IEEE, 1058–1065.
  • Kandjani et al. (2015) Hadi Kandjani, Madjid Tavana, Peter Bernus, Lian Wen, and Amir Mohtarami. 2015. Using extended Axiomatic Design theory to reduce complexities in Global Software Development projects. Computers in Industry 67 (2015), 86–96.
  • Kim et al. (2019) Jonguk Kim, Jeong-Han Yun, and Hyoung Chun Kim. 2019. Anomaly Detection for Industrial Control Systems Using Sequence-to-Sequence Neural Networks. In Proc. International Workshop on the Security of Industrial Control Systems and Cyber-Physical Systems (CyberICPS 2019) (LNCS), Vol. 11980. Springer, 3–18.
  • Kneib and Huth (2018) Marcel Kneib and Christopher Huth. 2018. Scission: Signal Characteristic-Based Sender Identification and Intrusion Detection in Automotive Networks. In Proc. ACM SIGSAC Conference on Computer and Communications Security (CCS 2018). ACM, 787–800.
  • Kravchik and Shabtai (2018) Moshe Kravchik and Asaf Shabtai. 2018.

    Detecting Cyber Attacks in Industrial Control Systems Using Convolutional Neural Networks. In

    Proc. Workshop on Cyber-Physical Systems Security and PrivaCy (CPS-SPC 2018). ACM, 72–83.
  • Leyden (2016) John Leyden. 2016. Water treatment plant hacked, chemical mix changed for tap supplies. The Register (2016). https://www.theregister.com/2016/03/24/water_utility_hacked/ Accessed: July 2020.
  • Lin et al. (2018) Qin Lin, Sridhar Adepu, Sicco Verwer, and Aditya Mathur. 2018. TABOR: A Graphical Model-based Approach for Anomaly Detection in Industrial Control Systems. In Proc. Asia Conference on Computer and Communications Security (AsiaCCS 2018). ACM, 525–536.
  • Liu et al. (2017) Xiaoxue Liu, Jiexin Zhang, and Peidong Zhu. 2017.

    Modeling cyber-physical attacks based on probabilistic colored Petri nets and mixed-strategy game theory.

    International Journal of Critical Infrastructure Protection 16 (2017), 13–25.
  • Mathur and Tippenhauer (2016) Aditya P. Mathur and Nils Ole Tippenhauer. 2016. SWaT: a water treatment testbed for research and training on ICS security. In Proc. International Workshop on Cyber-physical Systems for Smart Water Networks (CySWater@CPSWeek 2016). IEEE Computer Society, 31–36.
  • Matt (2012) Dominik T. Matt. 2012. Application of Axiomatic Design principles to control complexity dynamics in a mixed-model assembly system: a case analysis. International Journal of Production Research 50, Article 7 (2012), 12 pages.
  • Mohsen and Cekecek (2000) Hassan A. Mohsen and Ethem Cekecek. 2000. Thoughts on the use of axiomatic designs within the product development process. In Proc. International Conference on Axiomatic Design (ICAD 2000).
  • Narayanan and Bobba (2018) Vedanth Narayanan and Rakesh B. Bobba. 2018. Learning Based Anomaly Detection for Industrial Arm Applications. In Proc. Workshop on Cyber-Physical Systems Security and PrivaCy (CPS-SPC 2018). ACM, 13–23.
  • Palleti et al. (2018) Venkata Reddy Palleti, Jude Victor Joseph, and Arlindo Silva. 2018. A contribution of axiomatic design principles to the analysis and impact of attacks on critical infrastructures. International Journal of Critical Infrastructure Protection 23 (2018), 21–32.
  • Pasqualetti et al. (2011) Fabio Pasqualetti, Florian Dorfler, and Francesco Bullo. 2011. Cyber-physical attacks in power networks: Models, fundamental limitations and monitor design. In Proc. IEEE Conference on Decision and Control and European Control Conference (CDC-ECC 2011). IEEE, 2195–2201.
  • Schneider and Böttinger (2018) Peter Schneider and Konstantin Böttinger. 2018. High-Performance Unsupervised Anomaly Detection for Cyber-Physical System Networks. In Proc. Workshop on Cyber-Physical Systems Security and PrivaCy (CPS-SPC 2018). ACM, 1–12.
  • Suh (2001) Nam Pyo Suh. 2001. Axiomatic Design: Advances and Applications. Oxford University Press.
  • Wijaya et al. (2020) Herman Wijaya, Maurício Aniche, and Aditya Mathur. 2020. Domain-Based Fuzzing for Supervised Learning of Anomaly Detection in Cyber-Physical Systems. In Proc. International Workshop on Engineering and Cybersecurity of Critical Systems (EnCyCriS 2020). ACM.
  • Yang et al. (2020) Kai Yang, Qiang Li, Xiaodong Lin, Xin Chen, and Limin Sun. 2020. iFinger: Intrusion Detection in Industrial Control Systems via Register-Based Fingerprinting. IEEE Journal of Selected Areas in Communications 38, 5 (2020), 955–967.
  • Zhu et al. (2008) Xiaowei Zhu, S. Jack Hu, Yoram Koren, and Samuel P. Marin. 2008. Modeling of manufacturing complexity in mixed-model assembly lines. Journal of Manufacturing Science and Engineering 130, Article 5 (2008), 10 pages.
