I Introduction

For decades, quantum computing has promised to revolutionize certain computational tasks. It now appears that we stand on the eve of the first experimental demonstration of a quantum advantage Boixo et al. (2016). With noisy, intermediate scale quantum computers around the corner, it is natural to investigate the most promising applications of quantum computers and to determine how best to harness the limited, yet powerful resources they offer.

Machine learning is a very appealing application for quantum computers because the theories of learning and of quantum mechanics both involve statistics at a fundamental level, and machine learning techniques are inherently resilient to noise, which may allow realization by near-term quantum computers operating without error correction. But major obstacles include the limited number of qubits in near-term devices and the challenges of working with real data. Real data sets may contain millions of samples and each sample vector can have hundreds or thousands of components. Therefore one would like to find quantum algorithms that can perform meaningful tasks for large sets of high-dimensional samples even with a small number of noisy qubits.

The quantum algorithms we propose in this work implement machine learning tasks—both discriminative and generative—using circuits equivalent to tensor networks Östlund and Rommer (1995); Orus (2014); Verstraete et al. (2008), specifically tree tensor networks Fannes et al. (1992); Lepetit et al. (2000); Tagliacozzo et al. (2009); Hackbusch and Kühn (2009) and matrix product states Östlund and Rommer (1995); Vidal (2003); Schollwöck (2011). Tensor networks have recently been proposed as a promising architecture for machine learning with classical computers Cohen et al. (2016); Novikov et al. ; Stoudenmire and Schwab (2016), and provide good results for both discriminative Novikov et al. ; Stoudenmire and Schwab (2016); Levine et al. (2017); Liu et al. (2017); Khrulkov et al. (2017); Stoudenmire (2018) and generative learning tasks Han et al. (2017).

The circuits we will study contain many parameters which are not determined at the outset, in contrast to quantum algorithms such as Grover search or Shor factorization Grover (1996); Shor (1997). Only the circuit geometry is fixed, while the parameters determining the unitary operations must be optimized for the specific machine learning task. Our approach is therefore conceptually related to the quantum variational eigensolver Peruzzo et al. (2014); McClean et al. (2016) and to the quantum approximate optimization algorithms Farhi et al. (2014), where quantum circuit parameters are discovered with the help of an auxiliary classical algorithm.

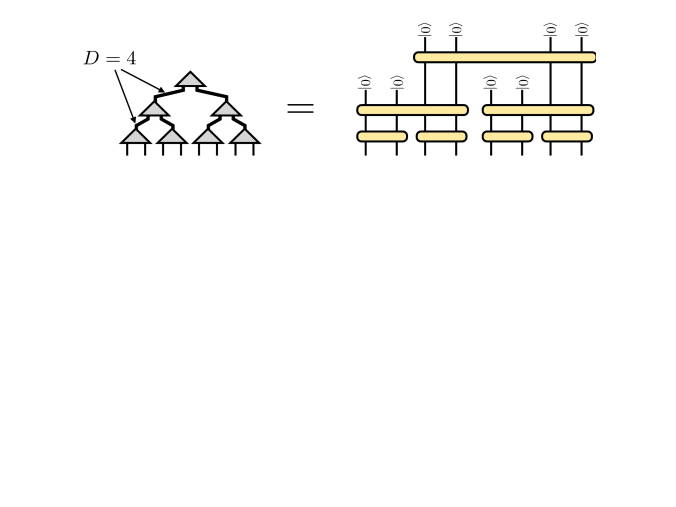

Figure 1: The quantum state of qubits corresponding to a tree tensor network (left) can be realized as a quantum circuit acting on qubits (right). The circuit is read from top to bottom, with the yellow bars representing unitary gates. The bond dimension connecting two nodes of the tensor network is determined by number of qubits connecting two sequential unitaries in the circuit, with .

The application of such hybrid quantum-classical algorithms to machine learning was recently investigated by several groups for labeling Farhi and Neven (2018); Schuld and Killoran (2018) or generating data Gao et al. (2017); Benedetti et al. (2018); Mitarai et al. (2018). The proposals of Refs. Farhi and Neven, 2018; Benedetti et al., 2018; Mitarai et al., 2018; Schuld and Killoran, 2018 are related to approaches we propose below, but consider very general classes of quantum circuits. This motivates the question: is there a subset of quantum circuits which are especially natural or advantageous for machine learning tasks? Tensor network circuits might provide a compelling answer, for three main reasons:

  1. Tensor network models could be implemented on small, near-term quantum devices for input and output dimensions far exceeding the number of physical qubits. If the hardware permits the measurement of one of the qubits separately from the others, then the number of physical qubits needed can be made to scale either logarithmically with the size of the processed data, or independently of the data size depending on the particular tensor network architecture. Models based on tensor networks may also have an inherent resilience to noise. We explore both of these aspects in Section IV.

  2. There is a gradual crossover from classically simulable tensor network circuits to circuits that require a quantum computer to evaluate. With classical resources, tensor network models already give very good results for supervised Novikov et al. ; Stoudenmire and Schwab (2016); Liu et al. (2017); Stoudenmire (2018) and unsupervised Han et al. (2017); Stoudenmire (2018) learning tasks. The same models—with the same dataset size and data dimension—can be used to initialize more expressive models requiring quantum hardware, making the optimization of the quantum-based model faster and more likely to succeed. Algorithmic improvements in the classical setting can be readily transferred to the quantum setting as well.

  3. There is a rich theoretical understanding of the properties of tensor networks Orus (2014); Verstraete et al. (2008); Schollwöck (2011); Evenbly and Vidal (2011); Hastings (2007); Östlund and Rommer (1995), and their relative mathematical simplicity (involving only linear operations) will likely facilitate further conceptual developments in the machine learning context, such as interpretability and generalization. Properties of tensor networks, such as locality of correlations, may provide a favorable inductive bias for processing natural data Levine et al. (2017). One can prove rigorous bounds on the noise-resilience of quantum circuits based on tensor networks Kim and Swingle (2017).

All of the experimental operations necessary to implement tensor network circuits are available for near-term quantum hardware. The capabilities required are preparation of product states; one- and two-qubit unitary operations; and measurement in the computational basis.

In what follows, we first describe our proposed frameworks for discriminative and generative learning tasks in Section II. Then we present results of a numerical experiment which demonstrates the feasibility of the approach using operations that could be carried out with an actual quantum device in Section III. We conclude by discussing how the learning approaches could be implemented with a small number of physical qubits and by addressing their resilience to noise in Section IV.

Ii Learning with Tensor Network Quantum Circuits

The family of tensor networks we will consider—tree tensor networks and matrix product states—can always be realized precisely by a quantum circuit; see Fig. 1. Typically, the quantum circuits corresponding to tensor networks are carefully devised to make them efficient to prepare and manipulate with classical computers Vidal (2008). With increasing bond dimension, tree and matrix product state tensor gradually capture a wider range of states, which translates into more expressive and powerful models within the context of machine learning.

For very large bond dimensions, tree and matrix product tensor networks can eventually encompass the entire state space. But when the bond dimensions become too high, the cost of the classical approach becomes prohibitive. By implementing tensor network circuits on quantum hardware instead, one could go far beyond the space of classically tractable models.

In this section, we first describe our tensor-network based proposal for performing discriminative tasks with quantum hardware. The goal of a discriminative model is to produce a specific output given a certain class of input; for example, assigning labels to images. Then we describe our proposal for generative tasks, where the goal is to generate samples from a probability distribution inferred from a data set. For more background on various types of machine learning tasks, see the recent review Ref.

Mehta et al., 2018.

For clarity of presentation, we shall make use of multi-qubit unitary operations in this work. However we recognize that in practice such unitaries must be implemented using a more limited set of few-qubit operations, such as the universal gate sets of one- and two-qubit operators. Whether it is more productive to classically optimize over more general unitaries then “compile” these into few-qubit operations as a separate step, or to parameterize the models in terms of fewer operations from the outset remains an interesting and important practical question for further work.

ii.1 Discriminative Algorithm

To explain the discriminative tensor network framework that we propose here, assume that the input to the algorithm takes the form of a vector of real numbers , with each component normalized such that . For example, such an input could correspond to a grayscale image with pixels, with individual entries encoding normalized grayscale values. We map this vector to a product state on N qubits according to the feature map proposed in Ref. Stoudenmire and Schwab, 2016:


Such a state can be prepared by starting from the computational basis state , then applying a single qubit unitary to each qubit .

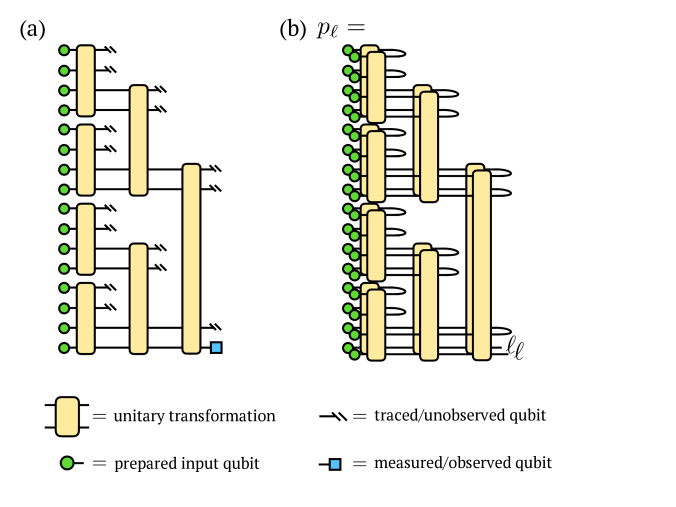

Figure 2: Discriminative tree tensor network model architecture, showing an example in which qubits connect different subtrees. Figure (a) shows the model implementation as a quantum circuit. Circles indicate inputs prepared in a product state as in Eq. 1; hash marks indicate qubits that remain unobserved past a certain point in the circuit. A particular pre-determined qubit is sampled (square symbol) and its distribution serves as the output of the model. Figure (b) shows the tensor network diagram for the reduced density matrix of the output qubit.

Figure 3: The connectivity of nodes of our tree network model, as it would be applied to a 4x4 image. Each step coarse-grains in either the horizontal or the vertical directions, and these steps alternate.

The model we then propose can be seen as an iterative coarse-graining procedure that parameterizes a CPTP (completely positive trace preserving) map from an N-qubit input space to a small number of output qubits encoding the different possible class labels. The circuit takes the form of a tree, with qubit lines connecting each subtree to the rest of the circuit. We call such qubit lines “virtual qubits” to connect with the terminology of tensor networks, where tensor indices internal to the network are called virtual indices. A larger can capture a larger set of functions, just as a tensor network with a sufficiently large bond dimension can parameterize any N-index tensor.

At each step, we take of the qubits resulting from one of the unitary operations of the previous step, or subtree, and from another subtree and act on them with another parameterized unitary transformation (possibly together with some ancilla qubits—not shown). Then of the qubits are discarded, while the other proceed to the next node of the tree, that is, the next step of the circuit. In our classical simulations we trace over all discarded qubits, while on a quantum computer, we would be free to ignore or reset such qubits.

Figure 4: Discriminative tensor network model for the case of a matrix product state (MPS) architecture with qubits connecting each subtree. The symbols have the same meaning as in Fig. 2. An MPS can be viewed as a maximally unbalanced tree.

Once all unitary operations defining the circuit have been carried out, one or more qubits serve as the output qubits. (Which qubits are outputs is designated ahead of time.) The most probable state of the output qubits determines the prediction of the model, that is, the label the model assigns to the input. To determine the most probable state of the output qubits, one performs repeated evaluations of the circuit for the same input in order to estimate their probability distribution in the computational basis.

We show the quantum circuit of our proposed procedure in Fig. 2. In the case of image classification, it is natural to always group input qubits based on pixels coming from nearby regions of the image, with a tree structure illustrated schematically in Fig. 3.

A closely related family of models can be devised based on matrix product states. An example is illustrated in Fig. 4 showing the case of . Matrix product states (MPS) can be viewed as maximally unbalanced trees, and differ from the binary tree models described above in that after each unitary operation on inputs only one set of qubits are passed to the next node of the network. Such models are likely a better fit for data that has a one-dimensional pattern of correlations, such as time-series, language, or audio data.

ii.2 Generative Algorithm

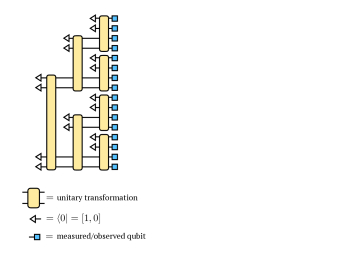

Figure 5: Generative tree tensor network model architecture, showing a case with qubits connecting each subtree. To sample from the model, qubits are prepared in a reference computational basis state (left-hand side of circuit). Then qubits are entangled via unitary operations at each layer of the tree as shown. The qubits are measured at the points in the circuit labeled by square symbols (right-hand side of circuit), and the results of these measurements provides the output of the model. While all qubits could be entangled before being measured, we discuss in Section IV the possibility performing opportunistic measurements to reduce the physical qubit overhead.
Figure 6: Generative tensor network model for the case of a matrix product state (MPS) architecture with qubits connecting each unitary. The symbols have the same meaning as in Fig. 5.

The generative algorithm we propose is nearly the reverse of the discriminative algorithm, in terms of its circuit architecture. The algorithm produces random samples by first preparing a quantum state then measuring it in the computational basis, putting it within the family of algorithms recently dubbed “Born machines” Han et al. (2017); Gao et al. (2017); Benedetti et al. (2018). But rather than preparing a completely general state, we shall consider specific patterns of state preparation corresponding to tree and matrix product state tensor networks. This provides the advantages discussed in the introduction, such as connections to classical tensor network models and the ability to reduce the number of physical qubits required, which will be discussed further in Section IV.

The generative algorithm based on a tree tensor network (shown in Fig. 5) begins by preparing qubits in a reference computational basis state , then entangling these qubits by unitary operations. Another set of qubits are prepared in the state . Half of these are grouped with the first entangled qubits, and half with the second entangled qubits. Two more unitary operations are applied to each new grouping of qubits; the outputs are now split into four groups; and the process repeats for each group. The process ends when the total number of qubits processed reaches the size of the output one wants to generate.

Once all unitaries acting on a certain qubit have been applied, this qubit can be measured. The measured output of all of the qubits in the computational basis represents one sample from the generative model.

We illustrate our proposed generative approach for the case of and binary outputs in Fig. 5. As in the discriminative case, one can also devise an MPS based generative algorithm more suitable for one-dimensional data. The circuit for such an algorithm is shown in Fig. 6.

Iii Numerical Experiments

To show the feasibility of implementing our proposal on a near-term quantum device, we trained a discriminative model based on a tree tensor network for a supervised learning task, namely labeling image data. The specific network architecture we used is shown as a quantum circuit in Fig.

7. When viewed as a tensor network, this model has a bond dimension of . This stems from the fact that after each unitary operation entangles two qubits, only one of the qubits is acted on at the next scale (next step of the circuit).

iii.1 Loss Function

Our eventual goal is to select the parameters of our circuit such that we can confidently assign the correct label to a new piece of data by running our circuit a small number of times. To this end, we choose the loss function which we want to minimize starting with the following definitions. Let

be the model parameters; be an element of the training data set; and let be the probability of the model to output a label for a given input . Because we consider the setting of supervised learning, the correct labels are known for the training set inputs, and define to be the correct label for the input . Now define


as the probability of the incorrect output state which has the highest probability of being observed. Then, define the loss function for a single input to be


and the total loss function to be


The “hyper-parameters” and are to be chosen to give good empirical performance on a validation data set. Essentially, we assign a penalty for each element of the training set where the gap between probability of assigning the true label and the probability of assigning the most likely incorrect label is less than . This loss function allows us to concentrate our efforts during training on making sure that we are likely to assign the correct label after taking the majority vote of several executions of the model, rather than trying to force the model to always output the correct label in each separate run.

Figure 7: Model architecture used in the experiments of Section III, which is a special case of the model of Fig. 2 with one virtual qubit connecting each subtree. For illustration purposes we show a model with 16 inputs and 4 layers above, whereas the actual model used in the experiments had 64 inputs and 6 layers.

iii.2 Optimization

Of course, we are interested in training our circuit to generalize well to unobserved inputs, so instead of optimizing over the entire distribution of data as in Eq. 4, we optimize the loss function over a subset of the training data and compare to a held-out set of validation data. Furthermore, because the size of the training set for a typical machine learning problem is so large (60,000 examples in the case of the MNIST data set), it would be impractical to calculate the loss over all of the training data at each optimization step. Instead, we follow a standard approach in machine learning and randomly select a mini-batch of training examples at each iteration. Then, we use the following stochastic estimate of our true training loss (recalling that represents the current model parameters):


In order to faithfully test how our approach would perform on a near-term quantum computer, we have chosen to minimize our loss function using a variant of the simultaneous perturbation stochastic approximation (SPSA) algorithm which was recently used to find quantum circuits approximating ground states in Ref. Kim and Swingle, 2017 and was originally developed in Ref. Spall, 1998.

Essentially, each step of SPSA estimates the gradient of the loss function by performing a finite difference calculation along a random direction and updates the parameters accordingly. In our experimentation, we have also found it helpful to include a momentum term in the update at step , which mixes a fraction of previous update steps into the current update. We outline the algorithm we used in more detail below.

  1. Initialize the model parameters randomly, and set to zero.

  2. Choose appropriate values for the constants, that define the optimization procedure.

  3. For

    1. Randomly choose training images.

    2. Set and

    3. Generate random perturbation in parameter space.

    4. Evaluate , with defined as in Eq. 5.

    5. Set

    6. Set

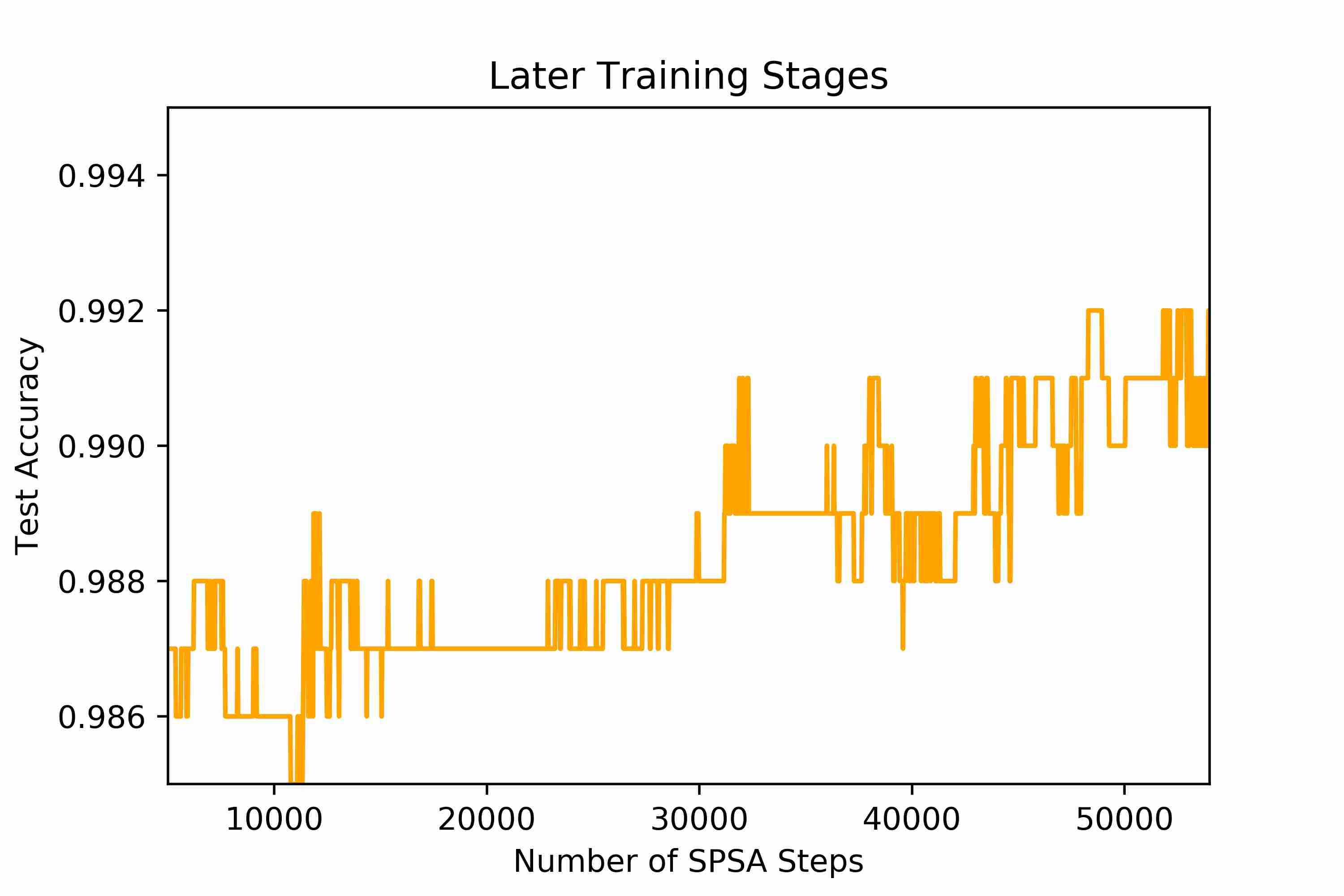

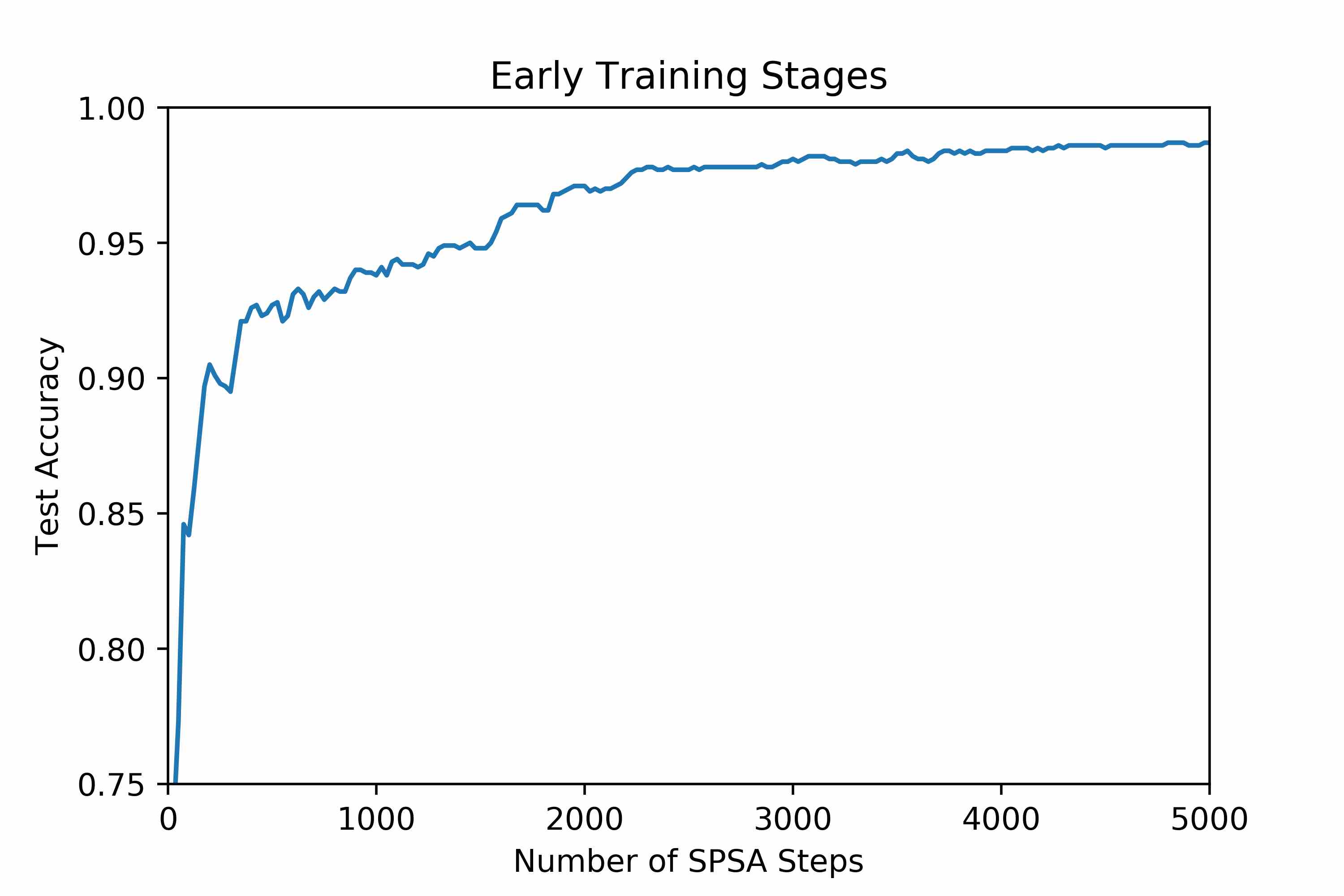

Figure 8: Test accuracy as a function of the number of SPSA steps for binary classification of handwritten 0’s and 1’s from the MNIST data set. The test set consisted of 1000 samples from the official MNIST test set. The upper figure shows the accuracy of labels the model assigns to the test set throughout the initial part of training procedure; the lower panel shows the test accuracy at later stages of the optimization.

iii.3 Results

We trained a circuit with a single output qubit at each node to recognize grayscale images of size belonging to one of two classes using the SPSA optimization procedure described above. The images were obtained from the MNIST data set of handwritten digits Yann LeCun , and for the two classes we selected handwriting samples of the digits and .

The unitary operations applied at each node in the tree were parameterized by writing them as where is a Hermitian matrix (the matrices were allowed to be different for each node). The free parameters were chosen to be the elements forming the diagonal and upper triangle of each Hermitian matrix, resulting in exactly 1008 free parameters for the image recognition task.

The mini-batch size and the other hyper parameters for the training procedure and the loss function were hand-tuned by running a small number of experiments with the goal of obtaining the most rapid and consistent performance on a validation data set. Each mini-batch of training data consisted of elements drawn uniformly at random from the full MNIST training set, while the test data consisted of 1,000 examples selected randomly from the official MNIST test set.

Ultimately, we found that a network trained with the choices was able to quickly achieve a test accuracy above 95%, and ultimately reached an accuracy of 99% on the held out validation data. Data from a representative example of this training process is show in Fig. 8.

Iv Implementation on Near-Term Devices

A key advantage of carrying out machine learning tasks with models equivalent to tree or matrix product tensor networks is that they could be implemented using a very small number of physical qubits. The key requirement is that the hardware must allow the measurement of individual physical qubits without further disturbing the state of the other qubits, a capability also required for certain approaches to quantum error correction Córcoles et al. (2015). Below we will first discuss how the number of qubits needed to implement either a discriminative or generative tree tensor network model can be made to scale only logarithmically in both the data dimension and in the bond dimension of the network. Then we will discuss the special case of matrix product state tensor networks, which can be implemented with a number of physical qubits that is independent of the input or output data dimension.

Another key advantage of using tensor network models on near-term devices could be their robustness to noise, which will certainly be present in any near-term hardware. To explore the noise resilience of our models, we present a numerical experiment where we evaluate the model trained in Section III with random errors, and observe whether it can still produce useful results.

iv.1 Qubit-Efficient Tree Network Models

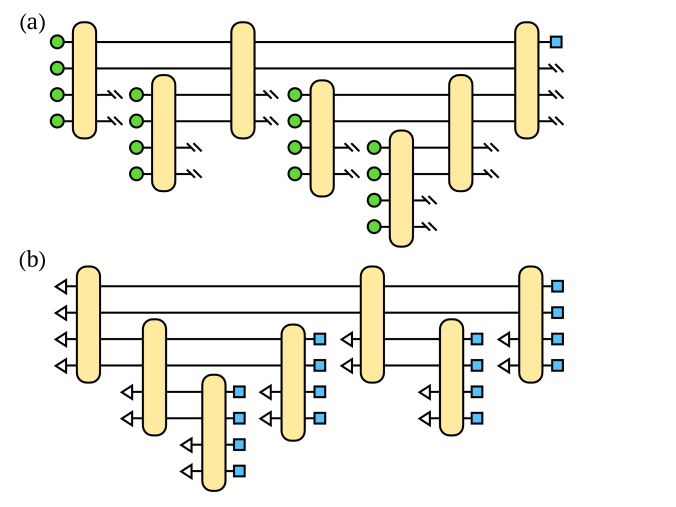

Figure 9: Qubit-efficient scheme for evaluating (a) discriminative and (b) generative tree models with virtual qubits and inputs or outputs. Note that the two patterns are the reverse of each other. In (a) qubits indicated with hash marks are measured and the measurement results discarded. These qubits are then reset and prepared with additional input states. In (b) measured qubits are recorded and reset to a reference state .

To discuss the minimum qubit resources needed to implement general tree tensor network models, recall the notion of the virtual qubit number from Section II. This is the number of qubit lines connecting each subtree to higher nodes in the tree. Viewed as a tensor network, the bond dimension , or dimension of the internal tensor indices, is given by .

For example, the tree shown in Fig. 7 has and a bond dimension of . The tree shown in Fig. 9 has and . When discussing these models in general terms, it suffices to consider only unitary operations acting on qubits, since at each node of the tree, two subtrees (two sets of qubits) are entangled together.

Given only the ability to perform state preparation and unitary operations, it would take physical qubits to evaluate a discriminative tree network model on inputs. However, if we also allow the step of measurement and resetting of certain qubits, then the number of physical qubits required to process inputs given virtual states passing between each node can be significantly reduced to just .

To see why, consider the circuit showing the most qubit-efficient scheme for imeplementing the discriminative case Fig. 9(a). For a given , the number of inputs that can be processed by a single unitary is . Then of the qubits can be measured and reused, but the other qubits must remain entangled. So only new qubits must be introduced to process more inputs. From this line of reasoning and the observation that , one can deduce the result .

For generative tree network models, generating outputs with virtual qubits requires the same number of physical qubits as for the discriminative case; this can be seen by observing that the pattern of unitaries is just the reverse of the discriminative case for the same and . Fig. 9 shows the most qubit-efficient way to sample a generative tree models for the case of virtual and output qubits, requiring only physical qubits.

Though a linear growth of the number of physical qubits as a function of virtual qubit number may seem more prohibitive compared to the logarithmic scaling with , even a small increase in would lead to a significantly more expressive model. From the point of view of tensor networks the expressivity of the model is usually measured by the bond dimension . In terms of the bond dimension, the number of qubits needed thus scales only as . The largest bond dimensions used in state-of-the-art classical tensor network calculations are around or about . So for or more virtual qubits one would quickly exceed the power of any classical tensor network calculation we are aware of.

iv.2 Qubit-Efficient Matrix Product Models

Figure 10: Qubit-efficient scheme for evaluating (a) discriminative and (b) generative matrix product state models for an arbitrary number of inputs or outputs. The figure shows the case of qubits connecting each node of the network. When evaluating the discriminative model, one of the qubits is measured after each unitary is applied and the result discarded; the qubit is then prepared with the next input component. To implement the generative model, one of the qubits is measured after each unitary operation and the result recorded. The qubit is then reset to the state .

A matrix product state (MPS) tensor network is a special case of a tree tensor network that is maximally unbalanced. This gives an MPS certain advantages without sacrificing expressivity for one-dimensional distributions, as measured by the maximum entanglement entropy it can carry across bipartitions of the input or output space, meaning a division of from .

Given the ability to measure and reset a subset of physical qubits, a key advantage of implementing a discriminative or generative tensor network model based on an MPS is that for a model with virtual qubits, an arbitrary number of inputs or outputs can be processed by using only physical qubits. The circuits illustrating how this can be done are shown in Fig. 10.

The implementation of the discriminative algorithm shown in Fig. 10(a) begins by preparing and entangling input qubit states. One of the qubits is measured and reset to the next input state. Then all qubits are entangled and a single qubit measured and re-prepared. Continuing in this way, one can process all of the inputs. Once all inputs are processed, the model output is obtained by sampling one or more of the physical qubits.

To implement the generative MPS algorithm shown in Fig. 10(b), one prepares all qubits to a reference state and after entangling the qubits, one measures and records a single qubit to generate the first output value. This qubit is reset to the state and all the qubits are then acted on by another qubit unitary. A single qubit is again measured to generate the second output value, and the algorithm continues until outputs have been generated.

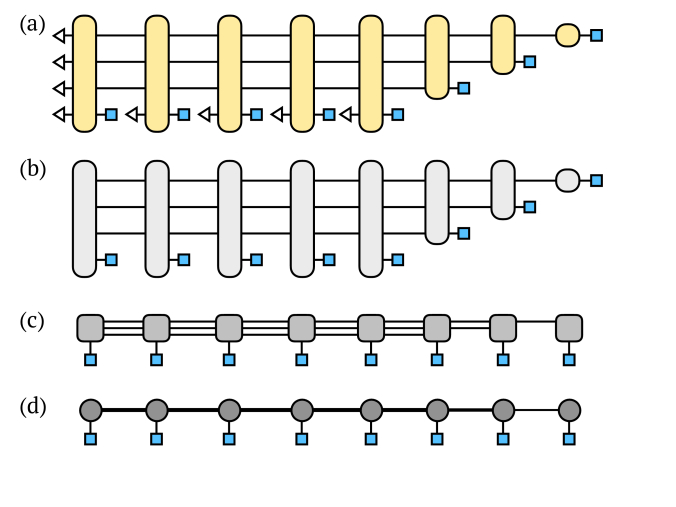

Figure 11: Mapping of the generative matrix product state (MPS) quantum circuit with to a bond dimension MPS tensor network diagram. First (a) interpret the circuit diagram as a tensor diagram by interpreting reference states as vectors ; qubit lines as dimension 2 tensor indices; and measurements as setting indices to fixed values. Then (b) contract the reference states into the unitary tensors and (c) redraw the tensors in a linear chain. Finally, (d) merge three indices into a single dimensional index on each bond.

To understand the equivalence of the generative circuit of Fig. 10(b) to conventional tensor diagram notation for an MPS, interpret the circuit diagram Fig. 11(a) as a tensor network diagram, treating elements such as reference states as tensors or vectors . One can contract or sum over the reference state indices and merge any qubit indices into a single index of dimension . The result is a standard MPS tensor network diagram Fig. 11(d) for the amplitude of observing a particular set of values of the measured qubits.

iv.3 Noise Resilience

In order to develop a qualitative understanding of the impact of noise on our proposed models, we consider a simple noise process that randomly corrupts the outputs of our multi-qubit unitaries with some small probability. In particular, we investigate how this type of error would affect a tree network discriminative model of the type proposed in Section II.1 and shown in Fig. 7.

At worst, an error that corrupts one of the unitary operations in the model effectively scrambles the information from the patch of inputs in the past “causal cone” of that unitary. However, the vast majority of the operations in our model occur near the leaves of the tree, and therefore, the most likely errors correspond to scrambling small patches of the input data. A good classifier should naturally be robust to small deformations and corruptions of the input, and, in fact, adding various kinds of noise during training is a commonly used strategy for improving the ability of machine learning models to generalize to unseen data.

To gain some insight into the impact of this noise process without having to simulate the entire noisy training procedure, we took the model from Section III, which was optimized without noise, and simulated various levels of two qubit gate errors when evaluating the test data. To be more precise about the error model, when evaluating the model for each test data input we use independent draws of a random number generator. As we apply each two-qubit gate to a given input, we corrupt the gate with probability by replacing it with a completely random unitary. Otherwise, with probability we apply the correct gate.

We determined the test accuracy at a given error rate by taking each element of our test set, drawing 400 samples from noisy evaluations of our trained model, and assigning a label by majority vote. The results of the evaluations of the test set for various error probability levels are shown in Fig. 12. It is interesting to see that the resulting test set accuracies stay close to the noiseless value until the error rate reaches , after which the accuracy declines roughly linearly.

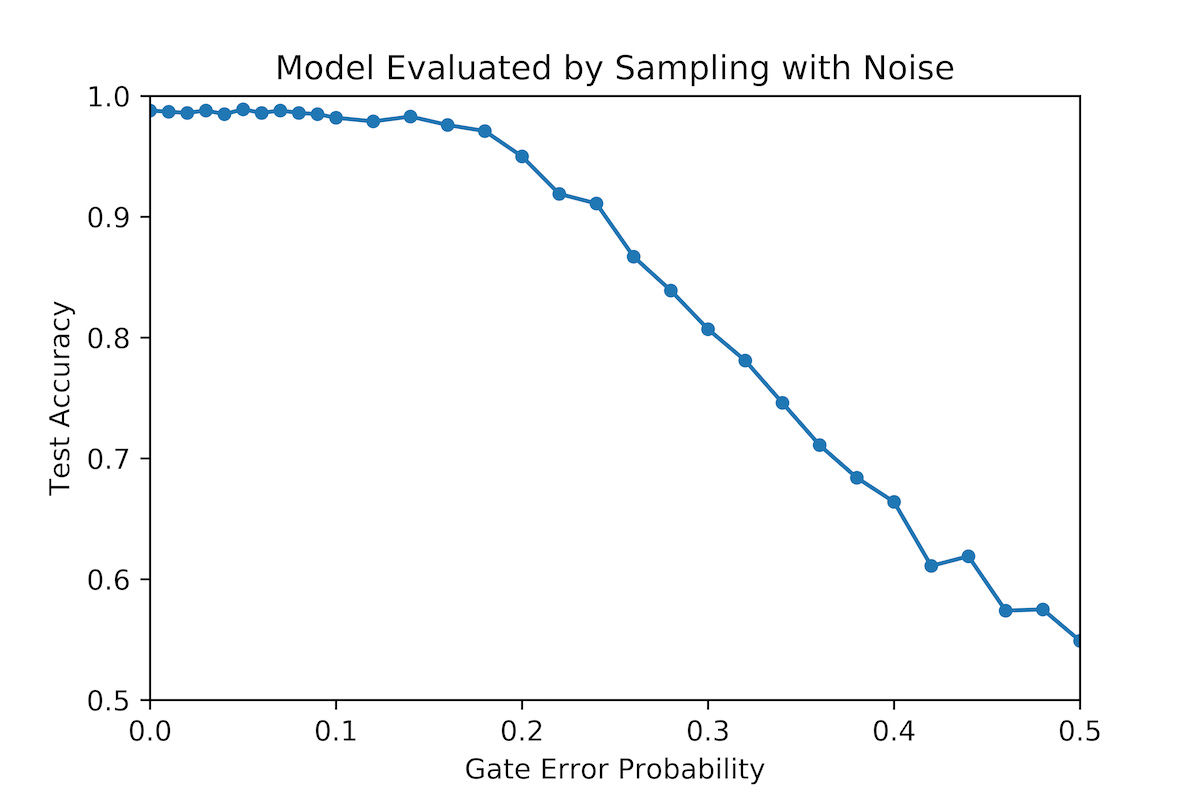

Figure 12: Test accuracy as a function of the probability of a two-qubit gate error. A label was assigned to each element of the test set by sampling the noisy model 400 times and taking a majority vote.

Though the observed behavior depends on certain details of the data set, the method of training, and the number of evaluations chosen for the majority vote, we find the results encouraging as empirical evidence of our intuition that models of this type may have inherent noise robustness properties. It would be interesting in future work to compare other noise models, as well as other data sets and training methods for the same tensor network circuit architectures.

V Discussion

Many of the features that make tensor networks appealing for classical algorithms also make them a promising framework for quantum computing. Tensor networks provide a natural hierarchy of increasingly complex quantum states, allowing one to choose the appropriate amount of resources for a given task. They also enable specialized algorithms which can make efficient use of valuable resources, such as reducing the number of qubits needed to process high dimensional data. An optimized, classically tractable tensor network can be used to initialize the parameters of a more powerful model implemented on quantum hardware. Doing so would alleviate issues associated with random initial parameters, which can place circuits in regions of parameter space with vanishing gradients

McClean et al. (2018).

While the approach to optimization we considered in our numerical experiments worked well, algorithms which are more specialized to the tensor network architecture could be devised. For example, by defining an objective for each subtree of a tree network it could be possible to train subtrees separately Stoudenmire (2018). Likewise, the MPS architecture has certain orthogonality or light-cone properties which mean that only the tensors to the left of a certain physical index determine its distribution; this property could also be exploited for better optimization.

Another very interesting future direction would be to gain a better understanding of the noise resilience of tensor network machine learning algorithms. We performed a simple numerical experiment to show that these algorithms can tolerate a high level of noise, but additional empirical demonstrations as well as a theoretical explanation of how generic this property is would be very useful. In an interesting recent work, Kim and Swingle investigated tensor networks within a quantum computing framework for finding ground states of local Hamiltonians Kim and Swingle (2017). One of their results was a rigorous bound on the sensitivity of the algorithm output to noise, which relied on specific properties of tensor networks. It would be very interesting adapt their bound to the machine learning context.

Other tensor network architectures besides trees and MPS also deserve further investigation in the context of quantum algorithms. The PEPS family of tensor networks are specially designed to capture two-dimensional patterns of correlations Schwarz et al. (2012, 2013). The MERA family of tensor networks, retain certain benefits of tree tensor networks but have more expressive power, and admit a natural description as a quantum circuit Vidal (2008); Kim and Swingle (2017).

Tensor networks strike a careful balance between expressive power and computational efficiency, and can be viewed as a particularly useful and natural class of quantum circuits. Based on the rich theoretical understanding of their properties and powerful algorithms for optimizing them, we are optimistic they will provide many interesting avenues for quantum machine learning research.


We thank Dave Bacon, Norm Tubman, Alejandro Perdomo-Ortiz, Brad Mitchell, Mark Nowakowski, and Lei Wang for helpful discussions. The work of W. Huggins and K. B. Whaley was supported by the U.S. Department of Energy, Office of Science, Office of Advanced Scientific Computing Research, Quantum Algorithm Teams Program, under contract number DE-AC02-05CH11231. Computational resources were provided by NIH grant S10OD023532, administered by the Molecular Graphics and Computation Facility at UC Berkeley.
