1. Introduction

Figure 1. Pipeline of our visual search system within Elasticsearch. The image vectors and their encoded string tokens are indexed together into Elasticsearch. At search time, the query vector will be first encoded into string tokens , based on which a small candidate set is retrieved. We will then re-rank vectors in according to their exact Euclidean distances with , and output the top ones as our final visual search outcome.

Elasticsearch (Gormley and Tong, 2015), built on top of Apache Lucene library (McCandless et al., 2010; Bialecki et al., 2012; contributors, 2018h), is an open-source, real-time, distributed and multi-tenant textual search engine. Since its first release in February 2010, Elasticsearch has been widely adopted by eCommerce websites (e.g., Ebay, Etsy, Jet, Netflix, Grubhub) to successfully help customers discover products based on the textual queries they requested (contributors, 2018f; Wikipedia contributors, 2018a) .

But a picture is more than often worth a thousand words. With the explosive usage of phone cameras, content-based image retrieval (Datta et al., 2008) is increasingly demanded from customers. Especially for categories like furniture, fashion and lifestyle (where buying decisions are largely influenced by products’ visual appealingness), uploading a picture of the product they like could be substantially more specific, expressive and straightforward than elaborating it into abstract textual description.

Finding images relevant with the uploaded picture tends to be much more involved and vaguer than retrieving documents matching keywords (Salton et al., 1975; Wikipedia contributors, 2018b; Robertson and Zaragoza, 2009)

typed into the search box, as words (by themselves) are substantially more semantic and meaningful than image pixel values. Fortunately, modern AI techniques, especially the ones developed in the field of deep learning

(Bengio, 2009; Goodfellow et al., 2016)

, have made incredible strides in image feature extraction

(Raina et al., 2007; Mesnil et al., 2011; Le et al., 2012; Donahue et al., 2014; Oquab et al., 2014; Zeiler and Fergus, 2014; Razavian et al., 2014; Yosinski et al., 2014) to embed images as points in high-dimensional Euclidean space, where similar images are located nearby. So, given a query image, we can simply retrieve its visually similar images by finding its nearest neighbors in this high-dimensional feature space. However, Elasticsearch, as an inverted-index-based search engine, is not much empowered to accomplish this mathematically straightforward operation in an efficient manner (though efforts (Gennaro et al., 2010; contributors, 2016; Lux et al., 2016; contributors, 2017; Knize, 2018) have been made successfully in finding nearest neighbors over spaces of much lower dimension), which significantly limits the applicability of its nicely designed engineering system as well as the huge volume of product metadata already indexed into its database (for textual search). The gist of the paper is to conquer this difficulty, and thus make it feasible to conduct visual search within Elasticsearch.

In this paper, we describe our end-to-end visual search platform built upon Elasticsearch. As far as we know, this is the first attempt to achieve this goal and our efforts turn out to be quite worthwhile. By taking advantage of the mature engineering design from Elasticsearch, we end up with a visual search solution that is extremely easy to be deployed, distributed, scaled and monitored. Moreover, due to Elasticsearch’s disk-based (and partially memory cached) inverted index mechanism, our system is quite cost-effective. In contrast to many existing systems (using hashing-based (Andoni and Indyk, 2006; Torralba et al., 2008; Weiss et al., 2009; Wang et al., 2010; Gong et al., 2013; He et al., 2013; Liu et al., 2014) or quantization-based (Jegou et al., 2011, 2011; Jegou et al., 2012; Ge et al., 2013; Kalantidis and Avrithis, 2014) approximate nearest neighbor (ANN) methods), we do not need to load those millions of (high-dimensional and dense) image feature vectors into RAM, one of the most expensive resources in large-scale computations. Furthermore, by integrating textual search and visual search into one engine, both types of product information can now be shared and utilized seamlessly in a single index. This paves a coherent way to support multimodal searches, allowing customers to express their interests in a variety of textual requests (e.g., keywords, brands, attributes, price ranges) jointly with visual queries, at which most of existing visual search systems fall short (if not impossible).

Since the image preprocessing step and the image feature extraction step involved in our system are standard and independent of Elasticsearch, in this paper we address more towards how we empower Elasticsearch to retrieve close image feature vectors, i.e., the Elasticsearch-related part of the visual system. Our nearest neighbor retrieval approach falls under the general framework recently proposed by Rygl et al. (2017). The core idea is to create text documents from image feature vectors by encoding each vector into a collection of string tokens in a way such that closer vectors will share more string tokens in common. This enables Elasticsearch to approximately retrieve neighbors in image feature space based on their encoded textual similarities. The quality of the encoding procedure (as expected) is extremely critical to the success of this approach. In the paper, we propose a noval scheme called subvector-wise clustering encoder, which substantially outperforms the element-wise rounding one proposed and examined by Rygl et al. (2017) and Ruzicka et al. (2018), in terms of both precision and latency. Note that our methodology should be generally applicable to any full-text search engine (e.g., Solr (Smiley et al., 2015), Sphinx (Aksyonoff, 2011)) besides Elasticsearch, but in the paper we do share a number of Elasticsearch-specific implementation tips based on our first-hand experience, which should be valuable to practitioners interested in building their own visual search system on top of Elasticsearch.

The rest of the paper is organized as follows. In Section 2, we describe the general pipeline of our visual search system, and highlight a number of engineering tweaks we found useful when implementing the system on Elasticsearch. In Section 3 and 4, we focus on how to encode an image feature vector into a collection of string tokens—the most crucial part in setting up the system. In Section 3, we first review the element-wise rounding encoder and address its drawbacks. As a remedy, we propose a new encoding scheme called subvector-wise clustering encoder, which is empirically shown in Section 4 to much outperform the element-wise rounding one.

2. General Framework of Visual Search within Elasticsearch

The whole pipeline of our visual search engine is depicted in Figure 1, which primarily consists of two phases: indexing and searching.


Given image feature vectors


we will first encode them into string tokens


where for some encoder converting a -dimensional vector into a collection of string tokens of cardinality . The original numerical vectors and encoded tokens , together with their textual metadata (e.g, product titles, prices, attributes), will be all indexed into the Elasticsearch database, to wait for being searched.


Conceptually, the search phase consists of two steps: retrieval and reranking. Given a query vector , we will first encode it into via the same encoder used in indexing, and retrieve () most similar vectors as candidates based on the overlap between the string token set and the ones in , i.e.,


We will then re-rank vectors in the candidate set according to their exact Euclidean distances with respect to the query vector , and choose the top- () ones as the final visual search result to output, i.e.,


As expected, the choice of is extremely critical to the success of the above approach. A good encoder should encourage image feature vectors closer in Euclidean distance to share more string tokens in common, so that the retrieval set obtained from the optimization problem (2.3) could contain enough meaning candidates to be fed into the exact search in (2.4). We will elaborate and compare different choices of encoders in the next two sections (Section 3&4).


In this part, we will address how we implement the retrieval and reranking steps in the searching phase efficiently within just one JSON-encoded request body (i.e., JSON 2), which instructs the Elasticsearch server to compute (2.3) and (2.4) and then return the visual search result in a desired order (via Elasticsearch’s RESTful API over HTTP).

For the retrieval piece, we construct a function score query (contributors, 2018b) to rank database images based on (2.3). Specifically, our function score query (lines 3-29 in JSON 2) consists of score functions, each of which is a term filter (contributors, 2018g) (e.g., lines 6-14 in JSON 2) to check whether the encoded feature token from the query image is being matched or not. With all the scores being summed up (line 26 in JSON 2) using the same weight (e.g., lines 13 and 23 in JSON 2), the ranking score for the database images are calculated exactly as the number of feature tokens they overlap with the ones in .

For the reranking piece, our initial trial is to fetch the top- image vectors from the retrieval step, and calculate (2.4) to re-rank them outside Elasticsearch. But this approach prevents our visual system from being an end-to-end one within Elasticsearch, and thus makes it hard to leverage many useful microservices (e.g., pagination) provided by Elasticsearch. More severely, this vanilla approach introduces substantial latency in communication as thousands of high-dimensional and dense image embedding vectors have to be transported out of Elasticsearch database. As a remedy, we design a query rescorer (contributors, 2018e) (lines 30-52 in JSON 2) within Elasticsearch to execute a second query on the top- database image vectors returned from the function score query, to tweak their scores and re-rank them based on their exact Euclidean distances with the query image vector. In specific, we implement a custom Elasticsearch plugin (contributors, 2018c) (lines 35-47 in JSON 2) to compute the negation of the Euclidean distance between query image vector and the one from database. As Elasticsearch will rank the result based on the ranking score from high to low, the output will be in the desired order from the smallest distance to the largest one.

[h!] [linenos=true]json ”size”: s, ”query”: ”function_score”: ”functions”: [ ”filter”: ”term”: ”image_encoded_tokens”: ”query_encoded_token_1” , ”weight”: 1 , …, ”filter”: ”term”: ”image_encoded_tokens”: ”query_encoded_token_m” , ”weight”: 1 ], ”score_mode”: ”sum”, ”boost_mode”: ”replace” , ”rescore”: ”window_size”: r, ”query”: ”rescore_query”: ”function_score”: ”script_score”: ”script”: ”lang”: ”custom_scripts”, ”source”: ”negative_euclidean_distance”, ”params”: ”vector_field”: ”image_actual_vector”, ”query_vector”: [0.1234, -0.2394, 0.0657, …] , ”boost_mode”: ”replace” , ”query_weight”: 0, ”rescore_query_weight”: 1 Request body for visual search in Elasticsearch 6.1

Multimodal search

More often than not, scenarios more complicated than visual search will be encountered. For instance, a customer might be fascinated with the design and style of an armoire at her friend’s house, but she might want to change its color to be better aligned with her own home design or want the price to be within her budget (see Figure 2). Searching using the picture snapped is most likely in vain. To better enhance customers’ shopping experiences, a visual search engine should be capable of retrieving results as a joint outcome by taking both the visual and textual requests from customers into consideration. Fortunately, our Elasticsearch-based visual system can immediately achieve this with one or two lines modifications in JSON 2. In particular, filters can be inserted within the function score query to search only among products of customers’ interests (e.g., within certain price range (contributors, 2018d), attributes, colors). Moreover, general full-text query (contributors, 2018a) can also be handled, score of which can be blended with the one from visual search in a weighted manner.

Figure 2. Illustration of multimodal search. Armoire is searched using image query jointly with color/price range specified by the customer. Our Elasticsearch-based visual search engine can be easily tailored to handle complicated business requests like the above by adding filters (e.g., term filter (contributors, 2018g), range filter (contributors, 2018d)) to JSON 2.

3. Vector to String Encoding

The success of our approach hinges upon the quality of the encoder , which ideally should encourage closer vectors to share more sting tokens in common, so that the retrieval set found based on token matching contains enough meaningful candidates. In the following, we first review the element-wise rounding encoder proposed by Rygl et al. (2017), and discuss its potential drawbacks. As a remedy, we propose a novel encoding scheme called subvector-wise clustering encoder.

3.1. Element-wise Rounding

Proposed and examined by Rygl et al. (2017) and Ruzicka et al. (2018), the element-wise rounding encoder rounds each value in the numerical vector to decimal places (where is a fixed integer), and then concatenates its positional information and rounded value as the string tokens.

Example 0 ().

For a vector , rounding to two decimal places (i.e., ) produces string tokens of as

The encoded positional information is essential for the inverted-index-based search system to match (rounded) values at the same position without confusion. Suppose on the other hand, positional information is ignored, and thus

Then the attribute “val0.12” could be mistakenly matched by another encoded token even when it is not produced from the first entry.

For a high-dimensional vector , this vanilla version of the element-wise rounding encoder will generate a large collection of string tokens (essentially with ), which makes it infeasible for Elasticsearch to compute (2.3) in real time.


As a remedy, Rygl et al. (2017) presents a useful filtering technique to sparsify the string tokens. In specific, only top- entries in terms of magnitude are selected to create rounding tokens.

Example 0 ().

For the same setting with Example 1, when is set as , the string tokens will be produced as

with only the first and second entries being selected; and when is set as , the string tokens will be produced as

with only the second entry being selected.


Although the filtering strategy is suggested to maintain a good balance between feature sparsity and search quality (Rygl et al., 2017; Ruzicka et al., 2018), it might not be the best practice to reduce the number of string tokens with respect to finding nearest neighbors in general. First, for two points , their Euclidean distance


is summed along each axis equally rather than biasedly based on the magnitude of (or ). In specific, a mismatch/match with a (rounded) value does not imply that it is less important than a mismatch/match with a , in terms of their contributions to the sum (3.1). What essentially matters is the deviation rather than the value of (or ) by itself. Therefore, entries with small magnitude should not be considered as less essential and be totally ignored. Second, the efficacy of the filtering strategy is vulnerable to data distributions. For example, when the embedding vectors are binary codes (Heinly et al., 2012; Lai et al., 2015; Lu et al., 2017; Song, 2017; Loncaric et al., 2018), choosing top- entries will lead to an immediate tanglement (see (Mu et al., 2019) for a recently proposed implementation on Elasticsearch to efficiently conduct exact nearest neighbor search in Hamming space).

In the next subsection, we will propose an alternative encoder, which keeps all value information into consideration and is also more robust with respect to the underlying data distribution.

3.2. Subvector-wise Clustering

Different from the element-wise rounding one, an encoder that operates on a subvector level will be presented in this part. The idea is also quite natural and straightforward. For any vector , we divide it into subvectors111For simplicity, we assume divides .,


Denote as the collection of the -th subvectors from for . We will then separately apply the classical -means algorithm (MacQueen, 1967) to divide each into clusters with the learned assignment function

assigning each subvector to the cluster index it belongs to. Then for any , we will encode it into a collection of string tokens


The whole idea is illustrated in Figure 3. The trade-off between search latency and quality is well controlled by the parameter . In specific, a larger will tend to increase the search quality as well as the search latency, as more string tokens per each vector will be indexed.

In contrast with the element-wise rounding encoder, our subvector-wise clustering encoder obtains string tokens without throwing away any entry in , and will generate string tokens more adaptive with the data distribution, as the assignment function for each subspace is learned through (or data points sampled from ).

Figure 3. Illustration of the subvector-wise clustering encoder. The vector is divided into

subvectors. Subvectors at the same position are considered together to be classified into

clusters. Then each subvector is encoded into a string token by combining its position in and the cluster it belongs to, so exact string tokens will be produced.

4. Experiment

In this section, we will compare the performance of the subvector-wise clustering encoder and the element-wise rounding one in terms of both precision and latency, when they are being used in our content-based image retrieval system built upon Elasticsearch.


Our image datasets consists of around half a million images selected from’s furniture catalog (, 2018). For each image, we extract its image feature vector using the pretrained Inception-ResNet-V2 model (Szegedy et al., 2017). In specific, each image is embedded into a vector in

by taking the output from the penultimate layer (i.e., the last average pooling layer) of the neural network model. String tokens are produced respectively with encoding schemes at different configurations. For the element-wise rounding encoder, we select

, and . For the subvector-wise clustering encoder, we experiment with and . Under each scenario, we index the image feature vectors and their string tokens into a single-node Elustersearch cluster deployed on a Microsoft Azure virtual machine (Microsoft Azure, 2018) with 12 cores and 112 GiB of RAM. To better focus on the comparison of the efficacy in encoding scheme, only vanilla setting of Elasticsearch (one shard and zero replica) is used in creating each index.


To evaluate the two encoding schemes, we randomly select 1,000 images to act as our visual queries. For each of the query image, we find the set of its 24 nearest neighbors in Euclidean distance, which is treated as gold standard. We use Precision@24 (Schütze et al., 2008), which measures the overlap between the 24 images retrieved from Elasticsearch (with respectively) and the gold standard, to evaluate the retrieval efficacy of different encoding methods under various settings. We also record the latency for Elasticsearch to execute the retrieval and reranking steps in the searching phase.

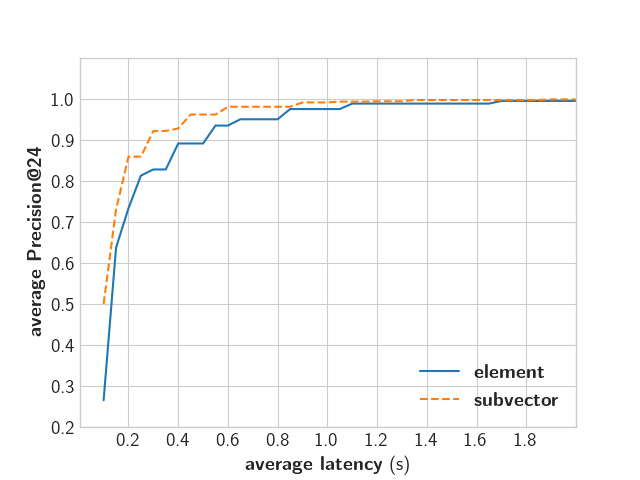

Figure 4. Pareto frontier for the element-wise rounding and the subvector-wise clustering encoders in the space of latency and precision. It can be clearly seen that our subvector-wise encoding scheme is capable of achieving higher precision with smaller latency.

In Table 1, we report the Precision@24 and search latency averaged over the 1,000 queries randomly selected. Results corresponding to or are skipped as they are largely outperformed by other settings. Configurations that can achieve precision and latency s are highlighted in bold. From Table 1, we can see that the subvector-wise encoder outperforms the element-wise one, as for all results obtained by the element-wise encoder, we can find a better result from the subvector-wise one in both precision and latency. To better visualize this fact, we plot the Pareto frontier curve over the space of precision and latency in Figure 4. In specific, the dashed (resp. solid) curve in Figure 4 is plotted as the best average Precision@24 achieved among all configurations we experiment for element-wise rounding (resp. subvector-wise clustering) encoder, under different latency constraints. From Figure 4, we can more clearly observe that the subvector-wise encoder surpasses the element-wise one. Notably, when we require the search latency to be smaller than 0.3 second, the subvector-wise encoder is able to achieve an average Precision@24 as 92.14%, yielding an improvement of more than 11% over the best average Precision@24 that can be obtained by the element-wise one.

5. Future Work

Although our subvector-wise clustering encoder outperforms the element-wise rounding one, it might be still restrictive to enforce a vector to be divided into subvectors exclusively using (3.2), which could potentially downgrade the performance of the encoder. Our next step is to preprocess the data (e.g., transform the data through some linear operation with learned from the data) before applying our subvector-wise clustering encoder. We believe this flexibility will make our encoding scheme more robust and adaptive with respect to different image feature vectors extracted from various image descriptors. Another interesting research direction is to evaluate the performances of different encoding schemes in other information retrieval contexts–e.g., neural ranking model based textual searches (Shen et al., 2014; Mitra and Craswell, 2017; Brenner et al., 2018), where relevances between user-issued queries and catalog products are modeled by their Euclidean distances in the embedding space to better match customers’ intents with products.

Encoding Round./Cluster. # of feature tokens ()
32 64 128 256
96 element 0-decimal-place 53.43% — 0.1237 64.35% — 0.2339 76.44% — 0.5256 88.64% — 1.5342
element 1-decimal-place 26.56% — 0.0920 37.94% — 0.1592 50.35% — 0.3370 63.71% — 0.8207
2-7 subvector 32-centroids 34.80% — 0.1111 54.45% — 0.1914 74.22% — 0.3760 87.44% — 0.8914
subvector 64-centroids 39.52% — 0.0963 58.51% — 0.1630 76.70% — 0.3426 87.28% — 0.7563
subvector 128-centroids 44.43% — 0.0914 61.93% — 0.1544 78.89% — 0.3088 85.58% — 0.7186
subvector 256-centroids 50.00% — 0.0900 66.22% — 0.1480 79.05% — 0.2970 82.89% — 0.6757
192 element 0-decimal-place 63.72% — 0.1405 74.63% — 0.2499 85.38% — 0.5416 94.13% — 1.5536
element 1-decimal-place 32.49% — 0.1084 45.50% — 0.1748 59.05% — 0.3529 72.12% — 0.8424
2-7 subvector 32-centroids 43.73% — 0.1256 64.88% — 0.2080 83.13%0.3917 93.56% — 0.9146
subvector 64-centroids 48.84% — 0.1130 69.14% — 0.1795 85.12% — 0.3594 93.28% — 0.7745
subvector 128-centroids 55.14% — 0.1082 72.62% — 0.1714 87.08% — 0.3250 91.97% — 0.7367
subvector 256-centroids 61.41% — 0.1066 77.08% — 0.1644 87.32% — 0.3137 89.28% — 0.6915
384 element 0-decimal-place 73.30% — 0.1749 82.76% — 0.2852 91.19% — 0.5756 97.03% — 1.5963
element 1-decimal-place 38.94% — 0.1431 53.43% — 0.2093 67.12% — 0.3877 79.25% — 0.8741
2-7 subvector 32-centroids 53.37% — 0.1603 73.92% — 0.2417 89.06%0.4262 96.82% — 0.9509
subvector 64-centroids 59.01% — 0.1479 78.15% — 0.2139 91.25%0.3935 96.59% — 0.8097
subvector 128-centroids 66.20% — 0.1433 81.56% — 0.2061 92.75% — 0.3596 95.44% — 0.7705
subvector 256-centroids 73.01% — 0.1415 85.88% — 0.1995 92.67% — 0.3520 93.38% — 0.7243
768 element 0-decimal-place 81.27% — 0.2455 89.09% — 0.3547 94.98% — 0.6443 98.60% — 1.6613
element 1-decimal-place 45.83% — 0.2130 61.30% — 0.2801 74.60% — 0.4574 84.87% — 0.9427
2-7 subvector 32-centroids 63.45% — 0.2297 81.30% — 0.3117 93.40%0.4974 98.58% — 1.0195
subvector 64-centroids 69.01% — 0.2182 85.47% — 0.2837 95.41%0.4647 98.38% — 0.8798
subvector 128-centroids 76.70% — 0.2133 88.91% — 0.2762 96.13%0.4288 97.50% — 0.8402
subvector 256-centroids 83.55% — 0.2112 92.14% — 0.2701 95.90%0.4267 95.94% — 0.7970
1536 element 0-decimal-place 87.55% — 0.3923 93.45% — 0.5027 97.47% — 0.8012 99.29% — 1.8486
element 1-decimal-place 53.76% — 0.3656 68.68% — 0.4361 81.05% — 0.6069 89.48% — 1.0931
2-7 subvector 32-centroids 72.75% — 0.3703 87.30%0.4524 96.14% — 0.6400 99.36% — 1.1574
subvector 64-centroids 78.85% — 0.3581 91.52%0.4218 97.74% — 0.6045 99.28% — 1.0188
subvector 128-centroids 86.00% — 0.3537 94.12% — 0.4158 98.03% — 0.5665 98.60% — 0.9763
subvector 256-centroids 91.16%0.3512 95.97% — 0.4087 97.70% — 0.5582 97.44% — 0.9281
3072 element 0-decimal-place 92.38% — 0.6843 96.40% — 0.8166 98.80% — 1.0909 99.63% — 2.1638
element 1-decimal-place 61.50% — 0.6625 75.62% — 0.7380 86.32% — 0.9135 92.85% — 1.3946
2-7 subvector 32-centroids 81.25% — 0.6645 92.11% — 0.7483 97.95% — 0.9375 99.68% — 1.4589
subvector 64-centroids 87.82% — 0.6556 96.32% — 0.7131 99.00% — 0.9006 99.68% — 1.3189
subvector 128-centroids 93.26% — 0.6508 97.72% — 0.7126 99.08% — 0.8604 99.21% — 1.2756
subvector 256-centroids 96.06% — 0.6470 97.94% — 0.7074 98.72% — 0.8566 98.37% — 1.2230
6144 element 0-decimal-place 95.52% — 1.2630 98.22% — 1.3778 99.45% — 1.6737 99.82% — 2.7669
element 1-decimal-place 68.26% — 1.2535 81.75% — 1.2942 90.69% — 1.4800 95.24% — 1.9542
2-7 subvector 32-centroids 89.61% — 1.2081 95.86% — 1.2938 99.10% — 1.4892 99.85% — 2.0124
subvector 64-centroids 95.43% — 1.2031 98.87% — 1.2537 99.65% — 1.4459 99.82% — 1.8647
subvector 128-centroids 97.56% — 1.1985 99.13% — 1.2565 99.54% — 1.3959 99.52% — 1.8200
subvector 256-centroids 98.20% — 1.1957 98.90% — 1.2542 99.25% — 1.4037 98.97% — 1.7586
Table 1. Mean Precision@24 — ES average latency. For each setting, we average the Precision@24 and the number of seconds used over the 1,000 query images randomly selected from the furniture dataset. Settings with mean precision and latency are highlighted in bold.
