A blockchain is a distributed data structure for recording transactions maintained by nodes without a central authority . Nodes in a blockchain system agree on their shared states across a large network of untrusted participants. Existing blockchain systems can be divided into two main categories: permissionless blockchain systems, e.g., Bitcoin (with PoW-based consensus)  and permissioned blockchain systems, e.g., Tendermint (with BFT-type consensus) .
Permissionless blockchains, which are mainly devised for cryptocurrency assets, e.g., Bitcoin , are public. Any computing node can participate in maintaining the blockchain without obtaining a permission from a centralized authority, hence the name permissionless. In Permissionless blockchains, transactions are used to transfer cryptocurrency assets from one identity to another. In addition, new currency units are generated through mining; once a new block of transactions is added to the blockchain, the miner of the block receives some currency units as the mining reward. The amount of mining reward is specified as part of the blockchain protocol.
Permissionless blockchains are public and computing nodes without a priori known identities can join or leave the blockchain network at any time. On the other hand, a permissioned blockchain uses a network of a priori known and identified computing nodes to manage the blockchain. In a permissioned blockchain systems, every node maintains a copy of the blockchain ledger and a consensus protocol is used to ensure that the nodes agree on a unique order in which entries are appended to the blockchain ledger. To reach agreement among the nodes, asynchronous fault-tolerant replication protocols have been used. Nodes in a permissioned blockchain might crash or maliciously behave. Depending on the failure model of nodes, crash fault-tolerant protocols, e.g., Paxos , or Byzantine fault-tolerant protocols, e.g., PBFT , are used to achieve consensus. The tutorial by C. Mohan  provides an overview and discusses many aspects of permissioned blockchains.
The blockchain model is similar to an object-oriented programming language (OOPL). Similar to the primitive data types, user-defined functions, and classes in an OOPL, each blockchain also has primitive data types (e.g., an asset, asset ownership, etc) and primitive functions operating on these primitive data types (e.g., transactions that move currency units from one user identity to another). Classes and complex functionalities are implemented in the blockchain using smart contracts. A smart contract, as exemplified by Ethereum , is a computer program that self-executes once it is established and deployed. A smart contract can be seen as a class in an object-oriented programming language where assets are the objects of that class and transactions update the state (ownership) of the objects. The state transformation of a smart contract is made persistent in the blockchain by ensuring that every state change appears as a record in the blockchain.
While permissionless blockchains only support cryptocurrency assets, smart contracts are more generic and can support any type of asset. Indeed, a smart contract, like a class in the object-oriented programming, could potentially have different attributes and functions. Once a smart contract is written, it can be deployed on a blockchain and different transactions can call the functions of the smart contract to change its attributes or even destroy the contract (using a destructor function), making it void.
Deploying general assets (e.g., cars, houses, etc) on the blockchain, in contrast to cryptocurrency assets, gives rise to several challenges. First, ensuring the existence of a registered asset requires some form of authentication of the asset. Second, the blockchain system should prevent a malicious end-user from double spending the same asset through two different smart contracts either within the same or on different permissionless blockchains. Finally, depending on the asset, the asset transfer should be legally allowed by the State law.
To address the aforementioned challenges of authentication, double spending, and legality for complex assets in permissionless blockchains, in this paper, we propose a global asset management system that unifies permissionless and permissioned blockchains. In the proposed system, a governmental permissioned blockchain authenticates the registration of end-user assets through smart contract deployments on a permissionless blockchain. When an end-user requests to register their assets, in order to prevent double spending, a governmental office checks if the asset is not already registered as a smart contract in any permissionless blockchain. Next, the governmental office issues an authenticated smart contract registering the asset wherein the contract also includes the legal laws associated with the asset and deploys the smart contract on the permissionless blockchain. Finally, the end-user will be able to trade the asset in the permissionless blockchain while preserving the law enforcement explicitly specified in the smart contract.
Registering complex assets in permissionless blockchains extends the transaction model of the permissionless blockchains. While permissionless blockchains support intra-chain cryptocurrency trades and cross-chain cryptocurrency trades (with the help of cross-chain swap protocols [26, 42]), the proposed system is able to support any type of transactions in either a single or in multiple chains with any kind of assets.
A key objective of this paper is to demonstrate how global assets can be managed in a blockchain system. The main contributions of this paper are:
a global asset management system that unifies permissioned and permissionless blockchains to manage complex asset,
an extended transaction model that supports varied types of transactions operating on complex assets in multiple blockchains, and finally,
a thorough analysis of the challenges that arise in designing blockchain-based asset management systems.
The rest of the paper is organized as follows. Section 2 presents the architecture and asset management of permissionless blockchains. Section 3 explains how smart contracts are used to extend the functionality of permissionless blockchains. Section 4 describes the architecture and asset management of permissioned blockchain. In Section 5 permissionless and permissioned blockchains are unified in order to build a novel global asset management system. We discuss the challenges that arise as a result of this unification in Section 6. The related work is presented in Section 7 and the paper is concluded in Section 8.
2 Permissionless Blockchains
Permissionless blockchains are public and therefore, computing nodes, also known as miners, can join or leave the blockchain network without obtaining a permission. Miners maintain a copy of the blockchain ledger and process end-user transactions. Miners and end-users use their public keys as their identities in the blockchain system. Given the open and public model of blockchains, these systems are exemplified by the complete absence of the notion of trust. That is, these blockchains must operate in spite of a complete absence of any trusted entity in the network. Permissionless blockchains are mainly devised for cryptocurrency assets, e.g., Bitcoin . In this section we first explain the architecture of permissionless blockchains and then present the data and transaction models of such systems.

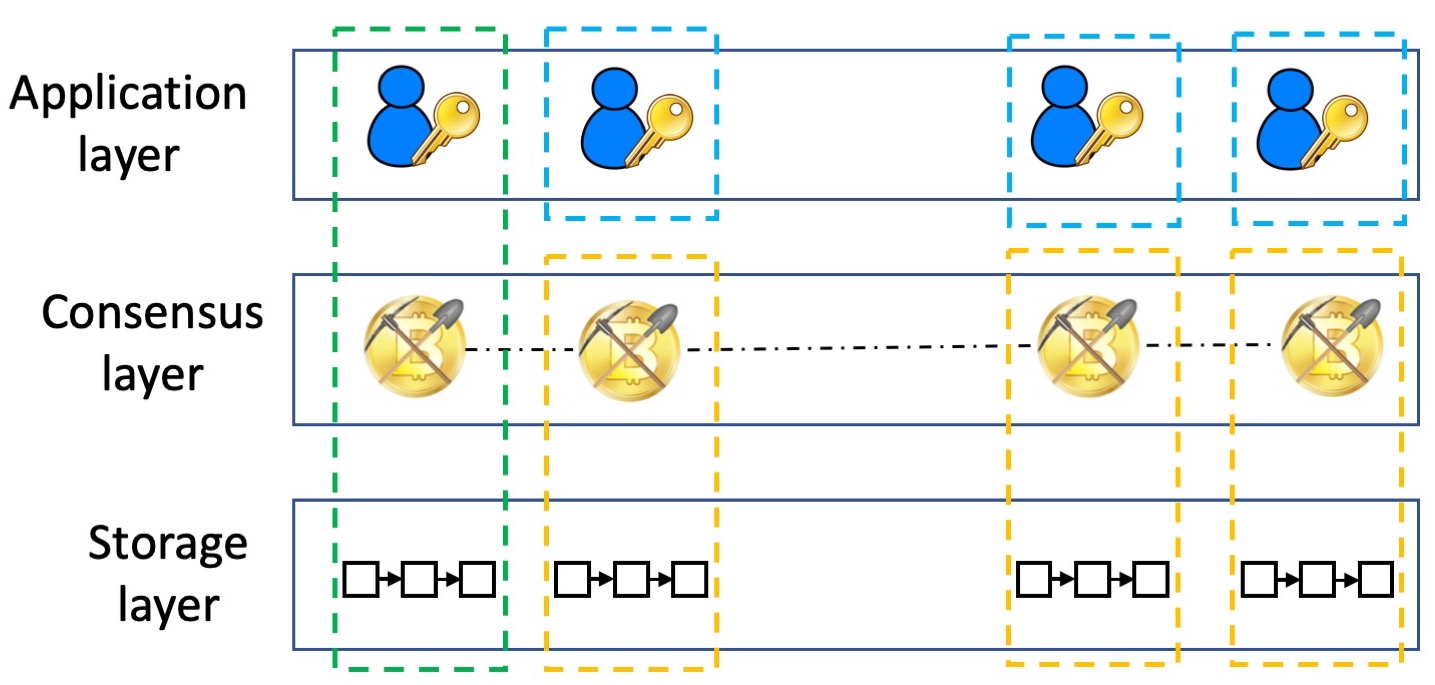

2.1 Architecture Overview
The application layer. Transactions are initiated by end-users in the application layer. End-users have identities, defined by their public keys and signatures, generated using their private keys. Digital signatures are the end-users’ way to generate transactions. Once transactions are generated, the users multicast their transactions to the mining nodes in the consensus layer through a client library. Transactions are used to transfer assets from one end-user identity to another.
The Consensus Layer. In permissionless blockchains consensus is established through mining. A mining node validates the transactions it receives, puts the valid transactions into a block and try to solve some cryptographic puzzle. The industrious miner who solves the puzzle multicasts the block to all nodes. To make progress, when a miner receives a block of transactions, it first validates the solution to the puzzle and all transactions in the block, appends the block to the blockchain, and then proceeds to mine the next block.
The storage layer. The ledger is a tamper-proof chain of blocks that is maintained by every mining node. The storage layer comprises a decentralized distributed ledger managed by an open network of nodes. Each block of the ledger contains a set of valid transactions that transfer assets among end-users.
Nodes in a permissionless blockchain are either end-users or miners. While end-users have only the application layer, the architecture of miners consist of the consensus and storage layers. Note that a miner can also be an end-user, thus has all three layers.
2.2 Asset Management
From a data point of view, assets in a permissionless blockchains can be modeled using data types, i.e., an asset is represented by currency units and its ownership. Transactions, on the other hand, transfer the ownership of assets, i.e., move some currency units from one user identity to another user identity.
The ownership information of assets is stored in the storage layer. The owner of an asset is determined using identities that are implemented using public keys. A coin that is linked to a user’s public key is owned by that user.
Transactions transfer the ownership of an asset from one identity to another. A transaction is basically a digital signature. End-users, in the application layer, use their private keys  to digitally sign assets linked to their identity to transfer these assets to other identities, identified by their public keys. These digital signatures are submitted to the consensus layer via message passing through a client library. It is the responsibility of the miners to validate that end-users can transact only on their own assets. If an end-user digitally signs an asset that is not owned by this end-user, the resulting transaction is not valid and is rejected by the miners. In addition, miners validate that an asset cannot be spent twice and hence prevent double spending of assets. Using transactions, an asset can be tracked from its registration in the blockchain, the first owner, to its latest owner in the blockchain. Transactions are stored in the blockchain in the storage layer.
Registration and divisibility are two other aspects of asset management. In bitcoin and many other cryptocurrencies, new coins are generated and registered in the blockchain through mining. In fact, once a miner solves the puzzle, it is allowed to generate some amount of coin as a mining reward.
Assets can be split or merged using transactions. Each transaction takes one or more input assets owned by one identity and outputs one or more assets where each output asset is owned by one identity. Indeed, a transaction references previous transaction outputs as new transaction inputs and dedicates all input coin values to new outputs. The summation of a transaction’s input assets matches the summation of its output assets assuming that no transaction fees are imposed.

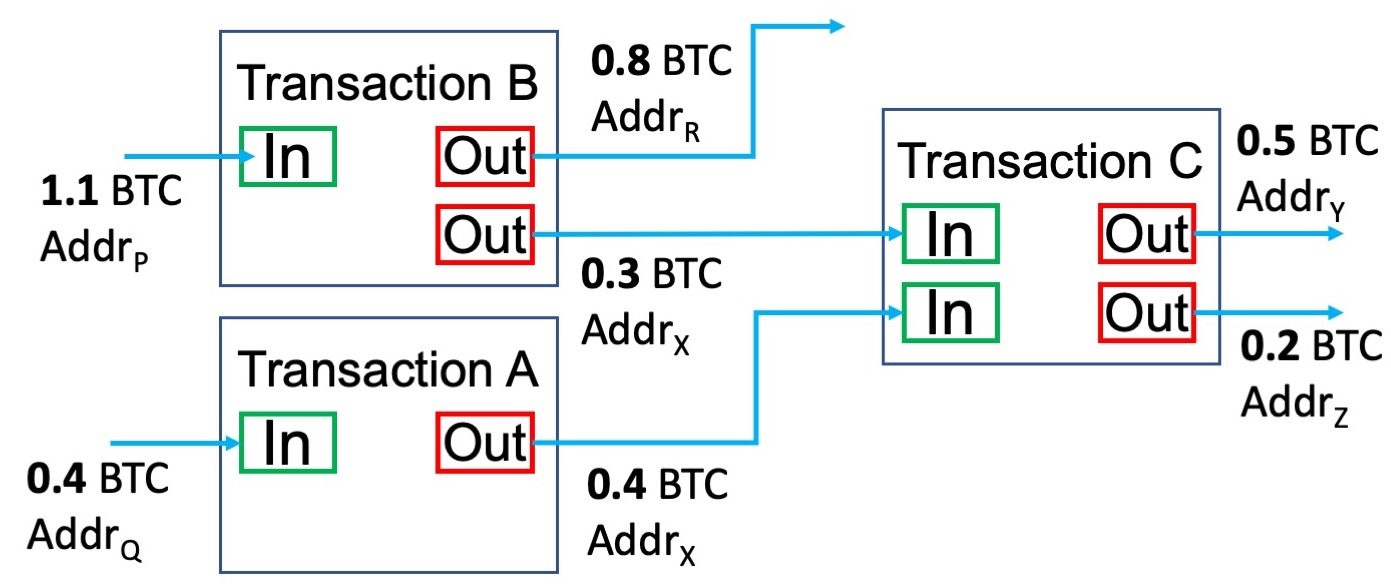

Figure 2 shows an example of three transactions , , and in the Bitcoin blockchain. As can be seen, in transaction , a user (with address ) transfers bitcoins to another user . In Transaction , splits bitcoins to (1) to and (2) to . Finally, in Transaction , the outputs of transactions and that are owned by ( bitcoins from transaction and bitcoins from transaction ) are merged and then split to to and to .
In traditional databases, end-user transactions execute arbitrary updates in the storage layer as long as the semantic and the access control rights of a transaction are validated in the application layer. On the other hand, in blockchain systems, this validation is explicitly enforced in the consensus layer and hence end-users, in the application layer, are allowed to transact only on the assets they own in the storage layer. This is in contrast to the database systems model where individual transactions in isolation and in the absence of concurrency are assumed to be correct. Indeed, the database concurrency control component provides the guarantee that the interleaved execution of multiple transactions will be equivalent to some serial execution. In the blockchain context, however, the correctness of individual user transactions cannot be assumed due to the absence of a trust model and hence the underlying storage system checks the validity of the user transactions.
Note that this is only feasible due to the restrictive semantics of the currency-based asset model. More complex applications on permissionless blockchain also need to deal with the lack of assumption of the correct transaction model that is made in traditional database systems.
3 Smart Contracts
Blockchains can be viewed as analogous to object-oriented programming languages. Consider permissionless blockchains where each blockchain consists of primitive data types such as an asset represented by currency units, user identities, user accounts, etc, along with primitive functions that are applicable on these primitive data types such as transactions that move some currency units from one user identity to another user identity. To represent a complex asset, analogous to a complex data type, an end-user writes a smart contract  that represents this complex asset. A smart contract is a program written in some scripting language (e.g., Solidity for Ethereum smart contracts ) that allows general program executions on a blockchain’s mining nodes. A smart contract can be thought of as a class in an object-oriented programming language. End-users write the specification of the member variables (the state) and the member functions (the state transitions) of this class in the smart contract code. For example, Alice can write a smart contract that represents her ownership of a car. The member variables of this smart contract could include the car attributes (e.g., make, model, year, the VIN), the car owner (Alice’s public key), and the sell price of the car (e.g., bitcoins). The member functions could include a buy function that allows Alice to move the ownership of the car to another end-user if this end-user pays Alice the car price through a buy function call.
After an end-user writes the description of the smart contract class, the end-user deploys the smart contract on a blockchain through a deployment message that is sent to the mining nodes in the consensus layer. The deployment message includes the smart contract code. Deploying a smart contract on the blockchain instantiates an object [27, 21] of the smart contract class and stores this object in the blockchain. This object has a state, a constructor that is called when a smart contract is first deployed on the blockchain, and a set of functions that could alter the state of this object. The constructor initializes the object state. To alter the state of the object, end-users call smart contract functions via function call messages. End-users send function call messages to the mining nodes accompanied by the function parameters to the blockchain mining nodes. Miners execute the function on the current contract state and record any contract state transitions in their current block in the blockchain. Therefore, a smart contract state might span many blocks after the block where the smart contract is first deployed. The deployment message is a special case of a function call message that includes the smart contract code and results in executing the constructor of this smart contract. End-users pay a fee to the mining nodes for every function call message, including the deployment message, to incentivize the mining nodes to execute this function and record the state transitions of the smart contract object in their current block.
Every function call message, , includes some implicit parameters that are passed in the message and are accessible by the function code. These parameters include the sender end-user public key, accessed through , and an optional asset value, accessed through . This optional asset value allows end-users to use their assets, in currency units, in the smart contract functions. For example, Alice might deploy a smart contract that locks ethers of hers in the contract, passed in the deployment message, and conditionally transfers these ethers to Bob if Bob solves some puzzle that is written in the contract. Another example is the car ownership transfer where Bob passes bitcoins of his in the buy function call of Alice’s smart contract in order to buy Alice’s car. Note that miners have to verify that end-users who pass an asset value in a smart contract function call must own this asset value and they cannot double spend this asset value in another smart contract function call or another implicit transaction.

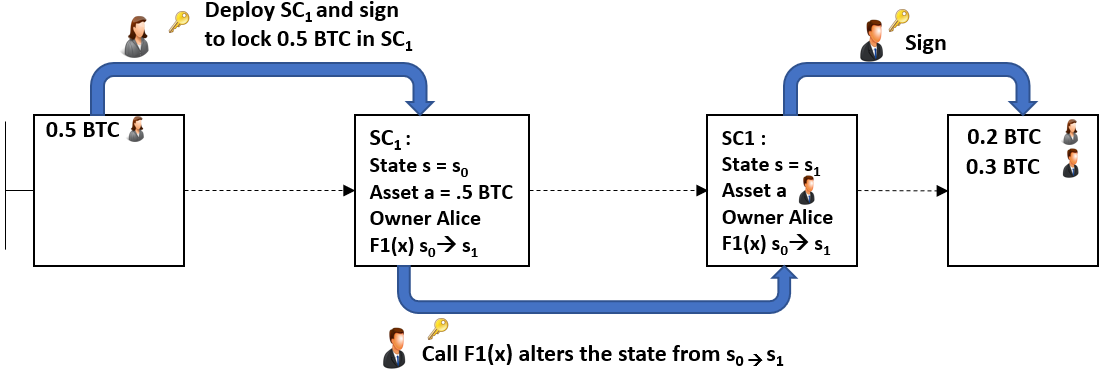

Figure 3 illustrates a smart contract example where the smart contract state spans multiple blocks in the blockchain. As shown, Alice deploys smart contract on the Bitcoin blockchains. Along with the deployment message, Alice passes her bitcoins signed to be locked in . This locking moves the ownership of the bitcoins from Alice to . has a state variable , an asset ( BTC), and an owner Alice. has a function that transfers the ownership of the asset to any caller who provides a valid parameter according ’s logic. Also, transfers state variable from to . When Bob calls providing a valid parameter , the mining nodes execute this function call and record all the smart contract state transitions in their current block. As shown, after Bob calls , the contract’s variable is set to and the asset , bitcoin, is moved to Bob. Bob can spend the transferred asset via transactions in the following blocks. In Figure 3, the ownership of the bitcoins is moved from Alice to through the deployment message, from to Bob through the function call, and finally is split among Alice ( BTC) and Bob ( BTC) via a Bitcoin transaction.
Algorithm 1 shows an example of a smart contract to register a car as a complex asset. The member variable (Lines 1 – 5) represent the attributes of the car. The constructor (Line 6) initializes the car object with the attribute values passed in the deployment message (e.g., make, model, year, and price). In addition, the constructor uses the implicit parameter msg.sender to initialize the car owner (Line 11). The smart contract has two other functions: Buy (Line 13) and UpdatePrice (Line 18). The Buy function allows other end-users to buy the car asset. An end-user who wants to buy the car sends a Buy function call message accompanied by the implicit parameters msg.sender and msg.val in addition to, an explicit parameter curOwner that includes the address of the current car owner. msg.sender determines the identity of the end-user who wants to buy the car and msg.val determines the value in currency units that the end-user wants to pay for the car. curOwner determines the current owner of the asset from the perspective of the function call request. This is necessary to prevent concurrent Buy requests from buying the same asset. Assume two concurrent Buy function calls that are submitted with the same curOwner value. If one Buy request succeeds, the owner of the asset will be altered as a result. Therefore, the other Buy request will fail. The Buy function requires msg.val to be greater than or equal to the car price and curOwner to be equal to the current car owner (Line 14). If true, msg.val is transferred to the current owner and the ownership of the car is transferred to msg.sender. However, if the requires instruction fails, the function execution is terminated and the transfers do not take place. Finally, the function UpdatePrice allows only the current owner of the car to update its price.
Although smart contracts are powerful tools to represent the attributes and the functionality of complex assets in permissionless blockchain, registering complex assets via smart contract deployments faces several challenges including the authentication, double spending, and legality.
The authentication challenge. “How can end-users authenticate the registered asset and ensure its existence?”. For example, if Alice registers her car title in the Bitcoin blockchain, “how could Bob who wants to buy this car authenticate that this car physically exists and that Alice is not maliciously registering a car that does not exist?”.
The double spending challenge. “How can the blockchain system prevent a malicious end-user from registering the same asset in two smart contracts within the same or in different permissionless blockchains?”. In the previous example, even if Bob could magically authenticate Alice’s car smart contract, ”how could Bob ensure that this is the only smart contract that Alice deployed to register her car in a permissionless blockchain?”.
The legality challenge. “How can end-users ensure that this asset transfer is legally allowed by State law where this transfer takes place?”. This challenge addresses the State laws including the taxation law. Transferring the ownership of a car requires the buyer to pay a transfer taxes to the State according to the State law.
Our proposal in Section 5 addresses these challenges by unifying both permissioned and permissionless blockchains. This unification allows end-users to use the infrastructure of permissionless blockchains to trade their assets without violating State laws while preventing double spending and trading unauthenticated assets.
4 Permissioned Blockchains
In a blockchain, nodes agree on their shared states across a network of participants. Existing blockchain systems can be divided into two main categories of permissionless and permissioned blockchains. While Permissionless blockchains are public and any computing node can participate in maintaining the blockchain ledger, permissioned blockchain consists of a set of known and identified nodes that do not fully trust each other.
Blockchain was originally devised for Bitcoin cryptocurrency , however, recent systems focus on its unique features such as transparency, provenance, fault-tolerant, and authenticity to deploy a wide range of distributed applications such as supply chain management, IoT, and healthcare in a permissioned settings.
4.1 Architecture Overview

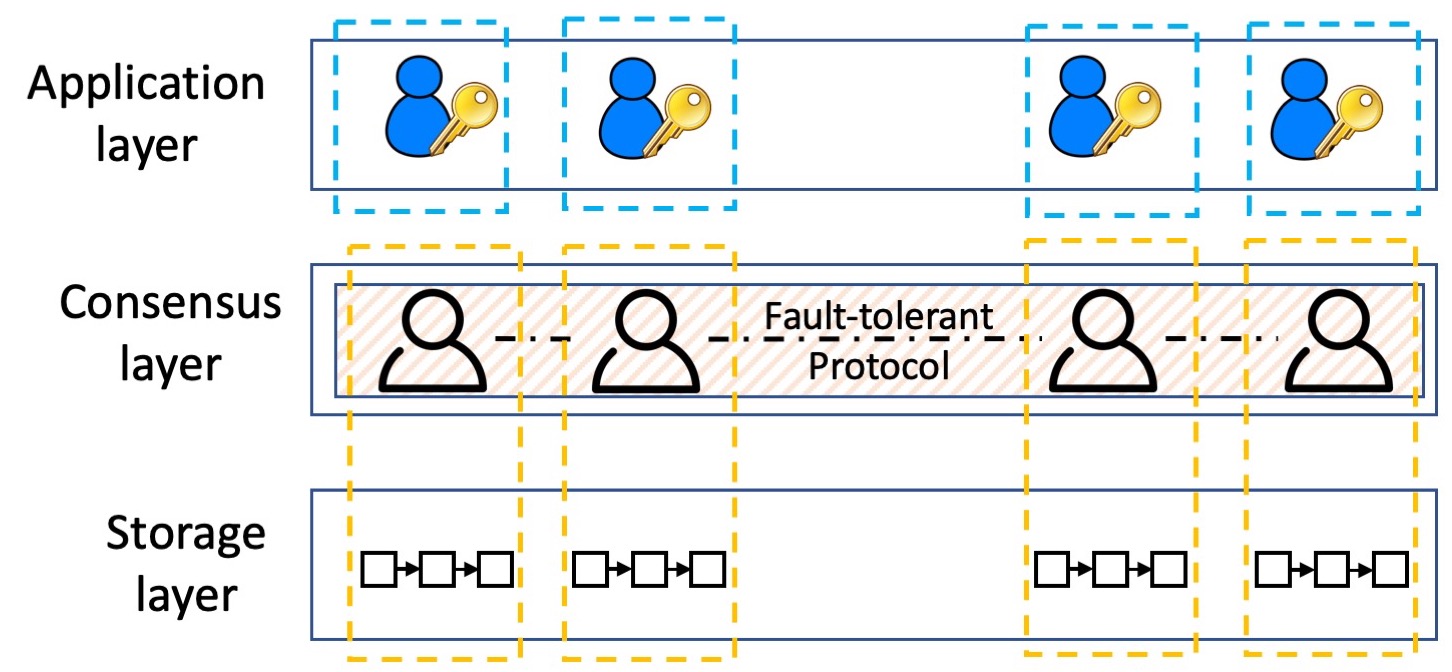

The architecture of a permissioned blockchain consists of Application layer, Consensus layer, and Storage layer. The application layer of a permissioned blockchain, similar to permissionless blockchains, consists of end-users who submit their transactions to the blockchain through a client library. However the consensus layer which is mainly responsible for ordering and validating the transactions differs from the consensus layer in permissionless blockchains. In fact, since the nodes in a permissioned blockchain are known and identified, mining can be replaced with traditional consensus protocols in order to establish a total order on the requests . Finally, the storage layer, similar to permissionless blockchains, consists of a decentralized distributed ledger maintained by every node within the blockchain.
The consensus layer runs a consesus protocol among the computing nodes of the consensus layer. Consensus protocols employ State Machine Replication (SMR) technique to replicates data, e.g. ledger, over nodes. State machine replication is a technique for implementing a fault-tolerant service by replicating servers . In the state machine replication model replicas agree on an ordering of incoming requests.
To establish consensus among the nodes in a permissioned blockchain, asynchronous fault-tolerant protocols can be used. Nodes in a permissioned blockchain might crash or maliciously behave. In a crash failure model, nodes operate at arbitrary speed, may fail by stopping, and may restart, however, they may not collude, lie, or otherwise, attempt to subvert the protocol. Whereas, in a Byzantine failure model, faulty nodes may exhibit arbitrary, potentially malicious, behavior.
Crash fault-tolerant protocols guarantee safety in an asynchronous network using nodes to overcome the simultaneous crash failure of any nodes while in Byzantine fault-tolerant protocols, nodes are usually needed to provide the safety property in the presence of malicious nodes.
Permissioned blockchain mainly follow an order-execute paradigm where a set of peers (might be all of them) validates the transactions, agrees on a total order for the transactions, puts them into blocks and multicasts them to all the nodes. Each node then validates the block, executes the transactions using a ”smart contract”, and updates the ledger.
4.2 Data Management
The permissioned blockchain systems are distinguished from the permissionless blockchain systems in one critical way: although there is in general a lack of trust among entities, all entities or components in the system are completely identified. The identified storage nodes in the permissioned blockchains can come together to allow a much more general-purpose data model then that is stipulated in the permissionless system. Thus, Permissioned blockchains can be used for different distributed applications. In the same vein, since end-users of permissioned systems have known identities, we can enforce the correct transaction computation assumption from the database systems. This allows the transaction models in permissioned system to be more general than the transaction model in permissionless blockchains where each transaction mainly transfers the ownership of assets, i.e., cryptocurrencies, from one identity to another. In a permissioned blockchain depending on the application, different types of transactions can be defined. For example, a Supply Chain Management includes different processes such as farming, refining, design, manufacturing, packaging, and transportation. As a result, to support a Supply Chain Management system, the permissioned blockchain should be able to record all transactions within these different processes.
To summarize, permissionless systems are completely open and public and therefore do not have the notion of identity and trust. In effect, these systems have to withstand malicious behavior at all levels: at the level of an end-user, at the level of a network node who is miner, as well as other nodes that try to compromise the sanctity of the system. End-users, consensus nodes, and storage nodes in the permissioned system, on the other hand, all have known identities. The lack of trust is primarily because of two possibilities. If the permissioned system belongs to a single enterprise, the consensus and storage nodes may be stored at different infrastructure providers. The source of maliciousness in this setting may arise if one or more of the infrastructures are compromised. Alternatively, the permissioned system may be a designed to facilitate cooperation among multiple enterprises. The source of maliciousness in this setting may arise due to the competition among these cooperating entities.
5 Global Asset Management System
This section proposes a global asset management system that leverages permissioned blockchains to address the authentication, the double spending, and the legality challenges of using smart contract to represent complex assets in permissionless blockchains. Governmental offices deploy their own permissioned blockchains. End-users request from a governmental office to register their assets in a smart contract in some permissionless blockchain. End-users pay a registration fee to the governmental office for this registration. The governmental office checks if this asset has not been previously registered in any permissionless blockchain smart contract. This check is necessary to ensure that end-users cannot double spend their assets through several smart contracts. If true, the governmental office issues an authenticated smart contract to deploy on the permissionless blockchain included in the registration request. The governmental office encodes the legal laws, including the taxation law, in the terms of the smart contract. Afterwards, the governmental office deploys the smart contract on behalf of the end-user. The smart contract, owned by the governmental office identity, registers an asset, owned by the end-user identity, and allows the end-user to trade the asset in the permissionless blockchain while preserving the legal rights of the governmental office. For example, the California DMV office deploys a car registration permissioned blockchains. When Alice wants to register her car in the Ethereum blockchain, she requests a smart contract registration of her car in the Ethereum blockchain from the DMV office. The DMV office issues this smart contract stating that any transfer of ownership of this car should pay the governmental office some tax percentage, say 10%, from the car price. Alice cannot double spend her car as there exists only one smart contract that represents Alice’s car in any permissionless blockchain. Now, if Bob wants to buy Alice’s car, Bob first checks that this smart contract is authenticated by the governmental office identity to ensure the authenticity of the car in the smart contract. If true, Bob can buy the car by submitting a Buy function call request to the mining nodes of the permissionless blockchain. This request is accompanied by Bob’s currency units that he wants to pay for the car in the implicit parameter . If the Buy function call succeeds, Alice gets paid in currency units, the governmental office gets paid a tax in currency units, and the ownership of the car is transferred to Bob.
This proposal simplifies the process of trading assets by leveraging the permissionless blockchain infrastructure. Once an asset is registered in a smart contract, trading this asset among end-users is as simple as a permissionless blockchain transaction. End-users are motivated to register their assets as this registration offers them an elimination of the bureaucratic process needed to trade their assets. Governmental offices are motivated to participate by running a permissioned blockchain as it offers them automation and transparency.
In Section 5.1, we present the architecture overview of the permissioned and permissionless blockchain unification proposal. Then, we explain the transaction model of the registered assets in permissionless blockchain in Section 5.2. We present a car registration smart contract example in Section 5.3. Finally, we discuss alternative asset management models in Section 5.4.
5.1 Architecture Overview

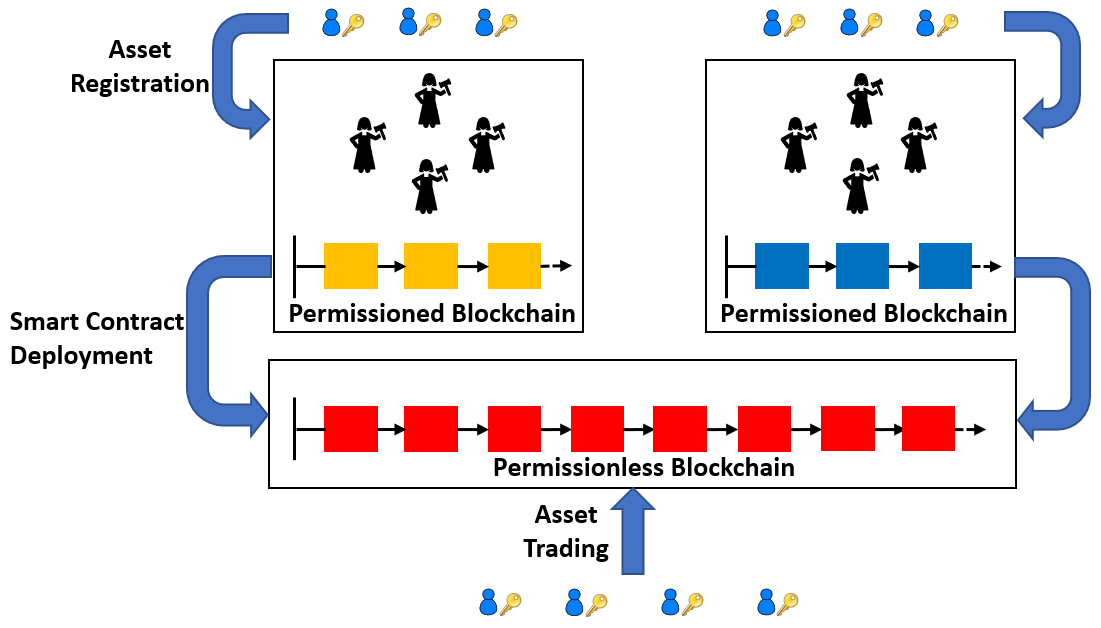

Figure 5 illustrates the architecture overview of the permissioned and permissionless blockchain unification proposal. Governmental offices run their trusted asset registration systems. These trusted asset registration systems could be as simple as a database management systems. Governmental offices run permissioned blockchains with a set of trusted governmental officials, called validators. Such governmental officials might fail, e.g., the identity of a governmental official gets stolen. Depending on the failure model of the validators, they run a crash fault-tolerant, e.g., Paxos  or a Byzantine fault-tolerant, e.g., PBFT  consensus protocol to agree on the registered assets.
An end-user sends an asset registration request to the permssioned blockchain validators. Validators run a consensus protocol among themselves to ensure that this asset is not previously registered. Once the consensus is achieved, each validator executes the request using some predetermined smart contract. The smart contract generates another smart contract representing the registered asset. To ensure deterministic execution of transactions, as mentioned in Section 3, smart contracts are written in scripting languages like Solidity.
Validators then add the asset registration record in their permissioned blockchain. In addition, they authenticate the deployment of the resulted smart contract in a permissionless blockchain. This smart contract is owned by a multi-signature address of the validators. In addition, the asset in the smart contract is owned by the end-user identity. Once the smart contract is deployed on the permissionless blockchain, end-users can trade assets through smart contract function calls.
As shown in Figure 5, different governmental offices can use the same permissionless blockchain to deploy their asset registration smart contracts on. Also, a governmental office can use multiple permissionless blockchains to deploy their smart contracts on. For example, both car and house registration offices can use the Ethereum blockchain to register cars and houses. Also, the car registration office can register some cars in the Ethereum blockchain while registering other cars in the Bitcoin blockchain. Once assets are registered in a permissionless blockchains, end-users can transact over these assets as explained next in Section 5.2.
5.2 Transaction Model
Registering complex assets in permissionless blockchains extends the transaction model of these blockchain. We divide the supported transactions into four categories as described below.
Currency units transactions. These transactions are the primitive built-in supported transactions that allow end-users to transfer the ownership of currency units among end-user identities. In addition, these transactions allow end-user to split and merge currency units as explained in Section 2.
Complex asset to currency units, of the same blockchain, transactions. These transactions allow end-users to trade complex assets for currency units of the same blockchain where the complex asset is registered. These transactions are allowed through smart contract function calls. Smart contract classes of complex assets include the trading functionalities of these complex assets. For example, an end-user who wants to buy a complex asset calls the Buy function of the smart contract of this complex asset. This Buy function call is accompanied with end-user’s currency units. The Buy function transfers the currency units to the current owner of the complex asset and transfers the ownership of the complex asset to the Buy function caller.
Complex asset to currency units, of another blockchain, transactions. These transactions allow end-users to trade complex assets for currency units of a different blockchain from the one where the complex asset is registered. These transactions are enabled by atomic cross-chain swap protocols [26, 42, 51]. Also, these protocols require the smart contracts of complex assets to support the functionality of atomic cross-chain transactions. For example, an atomic cross-chain transaction could allow Alice to sell her car, registered in the Bitcoin blockchain, to Bob who owns ether currency units in the Ethereum blockchain. An atomic cross-chain commitment protocol must guarantee that either both the transfer of Alice’s car to Bob in the Bitcoin blockchain and the transfer of Bob’s ether to Alice in the Ethereum blockchain take place or none of these two transfers takes place.
Complex asset to complex asset transactions. These transactions allow end-users to swap complex assets within the same permissionless blockchain or across permissionless blockchains. For example, Alice might want to exchange her car, registered in the Bitcoin blockchain, with Bob’s boat, registered in the Ethereum blockchain. These transactions use atomic cross-chain swap protocols and require the smart contracts of complex assets to support the functionality of atomic cross-chain transactions.
5.3 Car Smart Contract Example
This section presents an authenticated smart contract example that represents a car as a complex asset. This example illustrates the necessary updates to the smart contract presented in Algorithm 1 in order to ensure the authenticity and the legality of the car registration in a permissionless blockchain. These updates are reflected in Algorithm 2.
The member variable (Lines 1 – 7) represent the attributes of the car. As shown, the smart contract itself is owned by the validators multi-signature address (Line 6). In addition, the car itself, as a complex asset example, is owned by an end-user (Line 5).
The constructor (Line 8) initializes the car object with the attribute values passed in the deployment message (e.g., make, model, year, price, tax percentage, and the owner’s public key). In addition, the constructor uses the implicit parameter to initialize the smart contract owner (Line 15).
The smart contract has two functions to manipulate the car asset: Buy (Line 17) and UpdatePrice (Line 23). In addition, the smart contract has two functions to manipulate the smart contract itself: UpdateContractOwner (Line 27) and DestroyContract (Line 31).
The Buy function is slightly different from the Buy function of the smart contract in Algorithm 1. The main difference is that the validators of the permissioned blockchain embed the taxation law in the code of the Buy function. When a Buy function call is received by the permissionless blockchain mining nodes, they verify that value of the currency units sent in is greater than or equal to the sum of the car price and the sales tax value of this car. If true, the car price is sent to the current car owner, the tax value is sent to the contract owner (the validators’ multi-signature address), and the ownership of the car is transferred to . The UpdatePrice function is the same as the UpdatePrice function in Algorithm 1.
The UpdateContractOwner function allows the validators to change the ownership of the contract to another multi-signature address. This function is necessary to alter the contract ownership in case a validator’s identity is stolen. Validators replace the current multi-signature address that includes a stolen identity by a newly generated multi-signature address that excludes the stolen identity. The DestroyContract function allows the validators to destroy the smart contract object.
5.4 Alternative Asset Management Model
The proposed global asset management system leverages a permissioned blockchain only in the registration process of complex assets in a permissionless blockchain. Once an asset is registered, the permissionless blockchain has the only record of the current ownership of the asset in the asset’s smart contract object. In addition, the permissionless blockchain is the only marketplace where this asset is traded. Of course, the asset can be traded for other assets and currency units in other permissionless blockchain through atomic swaps. However, the asset object indefinitely remains in the same permissionless blockchain from its registration time until the asset’s smart contract object is explicitly destroyed.
An alternative model can unify permissioned and permissionless blockchains as follows. A permissioned blockchain maintains the ownership record of an asset. If the asset owner wants to trade it for some assets or currency units of some permissionless blockchain, the owner requests to register this asset in a trading smart contract in the permissionless blockchain. The permissionless blockchain only acts as the marketplace to trade assets. After registering the asset, end-users can complete the trade through single-chain or cross-chain transactions. Once the trade is completed, the ownership is updated in the permissioned blockchain and the trading smart contract object is destroyed. This model separates the ownership storing platform, the permissioned blockchain, from the trading platform, the permissionless blockchain.
Our proposal of unifying permissioned and permissionless blockchains to create a global asset management system faces many challenges. First, the scalability of the global asset management system is bounded by the scalability of the underlying permissionless blockchain. Current permissionless blockchains are not scalable (e.g., Bitcoin blockchain processes 37 transactions per second ). As a result, the scalability of the global asset management system could be limited. We address the scalability challenge in Section 6.1. The second challenge is validator identity theft. If the identity of some validators of the permissioned blockchain are stolen, the stolen identities can be used to destroy currently deployed smart contracts in addition to authenticating smart contracts of assets that do not exist. The problem of validator identity theft is addressed in Section 6.2. Finally, we address the asset registration flexibility challenge. Our current model allows a complex asset to be registered in only one permissionless blockchain at a time. We discuss open research challenges that arise from allowing a complex asset to be concurrently registered and marketed at several permissionless blockchains in Section 6.3.
6.1 The Scalability Challenge
The global asset management system requires the governmental offices to register assets in permissionless blockchains through smart contract deployment. Registered assets are traded through smart contract function calls that result in transactions in the underlying permissionless blockchain. Although, the scalability, represented by the number of executed transactions per second (TPS), of every individual permissionless blockchain is limited, the global asset management system can scale. Each governmental office can use multiple permissionless blockchains to register different end-user assets. Therefore, the scalability of the asset management system is not bounded by the scalability of an individual permissionless blockchain. Instead, the TPS of the asset management system can scale up to the aggregated TPS of all the permissionless blockchains used in registering the assets. For example, if the Bitcoin blockchain executes up to 7 TPS and the Ethereum blockchain executes up to 25 TPS, an asset management system that register assets in both Bitcoin and Ethereun blockchains can scale up to 32 TPS. Using additional permissionless networks to register assets increases the overall TPS of the asset management system.
Other permissionless blockchain scaling techniques can be used to scale the global asset management system. One technique is sharding . A permissionless blockchain is partitioned into multiple shards and each shard is maintained by some mining nodes. Transactions that span one shard are handled by the mining nodes of this shard. Transactions that span multiple shards are handled by the mining nodes of these multiple shards and coordinated by an atomic swap protocol [42, 26, 7, 51]. Another technique to scale permissionless blockchains is off-chain transactions. Lightning networks  can be used to execute complex assets to currency transactions. The question of how to ensure the correctness and tolerate maliciousness in off-chain complex assets to currency transactions remains an open research question.
6.2 Validator Identity Theft Challenge
One of the main challenges of unifying permissioned and permissionless blockchains is trust. The design of Permissionless blockchains is trust-free and they only assume that some percentage of the computing power (51% for Bitcoin) or of the stake owners are honest and correct. On the other hand, permissioned blockchains depend on a known set of trusted identities, the validators. If the validator failure model include byzantine failures, typically the number of validators is set to where is the number of validators that can maliciously fail. For example, a permissioned blockchain with four validators can tolerate a malicious failure of one validator. Trusting the validators of the permissioned blockchain is necessary to trust the authentication of smart contract that represent complex assets in the permissionless blockchain. However, the identity theft of more than validators could result in authenticating the registration of non existing assets and destroying the smart contract objects of existing assets.

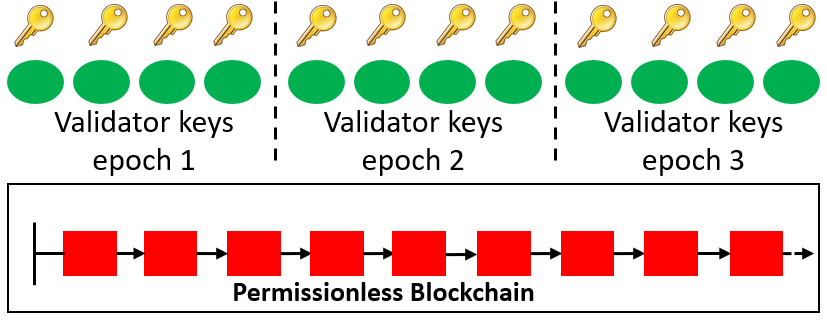

, the permissioned network divides the timeline into epochs. For every epoch, a fresh set of validator identities is used to authenticate the smart contracts that register assets in the permissionless blockchain during this epoch. A stolen validator identity set can maliciously register non existing assets only during one epoch. If a validator identity theft is detected within an epoch, the permissioned blockchain can immediately reset the epoch invalidating the stolen validator identity. The question of how to solve the trust problem while achieving authenticity of asset registration remains an open research question.
6.3 Asset Registration Flexibility Challenge
The proposed global asset management system requires to limit the number of permissionless blockchain where an asset is registered to one at a time. This requirement is necessary to prevent the double spending of the one asset on different blockchains. An asset can be registered on one permissionless blockchain and if the current asset owner wants to change the registration blockchain, an owner has to request a contract cancellation from the validators of the permissioned blockchain. After the contract is cancelled, the owner needs to request the registration of the asset in another permissionless blockchain. Asset owners might want to market their assets on many permissionless blockchains at a time. If this flexibility is allowed, a protocol is required to ensure that once the asset is traded in a smart contract on one blockchain, other smart contracts on other blockchains must be atomically invalidated. This protocol can be thought of as a variation of atomic cross-chain swaps. The design of such protocol and the details of its correctness remain open research questions.
7 Related Work
Bitcoin  is considered the first successful global scale peer-to-peer cryptocurrency. The Nakamoto consensus protocol used in Bitcoin allows participants to transact with each other without the need for a trusted third party, such as a banks or a credit card company. The ledger that records all the transaction history in traditional trusted banks is replaced by a distributed ledger stored in all the participants in Bitcoin, thus eliminating the need for trusted third parties. Many of the recent works on permissionless blockchains are focused on enhancing one aspect of Bitcoin – the performance limitation. BitcoinNG  separates the blocks in the chain into key-blocks and micro-blocks. Key-blocks are created by solving the proof-of-work challenge and the miner who solved the puzzle becomes the leader producing many micro-blocks consisting of transactions. The leader is replaced when another miner mines the next key-block. Thus, by increasing the frequency of micro-blocks produced by a leader, BitcoinNG improves the throughput of Bitcoin. But empowering a single leader to produce micro-blocks entails considerable risks. ByzCoin  identifies the benefits of separating the blocks into key and micro blocks, as well as the issues with a single leader. ByzCoin replaces a single leader with a dynamically changing group of trustees. Trustees execute PBFT  to decide on the next micro-block and use Collective Signing (CoSi)  to collectively sign the chosen block. Elastico  is another blockchain solution aiming to increase the performance of Bitcoin. The key idea proposed in Elastico is to split all the servers in the system into smaller sized groups called committees. Every committee is then assigned with a disjoint set of transactions and the committee members verify those transactions. Each committee executes classical PBFT in order to agree on the set of verified transactions. These transactions are then sent to a final committee which is in-charge of aggregating all the transactions produced by different committees into one block and then to broadcast the final block. Thus by allowing different committees to process different shard of transactions, Elastico increases the throughput of Bitcoin.
Although the above discussed solutions provide various strategies to increase the performance on Bitcoin, most of the solutions assume a cryptocurrency application. Even if they can be easily extended to include smart contracts, they would still lack in managing global assets. The high churn of participants in a permissionless blockchain network poses impediments is regulating laws associated with global assets.
While Permissionless blockchains are public and anyone can participate without a specific identity, in permissioned blockchains nodes are known and identified. In this paper, permissioned blockchains are used to register global assets and deploy them on permissionless blockchains. Most existing permissioned blockchains follow the order-execute architecture where nodes agree on the order of incoming requests and then execute the requests in the same order. Permissioned blockchains differ mainly in their consensus protocols. Tendermint  is different from the original PBFT in two ways, first, only a subset of nodes, called validators, participate in the consensus protocol and second, the leader is changed after the construction of every block (leader rotation). Quorum  is an enterprise-focused version of Ethereum  developed by JP Morgan. Quorum introduces a consensus protocol based on Raft : a well-known crash fault-tolerant protocol. Chain Core , Multichain , Hyperledger Iroha , and Corda  are some other prominent permissioned blockchains that follow order-execute architecture and use varients of Byzantine fault-tolerant protocols.
Fabric  introduces the execute-order-validate architecture and leverages parallelism by executing the transactions of different applications simultaneously. Modular design, pluggable fault-tolerant protocol, policy-based endorsement, and non-deterministic execution are some of the main advantages of Fabric. However, it performs poorly on workloads with high-contention, i.e., many conflicting transactions in a block. To support conflicting transactions, Parblockchain  introduces the order-(parallel)execute architecture where the orderer nodes generate a dependency graph in the ordering phase and transactions are executed in parallel following the generated dependency graph in the execution phase.
Users on the same or different blockchains should be able to initiate transactions in order to exchange assets. Our proposal supports four types of transactions: transactions in currency units, transactions between complex asset and currency units in the same blockchain, transactions between complex asset and currency units in different blockchains, and transactions between two complex assets. Different techniques have been presented to support intra- and cross-chain asset trades. Atomic cross-chain swaps  are used for trading assets on two unrelated blockchains. Atomic swaps use hash-lock and time-lock mechanisms to either perform all or none of a cryptographically linked set of transactions. Interledger protocols (ILPV ) which are presented by the World Wide Web Consortium (W3C) use a generalization of atomic swaps and enable secure transfers between two blockchain ledgers using escrow transactions. since the redemption of an escrow transaction needs fulfillment of all the terms of an agreement, the transfer is atomic. Lightning network  also generalizes atomic swap to transfer assets between two different clients via a network of micro-payment channels. Blocknet , BTC , Xclaim , POA Bridge  (designed specifically for Ethereum), Wanchain , and Fusion  are some other blockchain systems that allow users to transfer assets between two chains.
Hyperledger also addresses atomic cross-chain swap between permissioned blockchains that are deployed on different channels by either assuming the existence of a trusted channel among the participants or using an atomic commit protocol .
Using sidechain is proposed in  to transfer assets from a main blockchain to the sidechain(s) and execute some transactions in the sidechain(s) in order to reduce confirmation time and transaction cost, and support more functionality. Liquid , Plasma , Sidechains , and RSK  are some other blockchain systems that use sidechains. In Polkadot  and Cosmos  also assets can be exchanged using a main chain and a set of (side) blockchains. Both Polkadot and Cosmos rely on byzantine consensus protocol in both sender and receiver sides.
To support global assets in blockchains, using tokens which are backed by external assets, called asset-backed tokens, is proposed . Tokenization is the process of representing the ownership of real world assets digitally on a blockchain. While the main purpose of tokenization is to use tokens as assets (investment instrument) and split it into smaller pieces, in this paper we mainly focus on how to authenticate an asset as being legitimate so that it can be transacted in a marketplace (i.e., transfer of ownership). In addition, the tokenization of the assets on the blockchain is being done by a known entity (highly centralized) whereas in our proposal the centralized entity is replaced by a governmental permissioned blockchain which first, puts the responsibility of forcing the law on the government, and second, ensures that the centralized entities do not monopolize the tokenization of assets on the blockchain.
In this paper, we propose a global asset management system that leverages both permissioned and permissionless blockchains. Governmental offices maintain trusted permissioned blockchains. Permissioned blockchains authenticate the registration of end-user assets in permissionless blockchains through smart contracts. In addition, permissioned blockchains prevent the double spending of assets by ensuring that every asset can be registered in only one authenticated smart contract in one permissionless blockchain. Finally, the permissioned blockchain ensure the legality of trading the assets by encoding the laws (e.g., taxation law) in the smart contract code. Permissionless blockchains are marketplaces to trade the registered assets. Registered assets can be traded for currency units or other assets on the same permissionless blockchain or on other permissionless blockchain. This extended transaction model is enabled through single-chain and cross-chain transactions.
