With the growing demand of voice interfaces for mobile and virtual reality (VR) devices, spoken language understanding (SLU) has received many researchers’ attention recently [1, 2, 3, 4, 5, 6, 7]. Given a spoken utterance, a typical SLU system performs three main tasks: domain classification, intent detection and slot filling . Standard SLU systems are usually designed as a pipeline structure. As shown in Fig. 1, recorded speech signals are converted by an automatic speech recognition (ASR) module into the spoken format text, followed by an optional inverse text normalization module to translate the spoken domain text to the written domain; then a natural language understanding (NLU) module is used to determine intent and extract slots accordingly. Although there are some works (e.g. ) that take the possible ASR errors into consideration when designing the NLU module, the pipeline approach is widely adopted. One arguable limitation of this pipelined architecture is that each module is optimized separately under different criteria: the ASR module is trained to minimize the word error rate (WER) criterion, which typically weights each word equally; obviously not every word has the same impact on the intent classification or slot filling accuracy. On the other hand, the NLU module is typically trained on the clean text (transcription) without ASR errors, but during evaluation, it has to use recognized hypotheses outputted by the ASR module as the input: errors in ASR module, especially in noisy conditions, will be propagated to SLU degrading its performance. Second consideration is how human process speech signal to extract intent level concepts. Intuitively, when asked to perform intent detection tasks, humans do not understand speech by recognizing word by word; instead, humans interpret and understand speech directly, while attention is given to the high level concepts which are directly related with the task. It is thus desirable to train an SLU system in an end-to-end fashion.
End-to-end learning has been widely used in several areas, such as machine translation [9, 10, 11] and image-captioning. It has also been investigated for speech synthesis  and ASR tasks [14, 15, 16]
. For example, the CTC loss function is used to train an ASR system to map the feature sequences directly to the word sequences in and it has been shown to perform similarly to the traditional ASR systems; in [17, 18], encode-decoder models with attention have been used for ASR tasks, including large vocabulary ASR. End-of-end learning of memory networks is also used for knowledge carryover in multi-turn spoken language understanding .
Inspired by these success, we explore the possibility to extend the end-to-end ASR learning to include NLU component and optimize the whole system for SLU purpose. As the first step towards an end-to-end SLU system, in this work, we focus on maximizing the single-turn intent classification accuracy using log-Mel filterbank feature directly. Contributions of this work are following: 1) we demonstrate the possibility of training a language understanding model from audio features (see Section 3). To the best knowledge of authors this is the first work on this topic; 2) We show that the performance of an SLU degrades when evaluating on the ASR output. The details of our experiments are described in Section 4, and results in Section 5; Additionally, we perform experiments on noise-corrupted data. We artificially add noise to the audio data to demonstrate the degradation of the performance of a standard SLU evaluation and test our system.
2 Standard ASR and NLU systems
Given a sequence of feature vectors, an ASR system is trained to find the most likely word sequences
using the chain rule:
Therefore, the ASR system is usually divided into two models: an acoustic model and a language model (AM and LM respectively). CD-HMM-LSTM  is widely used as an AM, in which the feature vector sequence is converted to the likelihood vectors of context-dependent HMM states for each acoustic frame. Together with the LM ( is usually a statistical -gram model) and a dictionary, a Viterbi decoder is used to search for the most likely word sequence. Fig. 2 depicts the described standard ASR architecture: the core part of the AM is a multi-layer LSTM
network, which predicts the probability of CD-HMM states for each frame. Since most of the SLU systems requires spontaneous response, usually only uni-directional LSTM is used.

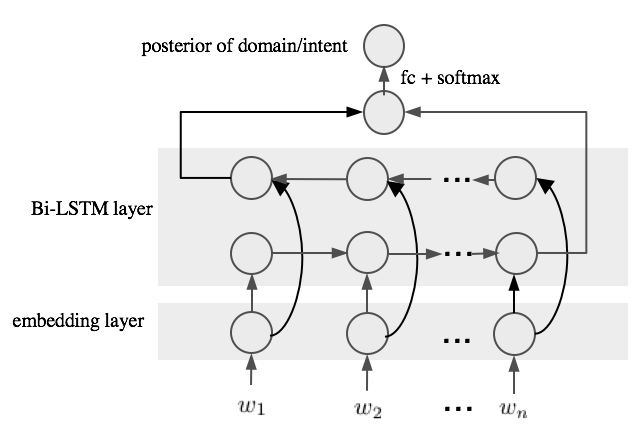

Given the word sequence output by the ASR module, an NLU module is used to perform domain and intent classification, and to fill slots for different intents accordingly. Following , we use LSTM-based utterance classifier, in which the input words are first embedded in a dense representation, and then the LSTM network is used to encode the word sequence. We found 2-layer bi-directional LSTM encoder performs better. Fig. 3 demonstrates how a standard NLU system predicts the domain/intent for a given word sequence. Note that since the NLU system incurs much smaller latency compared with the ASR system and the classification only starts after the entire word sequence become available, it is possible to use bi-directional RNNs for NLU.
In the pipelined approach to SLU, ASR, and NLU modules are usually trained independently, where the NLU module is trained using human transcription as the input. During the evaluation phase, the ASR output is piped into the NLU module.
3 End-to-end Spoken Language Understanding
As the first step towards the end-to-end spoken language understanding, we focus on two tasks: speech-to-domain and speech-to-intent. Both tasks are sequence classification problems where the input is log-Mel filterbank feature vectors.

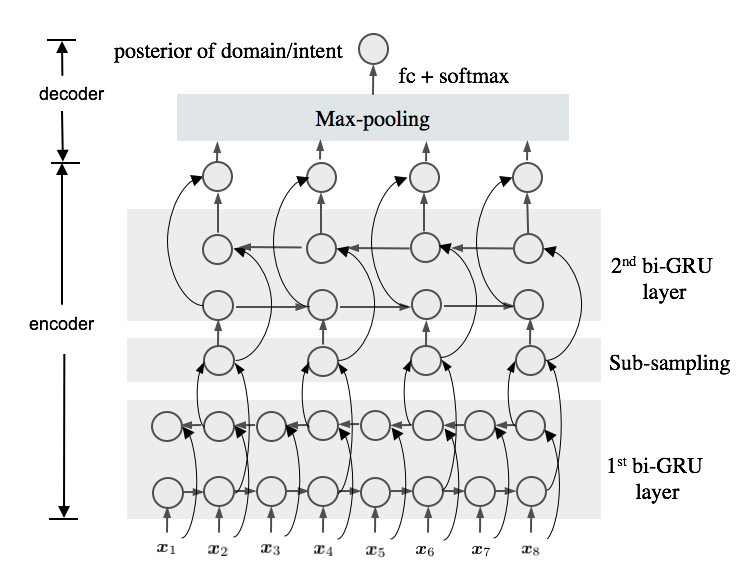

The task of end-to-end SLU is close to speech recognition with a difference that the structure of the output is simpler but the transformation is more complicated and the data is noisy and non-unimodal (close utterances may have sufficiently different intents). For this reason our model was inspired by works in end-to-end speech recognition [22, 10, 15, 23]. We use an encoder-decoder framework. The input log-Mel filterbank features are processed by an encoder which is a multi-layer bidirectional gated recurrent unit (GRU, ) network. A potential issue of using log-Mel filterbank feature is that it is generated every 10 ms: the 10-ms frame rate is good for classifying sub-phone unit like CD-HMM states, while it may not be suitable for utterance-level classification as GRUs may forget most of the speech content when it arrives at the end of the utterance end due to gradient vanishing. In order to reduce the sequence length processed by GRUs, we sub-sample [10, 15] the hidden activations along the time domain for every bi-direction GRU layer (see Fig. 4
). This allowed us to extract a representation roughly at a syllable level in a given utterance. On the other hand, this significantly reduced the computational time for both training and prediction, which enables us to use bi-directional GRU for real time intent and/or domain classification. Given the encoder output, a max-pooling layer along the time axis is used to compress it into a fixed dimension vector. This is followed by a fully-connected feed-forward layer. Finally, a softmax layer is used to compute the posterior probability of intents or domains.
We train and evaluate our models on an in-house dataset containing VR spoken commands collected for that purpose. The dataset is close in spirit to ATIS corpus . The dataset contains about 320 hours of near field annotated data collected from a diverse set of more than 1000 de-identified speakers. It was recorded in two scenarios: scripted and free speech. The scripted half is read speech with a fixed script. For the free speech part, the participants were asked to achieve certain goal using any phrasing, then these utterances were transcribed. Every utterance has transcription as well as meta information including a domain label and an intent label. After cleaning data we extracted 5 domains and 35 distinct intents. Roughly 11,000 utterances, totaling 10 hours audio, are used as the evaluation set.
For all our experiments we used log-Mel filterbank features. We used an encoder-decoder architecture
. The encoder is a 4 layer bidirectional GRU network with 256 units every layer. The output was sub-sampled with a stride of 2 at every layer to reduce the length of the representation. The decoder network takes the output of the encoder and aggregates them with a max-pooling layer and puts it through a 1-layer feed-forward network (hidden size 1024) to produce either the domain or intent class. The network was optimized with Adam algorithm until convergence on the validation set. We used the batch normalization  for every feed-forward connection to speed up the convergence of this network.
The baseline NLU model for our experiments was a recurrent network similar to our model with an exception that we did not use sub-sampling. The input word was represented as one-hot vector and a trainable embedding was used. This model is close to state of the art models and ones used in production [28, 29]. This network was evaluated in two regimes: using the transcript text, and using the recognized text. The former shows the upper bound for our models and corresponds to the perfect speech recognition. The later regime was transcribed by a speech recognizer: the core part of AM is a four-layer CD-HMM-LSTM network
with 800 memory cells in each layer, trained on the same 320 hours training data with a cross-entropy criterion to predict posterior probabilities of 6,133 clustered content-dependent states; the vocabulary size is 80,000 and the LM is trained on the transcribed 320 hours speech and interpolated with a large background LM which is trained on other sources; there are roughly 200M n-grams in the LM. Our ASR system achieved 3.5% word error rate on the evaluation set. Each utterance from the evaluation set was recognized with this ASR and inputed to the baseline NLU network. In order to provide the fair comparison we did not use any external data in both cases. No pretrained embeddings or dictionary look-up was used.
We also emulate the real-world situation where the input to the SLU system is noisy. Both training and evaluation datasets were corrupted by convolving with recorded room impulse responses (RIRs) whose T60 times ranges from 200ms to 1 second. Background noise was added as well: for training data, the SNR ranges from 5 to 25dB, while for evaluation data, the SNR ranges from 0 to 20dB. Every training utterance is distorted 2 times by using different RIRs, sources of background noise and SNRs. This results in a 600 hours noise-corrupted training set. Utterances in evaluation set are only distorted once. Both the ASR system and our end-to-end system were retrained on this noise-corrupted training set. Due to the reverberation and relatively strong background noise, the ASR has considerably higher word error rate (28.6% WER).
5 Results and discussion
We first present results of domain classification. Five domains in this corpus are “music,” “weather,” “news,” “sports,” “opt-in, opt-out.” The results for domain recognition are summarized in Table 1. The performance in “Transcript text” row is evaluated on perfect transcriptions that correspond to human transcription and such performance is not achievable with the current ASR system. For qualitative analysis of our end-to-end model, we visualize the saliency map (gradients w.r.t. input) in Fig. 5 for a selected utterance. We notice that the position of the network response corresponds to meaningful positions in the utterance. As it can be seen in Table 1, the accuracy is close to perfect on this dataset. Therefore we continue with a more challenging task of the intent classification.
Examples of intents are “Learn about the weather in your location,” “Learn about the weather in different location,” “Learn the results of a completed sports match, game, tournament,” “Learn the status of an ongoing sports match, game, tournament.” These classes are more fine grained and require deeper understanding of a given utterance. For the ablation study we report the performance of variations of our end-to-end model: initially, we use last-layer hidden activations at the end of both left-to-right and right-to-left directions as the encoder output; this is compared with using max pooling to aggregate all the hidden activations in the last layers in Table 2, which shows that using max-pooling activations increases performance. We hypothesize that due to the long input speech sequence (ranging from 100 to 1,000 input frames), the activations in the last time step may not sufficiently summarize the utterance. This is contrary to the NLU model using text as input, whereas using hidden activations from the last time step usually suffice, as the input length is relatively small (a majority of them are less than 20 words). We also observe that using batch normalization (BN) in both encoder and decoder significantly improves the classification accuracy, which indicates that our end-to-end model is difficult to optimize due to the long input sequence. The results for the noise-corrupted data are also reported in the bottom part of Table 2. The performance of both models degrades significantly. A potential advantage of our end-to-end approach to SLU is that since the model is optimized under the same criterion, the model can be made very compact; this is demonstrated in the same table by comparing the number of parameters of neural networks in standard SLU system and our system. Note that the parameters in the LM are not included, although it is usually two or three magnitude more than AM in ASR. Due to the compactness of our end-to-end model, we are able to predict the intent or domain with a real time factor around 0.002, which makes the use of bi-GRU in our model possible for real time applications.
|Clean audio features|
|no BN, no max-pool||0.4M||71.3|
|no BN, max-pool||0.4M||72.5|
|Noisy audio features|
With this work we hope to start a discussion on the topic of the audio-based SLU. Although, the end-to-end approach does not show superior performance, it provides a promising research direction. With significantly less parameters our system is able to reach 10% relatively worse accuracy. One of the future directions for this work is to encompass the slot filling task into this framework. It requires simultaneous prediction of a word and a slot. This can be tackled with the attention-based networks. Other directions are to explore different architectures for the decoder, such as using different pooling strategies, using deeper networks and incorporating convolutional transformations.
