I Introduction
Using computer assisted assessment (CAA) to face growing numbers of participants in university courses is a wellknown concept. Especially webbased homework systems are very popular given decreasing numbers of teaching assistants that are able to grade homework manually. Studies show that using webbased homework instead of paperbased concepts does not lead to decreases in students performances.[8][6][4]. On the contrary, a majority of studies is able to report a positive effect of using computerassisted instruction in the classroom specifically for the domain of statistics [11].
Besides being useful for instruction and homework, some systems are even able to perform summative assessments such as tests or exams which reduces the effort of required manual grading even further. Many systems exist that offer the classical digital exercise formats such as multiple choice, fillin or dropdown. Examples include Moodle^{1}^{1}1https://moodle.org/, LonCapa^{2}^{2}2http://loncapa.org/ and Stack^{3}^{3}3https://stack.maths.ed.ac.uk/demo/ among others. Sometimes, these formats can be combined to create an exercise consisting of several subtasks or the systems allow to create exercises with variable content by using randomly created elements.
However, courses in higher statistics need to use more sophisticated exercise designs that cannot be easily transferred to a such system. Many of the typical assessments in the area consist of open tasks where students have to choose a certain strategy in order to solve the task correctly. A very important question is, how these exercises can be digitalized without losing quality, which means to ask questions without implicitly revealing the solution strategy. Therefore, the system to be used needs to allow a most flexible exercise design, that enables authors to react adequately to submissions. This applies both for giving detailed feedback messages as well as for using wrong solutions for further calculations. Furthermore, additional advantages of CAA can be used to help students to increase their learning outcome. In particular, it would be beneficial to use parameterized exercises which give students the chance to work on the same problem several times.
To be able to do all this, many complex statistical functions are needed. In order to avoid the effort of implementing these in an existing system it seems reasonable to consider the use of a tool that offers this functionality. The programming language R^{4}^{4}4https://www.rproject.org/ is a free software widely used in the area of statistics as it provides many builtin functions. Besides, its architecture makes it highly extensible which means that user can install packages written by others or even write packages with their own functions. All these factors make it very attractive to use R together with CAA to realise a concept that allows the digitalisation of exercises for higher statistics.
This paper presents an approach to combine the requirements worked out above into an exercise type that allows us to digitalize exercises for higher mathematics using the example of statistics and thus to support university courses with large numbers of participants. To do this, we have made some major improvements to the eassessment system JACK which is in use at the University of DuisburgEssen. A central new feature is the interaction with the statistical programming language R in exercises. This means that R cannot only be used for creating random parameters at the beginning of an exercise but we can also send submissions to it and use it for evaluations. Furthermore, it is possible to evaluate submitted expressions with R and use these values in subsequent tasks of an exercise. We use the package Rserve^{5}^{5}5https://rforge.net/Rserve/ that sets up a TCP/IP server which can be easily used from various programming languages such as Java or C/C++ to connect our system to R. Through this setup the approach can be transferred to various mathematical subdomains using other external systems with minimal effort. The concept is in heavy use in statistics lectures with large numbers of participants at our university and is used for both, formative and summative assessment types.
The remainder of this paper is organized as follows: Section II provides a brief review of existing approaches for the same problem and reports on their individual drawbacks in our context. Section III discusses the features that we equipped our exercise type with in order to use it in introductory courses at big universities, followed by some examples. A short description of the technical realization is given in section IV. Experiences from practical use of the system are reported in section V before the paper is closed with conclusions and future work in section VI.
Ii Related Work
Iia Tool Support for Teaching Statistics
One of the arguments for using electronic systems in the statistics classroom is to create higher involvements of students and thus to stimulate learning. A dedicated experiment on using a personal response system (PRS) as additional tool in a statistics lecture is presented in [15] and reports both benefits and drawbacks. One specific limitation mentioned is the fact that formal exams in the course use open questions, while the PRS is based on multiplechoice questions.
A way to overcome this gap is to make use of another arguments in favour of digitalisation of exercises: Tool support can be used to generate different variants of the same (openended) exercise. The most direct way to do this for exercises in higher statistics is to use R in combination with the package exams. This package is able to generate exercises from templates producing output in PDF, HTML, or specific formats for some common elearningsystems [5, 16]. While this allows authors to use the full power of R, it comes with two major drawbacks with respect to our goals: First, the results are static, thus a student attending a specific exercises in an elearningsystem will always get the same contents and has hence no benefit from using R in the generation process. Second, R is not involved in the evaluation of student input and hence also not involved in the generation of feedback or hints.
A different approach which is able to use the same power of calculations both for exercise content generation and evaluation has been realized by the CAMPUS project [7] almost 20 years ago. It is entirely based on Microsoft Excel spreadsheets and incorporates the use of the RAND() function to generate random instances of exercises. While this is an elegant solution that is both useful for homework and exam situations, it is naturally limited to the calculation capacities of Excel. There are significantly lower than the ones of R and are thus not entirely sufficient for exercises in higher statistics. Moreover, the approach requires all students to have access to Excel, and teachers to apply a lot of security measures to protect the spreadsheets against malicious attempts.
IiB General CAA Systems for Mathematics
To overcome the limitations of tool support solely in exercises generation, CAA systems for mathematics can be used. A wellknown CAA system for mathematics is ActiveMath. It allows to generate variable content within exercises based on randomization [9, 3]. Randomization is realized by drawing a value from a set of admissible values for each variable, where admissible values may be numbers (both from sets and intervals), expressions, functions and alike. Further processing of the input is possible via the Computer Algebra System (CAS) used within ActiveMath, but not by invoking an external system such as R. The same is true for the systems Alice [12] and MapleTA [2, 1], which are based on Maple as a CAS and thus naturally limited to the features offered by that system. Consequently, there is no CAA system which already supports the requirements sketched in the introduction to full extent.
Wiris^{6}^{6}6http://www.wiris.com offers components to be embedded into learning environments instead of being a CAA system on its own. This could be a promising approach to add the required features to an existing system. The combination of their quiz engine and CAS makes exercises programmable to allow for randomization. In particular, loops and conditional statements can be used to generate random content repeatedly until certain desired properties are met. While this allows the exercise designer to add virtually any functions not offered by the CAS directly, one looses the performance and quality benefits of specialized computer algebra systems and specialized software like R. Similar is true for tools executing assessment items described in some standard format like QTIWorks^{7}^{7}7https://webapps.ph.ed.ac.uk/qtiworks/ for items defined in the QTI 2.1 format. In these cases, the combination of QTI 2.1 and the particular tool does not allow to use external software like R.
A general framework for math assessments supported by CAS is offered by the CABLE framework [10]. While it allows to use virtually any CAS or external system to generate variable values for exercise variants and to evaluate the student’s input, its evaluation is limited to algebraic expressions. Consequently, it offers similar support as the tools for generating paper based exercises, but only little support in automated evaluation and feedback. In particular, correctness of a solution is determined by testing whether the difference between an input and the model solution is zero. Hence exercises that cannot be assessed this way cannot be designed in the CABLE framework.
Iii The eassessment system JACK
As a general tool for eassessment and automated tutoring, exercises in JACK are not limited to the domain of mathematics. Instead, exercises may contain multiple choice, fillin, and dropdown elements for receiving input from the students. Thus a minimal exercise consists of some sort of task description, at least one element that receives input from students, and at least one feedback message. However, JACK offers some options for a more sophisticated exercise design and more detailed feedback messages, in particular for exercises with mathematical content, including the support of LaTeX, input with a formula editor and an evaluation of solutions using computer algebra systems. We will discuss the options in the following subsections.
Iii1 Parameterization of exercises
As a basic feature of JACK, tasks may be generic by using variables as placeholders. These placeholders are filled in dynamically, so the exercise presents different content to the student every time it is attempted. There is no limitation in where to use these variables, so the task description may vary, the number or content of multiple choice or dropdown options may vary, the expected correct results may vary, and so on. While this is of no immediate use for a single visit on a single exercise, it is very helpful when students work with the tutoring system for a longer time. In this case, they can work on the same exercise more than once, receiving different values within that exercise. Thus exercises remain challenging for a longer period of time. Moreover, it possibly helps students to understand the abstract concepts and encourages them to talk to each other about solution strategies instead of plain solutions. Parameterization even offers another benefit during summative assessments, as it helps to avoid plagiarism between students. Using R
to parameterize exercises enables us to use the wide range of statistical functions the system offers. In particular, data sets on the basis of arbitrary random variables can be generated, which is a very useful feature. Moreover, JACK allows the use of plots created with
R. A such plot can even be based on a randomly generated data set, which introduces another type of variable elements in an exercise: image variables.Iii2 Feedback Options
As a very important consequence of splitting an exercise into steps, the student may receive detailed individual feedback for each step. A feedback in general consists of a score and a feedback message. According to the typology of Tunstall and Gsipps [14], JACK thus provides both evaluative and descriptive feedback: The score is an integer number in the range of to based on a grading scheme provided by the author. Hence it is an evaluative feedback that provides a judgment and tells the student whether he was right or wrong. The feedback message may contain arbitrary content, including dynamically created graphics. In particular, it can refer to the student’s input, reuse values from previous steps, and involve any kind of calculation. Hence it is a descriptive feedback that refers to the student’s achievements and may provide guidance on how to improve a wrong solution.
We consider the latter kind of feedback as one of the central features of a tutoring system. It is intended to help the students to comprehend where they made mistakes or where they were correct. To be able to do so, JACK has to understand the semantics of a solution. For this reason, CAS are used to evaluate solutions. On one hand, the CAS can verify the correctness of a solution, even if there are infinitely many correct ones. On the other hand, it is able to locate errors precisely and to compare a student’s solution with a standard solution. This enables authors to provide granular feedback, evaluative feedback as well as descriptive feedback. Section IV explains in a more detailed way how external systems can be used to provide feedback.
Let us consider an example exercise to illustrate how the system is able to give feedback. In the first step of the exercise the student has to compute the cumulative distribution function
for a random variable given by its density functionwhere and are randomly generated integers. The right way to solve this exercise is to compute the integral

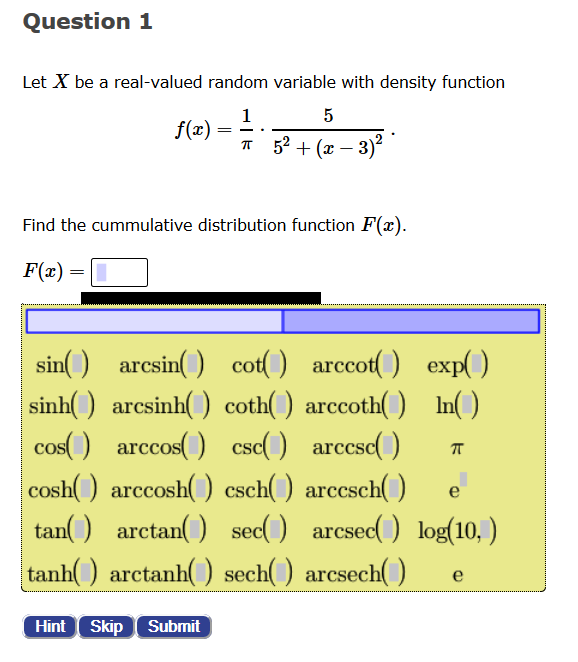

As we can see in figure 1, the student submits his solution with the help of a formula editor, which provides many trigonometric and hyperbolic functions, which allows him to enter the
function into the input text field. In case the submitted solution is correct, the system tells the student so and takes him to step 2 of the exercise where he has to compute a quantile of the distribution. In addition to that, the author of the exercise has created a series of feedback messages for incorrect solutions. In that case, the student can use the feedback to improve his submission and redo the step. The feedback messages are the following:

The system checks, whether the submitted solution depends on the required variable . If this is not the case, a feedback message is given, telling the student to use .

The system checks, whether the arctangentfunction was used and provides a feedback message otherwise.

Most students probably compute the integral by substituting
or similar. It can then happen that they forget the factor when replacing by . This would lead to the solution . So in case this solution is submitted the system will provide a feedback message telling the student to recheck his substitution.
If 1., 2. and 3. are not fulfilled the system checks whether the correct integration constant was used and provides a new step in case it is unequal to . The system recapitulates how the integration constant is determined and lets the student recompute it.

In case the arctangentfunction was used and the integration constant is correct, the system checks if the argument of the arctangentfunction is equal to . A feedback message is given otherwise.

When the checks mentioned in 1.5. fail a default message is displayed, telling the student that his solution is wrong.
A student who is not able to solve step 1 of the exercise can ask for a hint by clicking the button provided for this purpose. Authors can add multiple hints to a step which are shown separately, each time the student clicks the button. For step 1 of this exercise the author has supplied three different hints. The first hint is very basic and recapitulates how to determine the cumulative distribution function from the density function. The second hint reminds the student how he can find the integration constant and the third hint tells him that is an antiderivative for . In none of these hints help the student to find the correct answer, he can use the skip button to move forward to step 2 of the exercise. The system reveals the solution and tells the student how to find it.
Iiia Further Examples
We will now present some examples from the lectures we used the system in to illustrate the steps that were necessary to convert them from paperbased exercises into digital ones.

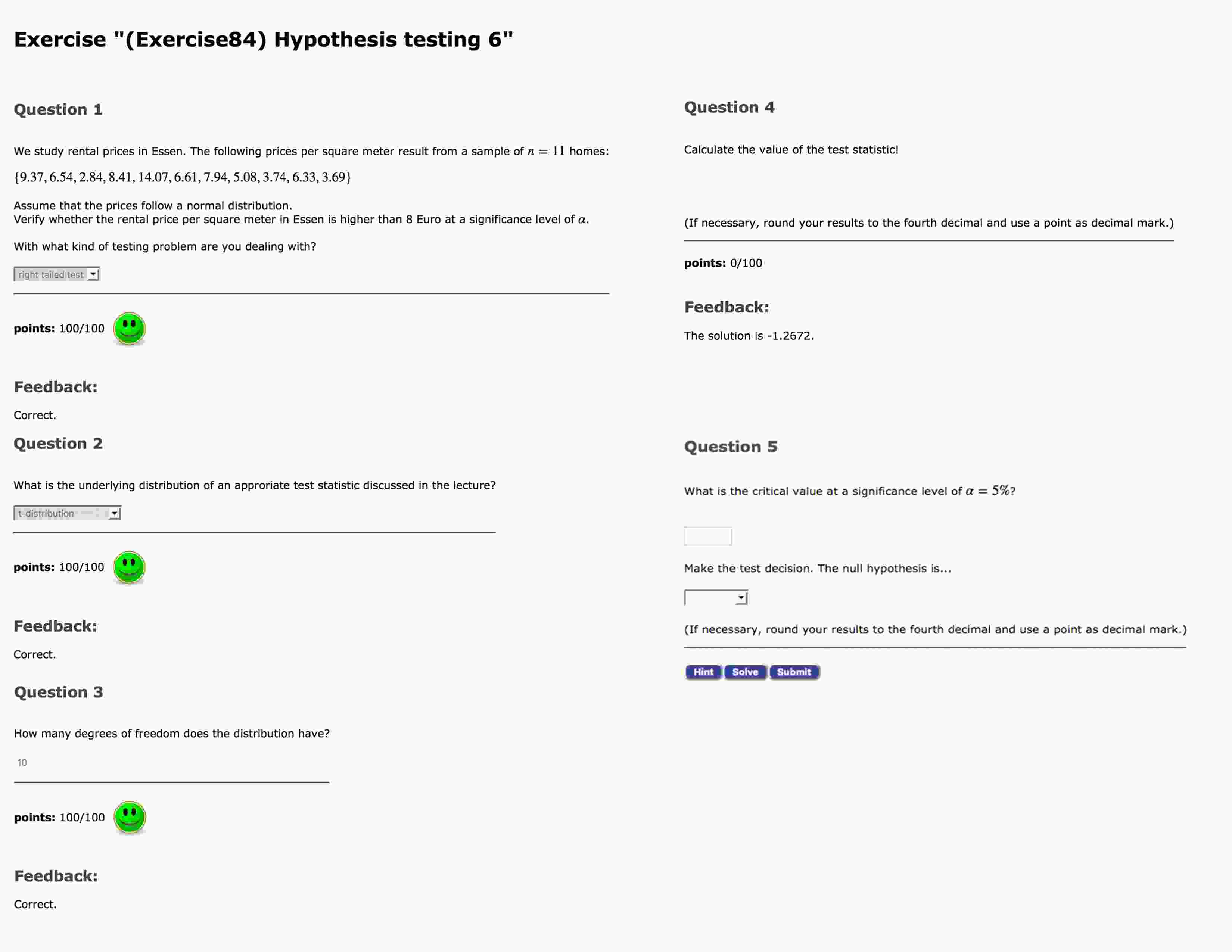

The example in Figure 2 introduces a more complex exercise type, dealing with hypothesis testing. In a paper based test, exercises like this one would require a longer answer including several arguments and results from calculations. Hence it is not feasible to ask just for a single final result in an electronic version of this exercise. Instead, we decompose the exercise into five stages in JACK. On a technical level, each stage defines a standalone exercise, containing a task, feedback messages, hints, etc. Of course, these tasks are strongly related to each other by sharing the same context. The decomposition into several stages enables us to provide detailed feedback messages for each single task and to react differently to several possible flaws in each of these stages.
In the first stage we draw a sample of raw data and ask if the question calls for a left, right or two tailed alternative hypothesis in a dropdown menu. Here, we use the possibility to draw more than one number from R at once for the sample.
In case that the exercise is used for summative assessment it is advisable to give partial credit for followup mistakes if only stage 1 is wrong. Depending on the answer in this stage (”‘right tailed”’ is the correct solution”’) the exercise is path dependent. This means even if the first stage is answered incorrectly the user can proceed on this subpath performing e.g. a left tailed test.
We then ask for the distribution of the test statistic, assuming the data to be i.i.d. normal, with some common distributions offered in the dropdown menu (question 2) and for the degrees of freedom of the null distribution (question 3). Stage 3 is only visible if the student selects the Student t distribution in stage 2. If the normal distribution is chosen the user is directed to stage 4 as it now makes no sense to ask for the degree of freedom.
The choice of stages is not restricted to using dropdown menus. Hence we can also proceed differently after stage 3, depending on the value typed into the input field by the student. Notably, experience has shown that students do not always submit numeric solutions. They may, for example, enter a “big O” instead of a zero. Hence, we also have to define a fallback stage in case the submission is not numeric, because otherwise we cannot make any computations with it in the next stage.
In stage 4 and 5 we finally ask for results from calculations, using two strategies to allow minor deviations in the actual numbers: First, we ask for the result in a precision of four decimals and thus allow to omit minor rounding differences. Second, we configure the exercise to allow a corridor of input around the precise correct solution. So if 1.2672 is correct as in stage 4, input in the range from 1.2662 to 1.2682 is accepted as correct. The size of the range can be adjusted individually for each stage.
In the sample session shown in Figure 2, the student skipped stage 4 and thus JACK shows the correct result instead of giving credits or other feedback. Fallback stages as mentioned above are necessary for such cases as well, as we cannot proceed with user input if a stage is skipped.
In summary, this example demonstrates how an exercise that offers a great amount of freedom in its paper based version can be transformed into a digital version offering almost the same amount of freedom for the students. In particular, feedback can be given to flaws in different stages of the exercise and students can continue also with wrong answers or even if they are not able to answer a particular stage at all.

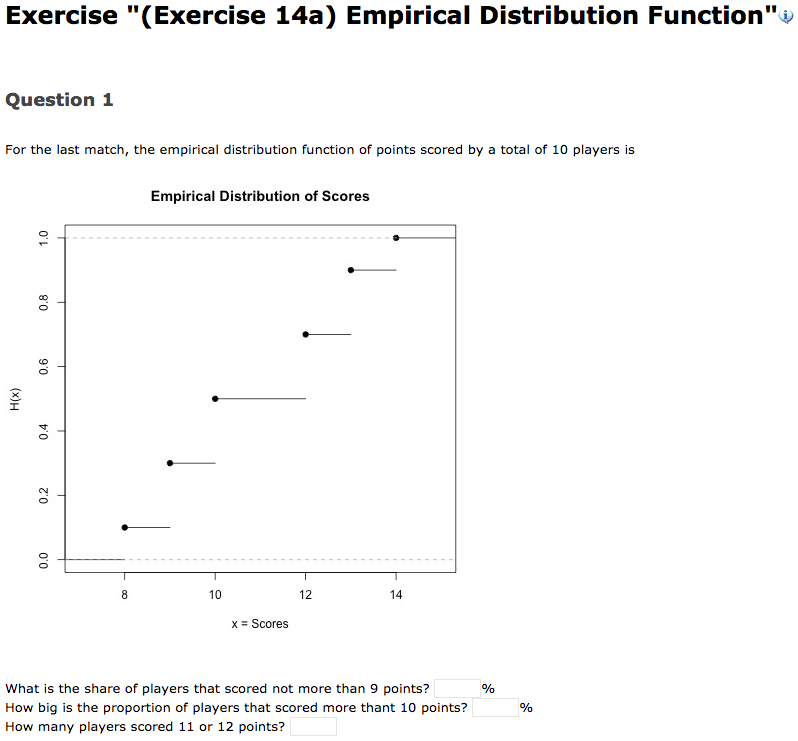

Another example using the graphics capabilities of R is shown in Figure 3. The plot used in the task description is created dynamically by R based on random data following some predefined distribution. The same random data is also used to compute the correct solution. There is not much degree of freedom in the exercise, as it just asks for some simple numbers. Nevertheless the exercise gets more interesting due to digitalization, as we are able to produce virtually hundreds or thousands of different plots. This includes drawing random data several times using the same distribution and parameters as well as drawing random data using different parameters.
Iv Technical Realization
The general framework for generic exercises in JACK as presented already in previous publications needed no specific extensions to be used with sophisticated exercises for higher statistics. However, the general architecture of JACK (as presented in [13]) was not yet completely prepared for the flexible integration and very frequent use of external systems like R. In particular, it is not feasible to simply start a new R process on the server every time exercise content needs to be generated or student input needs to be evaluated. This would first imply a large overhead on system load with respect to starting and stopping processes and second would make it difficult to run more complex commands for feedback generation such as creating plot images based both on exercise parameters and student input.
To avoid these difficulties, the architecture of JACK has been extended as follows: An instance of Rserve^{8}^{8}8https://rforge.net/Rserve/ is deployed alongside JACK on the server which accepts multiple connections at once and is able to process several commands issued over one of the connections one after another. Each connection is associated with a dedicated workspace both in memory and on the disk which keeps a persistent state as long as the connection is not closed. When a student starts to work on an exercise, a new connection to Rserve is opened specifically for this student and this exercise and kept open until the student leaves the exercise. Hence there is less overhead for starting and stopping R processes. Furthermore, results from creating exercise parameter values or processing student input can be stored in the workspace and reused later on in the same exercise when processing further input or creating more parameter values. Once the student leaves the exercise, the connection is closed and all workspace content is deleted. Consequently, the student can start with completely new parameter values when trying the same exercise again.
V Usage Scenarios and Evaluation
Course  #Exercises  #Students  #Submissions

practice  tests  exams
Descriptive statistics  92  22  398  51803
Inducive statistics  133  40  4  153  25949
The University of DuisburgEssen offers two large lectures for statistics that are supported with JACK. These are the courses for descriptive and inductive statistics held by the faculty of economics. Both are attended by up to 700 students per semester. The concept of using CAA is the same in both courses. We use formative and summative assessments during the semester and even offered electronic exams as a voluntary alternative to the normal exam.
The formative assessments are intended to replace the classical paperbased exercises that students often have to do in traditional university courses with mathematical content. Summative assessments during the semester are offered as small tests every other week. Students can gain bonus points for the final exam in each of the tests. These summative assessments shall motivate them to start learning earlier in the semester. The tests are taken from at home, which enables the participants to work on them collaboratively and to use all kinds of resources to help them. Therefore, the bonus points are only added to the results of those students, who have passed the exam. Two electronic exams are offered at the end of the semester and complement two paperbased exams. Students are free to choose which type of exam they prefer. Experiences show that both types of exams are equally accepted by the students.
The different ways of using exercises for different purposes has a direct effect on the exercise design. Exercises created for the formative assessment type need to be provided with detailed hints and feedback messages in order to guarantee a good learning outcome. Stages that are not solved correctly either have to be repeated or the task can be skipped manually.
Exercises used in summative assessments need to fulfill different requirements than those used in formative assessments. Hints and feedback messages are not shown to the students during the test, so it is not necessary to create them. However, repetitions of stages should not be allowed in test exercises, since this behaviour could reveal information about the correctness of the submission. Furthermore, we have to make sure that the exercises are able to deal with consequential errors when students have to use their input from previous stages for calculations in the following ones. This feature needs to be used very carefully, because experiences show that submissions may not be of the expected type which can make it impossible to use them in further stages. For example, doing calculations with user input is impossible if a student just entered “don’t know” instead of a number. To handle these cases, the exercise author can then define a socalled fallback stage that is used in this case.
In addition to the requirements for summative assessments, exercises created for the electronic exams also require a lot of testing and considerations on how to grade them. We have to spend a good amount of time on predicting possible erroneous submissions that are still worth some points.
The teachers of the two lectures and their assistants have to create the exercises themselves, as they are the only ones having the required domain knowledge. We offer small workshops where we teach them how to deal with the system. Experiences show that they can start creating exercises themselves very quickly. Consequently, a large exercise pool has been created for both lectures even though creating a well tested complex exercise can take up to 8 hours of time. Table I gives a brief summary of the created exercises for the different assessment types and their usage numbers. Especially shortly before the summative assessments we can observe a lot of traffic on the system which shows that students take the opportunity to practice. As most of the exercises for the formative assessments are parameterized, students tend to do them more than once. Furthermore the participation numbers in the electronic exams are equal to the paperbased exams. As students are free to choose which exam they would like to take this shows the acceptance of the sytem among them. The data we received shows that those students who worked the most during the semester appear to have the best performances in the exams. Therefore, we intend to use the learning behaviour as a predictor for the outcome in the exam. However, a detailed analysis is subject to further research. Nevertheless, all together we can conclude that our approach is heading into the right direction.
Vi Conclusions and Future Work
In this paper we introduced a flexible exercise type that allows the digitalisation of complex exercises used in academic teaching. We worked out and implemented the requirements that have to be fulfilled in order to be able to do this properly and without loss of quality. To illustrate how the concept can work in practice we used the example of statistics. In particular, we connected our system to the domain specific software R and created a large number of exercises. Most of these exercises are parameterized, which we consider another huge benefit of using CAA. The fact that the exercises we created are used within courses for statistics at our university shows that our concept is feasible. However, the presented approach can be applied to any other domain using complex exercise designs. The architecture of our system allows us to easily connect it to other expert systems, comparable to R. We have seen how such a system can be used to evaluate submissions.
In the domain of statistics we see further challenges that need to be overcome. The mentioned courses also teach students how to use R to perform complex computations. A new exercise type that we are working on will be able to grade these small R programs automatically and to offer detailled feedback messages. We will integrate this new exercise type into our concept of supporting the courses with CAA.
With respect to the technical realization, there is only one further action planned so far: The RServe instance should be moved to a separate server, so that it can be used from different JACK frontend or backend instances at the same time. While this would require a more sophisticated load balancing concept on this dedicated server to avoid overloading it with requests, this would make it much easier to make new R features available for all JACK instances at the same time. Load balancing could happen by using Docker^{9}^{9}9https://www.docker.com/ to spawn several instances of Rserve if necessary.
